LED Driver Adapter Transformer 20W 100V-265V AC to 20-38V DC 300mA Switch Power Supply IP65 For Floodlight CE Rohs
Features:
Switch power supply, converts 100-265V AC to 20-38V DC.
Certificates of CE and RoHs, professional and reliable.
Steady, high efficiency and precise output voltage.
Widely used as the power adapter for LED Chip, LED Strip, LED display,
billboard, industrial equipment, etc.
Specifications:
Item type: LED driver for floodlight
Power: 10W 20W 30W 50W
Input voltage: 100-265V AC
Output voltage: 20-38V DC
Frequency: 50-60Hz
Working temperature: -40 degree ~+70 degree
Storage temperature: -40 degree ~+70 degree
IP rating: IP65
Life span: 30,000hr
Certificate: CE, RoHs
Body color: Silver
Material: Aluminum case
LED Chip | |||||||
Watt | Leds | Voltage | Lumen | Chip Size(MIL) | Electric Current | LED Arrany | Color Temperature |
10w | 18 pcs | 30v-32v | 1000-1200lm | 10*21 | 280-300mA | 10 Series 2 Parallel | Warm White 2800-3500K |
20w | 40 pcs | 30v-32v | 2000-2400lm | 10*21 | 560-600mA | 10 Series 4 Parallel | Warm White 2800-3500K |
30w | 60 pcs | 30v-32v | 3000-3600lm | 10*21 | 840-900mA | 10 Series 6 Parallel | Warm White 2800-3500K |
50w | 100 pcs | 30v-32v | 5000-6000lm | 10*21 | 1400-1500mA | 10 Series 10 Parallel | Warm White 2800-3500K |
LED Driver | |||||
Power | Input Voltage | Output Voltage | Size | Output Current | Waterproof Rating |

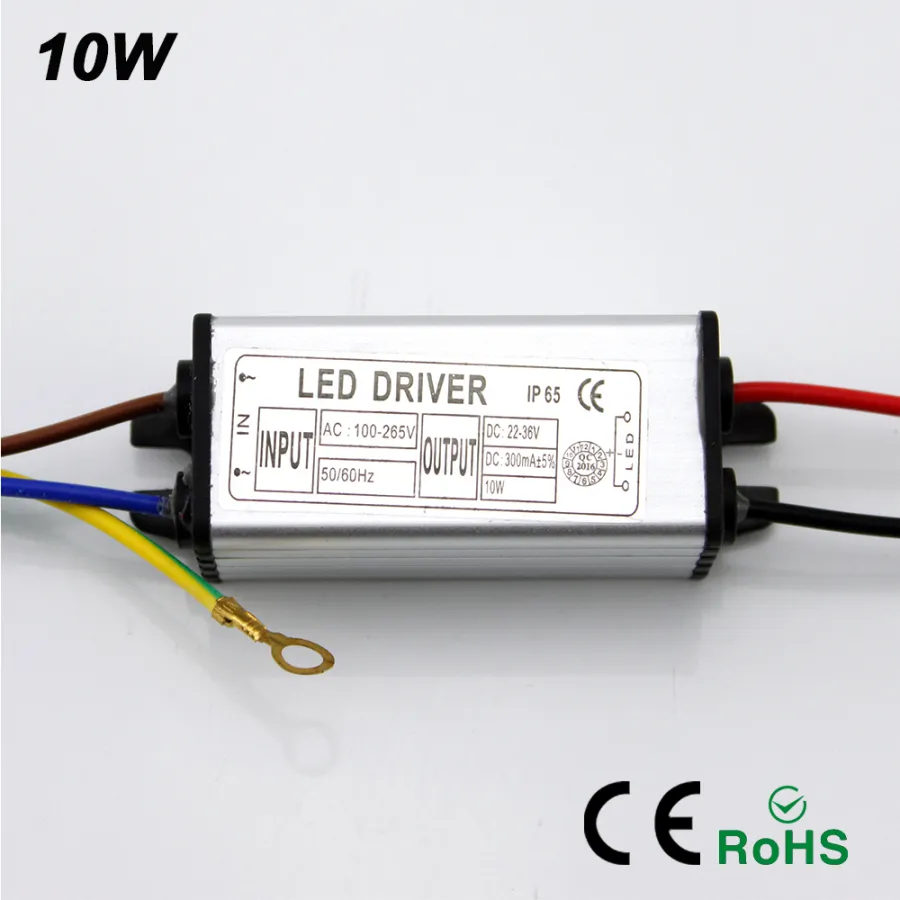

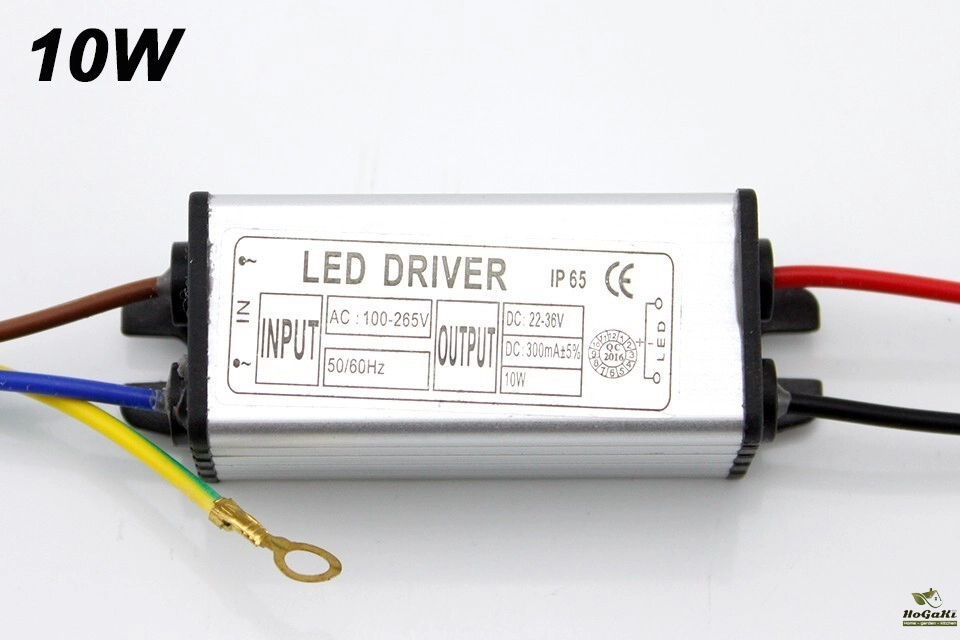

10w | AC:100-265V | DC:22-36V | 25mm*54mm | 300mA±5% | IP67 |

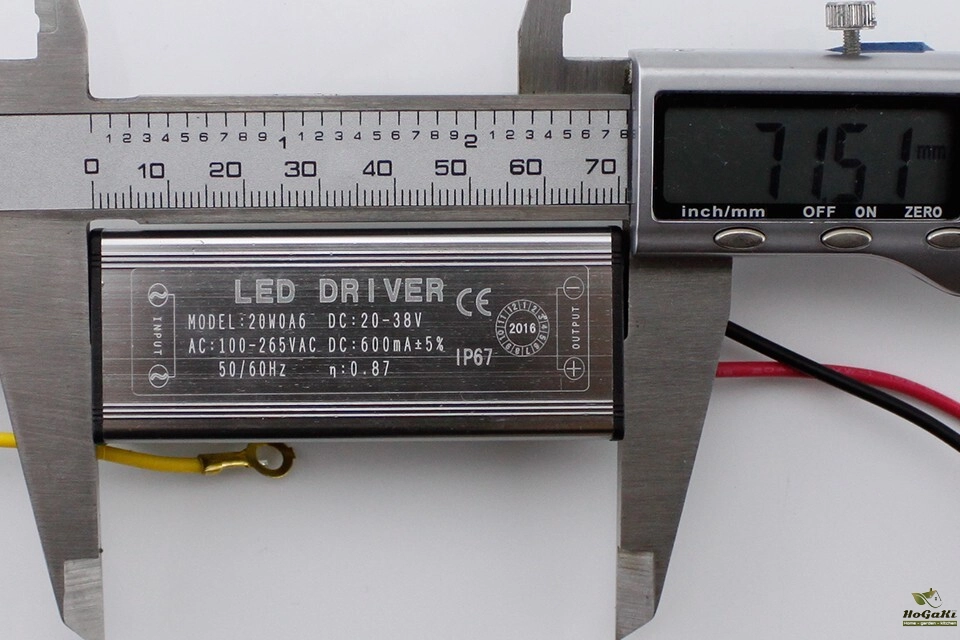

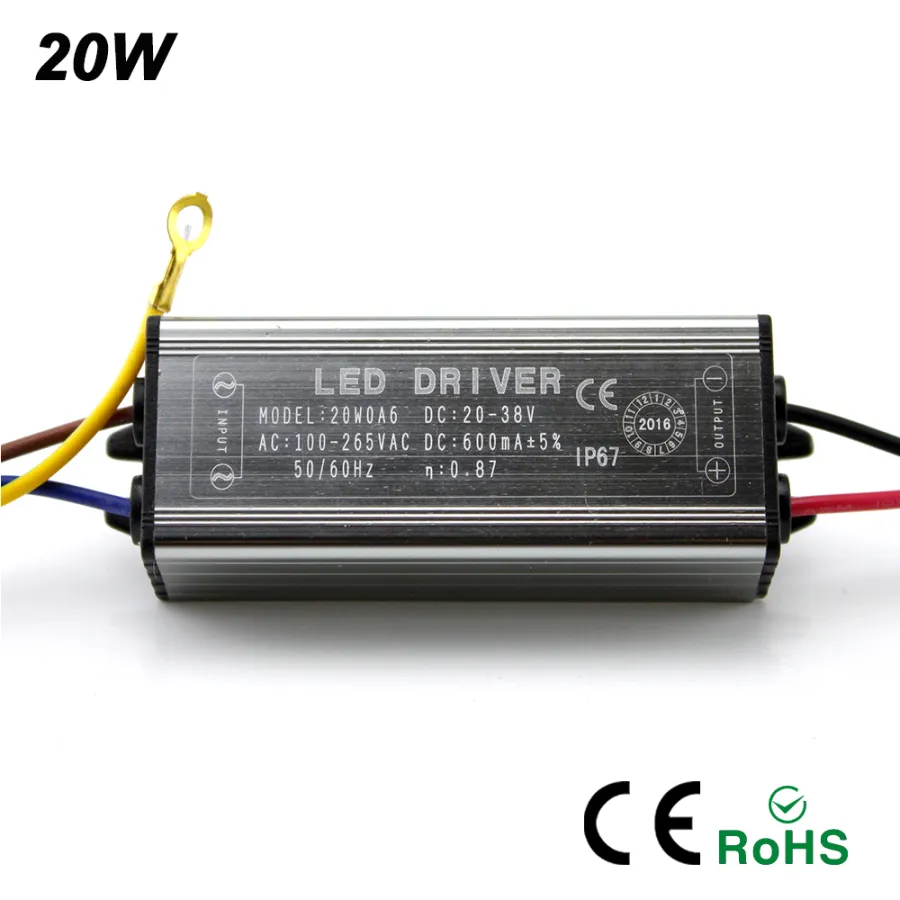

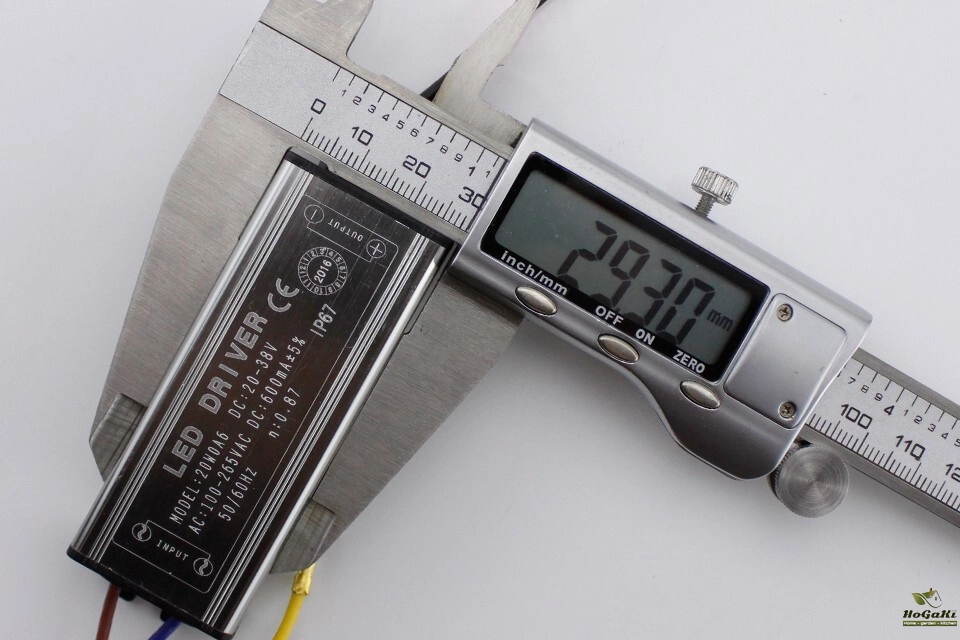

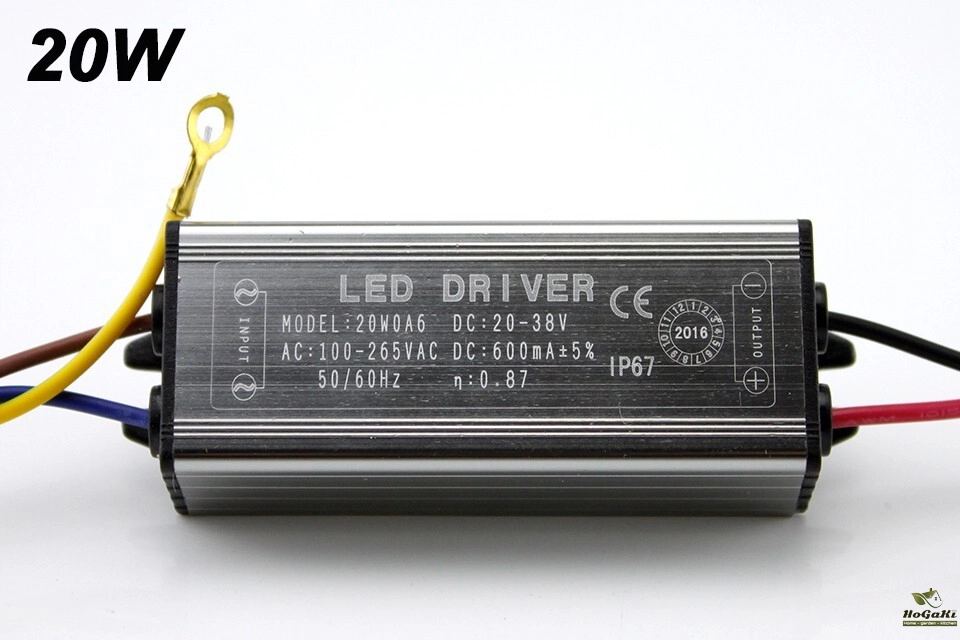

20w | AC:100-265V | DC:20-38V | 30mm*72mm | 600mA±5% | IP67 |

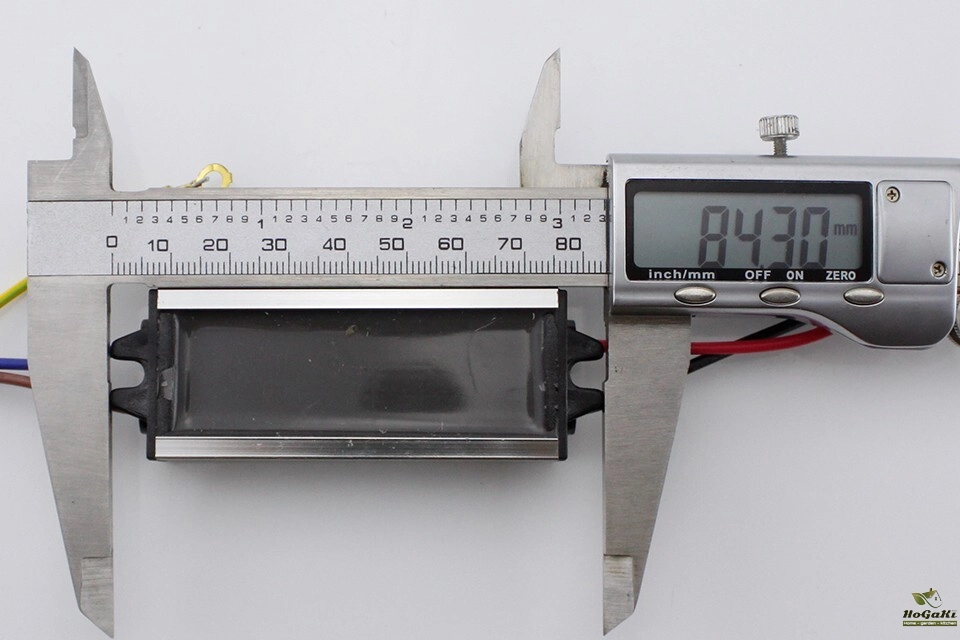

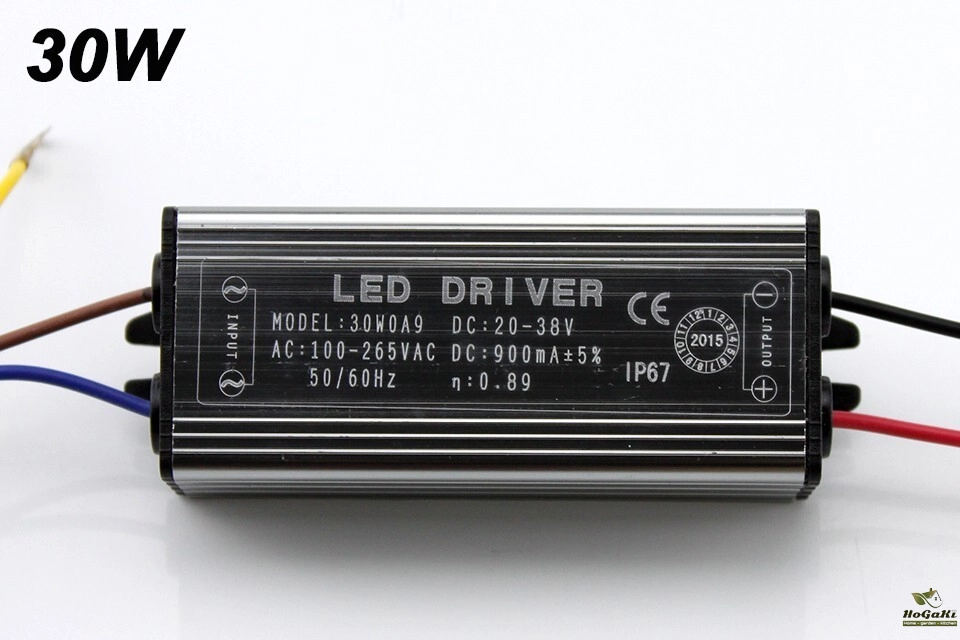

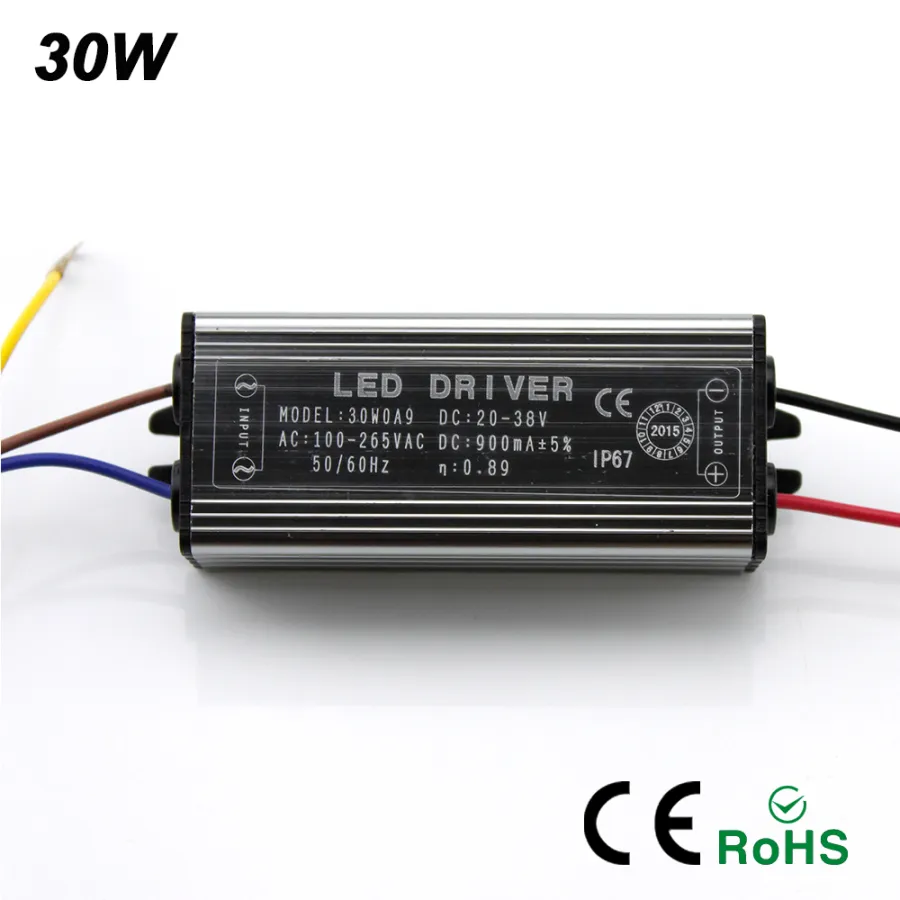

30w | AC:100-265V | DC:20-38V | 36mm*85mm | 900mA±5% | IP67 |

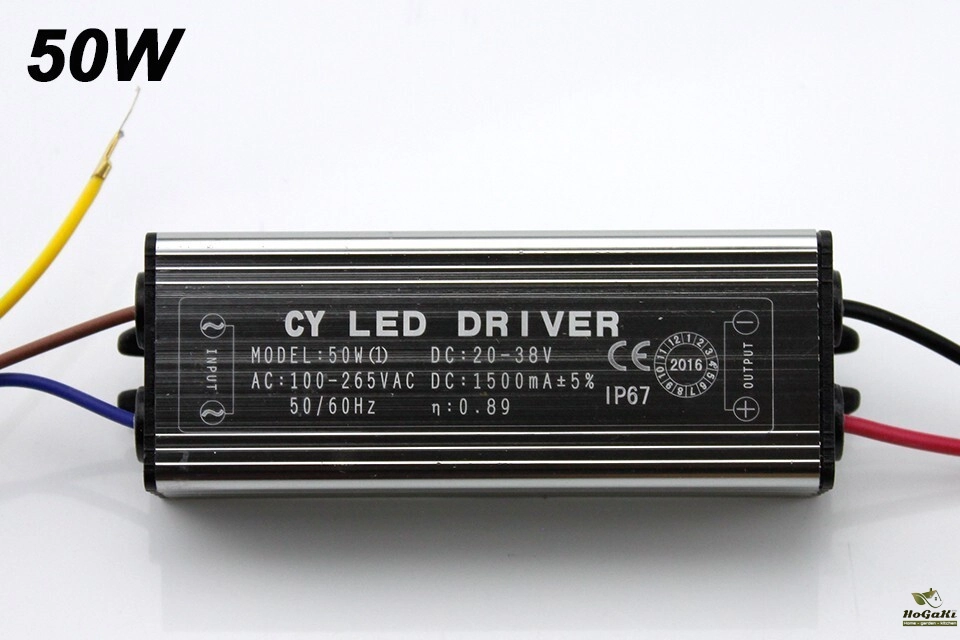

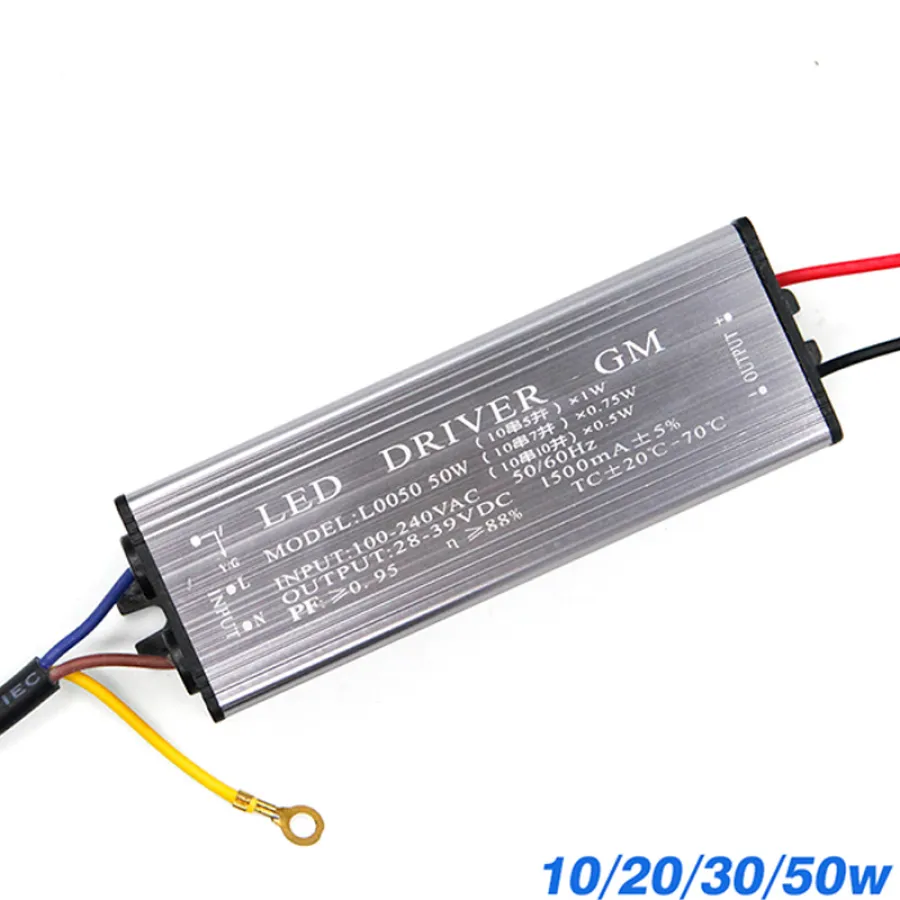

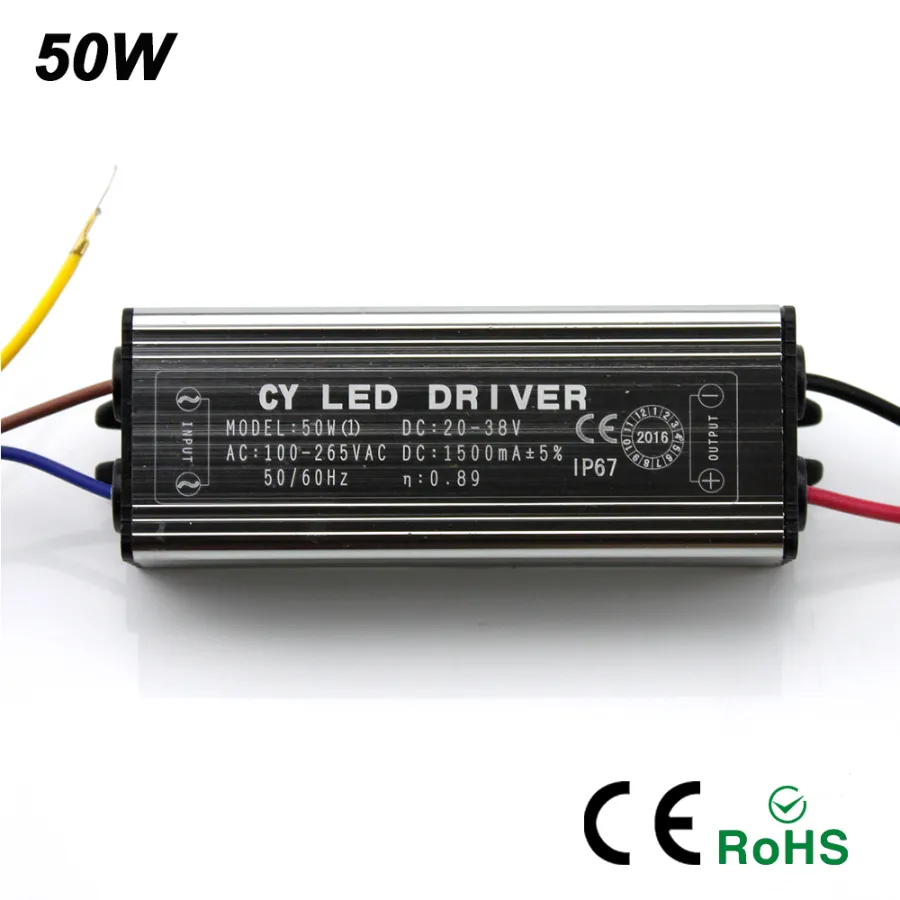

50w | AC:100-265V | DC:20-38V | 36mm*95mm | 1500mA±5% | IP67 |
Packaging Details
- Unit Type: piece
- Package Weight: 0.095
- Package Size: 5x5x10
- Brand Name: YNL
- Hign-concerned Chemical: None
- Origin: Mainland China
- Output Signal: DC
- Output Voltage: DC 20-38v
- Material: Aluminum
- Plug Type: None
- Certification: ce
- Certification: ROHS
- Certification: CCC
- Features: Supply Adapter
- Input Signal: AC
- Input Voltage: AC 100-265v
- Item Type: Lighting Transformers
- Warranty: 1 years
- Weight: 0.095
- Model Number: LED Driver AC/DC Adapter Transformer
- Model type: Led Floodlight Driver
- Watt: 10w 20w 30w 50w
- Product: LED Driver
- Code: Power Adapter
- Type: Lighting Transformers
- Features: IP67 Waterproof
- Frequency: 50-60Hz
- Name: YNL
