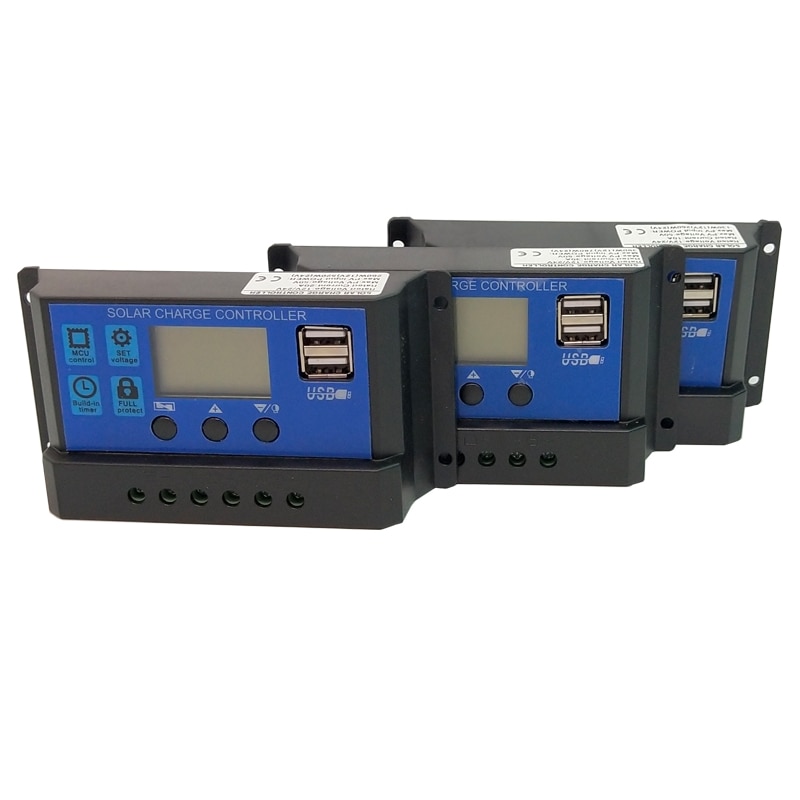

60A 50A 40A 30A 20A 10A 12V 24V Auto PWM Solar Charge Controller With LCD Dual USB 5V Output Solar Cell Panel Regulator PV Home
313.82 231.82 $
SALE
ID: 27426
Quantity
60A 50A 40A 30A 20A 10A 12V 24V Auto PWM Solar Charge Controller With LCD Dual USB 5V Output Solar Cell Panel Regulator PV Home
5.0 (4 votes) | 62 orders
Price:
US $313.82 - 392.38
/ piece
Discount Price:
US $
231.82 -
281.88
/ piece
-26%
Contact us directly for wholesale price.

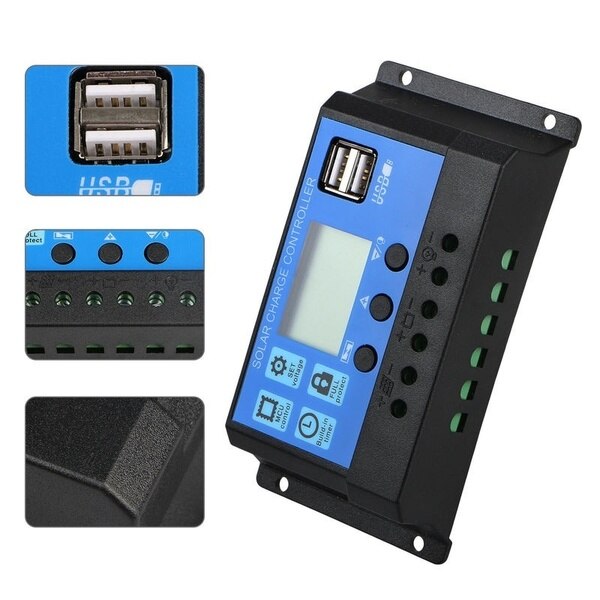

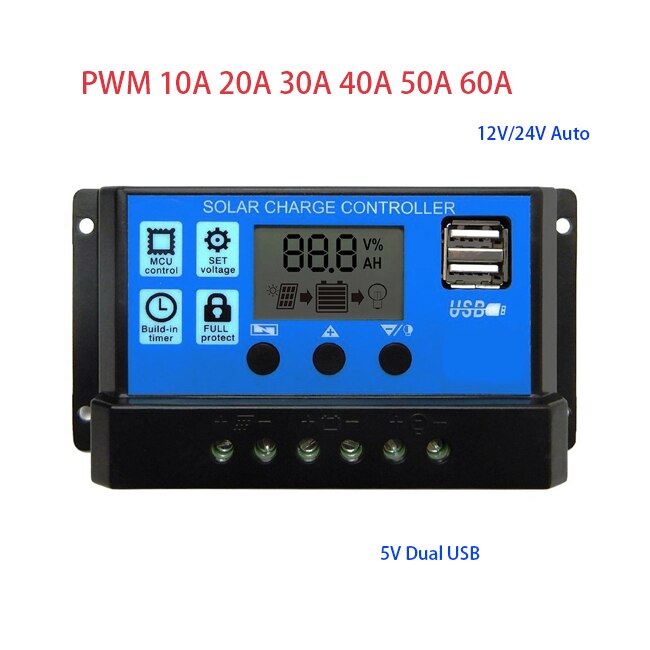

12V 24V Auto 10A 20A 30A 40A 50A 60A PWM Solar Charge Controller Solar Battery Charger Solar PV Regulators with LCD Display and 5V USB
This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

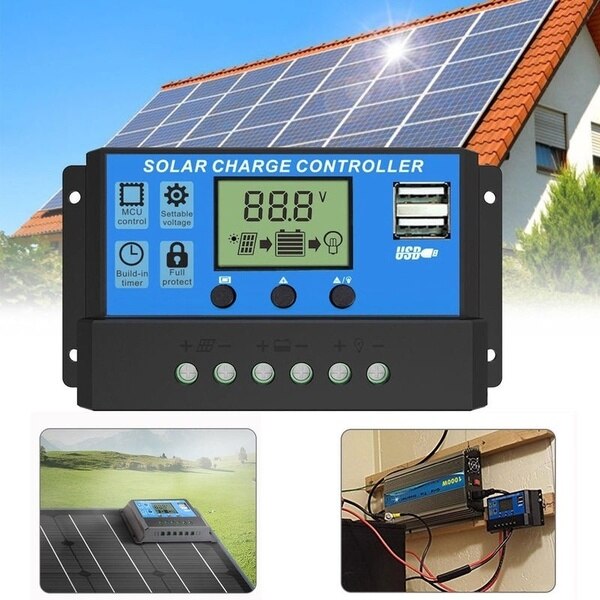

This is NEW Solar Controller, it can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recongize 12V and 24V Lead acid,Gel battery automatically
There are optional 10A 20A 30A 40A 50A 60A model:
10A:
if your battery is 12V ,the max solar panel input is 25V 120W
if your battery is 24V ,the max solar panel input is 50V 240W
20A:
If your battery is 12V, the max solar panel input is 25V 240W
if your battery is 24V, the max solar panel input is 50V 480W
30A
if your battery is 12V ,the max solar panel input is 25V 360W
if your battery is 24V ,the max solar panel input is 50V 720W
40A:
if your battery is 12V ,the max solar panel input is 25V 520W
if your battery is 24V ,the max solar panel input is 50V 1040W
50A:
If your battery is 12V, the max solar panel input is 25V 650W
if your battery is 24V, the max solar panel input is 50V 1300W
60A
if your battery is 12V ,the max solar panel input is 25V 780W
if your battery is 24V ,the max solar panel input is 50V 1560W
PRODUCT FEATURES
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet reverse current protection,low heat production.

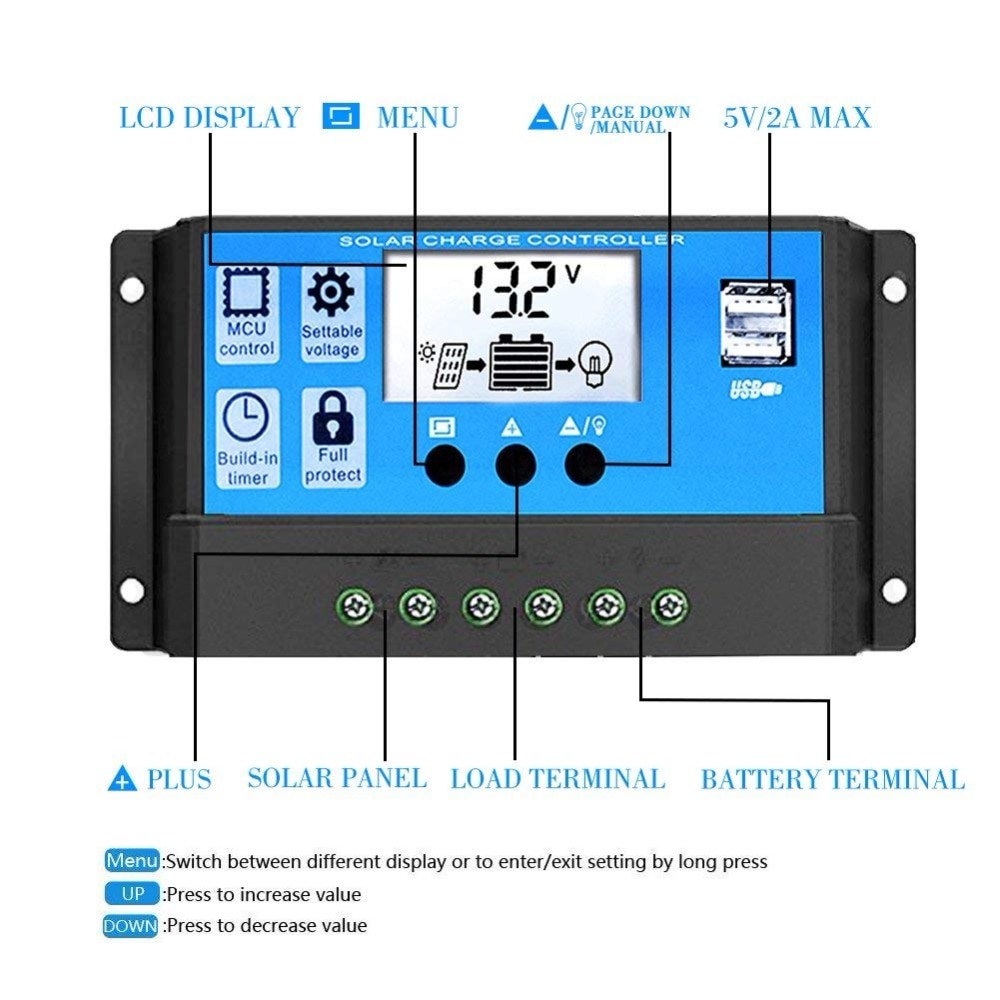

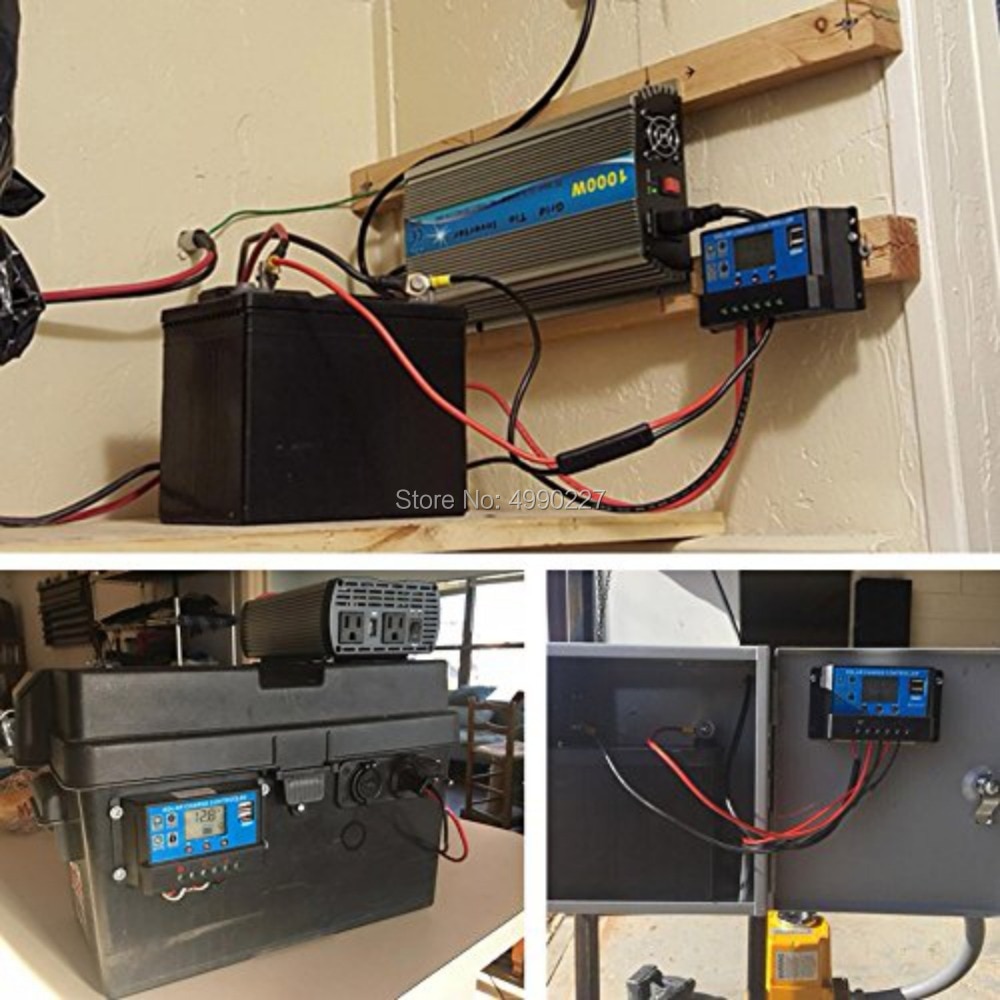

SYSTEM CONNECTION
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
SPECIFICATON:
MODEL | 10A | 20A | 30A | 40A | 50A | 60A |
Battery Voltage | 12V 24V Auto | |||||
Charging Current | 10A | 20A | 30A | 40A | 50A | 60A |
Discharging Current | 10A | 10A | 10A | 20A | 30A | 30A |
Max Solar input | 48V(for 24V battery) 24V(for 12V battery) | |||||
Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | |||||
Float charge | 13.7V(defaul,adjustable) | |||||
Discharge stop | 10.7V(defaul,adjustable) | |||||
Discharge reconnect | 12.6V(defaul,adjustable) | |||||
Charge reconnect | 13V | |||||
Voltage of open light | Solar Panel 8V(Light lights delay) | |||||
Voltage of close light | Solar Panel 8V(Light off delay) | |||||

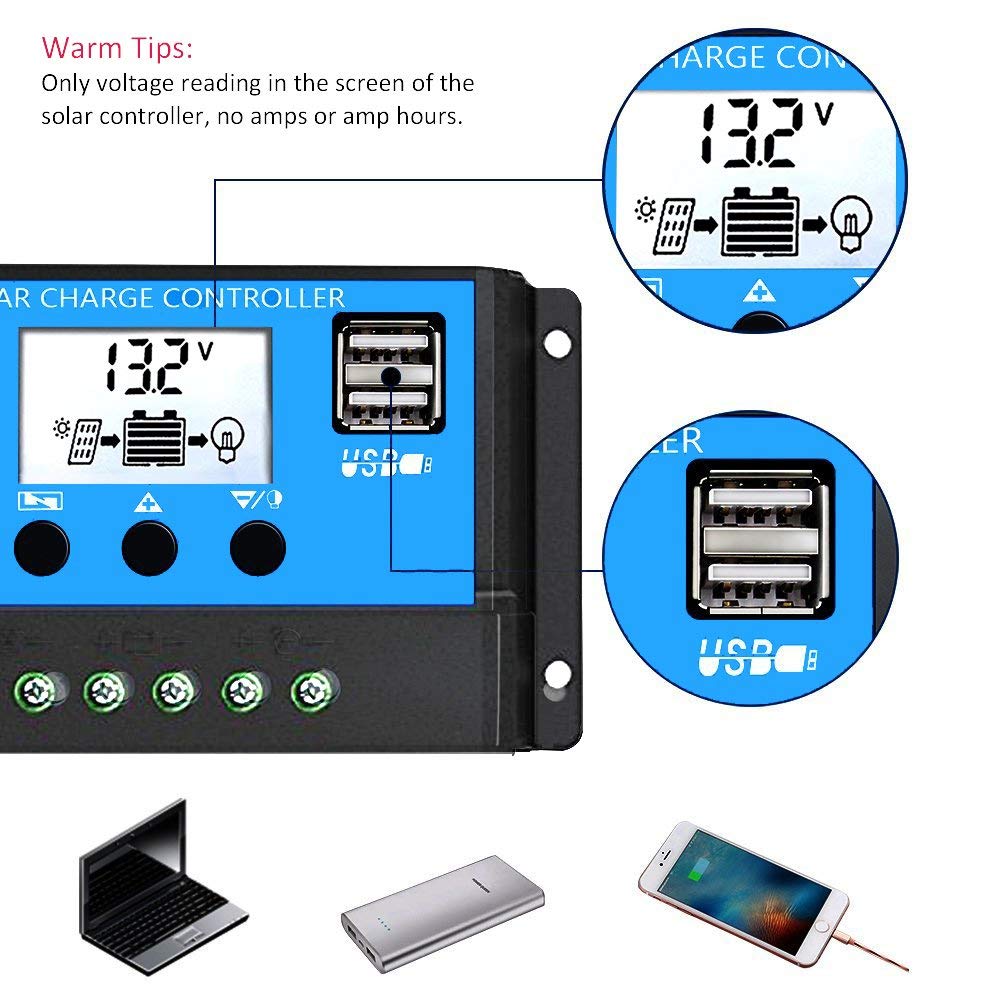

USB output | 5V/3A | |||||
Self-consume | <10mA | |||||
Operating temperature | -35°C~+60°C | |||||
Size | 133.5*70*35mm | 188*90*47mm | ||||
*all red color voltage X2 ,while using 24V system.
10A 20A 30A
SPECIFICATON:
MODEL | 10A | 20A | 30A | 40A | 50A | 60A |
Battery Voltage | 12V 24V Auto | |||||
Charging Current | 10A | 20A | 30A | 40A | 50A | 60A |
Discharging Current | 10A | 10A | 10A | 20A | 30A | 30A |
Max Solar input | 48V(for 24V battery) 24V(for 12V battery) | |||||
Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | |||||
Float charge | 13.7V(defaul,adjustable) | |||||
Discharge stop | 10.7V(defaul,adjustable) | |||||
Discharge reconnect | 12.6V(defaul,adjustable) | |||||
Charge reconnect | 13V | |||||
Voltage of open light | Solar Panel 8V(Light lights delay) | |||||
Voltage of close light | Solar Panel 8V(Light off delay) | |||||
USB output | 5V/3A | |||||
Self-consume | <10mA | |||||
Operating temperature | -35°C~+60°C | |||||
Size | 133.5*70*35mm | 188*90*47mm | ||||
*all red color voltage X2 ,while using 24V system.

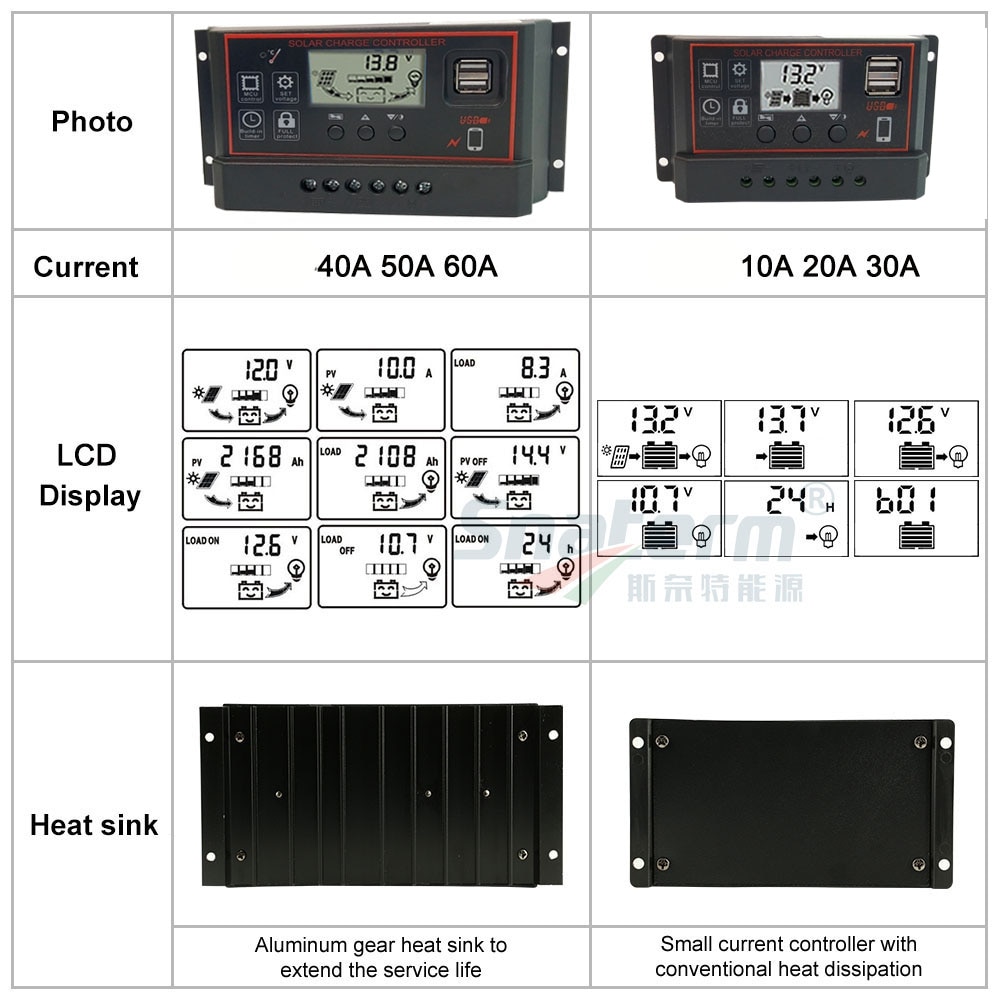

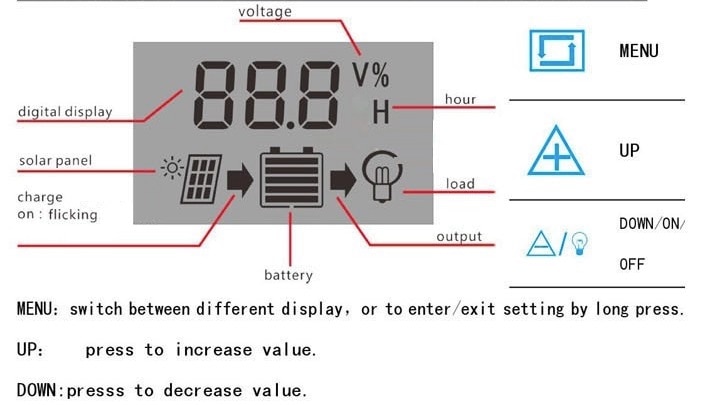

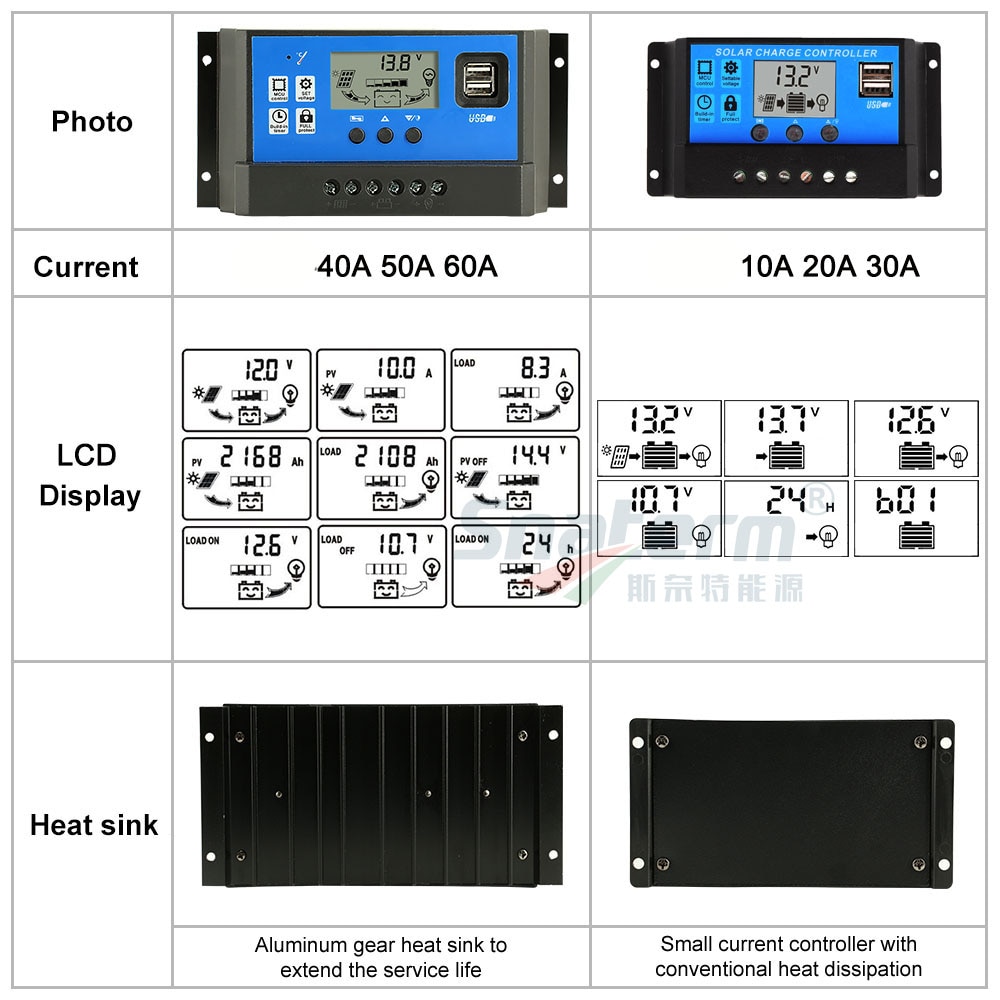

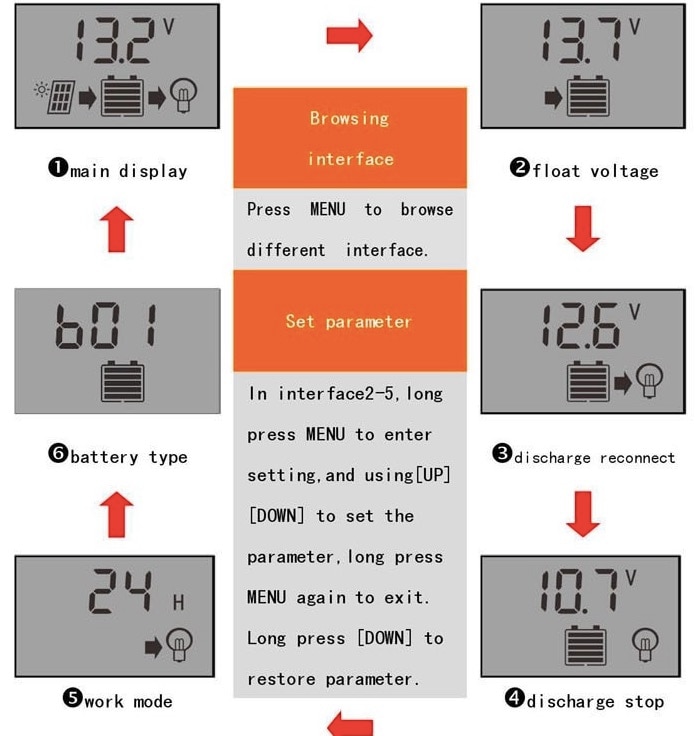

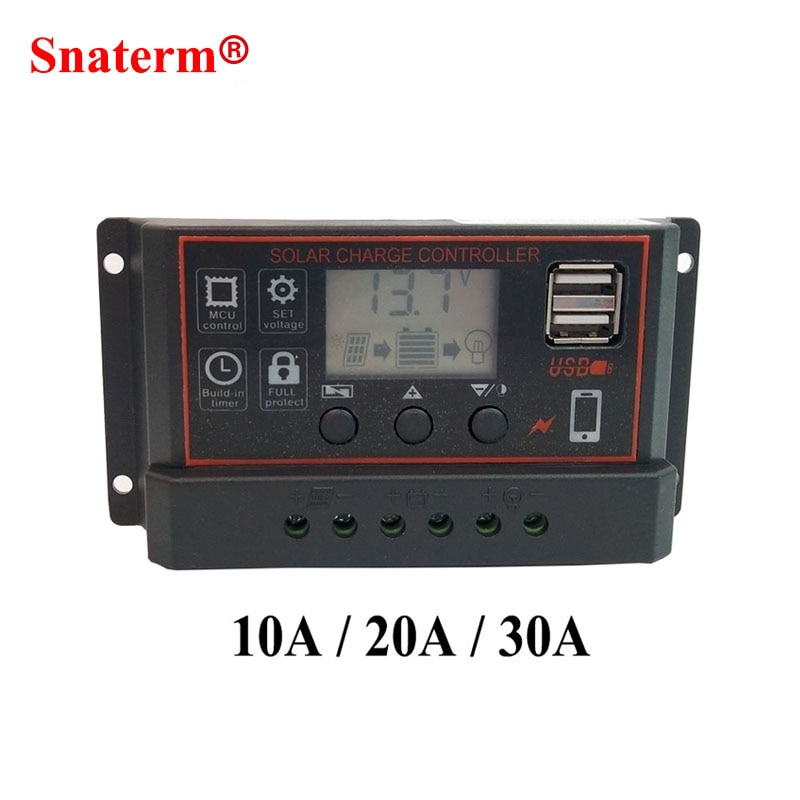

10a/20a/30a LCD Display:
1.press the [Down] button to ON/OFF load manully at main display.
2.the work mode is working as below:
[24H] load output 24hours
[1-23H] load on after sunset and closed after setting hours
[0H] Dusk to dawn
- is_customized: Yes
- Maximum Current: 10A 20A 30A 40A 50A 60A
- Model Number: PWM
- Application: Charger Controller
- Origin: Mainland China
- Certification: CE
- Rated Voltage:: 12V/24V Auto Switch
- USB output:: 5V/3A

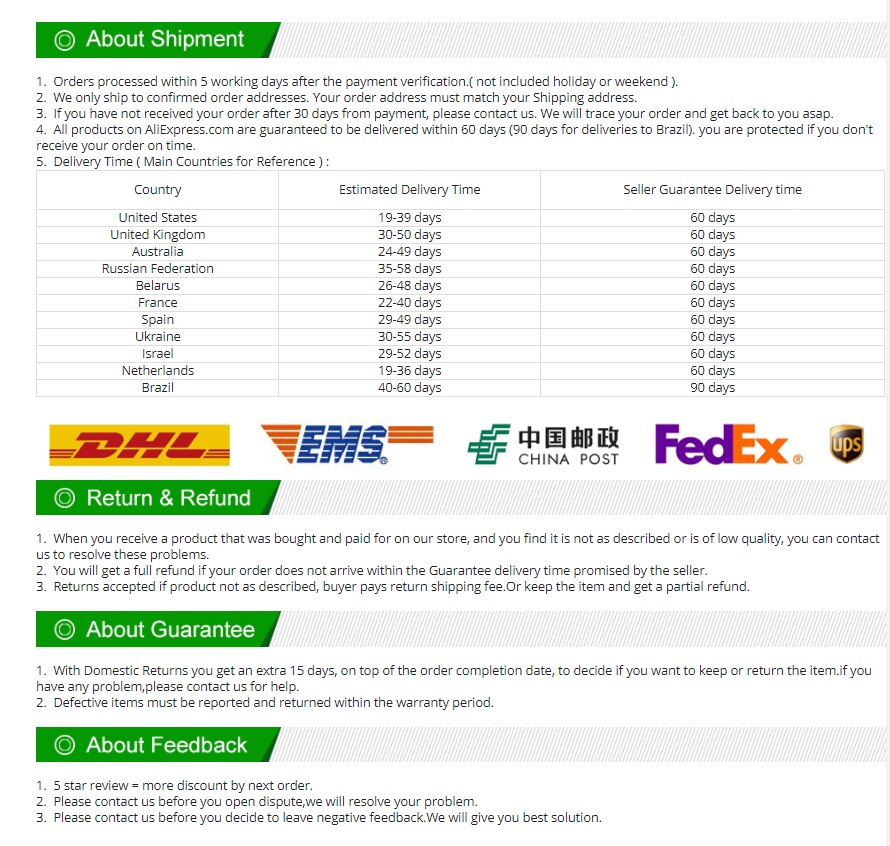

SHIPPING AND DELIVERY
