60A 50A 40A 30A 20A 10A 12V 24V Auto PWM Solar Charge Controller With LCD Dual USB 5V Output Solar Cell Panel Regulator PV Home
313.82 231.82 $
ID: 57195
Quantity
EPever PWM 10A/20A/30A/45A/60A Solar Charge Controller VS-AU Series Backlight LCD Dual USB PV Charger Regulator for Solar Home
5.0 (21 votes) | 124 orders
Price:
US $
58.77 -
111.48
/ piece
- Rated Voltage

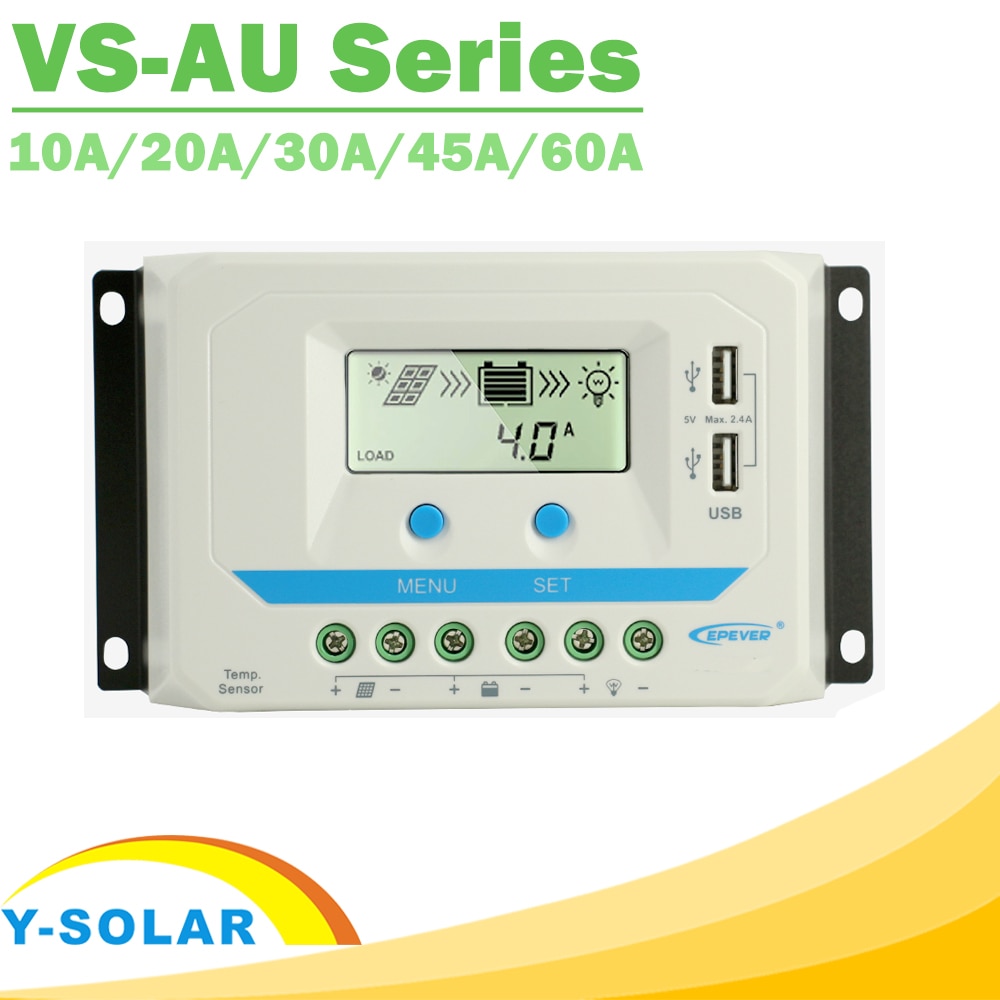

EPever PWM 10A/20A/30A/45A/60A Solar Charge Controller VS-AU Series Backlight LCD Dual USB PV Charger Regulator for Solar Home

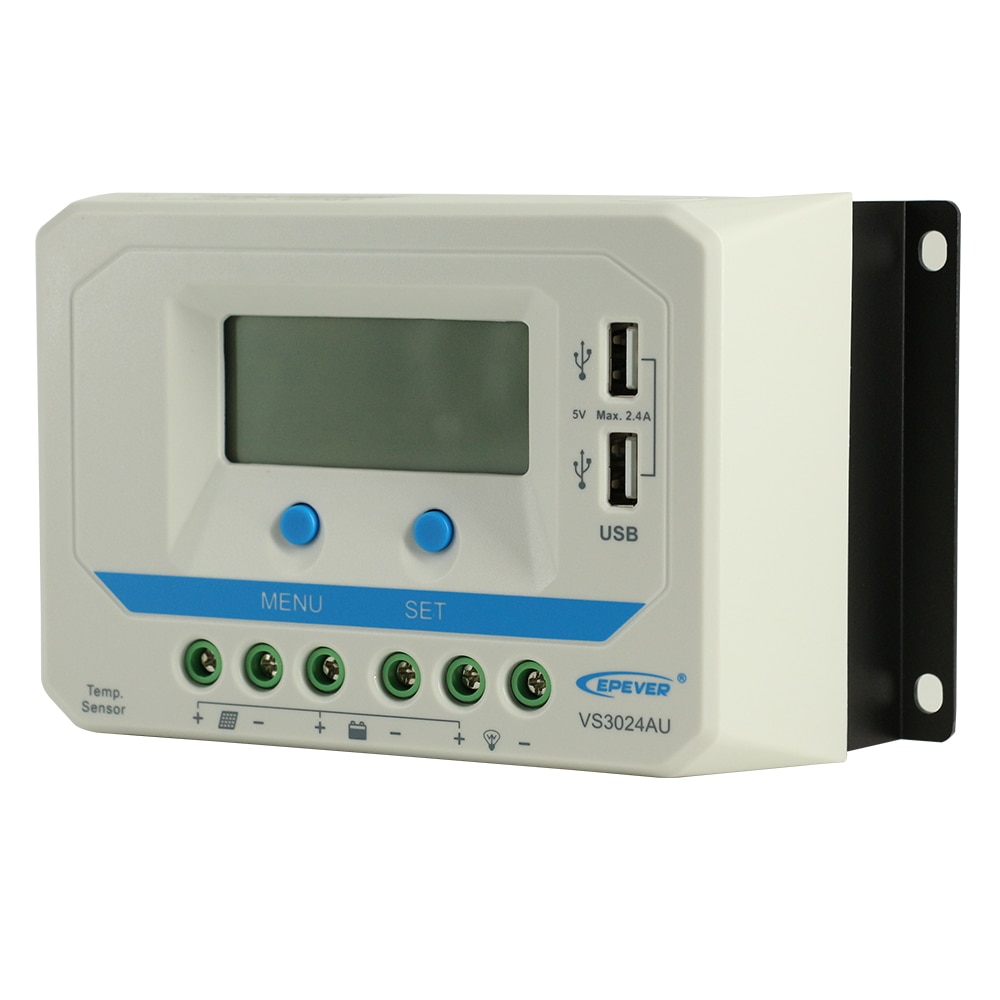

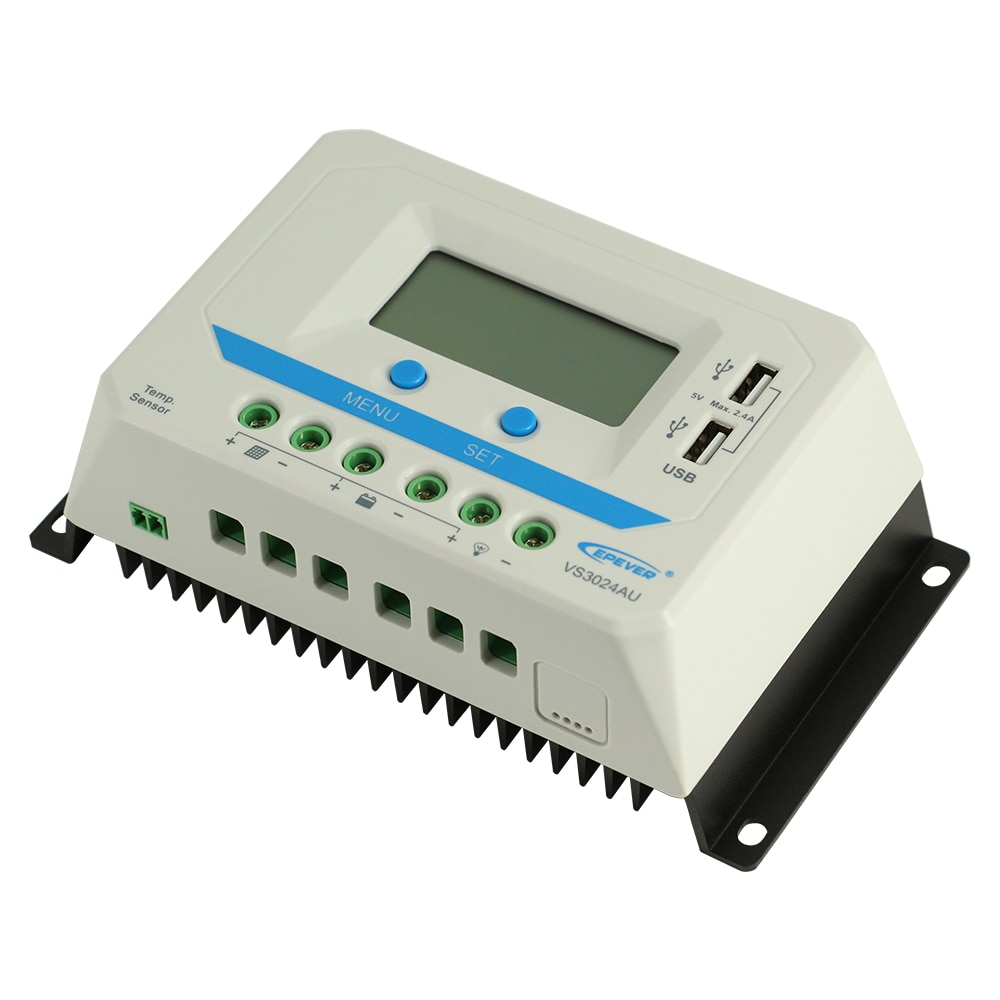

The VS-AU controller is a common positive PWM charge controller with built in LCD display and USB port.The multiple load control modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc.
Adopt high quality components of ST,IR and Infineon, make sure product using lifespan
Terminals have UL and VDE certification, the product is more safer and more reliable
Controller can work continuously at full load within the environment temperature range from -25°C to 55 °C
3-Stage intelligent PWM charging：Bulk, Boost/Equalize, Float
Support 3 charging options: Sealed, Gel, and Flooded

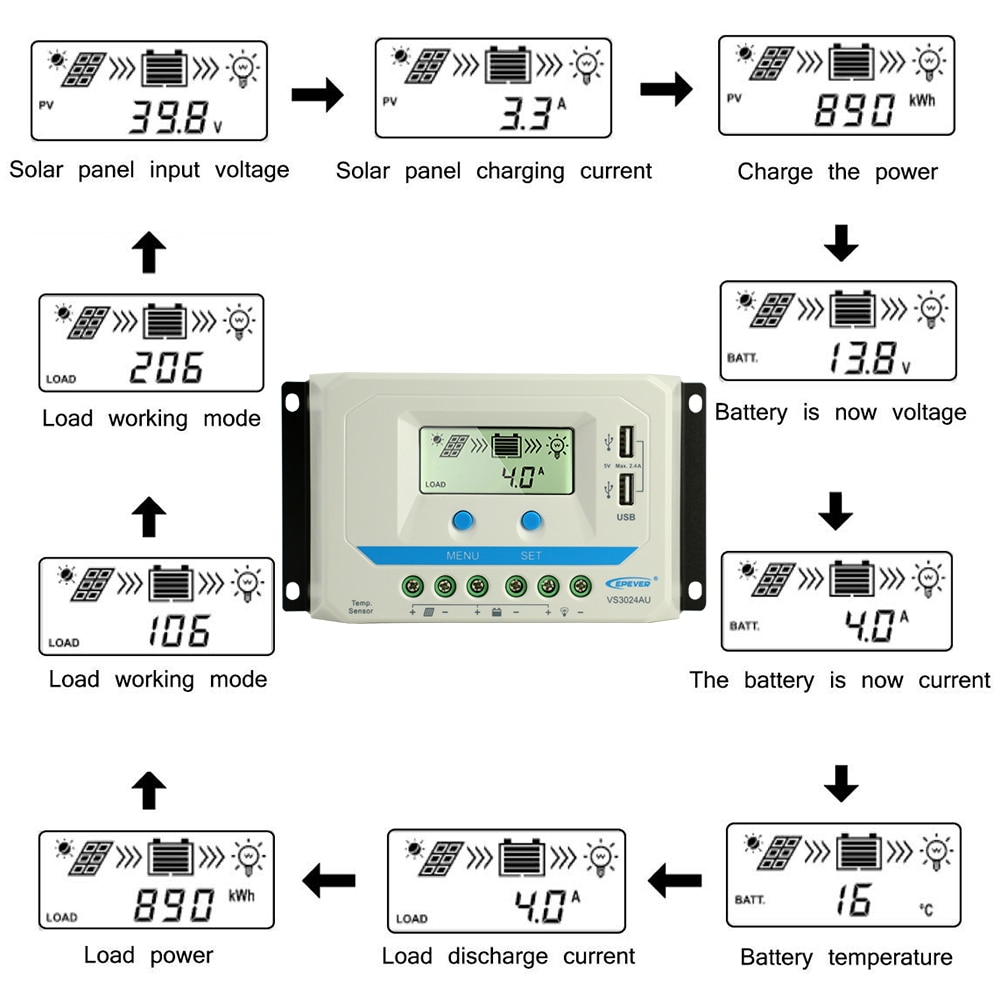

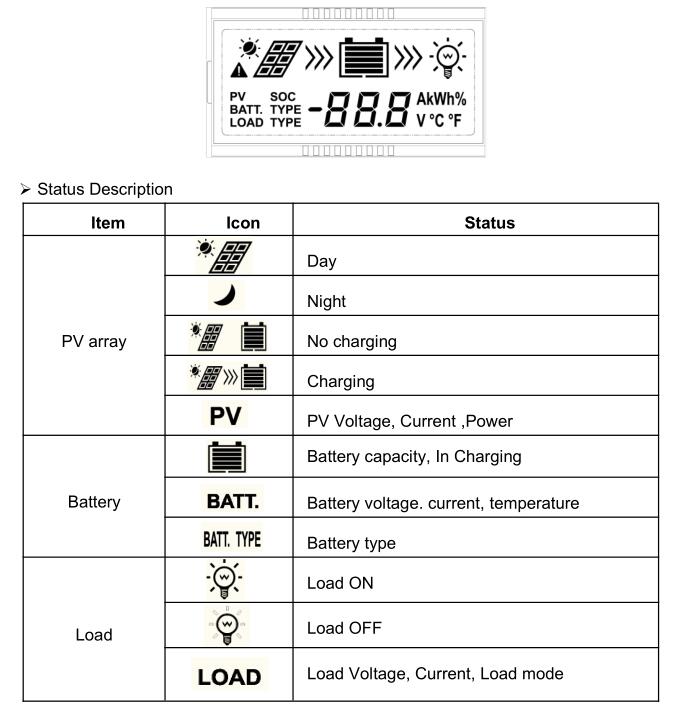

LCD display design, dynamically displaying device’s operating data and working condition
Double USB design, the power supply charge for electronic equipment
With humanized button settings, operation will be more comfortable and convenient
Multiple load control modes
Energy statistics function
Battery temperature compensation function
Extensive Electronic protection
Item | VS1024AU | VS2024AU | VS3024AU | VS4524AU | VS6024AU |
Nominal system voltage | 12/24VDC Auto | ||||
Battery input voltage range | 9V~32V | ||||
Rated charge/discharge current | 10A | 20A | 30A | 45A | 60A |
Max. PV open circuit voltage | 50V | ||||
Battery type | Sealed(Default) / Gel / Flooded | ||||
Equalize Charging Voltage | Sealed:14.6V/ Gel: No/ Flooded:14.8V | ||||
Boost Charging Voltage | Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V | ||||
Float Charging Voltage | Sealed/Gel/Flooded:13.8V | ||||
Low Voltage Reconnect Voltage | Sealed/Gel/Flooded:12.6V | ||||
Low Voltage Disconnect Voltage | Sealed/Gel/Flooded:11.1V | ||||
Self-consumption | ≤9.2mA/12V;≤11.7mA/24V | ||||
Temperature compensation coefficient | -3mV/°C/2V（25°C） | ||||
Charge circuit voltage drop | ≤0.29V | ||||
Discharge circuit voltage drop | ≤0.16V | ||||
LCD temperature range | -20°C~+70°C | ||||
Working environment temperature | -25°C~+55°C(Product can work continuously at full load) | ||||
Relative humidity | ≤95%, N.C. | ||||
Enclosure | IP30 | ||||
Grounding | Common Positive | ||||
USB output | 5VDC/2.4A(Total) | ||||
Overall dimension | 142x85x41.5mm | 160x94.9x49.3mm | 181x100.9x59.8mm | 194x118.4x63.8mm | 214x128.7x72.2mm |
Mounting dimension | 130x60mm | 148x70mm | 172x80mm | 185x90mm | 205x100mm |
Mounting hole size | Φ4.5mm | Φ5mm | |||
Terminals | 4mm 2 /12AWG | 10mm 2 /8AWG | 16mm 2 /6AWG | 16mm 2 /6AWG | 25mm 2 /4AWG |
Net weight | 0.22kg | 0.35kg | 0.55kg | 0.76kg | 1.02kg |
Above the parameters are in 12V system at 25 °C, twice in 24Vsystem | |||||
- is_customized: Yes
- Maximum Current: 10A/20A/30A/45A/60A
- Model Number: VS**24AU Solar Charge Controller
- Application: Charger Controller,Solar System Controller,Voltage Controller,Solar Working Station,Lighting Controller,solar home system,traffic signal,solar street light,solar garden lamp
- Brand Name: PowMr
- Origin: Mainland China
- Certification: CE
- Battery type: Sealed(Default) / Gel / Flooded
- Equalize Charging Voltage: Sealed:14.6V/ Gel: No/ Flooded:14.8V
- Boost Charging Voltage: Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V
- Float Charging Voltage: Sealed/Gel/Flooded:13.8V
- Low Voltage Reconnect Voltage: Sealed/Gel/Flooded:12.6V
- Low Voltage Disconnect Voltage: Sealed/Gel/Flooded:11.1V
- Grounding: Common Positive
- USB output: 5VDC/2.4A(Total)
- LCD Display: Backlight
- Nominal system voltage: 12/24VDC
