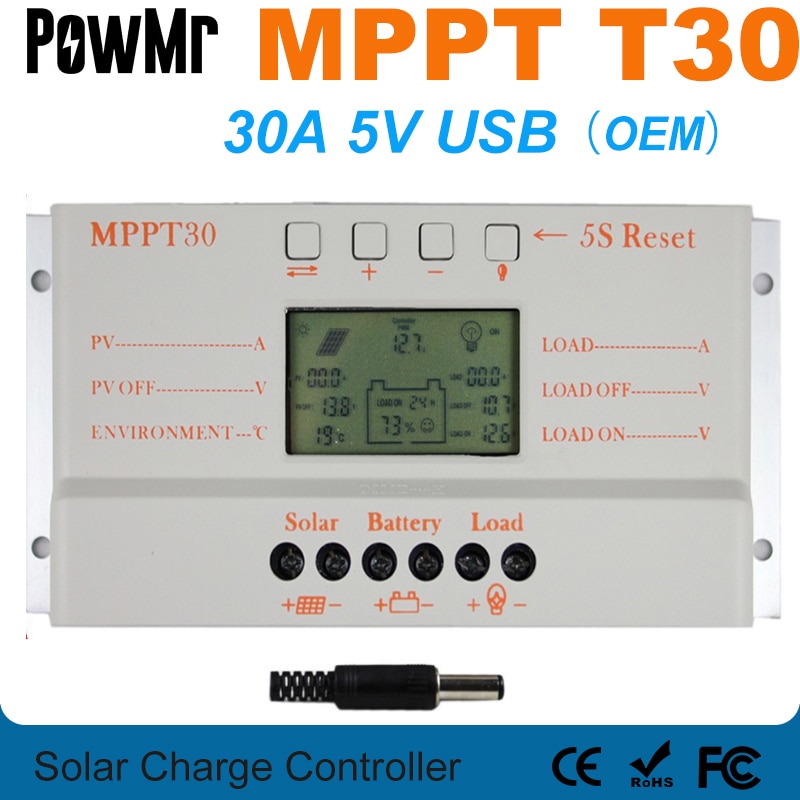

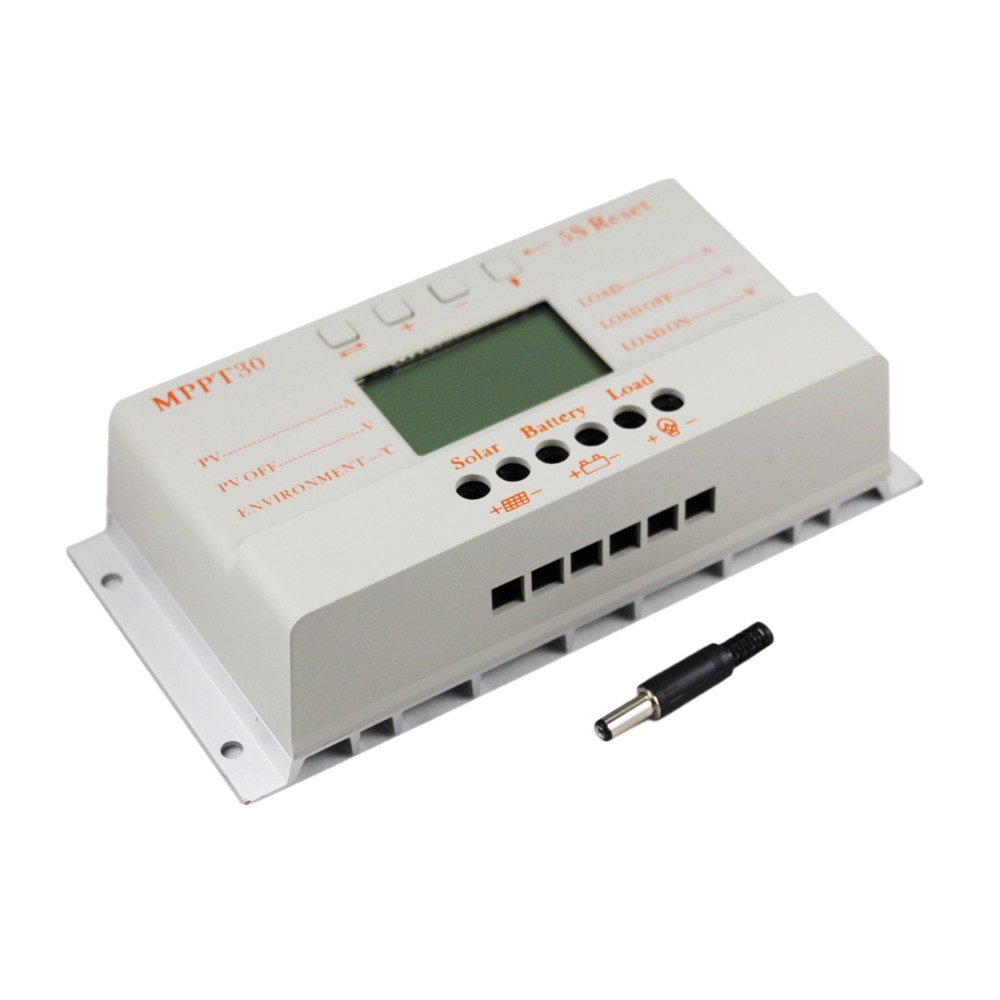

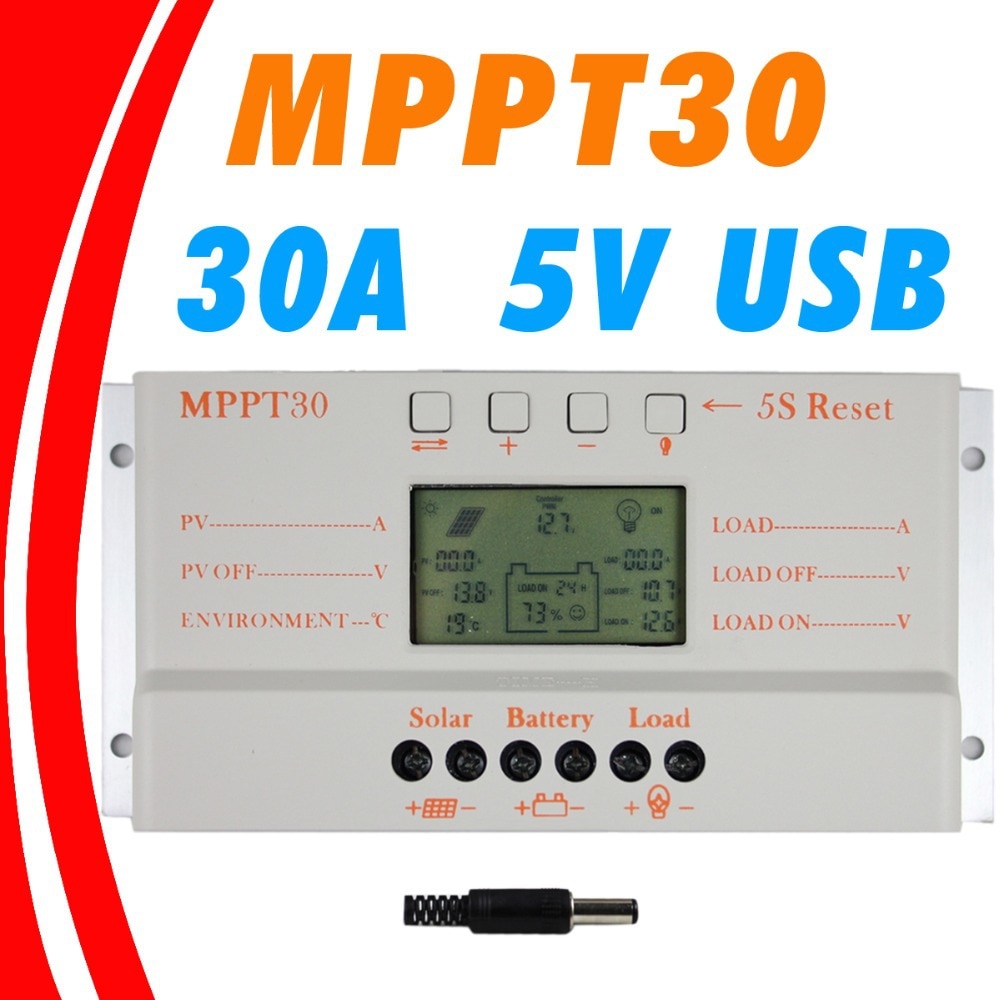

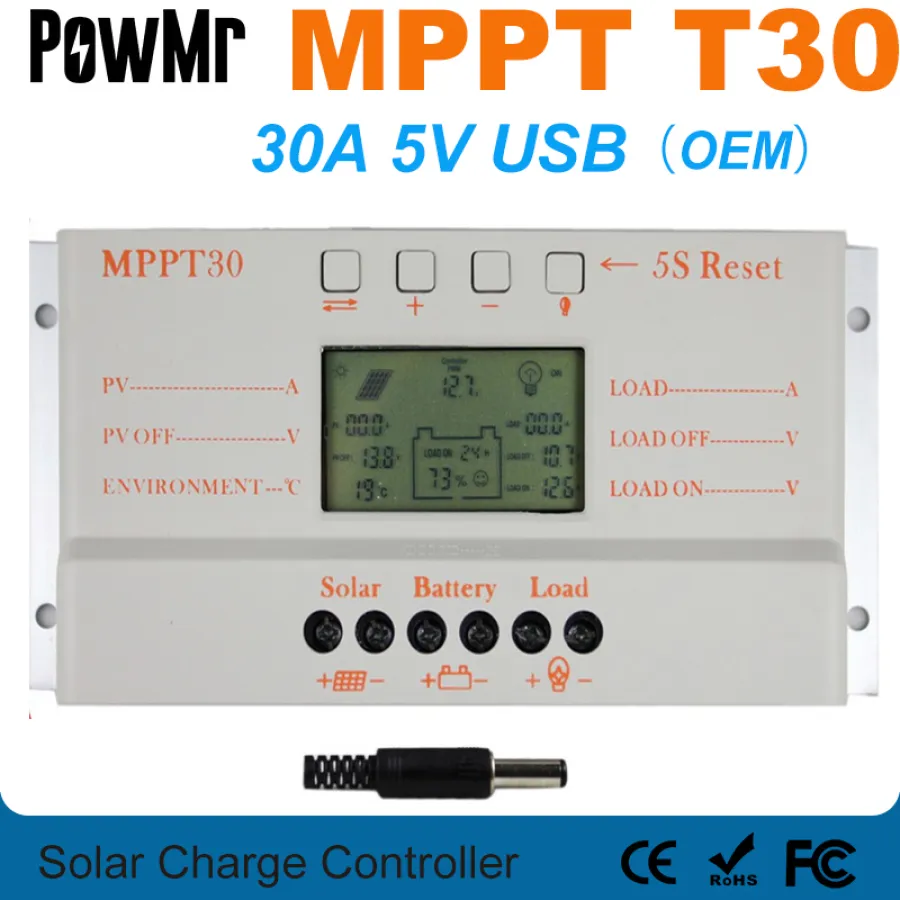

PowMr MPPT 30A Solar Charge Controller 12V 24V Auto Switch 30A Solar Panel Controller Display Load Light and Timer Controller
5.0 (17 votes) | 37 orders
Price:
US $80.37 - 83.77
/ piece
Discount Price:
US $
55.14
/ piece
-31%
- Ships From
- Color
MPPT 30A LCD Solar Charge controller 12V 24V auto switch LCD display MPPT30 Solar charge controller MPPT 30 charger controller 0 Laye
Package including:
1. 1pcs 30A solar controller M30
2. 1pcs user manual
3. 1pcs temp sensor(optional)
This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.
Notcie: not true MPPT ,there is no large transformer coil inside
Product introduction

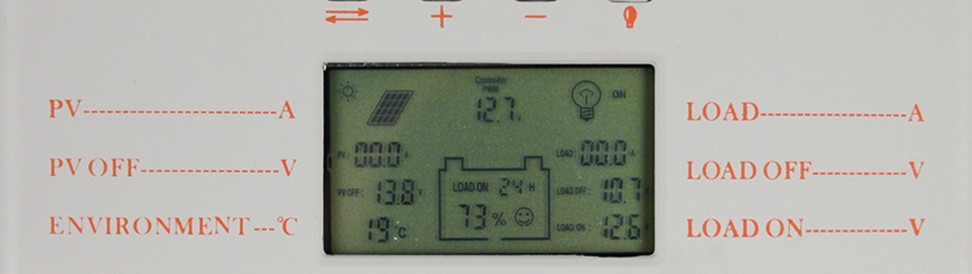

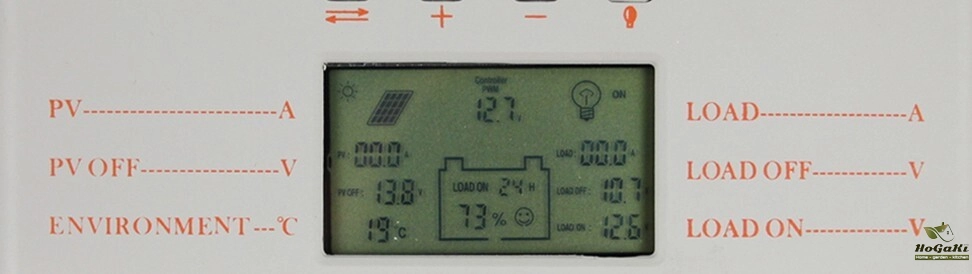

LCD screen display | Battery reverse discharge protection |
Easy operation interface | Battery reverse polarity protection |
MPPT+ PWM charging mode | Battery under voltage protection |
Parameter user can reset Overload | Short-circuit protection |

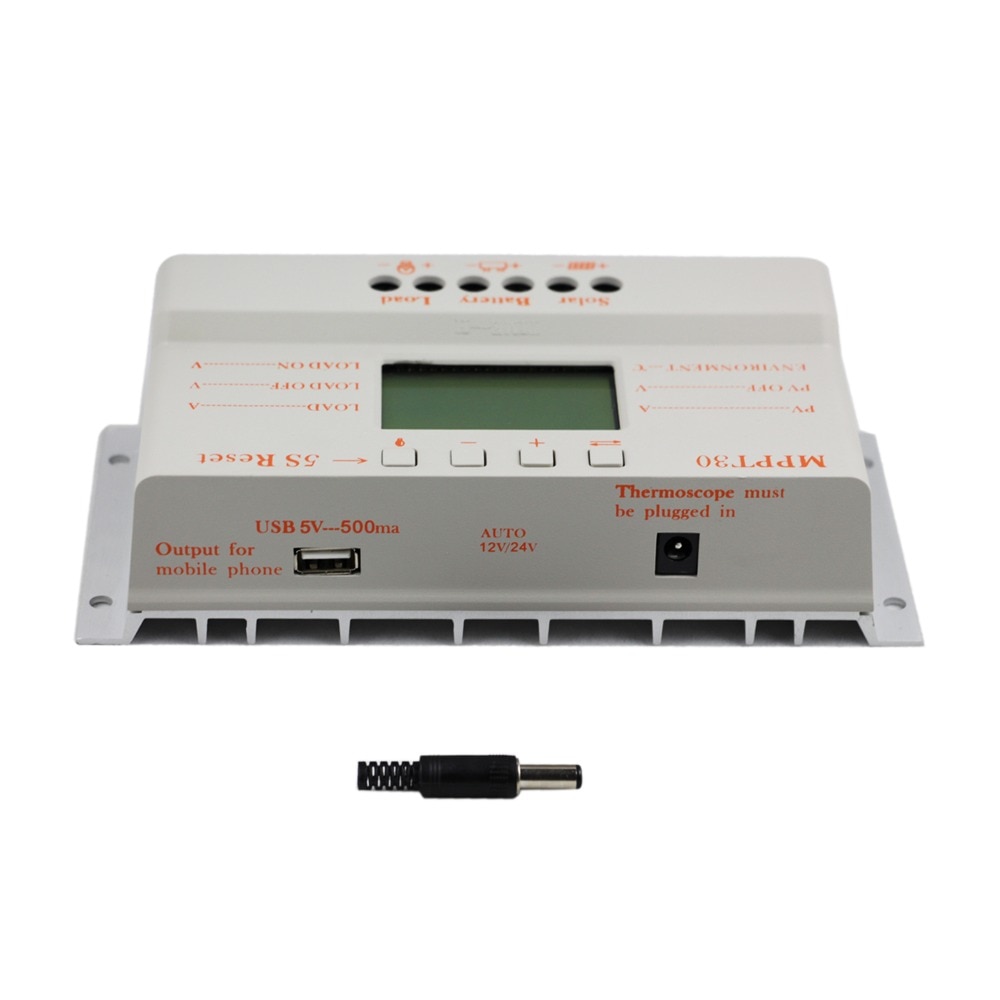

A key to restore the factory settings | USB 5V charging (for 500mA) for mobile phone(Only for M30) |
A key to open and close the load | Automatic temperature compensation function |
Solar LCD series a kind of intelligent,multi-purpose solar charge and discharge controller
Data Sheet
Parameters / Model | MPPT10 | MPPT20 | MPPT30 | MPPT40 |
Maximum power current | 12A | 20A | 30A | 40A |
Installation Lin(mm2) | 4mm2 | 8mm2 | 10mm2 | 12mm2 |
Installation Line(AWG) | 10(AWG) | 8(AWG) | 7(AWG) | 6(AWG) |
Weight | 280g | 300g | 475g | 480 |
Dimensions | 143×89×46(mm) | 187*97*61(mm) | ||
System load loss | ≤13mA | |||
Loop Buck | ≤100mV | |||
Specification
Battery float voltage | 13.8V(12V system)/27.6V(24V system) |
Battery(under voltage) protection | 10.6v(12V system)/21.2V(24V system) |
Battery (under voltage) recovery voltage | 12.6V(12V system)/25.2V(24V system) |
Charge mode | MPPT+PWM MODE |
Operating Temperature | -10degree centigrade~60degree centigrade |
Storage Temperature | -30degree centigrade~70degree centigrade |
Humidity requirements | ≤90%, No condensation |
Temperature compensation | -4mV/Cell/degree centigrade |
Temperature Probe (built components) | NTC 100K thermistats |
Maximum open circuit voltage of the solar panel | 18V-24V(12V system)36V-48V(24V system) |
Solar panels maximum open circuit voltage (V) | ≤48V |
(Cases) 12V system standard configuration
The peak voltage of the solar cell panel | 18V-25V | 18V-25V | 18V-25V | 18V-25V |
Peak power of solar cell panel | 50W-130W | 100W-260W | 200W-380W | ≤500W |
Model | MPPT10 | MPPT20 | MPPT30 | MPPT40 |
Battery standard voltage | 12V | 12V | 12V | 12V |
Battery capacity | ≥100AH | ≥200AH | ≥300AH | ≥400AH |
Installation Lin(mm2) | 4mm2 | 8mm2 | 10mm2 | 12mm2 |
Installation Line(AWG) | 10(AWG) | 8(AWG) | 7(AWG) | 6(AWG) |

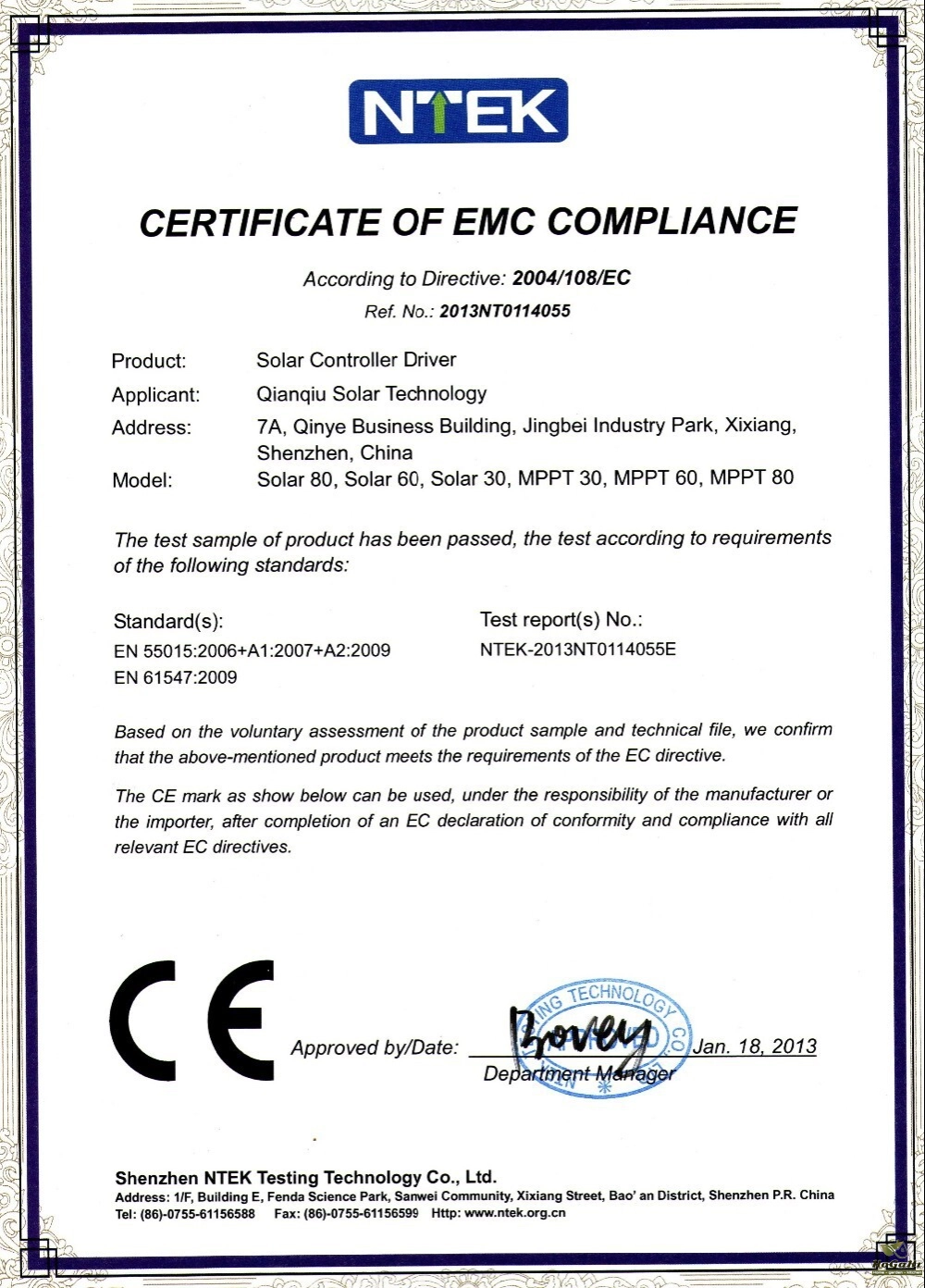

CE Certification
- is_customized: Yes
- Maximum Current: 30A
- Model Number: M30
- Application: Solar System Controller
- Brand Name: PowMr
- Origin: Mainland China
- Certification: CE
- Item: Solar Panel Controller MPPT 30A
- Maximum Current:: 30A
- Type: solar charge controller
- Feature: 0 Layer
