5/4.3 Inch 5/8MP CCTV Camera Tester AHD Tester Monitor TVI CVI CVBS Tester Monitor HD Display Portable Video Tester with LED
138.75 108.23 $
Selling Point
Enter the store to learn more products
indoor:P1.25P1.667P1.875P1.923P2P2.5P2.604P2.976P3p3.91P4p4.81P5P6P7.62P10
outdoor:p2.5p3p3.91p4p4.81p5p5.95p6p6.67p8p10
dip:p10p16p20
Selling Point

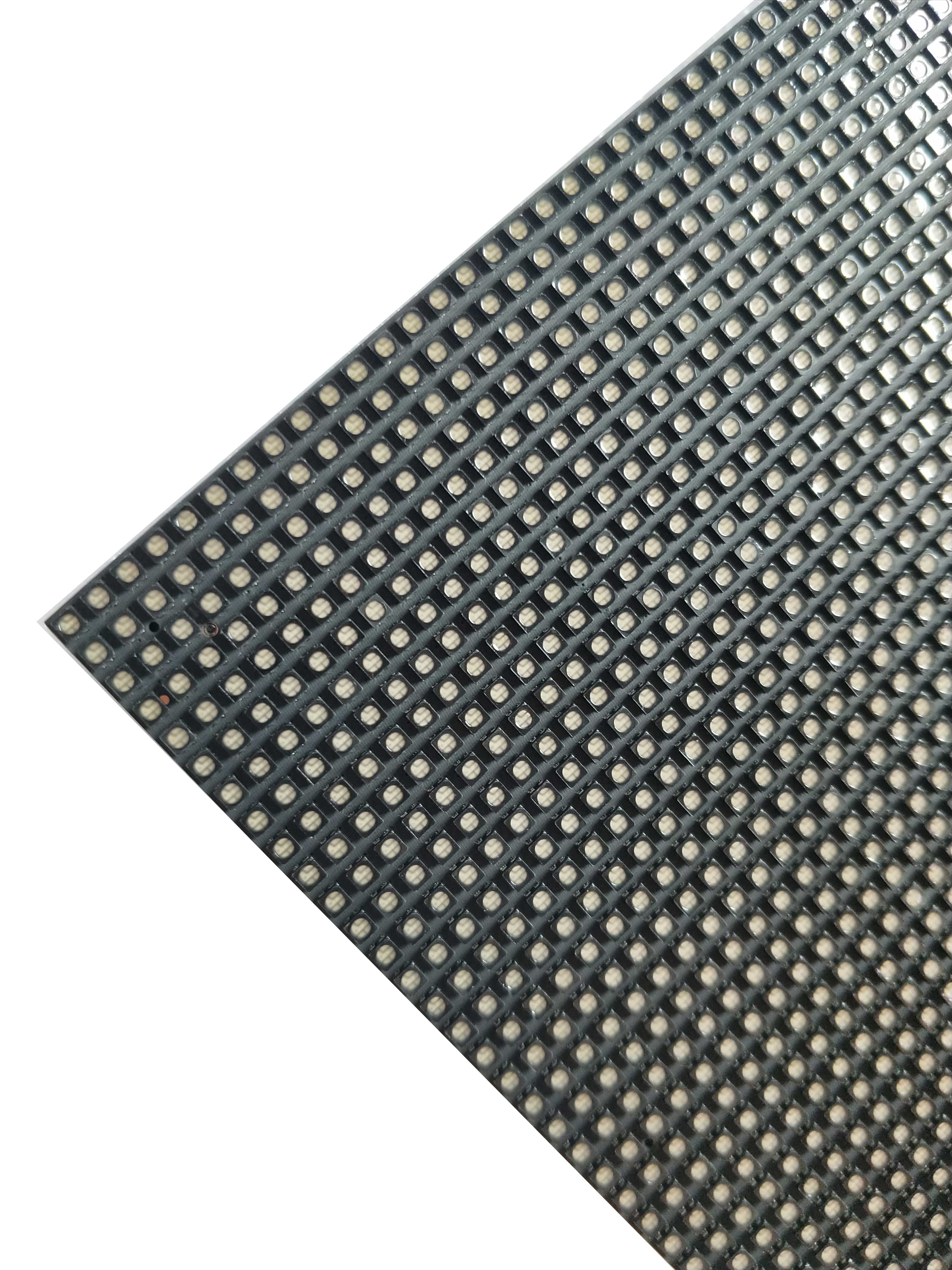

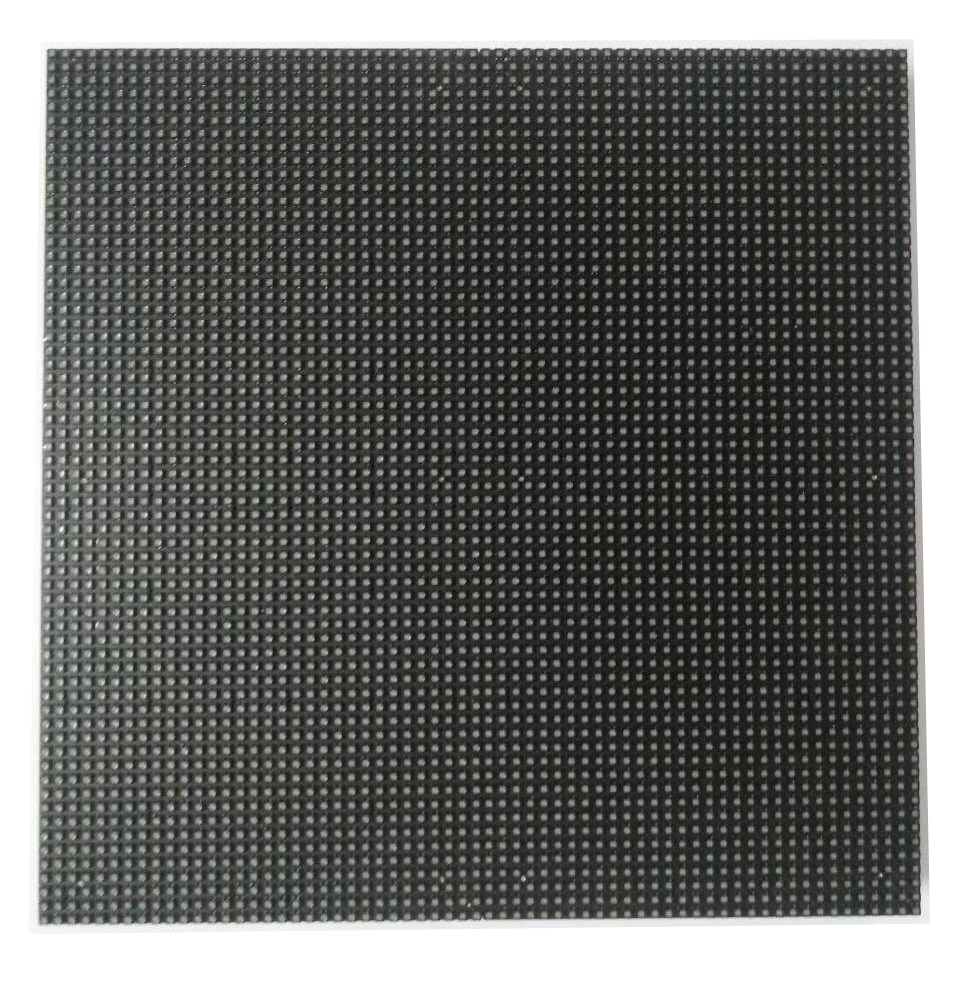

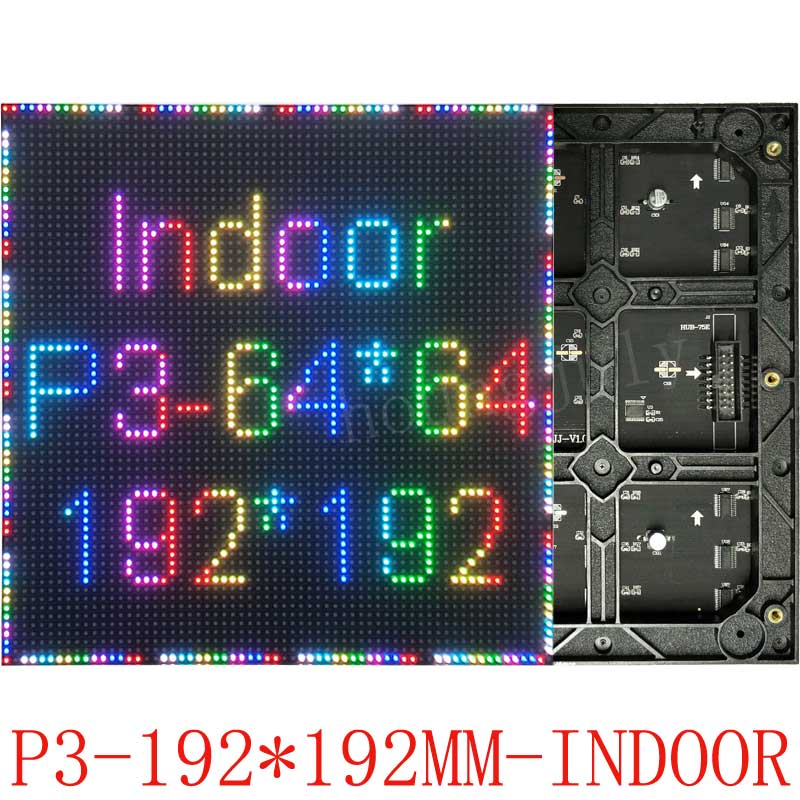

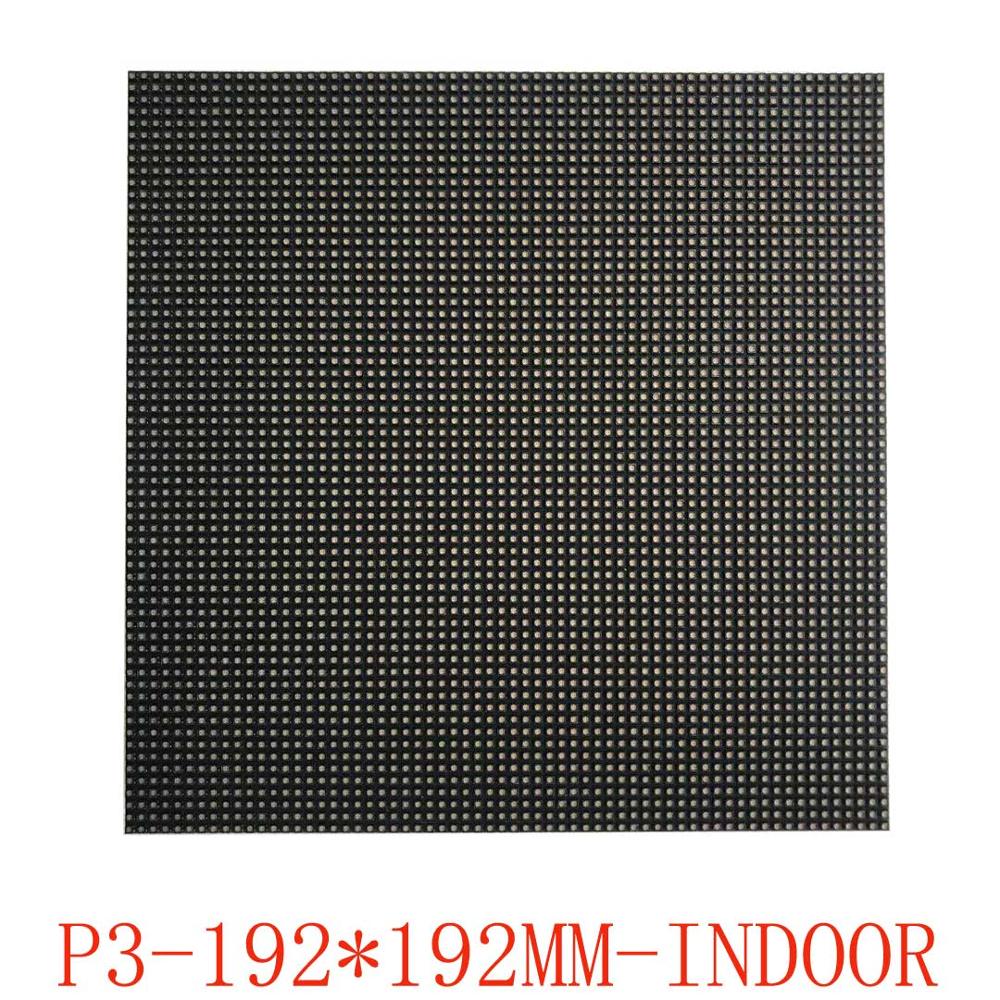

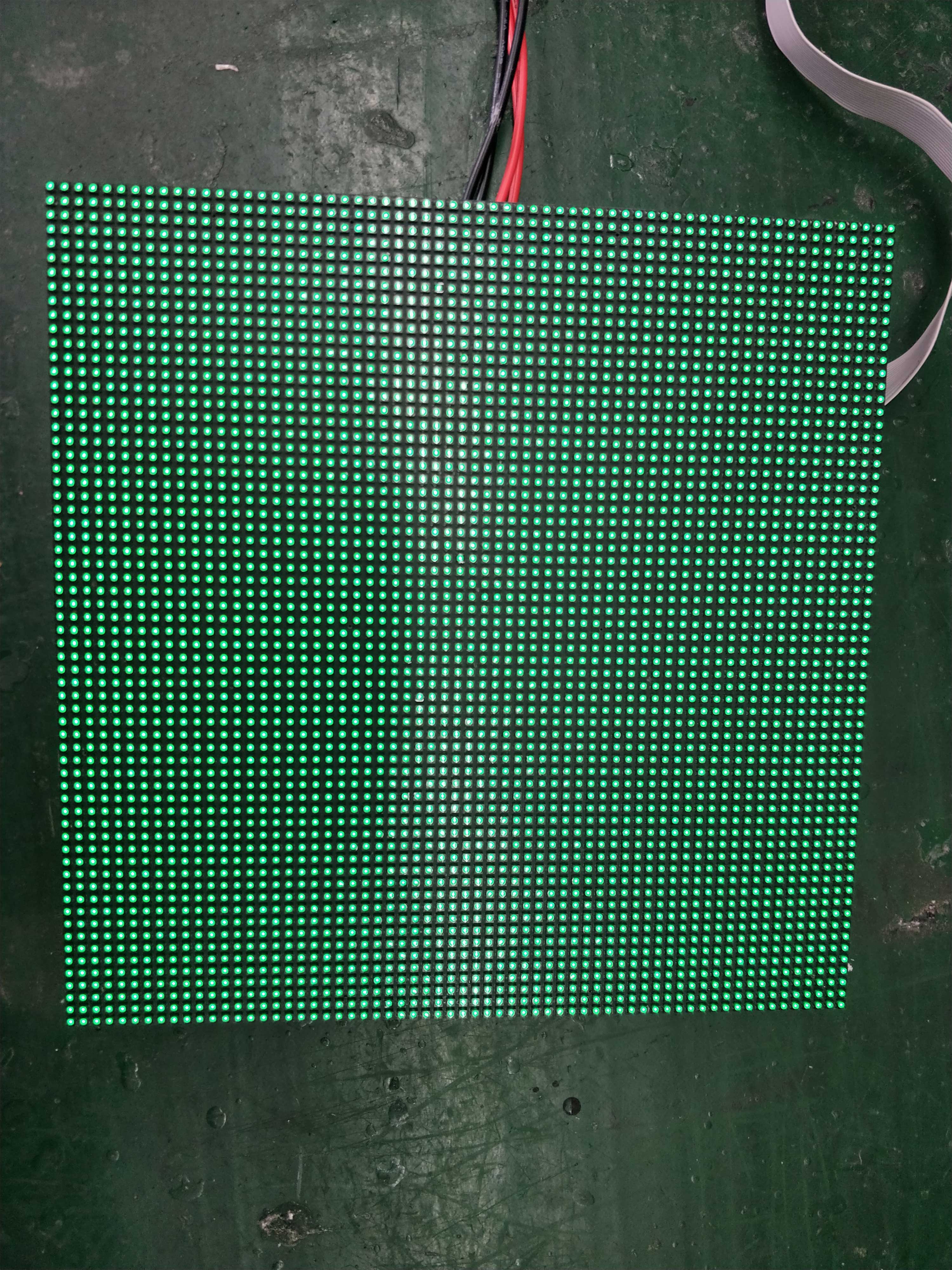

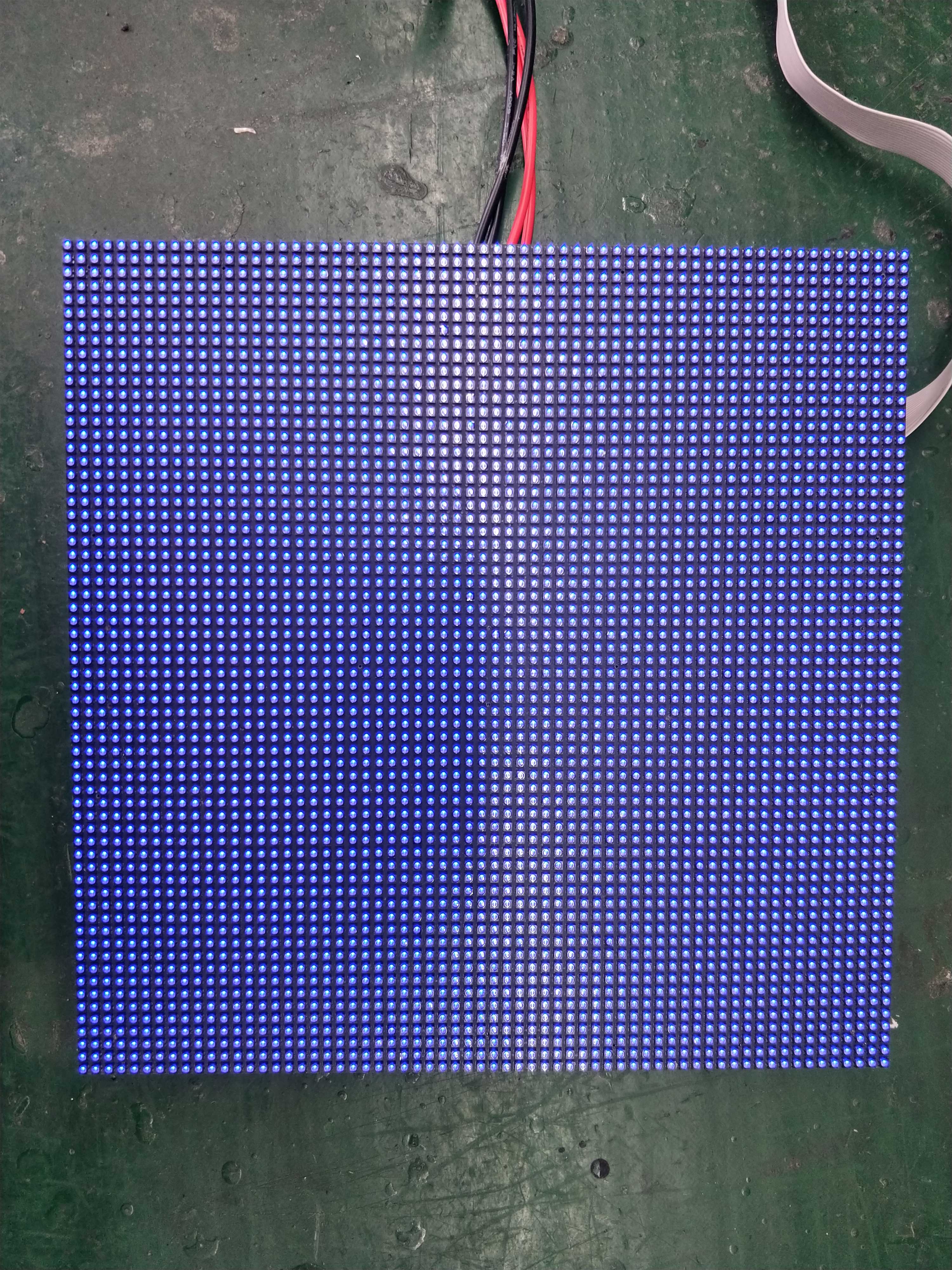

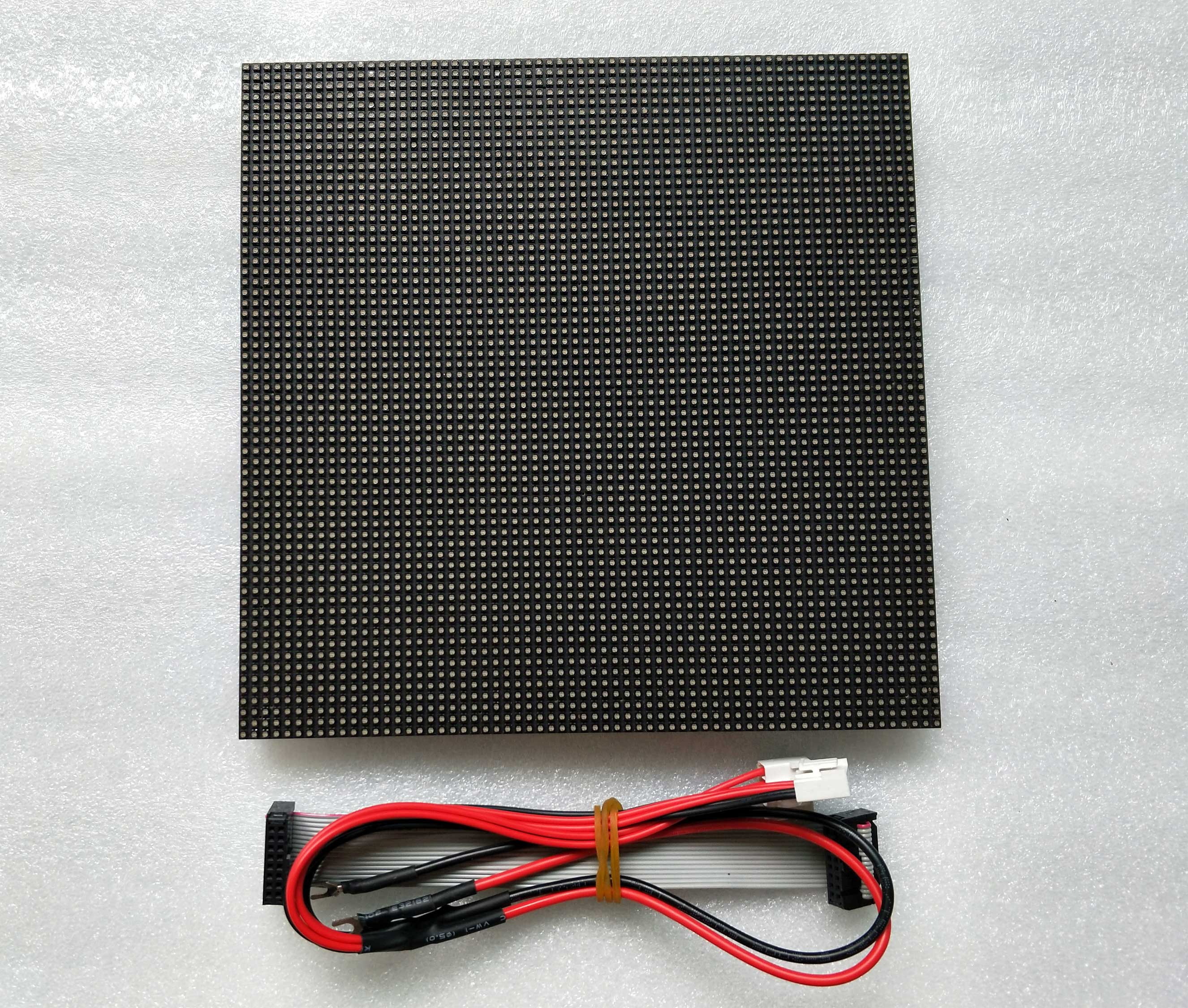

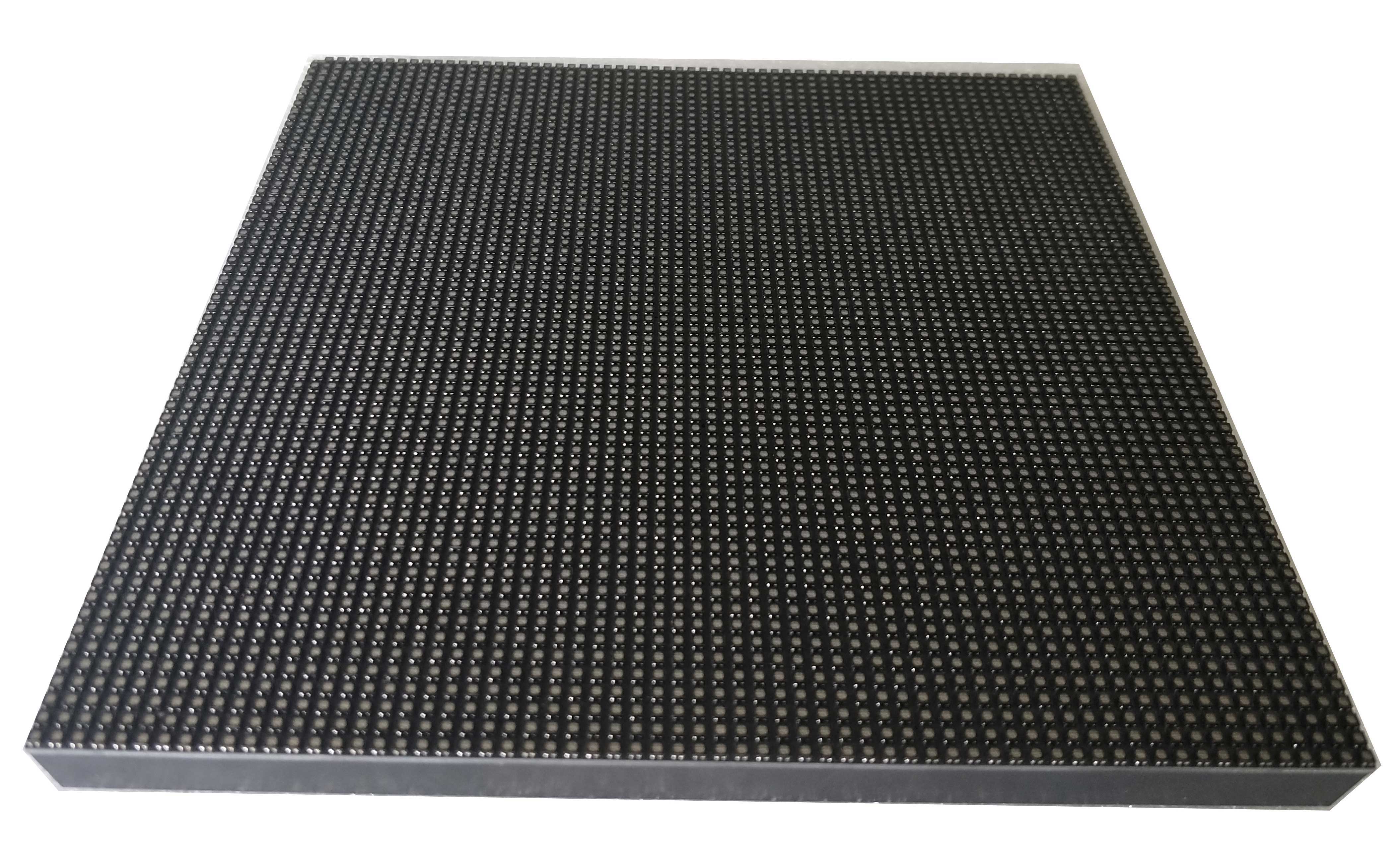

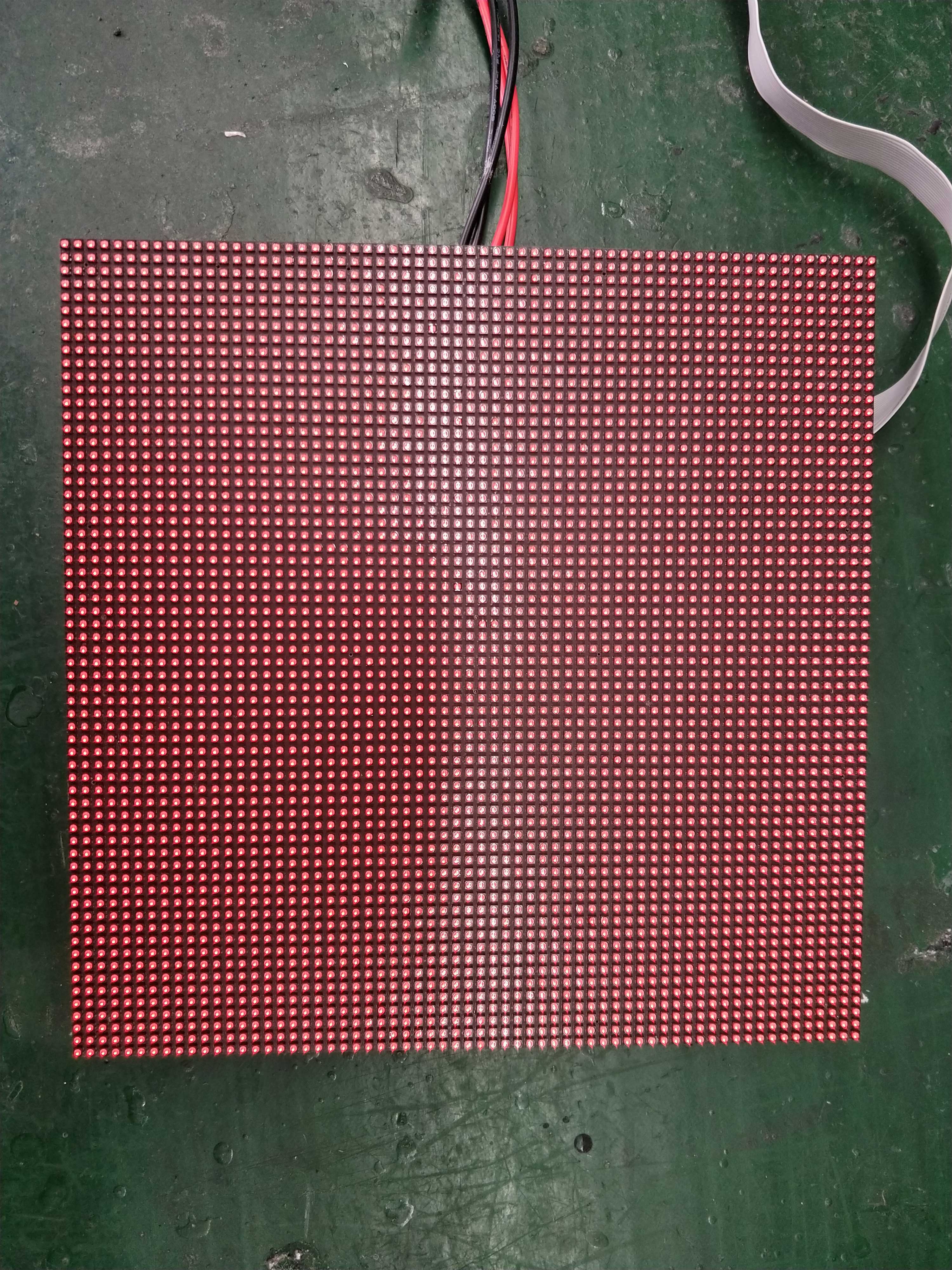

Item P3
Chip Epstar
Light type SMD2121
Pixel Pitch 3mm
Module Size 192mmX192mm
Module Resolution 64 X 64 (dots)
Density of pixel 111111dots/m2
Pixel configuration 1R1G1B
Red wavelength 625±2nm
Green wavelength 525±2nm
Blue wavelength 470±2nm
Colors 16777216
Best viewing distance ≥3m
viewing angle 120°/120°
Maximum power consumption 20W
Brightness 800cd/m2
Gray scale 14bits per color
Color temperature 9000k
Control method Synchronization or Asynchronization
Driving method 1/32 scanning
Frame frequency 60Hz
Refresh frequency ≥1920Hz
Working Voltage DC5V
IP grade IP54
MTBF More than 8000hours
Life Span 80,000hours
Selling Point
Selling Point

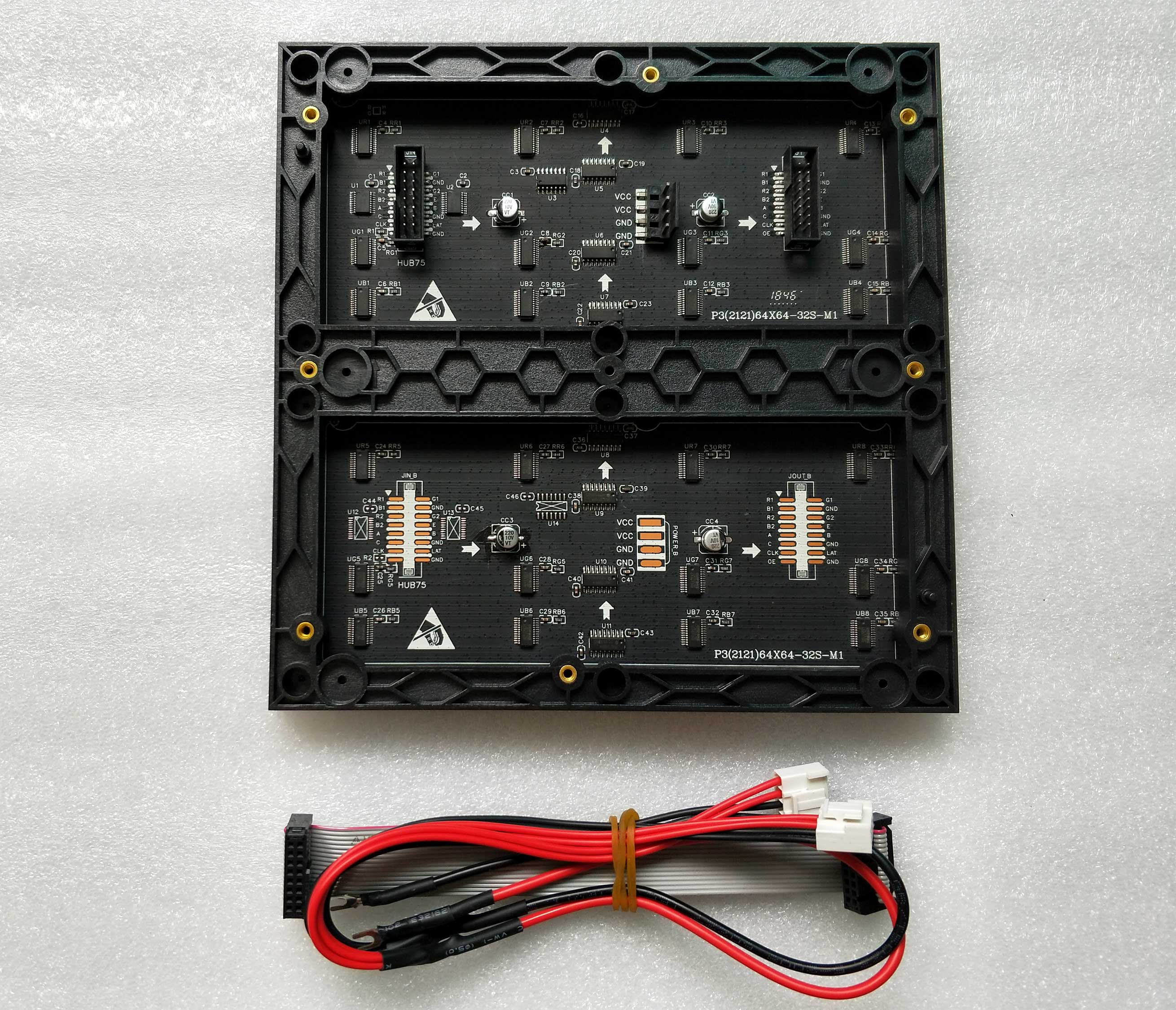

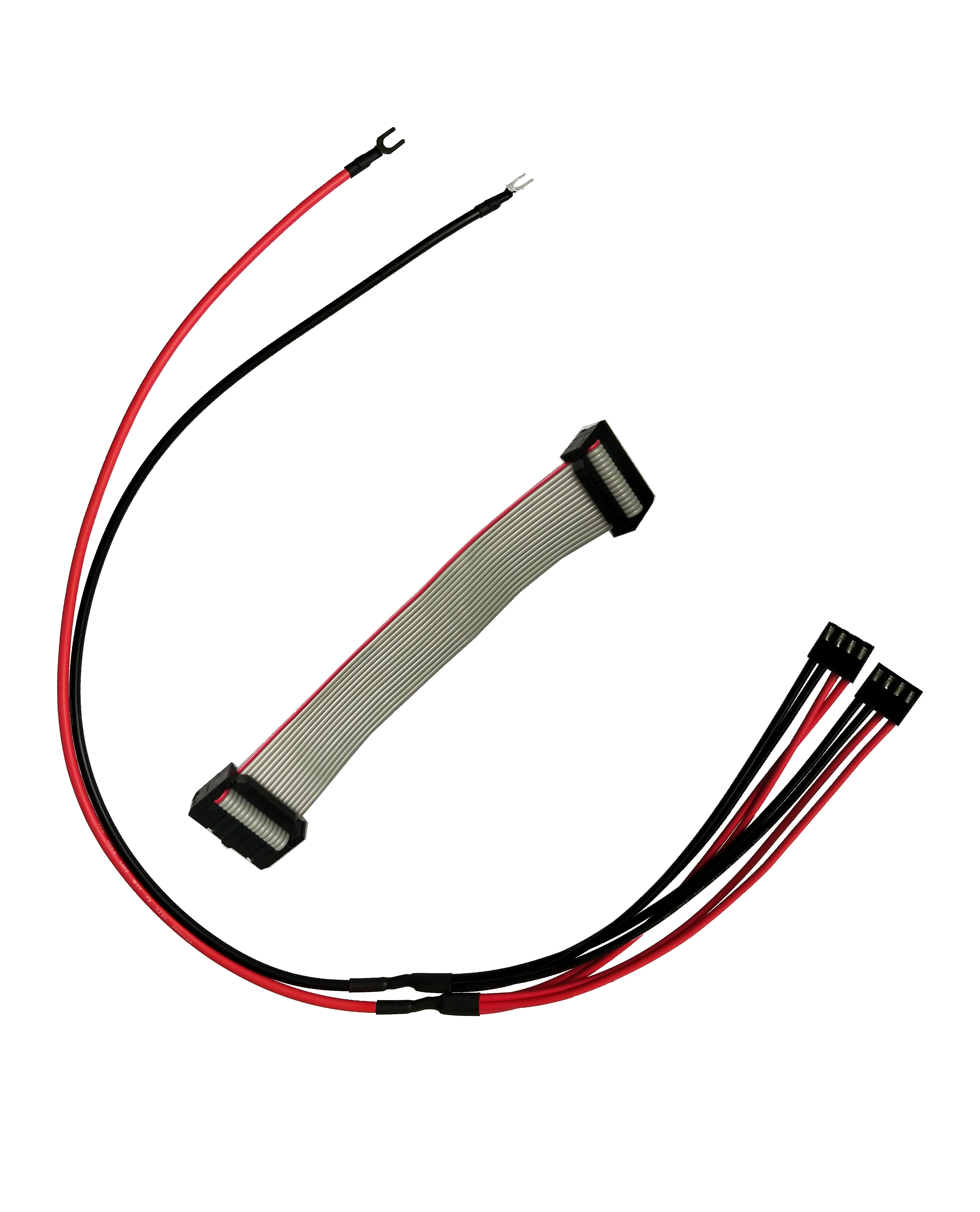

1 pcs flat ribbon data cable
1 pcs power cable for 2 module
Selling Point
Selling Point

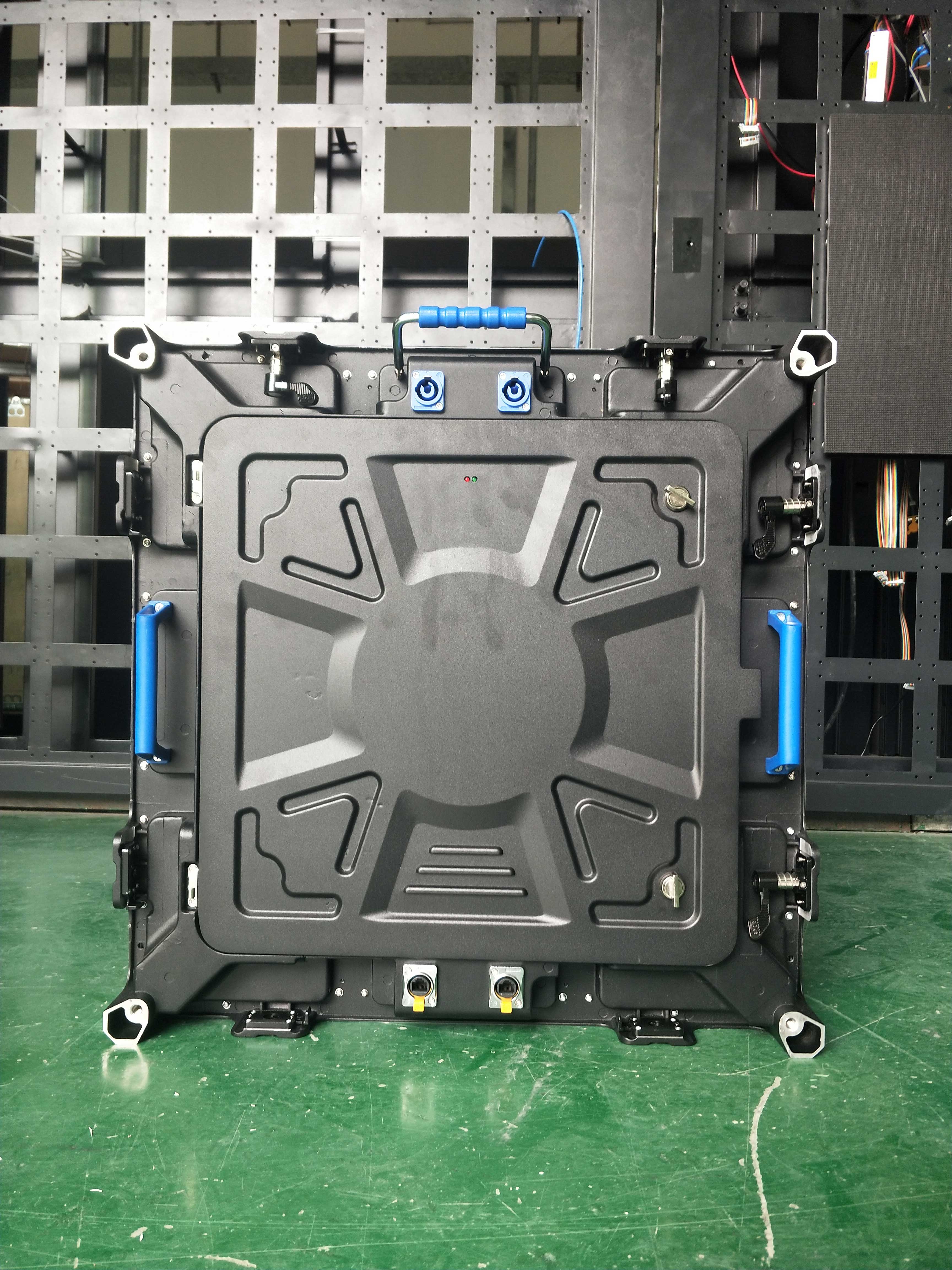

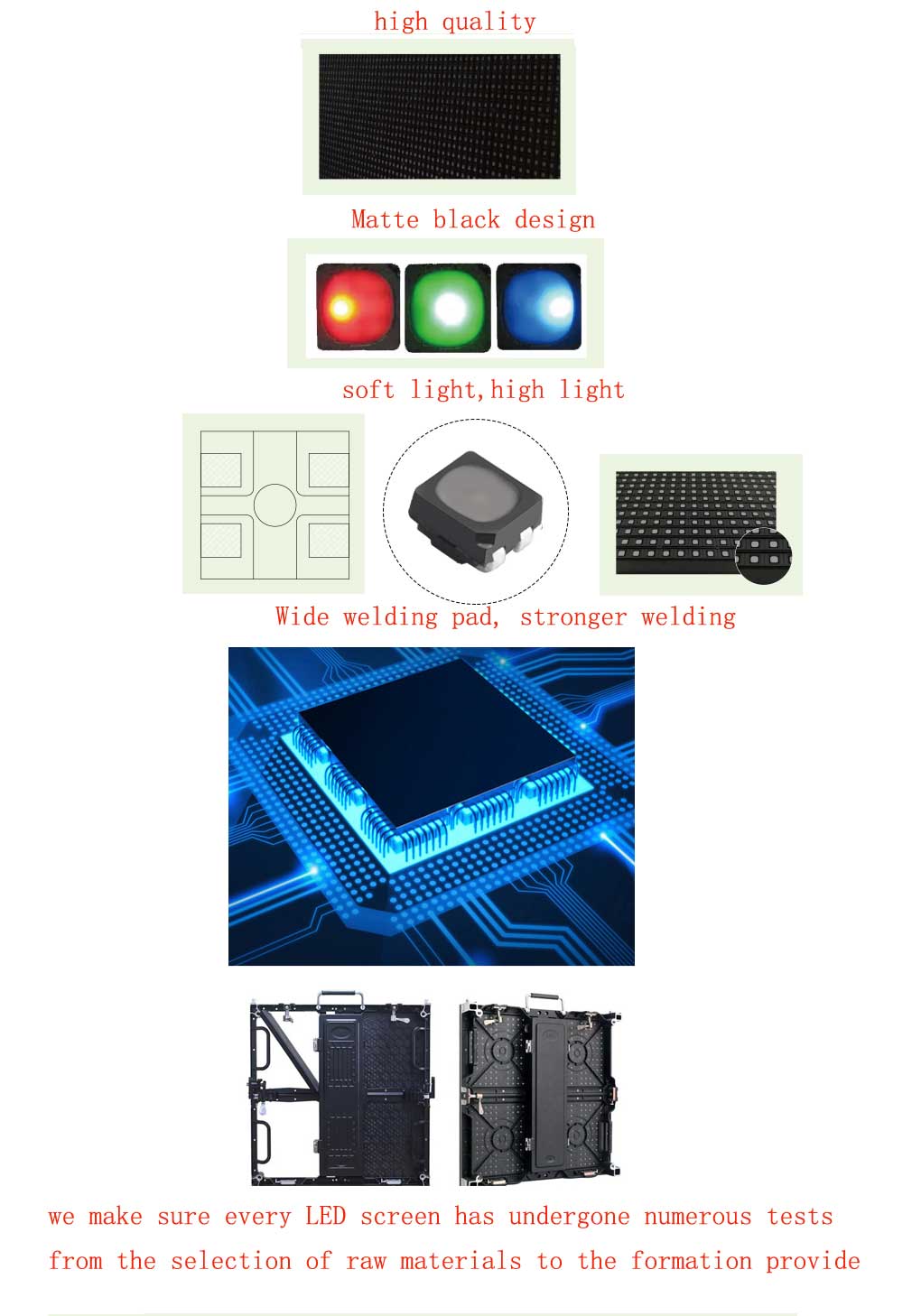

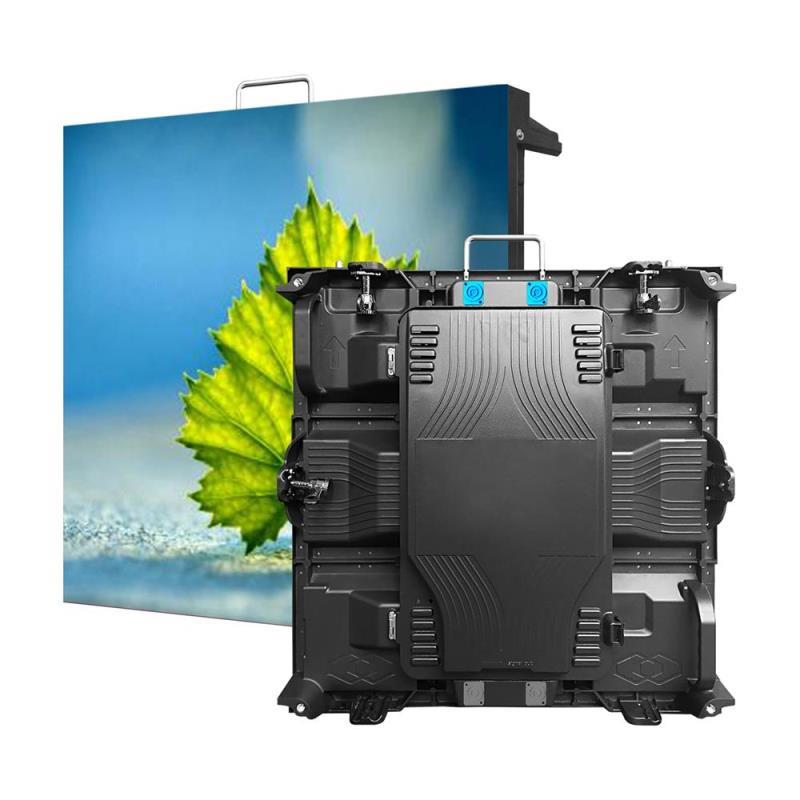

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.

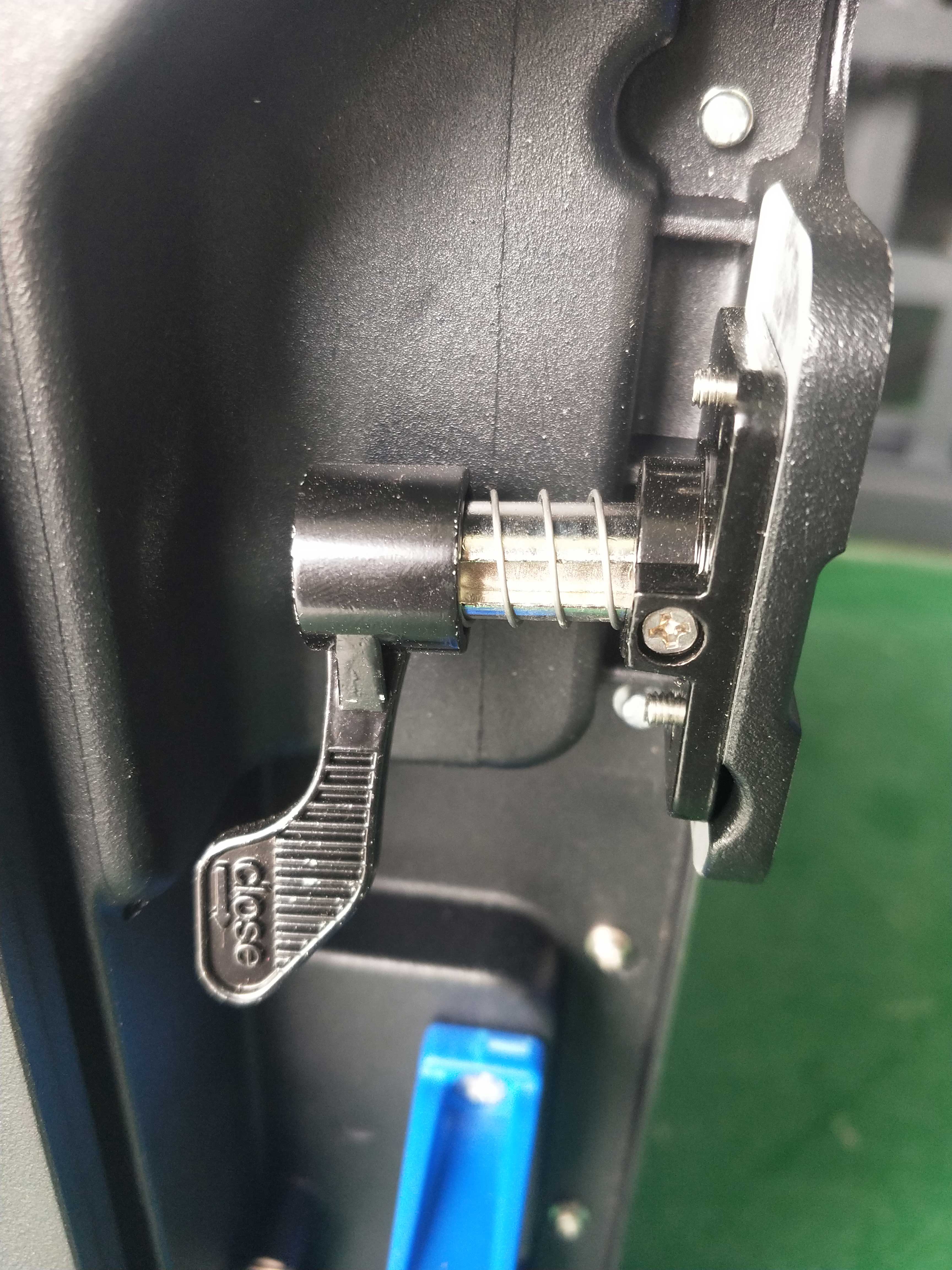

3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.

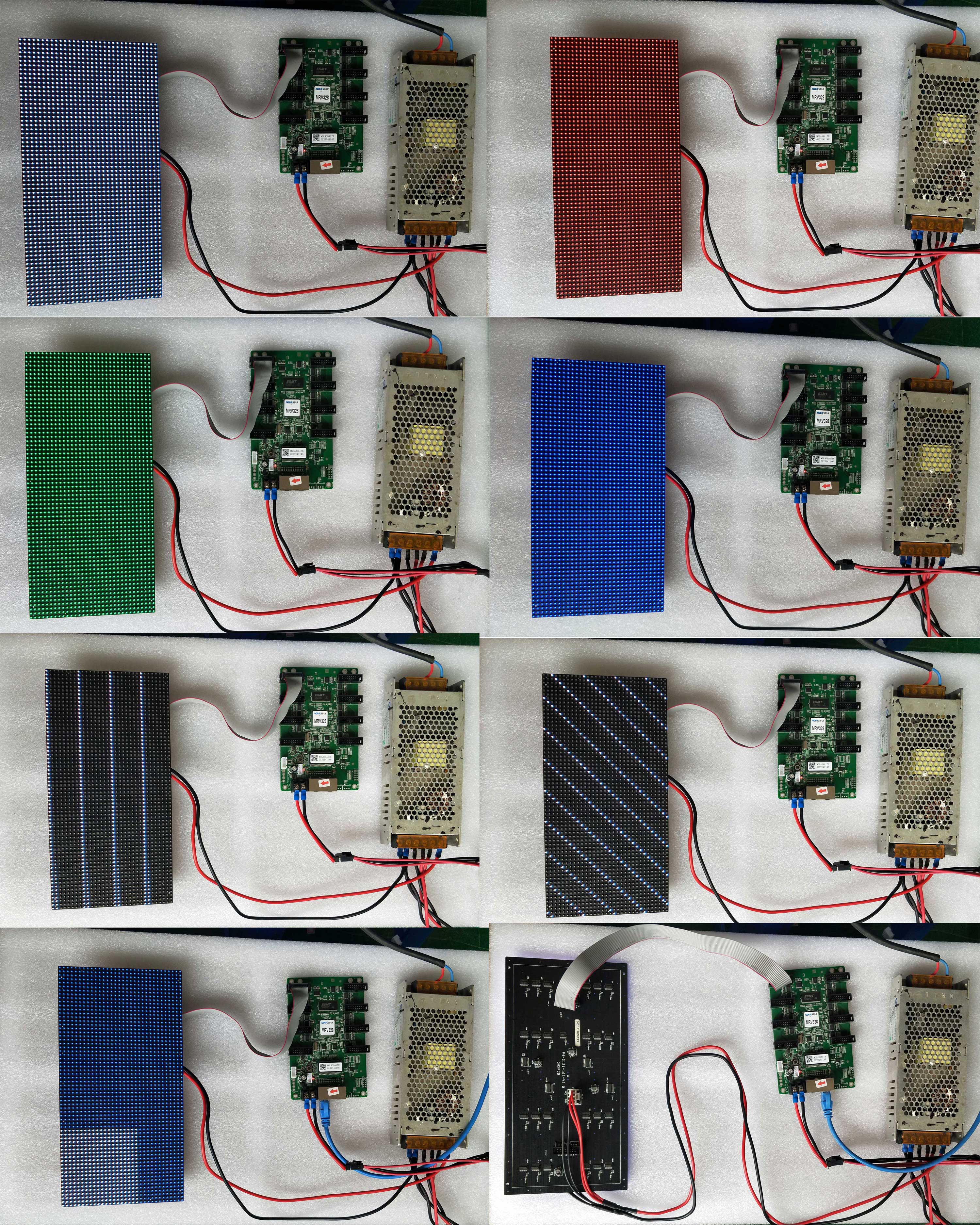

5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Selling Point

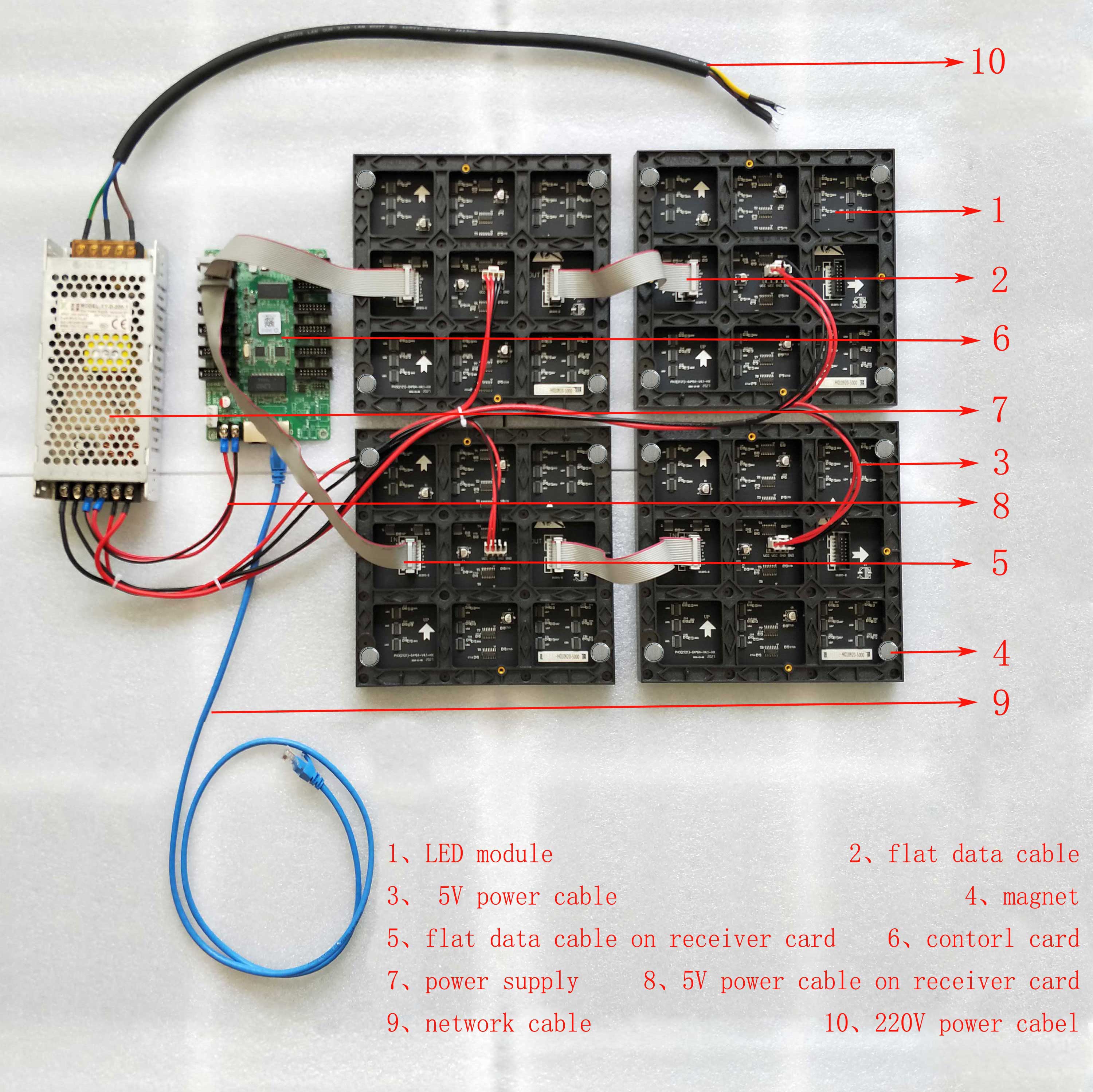

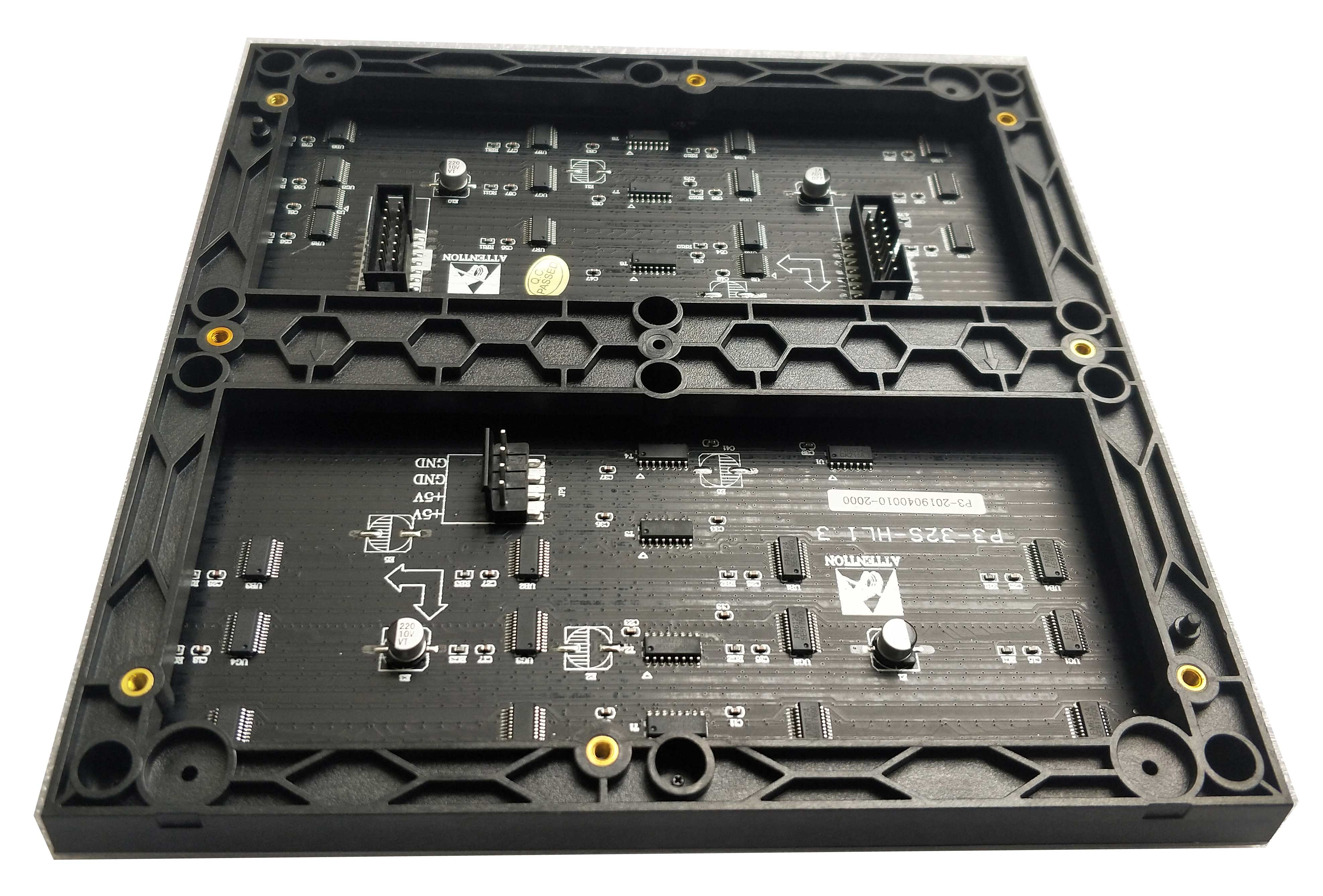

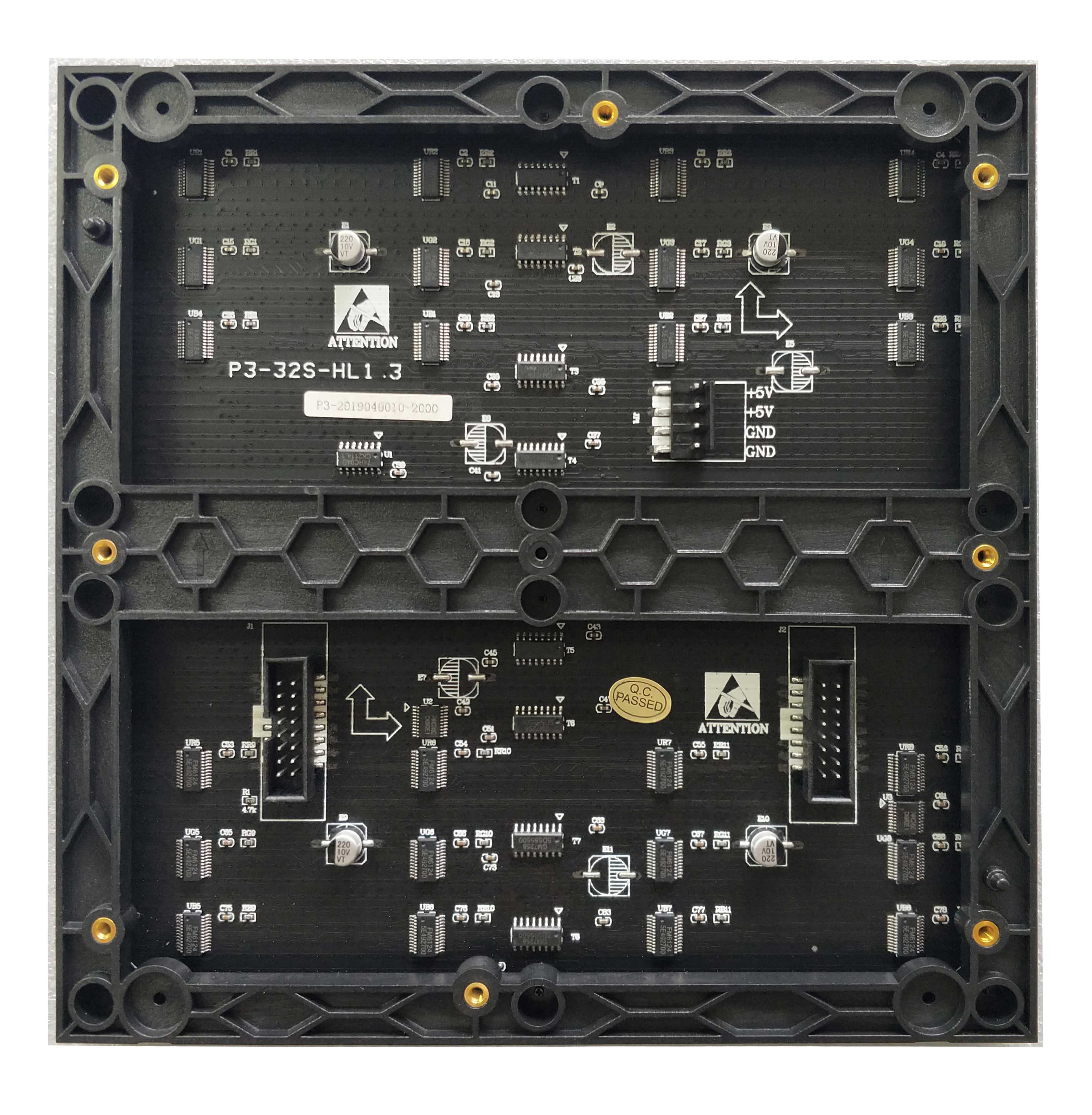

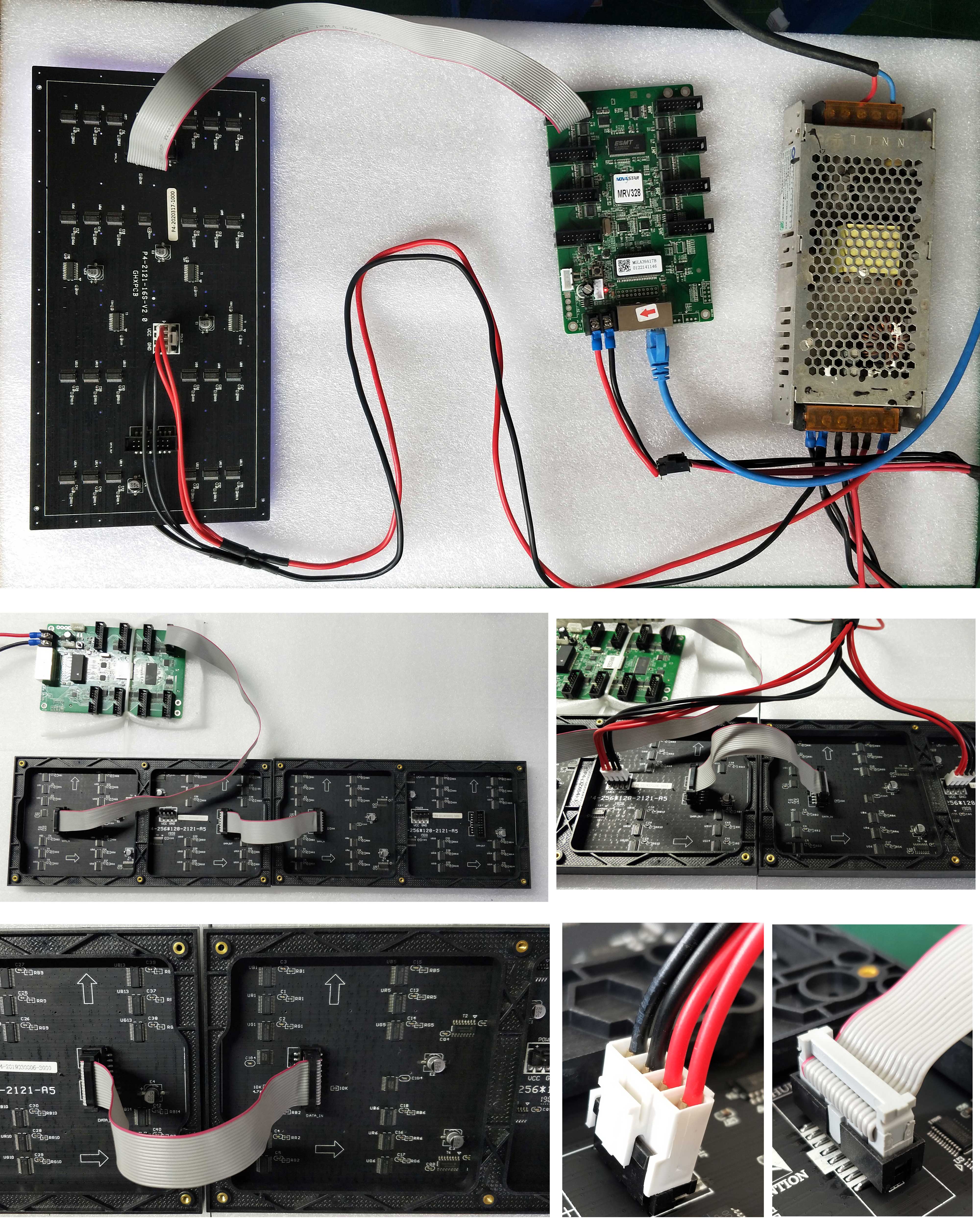

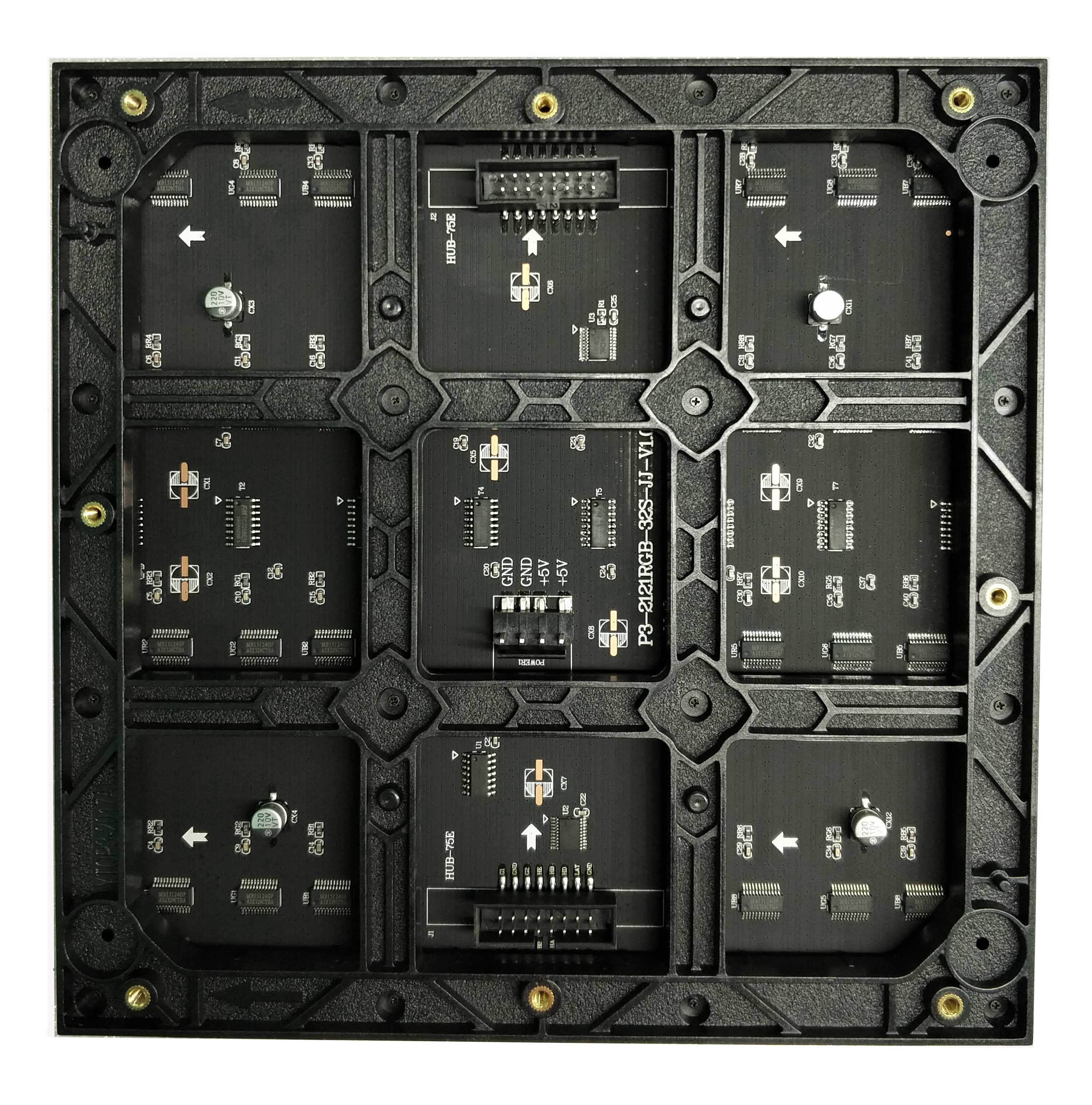

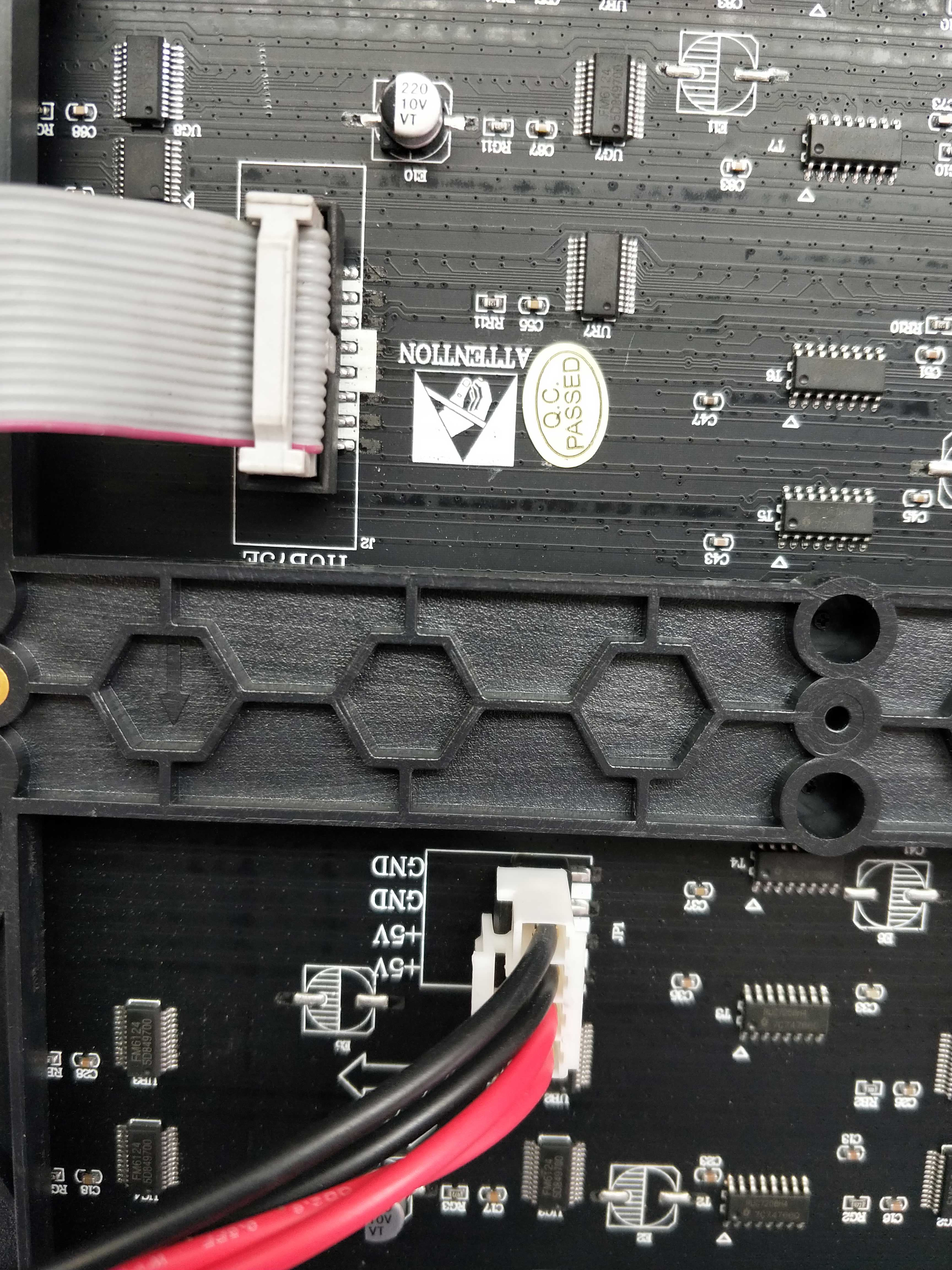

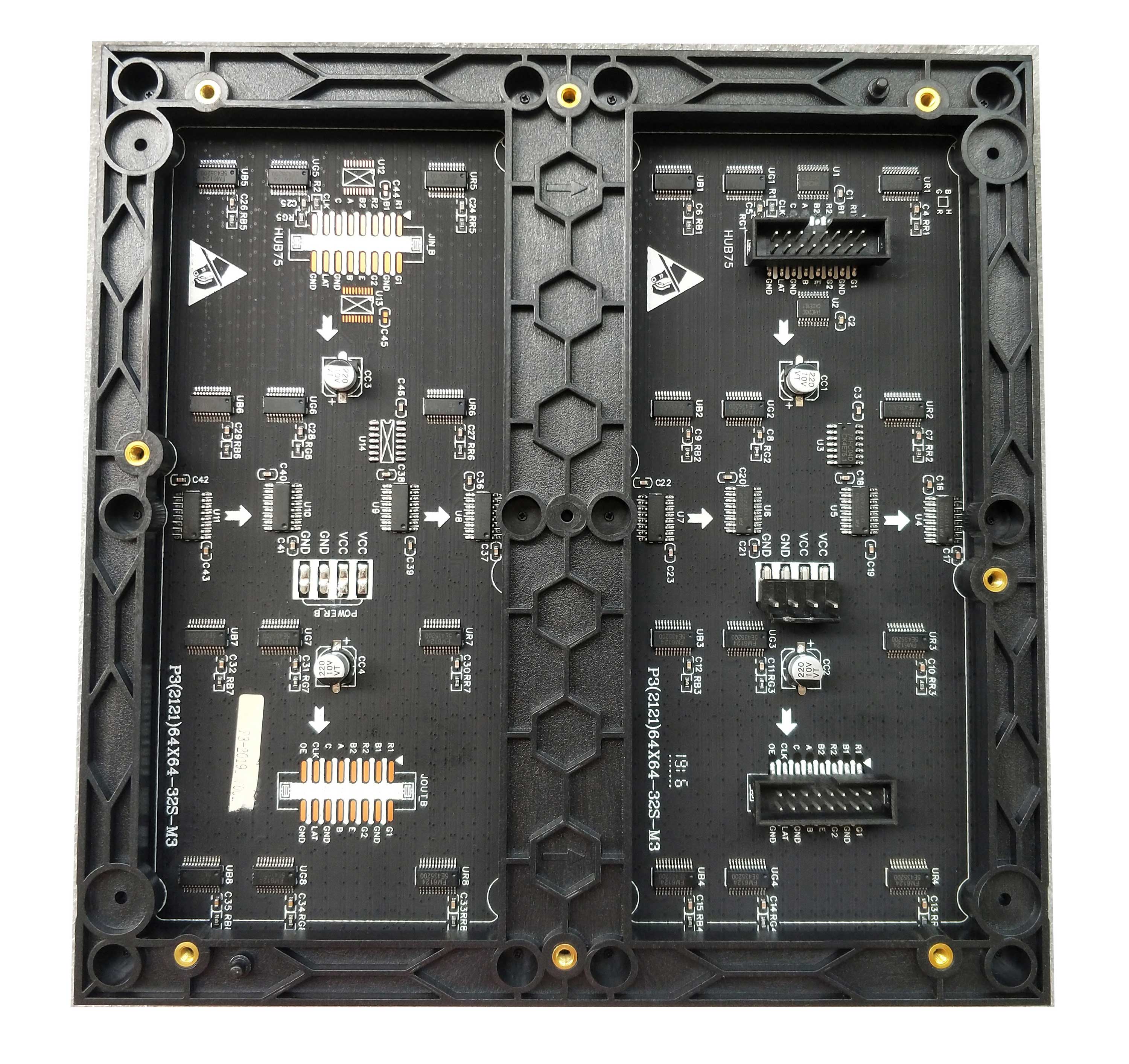

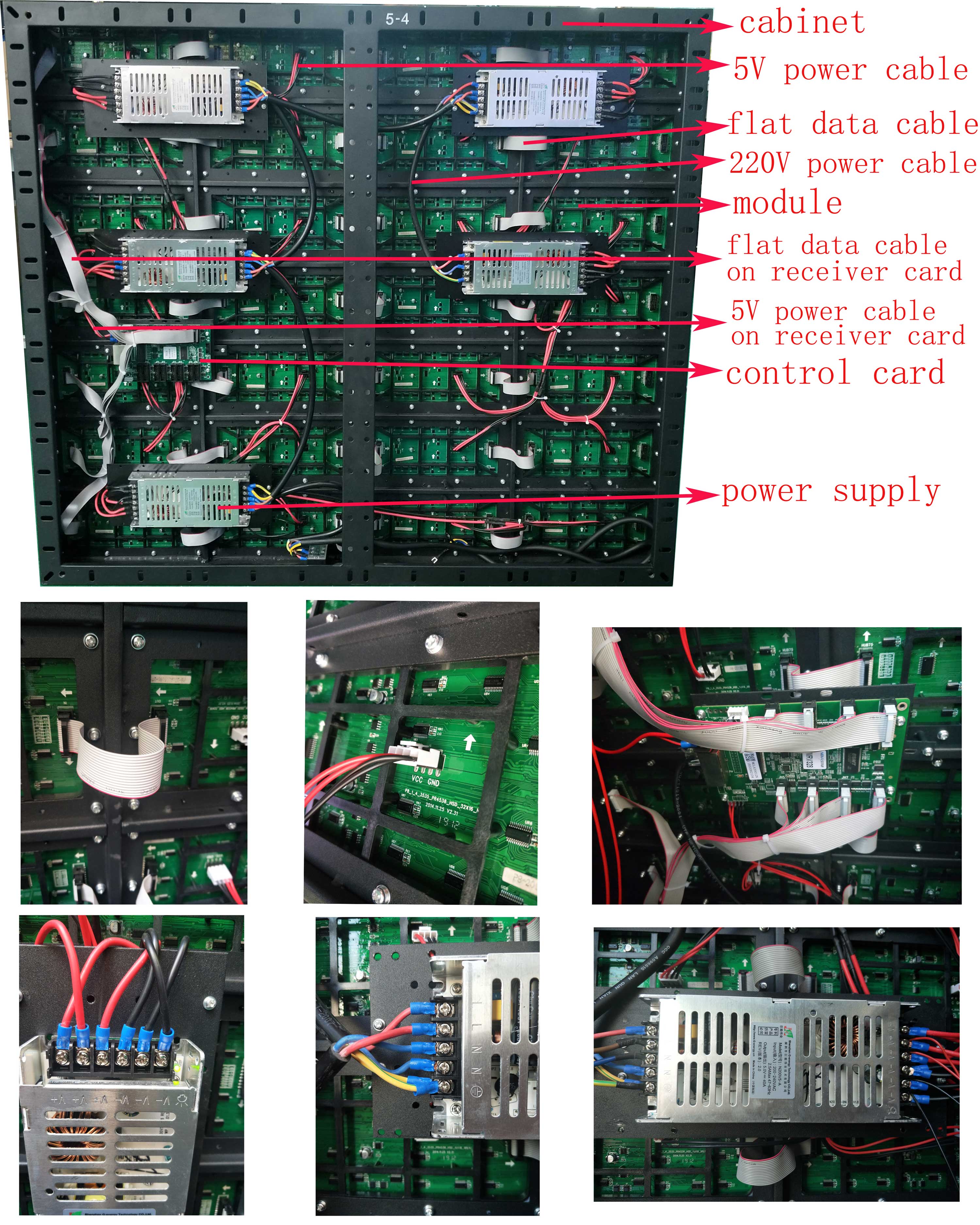

The data interface uses the conventional 16pin interface & VH4 power seat
usual modules are 16pin,you must need attention your control card suitable

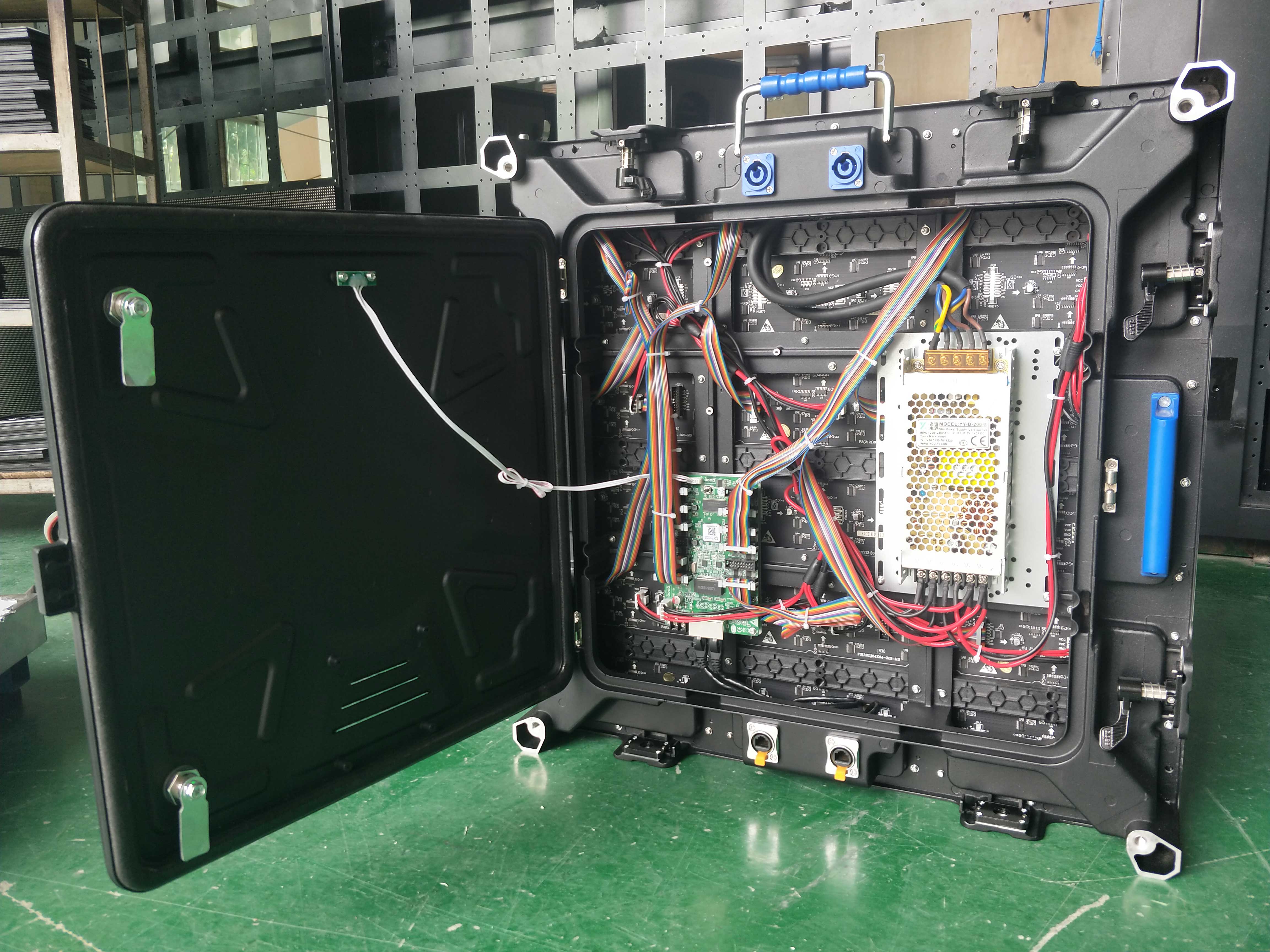

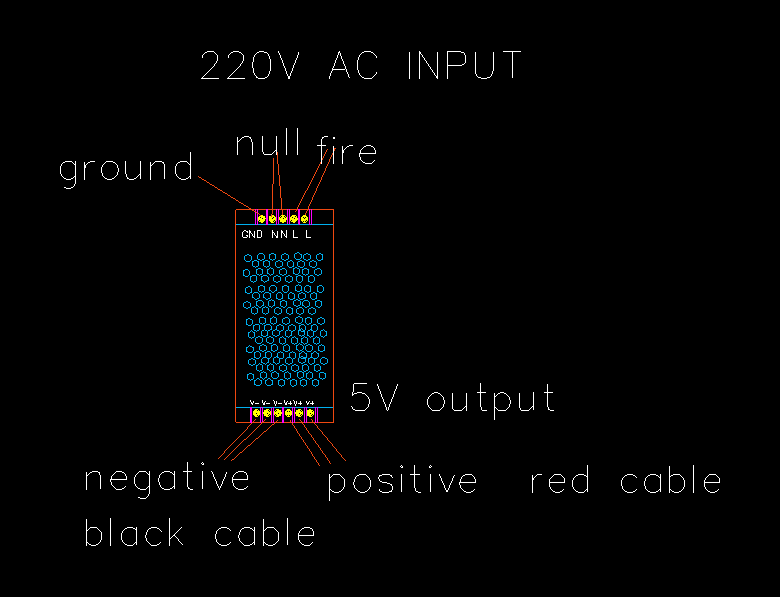

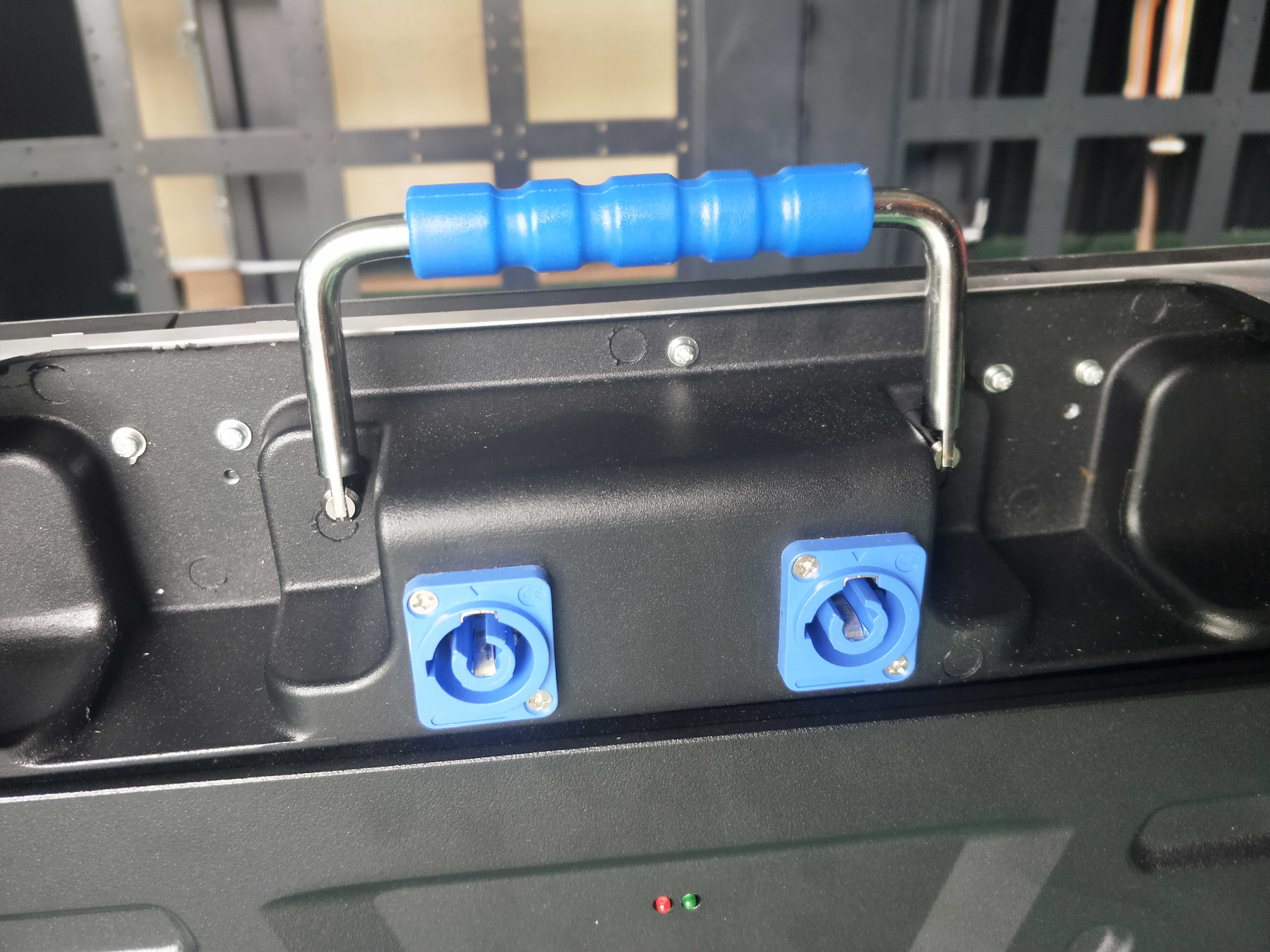

Convenient power outlet, safety and quickly
Selling Point

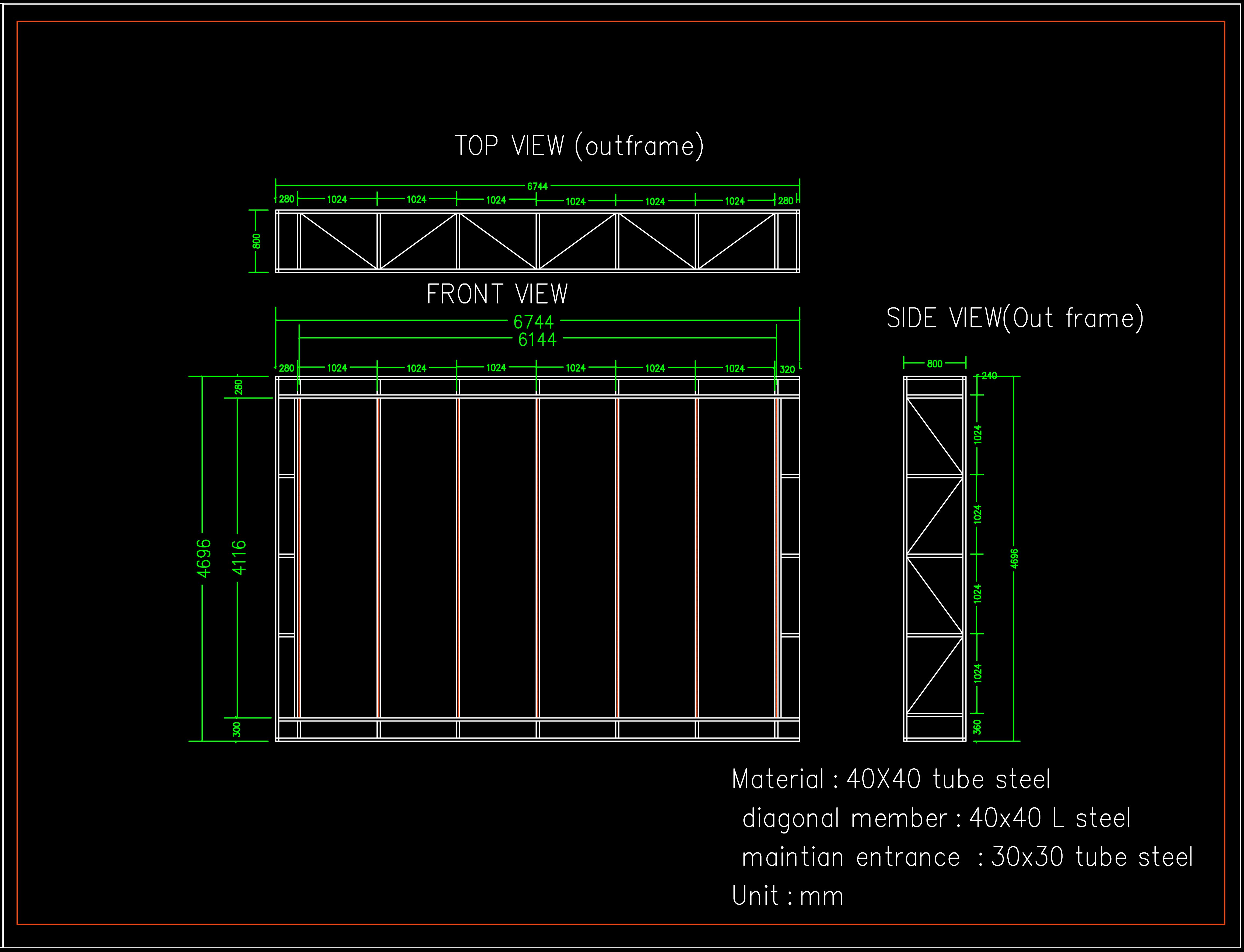

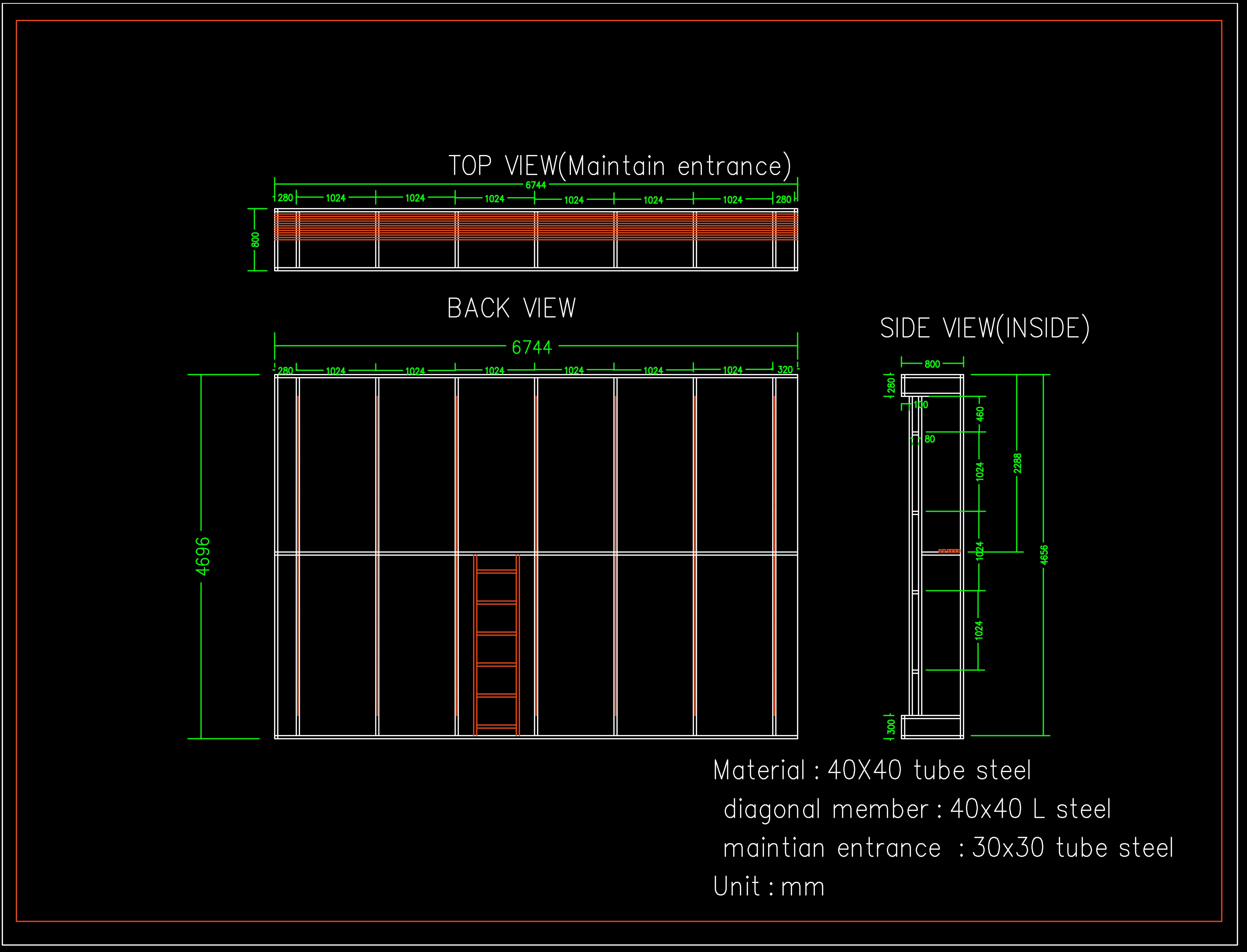

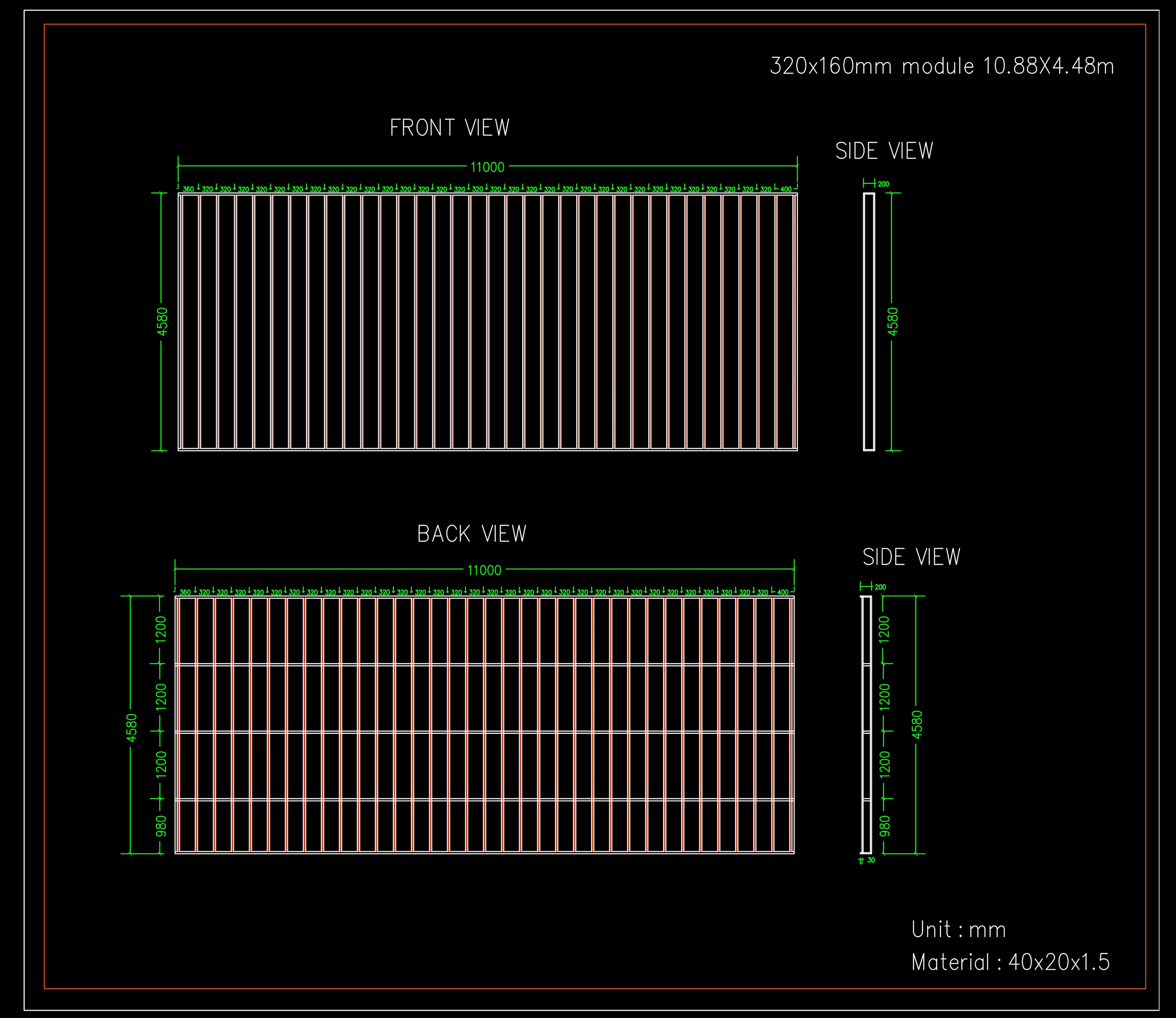

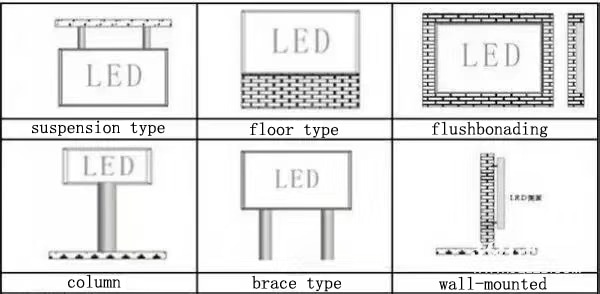

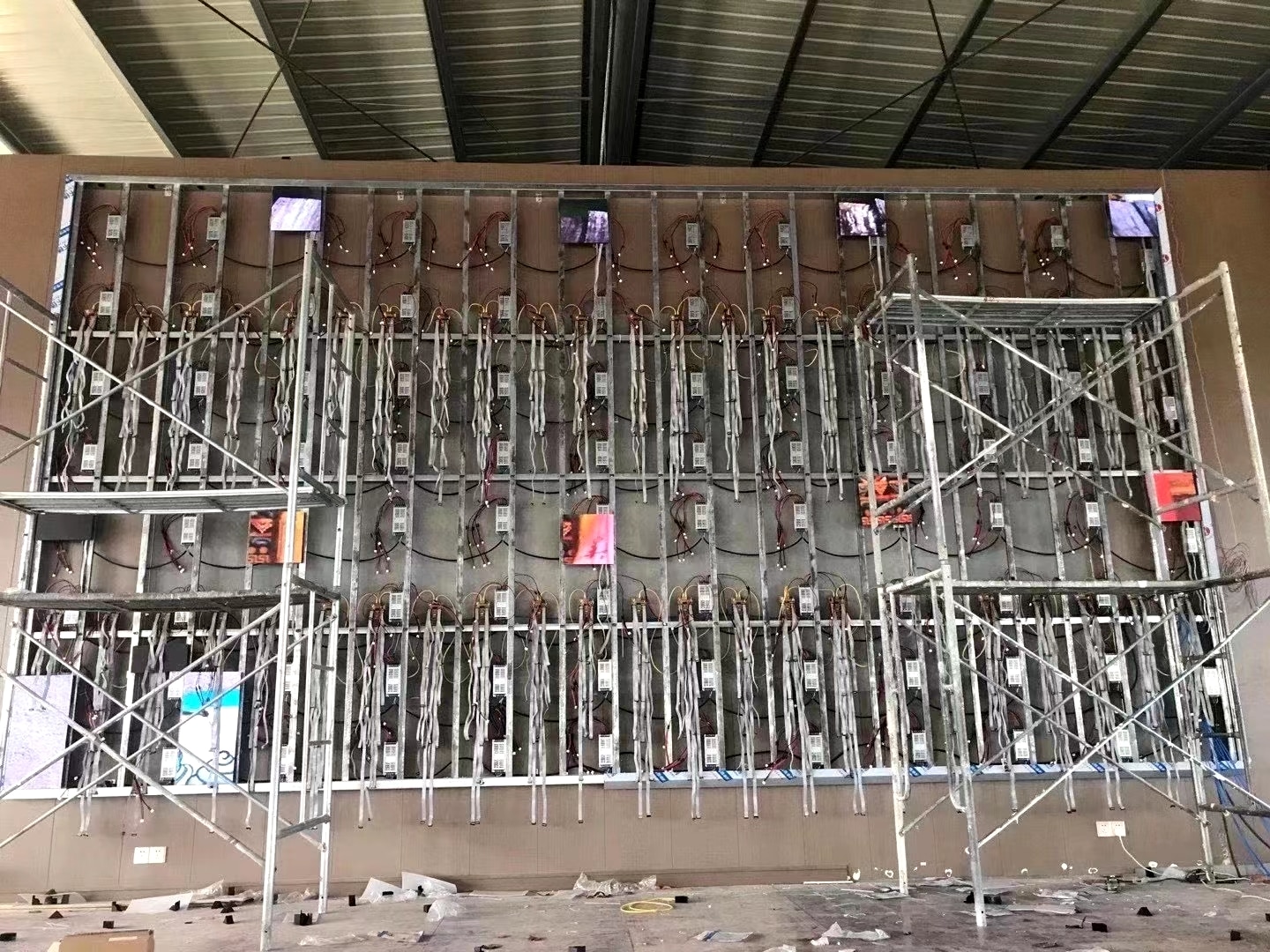

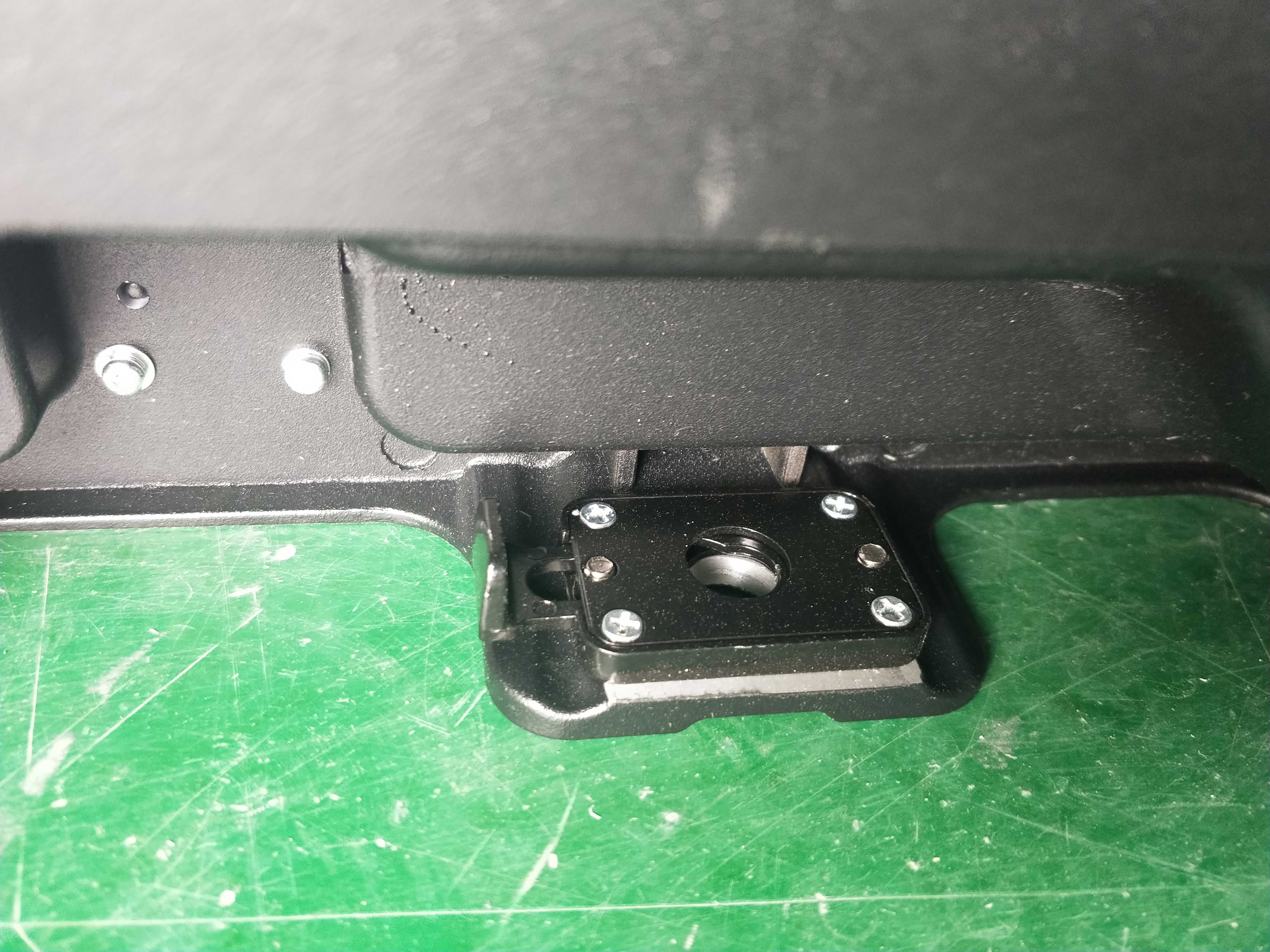

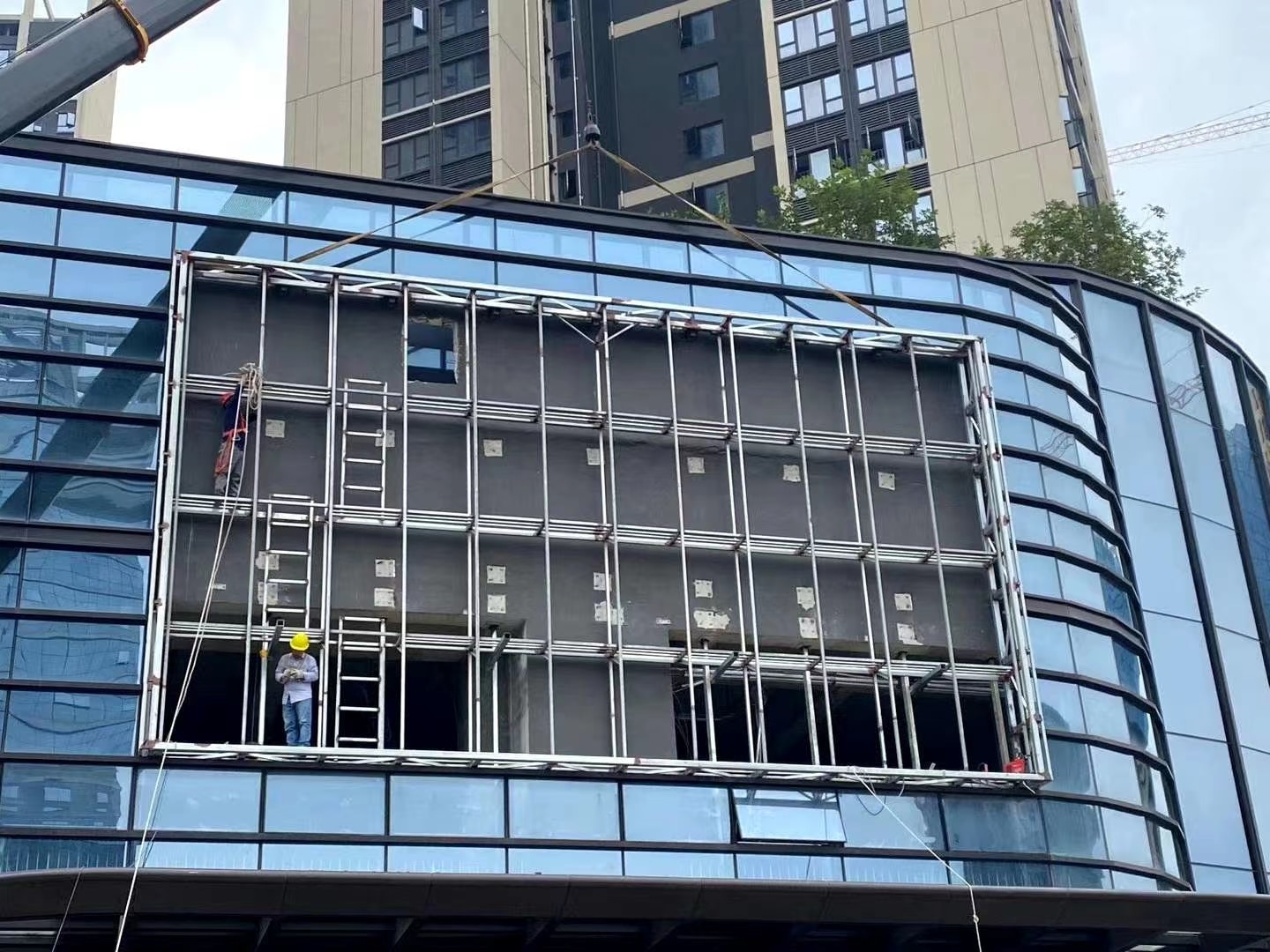

You can use screws fix the modules , magnets also available
indoor Modules not waterproof ,keep it dry , keep far away from water

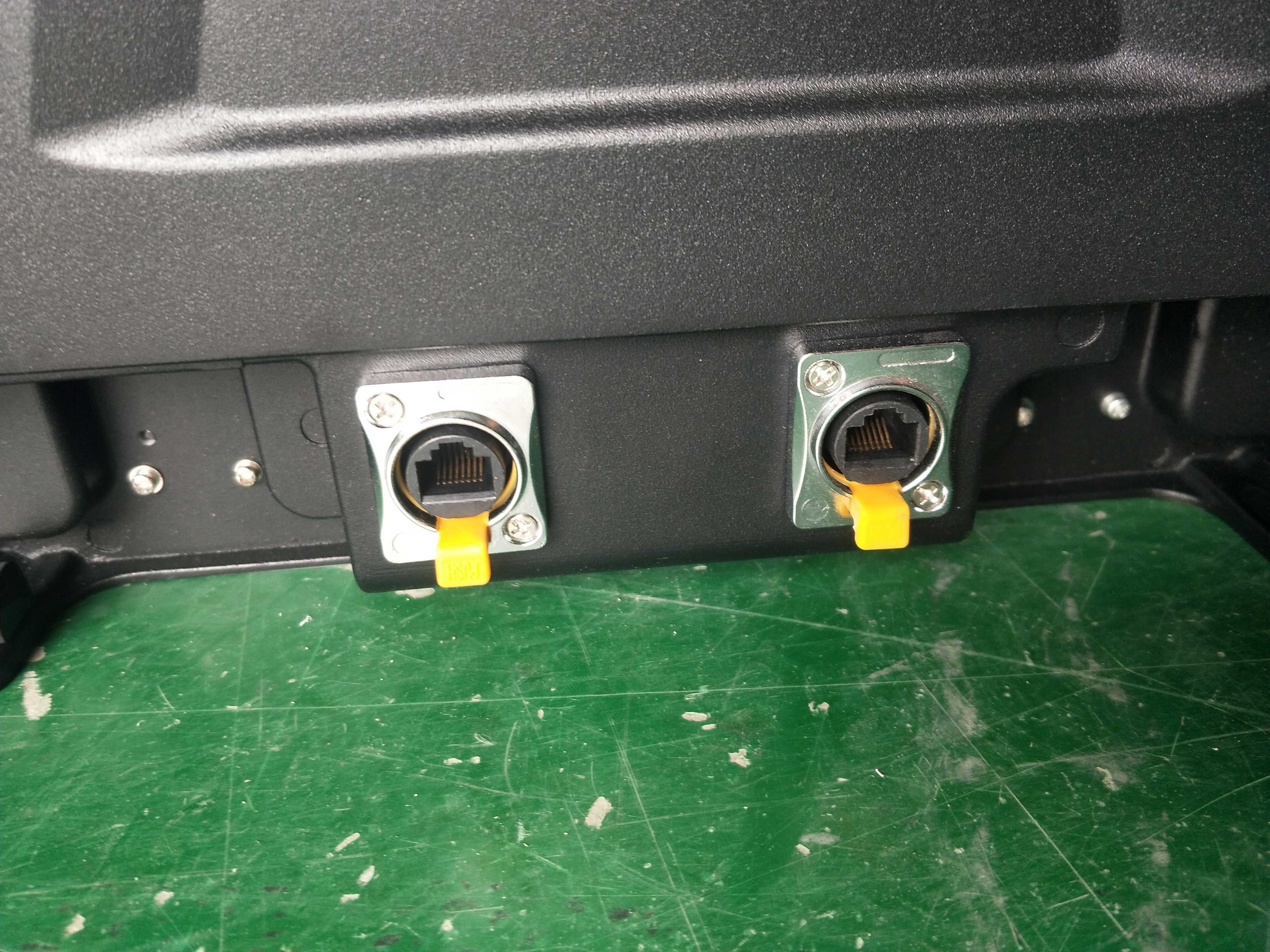

The outdoor module lamp face is waterproof, and the driving face shall not be flooded.Outdoor waterproof case can be waterproof
Selling Point

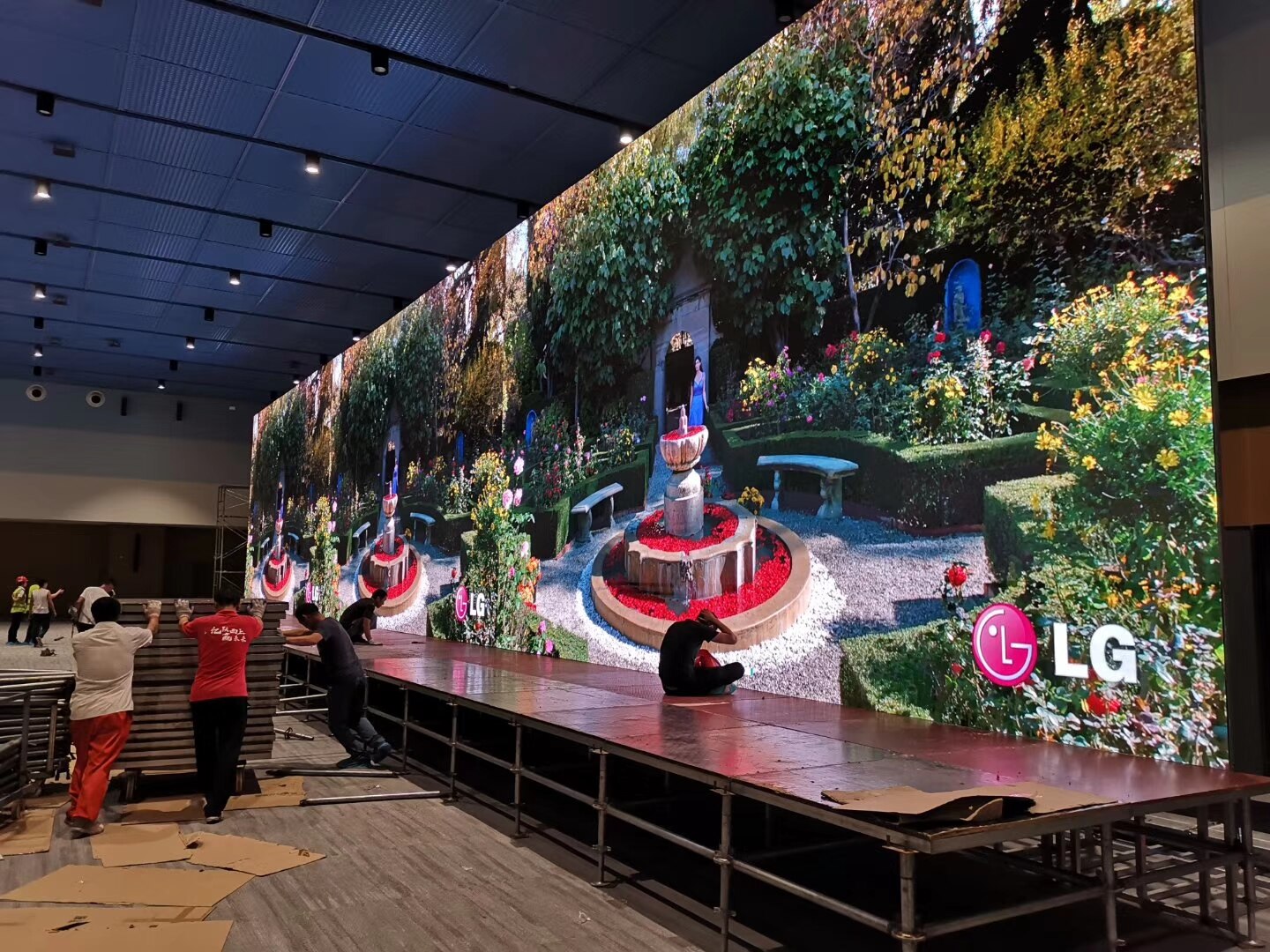

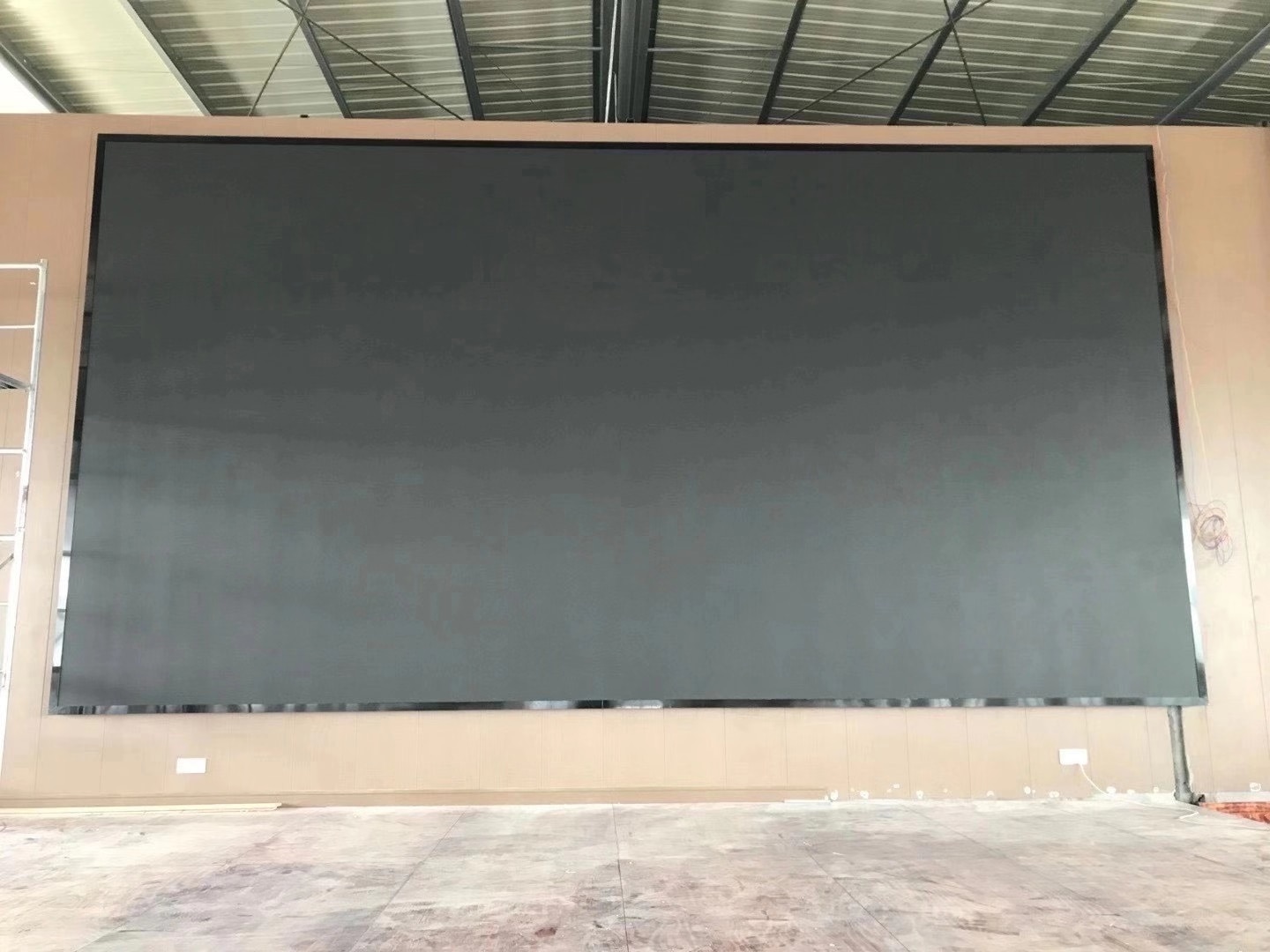

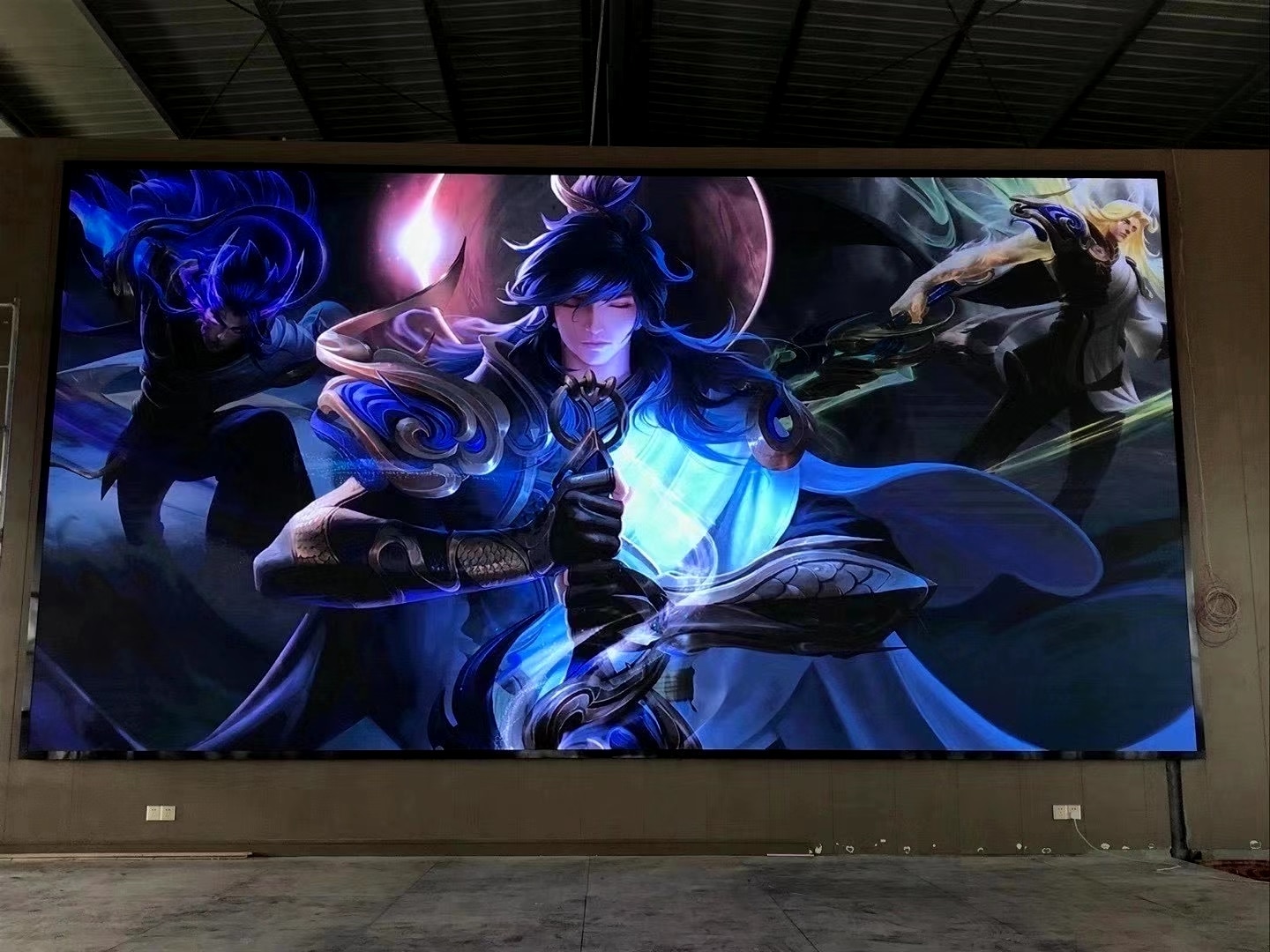

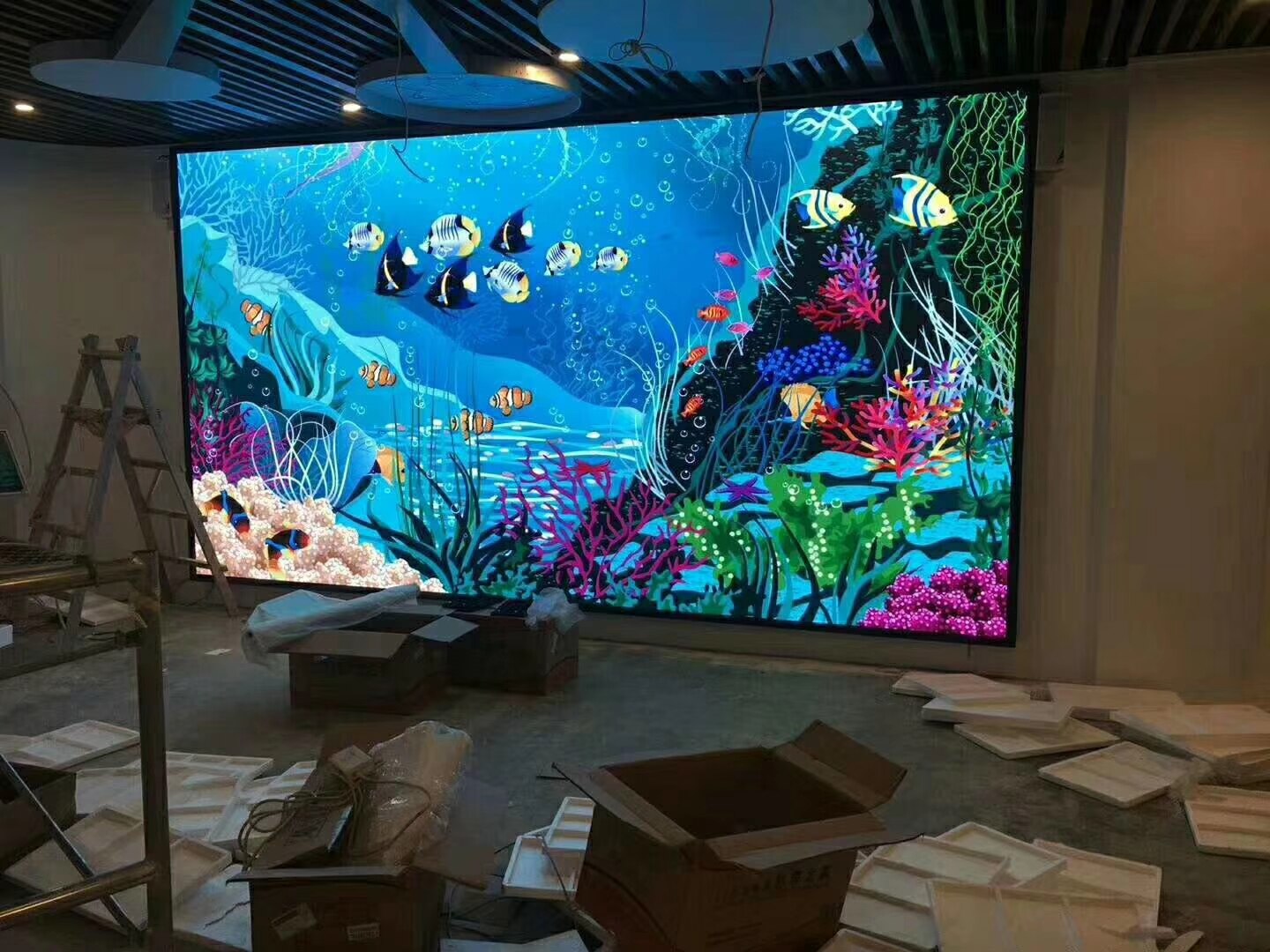

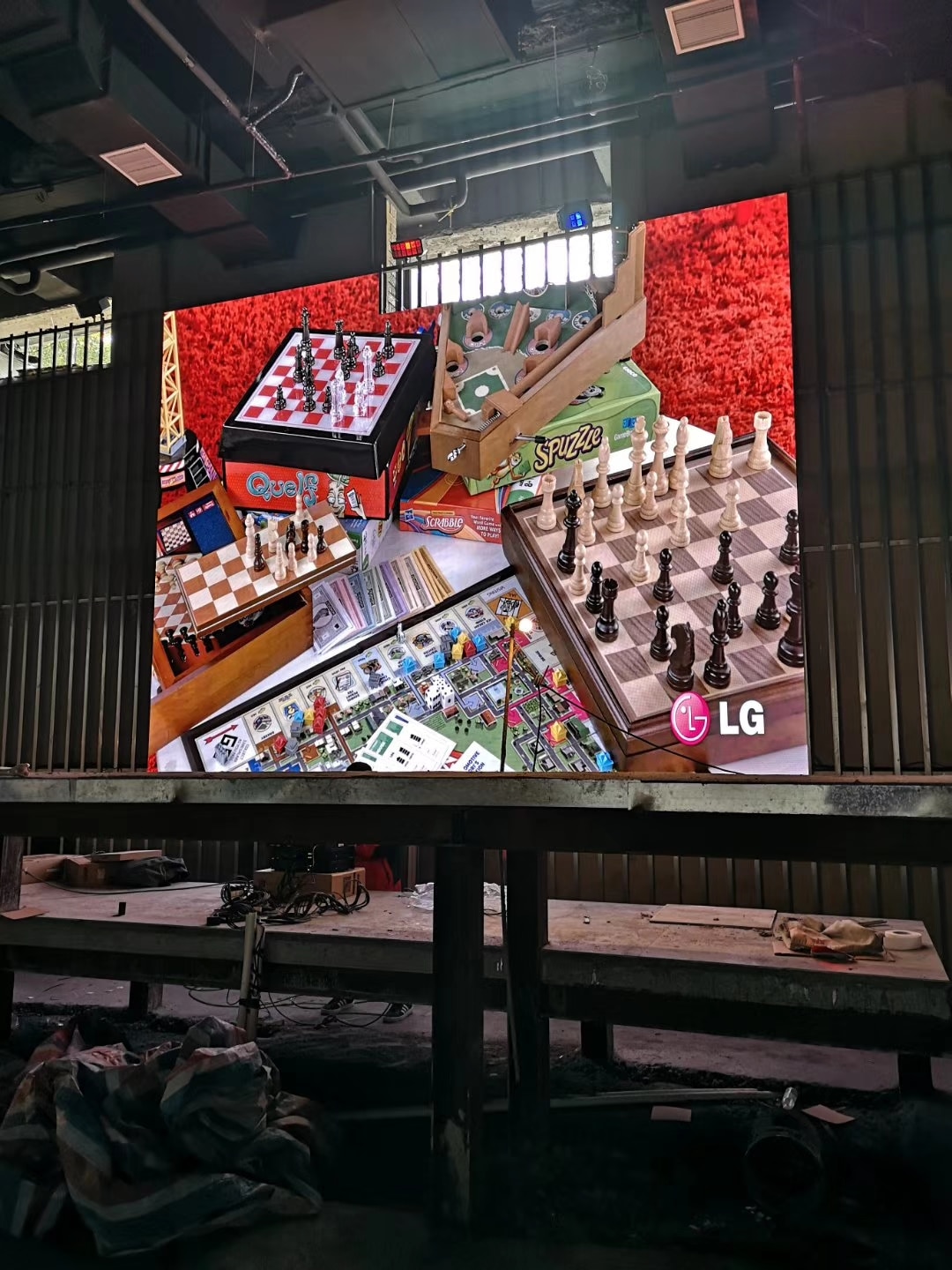

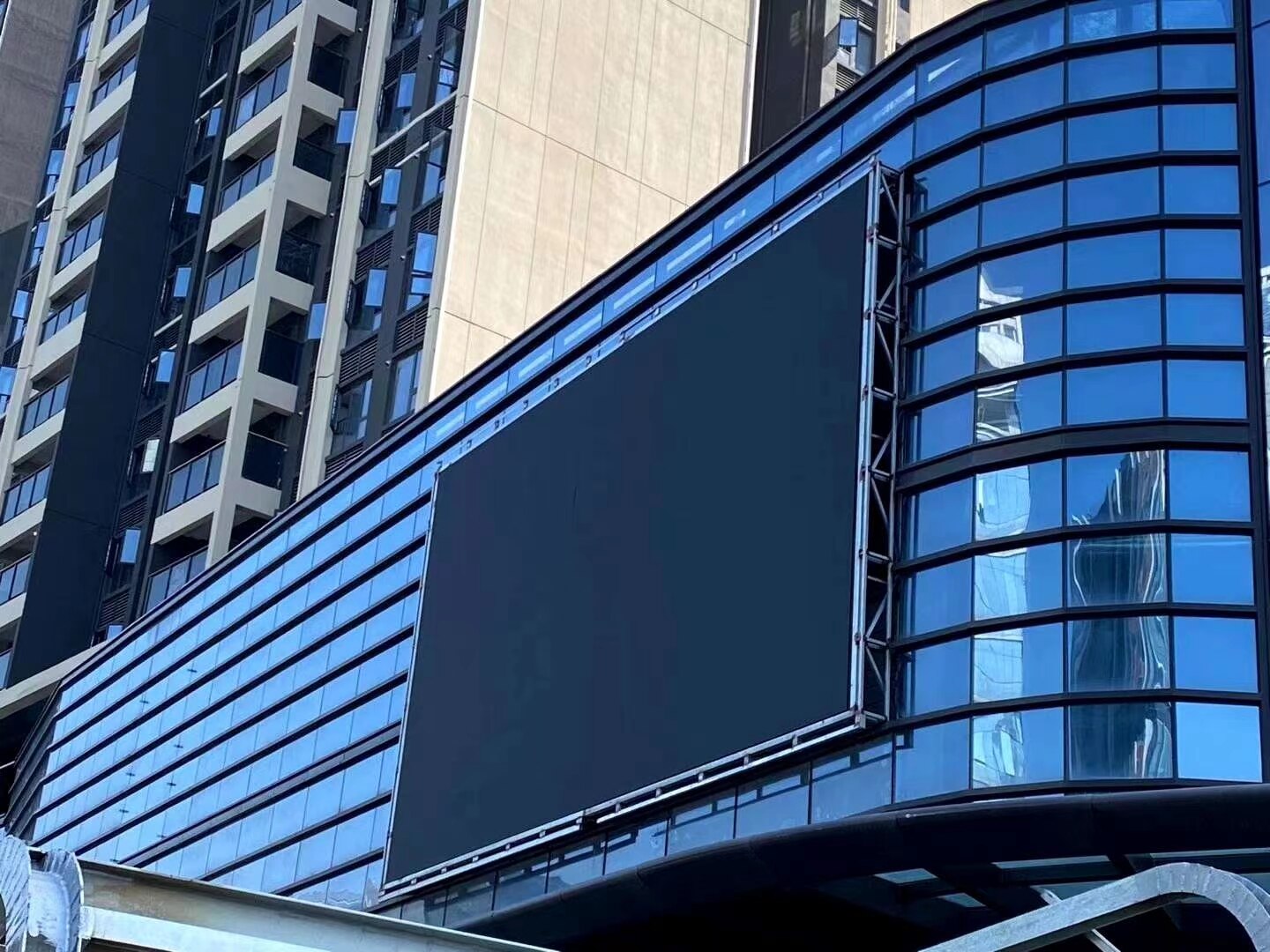

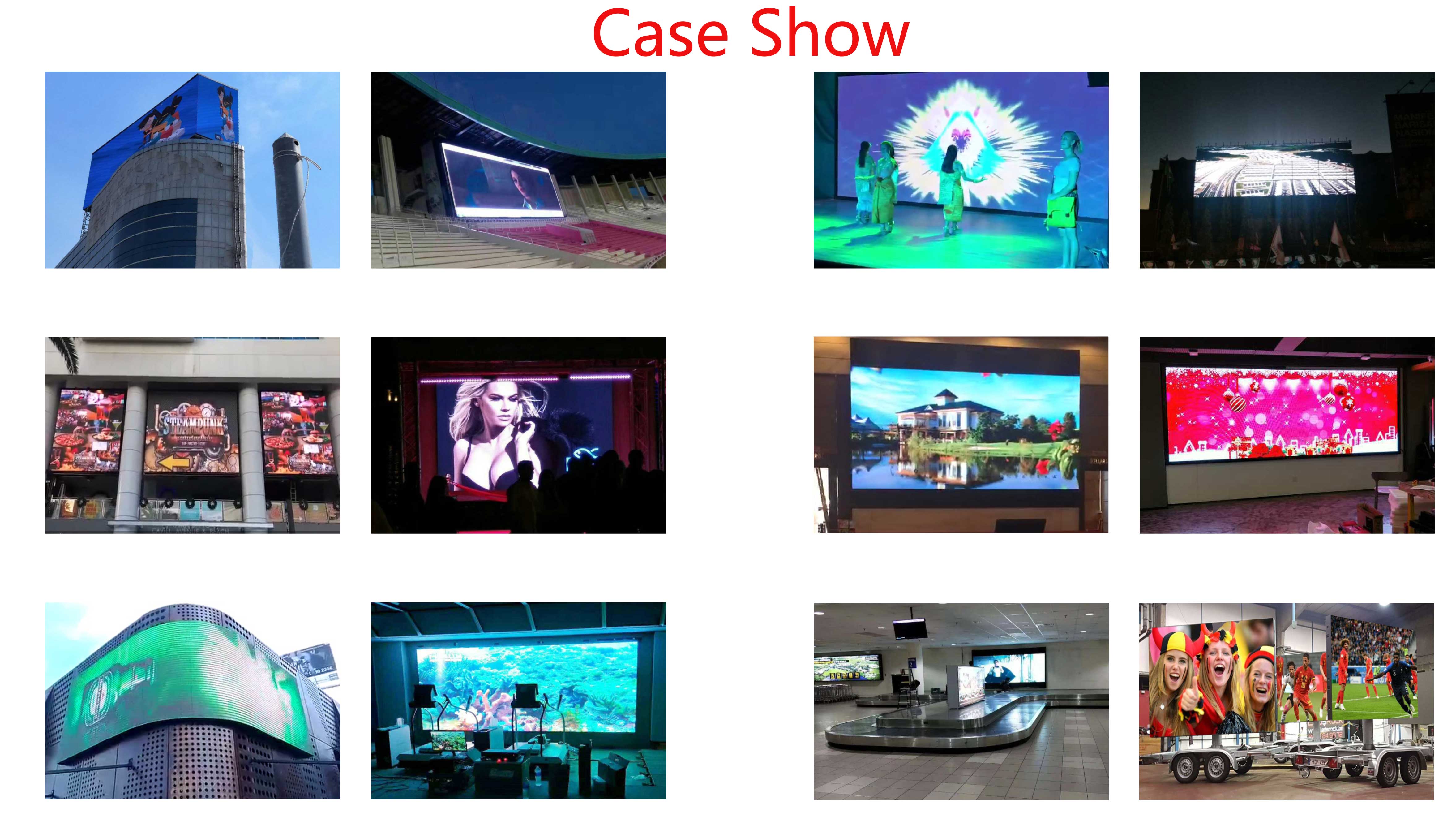

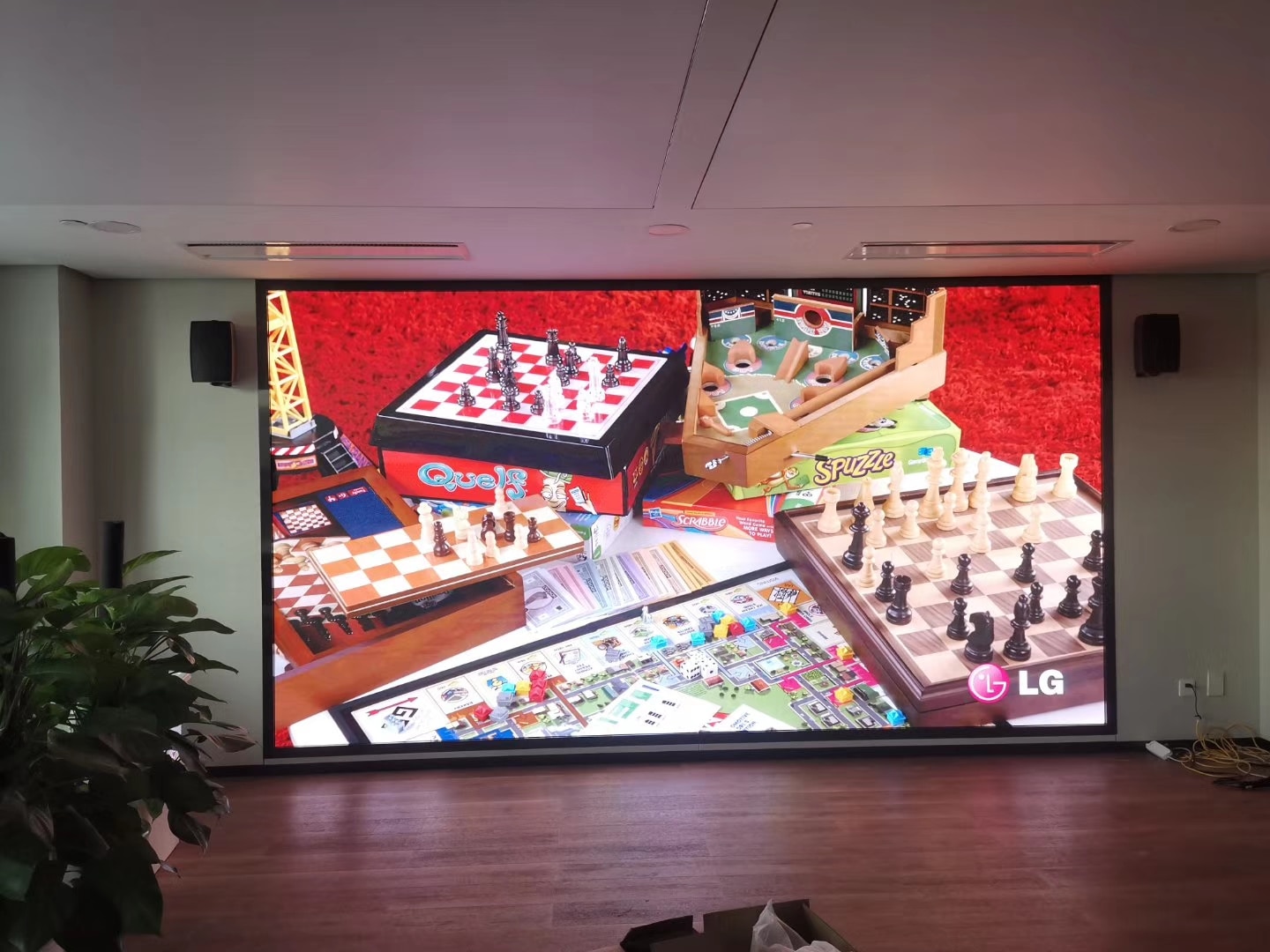

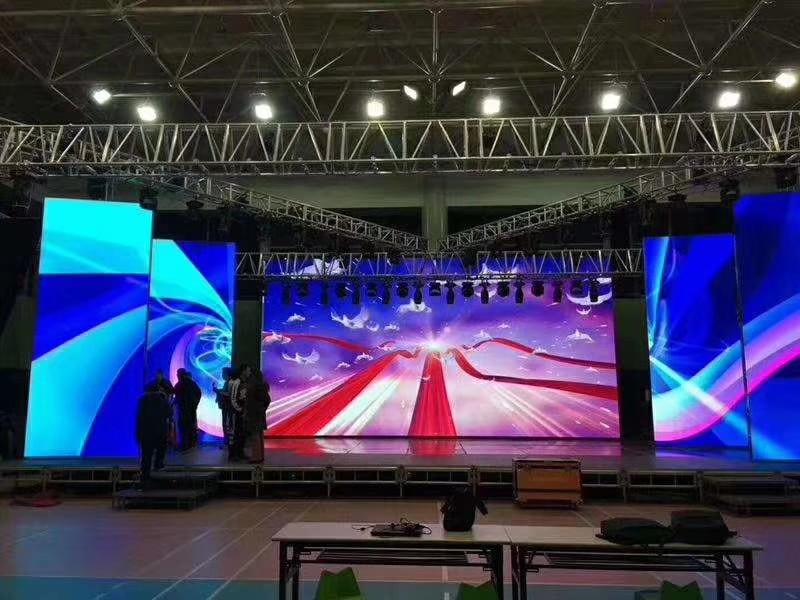

Meeting room , Applications Commercial advertising, night club, entertainment events, business establishments, stock exchange centers, schools, telecommunications, stadiums, shopping malls, railways, airports, stages, activities etc.
Selling Point
Returns and Miscellaneous:
1. Introduction
Some Products for customized products, not in stock. Does not provide any return service, the product produced, all the details of the pictures will be sent to you, both sides confirmed prior to shipment. If the inconvenience, please understand.
2. Warranty
One years of free maintenance: telephone consult maintenance, remote assistance, if the products have problems, please contact us immediately, we will help you solve the problem. If any part of the damage, we will send a new hardware replacement.
3.We can also send our engineer to your country for installation guide.
4. LED display module is a special product. For different times, it maybe have Color/Configuration/Hole dimension difference.
So please buy all LED modules at the same time if you want all LED modules be same.
5.The picture of PCB board and screws holes in the description maybe different from what you receive because of the updating version. If you want to buy same PCB board and same screw holes led modules, please contact us in advance.

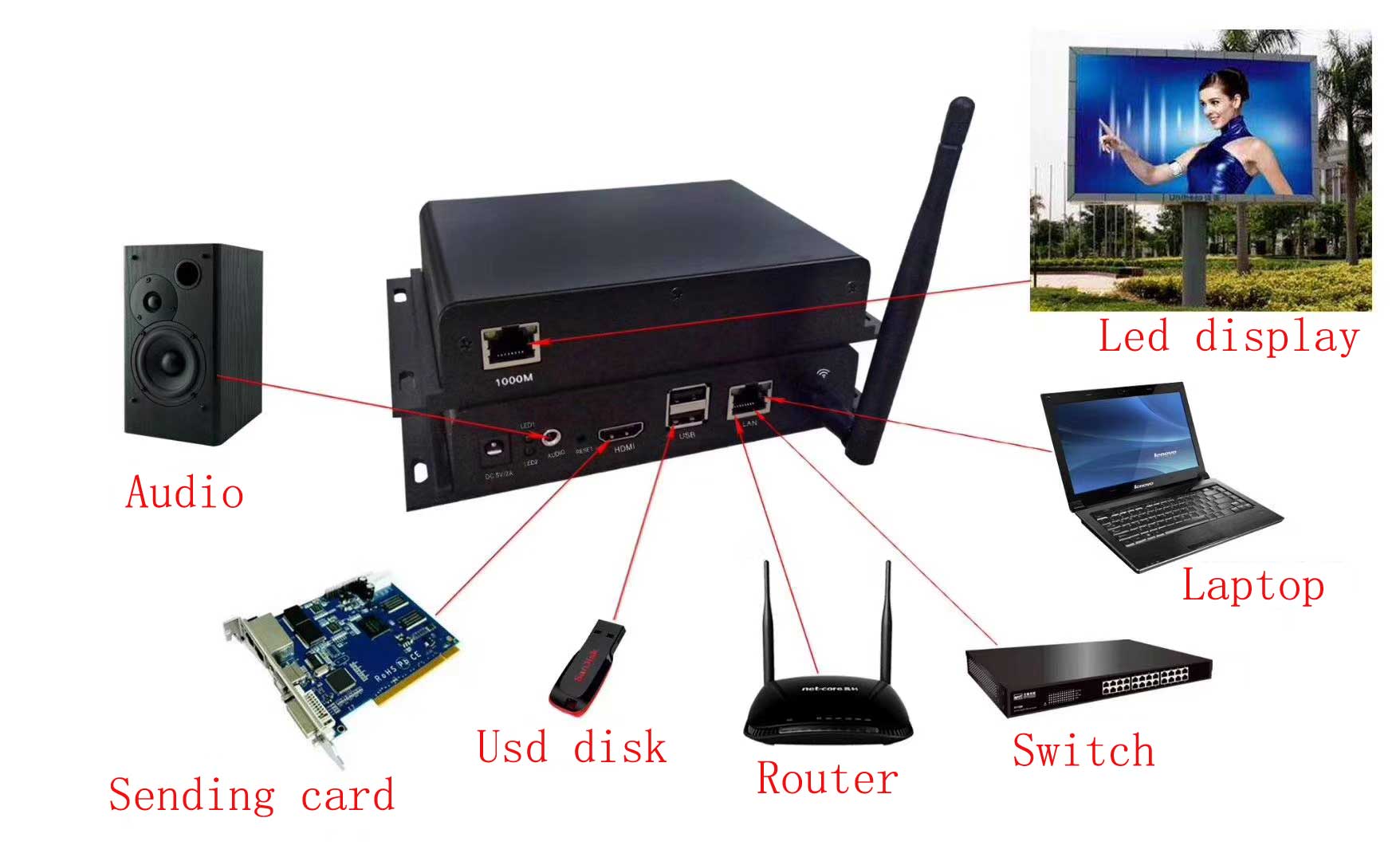

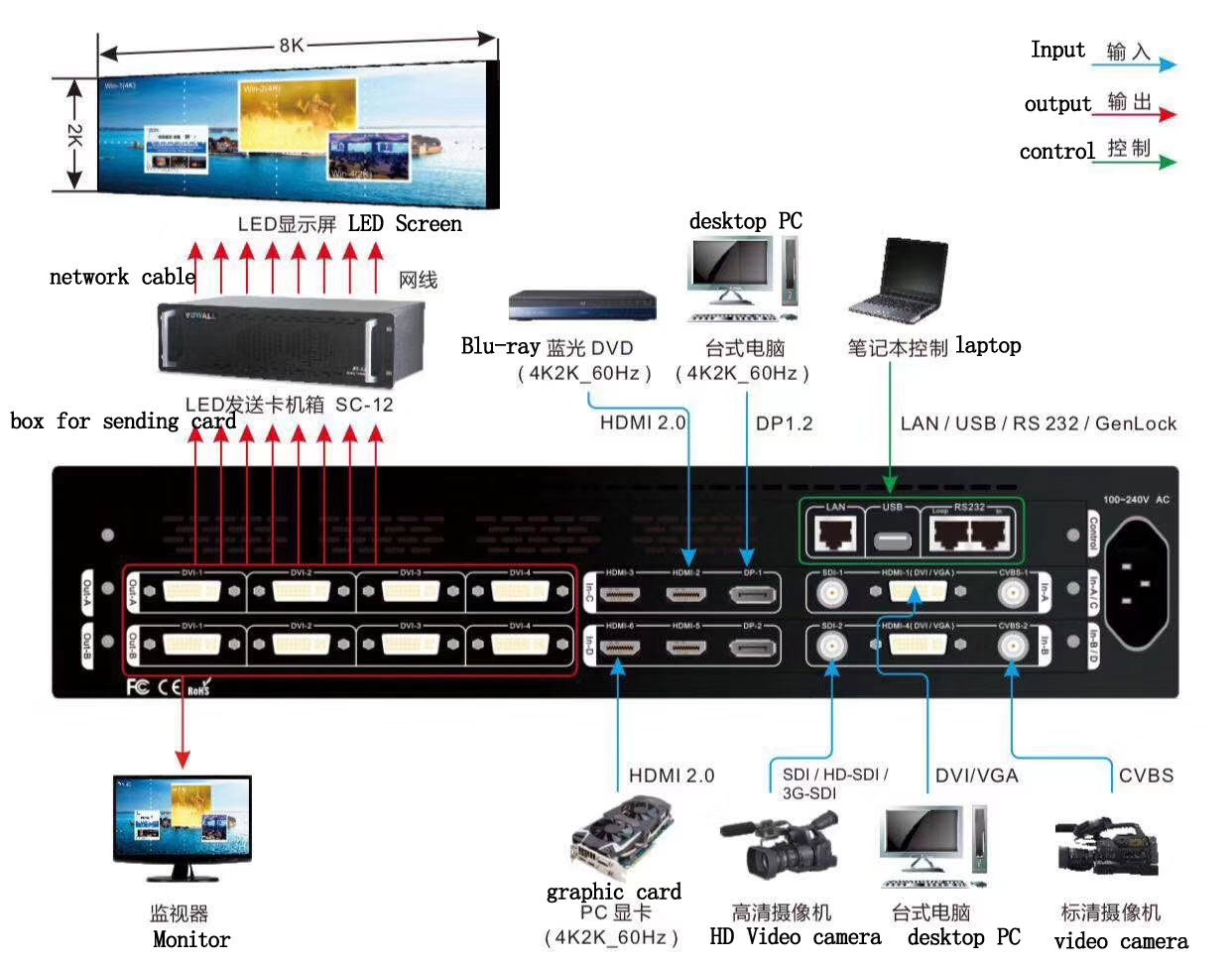

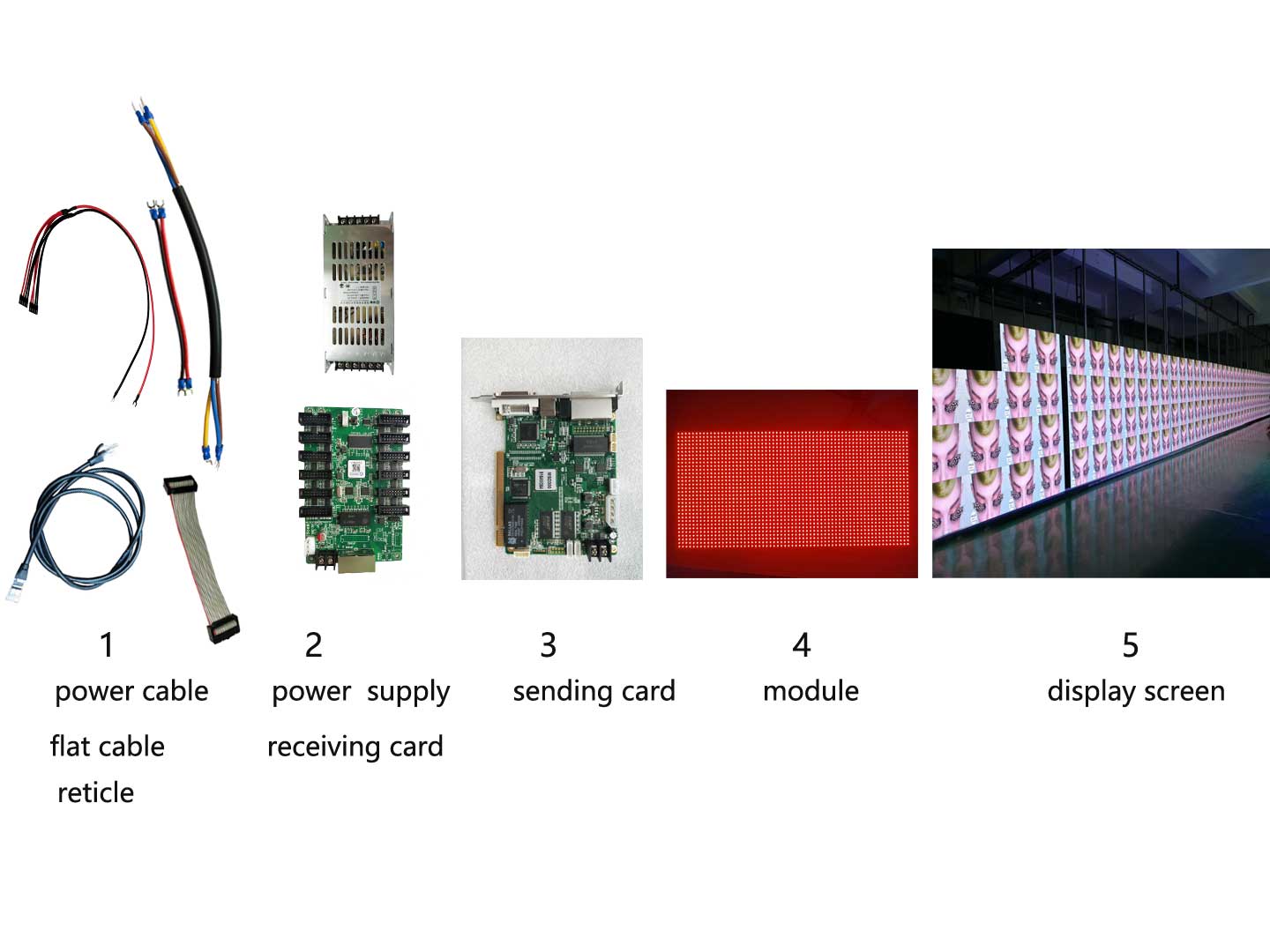

6. LED modules are mainly used to assemble large size LED display, it have special Control card for them. It is better to buy Control card from us.
Selling Point

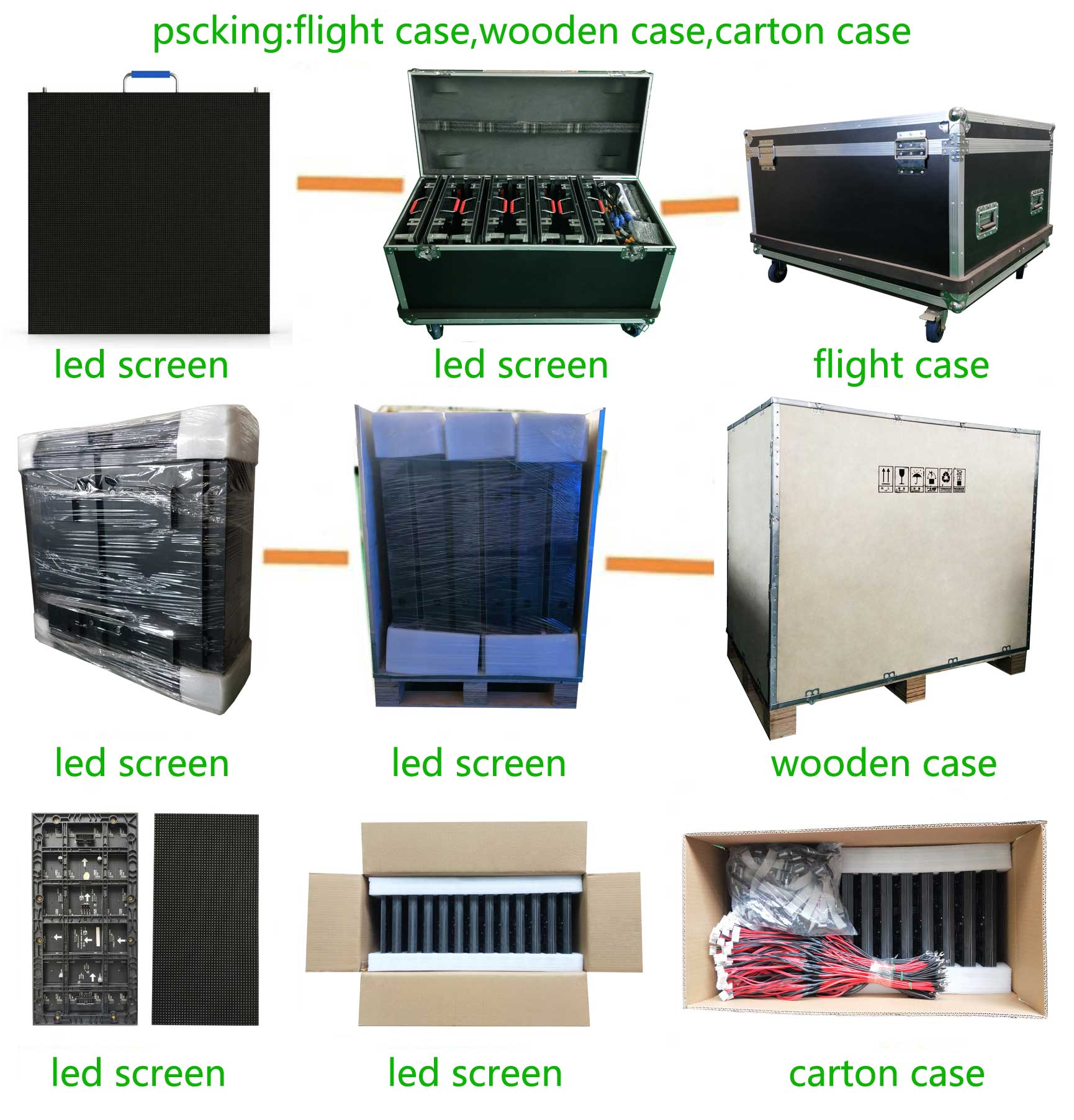

We choose the convenient express so that you can get the goods early

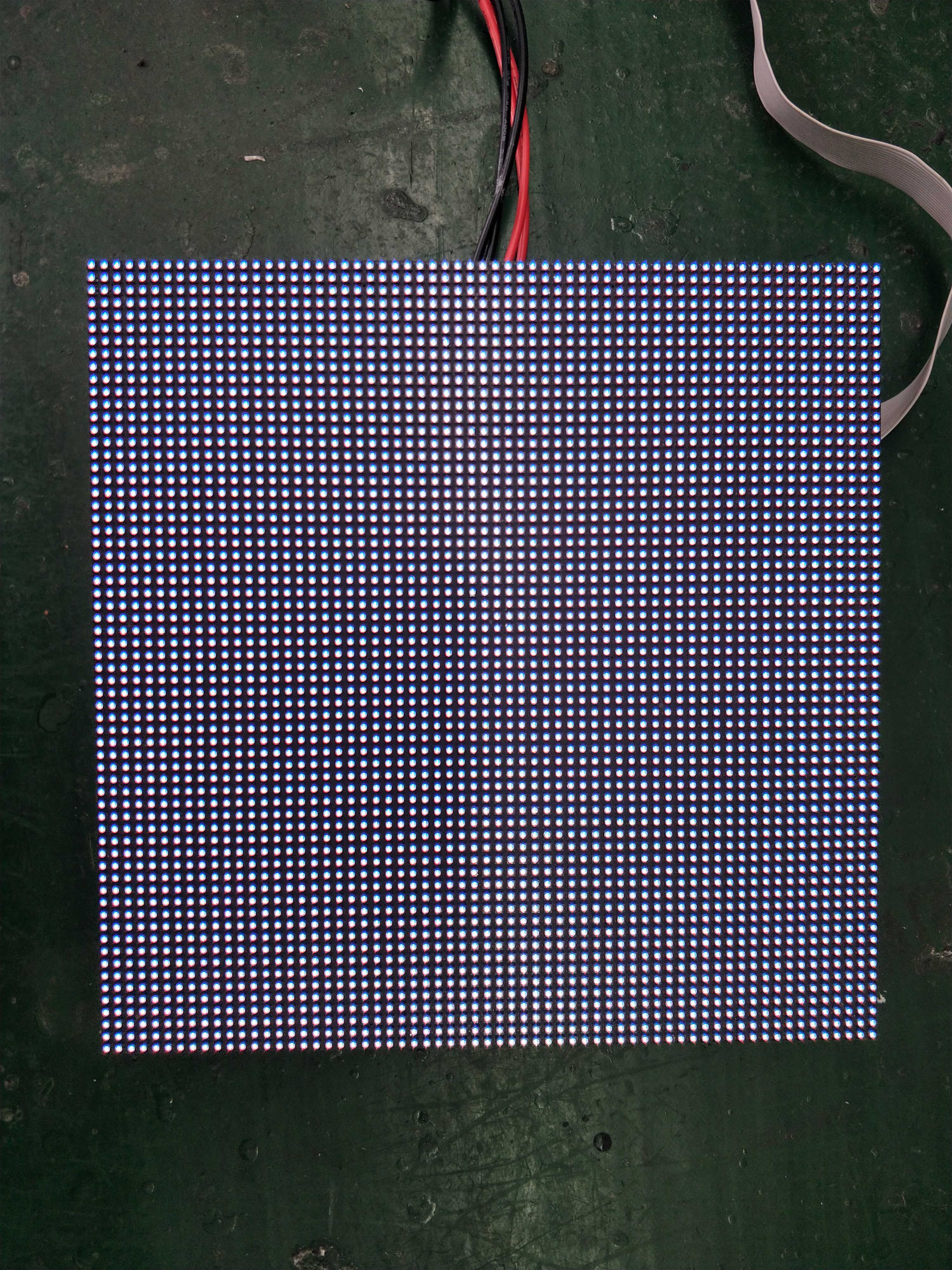

Attention:Due to the instability of electronic products, 3 ‰ of the dead
lamps rate is controllable, and several dead pixels are normal.
Selling Point
Welcome honghui Electrionic Store
1. We are professional product and sale LED display
2. We are provide low piece and high quality on Hogaki

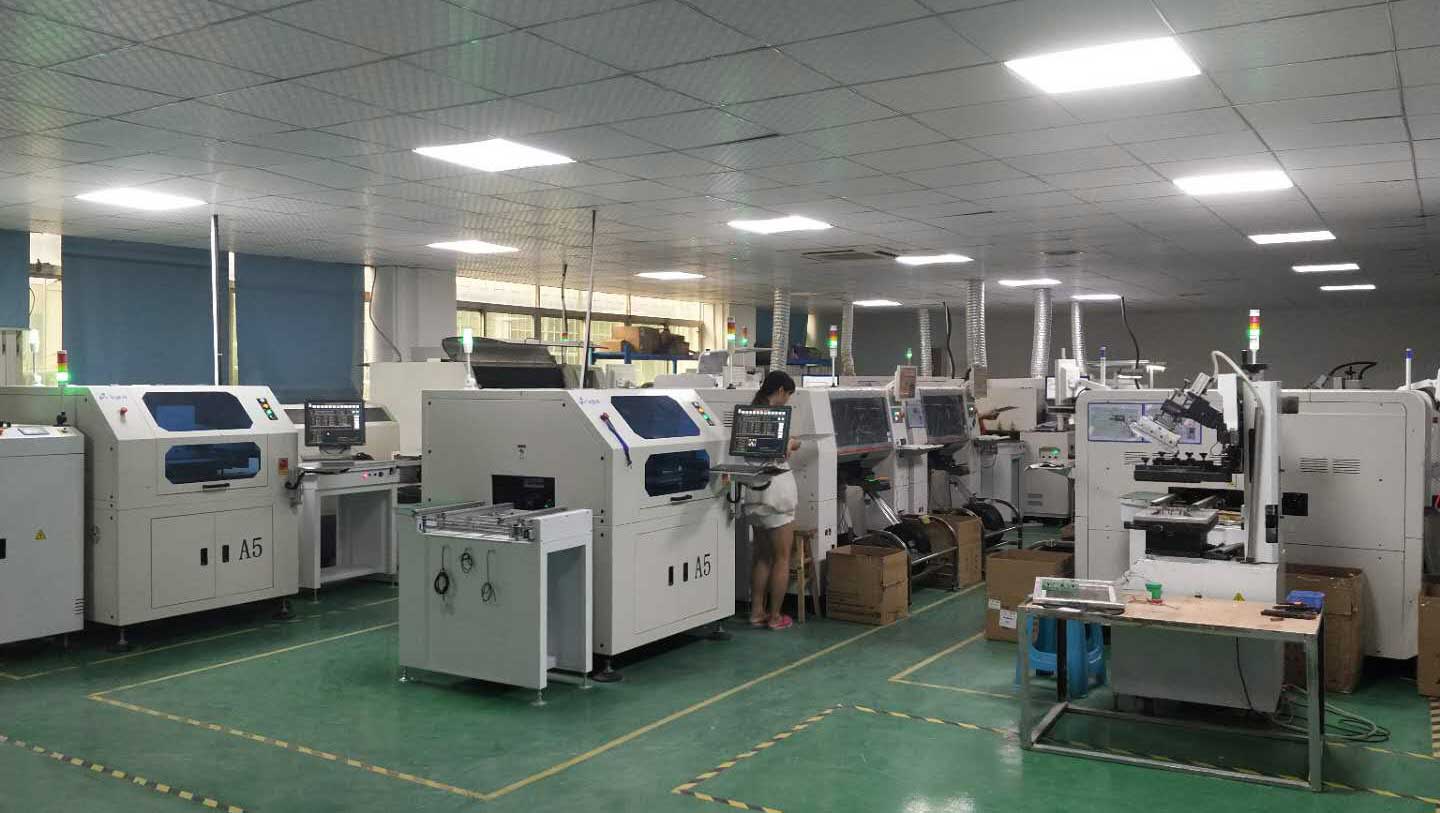

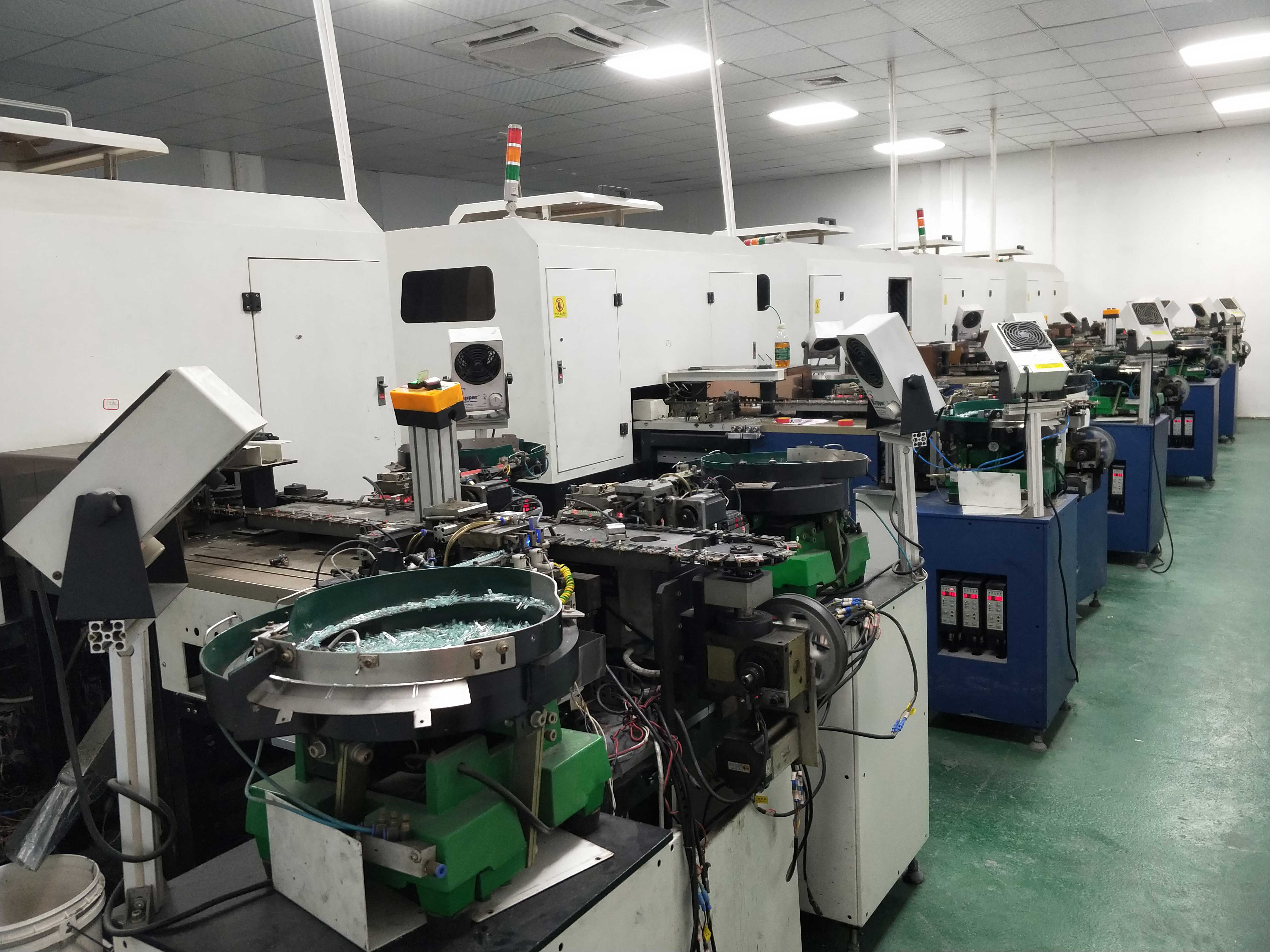

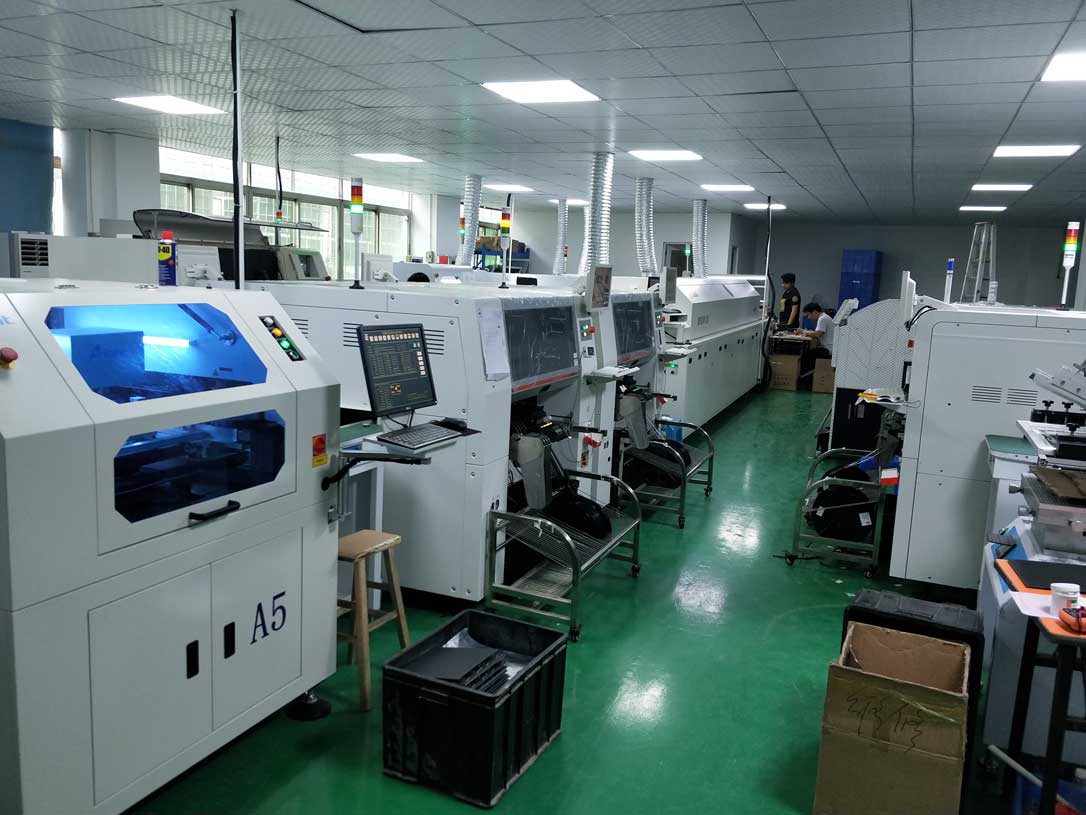

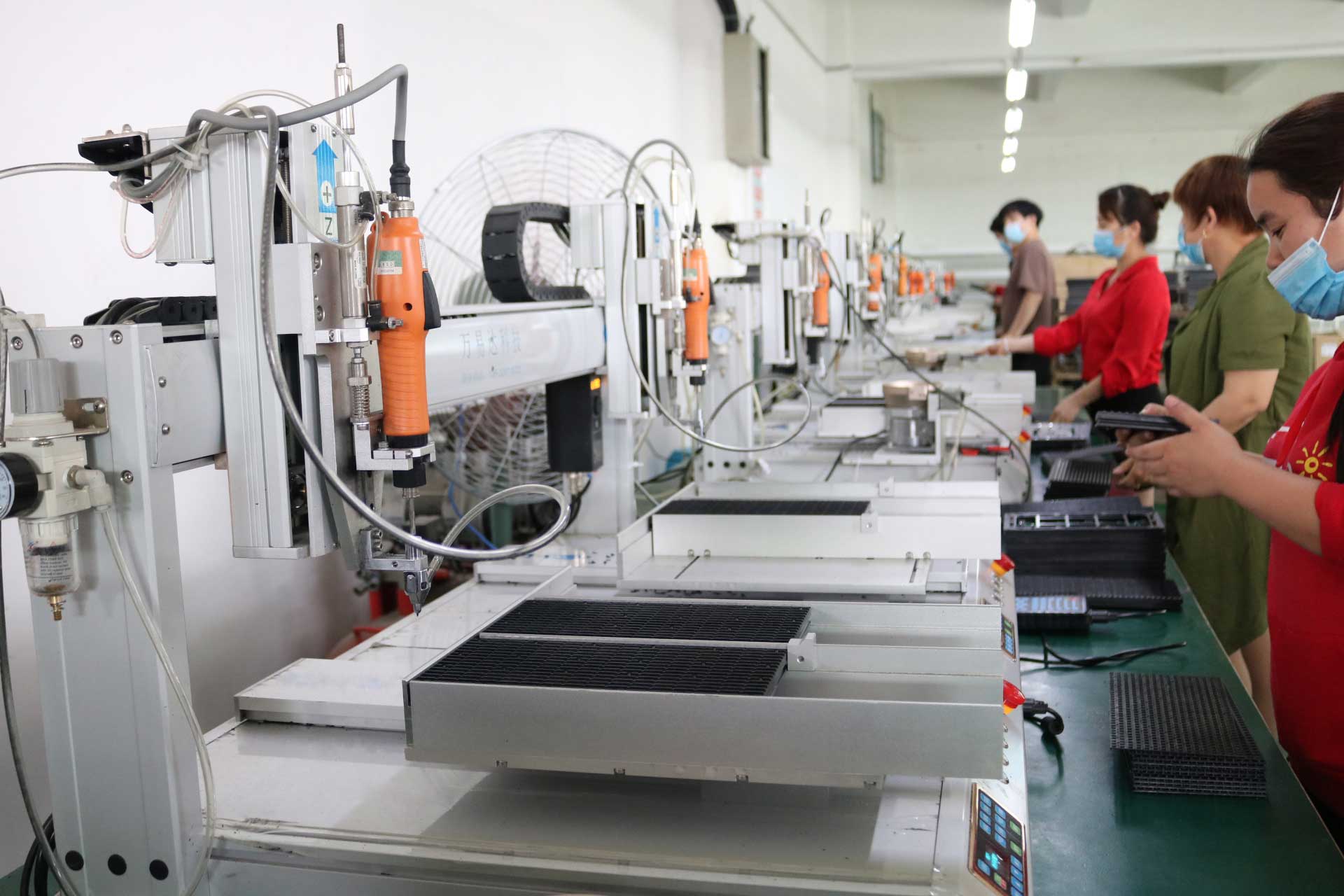

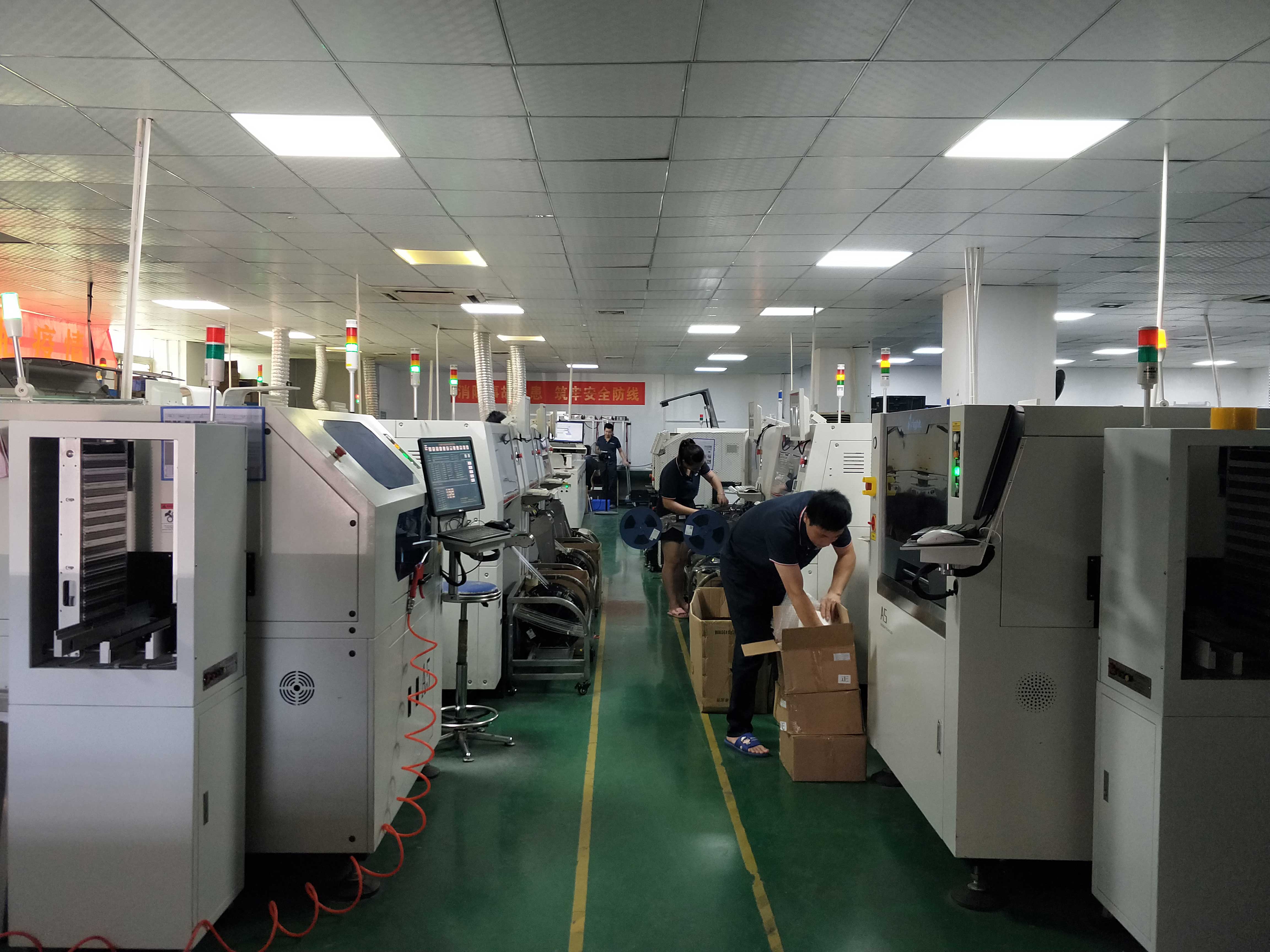

3. Welcome to our factory for inspection in China
