Note: the new version is no "Tracer" logo.

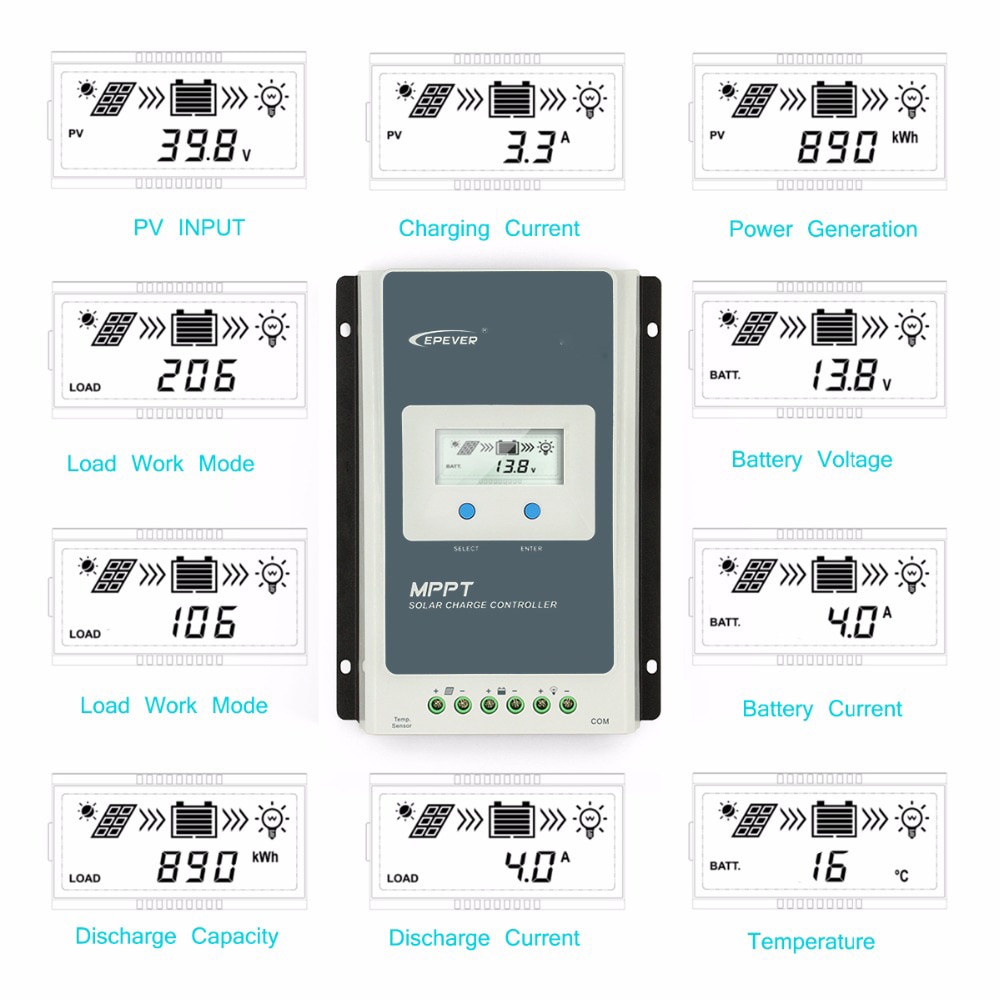

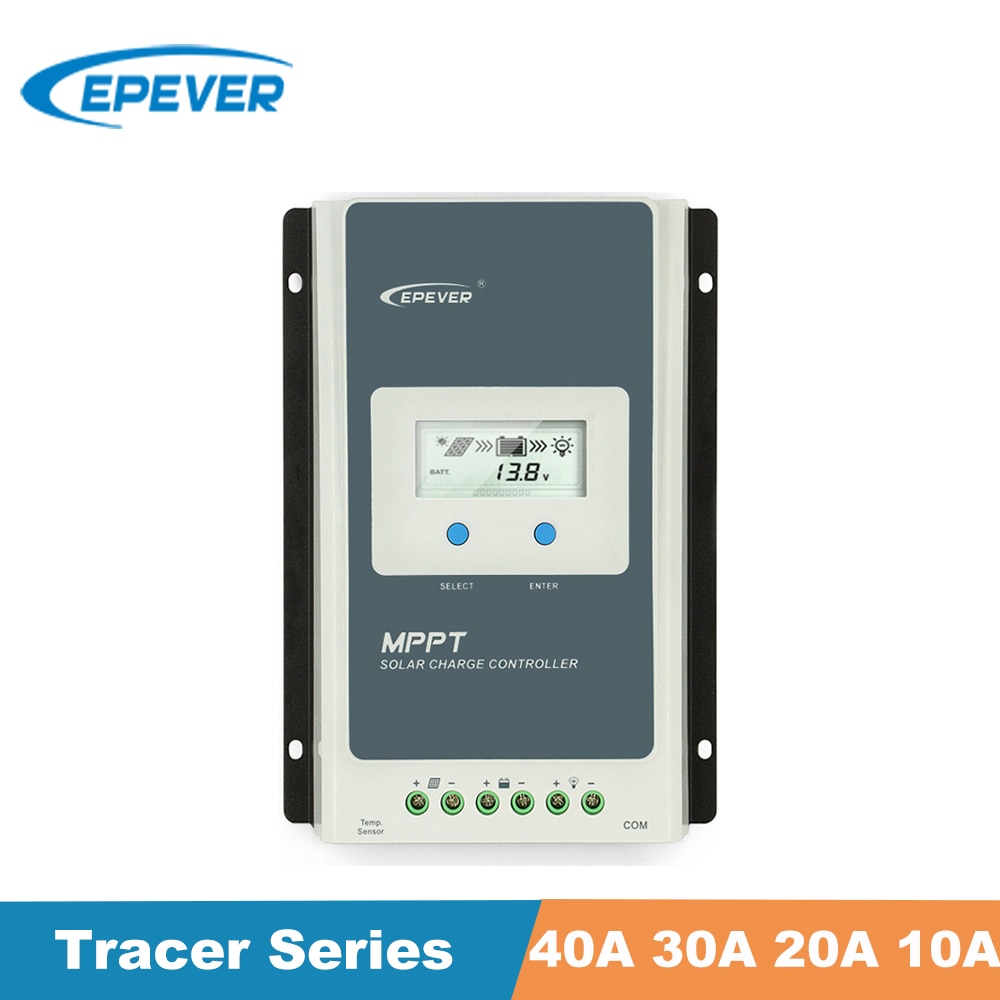

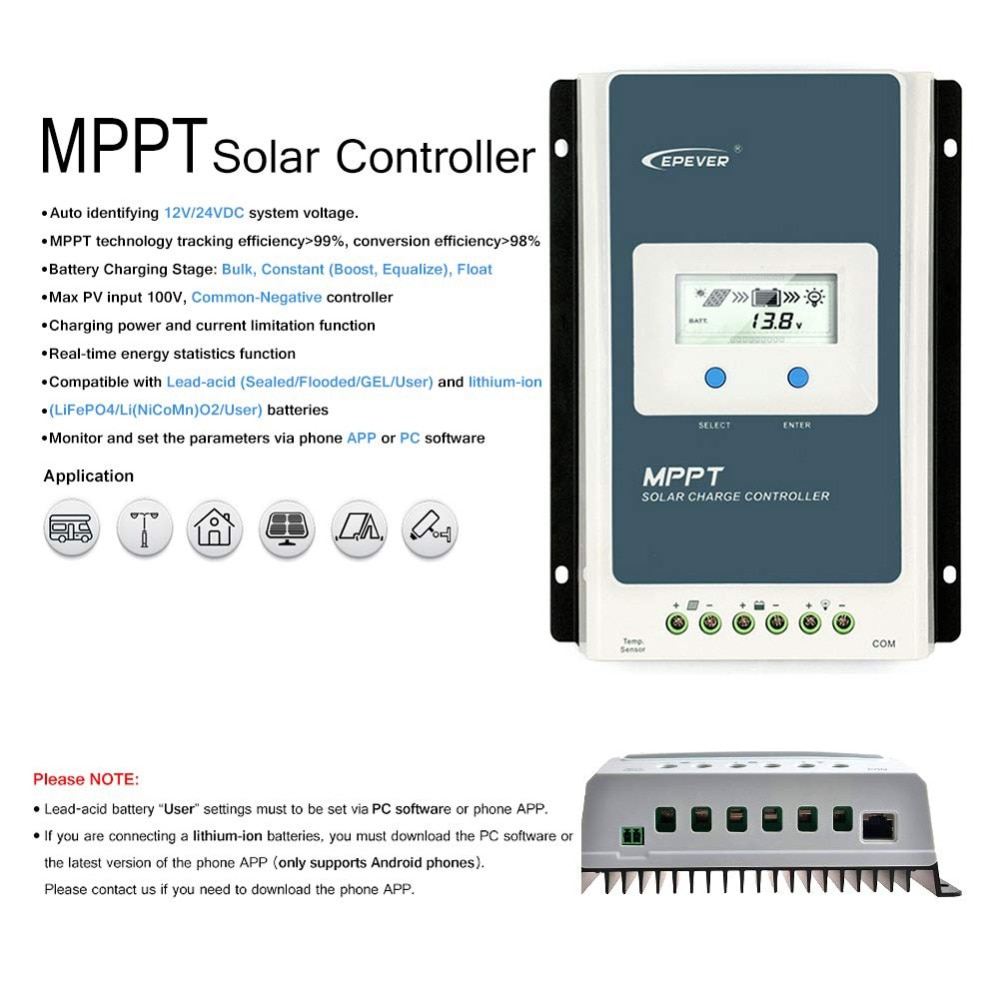

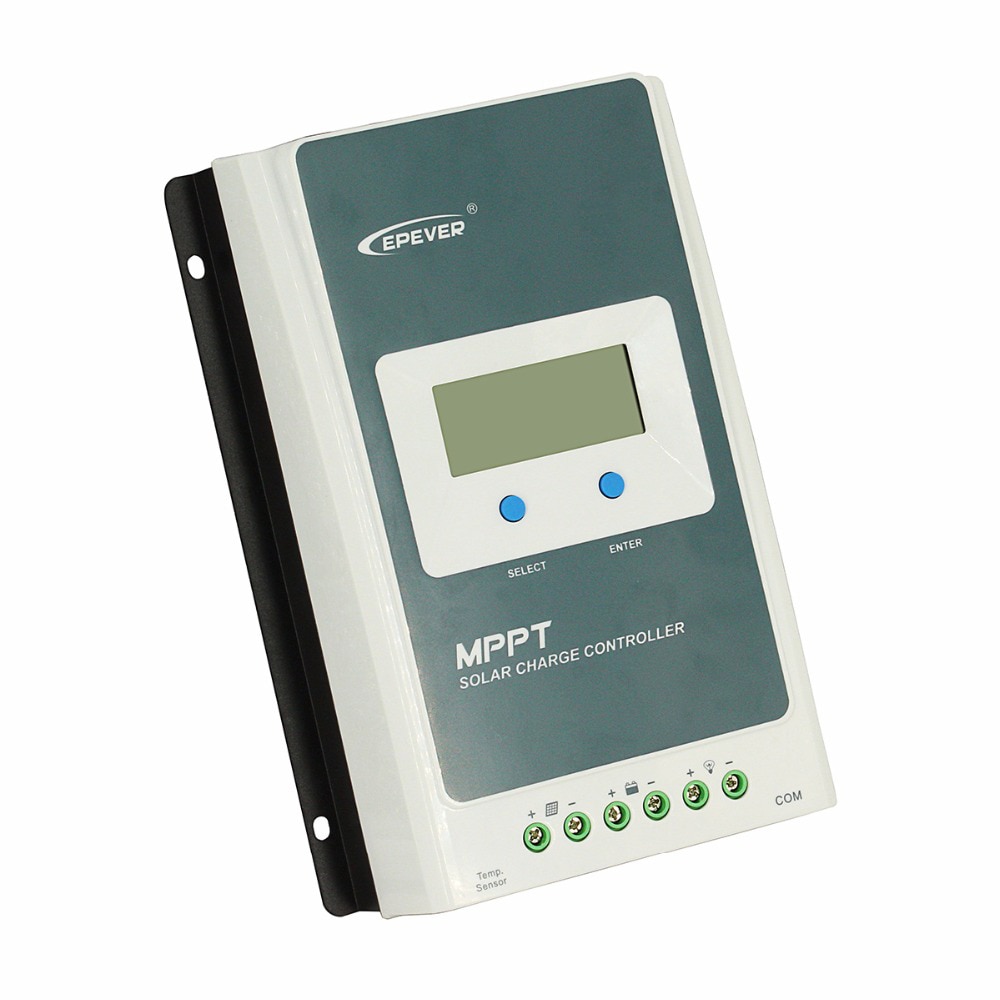

The Tracer AN series. Based on common negative design and advanced MPPT control algorithm, with LCD displaying running status, this product is artistic, economical and practical. Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducingcharging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements.

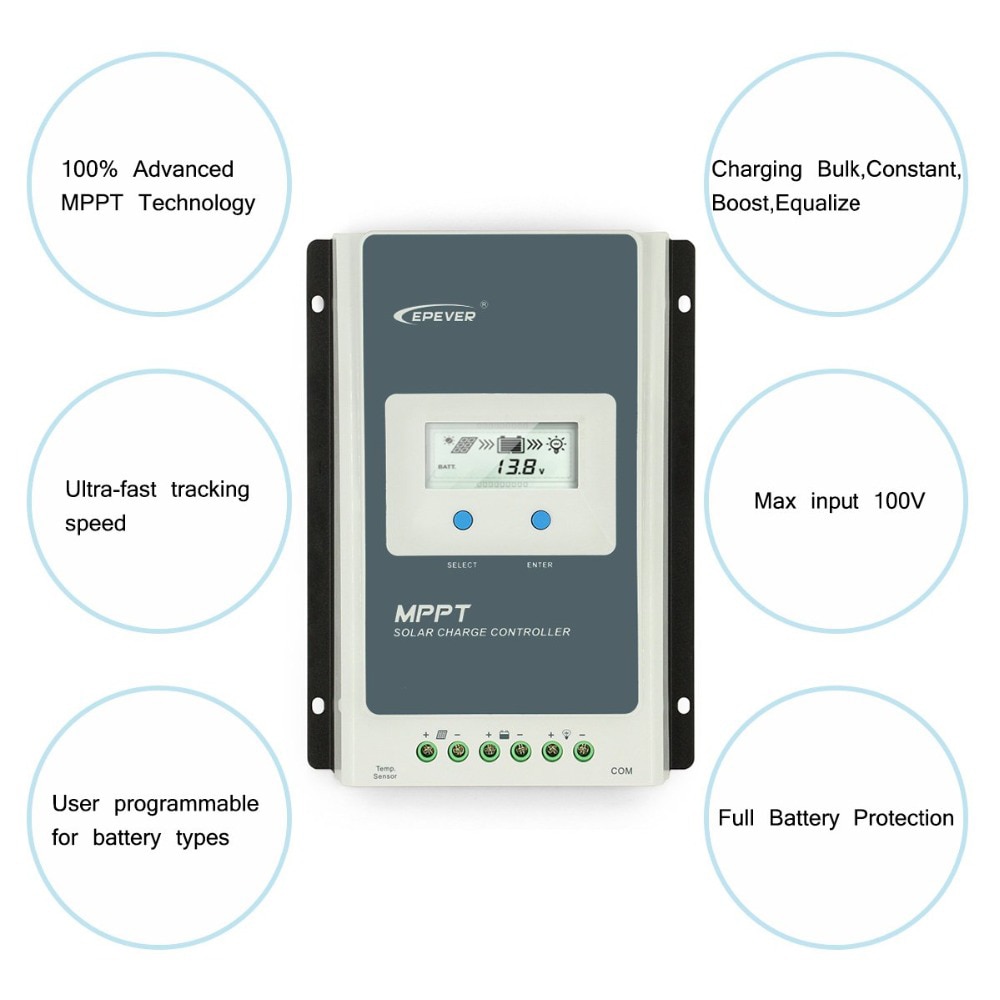

Advanced MPPT technology, with efficiency no less than 99.5%
Ultra-fast tracking speed and guaranteed tracking efficiency
Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
Wide MPP operating voltage range
High quality components, perfecting system performance, with maximum conversion efficiency of 98%
Accurate recognition and tracking of multiple-peaks maximum power point
International famous brands of ST and IR's components of high quality and low failure rate are used, which can ensure the product’s service life
Charging power and current limitation function
Compatible with lead-acid and lithium-ion batteries
Battery temperature compensation function
Real-time energy statistics function
Overheating power reduction function
Multiple load work modes

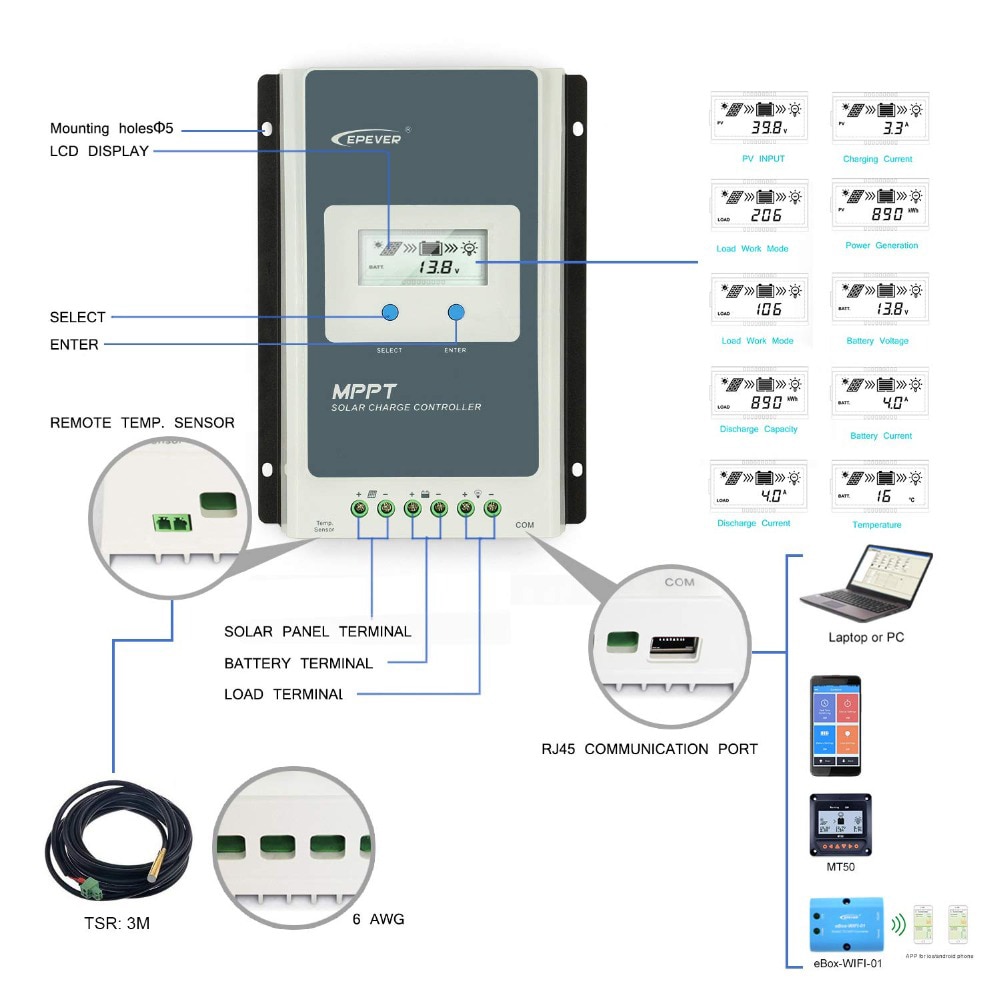

The communication port adopts professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection.
With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.
Monitor and set the parameters via mobile phone APP or PC software
Full-load operation without any drop in capacity within the range of working environment temperature
Extensive electronic protection
We support Drop Shipping
Model | Tracer1206AN/1210AN | Tracer2206AN/2210AN | Tracer3210AN | Tracer4210AN |
System nominal voltage | 12/24VDC Auto | |||
Rated charge current | 10A | 20A | 30A | 40A |
Rated discharge current | 10A | 20A | 30A | 40A |
Battery voltage range | 8~32V | |||
Battery Type | Lead-acid(Seal,Flood,Gel)and Lithium-ion batteries | |||
Max. PV open circuit voltage | 100V(Tracer1210AN;Tracer2210AN;Tracer3210AN;Tracer4210AN) ,60V(Tracer1206AN;Tracer2206AN) | |||
MPP voltage range | (Battery voltage +2V)~72V | |||
Max. PV input power | 130W/12V | 260W/12V | 390W/12V | 520W/12V |
260W/24V | 520W/24V | 780W/24V | 1040W/24V | |
Self-consumption | ≤12mA | |||
Discharge circuit voltage drop | ≤0.23V | |||
Temperature compensate | -3mV/°C/2V (Default) | |||
Grounding | Common negative | |||
RS485 interface | 5VDC/100mA | |||
LCD backlight time | 60S (Default) | |||
Electrical Parameters | ||||
Working environment temperature | -25°C~+50°C | |||
Storage temperature range | -20°C~+70°C | |||
Relative humidity | ≤95%, N.C | |||
Mechanical Parameters | ||||

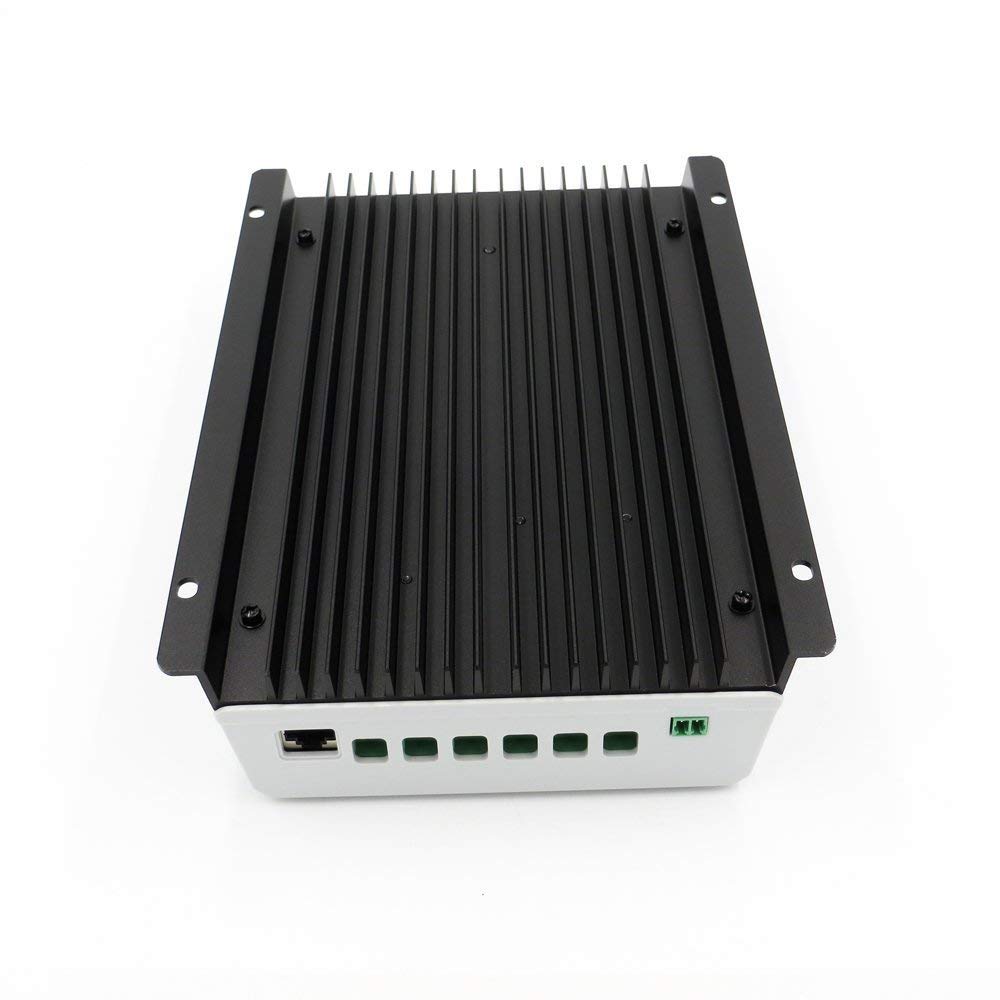

Dimension | 172x139 x 44mm | 220x154x 52mm | 228x164x55mm | 252x180x63mm |
Mounting dimension | 130x130mm | 170x145mm | 170x164mm | 210x171mm |
Mounting hole size | Φ5mm | |||
Terminal | 12AWG(4mm2) | 6AWG(16mm2 ) | 6AWG(16mm2) | 6AWG(16mm2) |
Recommended cable | 12AWG(4mm2) | 10AWG(6mm2) | 8AWG(10mm2) | 6AWG(16mm2) |
Optional Accessories | ||||

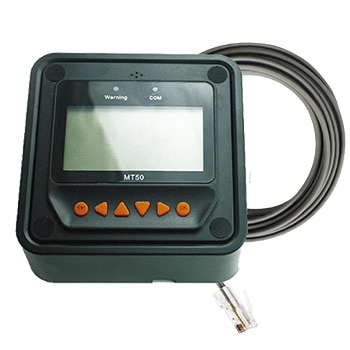

Name | Remote Meter MT50 | |||
Photo | ||||
Function | MT50 can display various operating data and fault of the system. The information can be displayed on a backlit LCD screen, the buttons are easy-to-operate, and the numeric display is readable. | |||
Buy Now | ||||

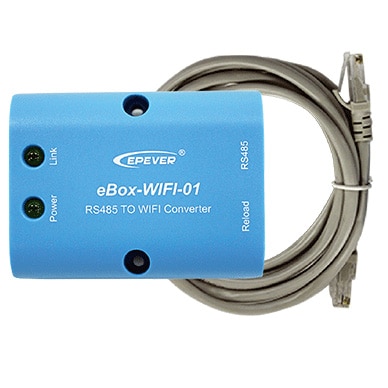

Name | WIFI Serial Server eBox-WIFI-01 | |||
Photo | ||||
Function | After the controller is connected with the eBox-WIFI-01 through the standard Ethernet cable (parallel cable), the operating status and related parameters of the controller can be monitored by the mobile APP software through WIFI signals. | |||
Buy Now | ||||

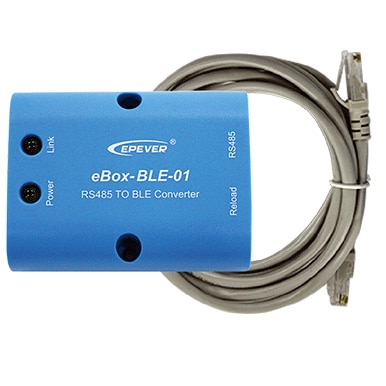

Name | Bluetooth Adapter | |||
Photo | ||||
Function | After the controller is connected with the eBox-BLE-01 through the standard Ethernet cable (parallel cable), the operating status and related parameters of the controller can be monitored by the mobile APP software through Bluetooth signals. | |||
Buy Now | ||||

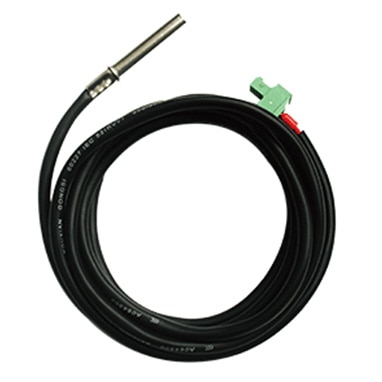

Name | Remote Temperature Sensor RTS300R47K3.81A | |||
Photo | ||||
Function | Acquisition of battery temperature for undertaking temperature compensation of controlparameters, the standard length of the cable is 3m (length can be customized). The RTS300R47K3.81A connects to the port (4th) on the controller. NOTE: The temperature sensor short-circuited or damaged, the controller will be charging or discharging at the default temperature 25°C | |||
Buy Now | ||||
Name | PC Communication Cable CC-USB-RS485-150U | |||
Photo | ||||
Function | USB to RS-485 converter is used to monitor each controller on the network using Solar Station PC software. The length of cable is 1.5m. TheCC-USB-RS485-150U connects to the RS-485 Port on the controller. | |||
Buy Now | ||||
