CCTV Security Camera Tester 1080P / 5MP AHD & CVBS & 5MP TVI & 4MP CVI 4-in-1 Analog Video Tester Dorpshpping
145.32 108.98 $
SALE
ID: 63953
Quantity

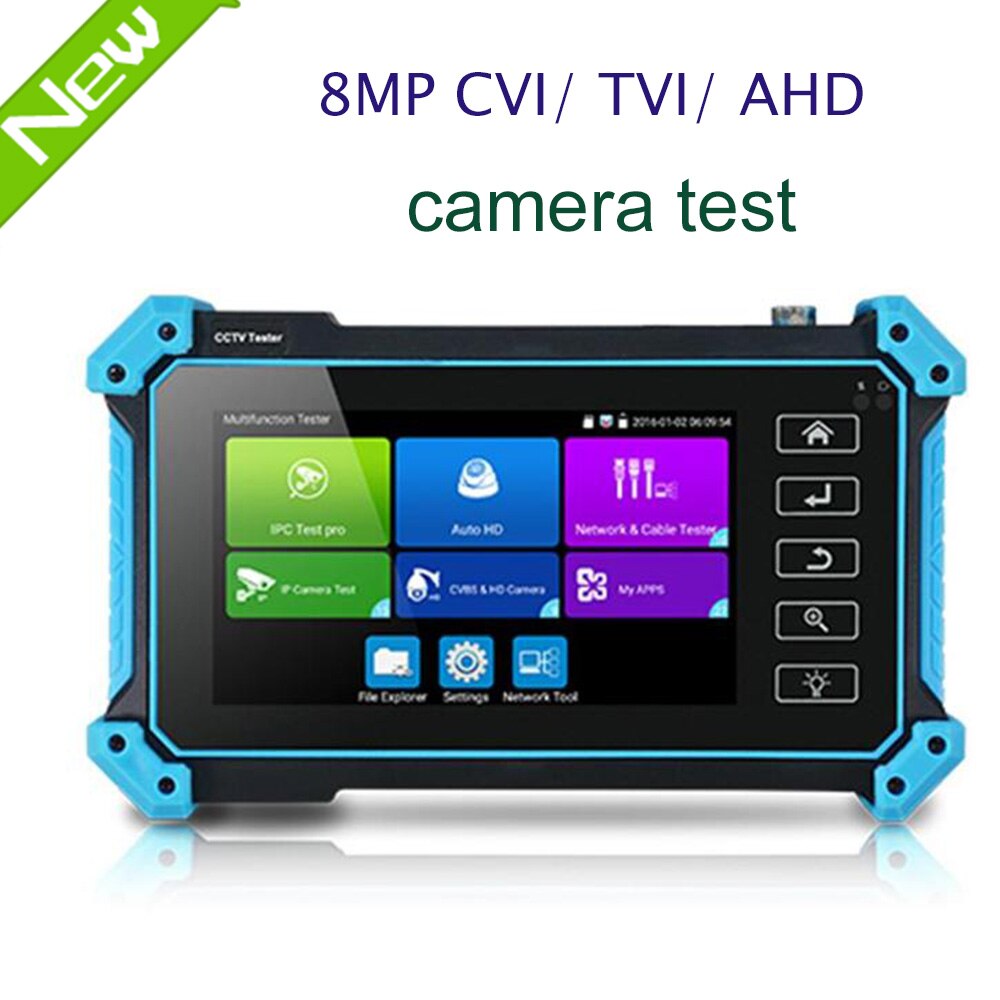

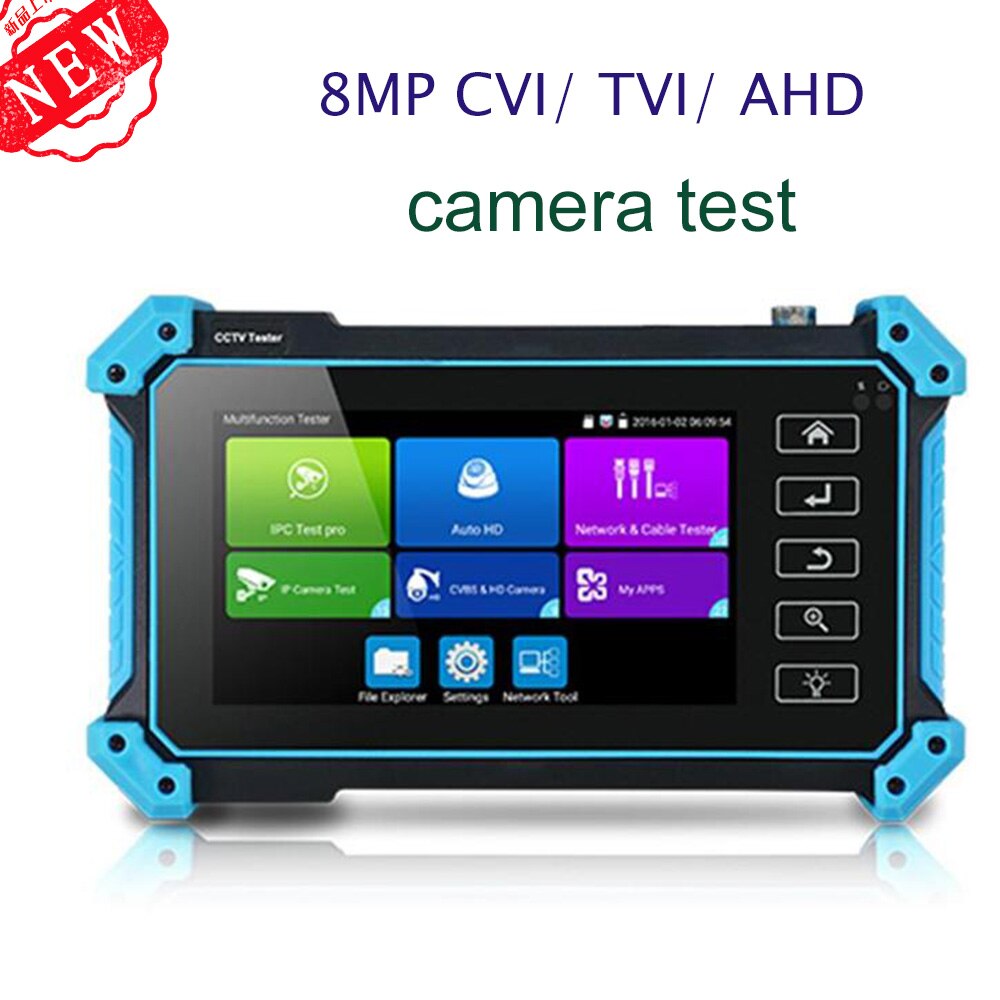

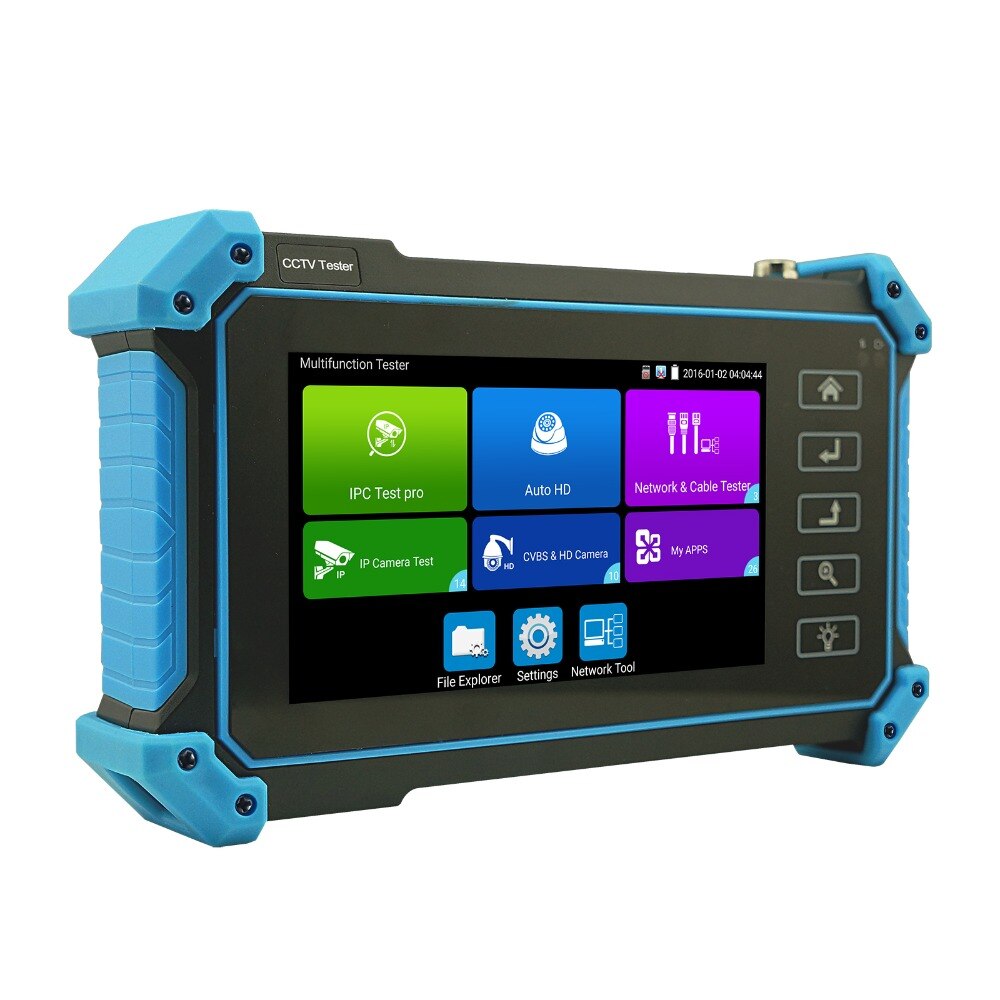

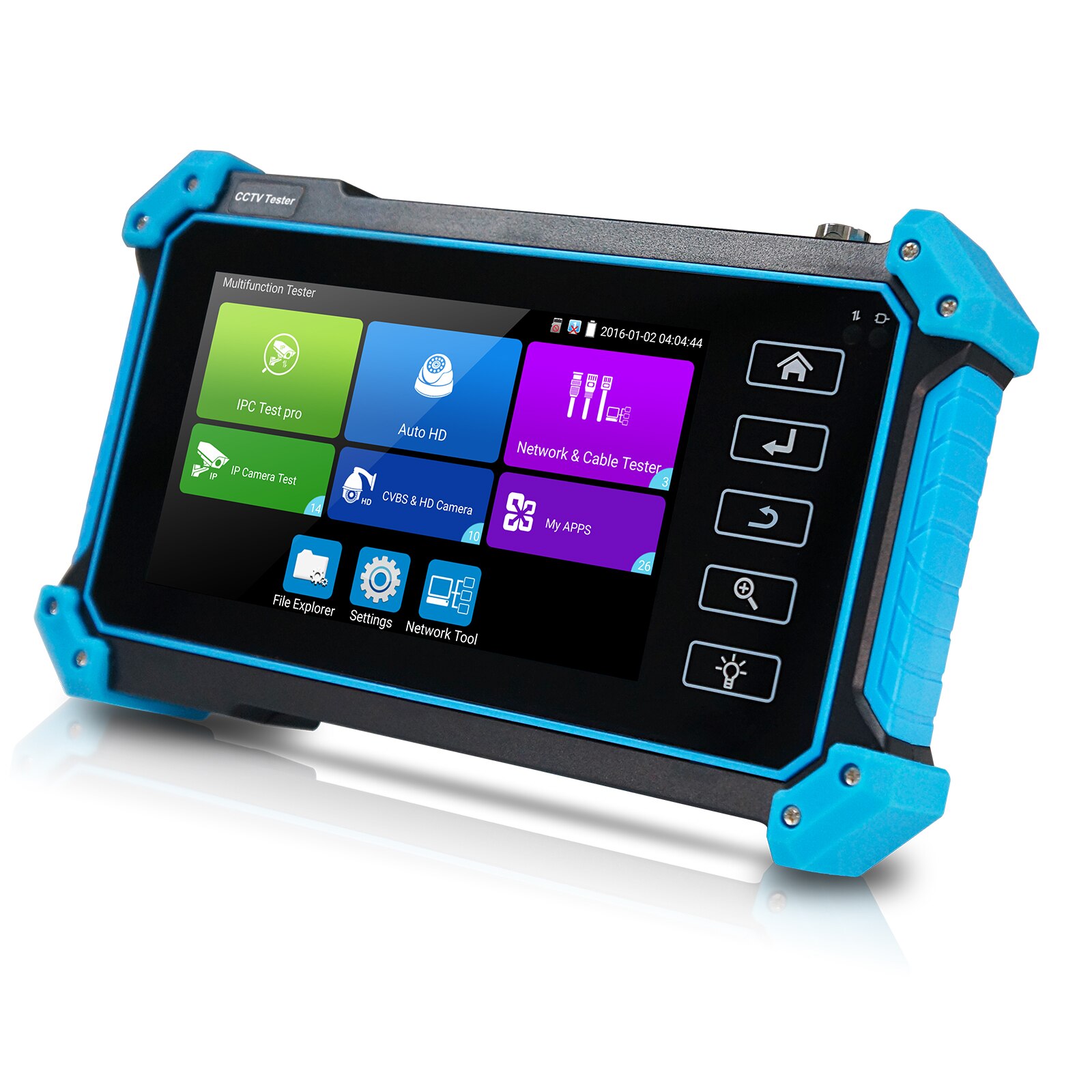

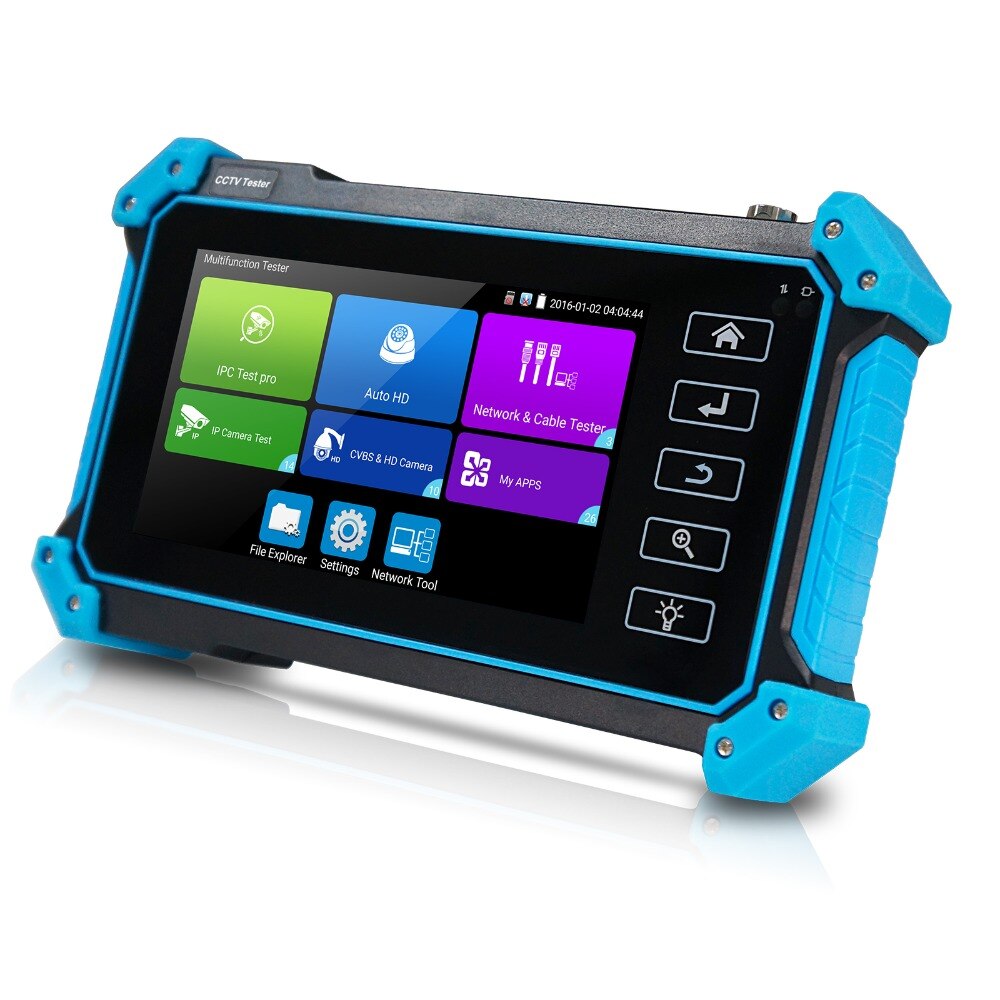

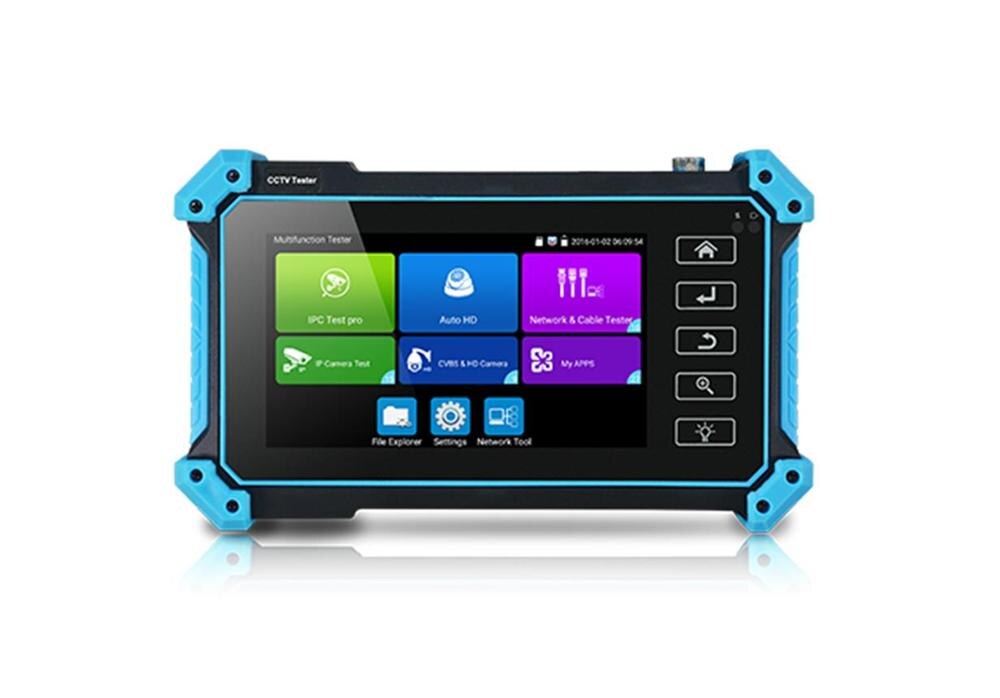

Newest 5 Inch H.265 4K IP CCTV Camera Tester Monitor AHD CVBS CVI TVI 8MP Camera Tester HDMI Out WIFI POE PTZ
0.0 ( votes)
Price:
US $583.05 - 742.00
/ piece
Discount Price:
US $
352.22 -
448.54
/ piece
-40%
Newest 5 Inch H.265 4K IP CCTV Camera Tester Monitor AHD CVBS CVI TVI 8MP Camera Tester HDMI Out WIFI POE PTZ
Language optional
English, Korean, Russian, Italian, French, Polish, Spanish, Japanese ,German,Turkish,Serbian,Czech
Model: IPC-5000 Plus series
IPC-5000 Plus support 8MPAHD TVI CVI with battery ( digital cable tracer optional )
IPC-5100 Plus support 8MPAHD TVI CVI with battery ( digital cable tracer optional ) +HDMI in, VGA in
IPC-5200 Plus support 8MPAHD TVI CVI with battery ( digital cable tracer optional ) +SDI , HDMI in , VGA in
Comparison Table:
Features/ Model | IPC-5000 Plus | IPC-5100 Plus | IPC-5200 Plus |
8MP AHD | √ | √ | √ |
8MP TVI | √ | √ | √ |
8MP CVI | √ | √ | √ |
HD-SDI/3G-SDI/EX-SDI* | X | X | √ |
HDMI IN* | X | √ | √ |
VGA IN* | X | √ | √ |
Battery | 2600mAh | 3350mAh | 3350mAh |
Digital Cable tracer* | Optional | Optional | Optional |
5 inch ALL IN ONE CCTV Tester
● 5 inch IPS touch screen, 1920x1080 resolutions
● 8MP CVI/ TVI/ AHD camera test
● 8MP EX-SDI, HD-SDI, 3G-SDI test*
● H.265/H.264, 4K video display via mainstream
● VGA input, support 1920 x 1200P 60FPS*
● HDMI Input, support 4K 30FPS*
● DC12V 3A, 48V PoE power output
● Rapid ONVIF, Create the test report and modify IP address, etc
● Auto HD, auto recognize HD coax camera type and resolution
● RJ45 TDR cable test, cable quality test
● UTP cable test, detect the near-end, mid-end and far-end fault point
of the network cable crystal head
Camera test:
● 5 inch IPS touch screen, 1920*1080 resolutions
● H.265 & H .264 IP, 4K video display via mainstream
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
● 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu*
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu*
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu*
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
● VGA input, up to 1920 x 1200P 60FPS, support snapshot, video record& playback.*
● HDMI Input, up to 4K 30FPS, support snapshot, video record& playback.*
● Rapid ONVIF, Auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
● Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name.
● IP and analog display image at the same time
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● CVBS camera test, PTZ controller
● DC12V/3A power output, camera can be powered from DC 12 Voltage.
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report.
● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time *
Other Functions:
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● Power information, DC12V power and voltage output /input measurement
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Customers self update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● 8GB SD card included
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

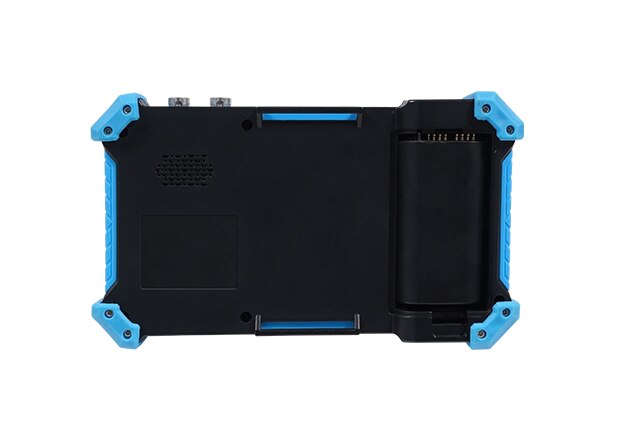

● 7.4 V /3350mAh Lithium Ion Polymer Battery, after 3-4 hours charging, working time lasts 5 hours
- Plug Type: EU plug
- Model Number: IPC-5000
- Maximum IR Distance(m): 10-20m
- Sensor Size: 1/4 inch
- Lens: other
- Brand Name: GEEKDEER
- Certification: CE
- Origin: Mainland China
- Sensor Size: CCTV tester monitor
- Power plug: AU, EU, US, UK
- PTZ control: Support
- CVI/ TVI/ AHD camera test: 8MP 5MP 2MP 1MP
- 5 inch IPS touch screen: 1920x1080 resolution
- WIFI, UTP cable tester: support
