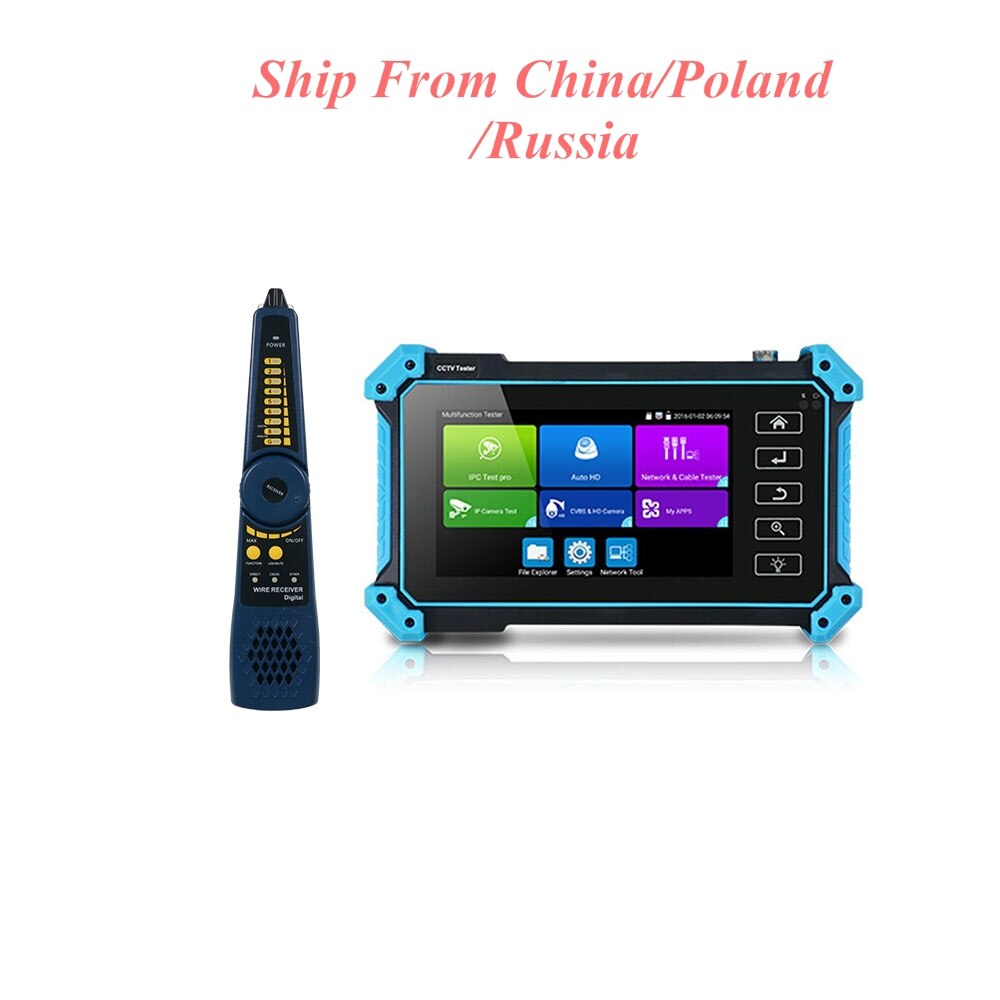

Newest 5.4 Inch IP HD CCTV Camera Tester Monitor AHD CVBS CVI TVI 8MP Camera Testing HD VGA Input WIFI POE PTZ
5.0 (1 votes) | 1 orders
Price:
US $516.95
/ piece
Discount Price:
US $
495.59
/ piece
-4%
- Ships From
- Color
-
-
Model: IPC5100C Plus 5.4 Inch 5 In 1 IP HD CCTV Tester Monitor Onvif/WIFI/POE/PTZ HDMI-Compatiable / VGA Input
IP H.265 4k+CVBS+AHD+CVI+TVI Cameras 8MP Testing

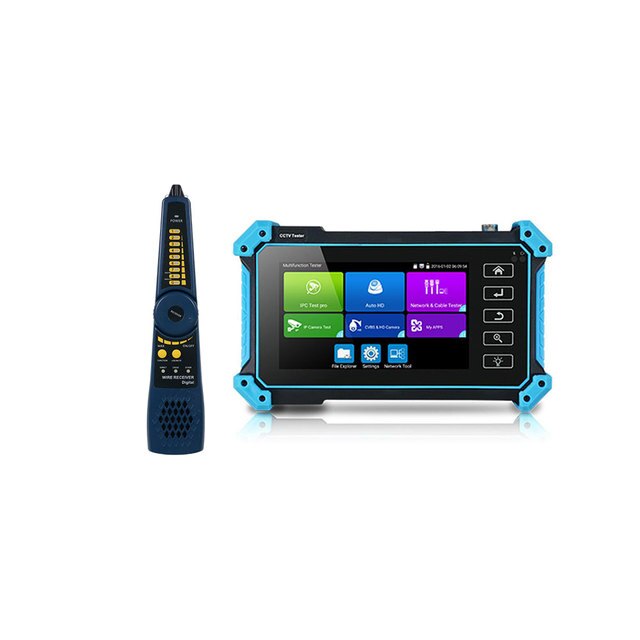

add Cable tracer (UTP cable tester built in)
Optional functions: SDI.

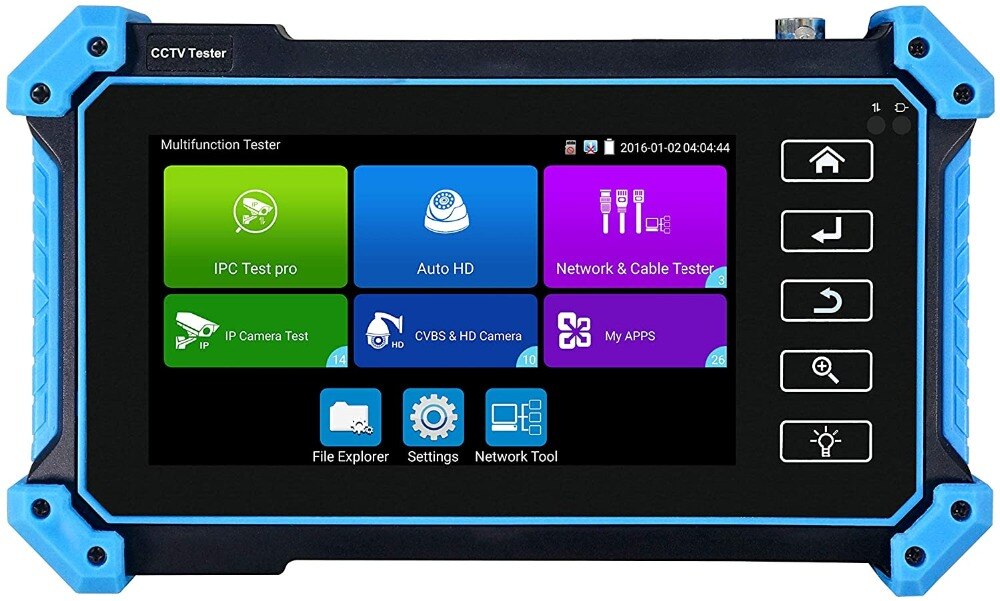

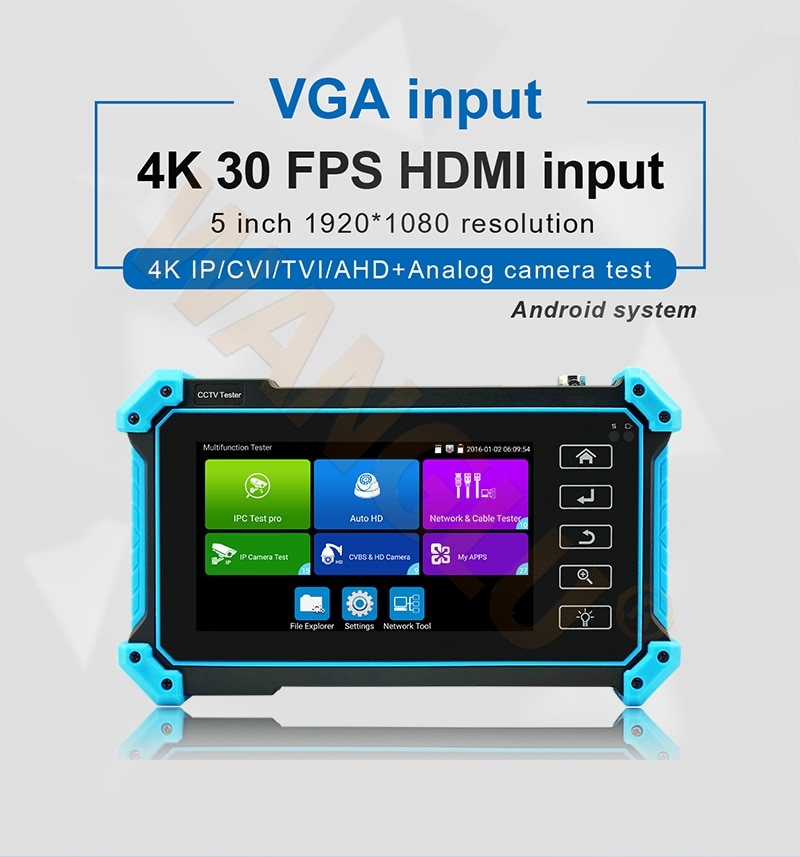

● 5.4 inch IPS touch screen, 1920x1080 resolution
● 8MP CVI/ TVI/ AHD camera test
● H.265/H.264, 4K video display via mainstream
● DC12V 3A, 48V PoE power output
● VGA input, support 2048 x 1152 60FPS
● Rapid ONVIF, Create the test report and modify IP address, etc
● Auto HD, auto recognize HD coax camera type and resolution
● RJ45 TDR cable test, cable quality test
● UTP cable test, detect the near-end, mid-end and far-end fault pointof the network cable crystal head
Camera test:
● 5.4 inch IPS touch screen, 1920*1080 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● Analog camera test, PTZ controller
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.

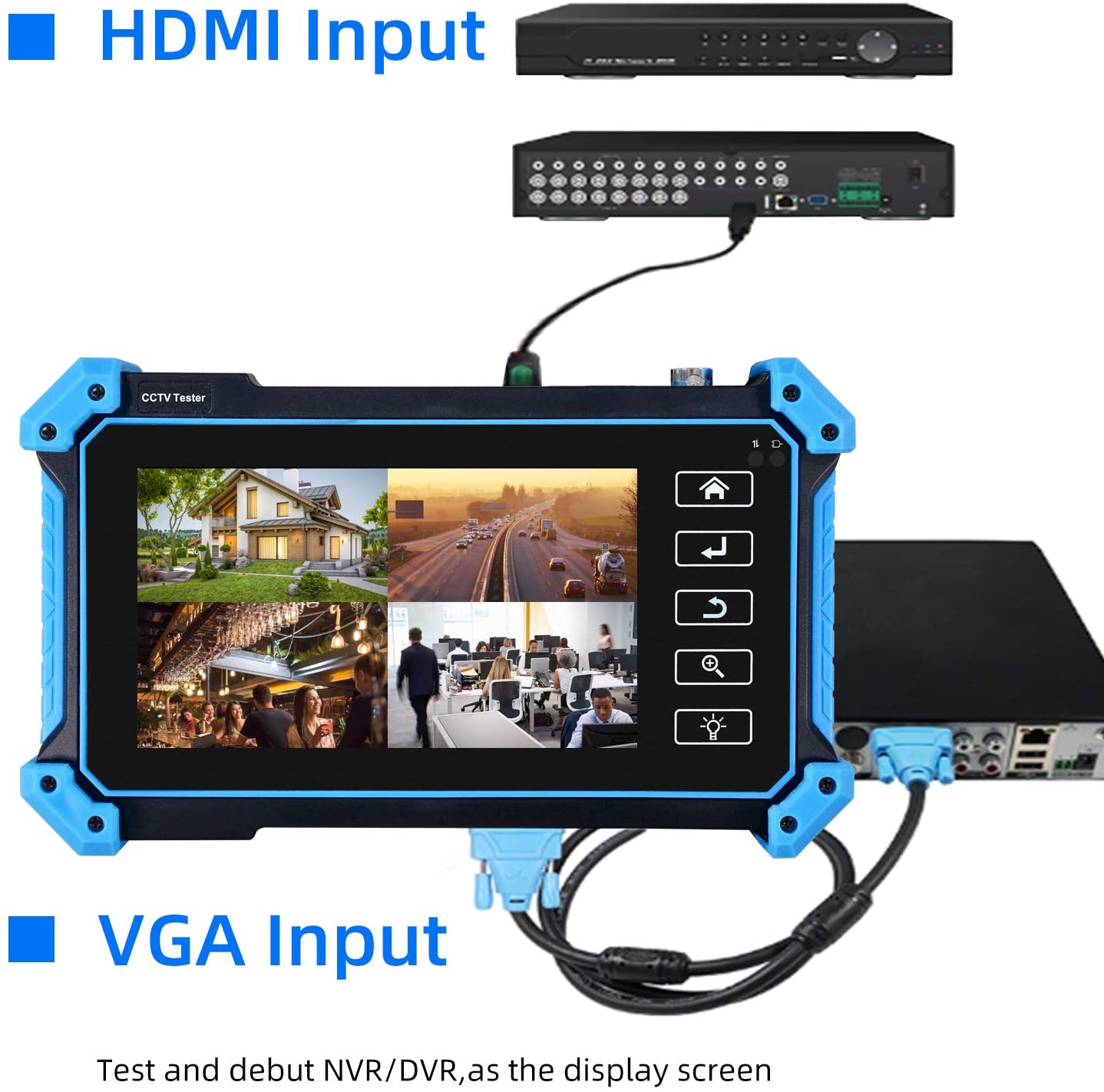

● VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback
● H D, M I Input, up to 4K 30FPS, support snapshot, video record & playback
● Rapid ONVIF, Auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
● Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name.
● IP and analog display image at the same time
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● DC12V/3A power output, camera can be powered from DC 12 Voltage.
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable test:

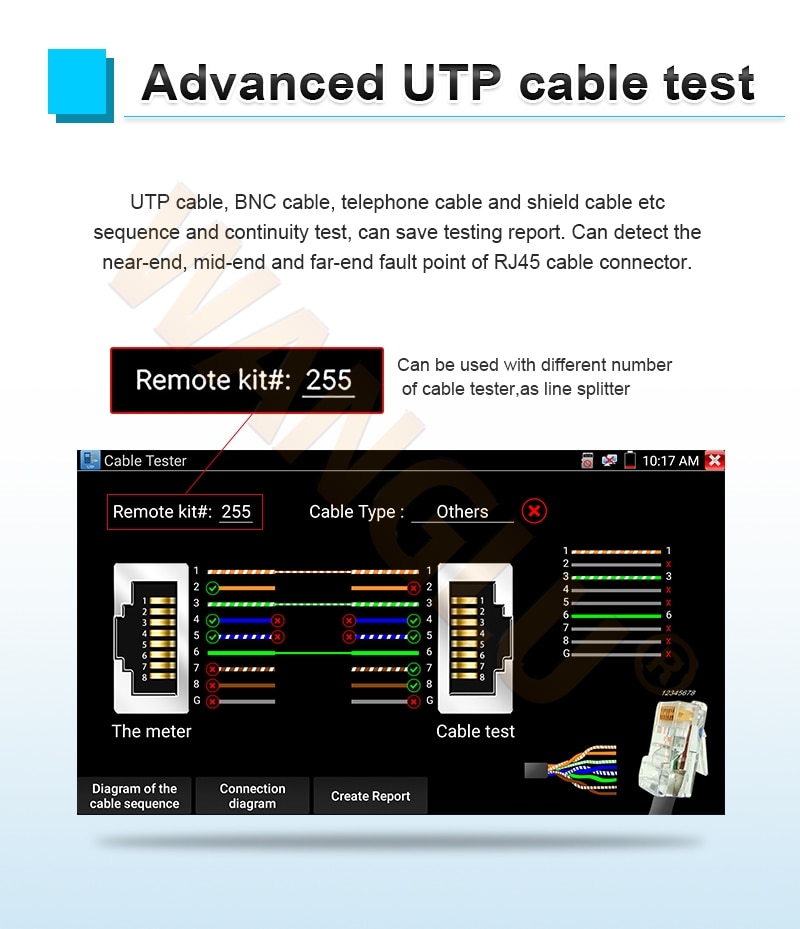

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

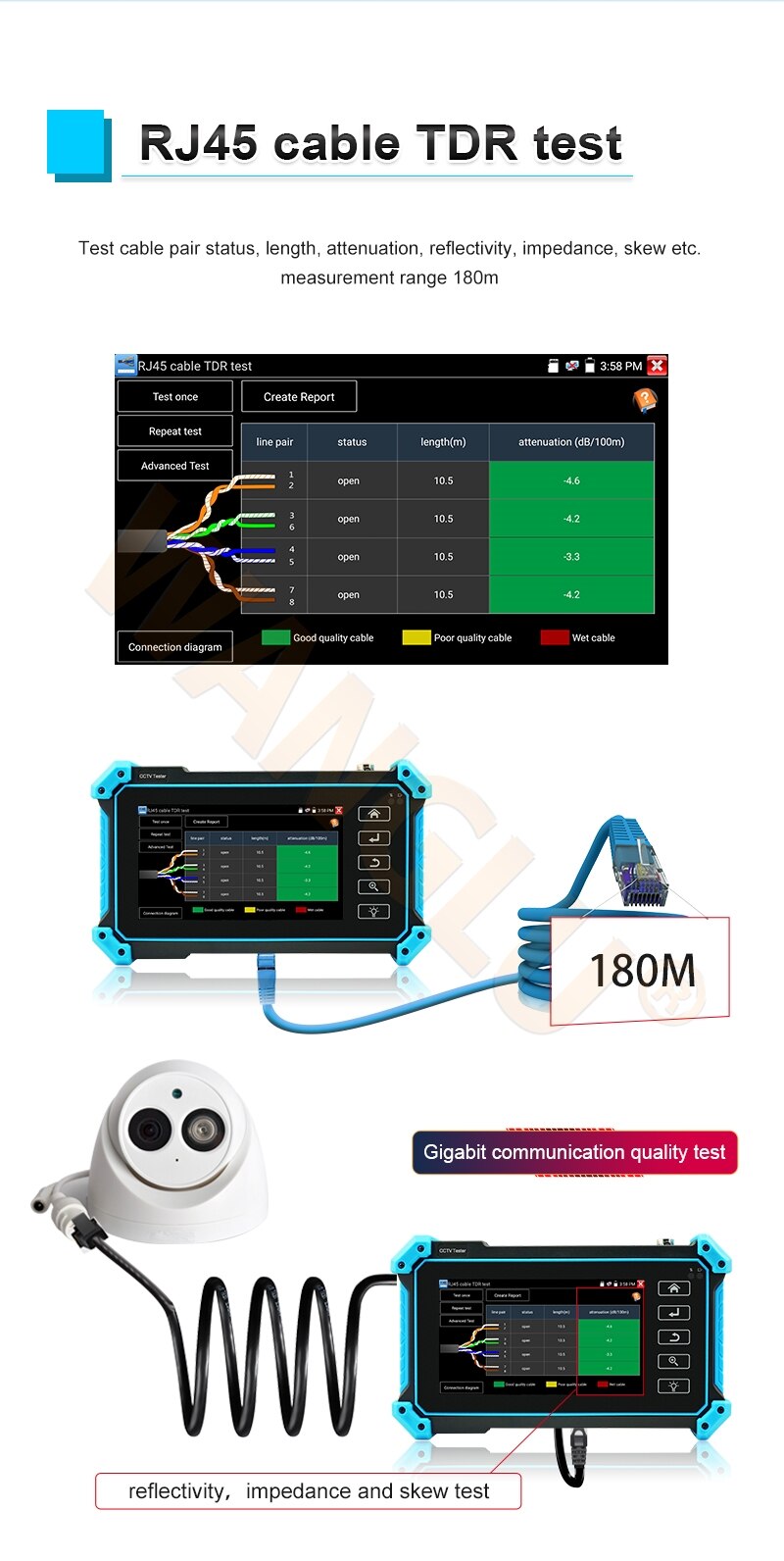

● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report.

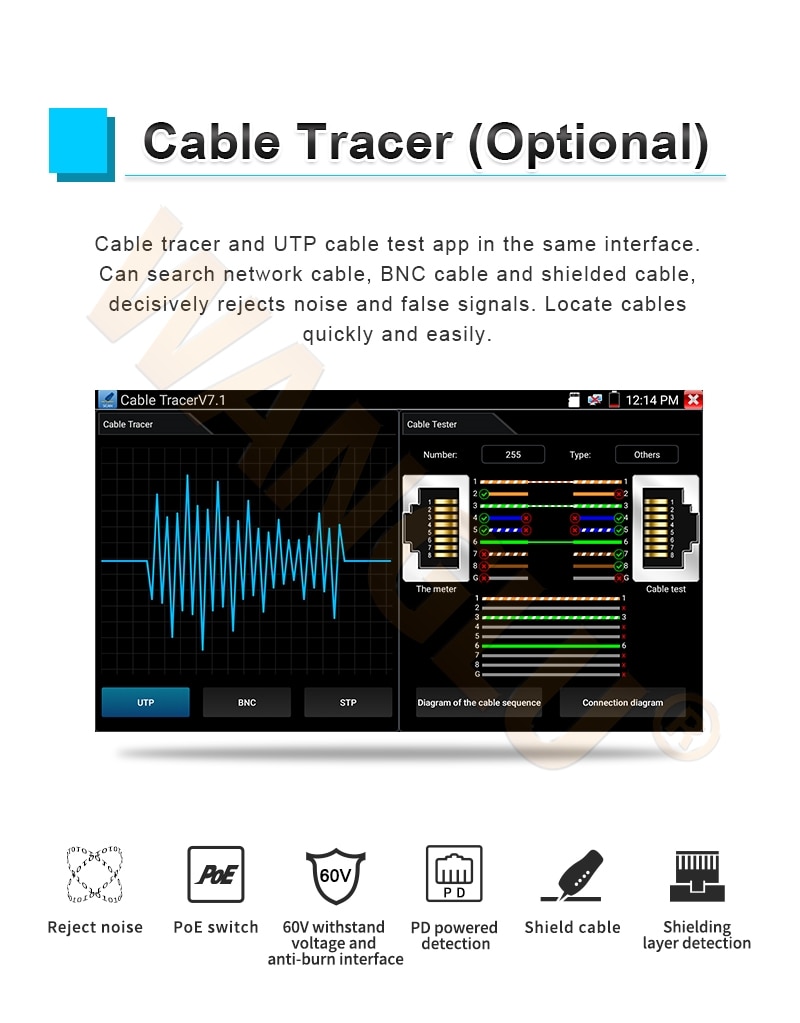

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time * forIPC5100CPlus
Other Functions:
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

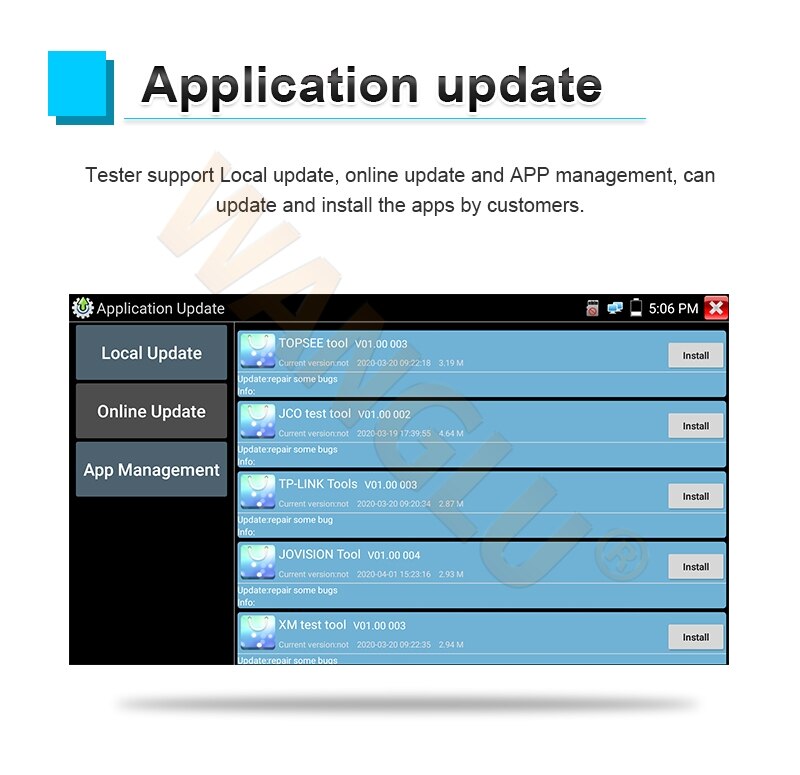

● Customers self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /3350mAhLithium Ion Battery, after 3-4 hours charging, working time lasts 5 hours

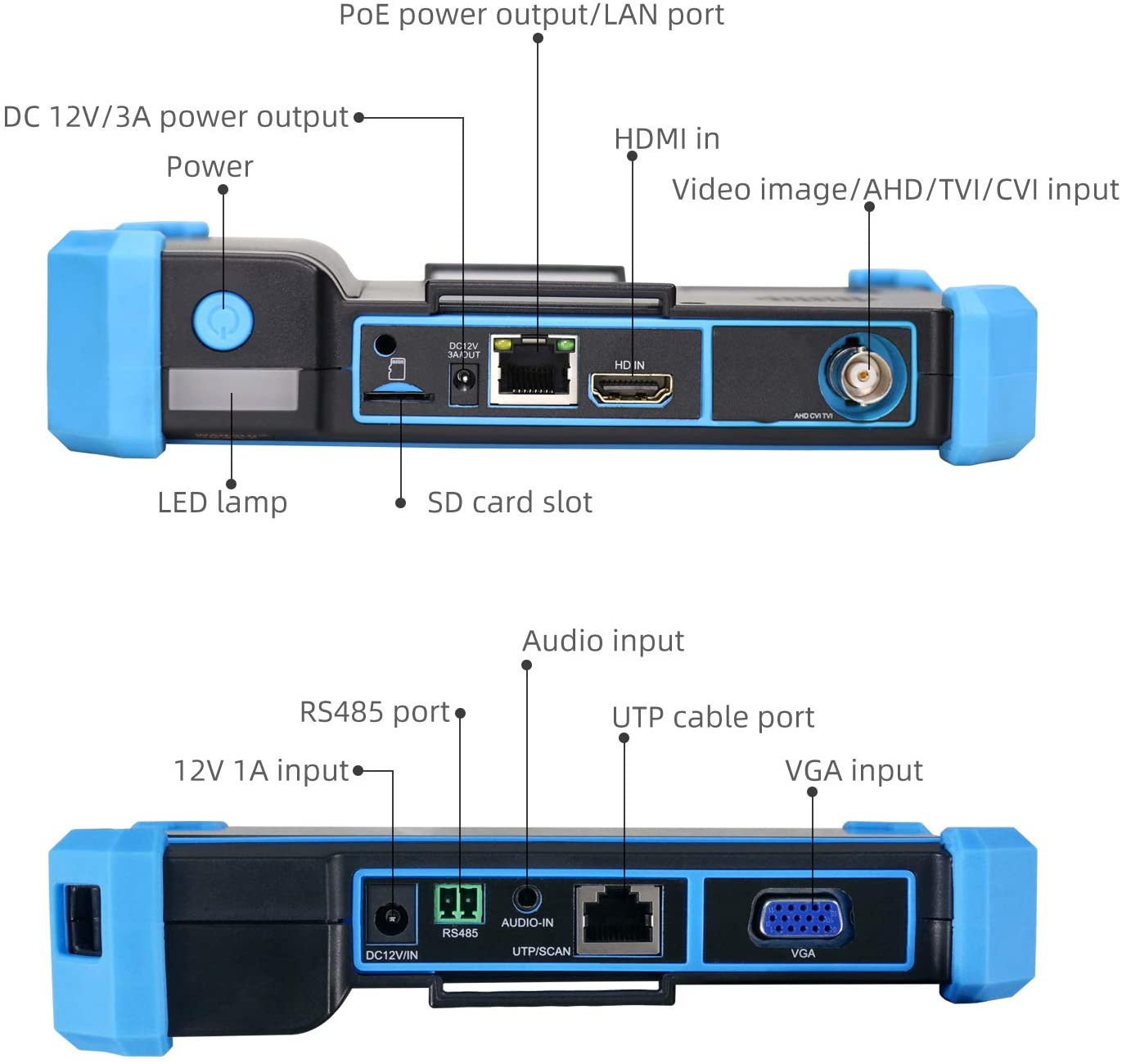

LCD | Item series | IPC-5100C Plus | |
Display | New 5.4 inch IPS touch screen, 1920x1080 resolution | ||
Video Mode | CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) | |
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||
IP camera test 4K/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play / Client APK | ||
Rapid Video | Auto view the video, create testing report | ||
HIKVISION test tool | Support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. | ||
DAHUA test tool | Support batch activate DAHUA cameras and modify IP address, username and password. Self-defined modify channel name. | ||
HD Coaxial test | 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu | ||
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu | |||
8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu | |||
Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu | |||
Zoom Image | 4x zoom, to enlarge image, screen snapshot, record, save, view and record and play back | ||
Power output | 12V/3A power | Output DC12V/3A power out, supply temporarily power for the camera | |
PoE power output | 48V PoE power output, max power 25.5W | ||
Cable test | Digital Cable tracer * | Search BNC cable, network cable and telephone cable from the mess cables.Cable search and UTP cable can test at the same time * For IPC5000C Plus | |
UTP cable test | Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head. | ||
RJ45 TDR cable test | Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report.measurement range 180M. | ||
TesterPlay | Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone) | ||
Network test | Trace route, Link monitor,DHCP server, port flashing, Ping test | ||
Wi-Fi | Built in WIFI, speeds 150M, display wireless camera image | ||
Audio test | 1 channel audio signal input, test whether sound normal. | ||
Power management | Display DC 12V input & output voltage and power in real time | ||
Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||
External power supply | DC12V 3A Max | ||
Battery | Built-in Lithium ion battery3350mAh | ||
Rechargeable | After charging 3-4 hours, normal working time 5 hours | ||
Operation setting | OSD menu,select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc | ||
Auto off | 1-30 (mins) | ||
Working Temperature | -10℃---+50℃ | ||
Working Humidity | 30%-90% | ||
Dimension/Weight | 183mm x 110mm x 36.5mm / 0.4kg | ||
- Plug Type: EU plug
- Model Number: IPC5100C Plus
- Maximum IR Distance(m): NA
- Sensor Size: F
- Lens: NA
- Brand Name: Precamview
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- 5.4 inch IPS touch screen: 1920x1080 resolution
- IP Camera tester: H.265 4K H.264
- CVI/ TVI/ AHD camera test: 8MP 5MP 2MP 1MP
- DC12V 3A, 48V PoE power: Power supply
- Rapid ONVIF, RJ45 TDR: Built in
- WIFI, UTP cable tester: support
- PTZ control: Support
- Power plug: AU, EU, US, UK
- HD VGA: Input
