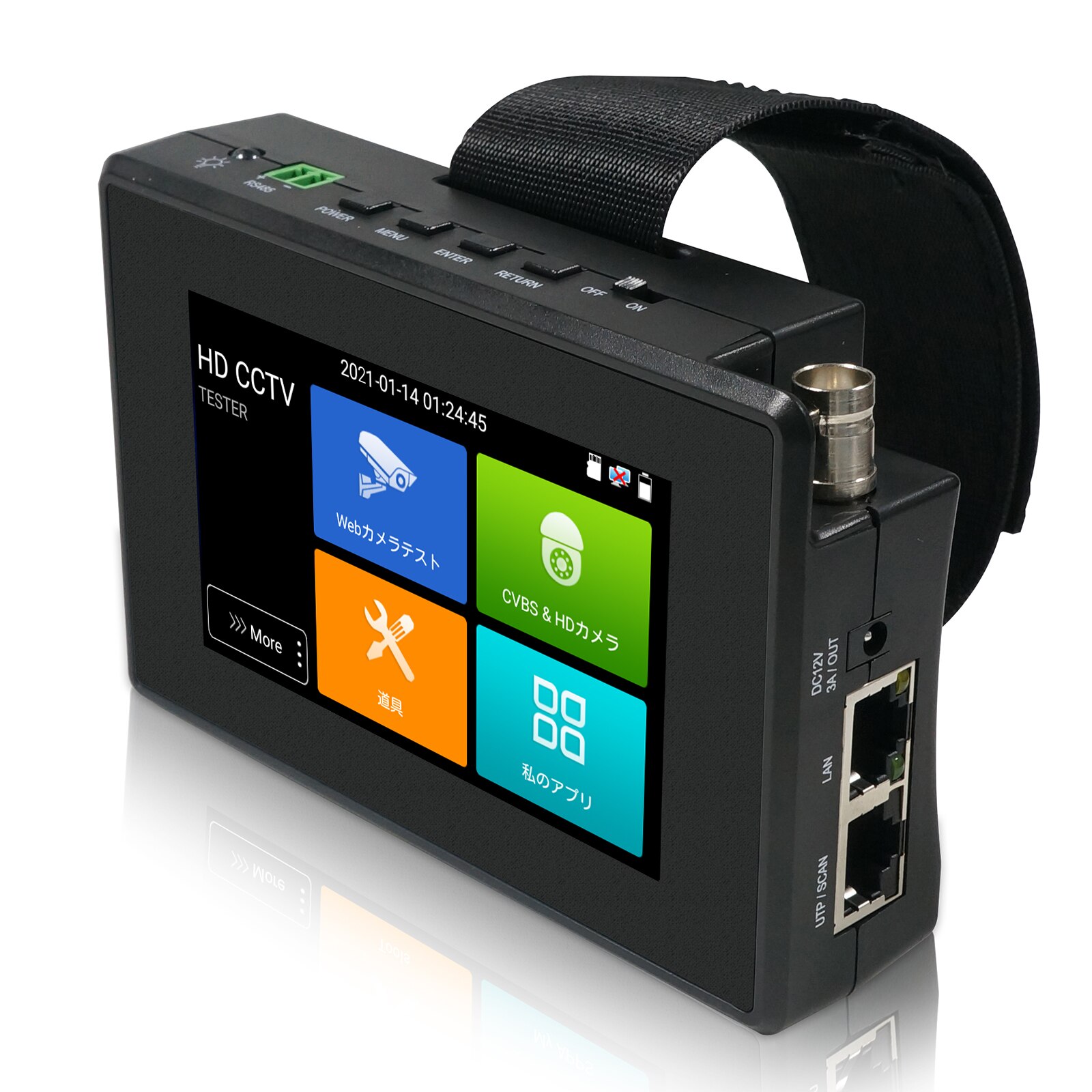

IPC1800ADH plus 4Inch 4K H265 IP Camera Tester 8MP AHD/TVI/CVI CVBS CCTV Tester Monitor PTZ Controller Rapid ONVIF IPC Test POE
0.0 ( votes) | 1 orders
Price:
US $490.33
/ piece
Discount Price:
US $
334.42
/ piece
-32%
- Ships From
IPC-1800ADH Plus |

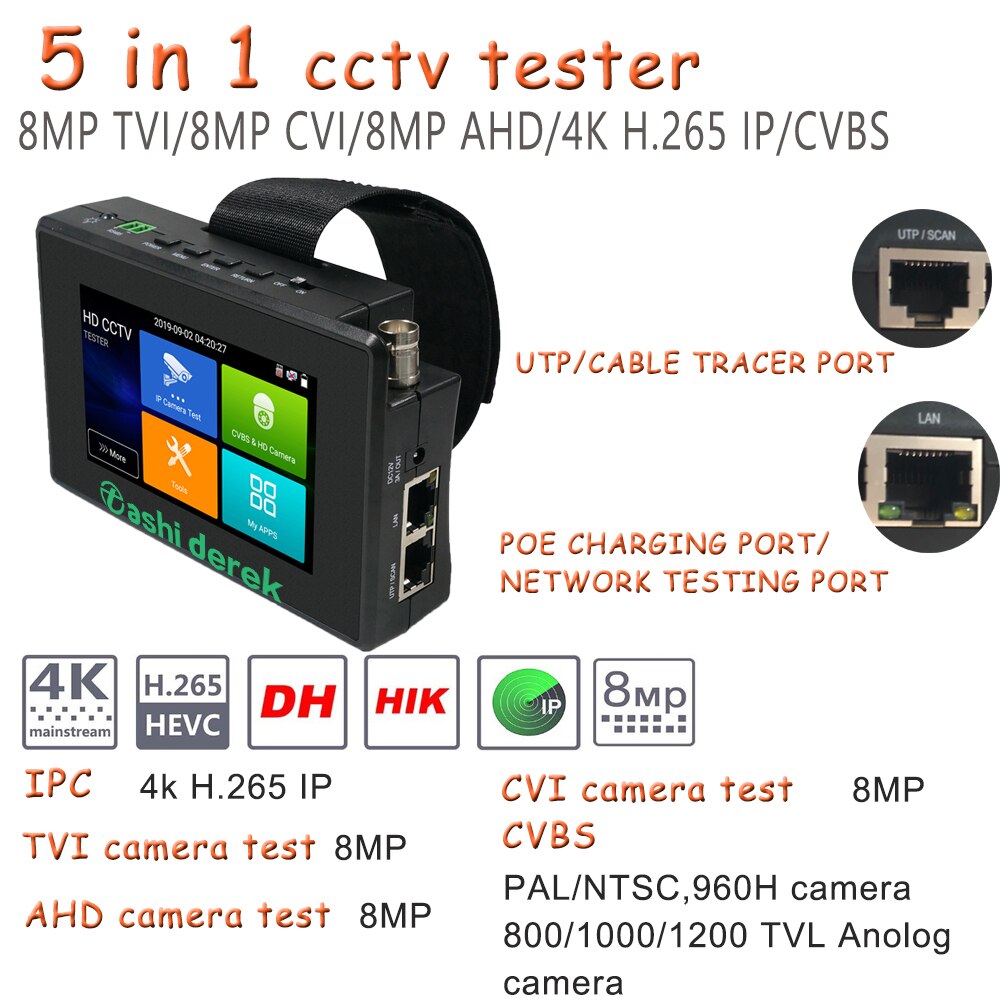

8MP AHD+ 8MP TVI+ 8MP CVI+ 4K H.265 IP+ CVBS
OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese ,German,Turkish,Serbian,Czech
◆4 inch IPS touch screen, 800*480 resolution
◆8MP TVI, 8MP CVI, 8MP AHD camera test
◆H.265/H.264, 4K video display via mainstream
◆Dual window test, IP &Analog camera test
◆CVBS and PTZ control
◆DC12V 3A, DC48V PoE power output

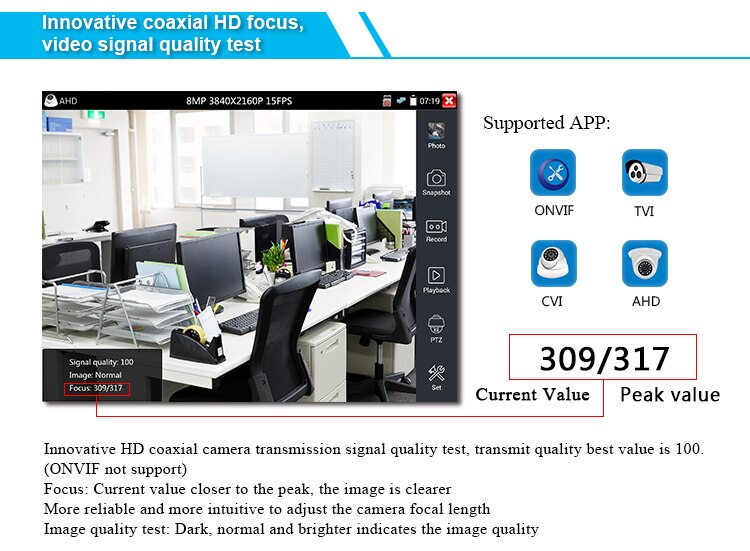

◆HD coaxial video signal quality
◆PPPOE dial test
◆Rapid ONVIF, auto view video and create testing report
◆Hik test tool, hikvision camera , Image test, can modify the user name, password and IP parameters
Features:
4 inch IPS touch screen,800*480 resolution
New- 8MP TVI test,3840 *2160P 15 FPS,video record and playback ,coaxial PTZ control and call camera OSD menu
8MP AHD test, 2560*1944P 12.5F/ 20F,video record and playback ,coaxial PTZ control and call camera OSD menu
8MP CVI test,2560*1440P 25/30 FPS ,video record and playback ,coaxial PTZ control and call camera OSD menu
IP & CVBS camera test, PTZ controller
New-IP discovery , just by one key to detect all network cameras IP address
Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
Hik test tool ,pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF)
PoE DC48V power output, Max power 24W,DC 12V /3A power output
PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
Specifications:
Item series | IPC-1800ADH Plus | ||
Display | New 4 inch IPS touch screen , 800*480 resolution | ||
Video Mode | CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) | |
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||

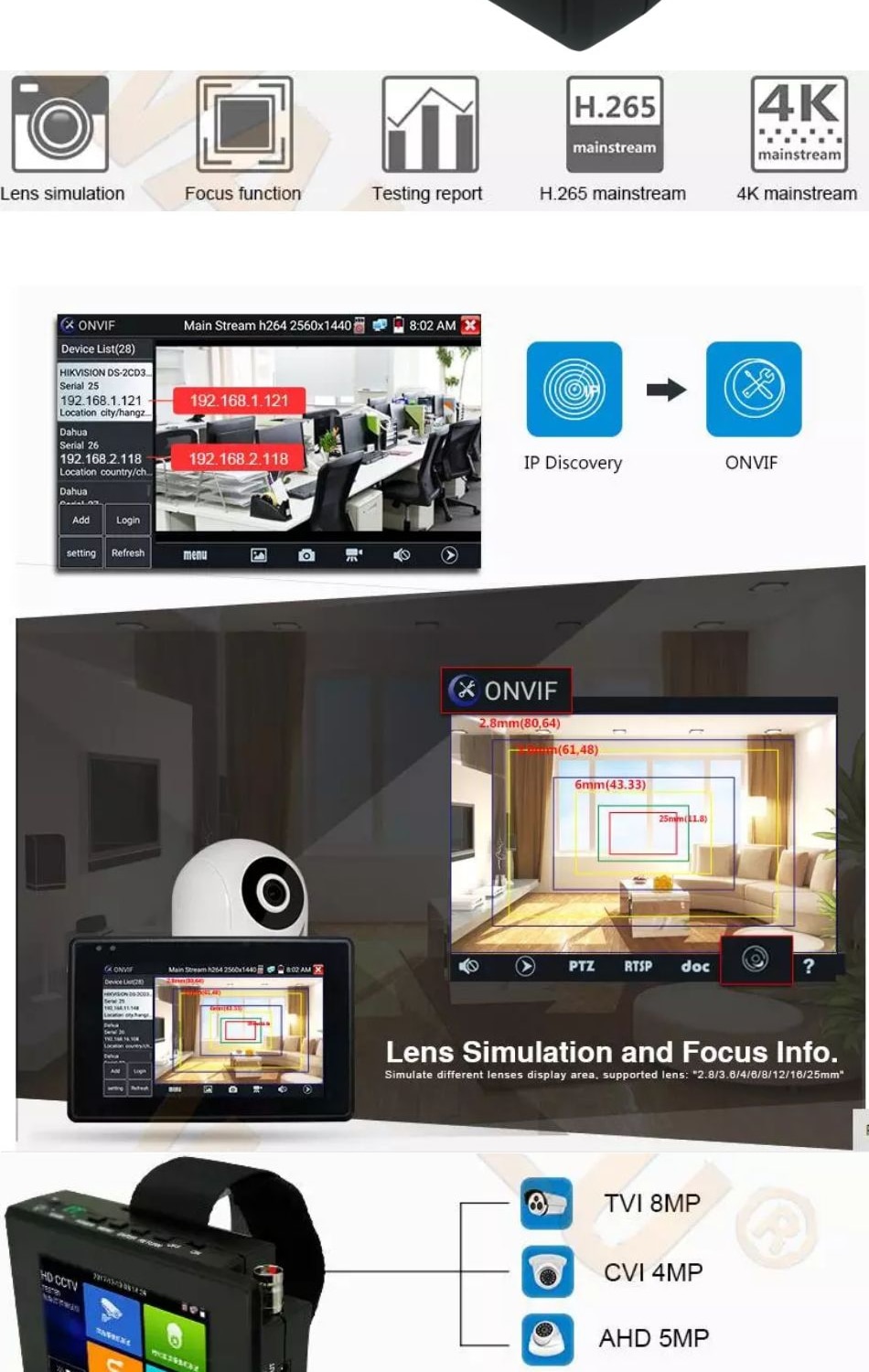

IP camera test 4K/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK | ||
Rapid Video | Auto view the video, create testing report | ||
Hik test tool | pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters | ||
Dahua test tool | Dahua camera test, modify the user name, password and IP parameters | ||

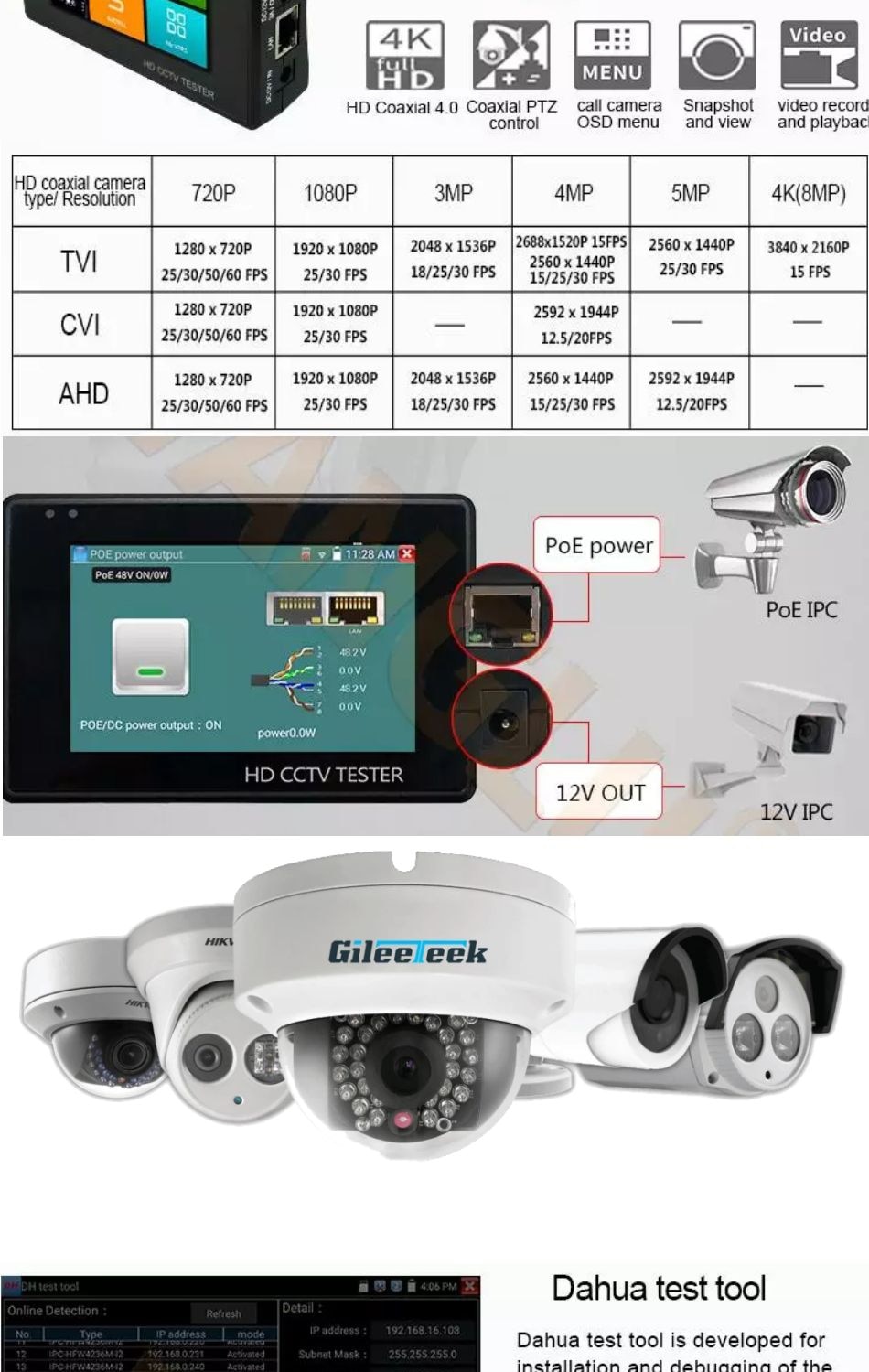

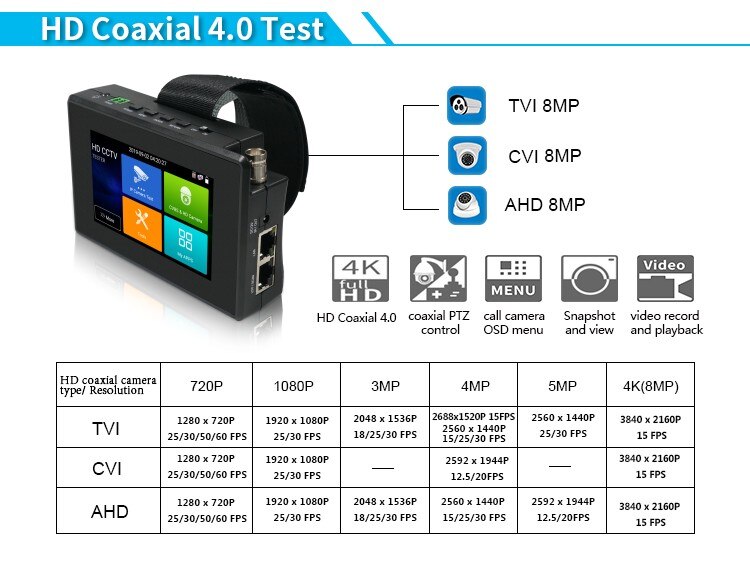

Coaxial HD test | 8MP TVI camera test, 3840*2160P 15 FPS, UTC control/ call OSD menu | ||
8MP CVI camera test, 2560*1440P 25/30 FPS, UTC control d call OSD menu | |||
8MP AHD test, 2560*1944P 12.5F/20F, UTC control d call OSD menu | |||
Zoom Image | Zoom, Screen snapshot, record, save, view, record and play back | ||
12V/3A power | Output DC12V/3A power out, supply temporarily power for the camera | ||

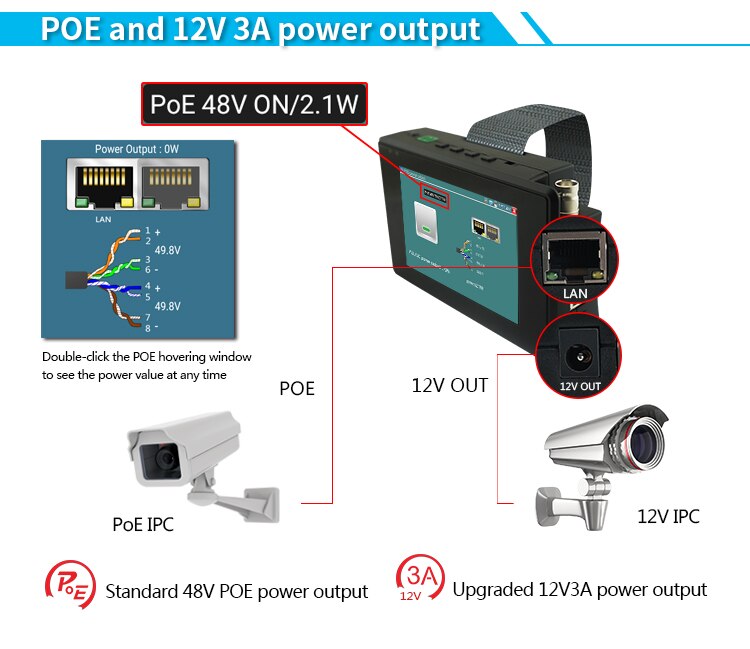

Power output | PoE power output | 48V PoE power output, max power 24W | |
Network test | Link monitor, port flashing, Ping test | ||
Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | ||
Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||
Drop-down menu | You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface | ||
External power supply | DC 12V/1A | ||
Battery | Built-in 7.4V Lithium polymer battery , 2400mAh | ||
Rechargeable | After charging 4~5 hours, normal working time 8 hours | ||
Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc | ||
Auto off | 1-30 (mins) | ||
Working Temperature | -10℃---+50℃ | ||
Working Humidity | 30%-90% | ||
Dimension/Weight | 126mm *83mm* 33mm / 0.32kg | ||
The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to contact us
IPC-1800ADH Plus |
- Plug Type: EU plug
- Sensor Type: IPC tester
- Model Number: IPC1800ADH plus
- Maximum IR Distance(m): CCTV tester monitor
- Sensor Size: IPC tester
- Lens: IPC tester
- Brand Name: POMIACAM
- Origin: Mainland China
- Certification: NONE
- support 1: 4K H265 IP camera
- support 2: 8MP AHD cameras
- support 3: 8mp tvi cameras
- support 4: 8mp cvi cameras
- support 5: CVBS Cameras
