Pegatah ipc5200 4K IP CCTV Tester 8MP AHD CVI TVI SDI camera testing CCTV Portable monitor AHD tester IPC tester for IP camera
889.24 485.53 $
SALE
ID: 14811
Quantity
Wanglu Newest 4 inch Wrist CCTV IP Camera Tester H.265 4K IP 8MP TVI 8MP CVI 8MP AHD Analog 5-in-1 CCTV Tester Monitor with WIFI
0.0 (1 votes) | 1 orders
Price:
US $429.98 - 622.48
/ piece
Discount Price:
US $
335.16 -
485.53
/ piece
-22%
- Ships From
- Color
-
-
Wanglu Newest 4 inch Wrist CCTV HD Camera Tester H.265 4K IP 8MP TVI 8MP CVI 8MP AHD Analog 5-in-1 CCTV Tester Monitor with WIFI
Kindly pls note this CCTV Tester has been upgraded to support:
IP1800 plus : 4inch touch screen /8MP TVI / 8MP CVI / 8MP AHD / 4K H.265 IP / CVBScamera test

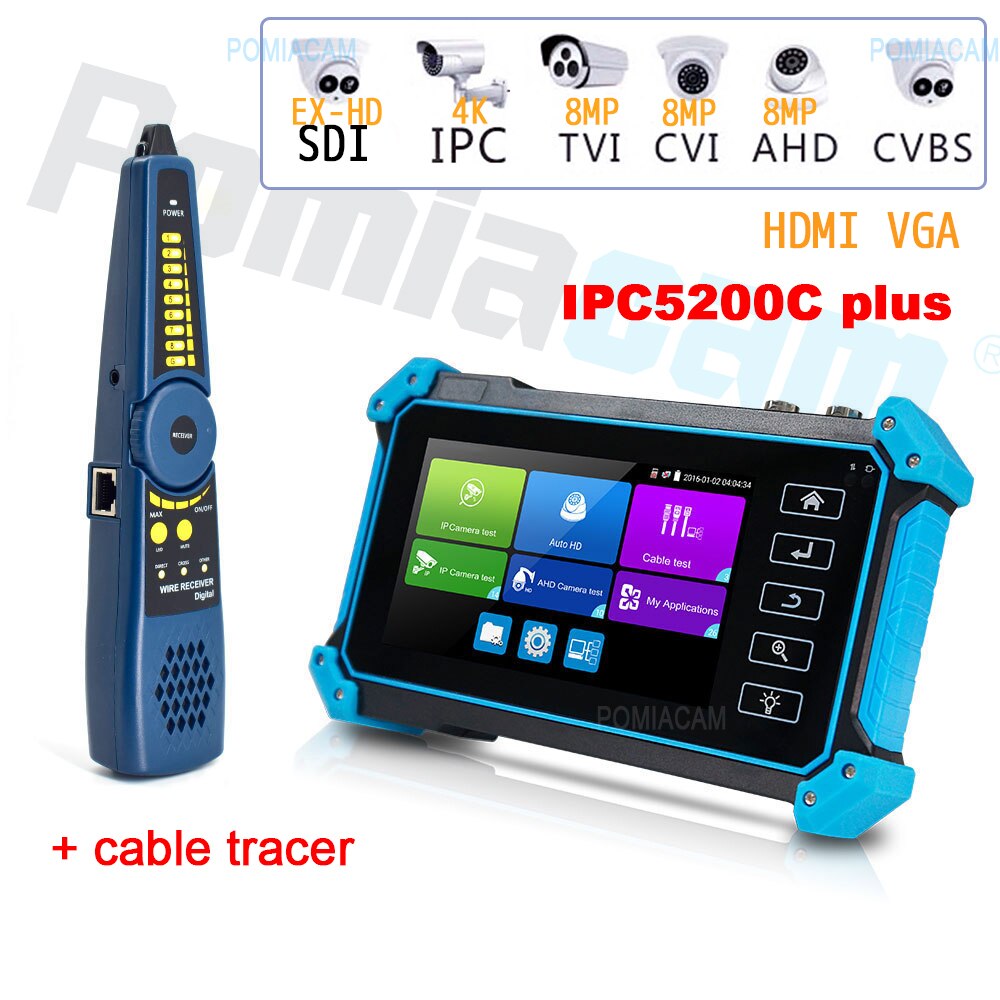

IP5200C plus : 5inch touch screen /8MP TVI / 8MP CVI / 8MP AHD / 4K H.265 IP / CVBScamera test/HDMI VGA in/SDI test/ cable tracker
IP5200 plus : 4inch touch screen /8MP TVI / 8MP CVI / 8MP AHD / 4K H.265 IP / CVBScamera test / HDMI VGA in/SDI test

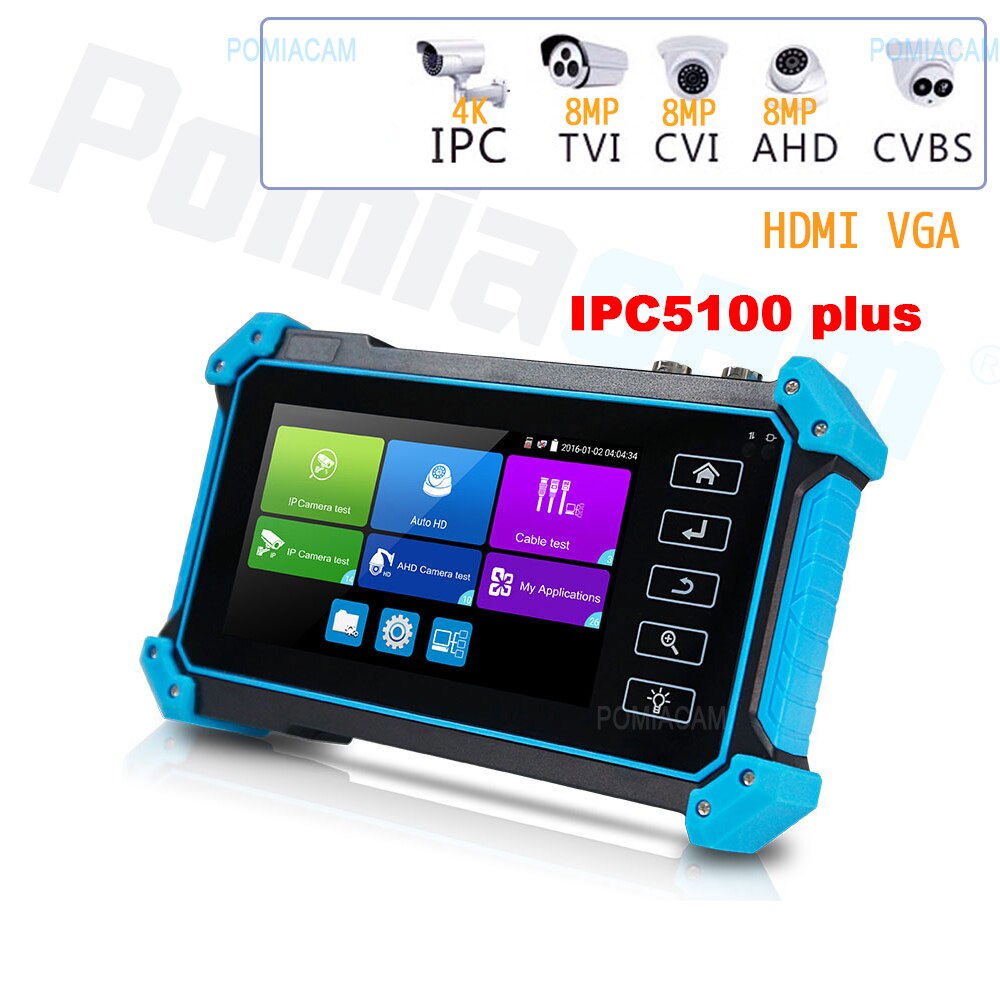

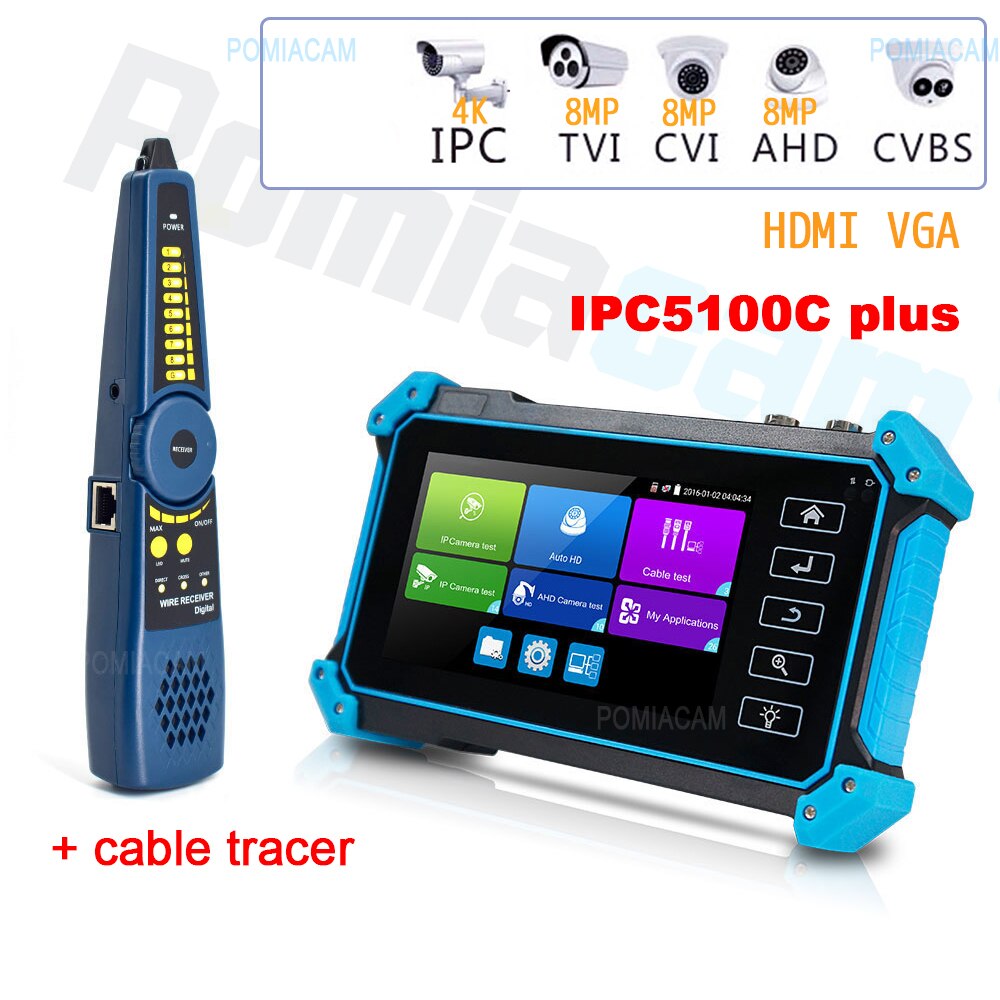

IP5100C plus : 5inch touch screen /8MP TVI / 8MP CVI / 8MP AHD / 4K H.265 IP / CVBScamera test/HDMI VGA in/ cable tracker
IP5100 plus : 4inch touch screen /8MP TVI / 8MP CVI / 8MP AHD / 4K H.265 IP / CVBScamera test / HDMI VGA in
Product description:
The 4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 800*480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
Application:
-CCTV system installation and maintenance
-Network cabling project installation and maintenance
-Dome camera, IP TVI CVI AHD 4K H.265 camera testing
-Video transmission channel testing
-PTZ controller

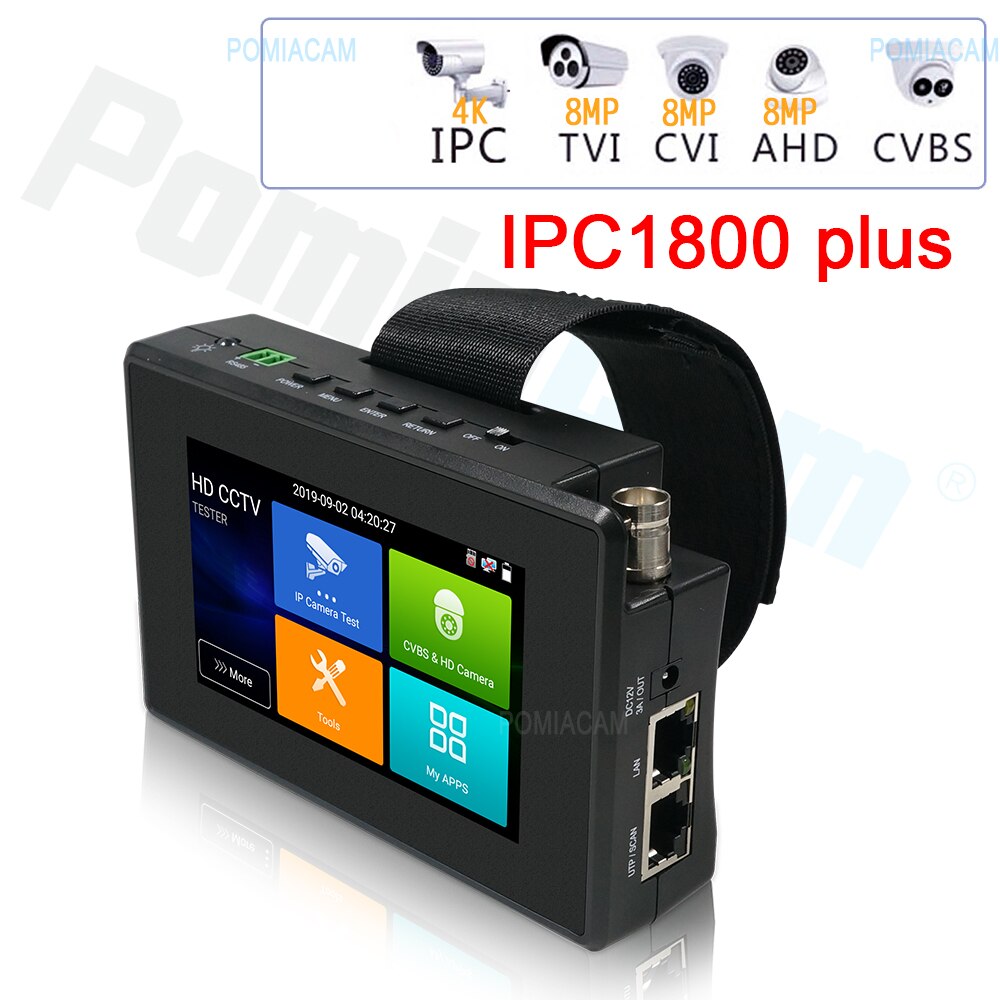

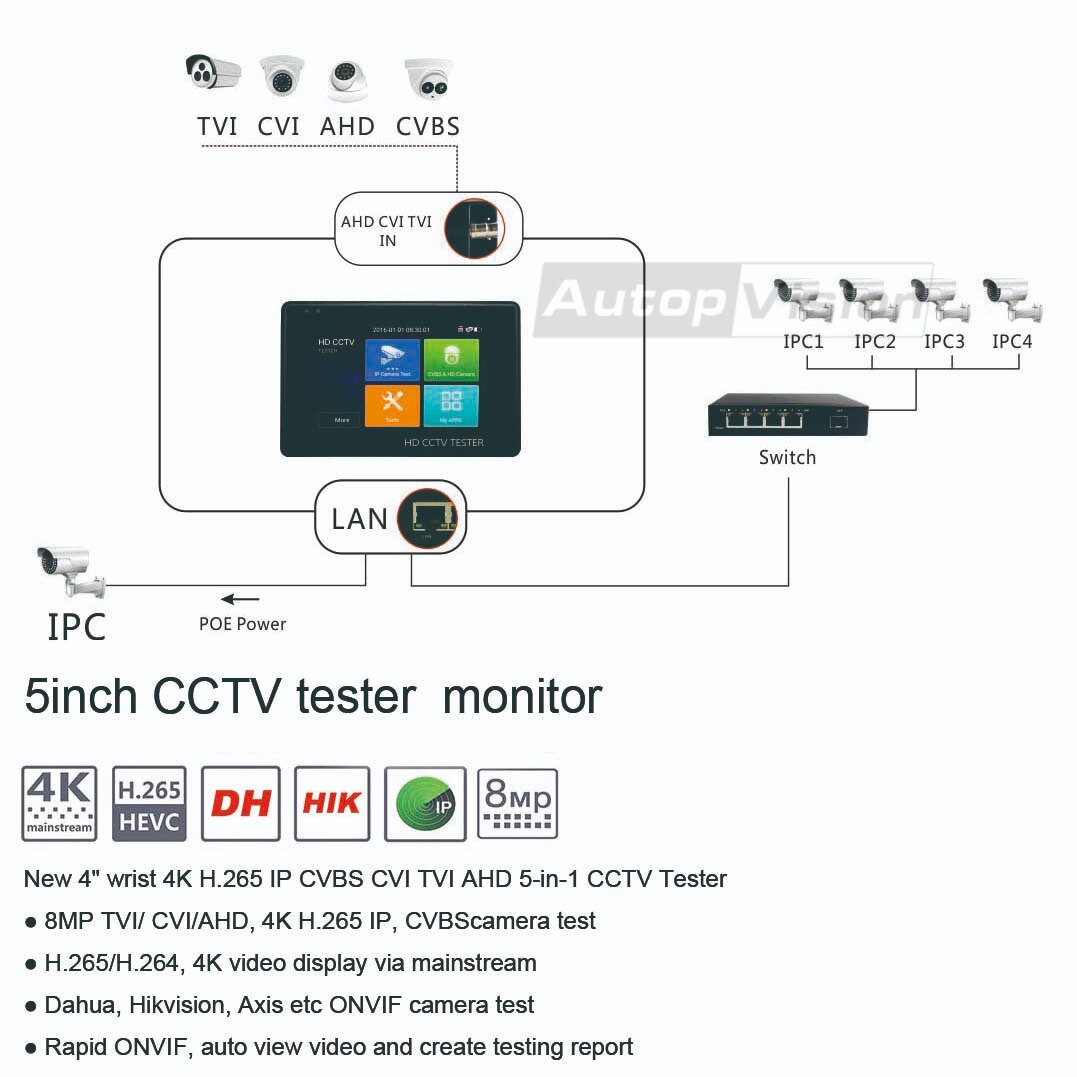

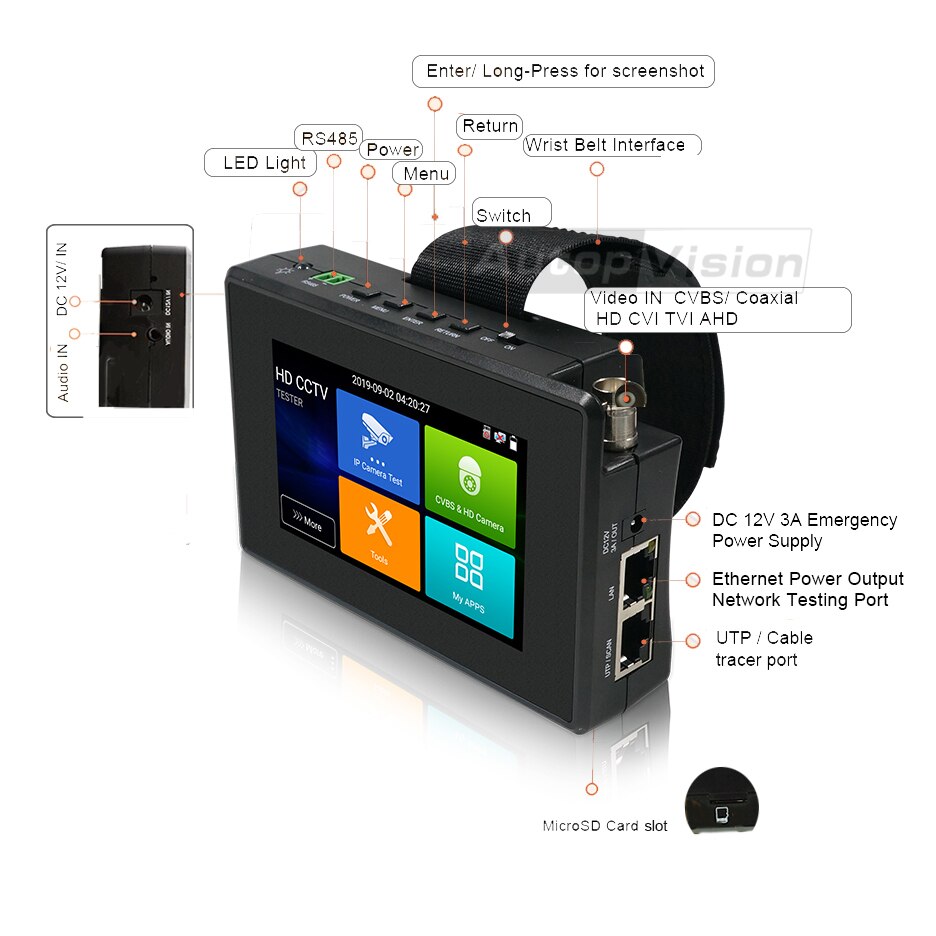

New 4" wrist 4K H.265 IP CVBS CVI TVI AHD 5-in-1 CCTV Tester
Model: IPC-1800ADH Plus
●8MP TVI/ CVI/AHD, 4K H.265 IP, CVBScamera test
● H.265/H.264, 4K video display via mainstream
● Dahua, Hikvision, Axis etc ONVIF camera test
● Rapid ONVIF, auto view video and create testing report

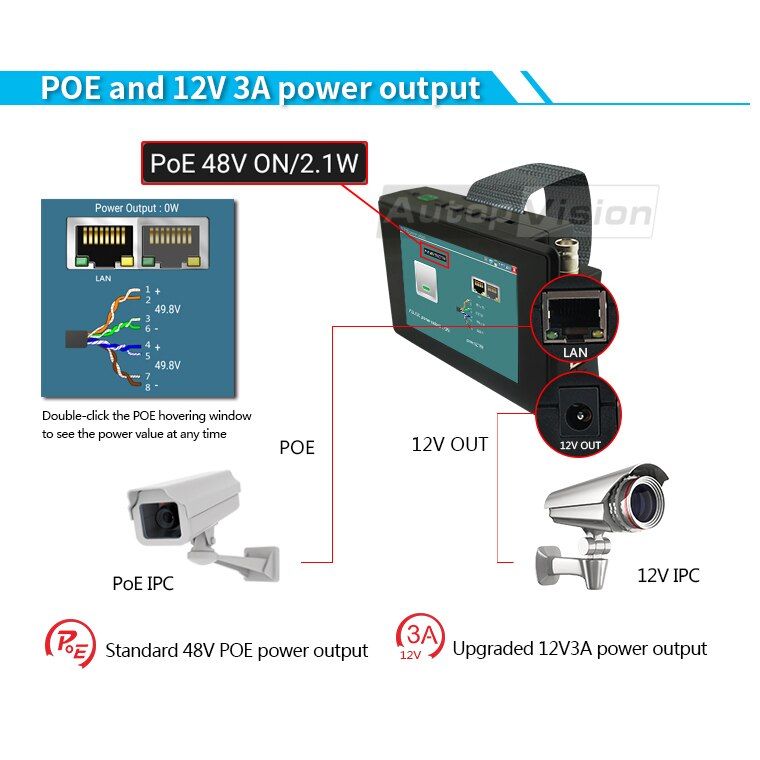

● DC12V 3A, DC48V PoE power output
●Built in WIFI, create WIFI hotspot
● Innovative coaxial HD focus, video signal quality test
● Wrist design, portable and easier to carry
● 10/100/100M Ethernet,network state and traffic display
Camera test:
● 4 inch touch screen, 800*480 resolution
● H.265 & H .264 IP, 4K video display via mainstream

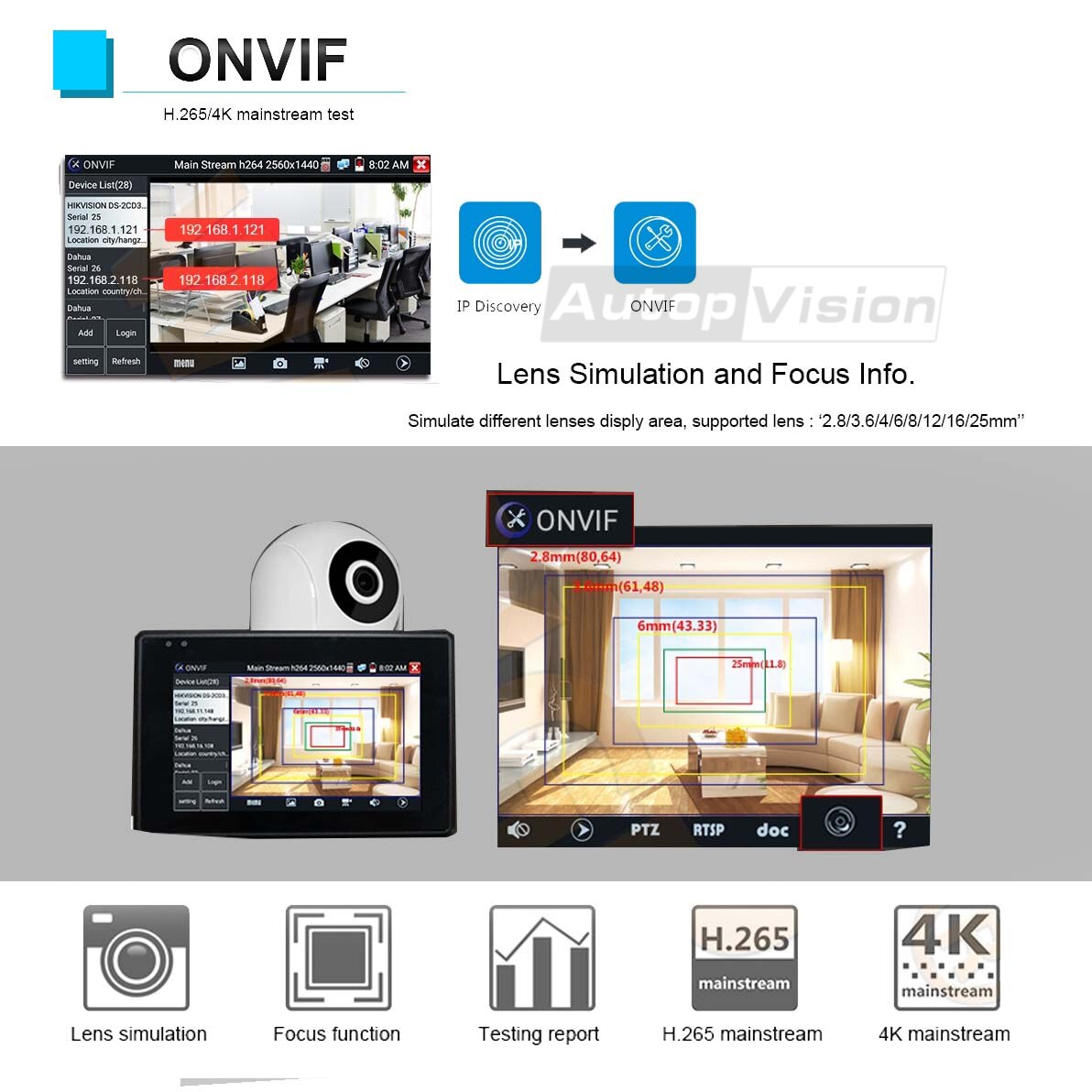

● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● 8MP TVI/8MP CVI/8MP AHD
● CVBS camera test and PTZ control
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● IP discovery, just by one key to detect all network cameras IP address
● Rapid video, just by one key to detect all network cameras and auto display
● DC 12V 3A power output
● PoE DC48V power output, Max power 24W
● Innovative coaxial HD focus, video signal quality test
●Built in WiFi, display image from the wireless camera, create WIFI hotspot
Other functions:
●10/100/1000M Ethernet, network state and traffic display
●Wrist design, portable and easier to carry
●TesterPlay: Tester, android version mobile phone, PC display at the same time
● Network tool: PING test, IP address scan, port flashing etc
● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours
CCTV tester monitor Newest 5 inch All in one VGA & 4K HDMI input IP Camera Tester 8Mp AHD TVI CVI CVBS camera test monitor
Model: IPC-5000 Plus series
IPC-5000 Plus support 8MPAHD TVI CVI with battery ( digital cable tracer optional )

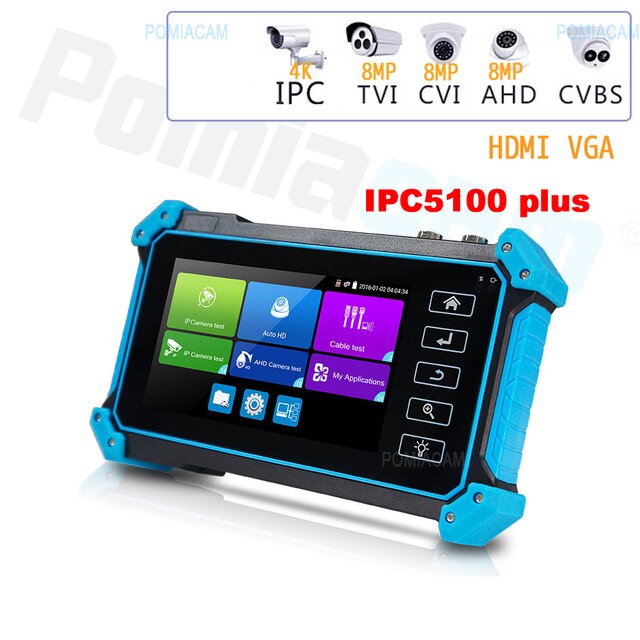

IPC-5100 Plus support 8MPAHD TVI CVI with battery ( digital cable tracer optional ) +HDMI in, VGA in

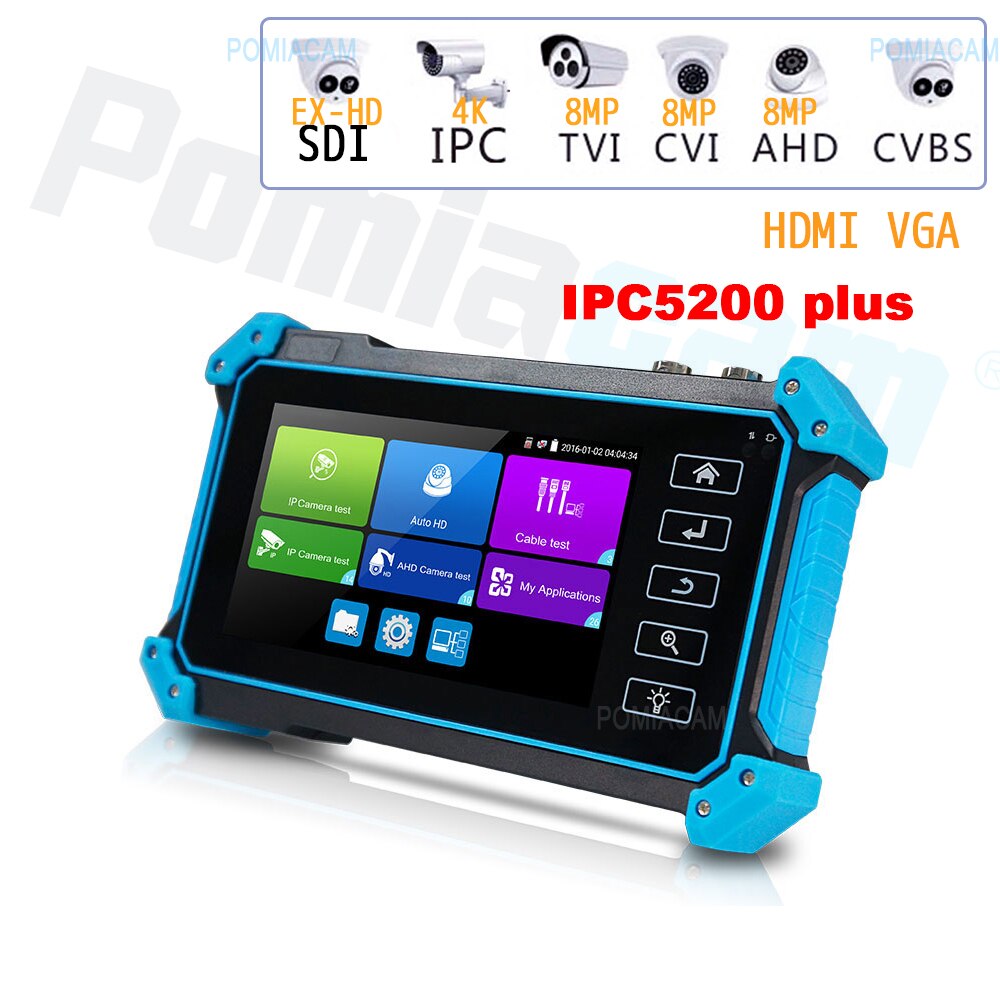

IPC-5200 Plus support 8MPAHD TVI CVI with battery ( digital cable tracer optional ) +SDI , HDMI in , VGA in
Language support: English, Chinese, Korean, Russian, Italian , Polish ,Spanish, French or Japanese;
Comparison Table:
Features/ Model | IPC-5000 Plus | IPC-5100 Plus | IPC-5200 Plus |
8MP AHD | √ | √ | √ |
8MP TVI | √ | √ | √ |
8MP CVI | √ | √ | √ |
HD-SDI/3G-SDI/EX-SDI* | X | X | √ |
HDMI IN* | X | √ | √ |
VGA IN* | X | √ | √ |
Battery | 2600mAh | 3350mAh | 3350mAh |
Digital Cable tracer* | Optional | Optional | Optional |

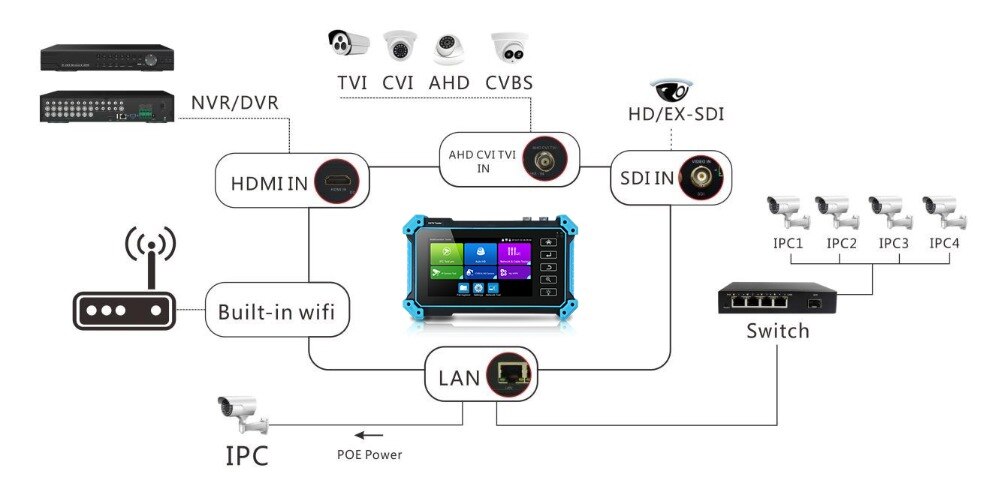

5 inch IPS touch screen, 1920x1080 resolution
● 8MP CVI/ TVI/ AHD camera test
●8MP EX-SDI, HD-SDI, 3G-SDI camera test* ( only for IPC5200 plus )
● H.265/H.264, 4K video display via mainstream
● VGA input, support 2048 x 1152 60FPS*(only forIPC5100 plus , IPC 5200 plus )
● HDMI input, support 4K 30FPS*(only for IPC5100 plus , IPC 5200 plus )
● DC12V 3A, 48V PoE power output
● Auto HD, auto recognize HD coax camera type and resolution
● RJ45 TDR cable test, cable quality test
● UTP cable test, detect the near-end, mid-end and far-end fault pointof the RJ45 cable plug
Camera test:
● 5 inch IPS touch screen, 1920*1080 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● Analog camera test, PTZ controller

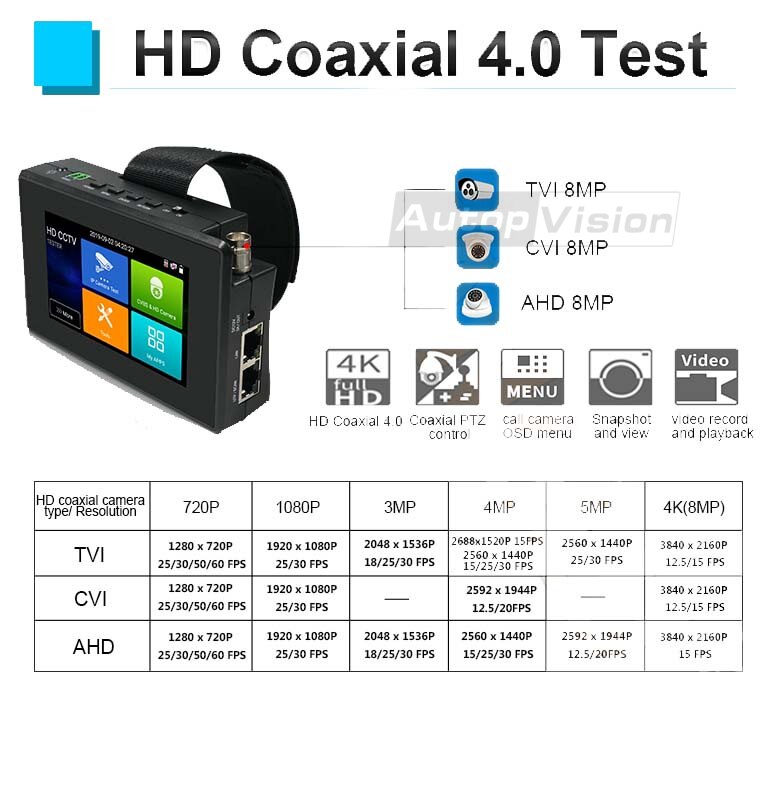

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu*(only forIPC 5200 plus )
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(only forIPC 5200 plus )
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(only forIPC 5200 plus )
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu
● VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback*(only forIPC5100 plus , IPC 5200 plus )
● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback*(only forIPC5100 plus , IPC 5200 plus )
● Rapid ONVIF, Auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
● Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name
● IP and analog display image at the same time
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● DC12V/3A power output, camera can be powered from DC 12 Voltage
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report

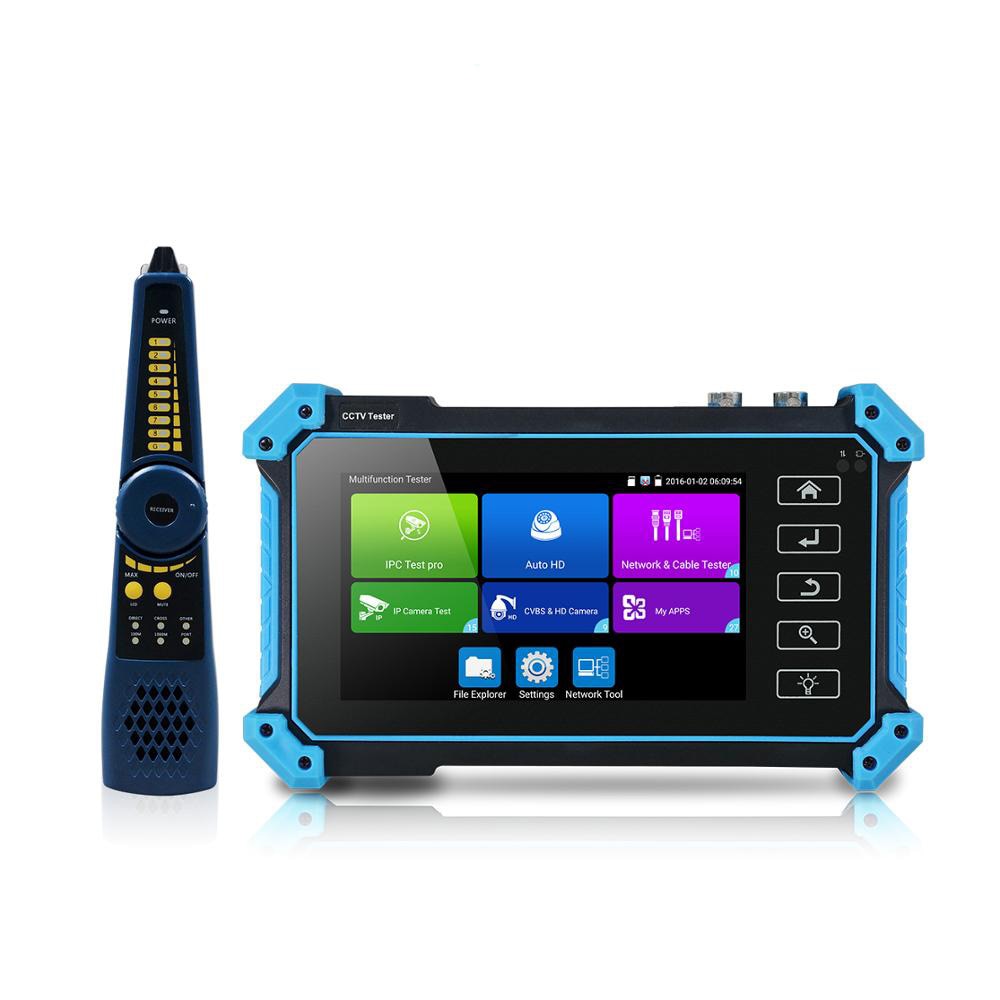

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time * it is optional , if you need this one , pelase contact me .
Other Functions:
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Customers self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /3350mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 6 hours (For IPC-5100 Plus and IPC-5200 Plus)
● 7.4 V /2600mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 5 hours (For IPC-5000 Plus)
Application:
● CCTV system installation and maintenance
● Network cabling project installation and maintenance
● Dome camera, 4K H.265 IP camera testing
● Video transmission channel testing
● PTZ controller
- Plug Type: EU plug
- Sensor Type: CCTV Tester
- Model Number: IPC1800 Plus
- Maximum IR Distance(m): AHD Camera Tester
- Sensor Size: IP Camera Tester
- Lens: Security Camera Tester
- Brand Name: POMIACAM
- Origin: Mainland China
- Certification: CE
- Item type: IP CVBS CVI TVI AHD 5-in-1 CCTV Tester
- Style: coaxial HD 4.0 CCTV Tester
- touch screen: 4 inch IPS 800*480 resolution
- Plug Type: EU/US/UK/AU Plug
- TVI Camera Test: 8MP
- AHD Camera Test:: 8MP
- CVI Camera Test: 8MP
- Analogue Camera Test: Support
- IP Camera test: Support H.265/H.264, 4K
- WIFI hotspot function: Support
