CCTV Tester Monitor IP Camera 8MP AHD TVI CVI CVBS CCTV Tester Monitor PTZ Controller Rapid ONVIF IPC Tester POE IPC1800 Plus
489.10 337.10 $
SALE
ID: 91301
Quantity
Pegatah CCTV Tester Camera Mini Monitor HDMI VGA Video Camera Tester Ccfv IPC 4K Portable Monitor Security Lan Cable Testing
5.0 (3 votes) | 6 orders
Price:
US $675.82 - 831.00
/ piece
Discount Price:
US $
395.36 -
486.14
/ piece
-41%
- Ships From
- Color
-
-
5inch 4K IP CCTV TESTER 8MP AHD CVI TVI SDI camera testing CCTV test monitor AHD tester IPC tester Security IP camera testers
Good News: Ship from Russia or Spain can arrive within 2-10 days.
Support IP languages: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech
CCTV Tester Descritions:

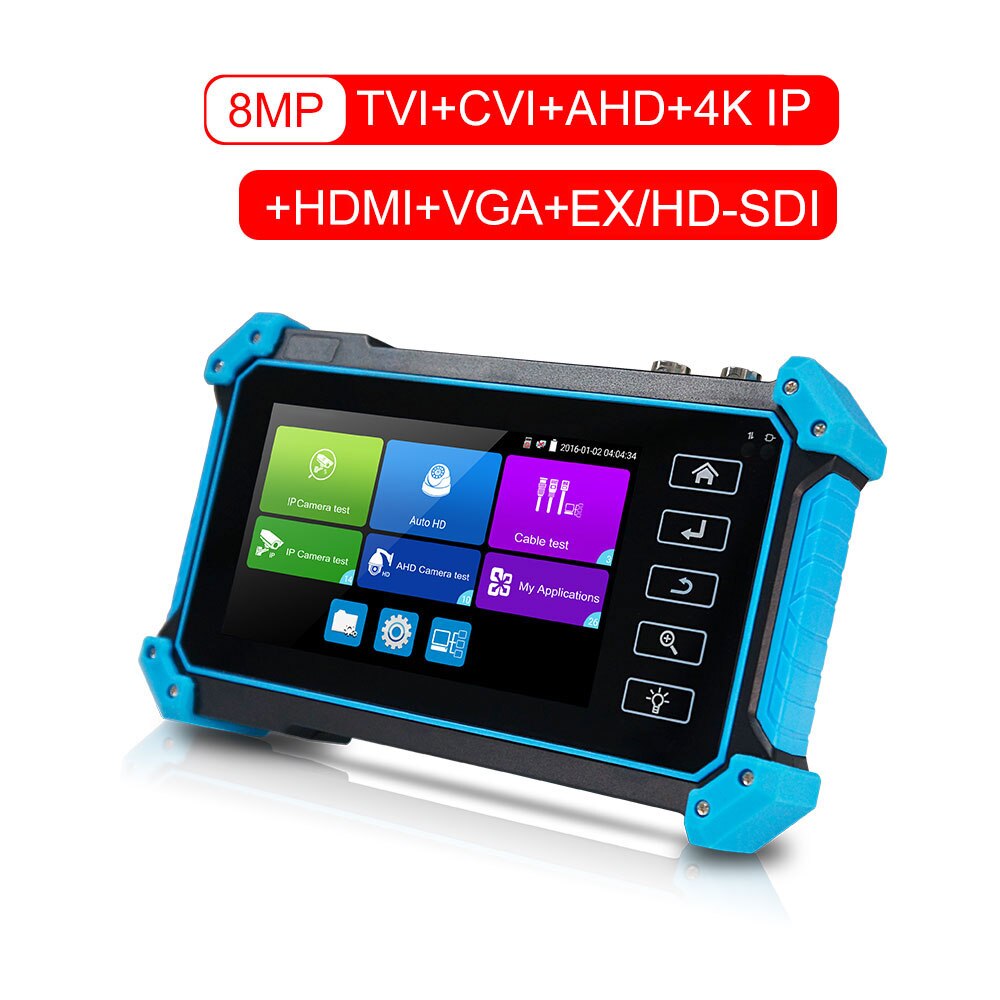

The 5 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

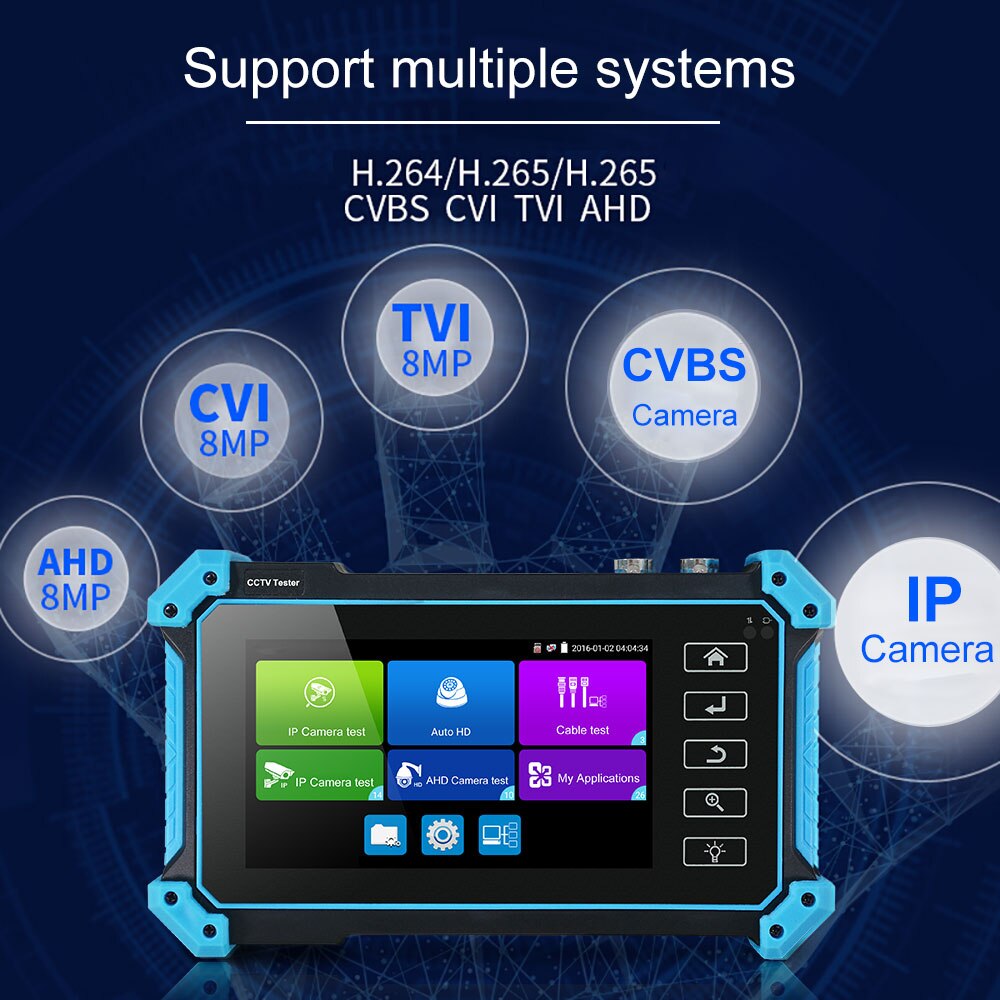

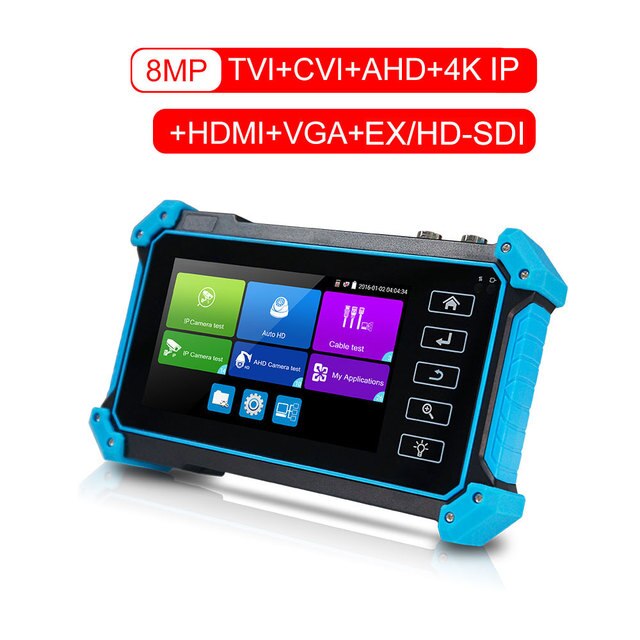

TI-N9652=Support 8MP TVI+8MP CVI+8MP AHD+SDI+4K H.265 IP +Analog+EX-SDI/HD-SDI+HDMI IN+VGA IN test

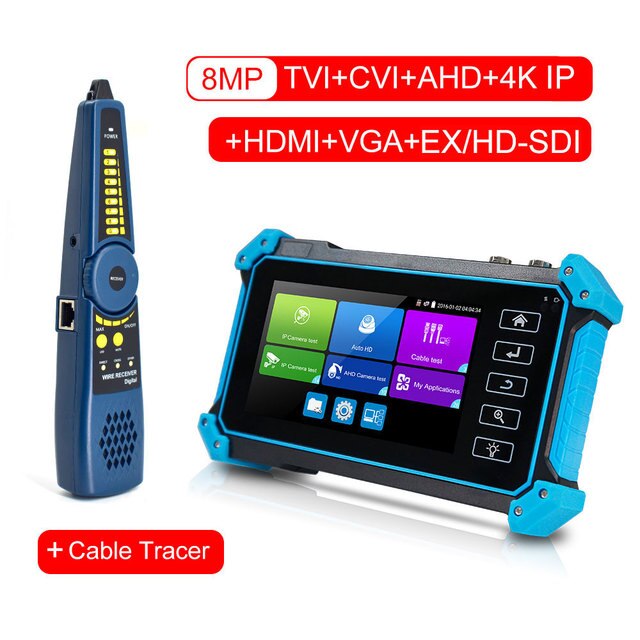

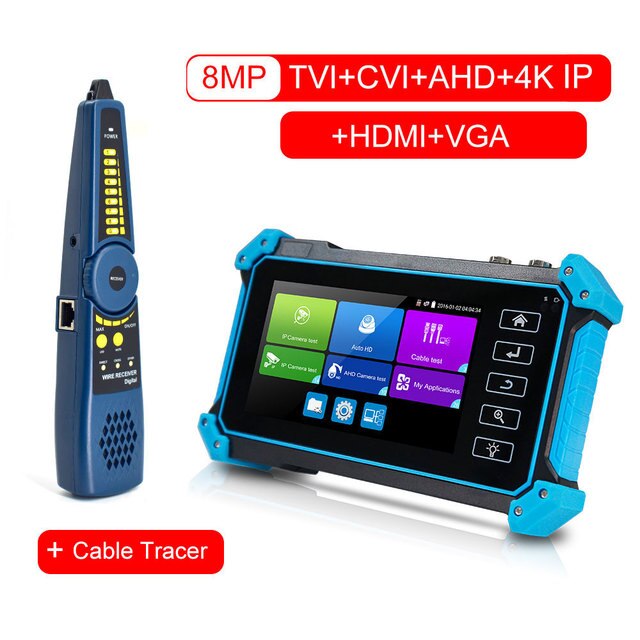

TI-N9652C=Support 8MP TVI+8MP CVI+8MP AHD+SDI+4K H.265 IP +Analog+EX-SDI/HD-SDI+HDMI IN+VGA IN test+Cable Tracer

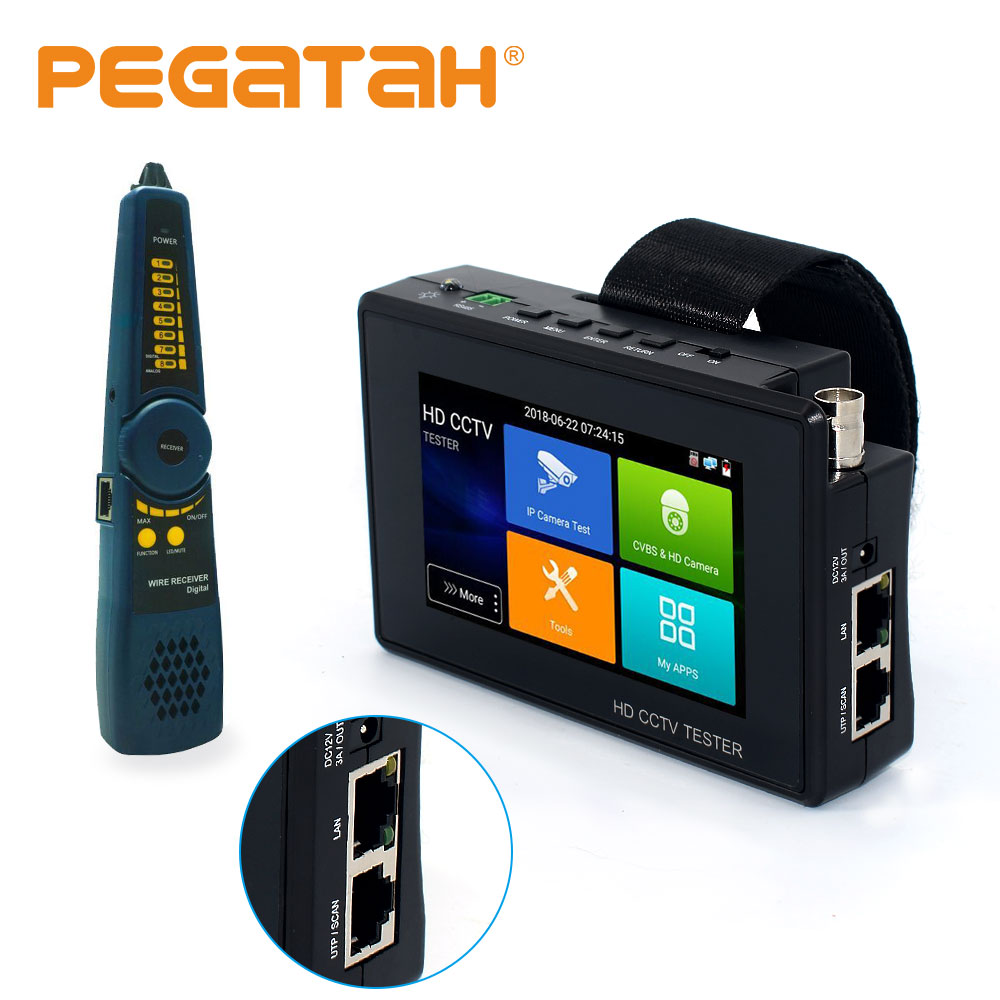

TI-N9618C=4inch touch screen 4K H.265/H.264 IP+Analog+8MP AHD+8MP CVI+8MP TVI+POE output+DC12/3AOutput + Cable tracer

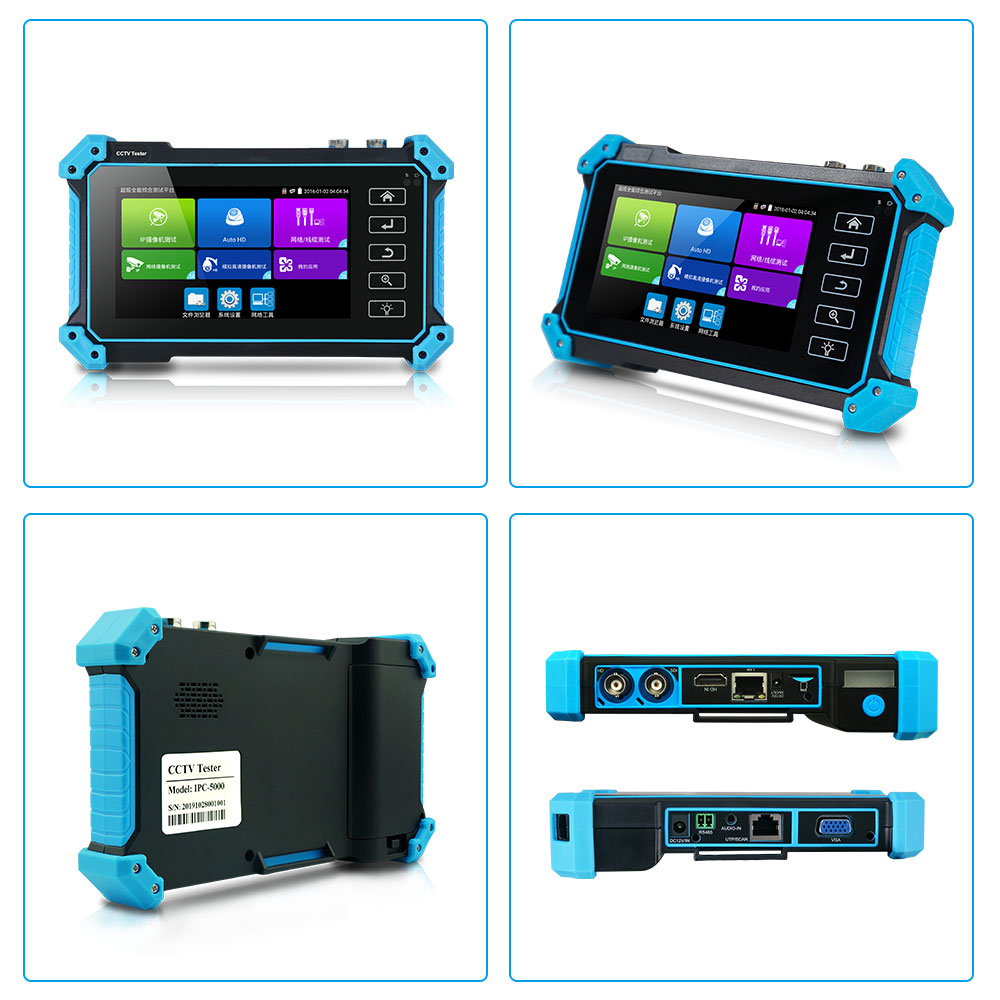

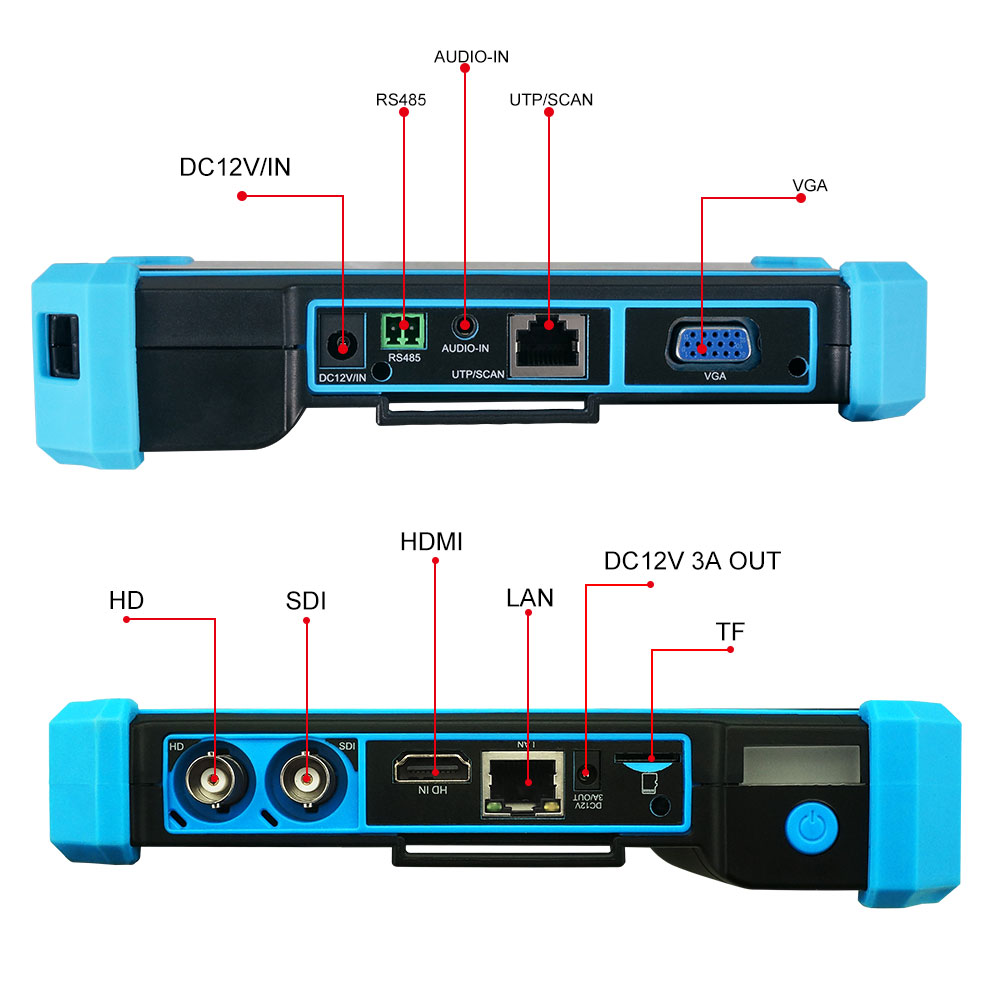

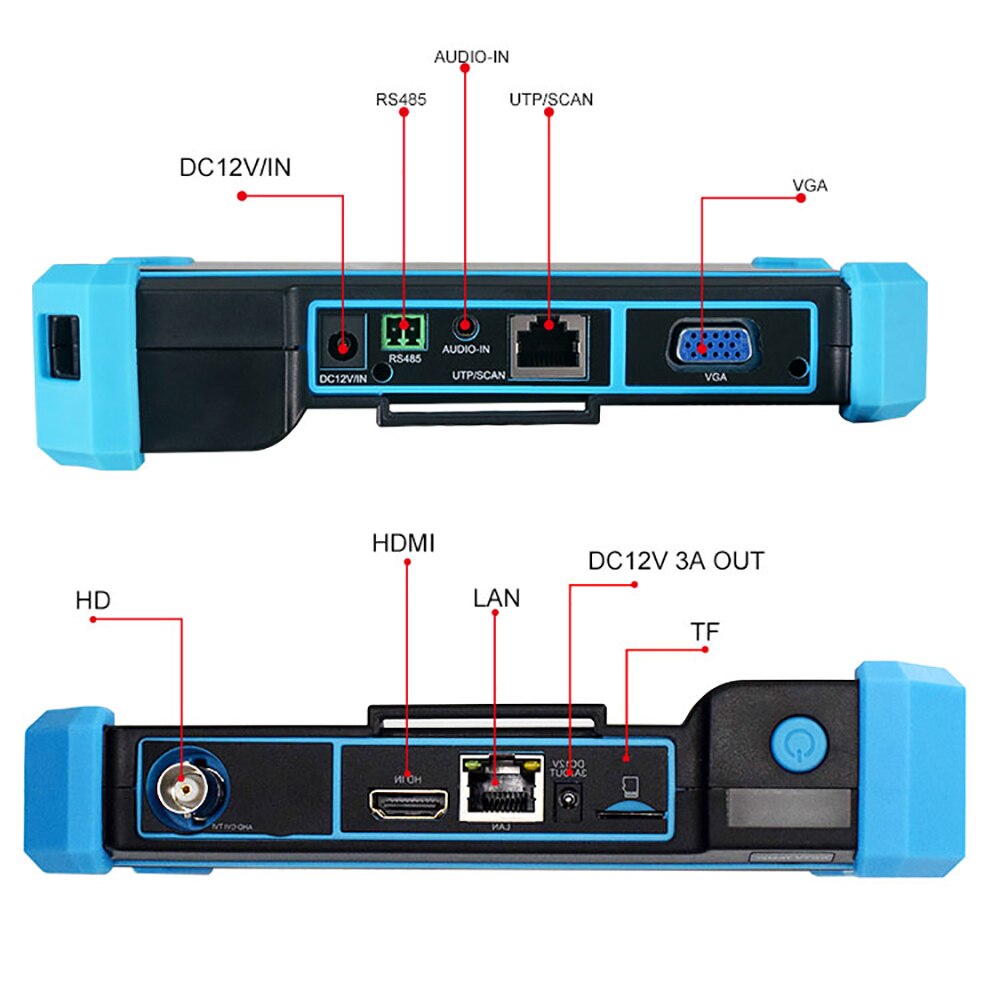

TI-9651/9652 Basic Information
Function Introduction

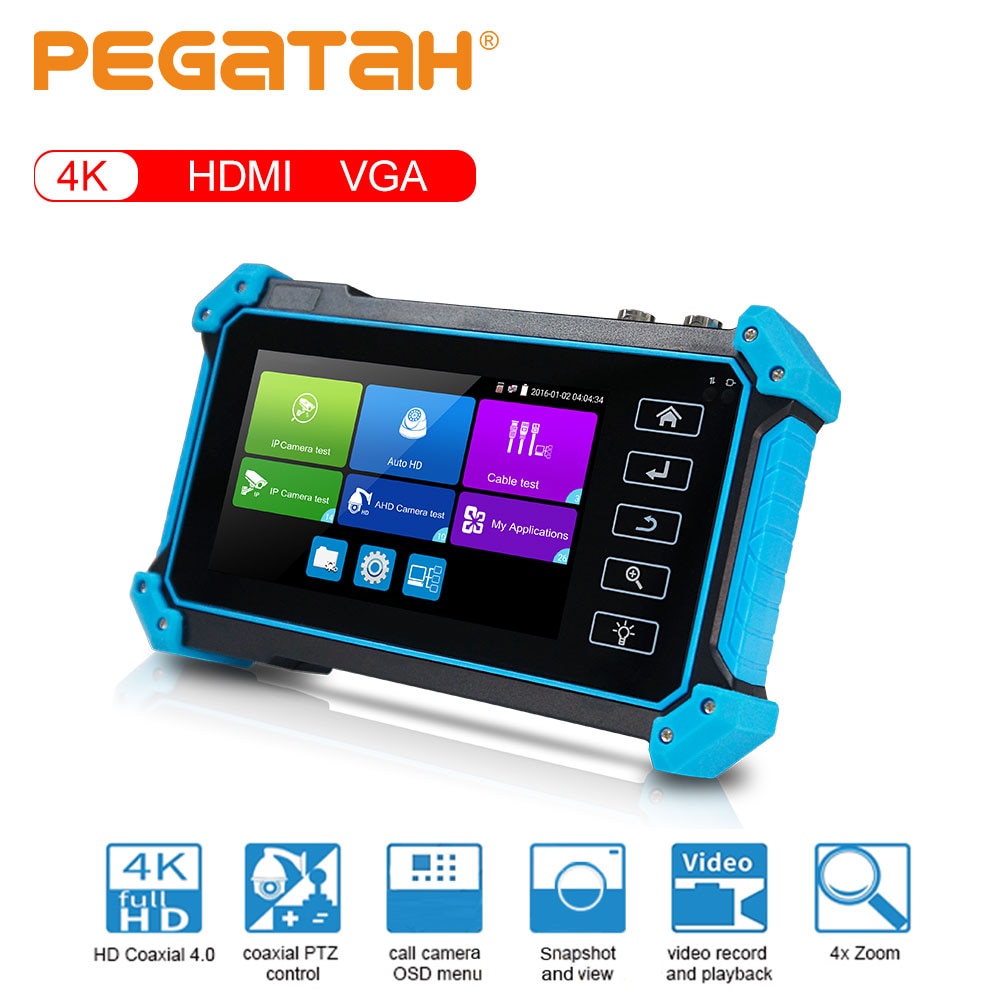

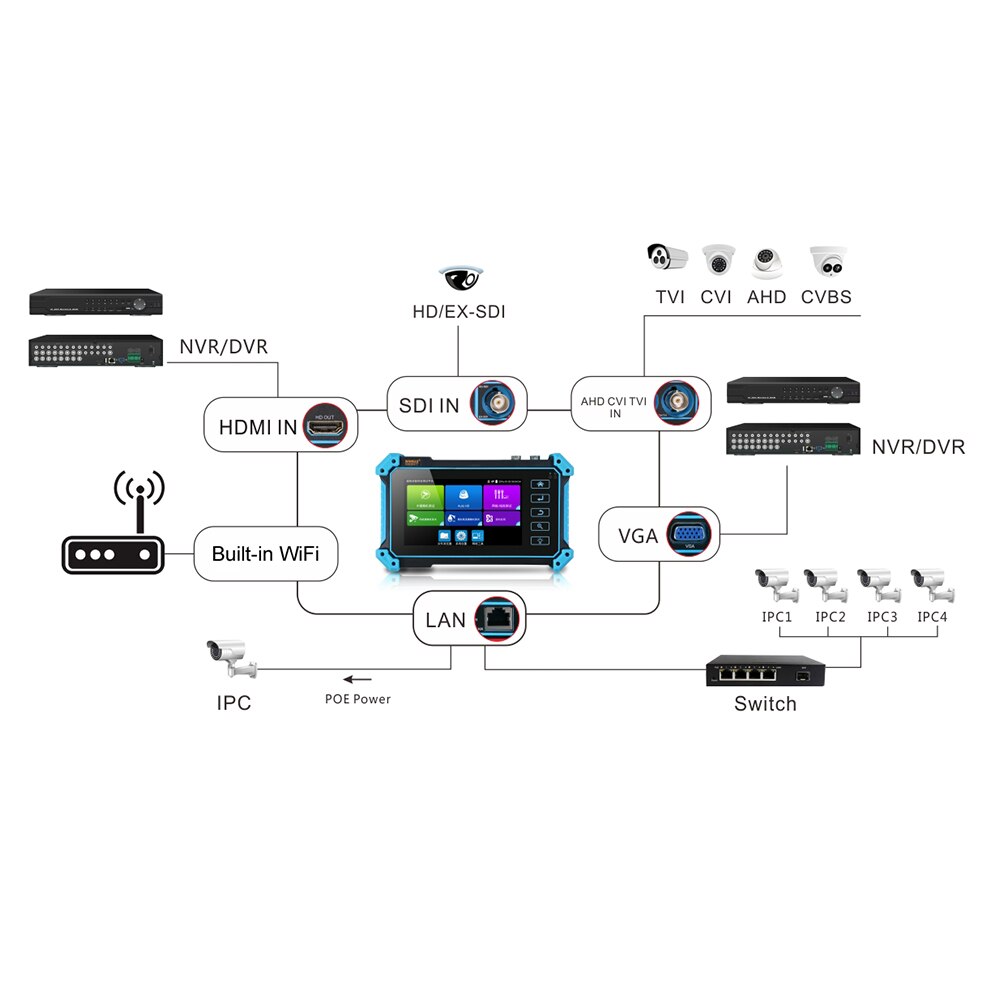

● 5 inch IPS touch screen, 1920x1080 resolution ● H.265/H.264, 4K video display via mainstream ● VGA input, support 2048 x 1152 60FPS* ● HDMI Input, support 4K 30FPS* ● DC12V 3A, 48V PoE power output ● Rapid ONVIF, Create the test report and modify IP address, etc ● Auto HD, auto recognize HD coax camera type and resolution ● RJ45 TDR cable test, cable quality test ● UTP cable test, detect the near-end, mid-end and far-end fault point of the network cable crystal head
Features
Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu. ● VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback* ● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback* ● Rapid ONVIF, Auto log in and display image, create testing report ● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
Other Functions
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test ● HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. ● Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name. ● IP and analog display image at the same time ● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera) ● Rapid video, just by one key to detect all network cameras and auto display ● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Another Functions
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route ● Tester Play: Tester, android version mobile phone and PC display at the same time ● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters ● Customers self-update software, you can install apps with android version ● Media player, 4K video files and MKV/MP4 media files play ● Display its genuine resolution of the IP camera images ● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

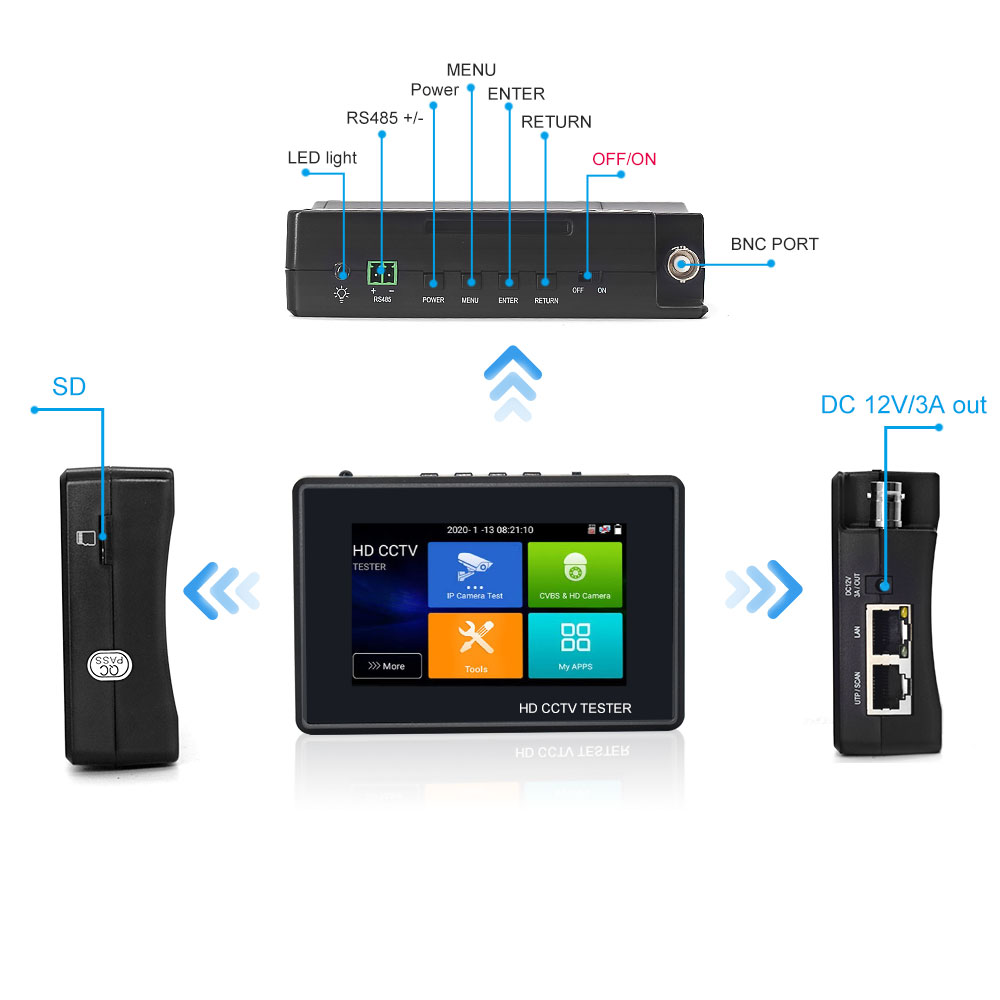

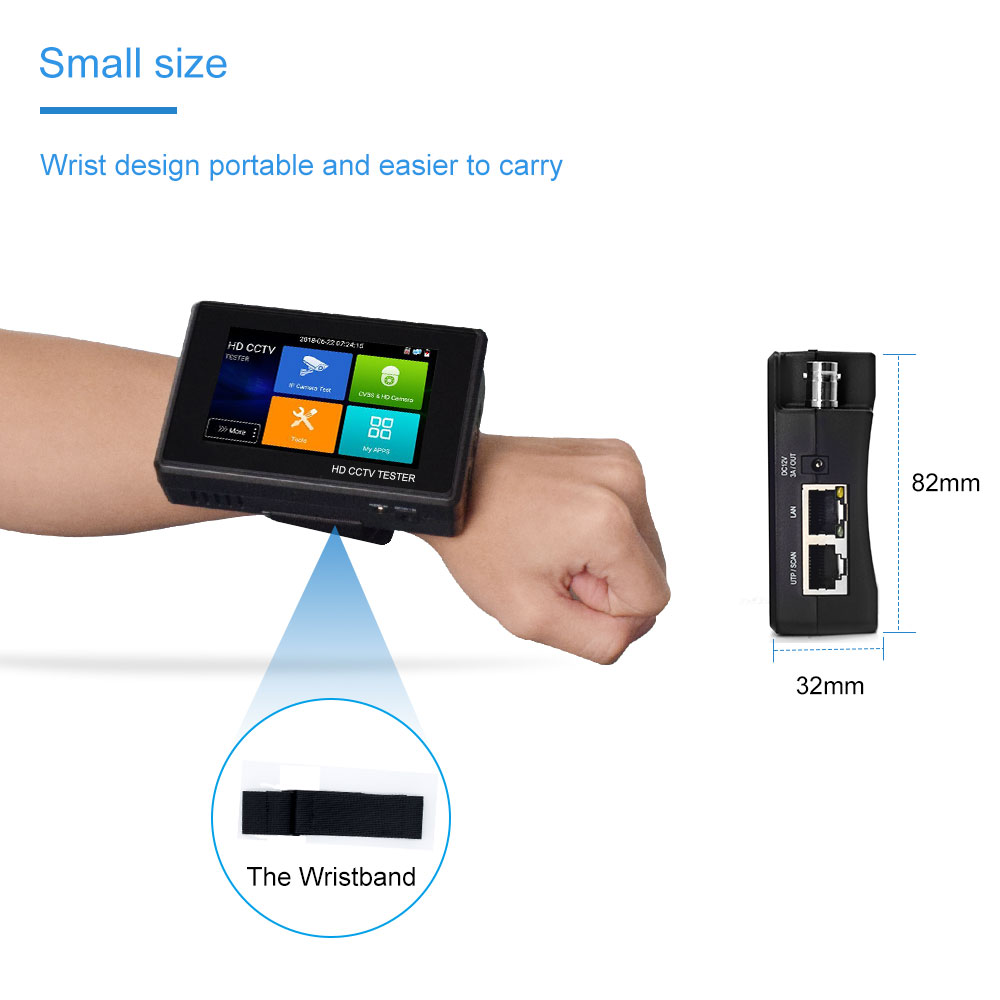

TI-9618C Basic Information
8MP AHD+8MP TVI+8MP CVI+4K H.265 IP+CVBS 1.4 inch IPS touch screen,800*480 resolution 2.New- H.264 and H .265 ,4K video display via mainstream 3.New- 8MP TVI test,3840 x 2160P 15 FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu 4.8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu 5.8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu 6.PPPOE Dial test, can connect internet to PPPOE dial test 7.HD coaxial video signal quality test 8.IP & CVBS camera test, PTZ controller 9.New-IP discovery , just by one key to detect all network cameras IP address 10.Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report 11.New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS 12.Hik test tool ,pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters 13.Dahua test tool, test Dahua camera modify the user name, password and IP parameters 14.New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters 15.New- Drop-down menu , can select PoE power ,IP setting, CVBS, LAN info etc in any interface 16.New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc 17.ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF) 18.PoE DC48V power output, Max power 24W,DC 12V /3A power output 19.New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable 20.PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG 21.PING test ,IP address scan, port flashing etc 22.Audio in , support record and save the audio/LED lamp, calculators, music players and other application tools 23.7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging , working time lasts 7 hours
Packing List-9651/9652

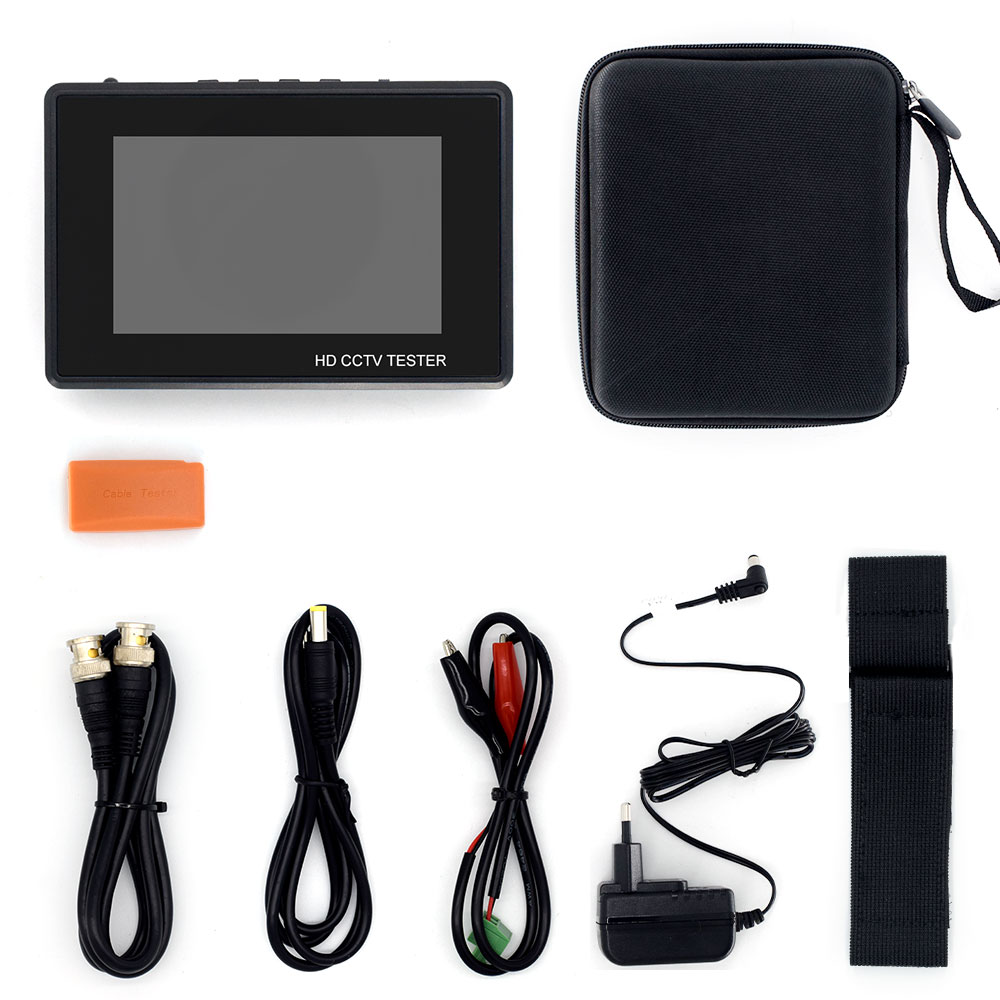

Packing List-TI-9618C
- Sensor Type: CMOS
- Maximum IR Distance(m): Other
- Sensor Size: Other
- Lens: Other
- Brand Name: PEGATAH
- Origin: Mainland China
- Certification: CE
- Sensor Size: 5inch
- Model Number: TI-9651/9652/9618
- IP camera tester: 1080
- CCTV Camera tester: H.265+,H.265/H264
- HD Coaxial test 1: 8MP EX-SDI
- HD Coaxial test 2: 3G-SDI
- IP camera test: 4K/H.265/H.264
- CCTV Camera teste: H.265+ H.265/H264
- HD Coaxial test 3: 8MP CVI
- HD Coaxial test 4: 8MP TVI
- HD Coaxial test 5: 8MP TVI
- Power output: 12V/3A power
- POE output: Support
- Mini cctv tester: Yes
- IP camera cctv monitor: Yes
- Feature1: Video surveillance
- Feature2: ip camera tester
- Feature3: Portable monitor
- Feature4: Surveillance camera tester
