IV5/IV7W AHD TVI CVI CVBS CCTV 4-In-1Tester monitor 5 Inch 8MP UTC Portable CCTV HD Coaxial Camera Tester DC12V Output Power
179.88 104.32 $
SALE
ID: 91297
Quantity
5 Inch Tft Lcd Hd 8Mp Tvi Ahd Cvi Cvbs In One Cctv Tester Analog Security Camera Tester Monitor Vga Hdmi Input Wrist Design
5.0 (2 votes) | 12 orders
Price:
US $138.07 - 205.35
/ piece
Discount Price:
US $
127.96 -
183.67
/ piece
-7%
- Color
-
-
❤IV8W------5inch tester+8MP AHD+8MP CVI+8MP TVI(with HDMI and VGA)
❤ IV8C------5inch tester+8MP AHD+8MP CVI+8MP TVI(without HDMI and VGA)
❤ IV5------5inch tester+8MP AHD+8MP CVI+8MP TVI(without HDMI and VGA)
CCTV Camera Tester

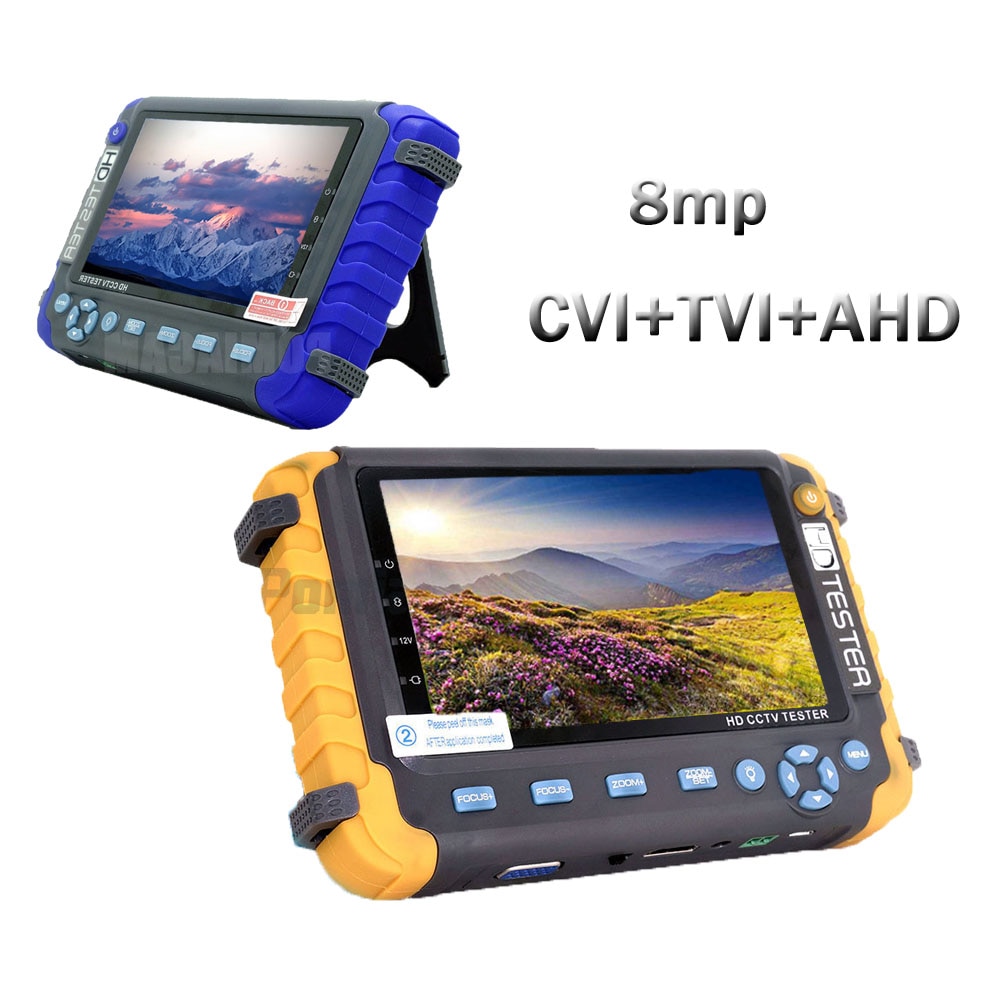

NEW - IV8W : Support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera
Product overview
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
Specifications:
Model | IV8W |
LCD screen | 5.0 inch TFT-LCD, 800(RGB)x 480 resolution |
Video test | NTSC/PAL (Auto adapt) |
LCD adjustment | Brightness, Contrast, Saturation adjustable |
Video IN/OUT | 1 channel BNC Input & 1 channel BNC Output |
VGA/HDMI input | Max support 1920X1080 video input |
PTZ Controller | Support RS485 |
PTZ Protocol | Compatible with protocols PELCO-D/P, |
Baud Rate | Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps |
Color bar generator | Support both PAL / NTSC format's standard color bar output |
(Red, Green, Blue, White, Black, Grey) and testing image output | |
UTP Cable Test | Display UTP cable connection status , cable type and |
the sequence of wires as well as read the number of the test box. | |
DC12V power output | Output DC12V1A power for camera |
Audio input test | 1 channel audio signal input |
Coaxial HD test | |
TVI test | 1 channel TVI input(BNC interface), |
support 8MP | |
CVI Test | 1 channel TVI input(BNC interface), |
support 8MP | |
AHD Test | 1 channel AHD input (BNC interface), |
support AHD 2.0 version, 8MP | |
POWER | |
Power Adapter | DC 5V(1.5A) |
Battery | Built-in 18650 2600mA battery X 2, |
After charging 3-4 hour, working time lasts 11 hours | |
General | |
Language | English and Chinese optional |
Working Humidity | 30%-90% |
Dimension | 194mm x 112mm x 48mm / 540g |
Product Funtions

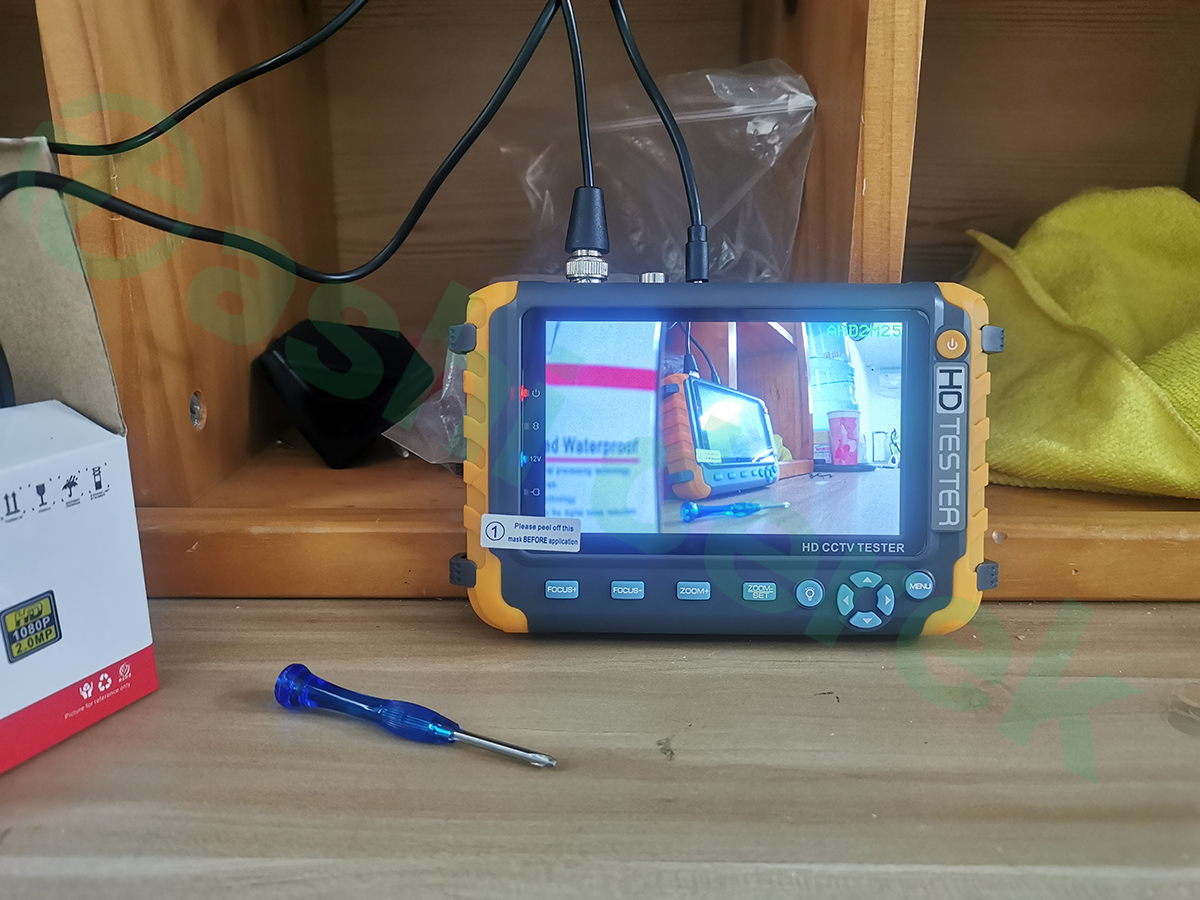

Video signal testing

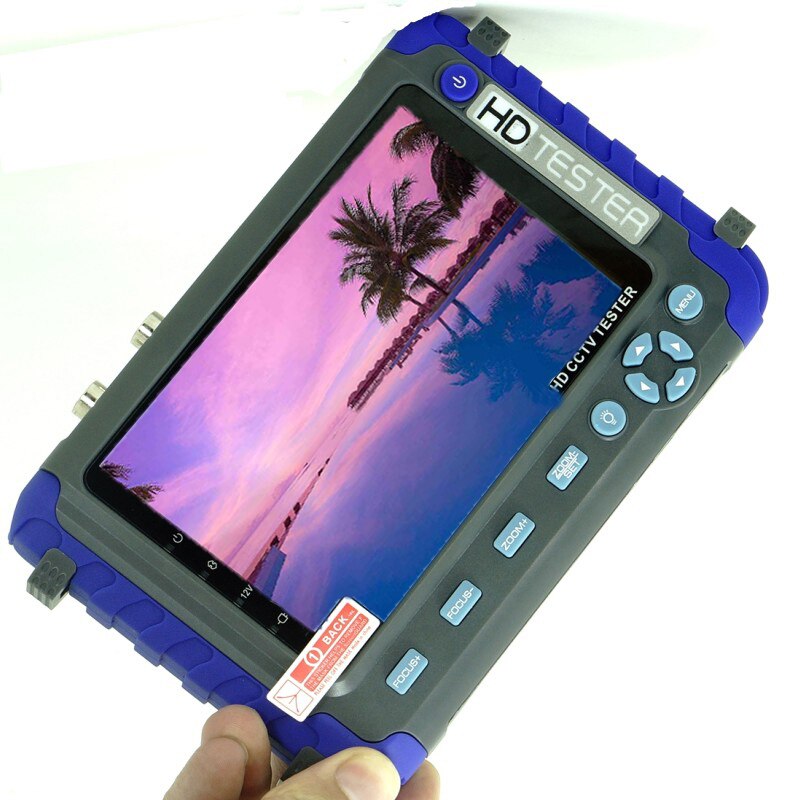

Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
PTZ controller
Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

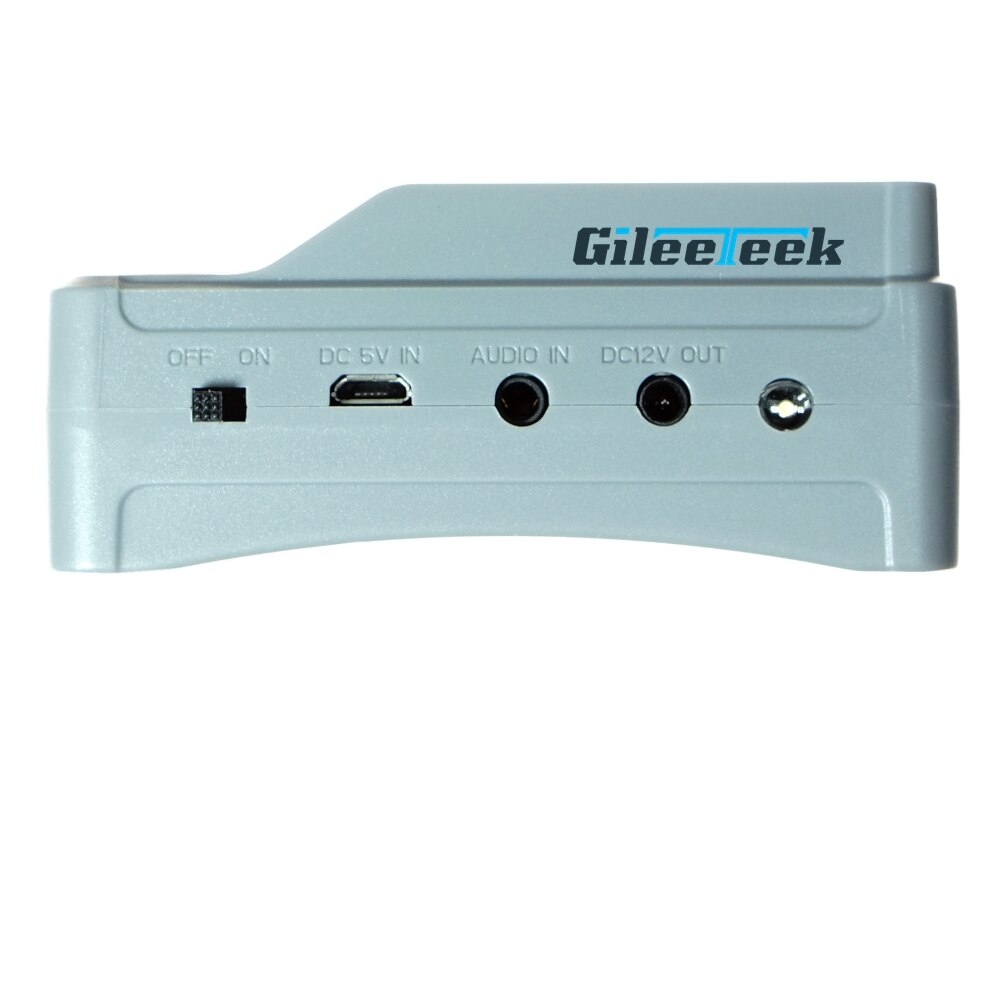

DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
VGA/HDMI input
Support VGA/HDMI 1.0 video input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is 1920 x 1440(IV8W ) / 1920X1080 (IV8S)
TVI camera test
HD TVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
AHD camera test
HD video surveillance testing, support AHD 2.0 version, 8MP (IV8W ) / 720p 25,30fps/ 1080p 25,30fps (IV8S) . When AHD signal input, the tester will display the AHD camera image.
CVI camera test
HD CVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The battery graphic display
The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.
Packaging list
1*HD coaxial tester (Built-in battery)
1*Adapter DC5V 1A(with USB cable)
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1*Audio cable
1*Lanyard
1*Tool bag
1*Instruction Manual
IV8C CCTV TESTER
Utp Cable Test 5'' Tft Lcd Screen Cctv Tester Built-in 18650 Battery IV8C 720P 1080P Hd Surveillance Camera Tester Cctv Test ( not support VGA/HDMI input)
IV8C support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:
(1) AHD Signal test: 8MP 1080P 720P;
(2) TVI Signal test: 8MP 1080P 720P;
(3) CVI Signal test: 8MP 1080P 720P;
Product overview:
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc.
Main Features:
* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,
* Support PAL/NTSC standard video signal. CVBS testing.
* PTZ controller
Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
* Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
* DC12V 1A output power
Power the camera with DC12V (1A) power from the tester.
* Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
* Improvement cable test
UTP cable, telephone cable etc order and connectivity test, can save testing report
* TVI camera test
HD TVI video surveillance testing, support 8MP. When TVI signal input, the tester will display HD TVI camera image.
* CVI camera test
HD CVI video surveillance testing, support 8MP. When CVI signal input, the tester will display HD CVI camera image.
* AHD camera test
HD video surveillance testing, support 8MP. When AHD signal input, the tester will display the AHD camera image.
* LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
Specifications:
Model | IV8C | |
LCD screen | 5.0 inch TFT-LCD, 800(RGB)x 480 resolution | |
Video test | NTSC/PAL (Auto adapt) | |
LCD adjustment | Brightness, Contrast, Saturation adjustable | |
Video IN/OUT | 1 channel BNC Input & 1 channel BNC Output | |
VGA/HDMI input | NOT Support | |
PTZ Controller | Support RS485 | |
PTZ Protocol | Compatible with protocols PELCO-D/P, | |
Baud Rate | Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps | |
Color bar generator | Support both PAL / NTSC format's standard color bar output | |
(Red, Green, Blue, White, Black, Grey) and testing image output | ||
UTP Cable Test | Display UTP cable connection status , cable type and | |
the sequence of wires as well as read the number of the test box. | ||
DC12V power output | Output DC12V1A power for camera | |
Audio input test | 1 channel audio signal input | |
Coaxial HD test | ||
TVI test | 1 channel TVI input(BNC interface), | |
support 8MP | ||
CVI Test | 1 channel TVI input(BNC interface), | |
support 8MP | ||
AHD Test | 1 channel AHD input (BNC interface), | |
support AHD 2.0 version, 8MP | ||
POWER | ||
Power Adapter | DC 5V(1.5A) | |
Battery | Built-in 18650 2600mA battery X 2, | |
After charging 3-4 hour, working time lasts 11 hours | ||
General | ||
Language | English and Chinese optional | |
Working Humidity | 30%-90% | |
Dimension | 194mm x 112mm x 48mm / 540g | |
Packing list:
HD coaxial tester
Adapter DC5V 1A(with USB cable)
International Standard 18650 2600ma battery
BNC cable
RS485 connector
Power output conversion cable
Audio cable
Lanyard
Tool bag
Instruction Manual
IV5 support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:
IV5 support : 8MP camera tester ,5 Inch HD Screen resolution 800*480,Support 8MP AHD + 8MP TVI + 8MP CVI / CVBS Video tester , UTC (HD coaxial control,BNC coaxial control PTZ,But can't call the camera menu information ) and RS485 and UTP Function .
- Plug Type: EU plug
- Sensor Type: IV8W
- Model Number: IV8W
- Maximum IR Distance(m): IV8W
- Sensor Size: IV8W
- Lens: cctvonitor
- Brand Name: POMIACAM
- Origin: Mainland China
- Certification: CE
- Maximum IR Distance(m): CCTV monitor
- Model Number: IV8W
- Sensor Type: CCTV monitor
- Item Type: EU/AU/US/UK
- PTZ controller: Support RS485
- DC12V 1A output power: Support
- Audio testing: Support
- UTP Cable test: Support
- Color bar generator: Support
- Security Camera Test: Support CVBS/AHD(5MP)/TVI(5MP)/CVI(4MP) Camera Test
- battery: Built-in 18650 2600mA battery X 2
- LCD screen: 5.0 inch TFT-LCD, (RGB) 800x 480 resolution
- Lens: CCTV monitor
- VGA/HDMI input: Max support 1920 x 1440 video input
