NTS-S High Precision TTL 0.005mm DRO Slim Linear Glass Scale 5um 5VDC Small Optical Encoder Sensor For Sino Rational Easson HXX
4.9 (9 votes) | 43 orders
Price:
US $96.79 - 103.27
/ piece
Discount Price:
US $
74.39 -
79.38
/ piece
-23%

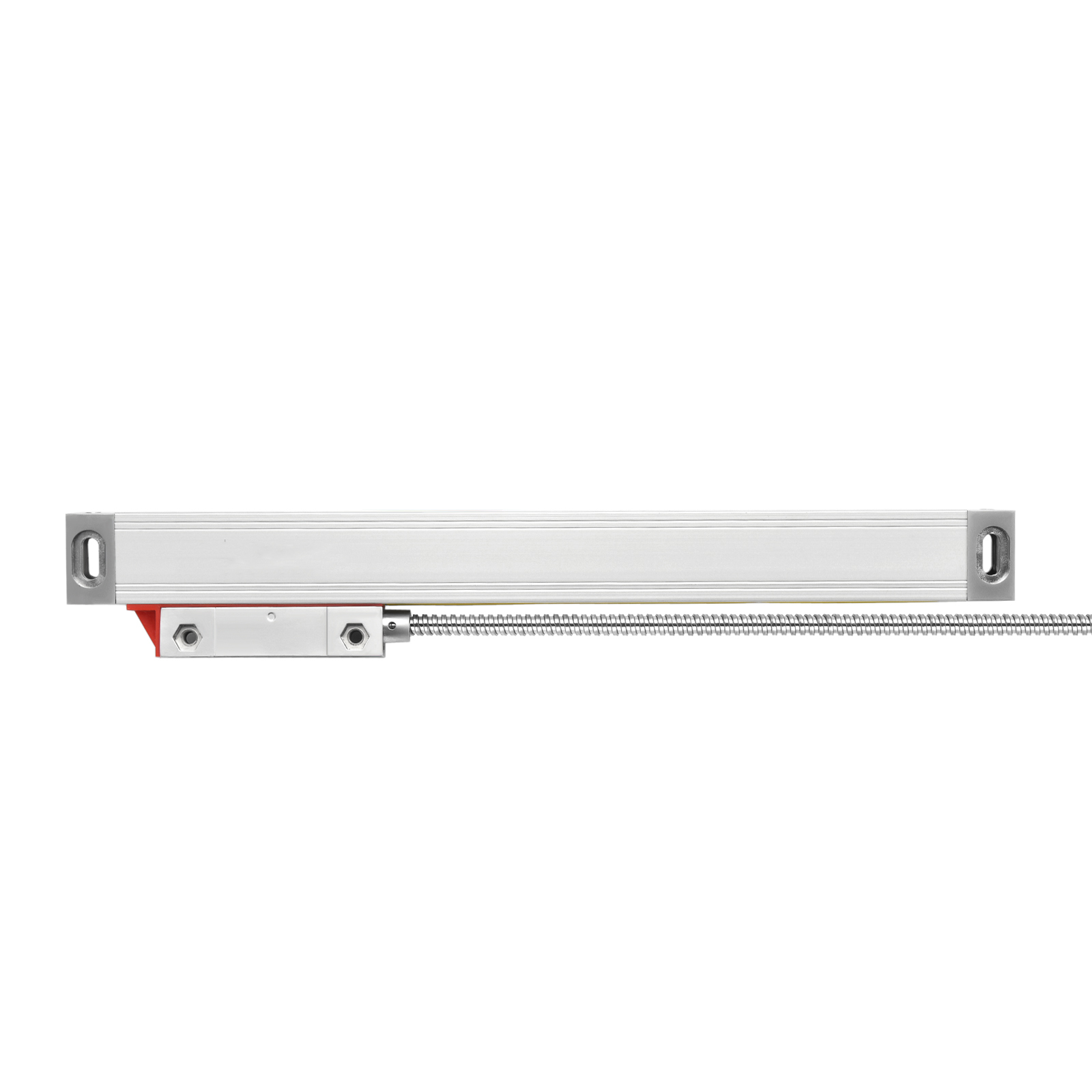

High Precision TTL 0.005mm DRO Linear Glass Scale 0.005mm 5VDC Optical Encoder Sensor For Sino Rational Easson HXX & China brand DRO
Package includes:
1 piece 0.005mm NTS-S scale
1 piece mounting bracket
1 piece scale cover
1 bag screws
Parameter
Product name: Linear scale
Applicated DRO: All China brand DRO
Resolution: 0.005mm
Travel length: 50mm-1000mm
Actrual length: Travel + 141mm
Cross size: 20mmx27mm
Accuracy: +/-10umm
Ouput: TTL
Input voltage: 5VDC
Grating steps: 20um
Connector type: DB9
Cable length: 3m
Warranty 1 year
Packaging Details
- Unit Type: piece
- Package Weight: 2.000
- Package Size: 10x10x57
- Brand Name: HYMSEANN
- HYMSEANN Model: NTS-S
- Battery Included: No
- Certification: CE
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: NTS-S
- Product name: Linear scale
- Applicated DRO: All China brand DRO
- Resolution: 0.005mm/5u
- Travel length: 50mm-400mm
- Actrual length: Travel + 141mm
- Cross size: 20mmx27mm
- Accuracy: +/-10umm
- Ouput: TTL
- Input voltage: 5VDC
- Grating steps: 20um
- Connector type: DB9
- Warranty: 1 year
