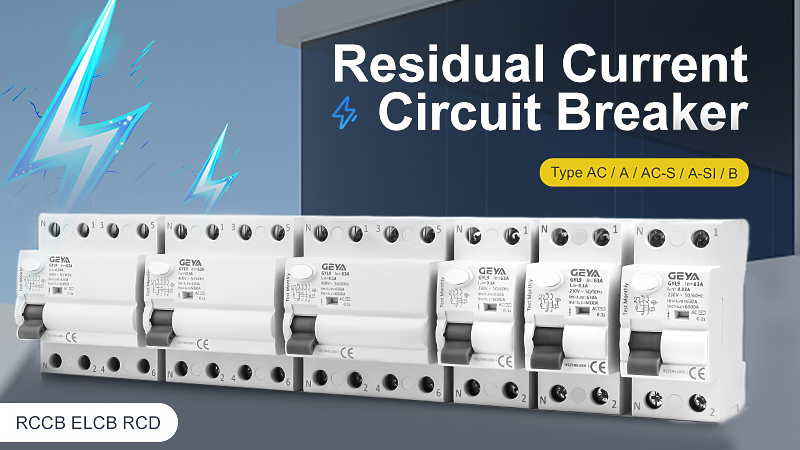

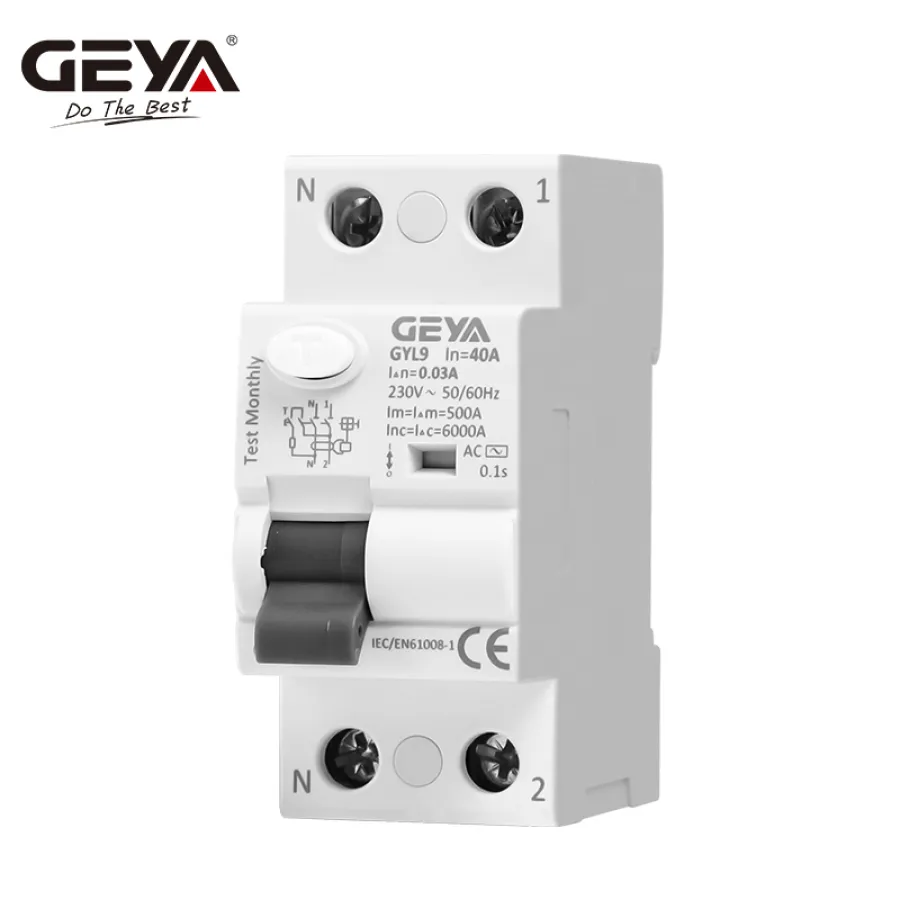

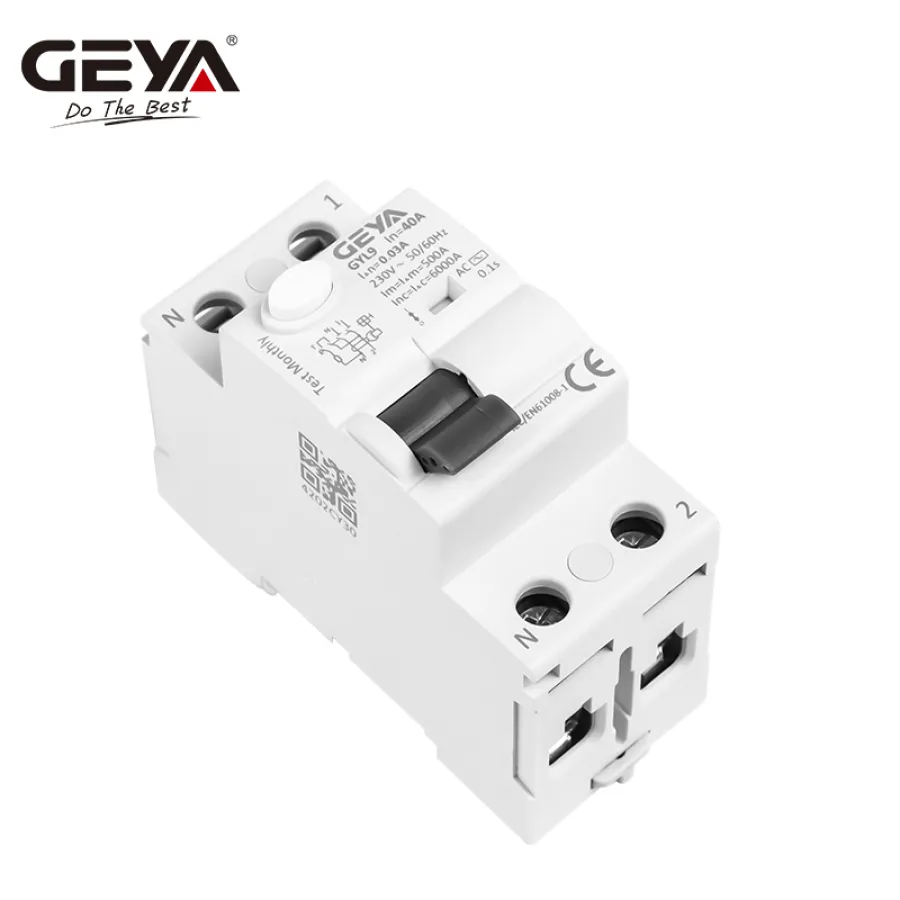

GEYA GYL9 AC Type RCCB Electromagnetic Residual Current Circuit Breaker AC ELCB 2 Pole 25A 40A 63A 100A RCD 30mA 100mA 300mA
4.9 (297 votes) | 1000 orders
Price:
US $22.25 - 37.11
/ piece
Discount Price:
US $
20.10 -
34.22
/ piece
-10%
General

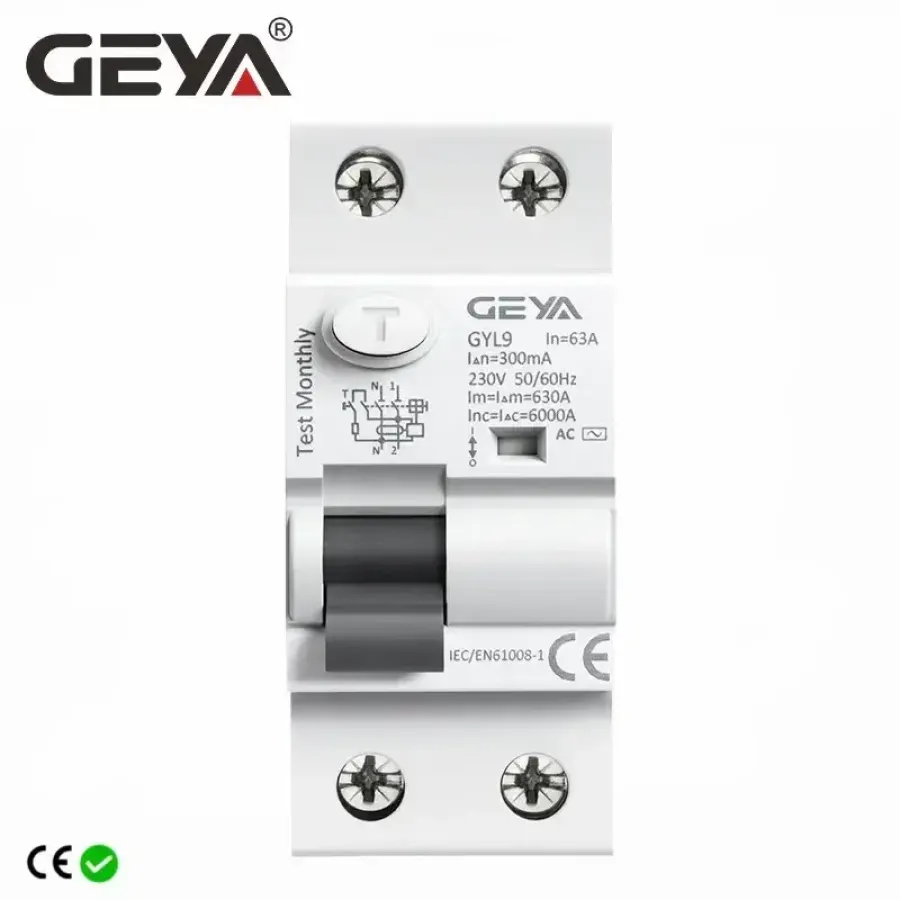

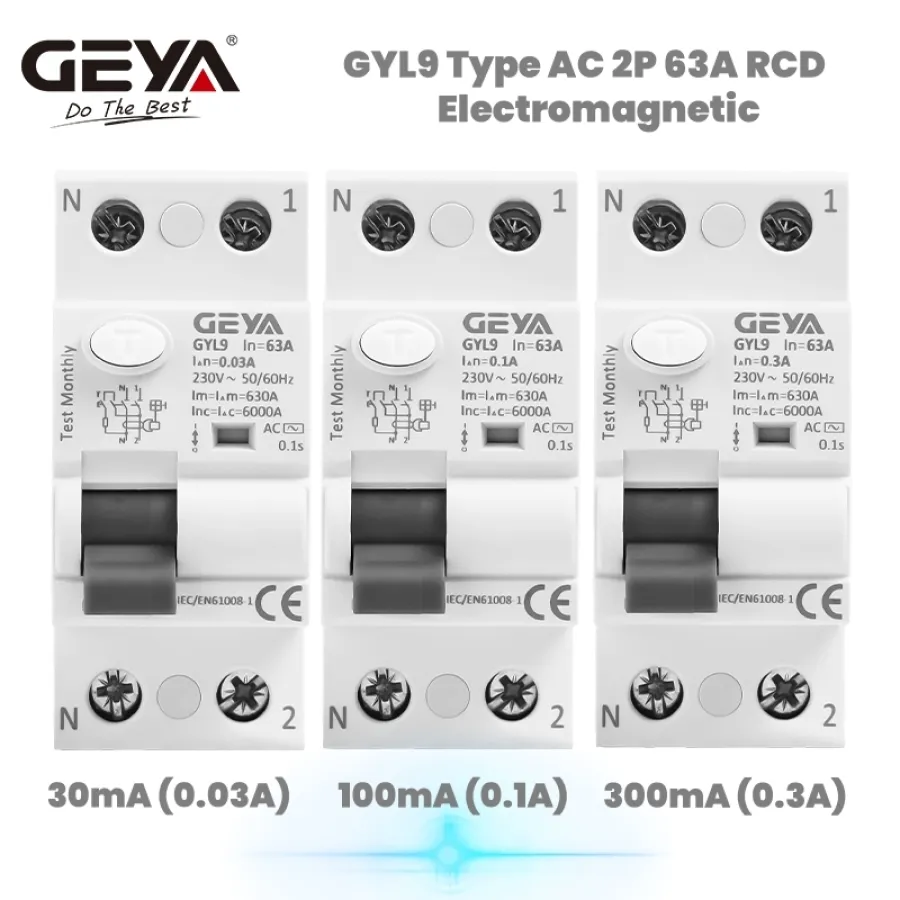

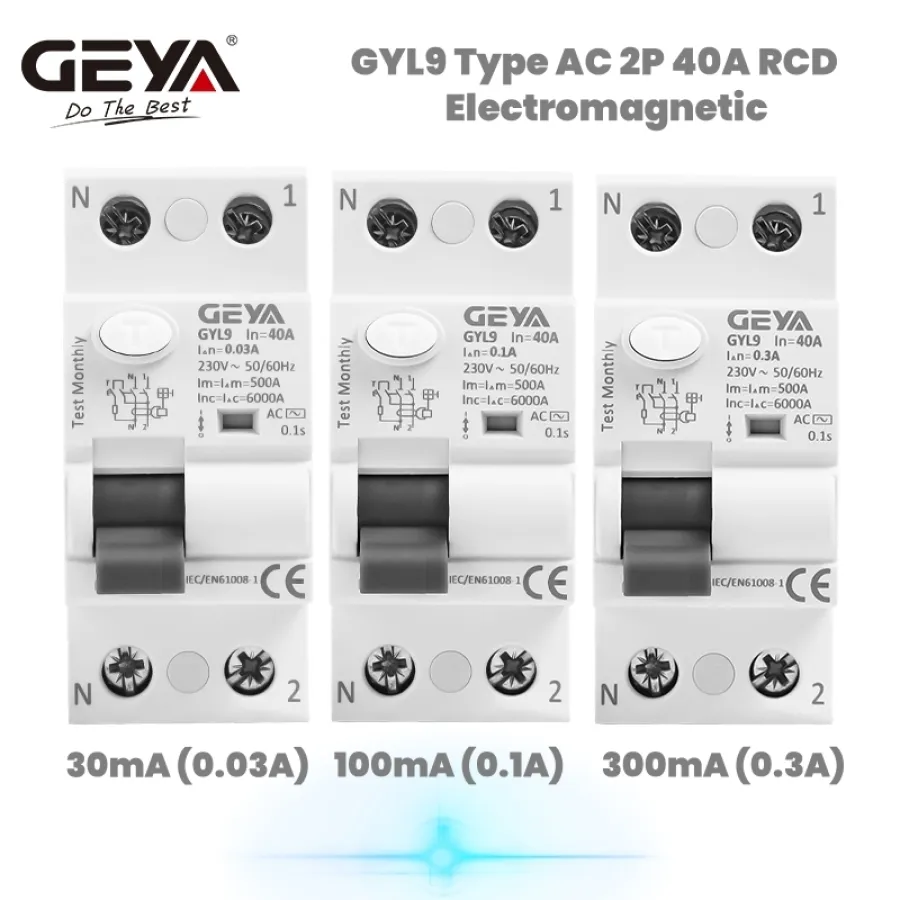

***It is AC type RCCB 2P 25A 40A 63A 100A 30mA/100mA/300mA***
GYL9 earth leakage circuit breaker is suitable to the circuit of AC 50/60Hz.rated voltage 230V for 2 poles and 400V for 4 poles, and rated current up to 100A.
when people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipments.
It also can be used in the infrequent starting of the circuit and motors. The circuit breaker is suitable to industry, commerce, high-rise building, household and other kinds of places.
when people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipments.
It also can be used in the infrequent starting of the circuit and motors. The circuit breaker is suitable to industry, commerce, high-rise building, household and other kinds of places.
In complicance with IEC/EN61008-1.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.

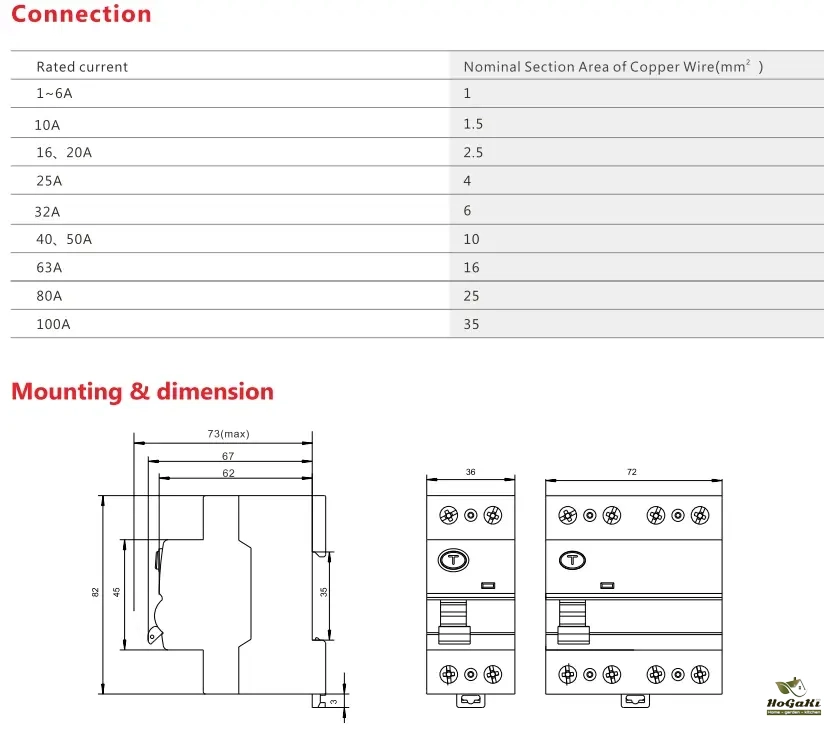

Maximum connecting ability of 35mm , wiring torque 3.5N*m, applicable to a variety of installing equipment.
Protection class:IP20.
Company Information
Packaging Details
- Unit Type: piece
- Package Weight: 0.300
- Package Size: 8x5x12
- Brand Name: GEYA
- Hign-concerned Chemical: None
- Type: Earth Leakage
- Origin: Mainland China

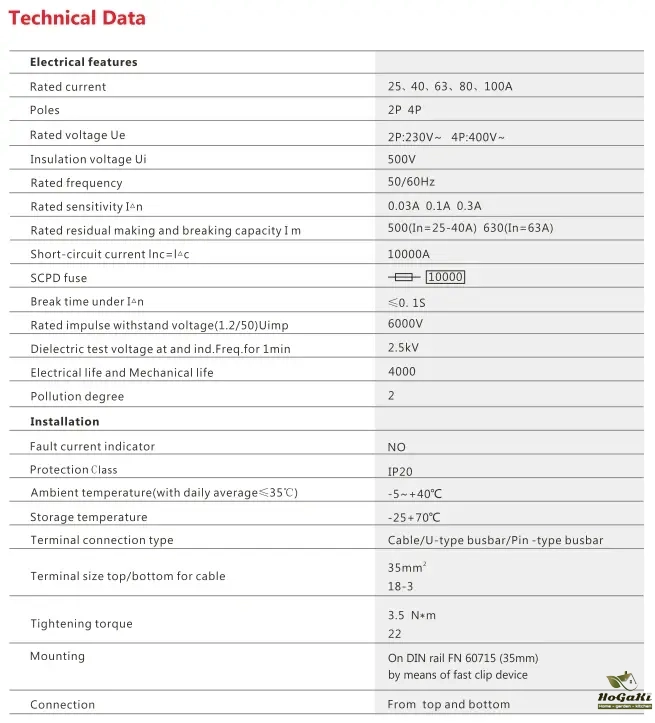

- Rated Voltage: 220/380V
- is_customized: Yes
- Type: RCD
- Model Number: GYL9 AC Type RCCB
- Is Smart Device: No
- Certification: CE
- Product Name: GYM9 AC RCCB/ELCB
- Voltage: AC230/400V
- Poles: 2P 4P
- Breaking Capacity: 6KA
- Rated Current: 25A 40A 63A 100A
- Rated Sensitivity: 30mA 100mA 300mA
- Standard: IEC61008-1
- Rated Frequency: 50/60Hz
- Mounting: Din Rail
- Choice: yes
- semi_Choice: yes
