New SNS-2V 2 Axis DRO Digital Readout AC110V/220V Display and 2 Pieces 0-1000mm Linear Scale Encoder For Milling Lathe Machine

New SNS-2V 2 Axis DRO Digital Readout AC110V/220V Display and 2 Pieces 0-1000mm Linear Scale Encoder For Milling Lathe Machine

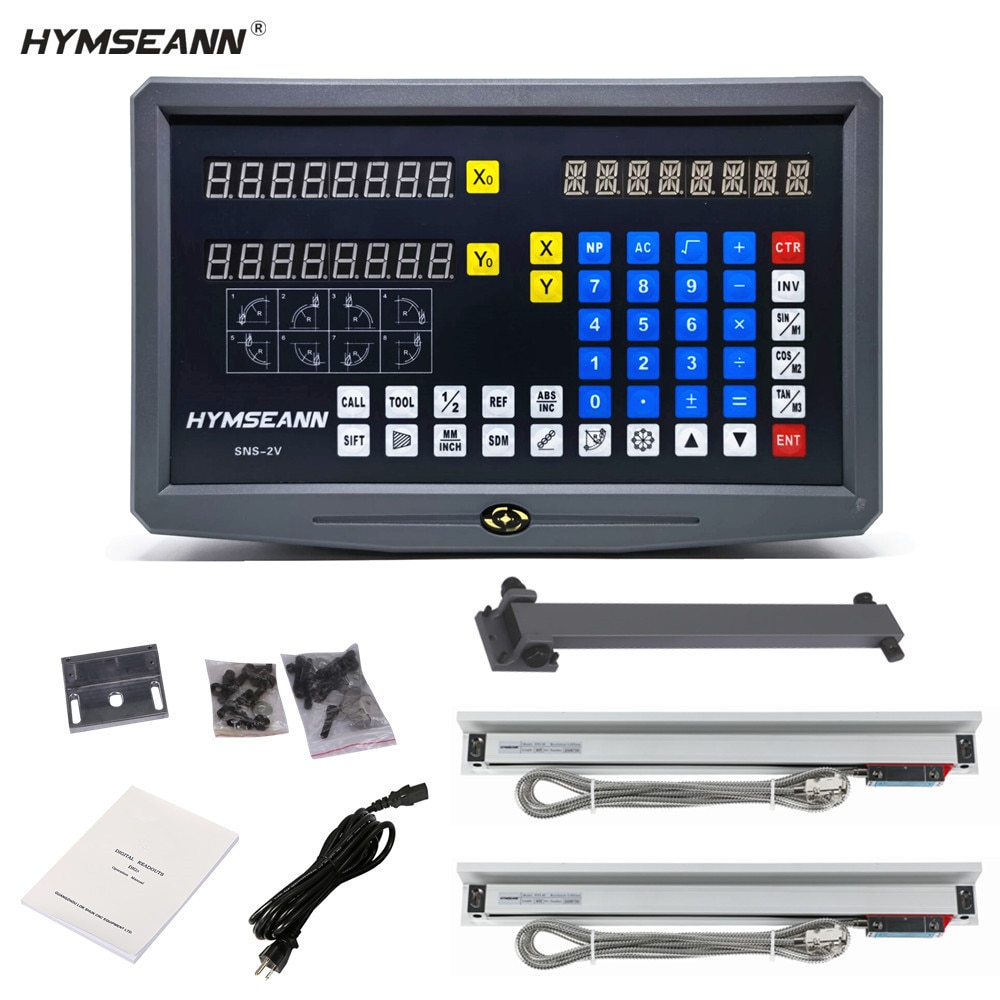

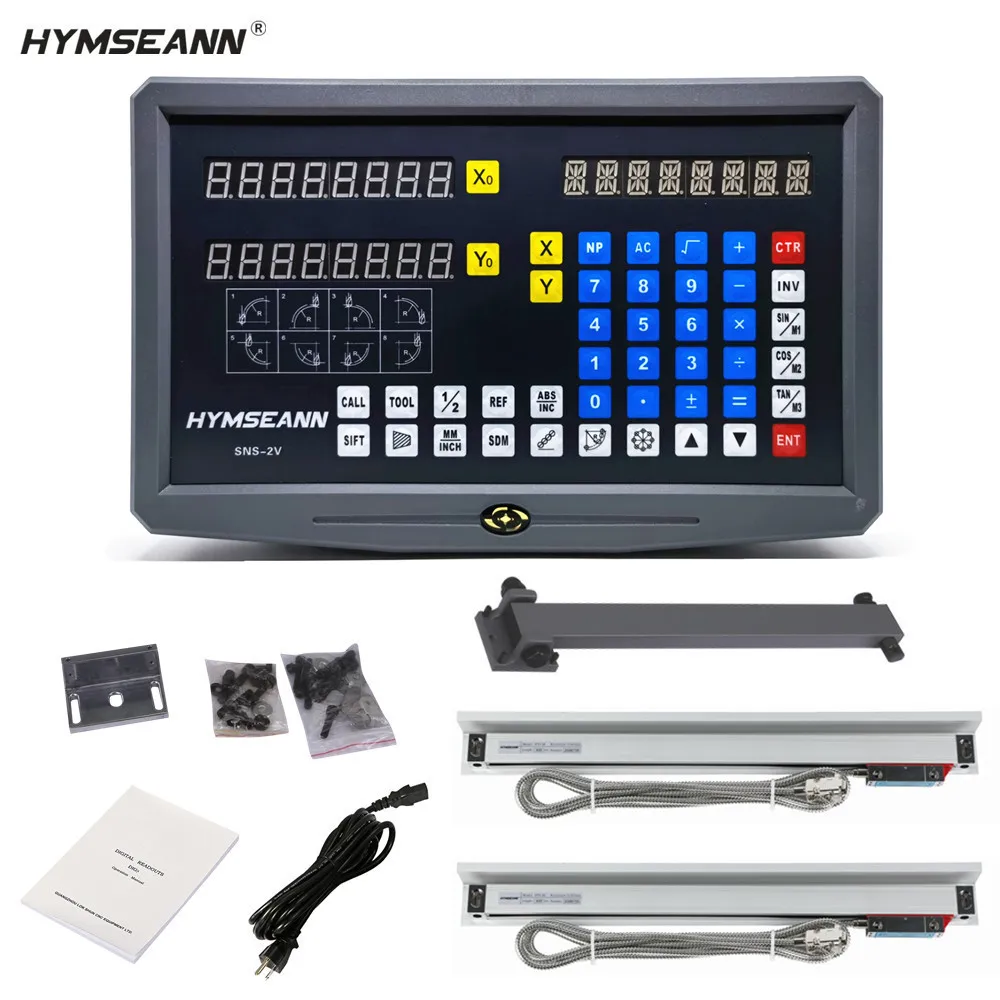

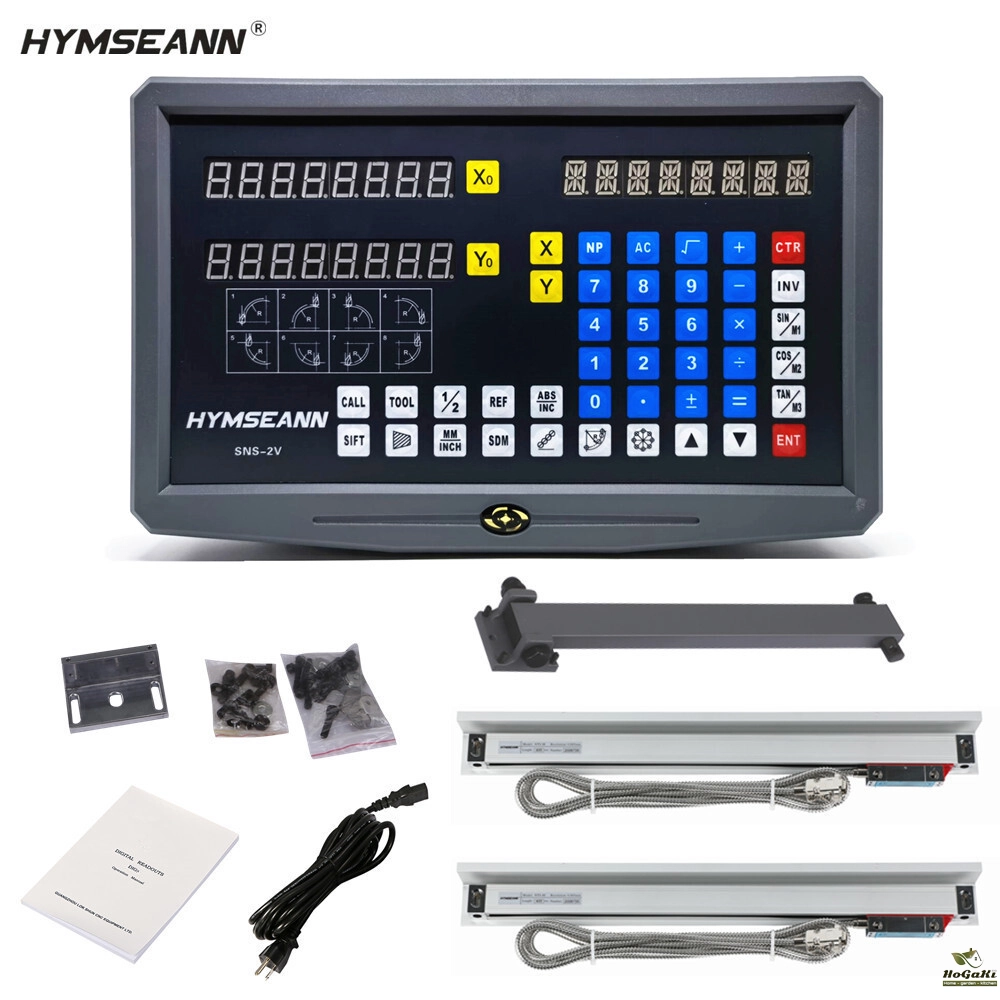

Package includes:

0.005mm complete kit
1. 1 piece SNS-2V 2 axis display(with user manual, mounting arm, screw bag)

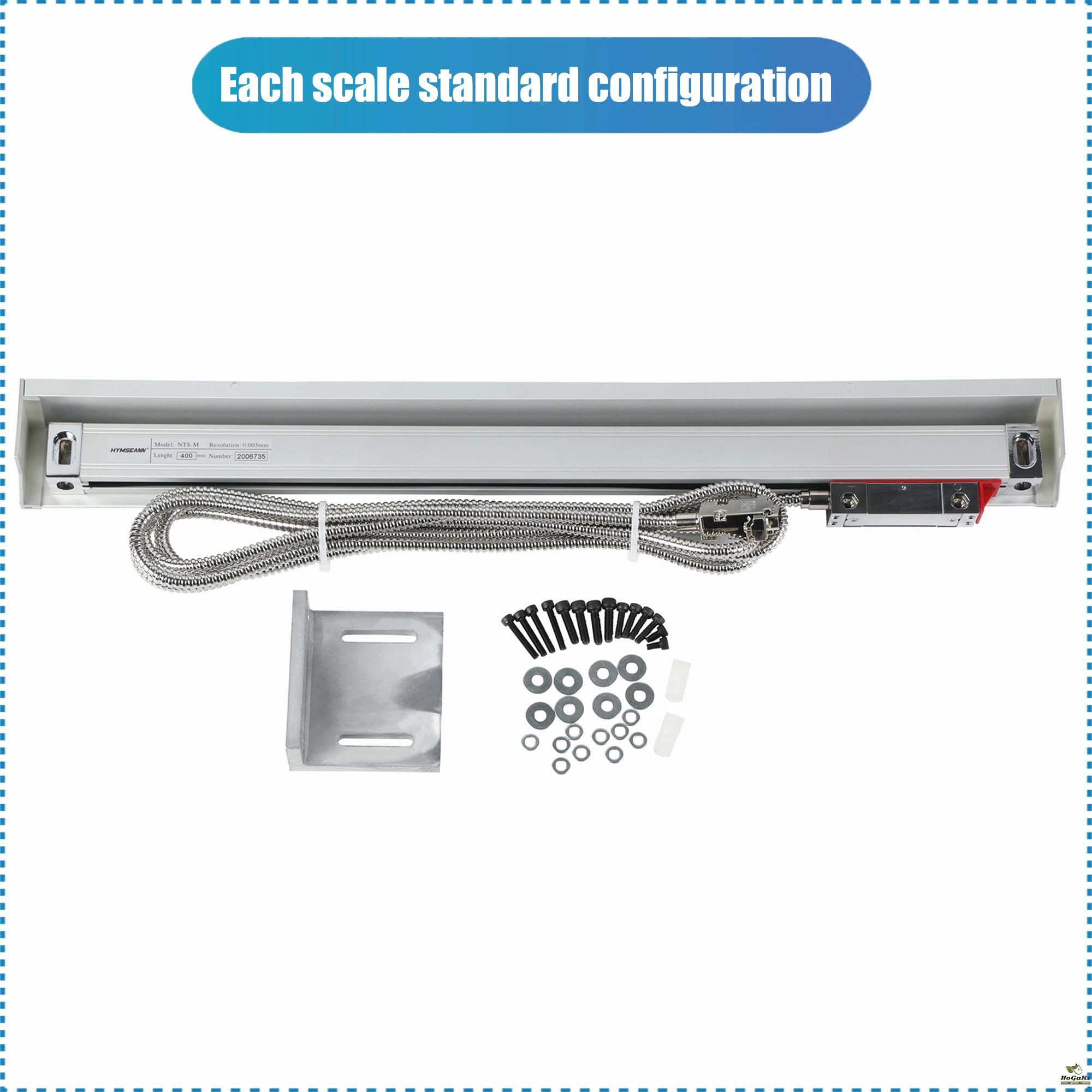

2. 2 pieces 0.005mm linear scales (with covers, mounting bracket, screw bag)

0.001mm complete kit
1. 1 piece SNS-2V 2 axis display(with user manual, mounting arm, screw bag)
2. 2 pieces 0.001mm linear scales (with covers, mounting bracket, screw bag)

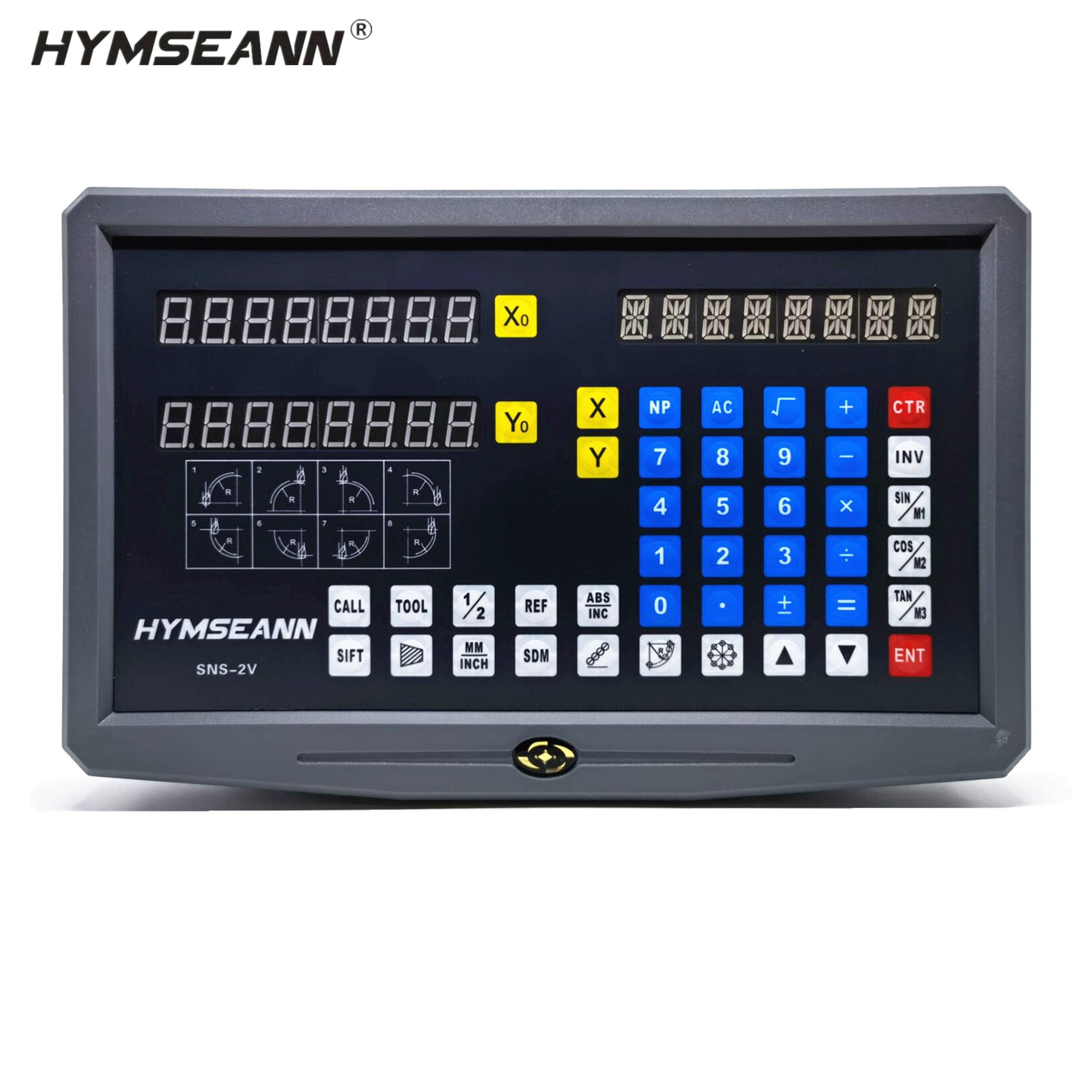

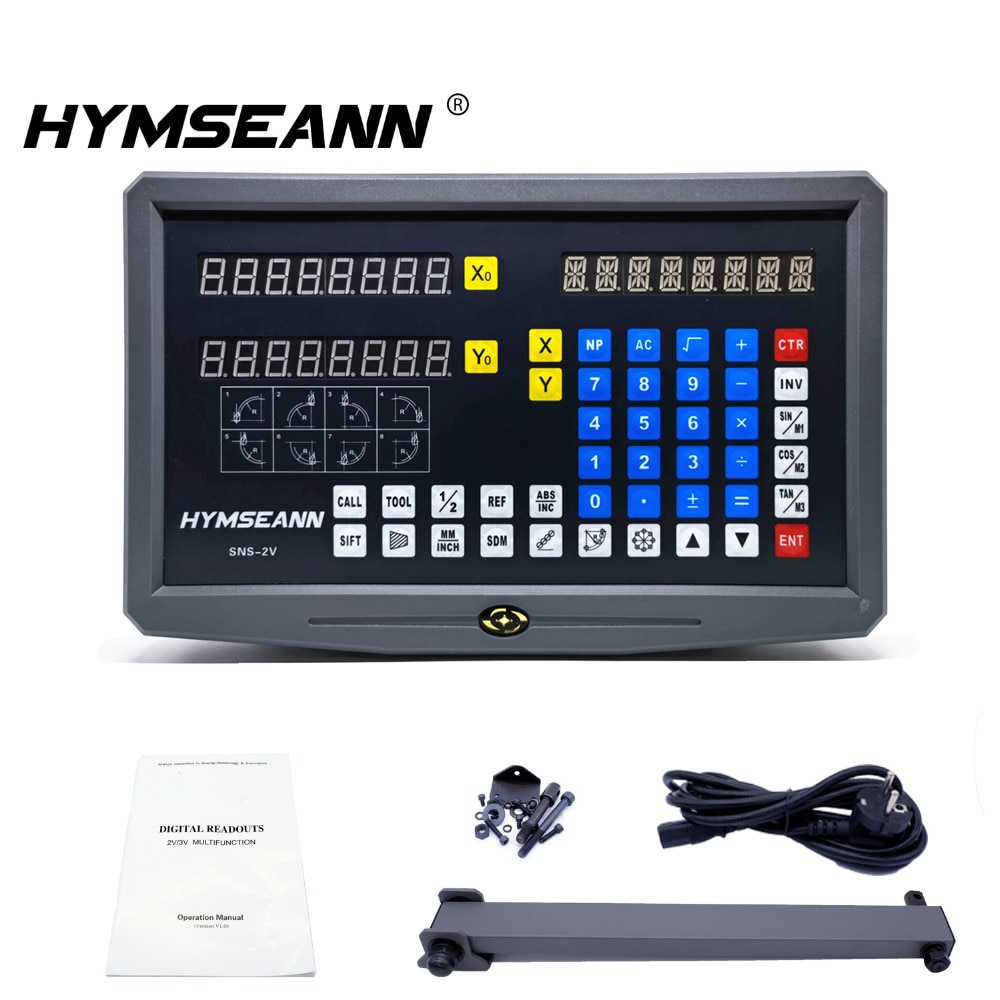

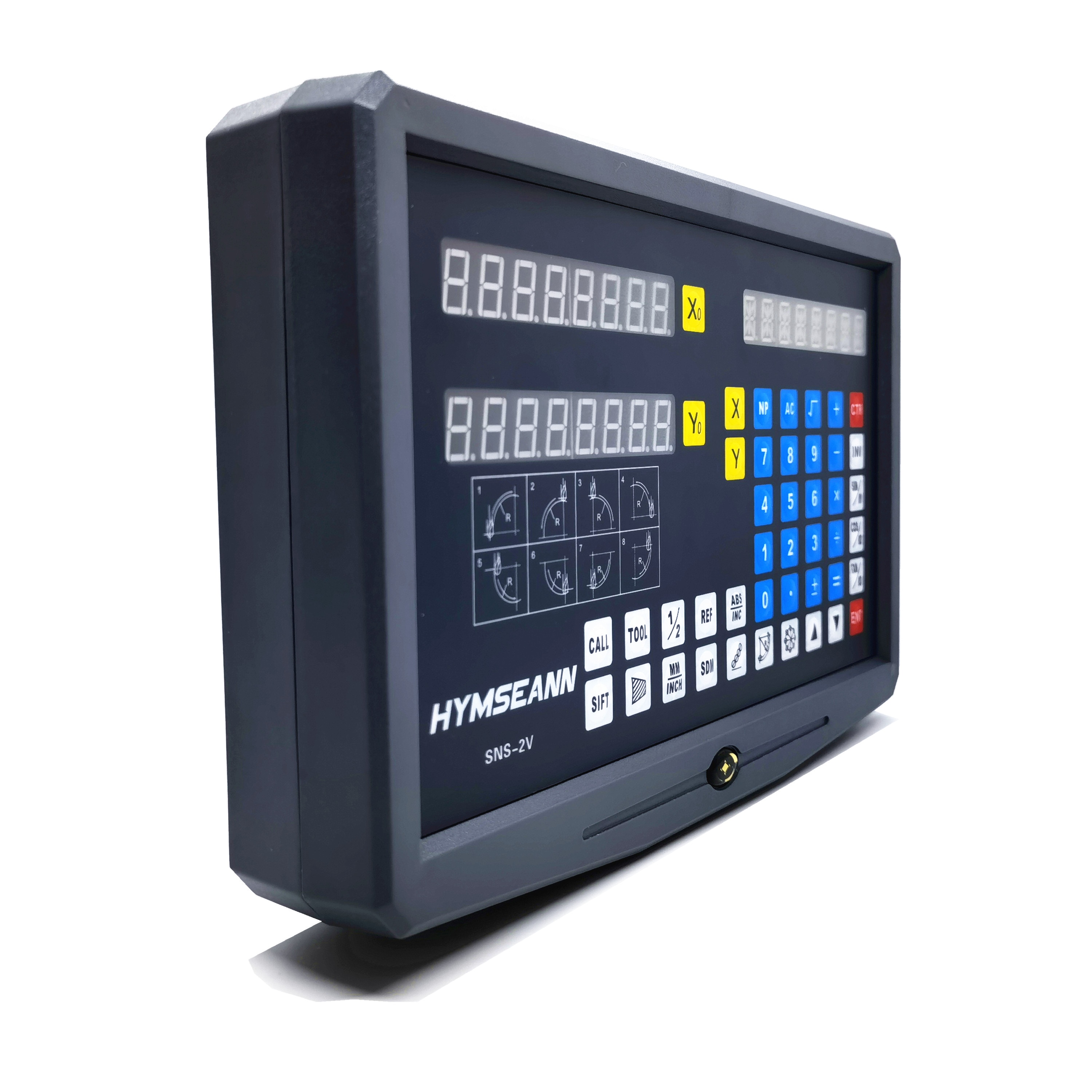

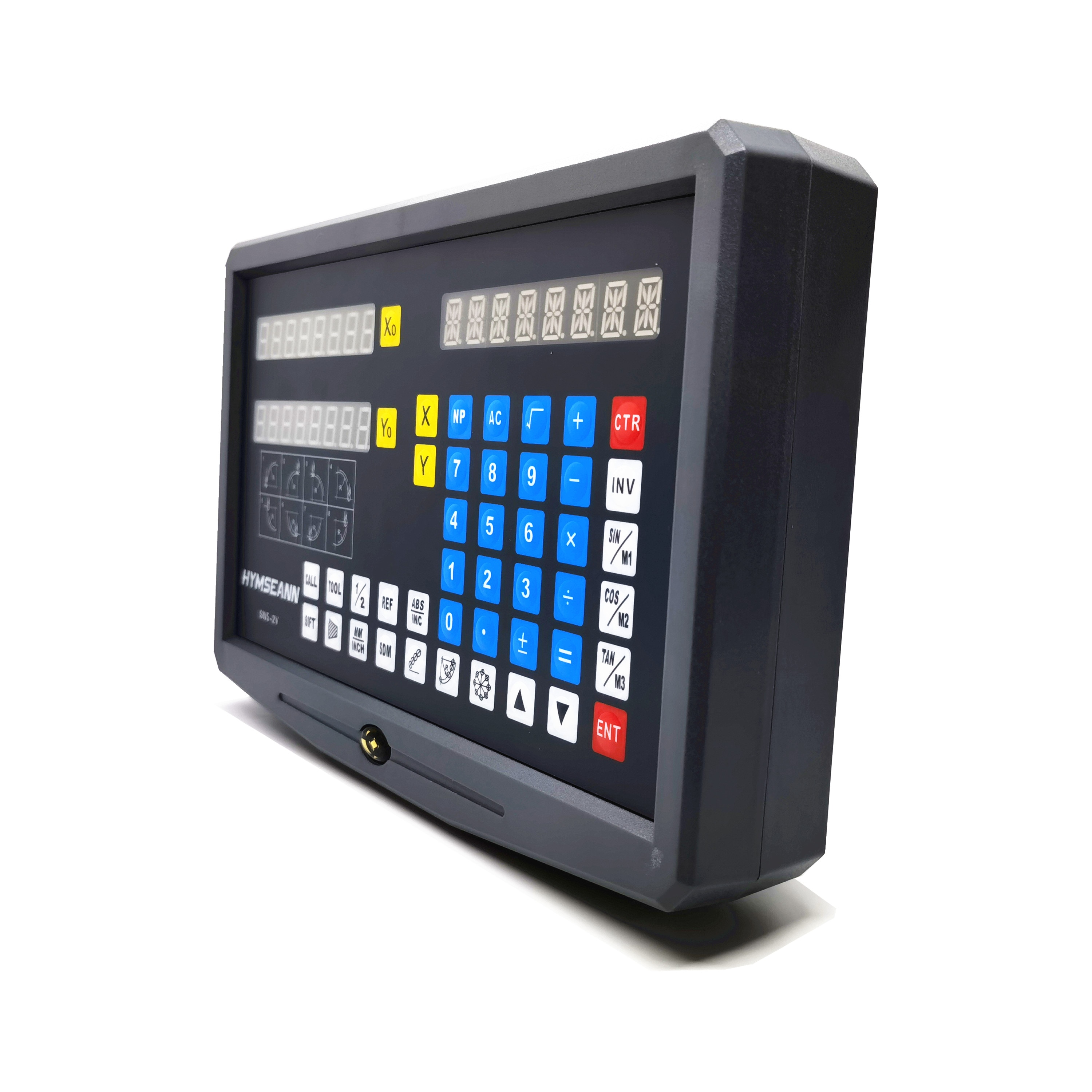

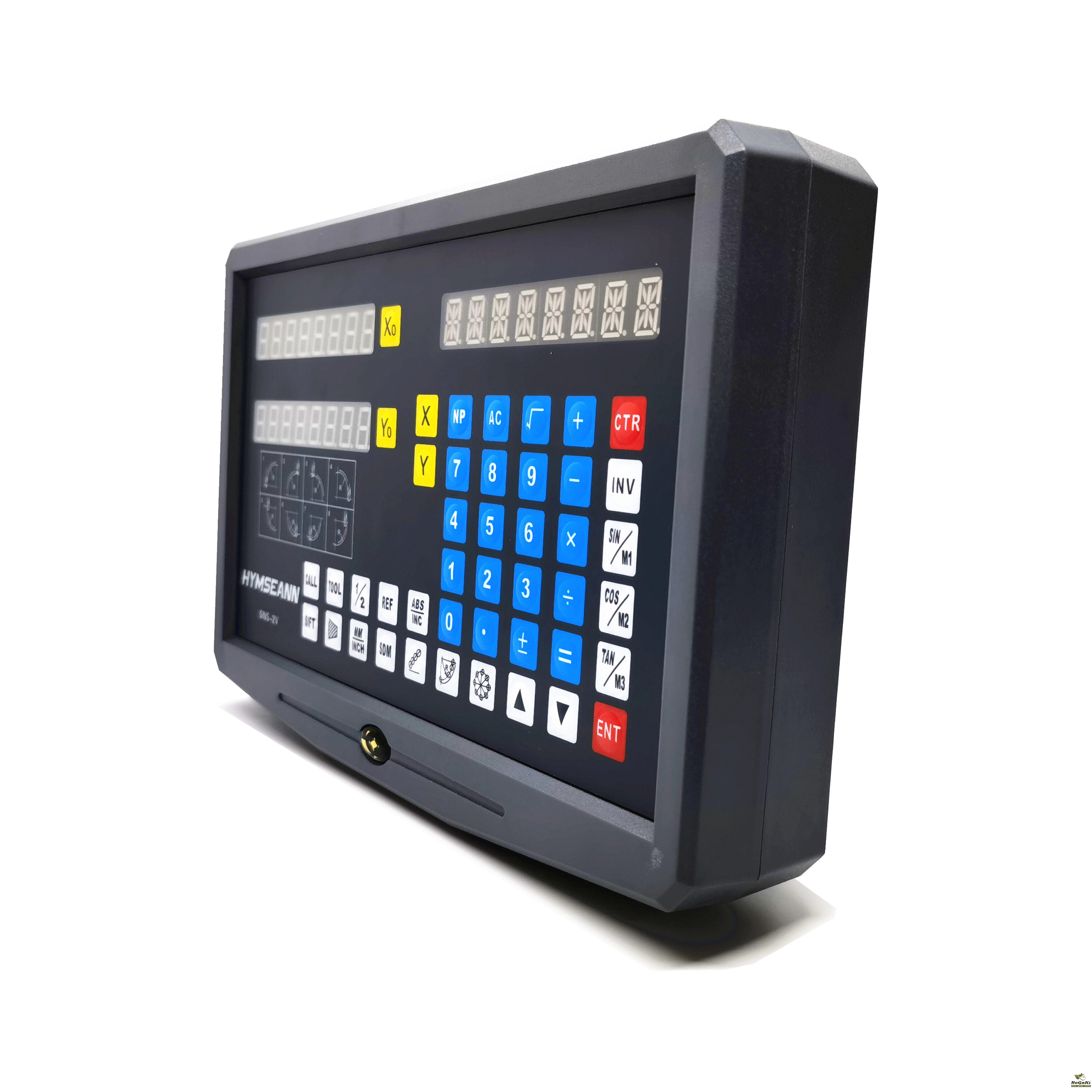

SNS-2V display
1. 1 piece SNS-2V 2 axis display(with user manual, mounting arm, screw bag)

Purchase Notes

1. You can choose 2 pieces scale within 0-1000mm travel measuring length with 5um resolution.
2. After ordering please tell us the travel length of scale that you need.

DRO Features

The digital readout(DRO)in SNS series is a high precision instrument that can be used on lathe,grinding machine,milling machine,boring machine,EDM etc.
Product Features
English language display
Self-motion middle parted function
Metric/imperial conversion function
Absolute/relative counting transformation function
1000 groups of zero memory function
Function calculator operation function
Arc surface processing function
PCD function
Cant processing function
PLD function
Machine tool error compensation function
EDM function(option with extra)
Function
1.zero clearing
2.reset
3.mm/inch mode
4.ABS/INC coordinate conversion
5.200sets sub datum
6.power off Memory;
7.center of 1/2
8.liner error compensation
9.sleepping mode
10.Clear 200 sets Sdm datum;
11.ABS/INC mode
12.calculator
13.drilling of circumference
14.drilling of oblique line
15.machining of inclined plane
16.machining of circular arc
17.lathe function(match)
18.Rectangular lumen gradual processing
19.digital filtering
20.vibration filtering
21.R/D fucntion

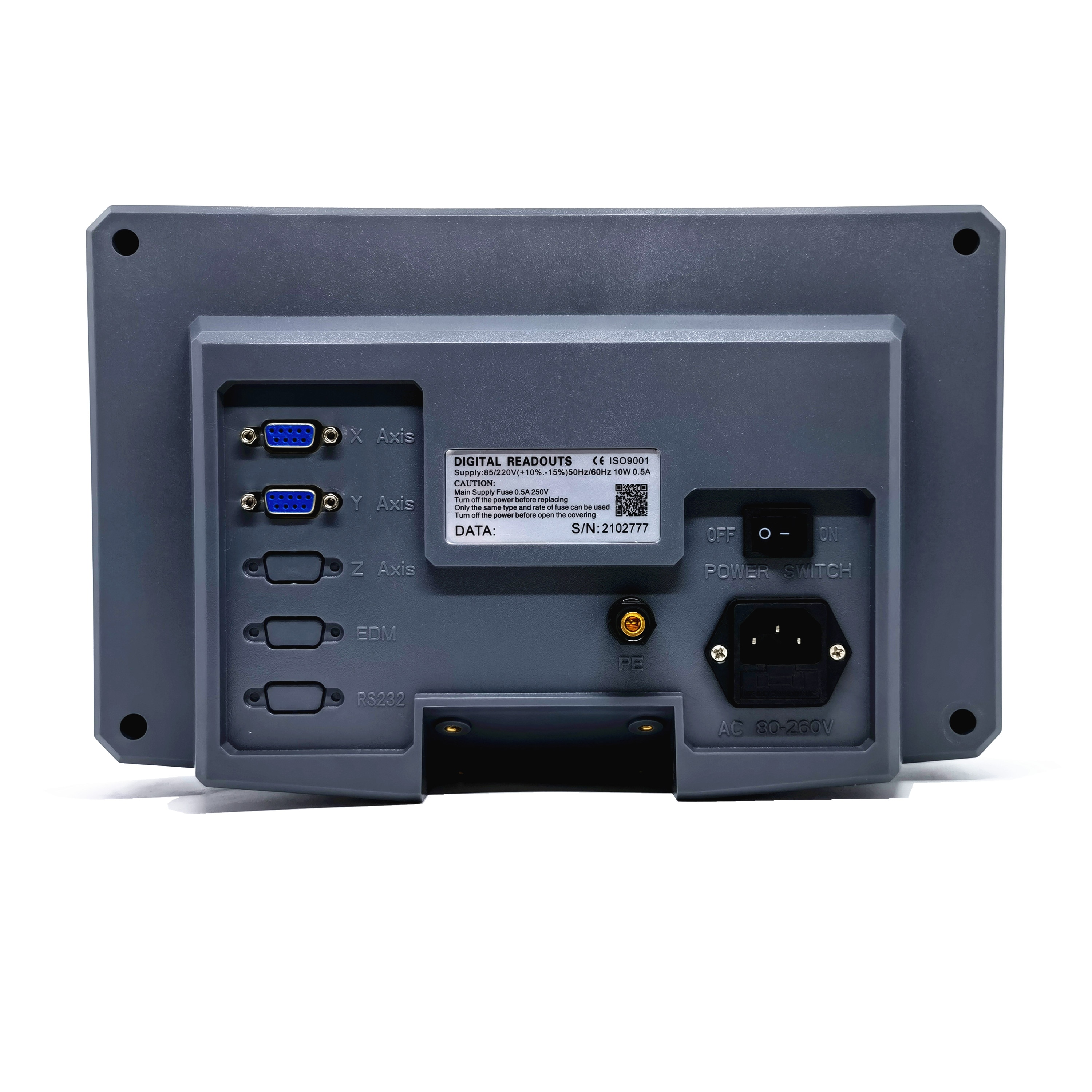

Techincal Parameters
1.Voltage range:AC 85V-250V/50Hz-60hZ
2.Power consumption:25VA
3.Coordinates:1/2/3/4
4.Display:8-bits digits display
5.Input signal: TTL square
6.Input signal frequency: 100KHZ
7.Reading resolution: 10um,5um,2um,1um,0.5um

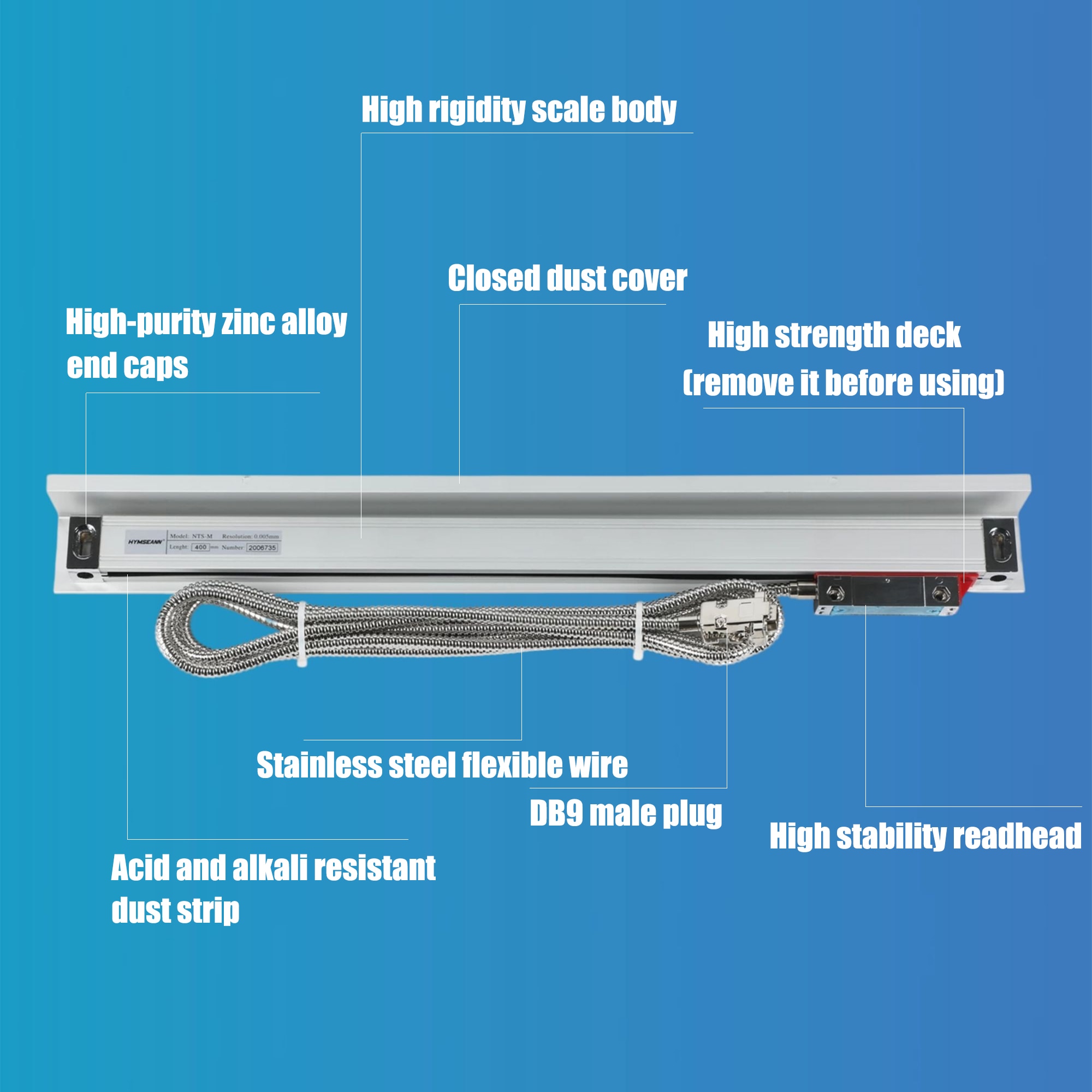

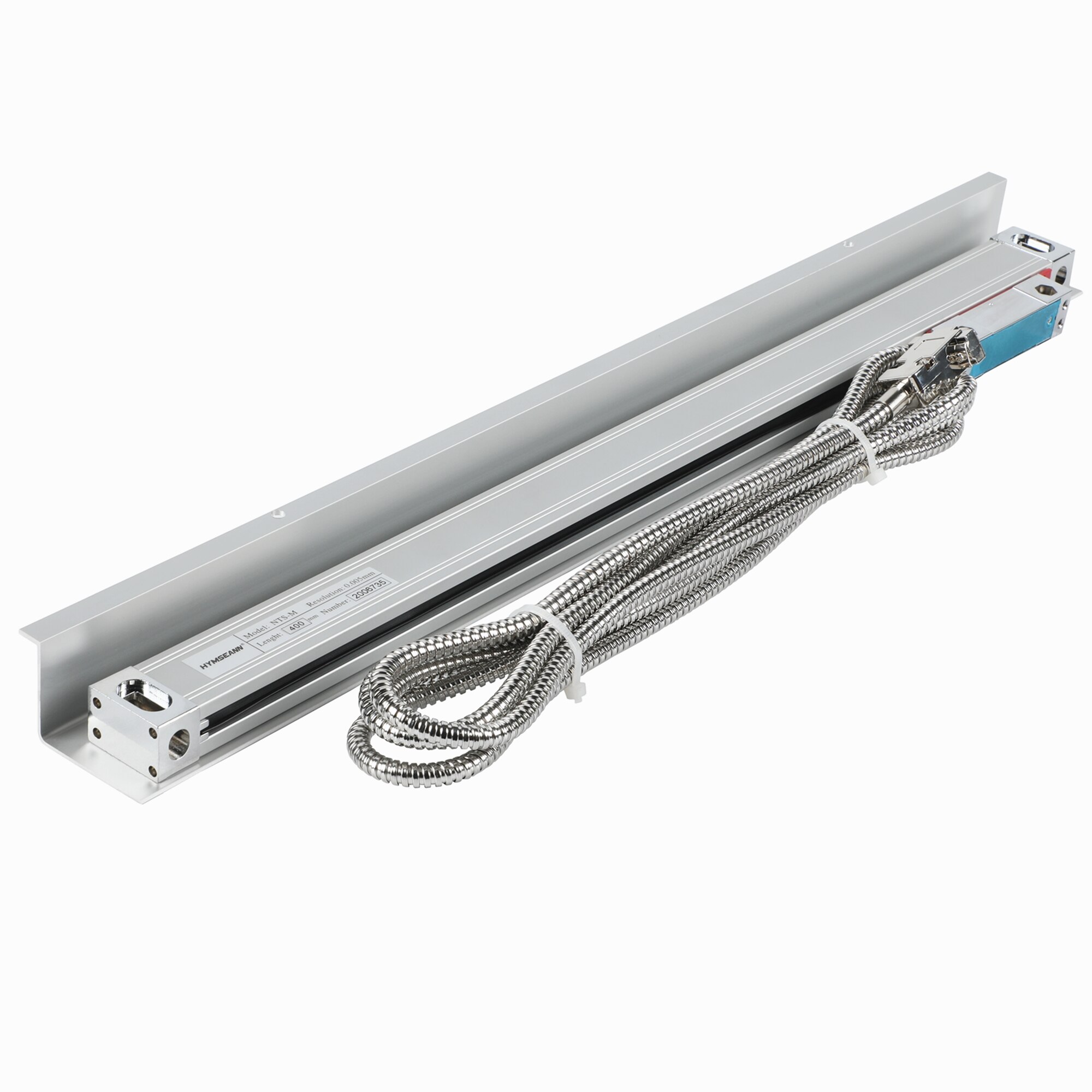

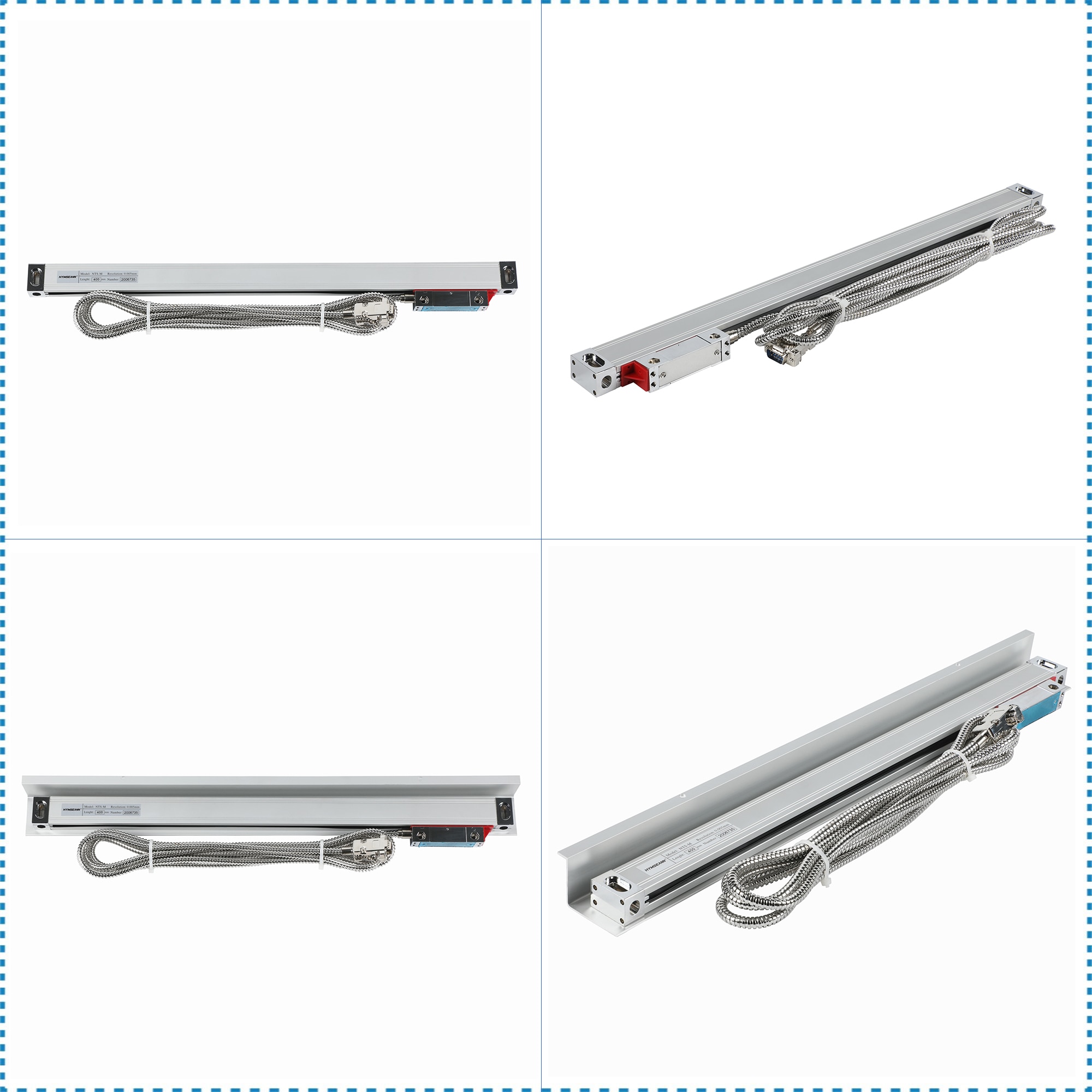

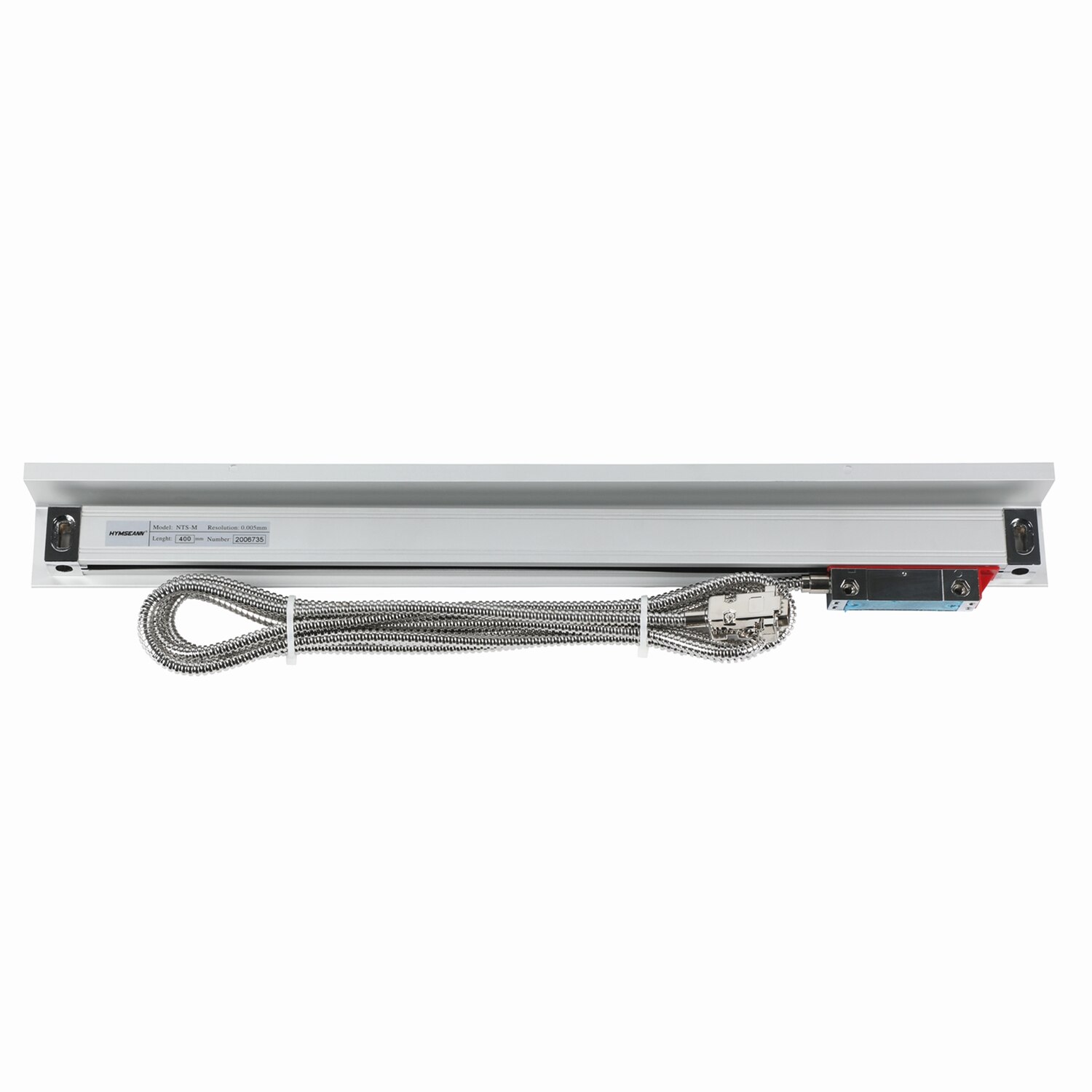

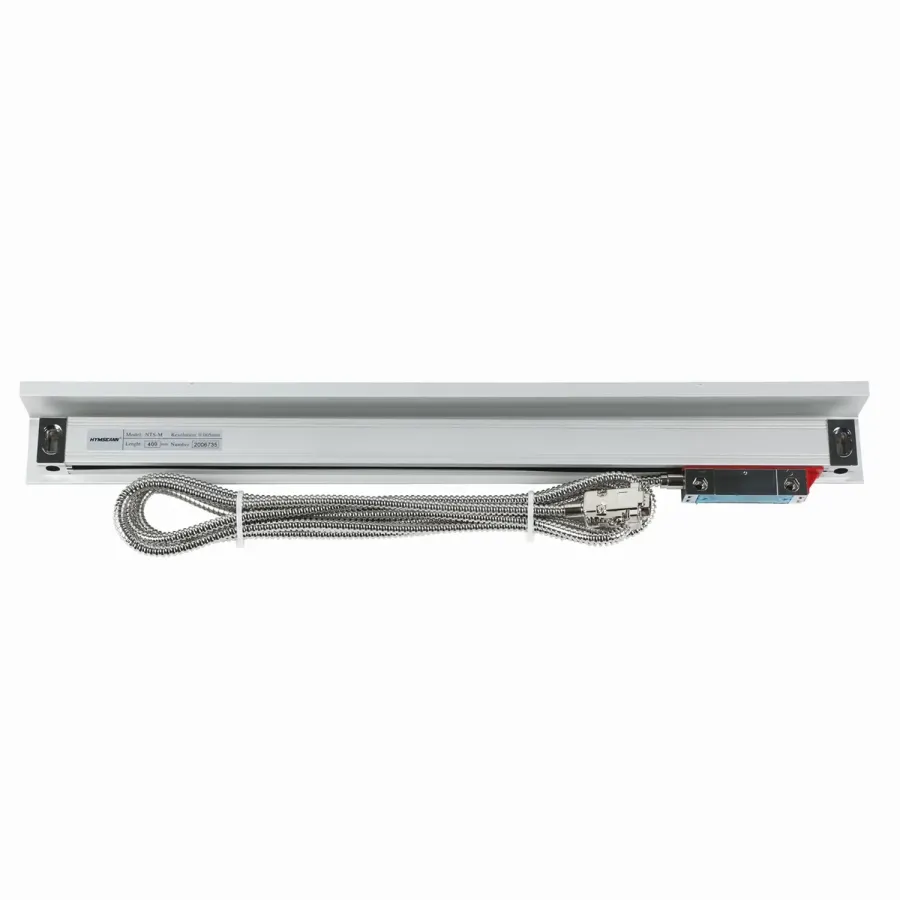

Linear Scale Specification

Parameter
Product name:precision glass grating lenear transducer
Resolution: 0.005mm / 0.001mm

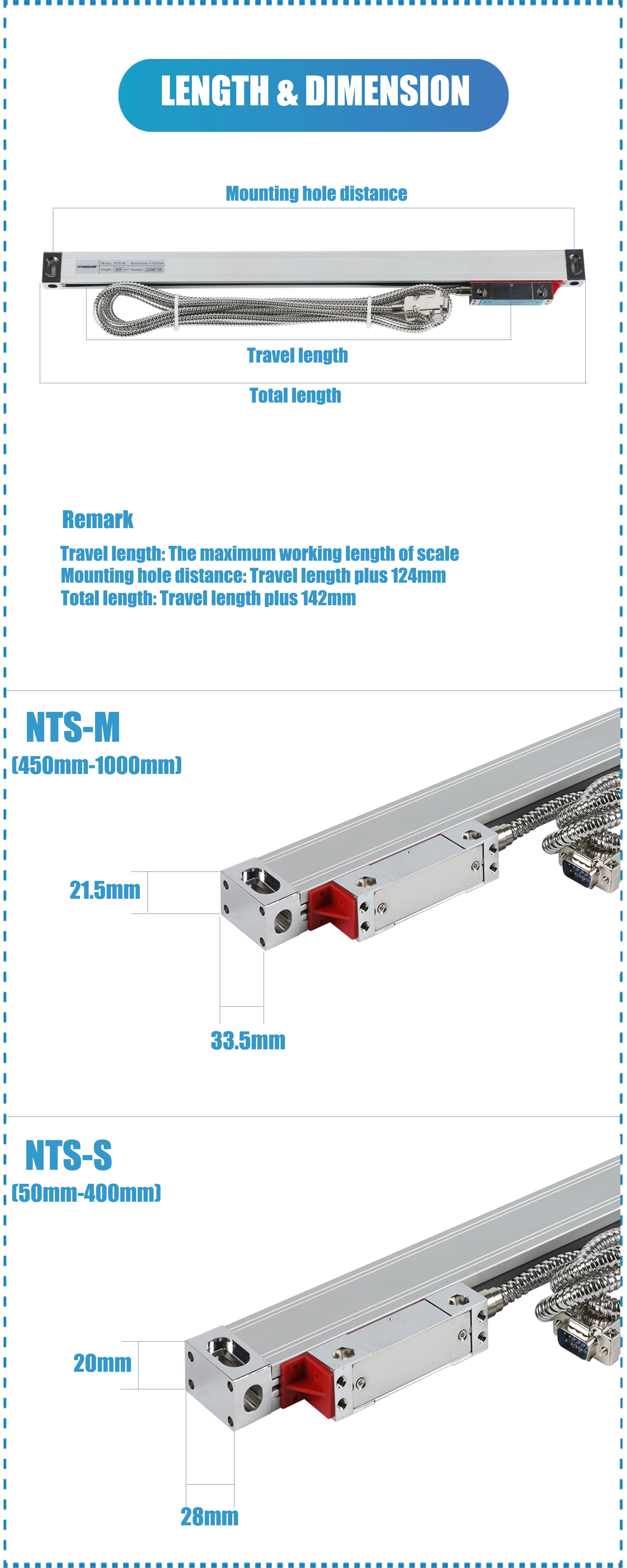

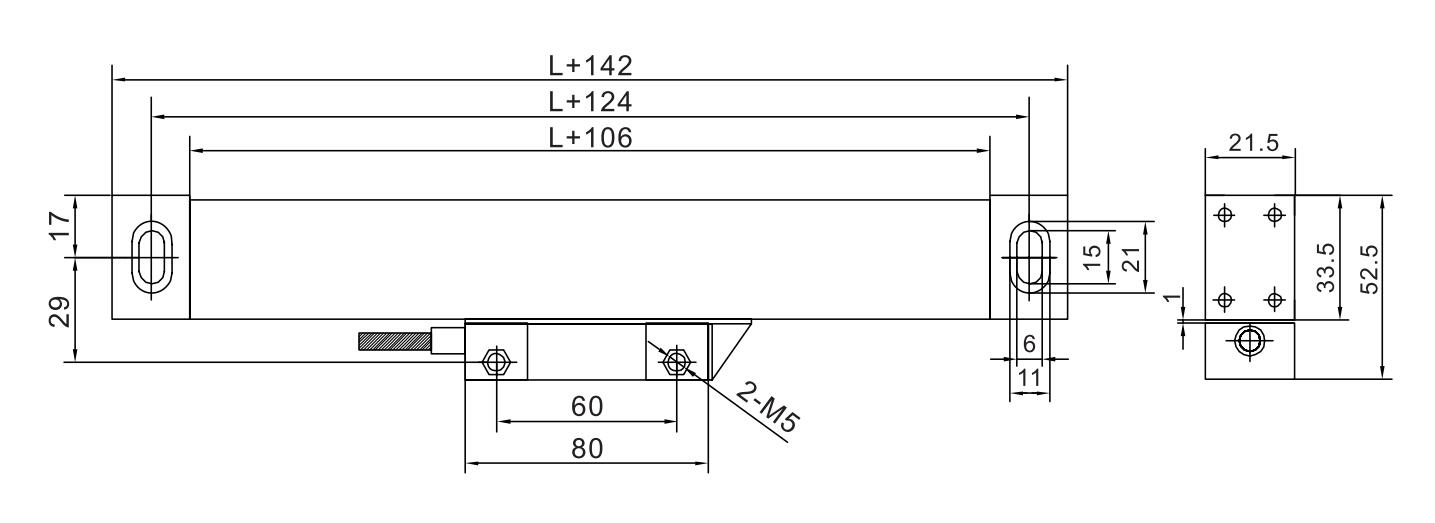

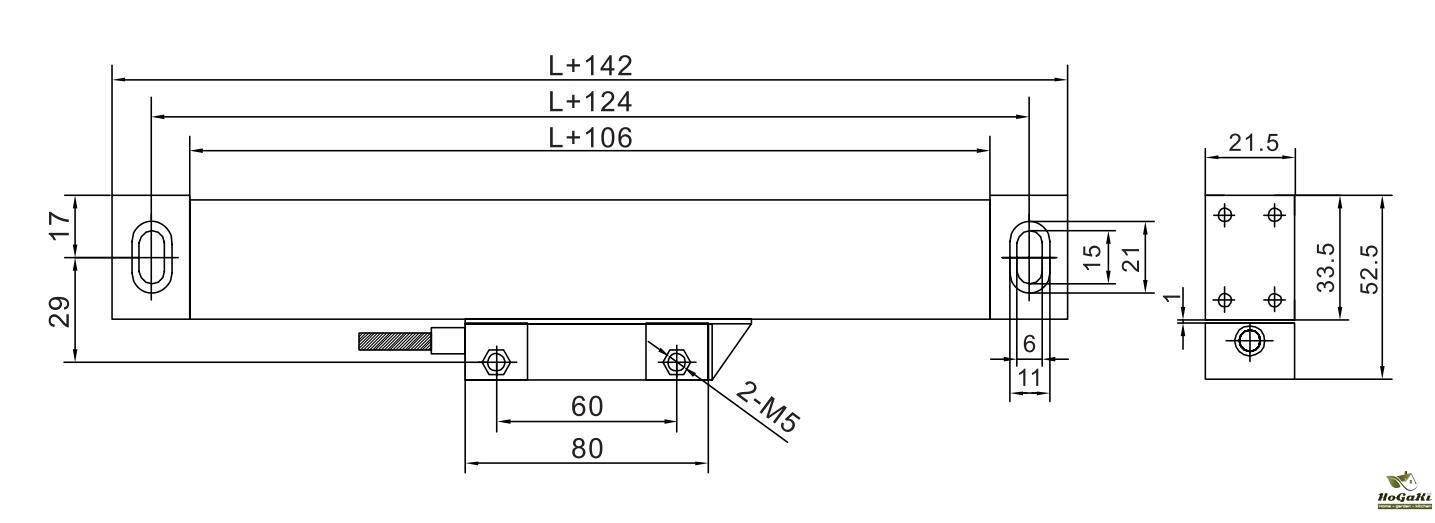

Cross section:21mm*33mm

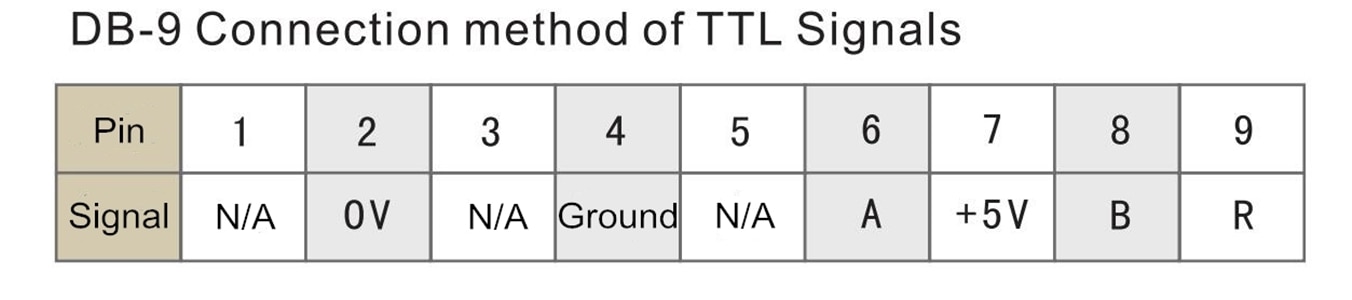

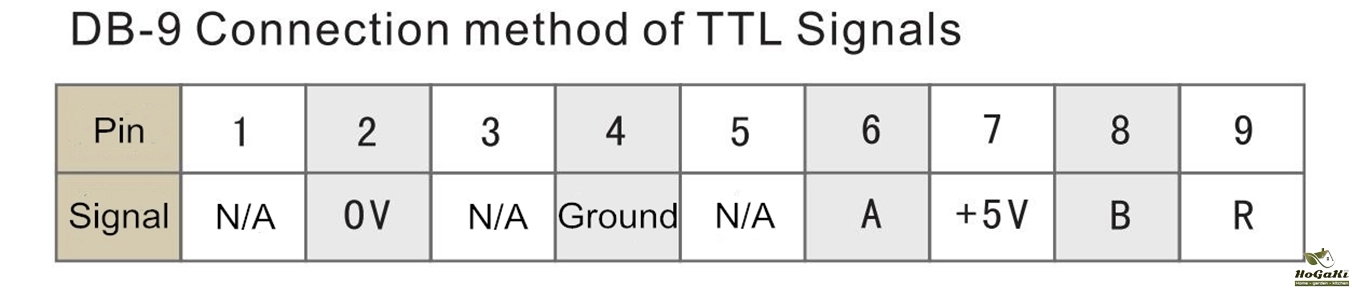

Output signal:TTL(RS422 option)
Input voltage:DC 5V +/-5%
Available measuring distance:0-1000mm
Overall length: available measuring distance + 142mm
Working speed:60m/min
Working temprature:0-50
Cable length:2.5m-3m(longer option)

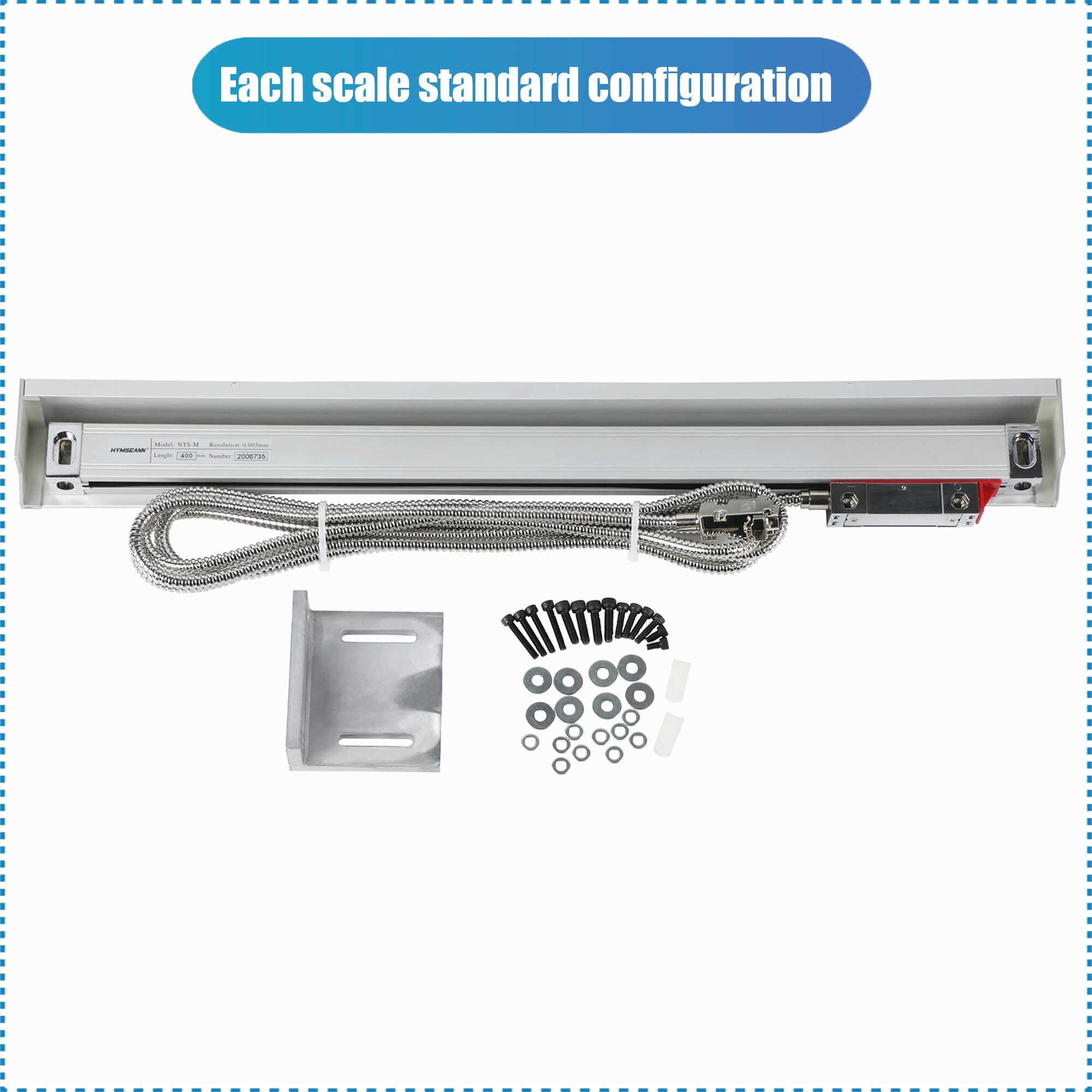

Accessories:aluminum protective cover/L connection board/screws bag
There is slim scale 20mm*28mm option, please contact seller if need or leave a message after placing order.
