IPC-9310S 4.5inch display 4K H265 IP 8MP CVI 8MP TVI 5MP AHD CCTV camera video test Professional testing tools cable test
0.0 (1 votes)
Price:
US $407.41 - 472.15
/ piece
Discount Price:
US $
313.60 -
363.43
/ piece
-23%
- Color
-
-

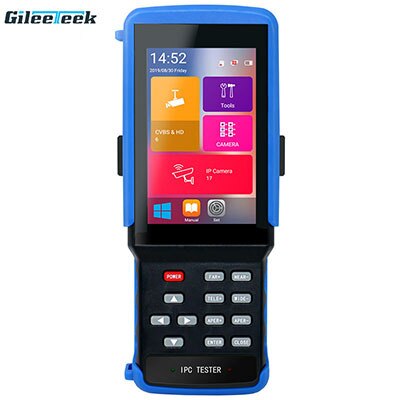

IPC9310S CCTV tester monitor
This device does not support the TDR function any more .
This device no longer supports TDR cable test, because this chip is no longer available for purchase, we have to remove the TDR cable test function. Hope to get your understanding, please pay attention before placing an order

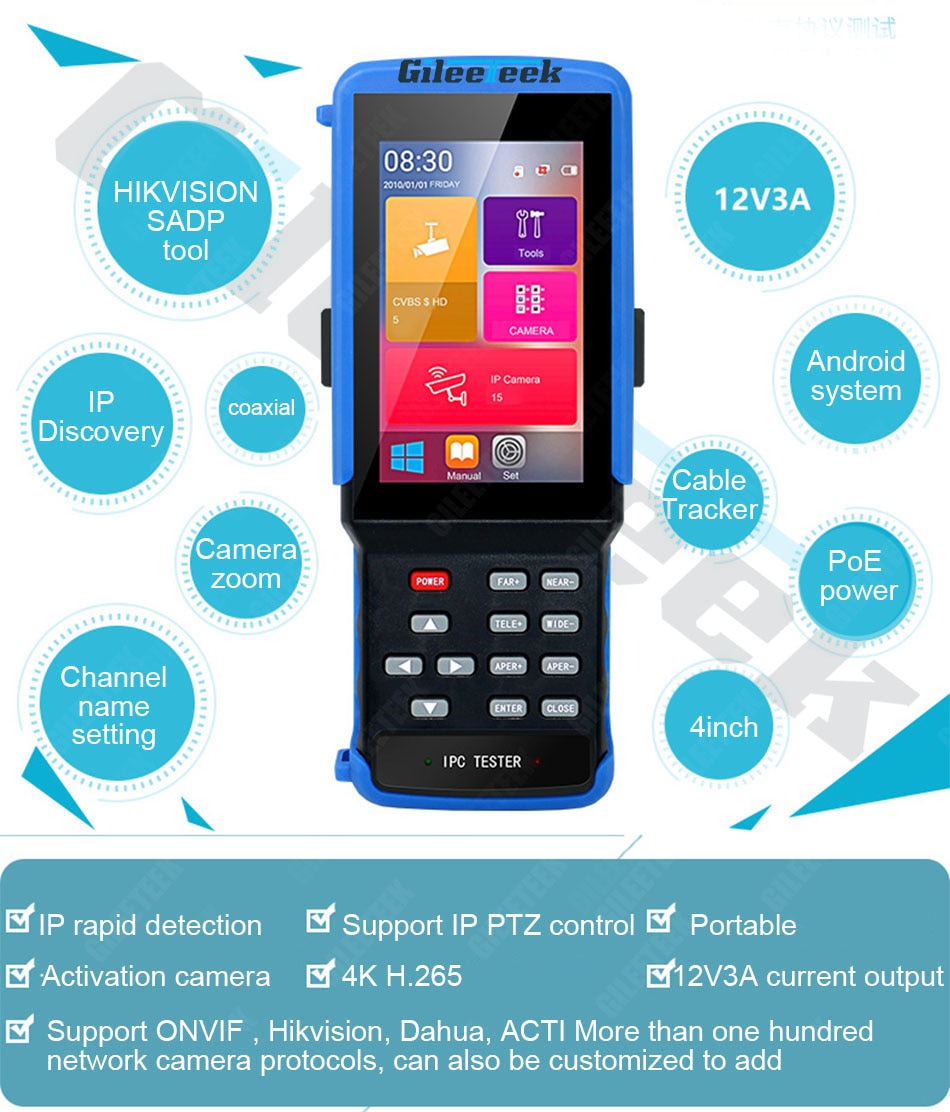

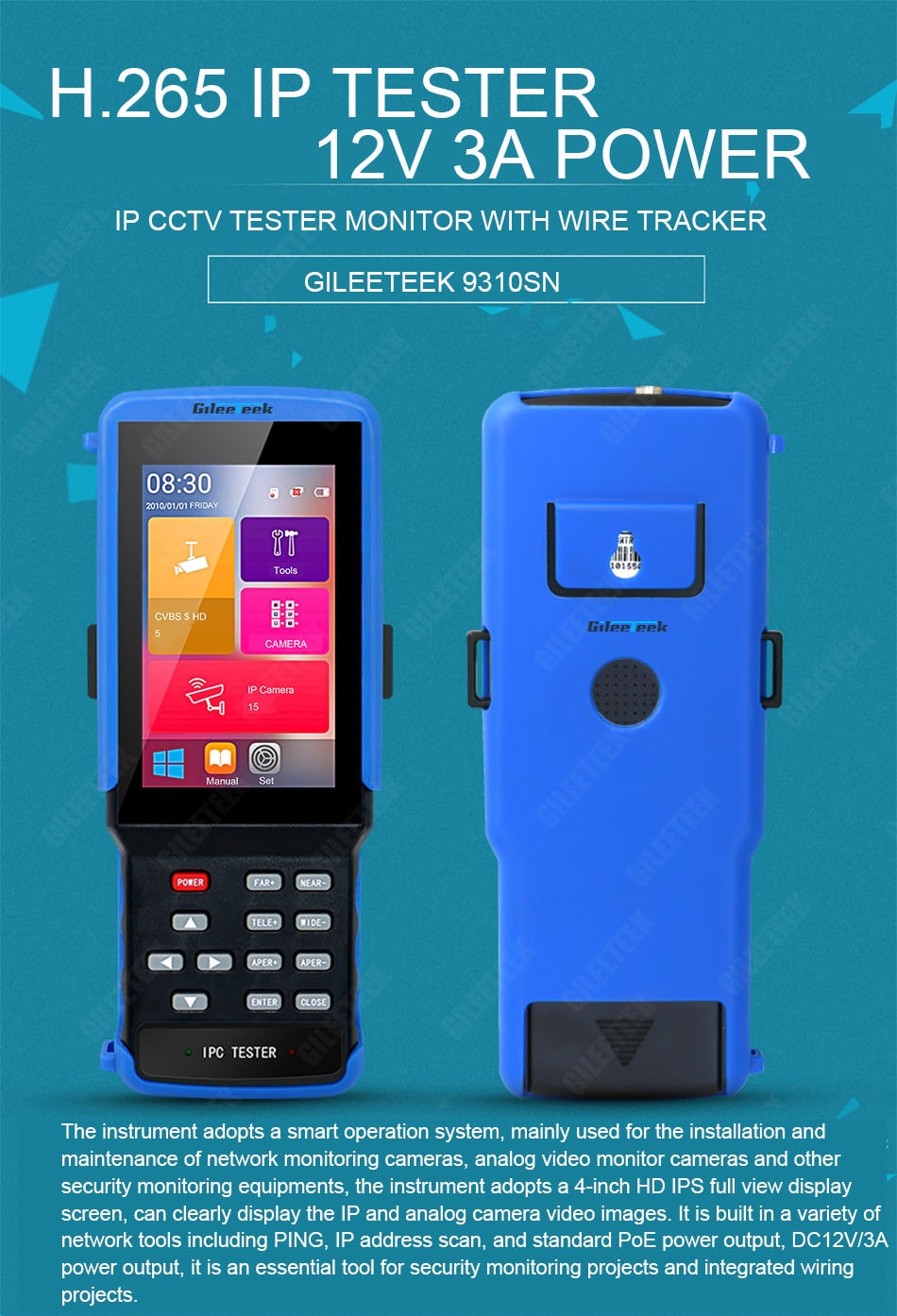

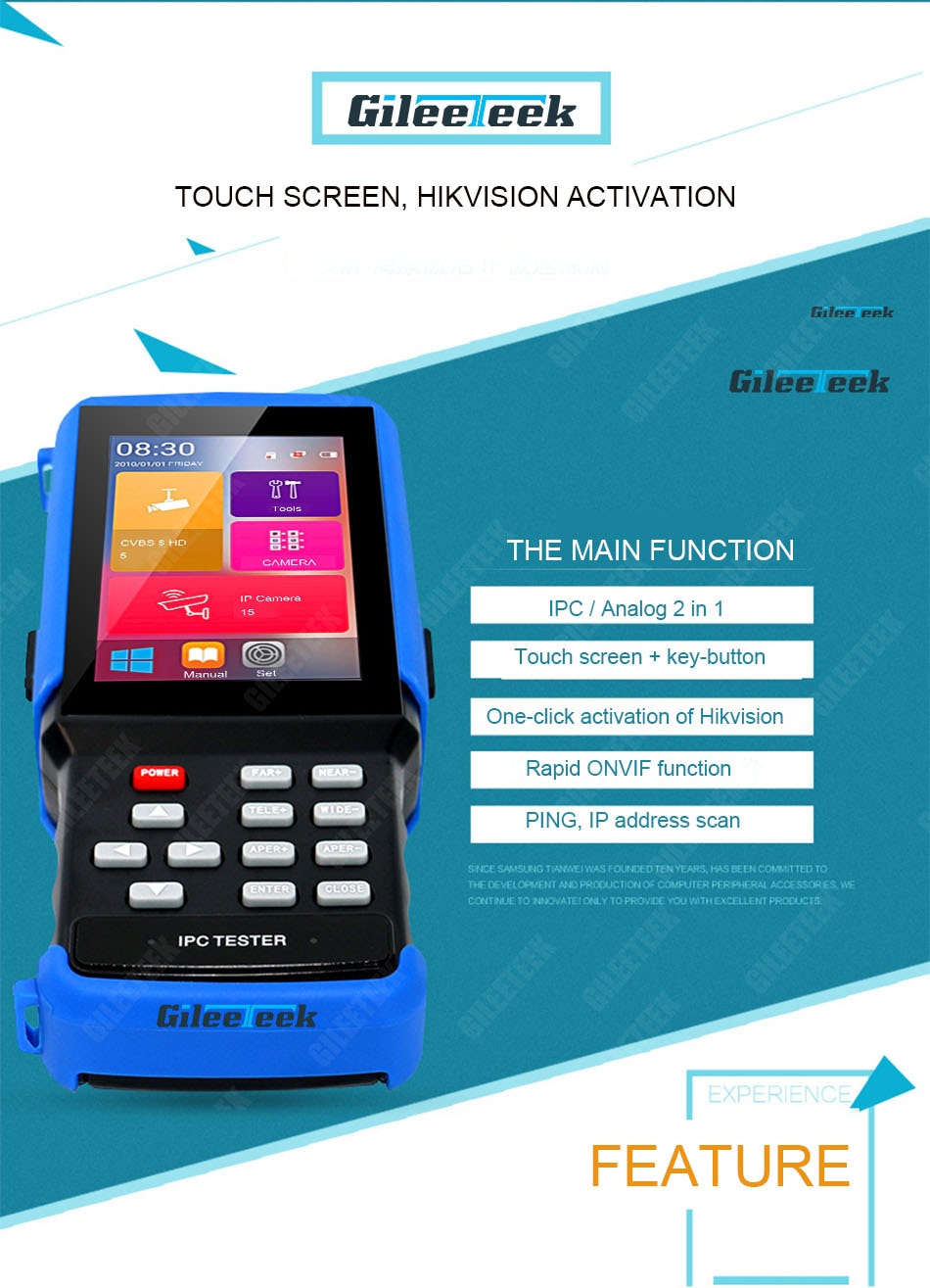

The instrument adopts a smart operation system, mainly used for the installation and maintenance of network monitoring cameras, analog video monitor cameras and other security monitoring equipments, the instrument adopts a 4.5-inch HD IPS full view display screen, can clearly display the IP and analog camera video images. It is built in a variety of network tools including PING, IP address scan, and standard PoE power output, DC12V/3A power output, it is an essential tool for security monitoring projects and integrated wiring projects.

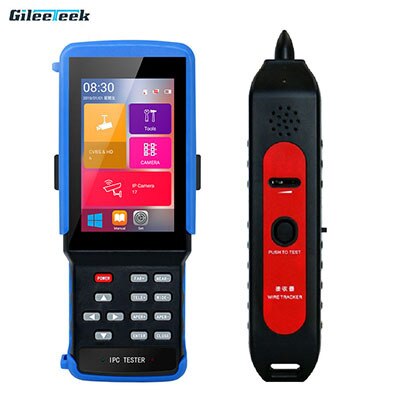

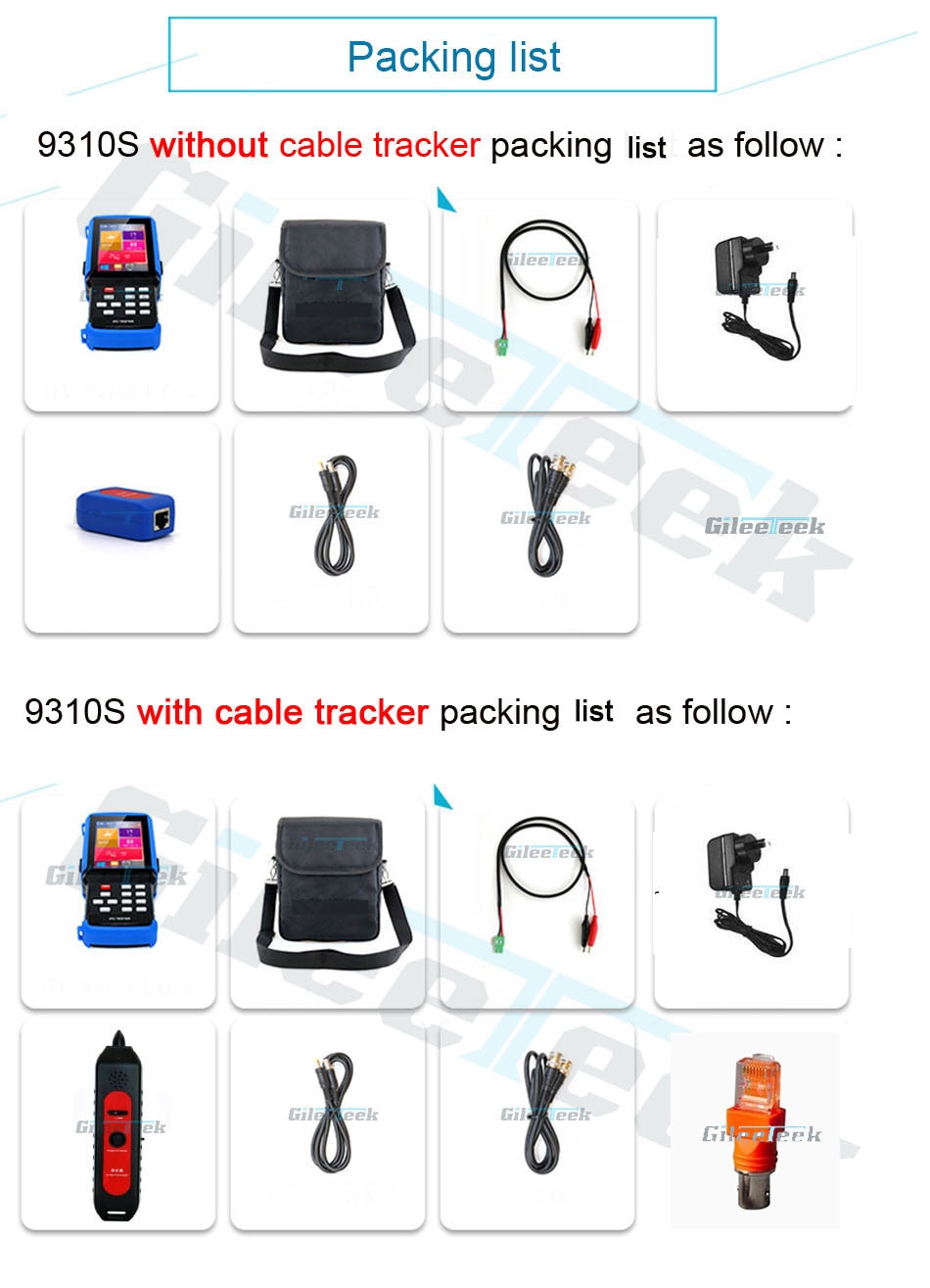

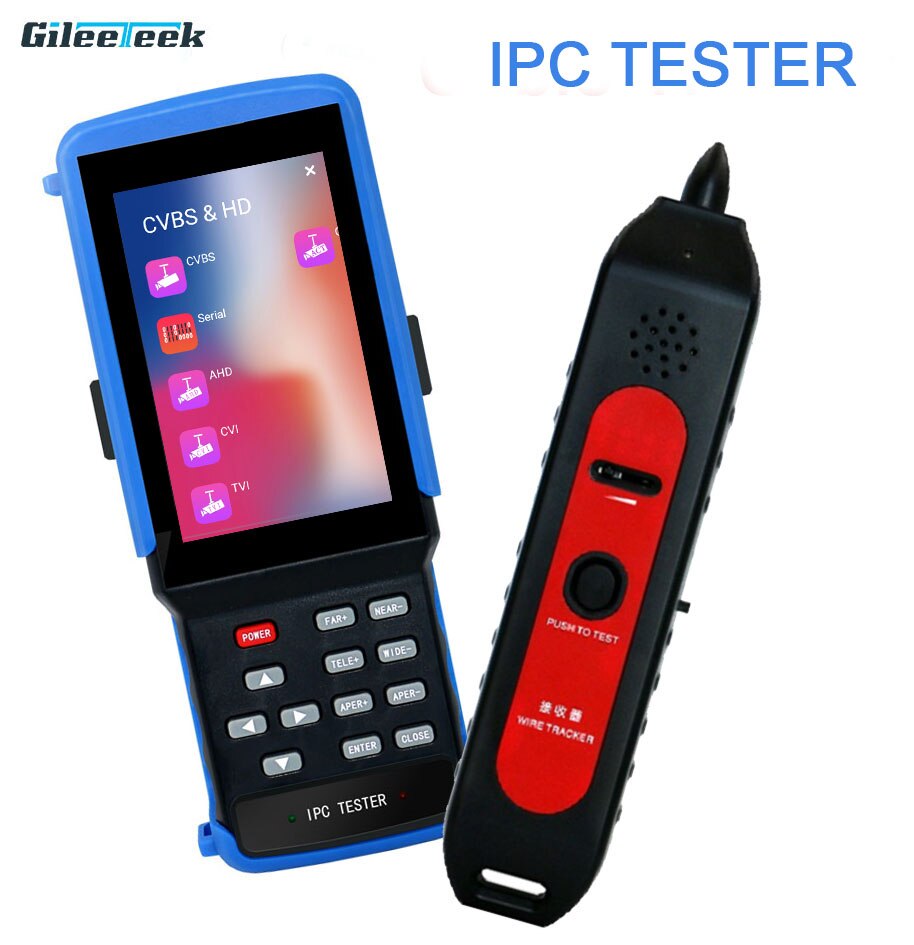

9310S support : AHD +TVI +CVI +CVBS+ IP +cable tracker (optional)

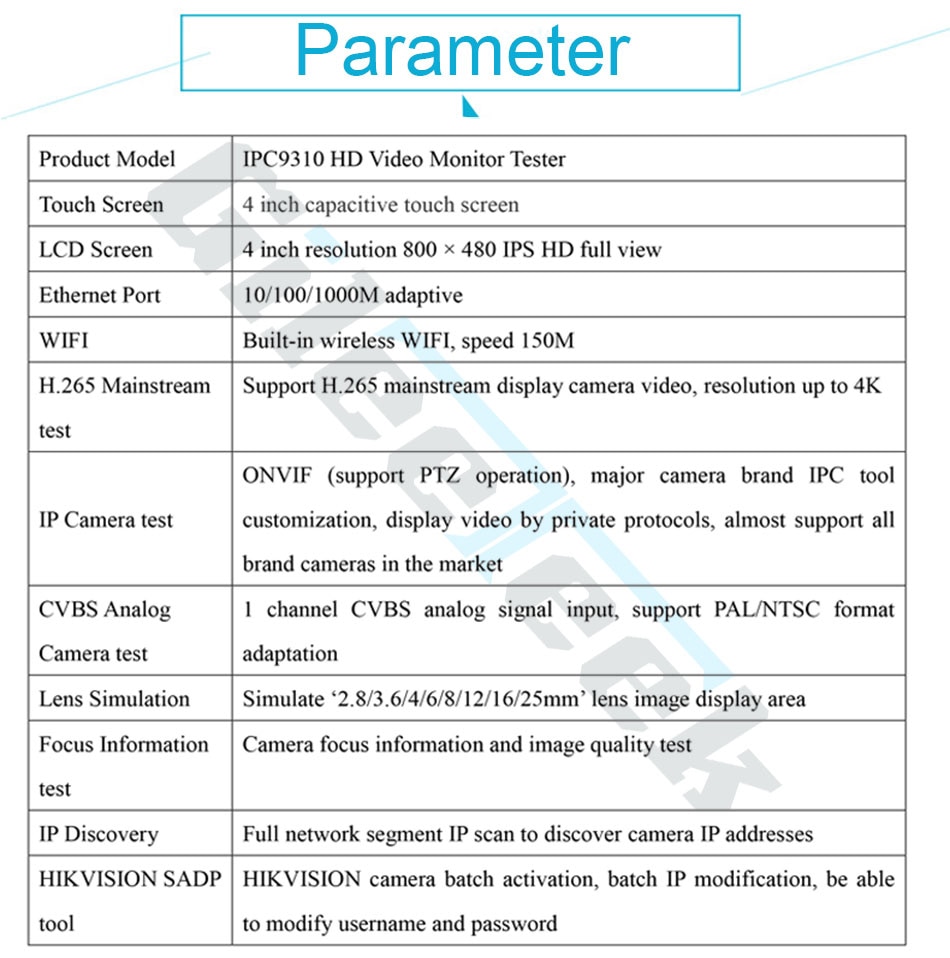

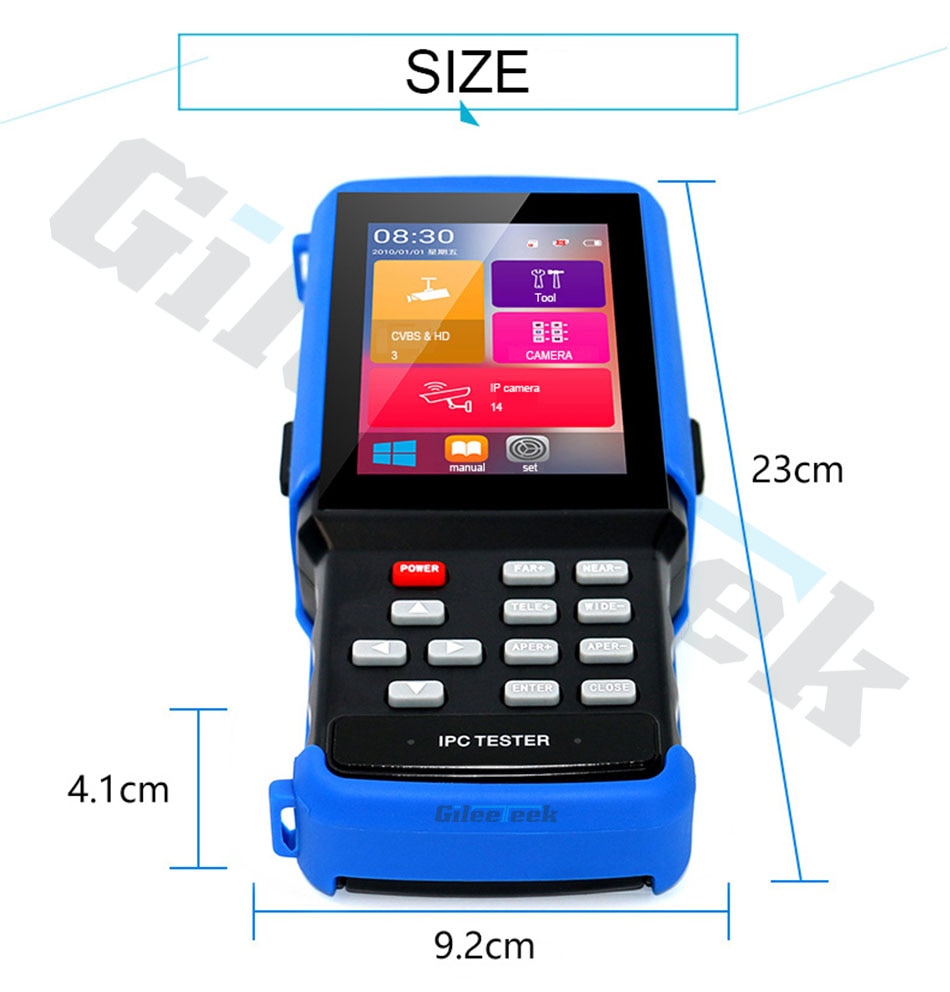

Product Model :IPC9310 HD Video Monitor Tester .
Touch Screen :4 inch capacitive touch screen .
LCD Screen:4 inch resolution 800 × 480 IPS HD full view .
Ethernet Port :10/100/1000M adaptive .
WIFI :Built-in wireless WIFI, speed 150M .
H.265 Mainstream test : Support H.265 mainstream display camera video, resolution up to 4K .

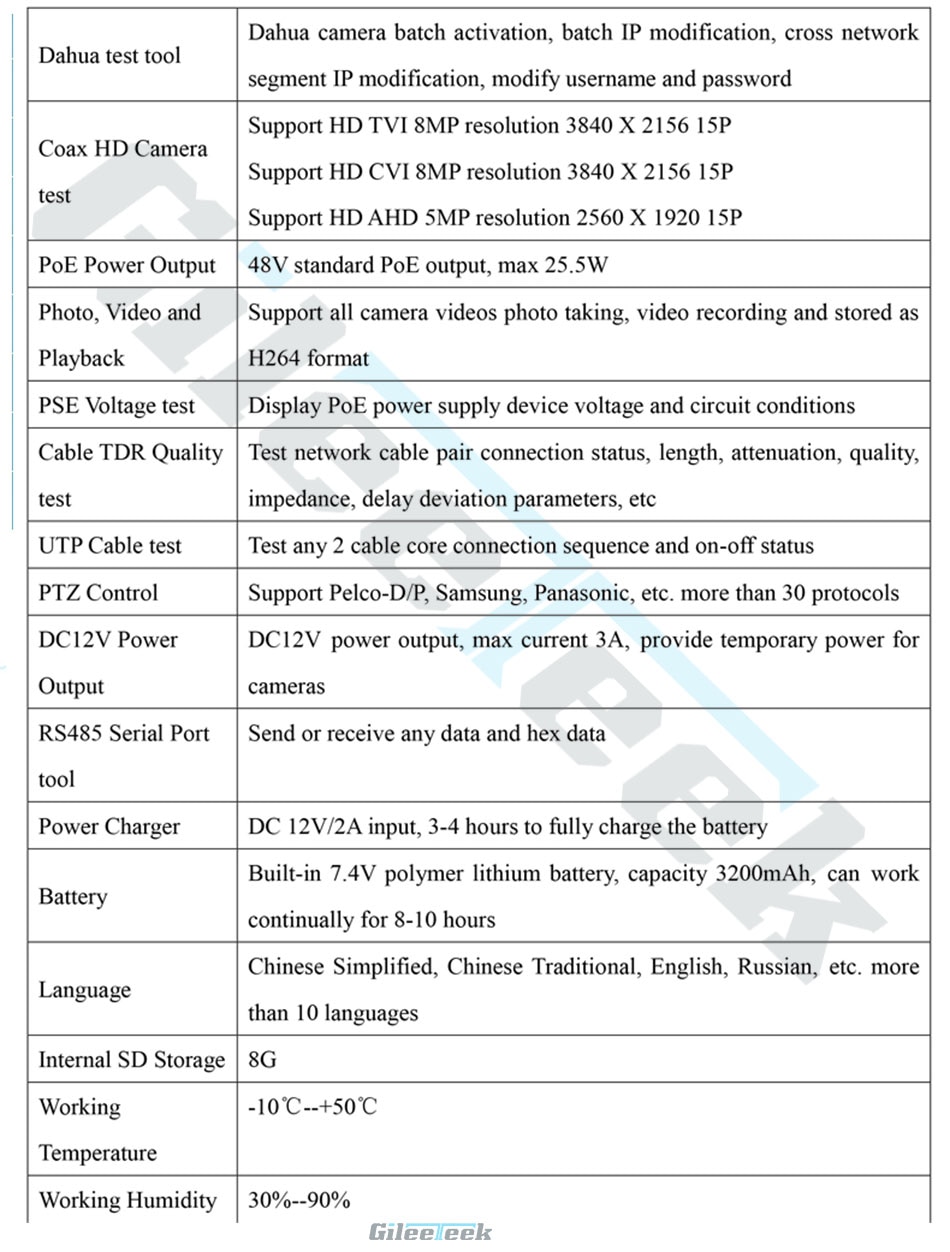

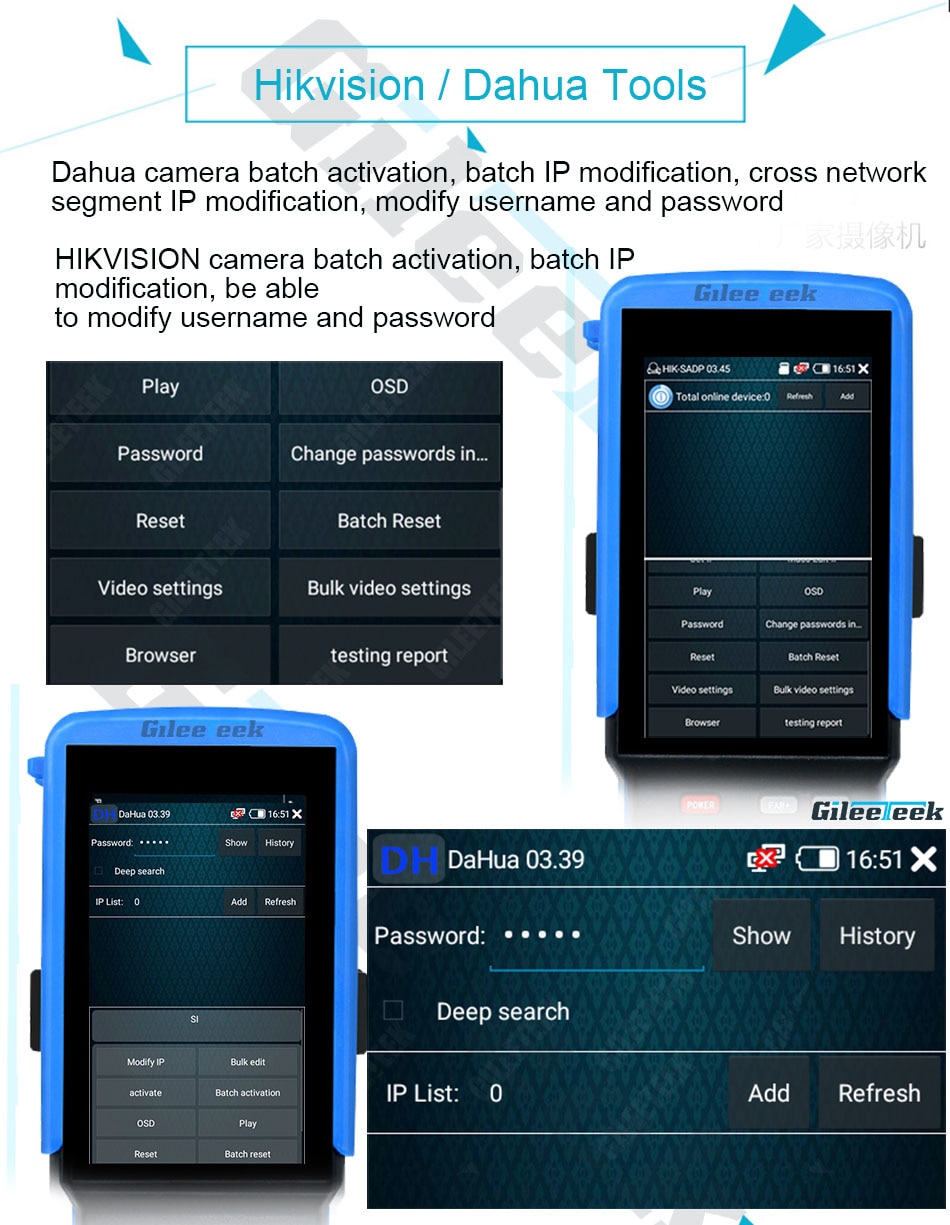

Dahua test tool : Dahua camera batch activation, batch IP modification, cross network segment IP modification, modify username and password .

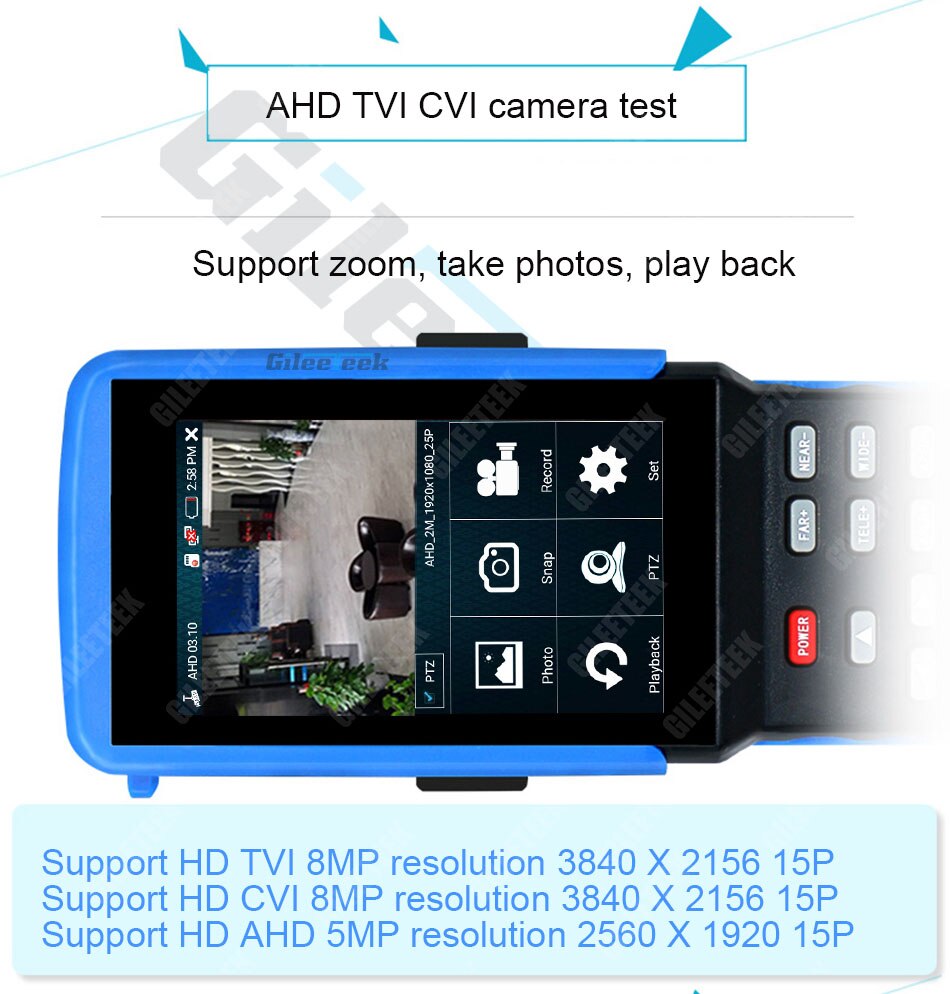

Coax HD Camera test:
Support HD TVI 8MP resolution 3840 X 2156 15P .
Support HD CVI 8MP resolution 3840 X 2156 15P .
Support HD AHD 5MP resolution 2560 X 1920 15P .
PoE Power Output : 48V standard PoE output, max 25.5W .
Photo, Video and Playback : Support all camera videos photo taking, video recording and stored as H264 format .
PSE Voltage test: Display PoE power supply device voltage and circuit conditions .
.

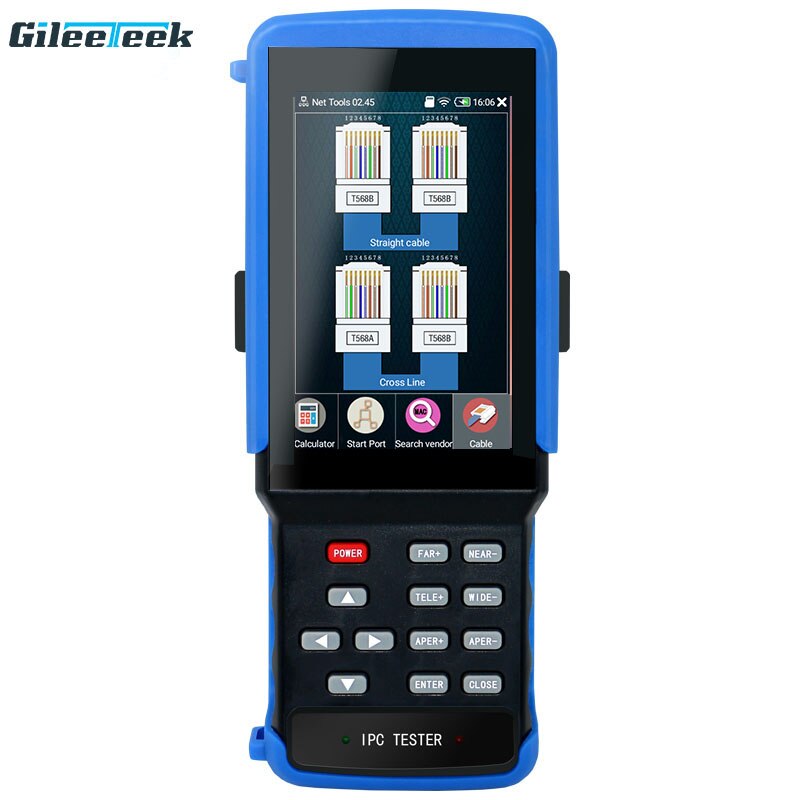

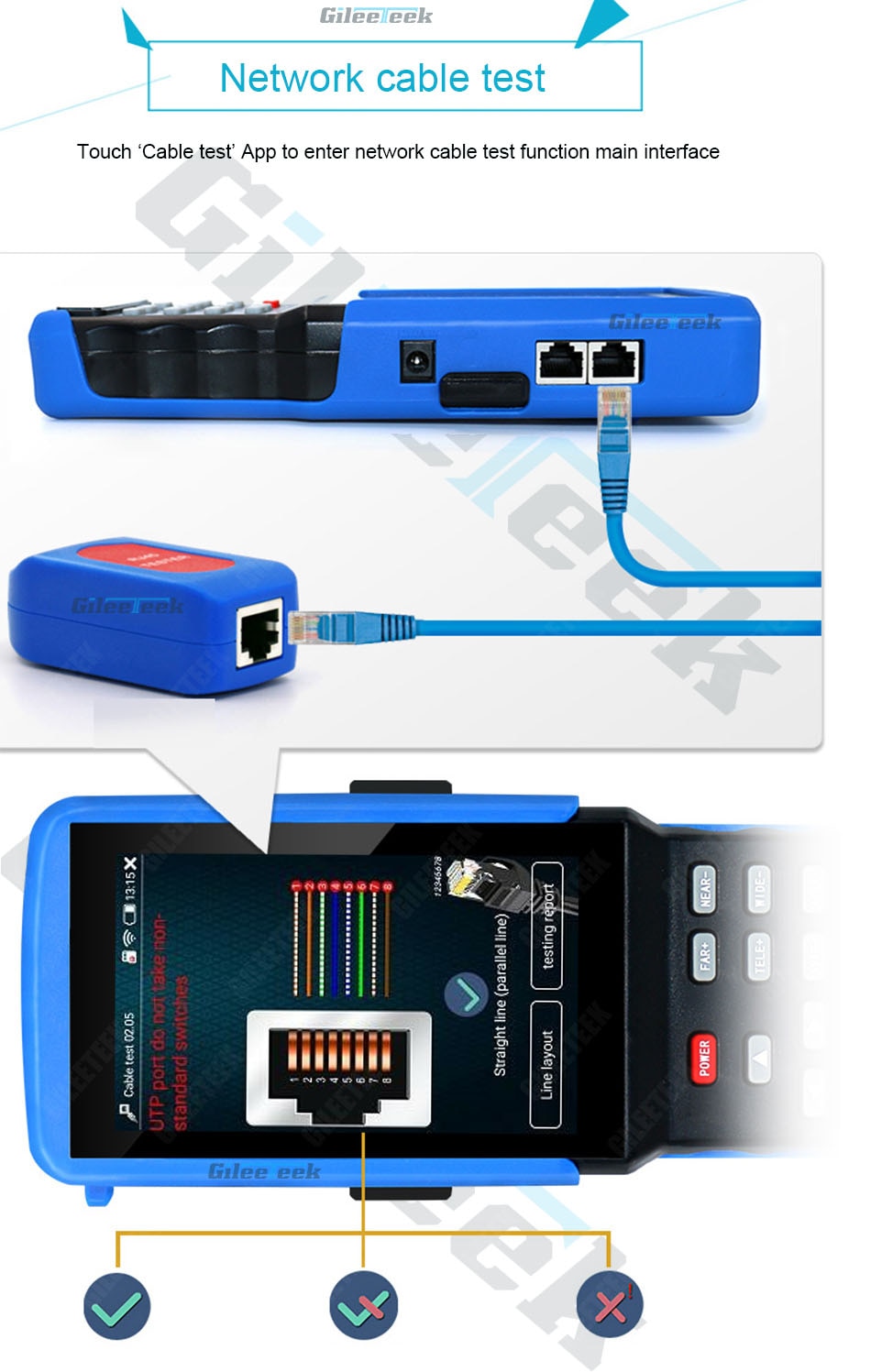

UTP Cable test : Test any 2 cable core connection sequence and on-off status .

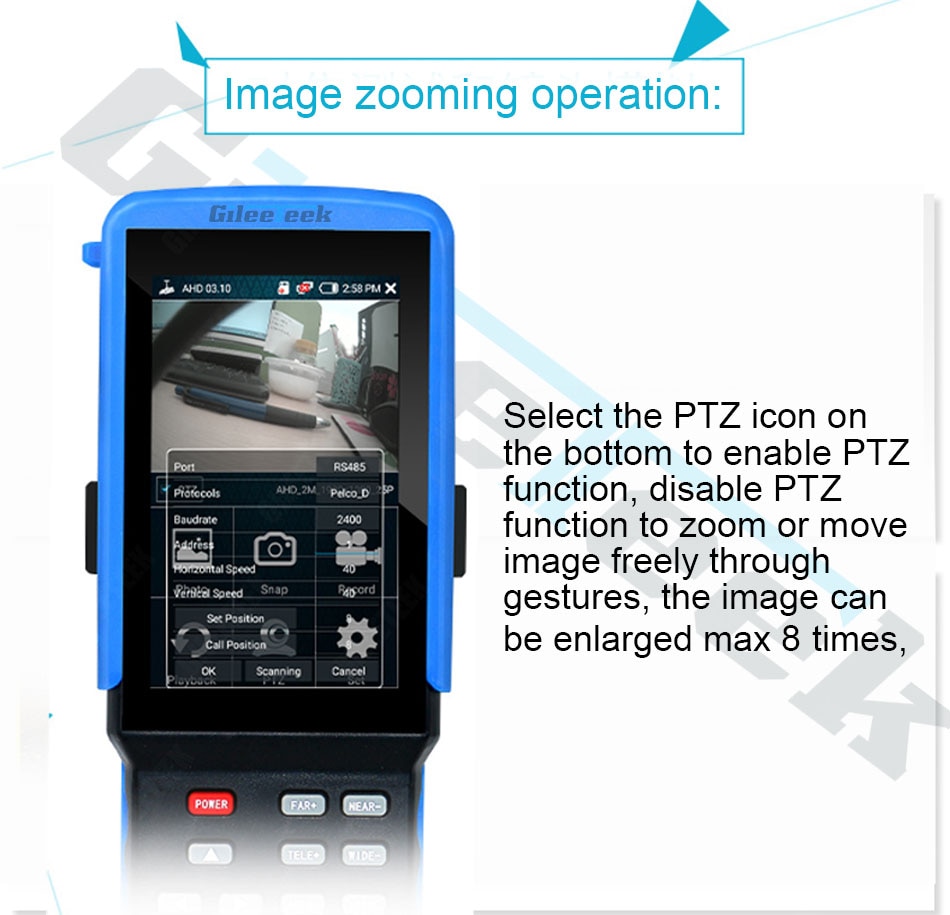

PTZ Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols .

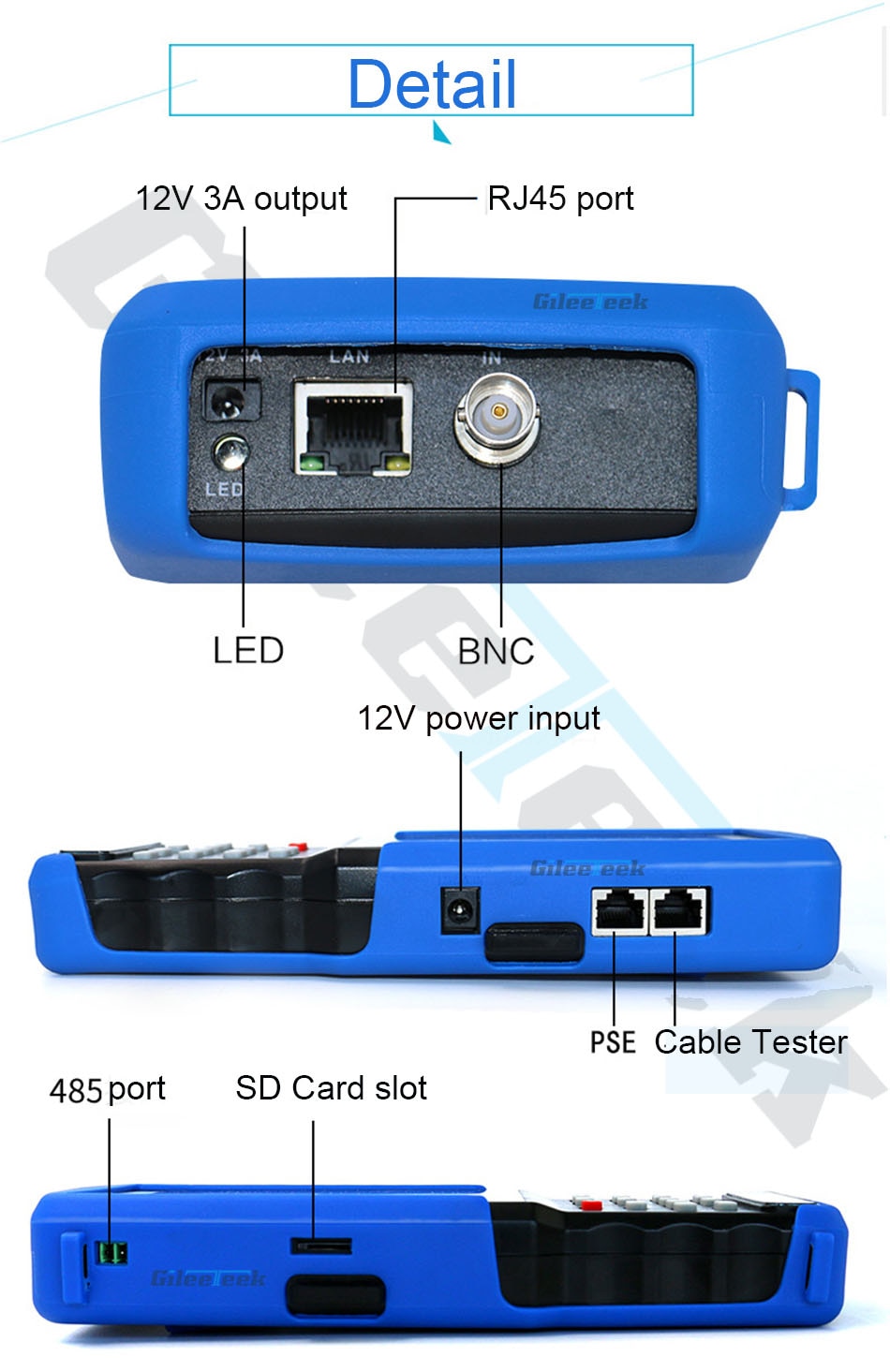

DC12V Power Output : DC12V power output, max current 3A, provide temporary power for cameras .

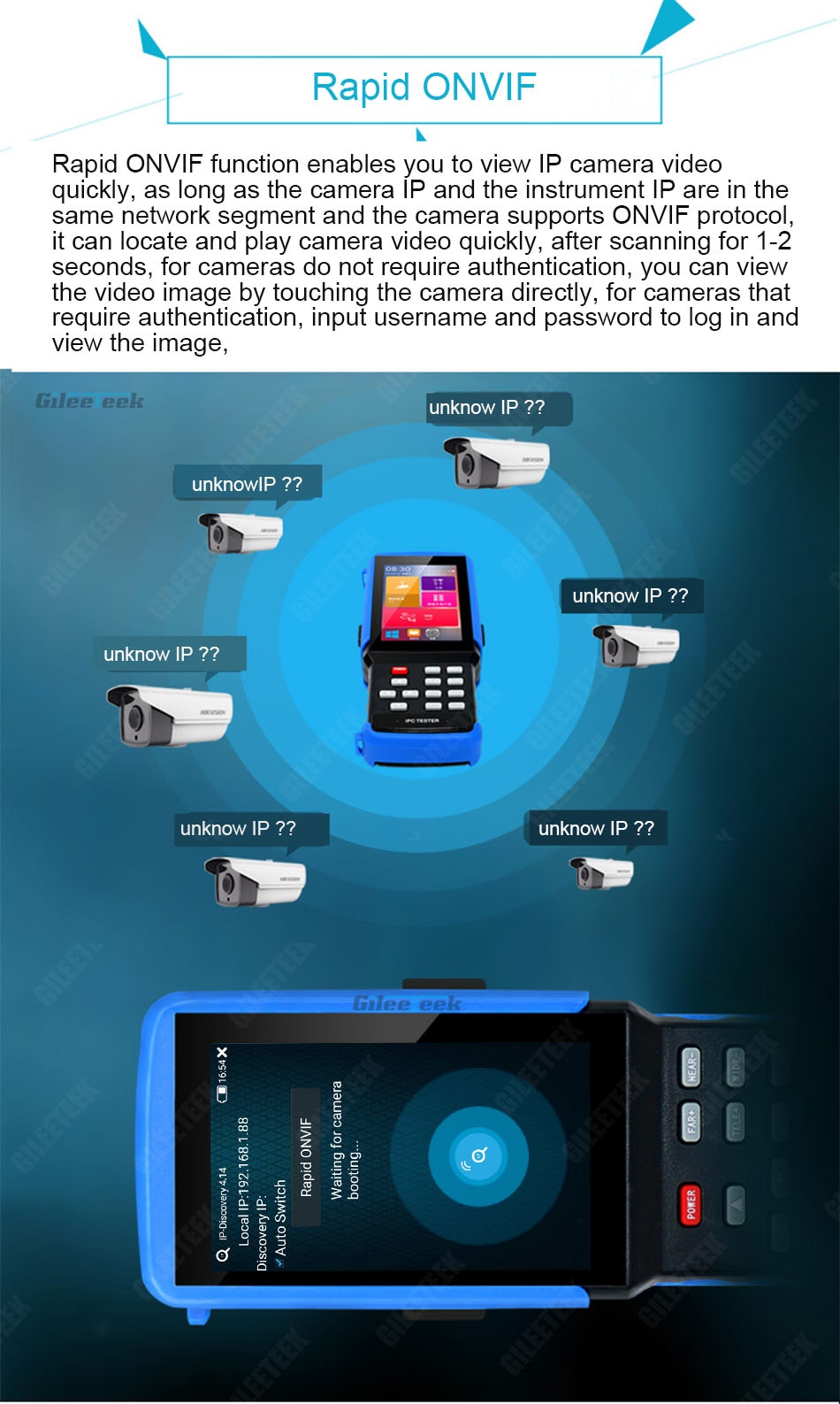

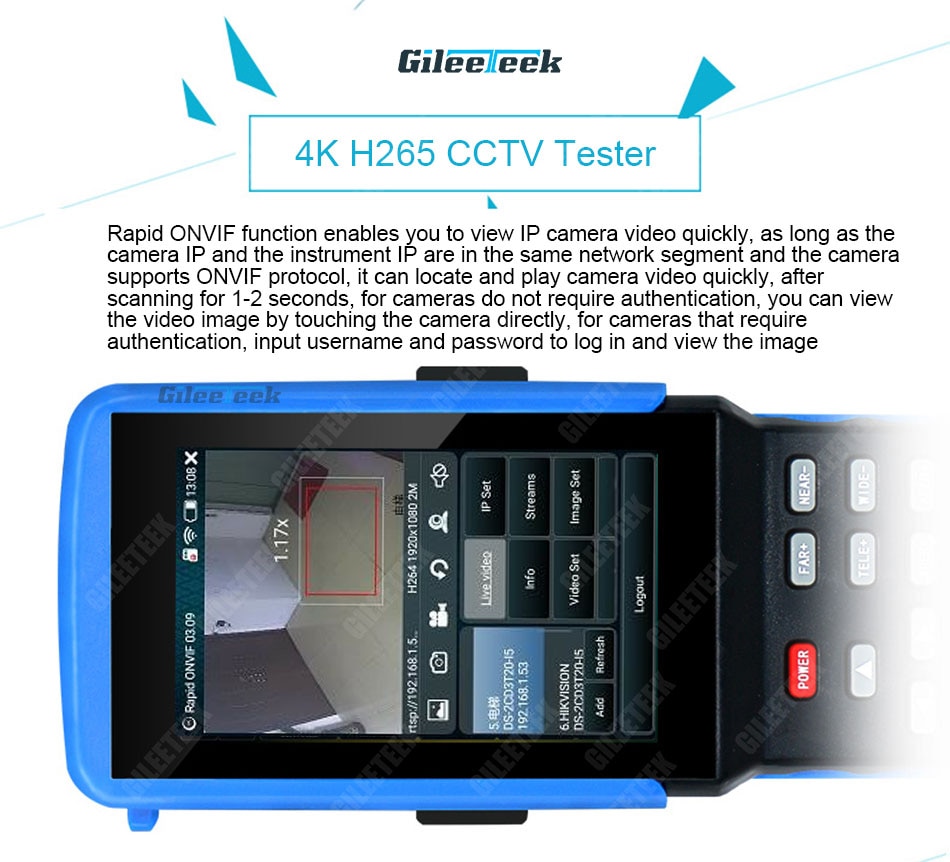

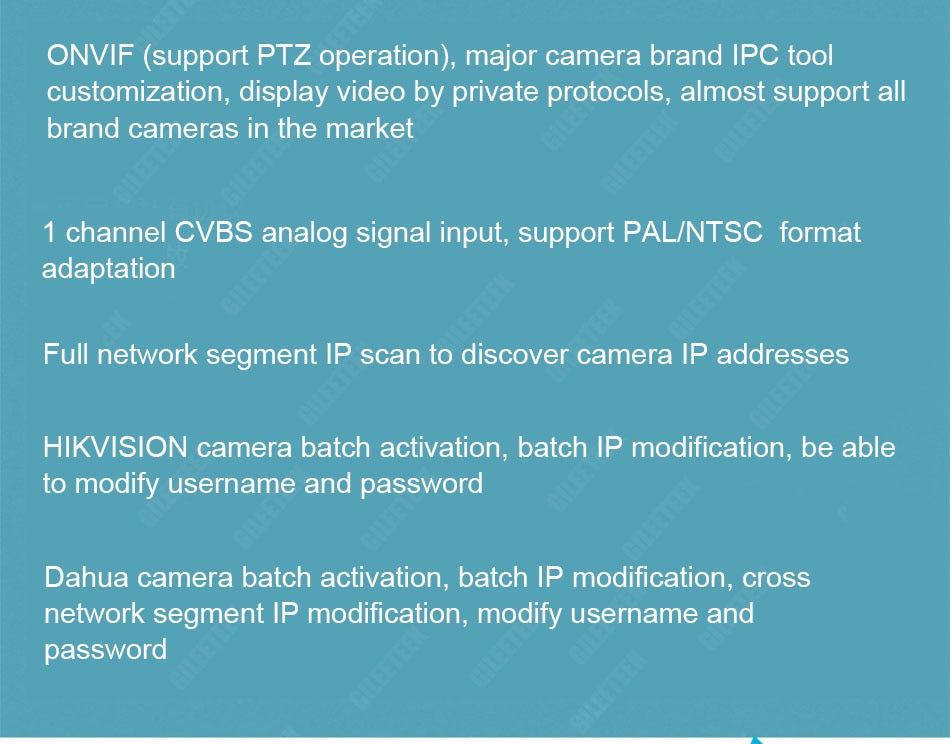

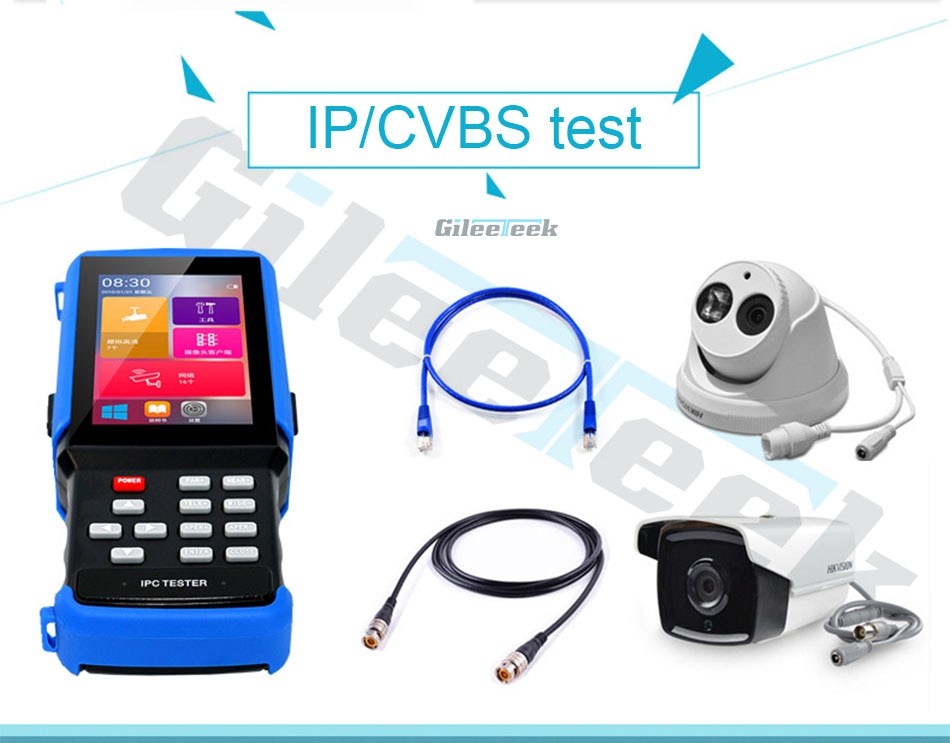

IP Camera test :ONVIF (support PTZ operation), major camera brand IPC tool customization, display video by private protocols, almost support all brand cameras in the market .
CVBS Analog Camera test: 1 channel CVBS analog signal input, support PAL/NTSC format adaptation .
Lens Simulation: Simulate '2.8/3.6/4/6/8/12/16/25mm' lens image display area .
Focus Information test : Camera focus information and image quality test .

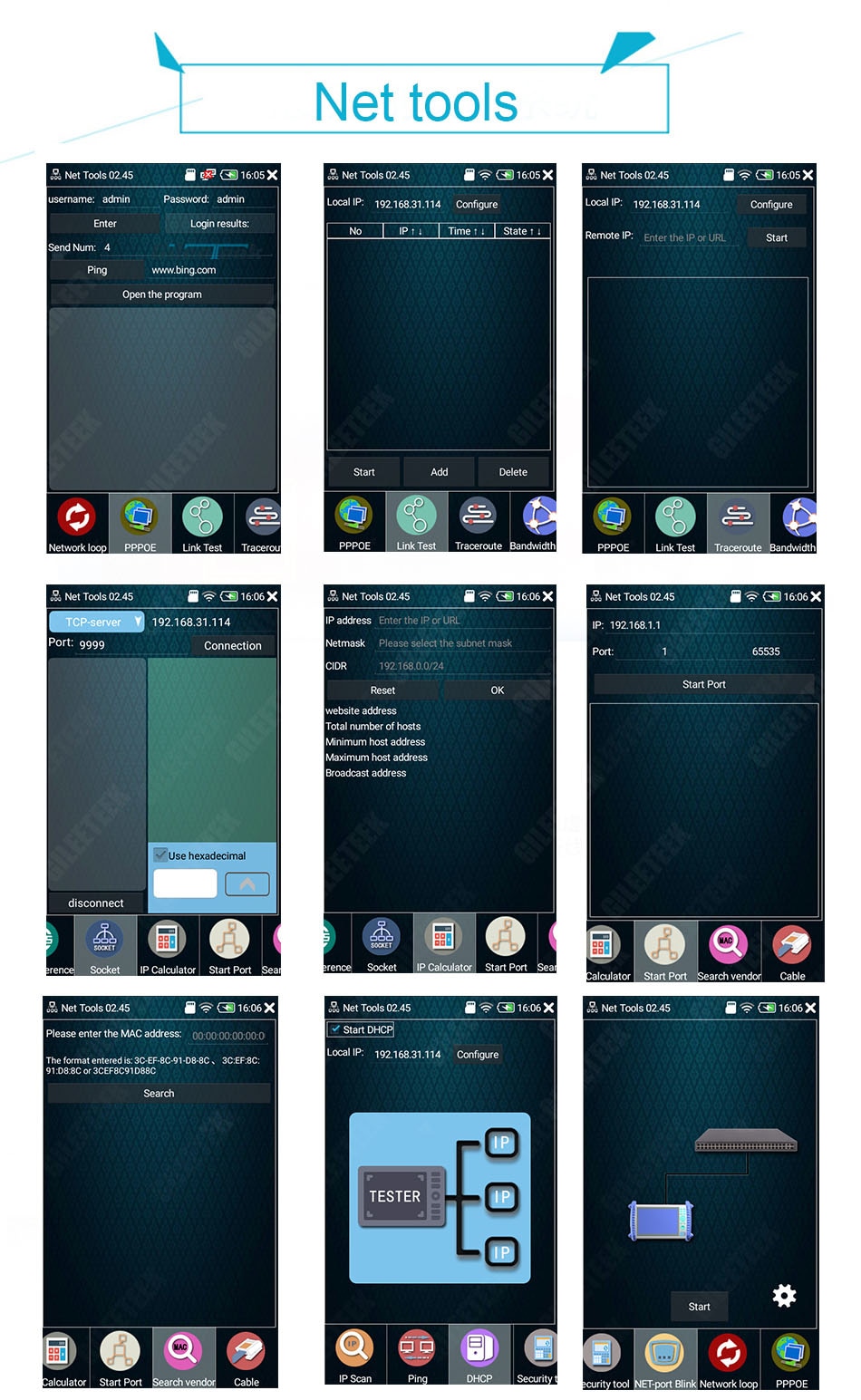

IP Discovery : Full network segment IP scan to discover camera IP addresses .
HIKVISION SADP tool: HIKVISION camera batch activation, batch IP modification, be able to modify username and password.
RS485 Serial Port tool : Send or receive any data and hex data .
Power Charger: DC 12V/2A input, 3-4 hours to fully charge the battery .
Battery: Built-in 7.4V polymer lithium battery, capacity 3200mAh, can work continually for 8-10 hours .

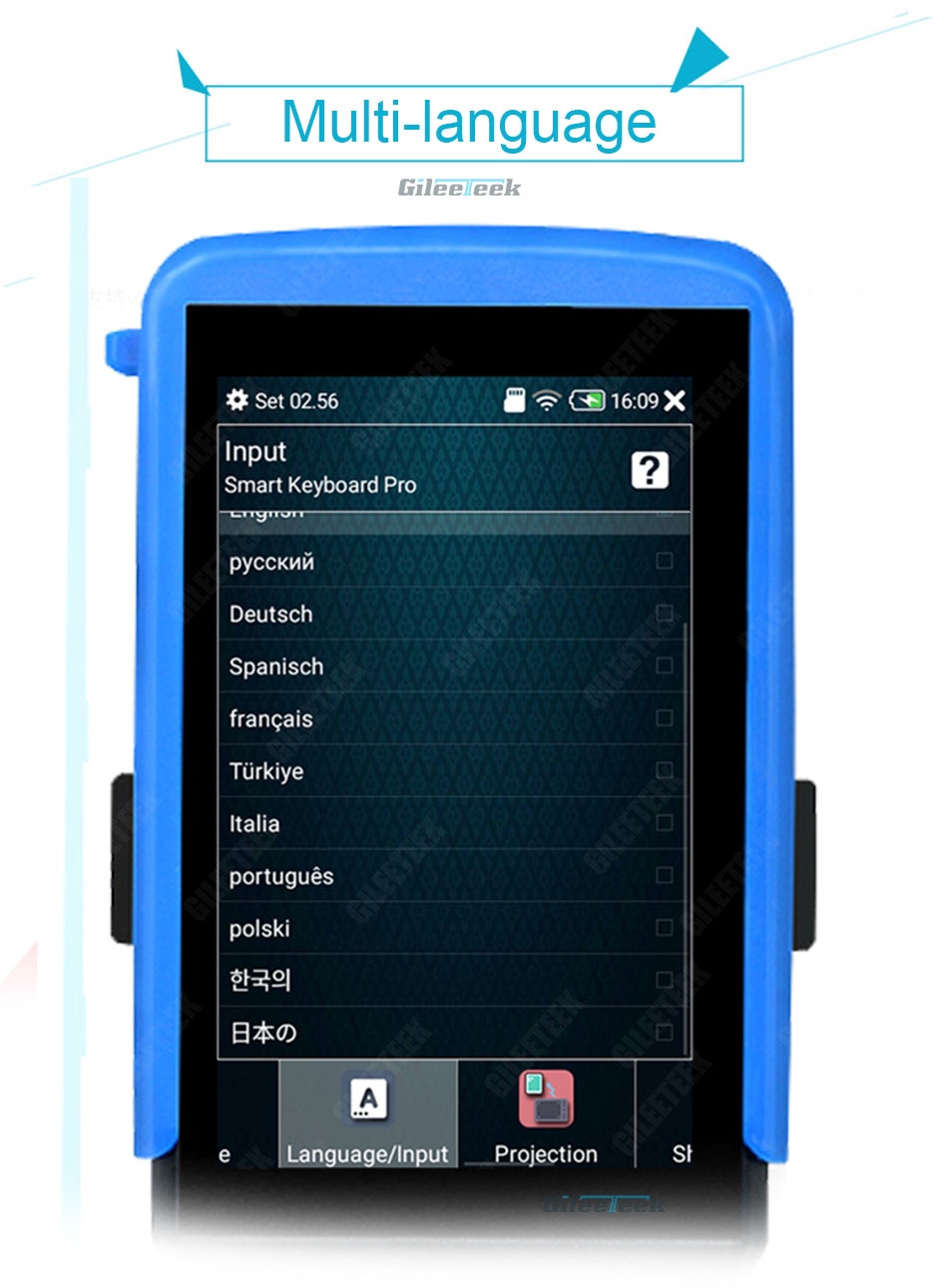

Language : Chinese Simplified, Chinese Traditional, English, Russian, etc. more than 10 languages .
Internal SD Storage : 8G .
Working Temperature: -10℃--+50℃ .
Working Humidity : 30%--90% .
- Plug Type: EU plug
- Sensor Type: CCTV Tester Monitor
- Model Number: IPC9310
- Maximum IR Distance(m): CCTV Tester Monitor
- Sensor Size: CCTV Tester Monitor
- Lens: IP camera tester
- Brand Name: POMIACAM
- Origin: Mainland China
- Certification: CE
- Product Model: IPC9310 HD Video Monitor Tester
- Touch Screen: 4 inch capacitive touch screen
- WIFI: Built-in wireless WIFI, speed 150M
- H.265 Mainstream test: Support H.265 mainstream display camera video, resolution up to 4K
- IP Camera test: check the details page please
- CVBS Analog Camera test: check the details page please
- Focus Information test: Camera focus information and image quality test
- IP Discovery: check the details page please
- HIKVISION SADP tool: check the details page please
- Dahua test tool: check the details page please
- TVI: Support HD TVI 8MP resolution 3840 X 2156 15P
- CVI: Support HD CVI 8MP resolution 3840 X 2156 15P
- AHD: Support HD AHD 5MP resolution 2560 X 1920 15
