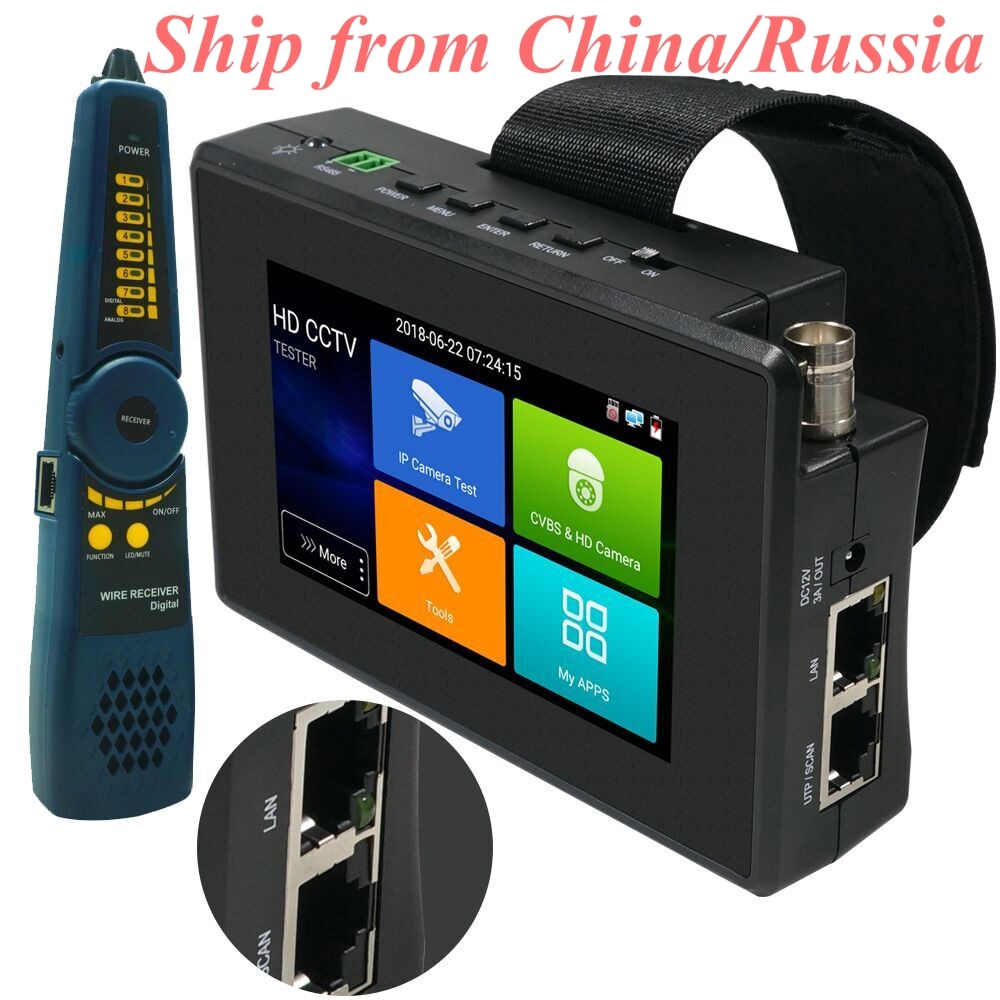

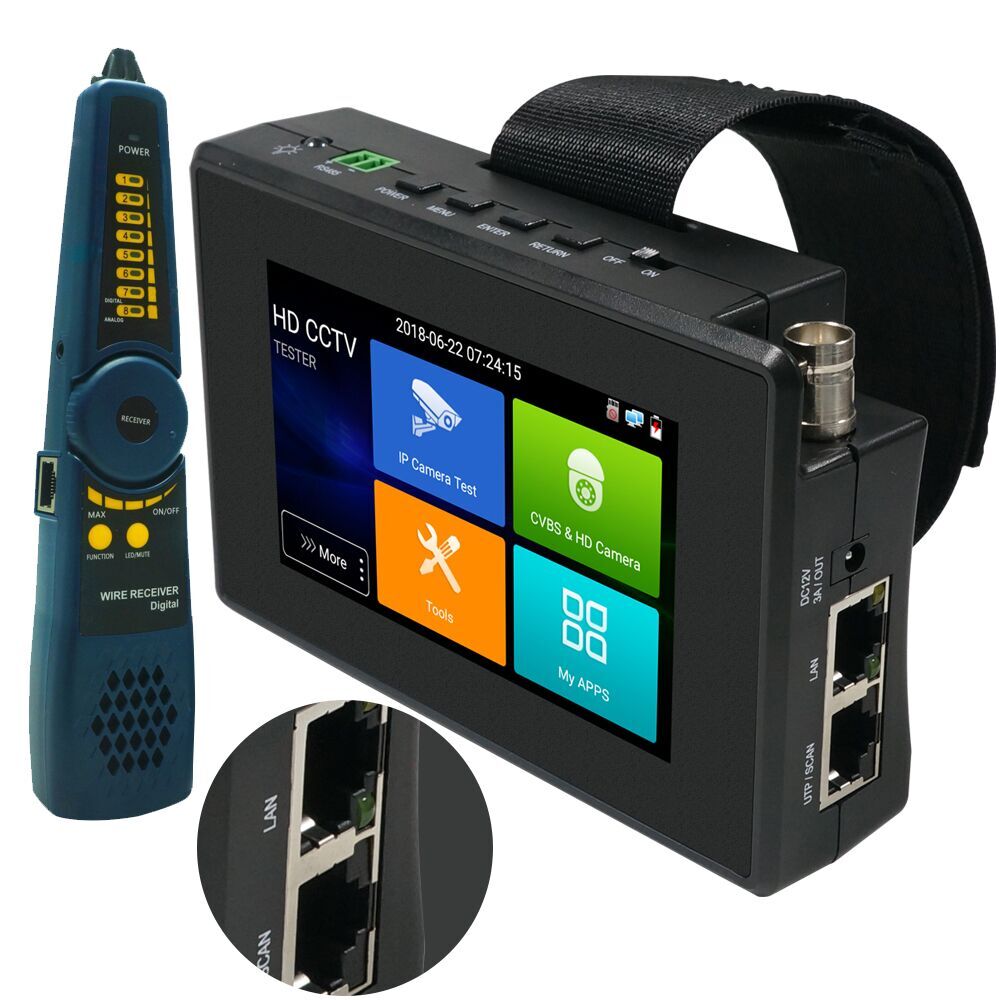

4" CCTV IPC Tester Monitor H.265 IPC1910C 8MP AHD CVI TVI Analog Camera Test RJ45 UTP Cable Tester PTZ ONVIF PoE Power Output
81.36 55.82 $
SALE
ID: 47261
Quantity
4 Inch 4K HD IP CCTV Tester Monitor AHD CVBS CVI TVI 8MP Camera Testing WIFI PTZ POE 48V Out
0.0 (1 votes) | 2 orders
Price:
US $501.31
/ piece
Discount Price:
US $
427.67
/ piece
-15%
- Ships From
- Color
-
-

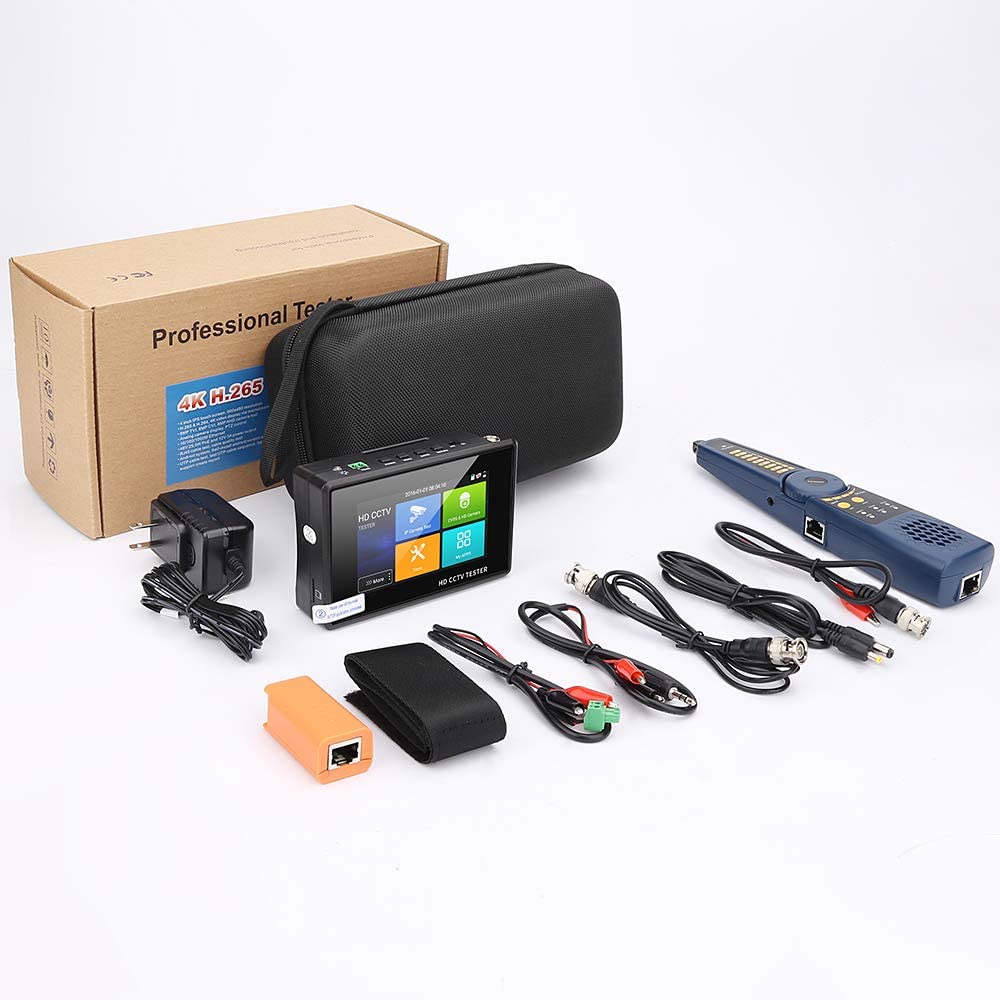

Model: IPC1800CADH Plus 4" H.265 4K HD IP CCTV Tester Monitor
Supports ONVIF POE48V/ 12V 3A output WIFI
+Cable tracer (NO255 UTP cable tester function built in).
IP H.265 4K +CVBS+AHD /CVI /TVI 8MP
It supports English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, German etc
Camera test:

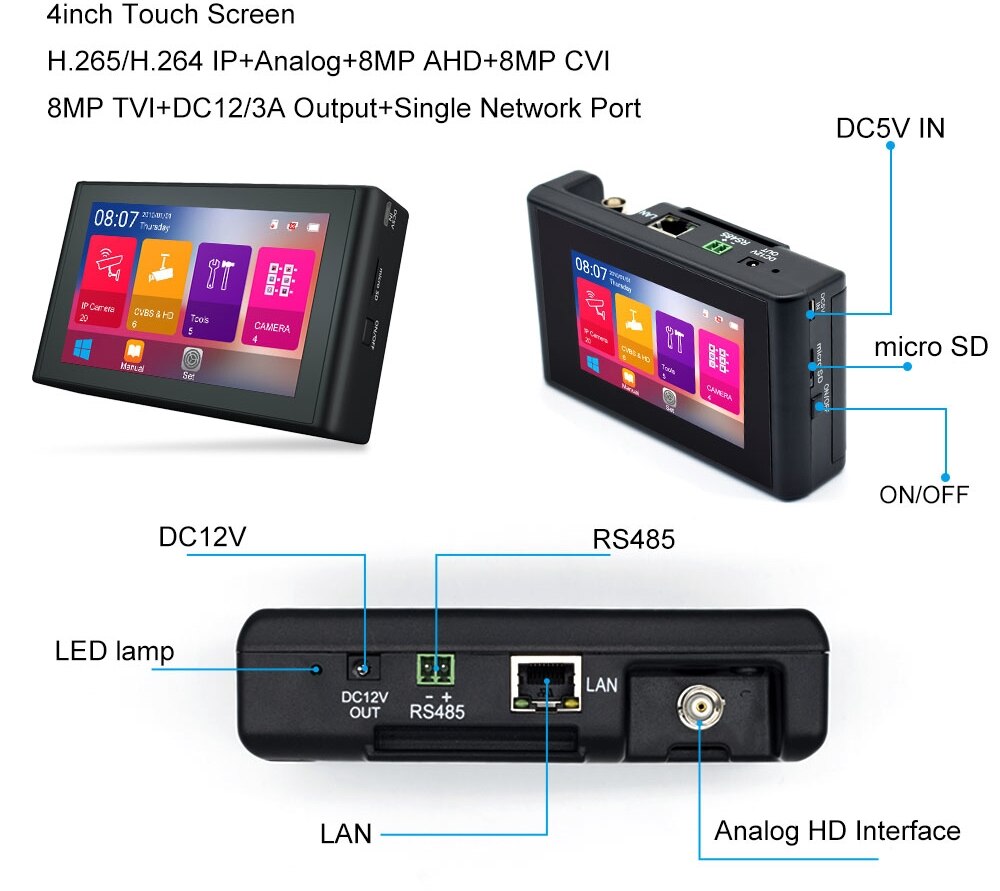

● 4 inch touch screen, 800*480 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● 8MP TVI/ CVI/AHD
● CVBS camera test and PTZ control
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

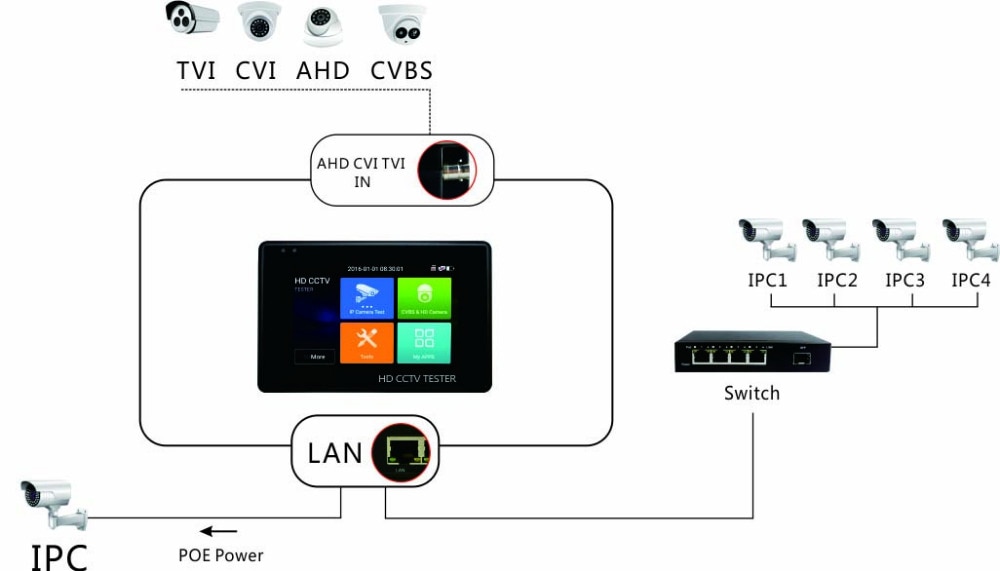

● IP discovery, just by one key to detect all network cameras IP address
● Rapid video, just by one key to detect all network cameras and auto display
● DC 12V 3A power output

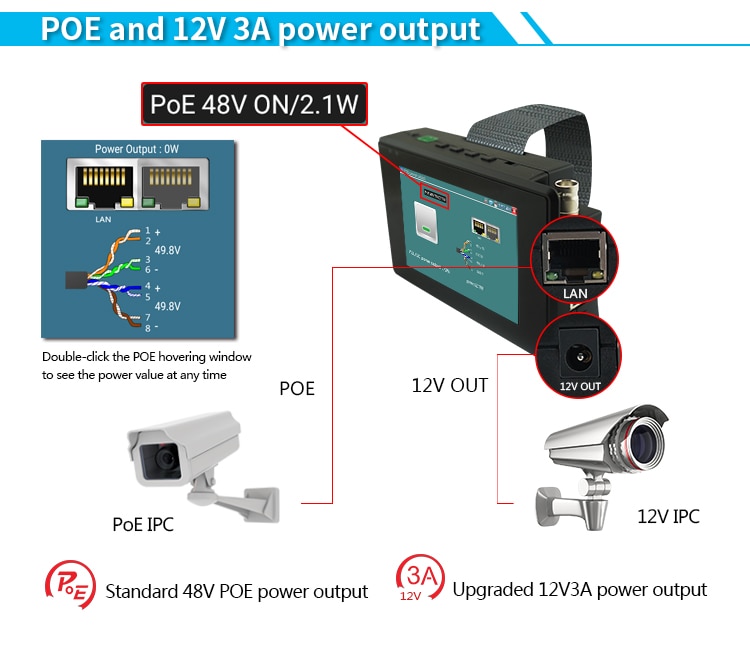

● PoE DC48V power output, Max power 24W

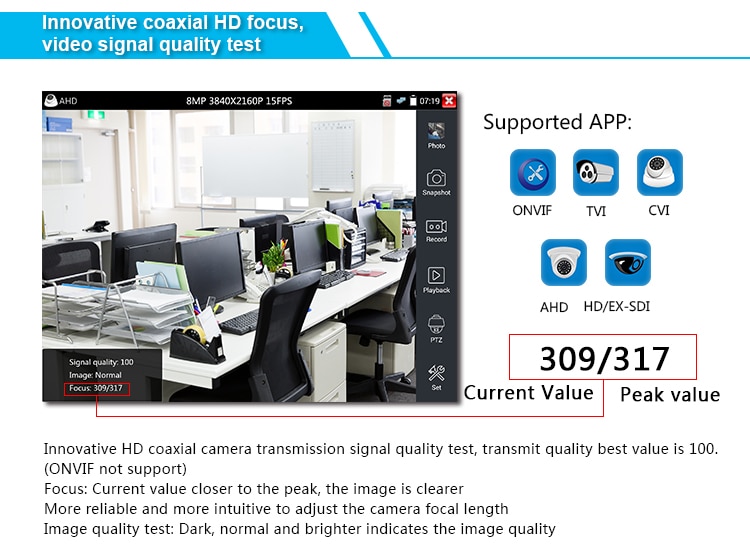

● Innovative coaxial HD focus, video signal quality test
Other functions:
● Network tool: PING test, IP address scan, port flashing etc
● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours
● 10/100/100M Ethernet,network state and traffic display

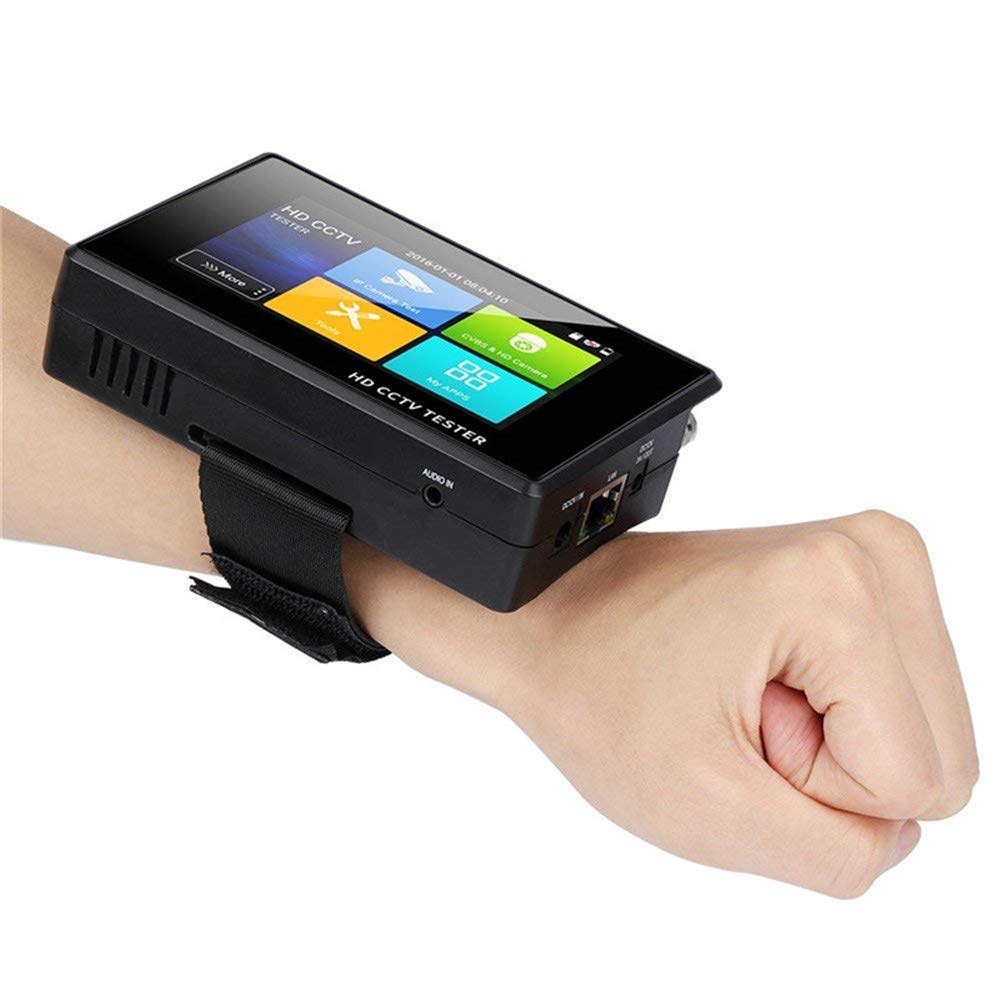

● Wrist design, portable and easier to carry
LCD | Item series | IPC-1800CADH Plus | |
Display | New 4 inch IPS touch screen , 800*480 resolution | ||
Video Mode | CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) | |
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||
IP camera test 4K/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK | ||
Rapid Video | Auto view the video, create testing report | ||
Hik test tool | pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters | ||
Dahua test tool | Dahua camera test, modify the username, password and IP parameters | ||
Coaxial HD test | 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu | ||
8MP CVI camera test, 2560 x 1440P 25/30 FPS, UTC control d call OSD menu | |||
8MP AHD test, 2560x1944P 12.5F/20F, UTC control d call OSD menu | |||
Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back | ||
12V/3A power | Output DC12V/3A power out, supply temporarily power for the camera | ||
Power output | PoE power output | 48V PoE power output, max power 24W | |
Network test | Link monitor,port flashing, Ping test | ||
Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | ||
Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||
Drop-down menu | You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface | ||
External power supply | DC 12V 1A | ||
Battery | Built-in 7.4V Lithium polymer battery , 2400mAh | ||
Rechargeable | After charging 4~5 hours, normal working time 7 hours | ||
Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc | ||
Auto off | 1-30 (mins) | ||
Working Temperature | -10℃---+50℃ | ||
Working Humidity | 30%-90% | ||
Dimension/Weight | 126mm x 83mm x 33mm / 0.32kg | ||
- Plug Type: EU plug
- Sensor Type: other
- Model Number: IPC1800ADH plus
- Maximum IR Distance(m): internet
- Sensor Size: full
- Lens: full
- Brand Name: Precamview
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- 4" IPS touch screen: 800x480
- IP Camera testing: H.265 4K H.264
- AHD CVI TVI CVBS: Video testing 8MP
- PTZ control: RS485
- Rapid onvif: support
- POE 48V 12V3A: Power supply
- IP discovery: support
- Warranty: 3 years
- Power plug: AU US EU UK
