5inch Sdi Cctv Test Monitor Hdmi Vga 4k Security Camera IPC Tester Utp Rj45 Cable Test Poe Power Video Monitor with Cable Tracer

0.0 ( votes)
Price: US $622.48 / piece
Discount Price:
US $ 485.53 / piece
-22%
Ships From
Color
Quantity

8mp Cvi Tvi Ahd Cctv Test Monitor Hdmi& Vga 4k Security Camera Tester Utp Cable Test Poe Power Video Monitor with Cable Tracer

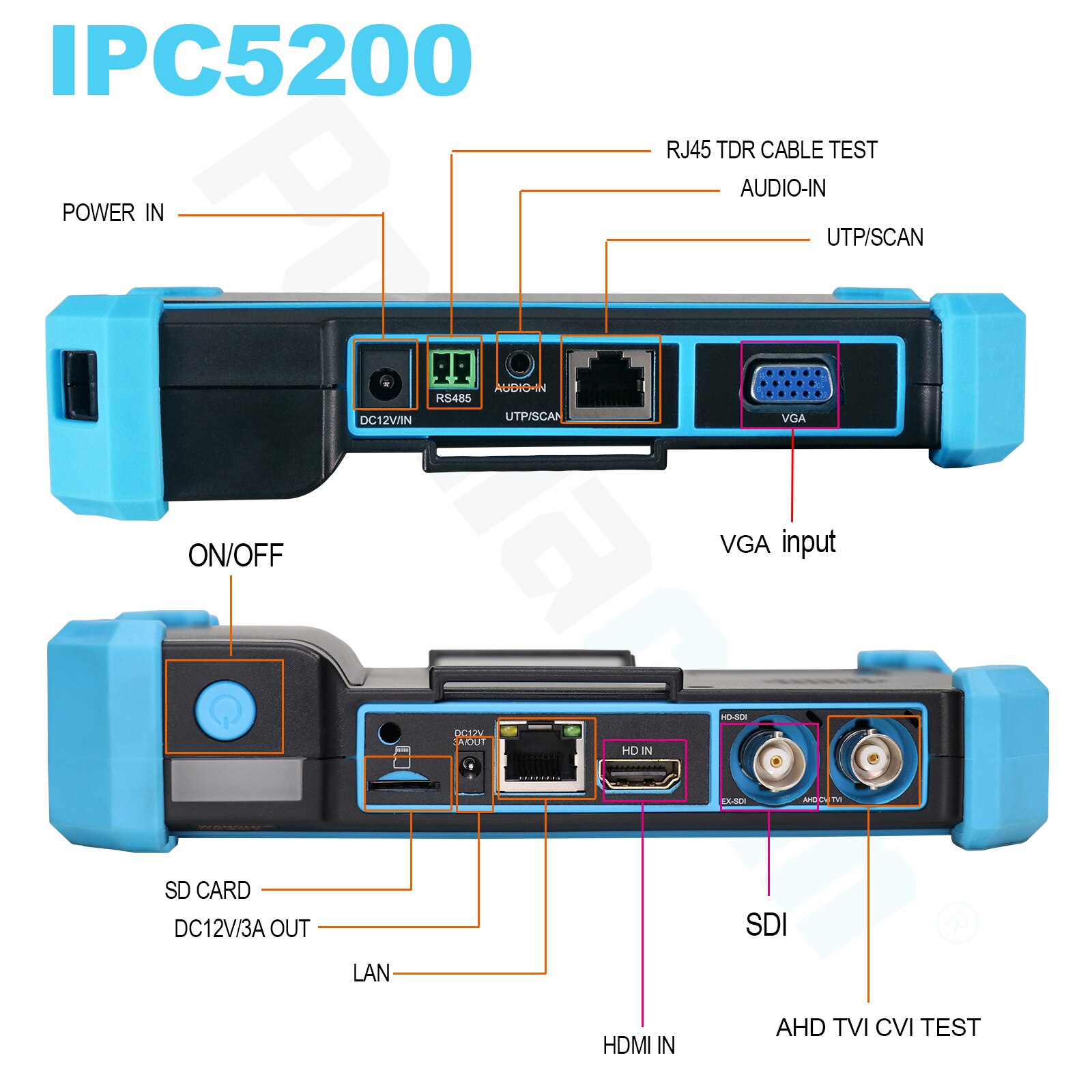

IPC-5200= 8MP AHD TVI CVI +SDI + HDMI in + VGA in +Cable tracer

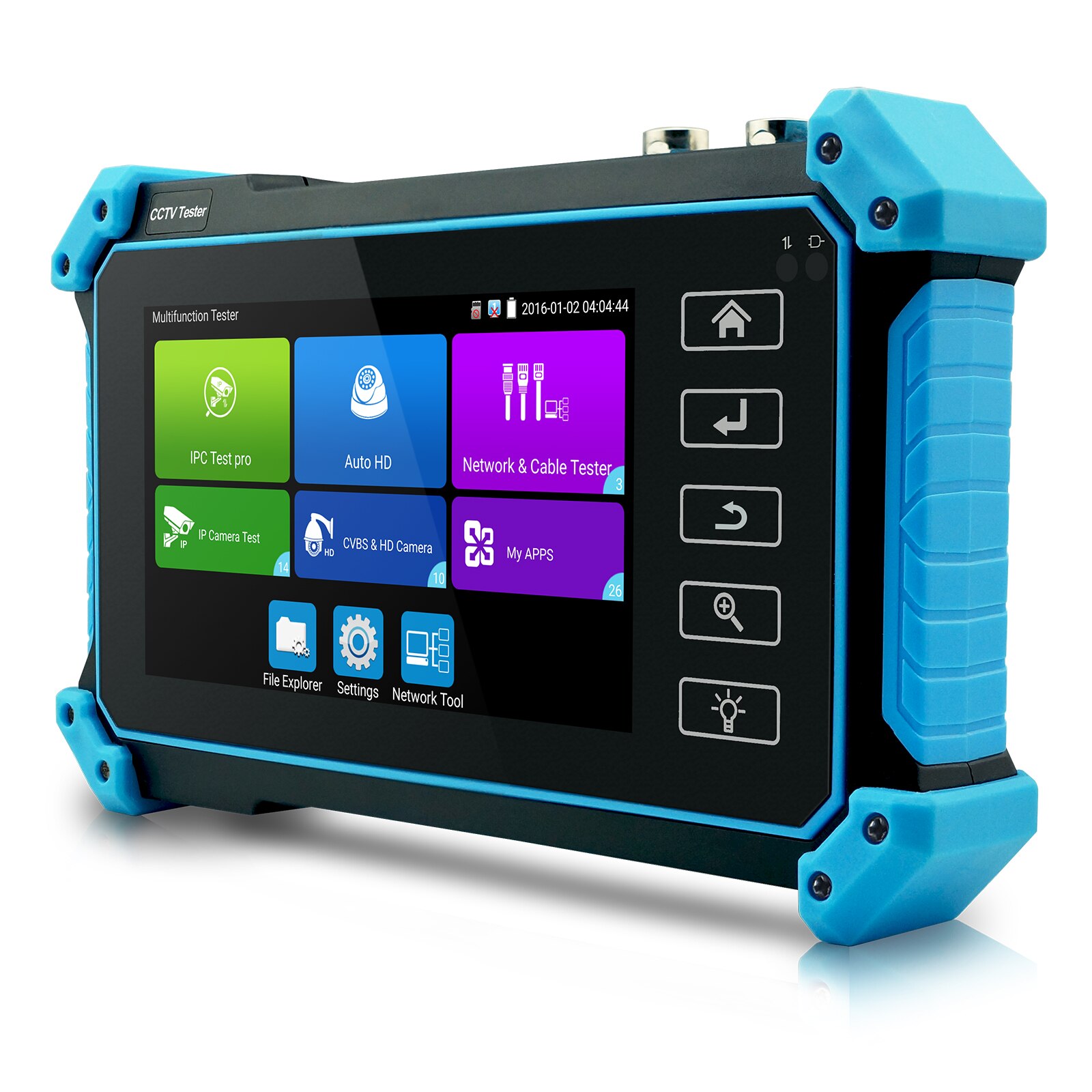

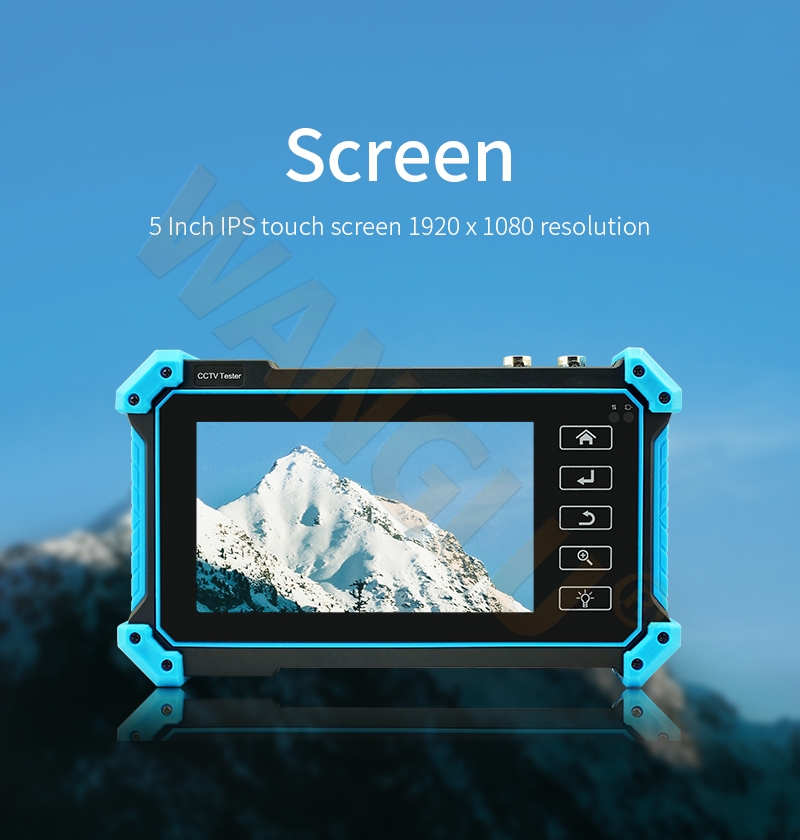

● 5 inch IPS touch screen, 1920x1080 resolution

● 8MP CVI/ TVI/ AHD camera test

● 8MP EX-SDI, HD-SDI, 3G-SDI camera test

● H.265/H.264, 4K video display via mainstream

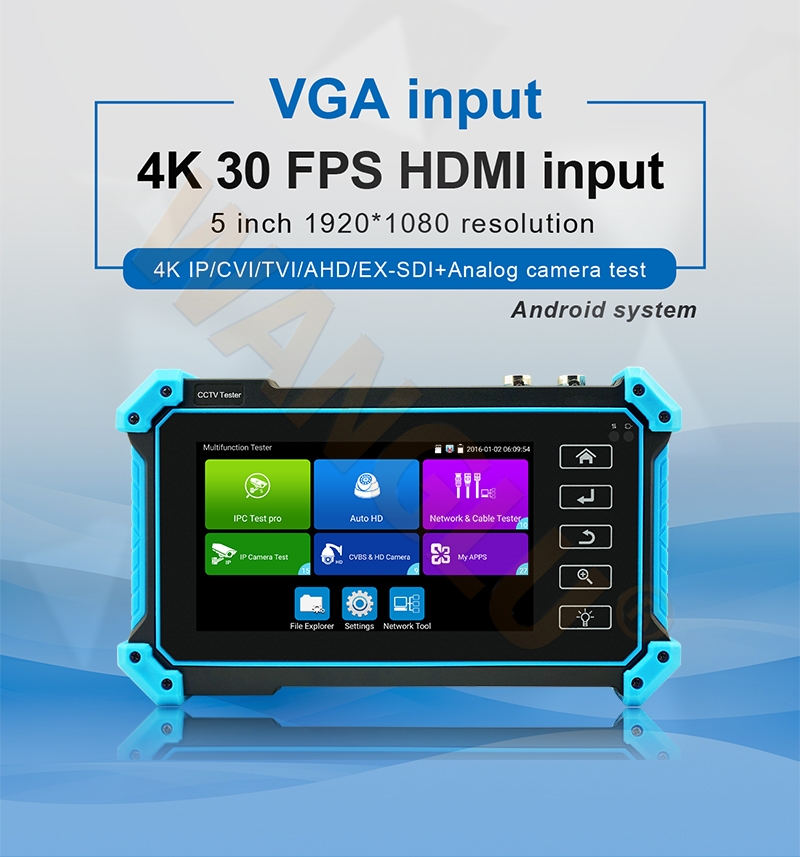

● VGA input, support 1920 x 1200 60FPS

● HDMI input, support 4K 30FPS

● DC12V 3A, 48V PoE power output

● Auto HD, auto recognize HD coax camera type and resolution

● RJ45 TDR cable test, cable opens ,shorts and length test ,Max180m.

● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug



Camera test:

● 5 inch IPS touch screen, 1920*1080 resolution

● H.265 & H .264 IP, 4K video display via mainstream

● Analog camera test, PTZ controller

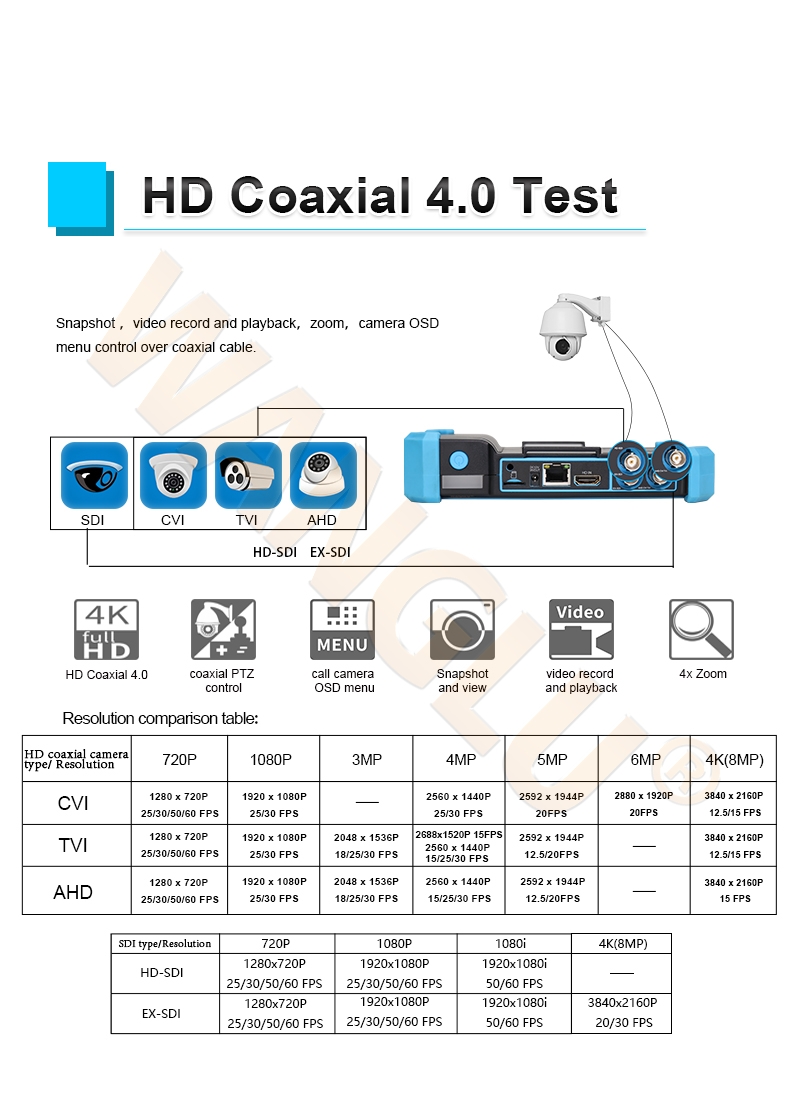

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu

● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu

● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

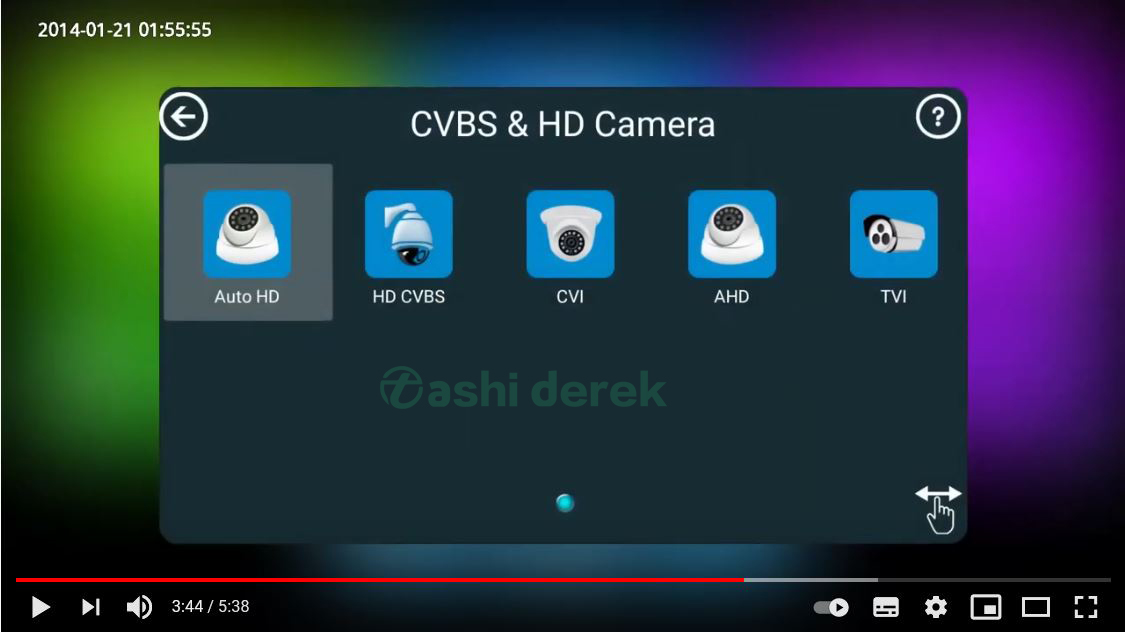

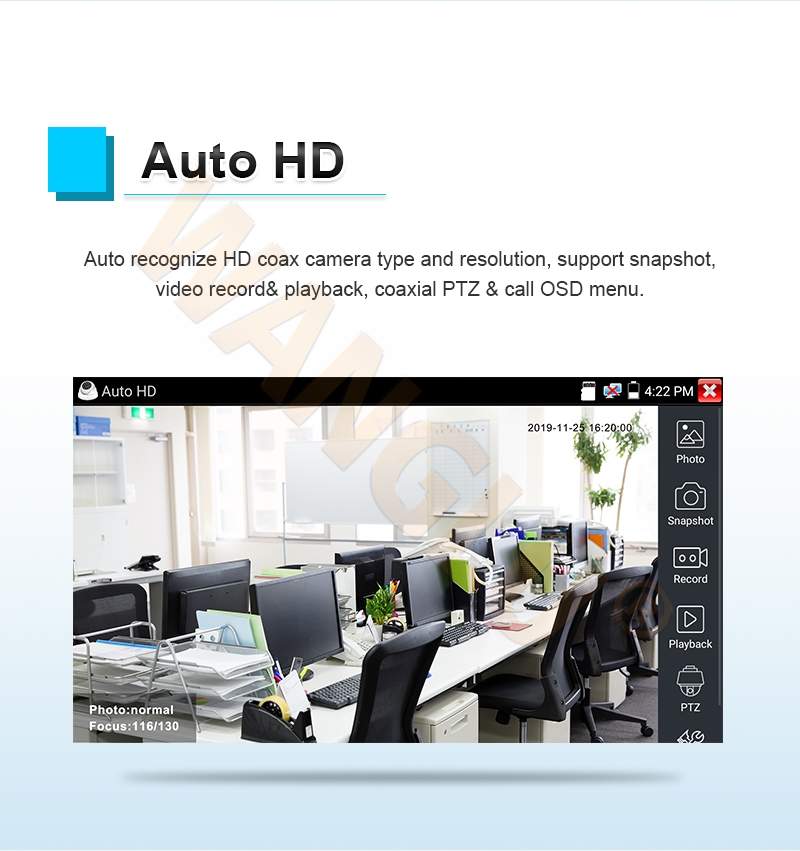

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu

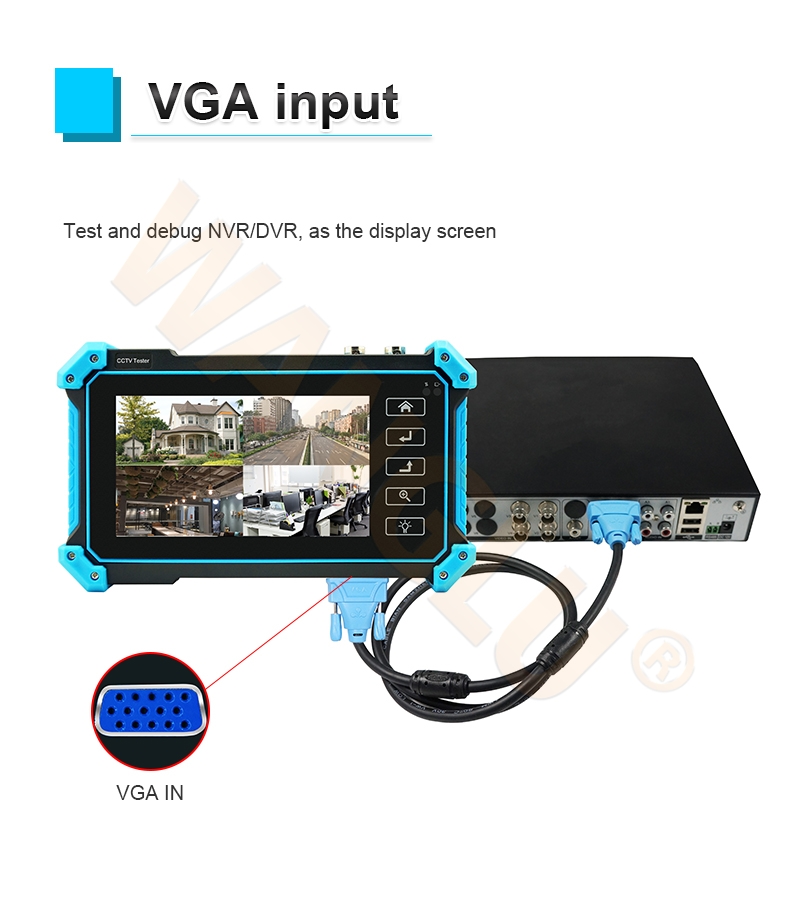

● VGA input, up to 1920 x 1200 60FPS, support snapshot, video record & playback*

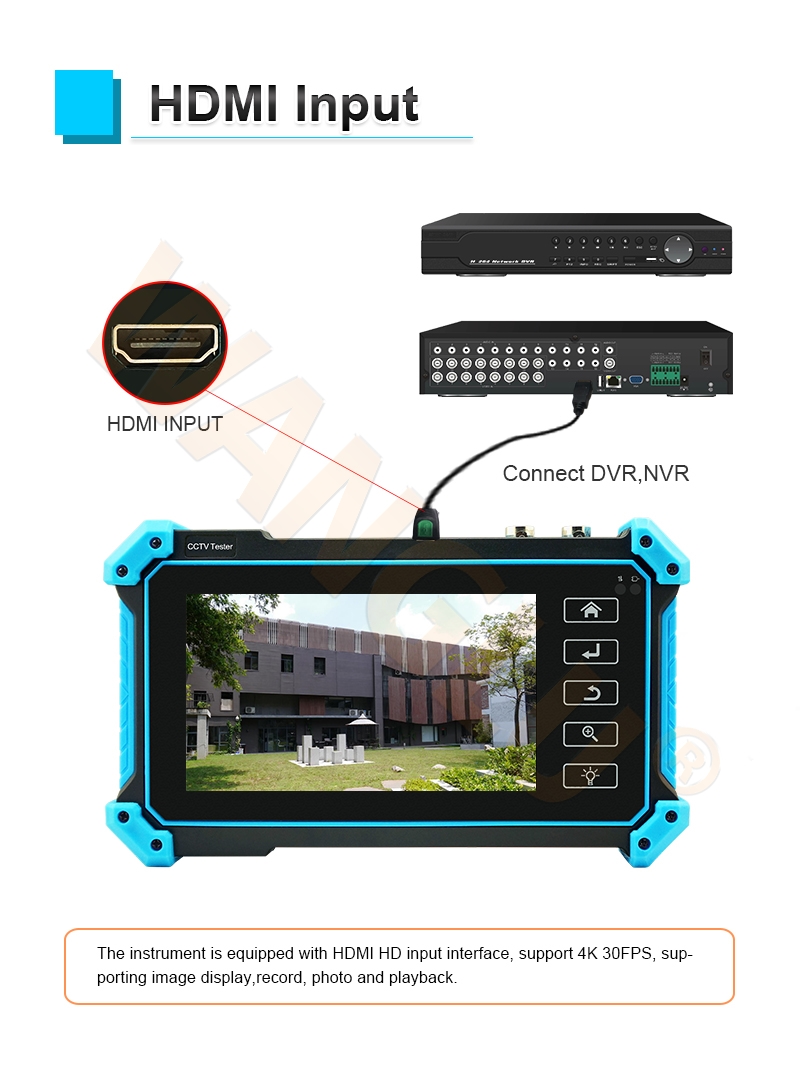

● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback*

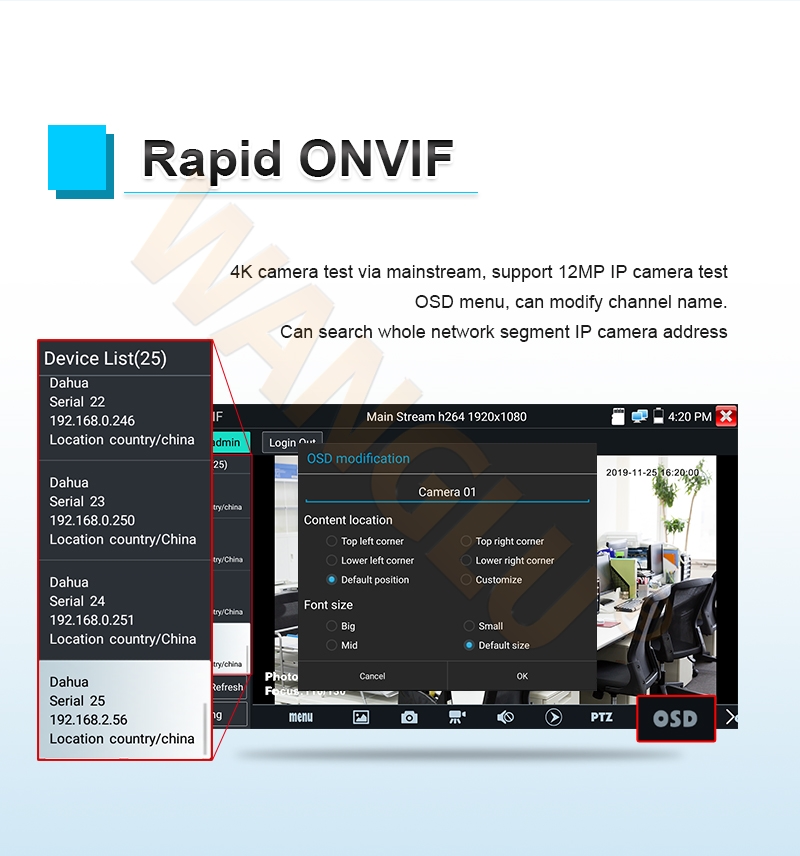

● Rapid ONVIF, Auto log in and display image, create testing report

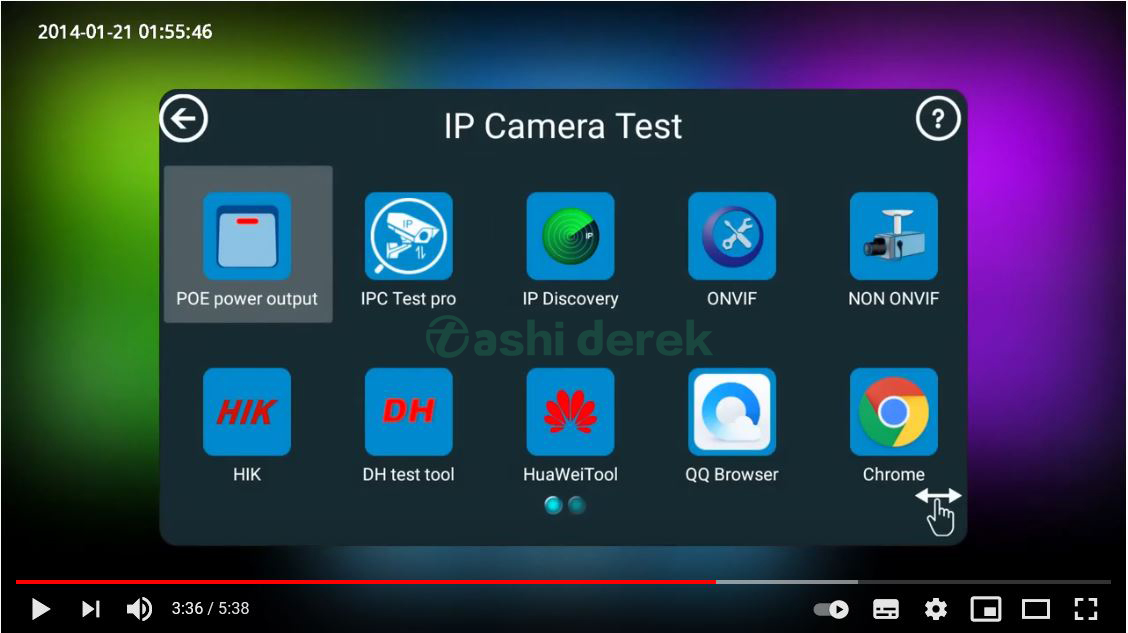

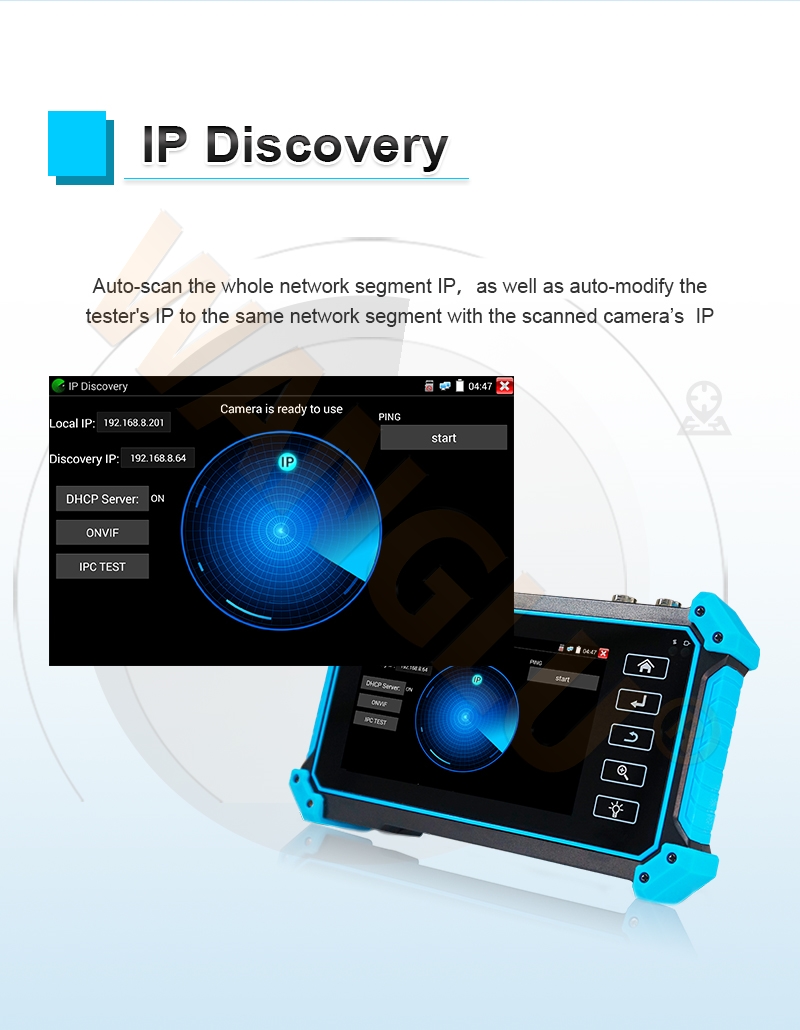

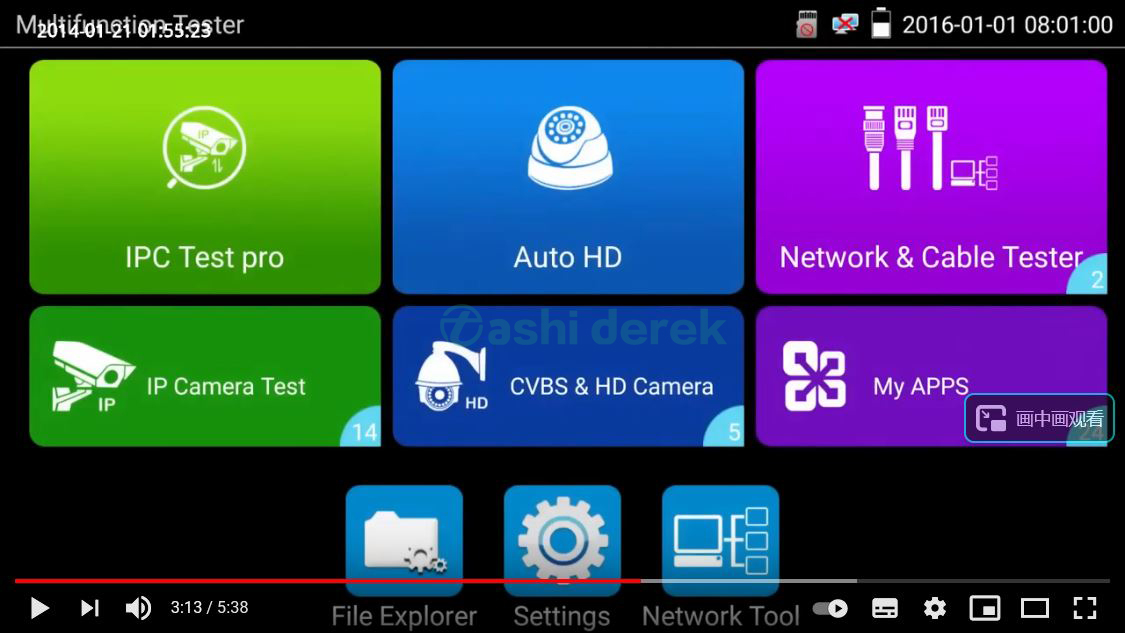

● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate cameras. Jump to ONVIF interface and test tools.

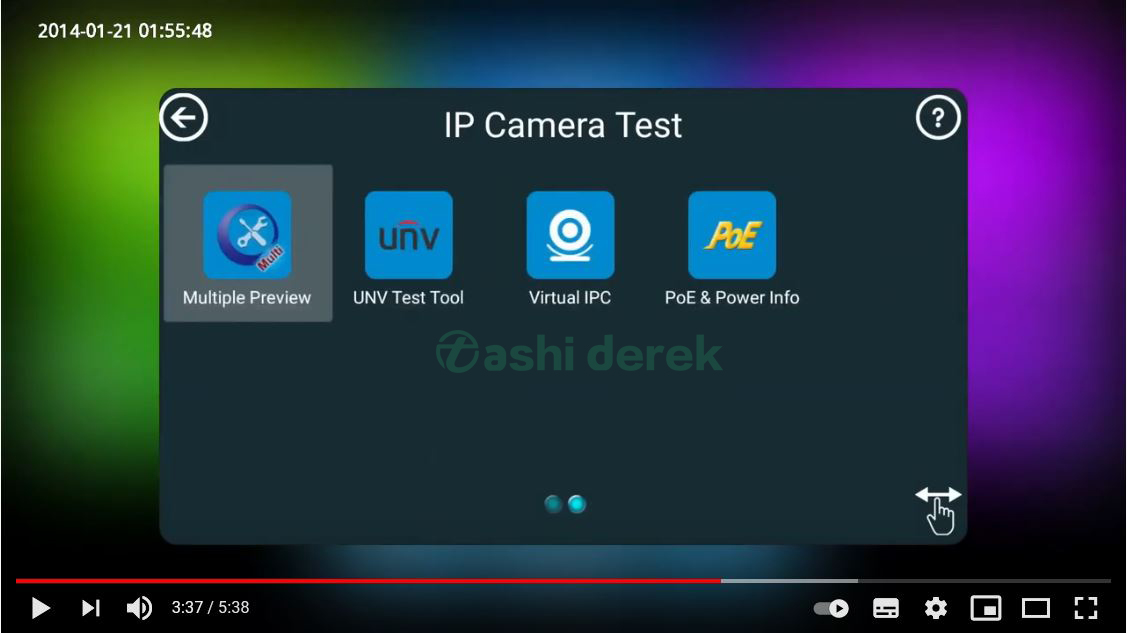

● Camera test, enter ONVIF app, input username and password to test

● IP and analog display image at the same time

● IPC TEST (Non-ONVIF test)

● DC12V/3A power output, camera can be powered from DC 12 Voltage

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

Cable test:

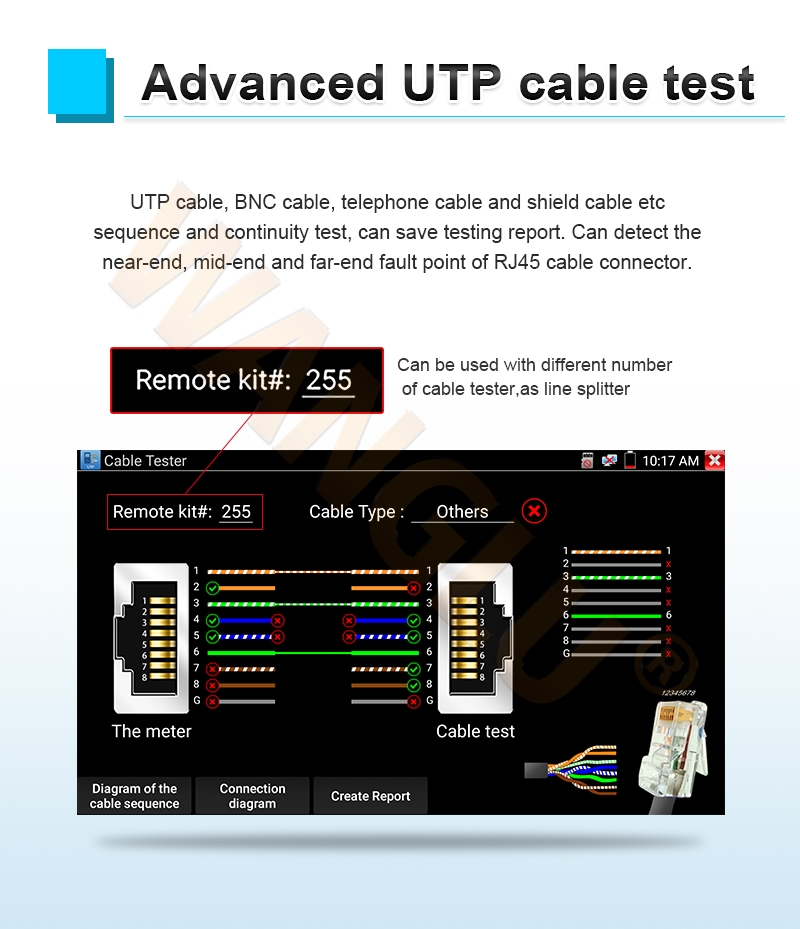

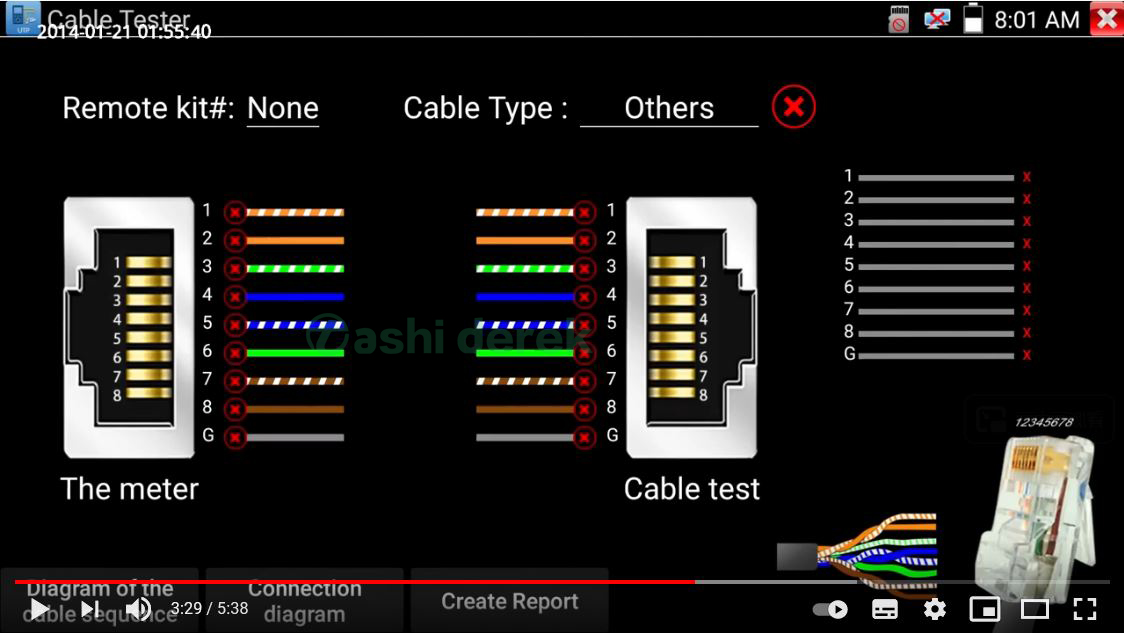

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

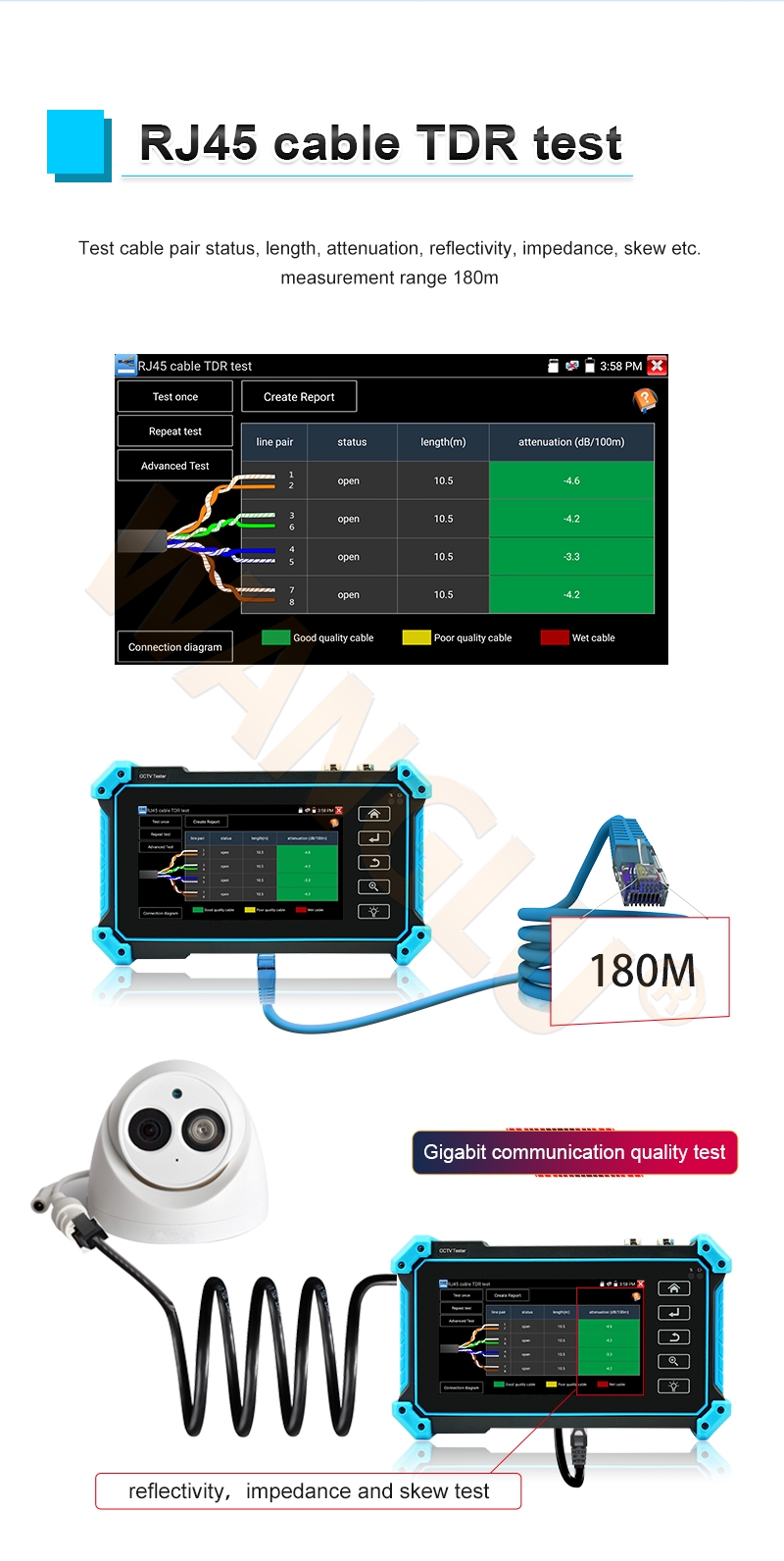

● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report

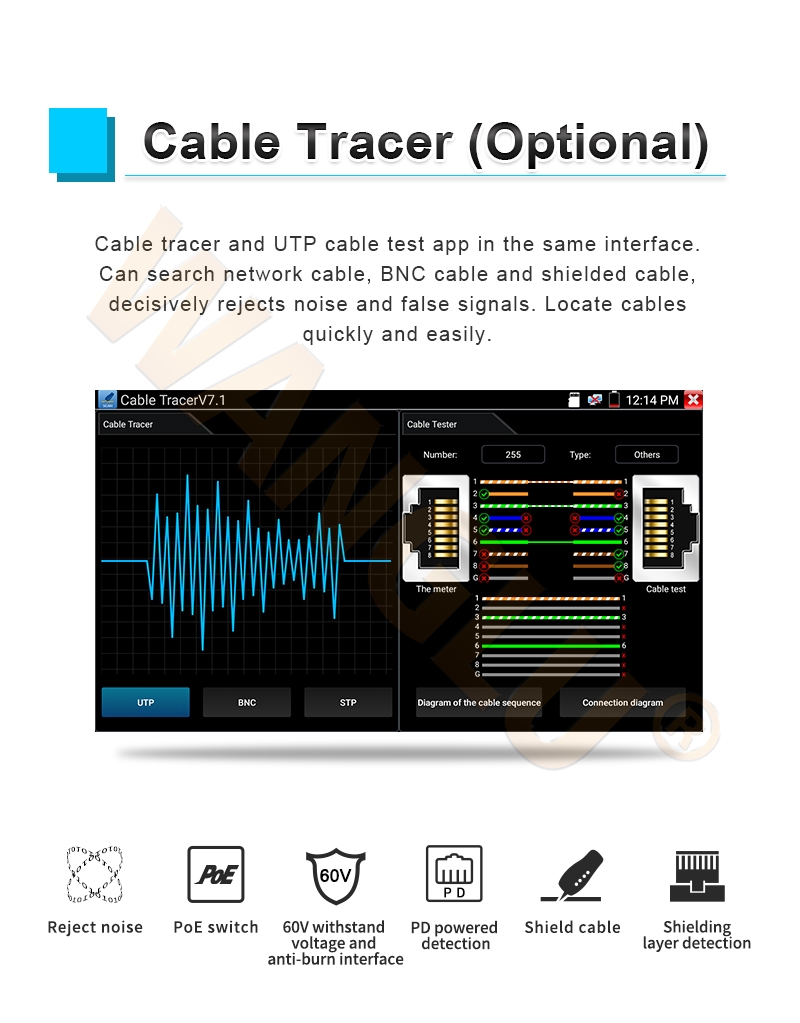

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time * (Optional function ,if you require add it ,please contact us )

Other Functions:

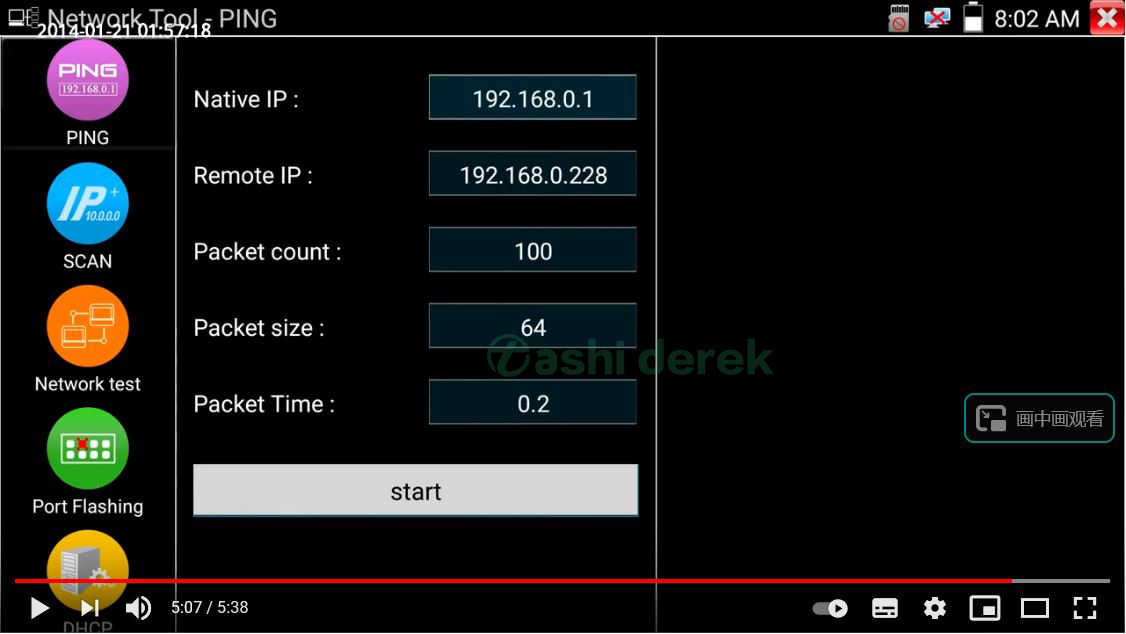

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

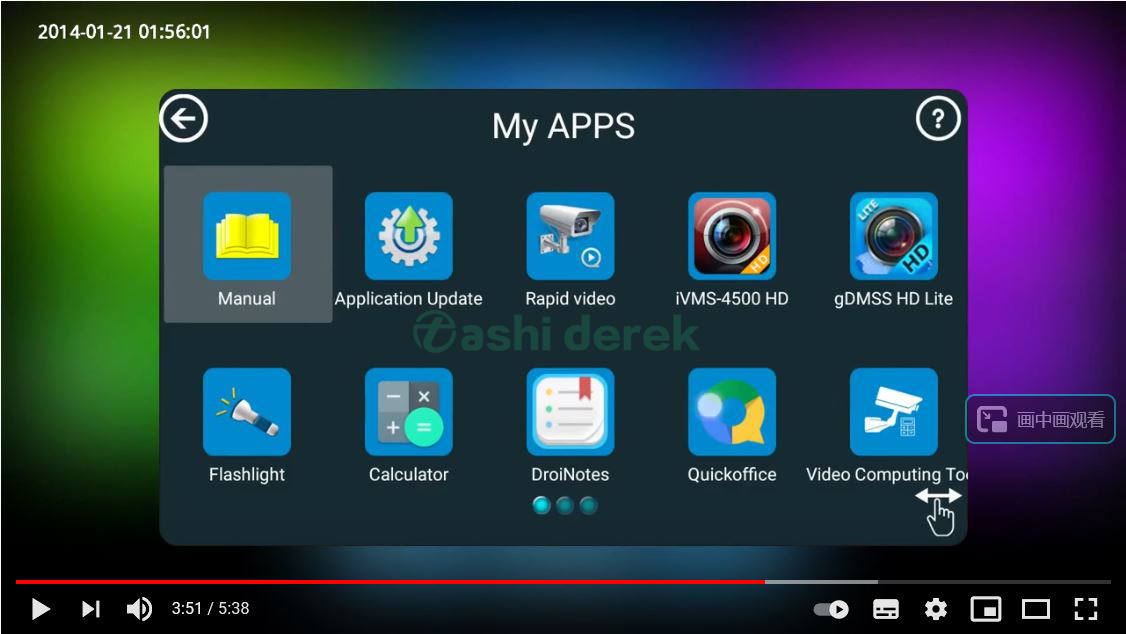

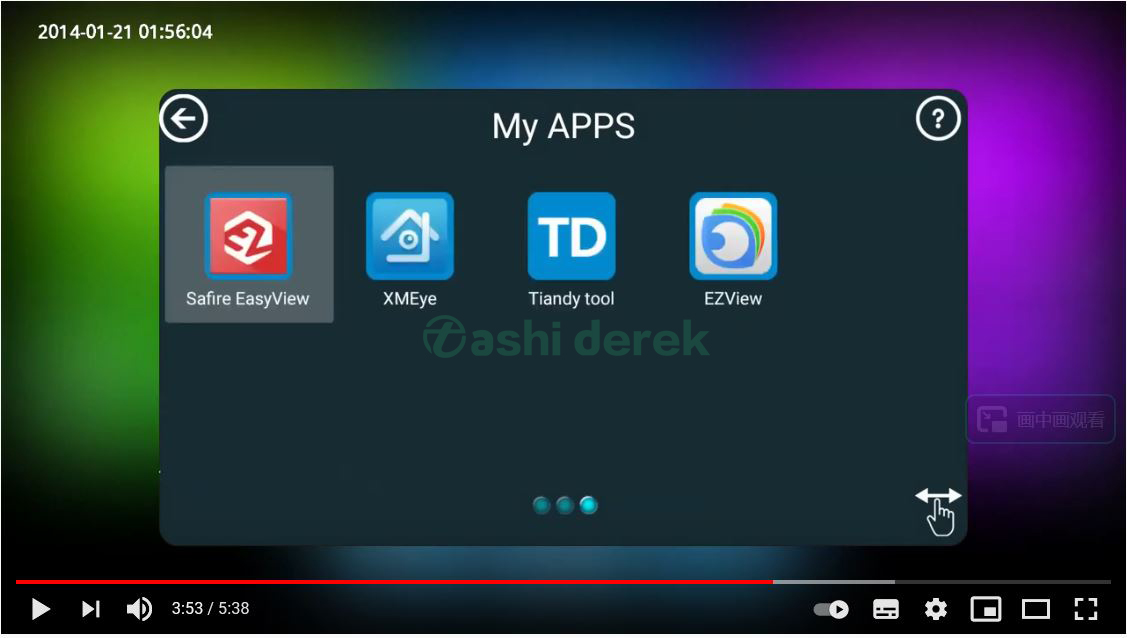

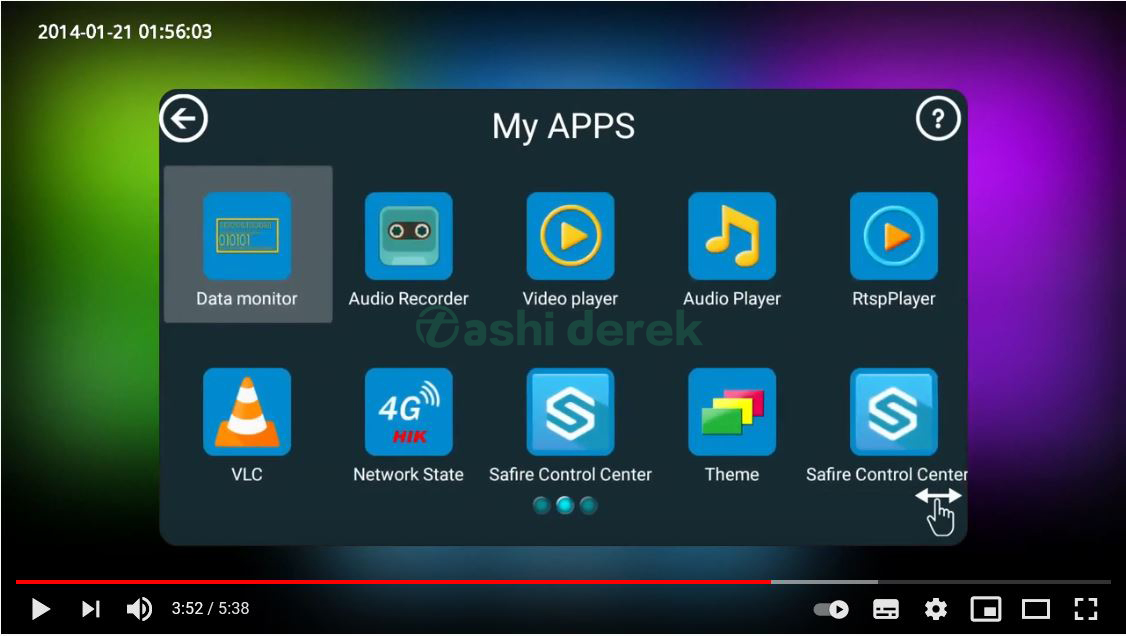

● Customers self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /3350mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 6 hours (For IPC-5100 plus and IPC-5200 Plus)















  • Sensor Type: CCTV Monitor
  • Model Number: IPC5000-JY
  • Maximum IR Distance(m): CCTV Monitor
  • Sensor Size: CCTV Monitor
  • Lens: CCTV Monitor
  • Brand Name: POMIACAM
  • Origin: Mainland China
  • Certification: CE
  • Maximum IR Distance(m): CCTV Tester Monitor
  • Lens: Security Camera Tester
  • Sensor Size: IP Camera Tester
  • Sensor Type: CCTV Camera Tester
  • IP Camera Test: Support 4K H.265/H.264
  • CVI TVI AHD EX-SDI Camera Test: Support 8MP
  • Analog Camera Test: Support
  • HDMI Input: Support 4K 30FPS
  • UTP cable test: Support
  • PoE power output: Support
  • Android System: Support
  • RJ45 TDR Cable Test: Support
  • Digital Cable Tracer: Support
  • model: IPC5200C

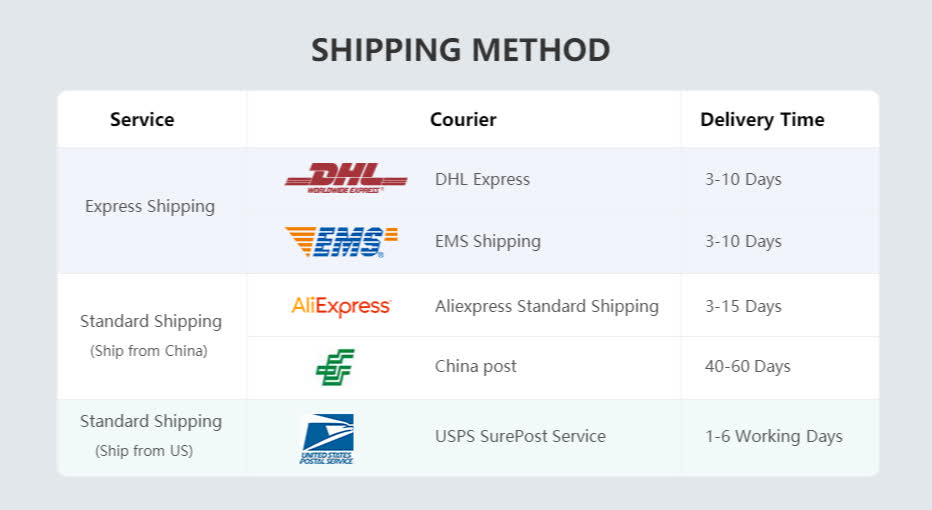

SHIPPING AND DELIVERY
