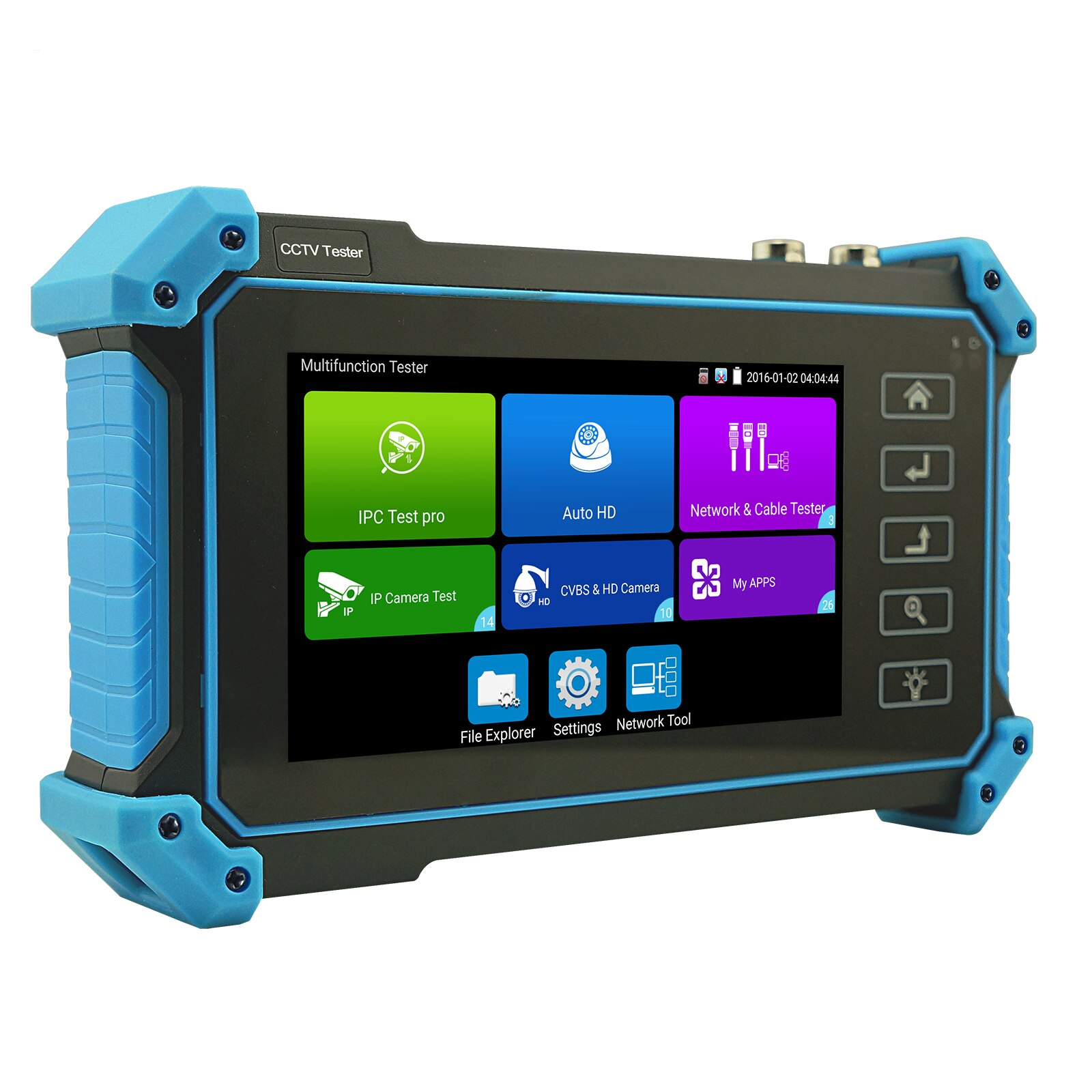

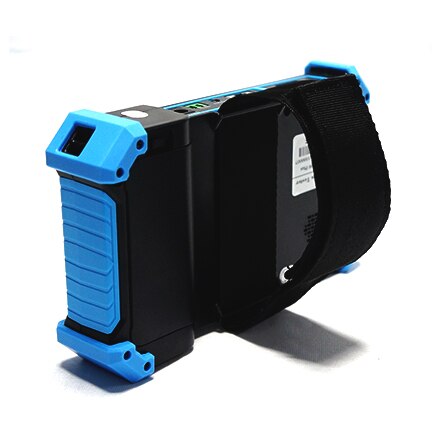

IPC-5200 Plus Full HD 8MP Ip Cvi Tvi Ahd Cvbs Monitor Camera IP Discovery 5inch IPS Touch Screen PTZ Control CCTV Tester WANGLU

4.9 (10 votes) | 18 orders
Price: US $502.40 - 571.21 / piece
Discount Price:
US $ 427.03 - 485.53 / piece
-15%
Ships From
Color
Quantity

Please click the coupon code to place an order: X0N6PXWJE34F
Monitor Tester IPC5000 HDMI/VGA Input Rapid Video Support UTP and PTZ Network Tool 5inch CCTV Tester for CVI TVI AHD IP Camera



language support:

English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech

Model: IPC-5000 Plus series

IPC-5000 Plus support 8MPAHD TVI CVI with battery ( digital cable tracer optional )

IPC-5100 Plus support 8MPAHD TVI CVI with battery ( digital cable tracer optional ) +HDMI in, VGA in

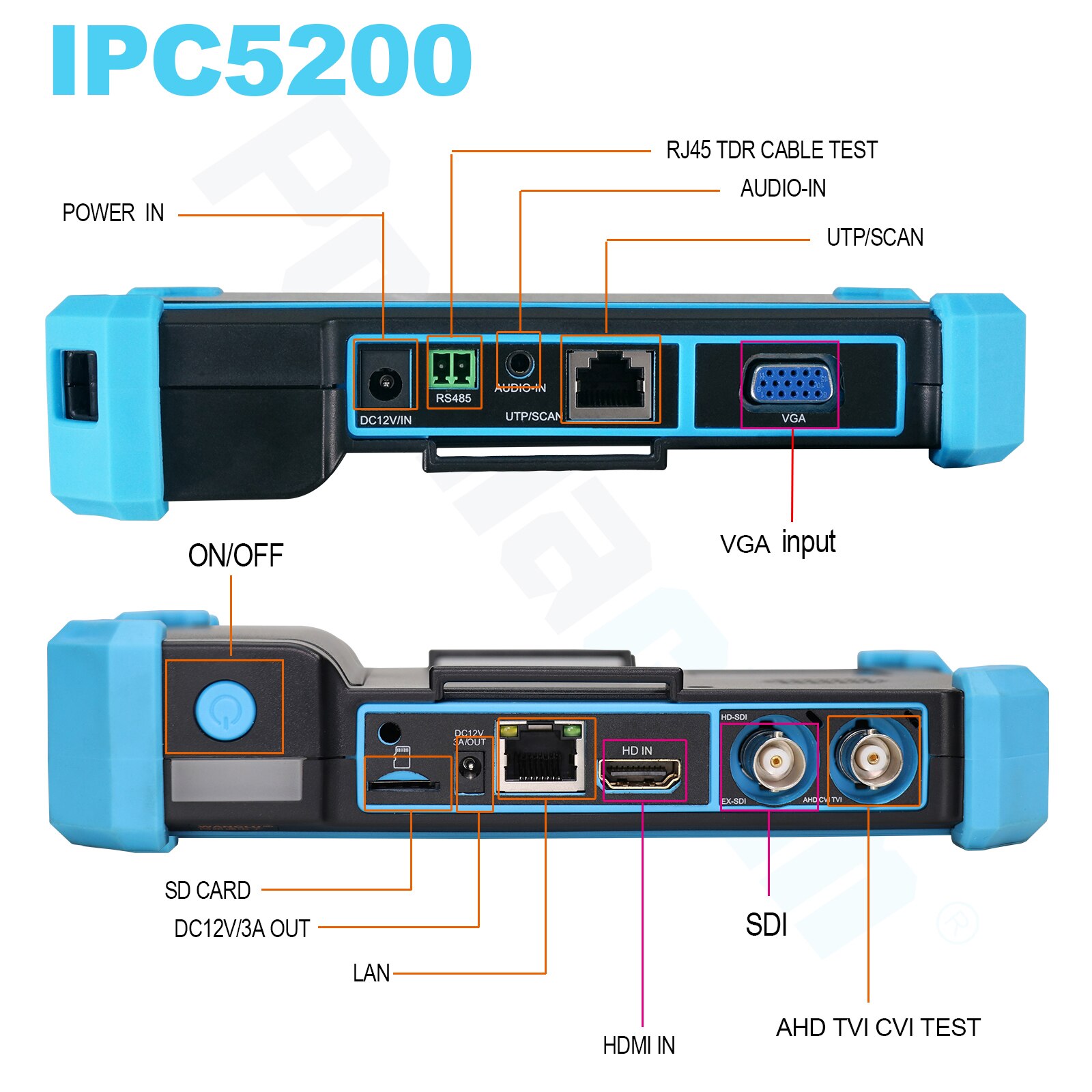

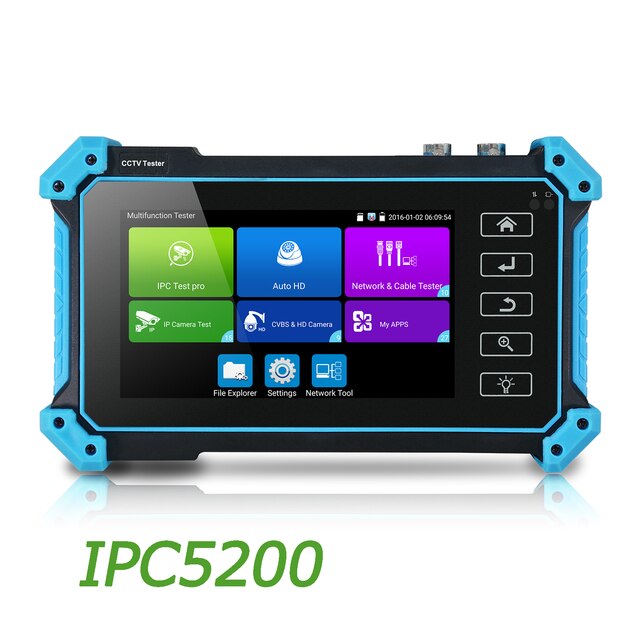

IPC-5200 Plus support 8MPAHD TVI CVI with battery ( digital cable tracer optional ) +SDI , HDMI in , VGA in



● 5 inch IPS touch screen, 1920x1080 resolution

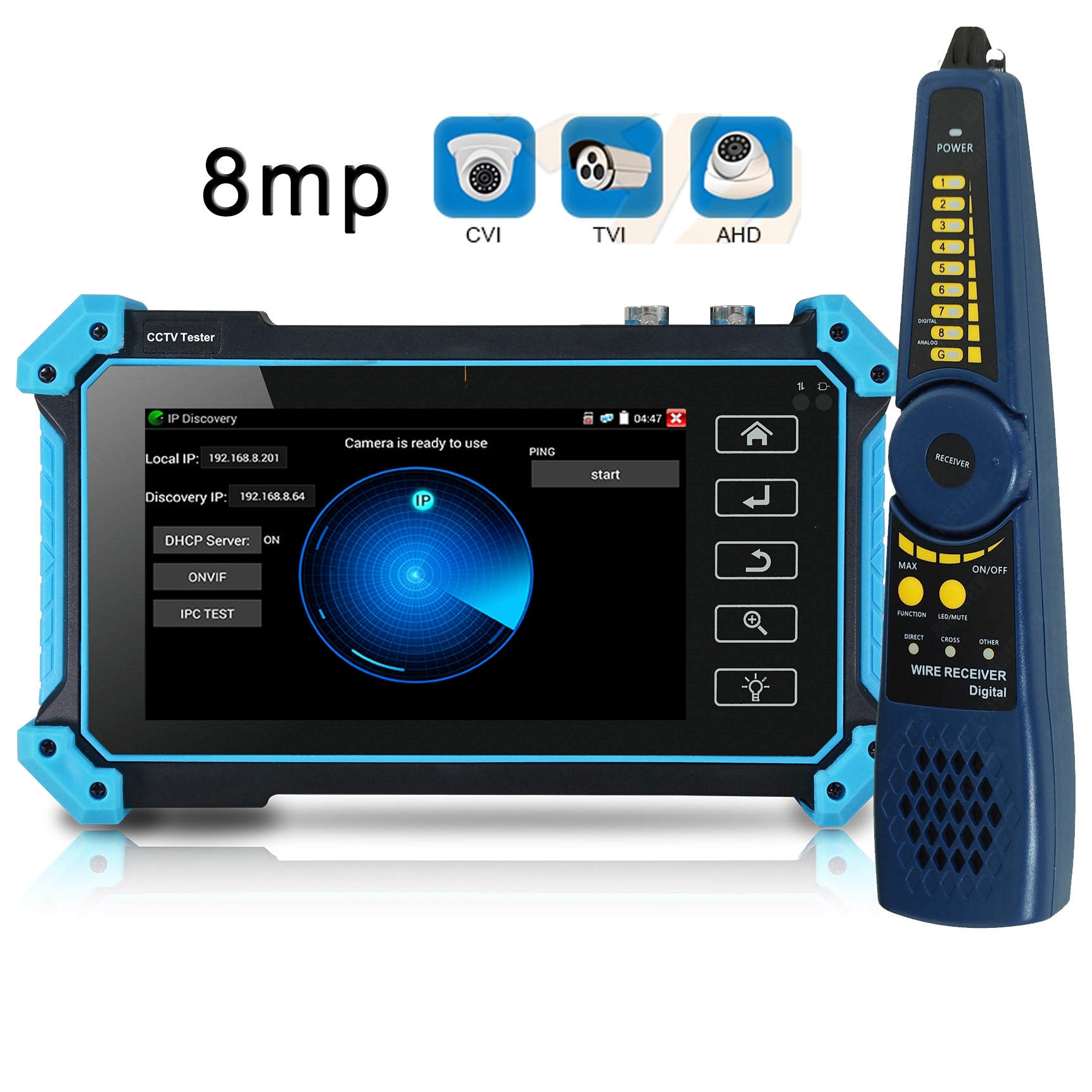

● 8MP CVI/ TVI/ AHD camera test



● 8MP EX-SDI, HD-SDI, 3G-SDI camera test



● Chrome browser, test and set Axis camera



● H.265/H.264, 4K video display via mainstream



● VGA input, support 1920 x 1200 60FPS



● HDMI input, support 4K 30FPS



● Rapid ONVIF, auto view video and create test report



● DC12V 3A, 48V PoE power output



● Auto HD, auto recognize HD coax camera type and resolution



● RJ45 TDR cable test, cable opens ,shorts and length test ,Max180m.



● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug



Camera test:




● 5 inch IPS touch screen, 1920*1080 resolution



● H.265 & H .264 IP, 4K video display via mainstream



● Analog camera test, PTZ controller



● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu



● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu



● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu



● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu



● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu



● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu



● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu



● VGA input, up to 1920 x 1200 60FPS, support snapshot, video record & playback*



● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback;HDMI output*



● Rapid ONVIF, Auto log in and display image, create testing report



●  AXIS, Hikvision camera test, enter ONVIF app, input username and password to test



● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate cameras. Jump to ONVIF interface and test tools.



●  CVBS camera test and PTZ control



● Camera test, enter ONVIF app, input username and password to test



● IP and analog display image at the same time



●IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)



●  48V PoE power output power



● DC12V/3A power output, camera can be powered from DC 12 Voltage



● Rapid video, just by one key to detect all network cameras and auto display



● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot,wifi rate 150M,only support 2.4G



●  CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable



●  Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator



Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report

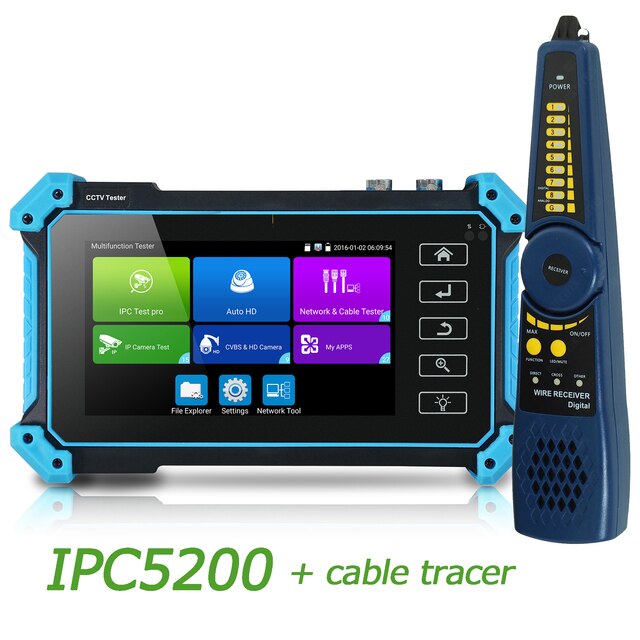

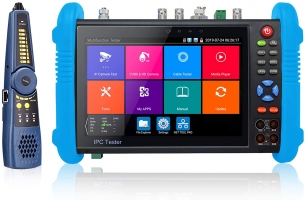

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time * (Optional function ,if you require add it ,please contact us )

Other Functions:



● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route



● Tester Play: Tester, android version mobile phone and PC display at the same time



●Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters



● Customers self-update software, you can install apps with android version



● Media player, 4K video files and MKV/MP4 media files play.Does not support USB, U disk read.



● Display its genuine resolution of the IP camera images



●POE & power information, DC12V& PoE power and voltage output /input measurement



● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools



●  Self -update software, you can install apps with android version



● 7.4 V/2600mAh Lithium lon Battery, after 3-4 hours charging ,working time lasts 5 hours(For IPC-5000 plus)

7.4 V /3350mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 6 hours (For IPC-5100 plus and IPC-5200 Plus)



APP including:

  1. IP Camera Test

*POE power output   *IPC test pro   *IP discovery   *ONVIF   *NON ONVIF

*Hikivison    *DH test tool     *Huawei Tool    *QQ Browser    *Chrome

*Mutiple preview    *UNV test tool    *Virtual PC    *POE & Power information

  1. CVBS & HD camera

*Auto HD    *HD CVBS    *CVI     *AHD    *TVI

  1. MY APPS

*Manual     *Application update     *Rapid video     *IVMS-4500 HD

*gDMSS HD Lite     *Flash light     *Calculator     *Droinotes     *Quickoffice

*video computing tool     *Data monitor    *Audio recorder     *Video player

*Audio player     *Rtspplayer   *VLC    *Network State    *Safire control Center     *Theme     *Safire control center     *Safire Easyview     *XMEye     *Tiandy tool

*EZView





Item chart

               Features/ Model

IPC-5000Plus

IPC-5100Plus

IPC-5200Plus

8MP AHD/8MPTVI/8MPCVI

4K IP /Analog

DC12V 3A /48V PoE output

HD-SDI/3G-SDI/EX-SDI 2.0*

X

X

            HDMI output,1080P

X

X

HDMI INPUT 4K 30 FPS*

X

VGA IN*

X

Battery

   2600mAh

3350mAh

3350mAh

                 Working hours

           5 hours

            6 hours

                6 hours

Digital Cable tracer*

Optional

Optional

Optional

Advanced UTP cable test, check fault point of the RJ45 cable plug










  • Sensor Type: CCTV Monitor
  • Model Number: IPC5000-JY
  • Maximum IR Distance(m): CCTV Monitor
  • Sensor Size: CCTV Monitor
  • Lens: CCTV Monitor
  • Brand Name: POMIACAM
  • Origin: Mainland China
  • Certification: CE
  • Maximum IR Distance(m): CCTV Tester Monitor
  • Lens: Security Camera Tester
  • Sensor Size: IP Camera Tester
  • Sensor Type: CCTV Camera Tester
  • Model Number: IPC-5000 Plus
  • IP Camera Test: Support 4K H.265/H.264
  • CVI TVI AHD EX-SDI Camera Test: Support 8MP
  • Analog Camera Test: Support
  • HDMI Input: Support 4K 30FPS
  • UTP cable test: Support
  • PoE power output: Support
  • Android System: Support
  • RJ45 TDR Cable Test: Support
  • Digital Cable Tracer: Support
