X9 CCTV Tester Tools Professional 8inch H.265 4K Display 8MP TVI CVI AHD SDI CVBS IP Camera Tester Monitor ,Cable tracer
0.0 ( votes)
Price:
US $1508.04
/ piece
Discount Price:
US $
1251.68
/ piece
-17%
start

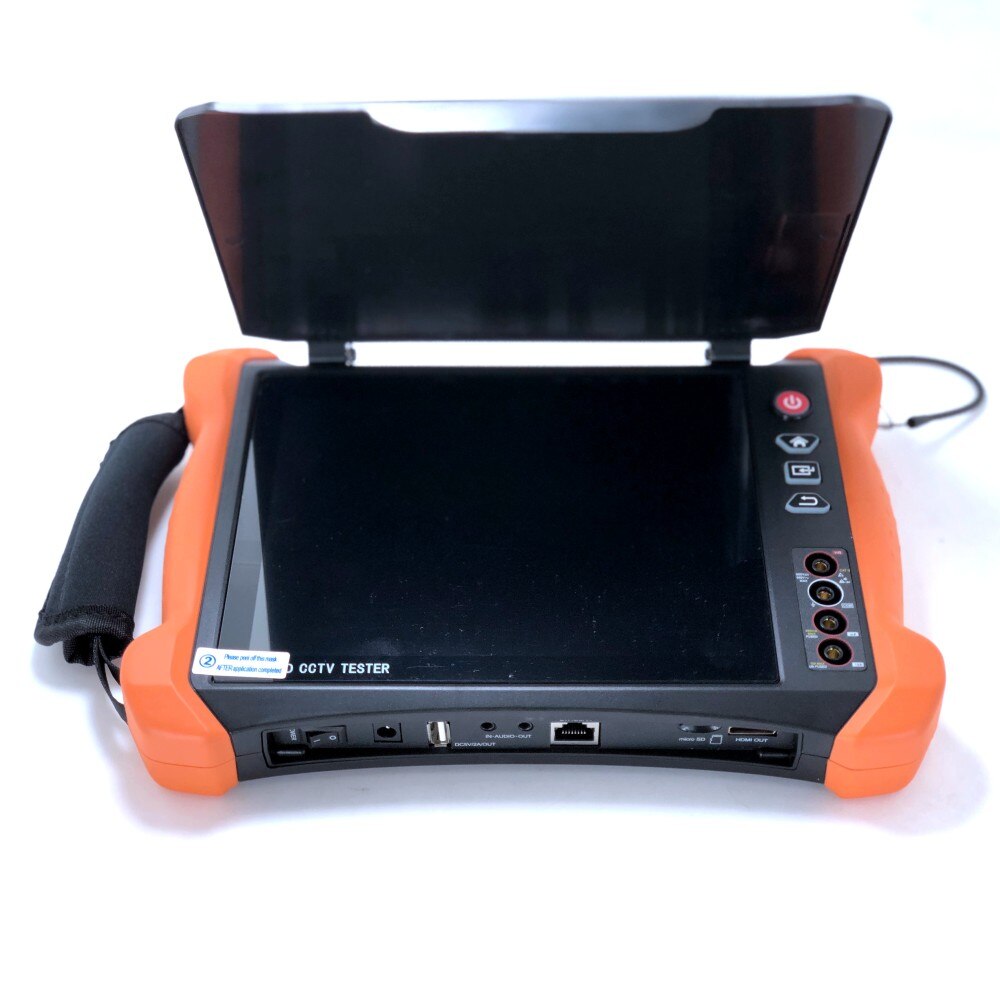

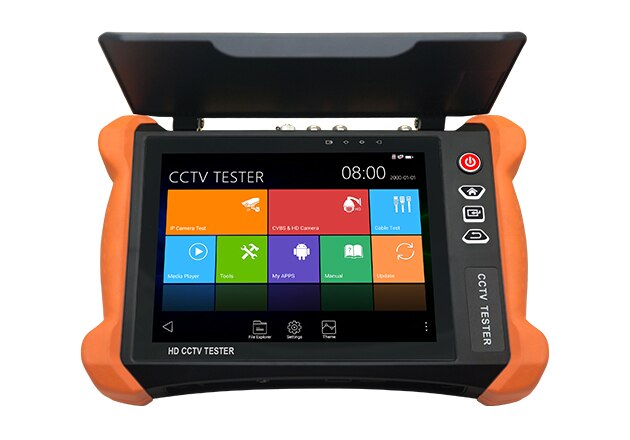

8 inch 2K Retina Display with Anti-Sunlight Cover HD CCTV Tester
Model: X9 series
● 8 inch retina touch screen, 2048*1536 resolution
● 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*
● H.265/H.264, 4K video display via mainstream
● Chrome browser, test and set Axis camera

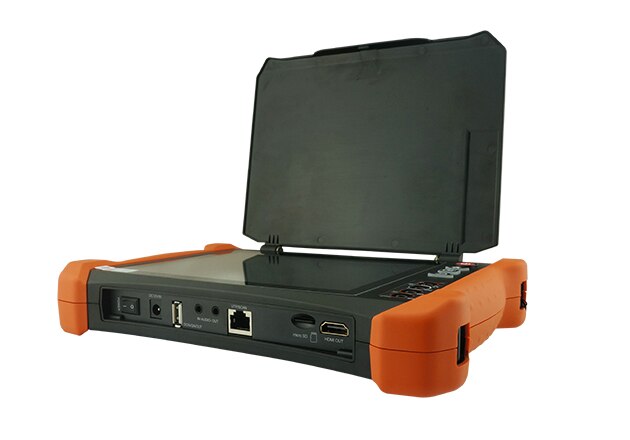

● Anti-sunlight and screen protecting cover
● HDMI input support 1080P
● HDMI output support 4K
● DC12V 3A, DC 48V PoE power output
● Rapid ONVIF, auto view video and create test report
● RJ45 cable TDR test ,UTP cable quality test
● Backlight buttons, easier to operate in the dark
● 4 channels ONVIF video simultaneous display
Camera test:
● 8 inch retina touch screen, 2048*1536 resolutions
● H.265 & H .264 IP, 4K video display via mainstream
● 8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *
● 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● 4 channel ONVIF video simultaneous display,4 channel display max support 1080P, single channel display max support 4K
● Rapid ONVIF, Auto log in and display image, create testing report
● Chrome browser, test and set Axis camera
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● CVBS camera test and PTZ control
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
● DC12V/3A power output, camera can be powered from DC 12Votage
● 48V PoE power output power
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:

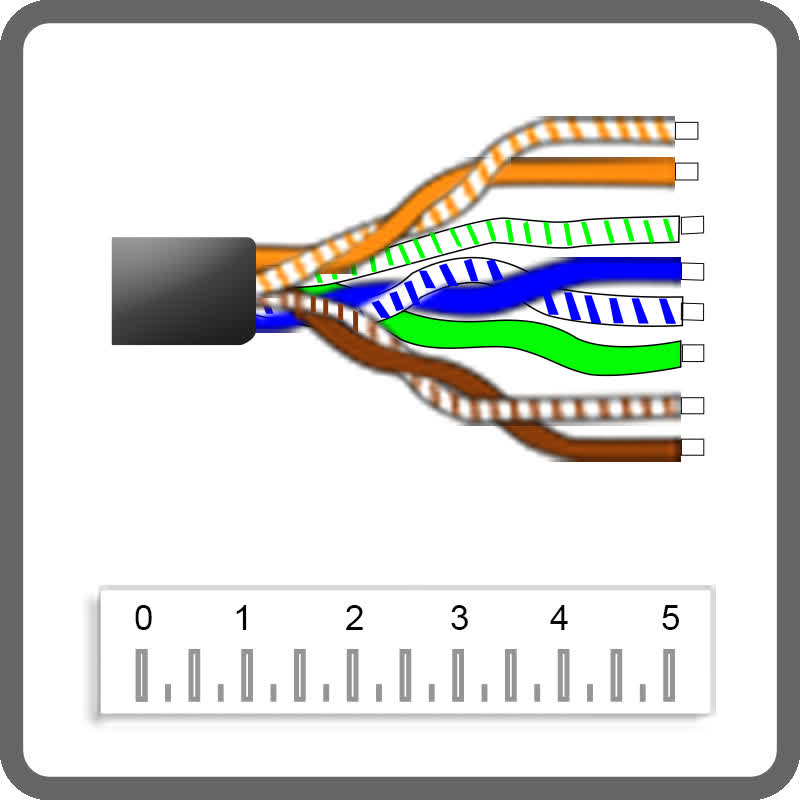

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit.
Other functions:
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● POE & power information, DC12V& PoE power and voltage output /input measurement
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
● HDMI input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Quick office, quick office app (support excel, word, ppt format) doc. editable
● 8GB SD card including
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V/ 7000mAh Lithium Ion Polymer Battery, after 6~7 hours charging , working time lasts 13 hours
|
LCD |
Item series |
X9 series |
|
|
Size & Display resolution |
New 8 inch touch screen with retina display ,2048*1536 resolution |
||
|
Video Mode |
CVBS |
1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
|
|
Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement |
|||
|
PTZ control, RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc |
|||
|
CVBS loop test |
the tester send and receive color bar generator signal, check BNC cable |
||
|
IP camera test |
IPC test /IPC viewer /Rapid Video/RTSP /ONVIF |
||
|
Rapid Video |
can create testing report |
||
|
Hik test tool |
pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters |
||
|
Dahua test tool |
Dahua camera test, modify the user name, password and IP parameters |
||
|
IP& CVBS test |
IP& CVBS test at the same time, converter test from analog to digital with dual test window |
||
|
Coaxial HD test * |
8MP TVI test,3840 x 2160P 15 FPS, UTC control&call OSD menu* |
||
|
8MP CVI test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu* |
|||
|
8MP AHD test,3840 x 2160P 15FPS, UTC control & call OSD menu* |
|||
|
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu* |
|||
|
HDMI input |
1 channel HDMI input,support1080P |
||
|
Zoom Image |
4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back |
||
|
Analog Video out |
color bar generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable |
|
|
HDMI output |
1 channel HDMI output, support 1920*1080P |
||
|
12V/3A power output |
Output DC12V/3A power out ,supply temporarily power for the camera |
||
|
Power output
|
PoE power output |
48V PoE power output, max power 25.5W |
|
|
5V/2A power output |
USB 5V 2A power output, as a power bank |
||
|
Cable test |
TDR cable test * |
BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM(Built-in cable TDR test port, only for network cable ) |
|
|
Cable tracer |
search BNC cable, network cable and telephone cable from the mess cables |
||
|
UTP cable test |
Test UTP cable connection status and display on the screen. Read the number on the screen |
||
|
RJ45 cable TDR test |
test cable pair status, length, attenuation, reflectivity, impedance, skew etc |
||
|
TesterPlay |
screen projection: tester, android version mobile phone and PC display at the same time |
||
|
Network test |
Trace route, Link monitor , DHCP server, port flashing , Ping test |
||
|
Wi-Fi |
Built in WIFI,speeds150M,display wireless camera image |
||
|
Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
||
|
Data monitor |
Captures and analyzes the command data from controlling device，also can send hexadecimal |
||
|
PoE test |
Measurement POE switch or PSE power supply voltage and cable connection status |
||
|
Drop-down menu |
You can select PoE power switch ,IP setting, WLAN switch, HDMI IN functions etc in any interface |
||
|
External power supply |
DC 12V 2A |
||
|
Battery |
Built-in 7.4V Lithium polymer battery, 7000mAh |
||
|
Rechargeable |
After charging 6-7 hours, normal working time 13 hours |
||
|
Operation setting |
OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish etc |
||
|
Auto off |
1-30 (mins) |
||
|
Working Temperature |
-10℃---+50℃ |
||
|
Working Humidity |
30%-90% |
||
|
Dimension/Weight |
264mm x 182mm x 43mm / 1Kg |
||
|
Below functions are customizable，MOQ is 50pcs (If add any below function into tester, you need pay addition cost),full model is X9-MOVTADHS |
|||
|
M* |
Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement |
||
|
O* |
Optical power meter, Wavelength：1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～+10 dBm, for optical power testing and Fiber link loss relative measurement |
||
|
V* |
Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 10KM |
||
|
T* |
TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM |
||
|
ADH* |
8MP CVI/ TVI/ AHD camera test |
||
|
ADHS* |
8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI camera test |
||
Application:
● CCTV system installation and maintenance
● Network cabling project installation and maintenance
● Dome camera, 4K H.265 IP camera testing
● Video transmission channel testing
● PTZ controller
- Plug Type: EU plug
- Sensor Type: Other
- Model Number: X9MOVTADHS
- Maximum IR Distance(m): Other
- Sensor Size: Other
- Lens: Other
- Brand Name: GEEKDEER
- Model Number: X9-MOVTADHS
- IP Camera Test: Support H.265/H.264 4K(Max)
- AHD Camera Tester: Support 8MP(Max)
- TVI CVI Camera Tester: Support 8MP(Max)
- HD&EX-SDI Camera Tester: Support 1080P 25/30FPS
- HDMI Input/output: Support 4K output /1080P input
- Cable tracer/Video level meter: Support
- RJ45 TDR Cable test: Support
- Analog CVBS Camera Tester: Support
- Digital Multimeter: Support
- TDR cable test: Support
