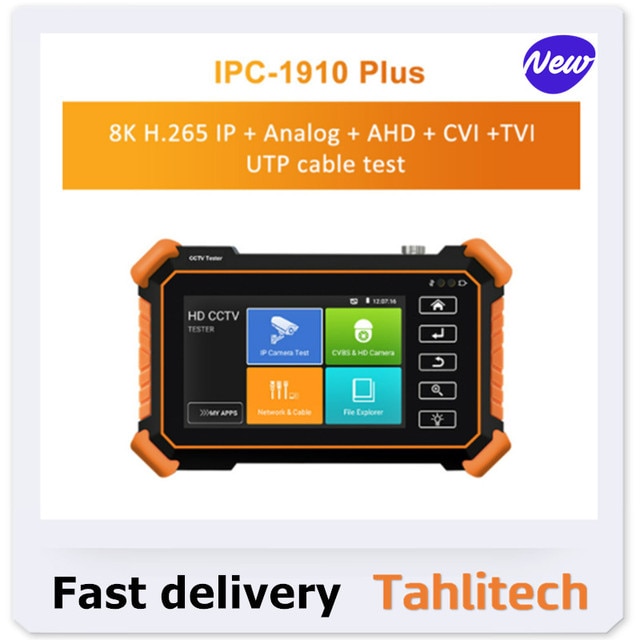

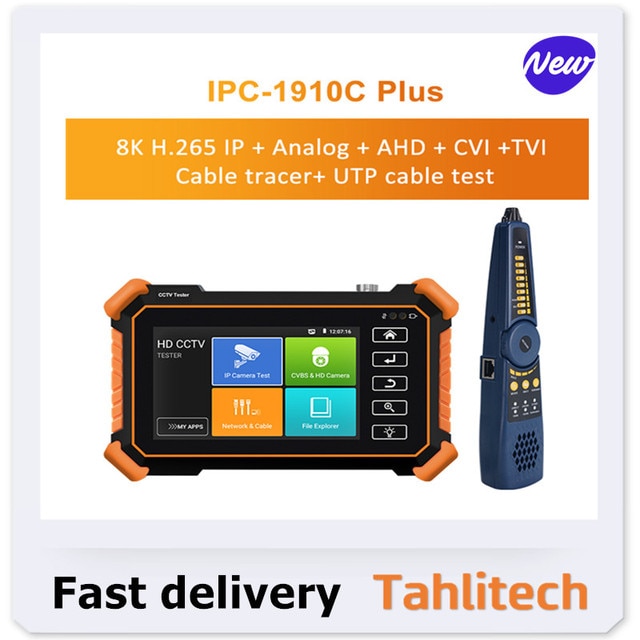

4" CCTV IPC Tester Monitor H.265 IPC1910C 8MP AHD CVI TVI Analog Camera Test RJ45 UTP Cable Tester PTZ ONVIF PoE Power Output
5.0 (1 votes) | 17 orders
Price:
US $81.36 - 614.00
/ piece
Discount Price:
US $
55.82 -
379.15
/ piece
-31%
- Ships From
- Color
-
-
Sorry! This item is out of stock
Professional tool for CCTV installational and troubleshooting:

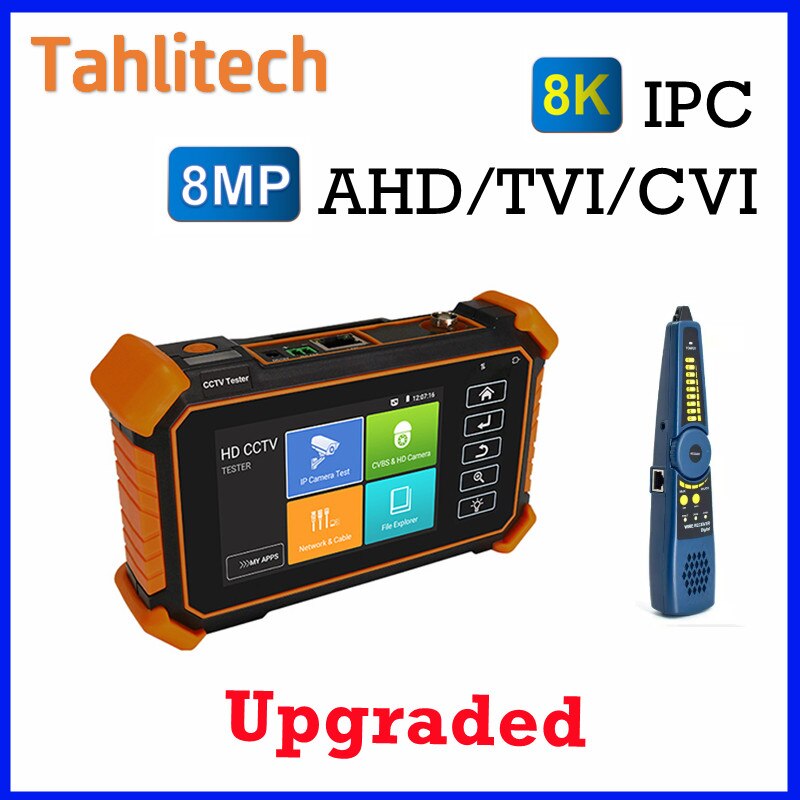

4 Inch 8K IPC CCTV Tester Monitor AHD CVI TVI CVBS Camera Testing WIFI UTP Cable Tester POE 48V
Main features:
● 4 inch IPS touch screen, 960*640 resolution

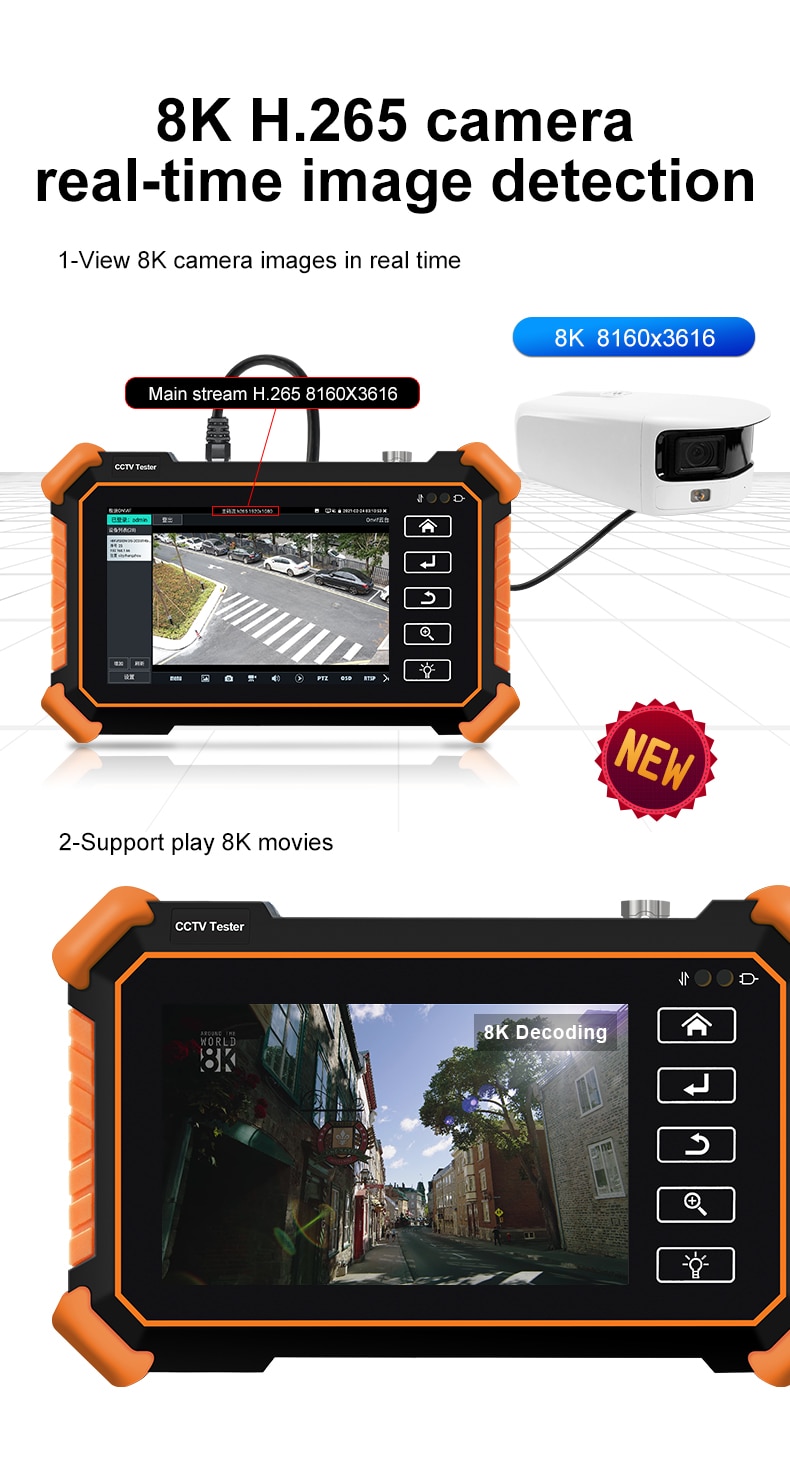

● 8K H.265 IP camera test
● H.265/H.264, 8K video display via mainstream
● 8MP TVI, 8MP CVI, 8MP AHD camera test *
● Auto HD, auto recognize HD coax camera type & resolution*
● Analog camera test and PTZ control *
● Rapid ONVIF, auto view video and create test report

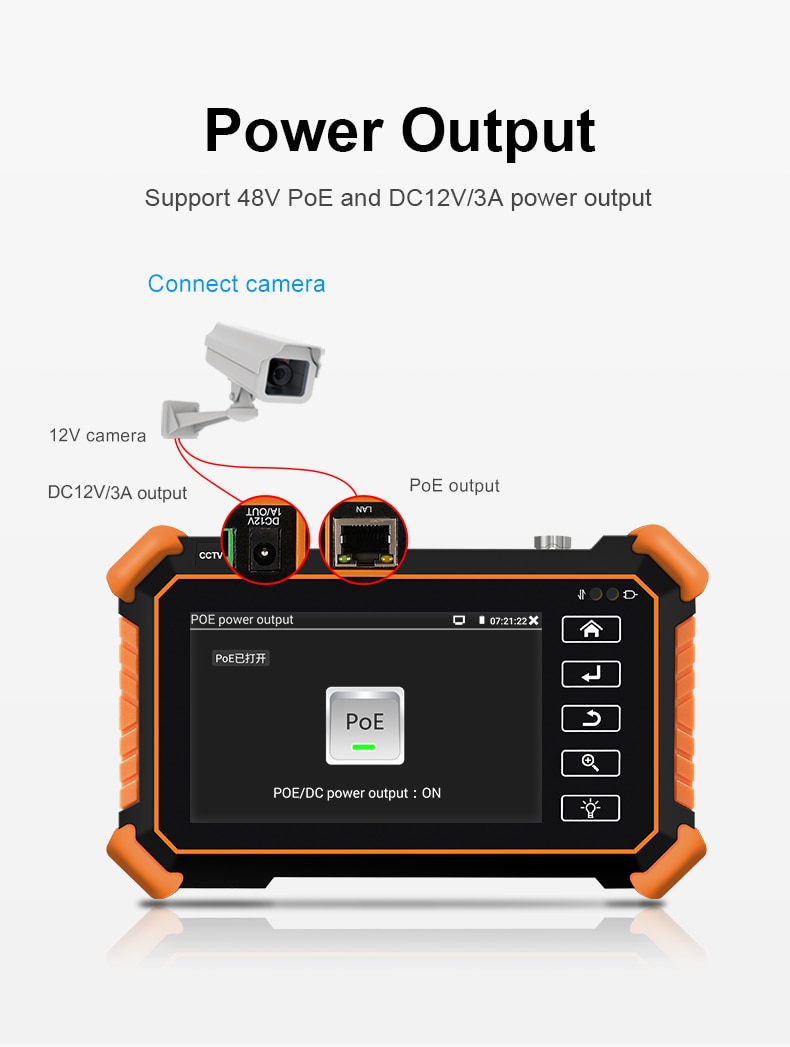

● DC12V 3A, 48V PoE 25.5W power output
● High brightness LED light
● UTP cable tester, cable sequence and continuity test
● RJ45 TDR cable test, cable quality test
Camera test:
●4 inch IPS touch screen, 960*640 resolution
● H.265 & H .264 IP, 8K video display via mainstream
● Analog camera test, PAL/NTSC auto adapt*(Optional)

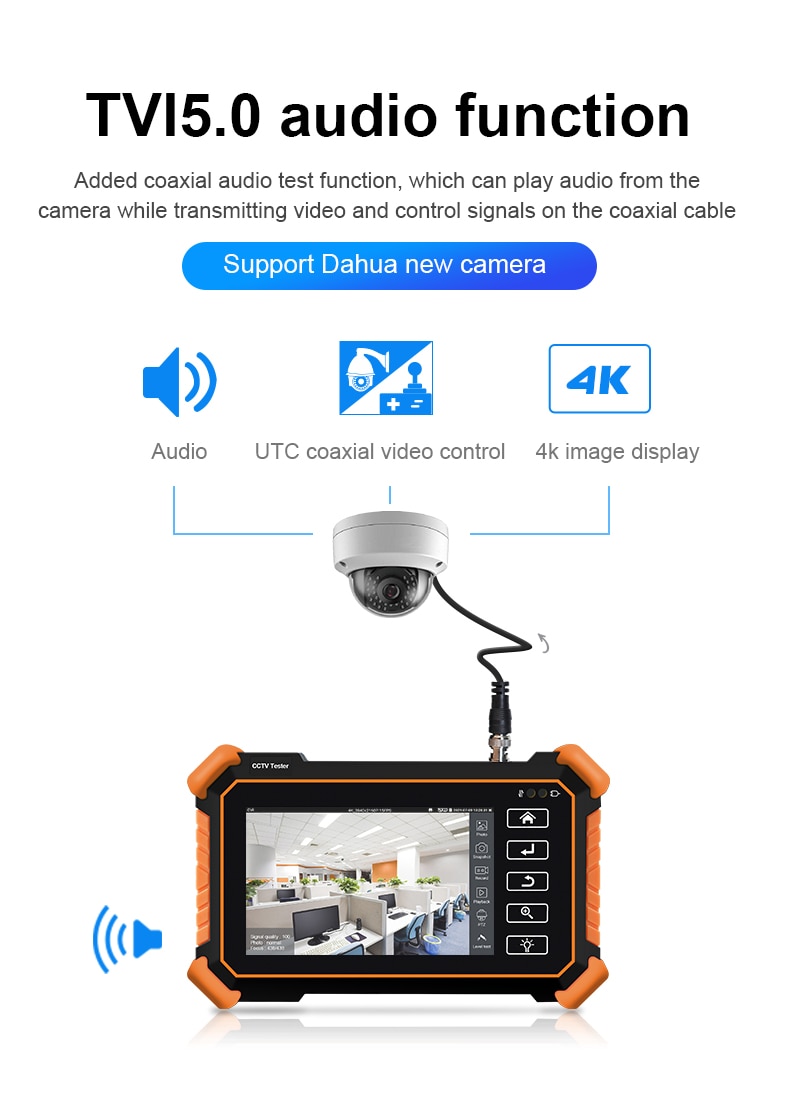

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu*(Optional)
● 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(Optional)
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(Optional)

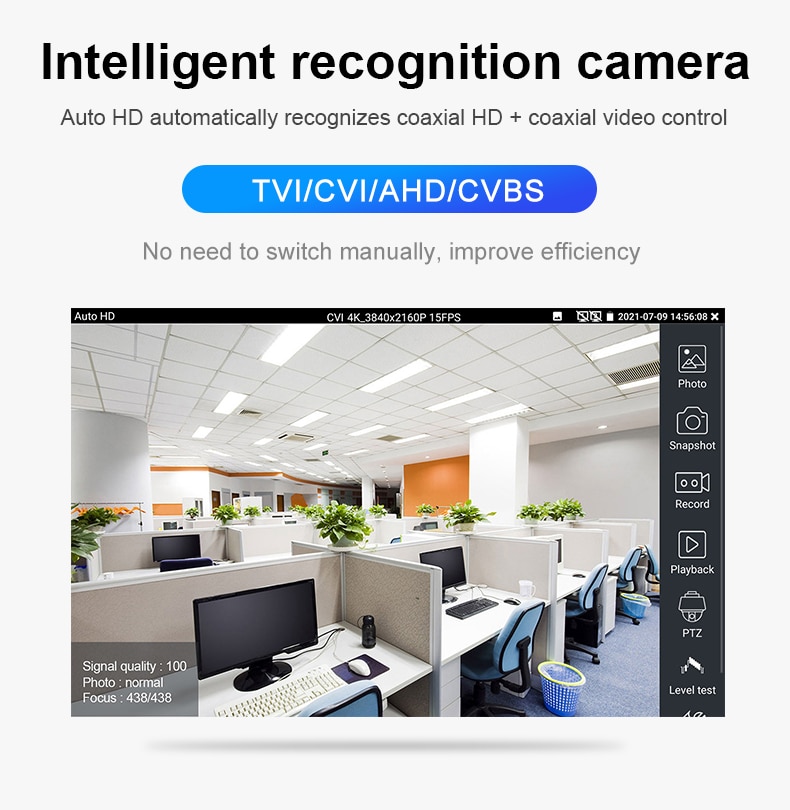

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
●Rapid ONVIF, Auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan cameraimage, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
●AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

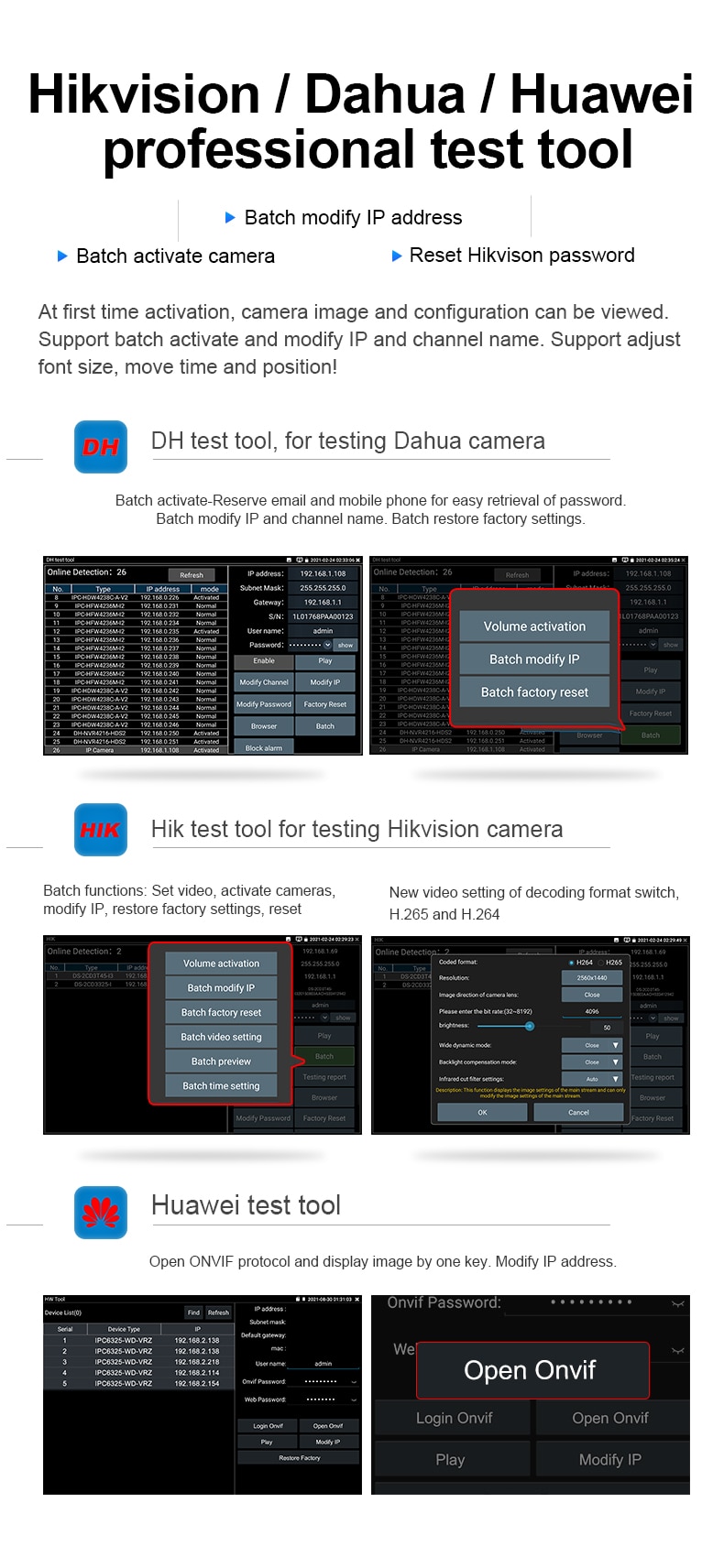

● HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name,can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. Support reset password and set video occlusion alarm of HIKVISION cameras.
● Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name.
● IP and analog display image at the same time
●IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● DC12V/3A power output, camera can be powered from DC 12 Voltage.
● Rapid video, just by one key to detect all network cameras and auto display

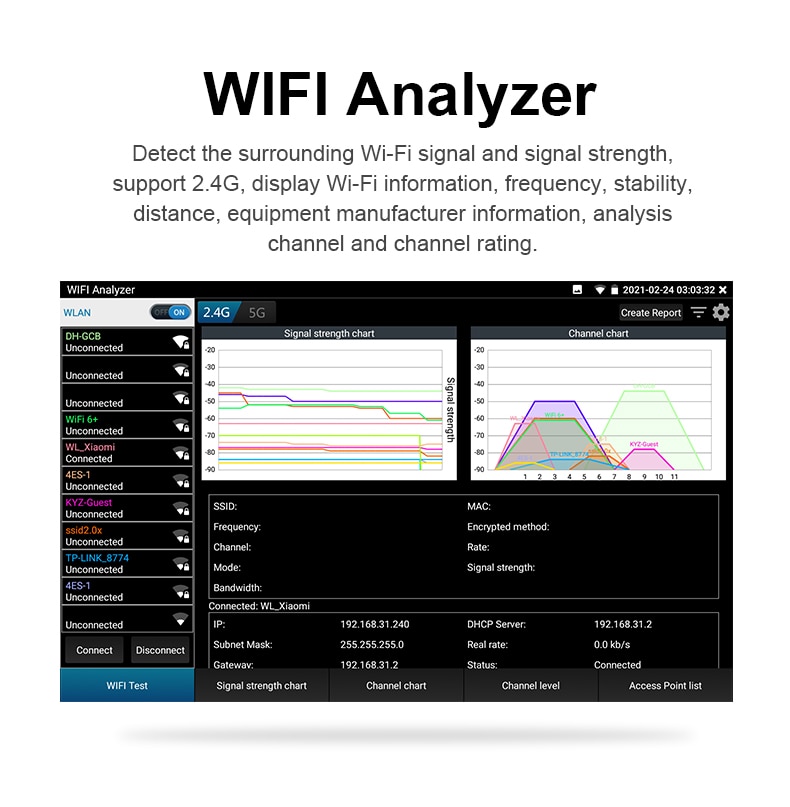

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Other Functions:

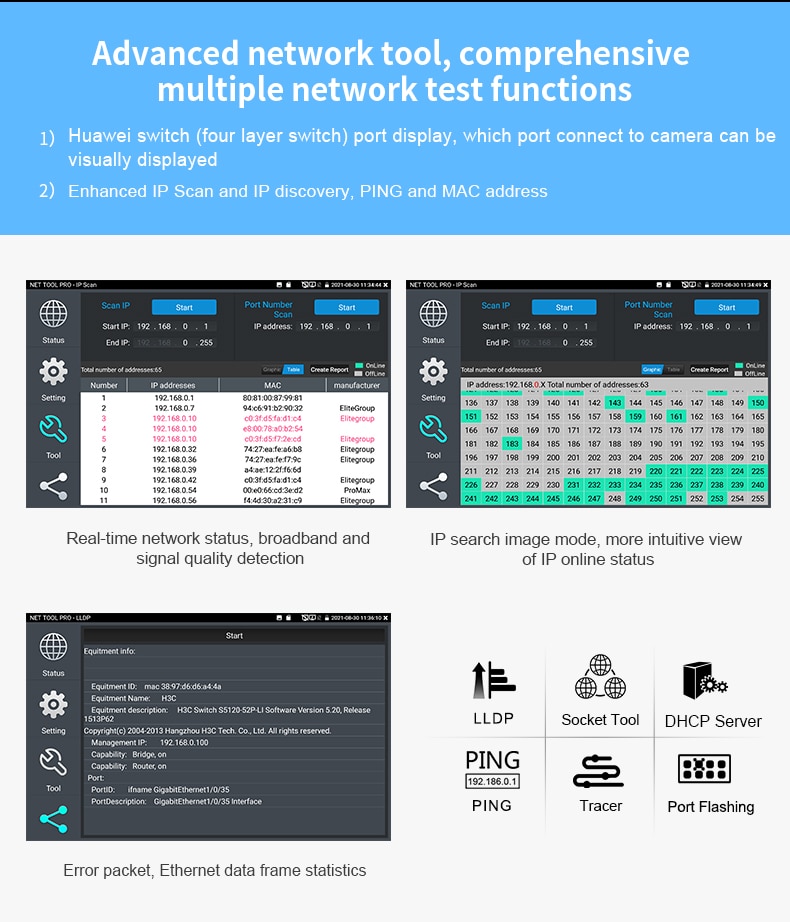

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
●TesterPlay: Tester, android version mobile phone and PC display at the same time
●Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

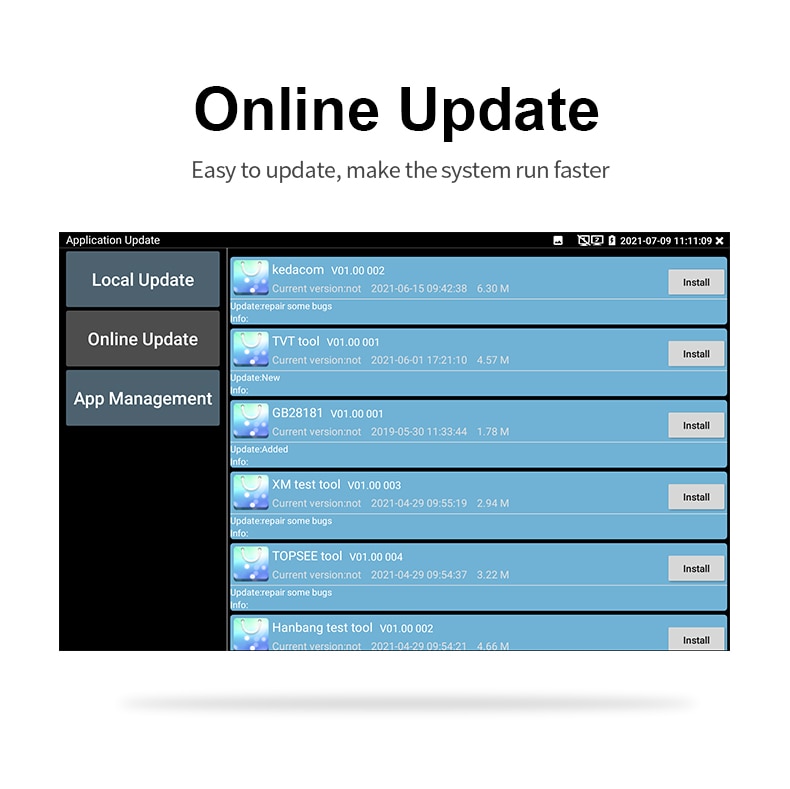

●Customers self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● SD card slot, support up to 32G, to save video, picture and other files
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
●7.4 V / 2600mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 9 hours
Application:

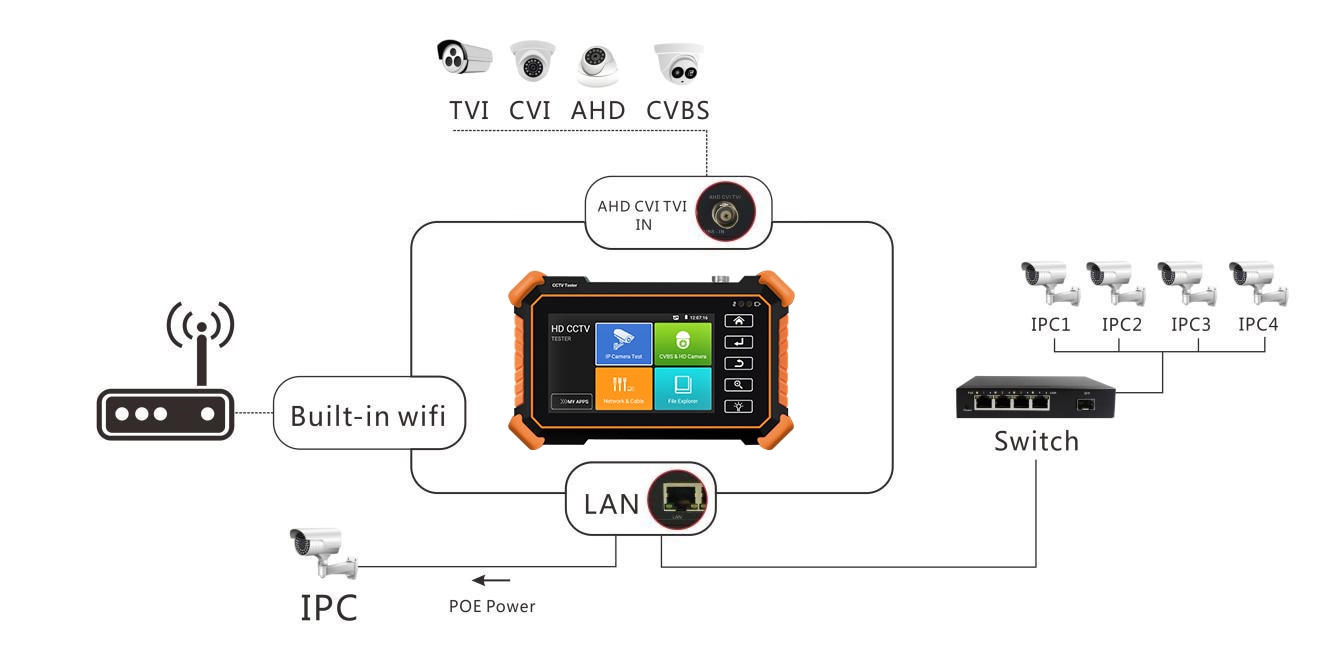

The 4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 800*480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
—CCTV system installation and maintenance
—Network cabling project installation and maintenance
—Dome camera, IP TVI CVI AHD 4K H.265 camera testing
—Video transmission channel testing
—PTZ controller

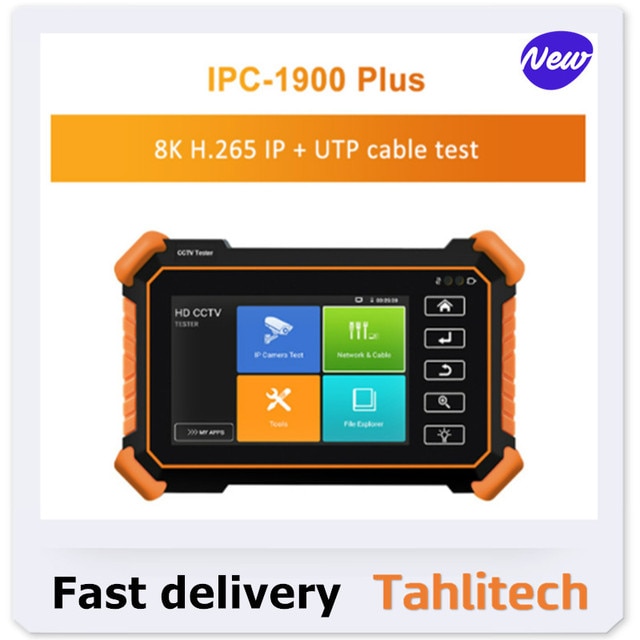

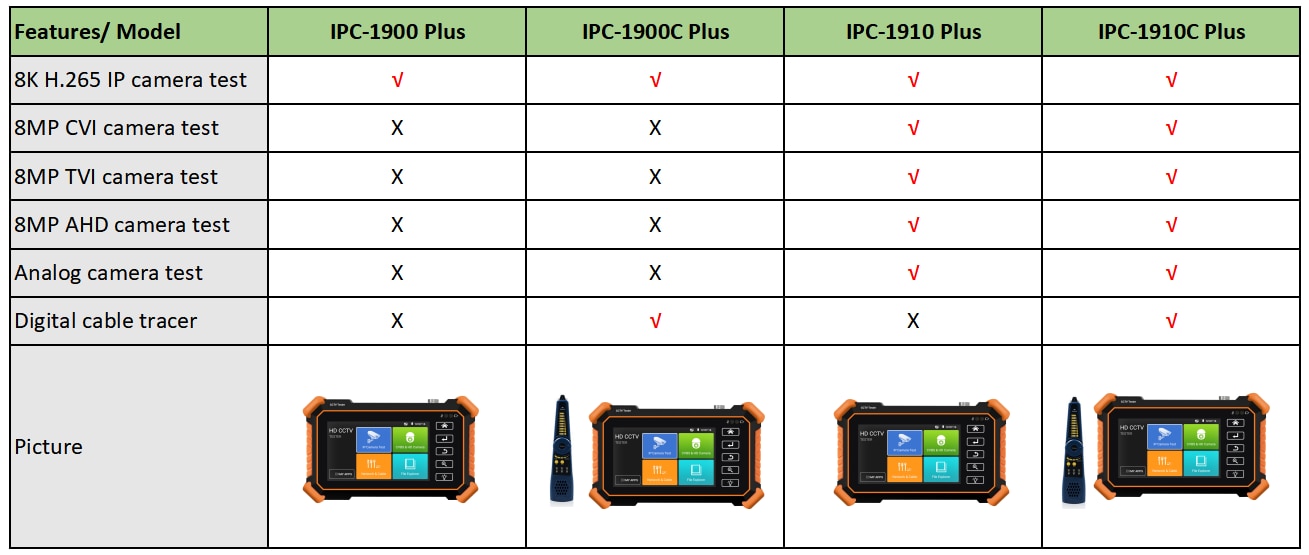

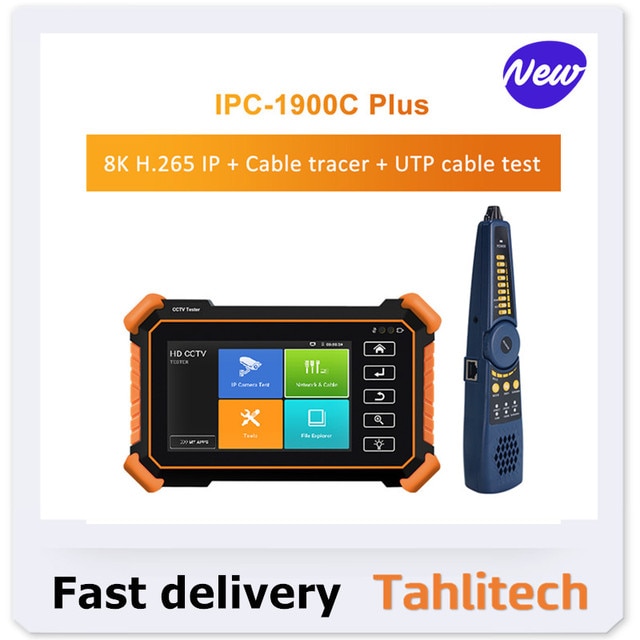

Optional Models:
Cable test:

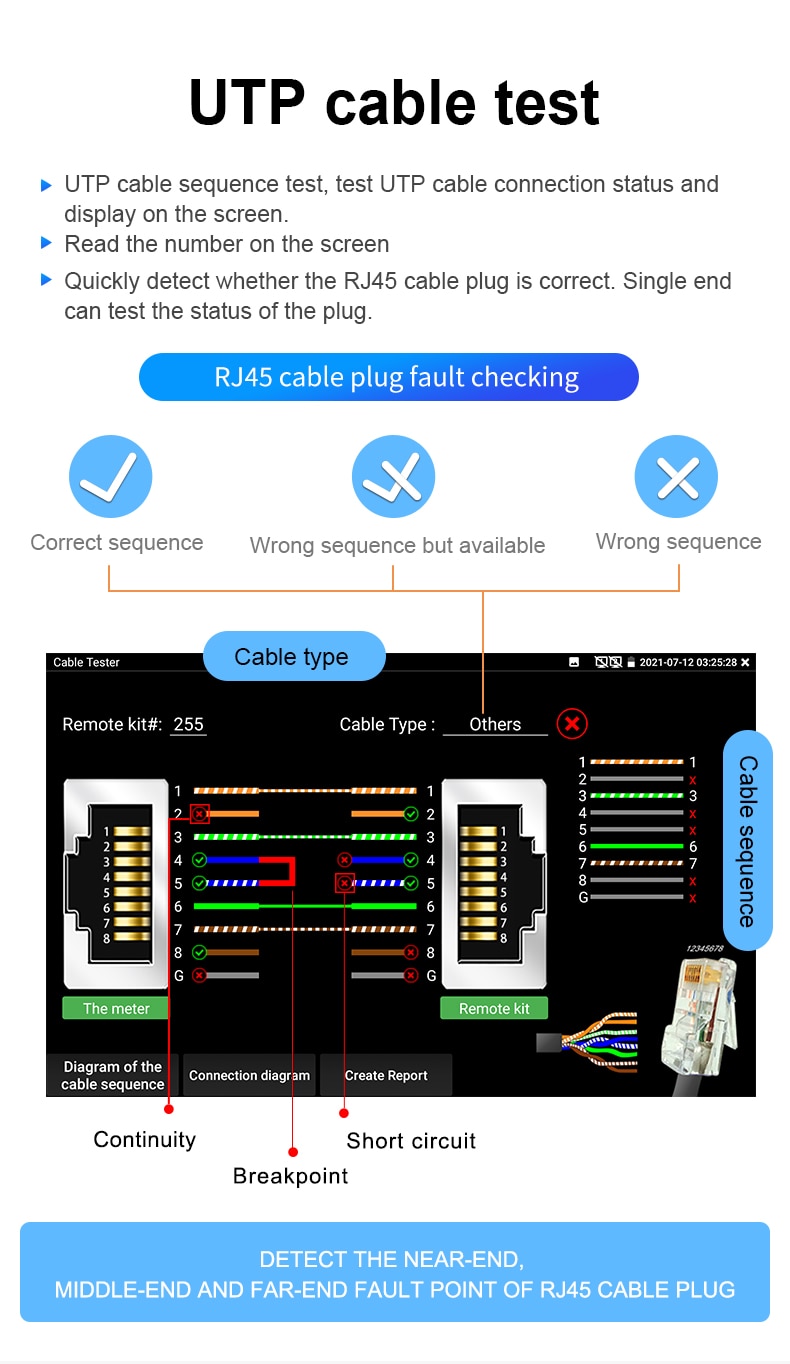

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report

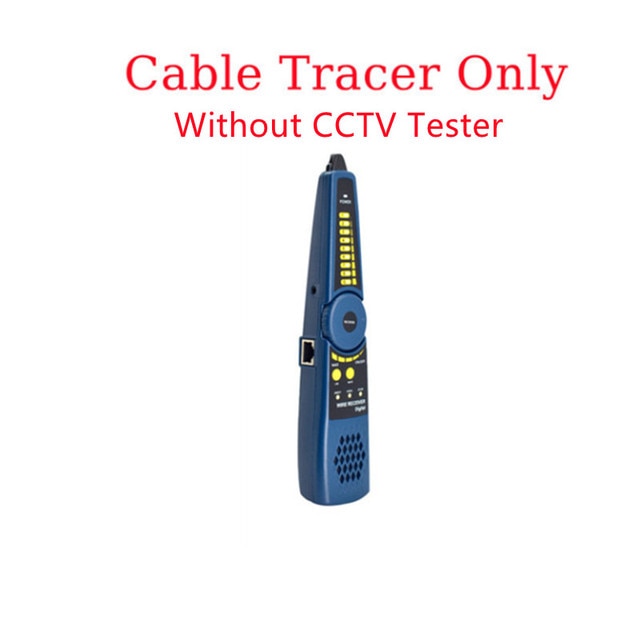

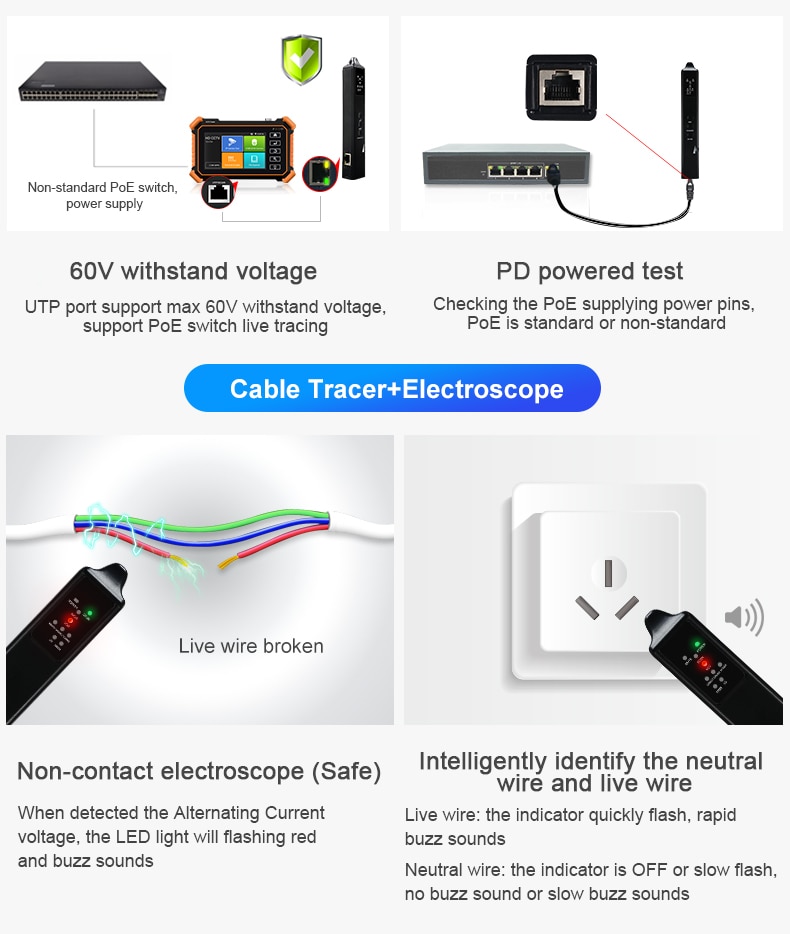

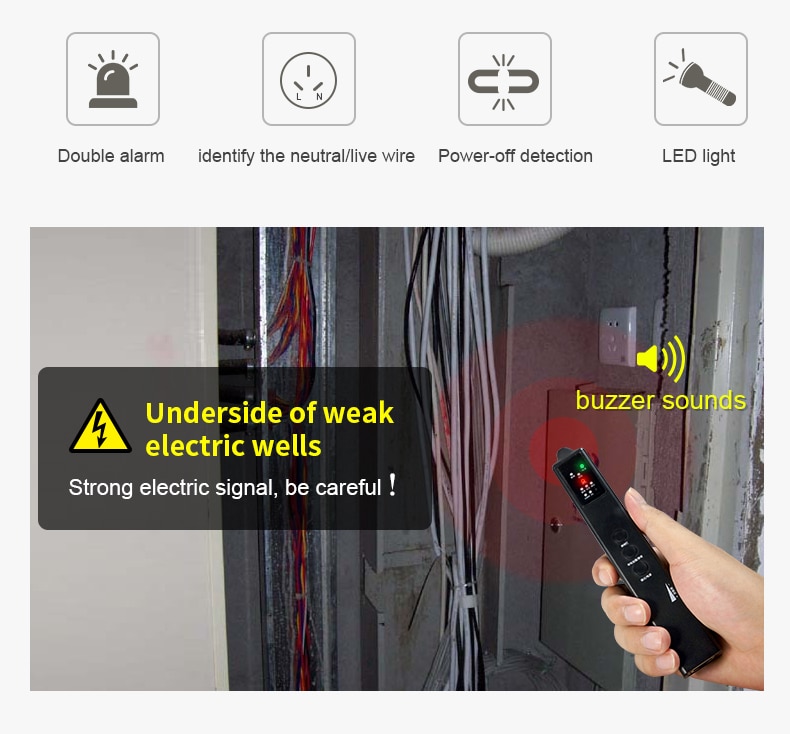

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the
same time *(Optional)
- Brand Name: TahLiTech
- Lens: 3.6mm
- Origin: Mainland China
- Sensor Size: 1/4 inch
- Maximum IR Distance(m): 10-20m
- Plug Type: US plug
- Sensor Type: CMOS
- Model Number: TT-IPC9100C Plus
- Certification: CE
SHIPPING AND DELIVERY
We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
How do you ship packages?

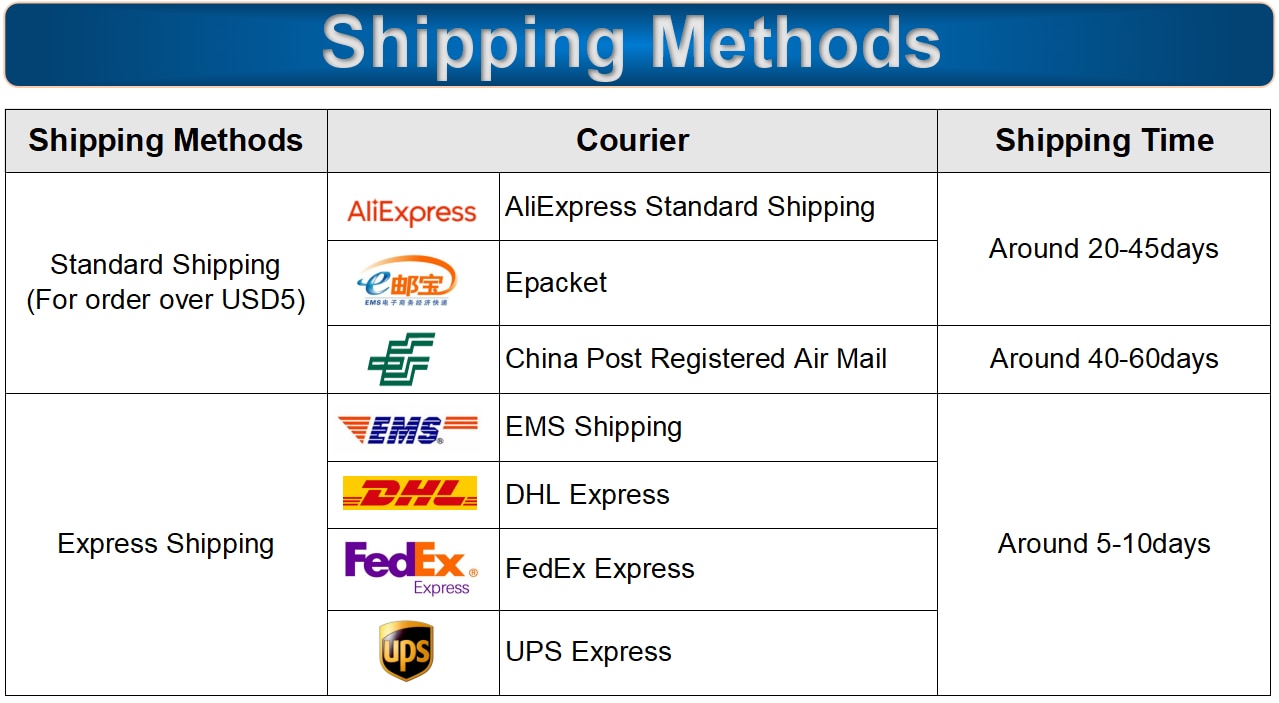

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.
