Card Vending Machine/Card Dispenser machine device DCD-700S For intelligent automatic Parking access control Barrier Gate System

0.0 ( votes) | 1 orders
Price:
US $ 376.18 / piece
Quantity

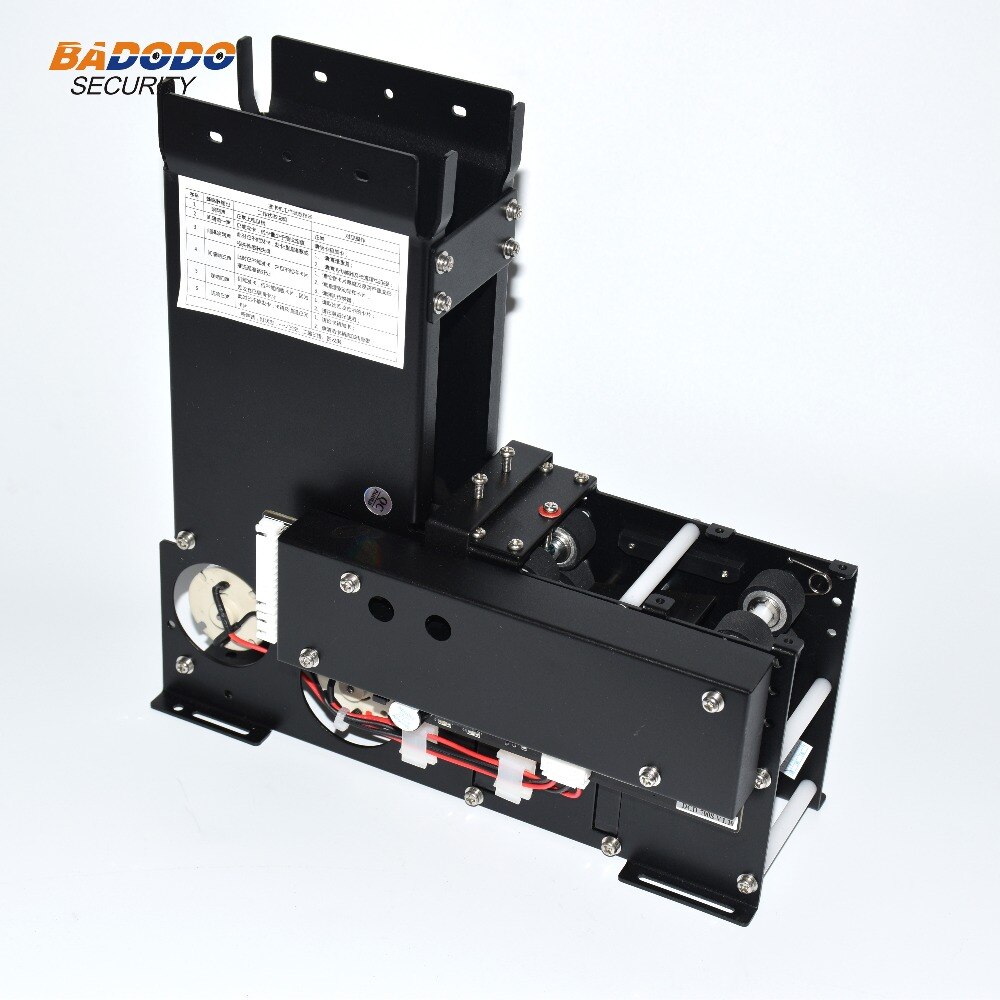

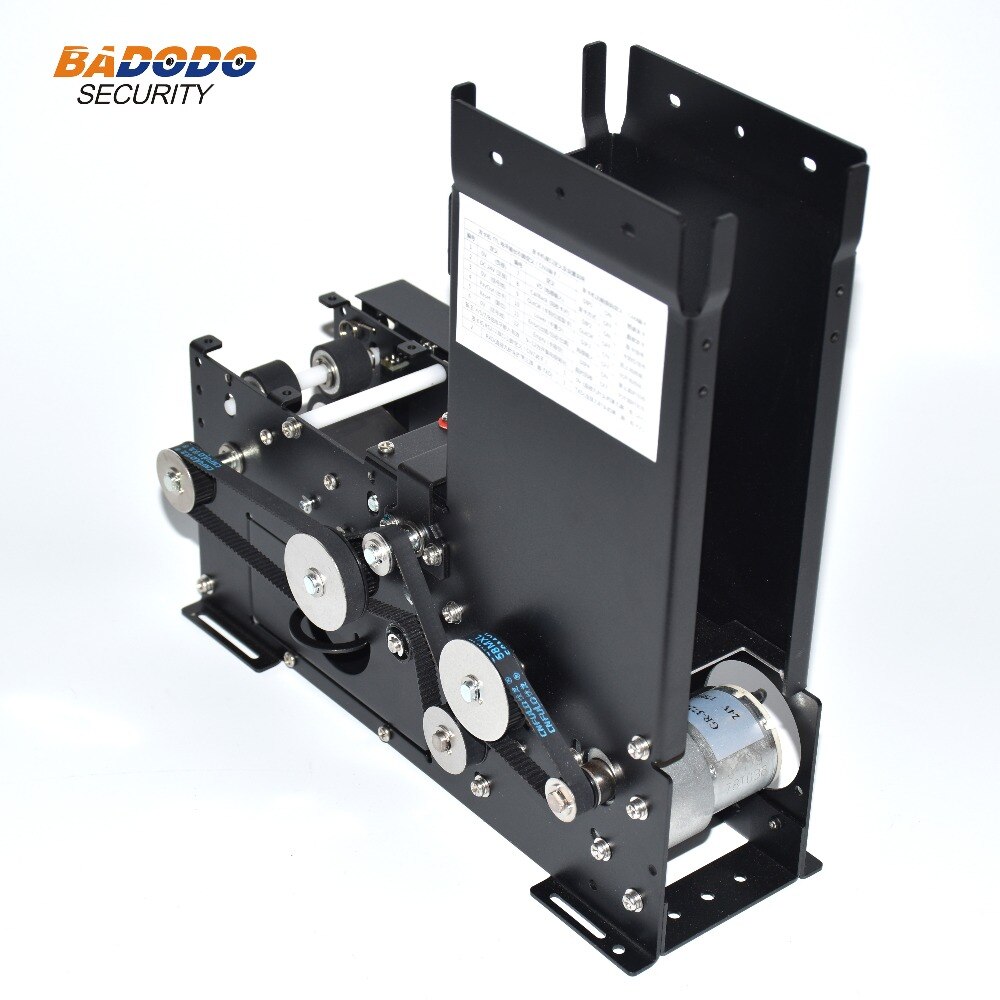

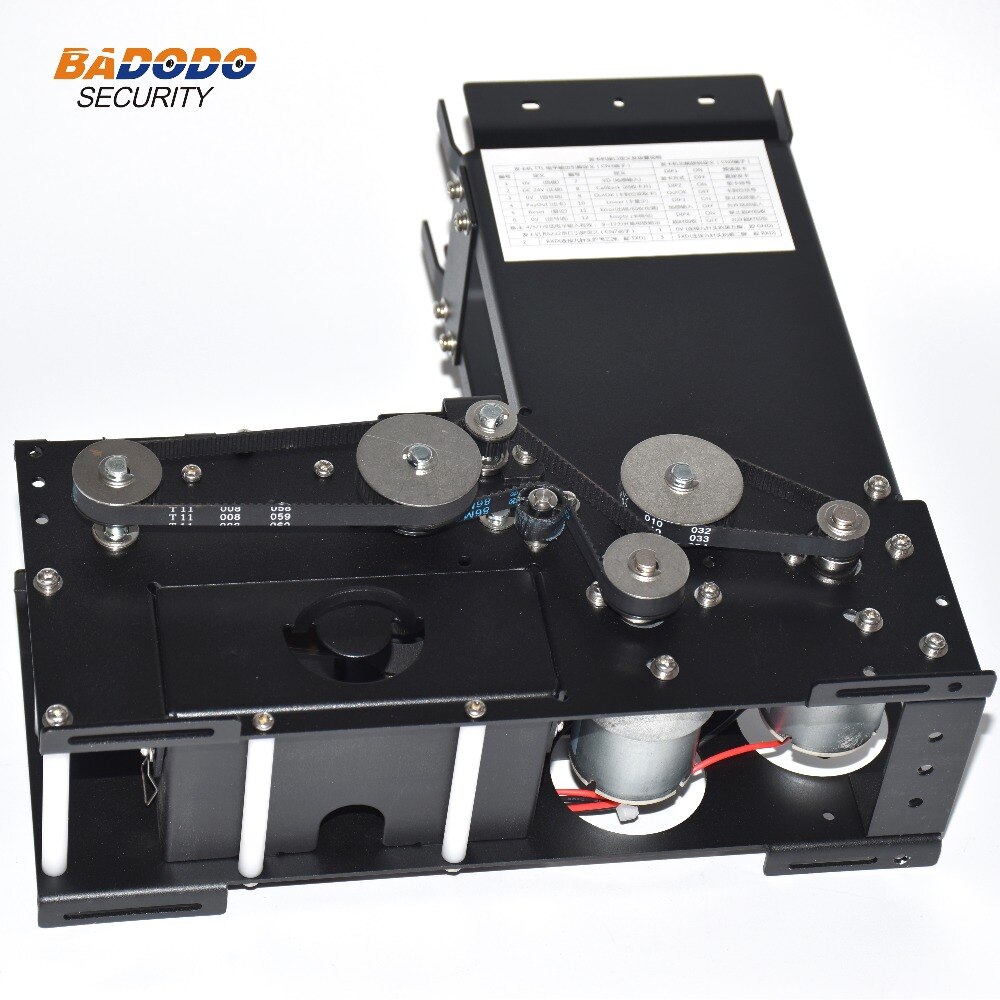

Card Dispenser For Car Parking System  DLD-700S









Main characteristics

  • Industrial design, adjust to high temperature and other bad environments;
  • Simulated manpower friction card issuers ">,better adaptability to various deformed cards;
  • Watchdog of hardware and embedded operating system to ensure properly running;
  • Pre-dispense function accelerate dispensing speed;
  • Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
  • Automatic buzzer alarm when no cards, fewer cards or failure.
  • Provide both RS232 and I/O voltage control interface;
  • Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;
  • Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;
  • Slide card stacker with a capacity of 40pc;
  • Adjustable of card stacker with a capacity of 120pc each
  • Slide design to make installation and disassembling easier;
  • Molded production to ensure high consistency of precision and quality.



Technical parameters

  • Operating voltage: DC20V (max current 2A, static current 0.1A)
  • Operating temperature: -20 to 85°C
  • Operating humidity: 30-90% (comparatively)
  • Use condition: install in bin
  • Card available: width: +/-0.5mm    Length: 85+/-0.5mm    Thickness: 0.3-2.5mm (adjustable)
  • Card material: Paper or Polyester card
  • Net weight of card dispenser: 2.0kg (including the briquette)
  • Time of issuing: max0.5s
  • Capacity of stacker: 150pcs (0.8mm), 100pcs available when an extra stacker is needed,max 350pcs ,each extra 100pcs stacker need extra USD15.

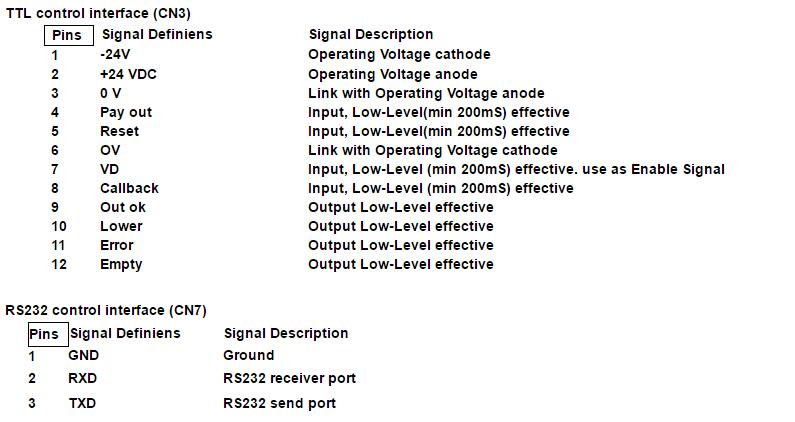

 Control interface

      This dispenser provides both I/O and RS232 interface of power level. PWL control interface is led by standard 12pin (2.54mm)
socket CN3of the control board, RS232 control interface is led by the standard 3pin (2.54mm) socket CN7.




QQ20171124120339



Foto QQ20141011170745





DCD-700-3DCD-700-4DCD-700-5

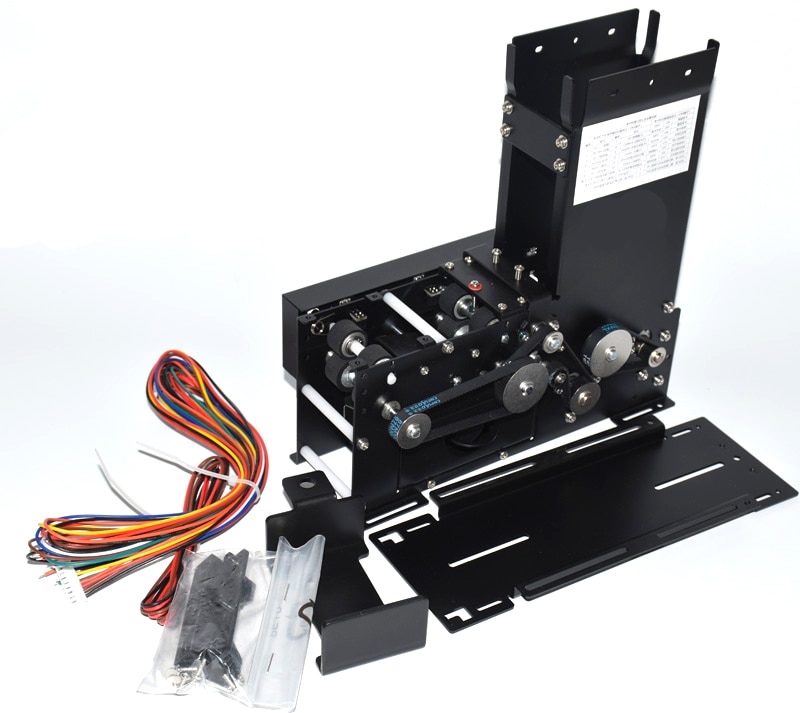

Packing:

  • 1* 700S card dispenser
  • 1* Cable 1(12 line)
  • 1* Serial port (232) line
  • 1* Press block
  • 1* baseboard assembly
  • 1* Card mouth K3





700S-B-9










  • Model Number: DLD-700S
  • Brand Name: BADODOSECURITY
