16A GSM Socket Outlet Remote Control Power Switch Temperature Sensor Smart Home Relay Controller SMS App Garage Door Gate Opener

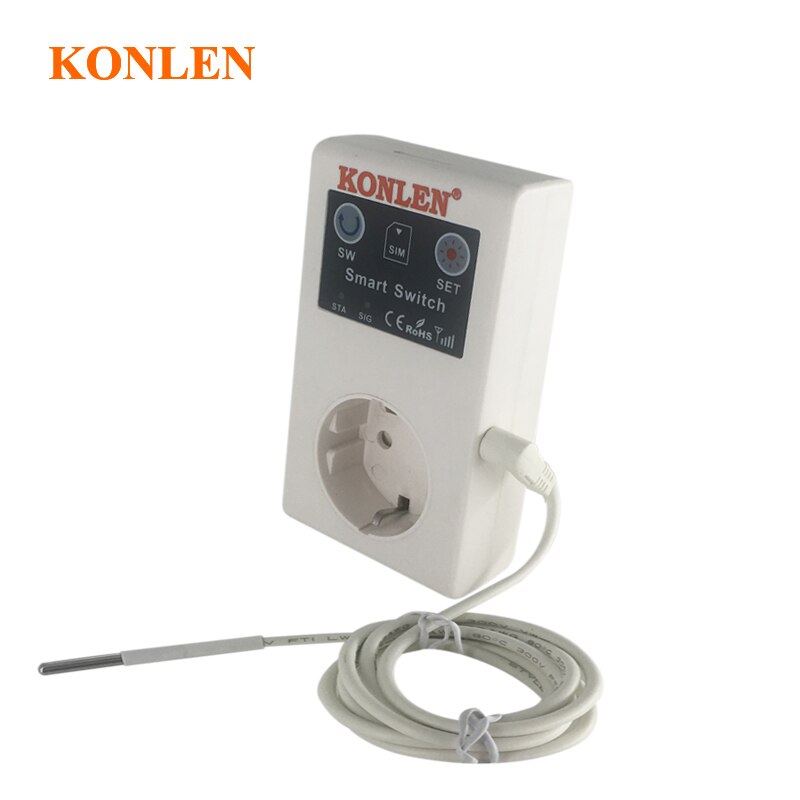

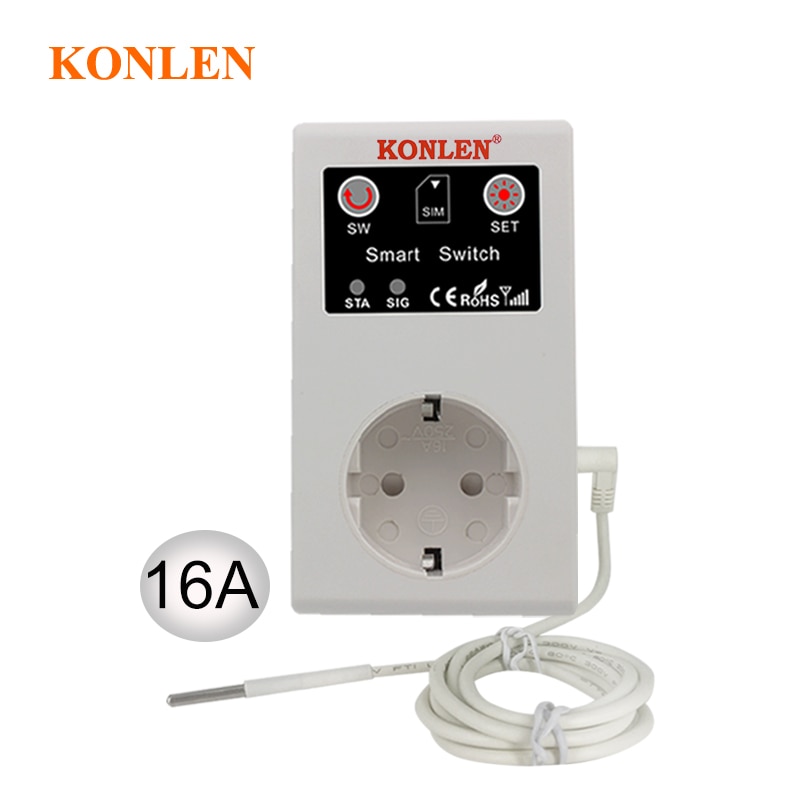

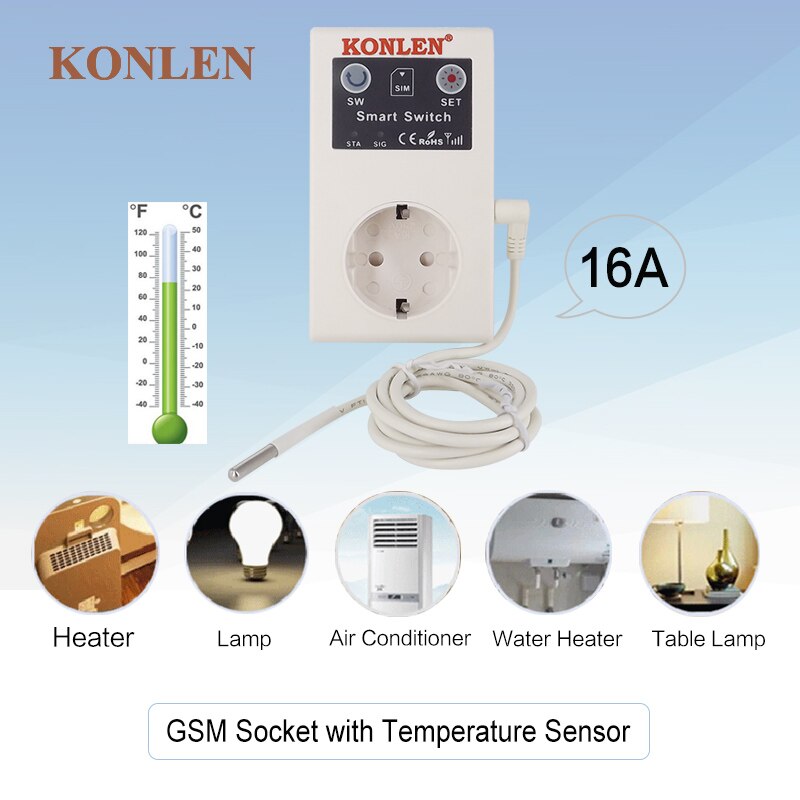

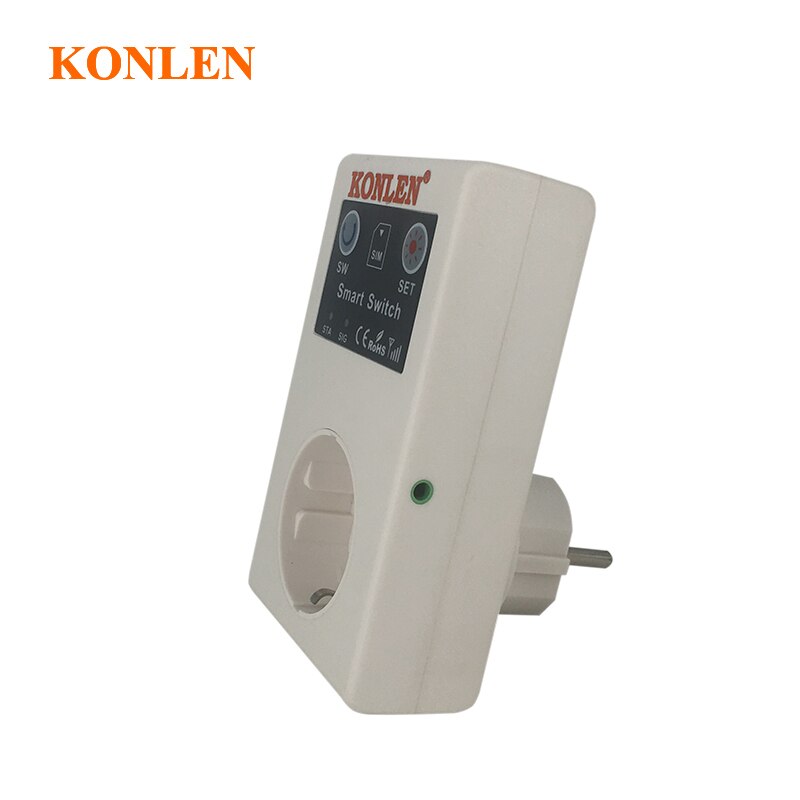

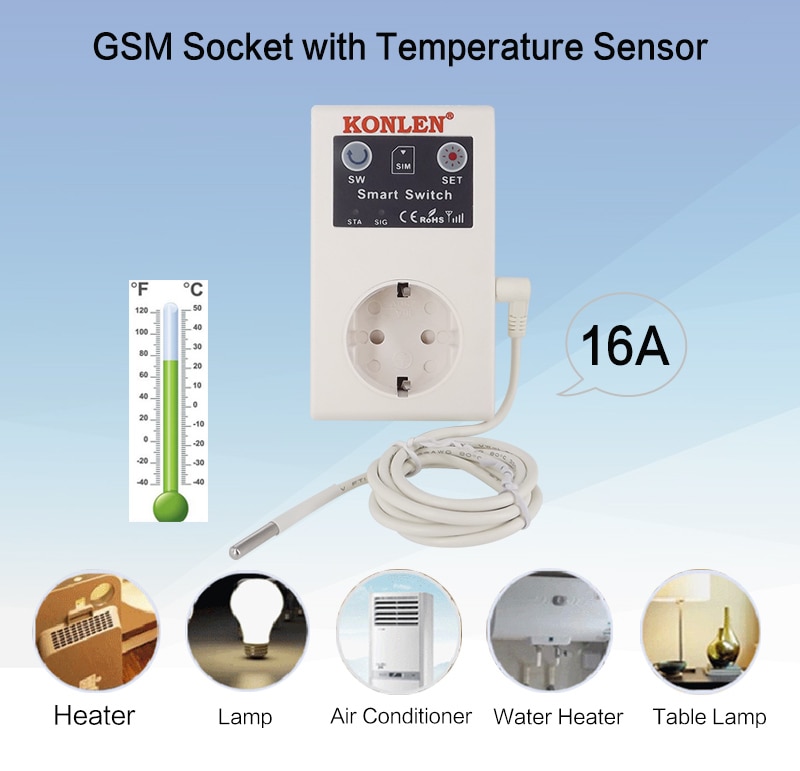

Model No. KL-SC1-GSM-T  GSM Remote Control Power Socket with temperature sensor

Features:

1) 16A Max, Support High-power Household Electric Appliances
2) SMS/APP/Free Call Control Relay On or Off  via 2G GSM Network
3) SMS/APP/Free Call Control Electric Door Gate from on to off (0.5 to 9 seconds), then back to on, or off to on (0.5 to 9 seconds), then back to off  via T and XL Command.
4) Timed control other electric devices from on to off (001 to 240 minutes), then back to on or off to on (from 001 to 240minutes), then back to off via SMS L Comand40
5) KONLEN Temperature sensor linkage control  socket relay on or off

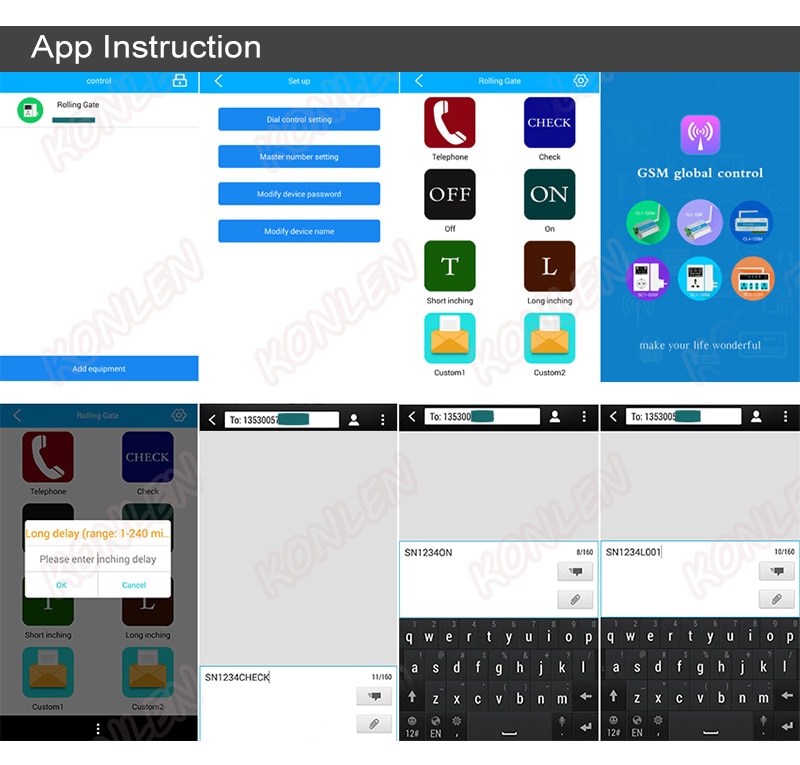

      Control konlen GSM Power socket remotely by SMS/Free Call/Mobile App via GSM Network.

       GSM frequency: GSM850/900/1800/1900mhz quad band 2G.

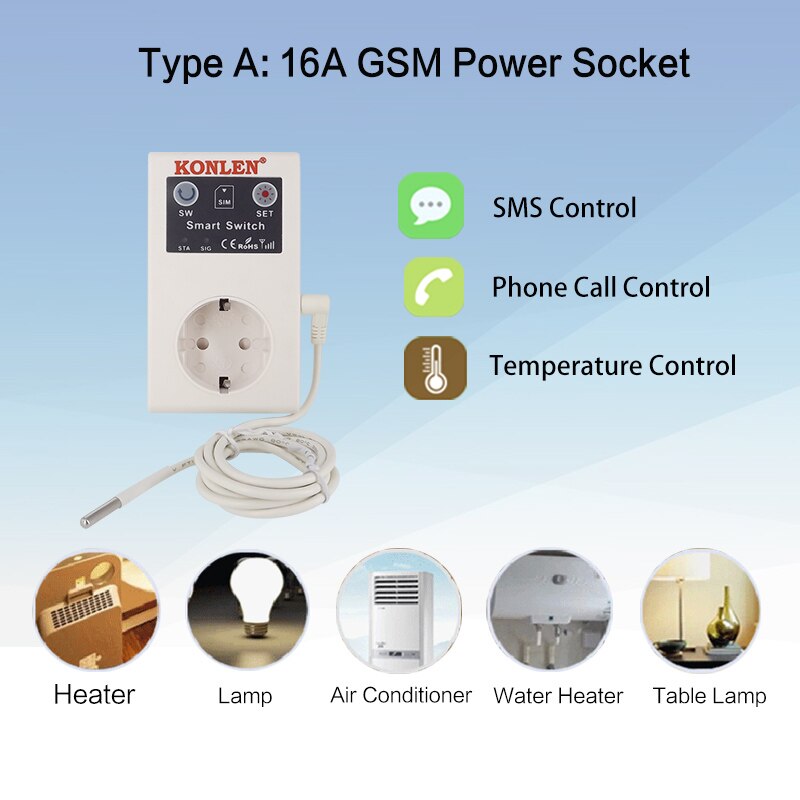

    16A Max, Support to control High-power Household Electric Appliances (light, air-conditioner, warmer, heater, TV, Stereos etc), and automatic door gate openers, AC Motor, Remote Base Station, PBX Switchboard, Water Pump, Server etc.

SMS/Free call/App/Temperature sensor 4 ways control socket relay on or off via on/off command

Short Inching (from 0 to 9 seconds): Control Door Gate Opener via T Command
T Command:
SMS Text: SN + 4 digits of password(0000) +T + inching time (0 to 9)
0    means 0.5 second, 1-9 means 1 to 9seconds
For example: a. Send SMS:  SN0000T0

on-----off 0.5 seconds-----on;
off-----on 0.5 seconds------off
If the original STATE LED on, it will be off for 0.5 seconds after command, then back to be on automatically.
If the original STATE LED off, it will be on for 0.5 seconds, then back to be off automatically
b. Send SMS: SN0000T3 (on-----off 3 seconds-----on; off-----on 3 seconds------off)

         User can also activate phone call inching relay via XL command ( SN + 4 digits of password(0000) + XT + one digit of time (0 to 9seconds, 0 stand for 0.5seconds). After activate it, users can control eletric door/gate/garage by a free call anywhere anytime

Long-time Inching switch: Timing control from 001 to 240 Minutes via L Commands

L Command:
SMS Text: SN + 4 digits of password(0000) + L + 3 digits of time (from 001 to 240 minutes)
For example. a. Send SMS:  SN0000L060
on-----off 60 minutes-----on;
off-----on 60 minutes-----off
If the original STATE LED on, it will be off for 60 minutes after the command, then back to be on automatically.
If the original STATE LED off, it will be on for 60 minutes after the command, then back to be off automatically.
b.    Send SMS: SN0000L030 (on-----off 30 minutes-----on;  off-----on 30 minutes-----off)

With the function, users can timed-control pond aerator, water pump, routers, server, rice cooker and other electrical equipments by a SMS

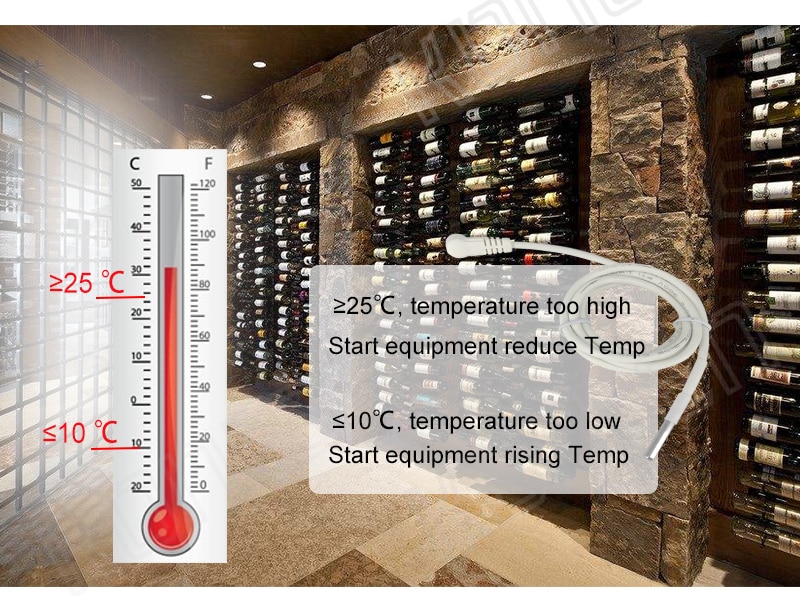

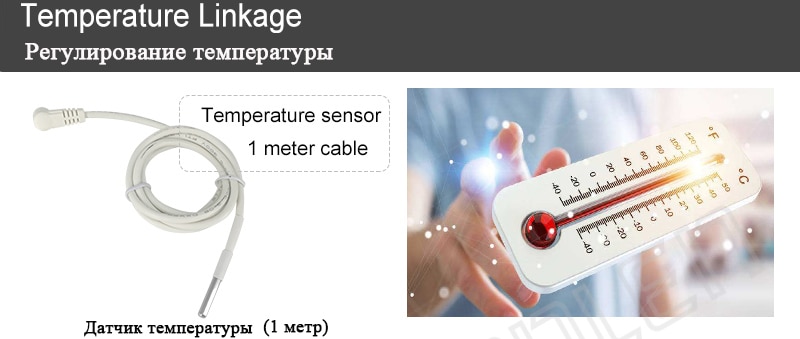

You can set the Temperature control according to your requires ,eg. : In wine cellar ,you can set the temperature control commands :  rise the temperature when the temperature is lower than 10 degree centigrade , reduce the temperature when the temperature is more than 25 degree centigrade .

Inquiry temperature and adjust to Temperature Intelligently . ( Temperature control Range : -40 to +110 Centi Degree )

Other features:
1. With password protection
2. Can set 5 groups of control master numbers
3. SMS control(ON command, Off Command, T Command)

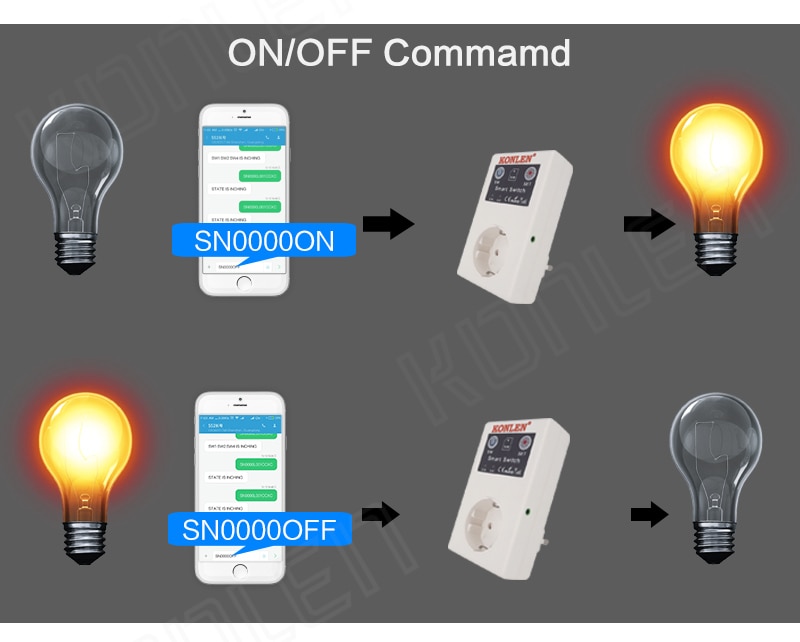

1)ON Command: turn the relay state to ON
SMS Text: SN+Password+ON
2)Off Command (Turn the relay state to off
SMS Text: SN+Password+OFF
4. Free Call to control
User can control the GSM controller by dial the SIM card number of GSM controller. The user may hear" You can't answer the phone call, beep, beep.......tone etc", which mean changing the relay state successfully.
If the controller connected, it will change to be disconnected state after a call.
If the original state is off, it will change to be connected state after a call.
5. Button Control
The controller state will be changed when you press the SW button at side of controller.
If the controller connected, it will change to be disconnected state.
If the original state is off, it will change to be connected state.
6. User can send sms to check the on/off state
SMS text: SN+Password+CHECK
7. With Power off memory Function

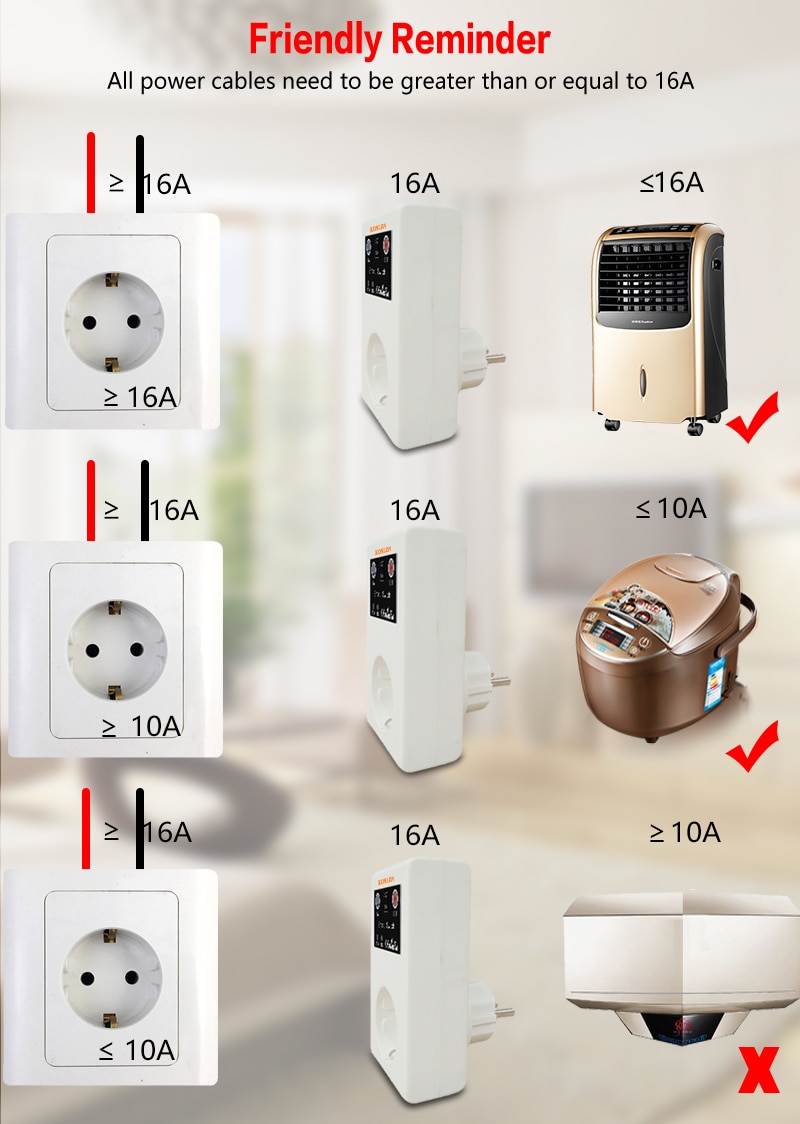

Tips: If you want to plug in 16A equipment to the 16A GSM power socket, please make sure your wall socket and wall power cable can also load 16A, or it will cause danger. It is very important.

Specification:
Communication: Based on GSM Network
GSM Frequency: GSM850/900/1800/1900MHZ
Rated Current: 16A Max
Rated Power: 3000W
Rated Voltage: 110V to 250V AC

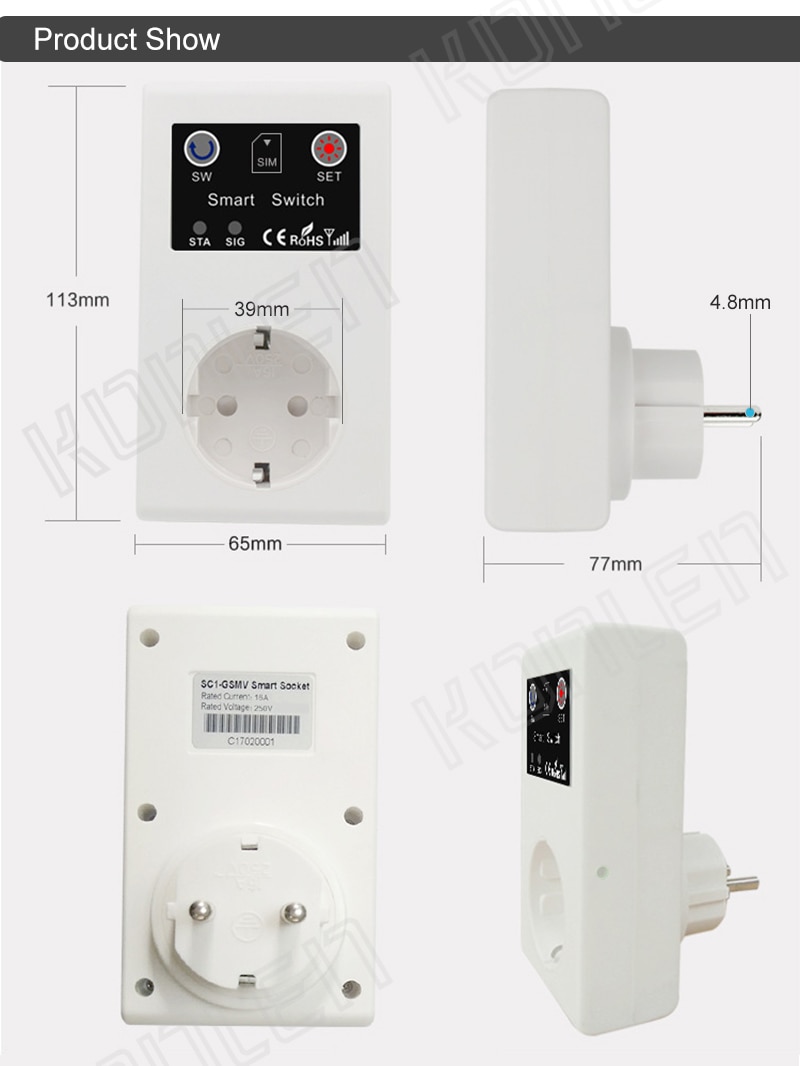

Dimension: 113mm x 65mm x 77mm ( 4.44 in x 2.55 in x 3.03 in)
Working Humidity: Less than 65%
Working Temperature: -40 to +110 Centi Degree

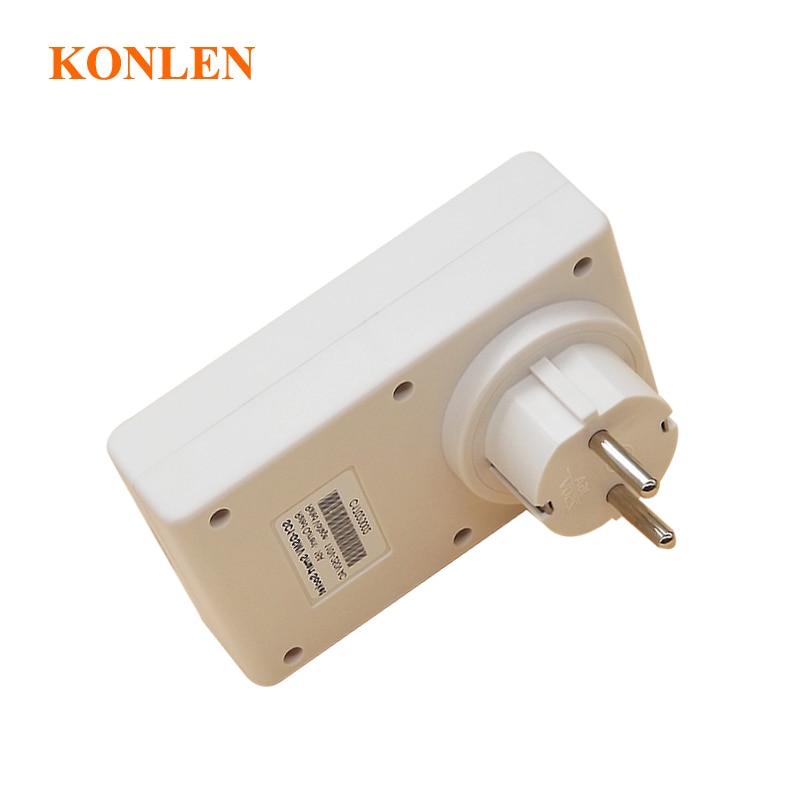

Power Socket and Plug: EU German Standard
