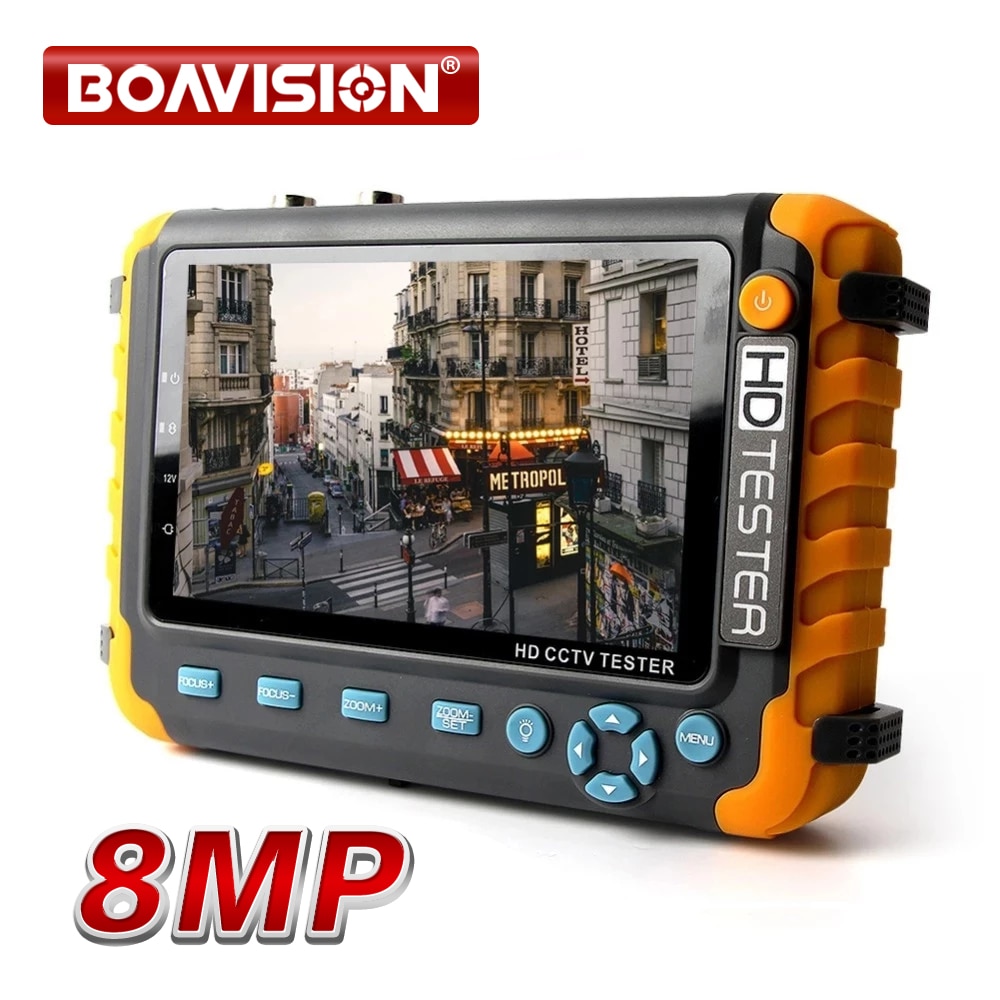

8MP 4K CCTV Security Camera Tester 5 Inch TFT LCD Monitor For 4 IN 1 TVI AHD CVI Analog Security Cam Tester Video Audio Test

4.3 (12 votes) | 41 orders
Price: US $141.73 - 211.79 / piece
Discount Price:
US $ 109.13 - 158.79 / piece
-23%
Ships From
Color

Sorry! This item is out of stock

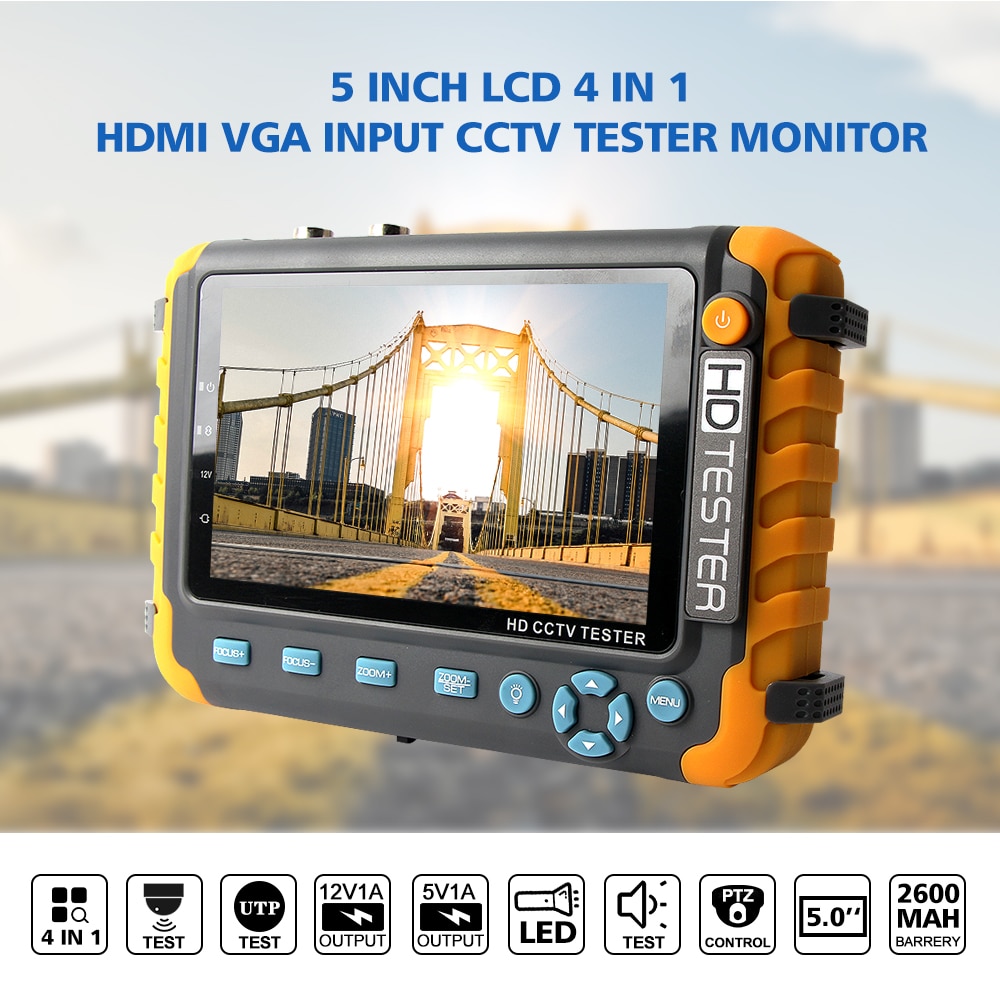

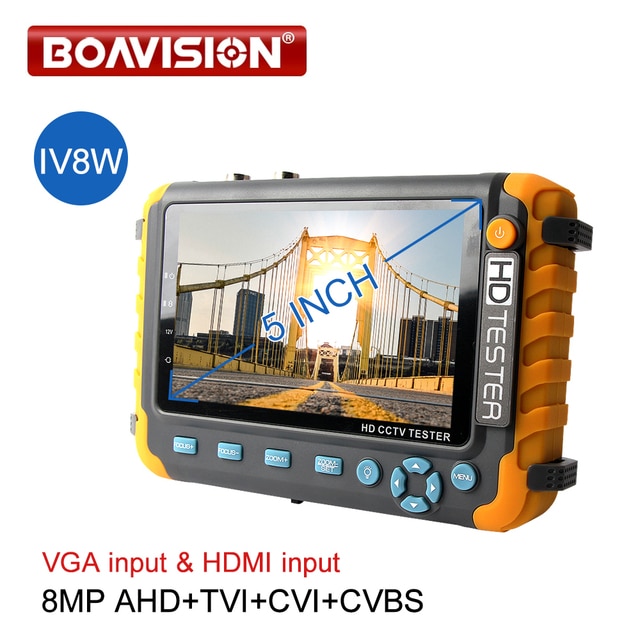

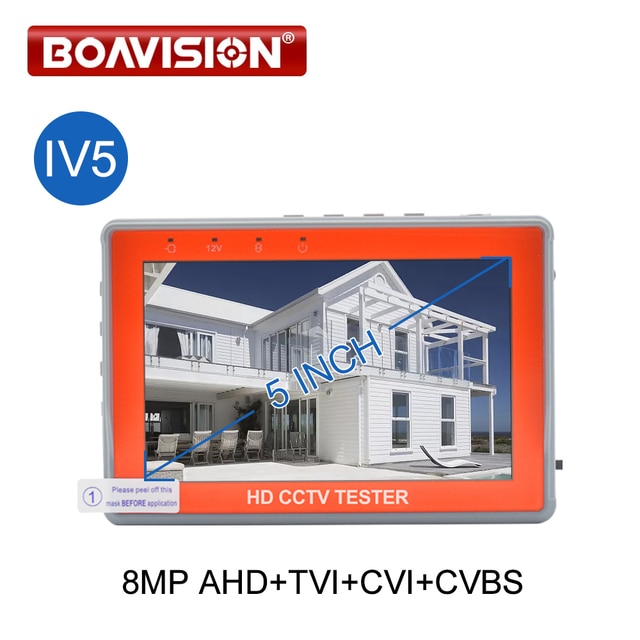

5 INCH LCD 4 IN 1 CCTV TESTER Monitor

HDMI-compatible VGA INPUT AHD TVI CVI ANALOG SECURITY CAMERA TESTER MONITOR



4 IN 1 CHIP

The 4 IN 1 Tester support max up to 8MP TVI CVI AHD Analog CVBS camera testing



5 Inch LCD HD DISPLAY

Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display

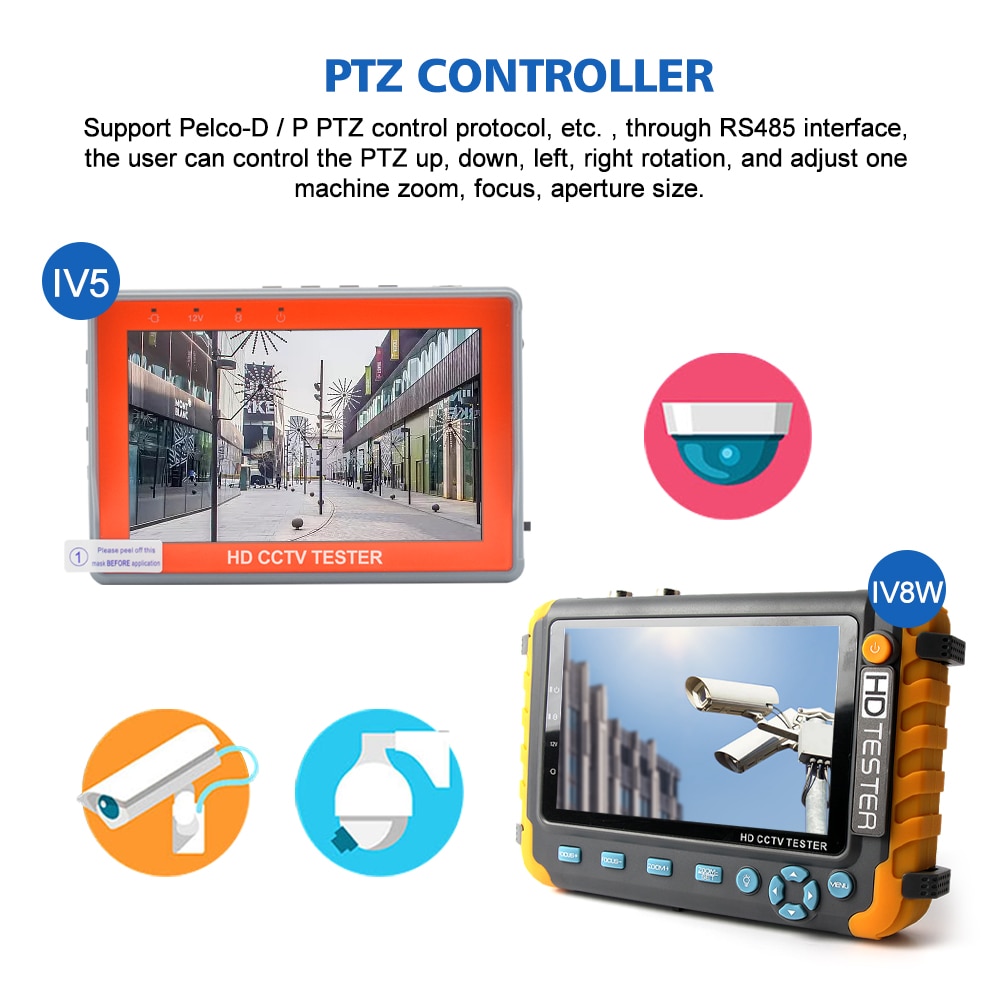

PTZ CONTROLLER
Support Pelco-D/P PTZ control protocol,etc , through RS485 interface, the user can control the ptz up,down,left ,right rotation,and adjust one machine zoom,focus,aperture size


AHD+TVI+CVI+CVBS

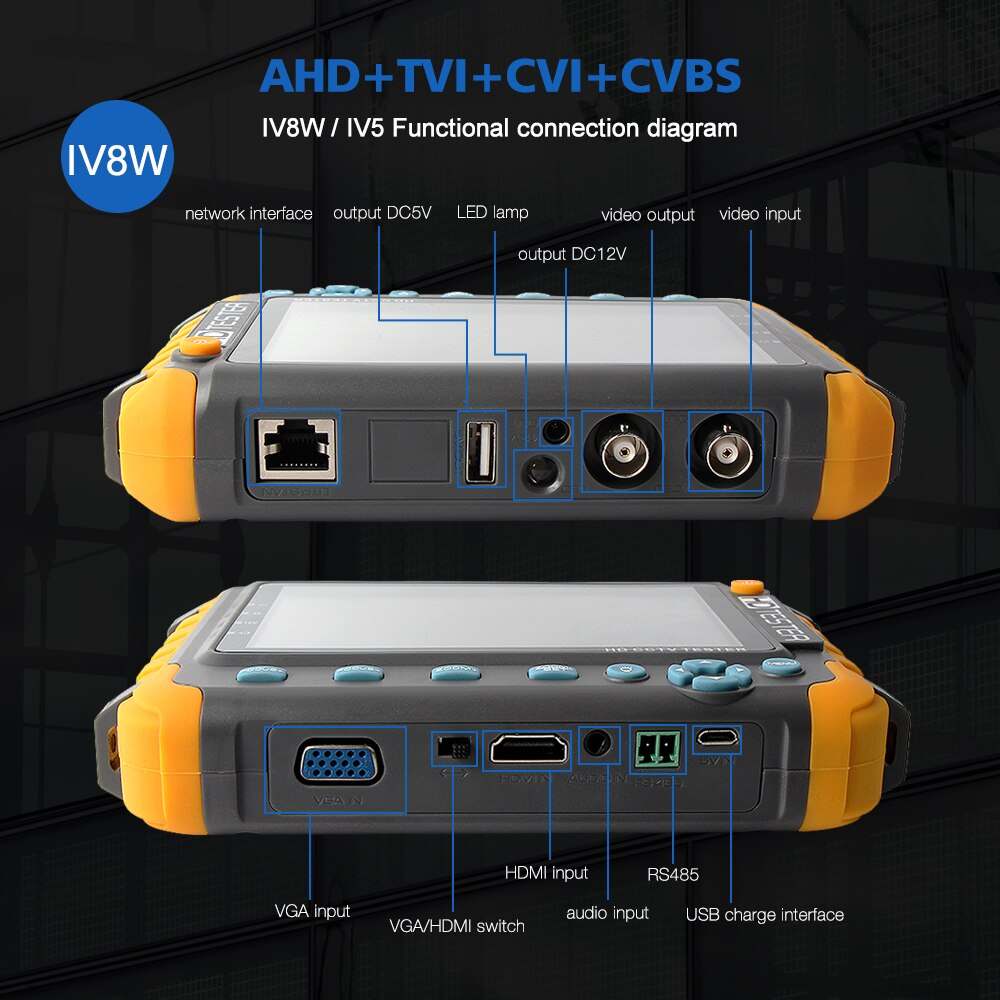

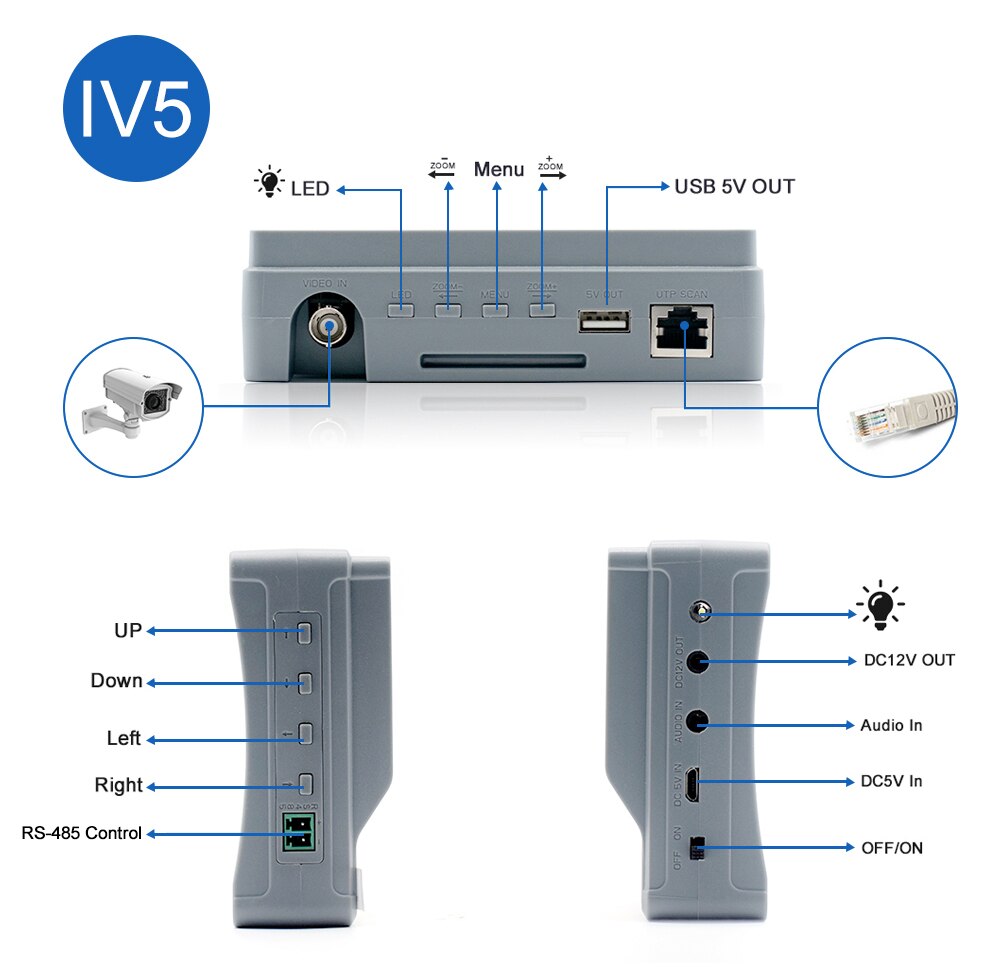

Functional connection diagram

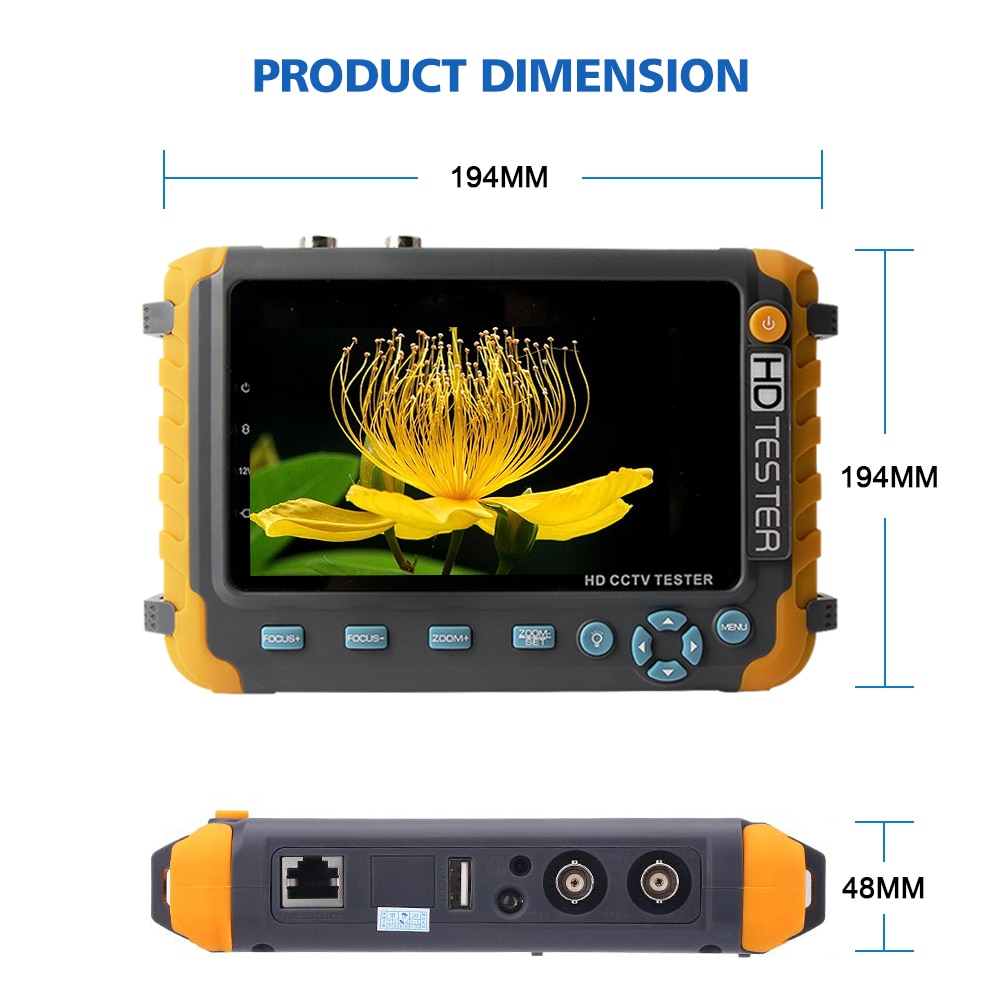

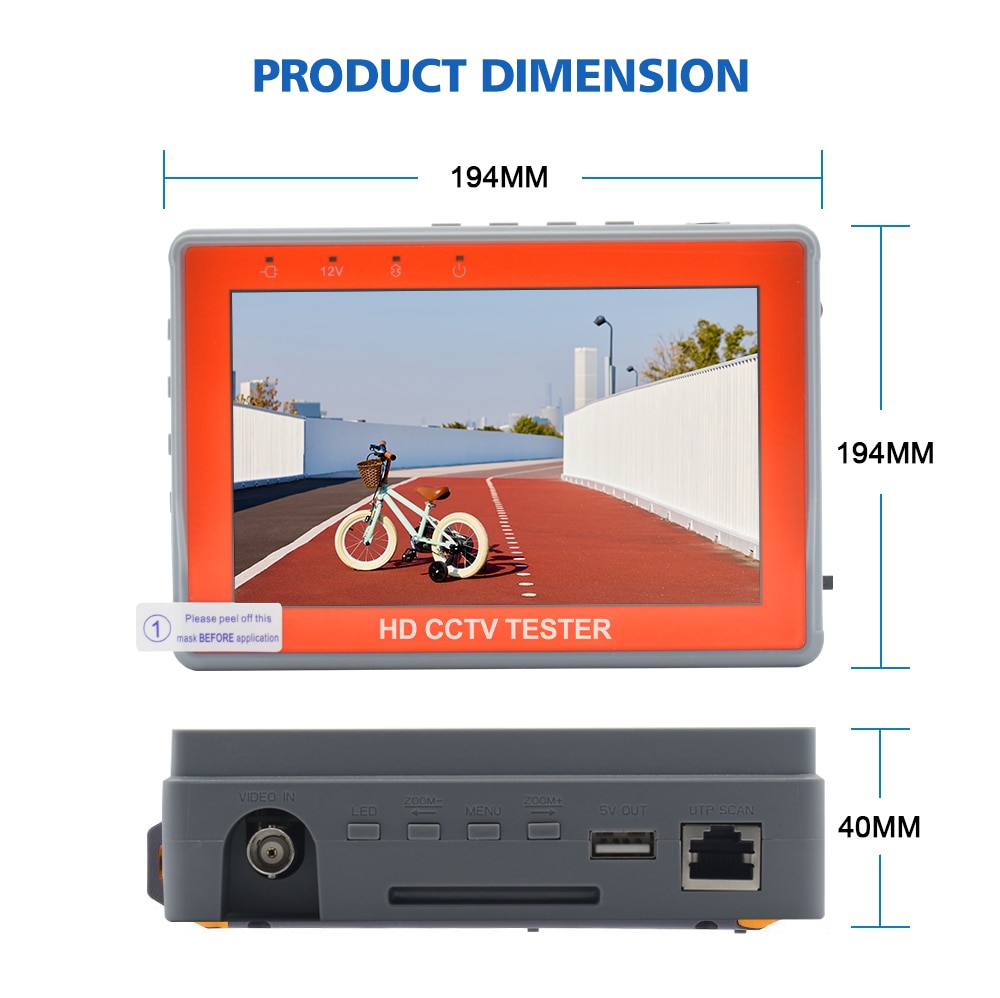

PRODUCT SIZE

5.0 inch TFT-LCD,800 (RGB) x 480 resolution

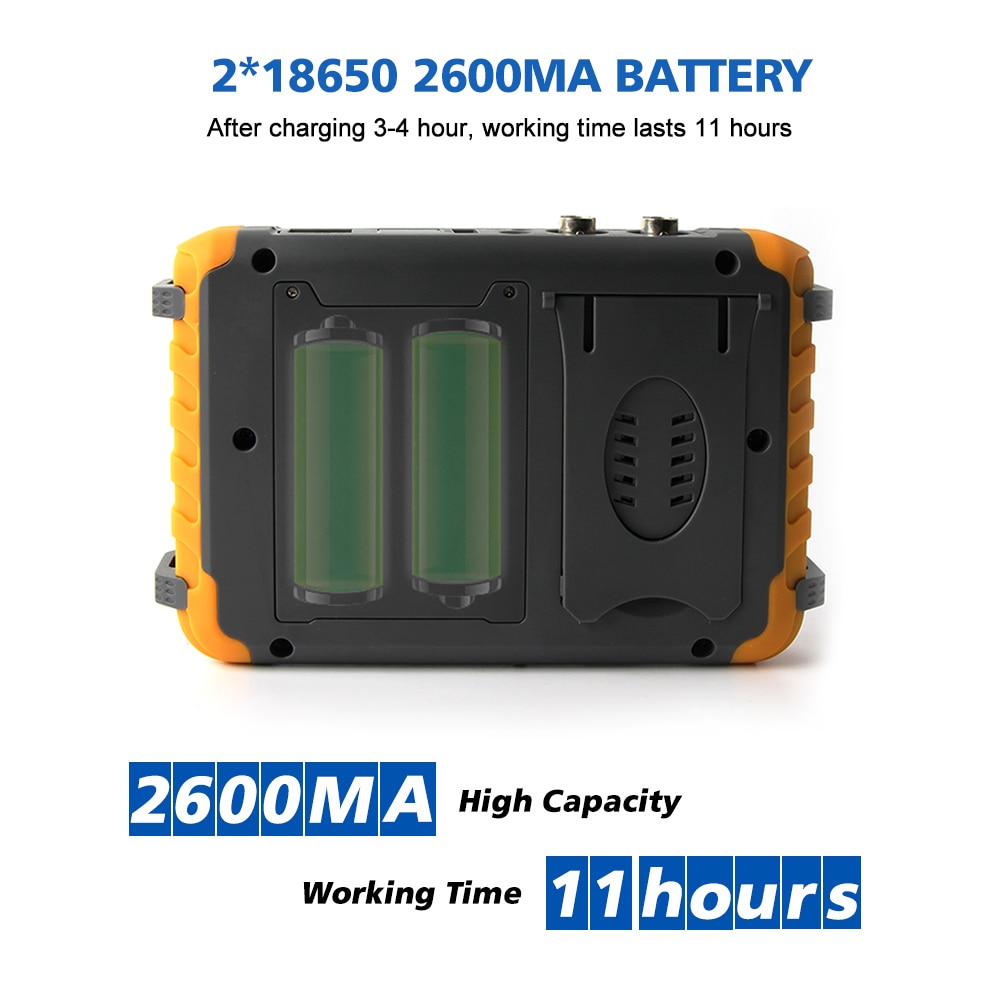

2*18650 2600MA BATTERY

After charging 3-4 hour, working time lasts 11 hours

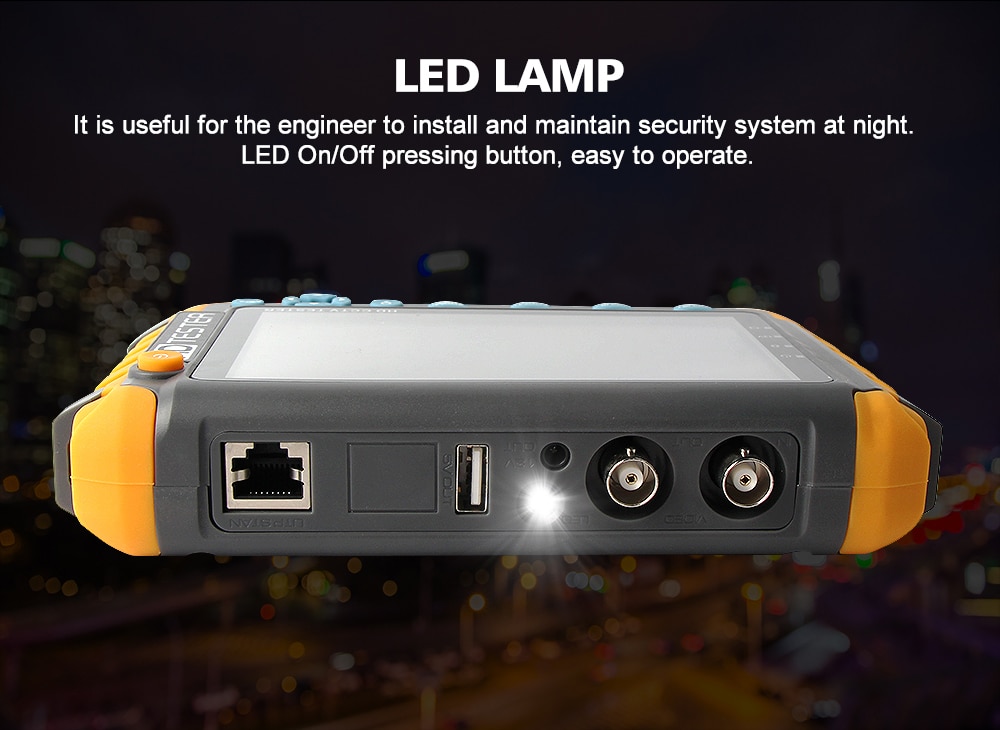

LED LAMP

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button,easy to operate.

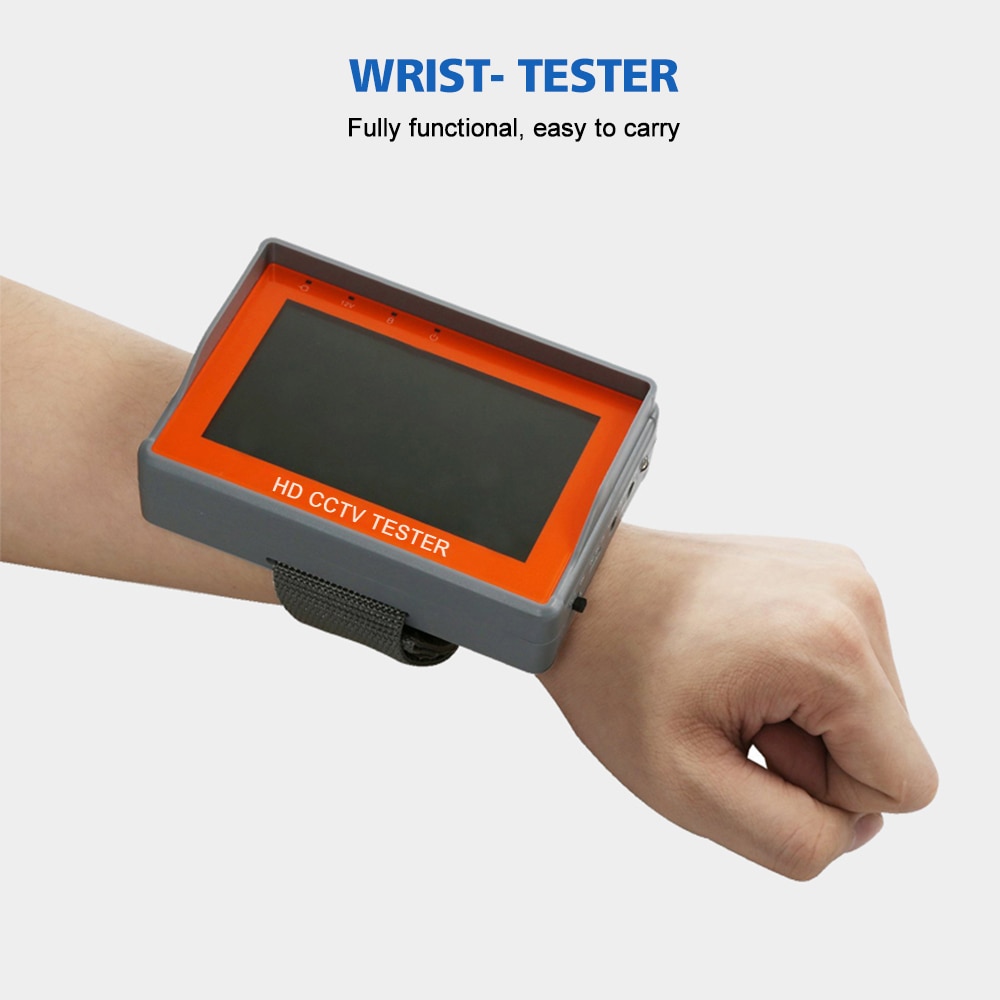

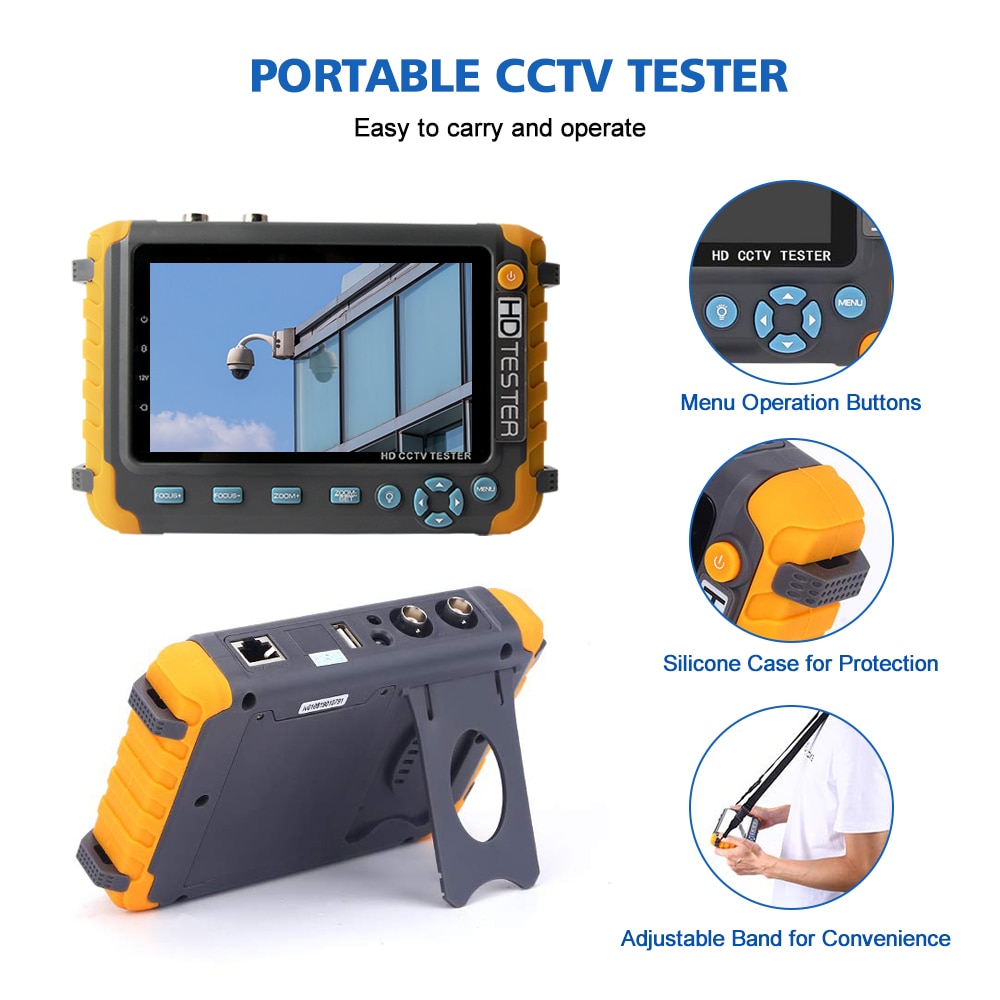

Portable CCTV Tester


Easy to carry and operation






The 4 IN 1 Testerl support TVI CVI AHD Analog CVBS camera testing, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc;


Product overview:

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, high precision digital multi-meter, LED lamp etc.

Key feature

* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,

*  Support PAL/NTSC standard video signal. CVBS testing.

* PTZ controller

Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

* Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

* DC12V 1A output power

Power the camera with DC12V (1A) power from the tester.

* Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

* Improvement cable test

UTP cable, telephone cable etc order and connectivity test, can save testing report

* VGA/HDMI input

Support 1920X1080VGA/HDMI 1.0 video input, HDMI or VGA is optional via switch.

* TVI camera test

HD TVI video surveillance testing, support 5MP 25,30fps, 8MP(4K) 15fps. When TVI signal input, the tester will display HD TVI camera image.

* CVI camera test

HD TVI video surveillance testing, support 5MP 25,30fps,8MP(4K)15fps. When TVI signal input, the tester will display HD TVI camera image.

* AHD camera test

HD video surveillance testing, support AHD 2.0 version, 5MP25,30fps,8MP(4K)15fps. When AHD signal input, the tester will display the AHD camera image.

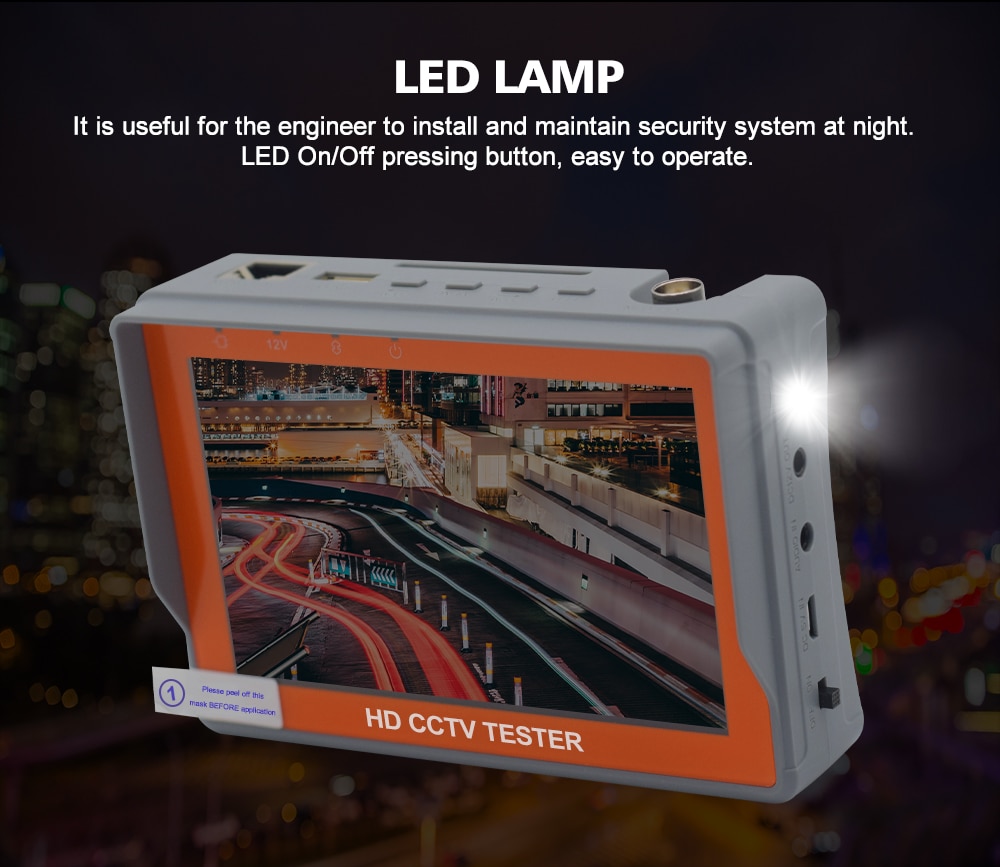

* LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.

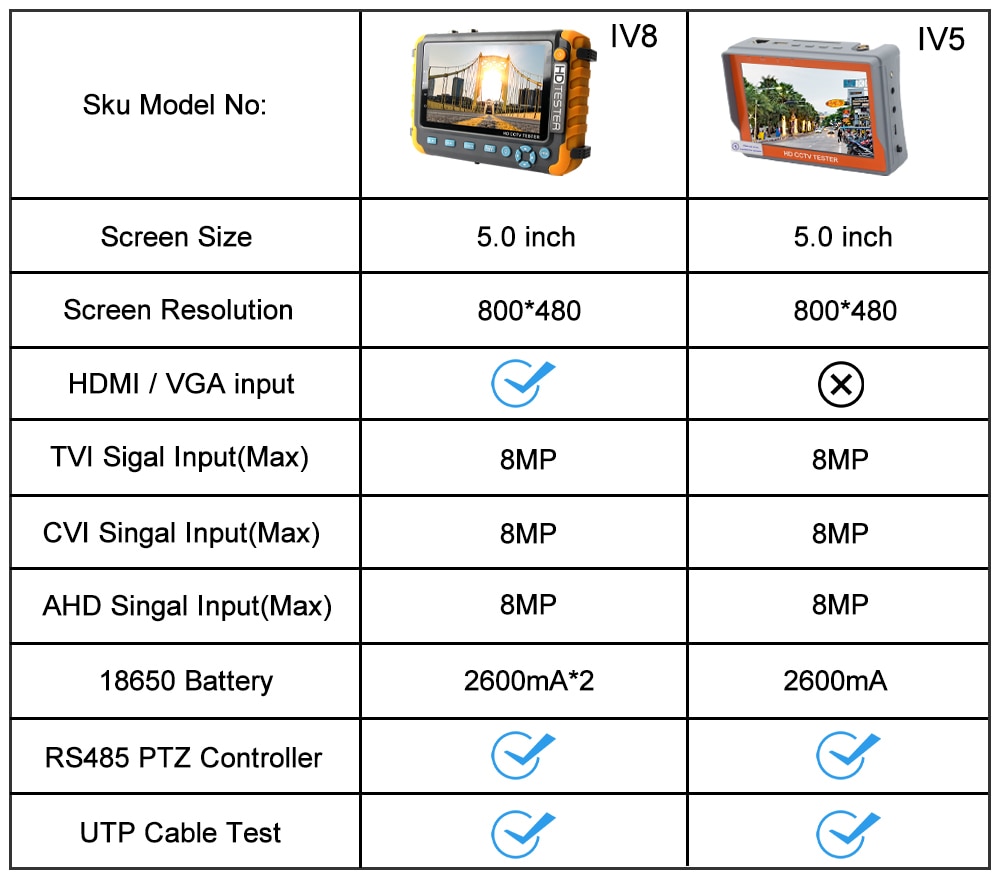

Specification



Model

MATC-IV8W

LCD screen

5.0 inch TFT-LCD, 800(RGB)x 480 resolution

Video test

NTSC/PAL (Auto adapt)

LCD adjustment

Brightness, Contrast, Saturation adjustable

Video IN/OUT

1 channel BNC Input & 1 channel BNC Output

VGA/HDMI input

Max support 1920X1080 video input

PTZ Controller

Support RS485

PTZ Protocol

Compatible with protocols PELCO-D/P,

Baud Rate

Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps

Color bar generator

Support both PAL / NTSC format’s standard color bar output

(Red, Green, Blue, White, Black, Grey) and testing image output

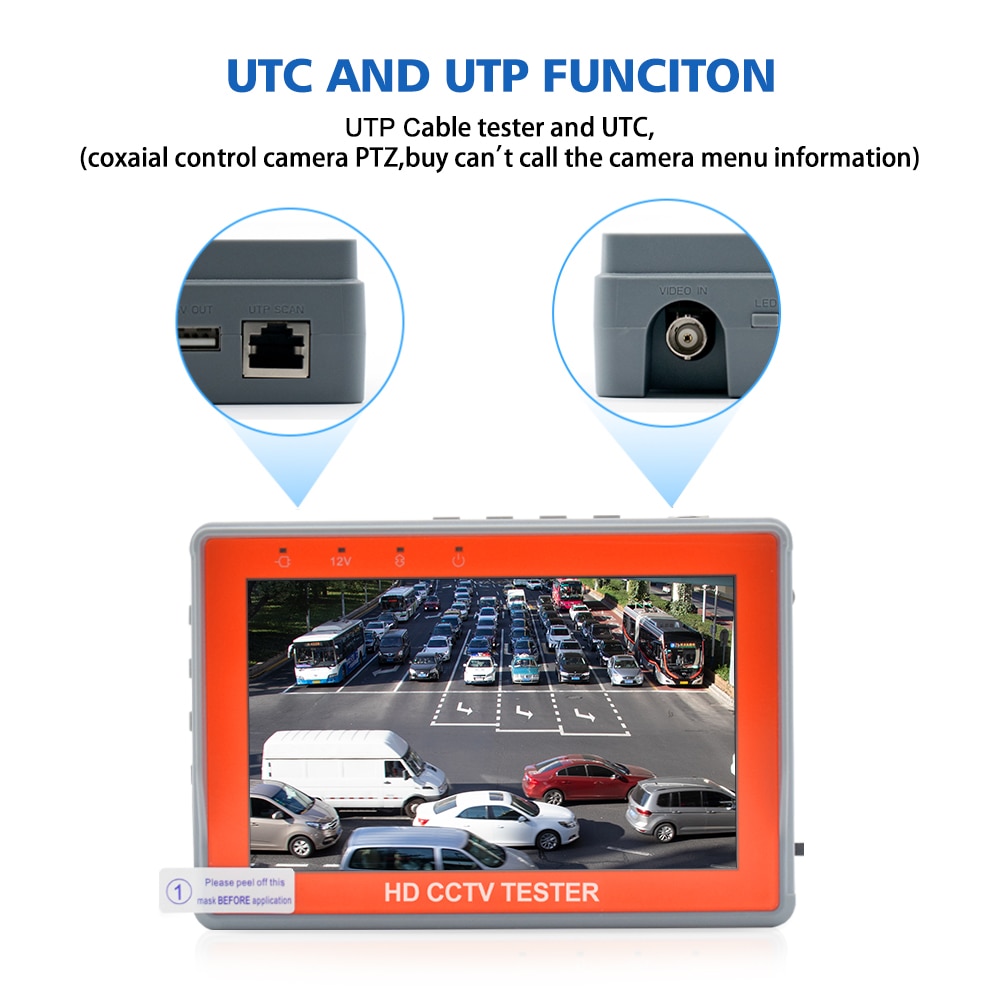

UTP Cable Test

Display UTP cable connection status , cable type and

the sequence of wires as well as read the number of the test box.

DC12V power output

Output DC12V1A power for camera

Audio input test

1 channel audio signal input

Coaxial HD test

TVI test

1 channel TVI input(BNC interface),

support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps, 5MP 25 / 30fps/8MP(4K)15fps

CVI Test

1 channel TVI input(BNC interface),

support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps, 5MP 25 / 30fps/8MP(4K)15fps

AHD Test

1 channel AHD input (BNC interface),

support AHD 2.0 version, 720p 25 / 30fps, 1080p 25 / 30fps, 5MP 25 / 30fps/8MP(4K)15fps

POWER

Power Adapter

DC 5V(1.5A)

Battery

Built-in 18650 2600mA battery X 2,

After charging 3-4 hour, working time lasts 11 hours

General

 Language

 English and Chinese optional

Working Humidity

30%-90%

 Dimension

194mm x 112mm x 48mm / 540

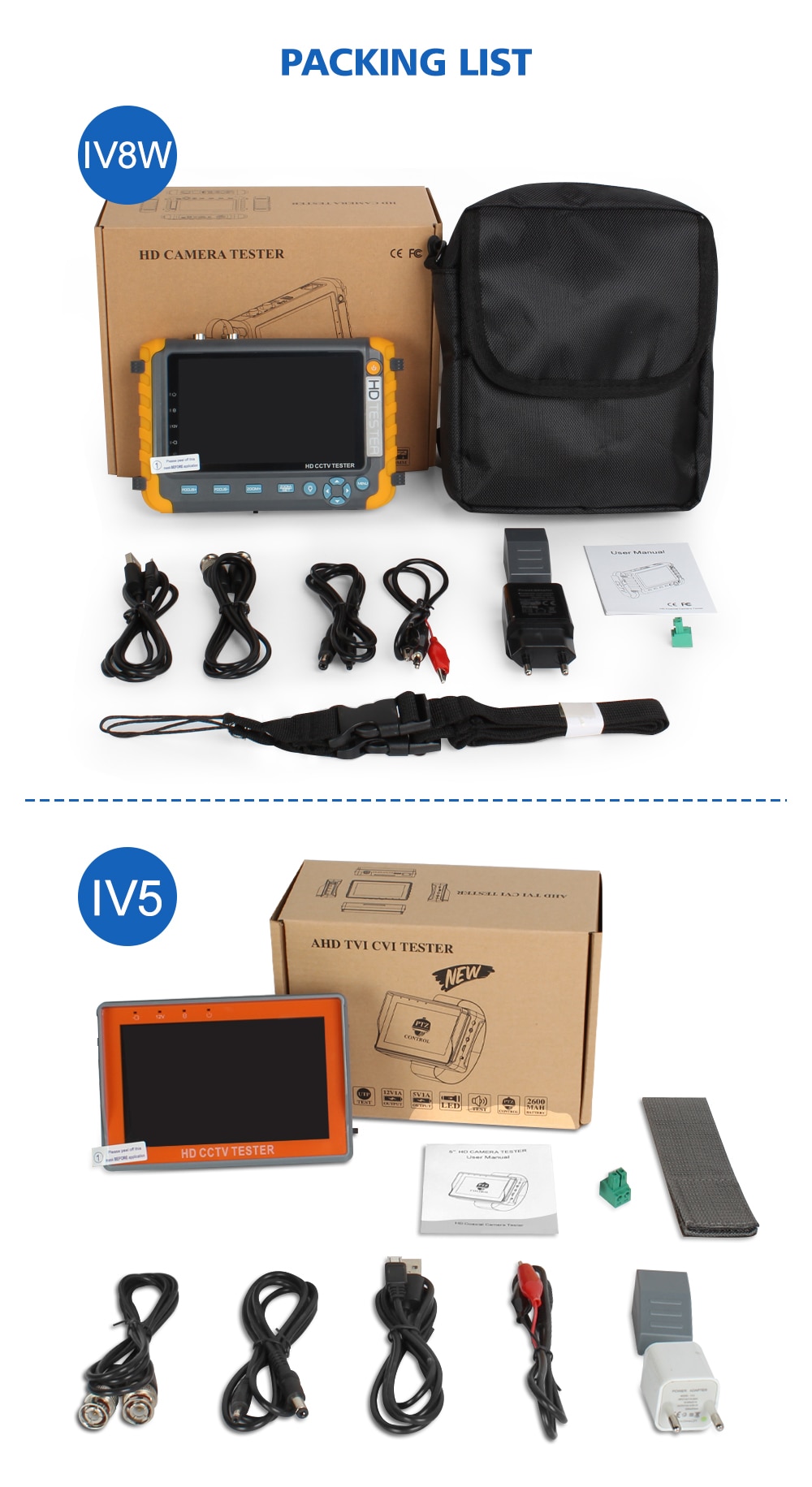

Packing List

1* HD 8MP Coaxial Tester

1* Adapter DC5V 1.5A(with USB cable)

2* International Standard 18650 2600ma battery

1* BNC cable

1* RS485 connector

1* Power output conversion cable

1* Audio cable

1* Lanyard

1* Tool bag

1* Instruction Manual



  • Brand Name: BOAVISION
  • Lens: CCTV Tester
  • Origin: Mainland China
  • Sensor Size: Security Tester
  • Maximum IR Distance(m): CCTV Camera Tester
  • Plug Type: EU plug
  • Sensor Type: Security Camera Tester
  • Model Number: MATC-IV8W / MATC-IV5
  • Certification: CE
  • LCD Screen: 5.0 inch TFT-LCD, (RGB) 800x 480 resolution
  • Video Test: NTSC/PAL (Auto adapt)
  • LCD Adjustment: Brightness, Contrast, Saturation adjustable
  • Video IN/OUT: 1 Channel BNC Input & 1 channel BNC Output
  • VGA/HDMI input: Max support 1920X1080 video input
  • PTZ Controller: Support RS485
  • DC12V Power Output: Output DC12V 1A power for camera
  • Audio input test: 1 Channel audio signal input
  • Battery: Built-in 18650 2600mA battery X 2
  • Dimension: 194mm x 112mm x 48mm / 540g
