IV8W CCTV Tester Mini Portable Monitor 8MP Analog camera Video Security HD CCTV VGA HDMI CFTV camera ahd monitors tester tools
200.91 117.36 $
SALE
ID: 79169
Quantity

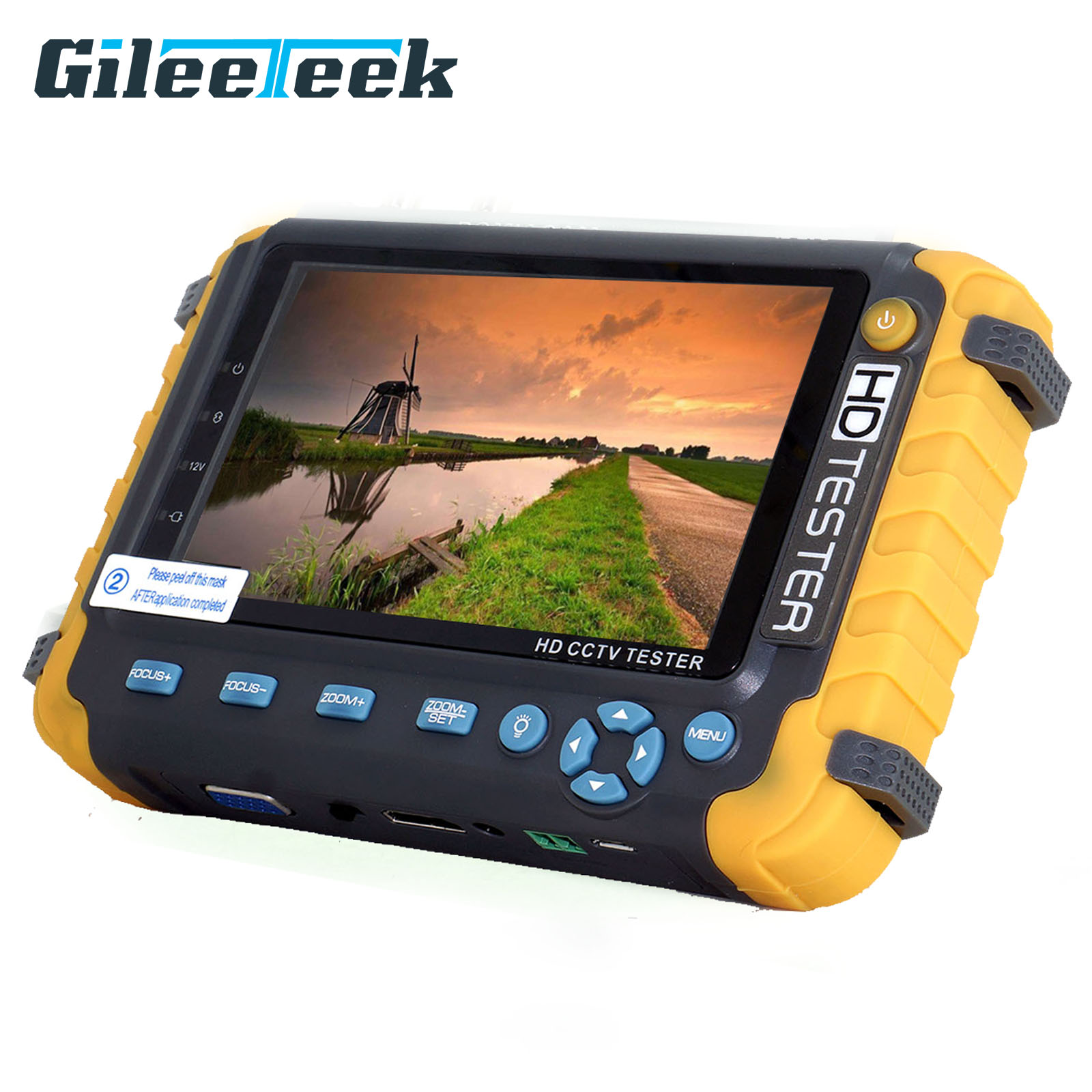

Camera Tester Monitor IV8W 5 inch TFT LCD HD 8MP TVI AHD 8MP CVI CVBS Analog 1080P CCTV Tester VGA HDMI Input
0.0 ( votes)
Price:
US $266.00
/ piece
Discount Price:
US $
155.40
/ piece
-42%
CCTV Camera Tester
NEW - IV8W : Support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera

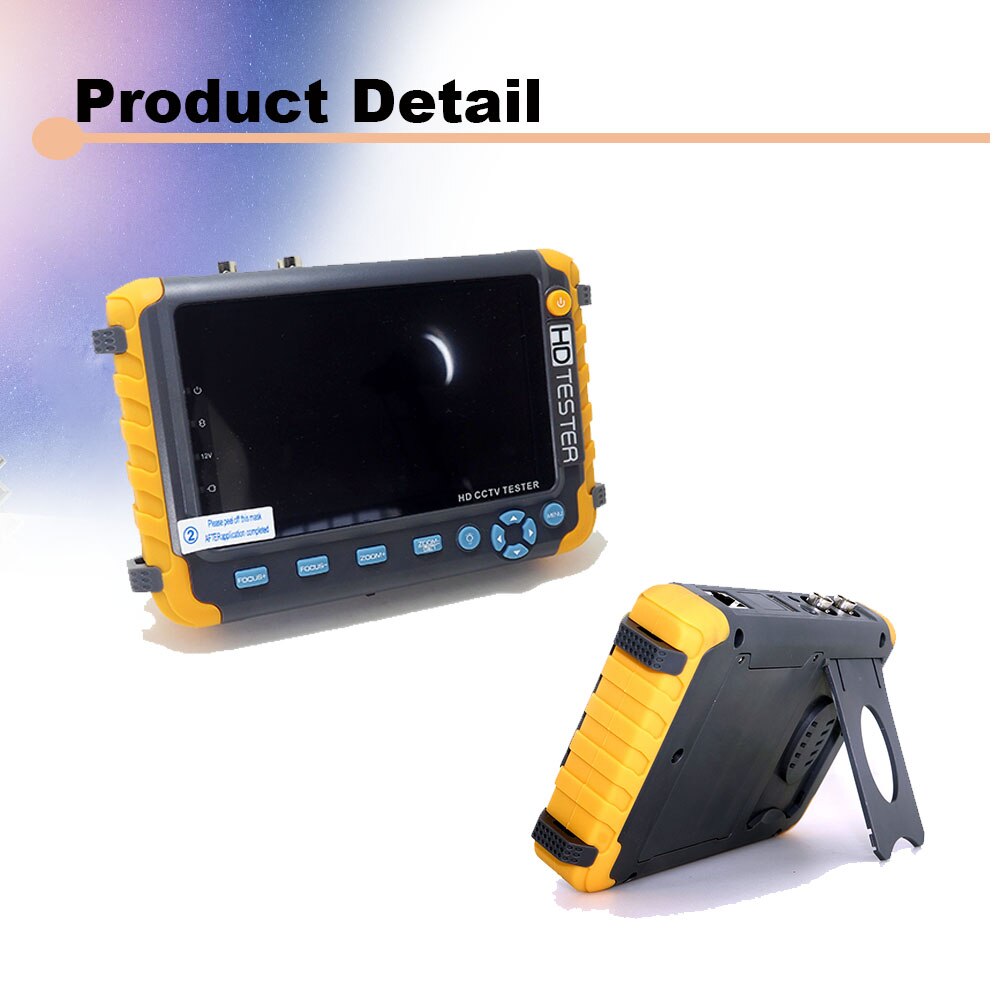

Product overview

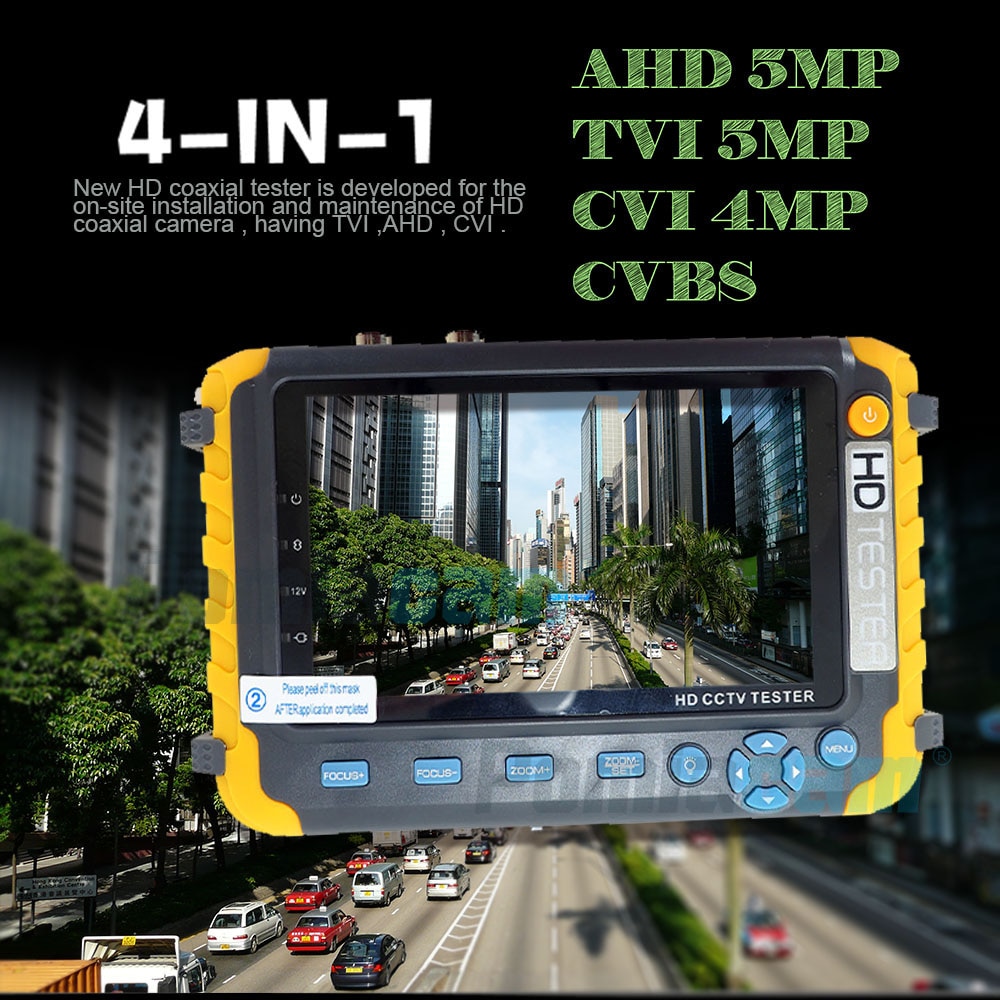

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
Product Funtions
Video signal testing

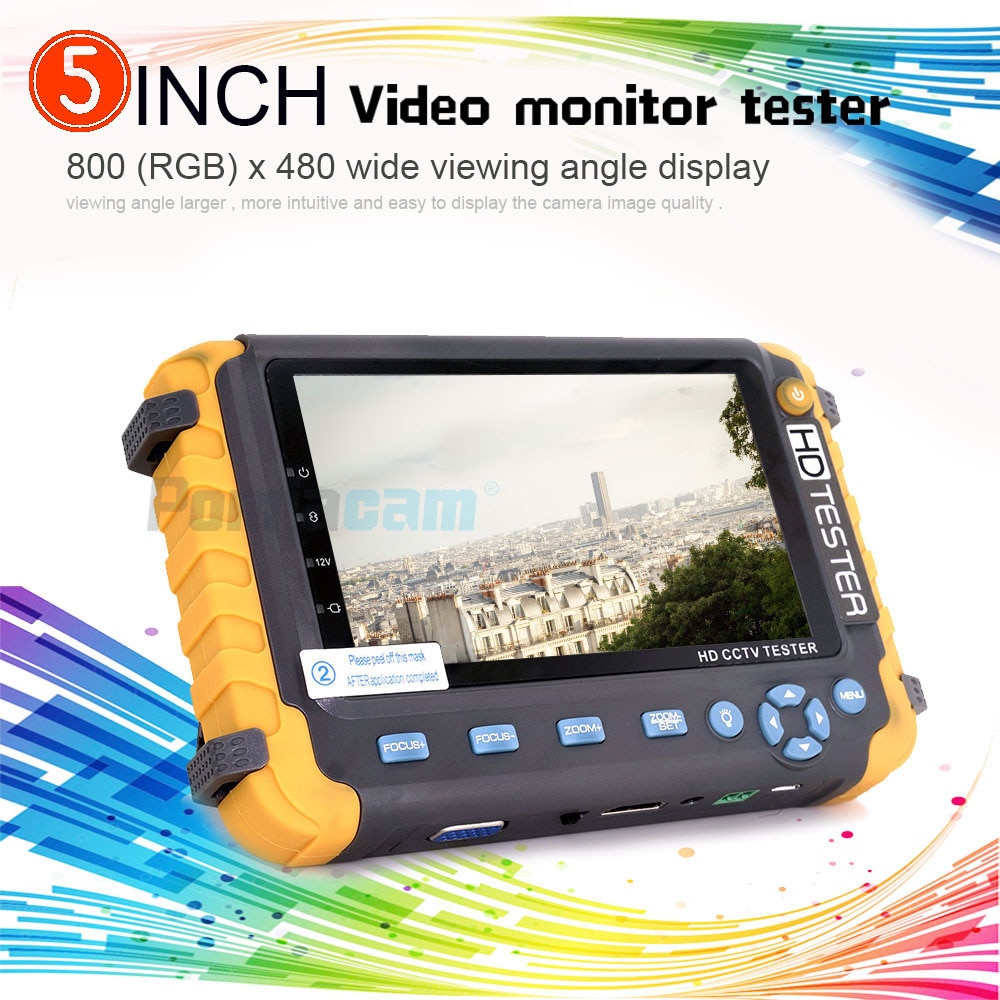

Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.

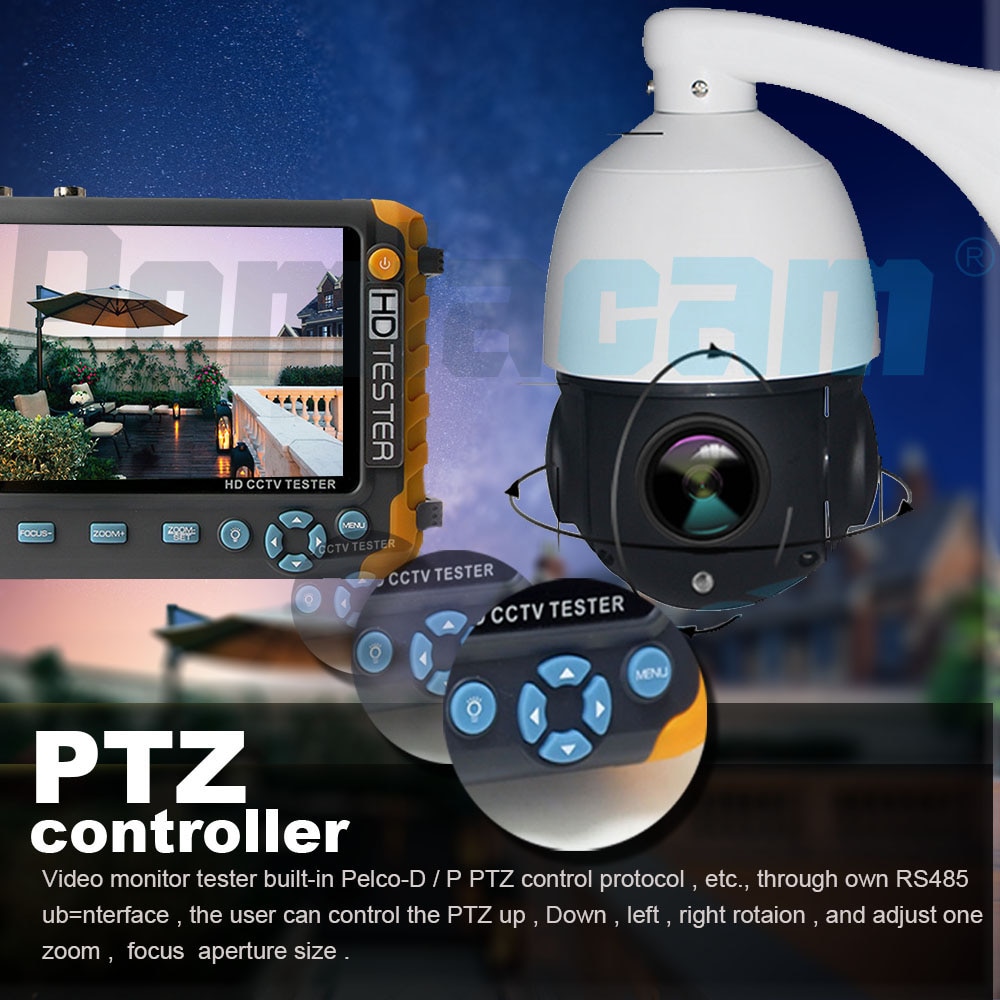

PTZ controller
Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

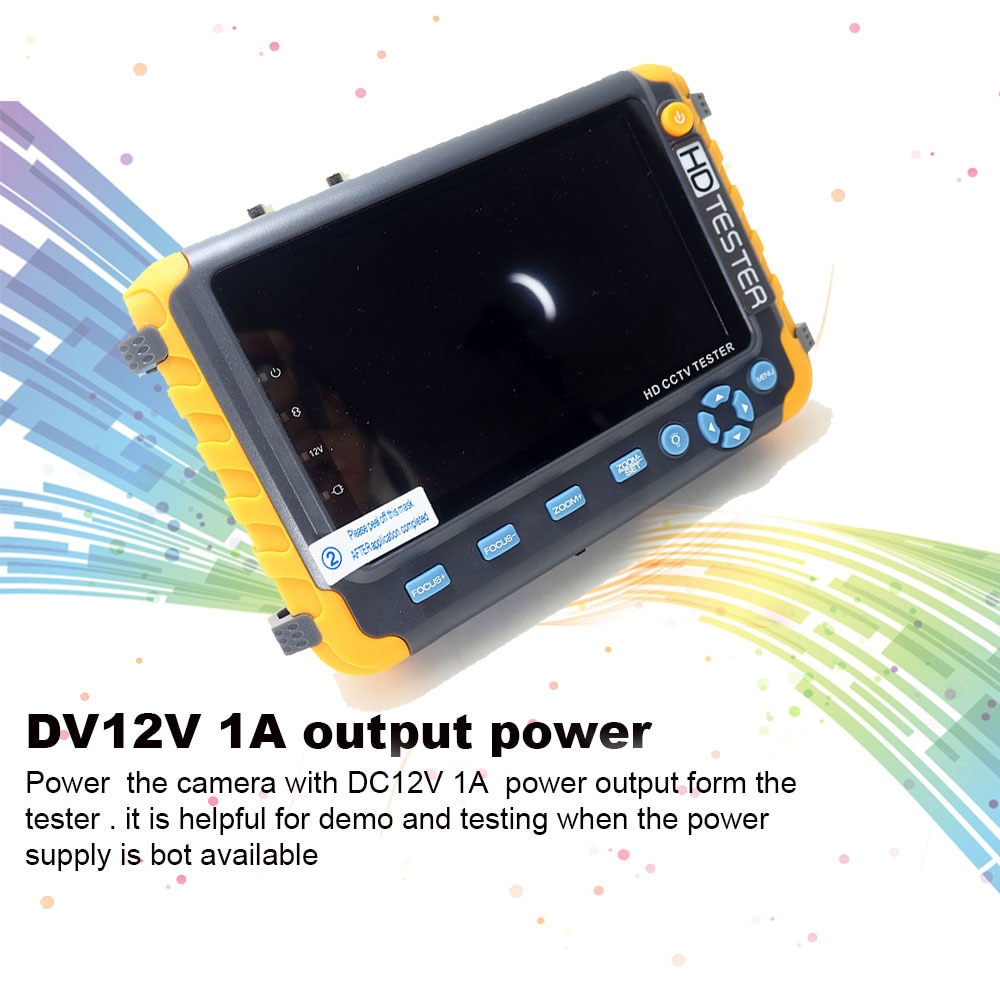

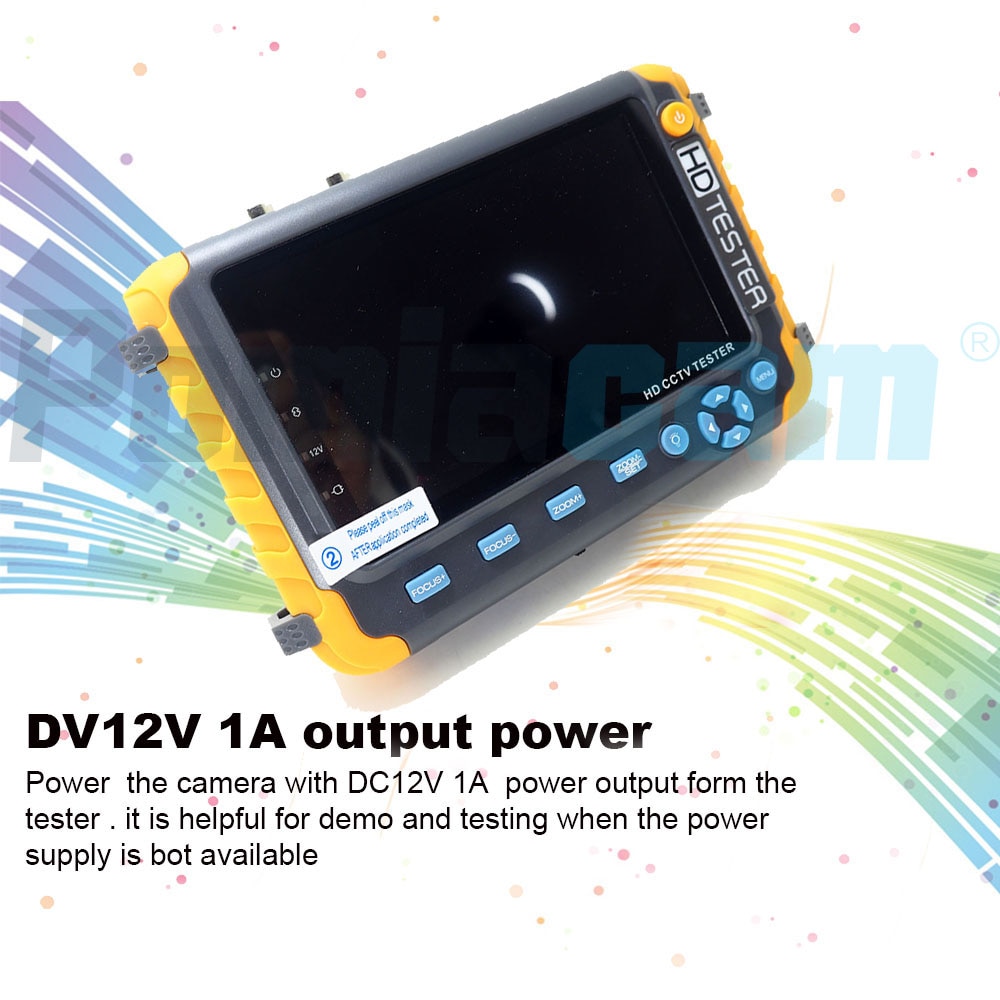

DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
VGA/HDMI input
Support VGA/HDMI 1.0 video input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is 1920 x 1440(IV8W ) / 1920X1080 (IV8S)
TVI camera test
HD TVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
AHD camera test
HD video surveillance testing, support AHD 2.0 version, 8MP (IV8W ) / 720p 25,30fps/ 1080p 25,30fps (IV8S) . When AHD signal input, the tester will display the AHD camera image.
CVI camera test
HD CVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The battery graphic display
The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.

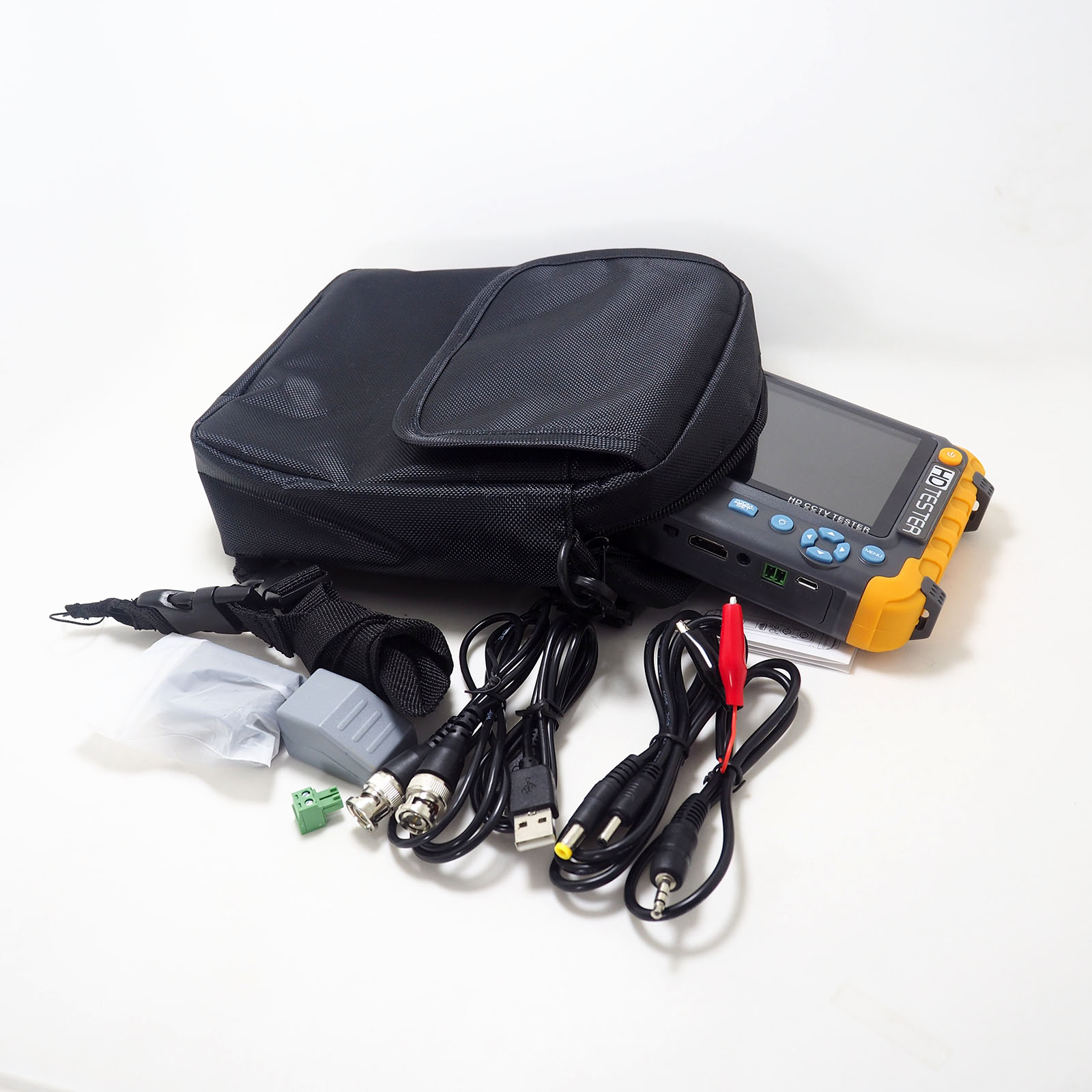

Packaging list
1*HD coaxial tester (Built-in battery)
1*Adapter DC5V 1A(with USB cable)
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1*Audio cable
1*Lanyard
1*Tool bag
1*Instruction Manual
- Plug Type: EU plug
- Sensor Type: CCTV monitor

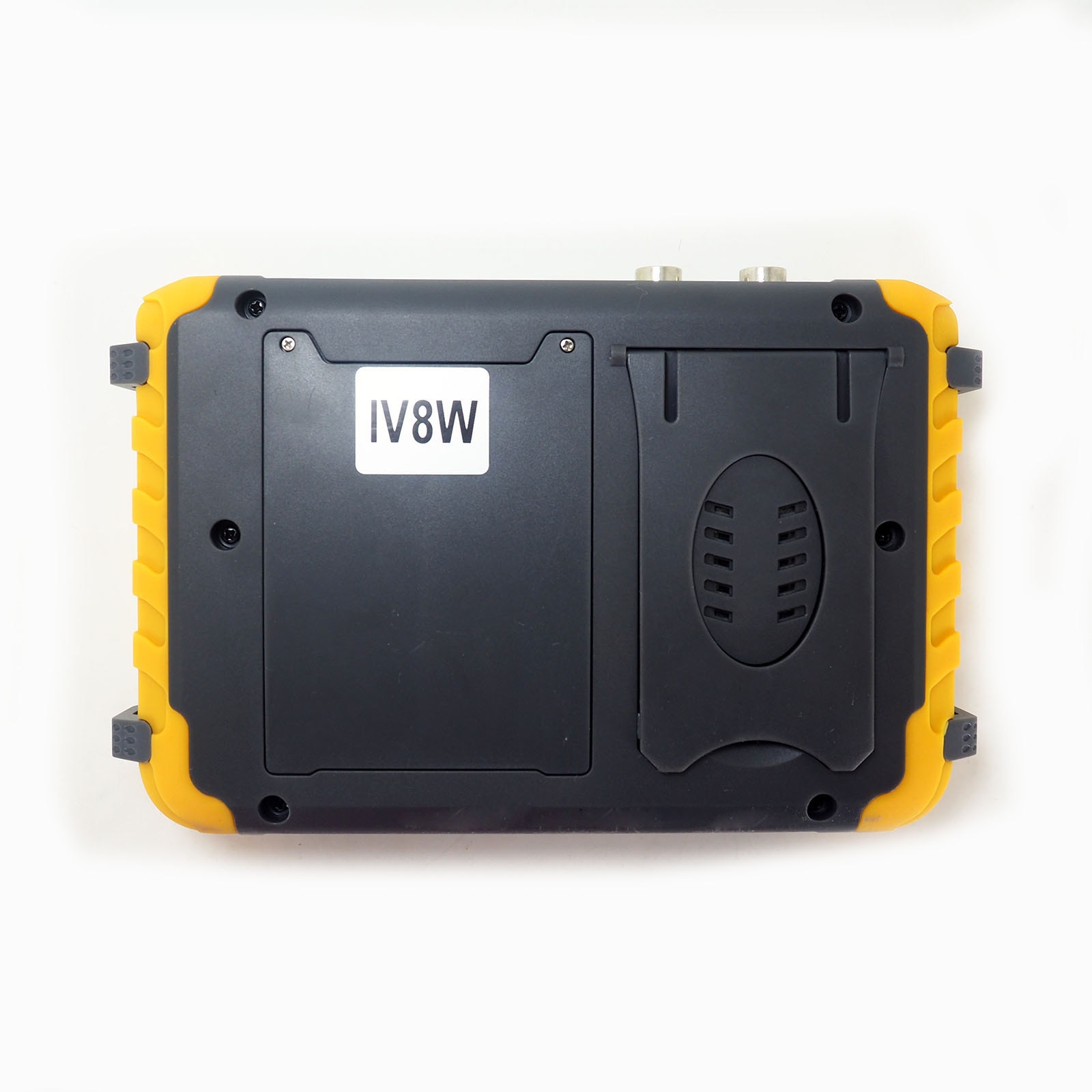

- Model Number: IV8W
- Maximum IR Distance(m): CCTV monitor
- Sensor Size: CCTV monitor
- Lens: 2.8mm
- Brand Name: POMIACAM
- Origin: Mainland China
- CCTV monitor :: cctv tester
