CCTV tester X9ADH X9MOVTADHS 8"touch screen IP camera tester for TVI CVI AHD SDI 4K H.265 camera testing PTZ controller with TDR

0.0 ( votes)
Price: US $1270.00 - 1750.00 / piece
Discount Price:
US $ 952.50 - 1312.50 / piece
-25%
Color
Quantity

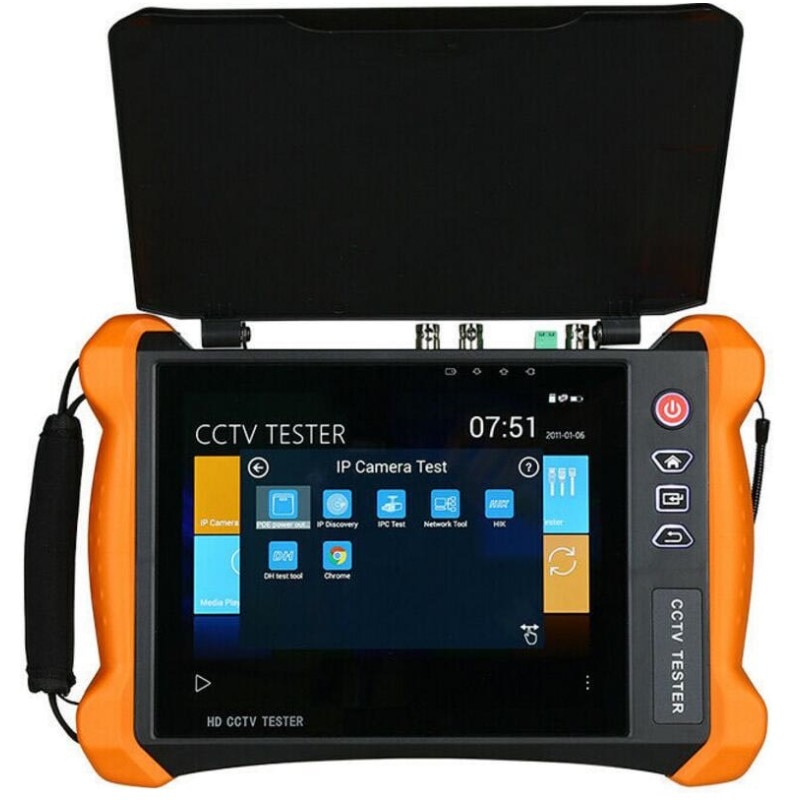

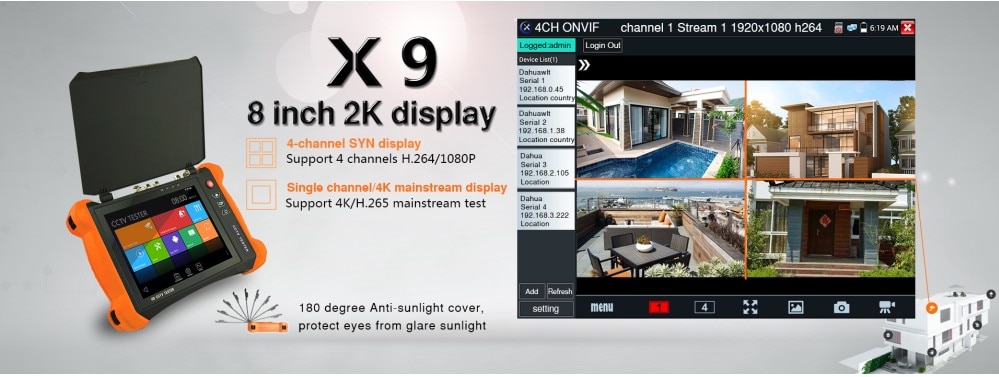

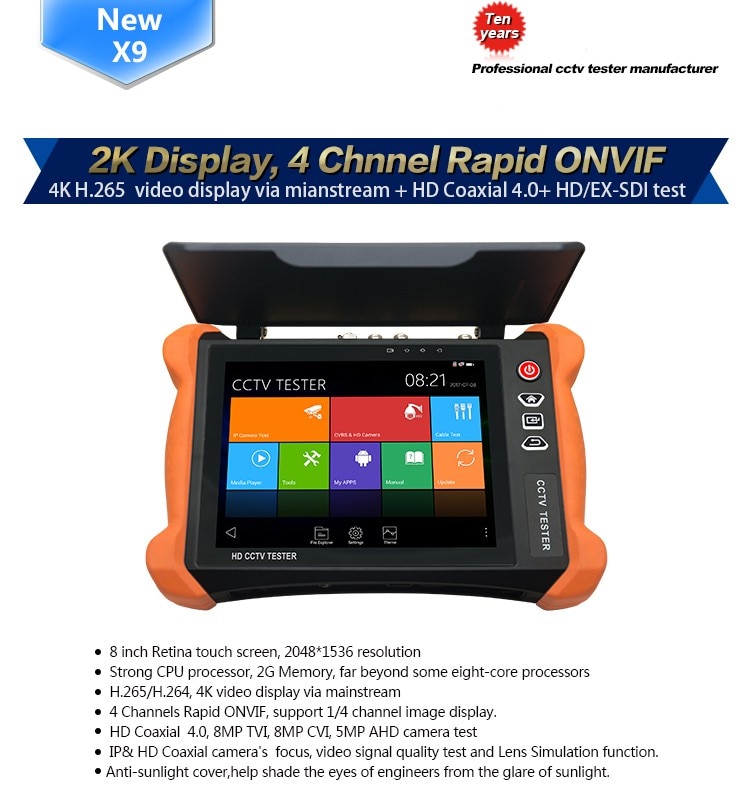

X9  8 inch 2K retina display with Anti-sunlight Cover HD CCTV tester

◆ 8 inch Retina touch screen, 2048*1536 resolution
◆ 8MP TVI, 8MP CVI, 5MP AHD and SDI/EX-SDI test
◆ H.265/H.264, 4K video display via mainstream
◆ Chrome browser, test and set Axis camera
◆ Dual window test, IP &Analog camera test
◆ Built in WIFI, create WIFI hotspot
 ◆ HDMI 1080P input and 4K output

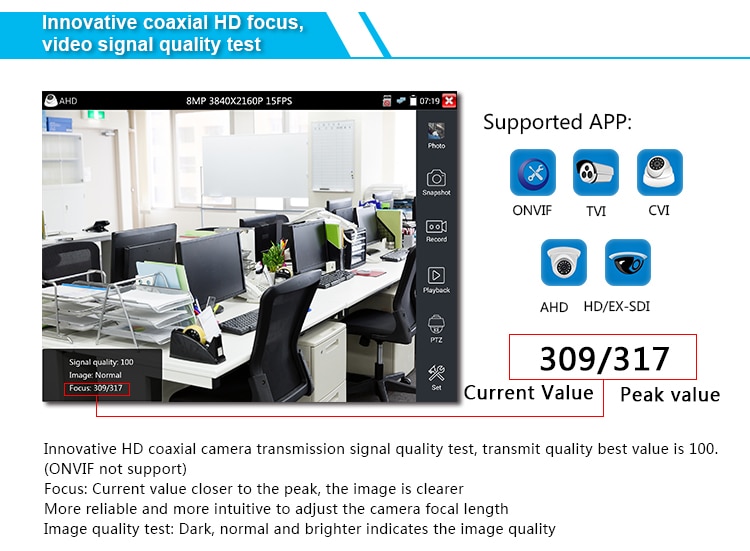

◆ HD Coaxial video signal quality and level meter test
◆ RJ45 cable TDR test, UTP cable quality test
◆ DC12V 3A, DC48V PoE power output
◆ 4 channels Rapid ONVIF simultaneous display, auto view video, and create testing report
◆ Backlight buttons, easier to operate in the dark

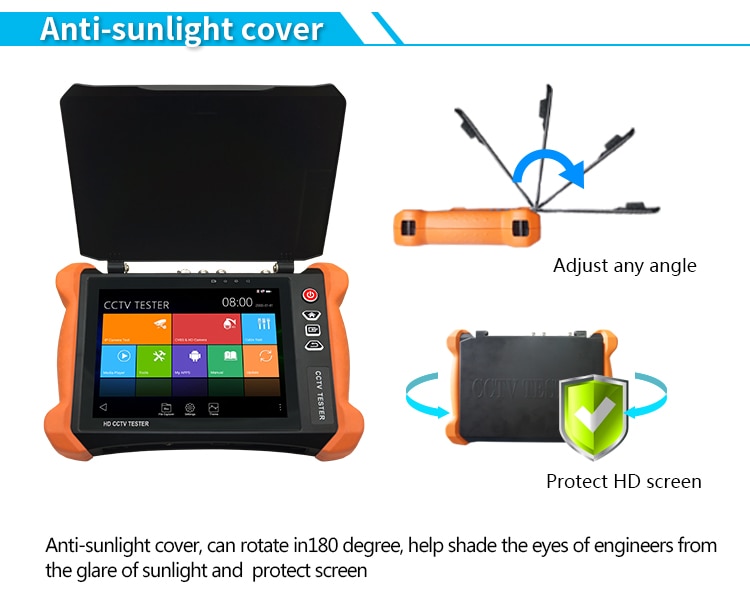

◆ Anti-sunlight board,help shade the eyes of engineers from the glare of sunlight.
◆ TesterPlay, tester, android version mobile phone and PC display at the same time

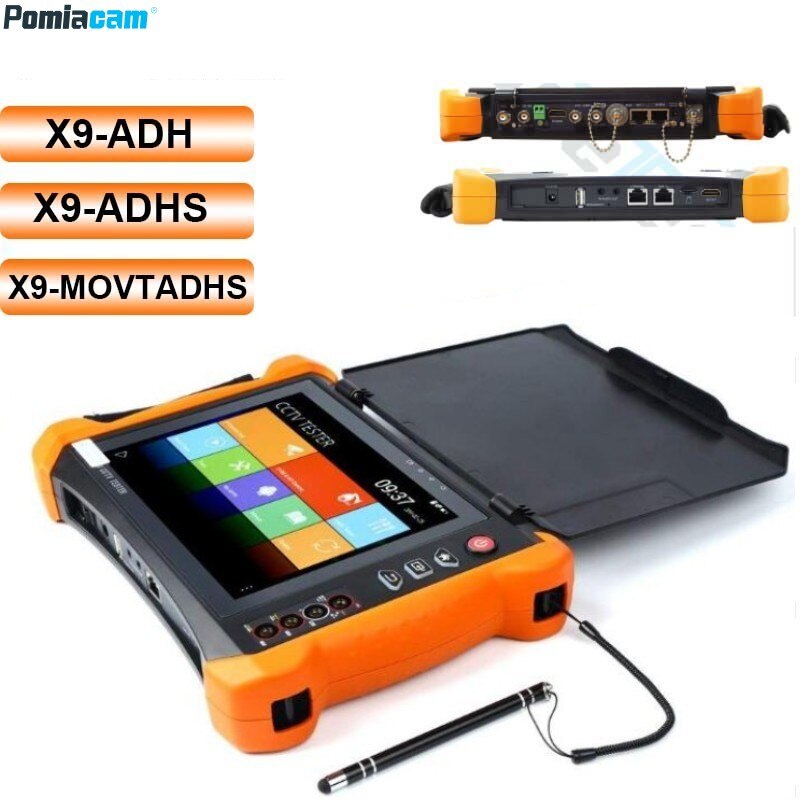

X9ADH: IP+CVBS+AHD+CVI+TVI   5 In 1 CCTV Tester



X9ADHS: IP+CVBS+AHD+CVI+SDI+TVI 6 In 1 CCTV Tester



X9 MOVTADHS: IP+CVBS+AHD+CVI+SDI+TVI  Multimeter+optical fiber+visual fault locator+TDR full functional Model


Product Overview:

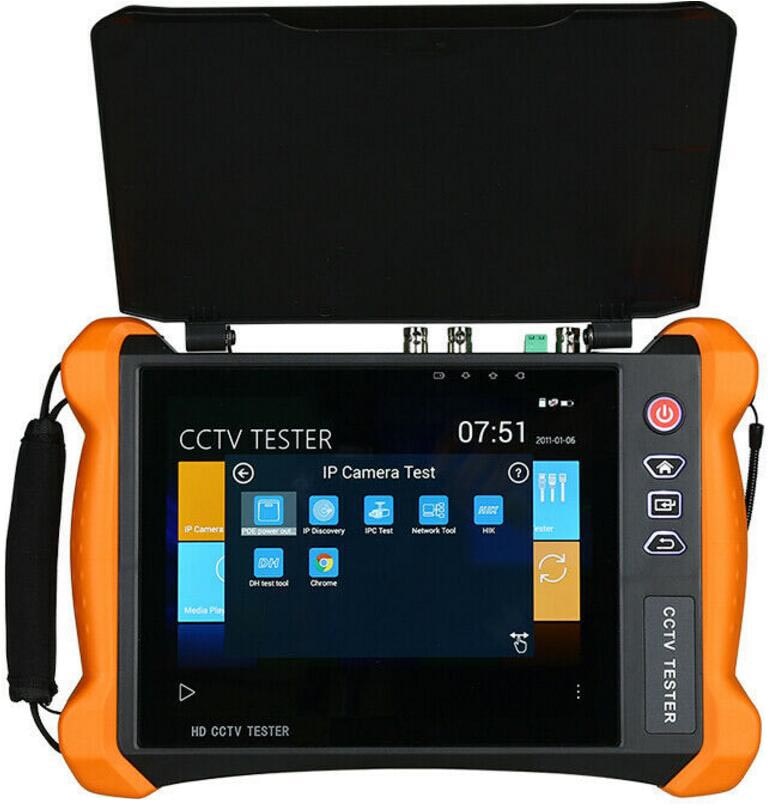

The 8 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 2048X1536 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

Application:

●CCTV system installation and maintenance
●Network cabling project installation and maintenance
●Dome camera, IP TVI CVI AHD SDI 4K H.265 camera testing
●Video transmission channel testing
●PTZ controller

Main Function:


●  8 inch retina touch screen, 2048*1536 resolutions
●  H.265 & H .264 IP, 4K video display via mainstream

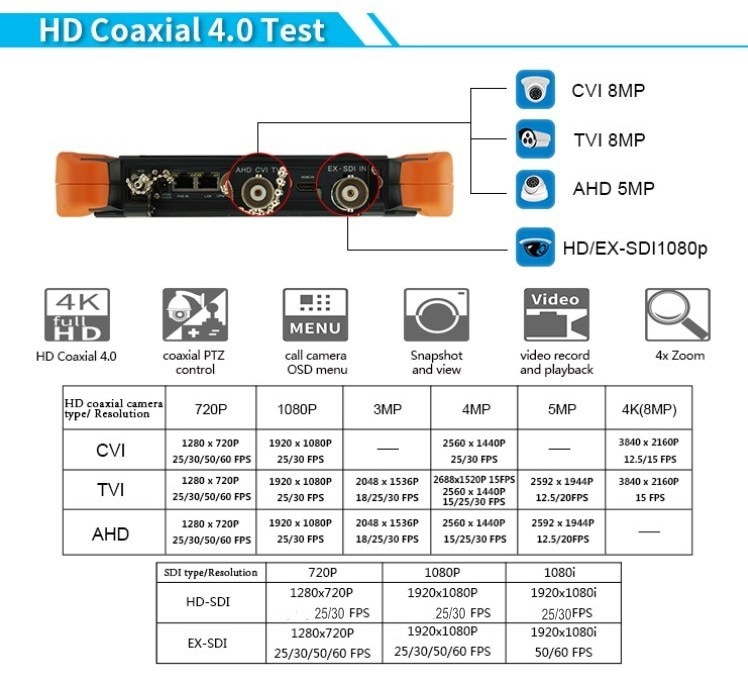

●  8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu
●  5MP AHD test, 2560x1944P12.5F/ 20fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
●  8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu
●  HD SDI/EX-SDI camera test, support 1080P 25/30 FPS *

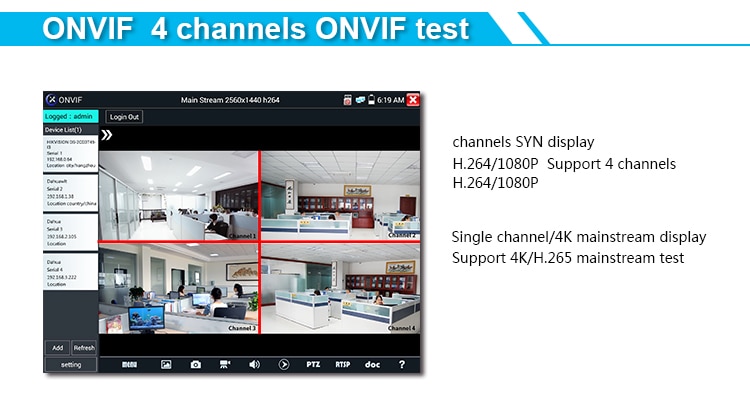

●  4 channel ONVIF video simultaneous display,4 channel display max support 1080P ,single channel display max support 4K

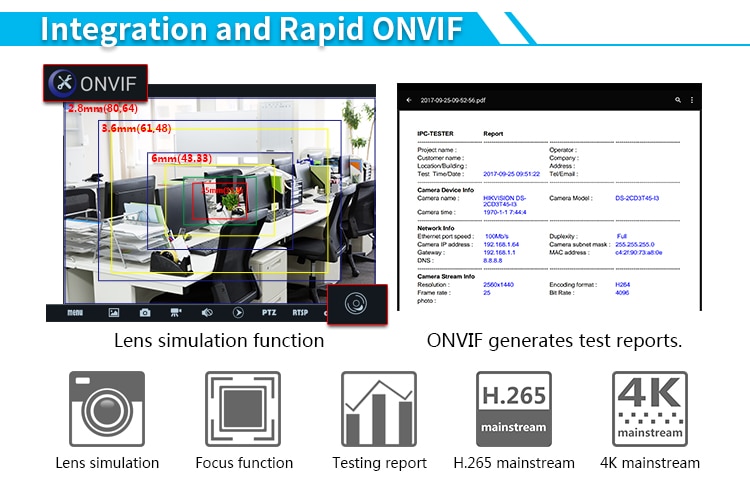

●  Rapid ONVIF, Auto log in and display image, create testing report
●  Chrome browser, test and set Axis camera
●  AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
●  CVBS camera test and PTZ control
●  IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
●  Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement.
●  DC12V/3A power output, camera can be powered from DC 12Votage.
●  48V PoE power output power.
●  Rapid video, just by one key to detect all network cameras and auto display.
●  Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot.
●  CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable.
●  Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:
●  Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized.

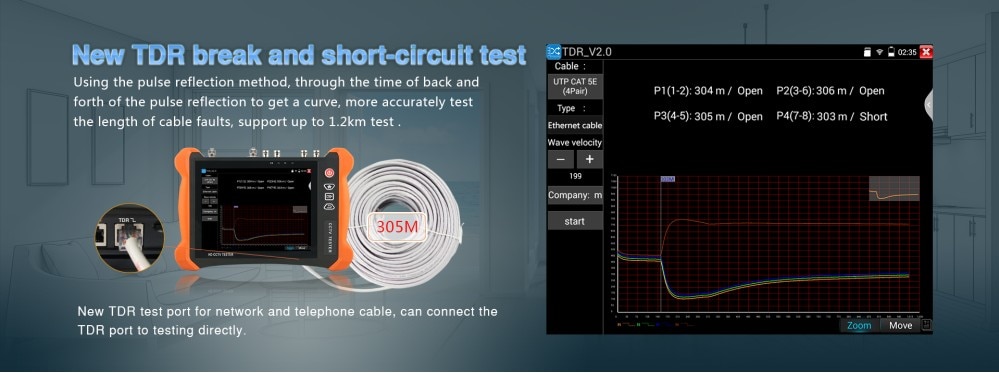

●  RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc.
●  Cable tracer, search BNC cable, network cable and telephone cable from the mess cables.

Other functions:
●  Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route.
●  POE & power information, DC12V& PoE power and voltage output /input measurement.

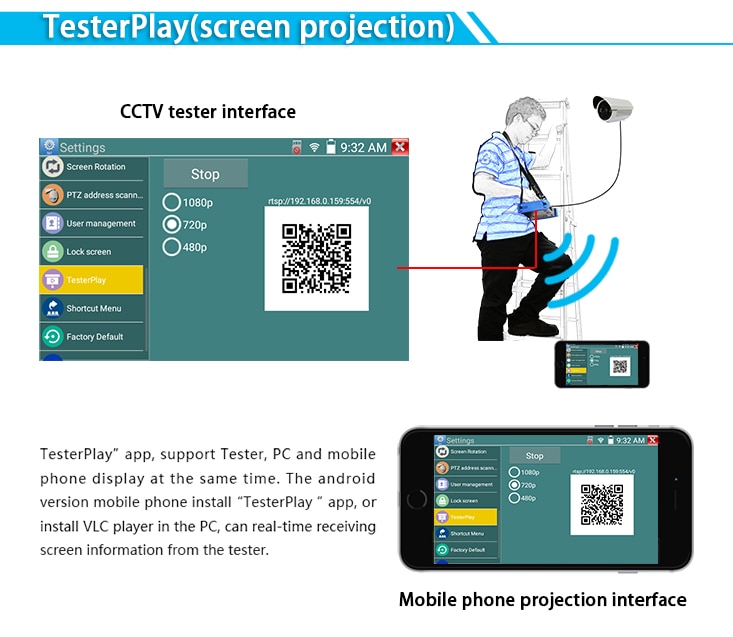

●  Tester Play: Tester, android version mobile phone and PC display at the same time.

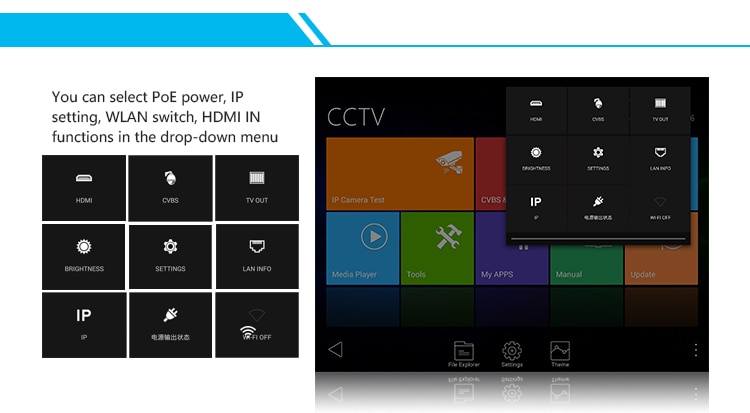

●  Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc.
●  HDM input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot *.
●  Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters.
●  Self -update software, you can install apps with android version.
●  Media player, 4K video files and MKV/MP4 media files play.
●  Quick office, quick office app (support excel, word, ppt format) doc. editable.
●  8GB SD card including.
●  Display its genuine resolution of the IP camera images.
●  Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools.
●  7.4 V /7000mAh Lithium Ion Polymer Battery, after 6~7 hours charging , working time lasts 16 hours

❤【Service & shipping & Tax】

shipped by DHL/Fedex/TNT/EMS/UPS , about 2-15 days arrived your country (NOT 100%).
please confirm whether you have the clearance ablity. Import duties ,taxs and charges are not included in the price or shipping charges, These charges are the buyers' responsibility.  Our services does not include customs clearance, please be prepared to pay taxes.

(Please leave a message at the time of purchase to ensure that you can better clear the customs, such as you need the original invoice or you need to write the tax number on the package, and so on.)




X9 9999X9 2-X9 2X9777






  • Plug Type: EU plug
  • Sensor Type: Camera Tester
  • Model Number: X9 series
  • Maximum IR Distance(m): Camera Tester
  • Sensor Size: CCTV Tester Monitor
  • Lens: CCTV Tester Monitor
  • Brand Name: POMIACAM
  • Plug type:: EU,UK,US,UA
  • 8 inch retina touch screen:: 2048*1536 resolution
  • IPC CVBS:: H.265 4K IP
  • Power output:: DC12V 3A, DC 48V PoE
  • RJ45 TDR:: support
  • PTZ Audio:: support
  • cable tracer:: support
  • WIFI:: Built in
  • Rapid ONVIF:: support
  • HDMI Input and output:: support
  • HD Camera testing:: 8MP TVI CVI, 5MP AHD & SDI/EX-SDI
  • Size:: 28x23x8
