DE ship Mini Laser Engraving Machine CNC 3018 Laser Engraver DIY Hobby Cutting Tools ER11 GRBL for Wood PCB PVC Mini CNC Router
5.0 (1 votes)
Price:
US $461.84 - 653.06
/ piece
Discount Price:
US $
379.51 -
518.91
/ piece
-18%
- Ships From
Notice:
this item will delivery from our "EU/Germany"warehouse,within European Union countries free VAT(import duty)andfree shipping by UPS/DHL, the package will be not easy broken with delivery.
The free ship and free VAT Europe countries area:
Austria, Belgium, Bulgaria,Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain ( without Canary Islands) ,Sweden, United Kingdom.

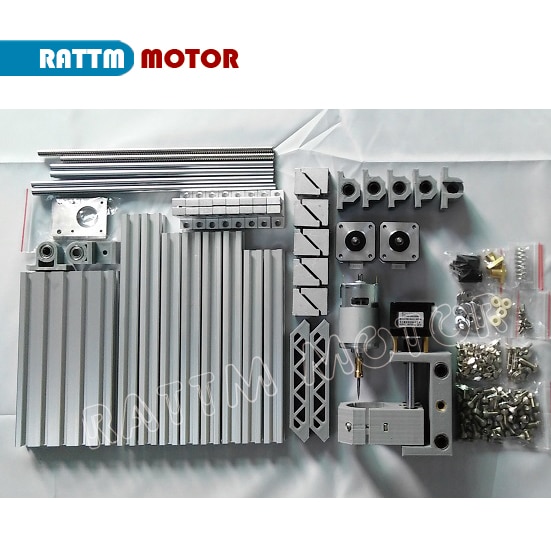

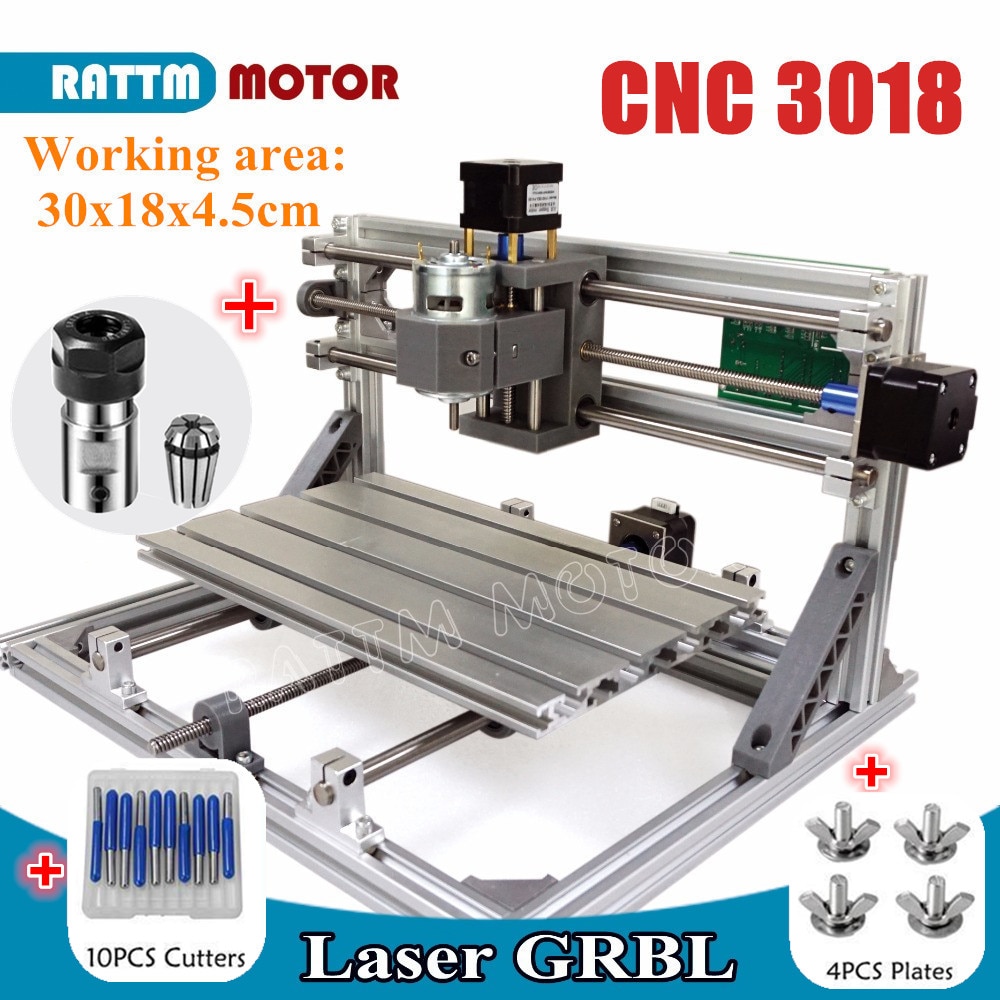

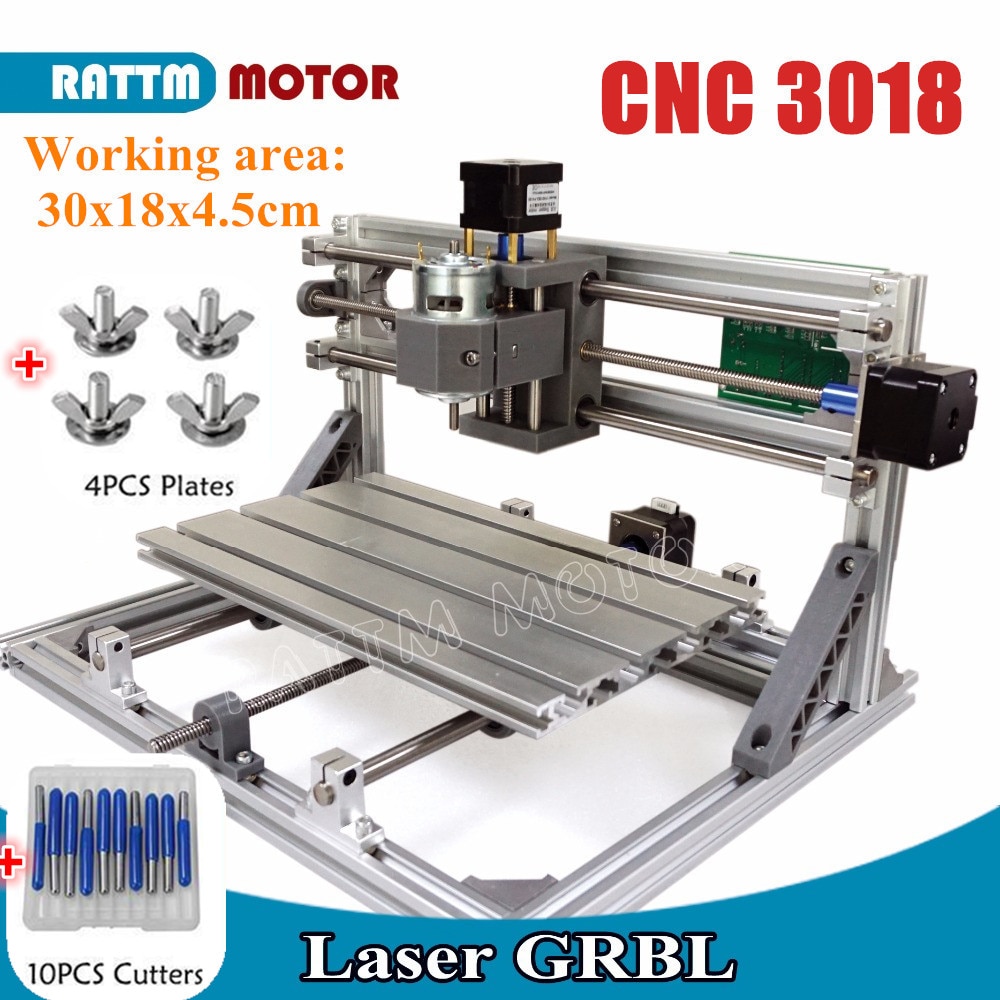

Package include:
1) 1set GRBL 3018 CNC Laser machine kit without laser ( without ER11 Collet )
2) 1set GRBL 3018 CNC Laser machine kit without laser ( with ER11 Collet )
10 x 20°0.1mm drill bits
4 x plate
Set of allen wrench
1 x power supply

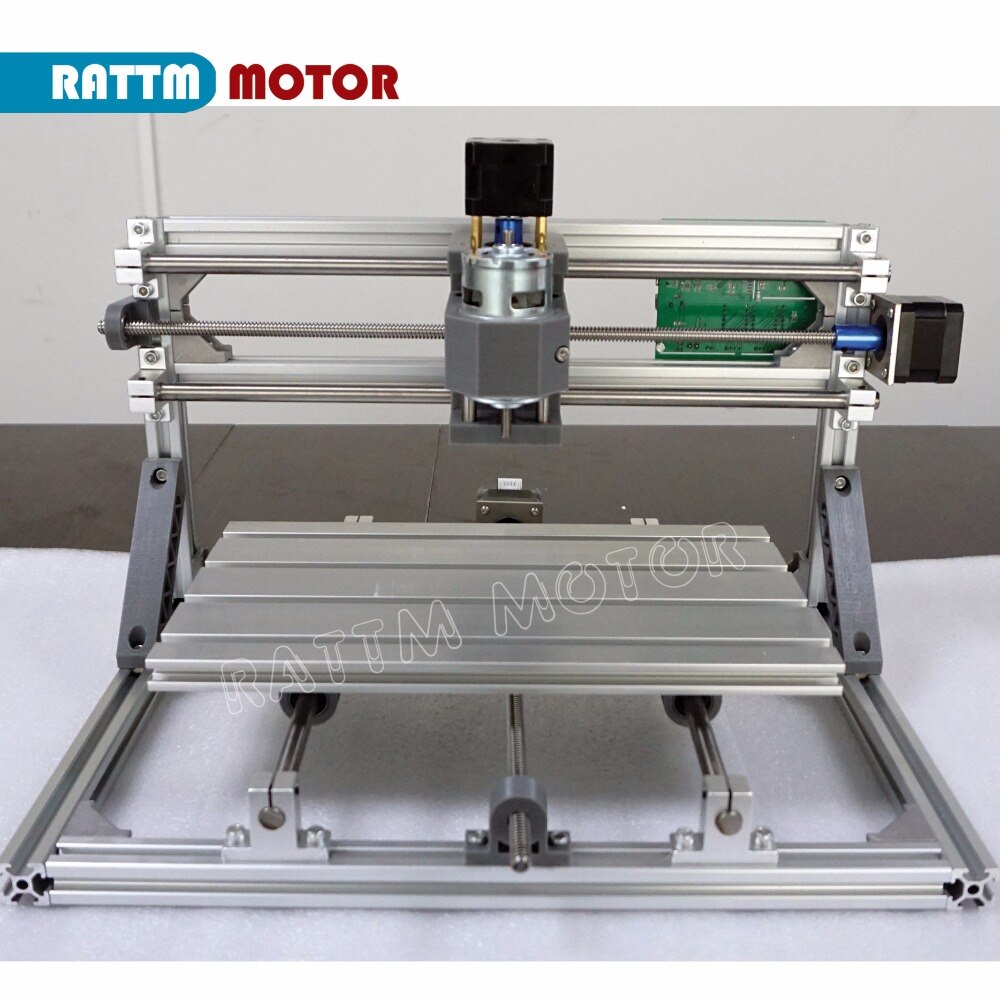

Introduction:
Body used profiles and plastic, small size, light weight, USB interface, GRBL control system, learning, entry preferred. Can use carving knife, but also can use laser engraving.
Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.
Specification:

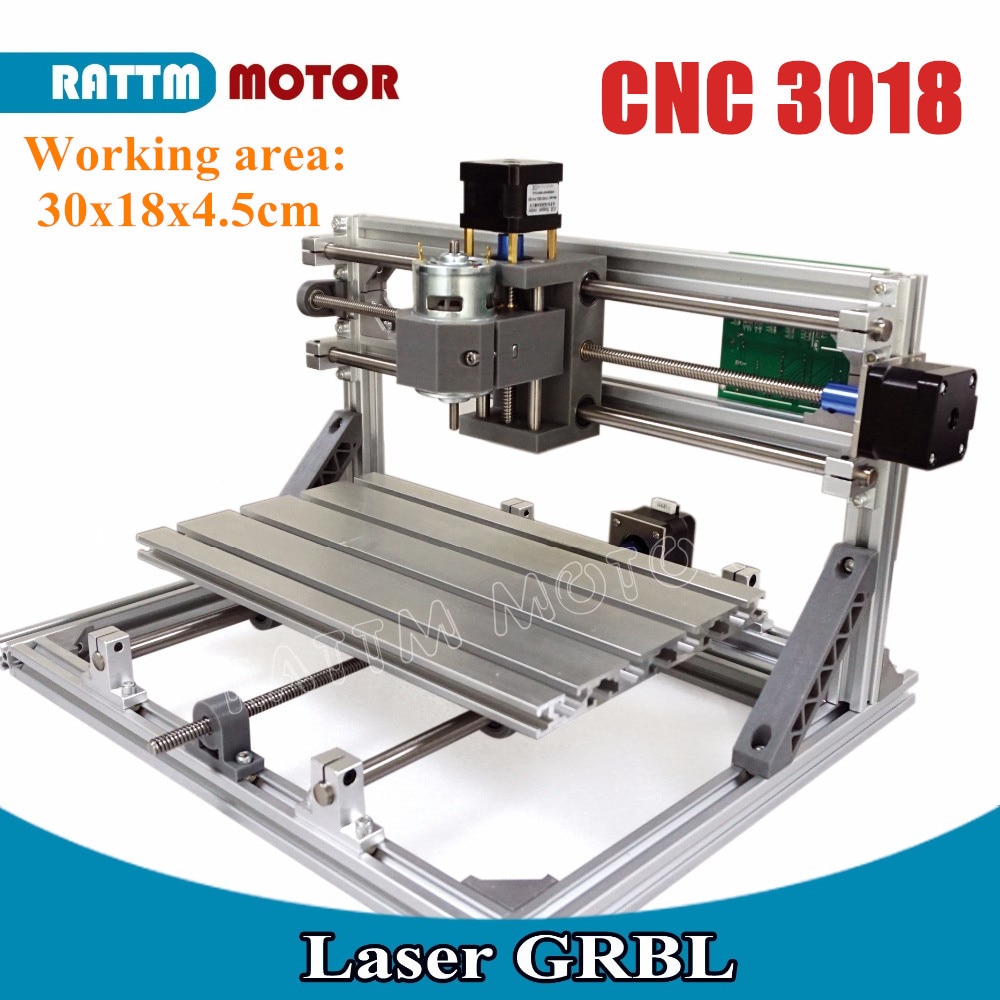

Working area : 30x18x4.5cm
Frame size : 40x33x24cm
Spindle : 775 spindle motor (12-36V)24V: 10000r/min
Spindle Chuck: normal
Step motor : Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
Power supply : 24V 5.6A
Software : GRBL controller
Support System: Windows XP / Win 7 / Linux
Drill bits: tip 0.1mm ,20 degree , diameter3.175mm.the package include 10p
Laser: 500mw 405nm,12v / 2500mw 450nm,12v / 5500mw 450nm,12v.

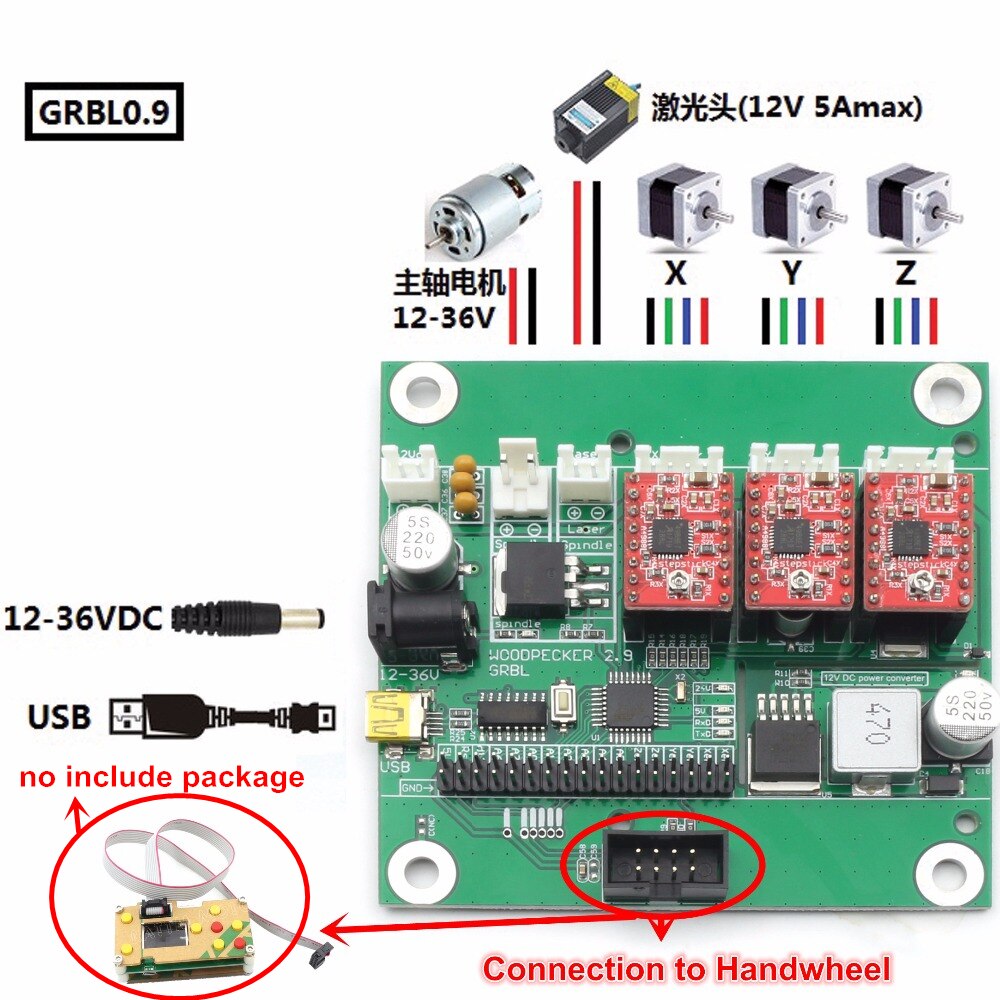

I. GRBL 0.9J,USB port cnc engraving machine control board, 3 axis control
Specification:
Connection: USB (USB-CH340)

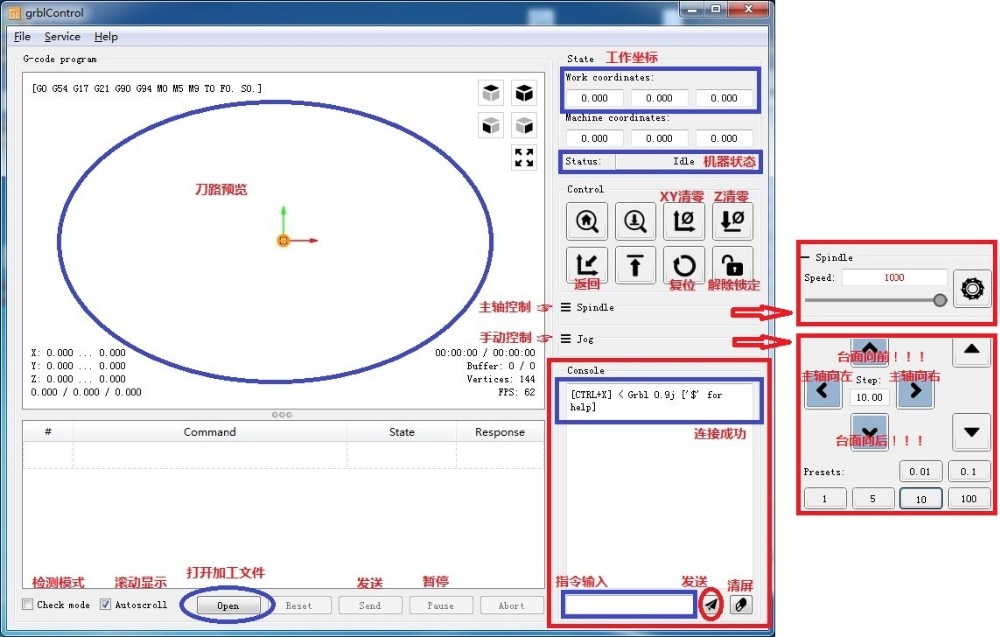

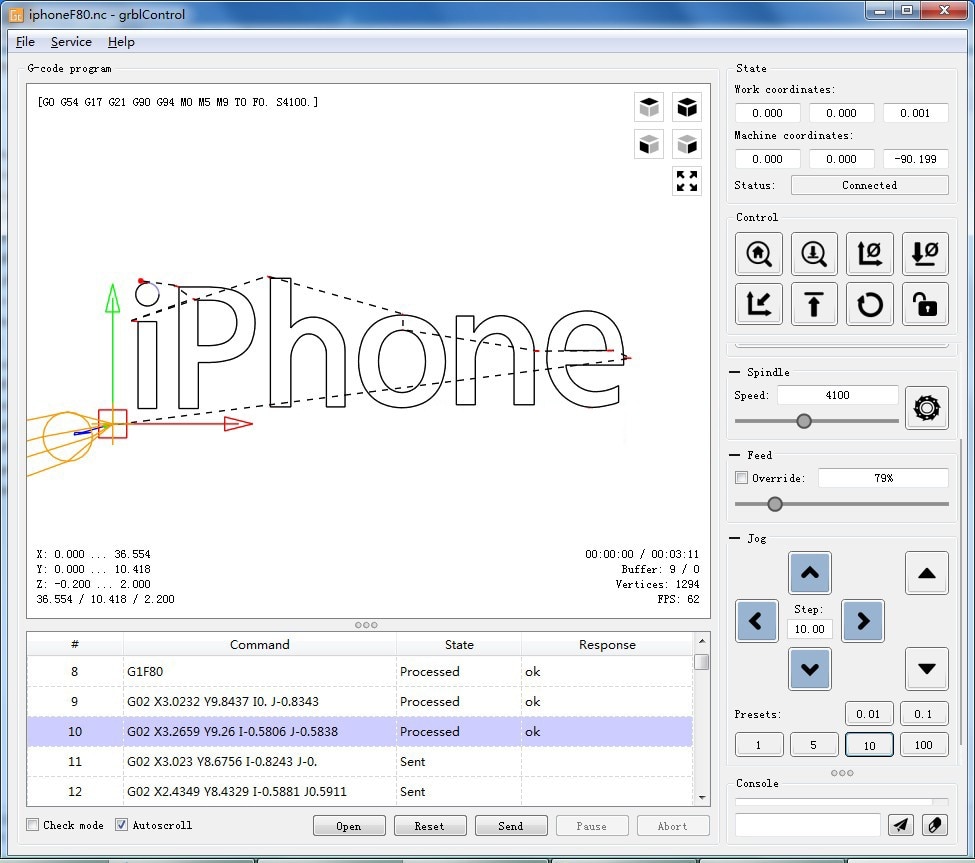

Software: GRBL controller, UniversalGcodeSender
Input voltage: 12-36V
Master chip: atmel 328P (arduino nano)
Stepper motor driver: A4988
Spindle drive chip: MOSFET (recommendation 12~36V, current : within 10A )
Spindle PWM speed: Support
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Laser engraving: Support
Power Interface: 5.5-2.5mm DC interface
Main application:
Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.
Shipping
===================================================================
This Item will ship within 1-2 business days by Germany DHL on payment received .
We are not responsible for wrong or undeliverable address,please
Double check your address when you write in Hogaki, if you want change before we ship out.pls notice us the new address.
Delivery time :
By "Germany DHL" delivery 3-9 working days,
tracking web: www.dhl.de/en/paket/information/sendungsverfolgung.html
If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.
Payment
===================================================================
1.Free VAT and free import duty (TAX ) within EU counties.
2.Before purchasing, pls confirm with us whether in stock.
3.Pls make payment within 3 days of the order if possible.
4.Alipay(escrow),Credit Card,Western Union,Bank TT, paypal etc are accepted.
Problem & Feedback
===================================================================
We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit
If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.
1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.
2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.
3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,
Refund
===================================================================
Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.
When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.
Contact us
===================================================================
Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.
Customer’s satisfaction is very important to us.

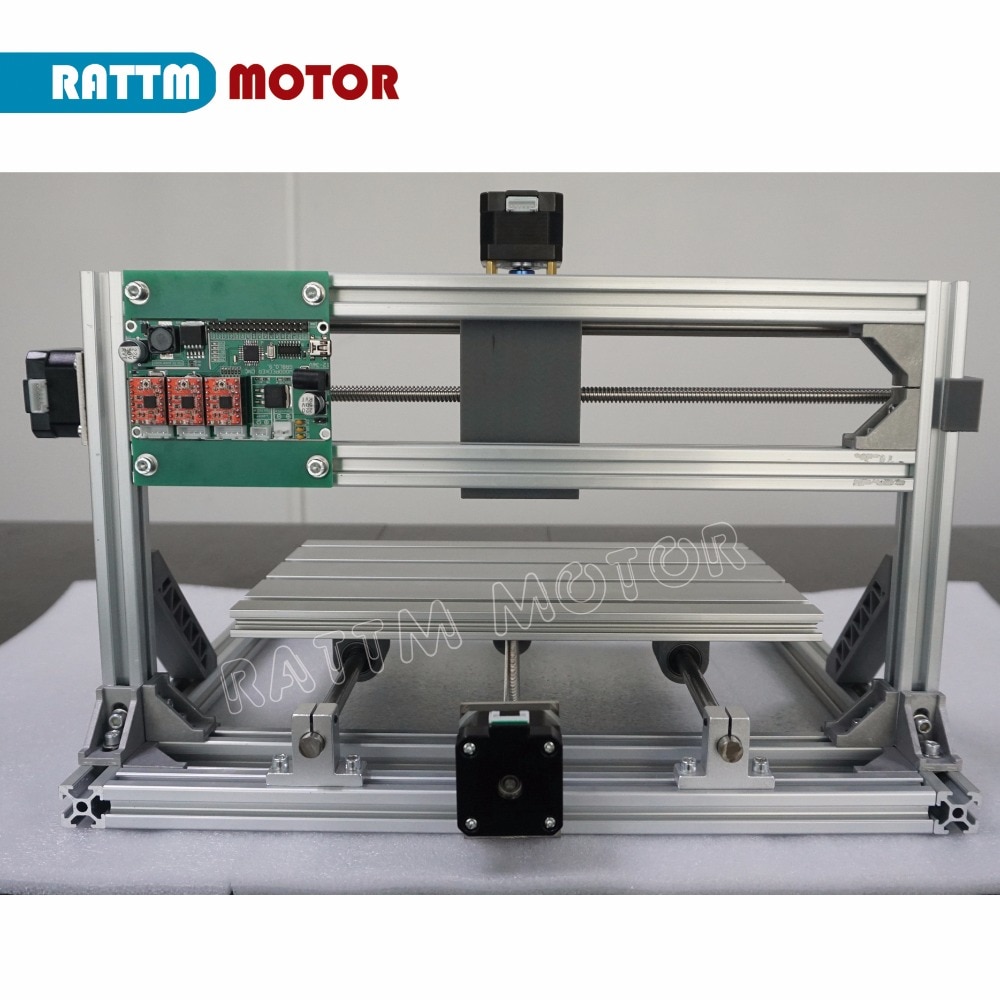

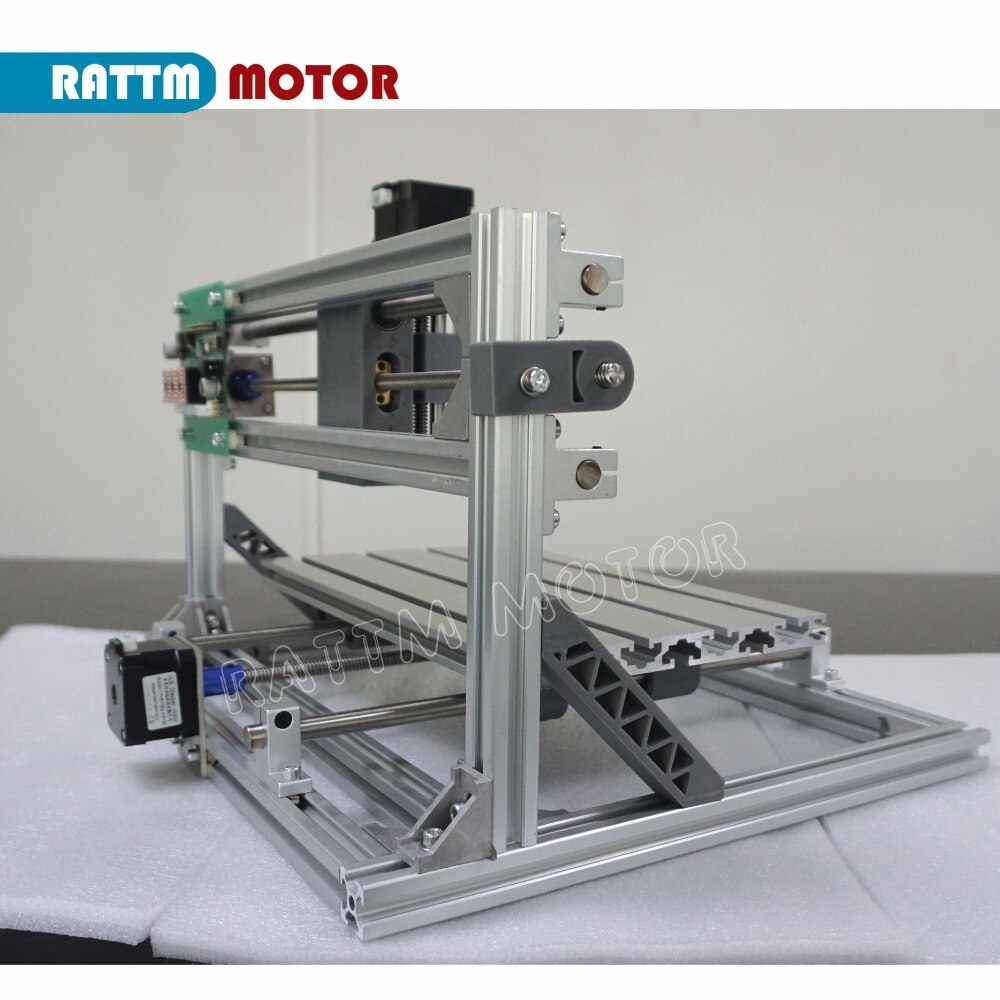

DE ship 3018 GRBL control DIY mini CNC machine working area 300x180x45mm 3 Axis Pcb Milling machine,Wood Router,cnc router v2.4
- Model Number: 3018
- Condition: New
- CNC or Not: CNC
- Brand Name: RATTMMOTOR
- Origin: Mainland China

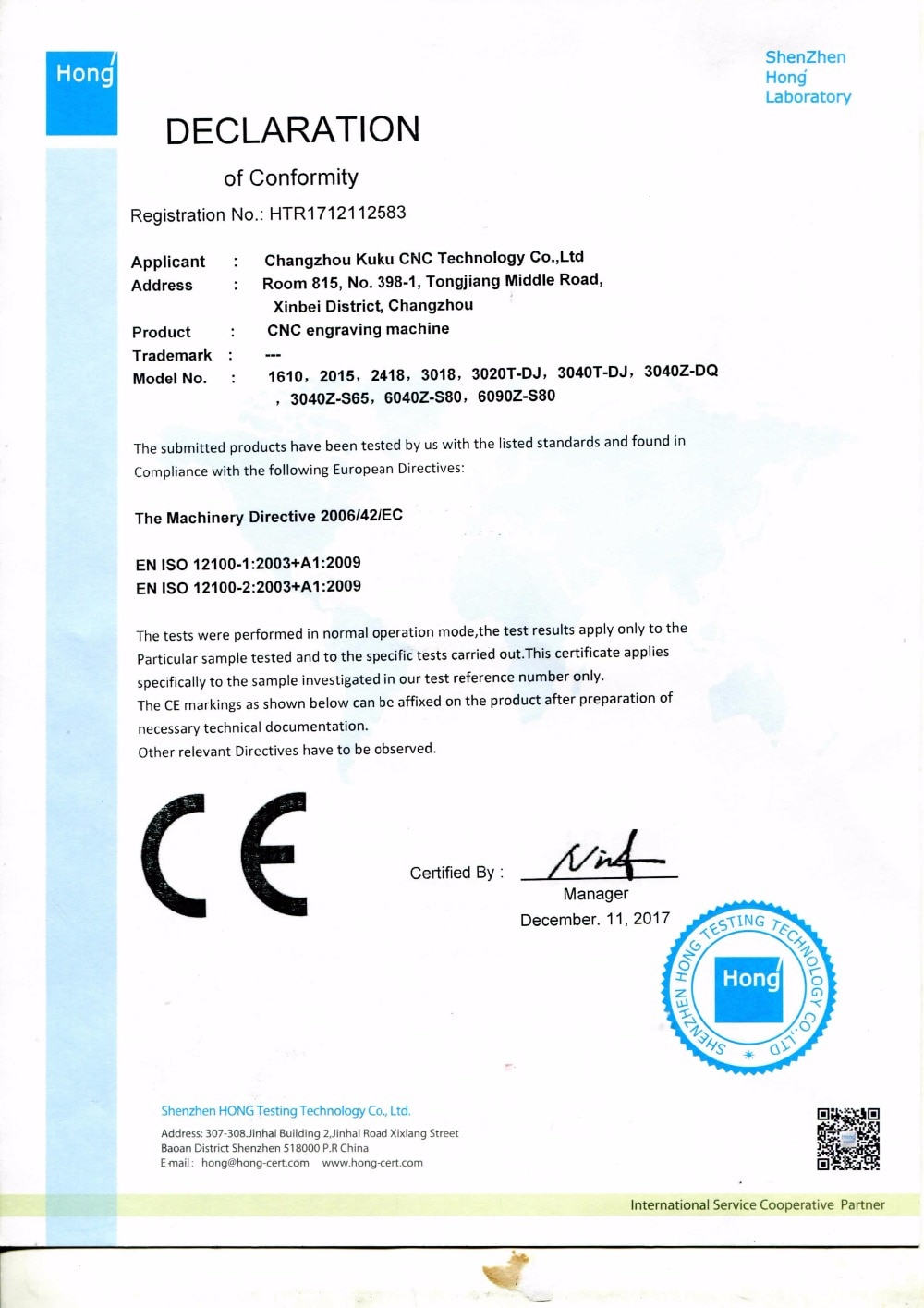

- Certification: CE
- Type: Desktop cnc router
- Voltage: 220VAC
- Drive: Stepper motor
- Software: Grbl Control
- Port: USB port
- System requirements: windows XP SP3, win7 (32/64 can be). Linux
- Spindle: 775spindle motor(12-36V) 24V:7000r/min 36V:9000r/min
- laser: Support laser
- Working area: 30x18x4.5cm
- Frame size: 40x33x24cm
- Step motor: Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
- Gray Part Material: Plastic
- VAT and TAX: EU,USA,RU free VAT and free import duty
