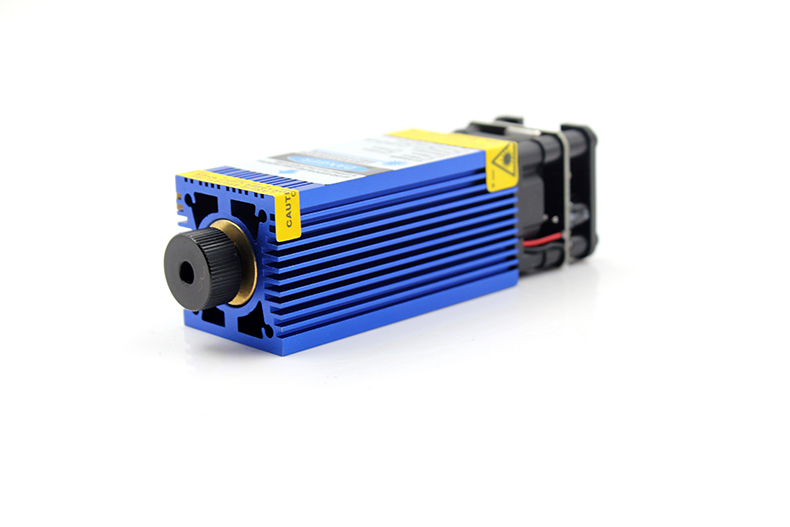

oxlasers TRUE 3W 5W 5500mW 445nm 450nm focusable blue Laser Module Laser Engraver part DIY Laser Head with PWM
5.0 (1 votes) | 11 orders
Price:
US $265.39 - 356.69
/ piece
Discount Price:
US $
164.47 -
221.86
/ piece
-38%

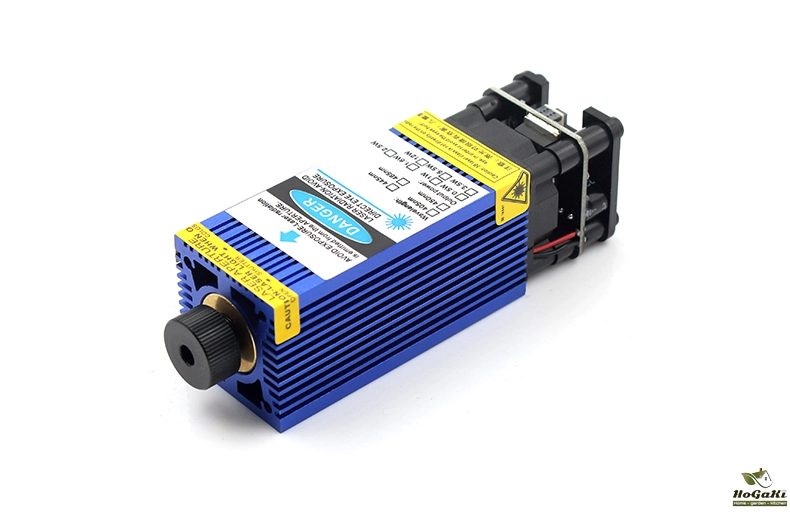

Technical Parameters:

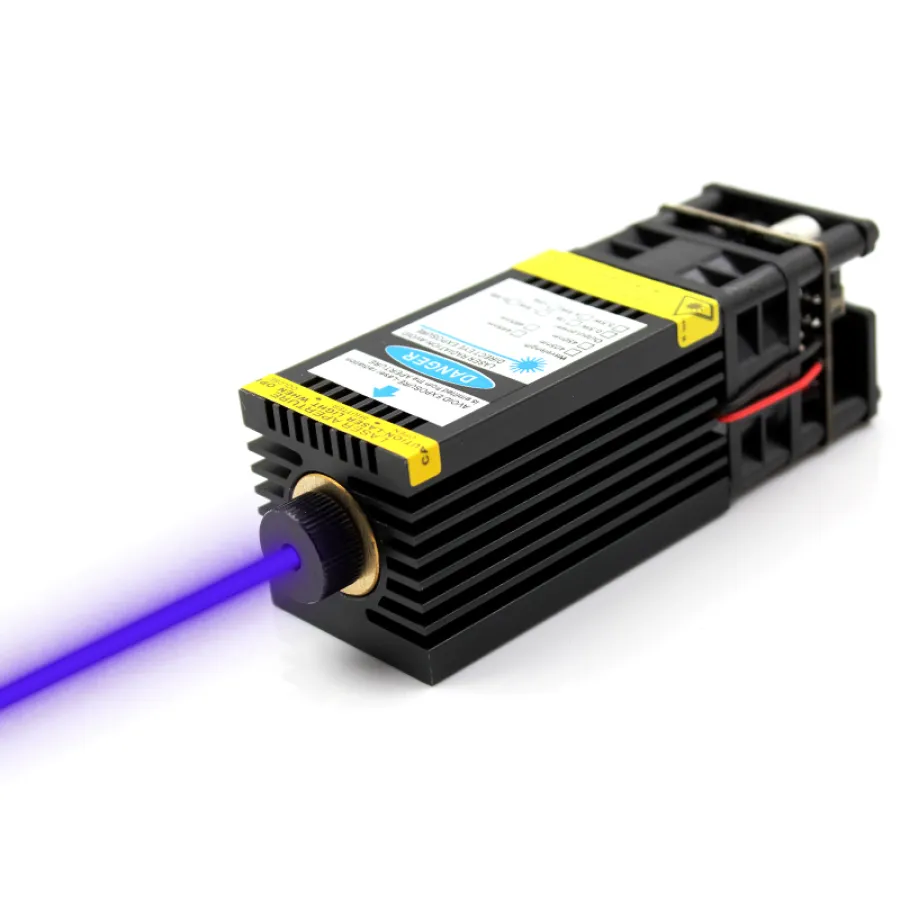

Laser wavelength: 445nm-450nm blue laser

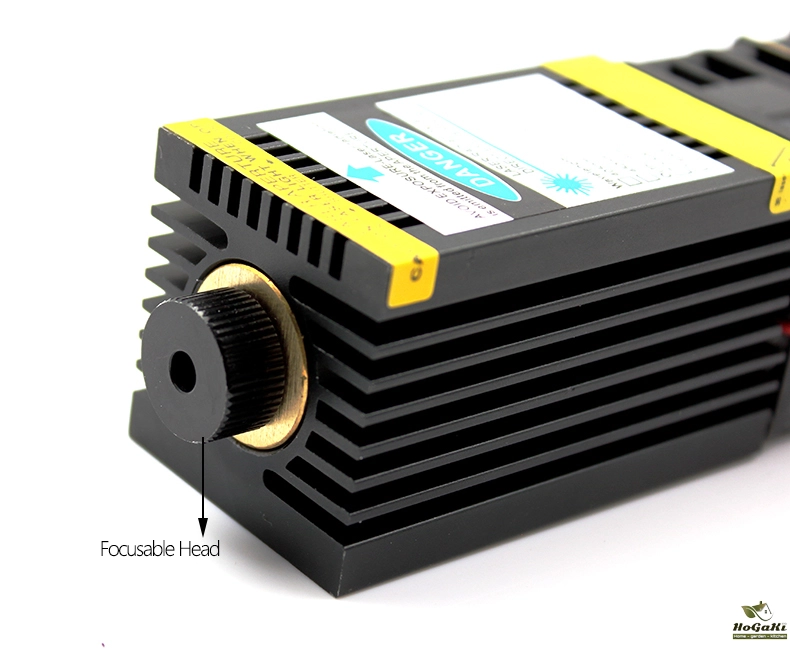

Spot type: dotted (adjustable)
Output power: 2.5W, 3.5W, 5.5W

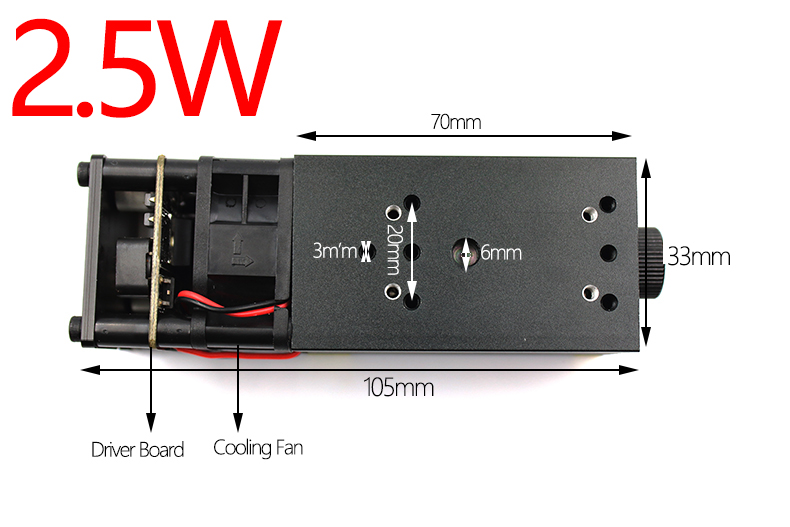

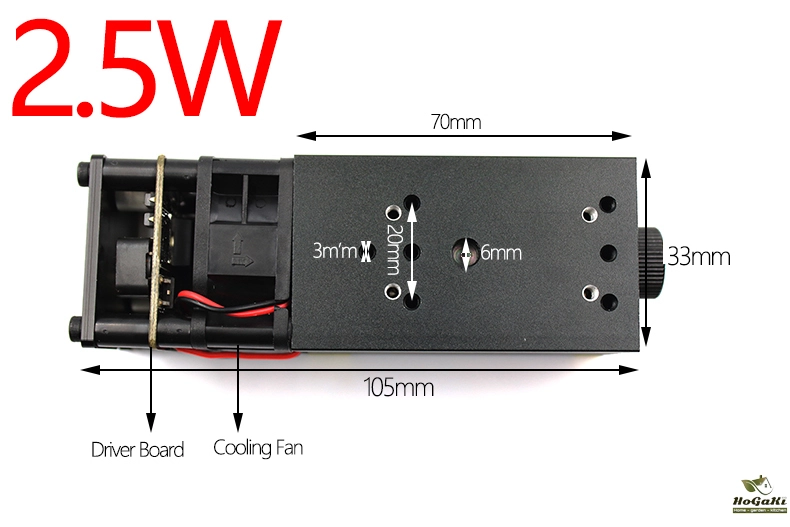

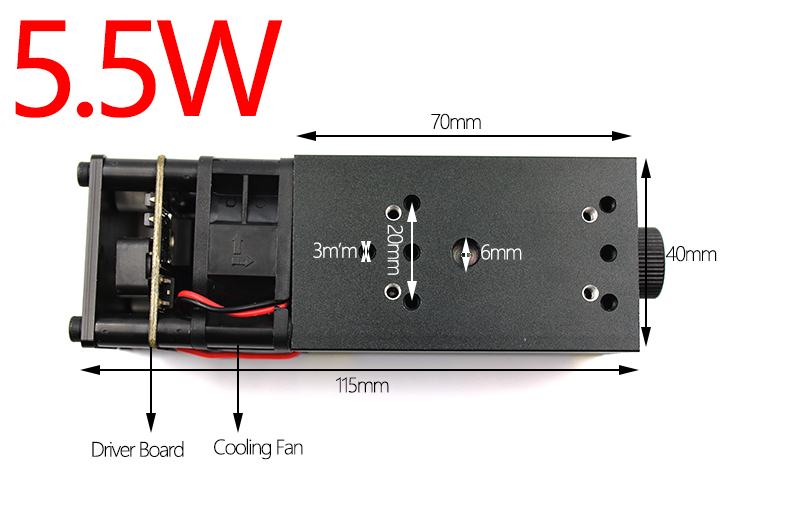

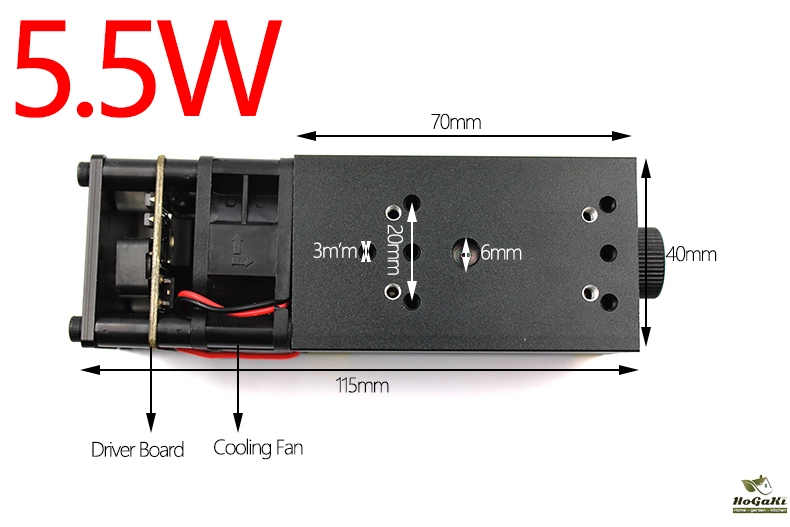

Size: 2.5W(33*70mm) , 3.5W(33*70mm) 5.5W(40*70mm)
Drive mode: external ACC constant current drive
Cooling method: forced air cooling
Operating voltage: 12V DC
Control interface: 2 * 2.54 (TTL control switch, PWM control power)
Shell material: aluminum, surface anodized
Collimator lens: optical glass coating

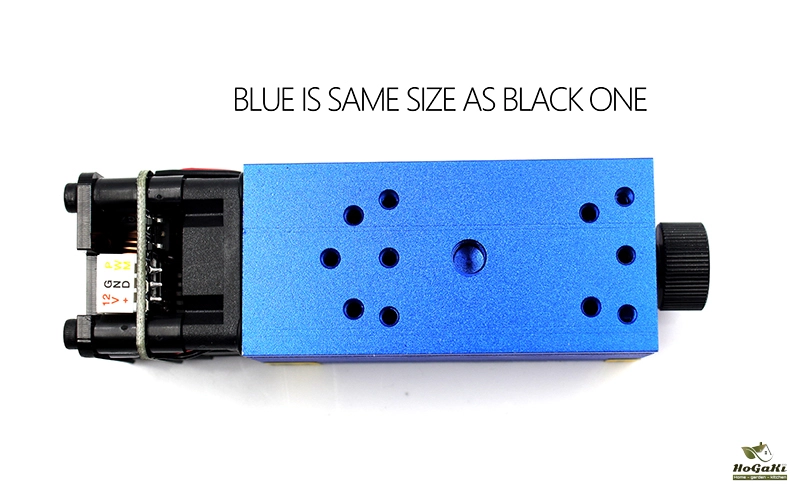

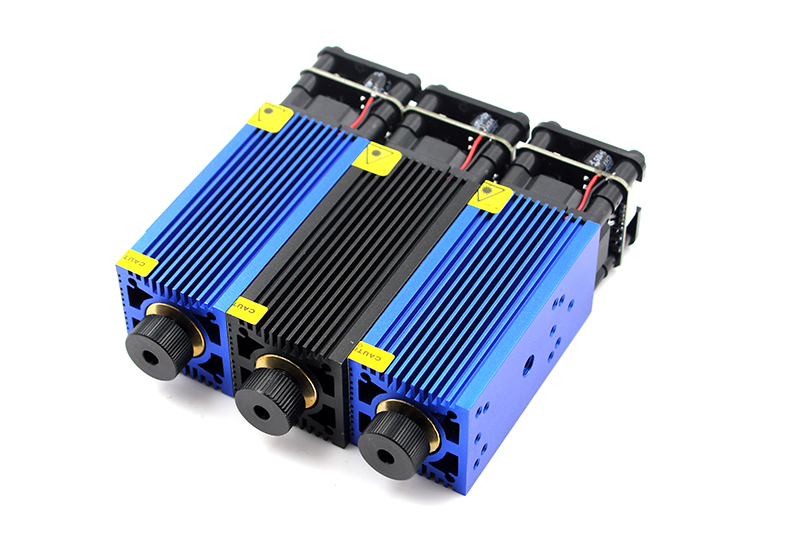

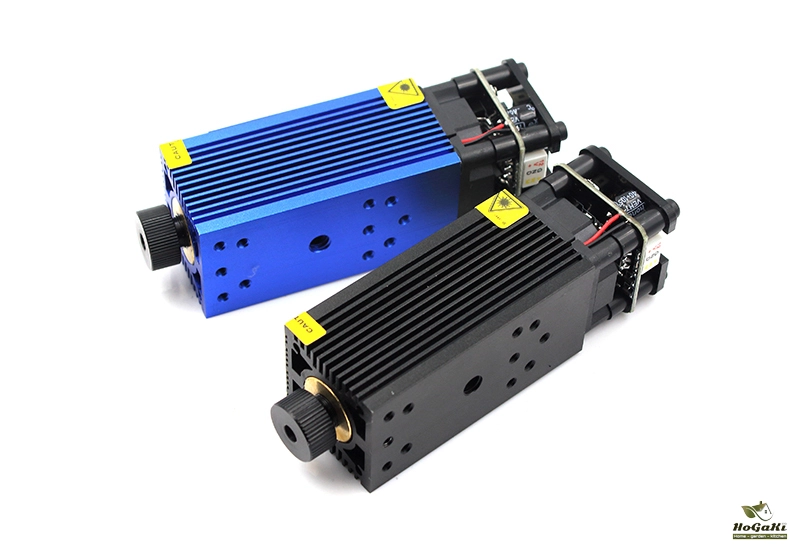

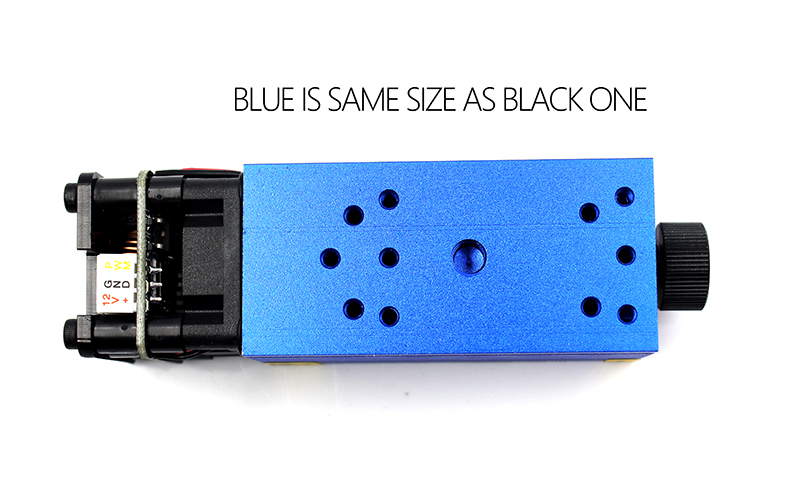

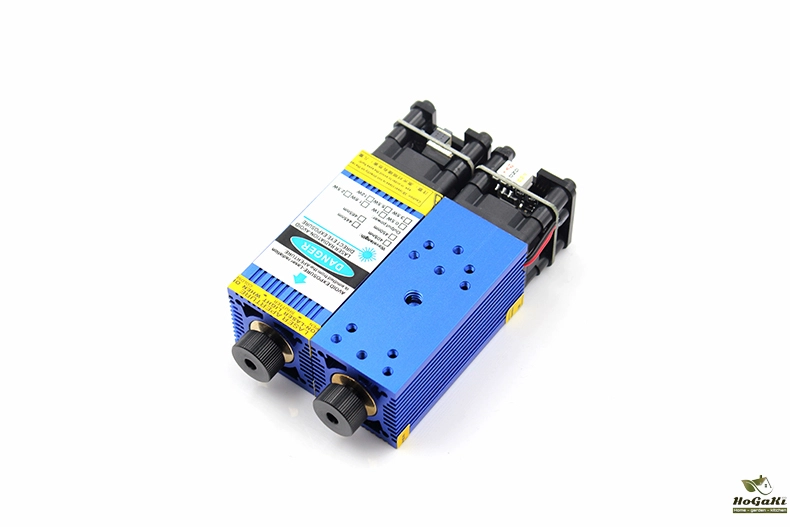

HEAT SINK COLOR: BLACK , BLUE (WE SEND COLOR RANDOMLY)

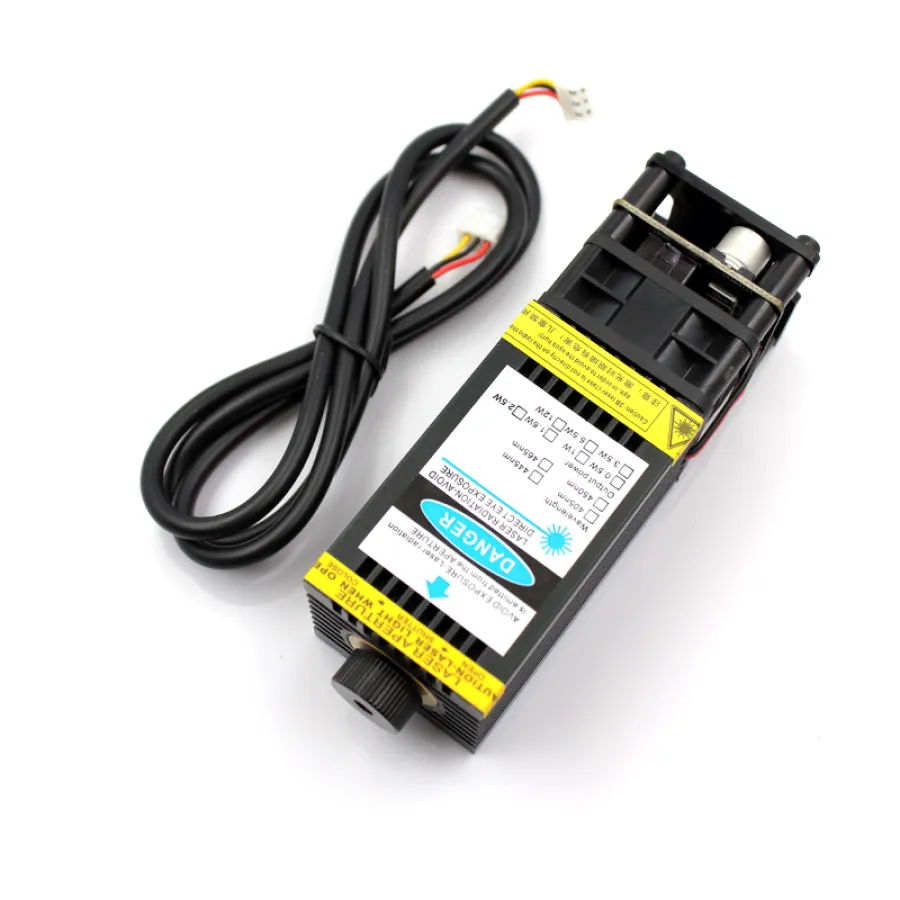

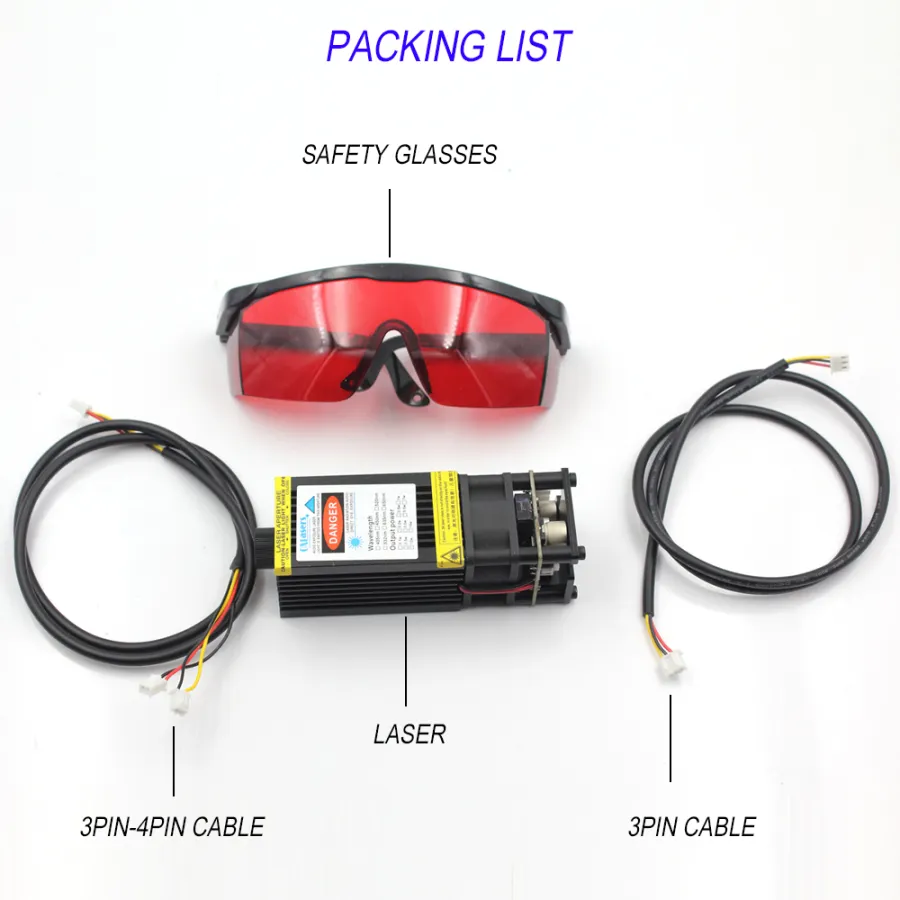

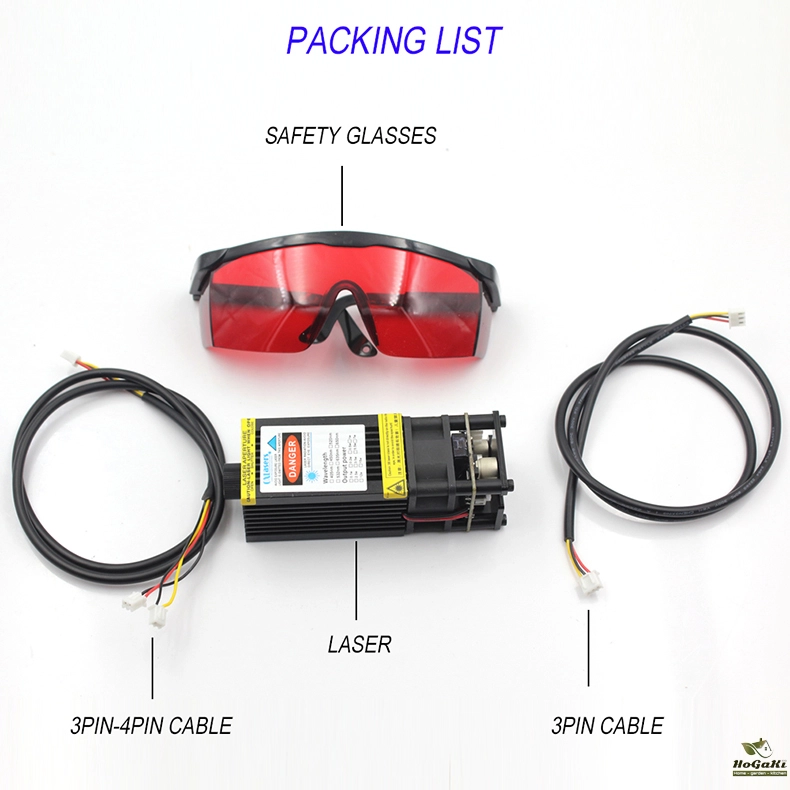

PACKING LIST:
LASER*1
3PIN CABLE*1
3PIN TO 4PIN CABLE*1
SAFETY GLASSES*1
ATTENTION: 5.5w CAN cut max 3MM PLYWOOD, with a speed of 100-150mm/Min, and cut it 3-4 PASSES!! it cant cut wood just 1 pass!
BUYER MUST READING:

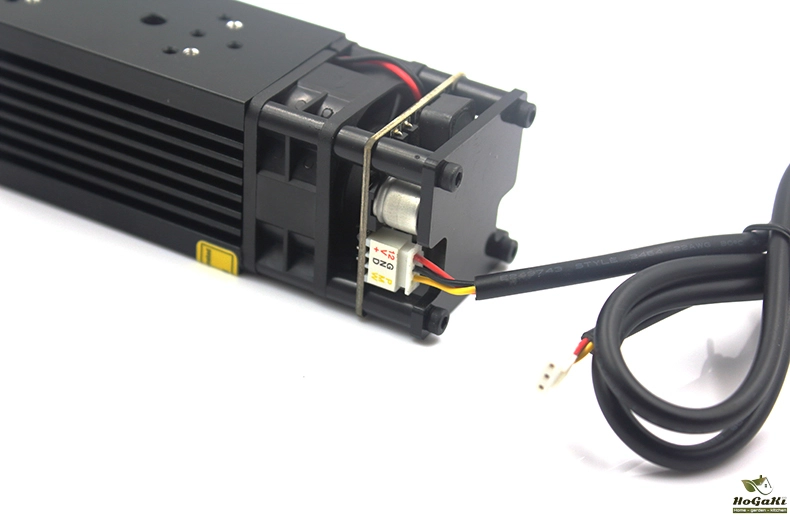

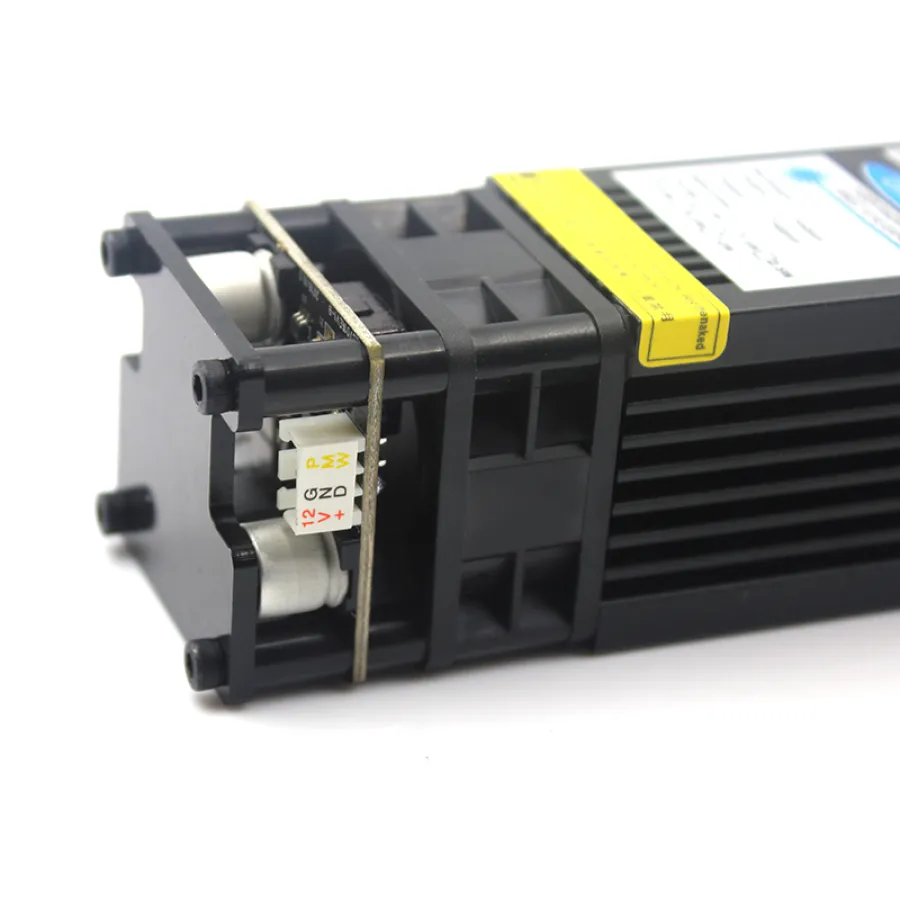

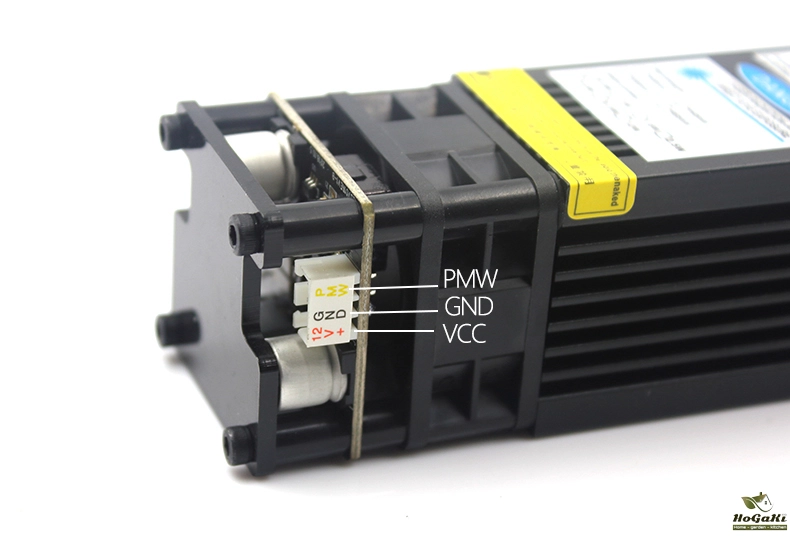

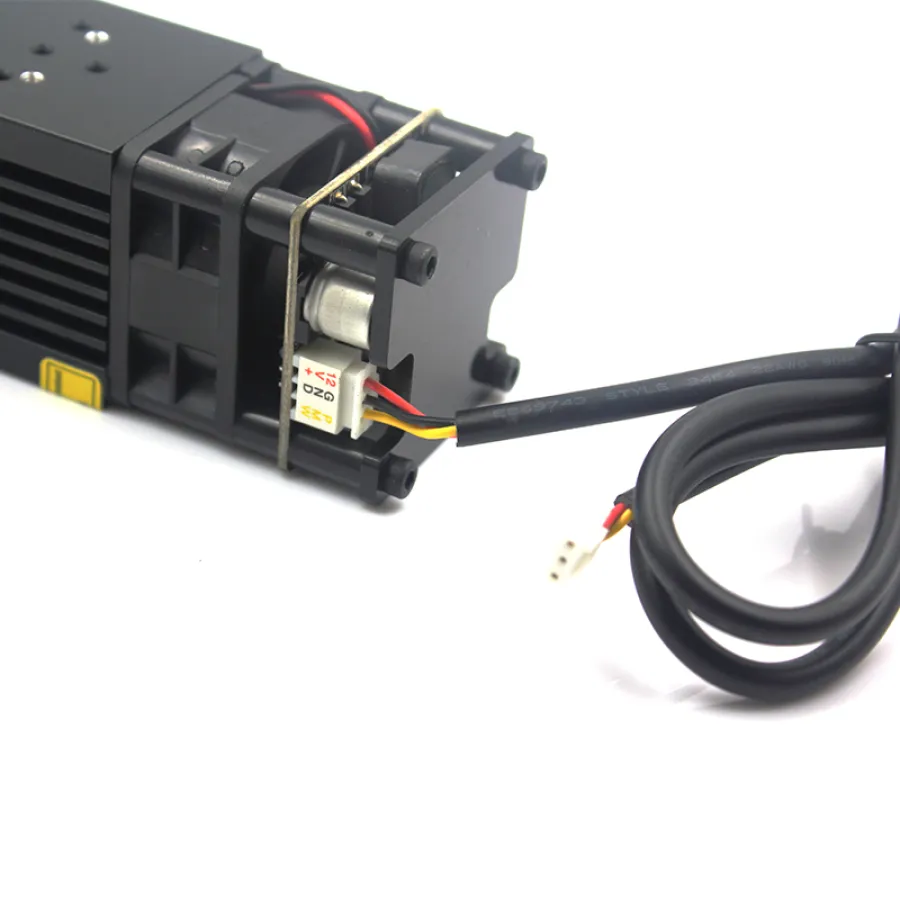

When you connect laser to your controller board, please pay attention to the pin positions of 12v+ GND- and PWM/TTL, red wire=12V+, black wire=GND-. Yello wire=PWM+, white wire=PWM-(3-4pin wire). So Red Wire must be connected to the 12v+ pin on your controller board’s interface, Black Wire Must be connected to the GND- pin and Yellow Wire must be connected to the PWM/TTL pin, if you use 3-4pin wire, White wire should be connected to the PWM- pin.
if your controller board’s laser interface pins are in different position, please change the wires position to make it match the positions of + - PWM of your interface. If the wires connected wrong, it will damage the diode and the driver board.
Please add a fan when you engraving or cutting, in case smoke blur the lens damage the lens
5.5W CUTTING SHAPES ON PLYWOOD
Packaging Details
- Unit Type: piece
- Package Weight: 0.450
- Package Size: 11x11x11
- Brand Name: Oxlasers
- Certification: CE
- Certification: None
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: 5.5W 445NM
