1P 2P 3P 4P DC 250V-1000V 10Solar Mini Circuit Breaker MCB Fuse PV System Solar Engery 3/6/10/16/20/25/32/40/50/63/80/100/125A
13.26 10.61 $
Product Description
Protecttion
earth faults
overloads
short circuits

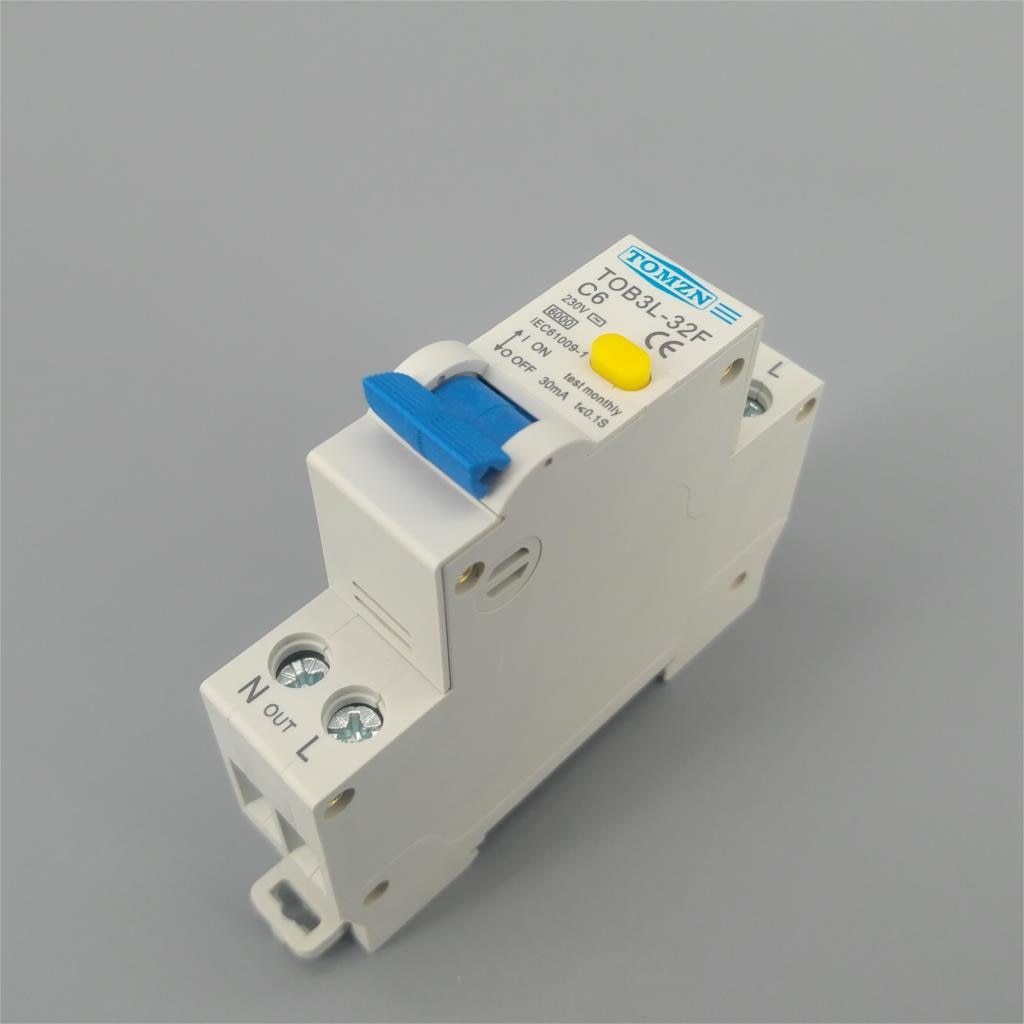

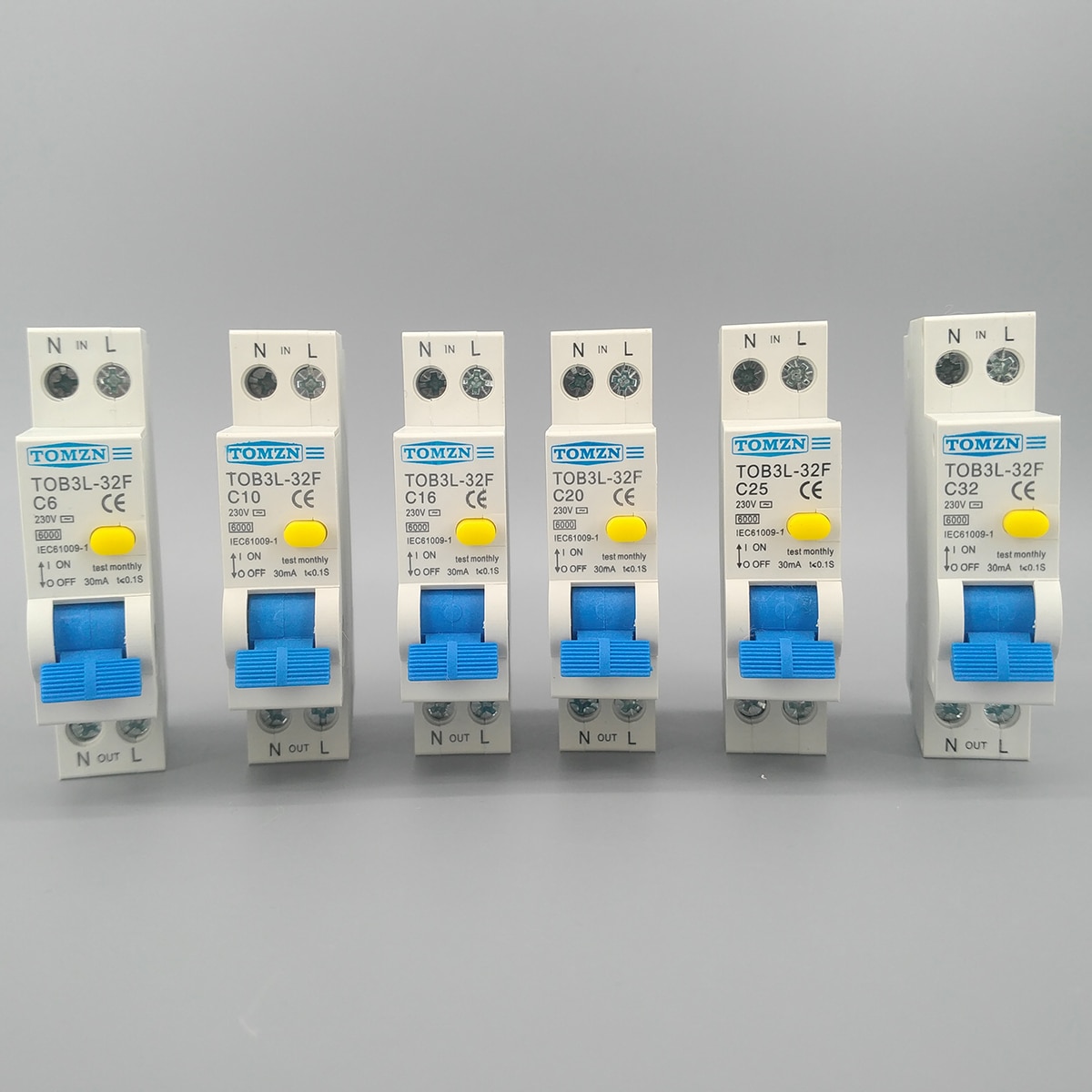

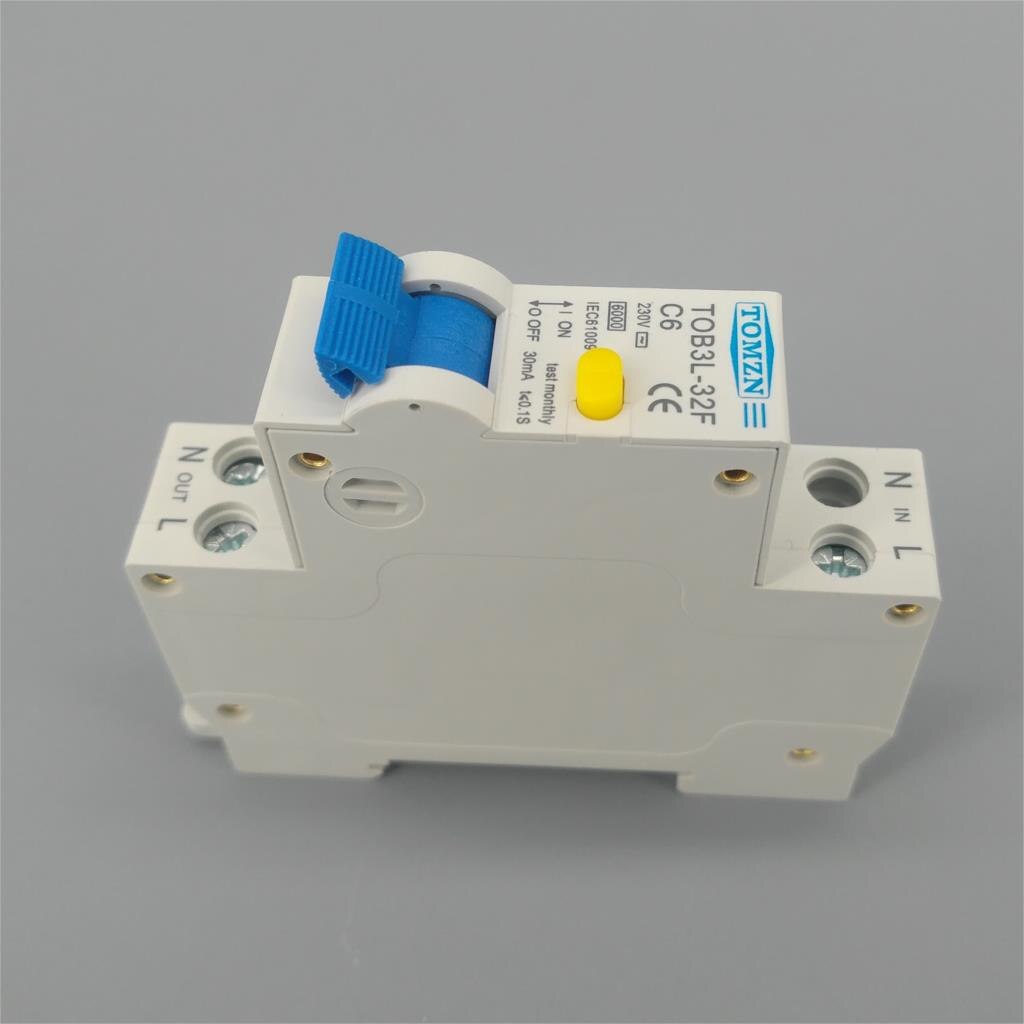

TOB3L-32F products provide protection against earth faults, overloads, short circuits and over -voltage incommercial and dometic installation. The RCBO with both disconnected neutral and phase guarantees its proper actuation against eath leakage fults even when the neutral and phase are wrongly connected the electronic RCBO incorporate a filtering device preventing the risks of unwanted due to transient voltages and transient currents, positive contact indication in accordance with 16th edition of the IEE wiring regulations.
Main technical parameters
TYPE | TOB3L-32F |
NUMBER OF POLES | 1P+N |
RATED CURRENT(In) | 16A |
RATED OPERATING CURRENT(In) | 30MA |
RATED VOLTAGE(V) | AC230V |
SHORT-CIRCUITE BREAKING CAPACITY(Inc) | 6000A |
ENDURANCE | ≥6000TIMES |
RESIDUAL CURRENT-OFF TIME | ≤0.1S |
DESIGN | A AC |
RESIDUAL CURRENT SCOPE | 0.5IΔn-1n |
|
|
Construction features
1. Measuring component and buckling component of products is located between enter line end and entrance line end ;
2. Movement characteristic of products can not be changed with outside mechanical tool ;
3.The operating organization has the free function to take off and buckle;
4. Operate part can not be taken down from the shell outer of products ,the shell can not influence the operating organization to work, the accessory group which replace the feelers pressure ,should guarantee the feelers pressure does not change while running .

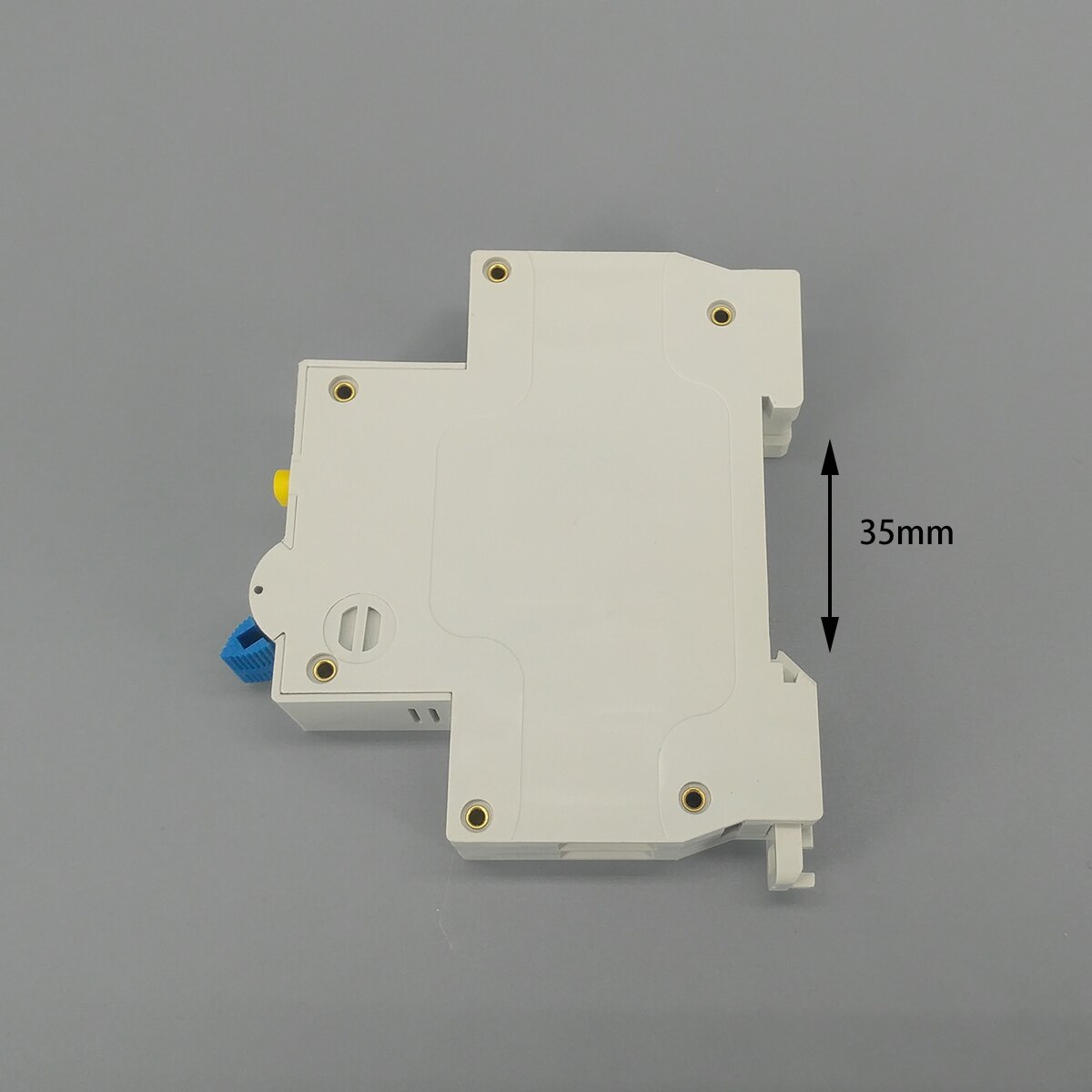

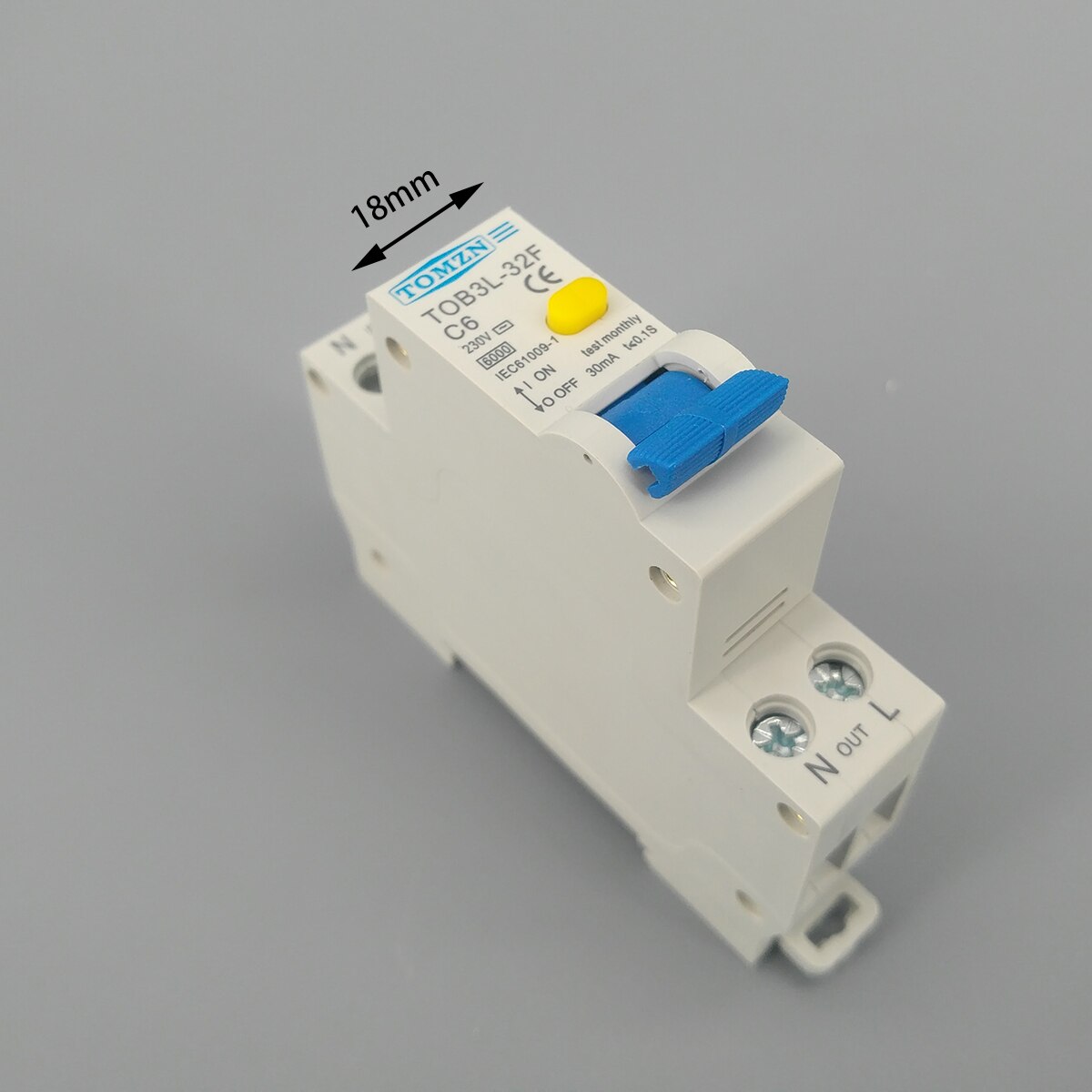

5. Overall and mounting dimensioned chart.
Shipping:
We Ship to Worldwide, except APO/FPO.
Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
Delivery time depends on destination and other factors, it may takes up to 20 business days
Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Payment:
Payment method on Hogaki Check here
Warranty and Guarantee:
12 months Warranty. Buy with confidence!
If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item.
If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee
Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms
- is_customized: Yes
- Model Number: TOB3L-32F
- Type: Residual Current
- Brand Name: TOMZN
- Standard: IEC61009
- Rated Voltage: 230V~
- Rated current: 16A

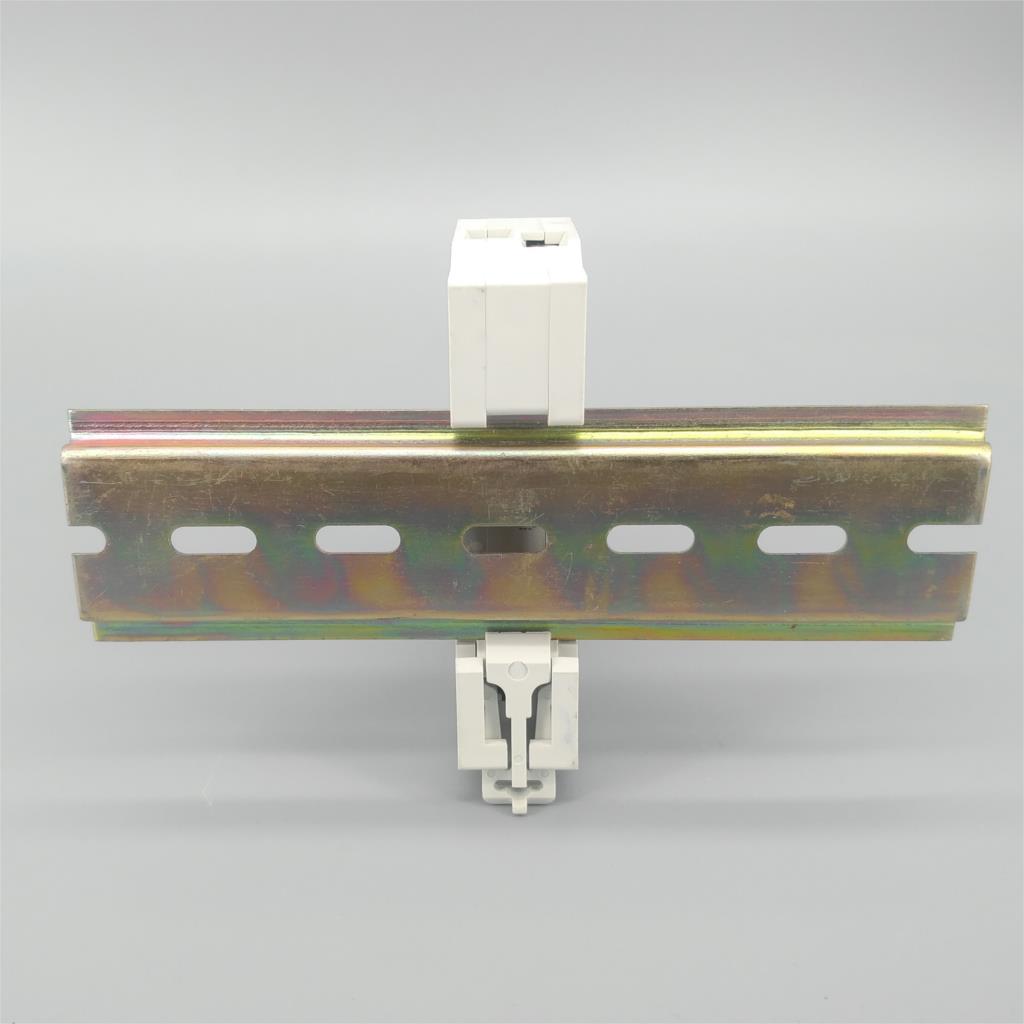

- Mounting: 35mm din rail
- Breaking Capacity: 6KA
- Type: Electronic
