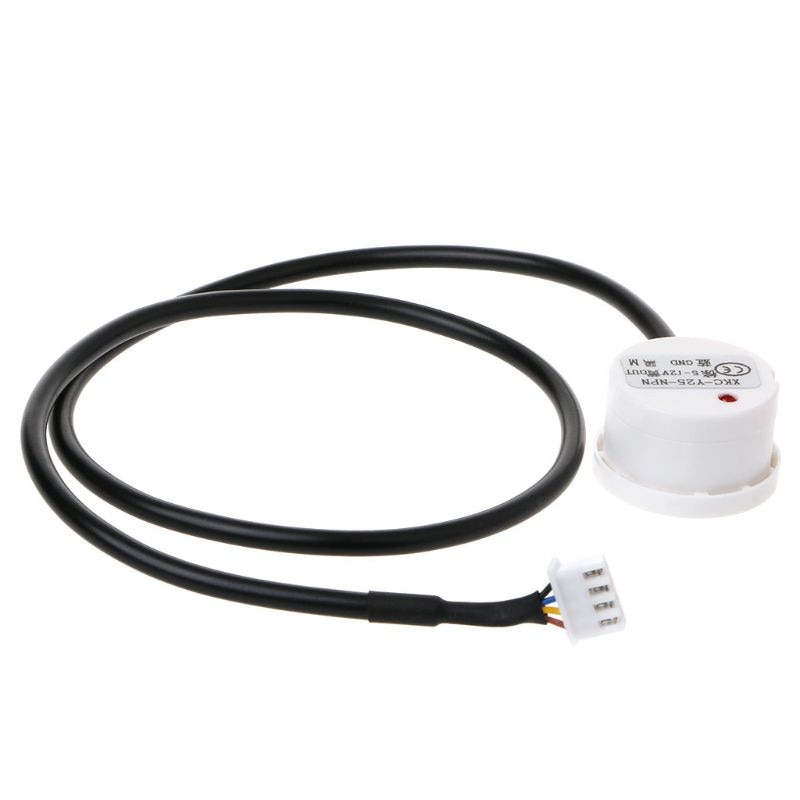

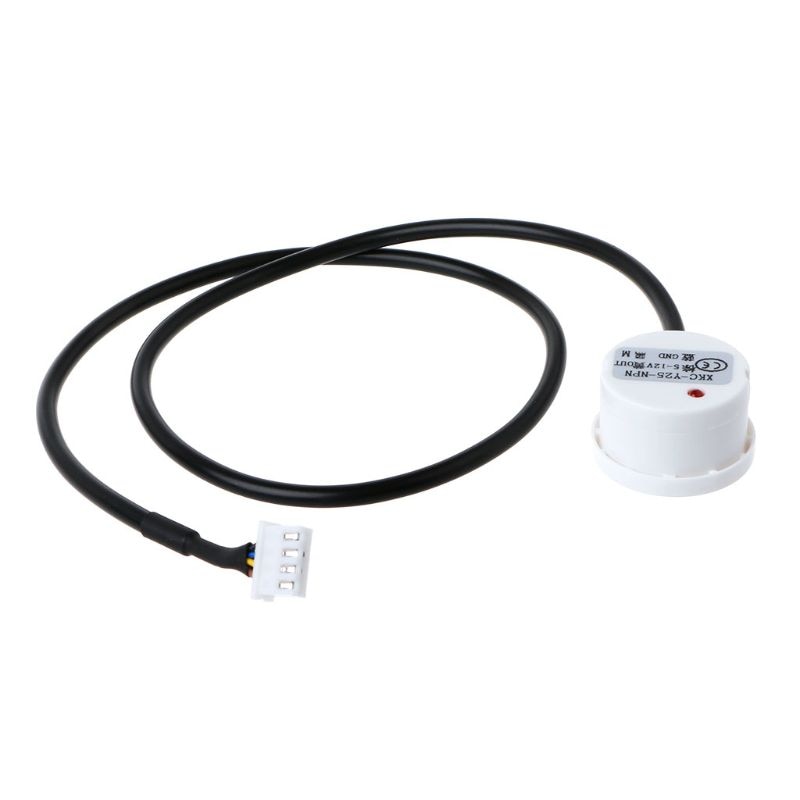

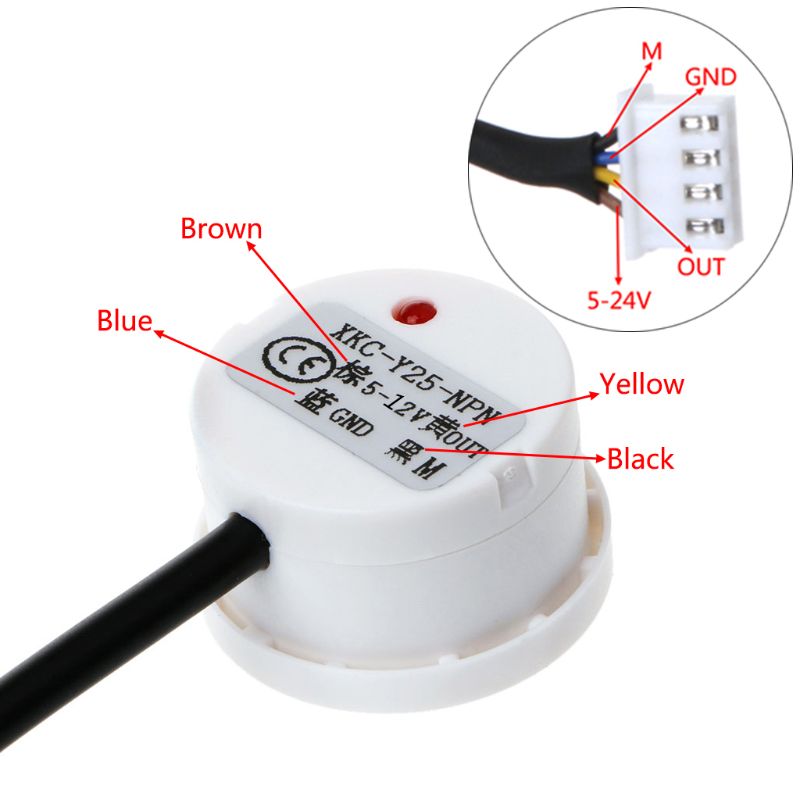

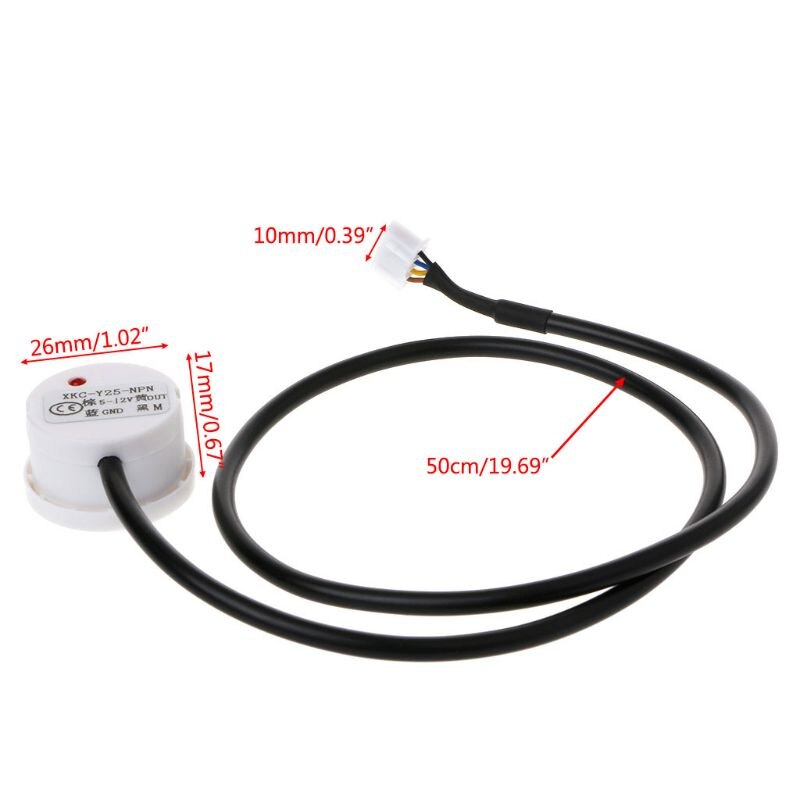

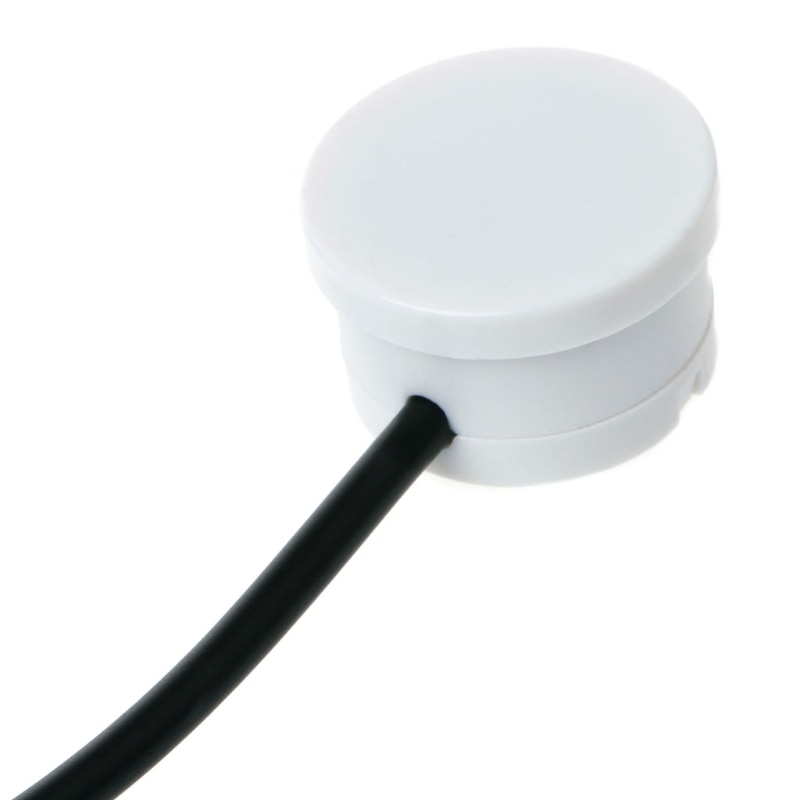

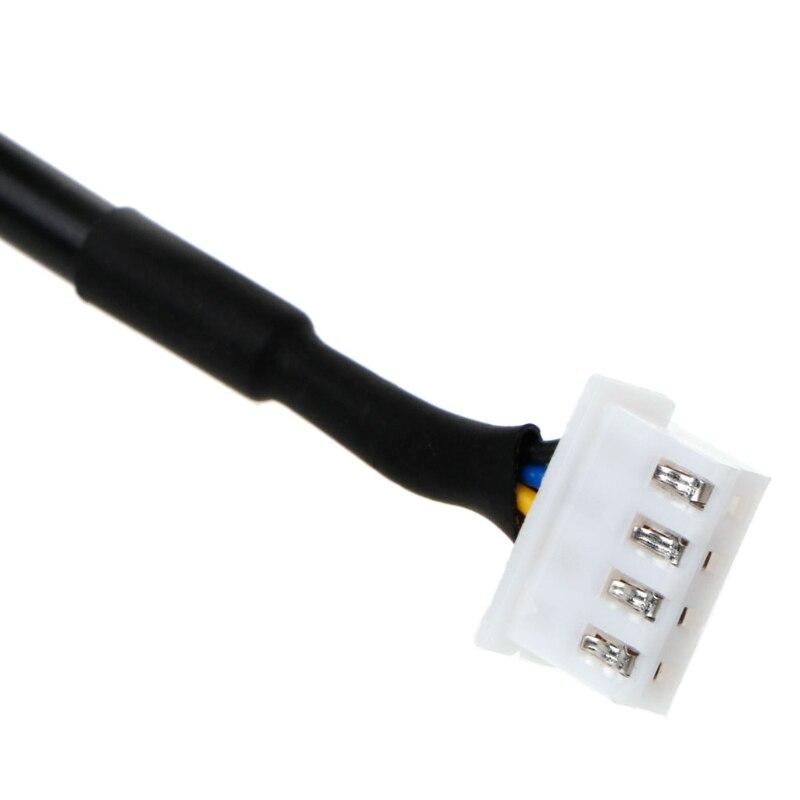

XKC-Y25-NPN Non-Contact Liquid Level Sensor Stick Type Water Detector Switch DC 5~12V 5mA Non-contact Liquid Level Sensor
0.0 ( votes)
Price:
US $33.42
/ piece
Discount Price:
US $
16.46
/ piece
-51%
Sorry! This item is out of stock
X7YF Non-Contact Liquid Level Sensor Contactless Water Level Sensor Externally Attached Liquid Induction Level Switch Water
Liquid Level Sensor Detector 5~12V 5mA Non-contact Liquid Level Sensor Intelligent Water Level Sensor Induction Level Switch
Description:
Intelligent non-contact liquid level sensor adopts advanced signal processing technology and high-speed signal processing chip, and it won't be influenced by container wall thickness when detecting the liquid level in a airtight container. Liquid level sensor is installed under container (high level and low level). No need to bore a non-metallic container, easy to install. It can detect liquid level of various toxic substances, acid, alkali and all kinds liquid in high pressure airtight container. It can be widely used and has no special requirement for liquid medium and material of container.
Features:
Non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
Intelligent liquid level benchmark adjustment and level memory function, liquid level display mode, can achieve multi-point series connection.
Electronic circuit structure rather than machinery ensures stable performance, durability and a long service life.
High stability, high sensitivity, strong anit-interference ability make sure it won't be affected by electromagnet, special designed to deal with power frequency interference and common mode interference.
Compatible with most 5 ~ 12V power adapter.
Strong compatibility through a variety of non-metallic material containers, such as plastic, glass, ceramics etc, with a 13mm or more induction distance.
Testing is accurate and stable and boiling water level can be detected. Liquid, powder, particles can all be detected.
Adjustable sensitivity.
Specifications:
Model: XKC-Y25-NPN
Output: NPN
Input Voltage (InVCC): DC 5~12V
Current: 5mA
Output Voltage (high level): InVCC
Output Voltage (low level): 0V
Output Current: 1~100mA
Response Time: 500mS
Operating Temperature: 0~105℃
Induction Thickness (sensitivity): 0~13 mm
Communication: RS485
Humidity: 5%~100%
Material: ABS
Ingress Protection: IP67
Package include:
1pc XKC-Y25-NPN Liquid Level sensor
Liquid Level Sensor Detector 5~12V 5mA Non-contact Liquid Level Sensor Intelligent Water Level Sensor Induction Level Switch
Description:
Intelligent non-contact liquid level sensor adopts advanced signal processing technology and high-speed signal processing chip, and it won't be influenced by container wall thickness when detecting the liquid level in a airtight container. Liquid level sensor is installed under container (high level and low level). No need to bore a non-metallic container, easy to install. It can detect liquid level of various toxic substances, acid, alkali and all kinds liquid in high pressure airtight container. It can be widely used and has no special requirement for liquid medium and material of container.
Features:
Non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
Intelligent liquid level benchmark adjustment and level memory function, liquid level display mode, can achieve multi-point series connection.
Electronic circuit structure rather than machinery ensures stable performance, durability and a long service life.
High stability, high sensitivity, strong anit-interference ability make sure it won't be affected by electromagnet, special designed to deal with power frequency interference and common mode interference.
Compatible with most 5 ~ 12V power adapter.
Strong compatibility through a variety of non-metallic material containers, such as plastic, glass, ceramics etc, with a 13mm or more induction distance.
Testing is accurate and stable and boiling water level can be detected. Liquid, powder, particles can all be detected.
Adjustable sensitivity.
Specifications:
Model: XKC-Y25-NPN
Output: NPN
Input Voltage (InVCC): DC 5~12V
Current: 5mA
Output Voltage (high level): InVCC
Output Voltage (low level): 0V
Output Current: 1~100mA
Response Time: 500mS
Operating Temperature: 0~105℃
Induction Thickness (sensitivity): 0~13 mm
Communication: RS485
Humidity: 5%~100%
Material: ABS
Ingress Protection: IP67
Package include:
1pc XKC-Y25-NPN Liquid Level sensor
- Brand Name: OOTDTY
- Origin: Mainland China
- DIY Supplies: Plumbing
- Model Number: XKC-Y25-NPN Liquid Level Sensor
- Certification: NONE
