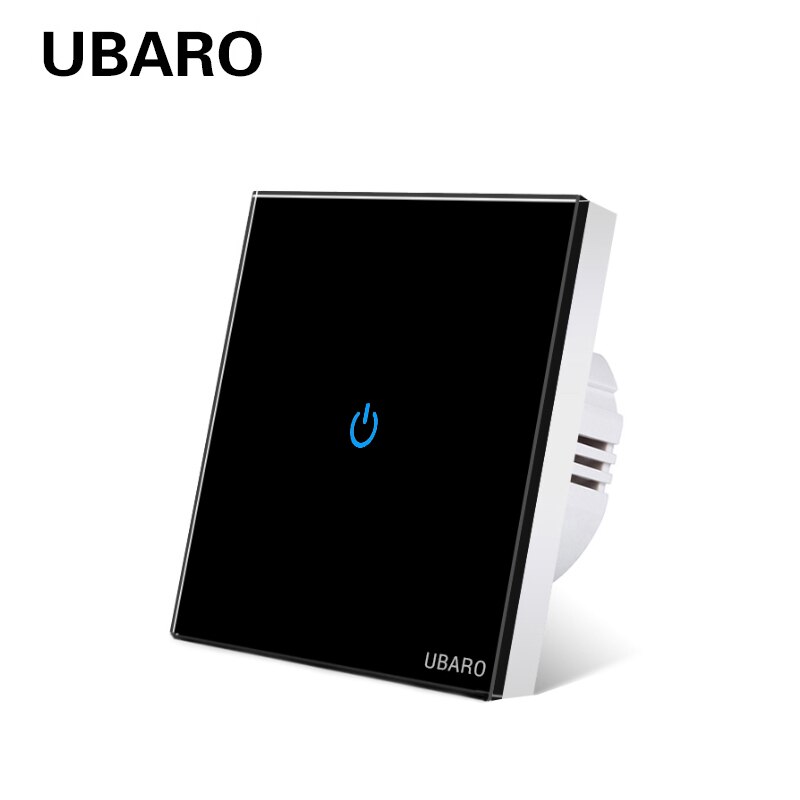

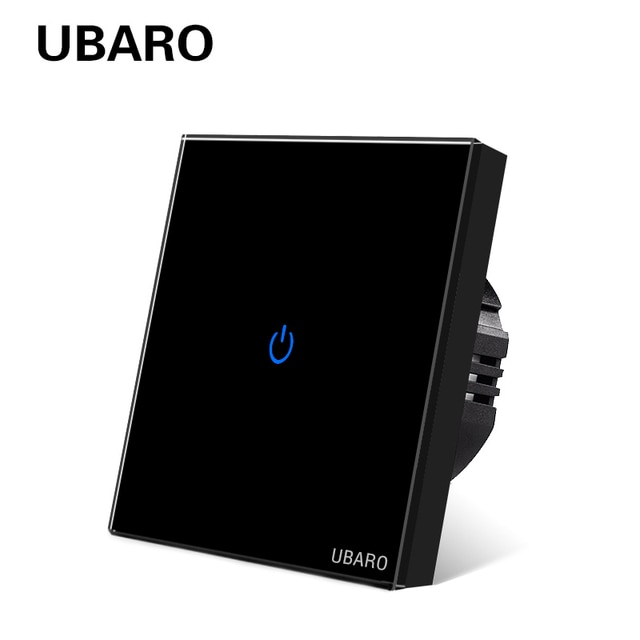

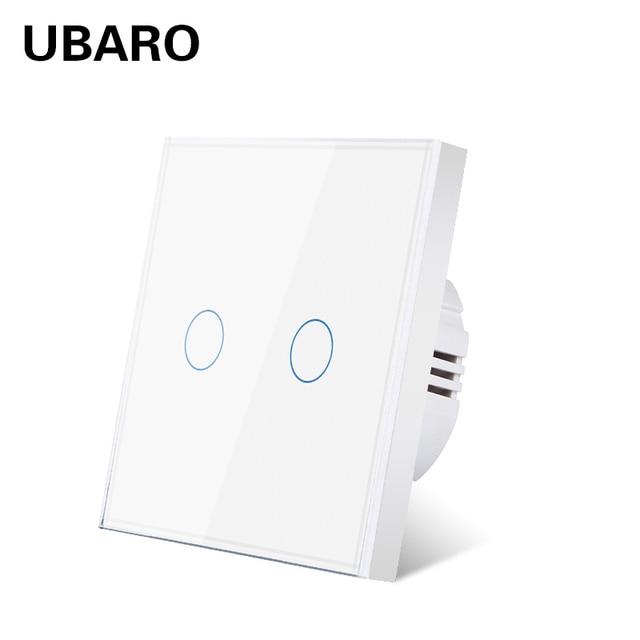

UBARO Eu AC100-240V Tempered Black White Crystal Glass Touch Switch Panel Wall Light Sensor Button 1/2/3 Gang 10A Interruptor

1,Brand Name: UBARO
2,Button:1 gang,2gang,3gang
3,Color: Black, White, Gold,Grey.

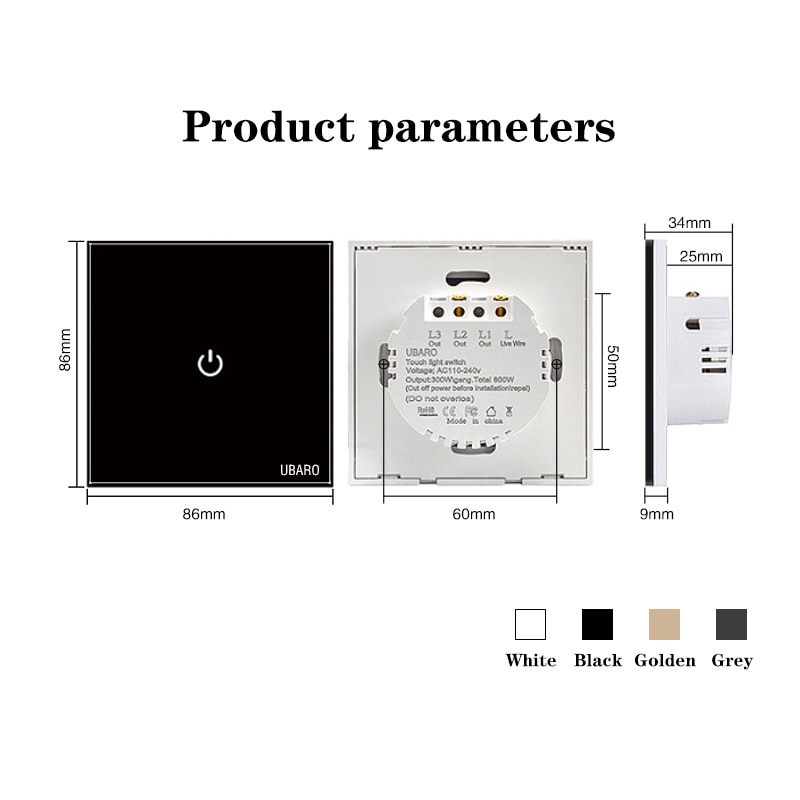

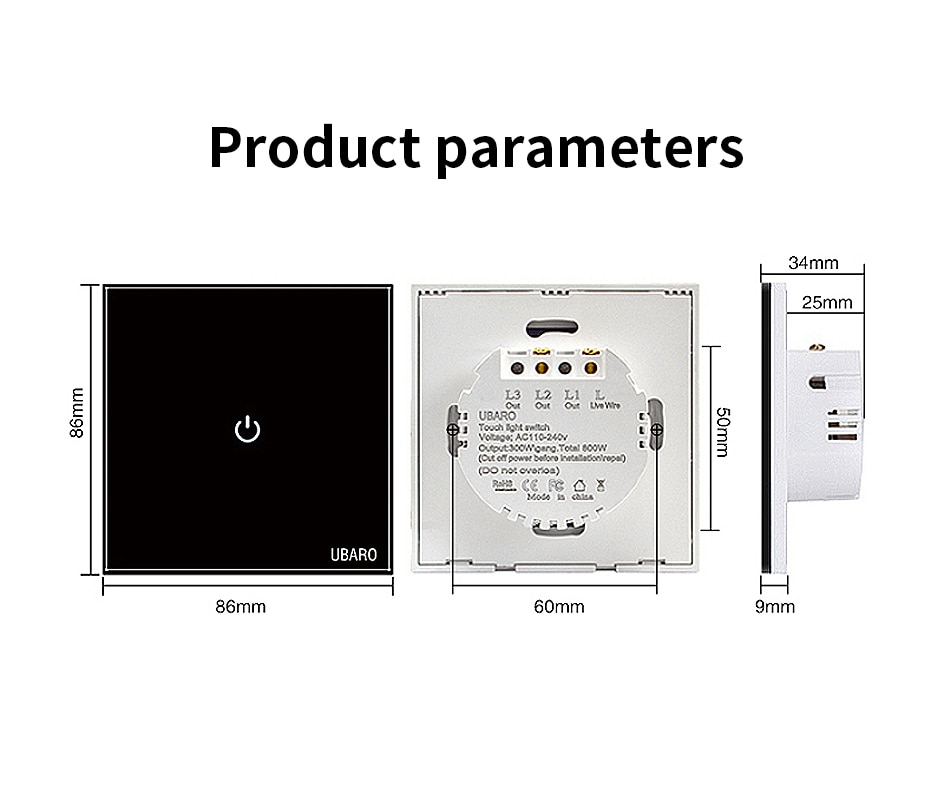

4,Size: 8.6*8.6*3.5cm / 3.4*3.4*1.4" (L*W*H)
5,Current: 10A
6,Power Watt:Normal lamp:3-300W/gang,LED:5-150W/gang.
7,Working Voltage: 100V-240 Vac
8,Working Temperature: -20 ℃~+55℃
9,Relative Humidity: 10% ~ 95%
10,Mechanical Life: 100000 Times

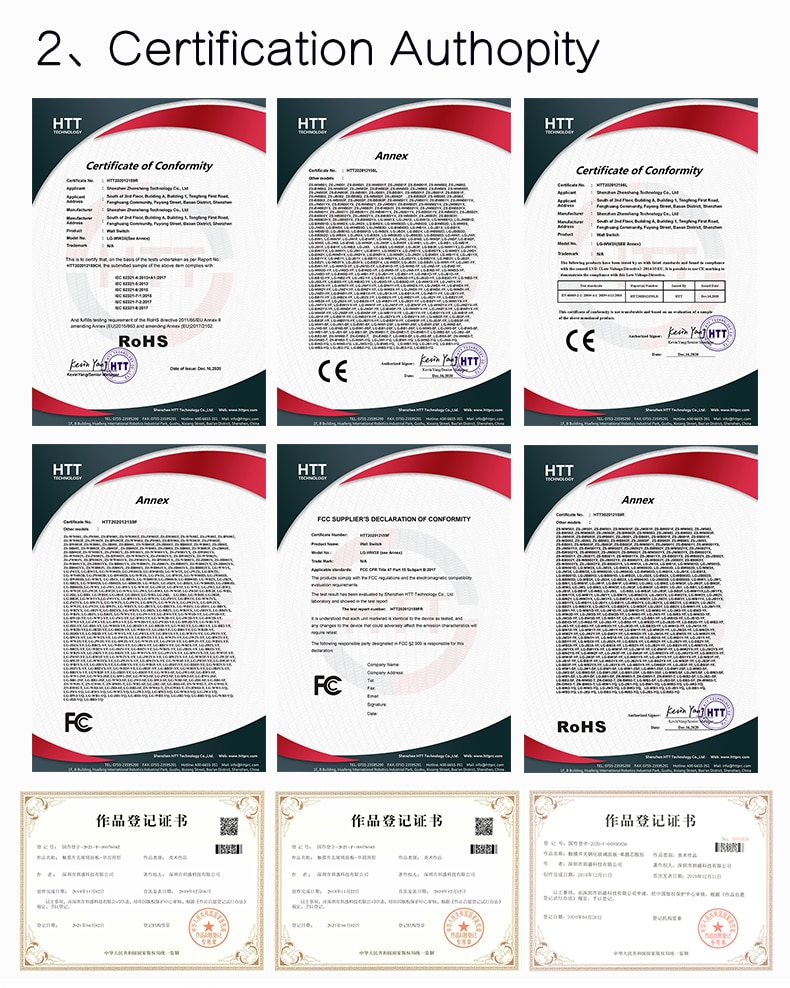

11,Certification: CE,FCC ,ROHS
12,Warranty: 1 year
13,Delivery time: <3 days Received your order.
14,Gross weight:0.15kg Net weight: 0.115kg
15,Package dimensions:Colorful box packing size:9.5*95x4.0cm

Tempered galss panel advantages

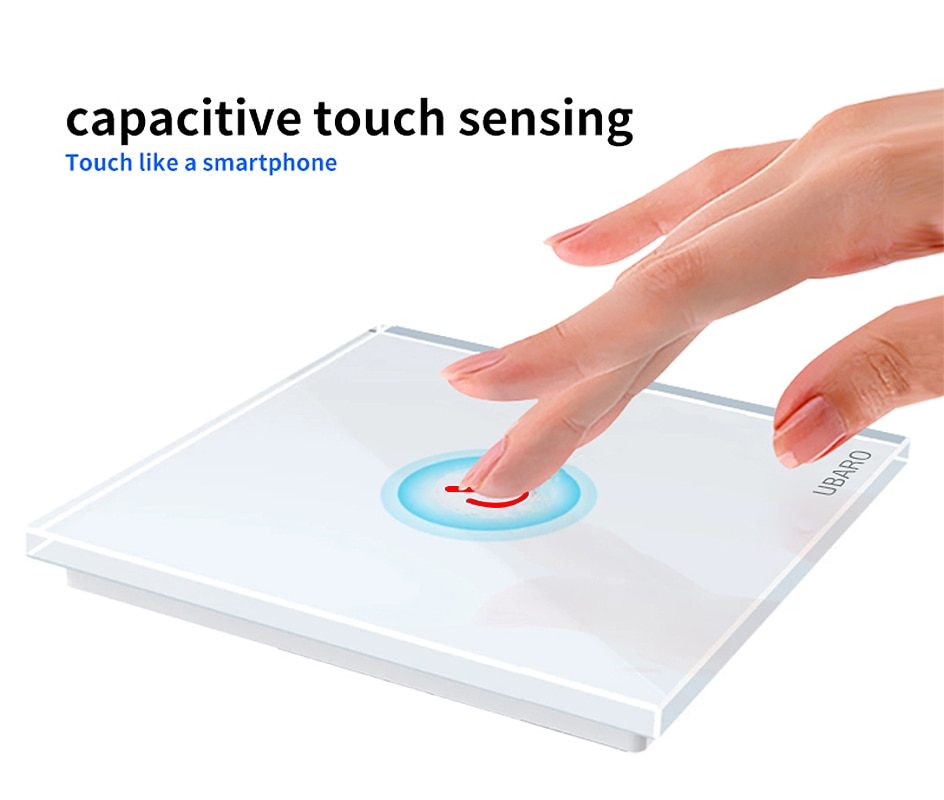

1:The high sensitivity experience is the same as pressing the phone
2:Strengthen protection for the short circuit of power line Fireproof rate is 94V-0

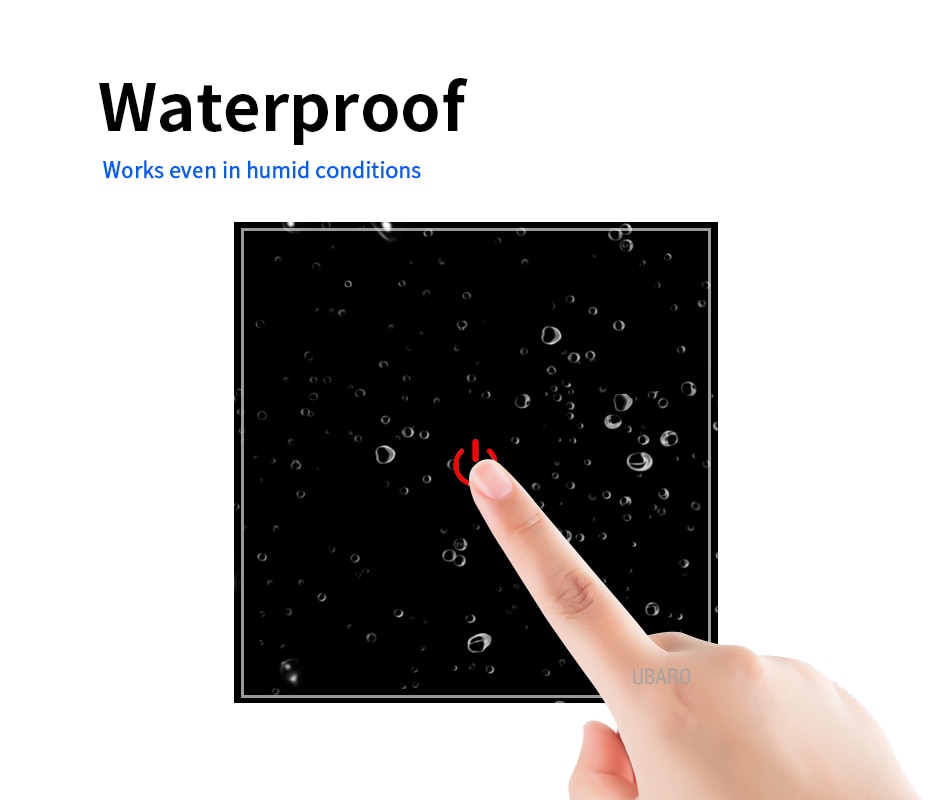

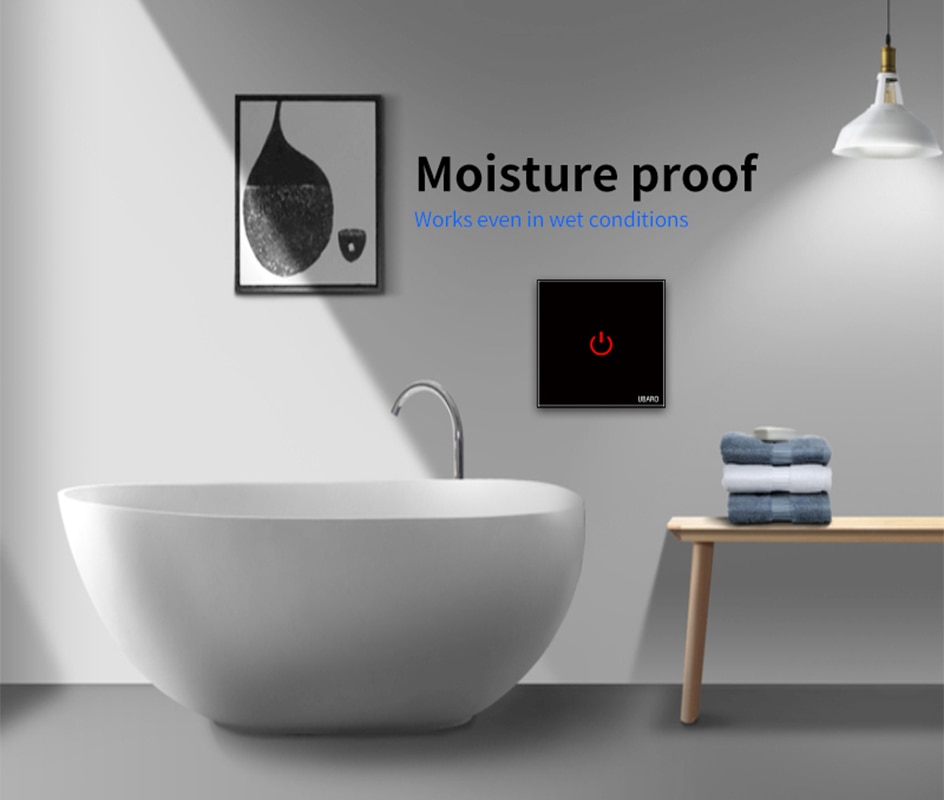

3:The wet hand can operate the panel and the water vapor does not easily enter the inside of the panel
4:Convenient for maintenance and cleaning with a cloth or tool

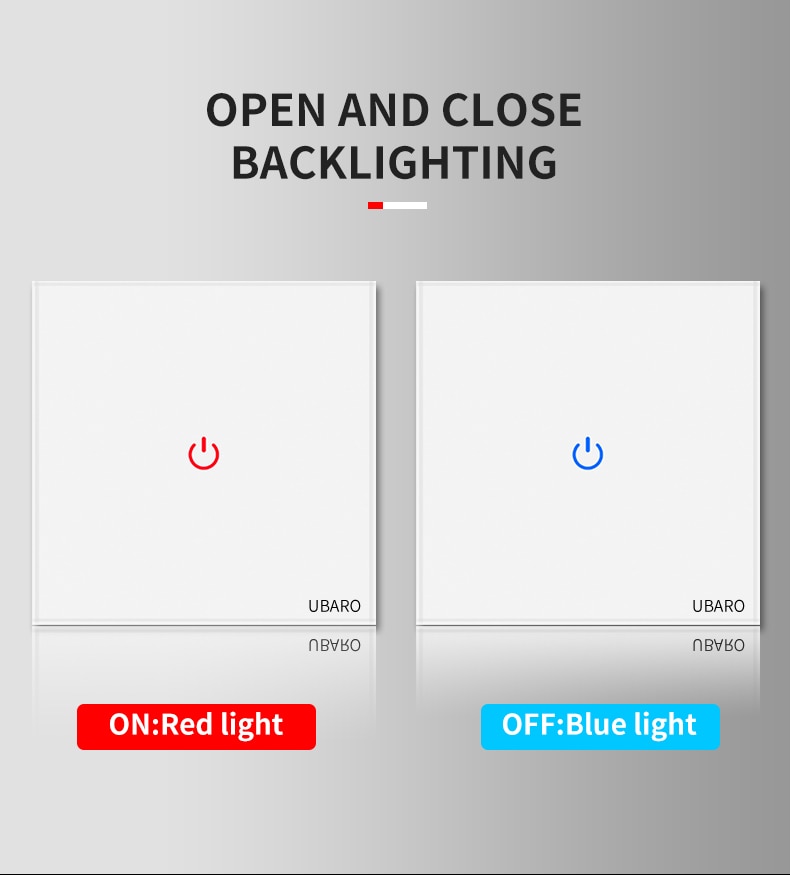

5:Led Indicator design, On-Red Off-Blue

FAQ

1. Do you have an LED indicator design on your panel?
Yes, all our touch switches have led indicators. on-red off-blue

2.Is the switch easy to install?
This is a single live wire control switch, no neutral wire is needed, and the original old switch can be replaced. We can provide installation videos.

3.Do I need to install a capacitor?
Capacitors are not necessary. If your lamp does not flicker, and the total power exceeds 5W, you do not need to install it. If your lamp is a smart dimming lamp, you need to install a capacitor.

4:Is this product a smart switch?
NO smart WI-FI switch.

5:How long does it take to send goods for a small order?
If it is a standard product, this store has stock, and the product can usually be sent within two days.

How to use capacitors

1. The power needs to be turned off during installation
2:Install when the light bulb with power lower than 5W flickers
3:Smart lamps, or other lamps that automatically turn off after installation, need to install capacitors
4:The capacitor is selected in parallel between the live wire and the neutral wire of the minimum power bulb

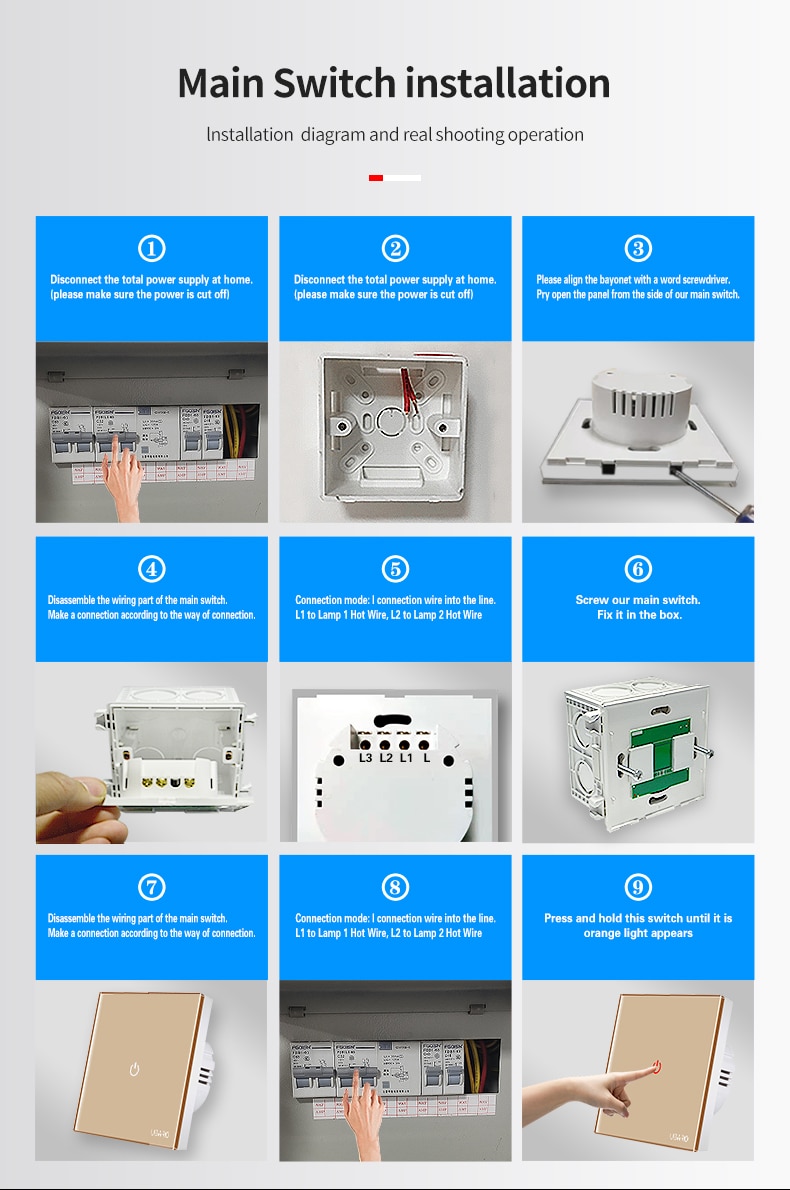

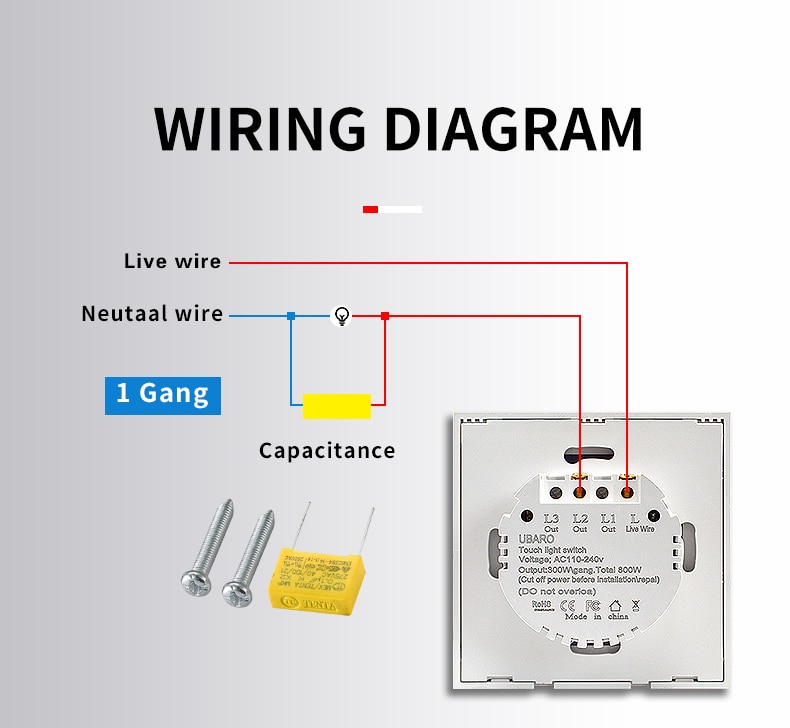

Switch installation video

1:Need to turn off the power before installation
2:220V live wire connect the switch "L"
3:1 gang- the light control live wire connect "L2"
2 gang- the lights control live wire connect "L1,L3"

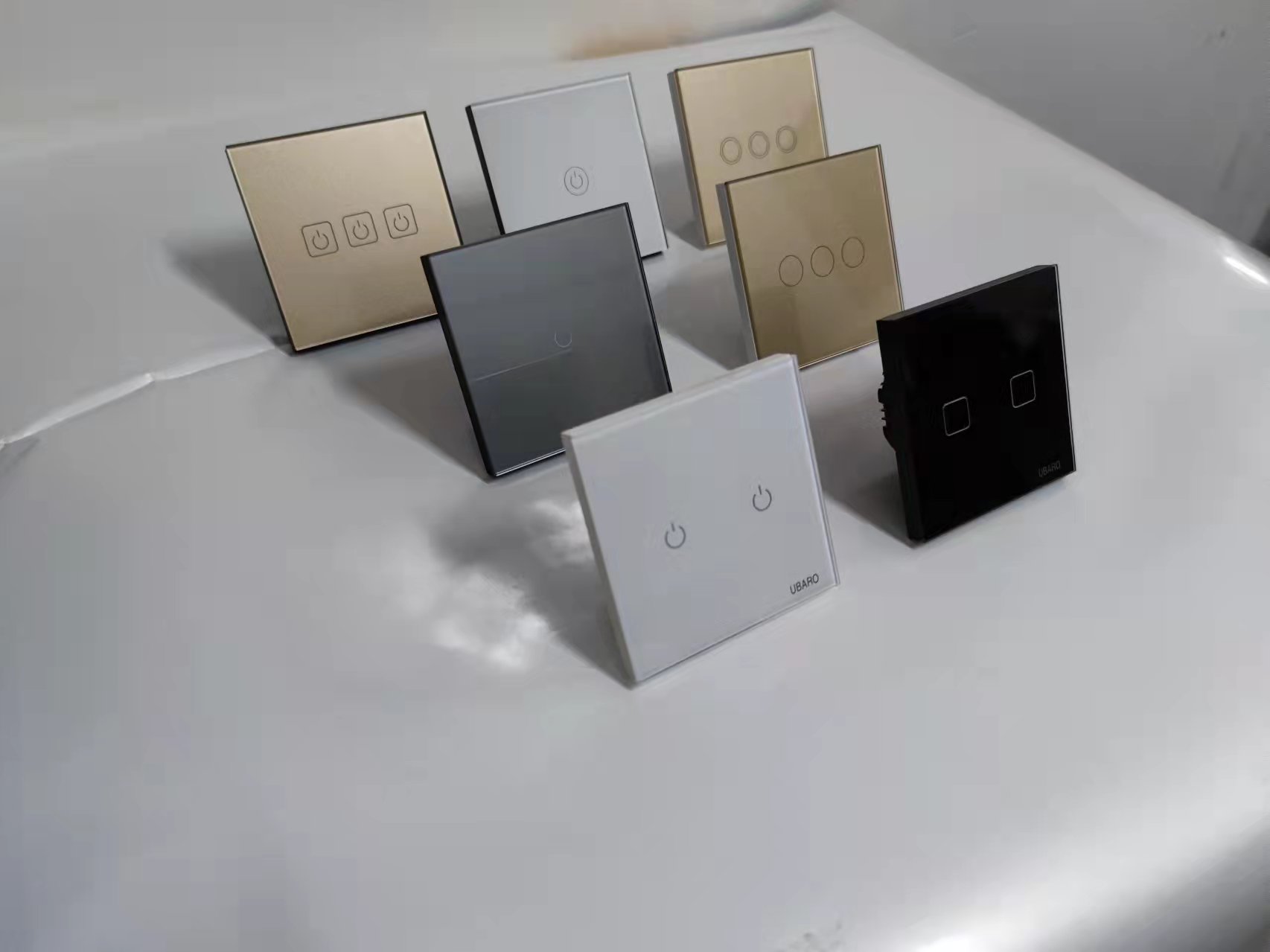

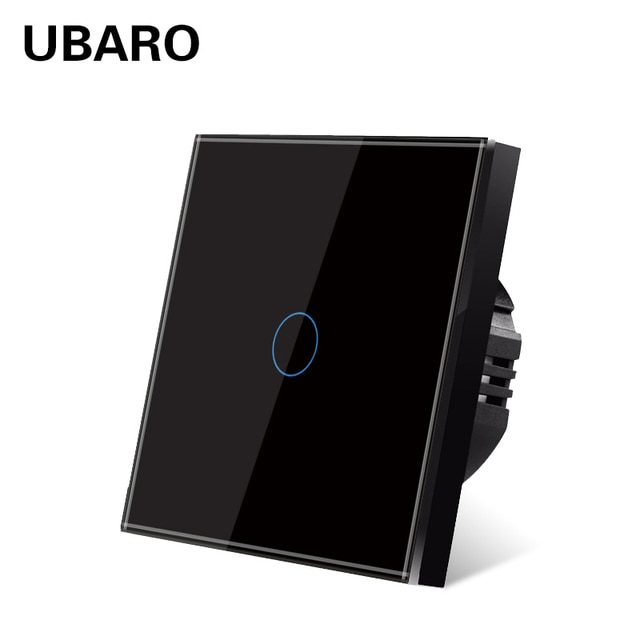

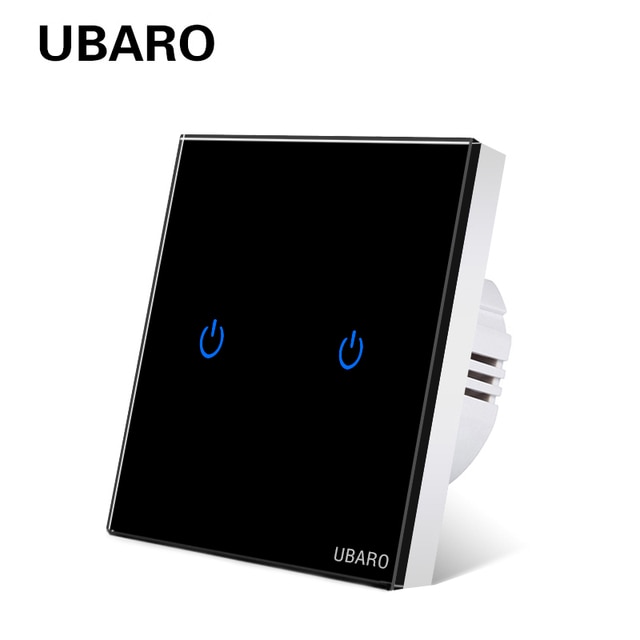

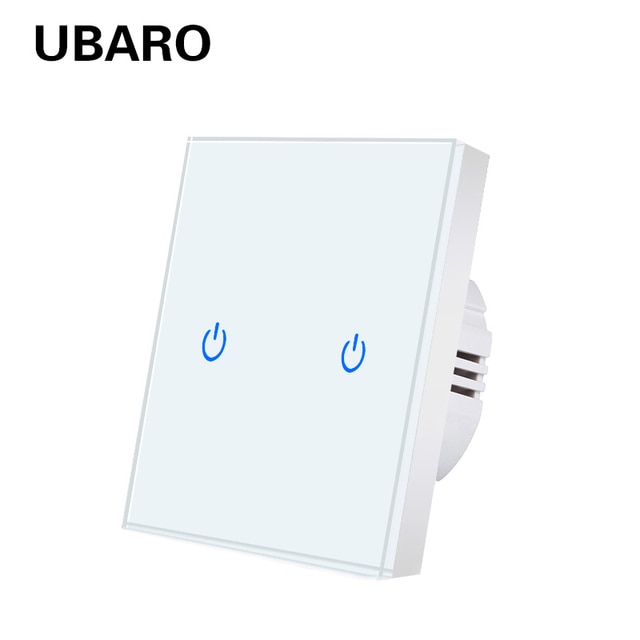

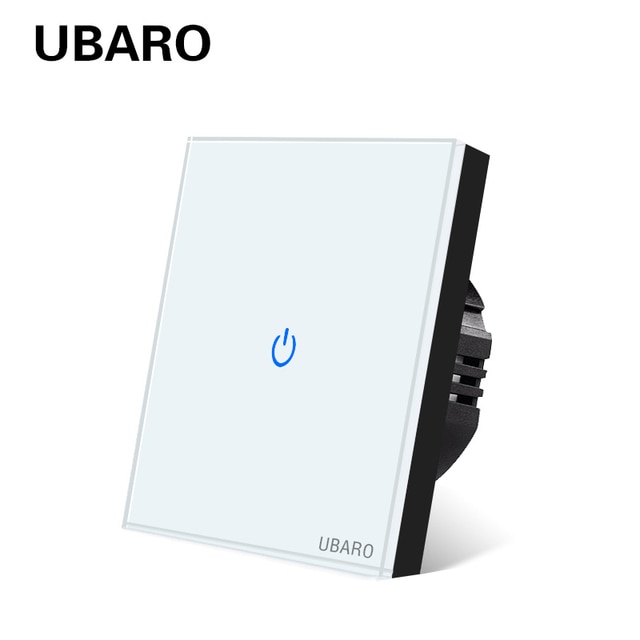

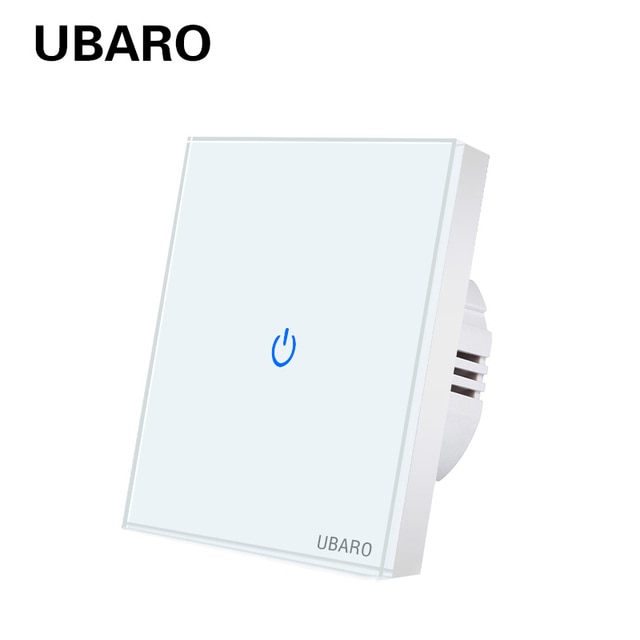

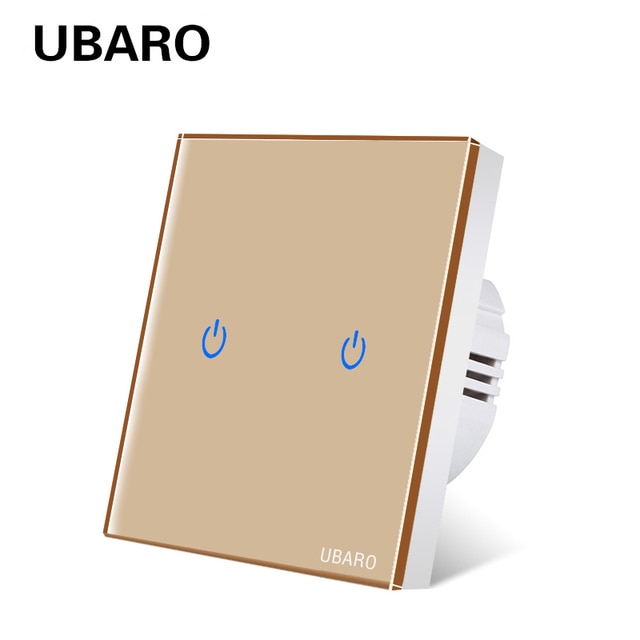

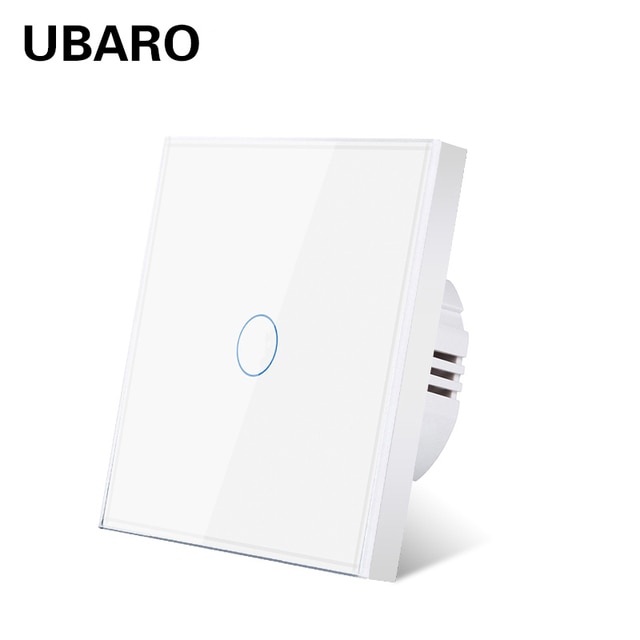

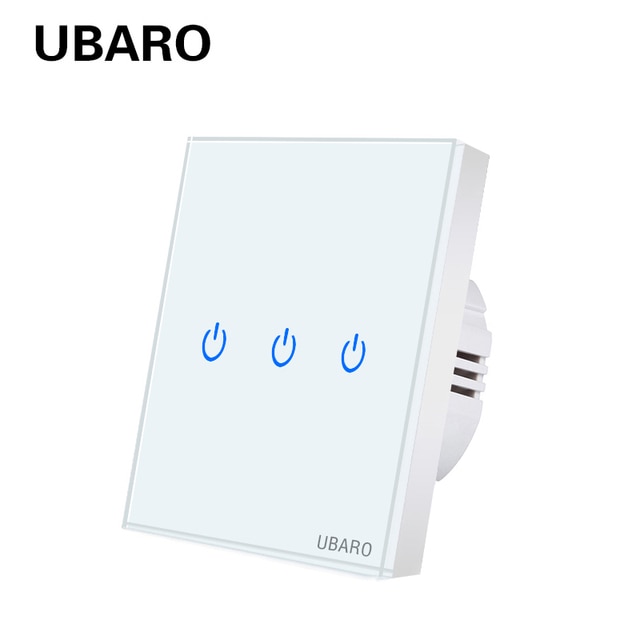

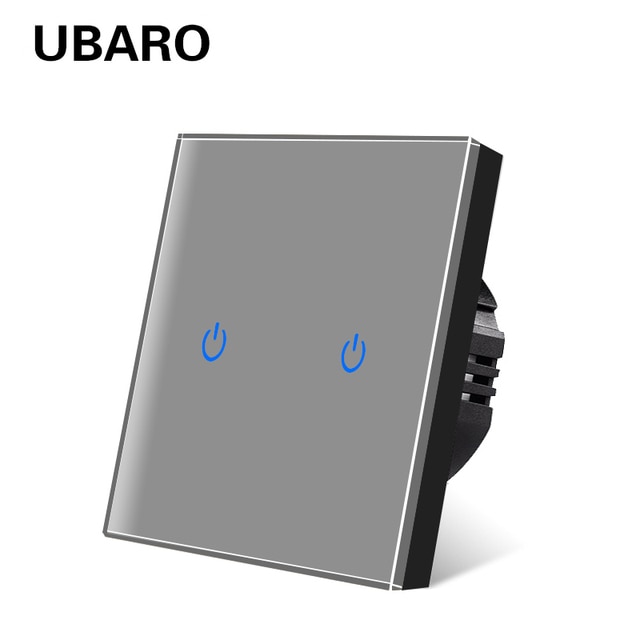

Product real pictures for example

The color of the product is subject to the actual product
Six patterns for choice.

Feature:

1,1/2/3 Gang touch switch AC:100-240V wall Light Switch,EU Standard,It is single live wire control mode.
2,Toughened crystal glass panel design, no fading, looks elegant and stylish.
3,Super sensitivity-Just need touch it light, Waterproof and Resistance Scratch. Protection Against Electric Shock.
4, Popular Colors are available: Black, White, Gold,Grey.
5,With blue LED indicator, very distinguished, more humanization design,The button will glow at night, making it easier to find.
6,New imported IC processor for nice sensitivity and stable performance
7,the base is made of high temperature resistant PC material, making the switch durable and longer life.
8,Single live wire control, easy to install, replace the old switch directly.
9,Touch control ensures longer service life than traditional switch.
10,Protection of over-current, anti-interference,Certification: CE, ROHS, FCC,EU.
11,Easy to clean, panel glass resists deformation and fading.
12, Elegant look, Suited greatly with many modern decor styles. It can be applied to drawing room, bedroom, corridor, kitchen, bathroom, Office and so on.

Package:

1*Touch Switch
2*Long Screw
1*Safety X capacitor
1 *  User Manual
1*Package box

Note:

1,You have to cut off the power and during the installation.
2,Single firewire design.No need to open the wall rewiring,diret replacement of the old switch.
