Portable 4 Gears Adjustable Mini DIY Spot Welding Machine for 18650 Battery Spot Welding Tool Kit Spot Welding Machine Welder

0.0 (2 votes) | 6 orders
Price: US $89.69 / piece
Discount Price:
US $ 81.05 / piece
-10%
Quantity



Portable 4 Gears Adjustable Mini DIY Spot Welding Machine for 18650 Battery Spot Welding Tool Kit Spot Welding Machine Welder

Description:

This product is suitable for daily or small spot welding/butt welding work at home. It is automatically triggered without a switch, and the operation is convenient and quick.

Parameter:

Battery capacity: 5AH
Output voltage: 4.2V max
Output current: maximum 500A
Design current: maximum 1000A
Input parameters: 5V/2.1A
Support welding: 0.1-0.2 nickel sheet, iron sheet, stainless steel
Welding time: several milliseconds
Charging voltage: 4.5~5.5V (current≥2.5A)
Product size: 150*80*22MM

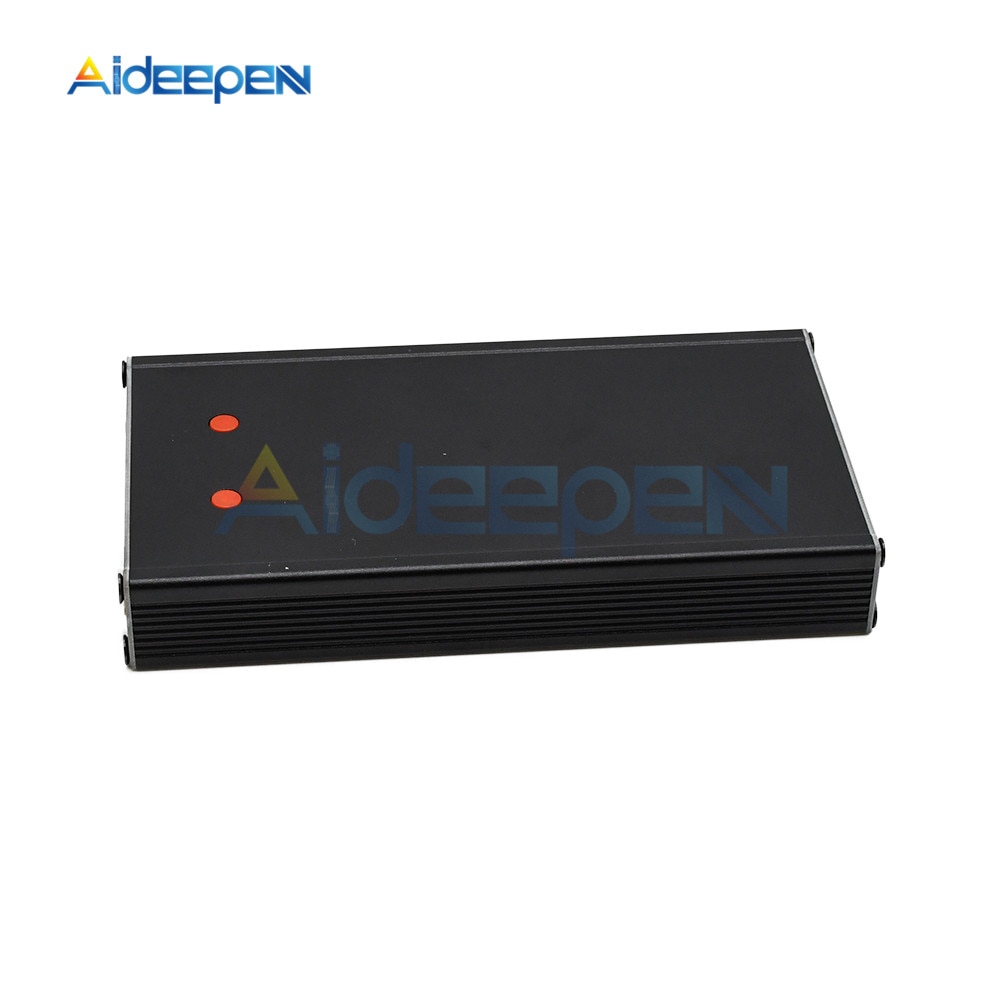

Shell material: hard aluminum alloy

Features:

⑴Small size
⑵Simple operation
⑶ Hard appearance
⑷Easy to use
⑸Super current

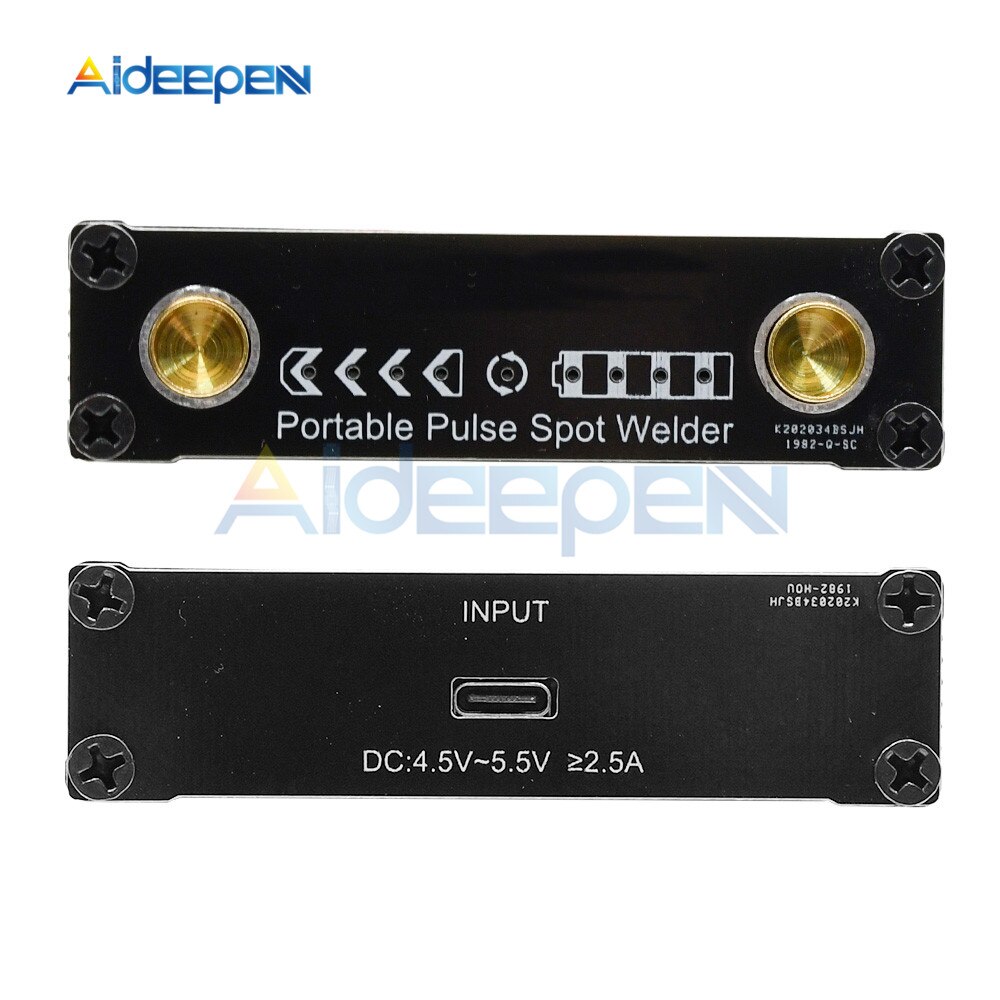

Parts introduction:


 1   Gear  2  Remaining Battery Power   3  Running/Standby  4  Soldering Pen Connection


 6  Switch  7  Gear
Instructions:

Power on: Click the button  6
Shut down: 1. Double-click the button  6 ;2. Automatically shut down after three minutes of standby
Gear adjustment: Press  7  to adjust gears, click to change gears, and the cycle is first gear> second gear> third gear> fourth gear> standby
Standby: 1. After the fourth gear, click to enter the standby state;2. It enters the standby state without spot welding for more than 30 minutes.
Spot welding: After turning on the machine, select the required gear and touch the welding object with the soldering pen to spot welding.
Spot welding precautions: 1. Please fix the spot welding items in the spot welding mode;2. Please keep the welding objects in a flat state;3. Keep cooling time about 10S after welding

Precautions:

⑴It can be operated while charging, and it will enter standby mode when charging
⑵It is recommended to charge it once half a year when it is not used for a long time, and the charge is 75%
⑶ Continuous use of the soldering pen will cause hotness, it is recommended to wear gloves to operate
⑷Do not drop, flood, heat and other harmful operations to electronics
⑸The blackening of the tip of the soldering pen will affect the effect, which can be worn off with sandpaper
⑹If the spot welding is too long or the shutdown is caused by good contact, just restart it

Package Include:

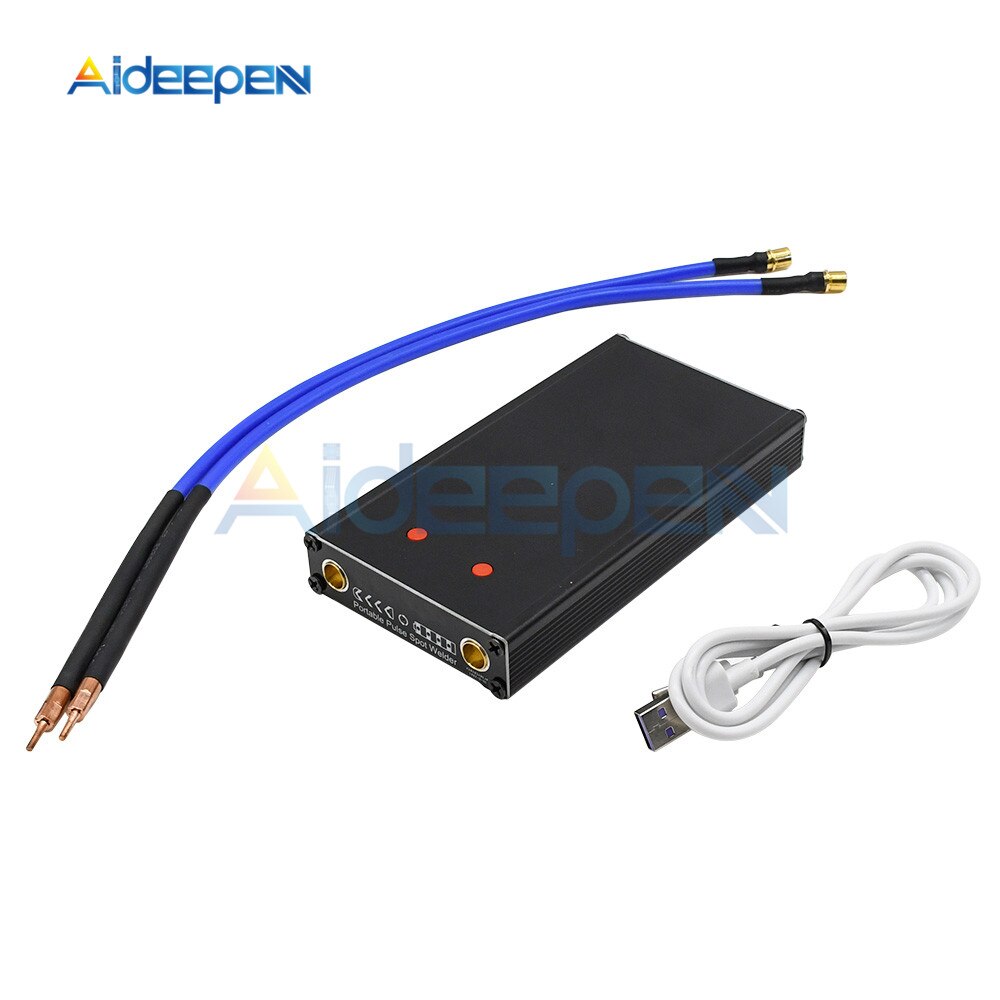

1 x Spot Welder Welding Machine
1 x Soldering Pen (30CM)
1 x Type C Charging Cable




  • Is Smart Device: No
  • Usage: Welding 18650/26650/32650 and other lithium batteries
  • Weight: 500g
  • Dimensions: Check Infprmation
  • Max. Welding Thickness: High
  • Rated Duty Cycle: High
  • Rated Capacity: High
  • Model Number: DIY Portable 5V Battery Energy Storage Spot Welding Machine
  • Origin: Mainland China
  • Certification: NONE
