TUF-2000M TS-2(DN15~DN100mm) TM-1(DN50~DN700mm) TL-1(DN300~DN6000mm) Ultrasonic Module Flow Meter Flowmeter
0.0 (2 votes) | 8 orders
Price:
US $680.28 - 949.12
/ piece
Discount Price:
US $
563.78 -
806.76
/ piece
-17%
- Ships From
- Color
-
-
TUF-2000M TS-2(DN15~DN100mm) TM-1(DN50~DN700mm) TL-1(DN300~DN6000mm) Ultrasonic Flow/Module Flow Meter Flowmeter
Main Features:
1.High accuracy
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than 1%
2.Wide measuring range
Several types transducer for selection, pipe size from DN15mm to DN6000mm
3.Far transmission distance
Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m
4.Powerful Functions
Current output: 4-20mA, one channel, can be used for flow/heat transmitter;
OCT output: two channels, can be used for flow /heat switch;
Current input: 4-20mA, three channels, can be used for data collector;
Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter.
5.Wide Application
Its unique features, particularly low cost, small size, high performance, local display, make it the ideal choice for industrial automation, processing control, flow meter networking, composing multi-channel, high accuracy flow meter.
Características principales:
1. Alta Precisión
Linealidad: mejor que 0.5%, repetibilidad: mejor que 0.2%, precisión: mejor que 1%
2. Amplio rango de medición
Varios tipos de transductor para la selección, tamaño de la tubería de DN15mm a DN6000mm
3. Distancia de transmisión lejana
Módulo de conexión y medidor secundario a través de la interfaz RS-485, distancia de transmisión de hasta 1000m
4. Funciones potentes
Salida de corriente: 4-20Ma, un canal, se puede utilizar para transmisor de flujo/calor;.
Salida de OCT: dos canales, se puede utilizar para interruptor de flujo/calor;.
Entrada de corriente: 4-20Ma, tres canales, se puede utilizar para el colector de datos;.
Entrada de señal de resistencia de tres cables (PT100): dos canales, se puede utilizar para el calorímetro.
5. Amplia aplicación
Sus características únicas, costo especialmente bajo, tamaño pequeño, alto rendimiento, pantalla local, lo convierten en la opción ideal para automatización industrial, control de procesamiento, Red de medidores de flujo, composición multicanal, medidor de flujo de alta precisión.
Widely used in water, heating, water conservancy, metallurgy, chemical industry, machinery, energy and other industries can be used as production testing, flow calibration, temporary testing, flow inspection, water meter cross-commissioning energy-saving monitoring is the flow of timely detection of the necessary tools instrument

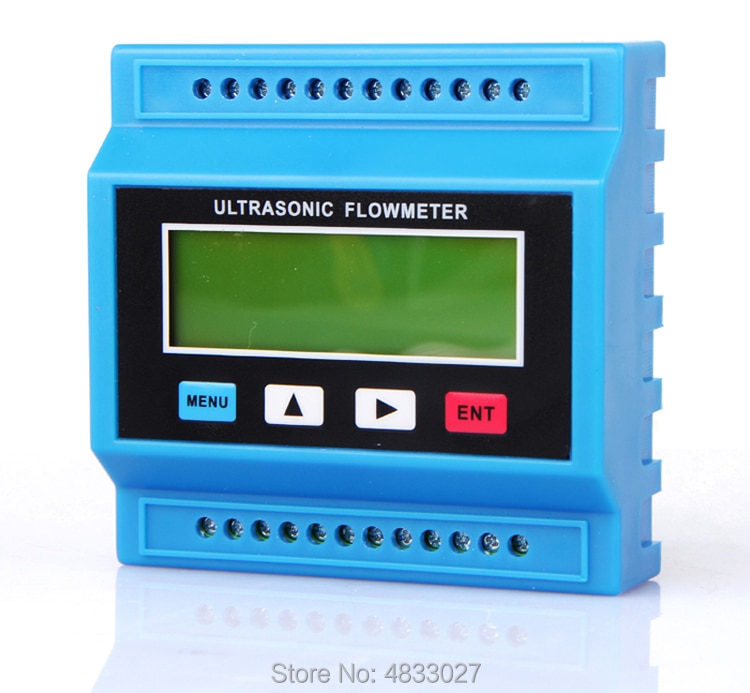

It is applied to the long-term online measurement of various liquid flows. Main Machine
IP67 protection level, IP68 sensor protection level

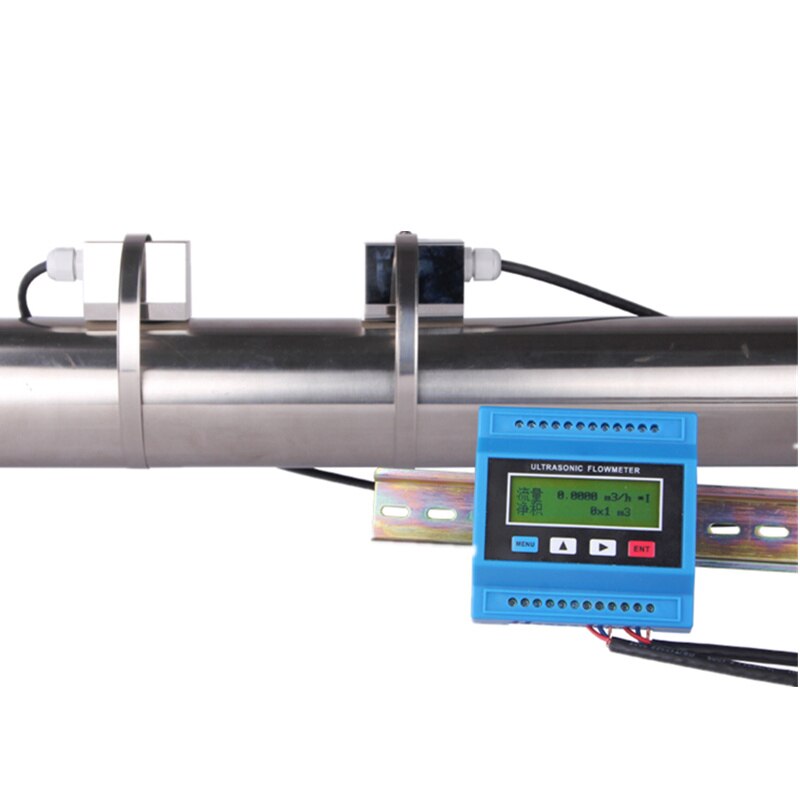

Separate installation of main unit and sensor, main unit can be installed indoors
Instrument cabinet, instrument panel sensor and sensor are installed on the measuring pipeline
Host and sensor with ultrasonic flowmeter special cable connection
That can achieve flow measurement, with section temperature sensor can achieve
Heat measurement.
Flow velocity range
0-+10m/s,forward and reverse measurement
Pipe diameter
DN15-DN6000
Fluid temperature
-30C- 160°C
Fluid type
Water, seawater, sewage, acid and alkali liquids, alcohol, beer, various oils, etc. can conduct ultrasound
wave of a single uniform liquid
Steel, stainless steel, cast iron, copper, PVC, aluminum, glass steel, etc. - - cut dense pipe
Pipe material
Lining allowed
1 channel 4-20mA current output impedance 0-1K, precision 0.1%
Signal output
1 channel OCT pulse output pulse width 6-1000ms
1 channel relay output
3-channel 4-20mA current input, can be used as data collector
Signal input
Connect 3-wire PT100 platinum resistance for heat measurement
Communication interface
Isolated RS485 serial interface, support MODBUS protocol
Data storage
SD-card stores the set parameters and measurement results at regular intervals (optional)

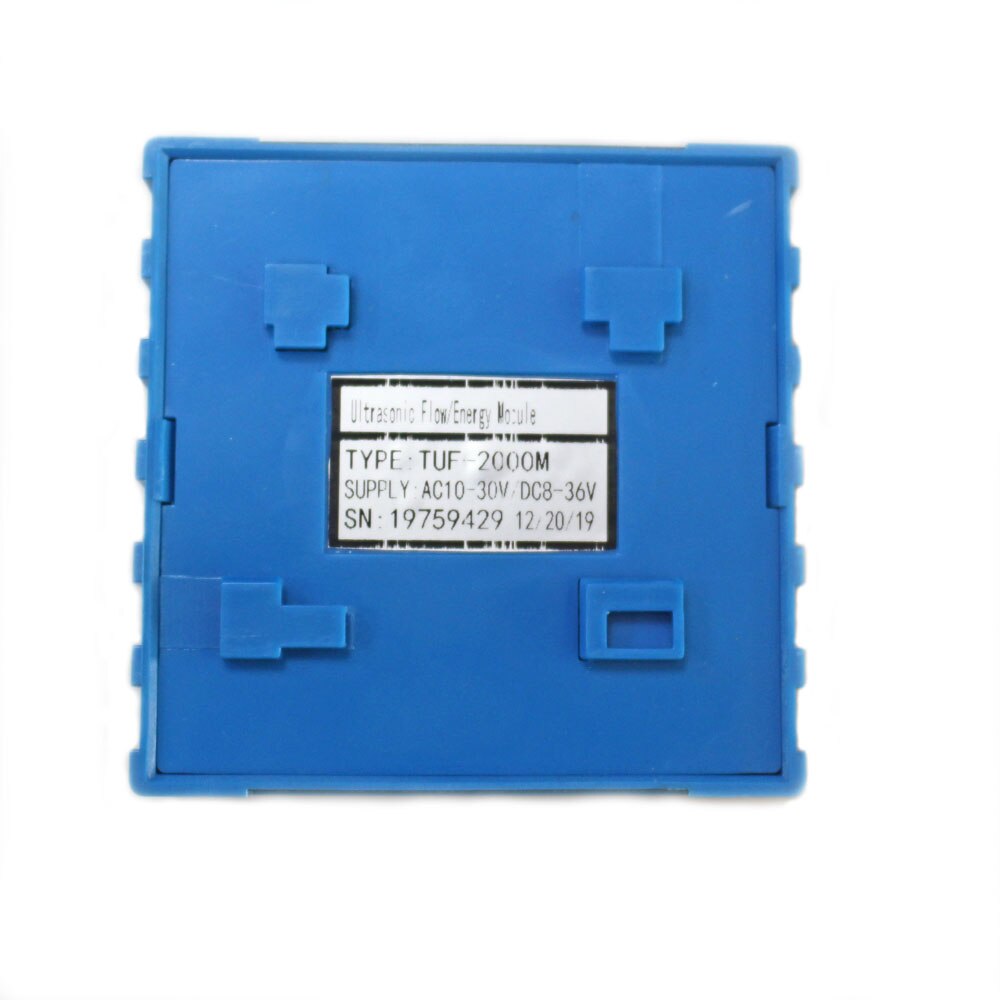

Power supply method
DC8-36V

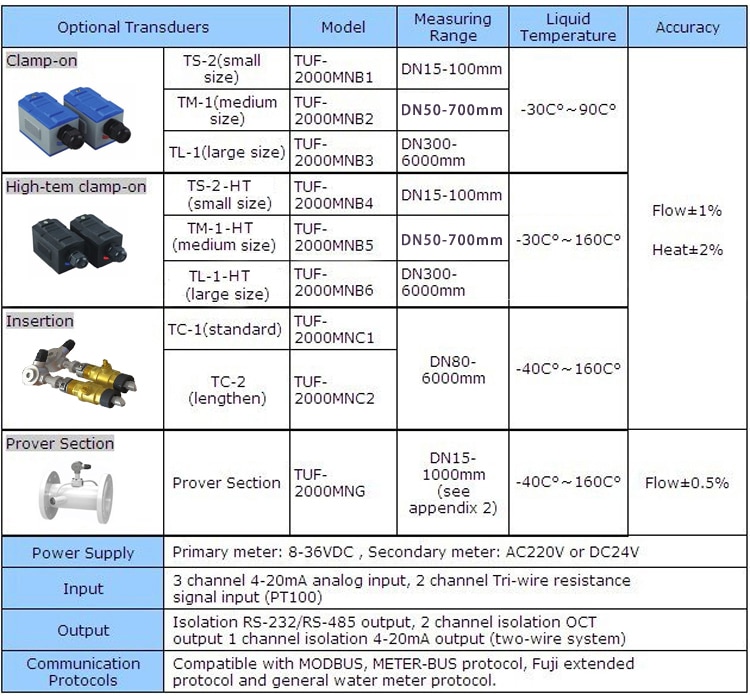

General Specification:
Optional temperature transducers PT100:

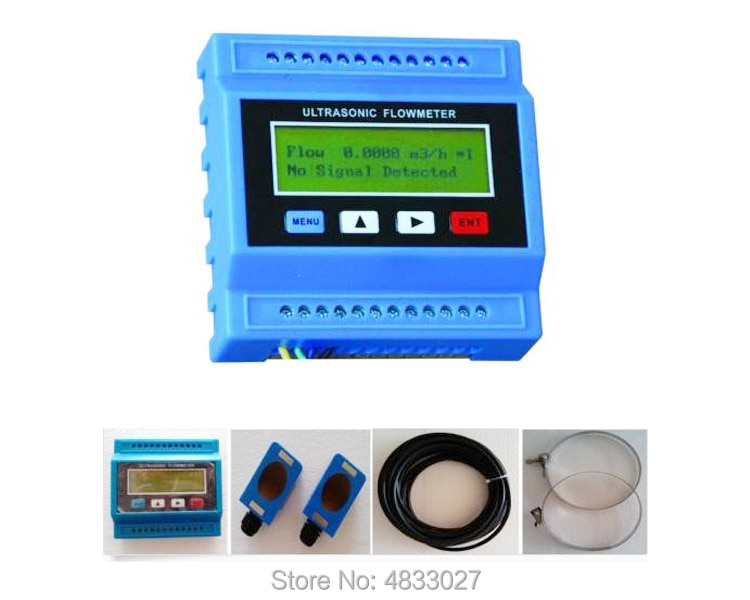

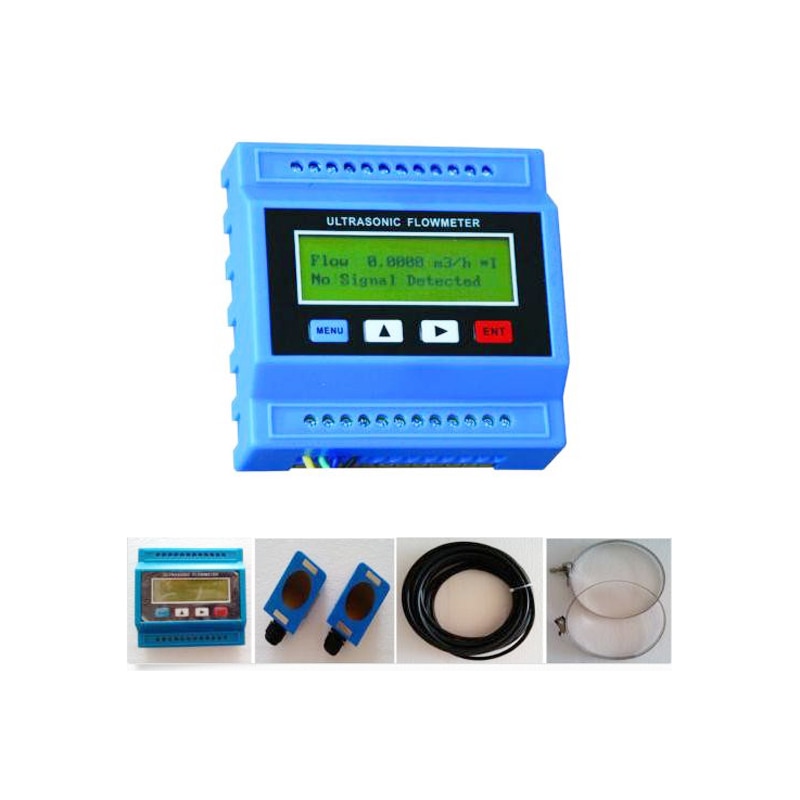

Standard Packing List:

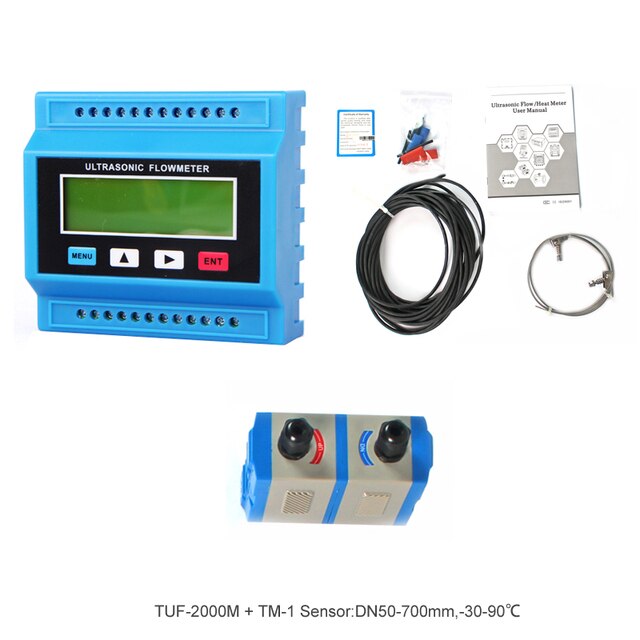

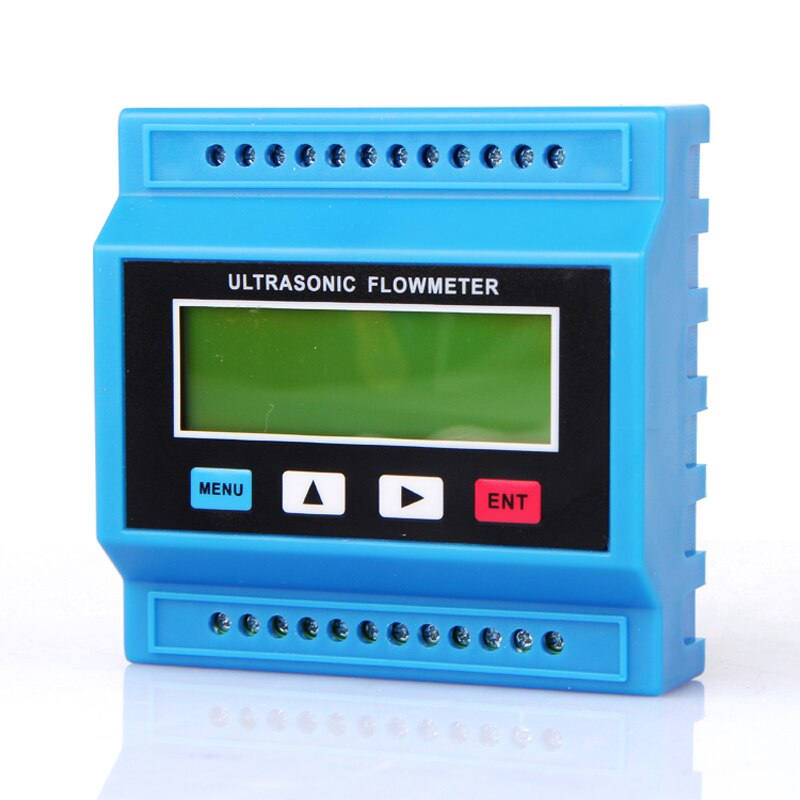

TUF-2000M host 1 piece
Transducer 1 pair (Please select the appropriate one according to your pipe diameter and medium temperature)
Clamp Fixture 1 set
5m Transducer Cable 1 pair
English User Manual 1 piece

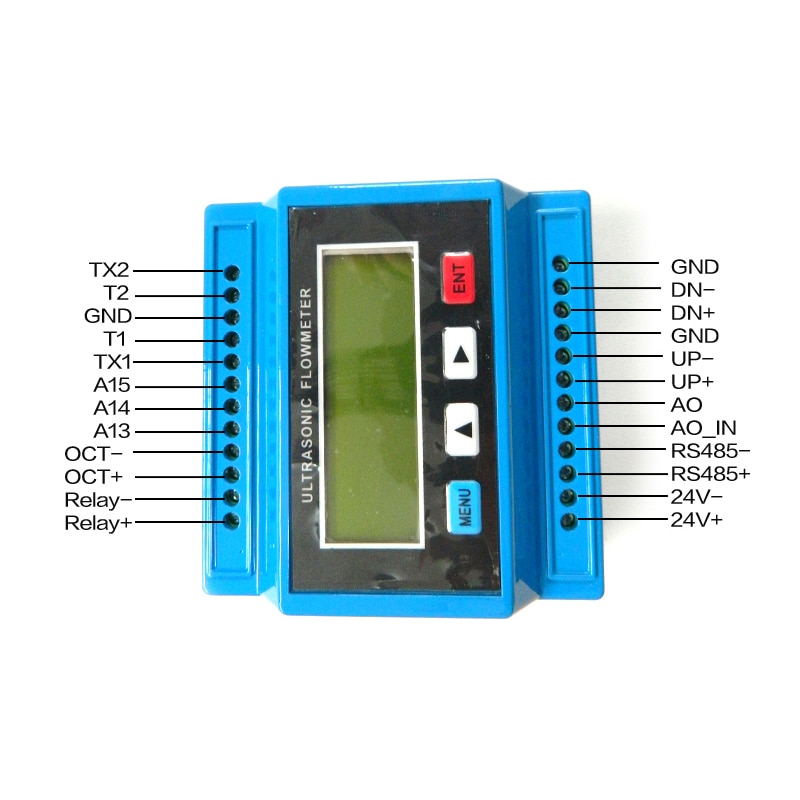

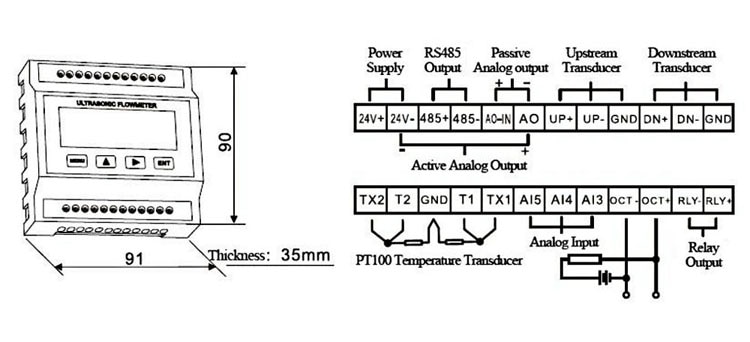

Wiring Diagram:
- Measurement Range: 0-10m/s
- Model Number: TUF-2000M
- DIY Supplies: Plumbing
- Brand Name: Tuodapu
- Origin: Mainland China
- Certification: NONE

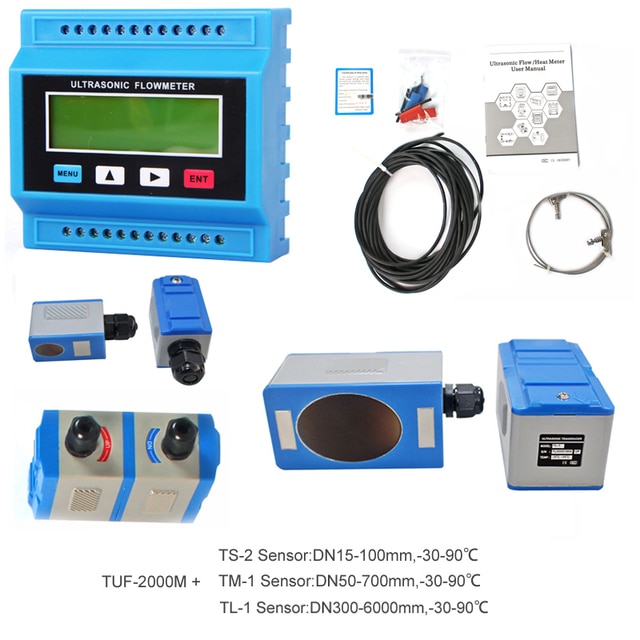

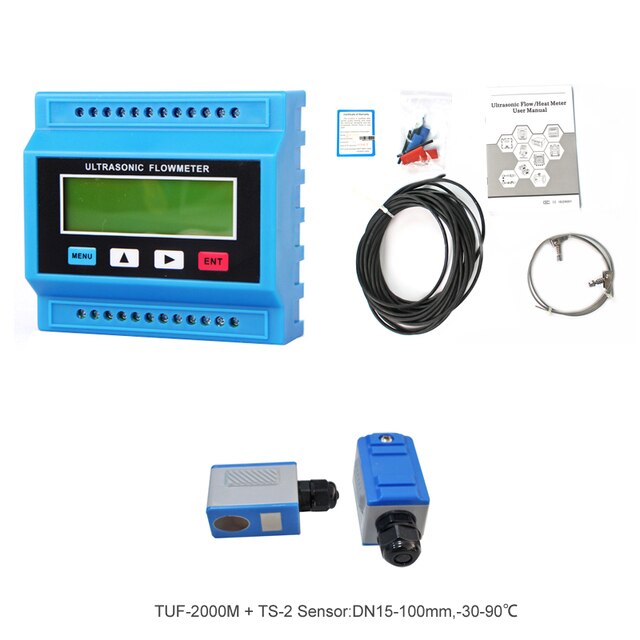

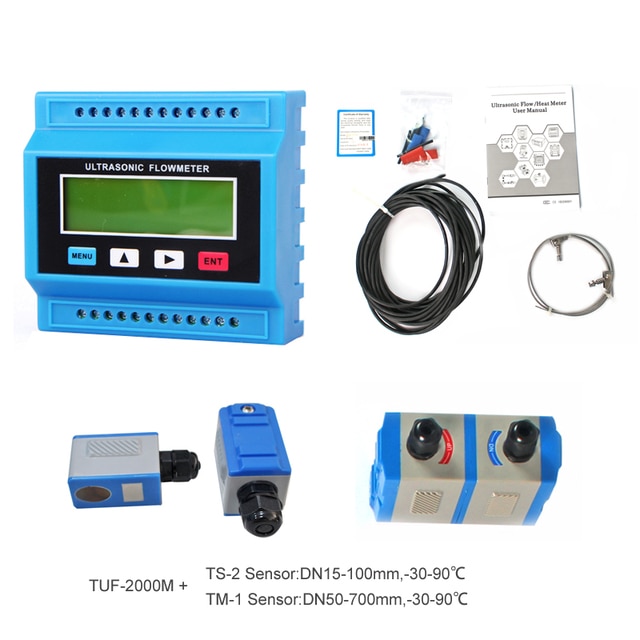

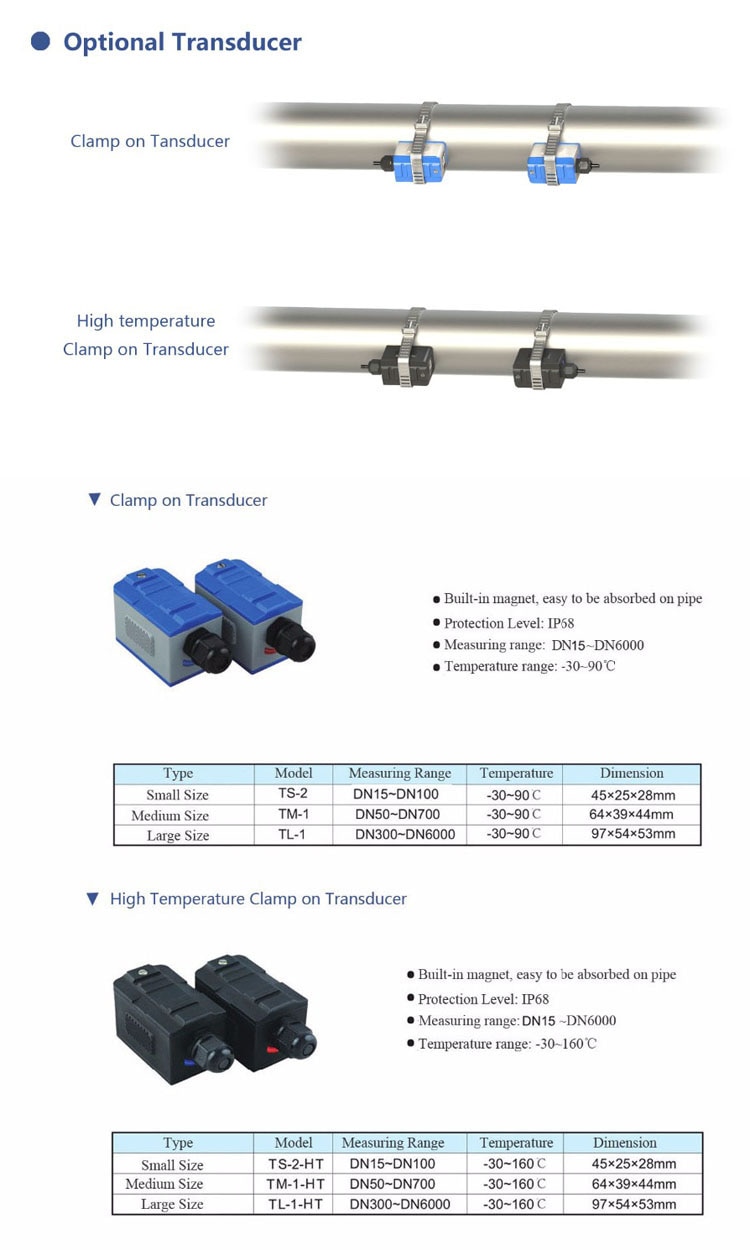

- TS-2 sensor: DN15~DN100mm,-30~90℃
- TM-1 sensor: DN50~DN700mm,-30~90℃

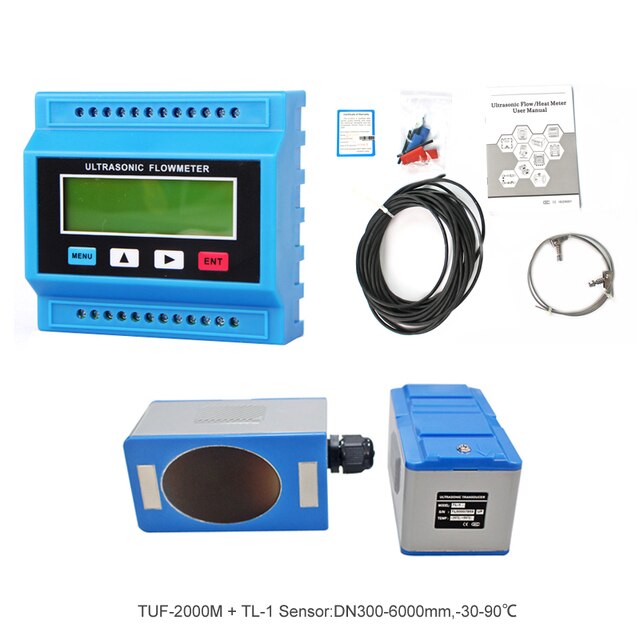

- TL-1 sensor: DN300~DN6000mm,-30~90℃

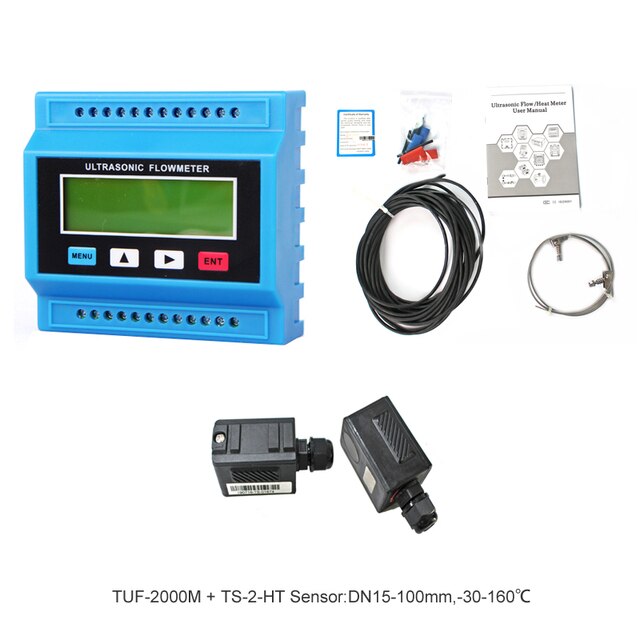

- TS-2-HT sensor(High-tem): DN15~DN100mm,-30~160℃

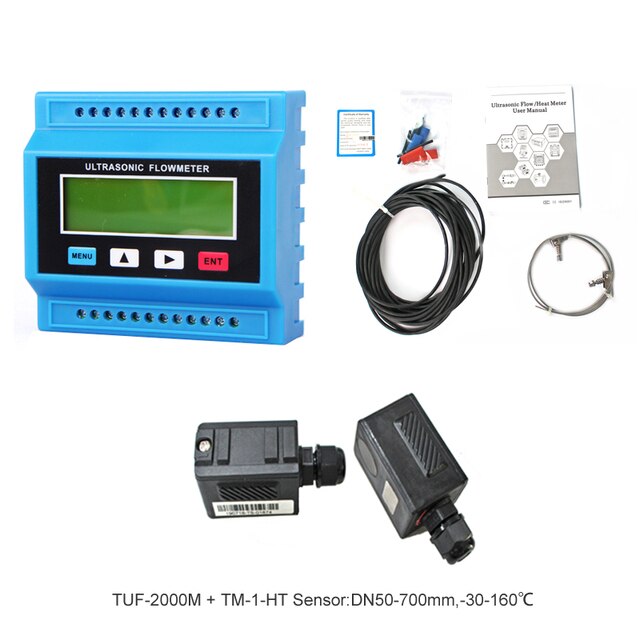

- TM-1-HT sensor(High-tem): DN50~DN700mm,-30~160℃

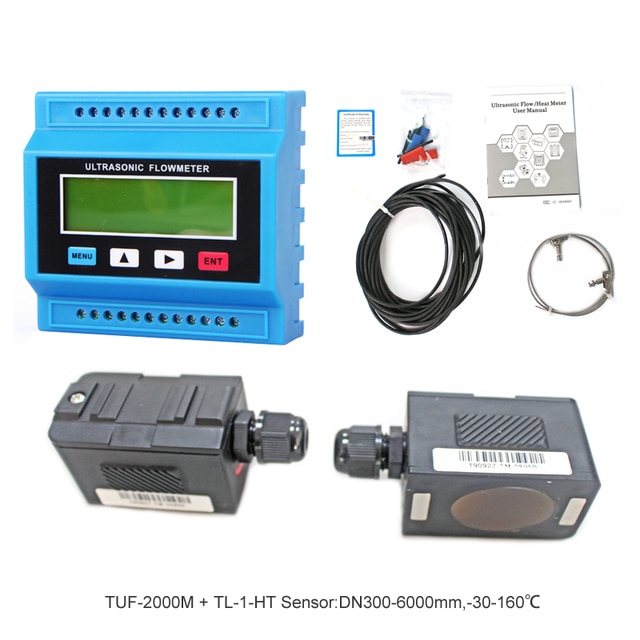

- TL-1-HT sensor(High-tem): DN300~DN6000mm,-30~160℃
