Wireless 2 Channel Garage Door receiver remote switch remote control for garage door work with all rolling code on 433mhz
85.95 30.72 $
ID: 161278
Quantity

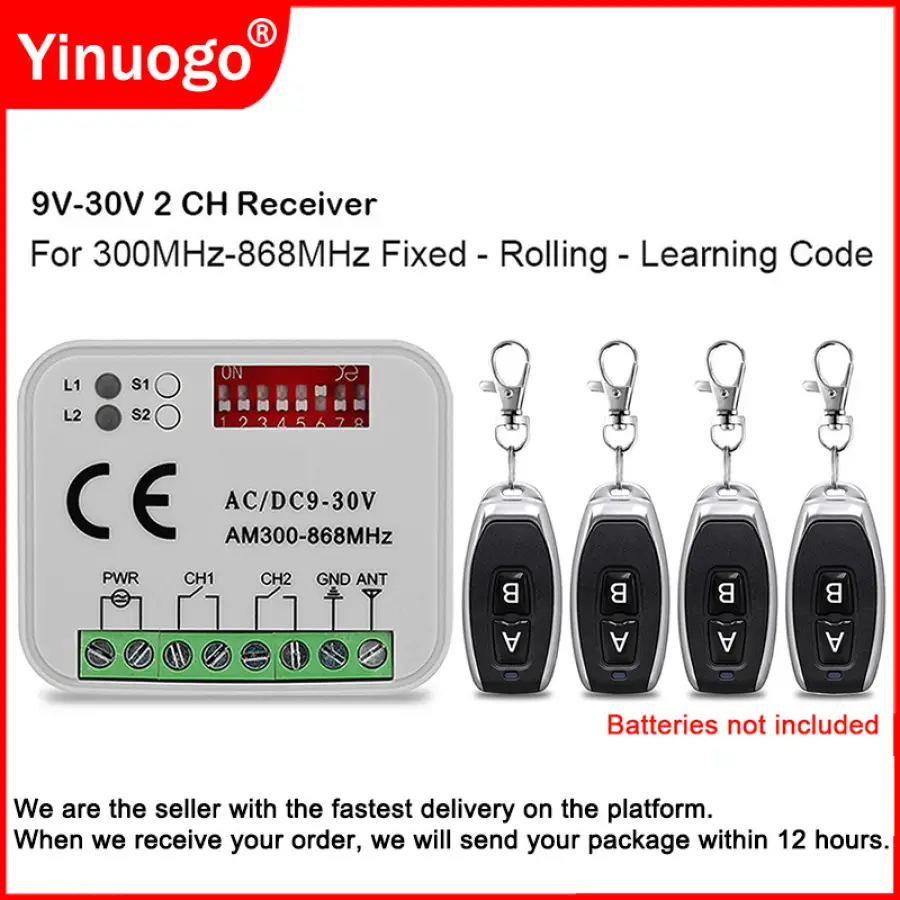

Universal Receiver 300-868MHz Garage Door Remote Control Receiver AC/DC9-30V 433.92MHz Garage Door Controller
4.3 (3 votes) | 26 orders
Price:
US $
13.44 -
19.66
- Color
-
-
When to ship ?
We are the seller with the fastest delivery on the platform. When we receive your order, we will send your package within 12 hours.

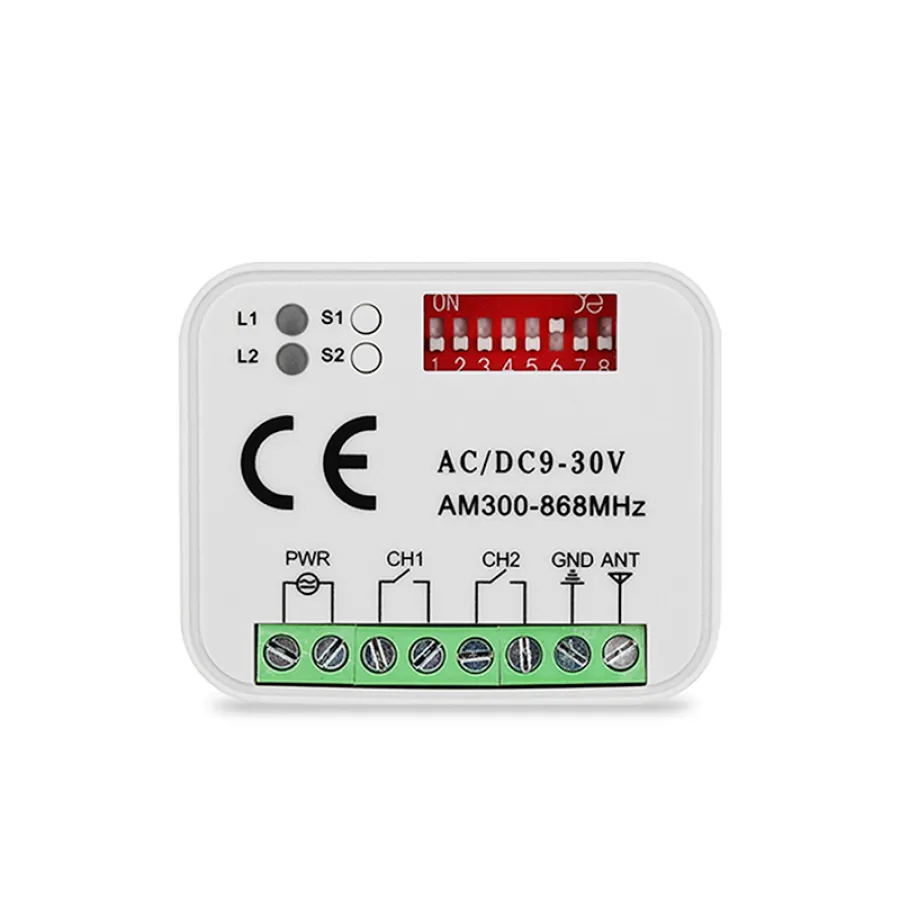

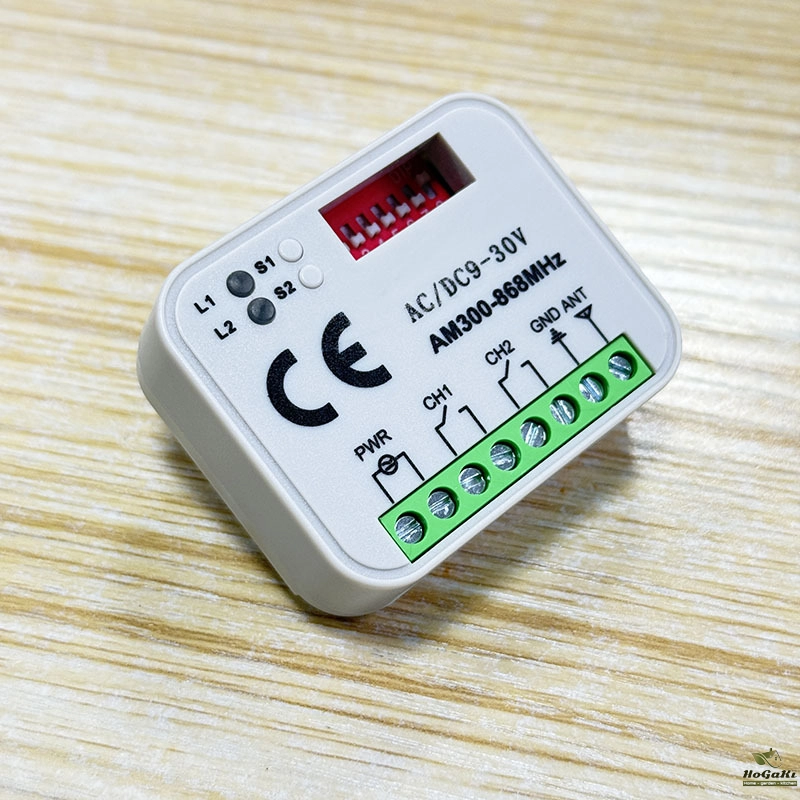

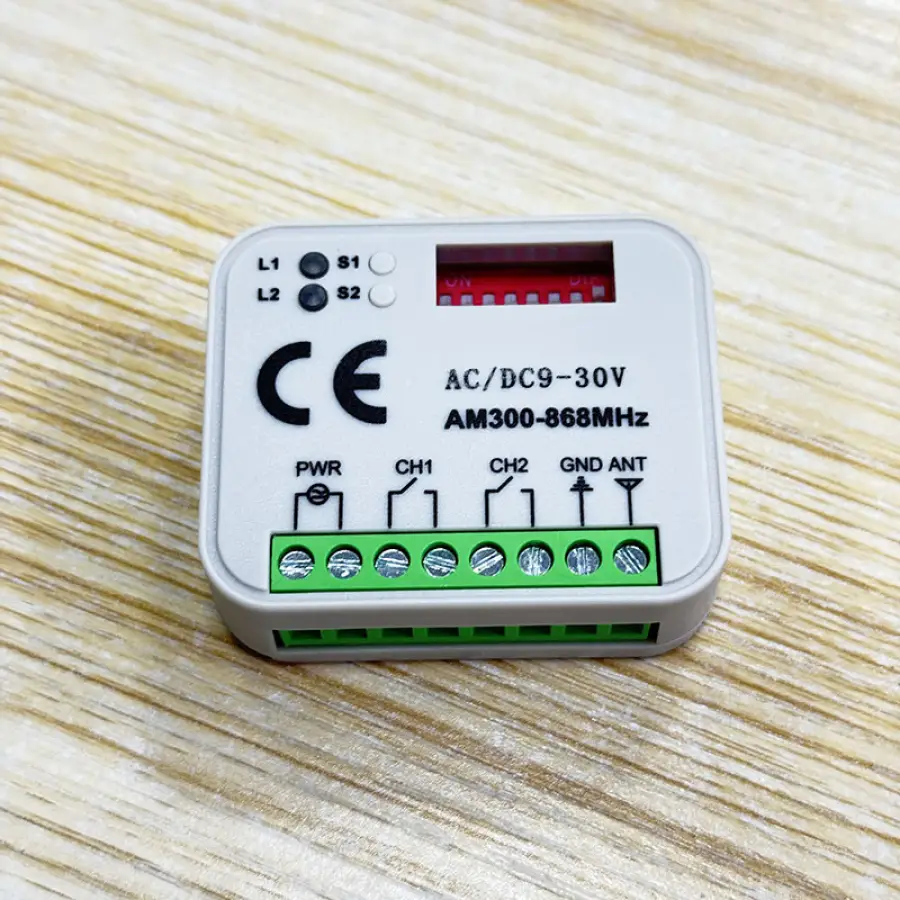

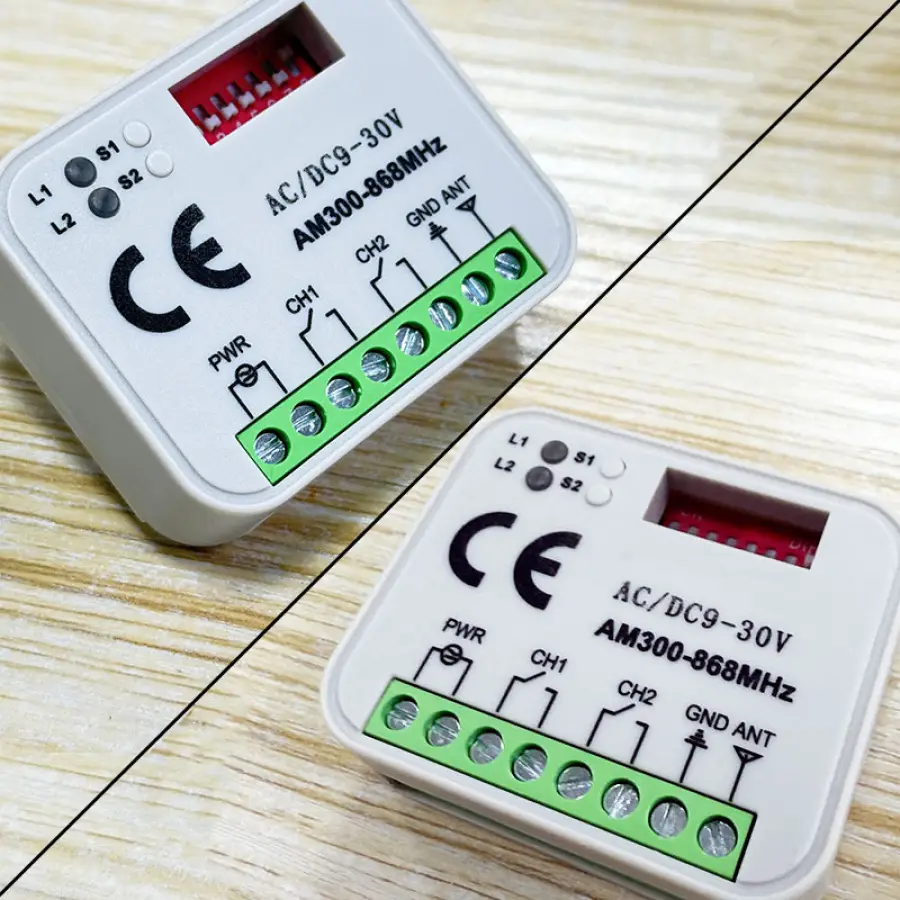

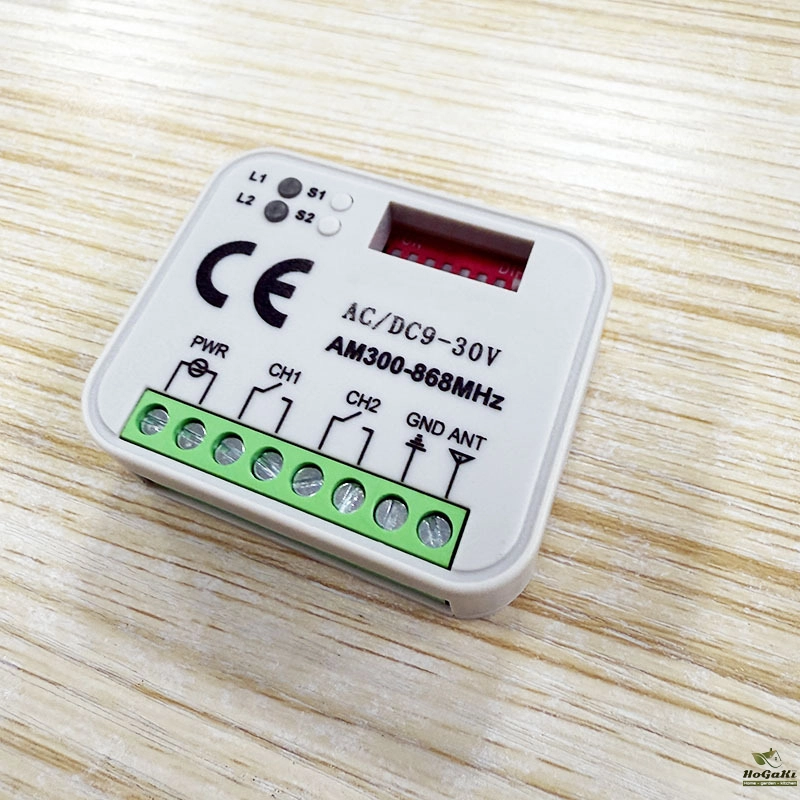

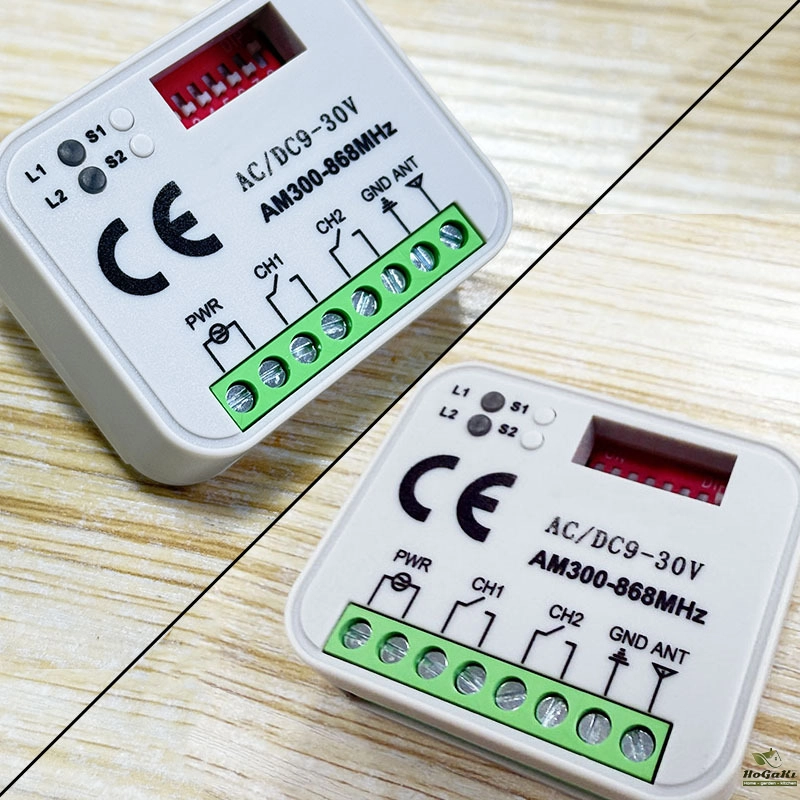

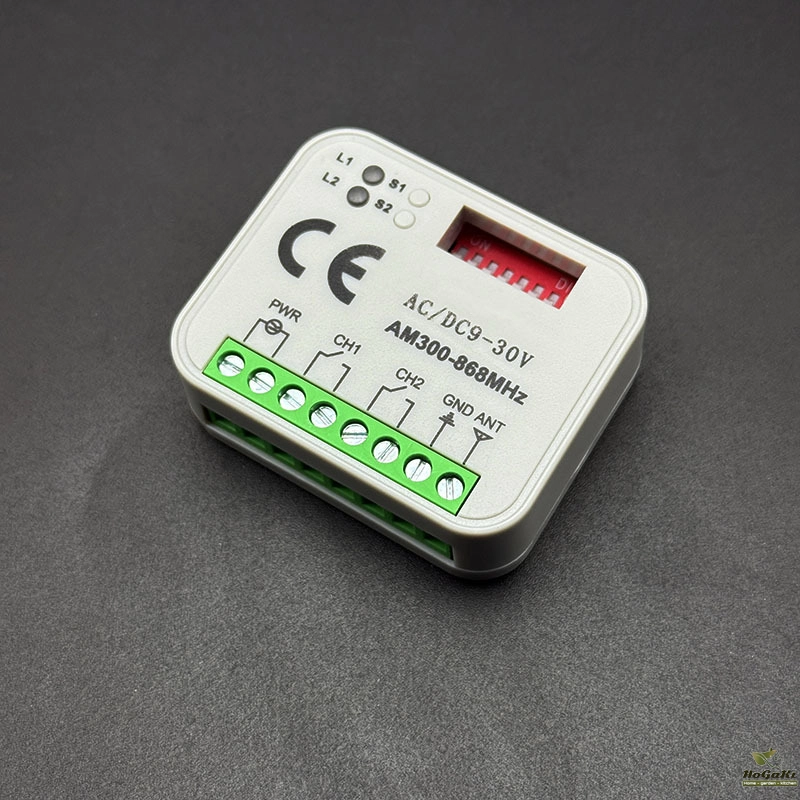

Universal Multi Frequency 300MHz-868MHz Receiver
Specifications
1，Name: YNG201 2，Operating Voltage: AC/DC 9V-30V 3，Channels: 2 4，Frequency: 300MHz - 868MHZ 5，Code: Rolling and Fixed code & Learning code 6，Distance: 50-100 meters. 7，Size: 56mm*46mm*20mm. 8，One receiver can work with 400 codes. 9，It don’t interference other remotes and receivers. 10，Brand selector: With 8 dip switches user can make different combination for different remote brands. 11，Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system. 12，Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.
Working Frequency : 300MHz-868MHz(Rolling Code & Fixed Code & Learning Code)
300MHz 310MHz 315MHz 318MHz 390MHz 433.4MHz 433MHz 433.92MHz 868MHz 868.3MHz 868.8MHz Can identify ALL Fixed Code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning Code (1527, 2240, 6P20B, 6P20D and so on) Rolling Code (HCS301, HCS300.HCS200, HCS201, HCS100, HCS101 and so on)
Features
* Receive stronger signal * One receiver can work 400 codes * Simple operation, better quality and trustworthy. * It will not interfere with other remotes and receivers * Compatible with multiple brands of remote controls

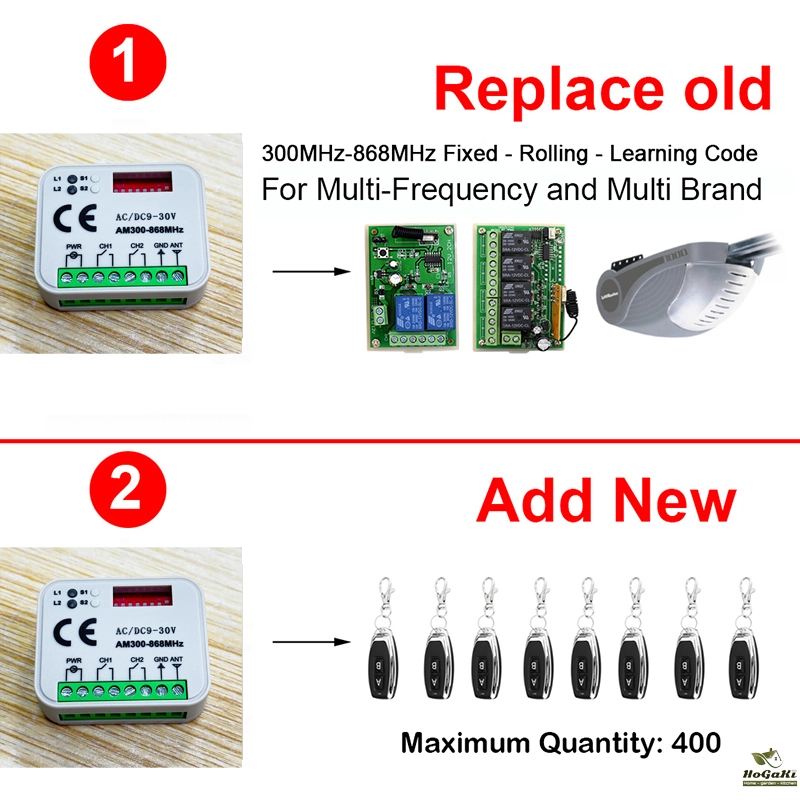

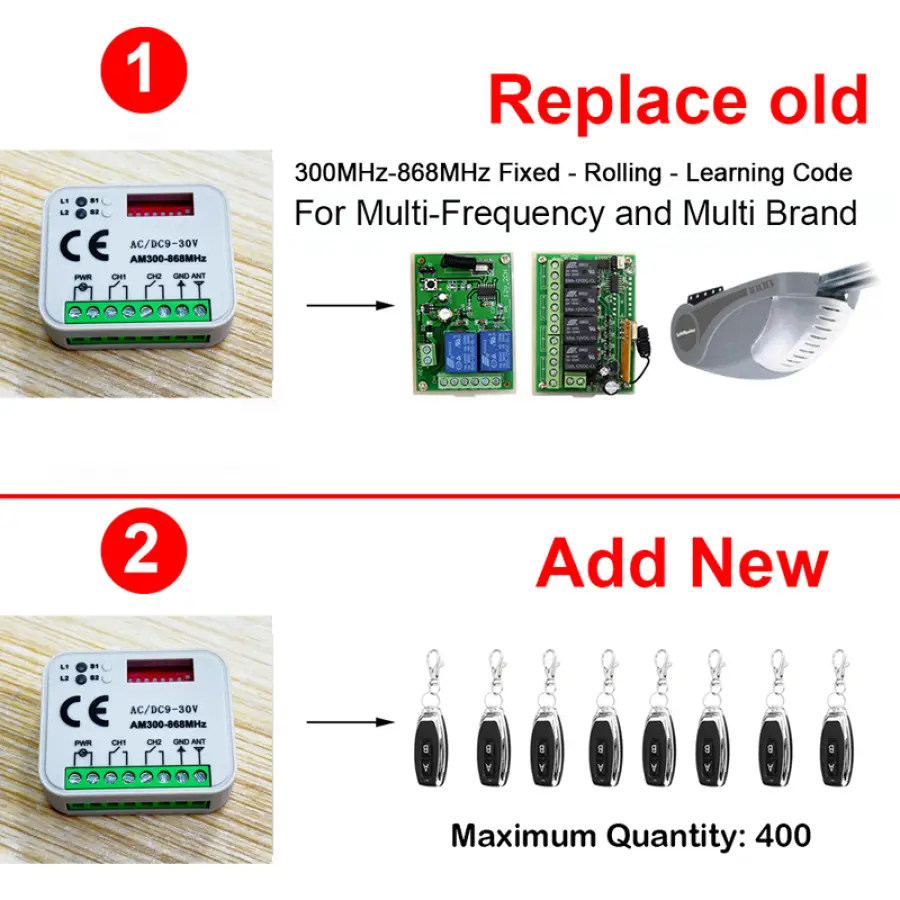

Replacing old garage control systems, or for adding more remotes to control garage doors

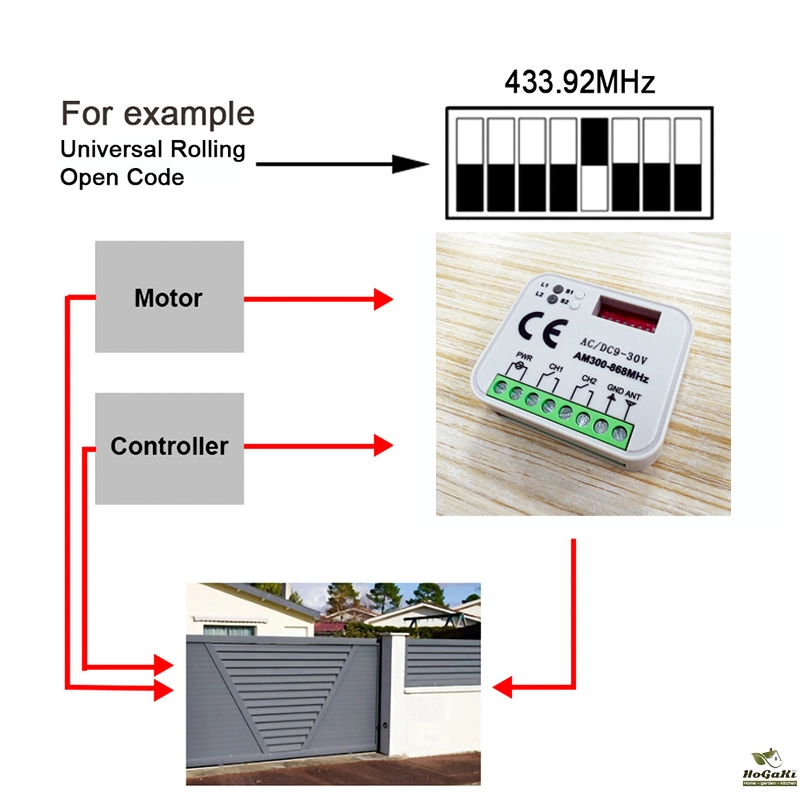

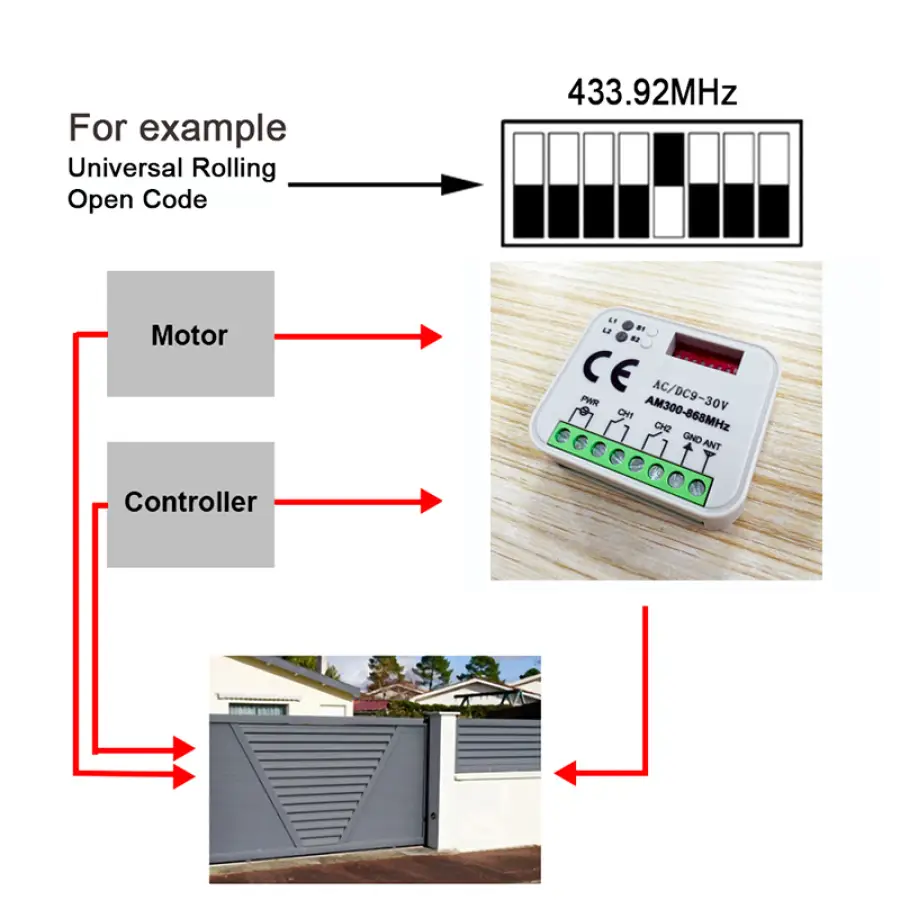

Connect your motor or your controller to use

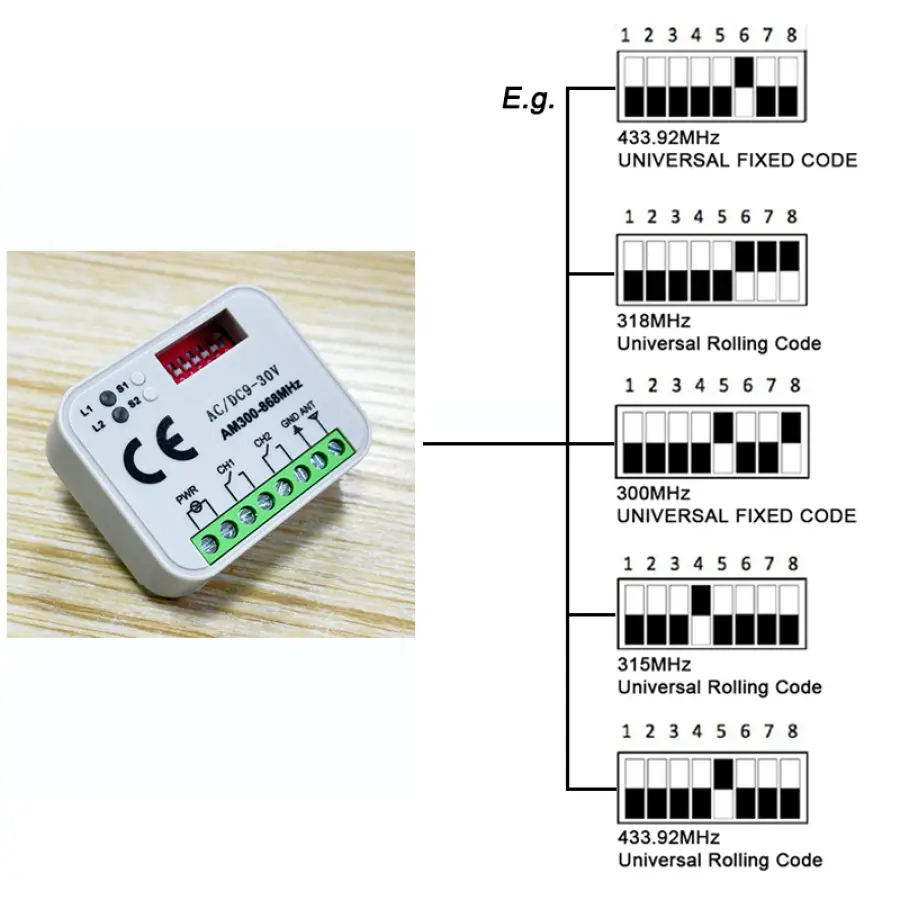

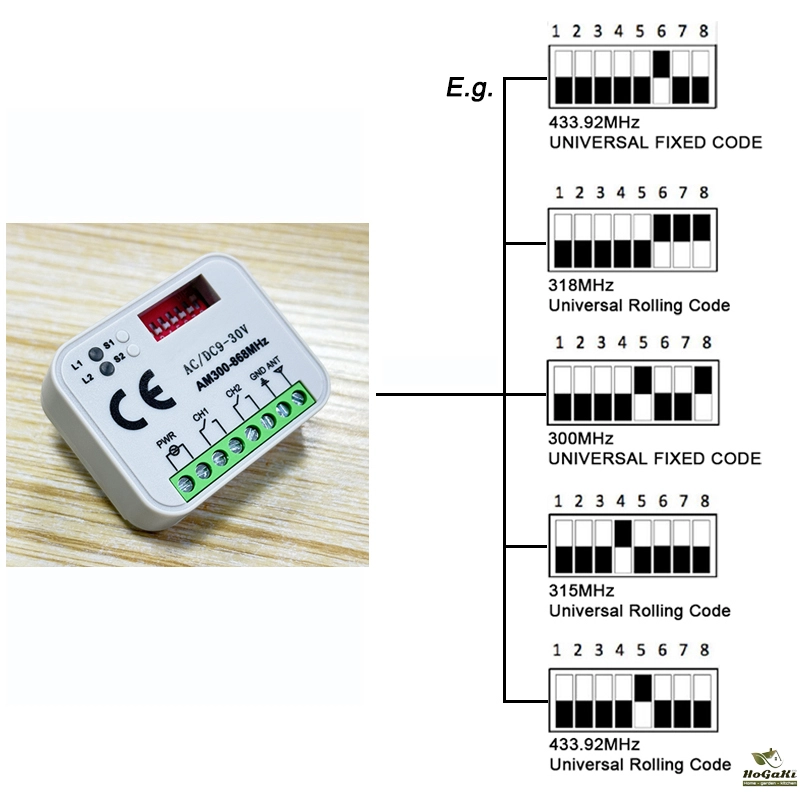

How to dial the code?
You can switch the dial code you need according to your remote control brand and frequency
How to program?
1, Brand selector: With 8 dip switches user can make different combination for different remote brands. 2, Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it is better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2 and 3; shorten 1and 2 if input less than 24V. 3, Programming procedure: 1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For 433,92Mhz Rolling Code remote controls, just move Dip-switch 5 UP. ( Contains manual) 2) Press the learn button. The will LED turn on. 3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully. 4) Repeat step 2 for another button. 4. The 2-nd channel programming procedure is the same. 4. Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered
Include
Receiver Small Antenna English Manual

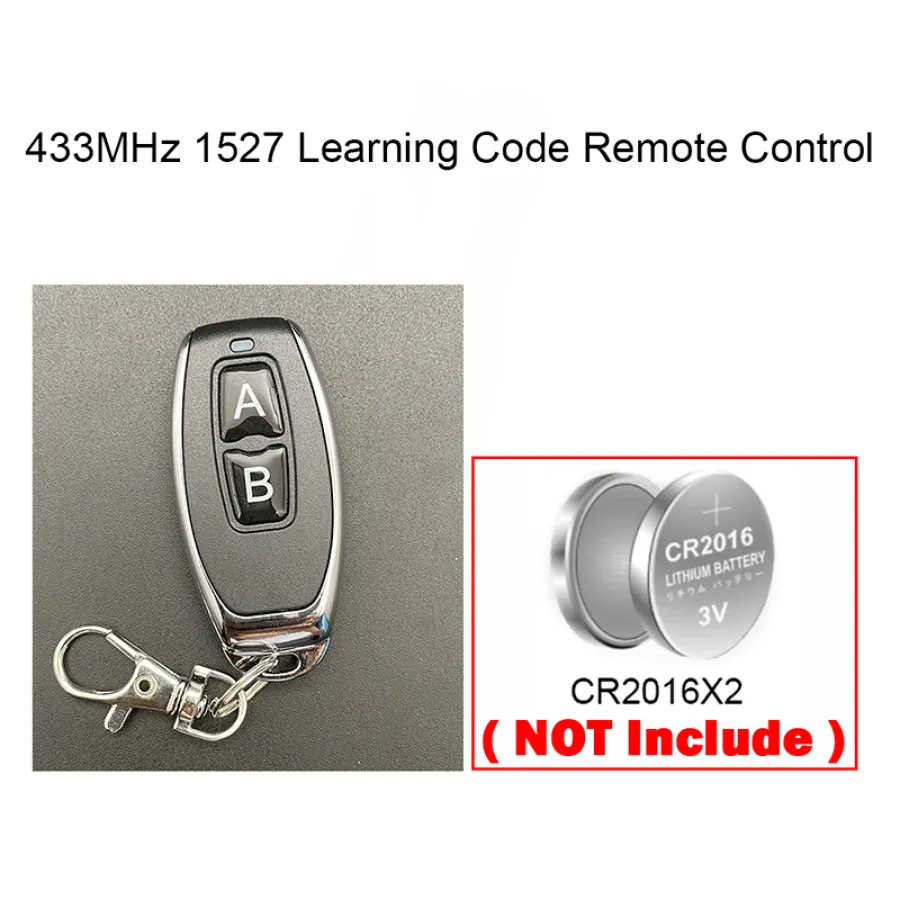

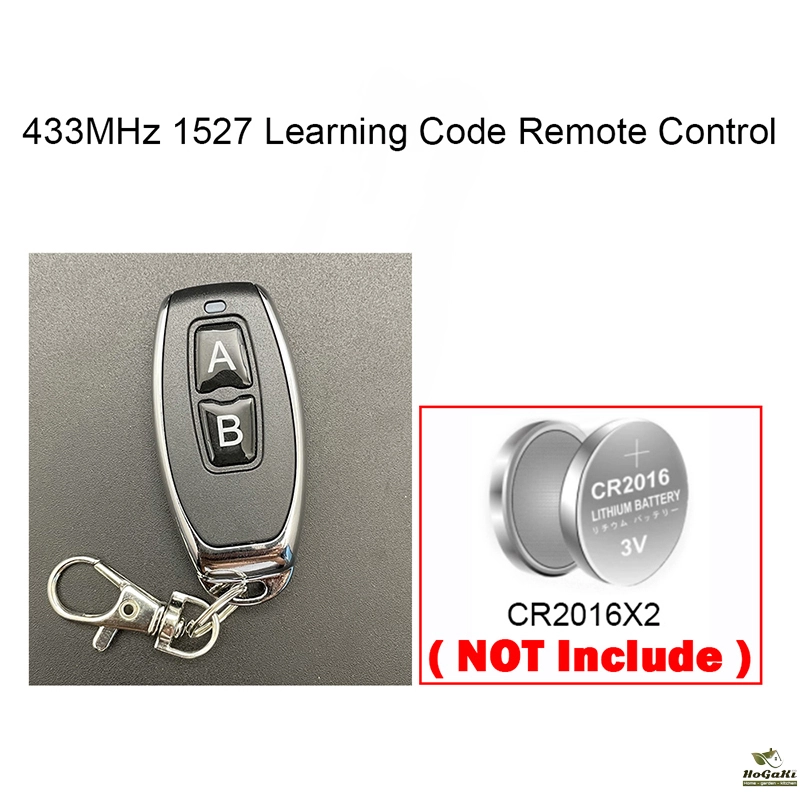

433MHz EV1527 Learning Code Garage Door Remote Control
Remote Control Does Not Contain Batteries
Specifications
1. Model：YNG210 2. Type of programming：Programming with the receiver. 3. Frequency：433MHz=433.92MHz 4. Code：1527 Learning Code. 5. Buttons：2 Buttons 6. Battery：CR2016 （Not Include Battery） Note: This remote control cannot clone other remote control, it can only match the 1527 learning code receiver This product does not have any operation manual , but you need an instruction manual for your device . Your device must support EV1527 learning code and support 433MHz at the same time . This means that you need to refer to the product manual of your own device for coding after purchase ( different products have different coding methods ) . So before buying , please confirm whether your device is suitable for our remote control. This remote worked great with our receiver
Packaging Details
- Unit Type:
- Package Weight: 0.060
- Package Size: 8x8x8
- Brand Name: Yinuogo
- Name: Multifrequency Receiver
- Frequency: 300MHz-868MHz
- Voltage: AC/DC 9V-30V
- Channel: 2
- Brand Name: NoEnName_Null
- Model Number: YNG201
- Hign-concerned Chemical: None
- Origin: Mainland China
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Certification: weee
- Choice: yes
- semi_Choice: yes
