RX-MULTI Receiver Switch Controller AC/DC 9V-30V 2 Channels 300MHz to 868MHz 433MHz Garage Door / Gate Remote Control Receiver
4.7 (3 votes) | 32 orders
Price:
US $43.07
Discount Price:
US $
17.20
-60%
When to ship ?
We are the seller with the fastest delivery on the platform. When we receive your order, we will send your package within 12 hours.

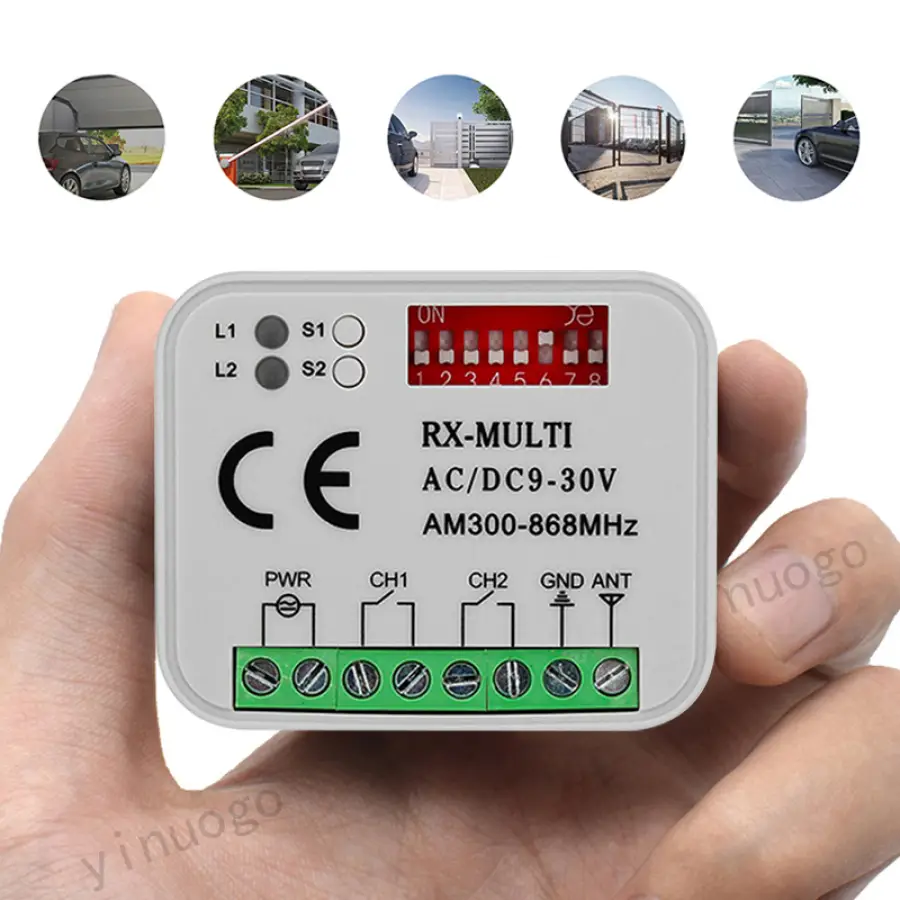

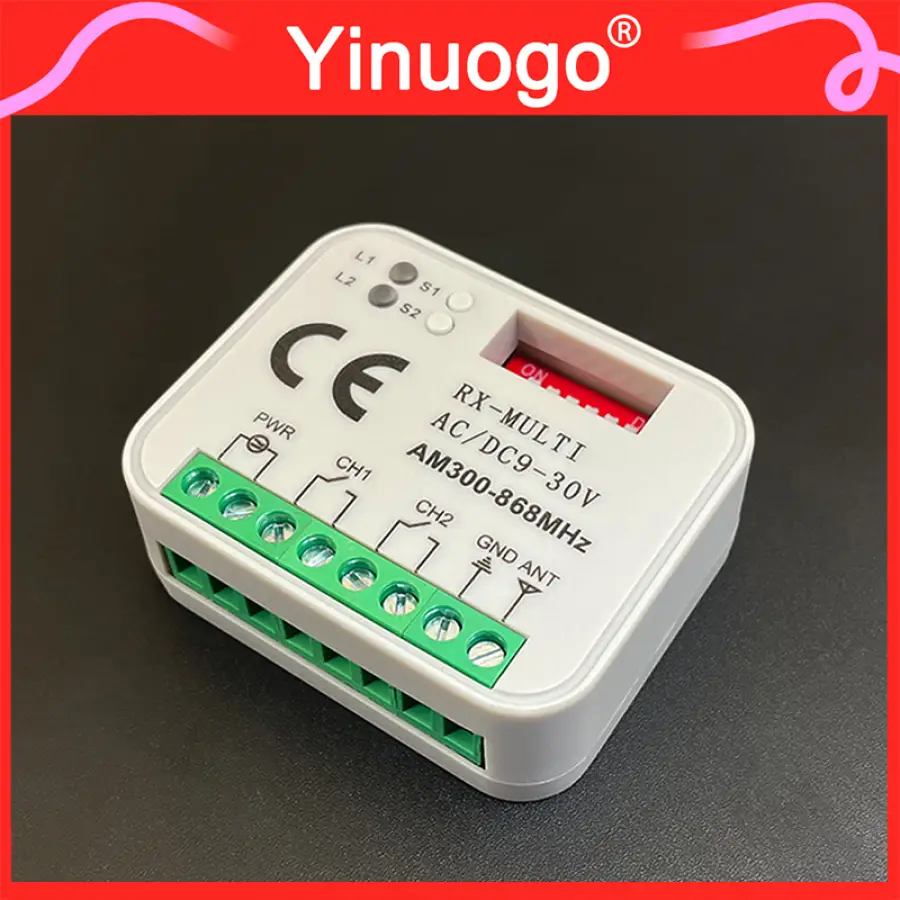

Multi-Frequency 300MHz-868MHz Garage Door Remote Control RX-Multi Receiver
Specifications
1，Name：RX MULTI Receiver
2，Operating Voltage：AC/DC 9V-30V
3，Channels：2
4，Frequency：300MHz - 868MHz
5，Code：Rolling and Fixed Code & Learning Code
6，Distance：30m-120m
7，Size：56mm*46mm*20mm
8，One receiver can work with 400 Remote Control
9，It don’t interference other remotes and receivers.

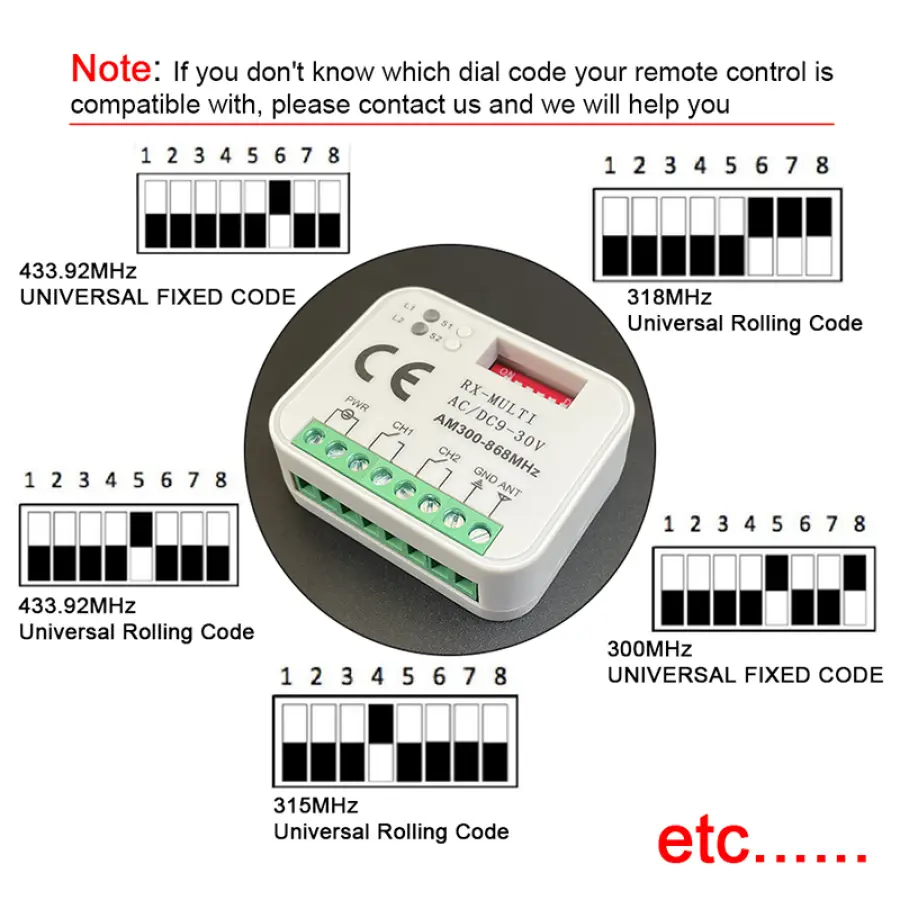

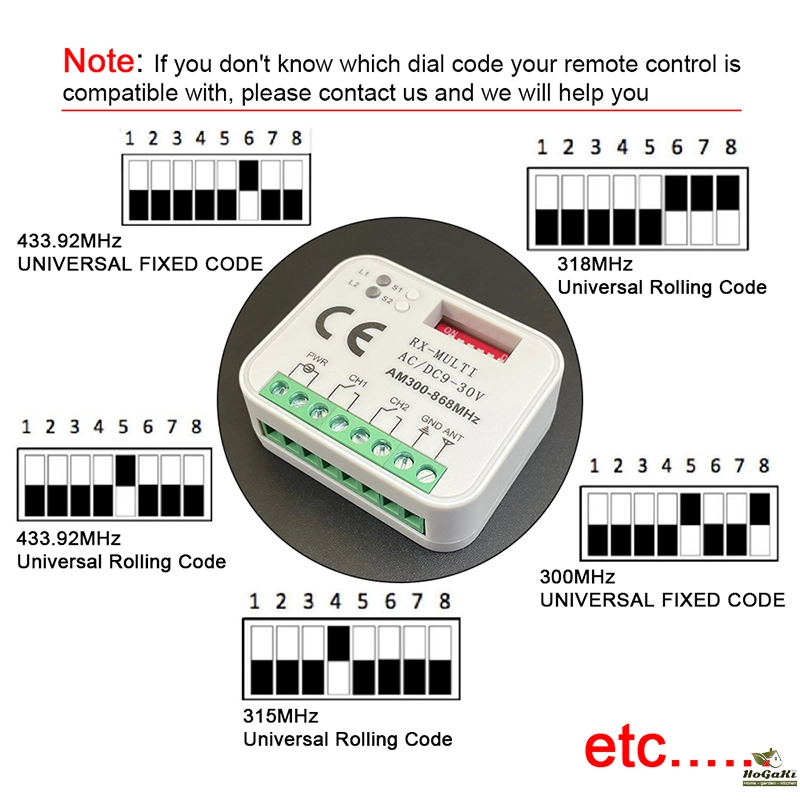

10，Brand selector: With 8 dip switches user can make different combination for different remote brands.
11，Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.
12，Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.

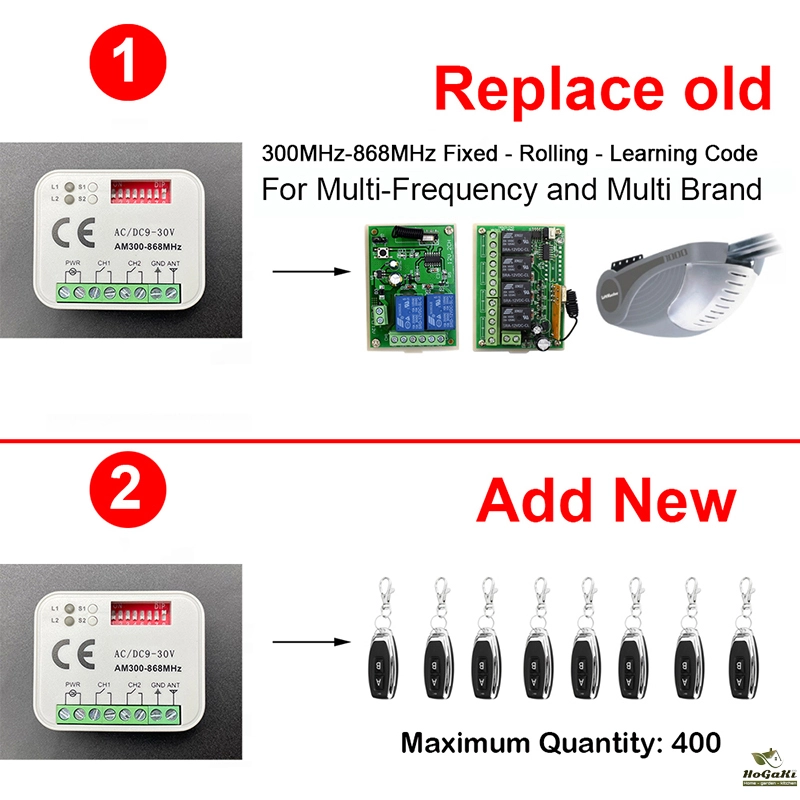

Feature 1

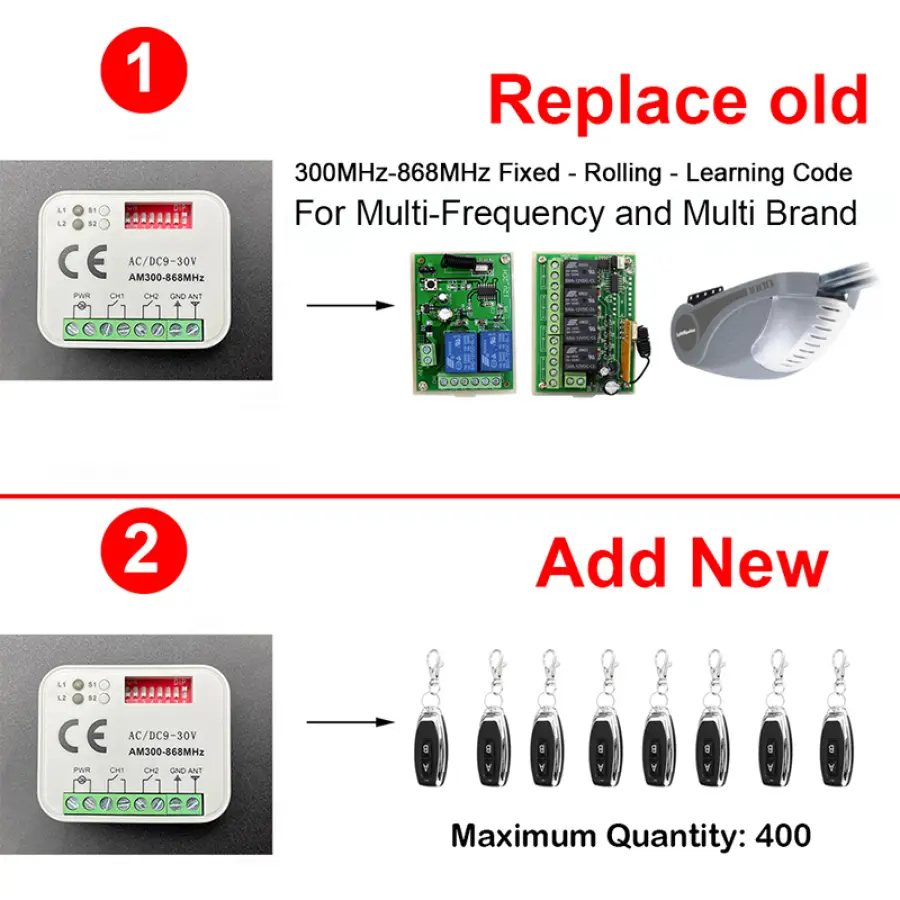

1. It can replace your garage door receiver.
2, You can buy our receiver and remote control, the maximum working quantity of remote control is 400.
Feature 2
You can switch the dial code you need according to your remote control brand and frequency.
Scope of use
It has a very wide range of uses, you can buy our remote control to use it with it.

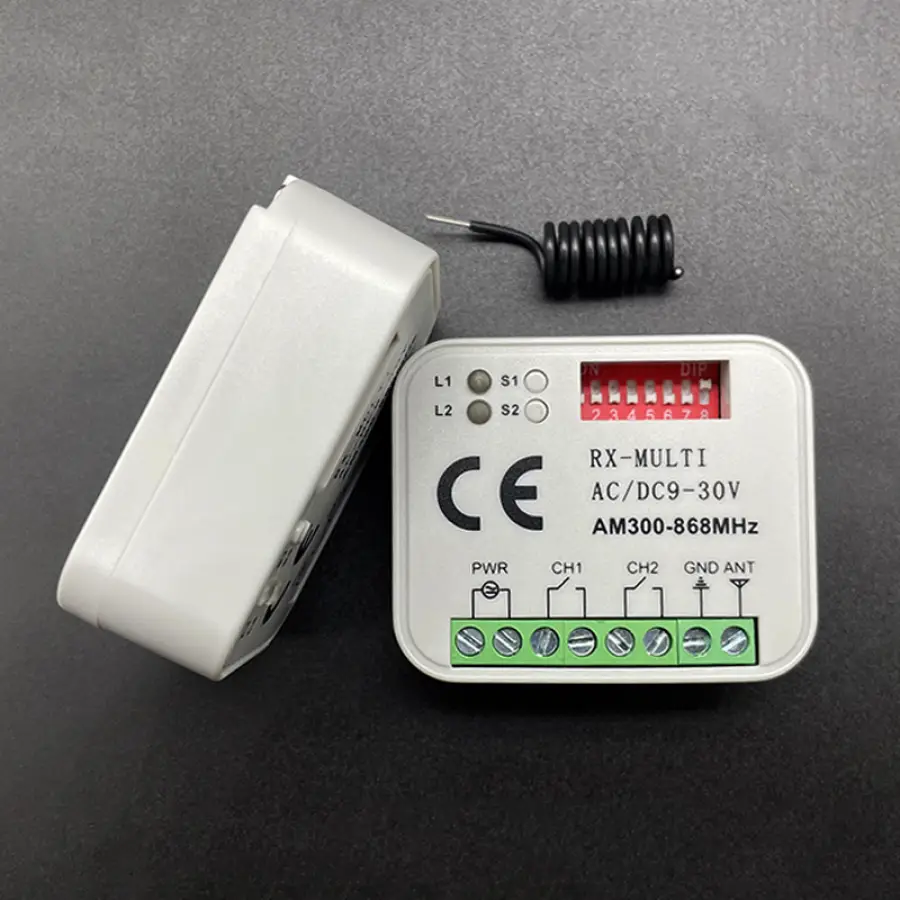

Include
Receiver
Small Antenna
English Manual
Programming a new remote

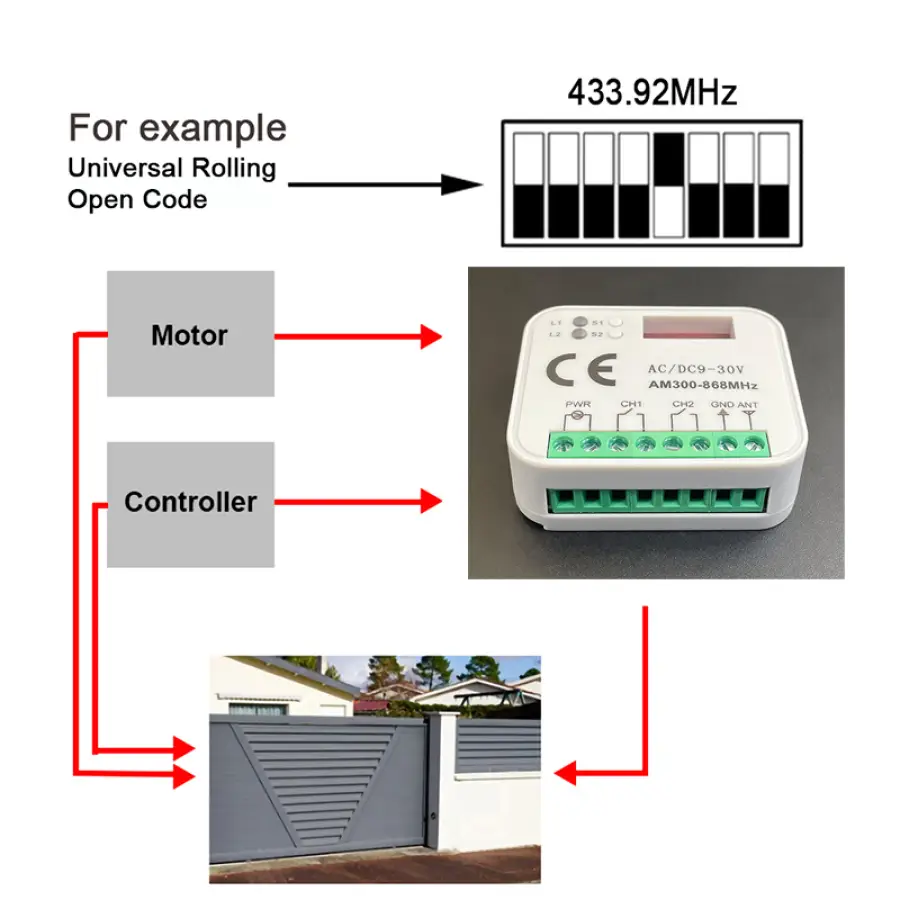

1，Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz Flor-s remote controls, just move Dip-switchs 8 UP.
2，Press the learn button. The will LED turn on.
3，Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.
4，Repeat step 2 for another button.
5，The 2-nd channel programming procedure is the same.
Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered.
1. Are you a manufacture ?
We are the largest garage door remote control manufacturer in China, we can produce any brand remote control for you, including original remote control.
2. I am a wholesaler, we need a remote control with a price advantage
No problem, our factory has officially settled in Hogaki, welcome to consult, we will give you the best price and best products.
3. What brands of remote controls do you still produce ?
We are the largest factory, so you can contact me directly if you need any brand remote control.
4. Can I place a large order ? Can it be customized
of course
5.Do you support drop shipping ？
Support, we have cooperated with many friends, our packaging will not reveal any information, and the chip will not print text, we only provide products and instructions for use.
Packaging Details
- Unit Type:
- Package Weight: 0.054
- Package Size: 11x2x12
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: YNG201
- Brand Name: Yinuogo
- Frequency: 300MHz-868MHz
- Voltage: AC/DC 9V-30V
- Choice: yes
