Universal 300MHz-868MHz 433MHz Remote Control Receiver Switch Controller AC/DC 9V-30V 2CH Garage Door/Door Controller
5.0 (5 votes) | 34 orders
Price:
US $75.47 - 129.19
Discount Price:
US $
28.82 -
46.32
-62%
- Color
-
-

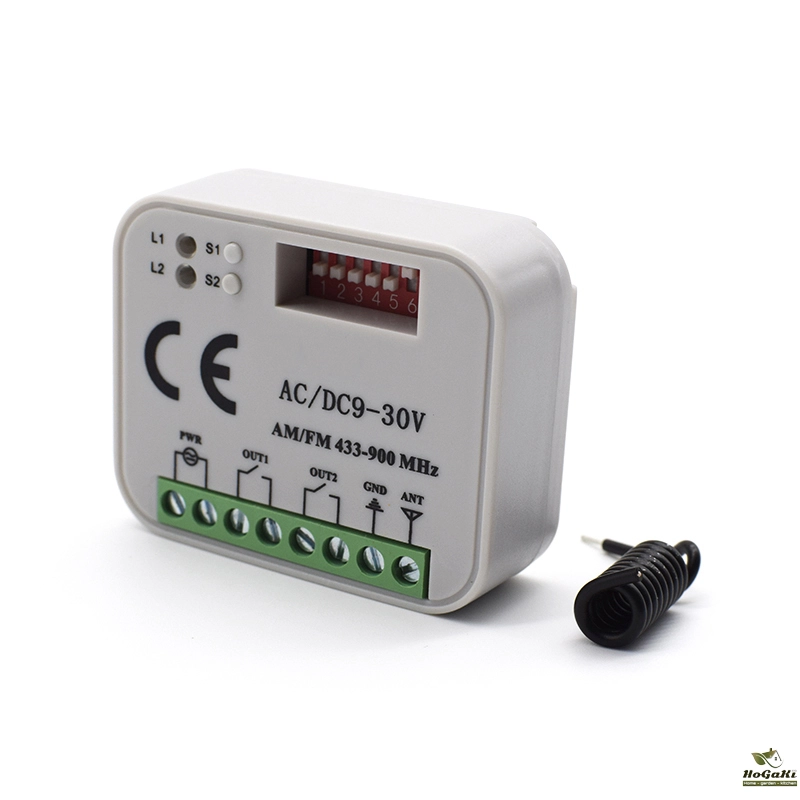

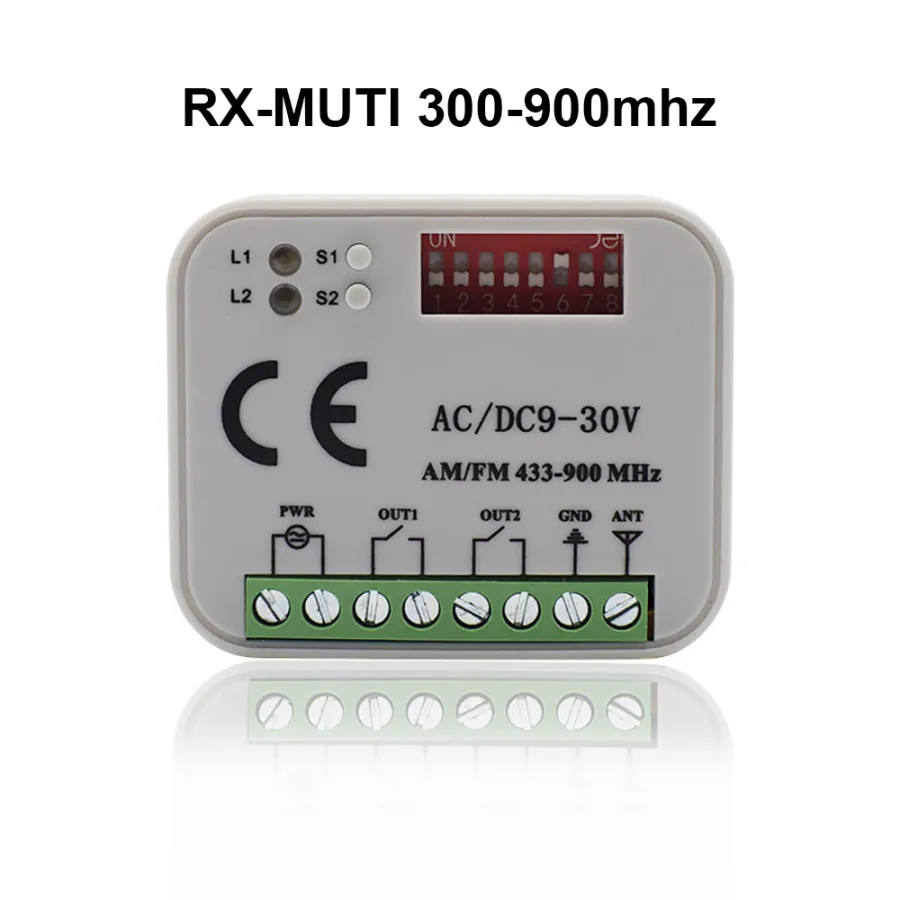

300MHz-868MHz Garage Door Remote Control Receiver

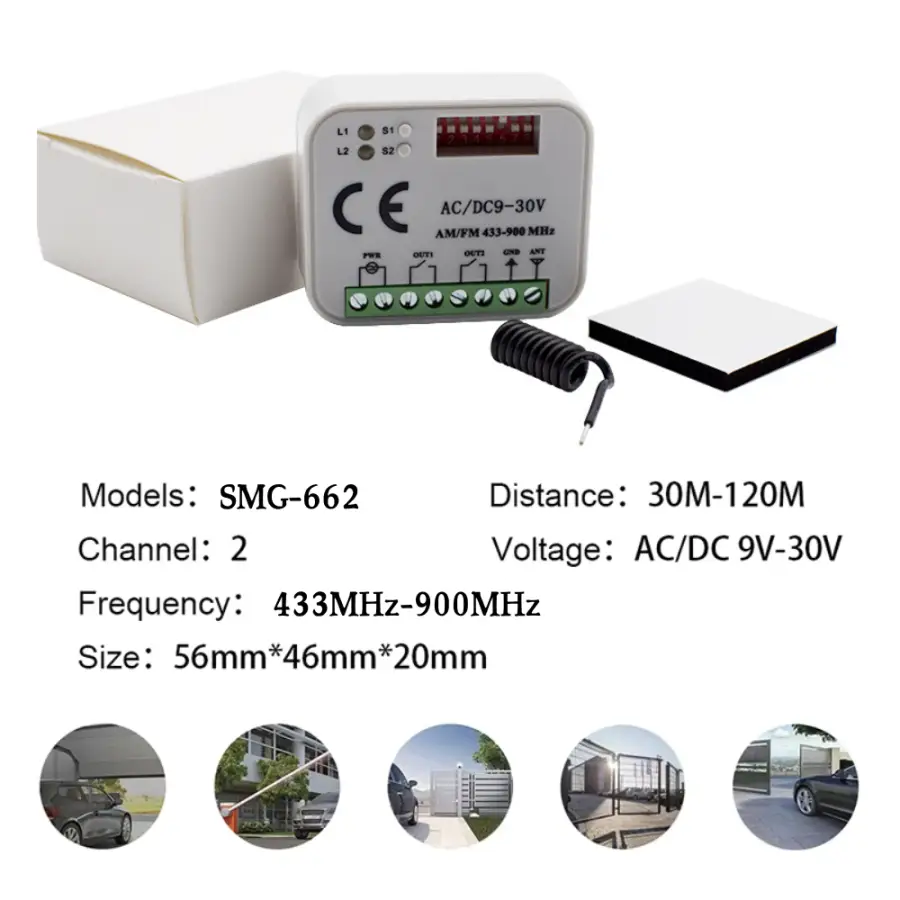

Specifications
1，Name：Remote Control Receiver
2，Operating Voltage：AC/DC 9V-30V
3，Channels：2
4，Frequency：300MHz - 868MHz
5，Code：Rolling and Fixed Code & Learning Code
6，Distance：30m-120m
7，Size：56mm*46mm*20mm
8，One receiver can work with 400 Remote Control
9，It don’t interference other remotes and receivers.
10，Brand selector: With 8 dip switches user can make different combination for different remote brands.

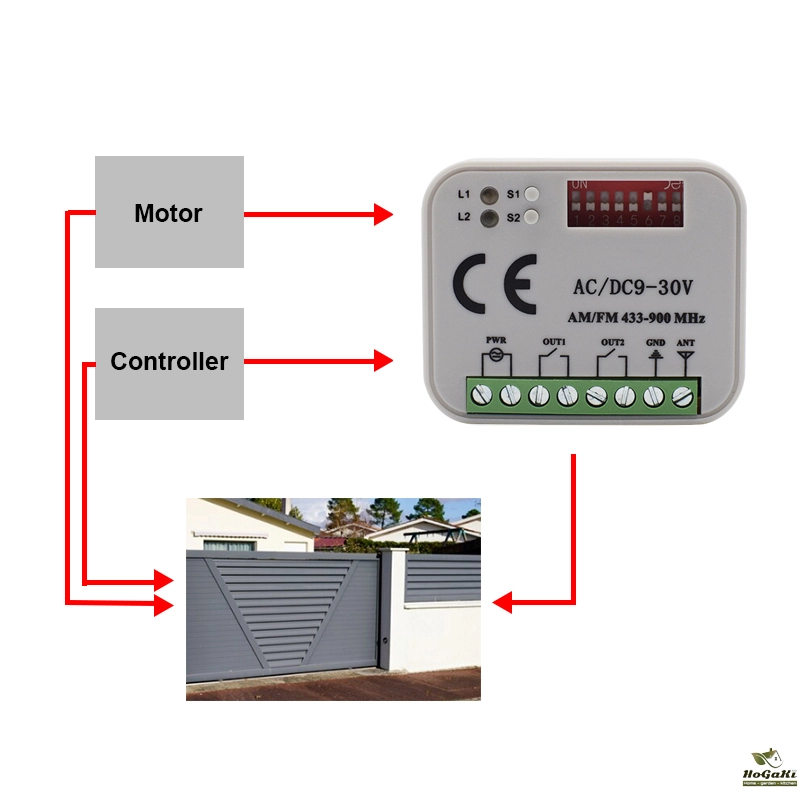

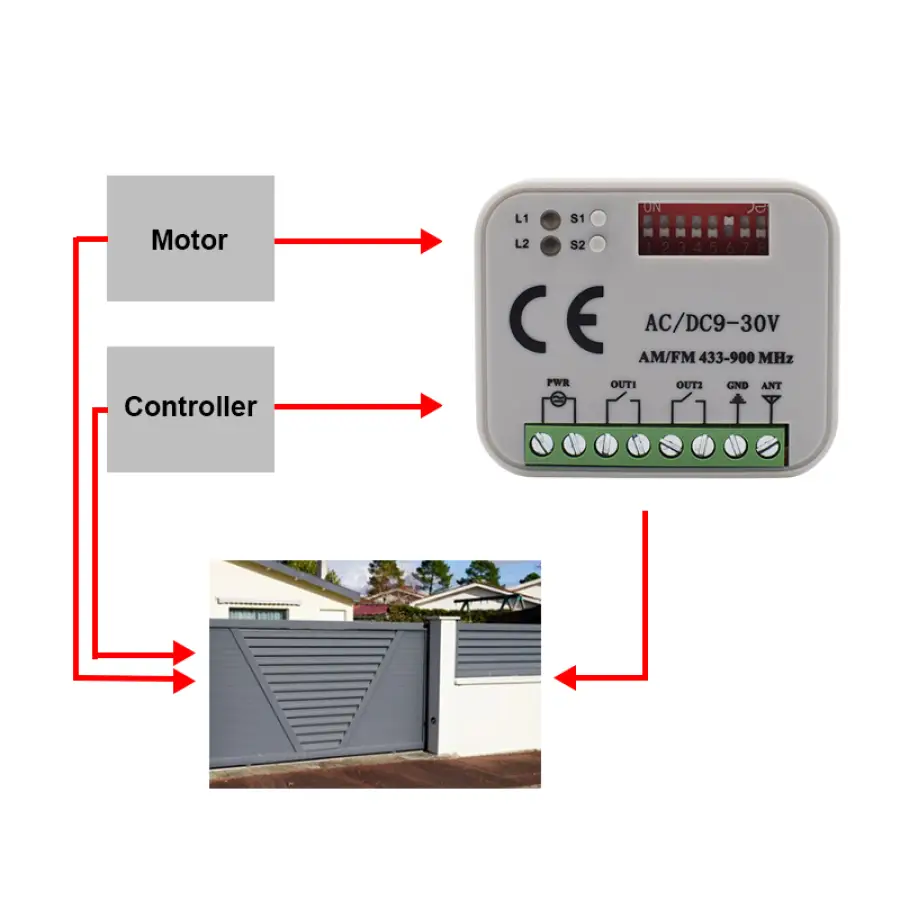

11，Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.
12，Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.
Programming a new remote
1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz Marantec remote controls, just move Dip-switch 7 UP.
2) Press the learn button. The will LED turn on.
3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.
4) Repeat step 2 for another button.
5)The 2-nd channel programming procedure is the same.
Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered
Working frequency: 300-900MHz(Rolling code & Fixed code)
300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz
Can identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),
and many other main brands in the market

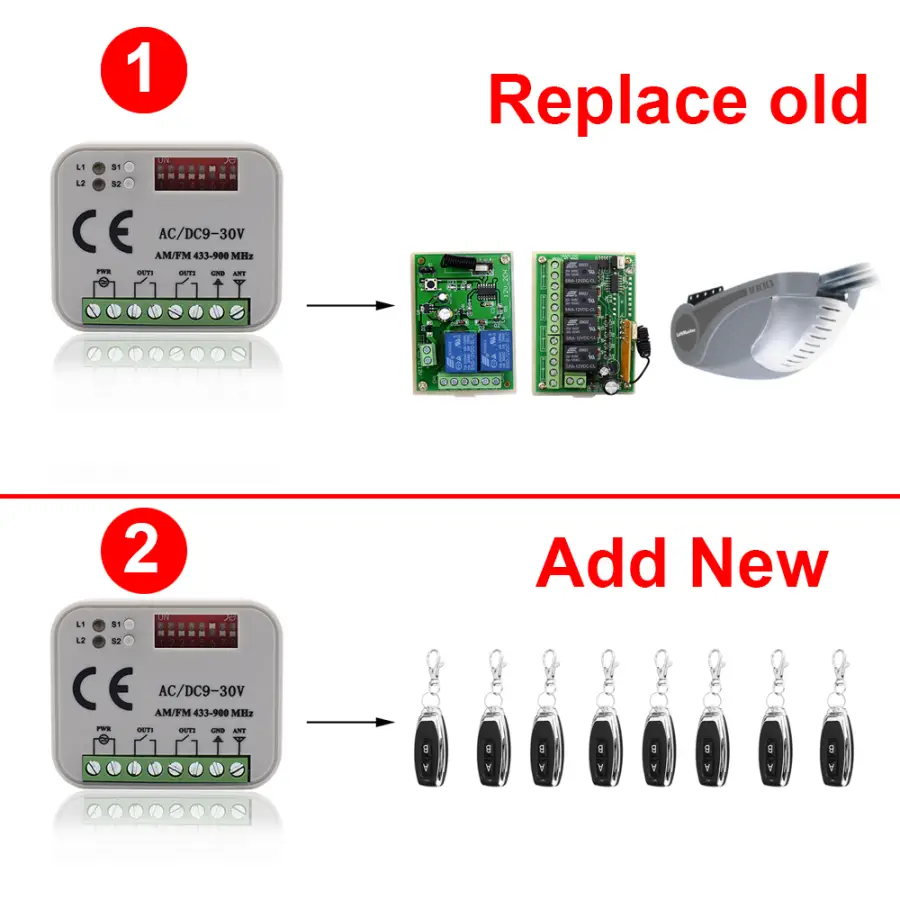

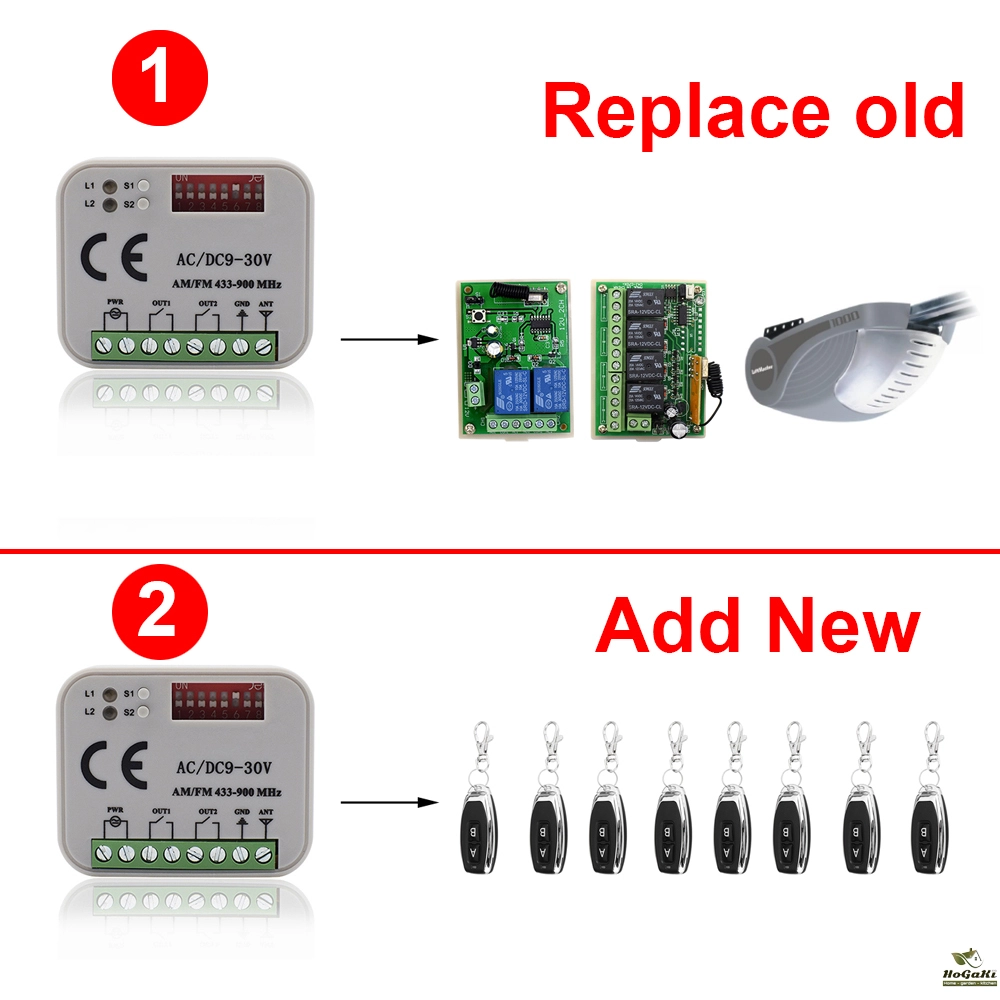

Feature 1

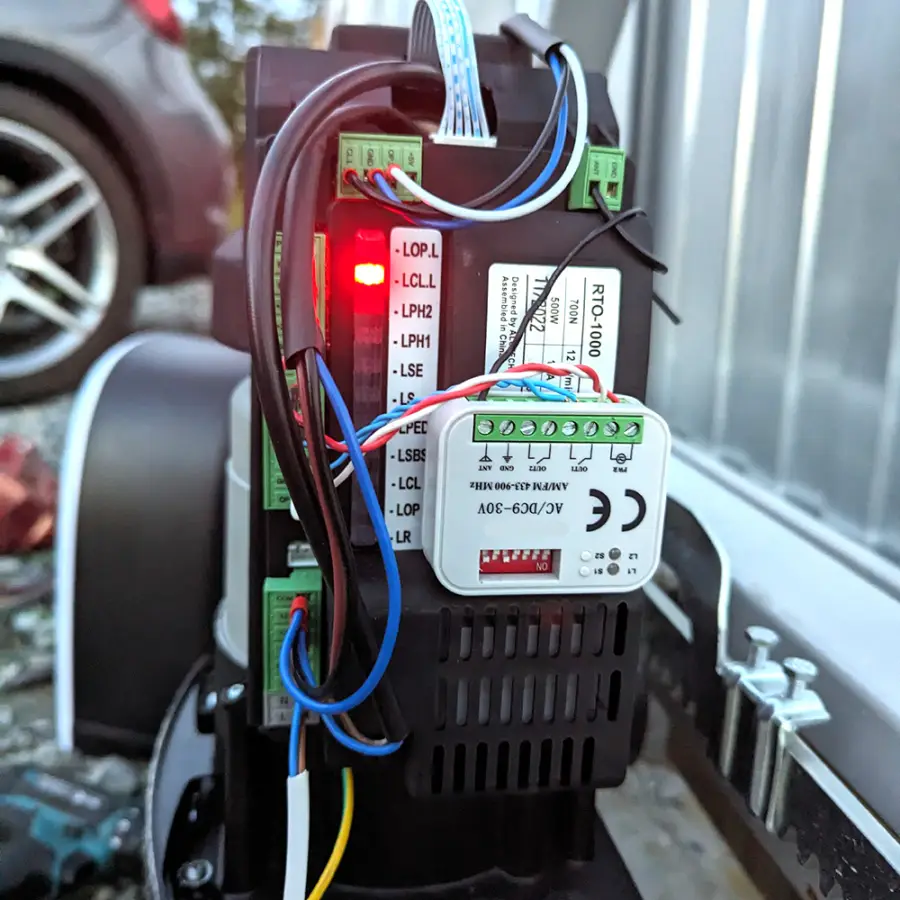

1. It can replace your garage door receiver

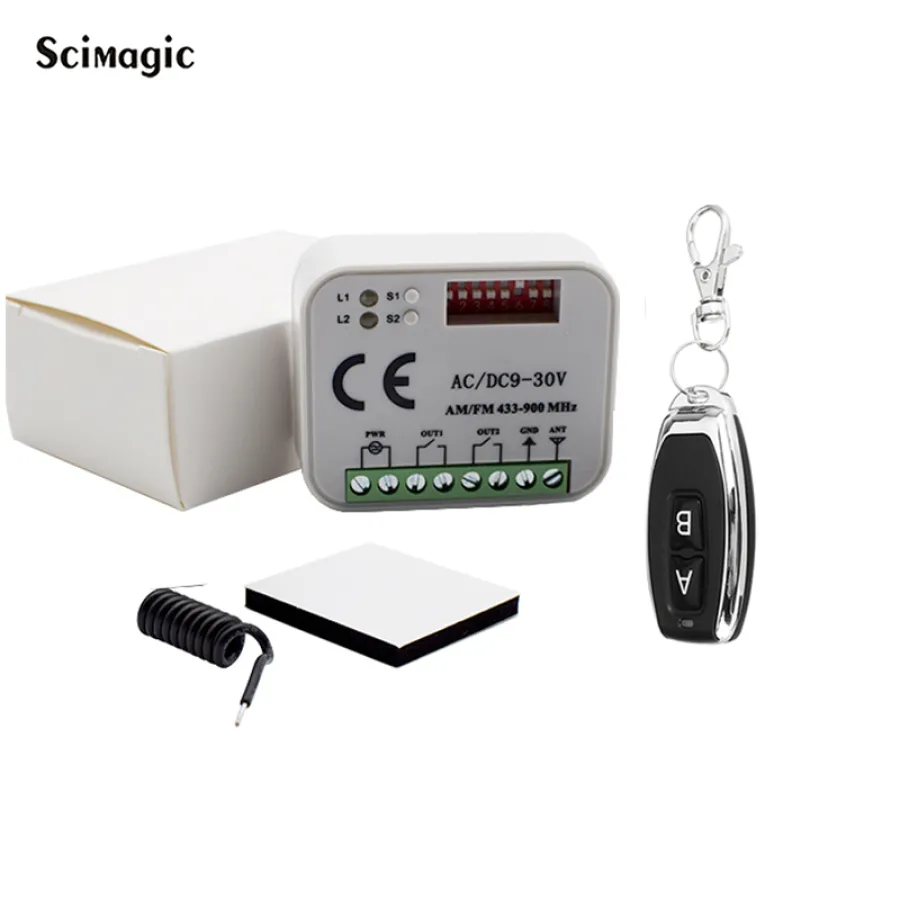

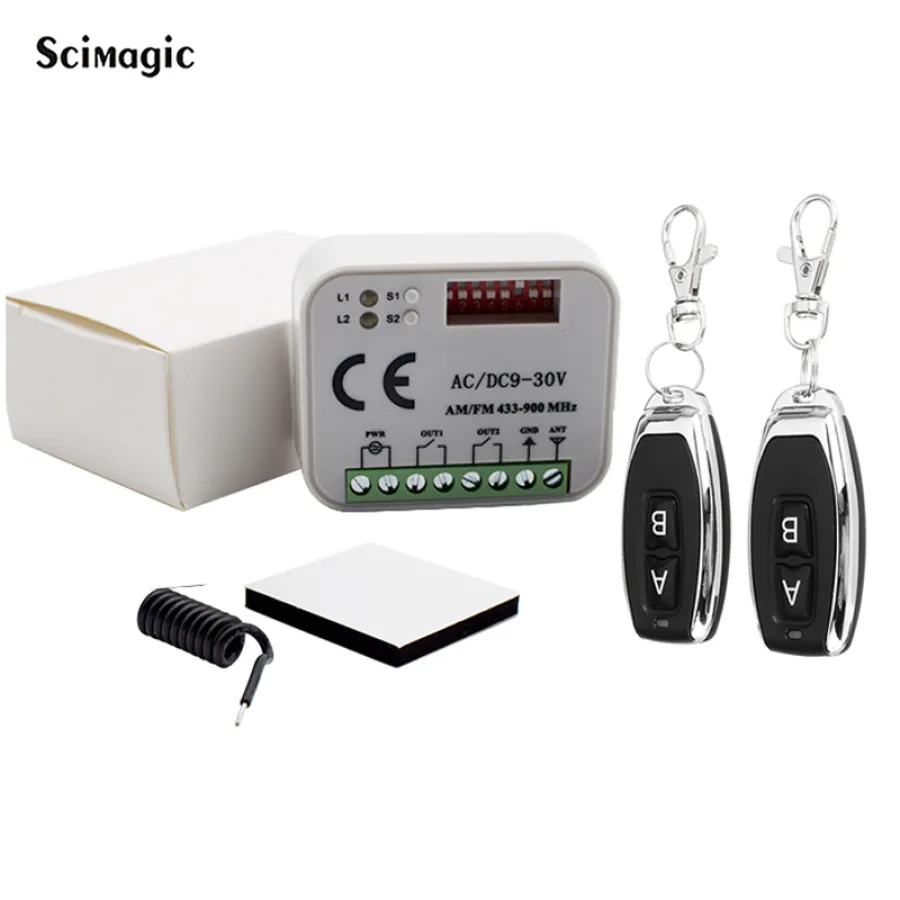

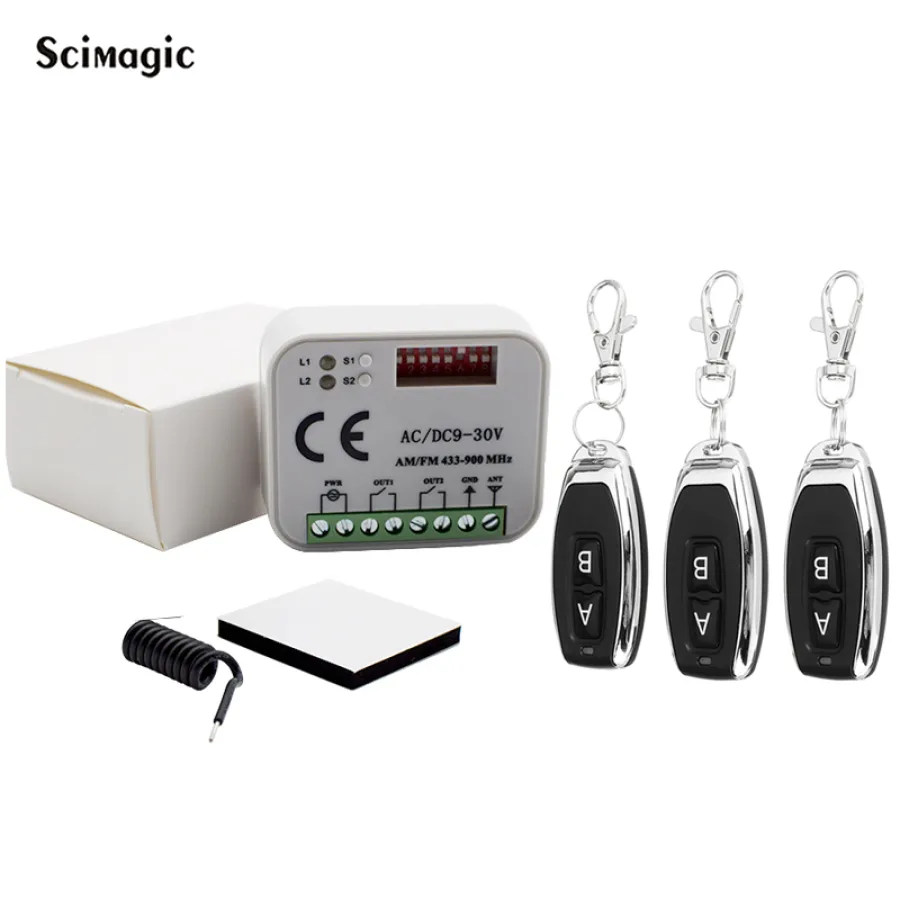

2, You can buy our receiver and remote control, the maximum working quantity of remote control is 400
Feature 2

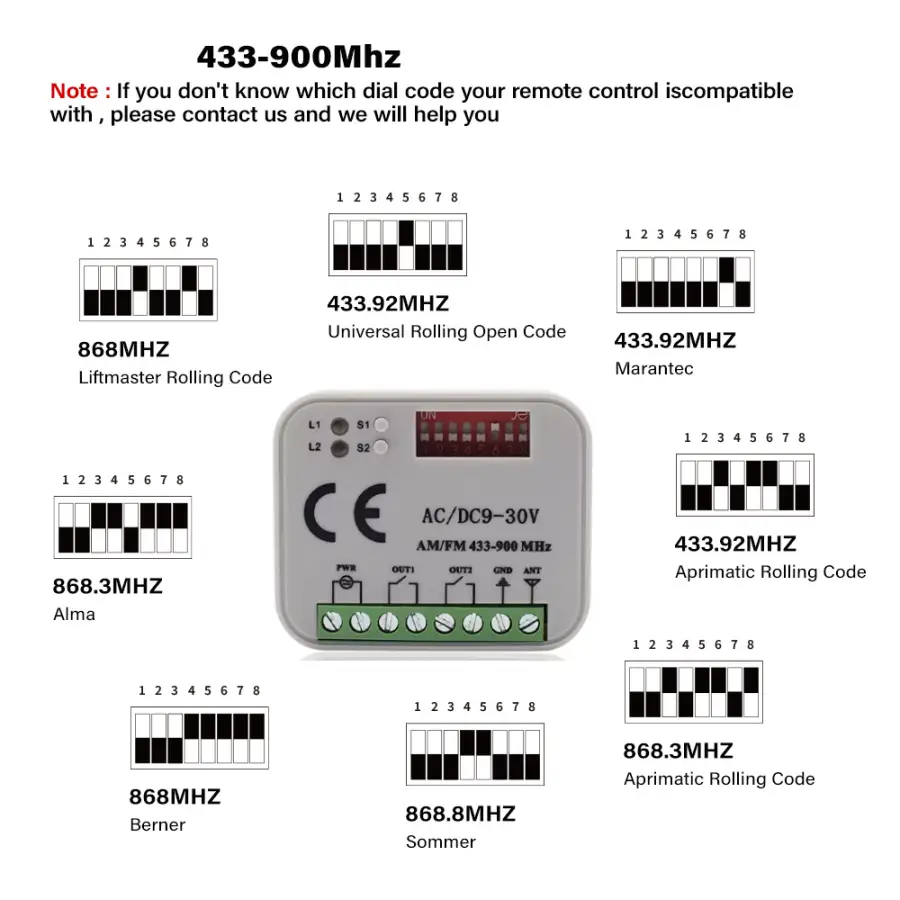

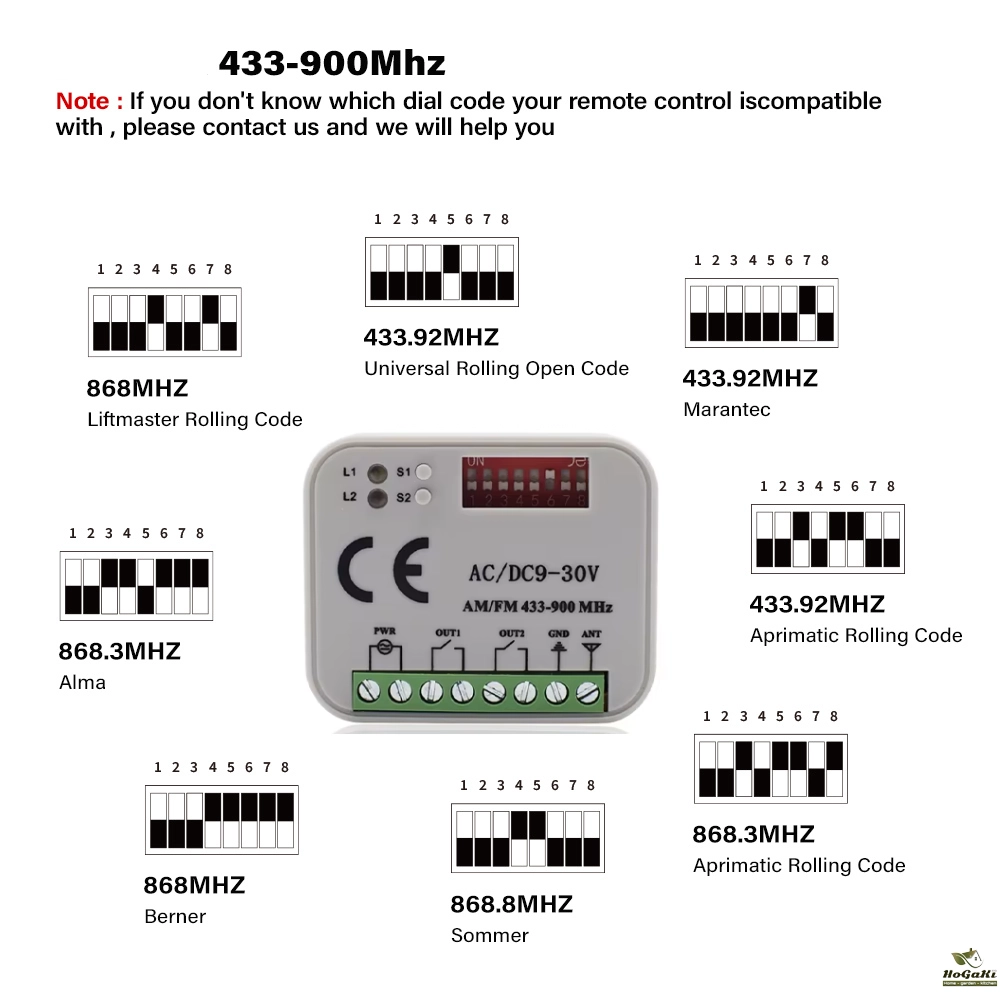

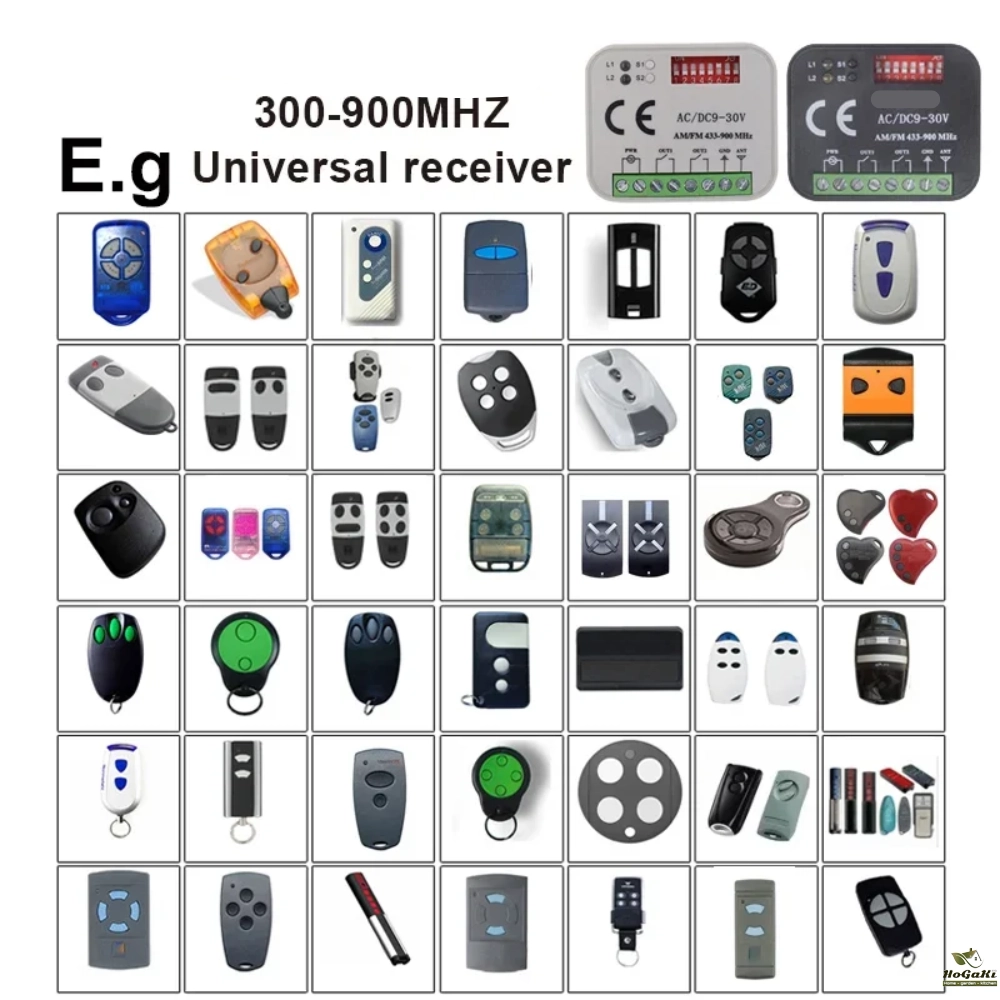

You can switch the dial code you need according to your remote control brand and frequency
Scope of use
It has a very wide range of uses, you can buy our remote control to use it with it

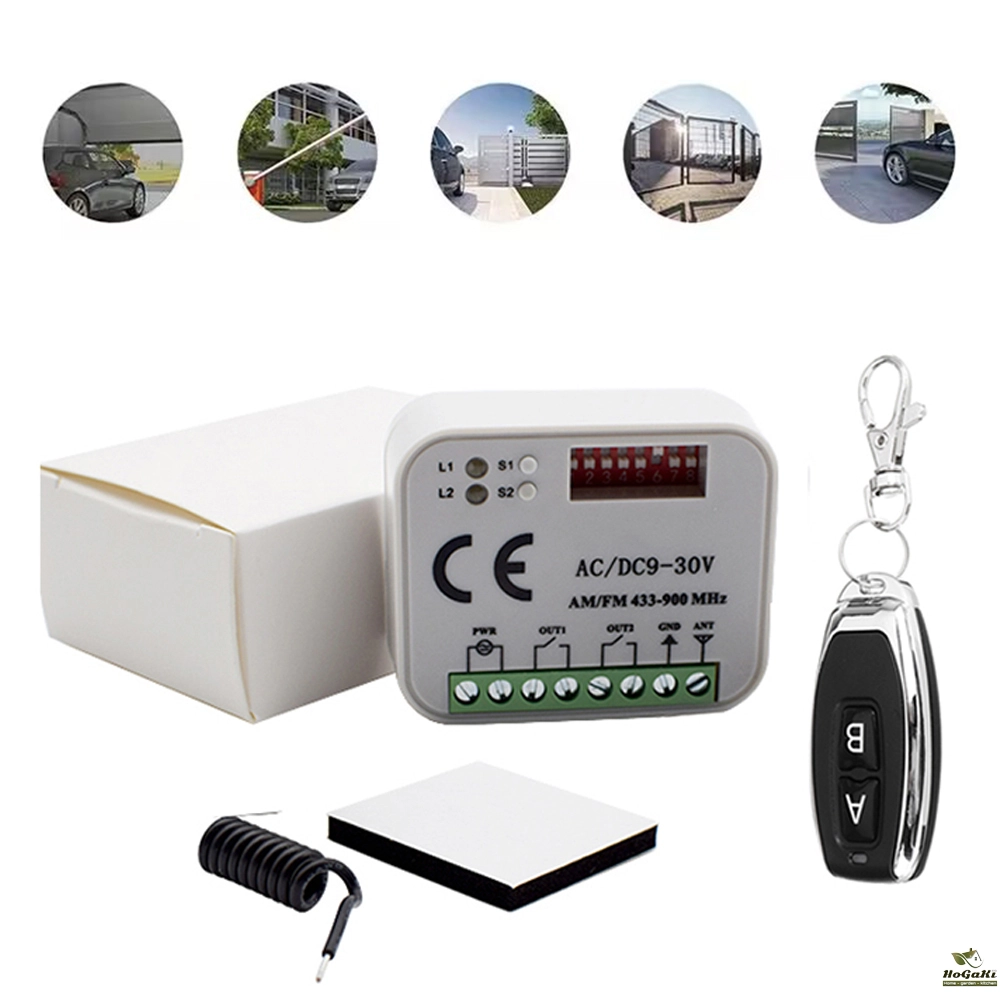

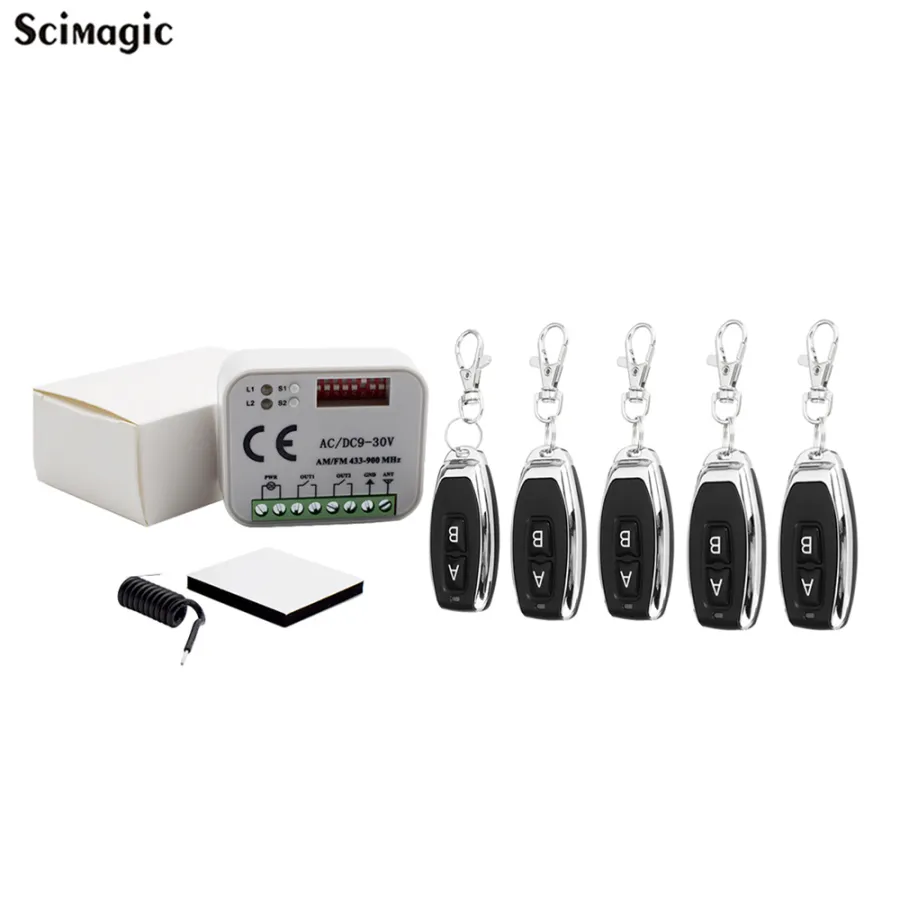

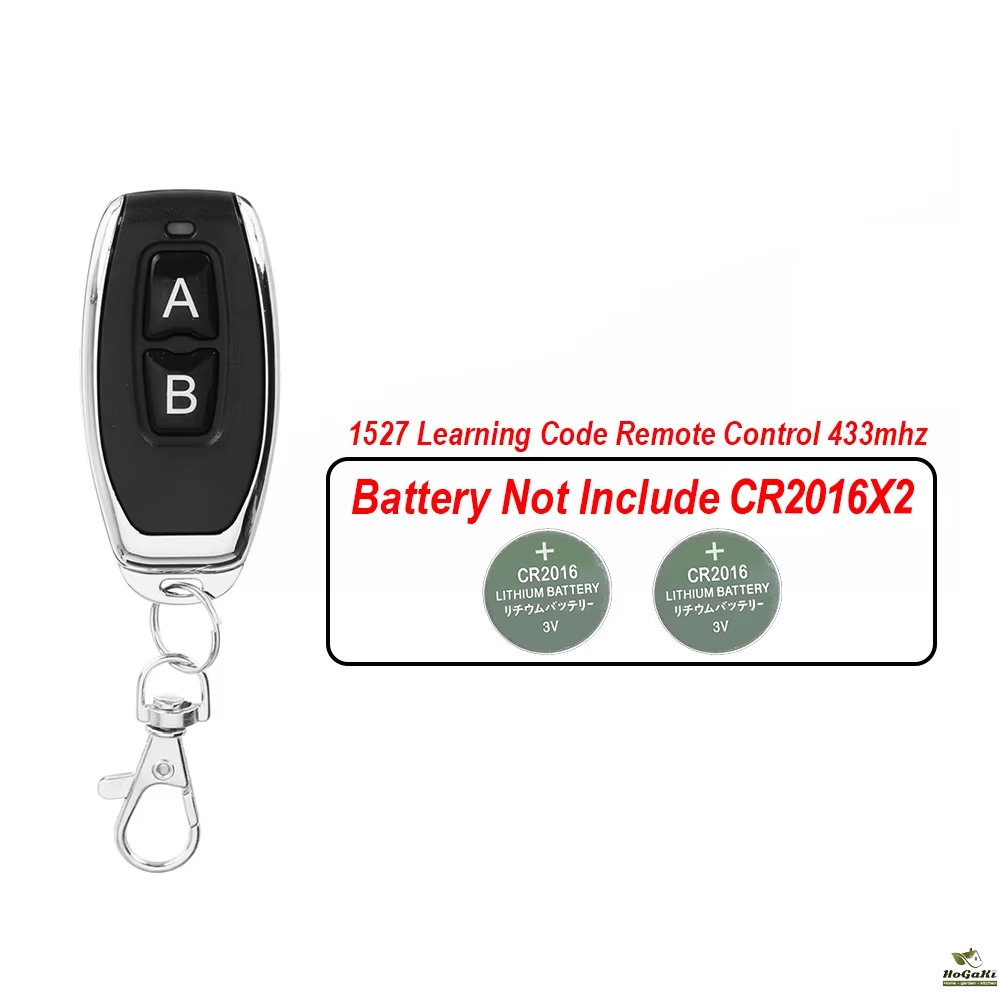

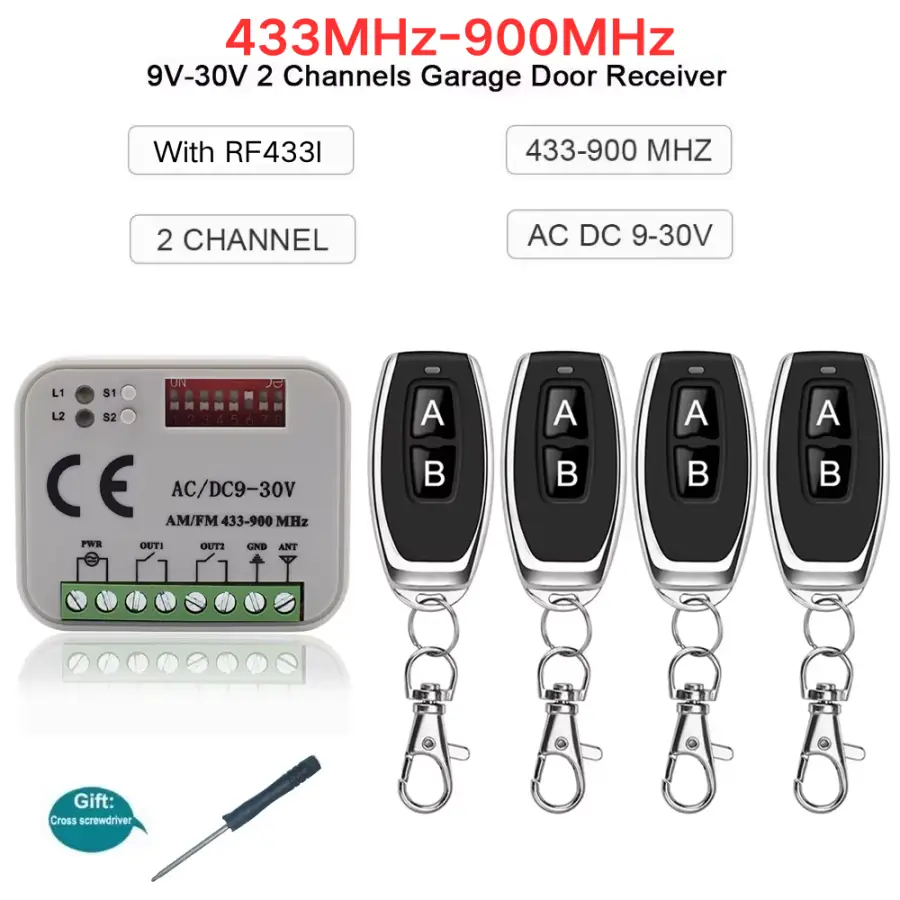

Work with 433MHz 1527 learning code remote control
In order to better adapt to our receiver, it is recommended to choose to buy our remote control
Note: no battery include
Packaging Details
- Unit Type:
- Package Weight: 0.080
- Package Size: 10x5x11
- Brand Name: Scimagic-RC
- Origin: Mainland China
- Hign-concerned Chemical: None
- Smart home platform: None
- Model Number: SMG-662
- Certification: CE
- Frequency: 300MHz-868MHz
- Voltage 1: AC/DC 9V-30V
- Voltage 2: AC 85V-250V
- Choice: yes
