Brand New Door Accessories 125khz DC 9-12V Reader Module Embedded Control Board for Access Controller 9-12V 2000 User Capacity
21.61 20.79 $
ID: 161289
Quantity

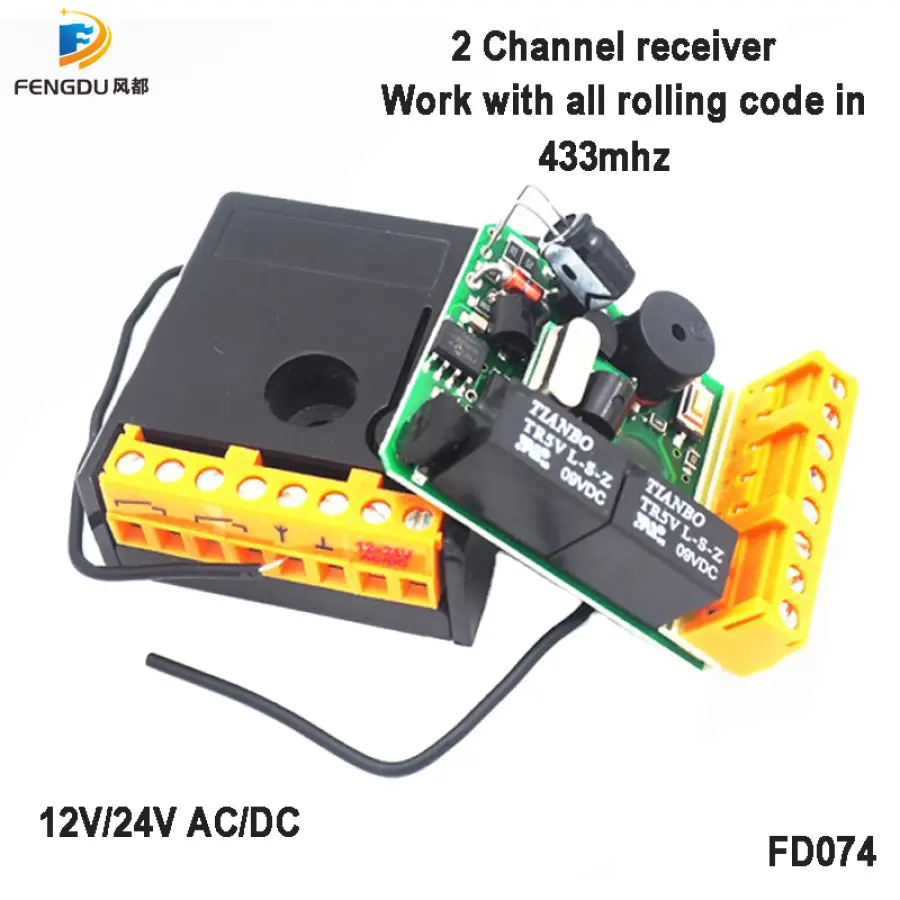

Wireless 2 Channel Garage Door receiver remote switch remote control for garage door work with all rolling code on 433mhz
5.0 (2 votes) | 21 orders
Price:
US $85.95
Discount Price:
US $
30.72
-64%
SYSTEM REMOTES
The controller is compatible on a modular basis with one and only one gate control system from leading
manufacturers - ask about the available systems
The most important advantages:
* the smallest on the market,
* two relay channels + buzzer,
* 819 remotes memory capacity
* delete the remote control without its presence,
* three work modes: - bistable with reset, - TDJN (As Long As You Press), - monostable 1~999s, with 1s
resolution,
* super heterodyne receiver, up to 200m range,
* 12-24V AC / DC power supply,
* you can register up to 4 buttons and 10 combinations of four-button, and two buttons and one combination of
two-button,
* acoustic confirmation of the remote's signal - different for the SYSTEM remotes -based system variable and
different for the NON-SYSTEM remotes with HCS.
* a registered remote control can acoustically remotely read its position in the controller,
* a registered remote control can remotely clone the remote control,
* when the power is turned on, the controller gives a group of buzzer signal about the controller
capacity(819remotes memory)
* mounting hole - effective assembly with one screw, even on a spherical surface or with a clamp
Remote cloning of the remote control
The buttons in the cloned remote control work in the same way as in the pattern remote control. It should be in accordance with point 5.3. choose the possibility of remote cloning of the remote control. It should be
near the controller for min. 3s press any clone remote button, you can hear one buzzer signal, press and hold the
pattern remote button for 3s, two buzzer signals are heard, press and hold clone remote control button for 3s, you
hear three buzzer signals and finally Press the pattern remote button for 3s, the controller plays a tune effective
cloning of the remote and goes to normal operation.
Packaging Details
- Unit Type:
- Package Weight: 0.050
- Package Size: 9x3x13
- Brand Name: FD
- Origin: Mainland China
- Model Number: FD074
- Certification: CE
- Choice: yes
