433MHz Garage Door Receiver For BFT MITTO 2 4 B RCB02 RCB04 MITTO2A MITTO4A TRC KLEIO B RCA 02 04 CAME TOP 432NA 432EV 432EE
0.0 ( votes) | 16 orders
Price:
US $
19.79
Why choose me ?
*The largest production plant
*The best price
*The best quality
*The best service
*The strongest strength
*The fastest delivery speed
If you are a wholesaler, we will be your best supplier, welcome to contact and cooperate.
When to ship ?
We are the seller with the fastest delivery on the platform. When we receive your order, we will send your package within 12 hours.

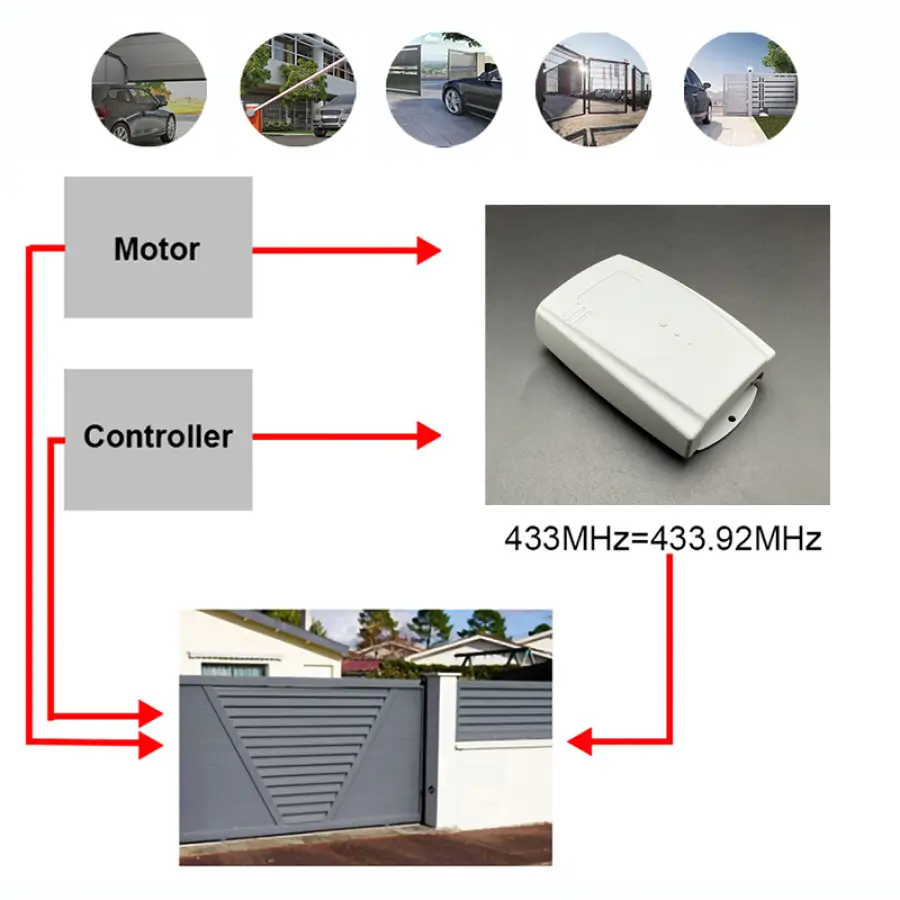

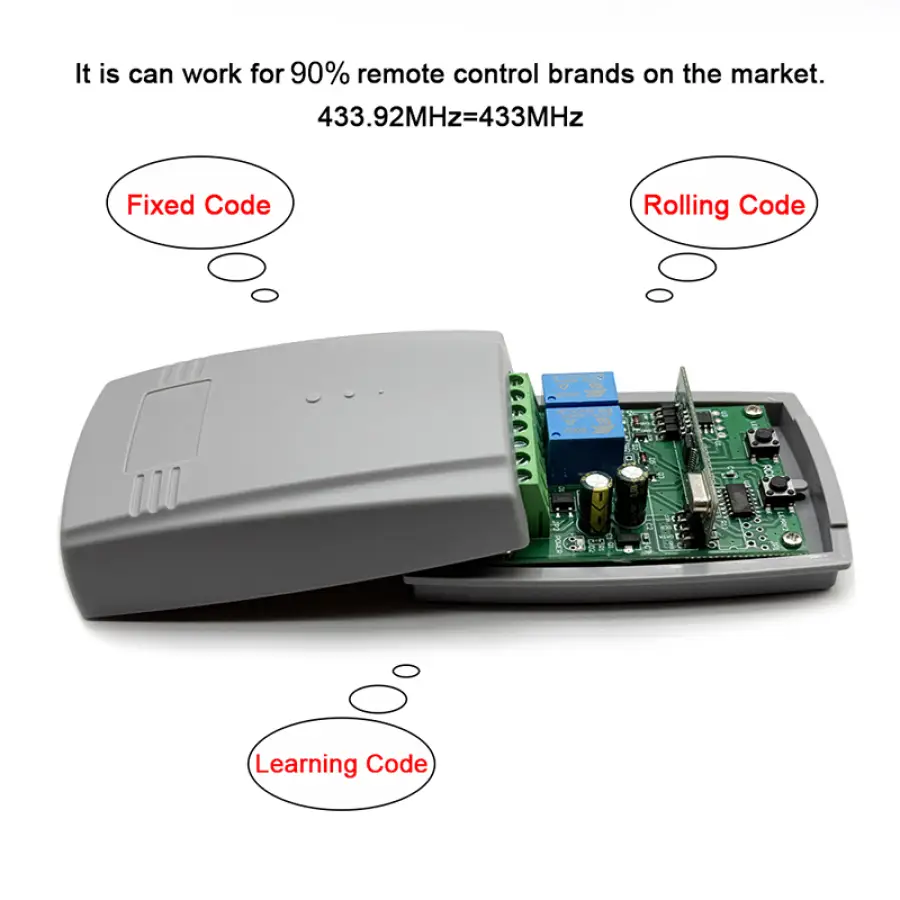

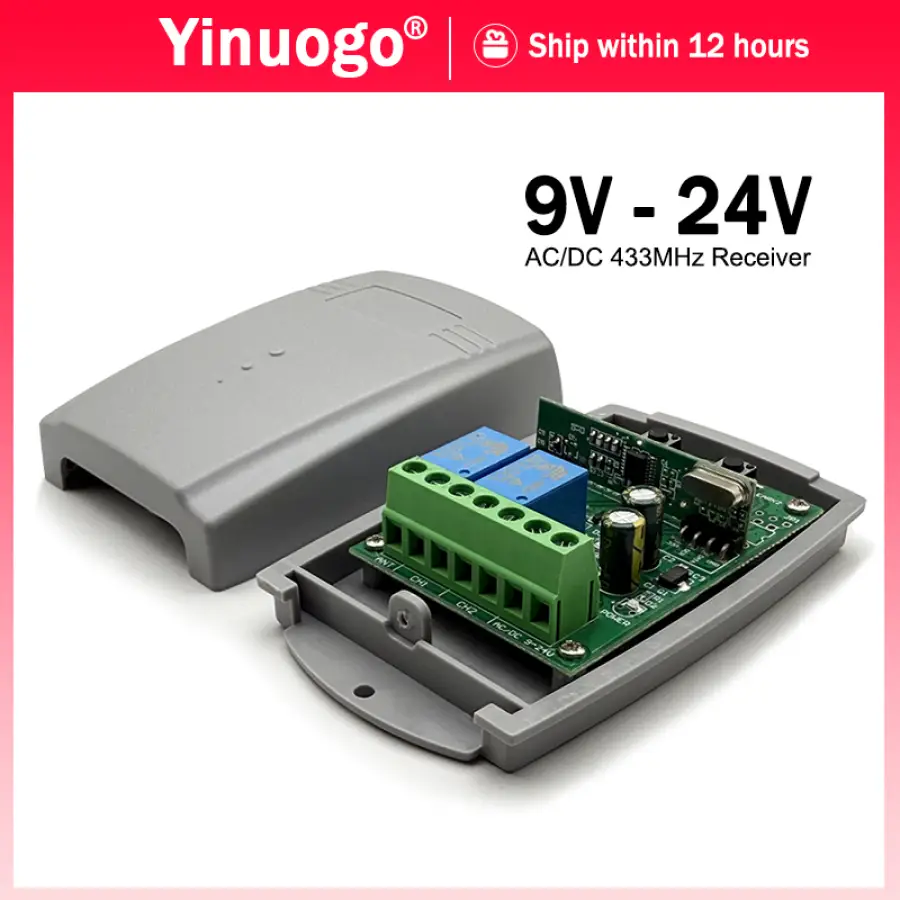

This is 433.92MHz receiver. It is can work for 90% 433MHz remote control brands on the market.
Compatible Models
MITTO 2 / MITTO 4
MITTO2A / MITTO4A
MITTO B RCB 02
MITTO B RCB 04
KLEIO B RCA 02
KLEIO B RCA 04
TRC1 / TRC2 / TRC3
TOP 432NA
TOP 432EV
TOP 432EE
Please make sure your remote control brand, model and frequency are in our compatible list, we will not be responsible for wrong purchase, thank you.
Description

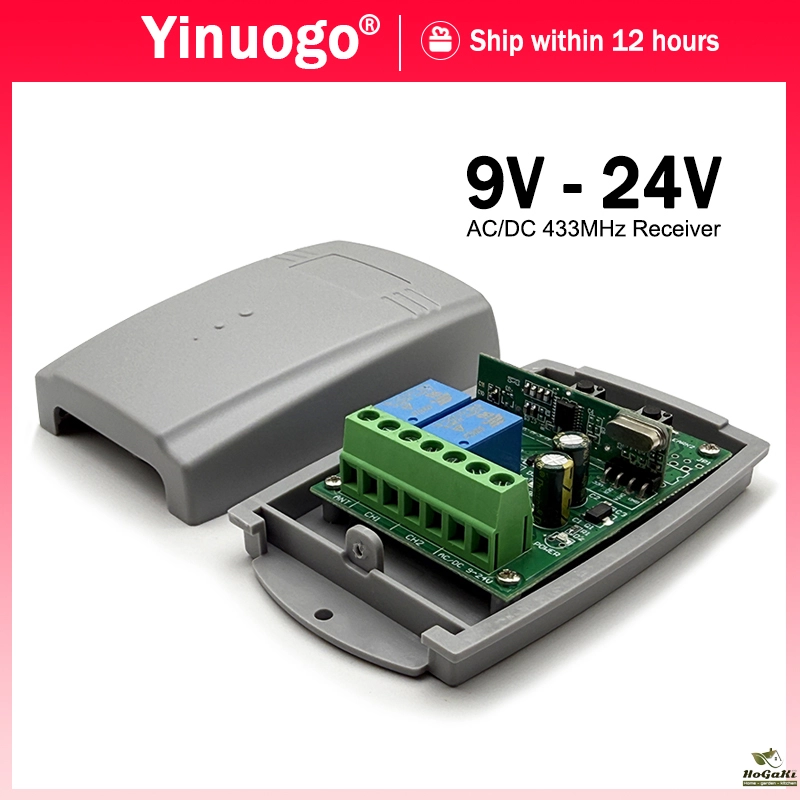

1. Models：YNG200
2. Frequency：433.92MHz 433MHz
3. Codes：Fixed / Learning / Rolling Code
4. Channels：2
5. Power supply：9V-24V AC/DC
6. Working temperature：-40℃- + 80℃
7. Built in Aerial antenna：Reception range 30m-100m
Features

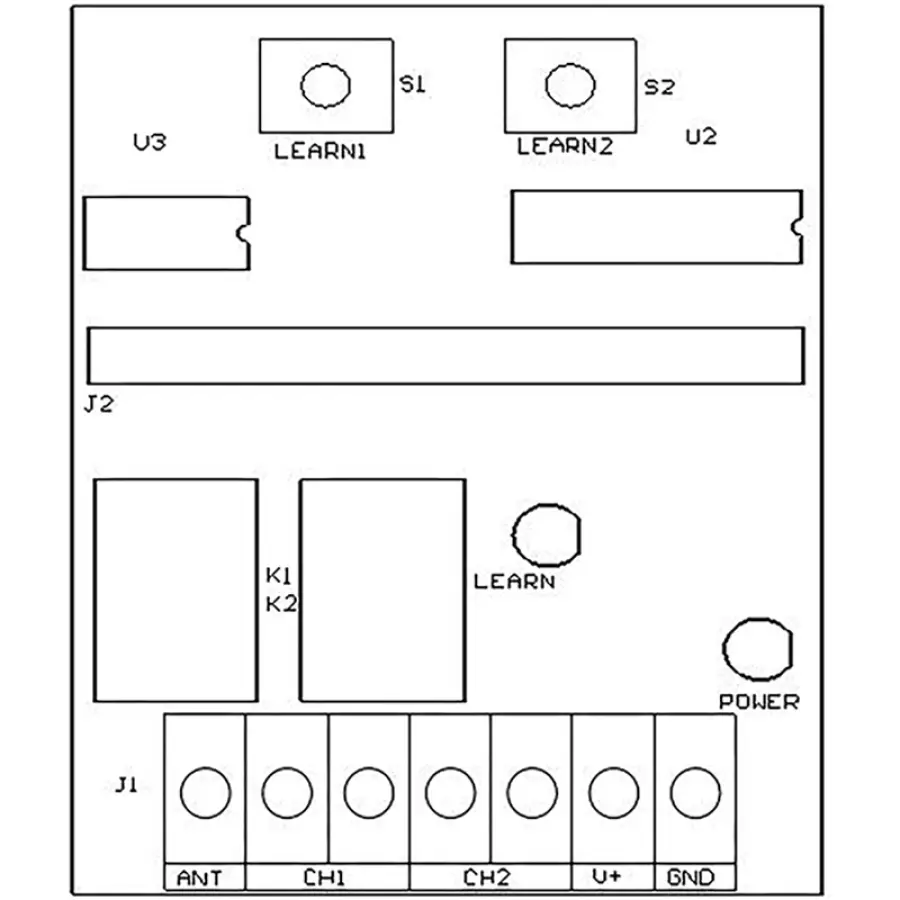

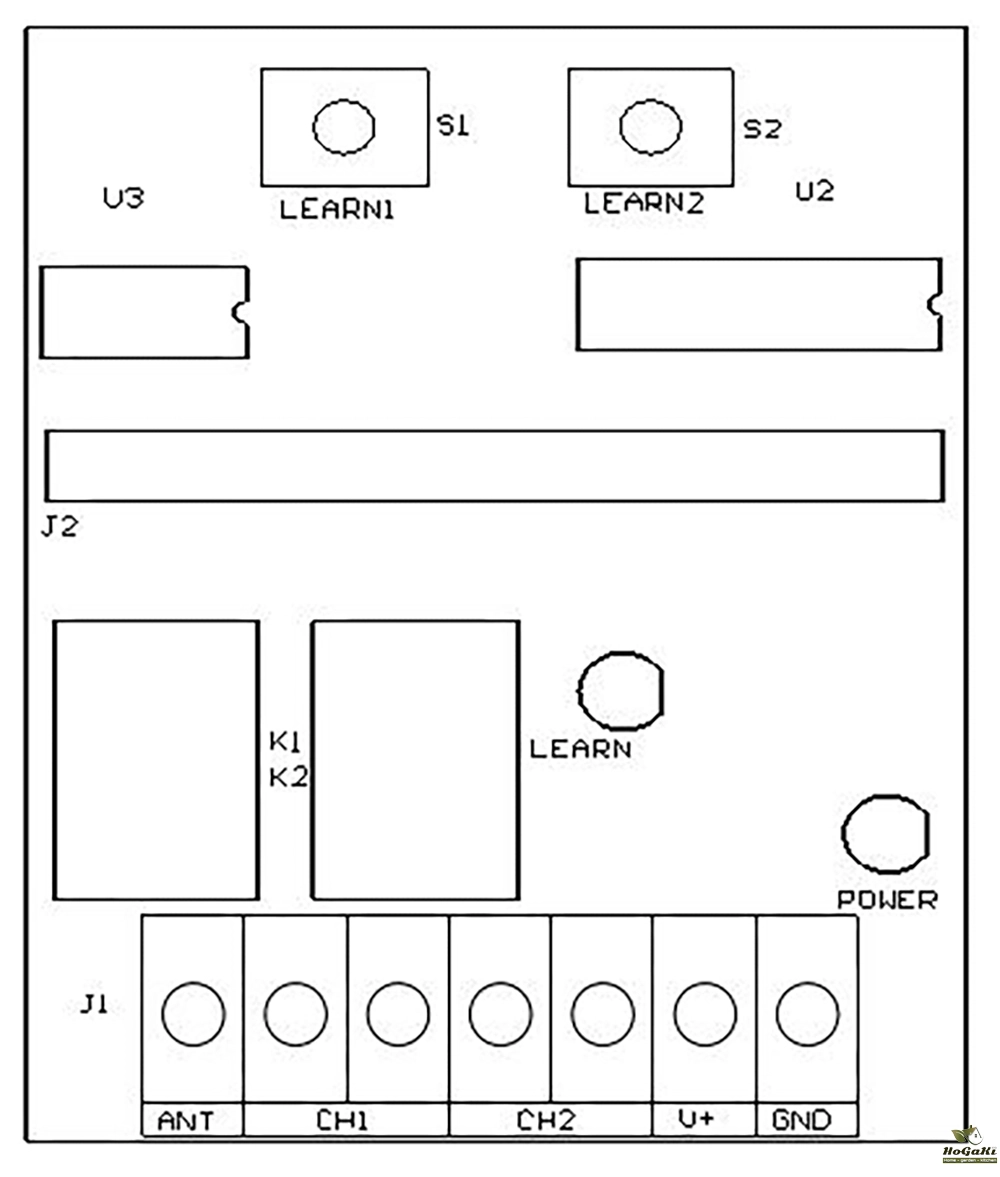

1，Programming of Pulse Mode
（1）Power up the MDU module- Power LED will turn ON.
（2）Press once Bution S1 for programming Relay 1 or Button S2 for programming Relay 2. The Learn LED will light up.
（3）Press and hold a bution on the remote control until the Learn LED flashes five times.
2，Programming of Latch Mode
（1）Power up the MDU module - Power LED will tum ON.
（2）Press twice Button S1 for programming Relay 1 or Button S2 for programming Relay 2. The Learn LED will light up.
（3）Press and hold a button on the remote control until the Learn LED flashes five times.
NOTE: Each button of the remote key fob could be programmed independently.
To reset the module
- Press Button S1 or Button S2 on the control module and hold until the Learn LED lights off. By doing this, all remote controls stored in the module will be erased.
Advantages
1，Can learn Fixed and Rolling code 433.92MHz remote controls separately and simultaneously.

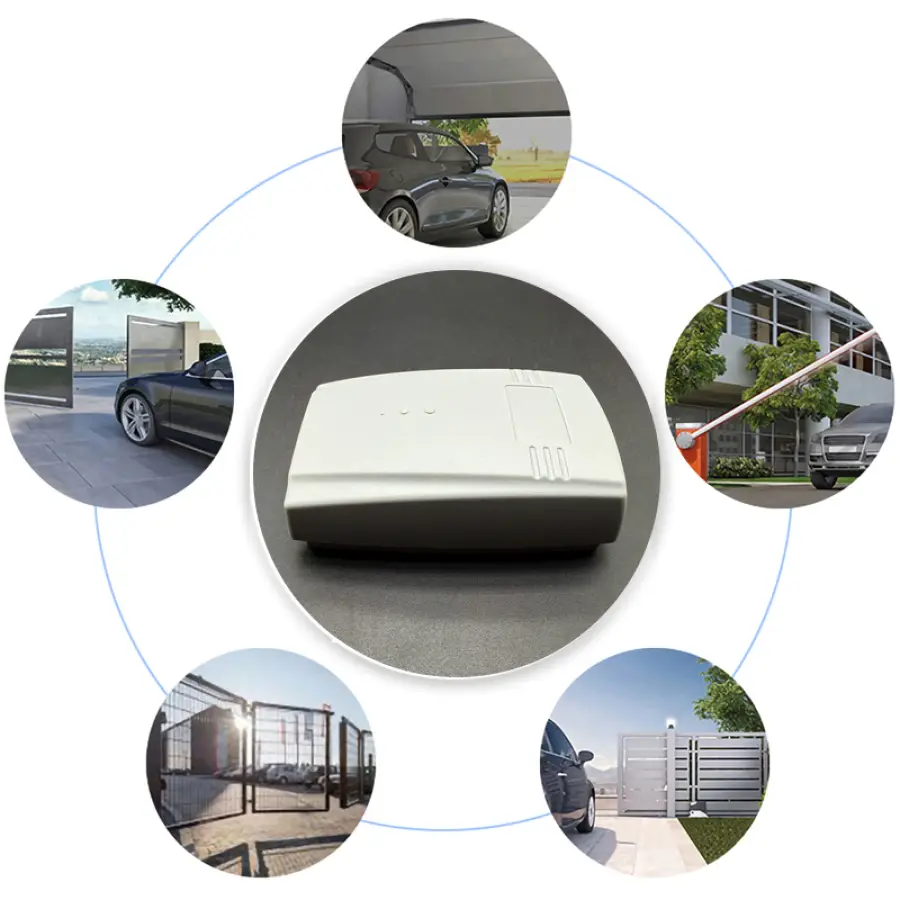

2，2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously.

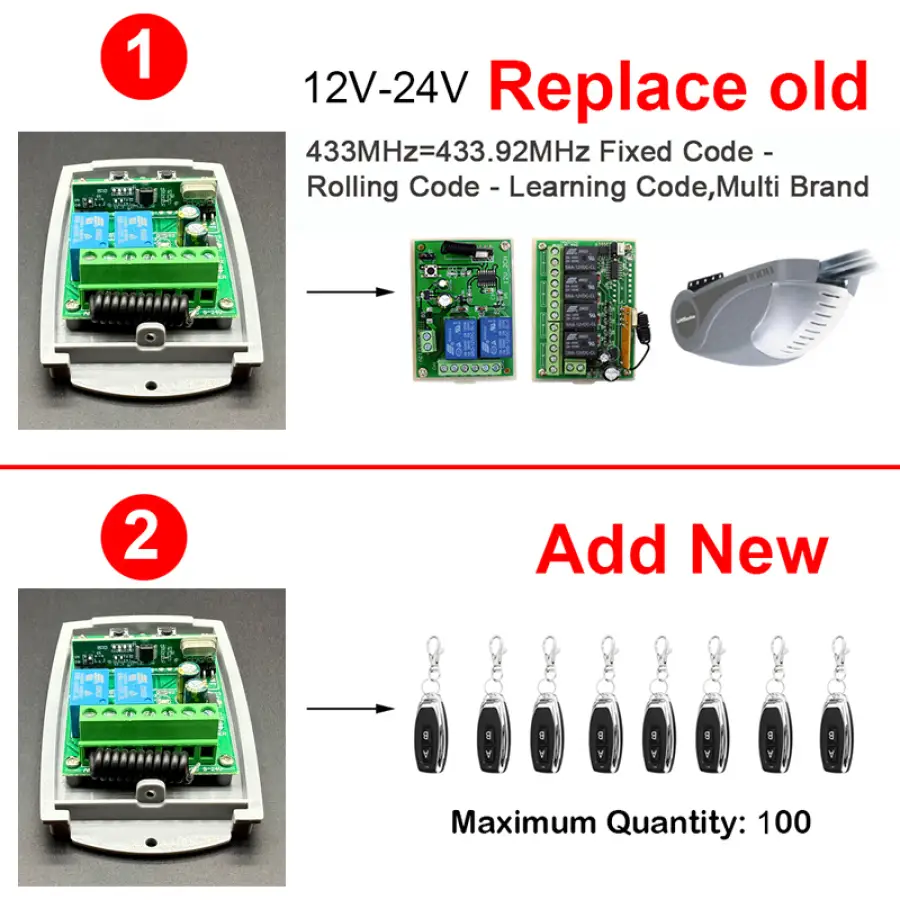

3，This receiver can be used in cases, when your original receiver's memory is full and can't accept any additional remote controls. By connecting this receiver to your system, you can increase the ammount of remotes up to 100. So 100 remote controls can be added to your existing system.
4，This receiver can be used in case, if you need to add more additional remote controls. The original remote controls cost is quite expensive. By connecting this receiver to your system you will save a lot of money, especially if you require 10-20 or more additional remotes.
5，If you have few different remote controls from different systems, you can replace them (substitute) with 1 4-channel remote.
It's very handy to use 1 remote instead of 3 or 4.
6，It's very easy to connect it to your control board. All you need is to connect 4 wires between receiver and control panel. If you will need any technical support - i'm always at your service !
Include
Receiver
Antenna
English instruction manual
Packaging Details
- Unit Type:
- Package Weight: 0.080
- Package Size: 10x10x10
- Brand Name: Yinuogo
- Frequency: 433MHz
- Working voltage: AC/DC 9V-24V
- Static working current: ≤ 7mA
- Working temperature: -40℃ ± 80℃
- Controlcapacity: 100
- Size: 90mm*60mm*28.5mm
- Brand Name: NoEnName_Null
- Model Number: YNG200
- Hign-concerned Chemical: None
- Origin: Mainland China
- Certification: CE
- Choice: yes
- semi_Choice: yes
