CJX2-1810 LC1 AC Contactor 18A 3 Phase 3-Pole NO Coil Voltage 380V 220V 110V 48V 24V 50/60Hz Din Rail Mounted 3P+1NO Normal Open
34.58 18.41 $

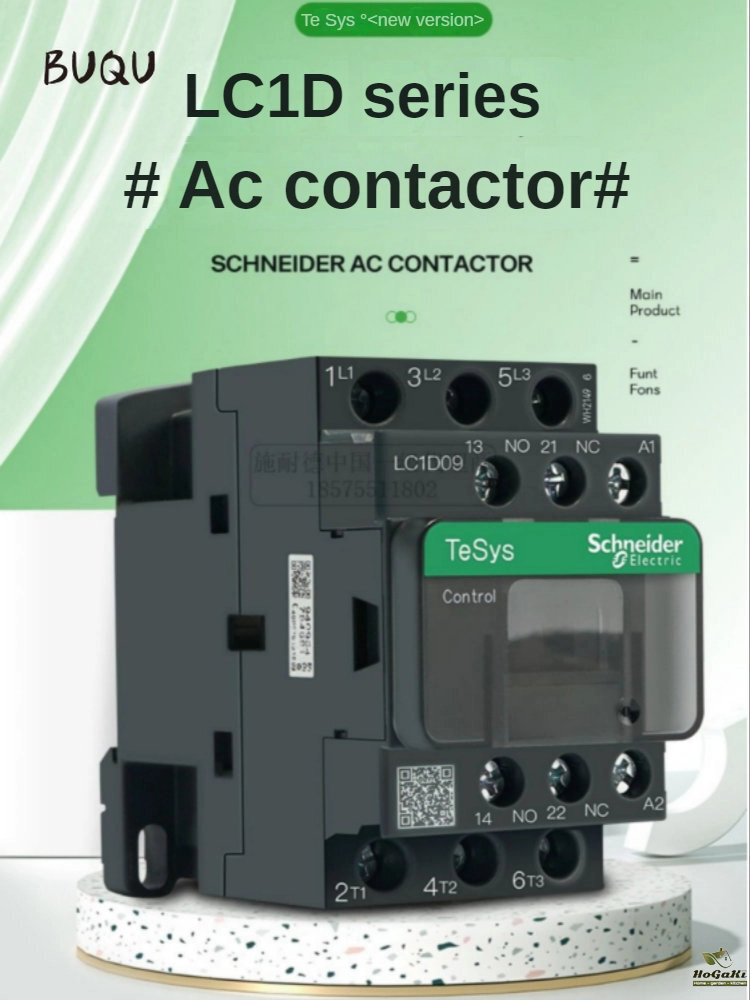

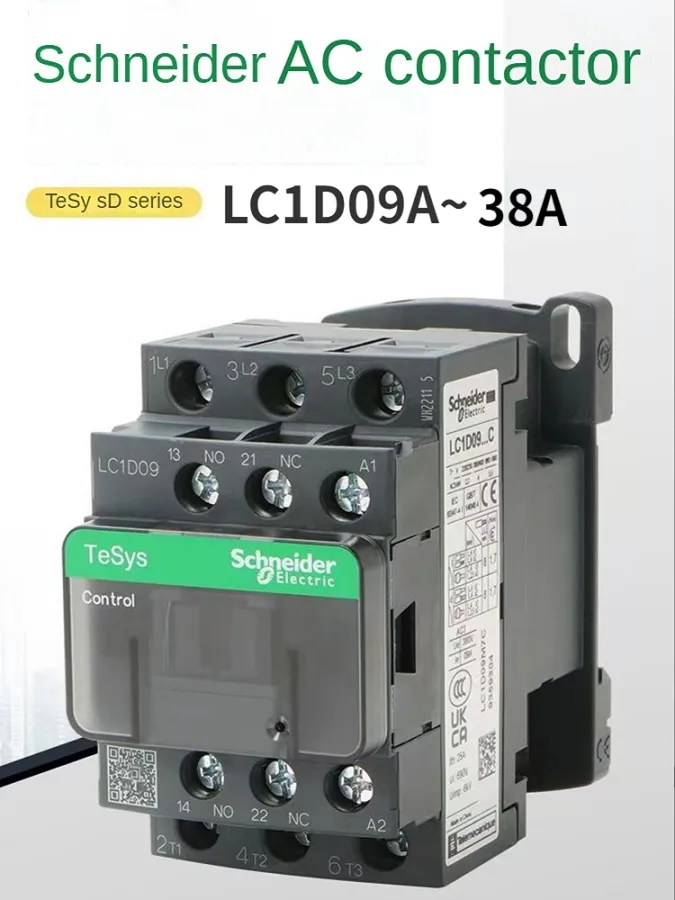

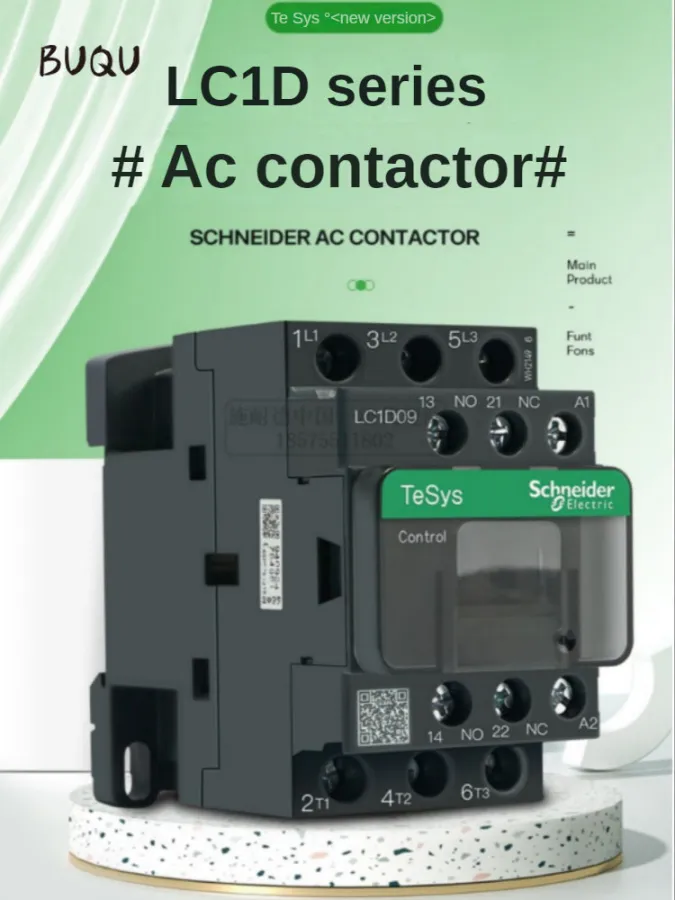

Schneider LC1D products:
The contactor is of protective type, and the action structure is of direct action type. The contact is of double breakpoints
It features small size, light weight, low power consumption, long service life, safety and reliability

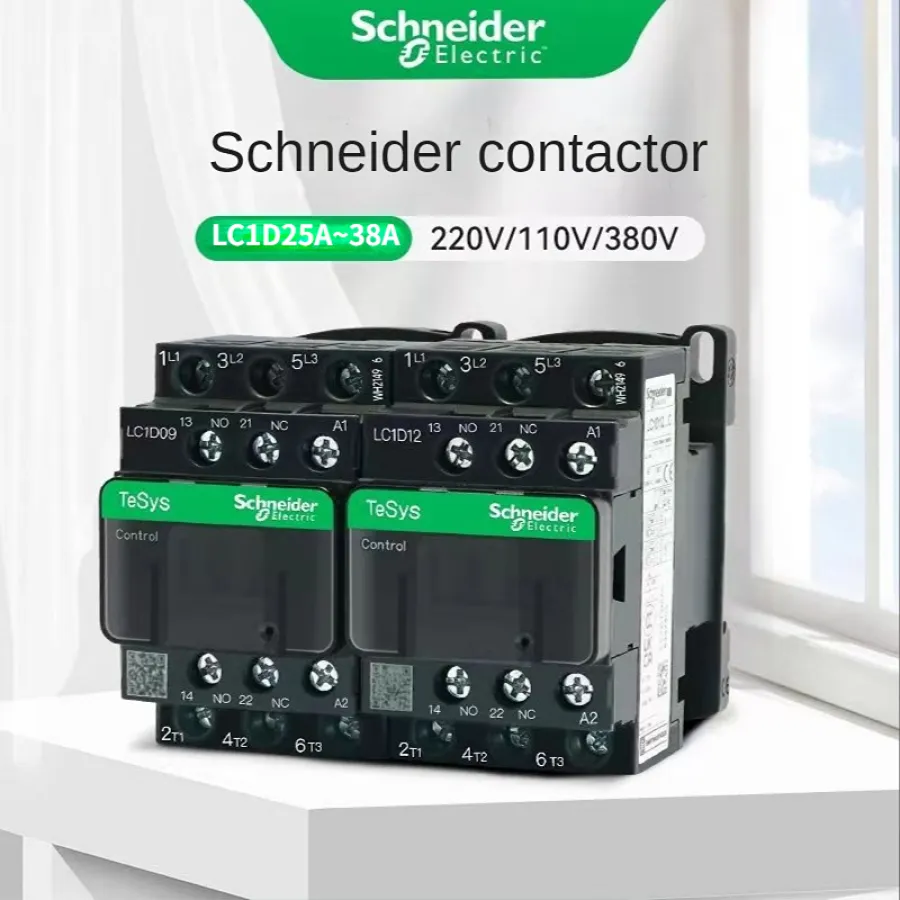

Contactors can be used to form mechanical reversible interlocking magnetic starter, star delta decompression starter, and multiple derivative series products such as additional auxiliary contact groups, air delay heads, etc. can be combined according to the user's choice.
Product type: AC contactor
Number of poles: 3P
Auxiliary contact: 1NO+1NC
Rated voltage: 440VAC
Main contact: 3NO
Control circuit: AC 50/60Hz
Rated power: 7.5KW
Installation method: base plate/guide rail installation

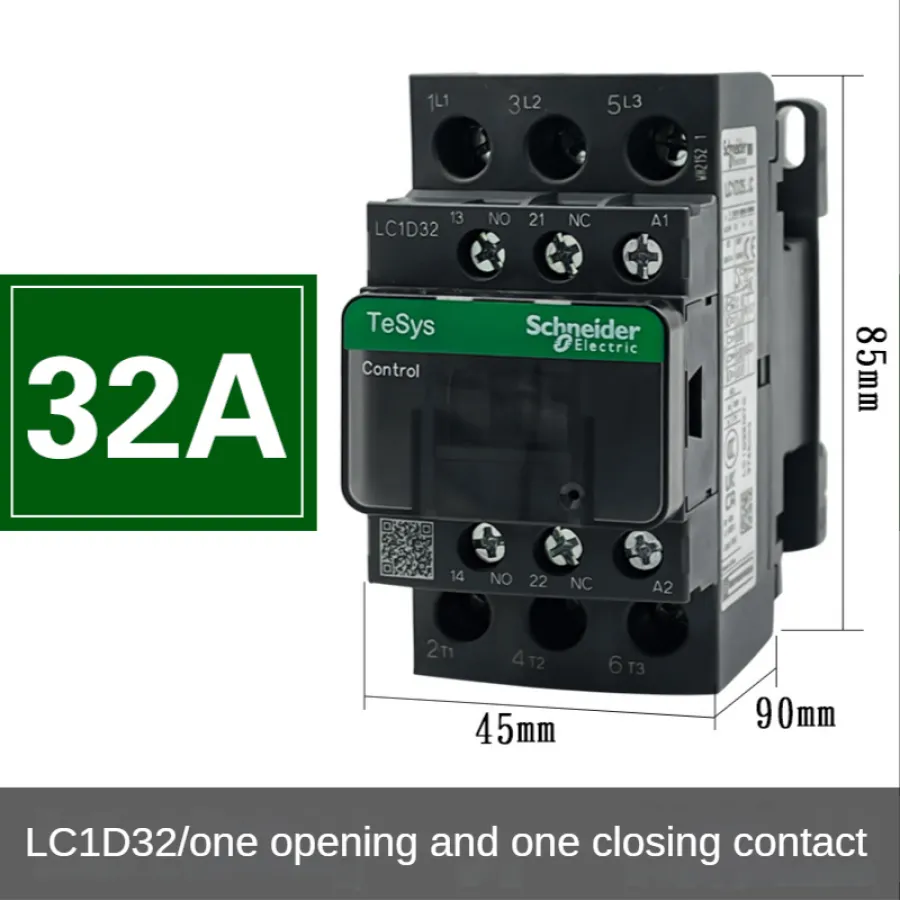

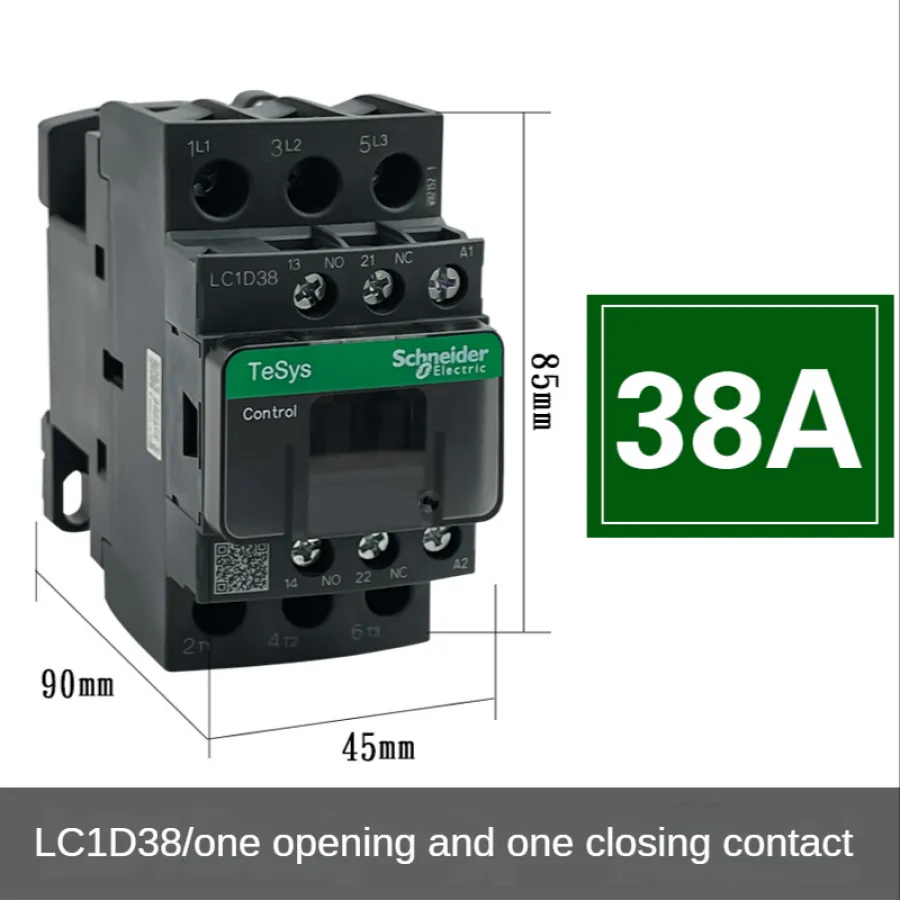

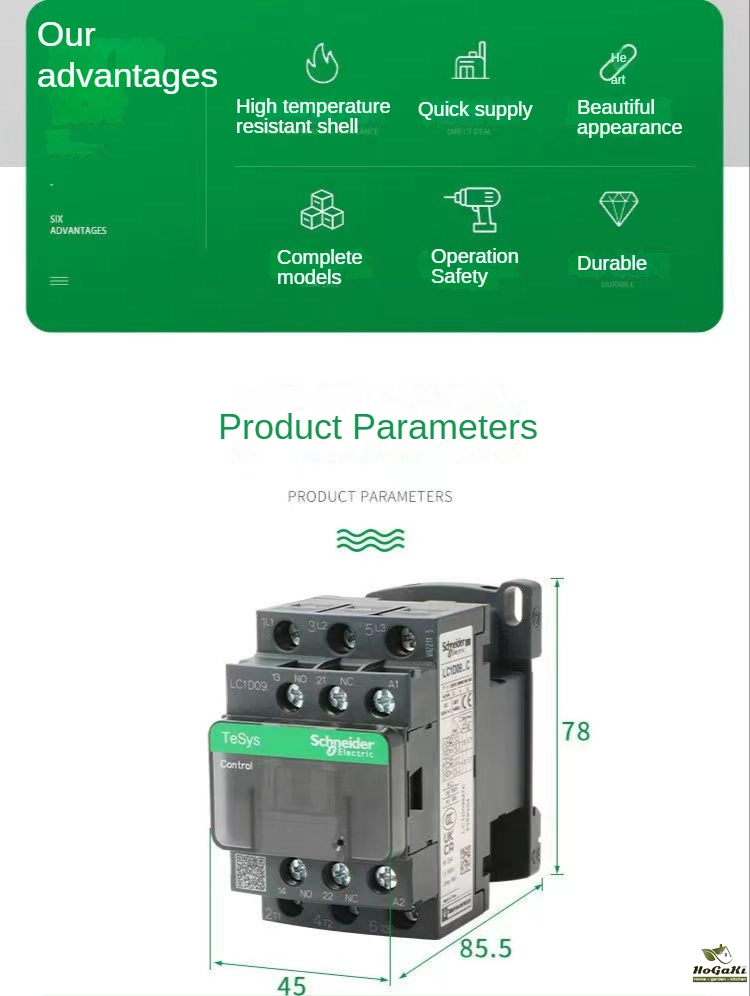

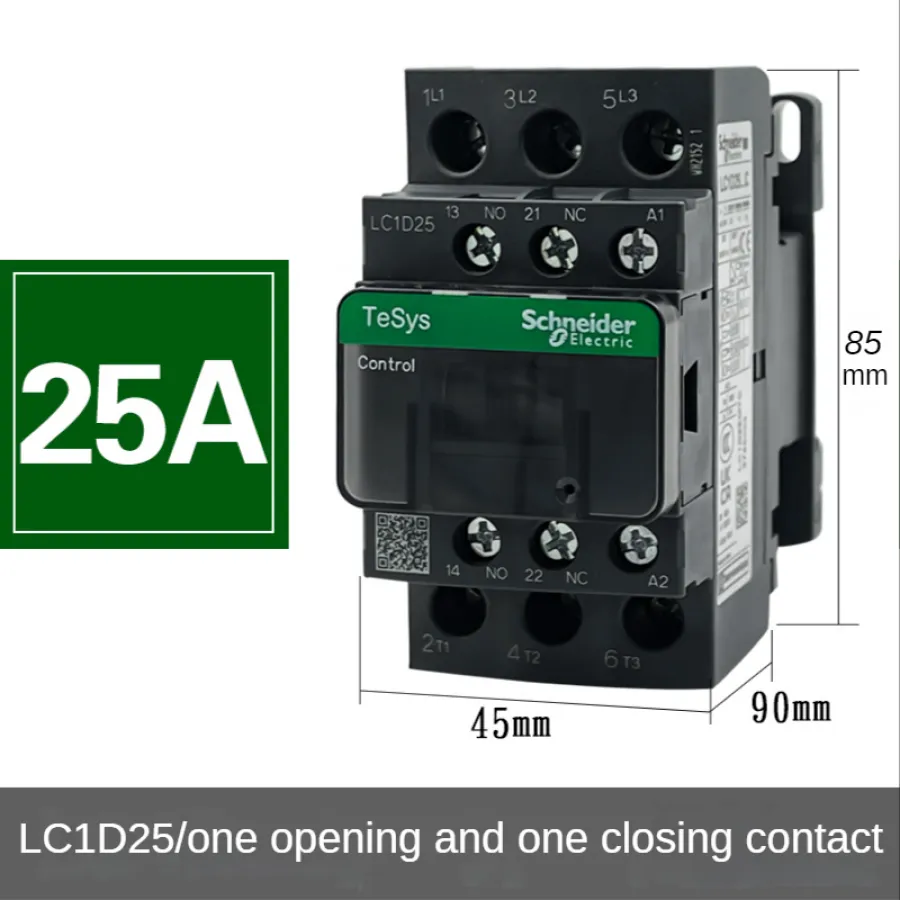

Product size introduction

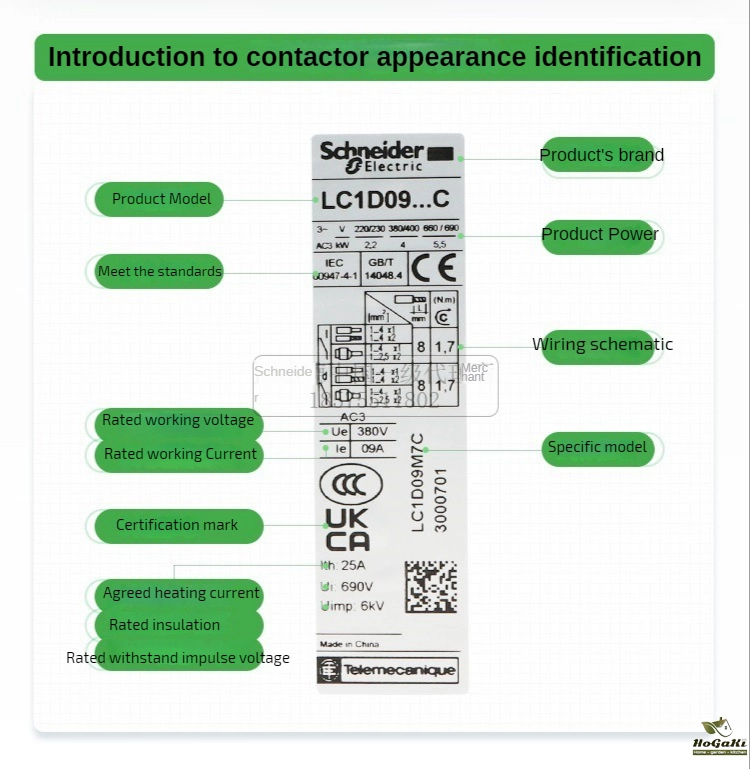

Introduction to contactor appearance identification
Safe use of electricity, caring and guarding

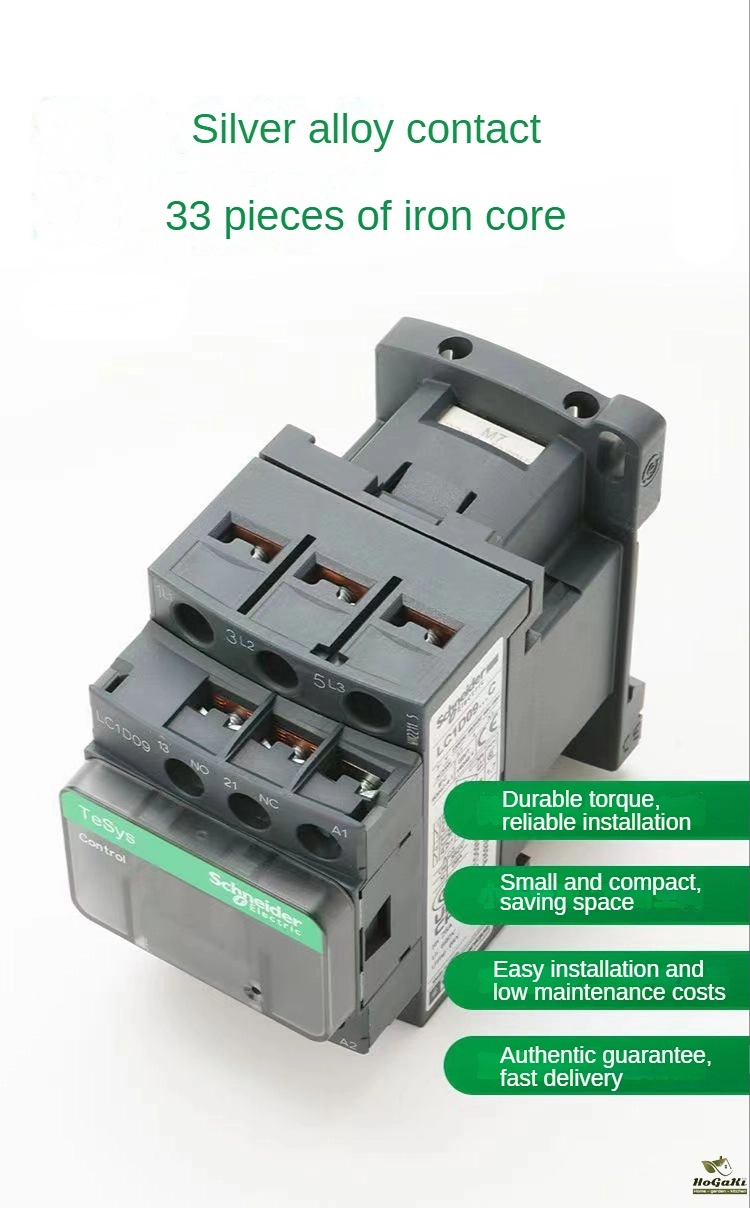

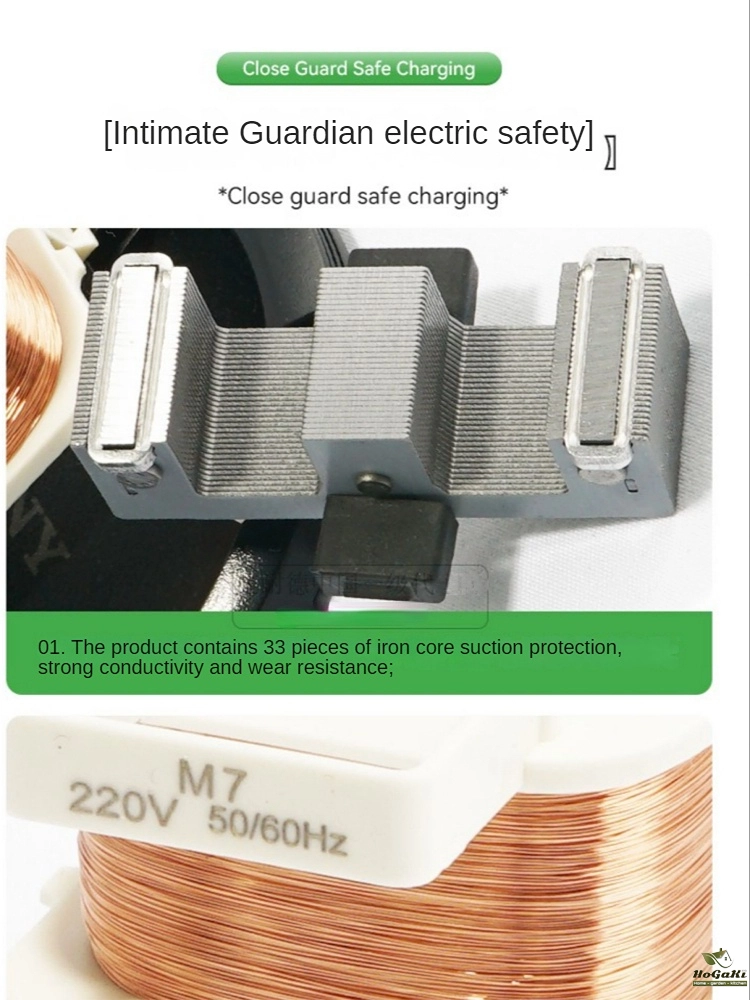

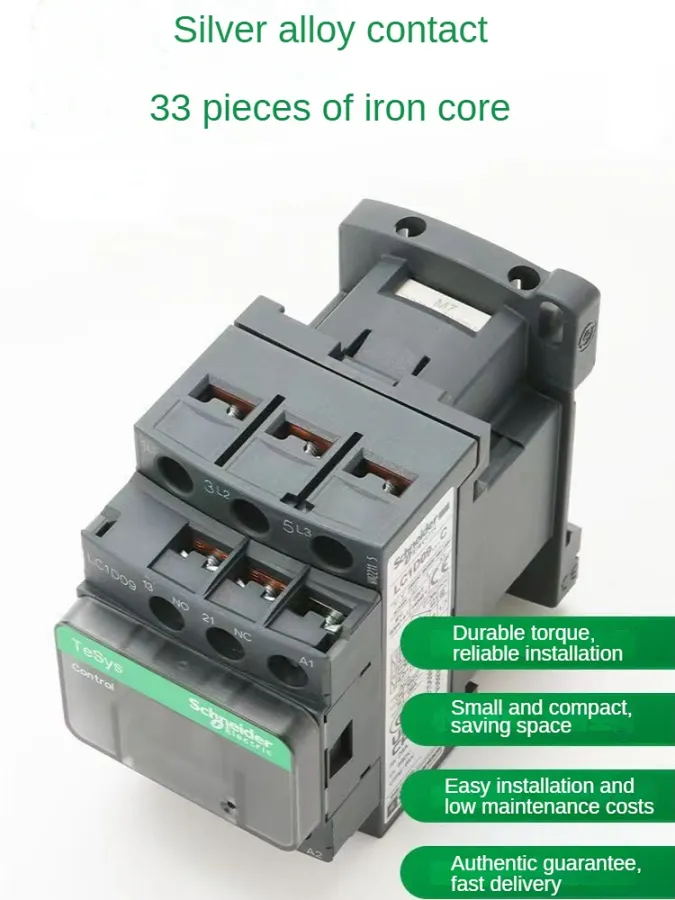

1. The product contains 33 iron cores for pull in protection,with strong conductivity and wear resistance

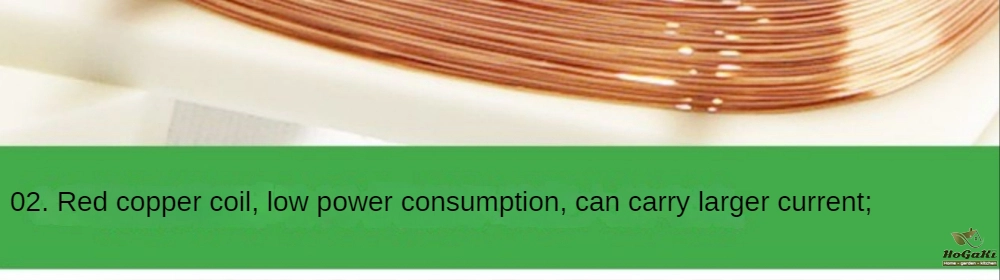

2. Red copper coil, with low power consumption, can carry more current

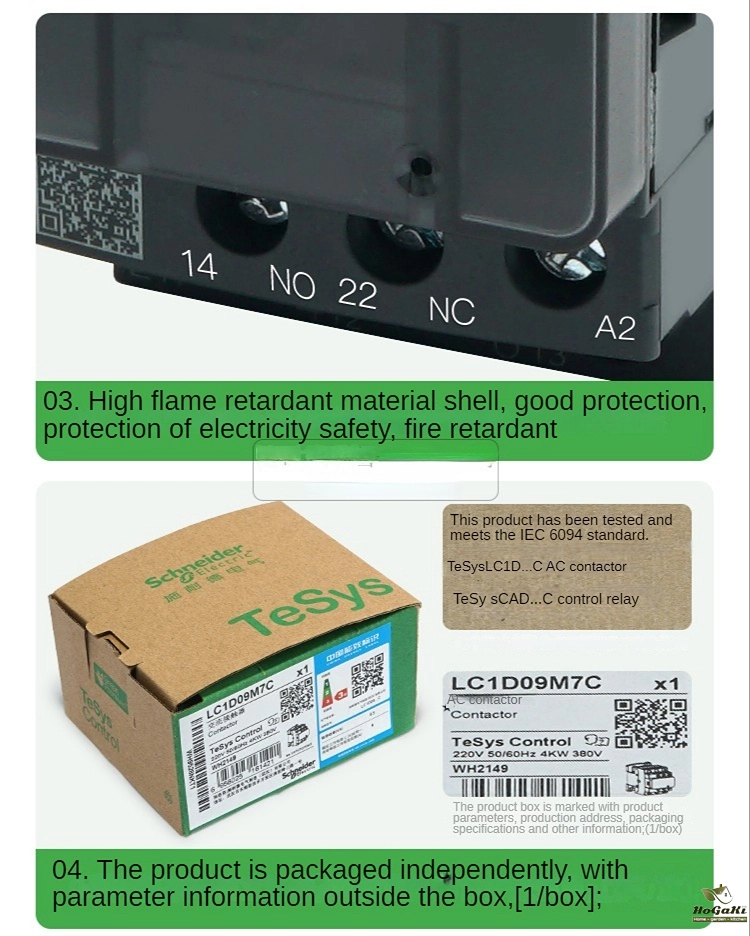

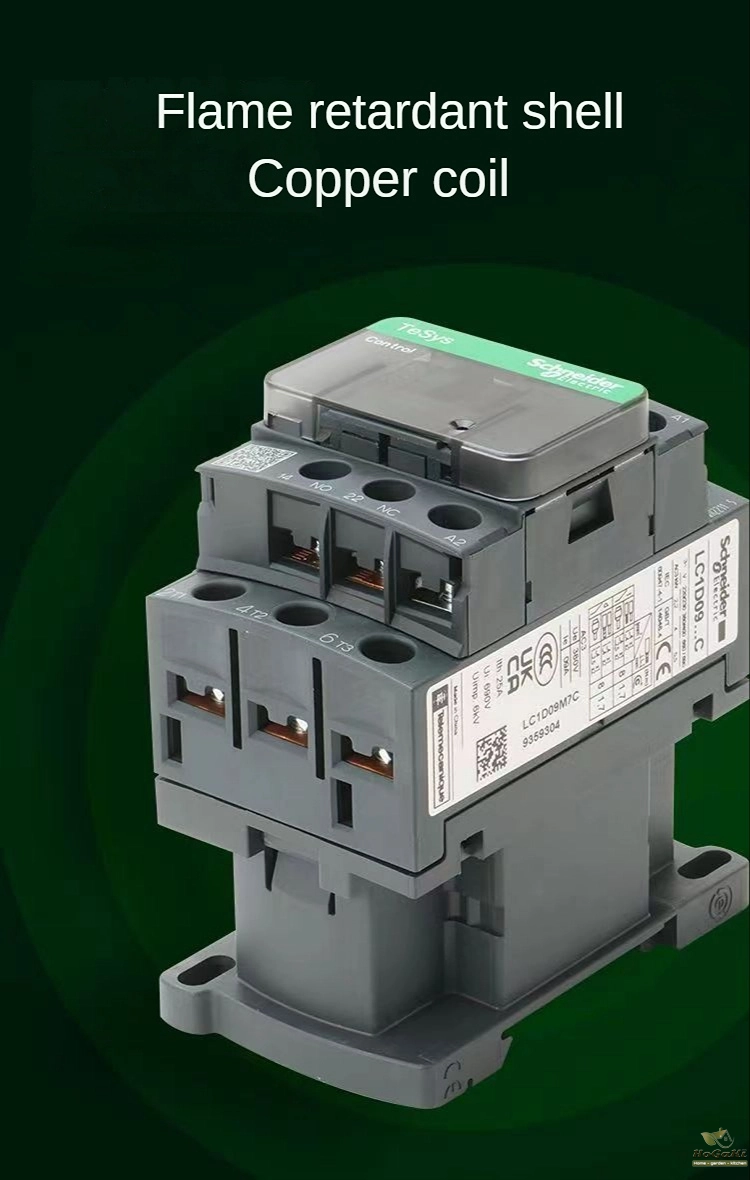

3.High flame retardant shell, well protected, safe for electricity use, fire retardant

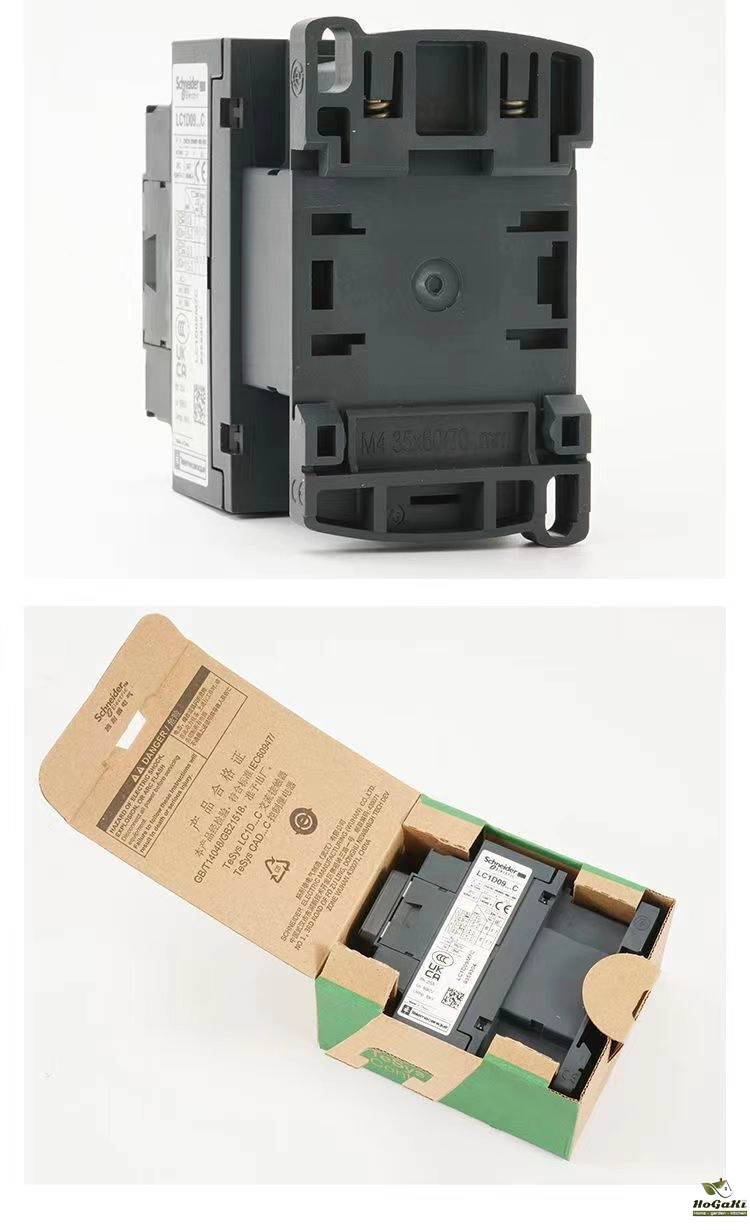

4. The product is packaged independently, and the outside of the packaging box contains parameter information (1 piece/box)

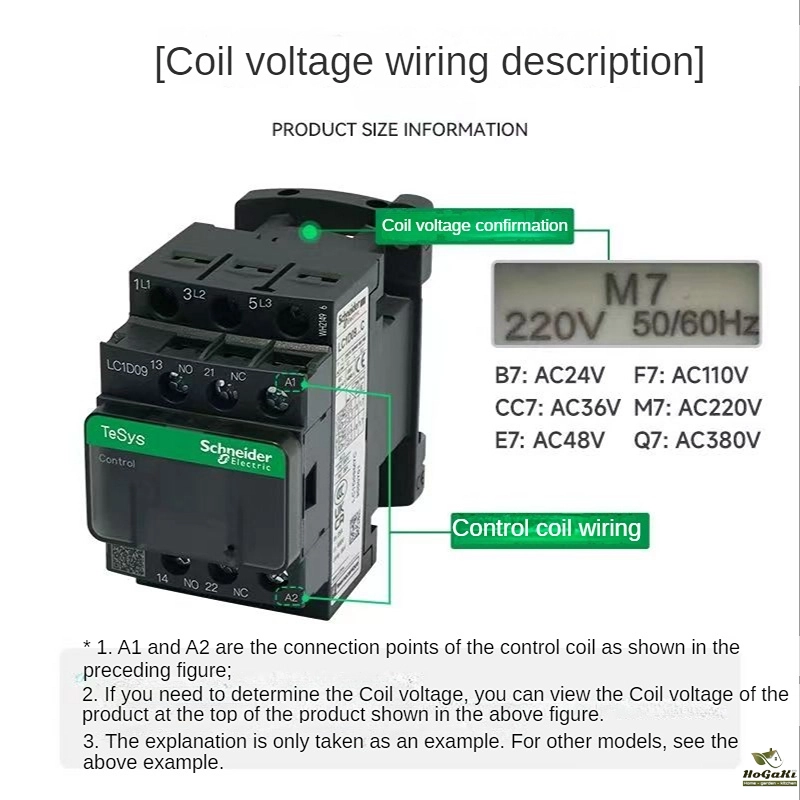

Coil voltage wiring instructions
1. As shown in the figure, A1 A2 is the control coil wiring
2. If you need to determine the coil voltage, you can check the top of the product as shown in the picture to get the coil voltage of the product.
3. Take LC1D09M7C as an example for explanation.

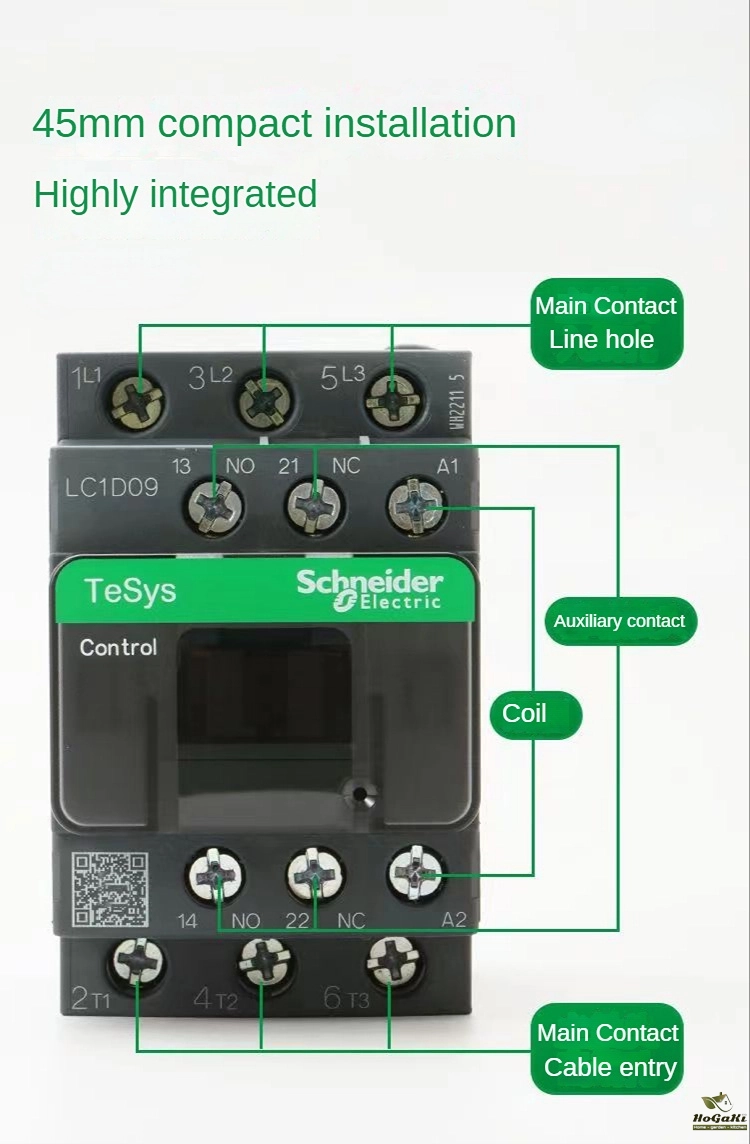

45MM compact installation, highly centralized

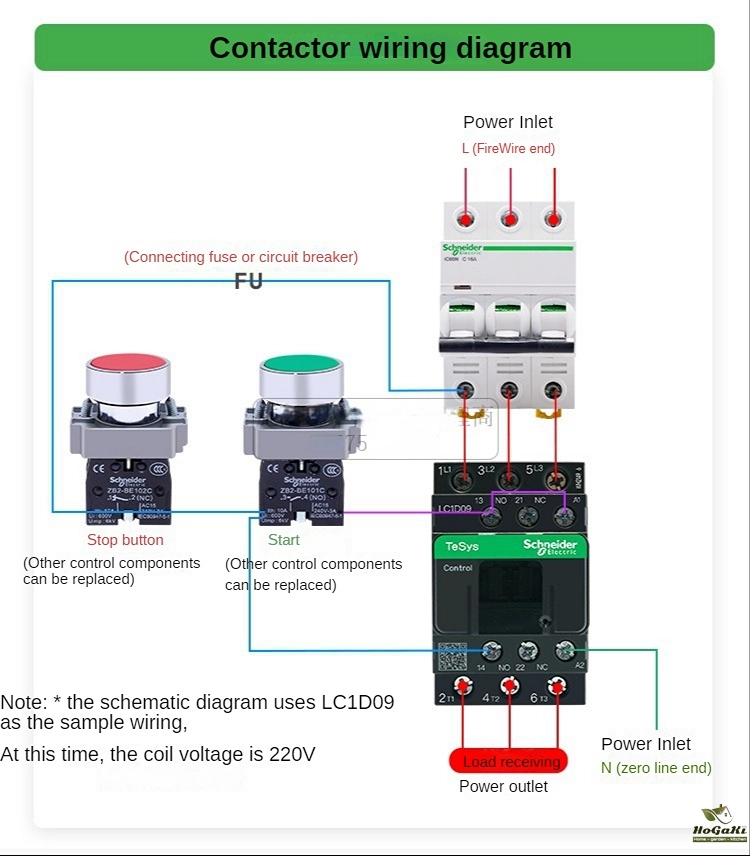

Contactor wiring diagram

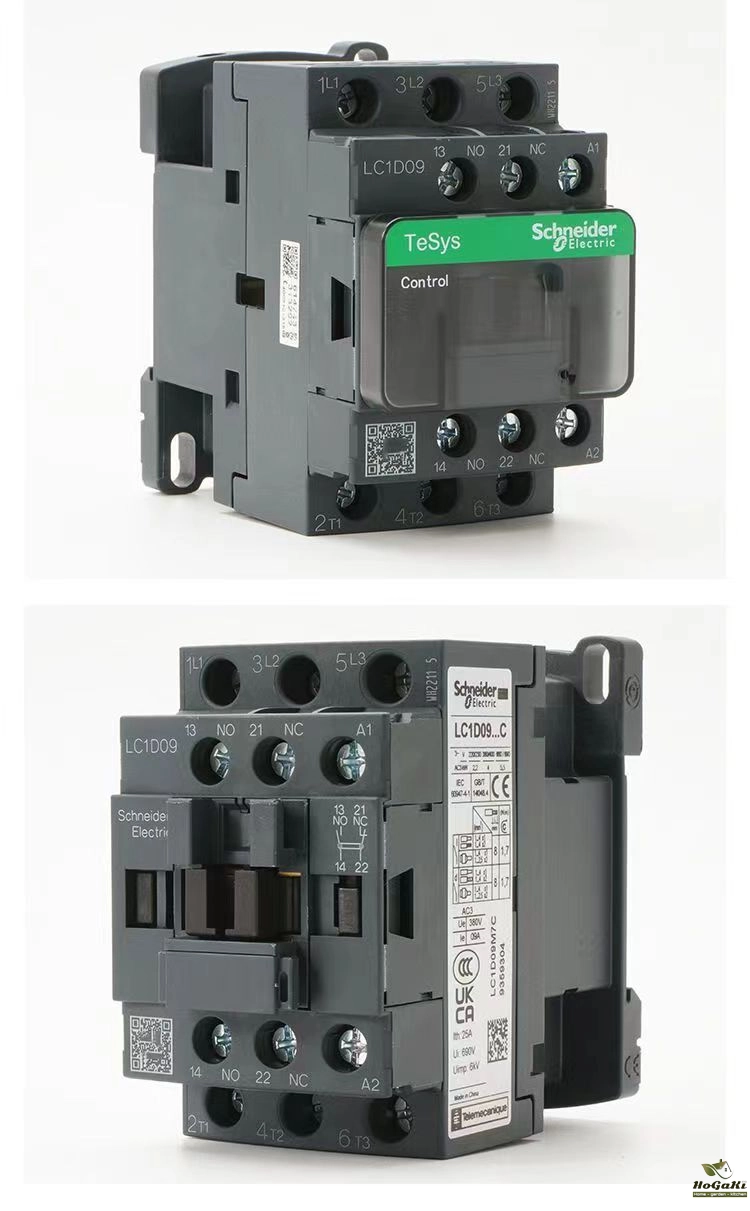

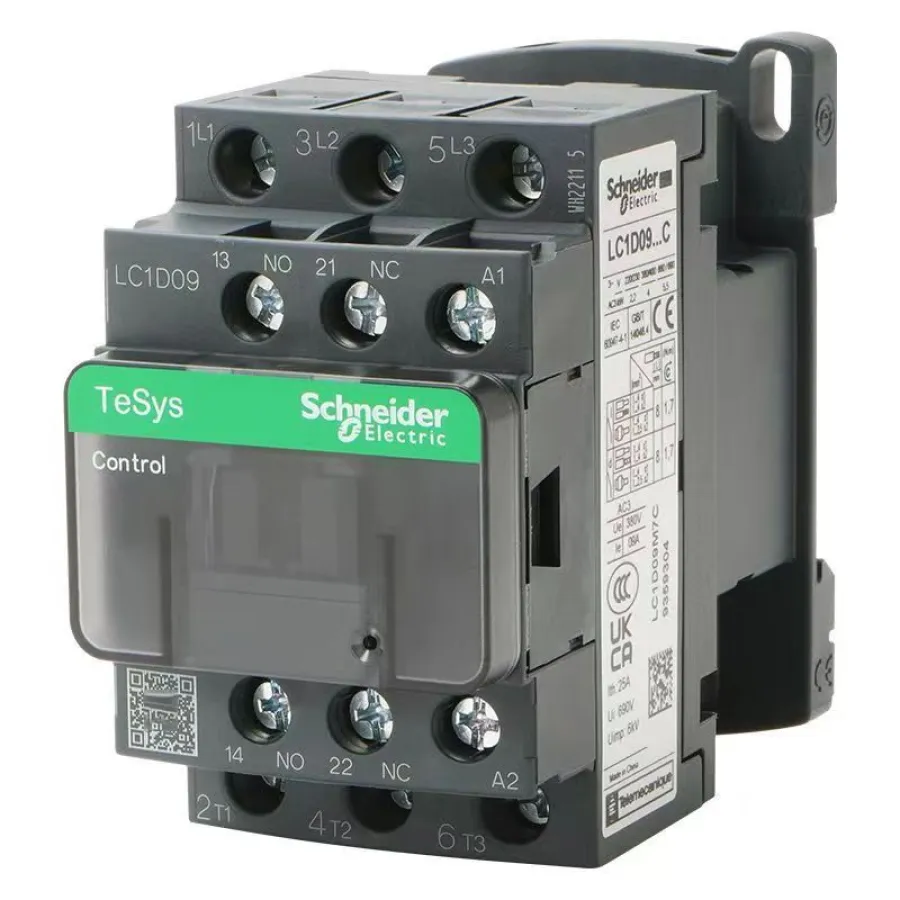

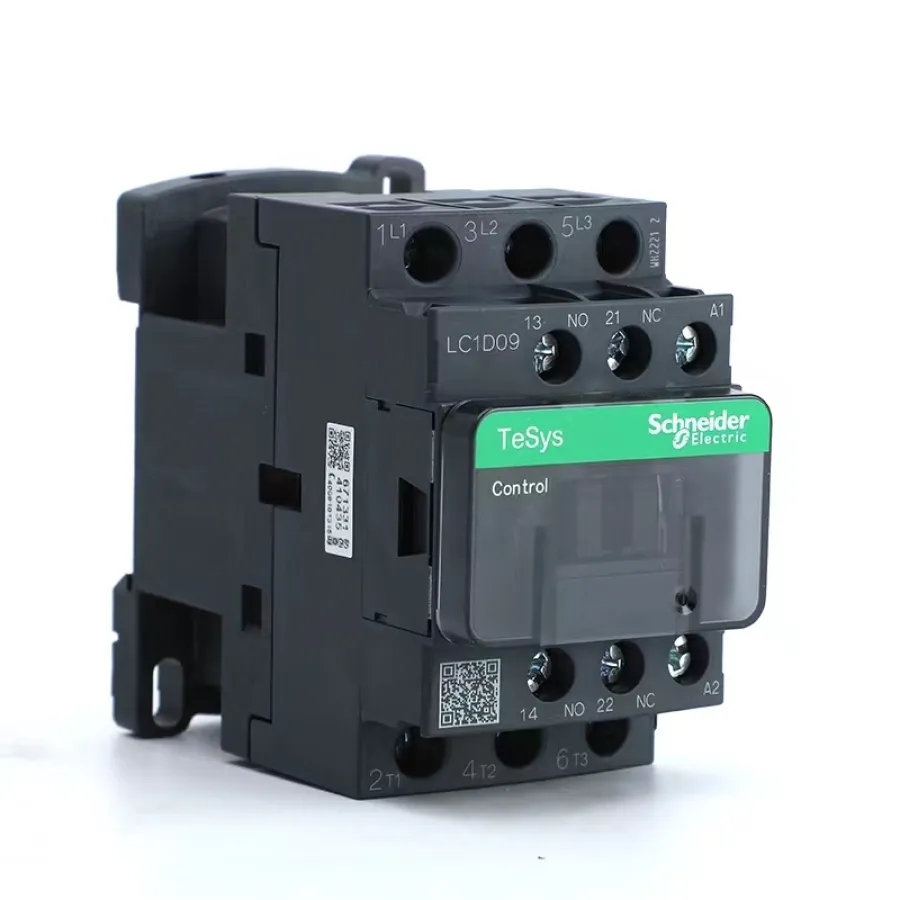

Product Photograph
Dear friends, thanks for shopping in BUQU store!
sincerely hope , can be happy and satisfied from the moment you open the parcel.if you are not satisfied with the product received,
I hope you do not give us bad reviews at will. please contact us, we will definitely give you a satisfactory solution!
thank you vety much-thank you！
be happy!!
Packaging Details
- Unit Type:
- Package Weight: 0.450
- Package Size: 10x3x10
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Certification: CE
- Electricity Type: AC
- Model Number: LC1D09M7C
- is_customized: Yes
- Number of Pole: 3
- Model: LC1D09M7C/LC1D12M7C
- Brand: Schneider
- Origin: Mainland China
- Auxiliary contact type: 1NO NC
- Contact form of main contact: 3NO
- Number of main contact poles: 3P
- Product range: LC1D series
