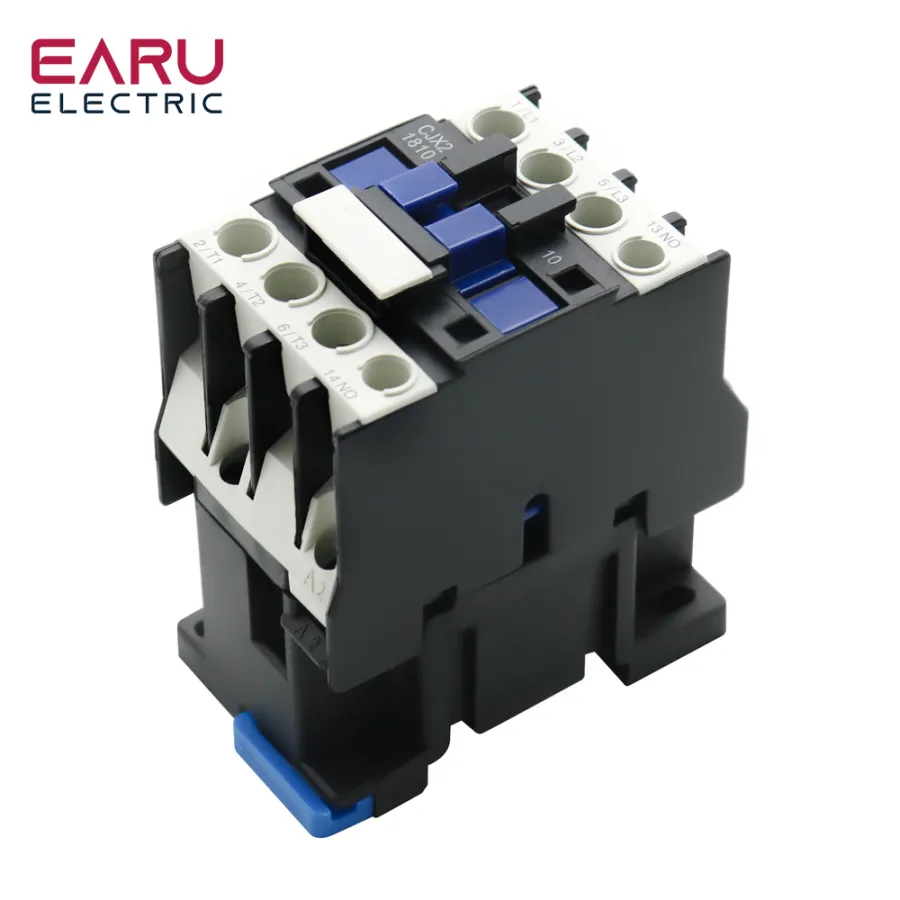

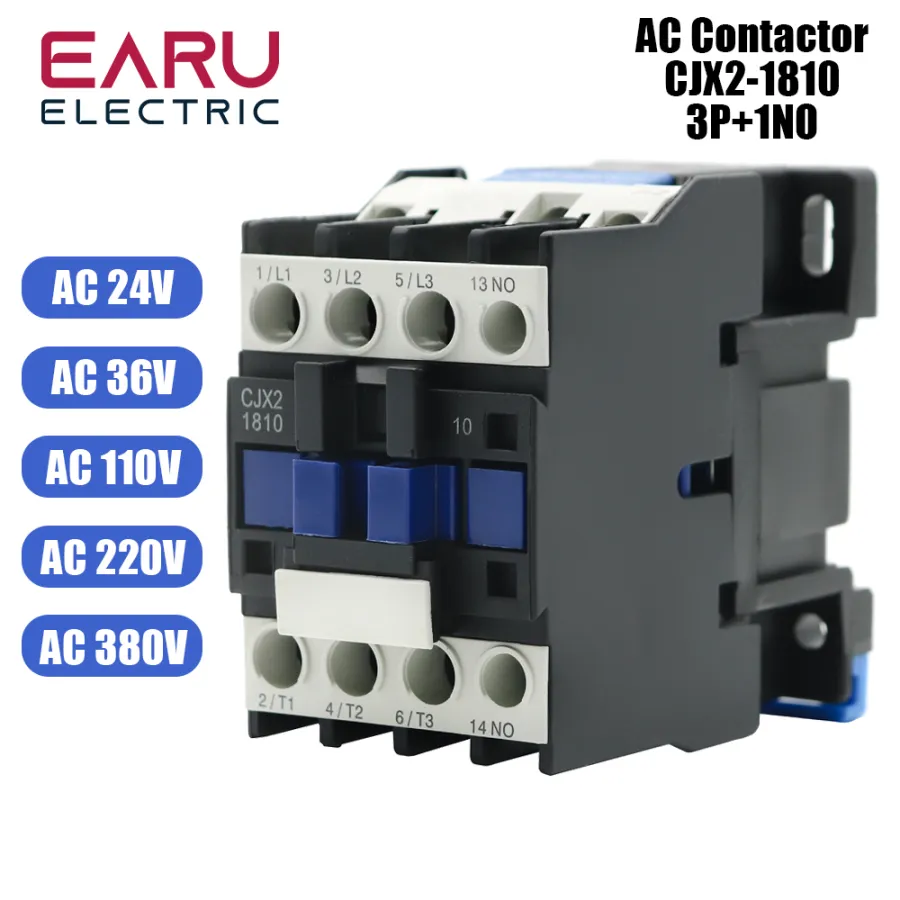

CJX2-1810 LC1 AC Contactor 18A 3 Phase 3-Pole NO Coil Voltage 380V 220V 110V 36V 24V 50/60Hz Din Rail Mounted 3P+1NO Normal Open
28.33 18.31 $
ID: 151753
Quantity
CJX2-1810 LC1 AC Contactor 18A 3 Phase 3-Pole NO Coil Voltage 380V 220V 110V 36V 24V 50/60Hz Din Rail Mounted 3P+1NO Normal Open
4.9 (286 votes) | 1000 orders
Price:
US $32.41 - 38.65
Discount Price:
US $
16.81 -
19.99
-48%
CJX2-1810 LC1 AC Contactor 18A 3 Phase 3-Pole NO Coil Voltage 380V 220V 110V 36V 24V 50/60Hz Din Rail Mounted 3P+1NO Normal Open

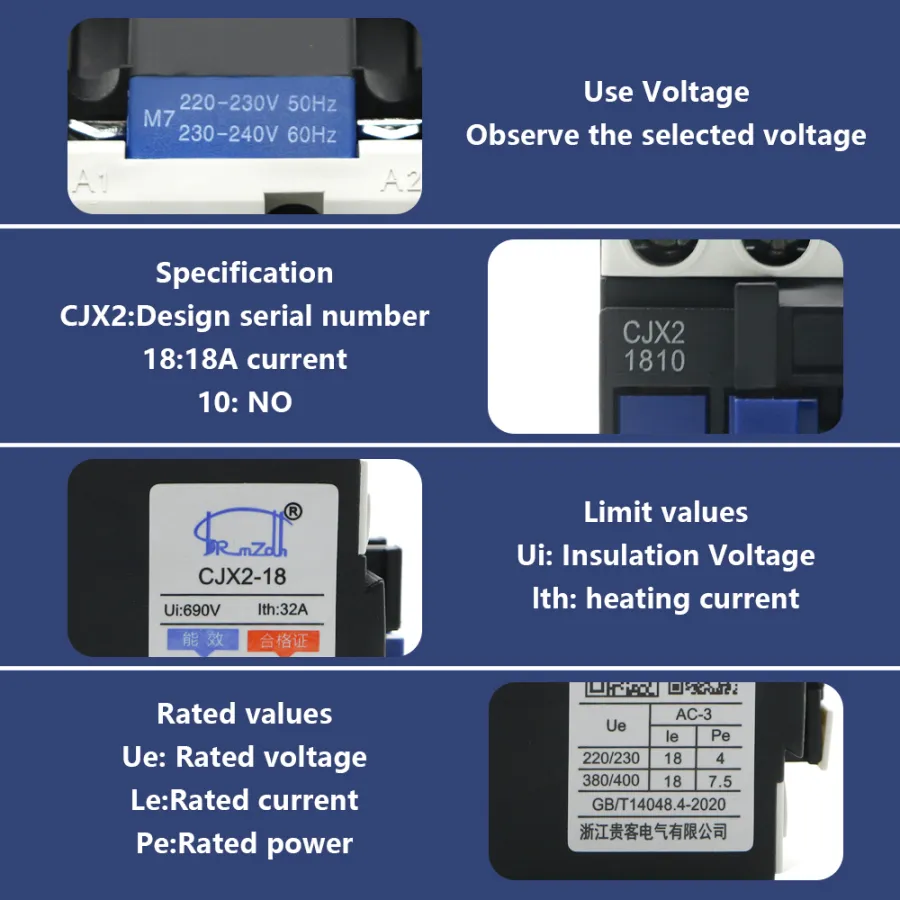

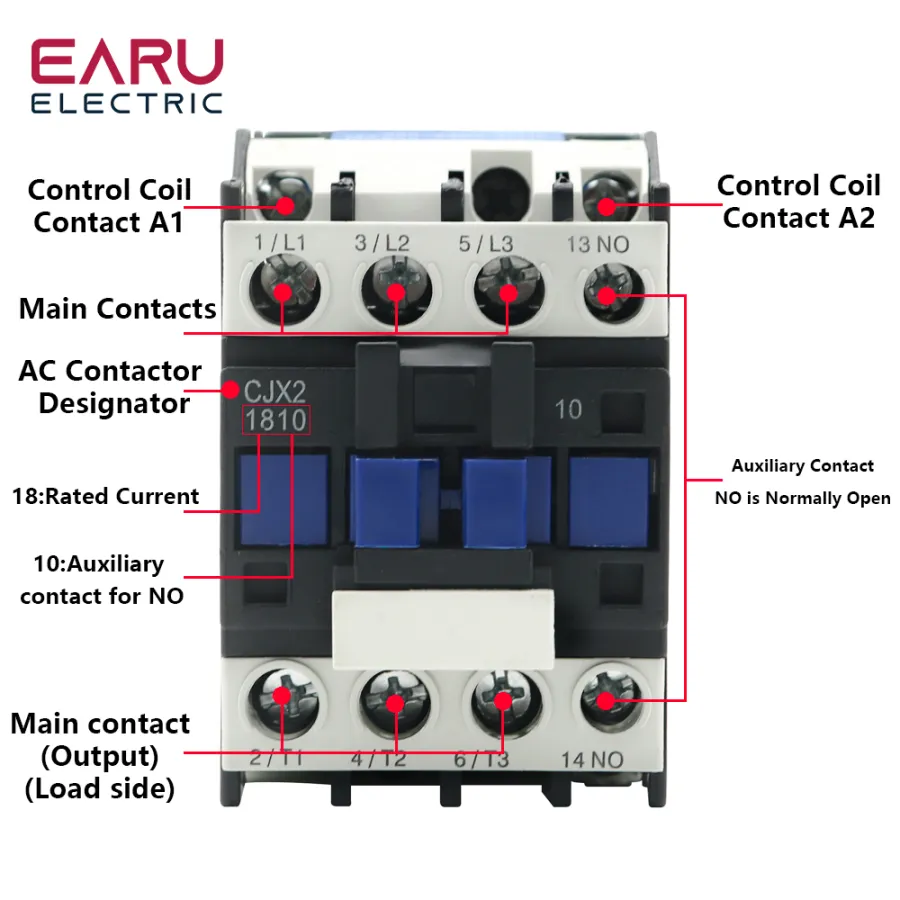

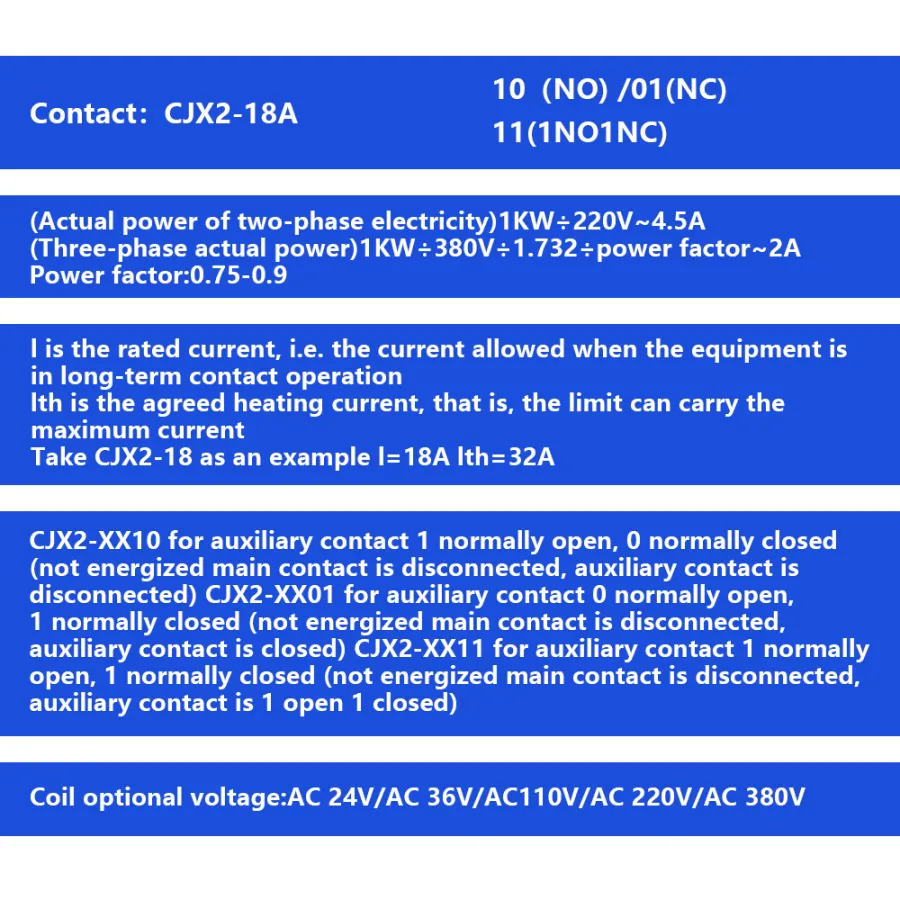

Product Name : AC Contactor;
Model Number : CJX2-1810;
Rated Coil Voltage : AC 380v,220V,110V,36V,24V;
Frequency : 50/60Hz
Contact Type : 1NO;
Pole Number : 3 Pole;Conventional Thermal Current(Ith) : 32A
Rated Insulation Voltage(Ui) : AC 660V;
AC-3 Rated Voltage(Ue) : 220/380;
AC-3 Controled Power(Pe) : 4/7.5KW

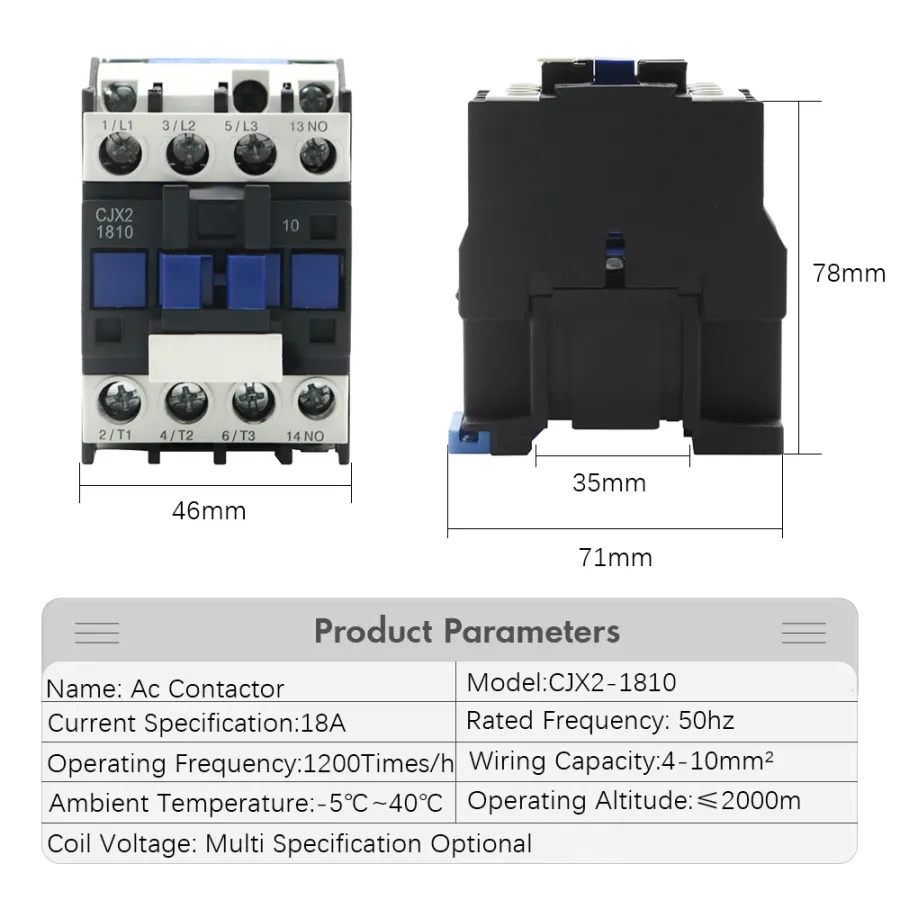

Total Size(Approx) : 79 x 44 x 71mm/ 3.1" x 1.7" x 2.8" (L*W*H);
Rail Mounting : 35mm DIN Rail;
Material : Plastic, Electrical Parts
Main Color : Black;
Net Weight : 351g;
Package Content : 1 x AC Contactor
Packaging Details
- Unit Type:
- Package Weight: 0.362
- Package Size: 13x6x17
- Brand Name: EARUELETRIC
- Origin: Mainland China
- Certification: CE
- Phase: 3
- Electricity Type: AC
- Model Number: CJX2
- is_customized: Yes
- Choice: yes
