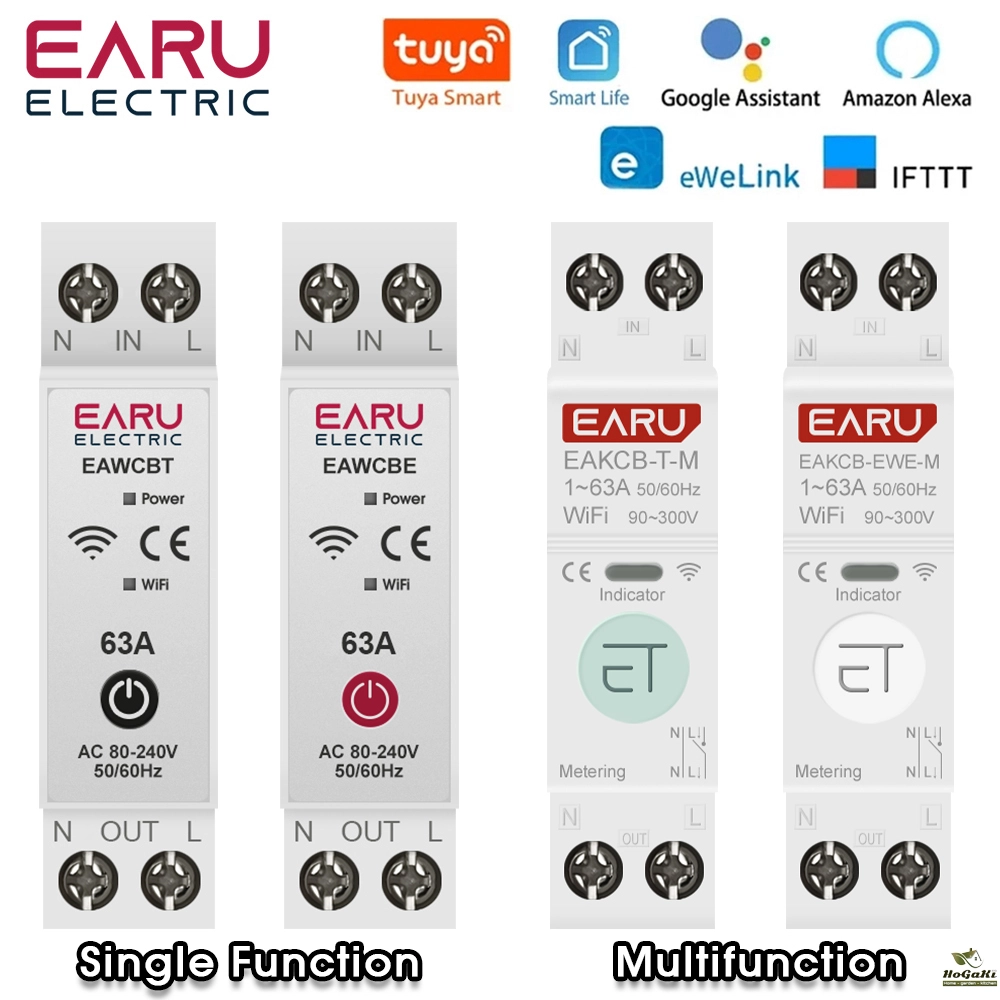

Tuya eWeLink WiFi Smart Circuit Breaker MCB 1P+N 63A Time Relay Switch Energy Meter kWh Voltage Current Protector Remote Control
4.8 (207 votes) | 1000 orders
Price:
US $
23.09 -
25.64
- Poles Number
Note：

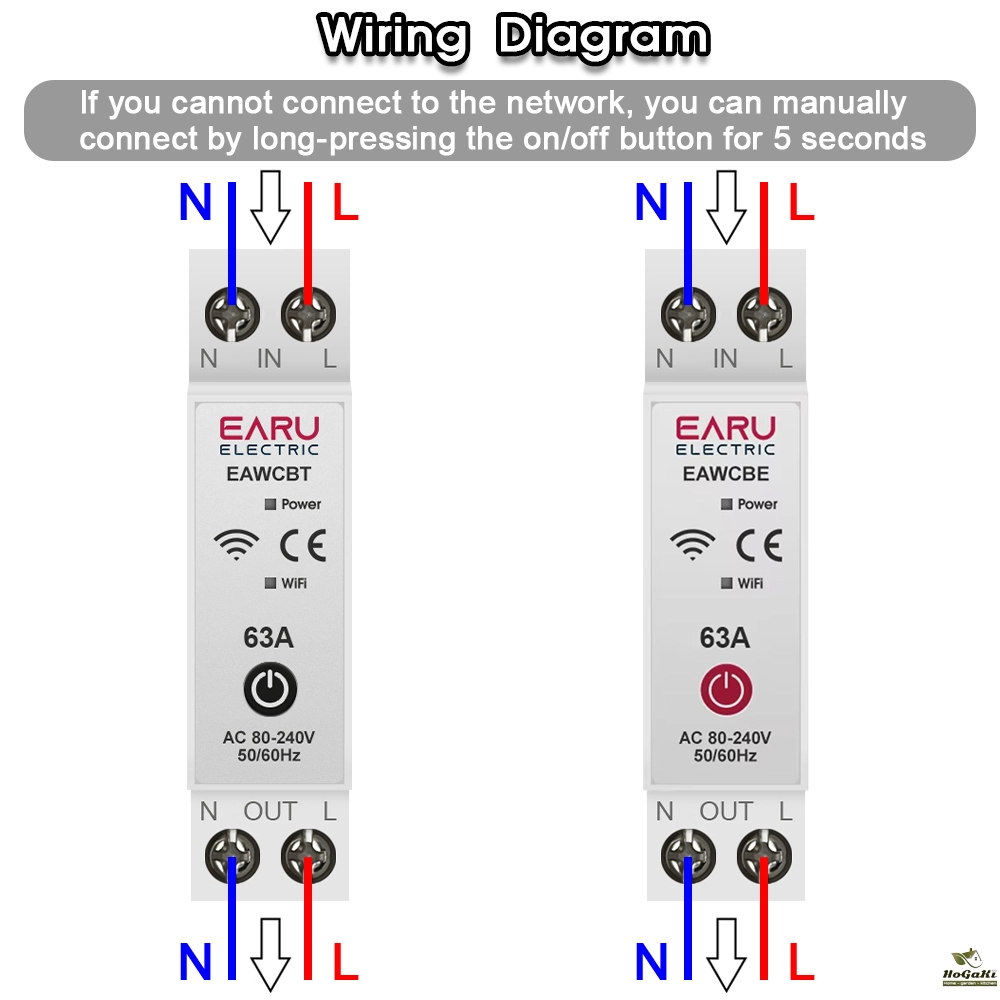

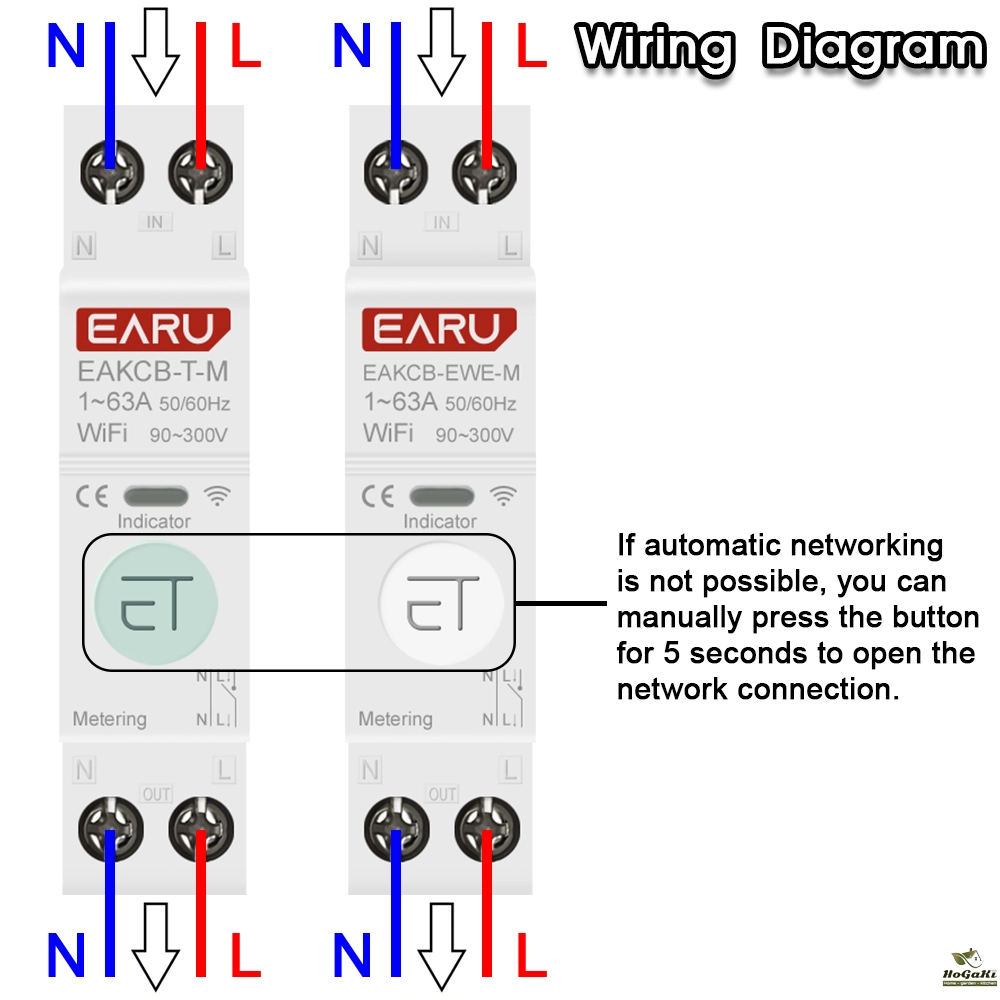

Wiring : Power must enter from the top and must be a live line + neutral (L+N)

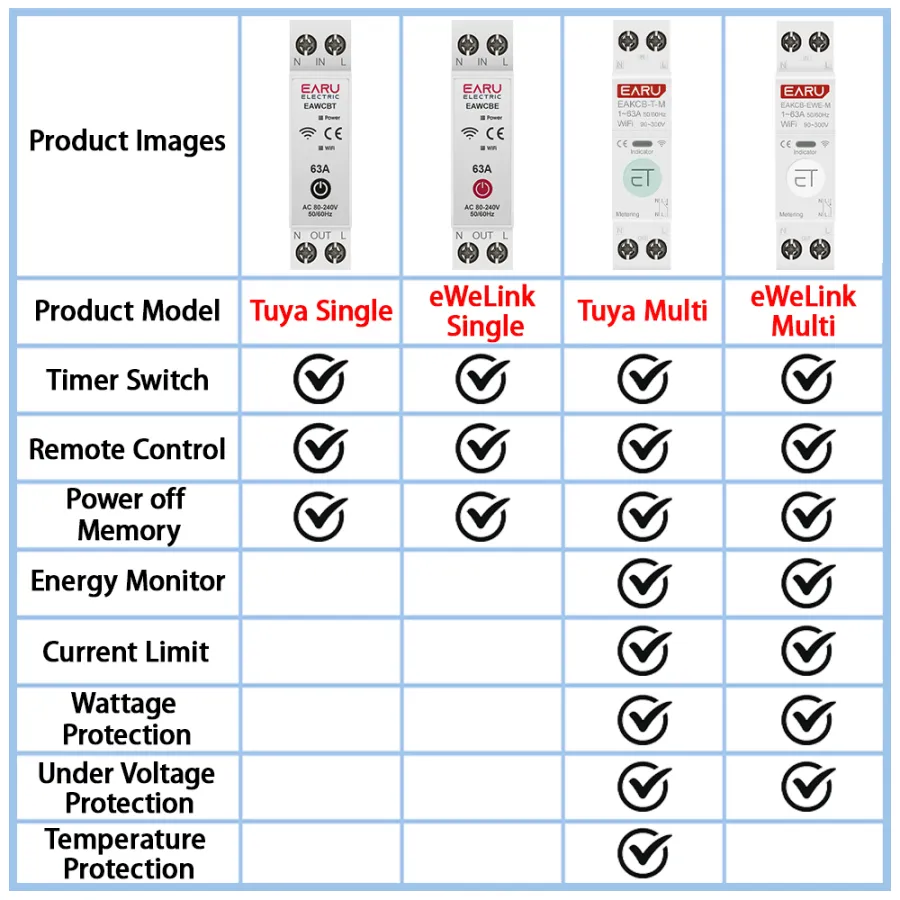

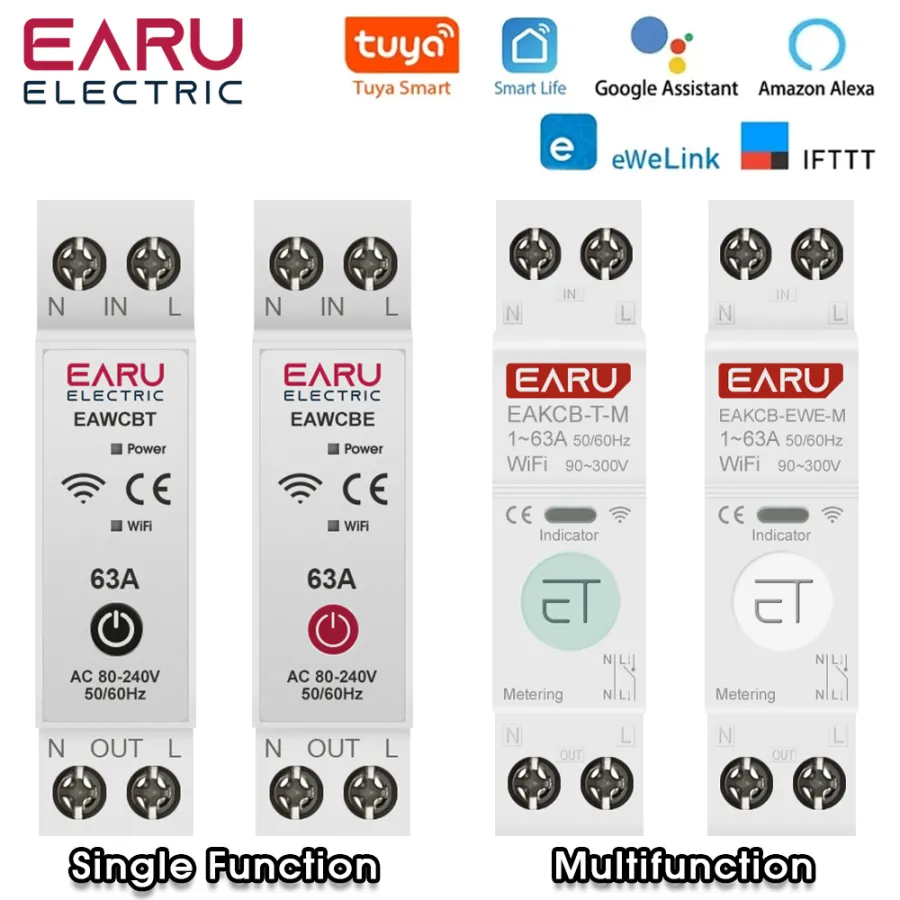

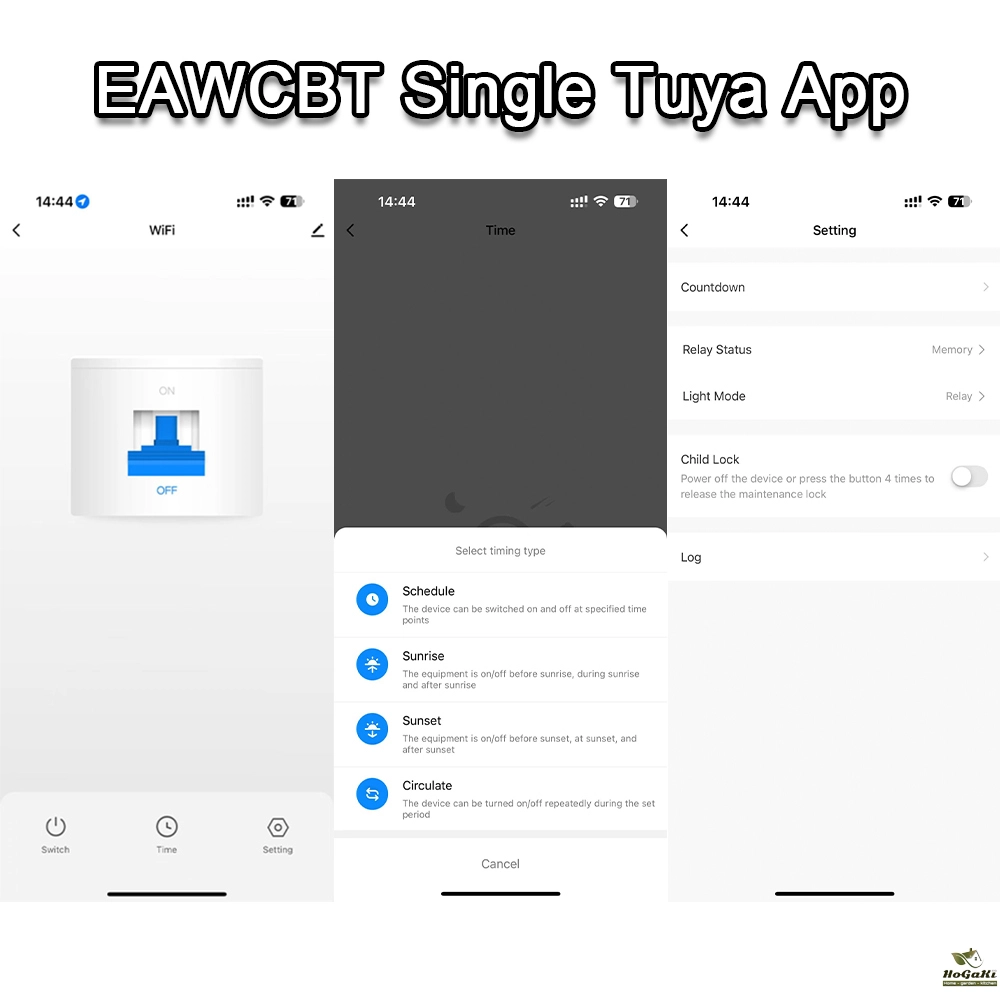

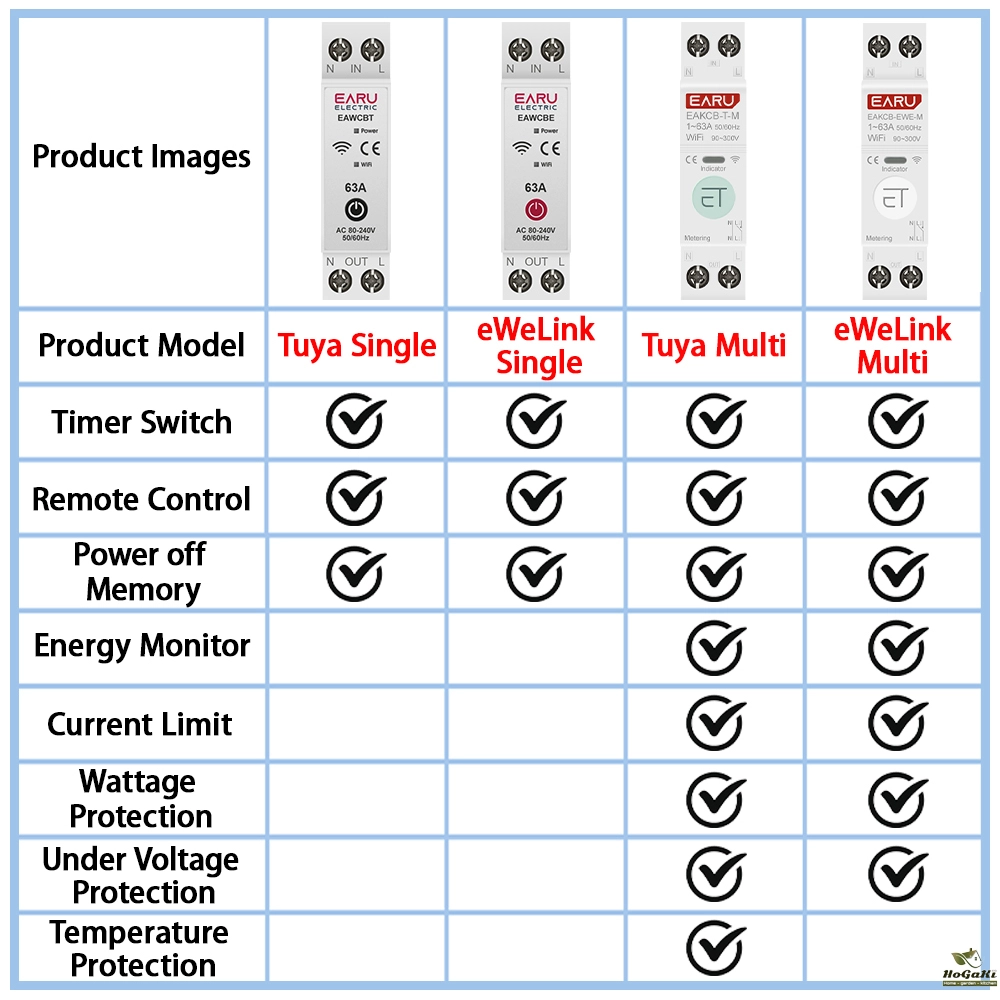

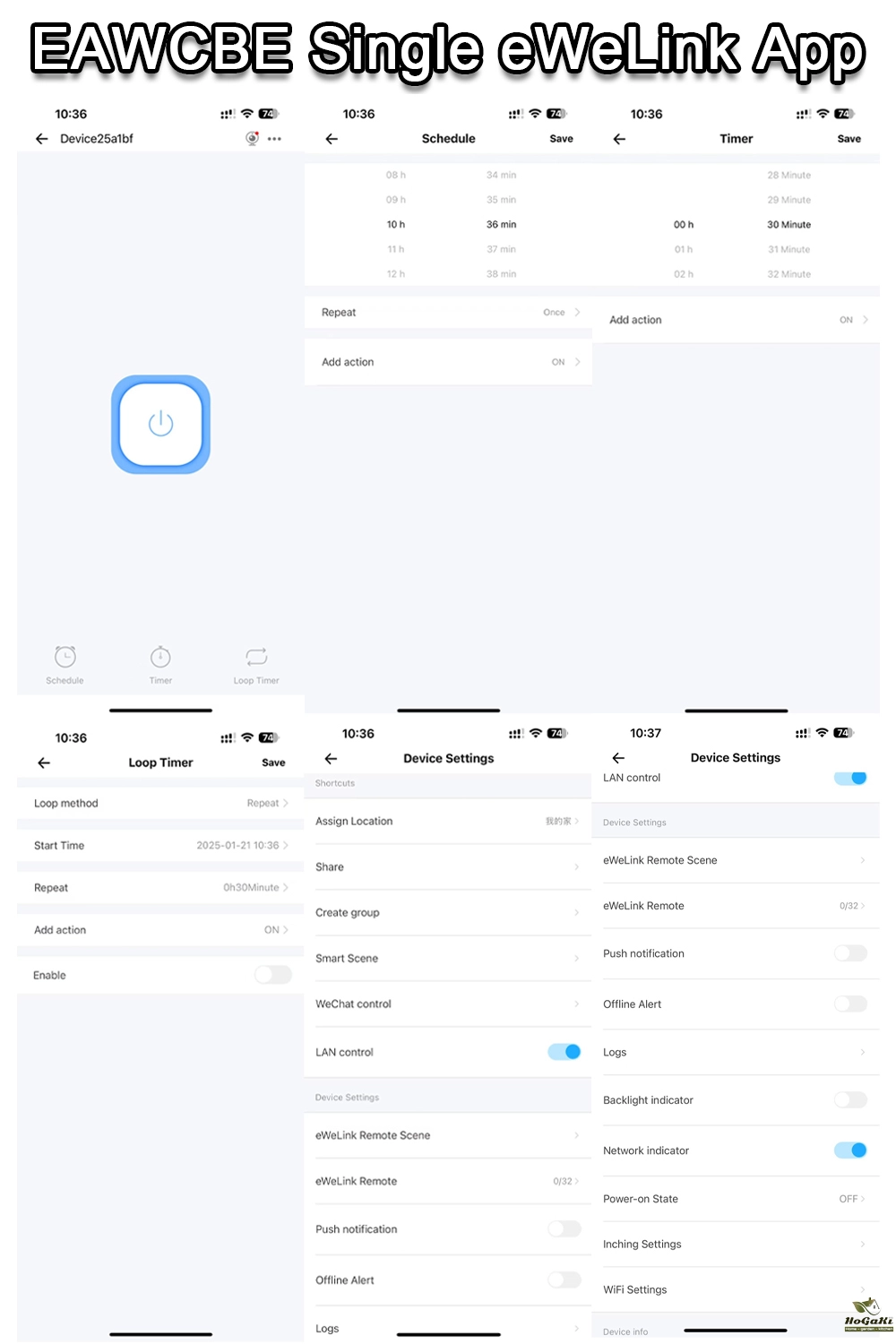

Tuya Single/eWeLink Single Functions:
1.Timer Switch
2.Remote Control ON/OFF

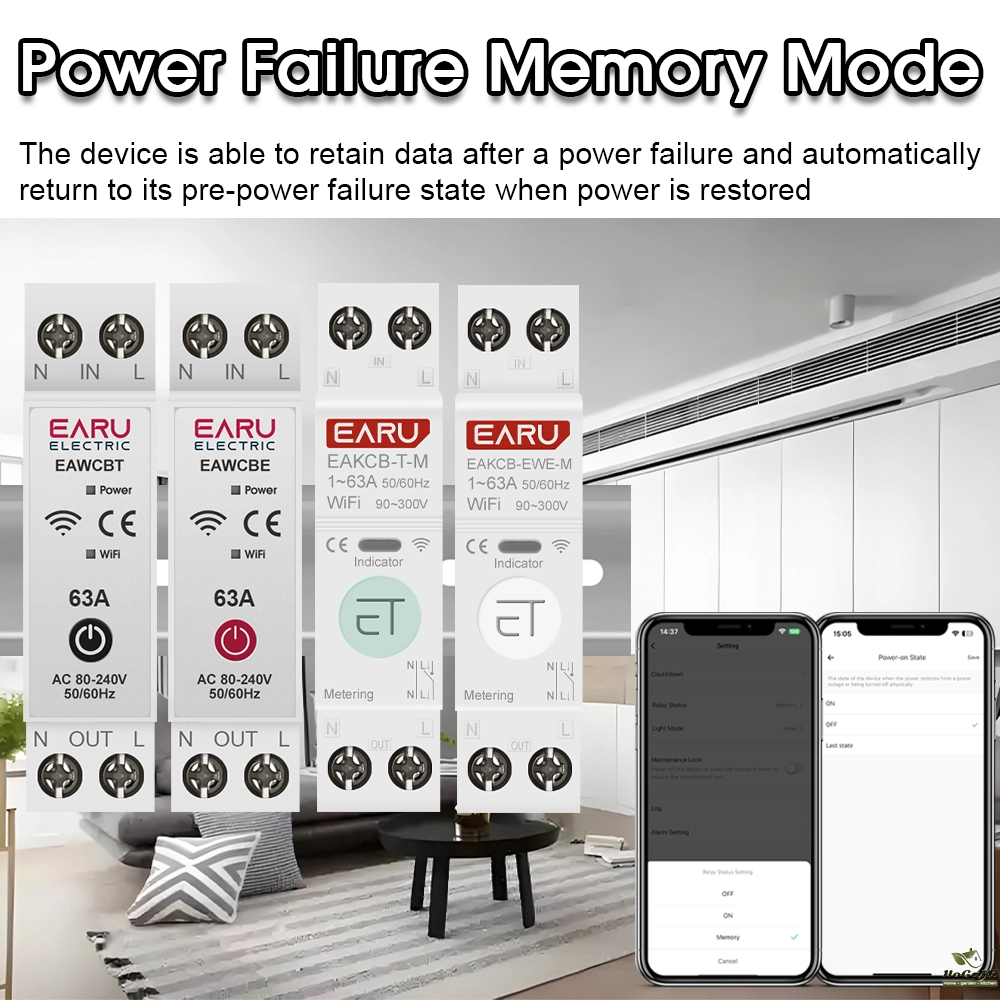

3.Power Failure Memory

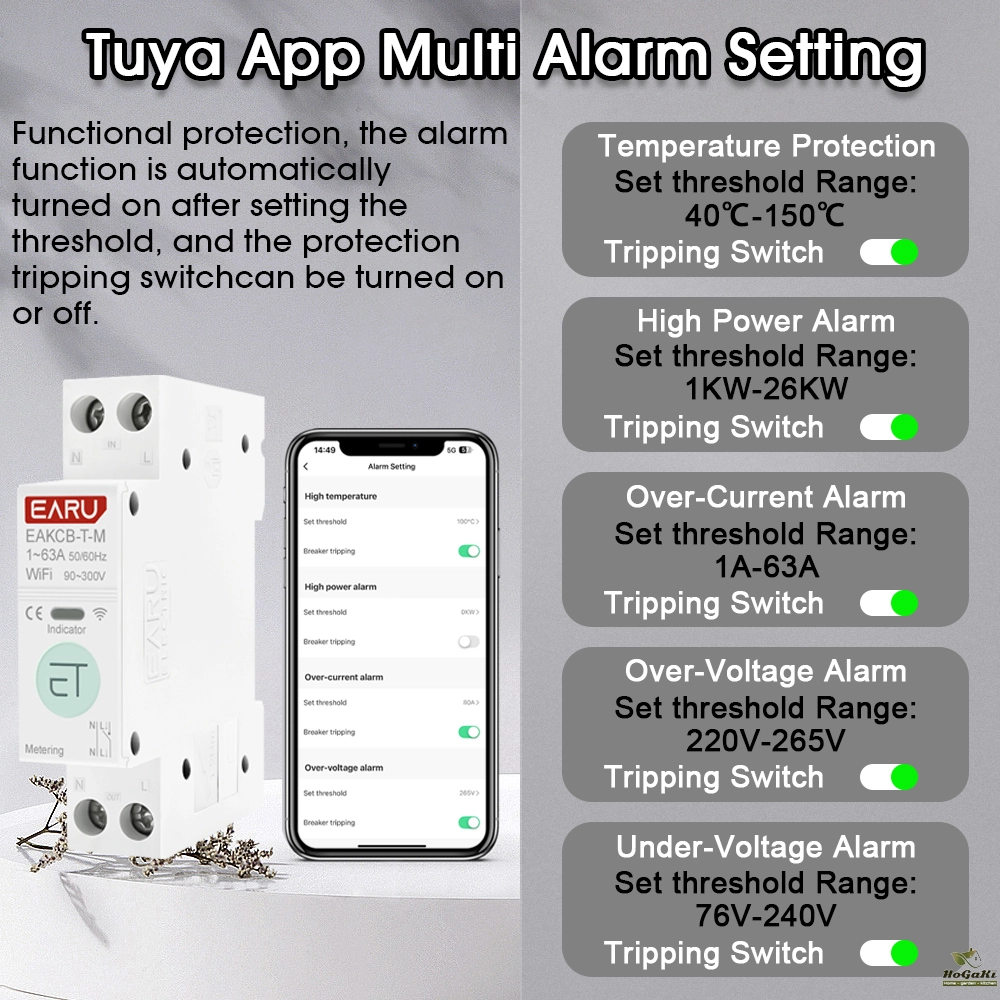

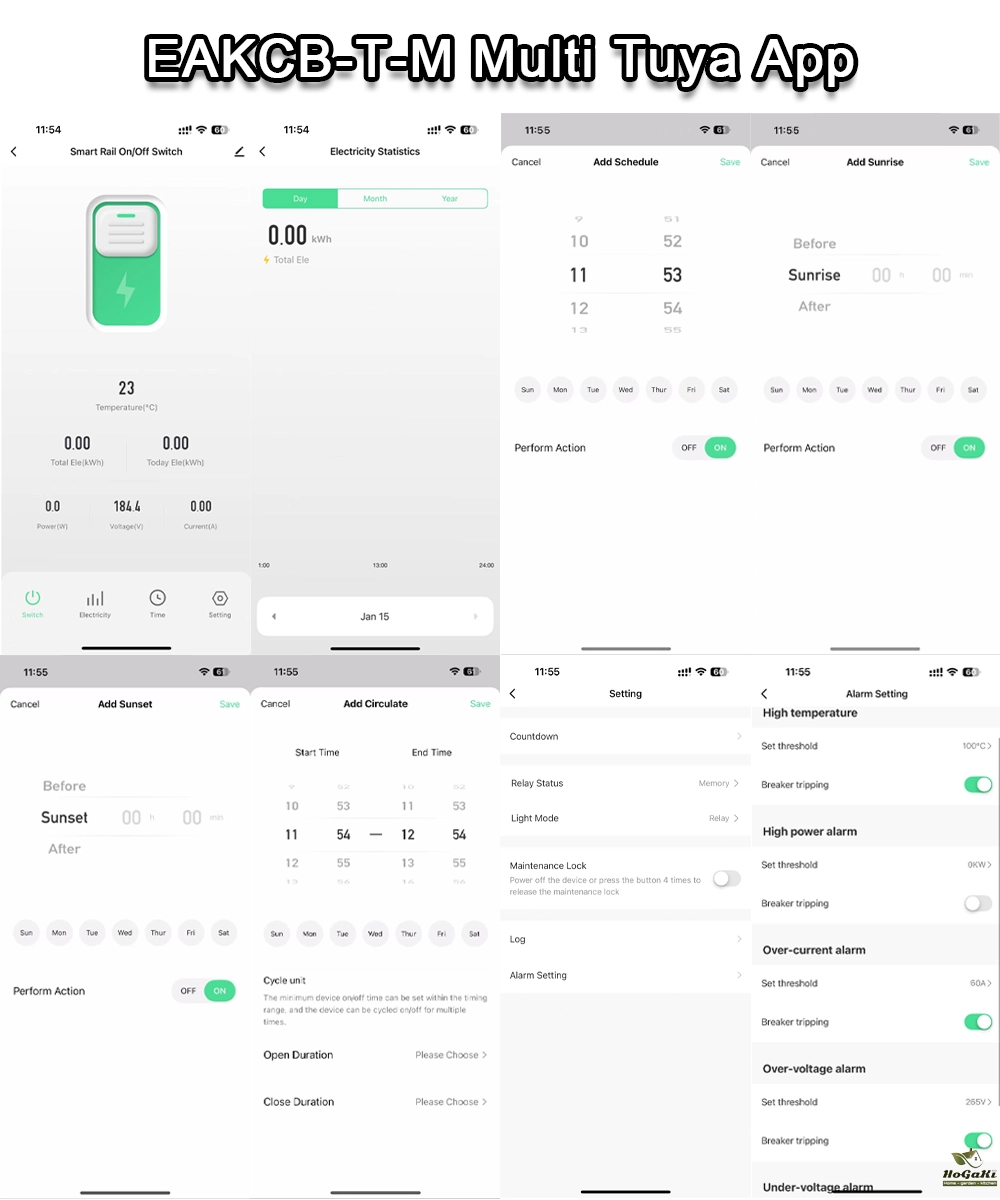

Tuya Multi Functions:
1.Current Litmit(1A-63A Adjustable)
2.Power Limit(1KW-26KW Adjustable)
3.Over-Voltage Protection(220V-265V Adjustable)
4.Under-Voltage Protection(76V-240V Adjustable)
5.Temperature Protection(40℃-150℃ Adjustable)

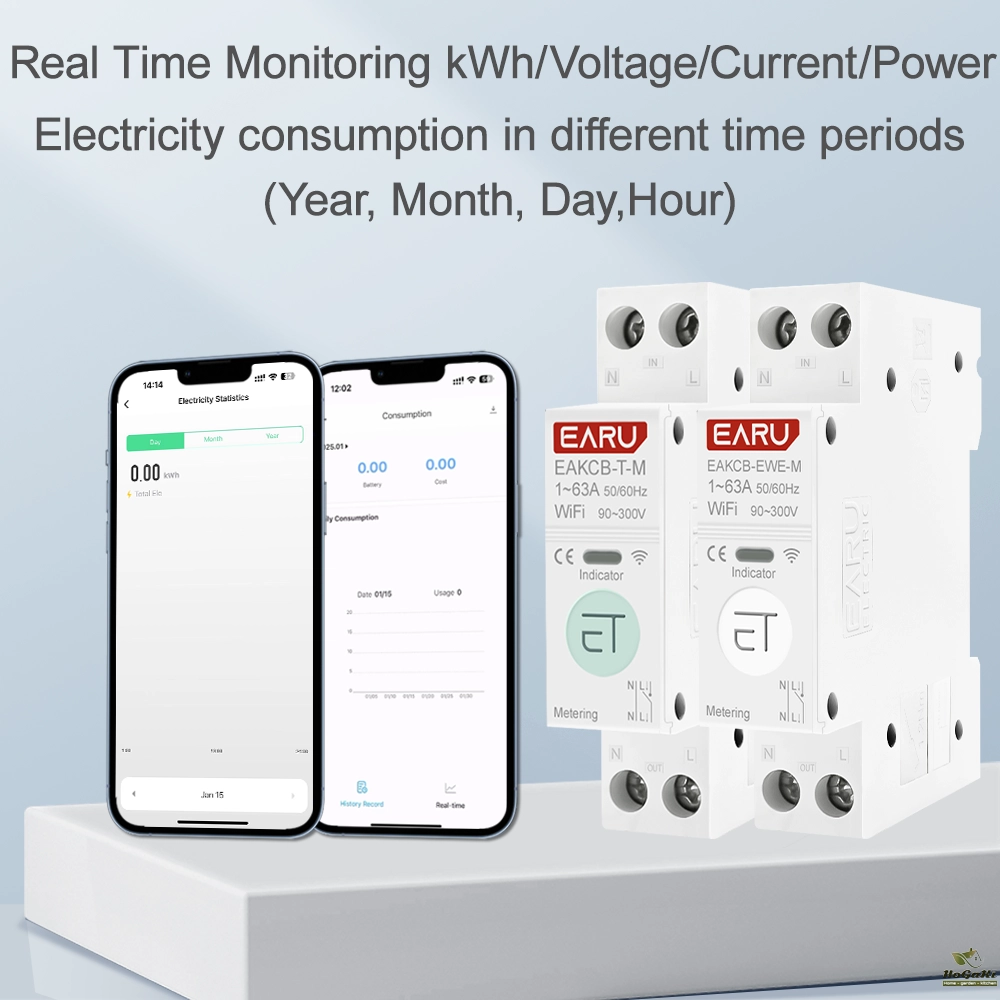

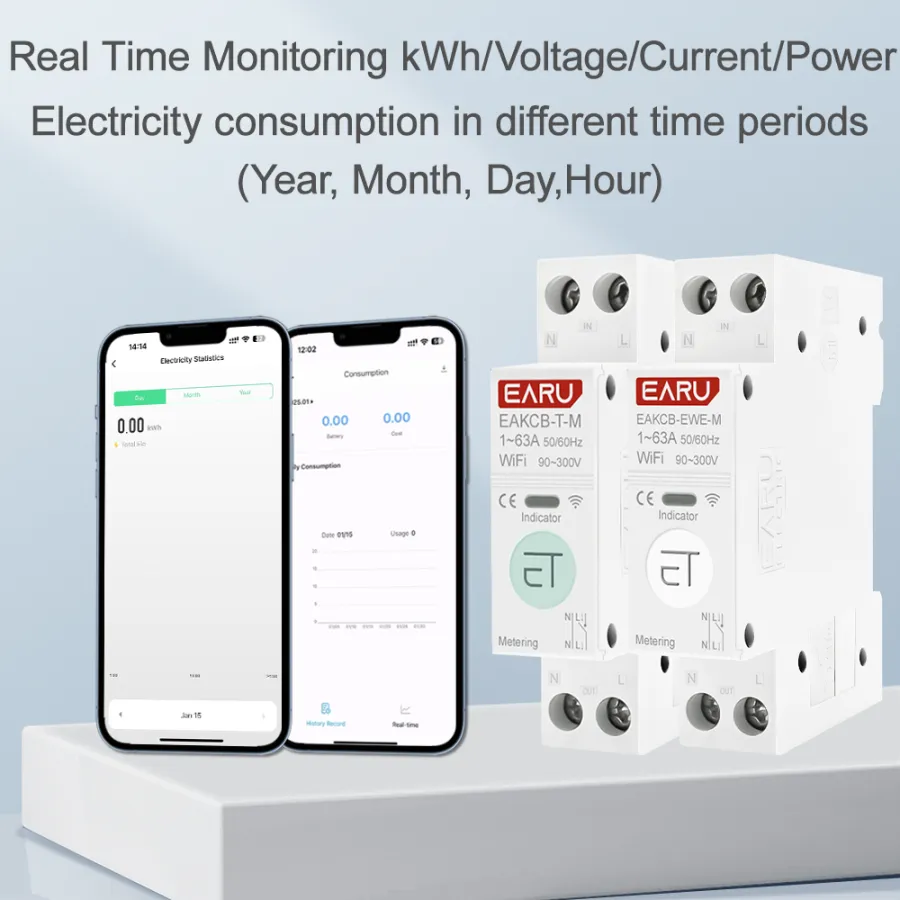

6.Energy Monitor
7.Timer Switch
8.Remote Control ON/OFF
9.Power Failure Memory

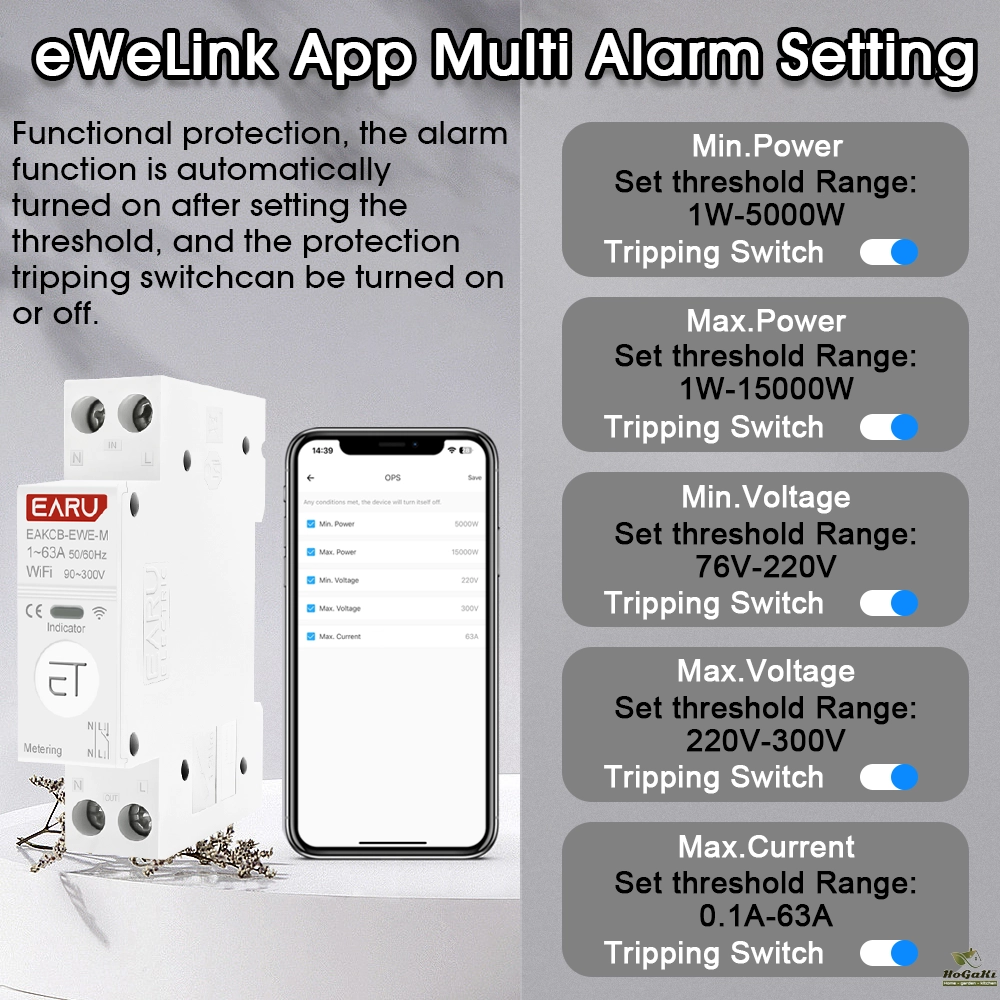

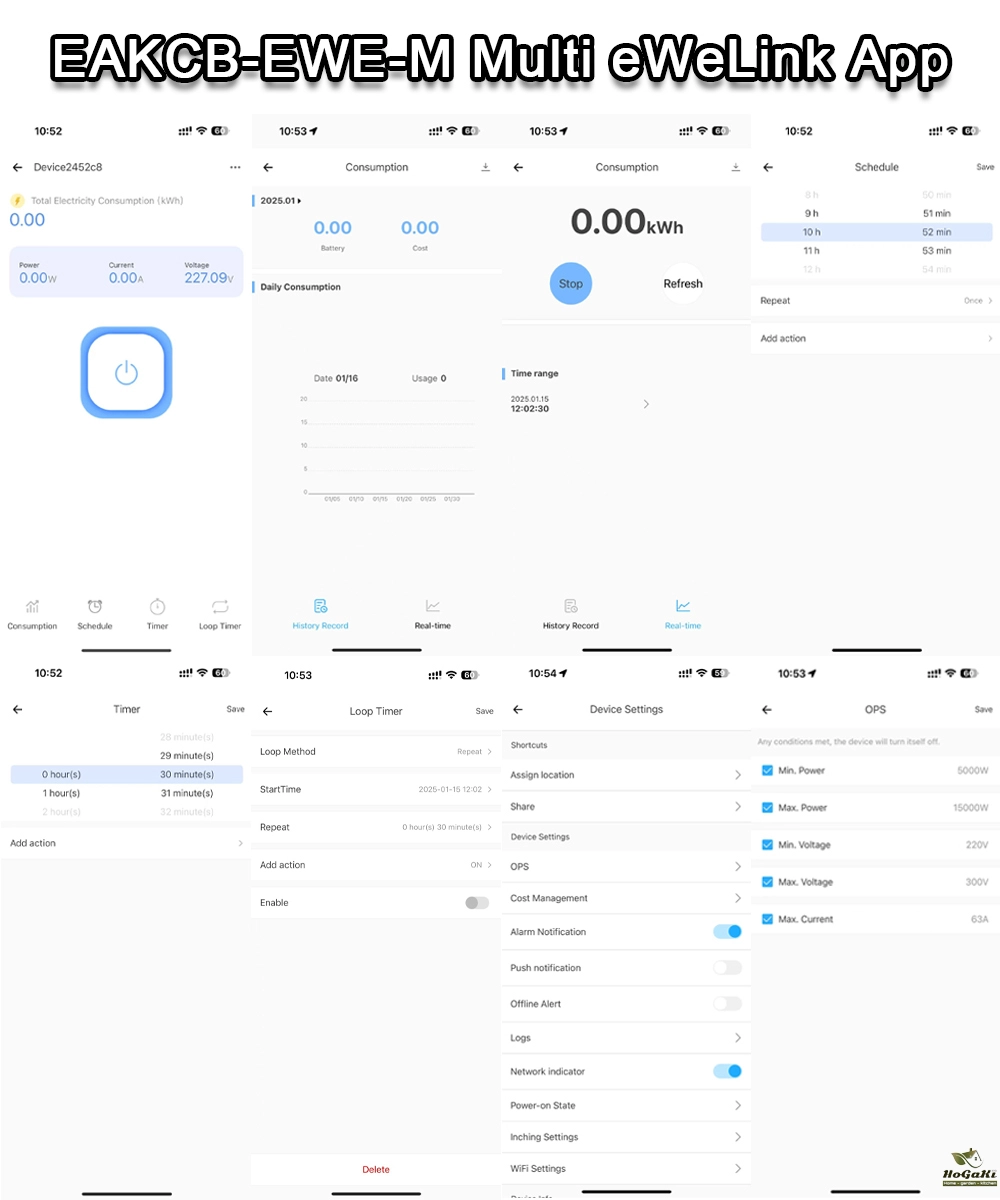

eWeLink Multi Functions:
1.Current Litmit(1A-63A Adjustable)
2.Min.Power(1W-5000W Adjustable)
3.Max.Power(1W-15000W Adjustable)
4.Min.Voltage(76V-220V Adjustable)
5.Max.Voltage(220V-300V Adjustable)
6.Energy Monitor
7.Timer Switch
8.Remote Control ON/OFF
9.Power Failure Memory

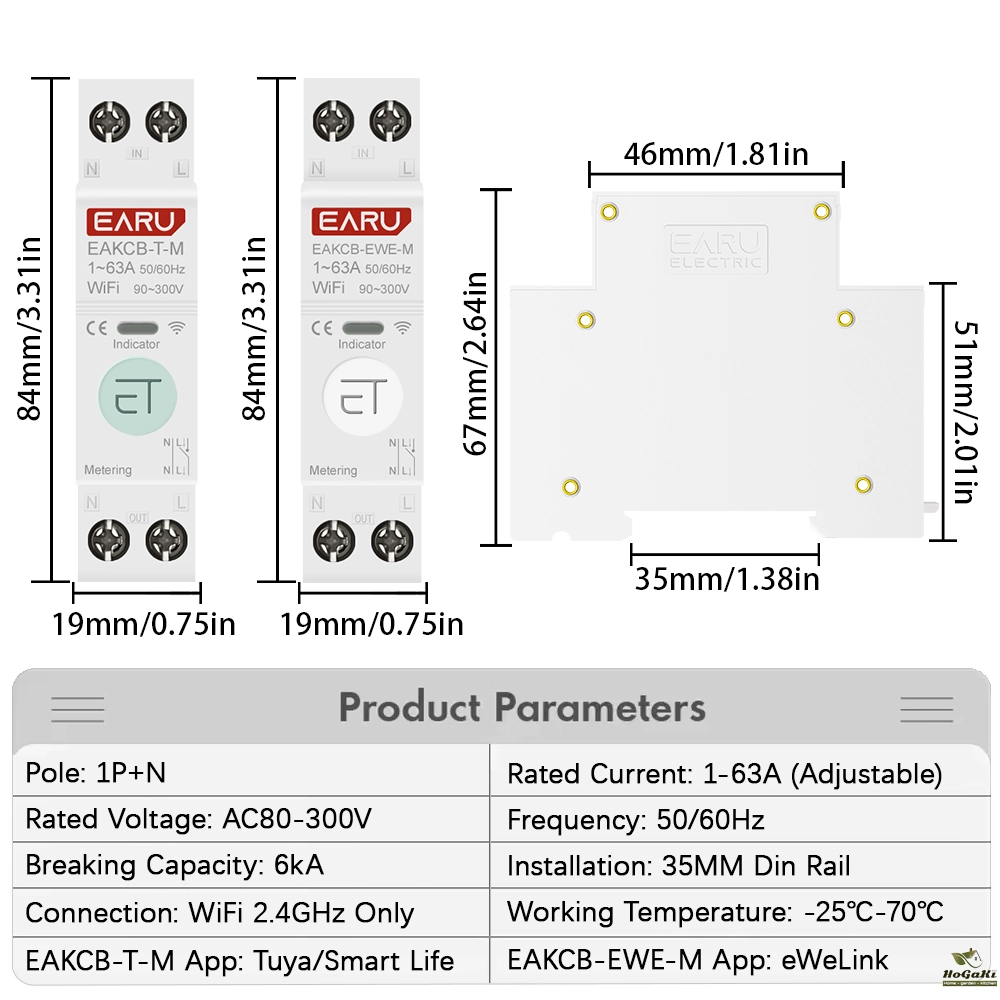

Specificaions:

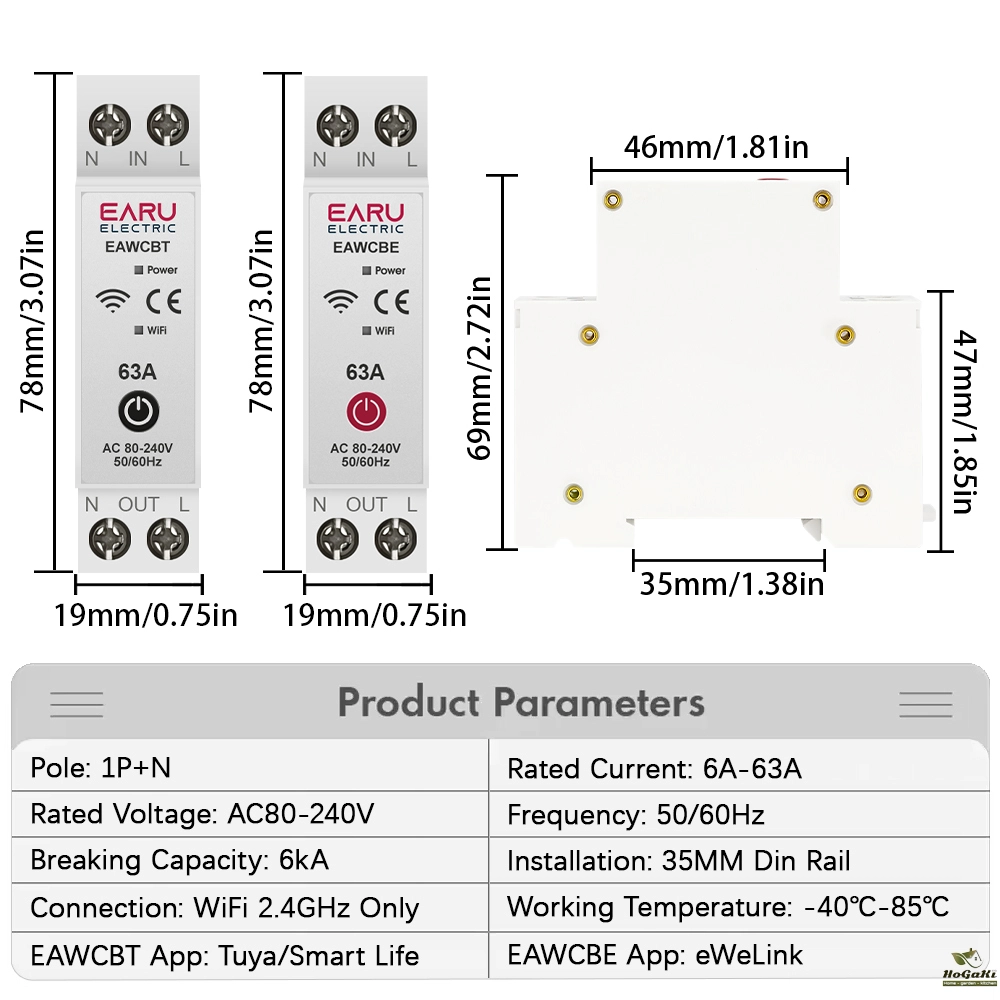

Tuya/eWeLink Single Working Voltage: AC80V-240V, 50/60Hz
Tuya/eWeLink Multi Working Voltage: AC80V-300V, 50/60Hz
Wireless Type: Wi-Fi 2.4GHz Only，5GHz Not Support
Support System: Android/IOS

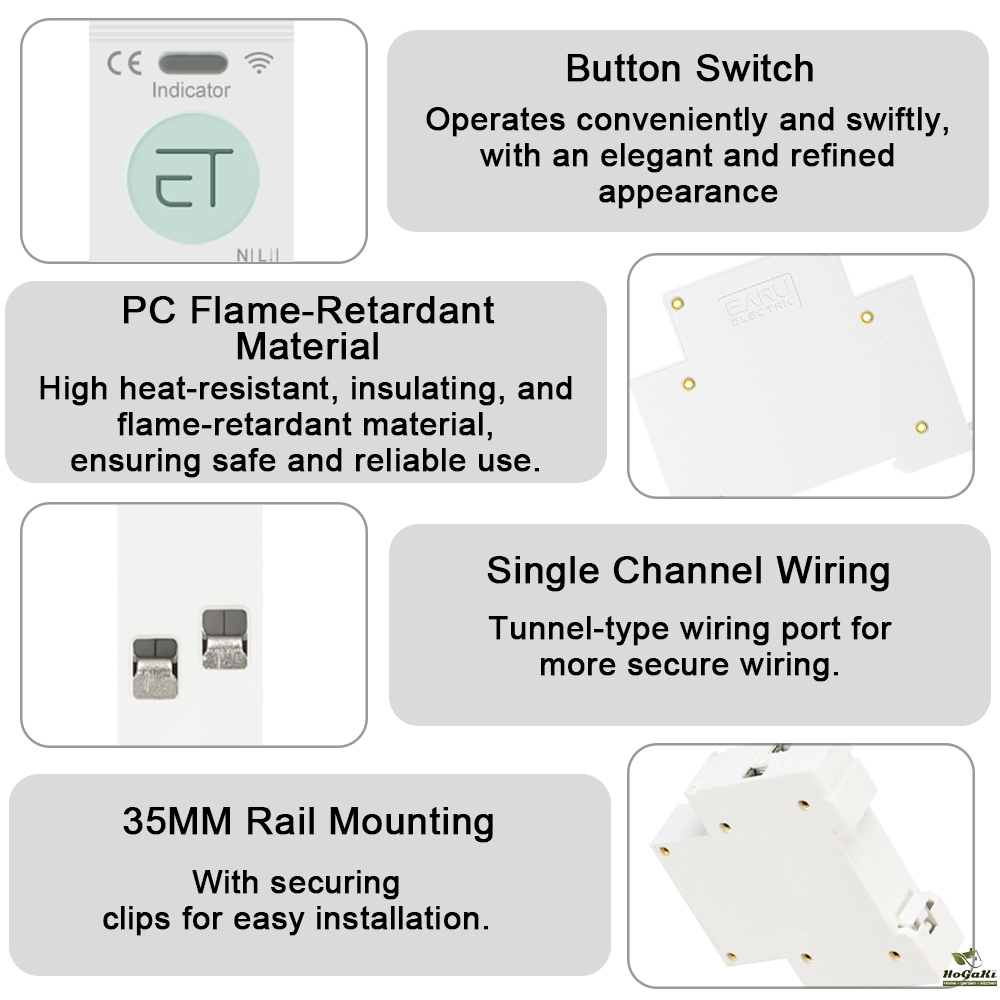

Installation: 35MM Din Rail
Mechanical Life: Over 100000Times ON/OFF Switch
Voice Control by Amazon Alexa Echo/Google Assistant
Packaging Details
- Unit Type:
- Package Weight: 0.120
- Package Size: 1x1x1
- Brand Name: EARUELETRIC
- Hign-concerned Chemical: None
- Type: Mini
- Origin: Mainland China
- Rated Voltage: 220V
- is_customized: Yes
- Type: Circuit breaker

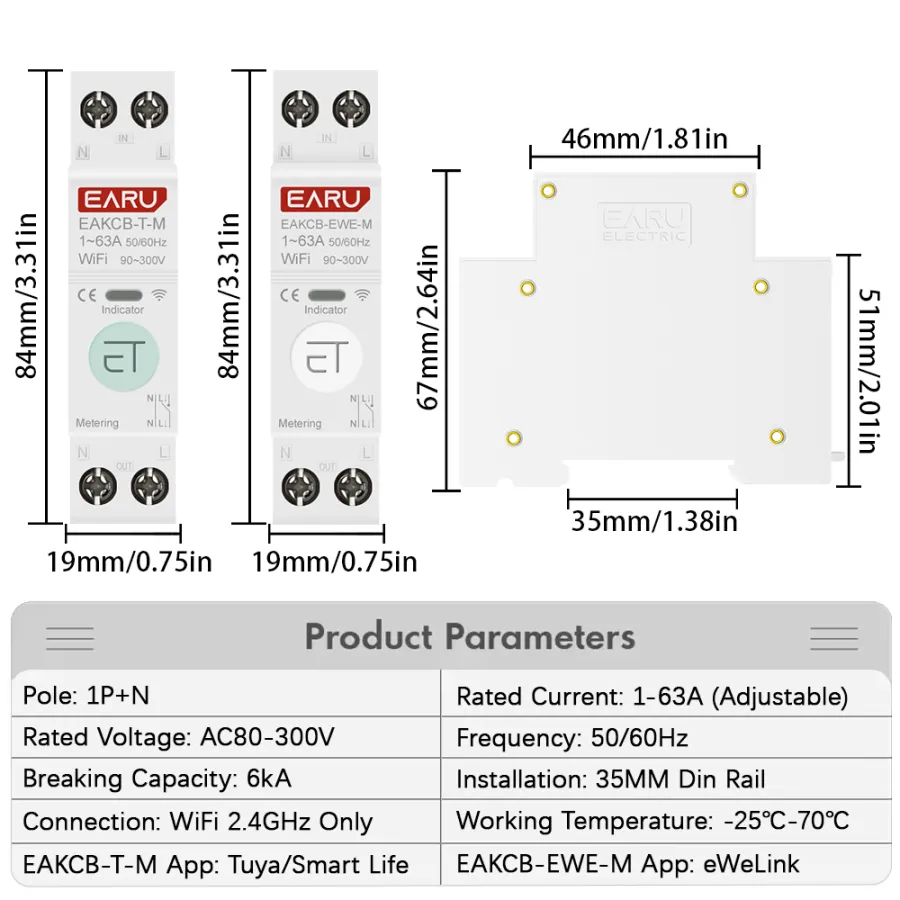

- Model Number: EAKCB-T-M
- Is Smart Device: Yes
- Certification: CE
- Certification: FCC
- Working Voltage: AC80-300V
- Rated Current: 1-63A (Adjustable)
- Tuya Temperature Protection: 40℃-150℃(Adjustable)
- Tuya Power Protection: 1-26KW(Adjustable)
- Tuya Under-Voltage Protection: 76-240V(Adjustable)
- Tuya Over-Under Protection: 220-265V(Adjustable)
- eWeLink Min.Power: 1~5000W (Adjustable)
- eWeLink Max.Power: 1~15000W (Adjustable)
- eWeLink Min.Voltage: 76-220V(Adjustable)
- eWeLink Max.Voltage: 220-300V (Adjustable)
- Frequency: 50/60Hz

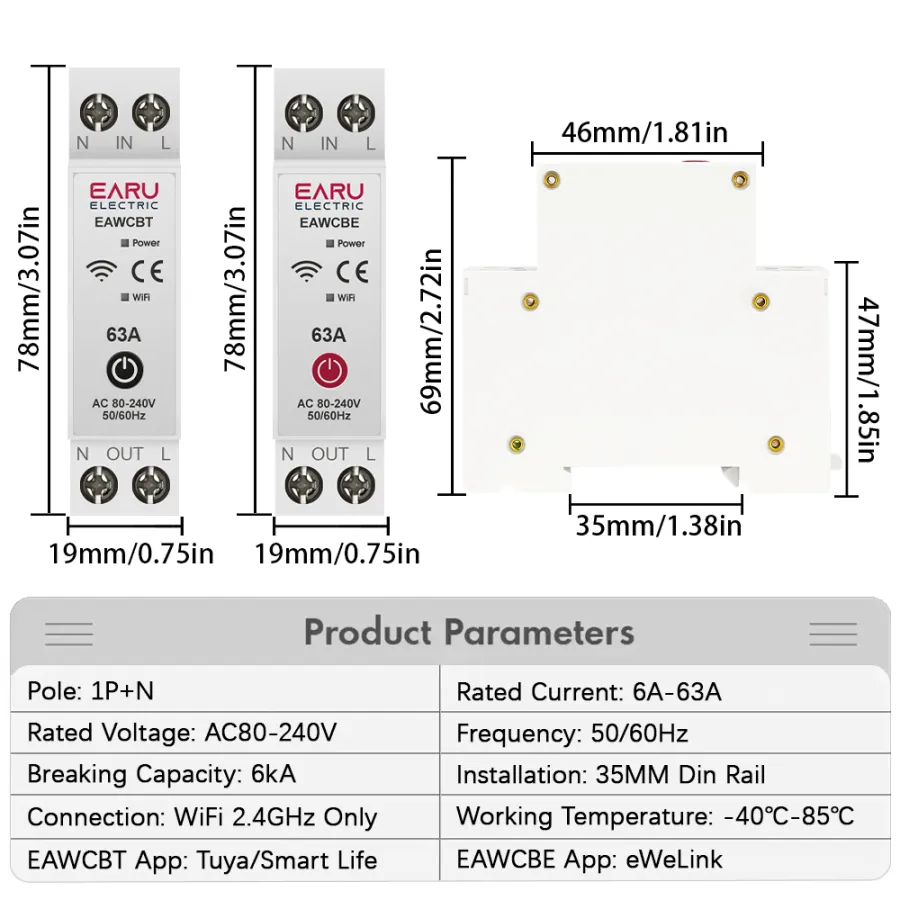

- Model 1: EAWCBT/EAWCBE
- Model 2: EAKCB-EWE-M
- Mechanical Life: Over 100000 Times
- App 1: Tuya&Smart Life
- App 2: eWeLink
- Installation: 35MM Din Rail
- Fuction 1: On/Off Switch
- Fuction 2: Timer Relay Switch
- Fuction 3: Voltmeter
- Fuction 4: Ammeter
- Fuction 5: Power Meter
- Fuction 6: Current Limit
- Fuction 7: Share
- Fuction 8: Voice Control
- Fuction 9: Power Failure Memory
- Fuction 10: Temperature Protection
- Protocol: WiFi 2.4GHz Only
- Choice: yes
- semi_Choice: yes
