ANENG 681/682/683 Pro 6000 Count Rechargable Digital Multimeter Non-contact Voltage Tester Current Meter Electric Measuring Tool
4.9 (1591 votes) | 5000 orders
Price:
US $86.76 - 121.40
Discount Price:
US $
45.79 -
54.34
-47%
- Color
-
-

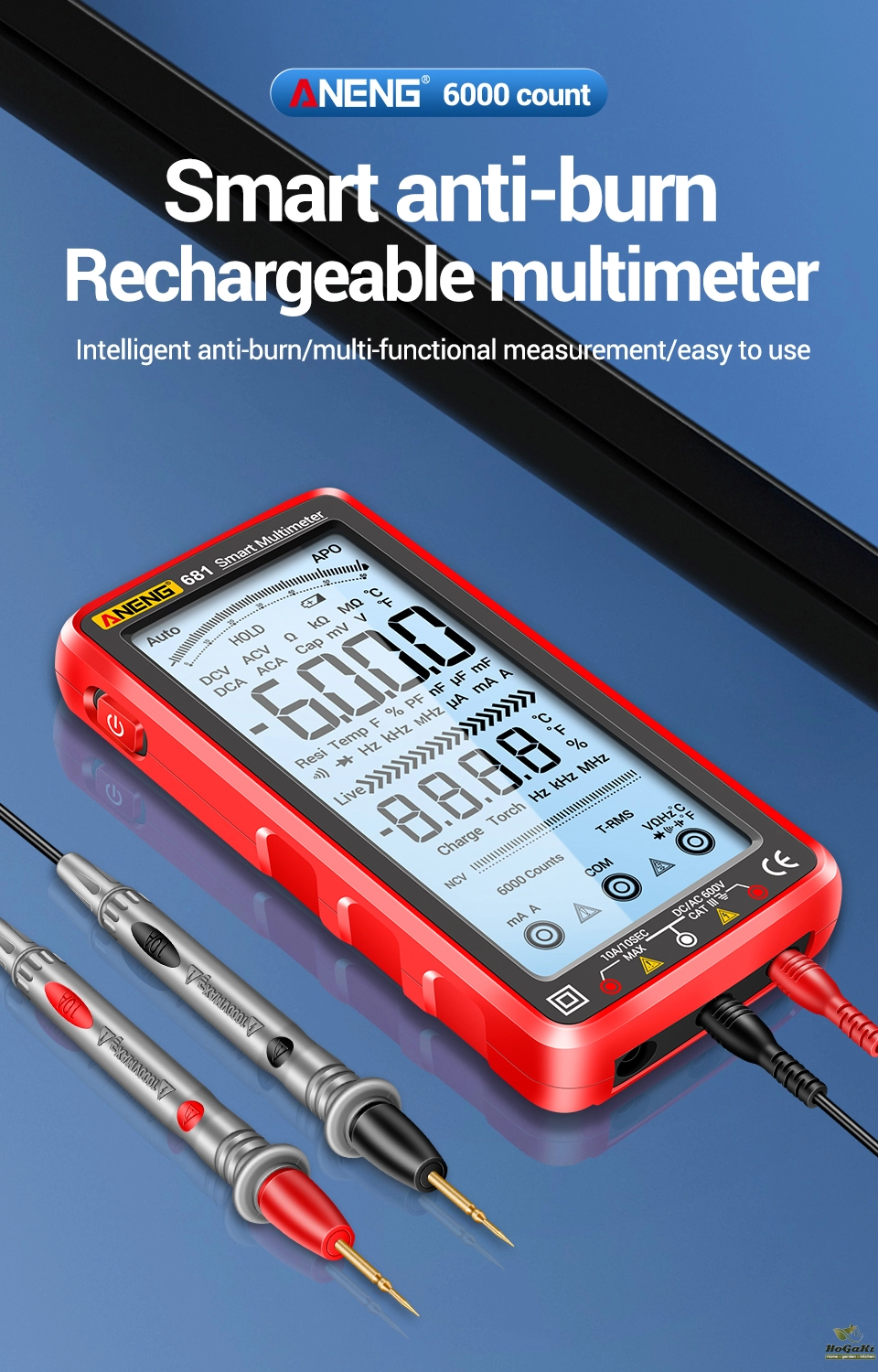

ANENG 681 / 682 / 683 Touch Screen Backlight Sheath Digital Rechargeable Multimeter
6000 Counts Intelligent AC DC Voltage Current Multímetro Test Tools
6000 Counts Intelligent AC DC Voltage Current Multímetro Test Tools
NOTE:

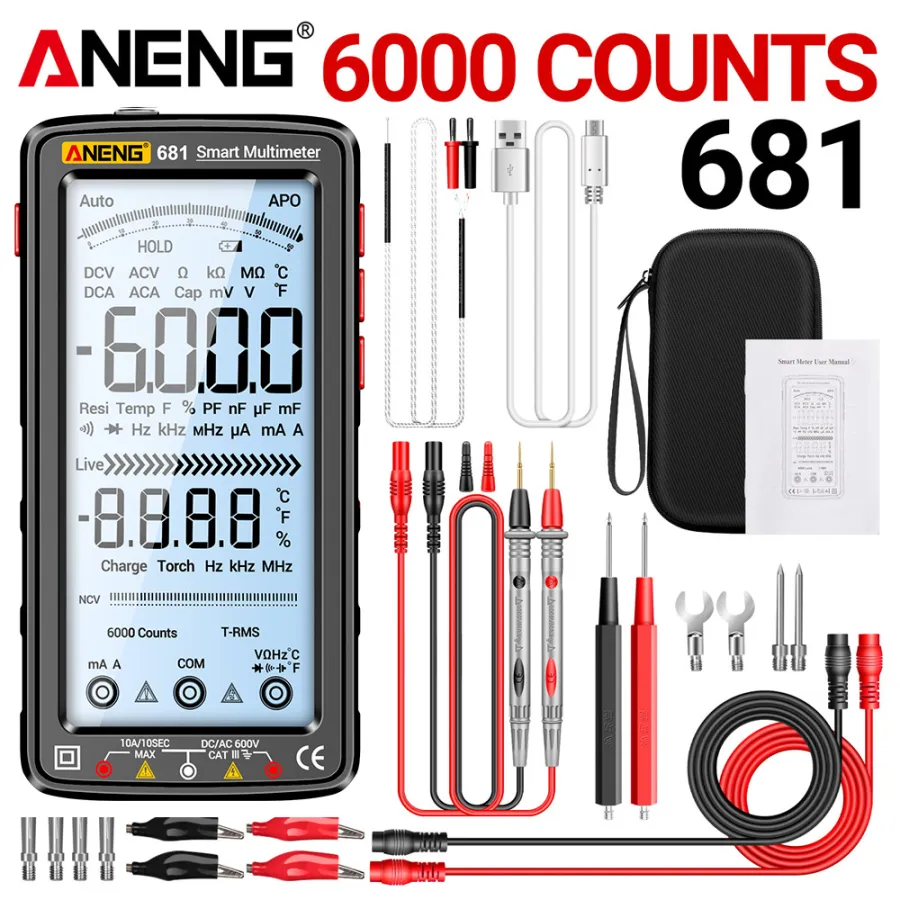

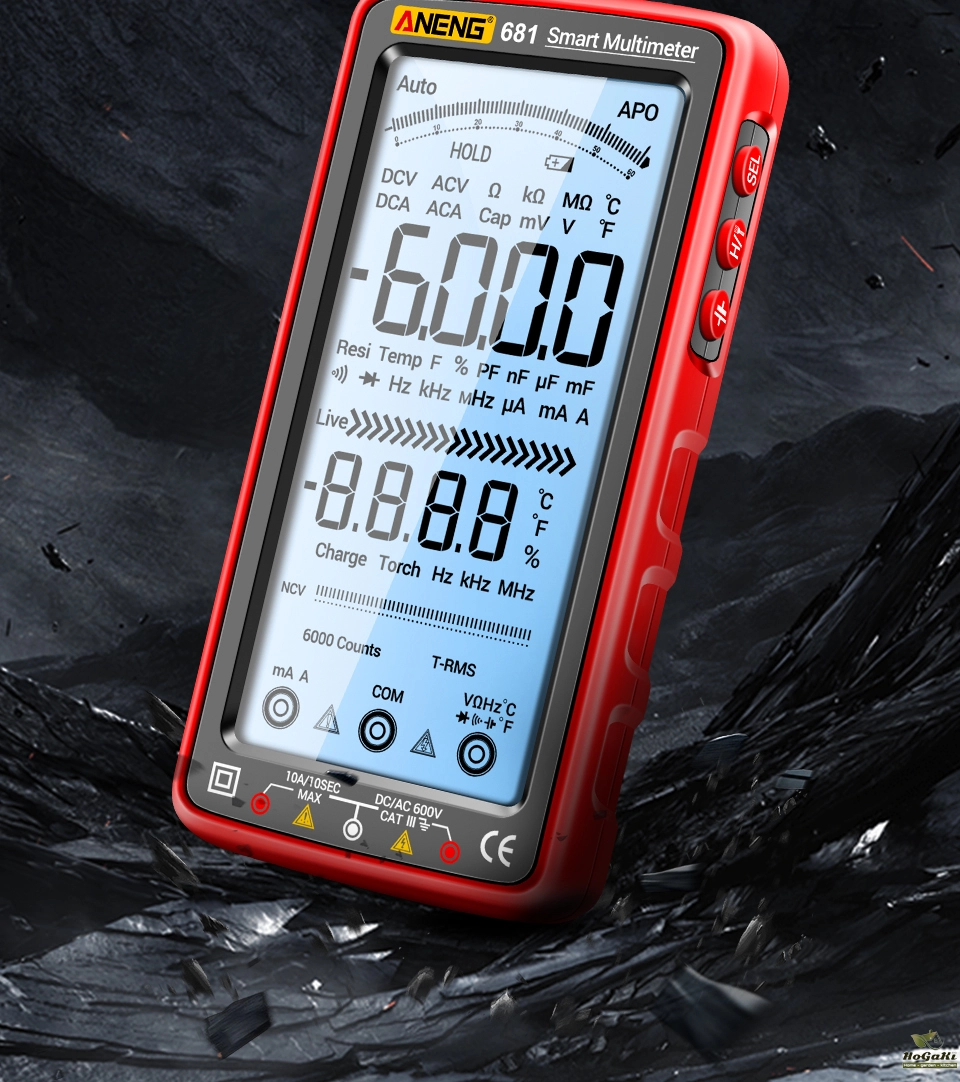

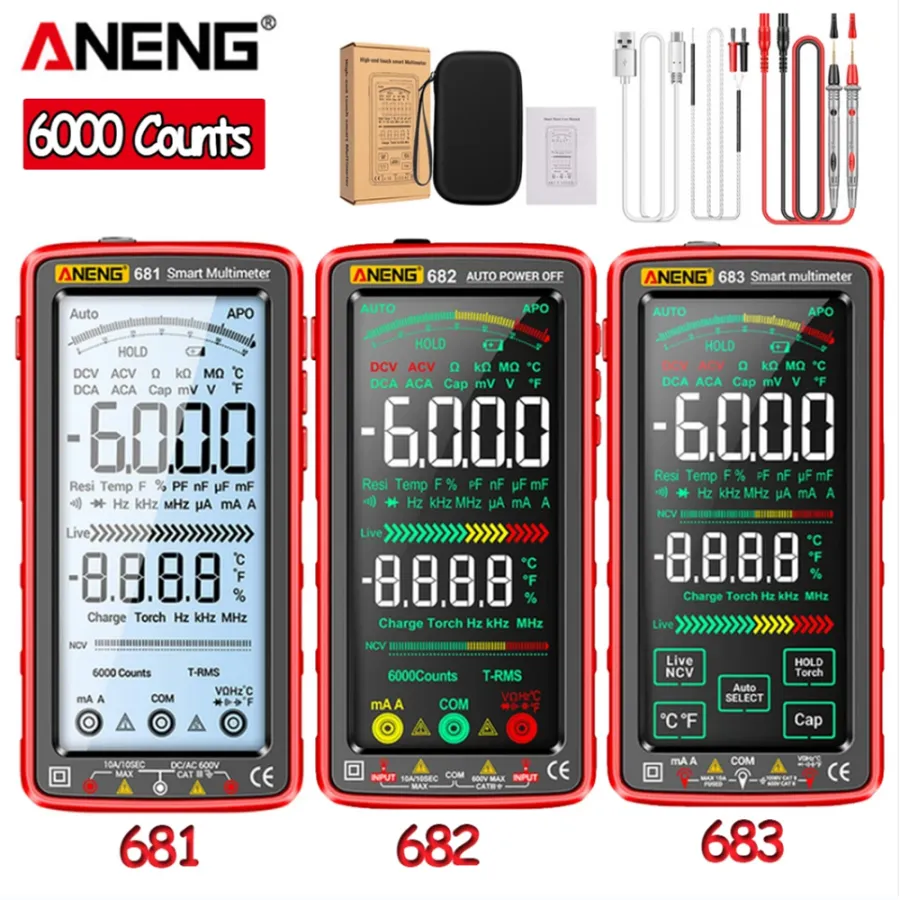

681 is a large LCD screen.

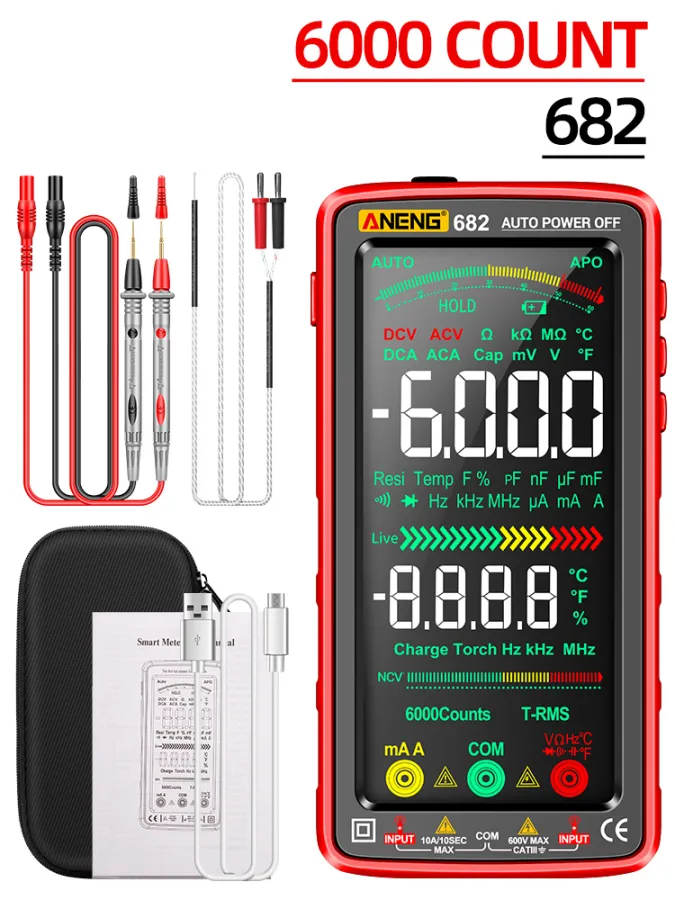

682 is VA color large screen.

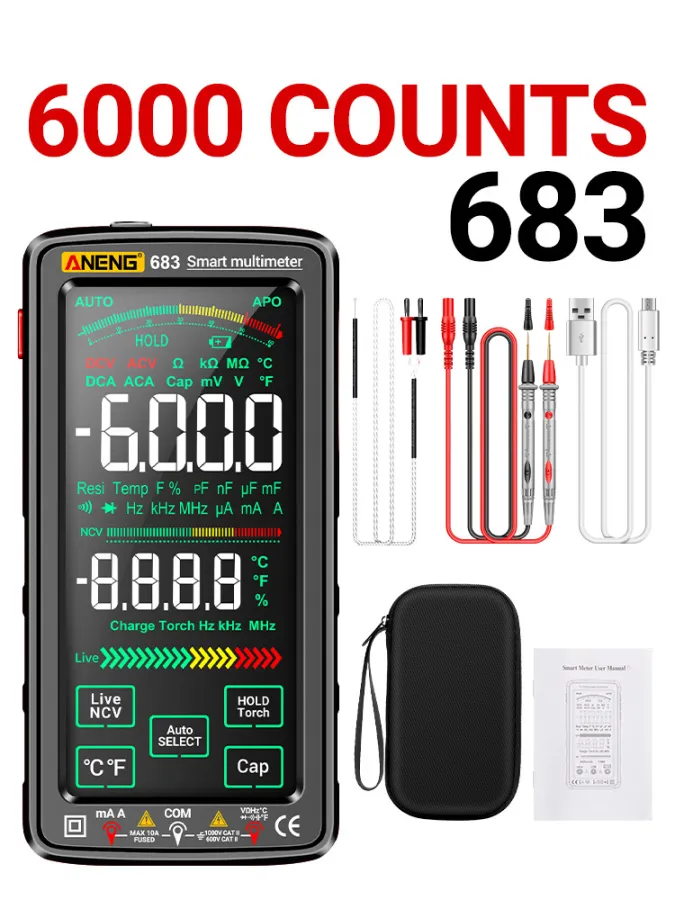

683 is a large touch screen.
Description:
This product is a 3 5/6 digital multimeter with stable performance and reliable quality. The meter adopts LCD display screen with analog bar display.
681/682/683 is a 6000 count pocket type true effective value automatic scanning digital meter.
681/682/683 automatically recognizes and measures according to the different input voltage/current/resistance/etc.signals.
681/682/683 has the characteristics of stable performance, high precision and clear reading.
681/682/683 also has additional convenient functions of flashlight test.
681/682/683 is an ideal tool and instrument suitable for factories, teaching and electronic enthusiasts.
Features:
681 is a large LCD screen.
682 is VA color large screen.
683 is a large touch screen.
Description:
This product is a 3 5/6 digital multimeter with stable performance and reliable quality. The meter adopts LCD display screen with analog bar display.
681/682/683 is a 6000 count pocket type true effective value automatic scanning digital meter.
681/682/683 automatically recognizes and measures according to the different input voltage/current/resistance/etc.signals.
681/682/683 has the characteristics of stable performance, high precision and clear reading.
681/682/683 also has additional convenient functions of flashlight test.
681/682/683 is an ideal tool and instrument suitable for factories, teaching and electronic enthusiasts.
Features:

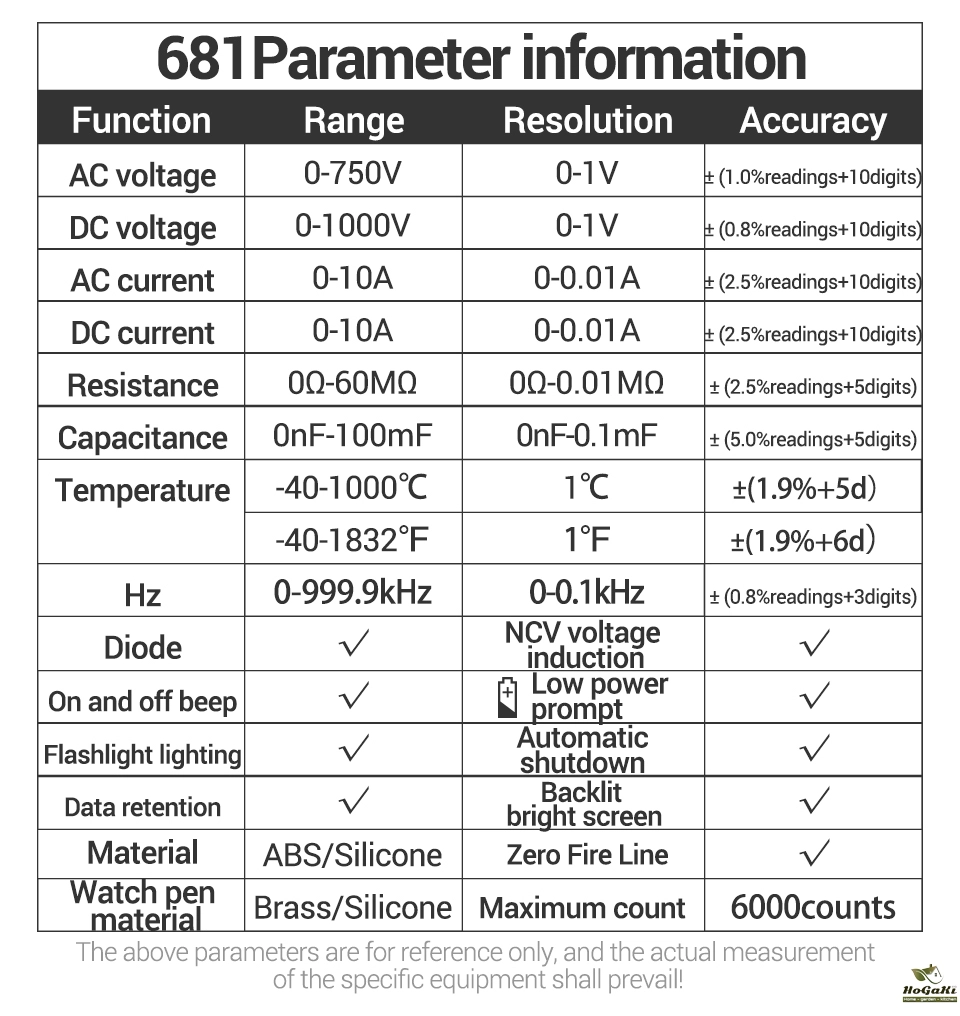

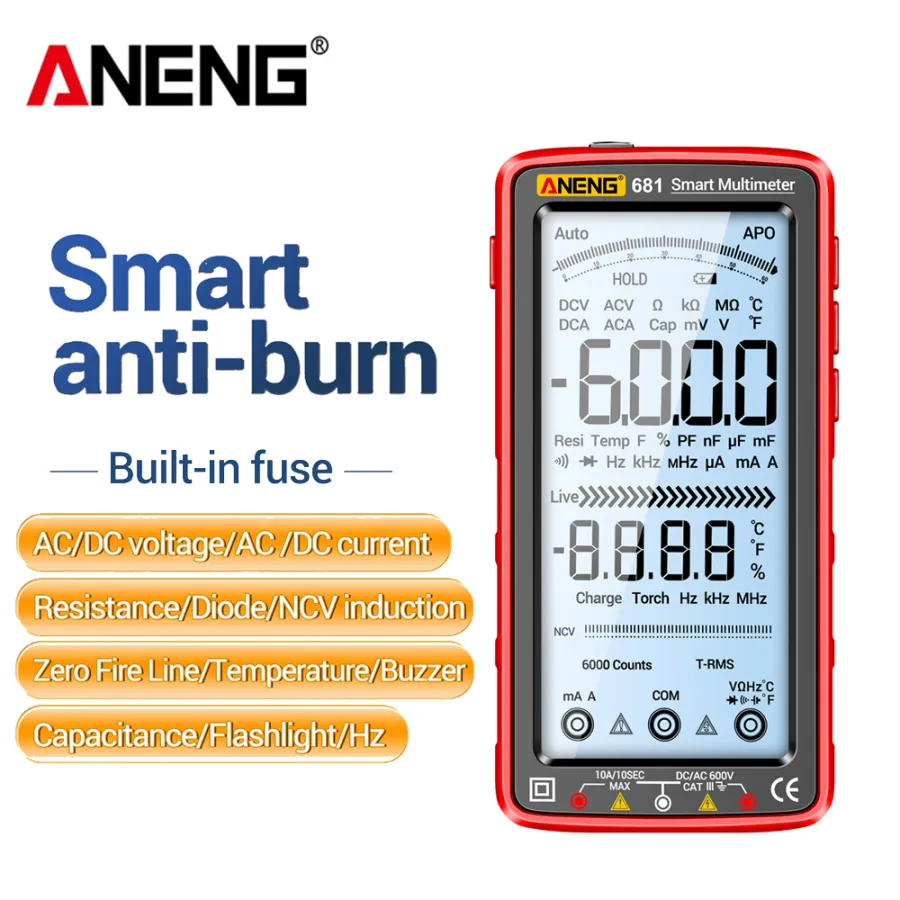

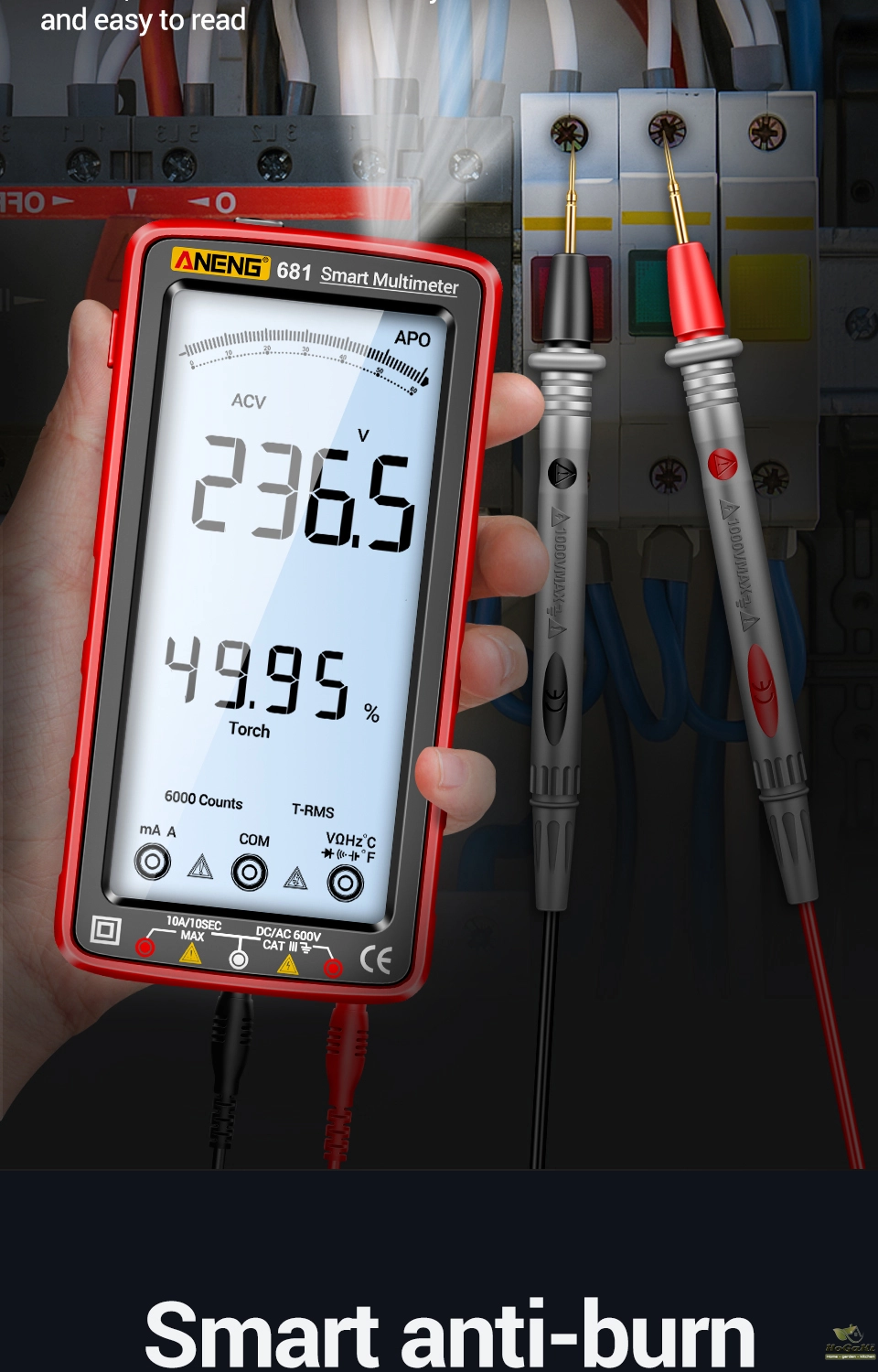

681 | |||
Function | Range | Resolution | Accuracy |
DC voltage | 0~1000V | 0~1V | ±(0.8%+10) |
AC voltage | 0~750V | 0~1V | ±(1.0%+10) |
AC current | 0~10A | 0~0.01A | ±(2.5%+10) |
DC current | 0~10A | 0~0.01A | ±(2.5%+10) |
Capacitance | 0nF~100mF | 0nF~0.1mF | ±(5.0%+5) |
Resistance | 0Ω~60MΩ | 0Ω~0.01MΩ | ±(2.5%+5) |
Temperature ℃ | -40 ℃~1000℃ | 1℃ | ±(1.9%+5d) |
Temperature °F | -40°F~1832 °F | 1°F | ±(1.9%+6d) |
Hz | 0-999.9 kHz | 0~0.1 kHz | ±(0.8%+3d) |
Diode | √ | NCV voltage induction | √ |
On-Off beep | √ | Low power prompt | √ |
Auto shut-down | √ | Flashlight | √ |
Keep data | √ | Backlit bright screen | √ |
Material | ABS/ Silicone | Zero Fire | √ |
Watch pen material | Brass/Silicone | Silicone sheath | √ |
Charging line | √ | With a stylus | √ |
Test leads | according to the choose | Temperature line | √ |
Model | 681 | Max Count | 6000 Counts |

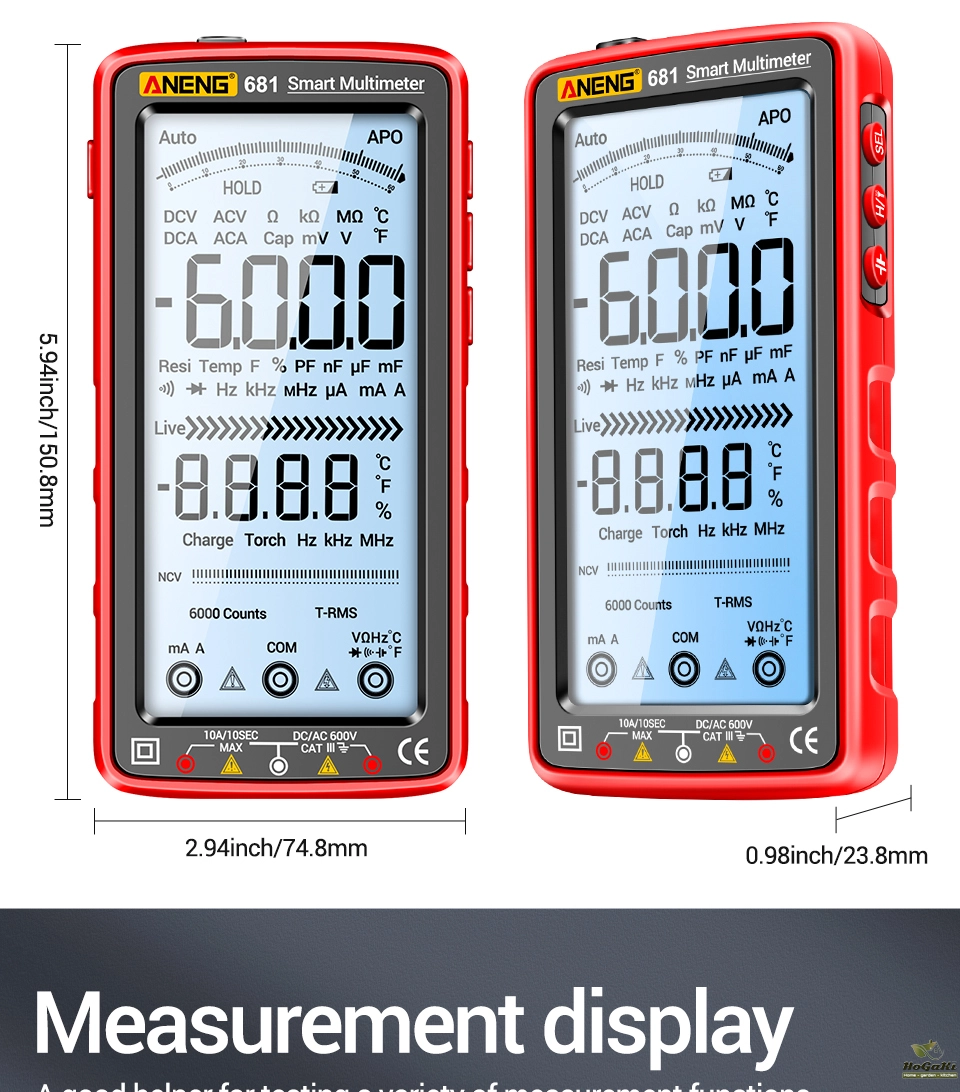

Product Size | 150.8*74.8*23.8 mm/5.94*2.94*0.98 inch | ||

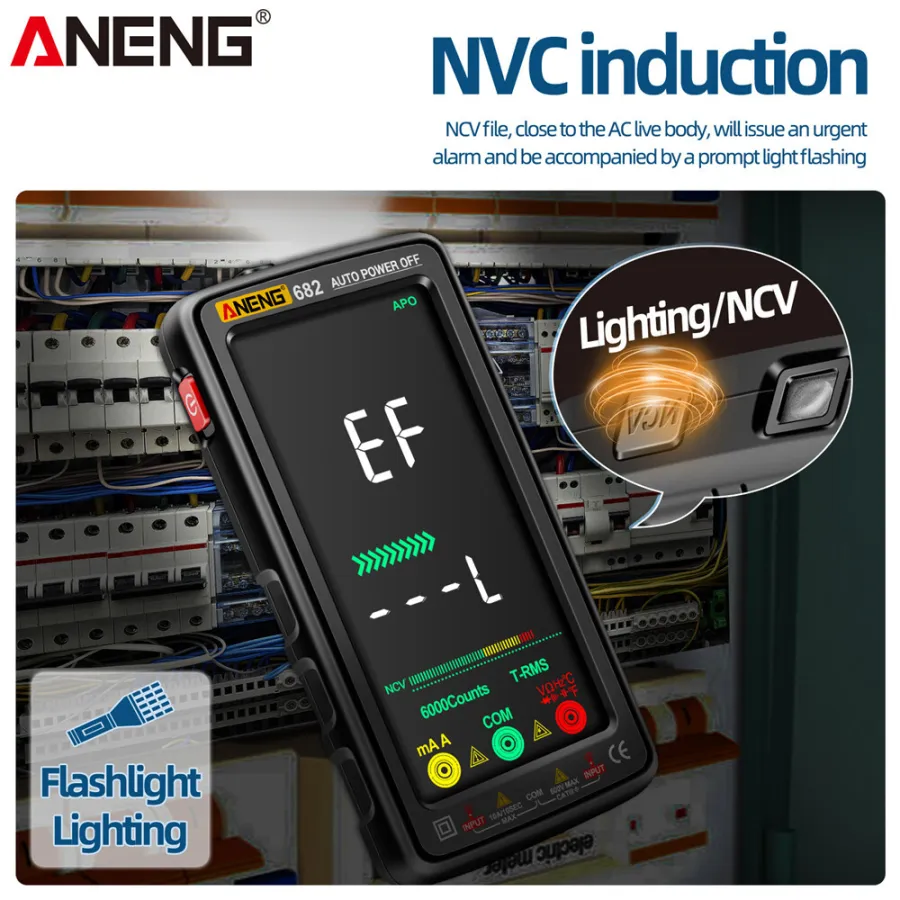

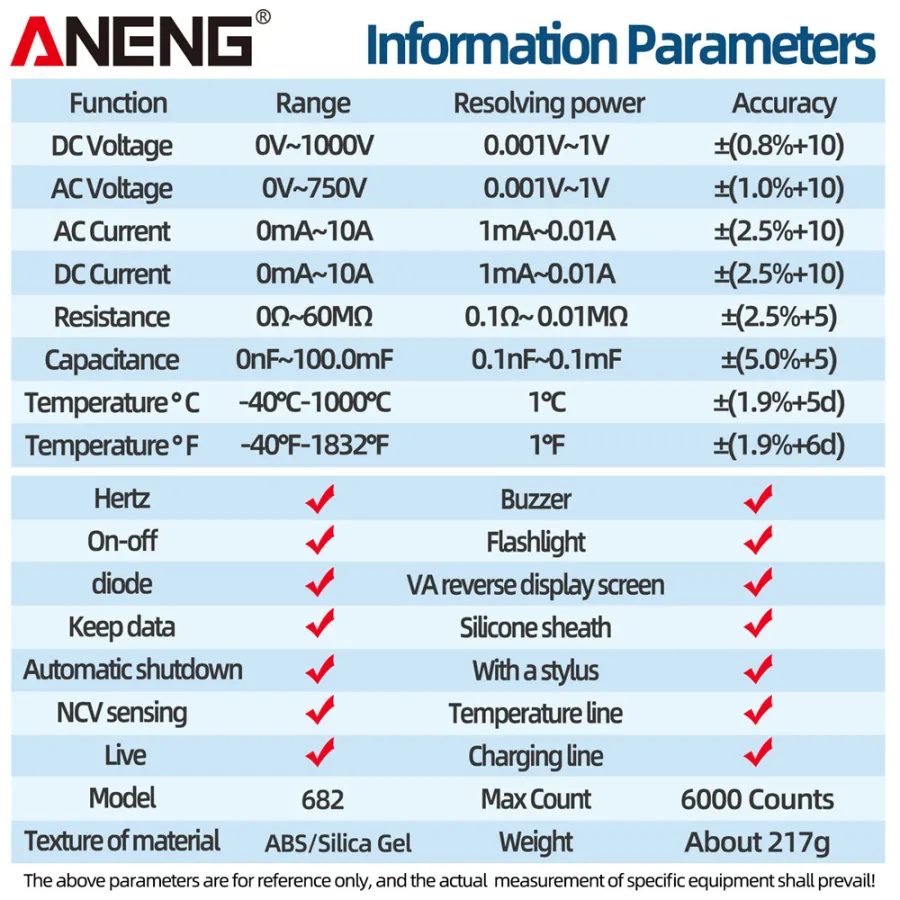

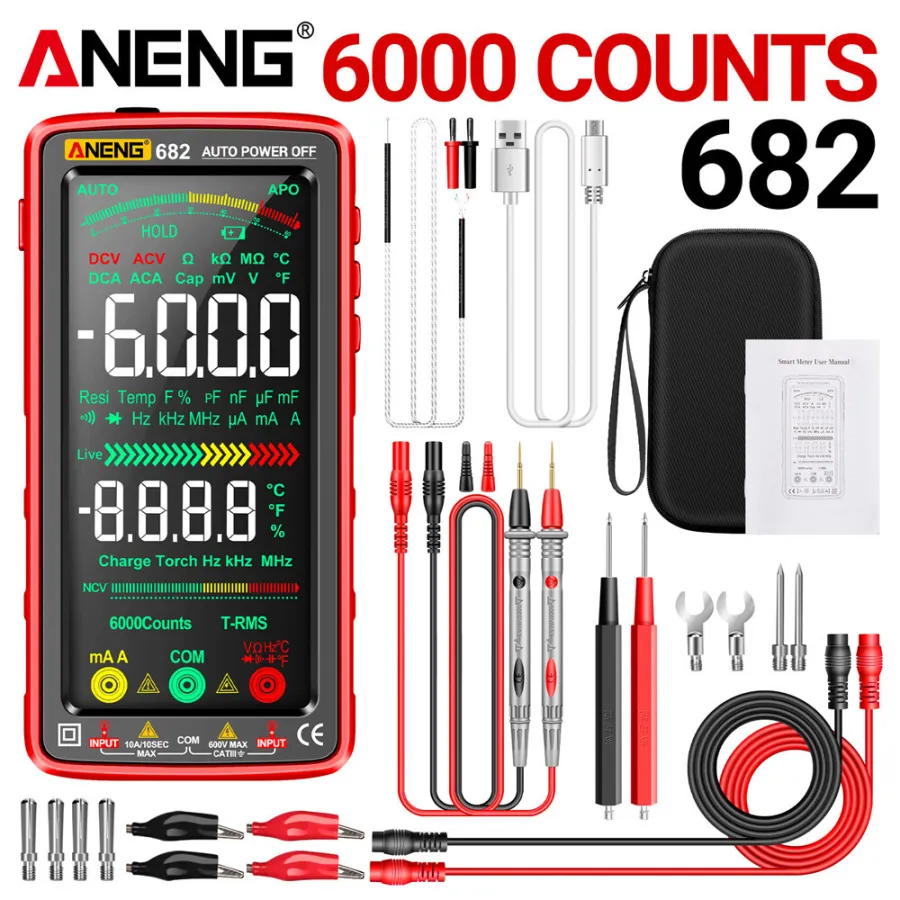

682 | |||
Function | Range | Resolving power | Accuracy |
DC voltage | 0V~1000V | 0.001V~1V | ±(0.8%+10) |
AC voltage | 0V~750V | 0.001V~1V | ±(1.0%+10) |
AC current | 0mA~10A | 1mA~0.01A | ±(2.5%+10) |
DC current | 0mA~10A | 1mA~0.01A | ±(2.5%+10) |
Capacitance | 0nF~100mF | 0.1nF~0.1mF | ±(5.0%+5) |
Resistance | 0~60MΩ | 0.1Ω~0.01MΩ | ±(2.5%+5) |
Temperature ℃ | -40 ℃~1000℃ | 1℃ | ±(1.9%+5d) |
Temperature °F | -40°F~1832 °F | 1°F | ±(1.9%+6d) |
Hertz | √ | Buzzer | √ |
On-Off | √ | Flashlight | √ |
Diode | √ | VA reverse display screen | √ |
Keep data | √ | Silicone sheath | √ |
Auto shut-down | √ | With a stylus | √ |
NCV sensing | √ | Temperature line | √ |
Live Zero Fire | √ | Charging line | √ |
Model | 682 | Max Count | 6000 Counts |
Texture of material | ABS/ Silica Gel | Weight | About 217g |
Product Size | 152*76*25 mm/5.98*2.99*0.98 in | ||

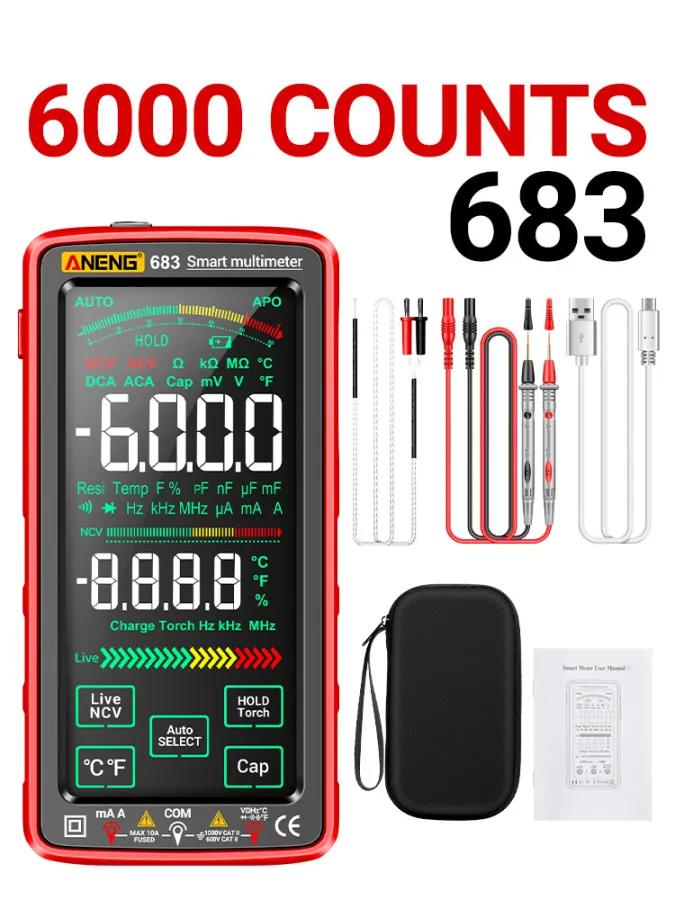

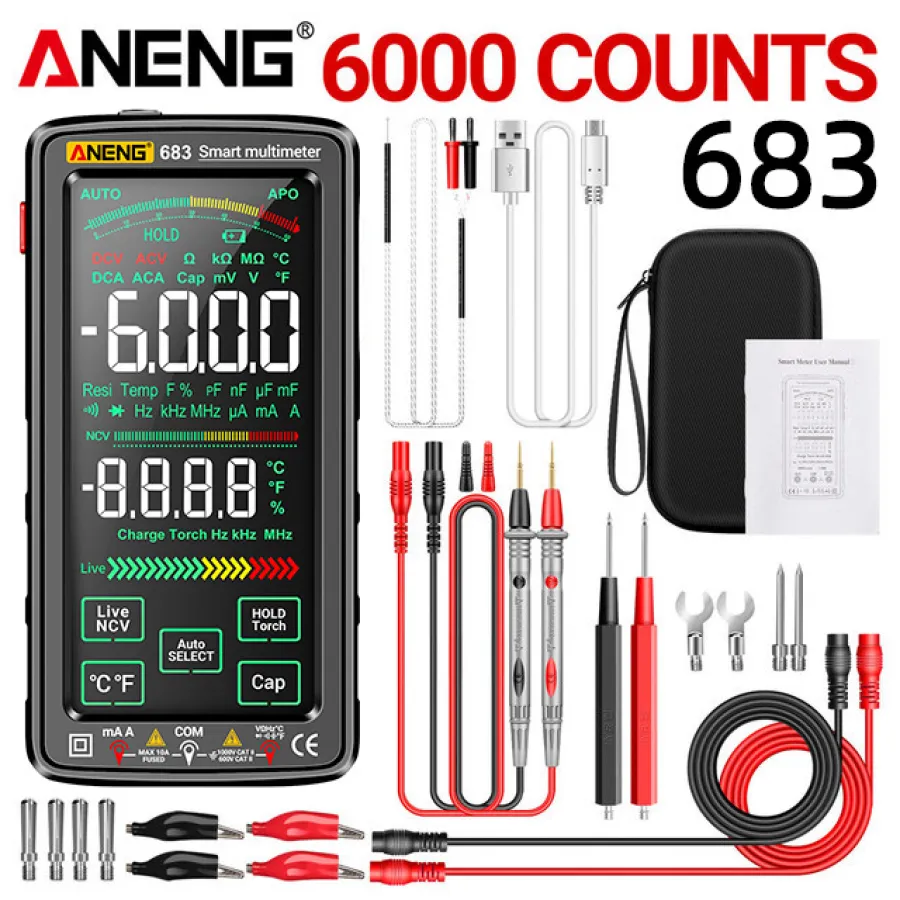

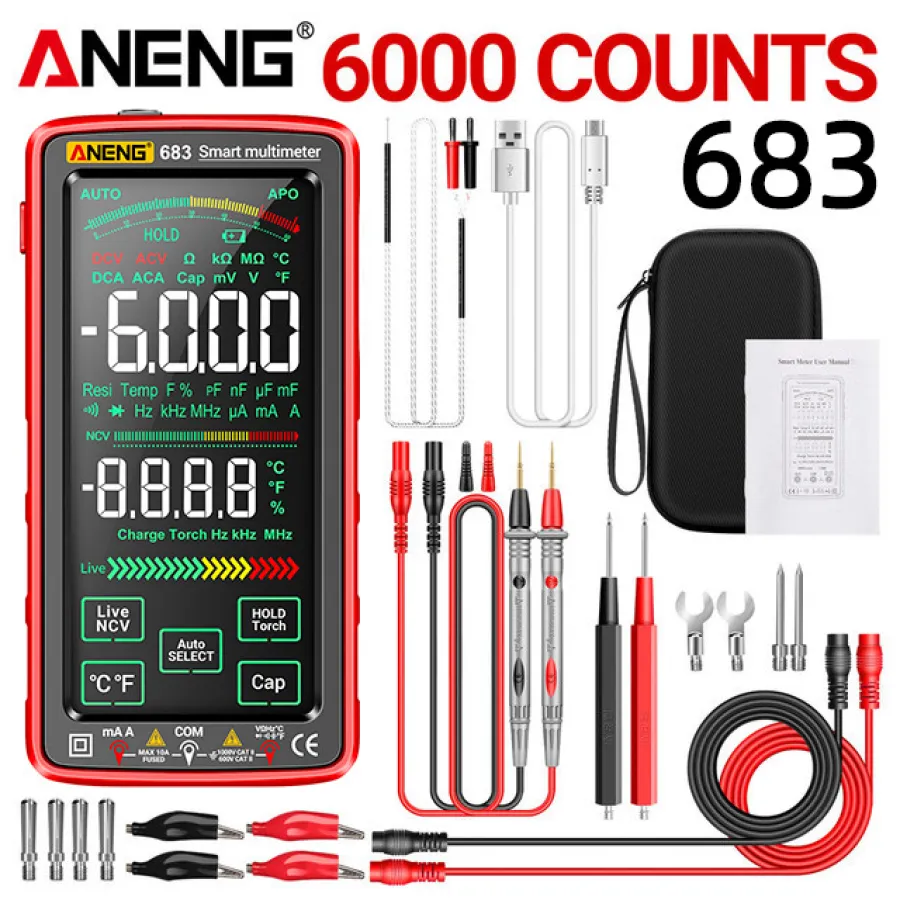

683 | |||
Function | Range | Resolution | Accuracy |
AC voltage | 0V-750V | 0.001V-1.0V | ±(1.0%+10d) |
DC voltage | 0V-1000V | 0.001V-1.0V | ±(0.8%+10d) |
AC current | 0mA-10A | 1mA-0.01A | ±(2.5%+10d) |
DC current | 0mA-10A | 1mA-0.01A | ±(2.5%+10d) |
Resistance | 0Ω-60MΩ | 0.1Ω-0.01MΩ | ±(2.5%+5d) |
Capacitance | 0nF-100mF | 0.01nF-0.1mF | ±(5.0%+5d) |
Hz | 0Hz-999.9kHz | 0.001Hz-0.1kHz | ±(0.8%+3d) |
Temperature | -40℃-1000°C | 1℃ | ±(1.9%+5d) |
-40°F-1832°F | 1°F | ±(1.9%+6d) | |
NCV induction | √ | USB charging | √ |
Zero Fire Line | √ | Touch screen | √ |
Duty cycle% | √ | VA color display | √ |
Buzzer | √ | Auto power off | √ |
Diode | √ | Data retention | √ |
Material | ABS/Silicone | Flashlight lighting | √ |
Weight | About 217g | Silicone sheath | √ |
Maximum count | 6000 Counts | Low battery indication | √ |

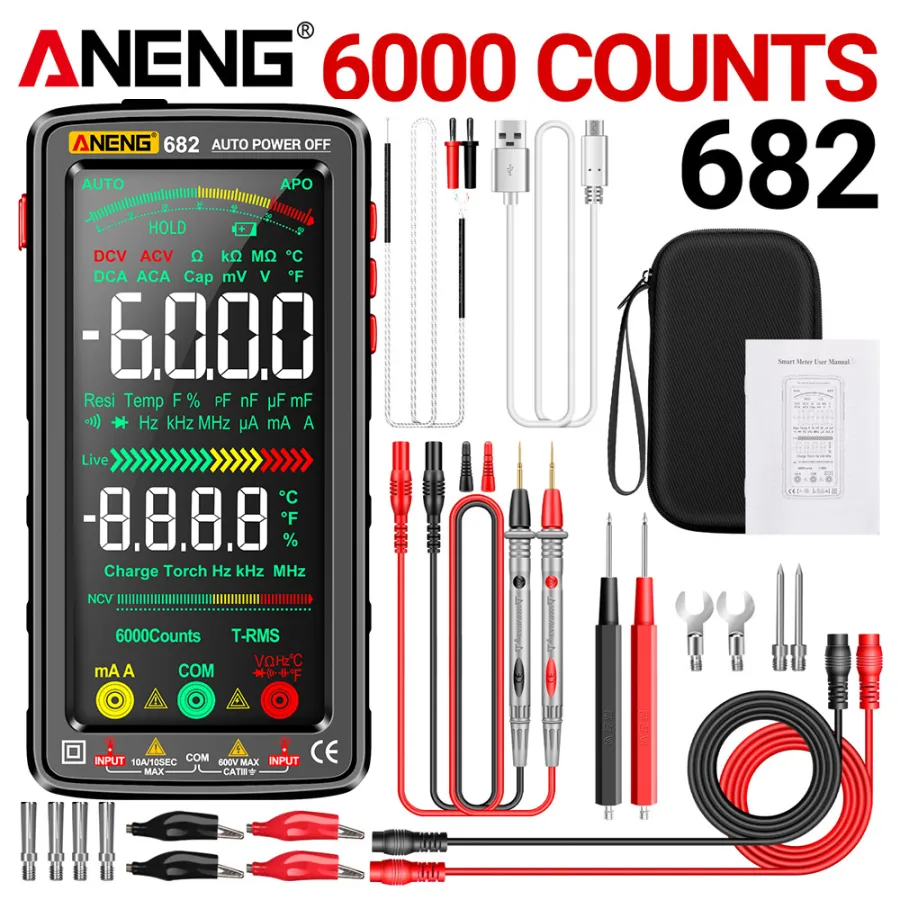

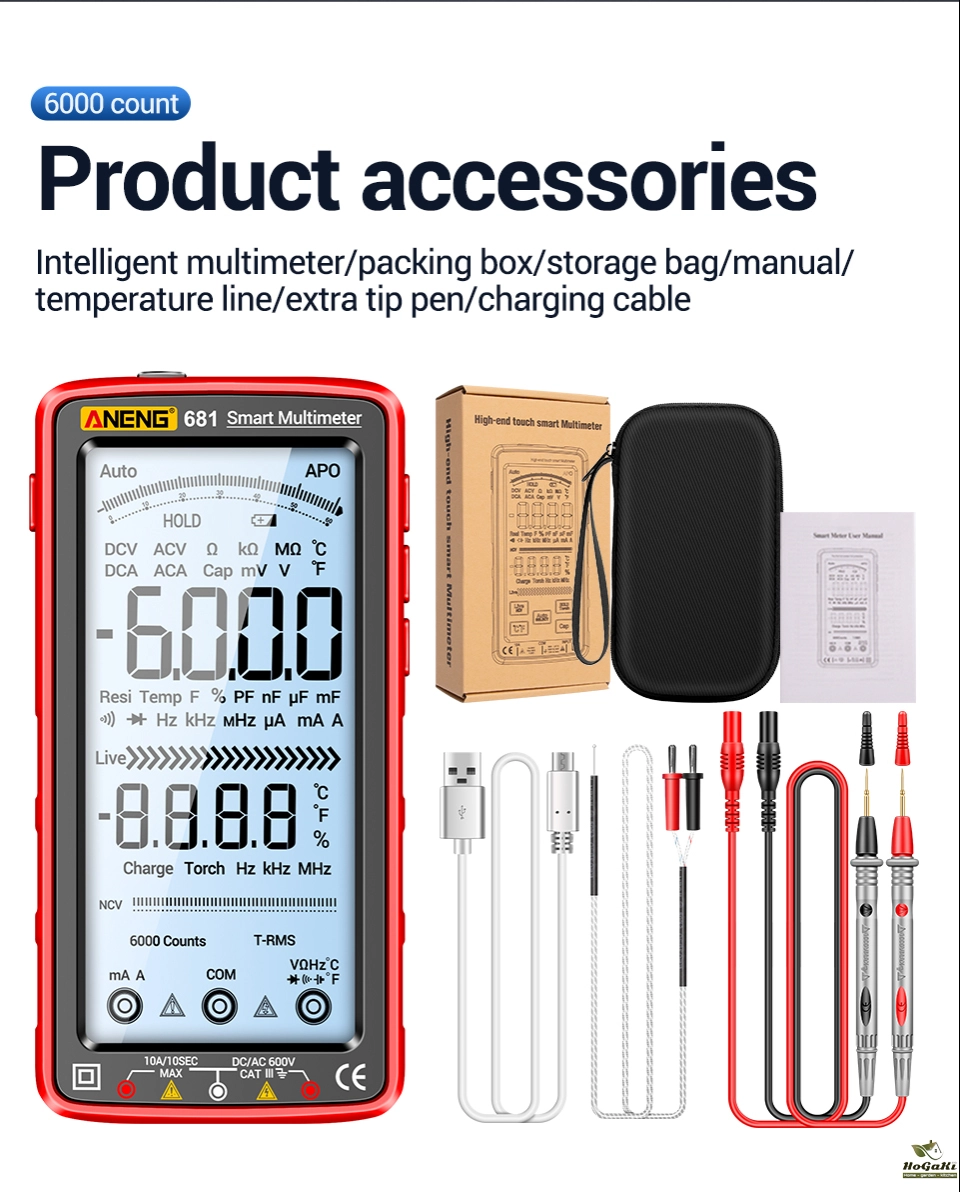

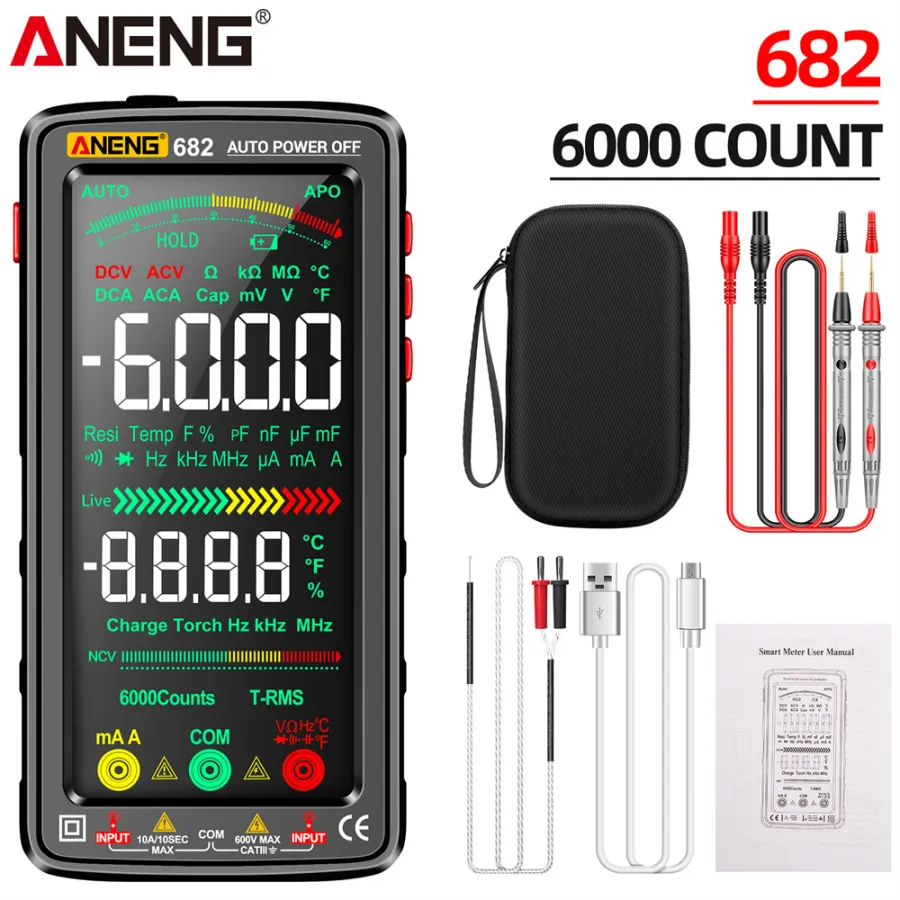

Packing List:
1 * Digital Multimeter
1* Temperature line
1* Storage bag
1 * English user Manual
1 * Packing box

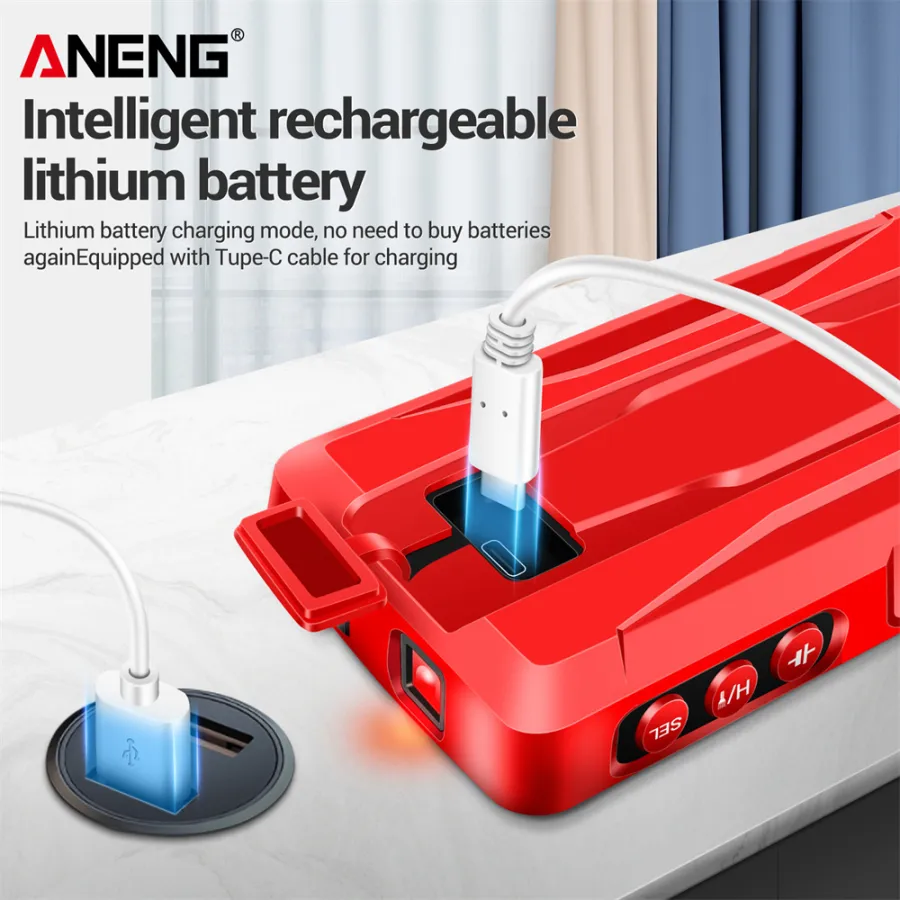

1 * Charging Cable

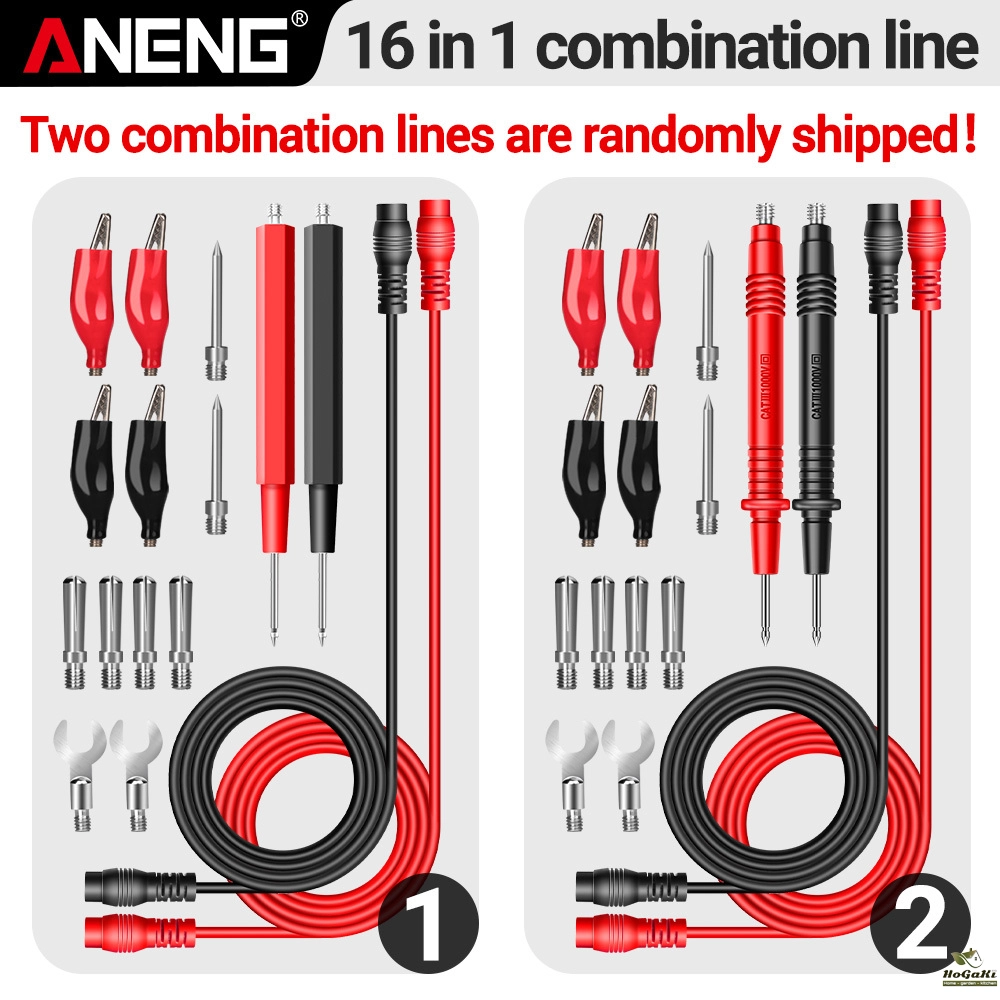

1 * Test leads (according to the choose)
Packaging Details
- Unit Type:
- Package Weight: 0.465
- Package Size: 12x6x20
- Brand Name: ANENG
- ANENG Model: 681/682/683
- Battery Included: No
- DC Voltage: 0~1000V
- Origin: Mainland China
- Operating Mode: Auto range
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- AC Voltage: 0~750V
- Display Type: Digital Display
- AC Current: 0~10A
- Measuring Resistance Range: 0Ohm~60MOhm
- Certification: CE
- DC Current: 0~10A
- Measuring Capacitance Range: 0nF~100mF
- Model Number: ANENG 681/682/683 Digital Multimeter
- Is Smart Device: No
- Measuring Inductance Range: Multimeter
- Dimensions: Multimeter
- Operating Temperature: 0 - 40 ℃
- Choice: yes
