SCO2 Dual Channel Digital AUTO Oscilloscope PWM 50M 10Mhz Sampling Rate 2.5KSa/S Analog Bandwidth for Electronic Repair Tools
4.7 (200 votes) | 900 orders
Price:
US $216.39 - 231.69
Discount Price:
US $
111.33 -
119.08
-49%
- Color
-
-

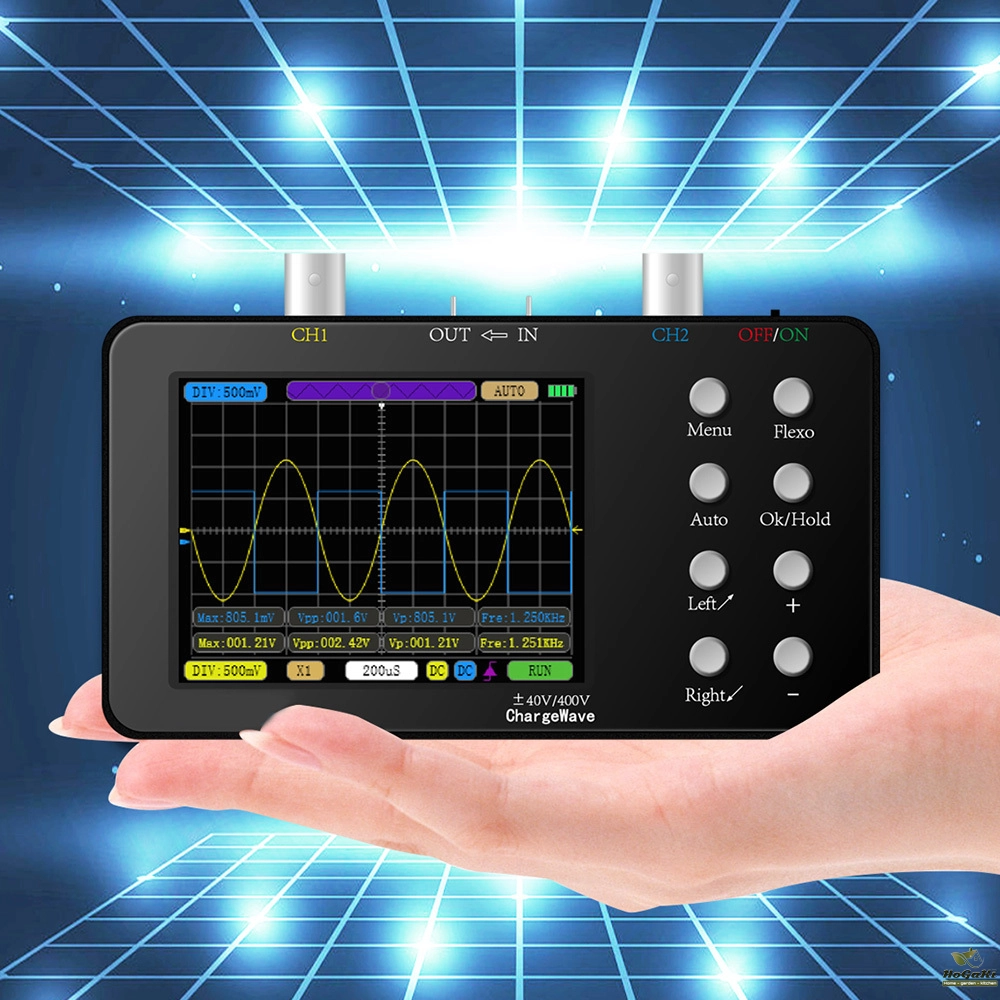

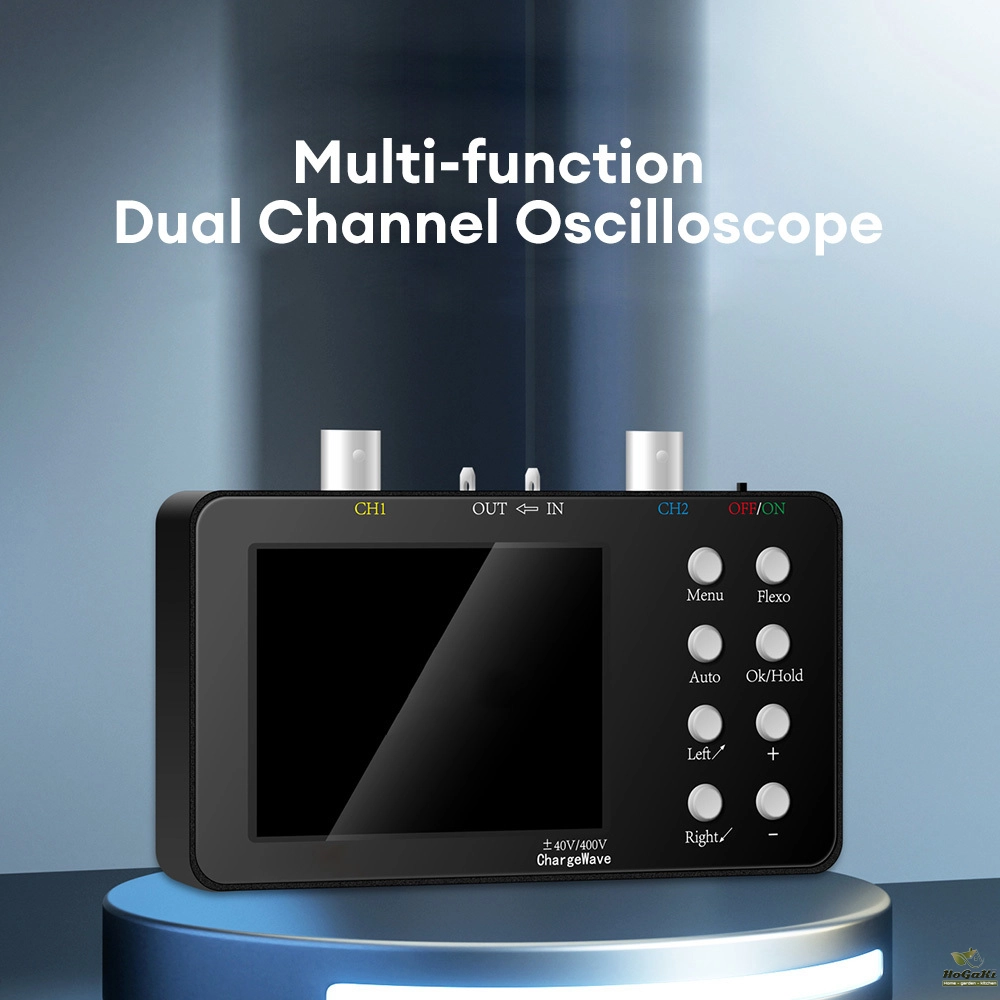

SCO2 Dual Channel Digital Oscilloscope 50M Sampling Rate 2.5KSa/S Analog Bandwidth AUTO PWM for Electronic Repair Tools

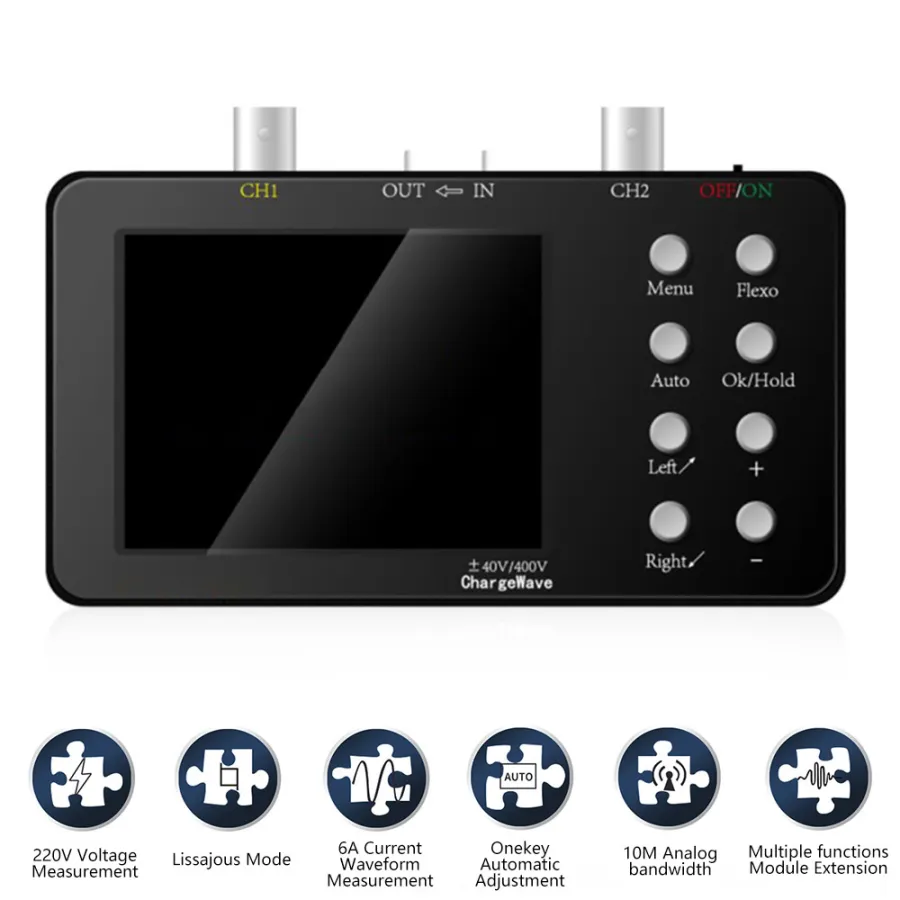

Features
1.20K storage depth, support waveform compression and expansion
2. Stepless compression of the current waveform, the maximum compression factor is 100 times, and the current change curve can be viewed through arbitrary compression
3.50M sampling rate, analog bandwidth 10MHz
4. With a complete trigger function (single, normal, automatic), it can be used freely whether it is a periodic analog signal or a non-periodic digital signal
5. The highest voltage signal of ±400V can be measured
6. Equipped with high-efficiency one-button AUTO, it can display the measured waveform without complicated adjustments

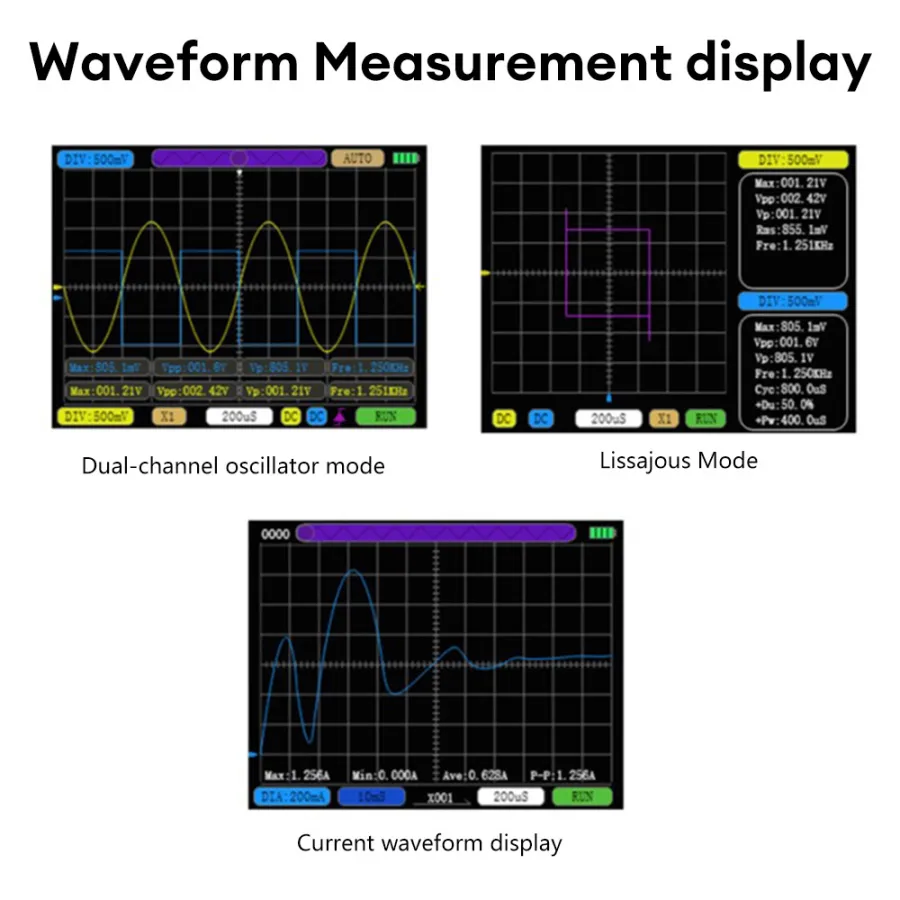

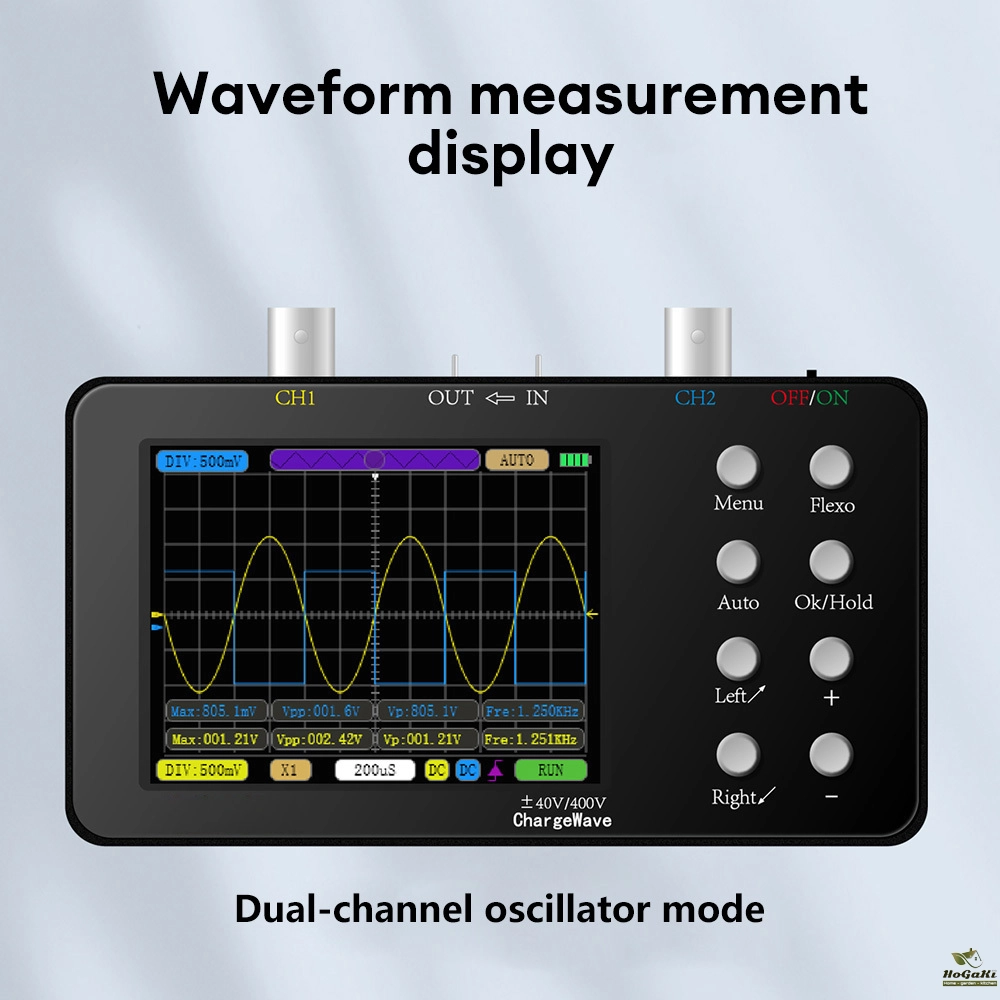

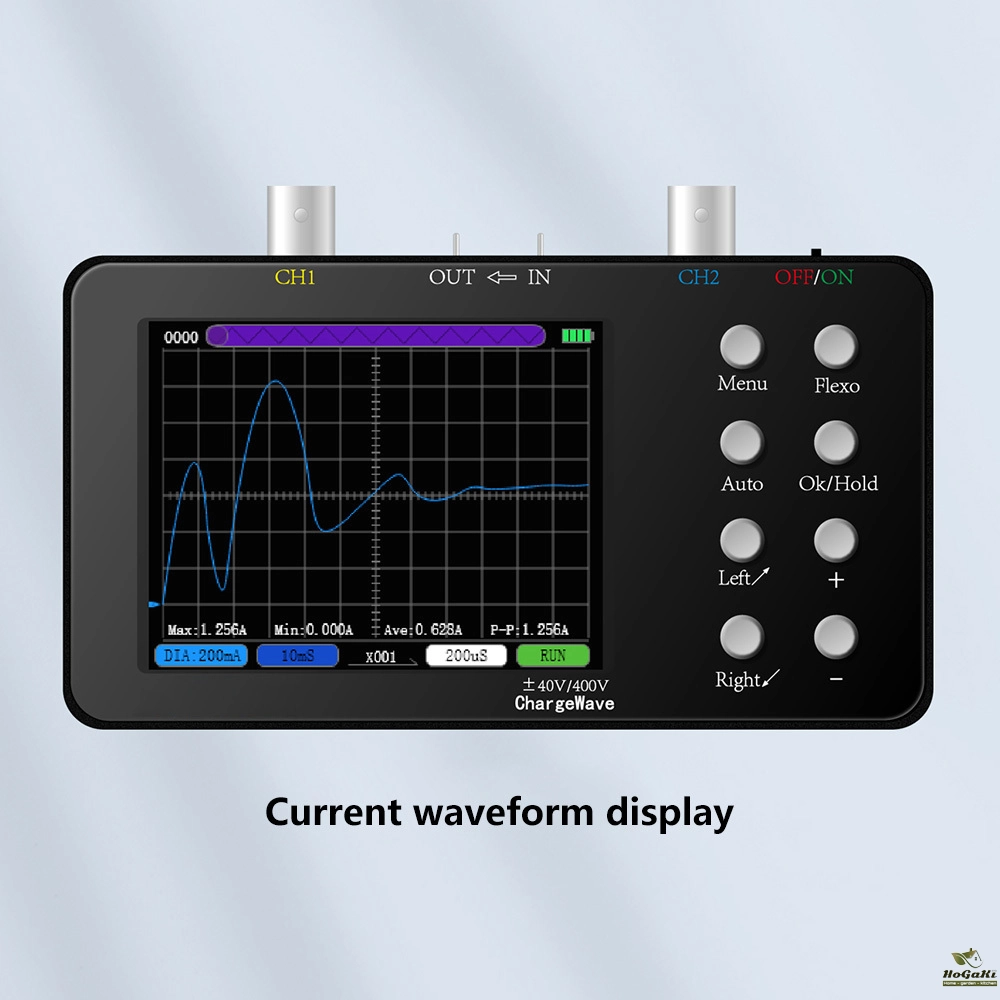

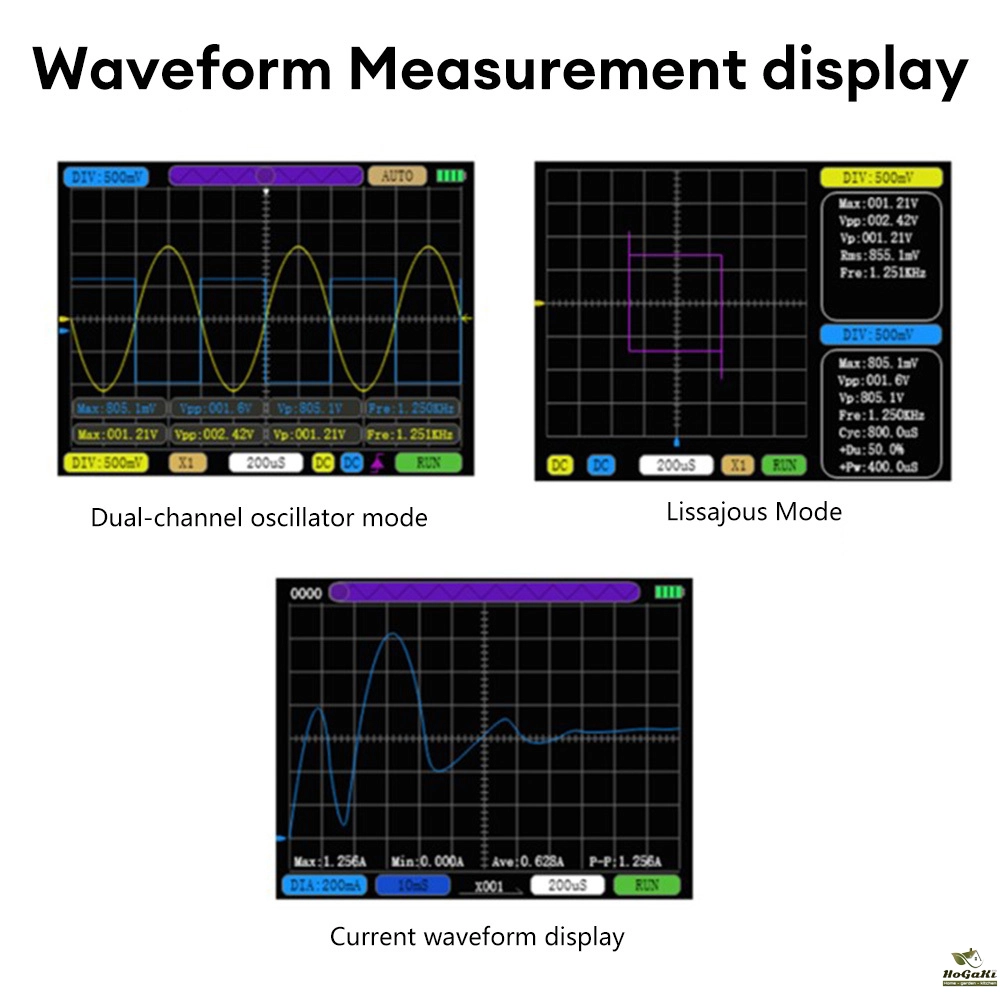

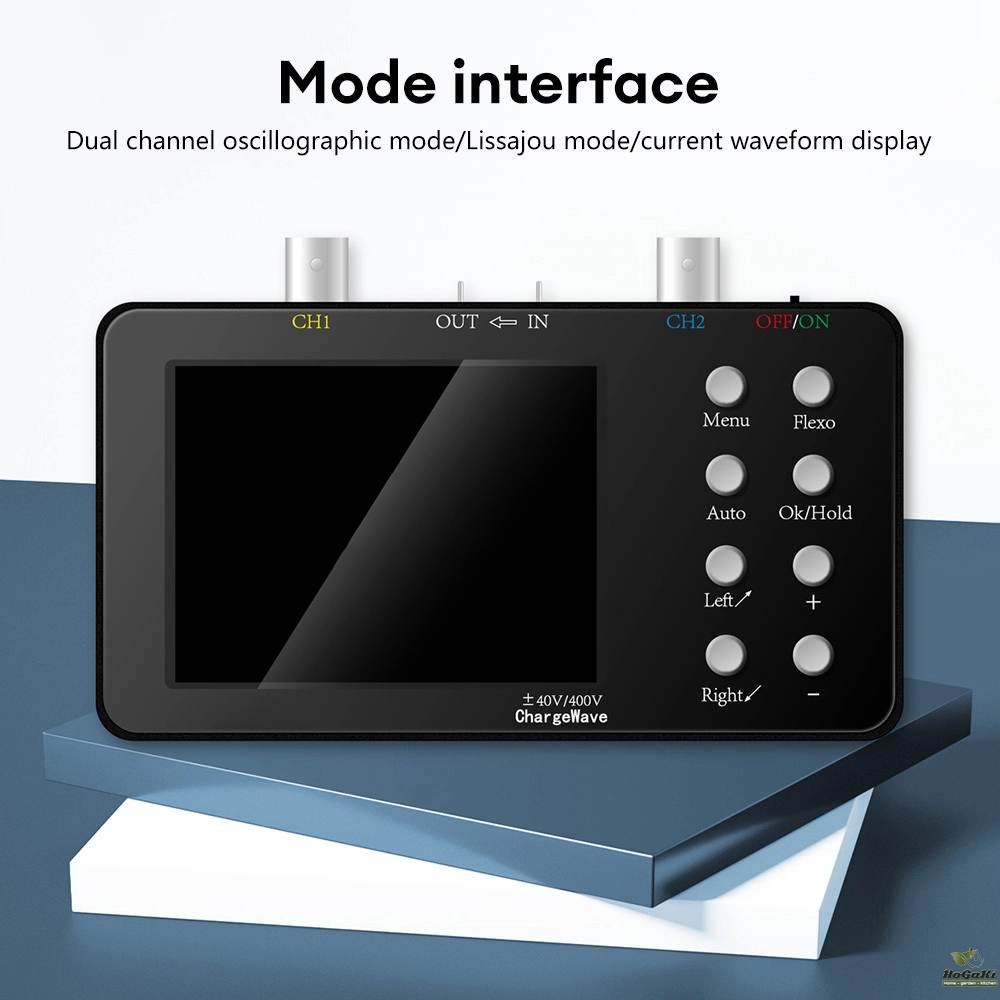

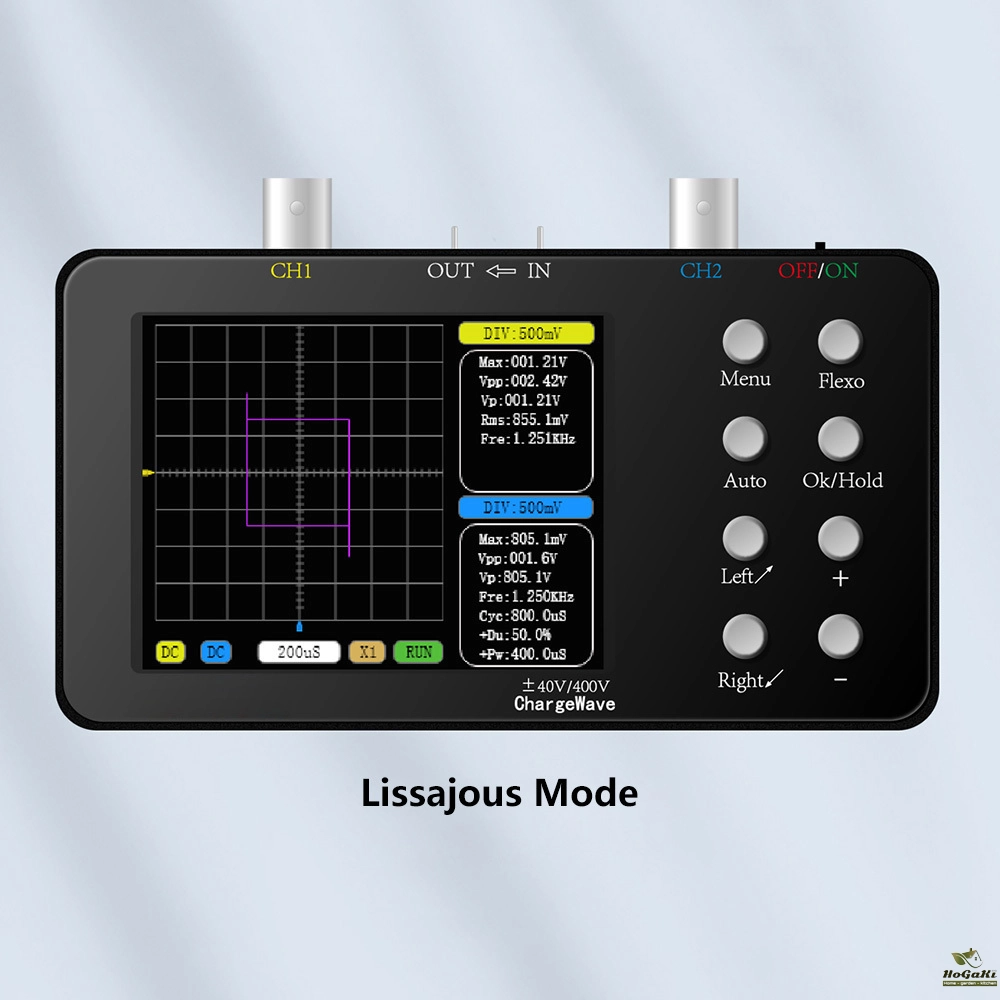

7. Dual-channel oscilloscope mode: Lissajous mode/current waveform display

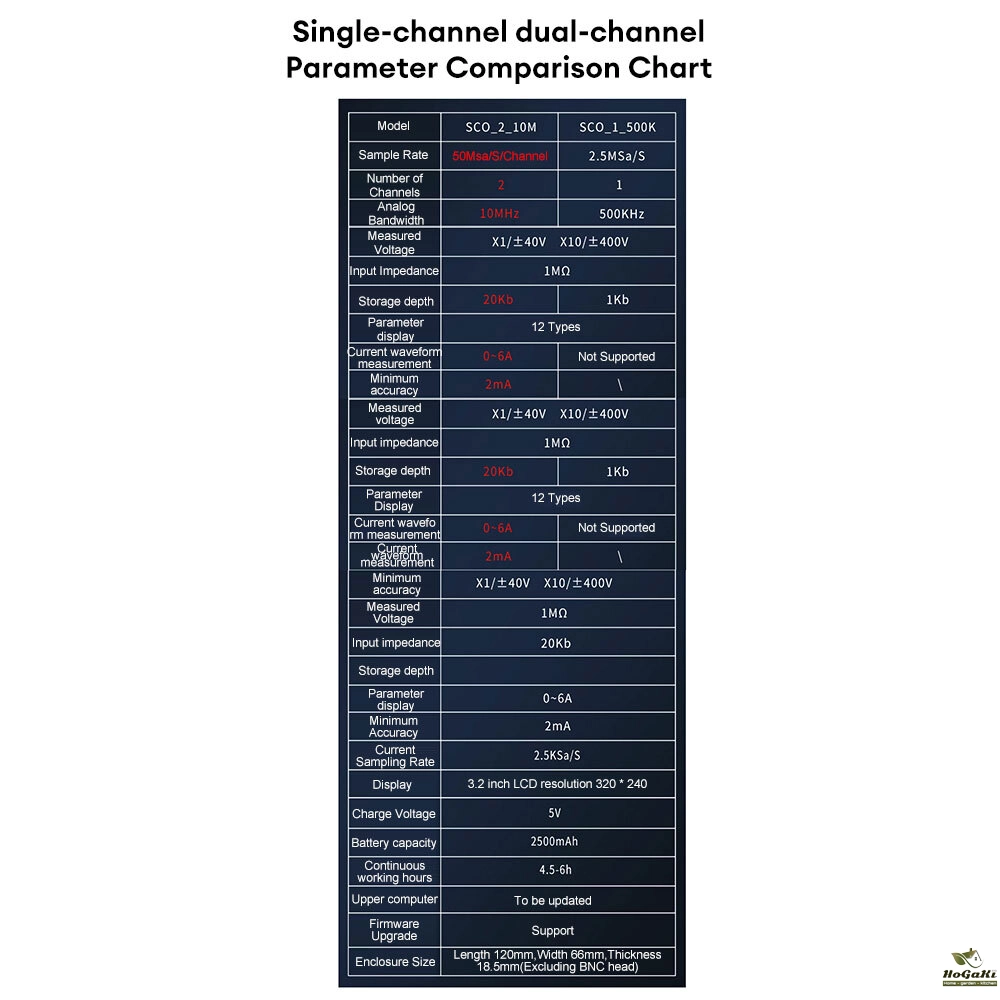

Product parameters
Model: SCO_ 2_ 10M
Sampling rate: 50M/channel
Number of channels: 2
Analog bandwidth: 10MHz (per channel)
Measuring voltage: X1/+40V X10/ soil 400V
Input Impedance: 1MQ
Storage depth: 20Kb
Parameter display: 12 kinds
Current measurement: 0~6A
Minimum accuracy: 2mA
Current sampling rate: 2.5KSa/S
Display: 3.2 inch LCD
Resolution: 320*240
Charging voltage: 5V
Battery capacity: 2500mAh
Continuous working time: 4.5-6h
Host computer: to be updated
Firmware upgrade: support
Shell size: length 120mm* width 66mm* thickness 18.5mm (excluding BNC head)
Precautions
1. When measuring a voltage exceeding 40V, be sure to switch the probe position to X10.
2. When measuring high voltage (more than 36V AC voltage), do not touch the metal part of the instrument, especially the BNC interface.
3. The charging voltage should not exceed 6.8V, so as not to burn out the charging chip.
4. Only when measuring mains power, it is absolutely forbidden to connect to the computer, which will cause a short circuit between the neutral wire and the ground wire!
Package list

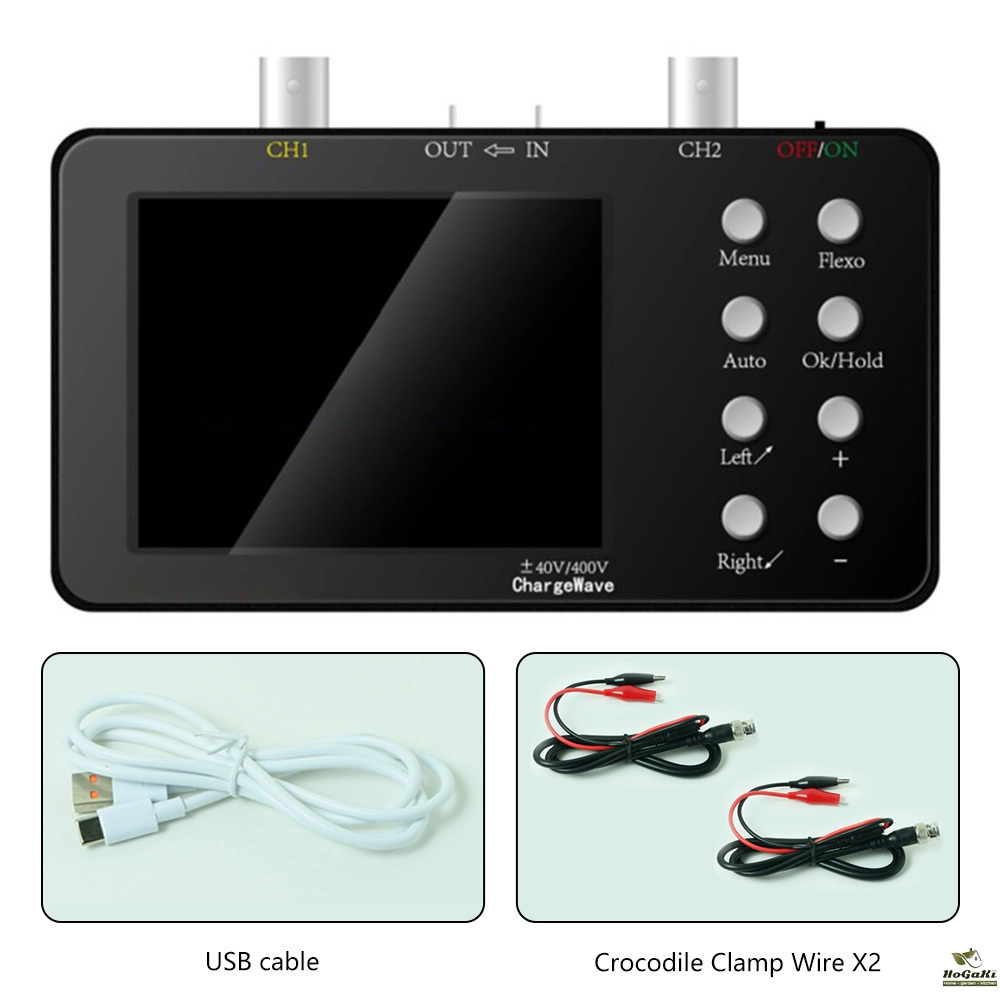

【Package A】
Oscilloscope*1
USB cable*1
Alligator clip line*2

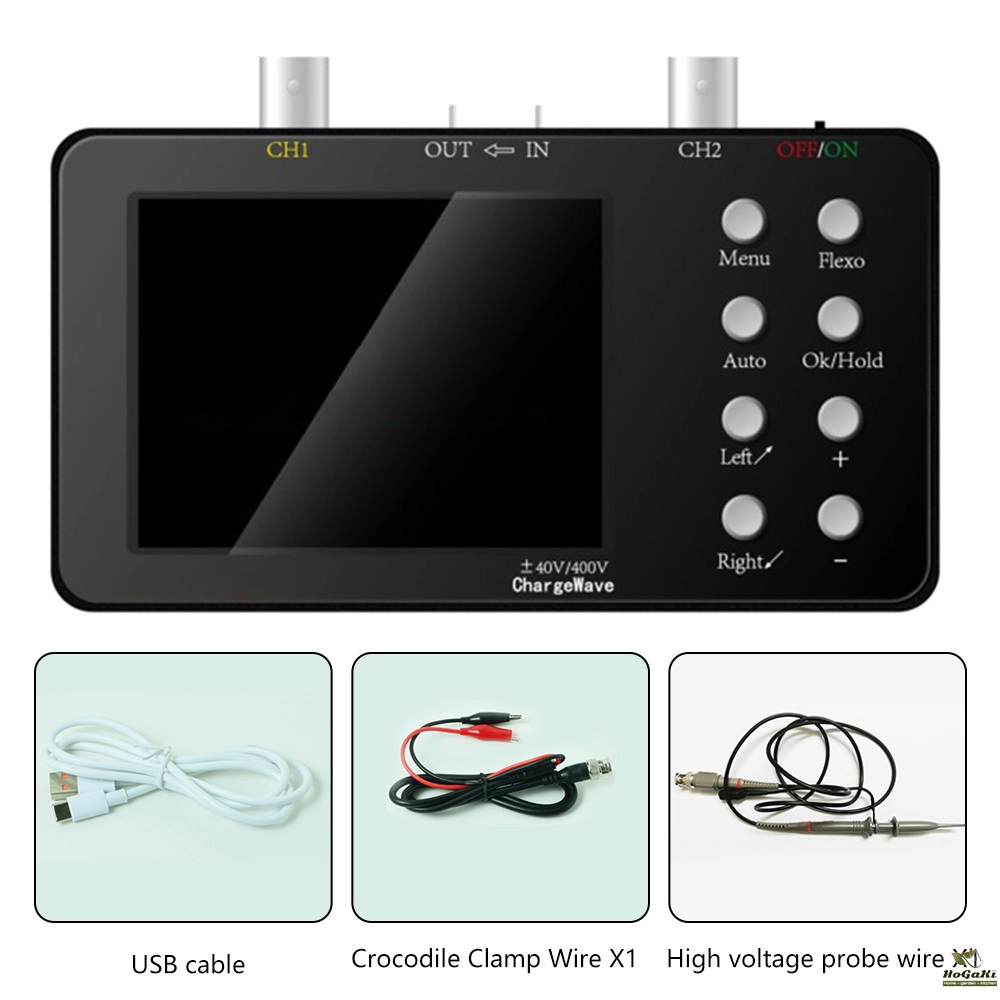

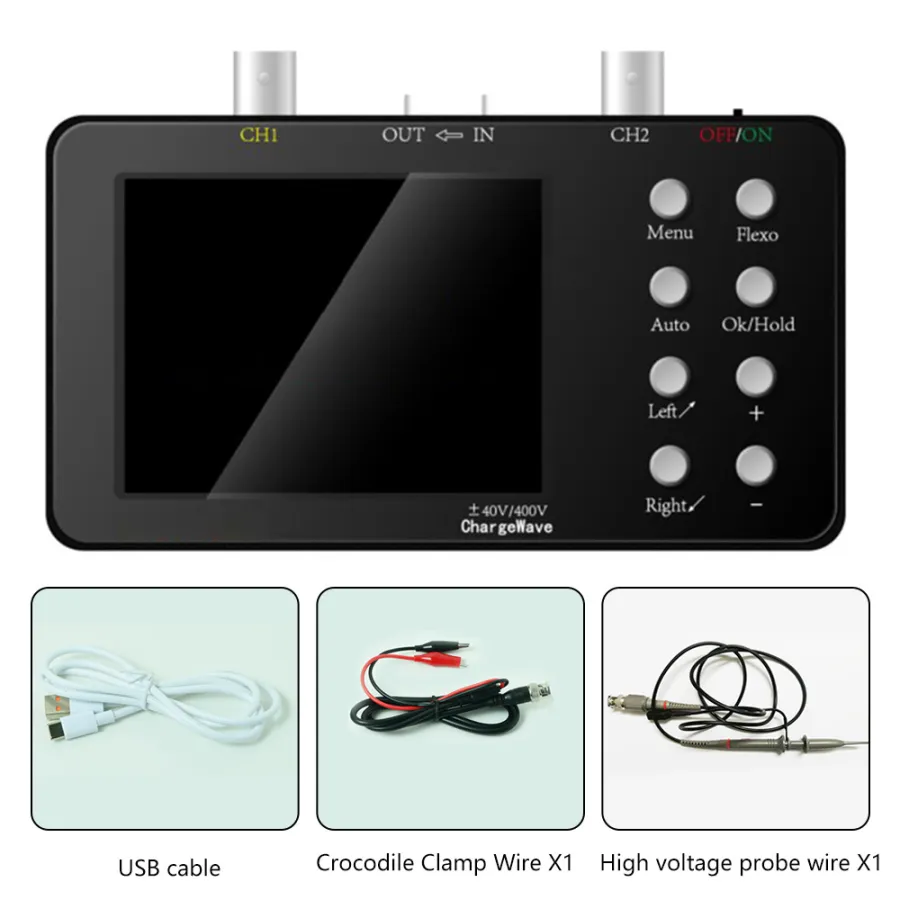

【Package B】
Oscilloscope*1
USB cable*1
Alligator clip line*1
High voltage probe cable*1
Packaging Details
- Unit Type:
- Package Weight: 0.353
- Package Size: 16x5x23
- Brand Name: Gaqqee
- Origin: Mainland China
- DIY Supplies: Electrical
- Display resolution: SCO2 50M Dual Channel Digital Oscilloscope
- Digital Channels: 2
- Display Size: 3.0 - 4.9 Inches
- Band Width: Less than 60MHz
- Choice: yes
