FG-200 DDS Function Signal Generator Frequency Counter 0.01Hz - 500KHz Signal Source Module Sine+Square+Sawtooth Waveform
4.9 (155 votes) | 800 orders
Price:
US $76.41 - 128.59
Discount Price:
US $
39.92 -
59.49
-48%
- Color
-
-

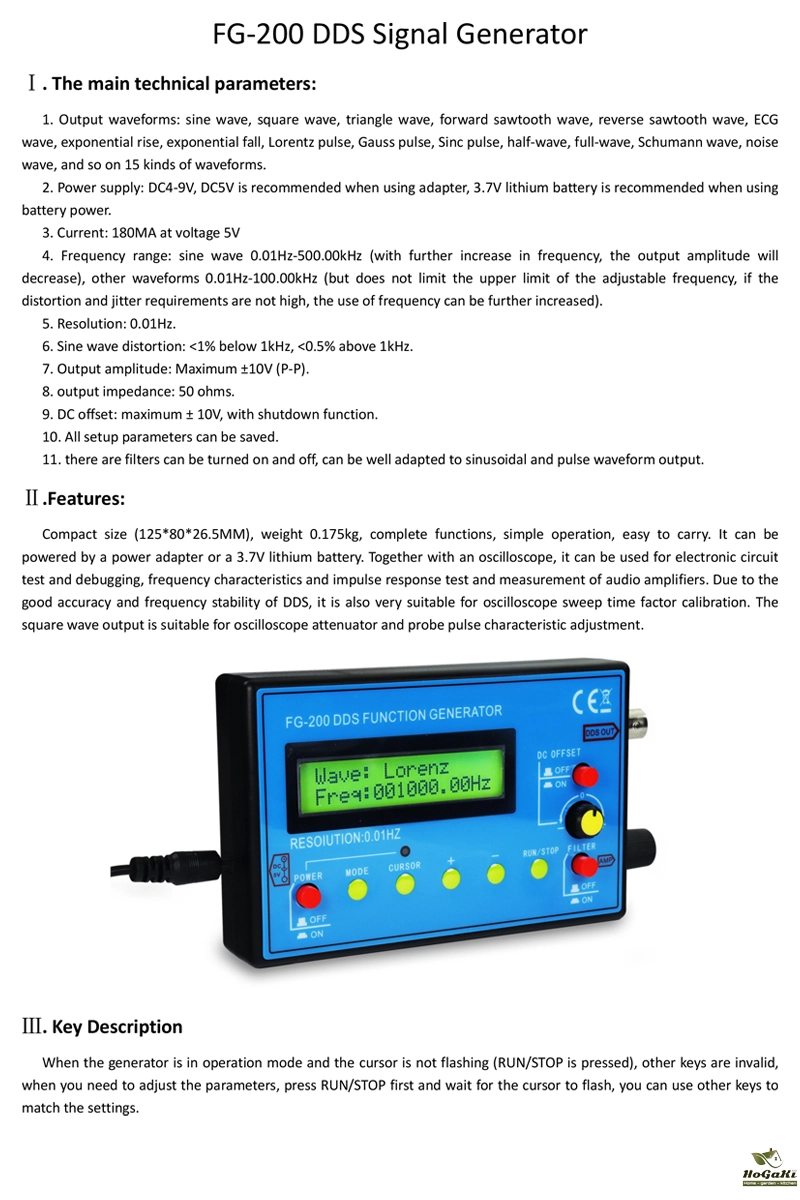

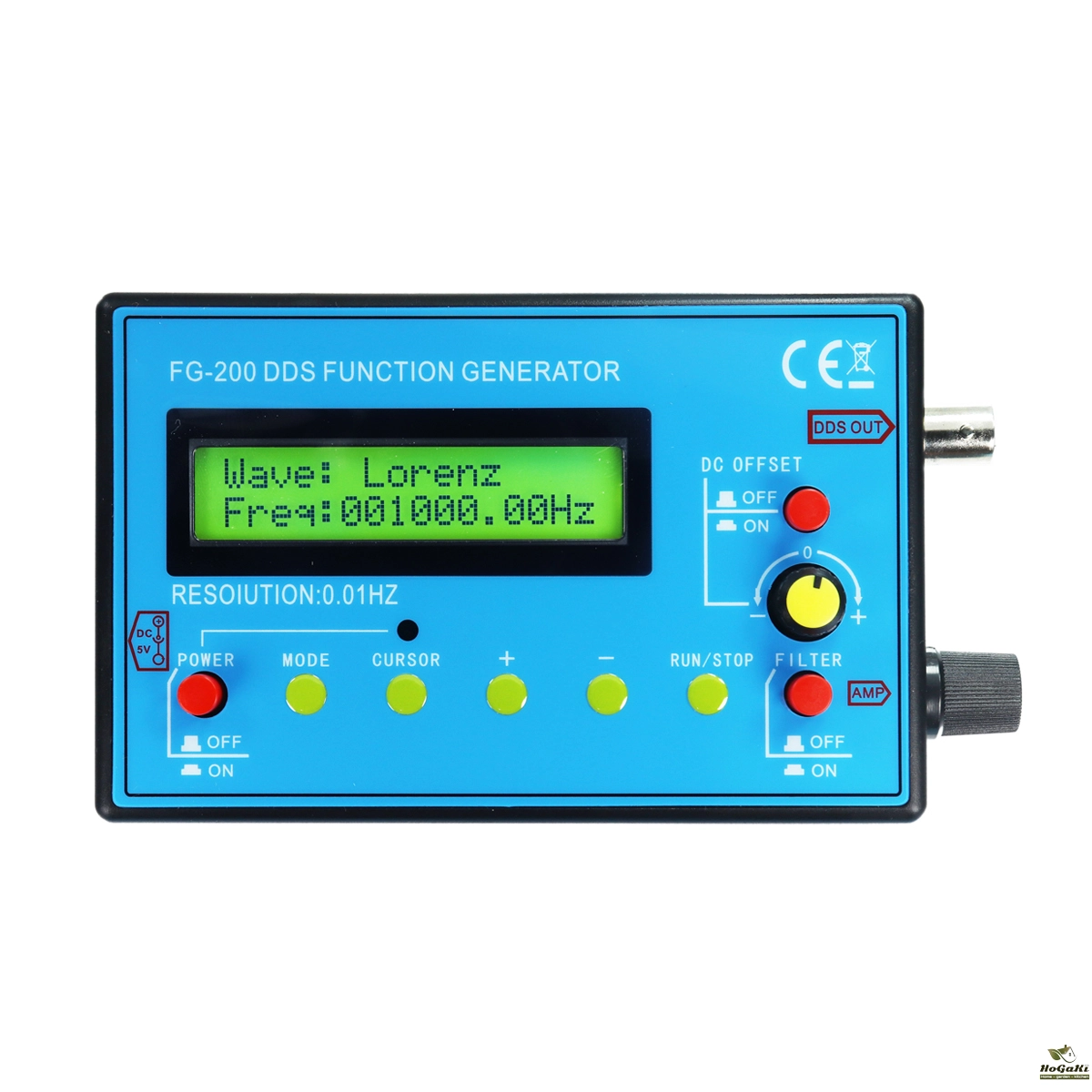

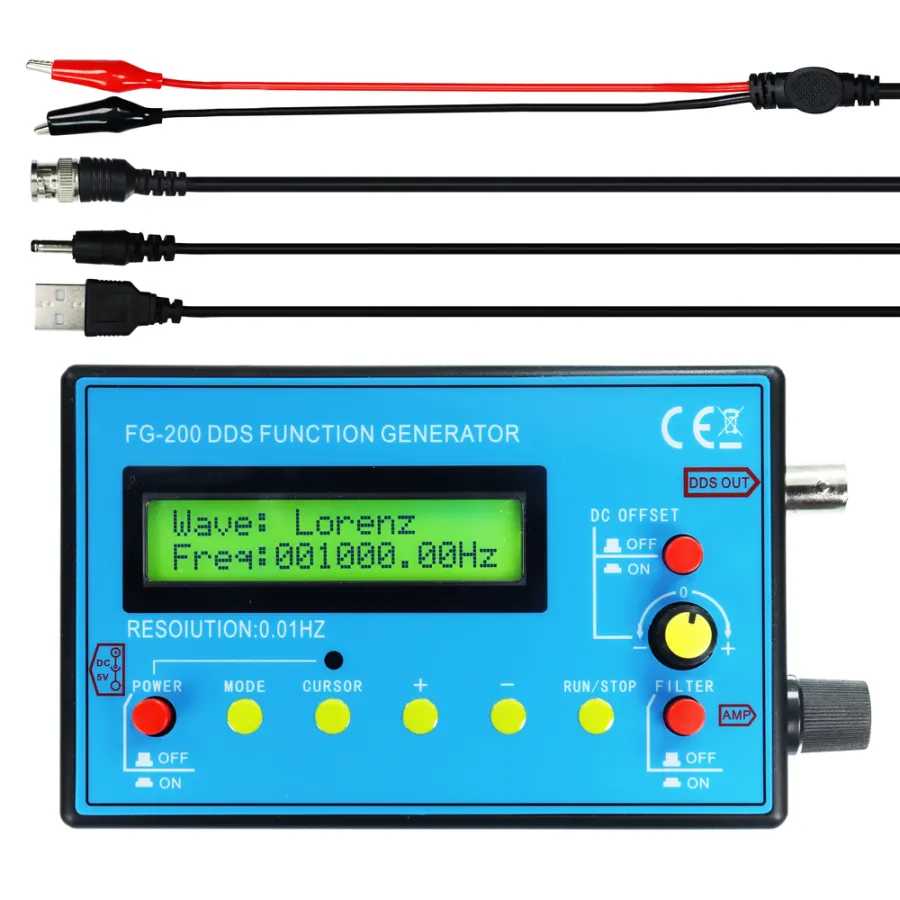

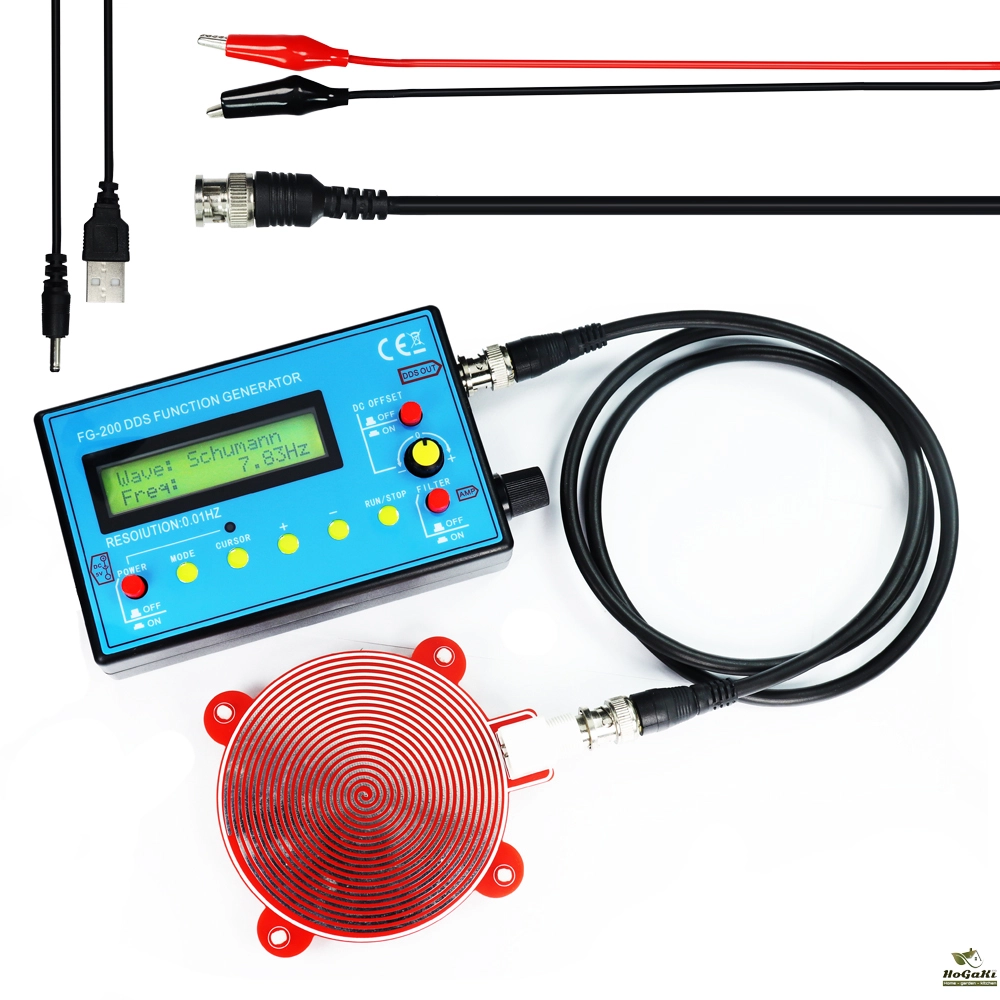

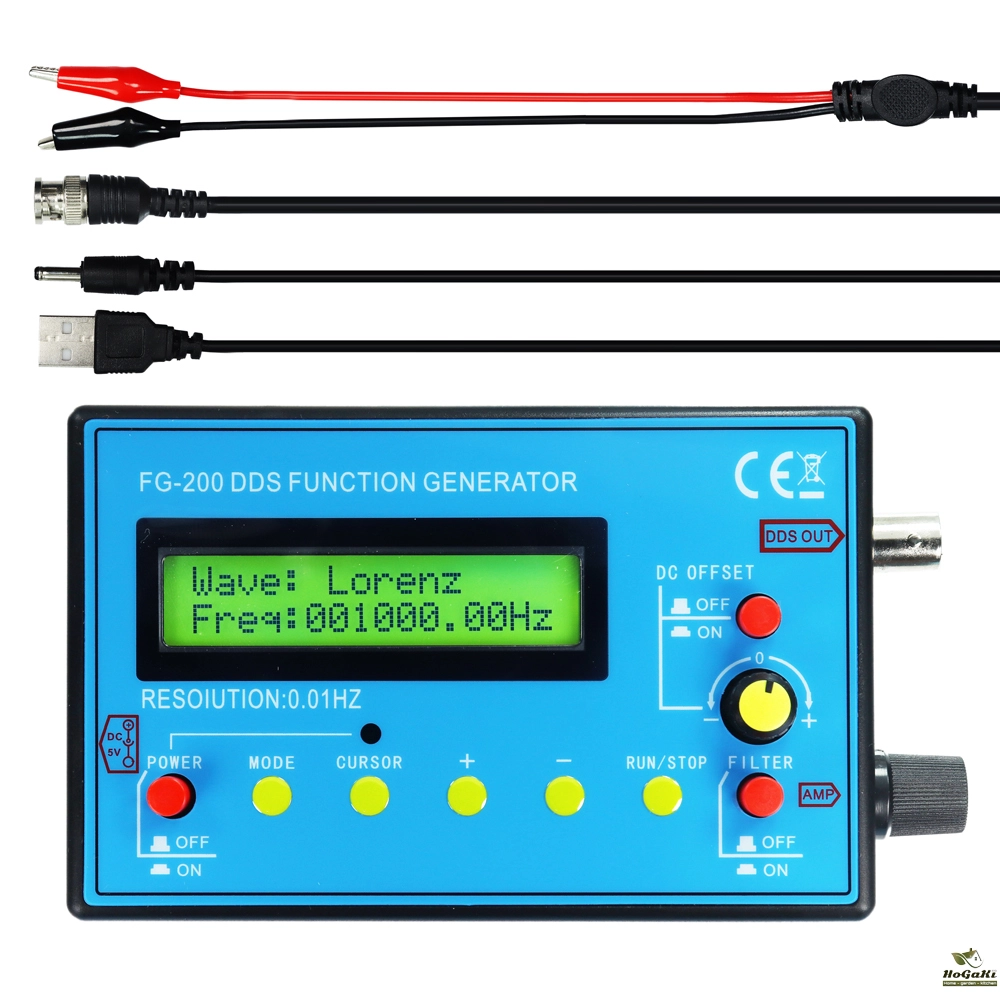

FG-200 DDS Signal Generator
I.The main technical parameters:

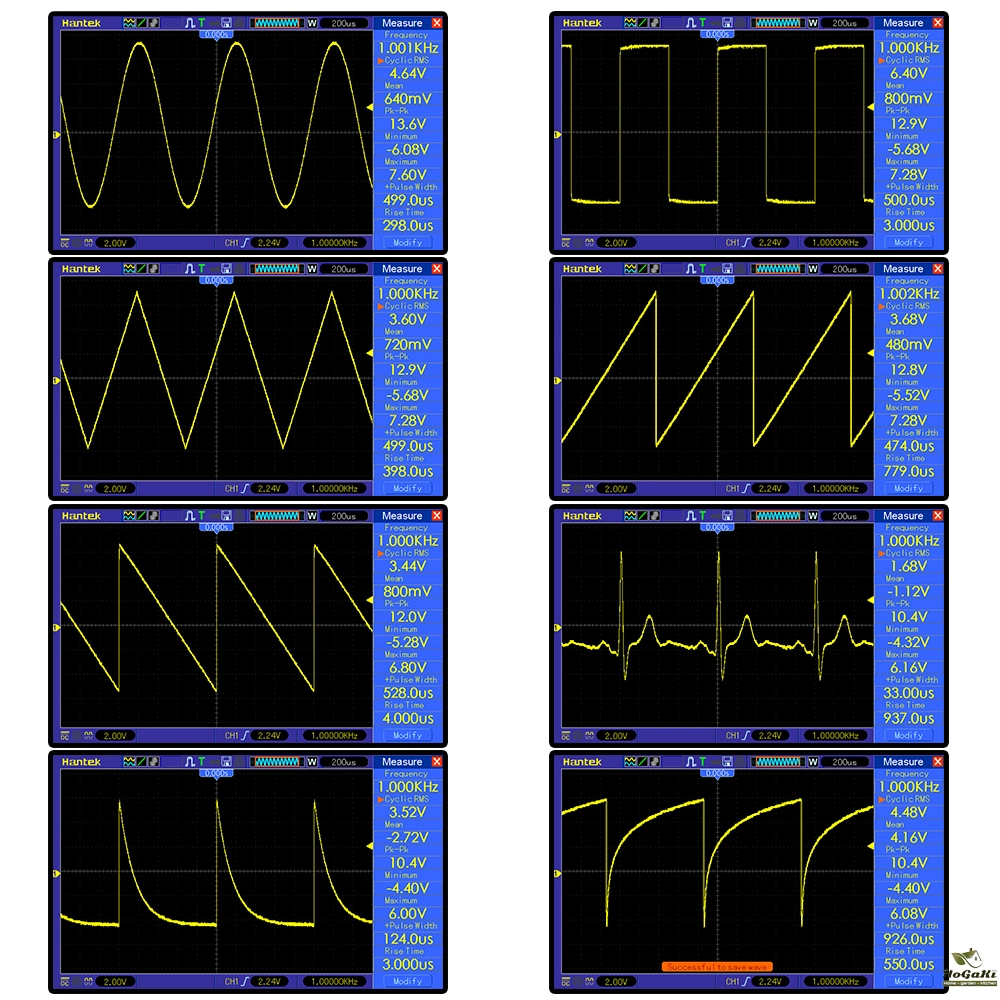

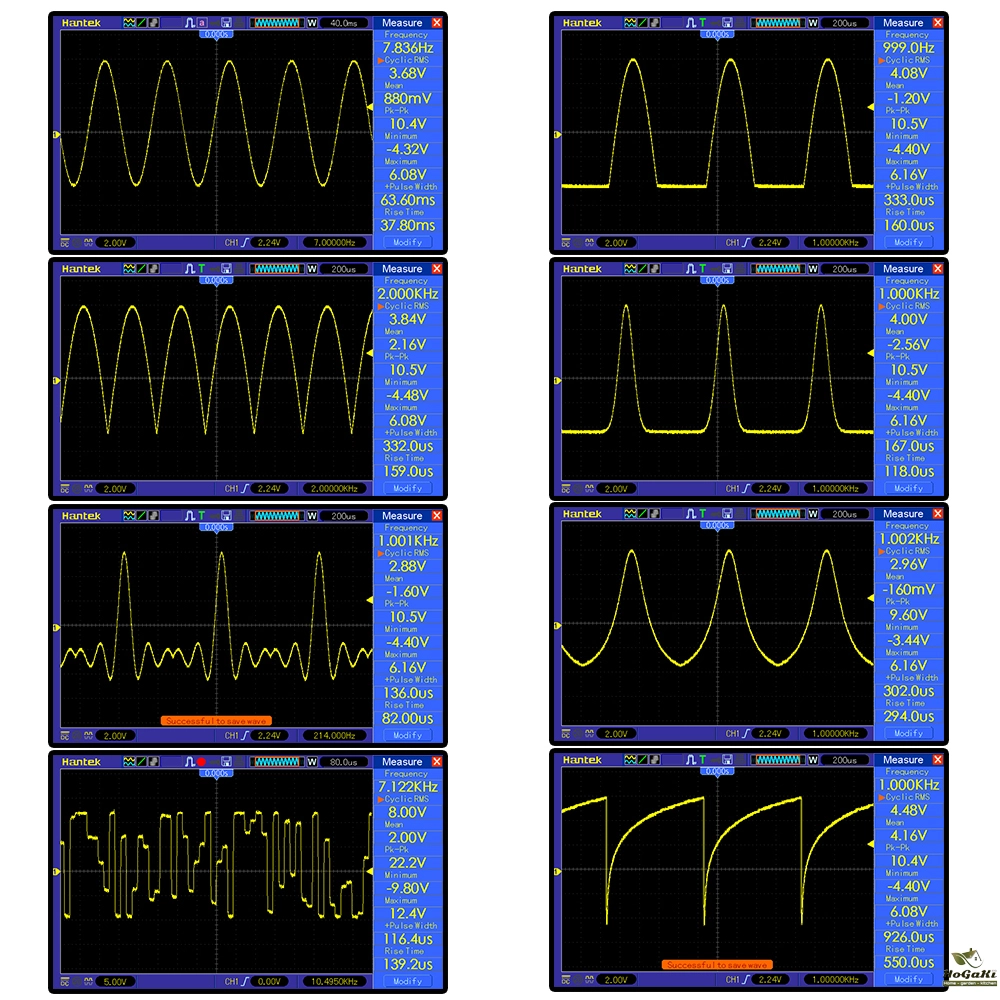

1. Output waveforms: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, ECG
wave, exponential rise, exponential fall, Lorentz pulse, Gauss pulse, Sinc pulse, half-wave, fll-wave, Schumann wave, noise
wave, and so on 15 kinds of waveforms.
2. Power supply: DC4-9V, DC5V is recommended when using adapter, 3.7V lithium battery is recommended when using
battery power.
3. Current: 180MA at voltage 5V
4. Frequency range: sine wave 0.01Hz- 500.00kHz (with further increase in frequency, the output amplitude will
decrease), other waveforms 0.01Hz-100.00kHz (but does not limit the upper limit of the adjustable frequency, if the
distortion and jitter requirements are not high, the use of frequency can be further increased).
5. Resolution: 0.01Hz.
6. Sine wave distortion: <1% below 1kHz, <0.5% above 1kHz.
7. Output amplitude: Maximum t10V (P-P).
8. output impedance: 50 ohms.
9. DC offset: maximum10V, with shutdown function.
10. All setup parameters can be saved.
11. there are filters can be turned on and off, can be well adapted to sinusoidal and pulse waveform output.
II .Features:

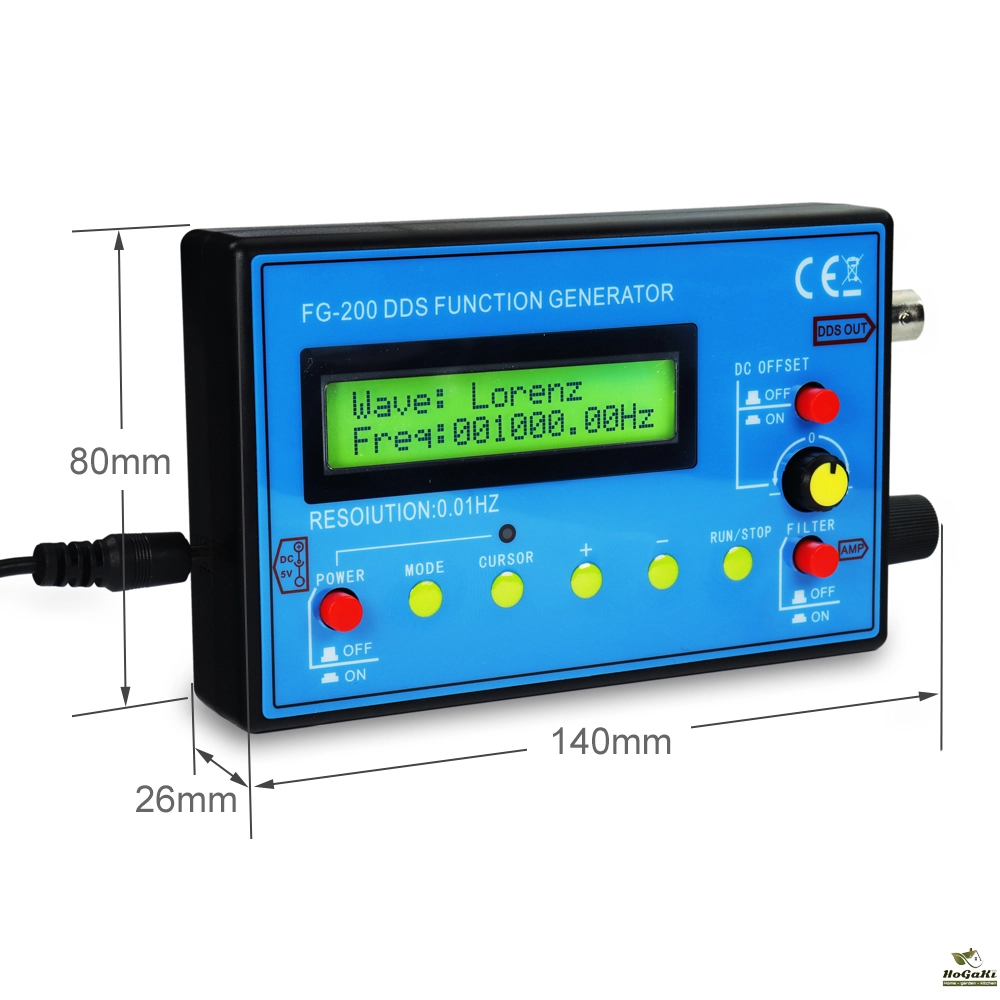

Compact size (125*80* 26.5MM),complete functions, simple operation, easy to carry. It can be
powered by a power adapter or a 3.7V lithium battery. Together with an oscilloscope, it can be used for electronic circuit
test and debugging, frequency characteristics and impulse response test and measurement of audio amplifiers. Due to the
good accuracy and frequency stability of DDS, it is also very suitable for oscilloscope sweep time factor calibration. The
square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment.

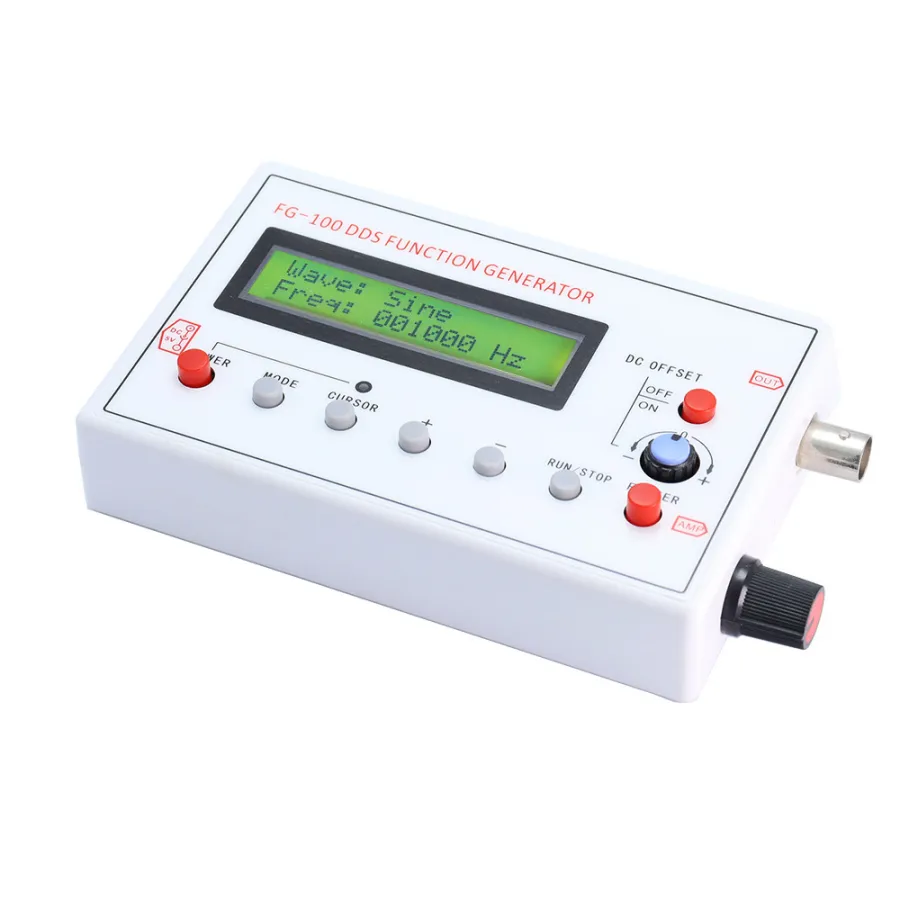

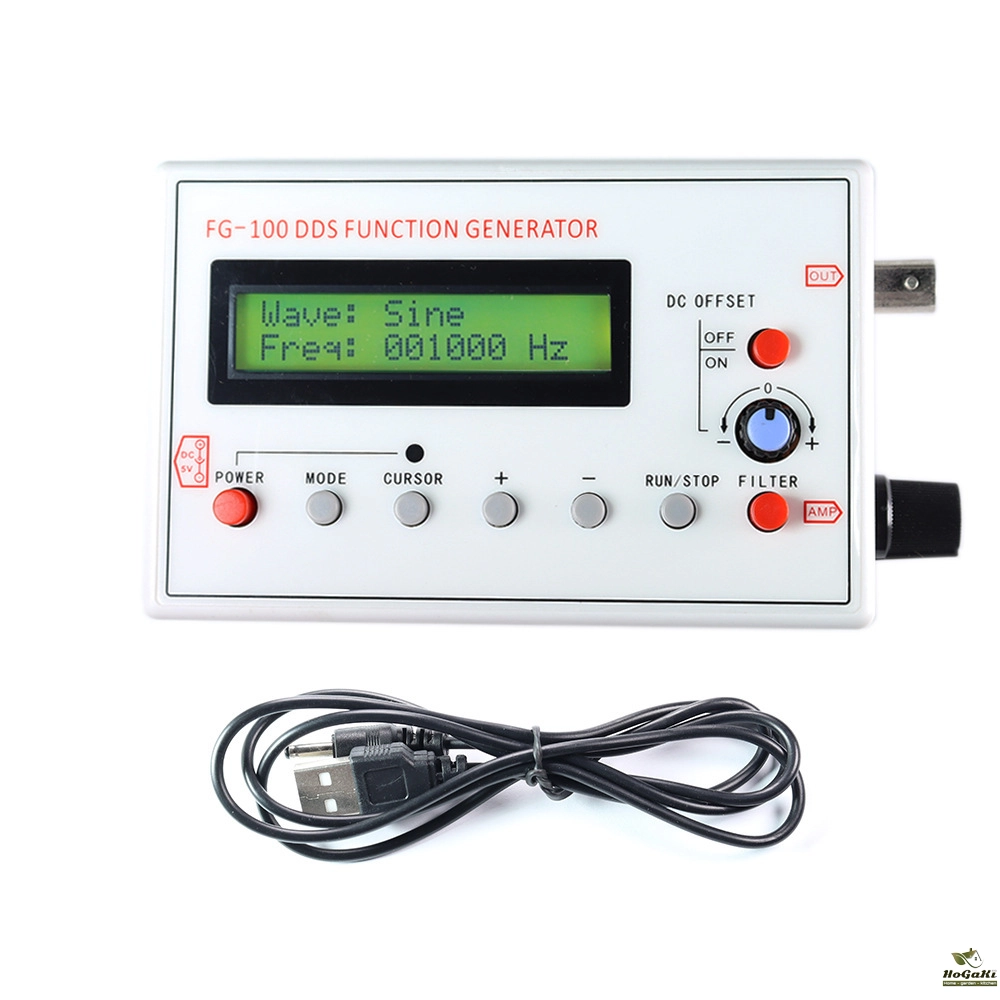

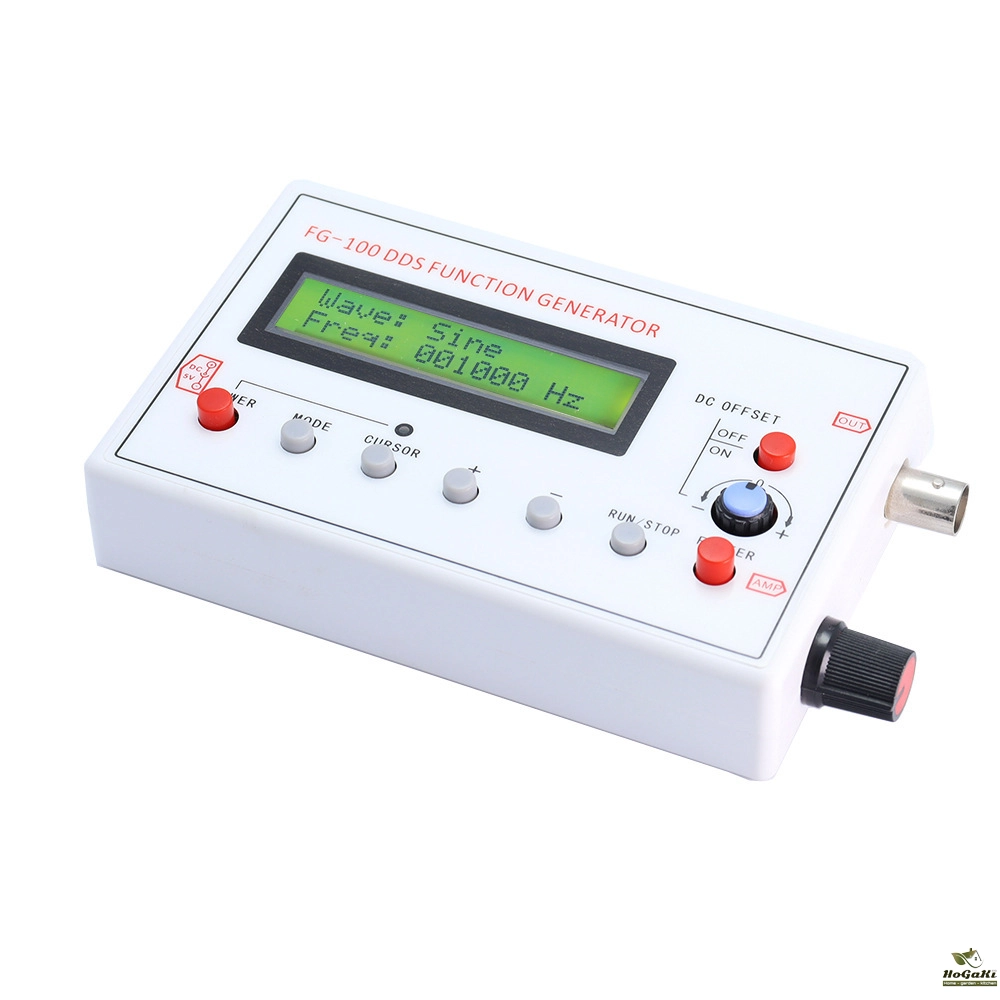

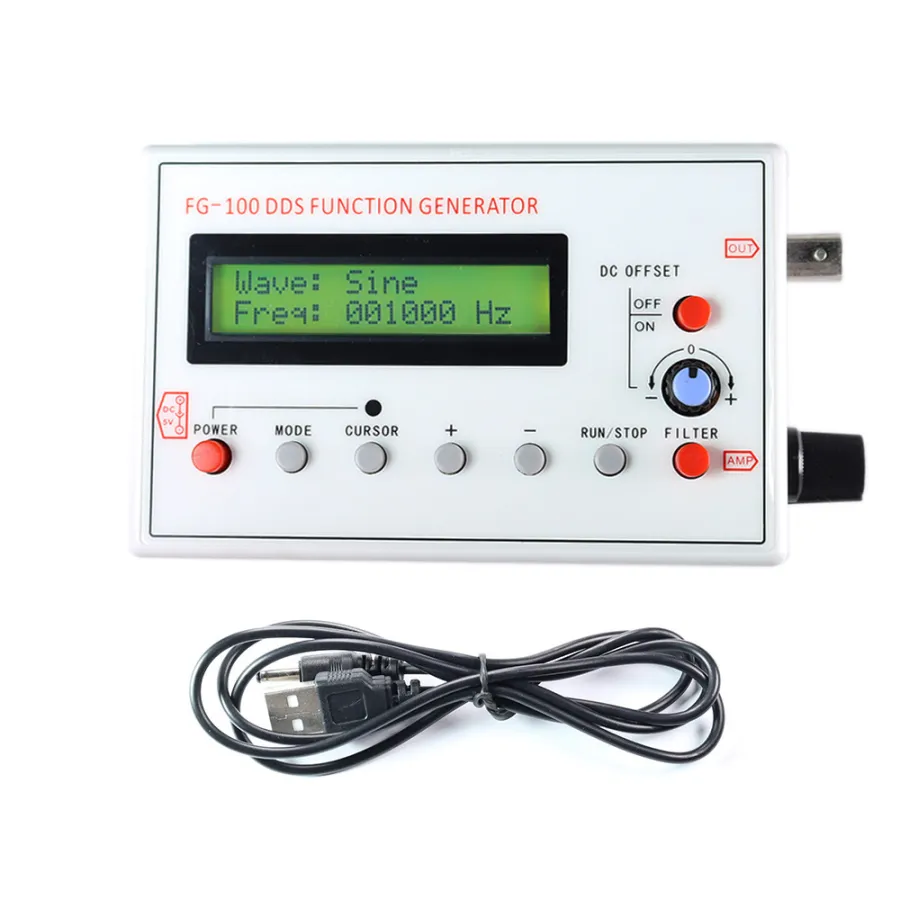

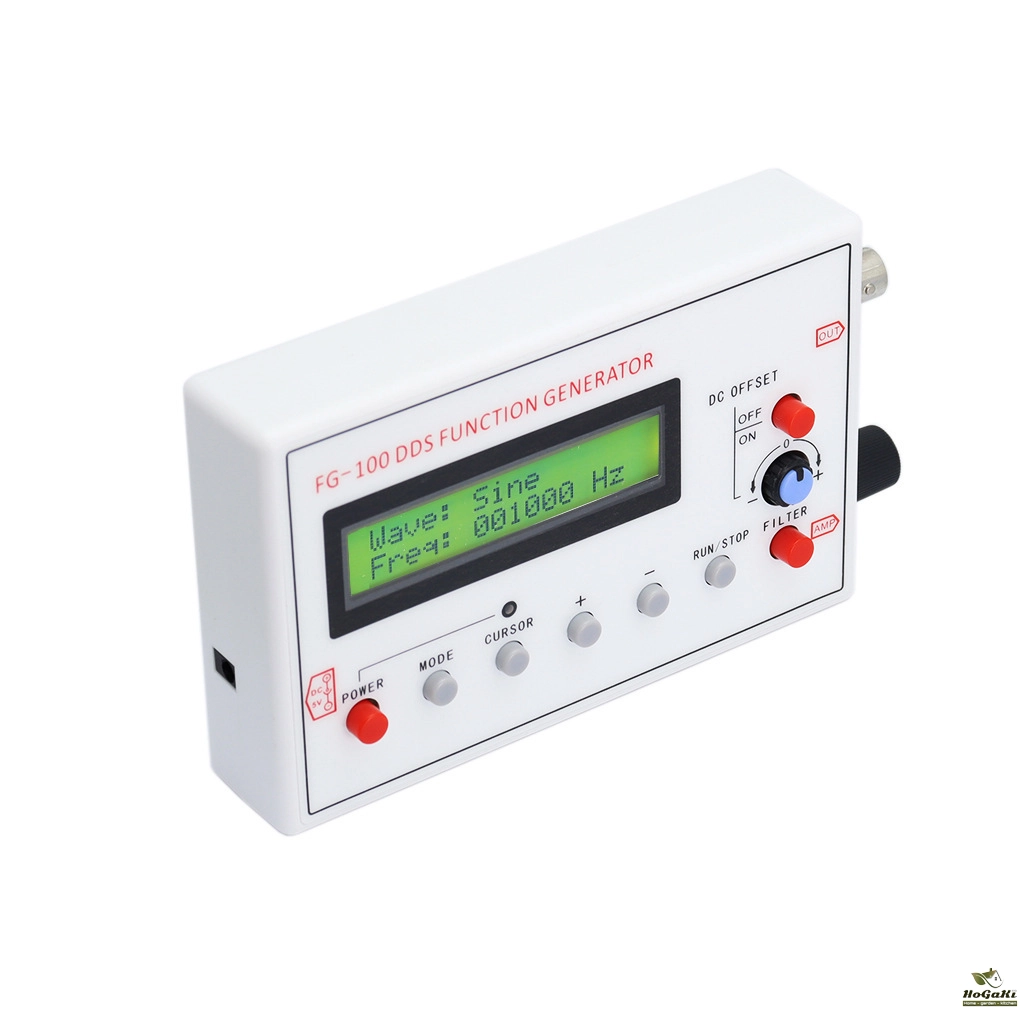

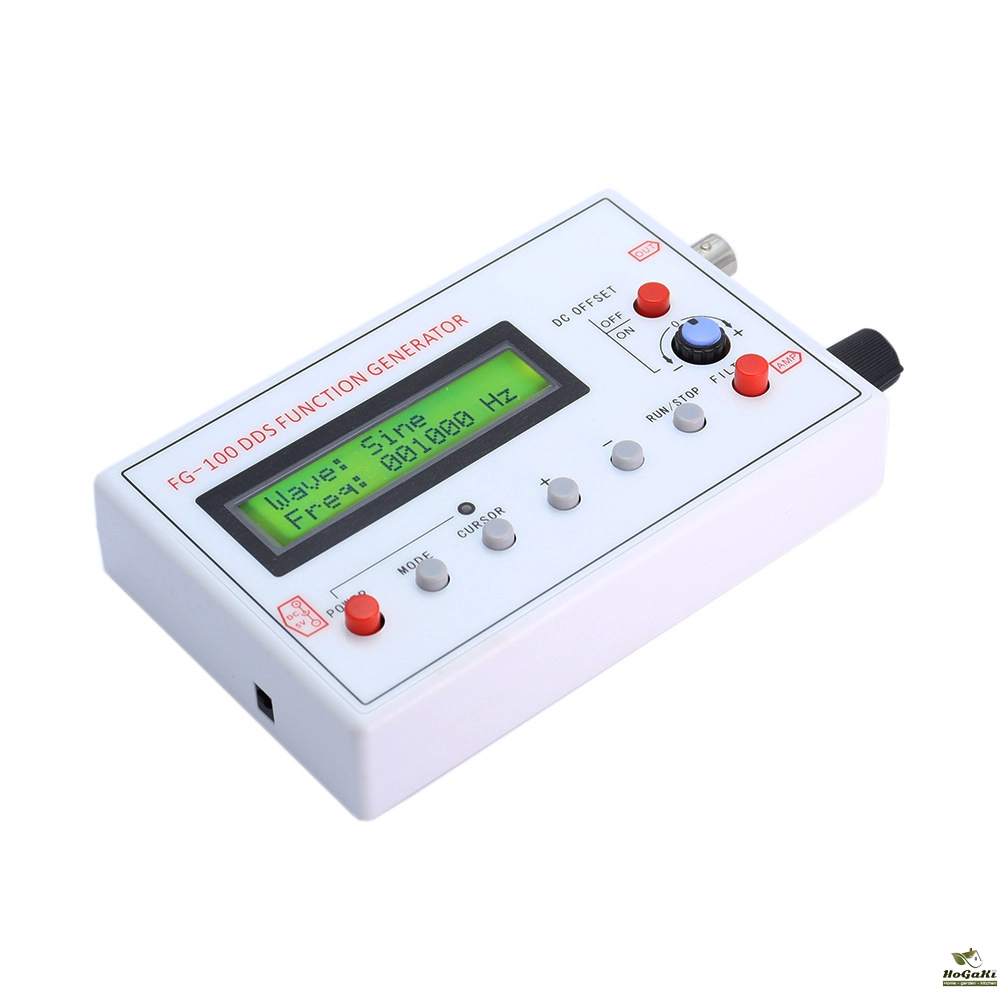

FG-100 DDS Signal Generator
Small size, multiple functions, simple operation, easy to carry.
ith an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequenc
Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope swe
COLOR:white
Material:metal

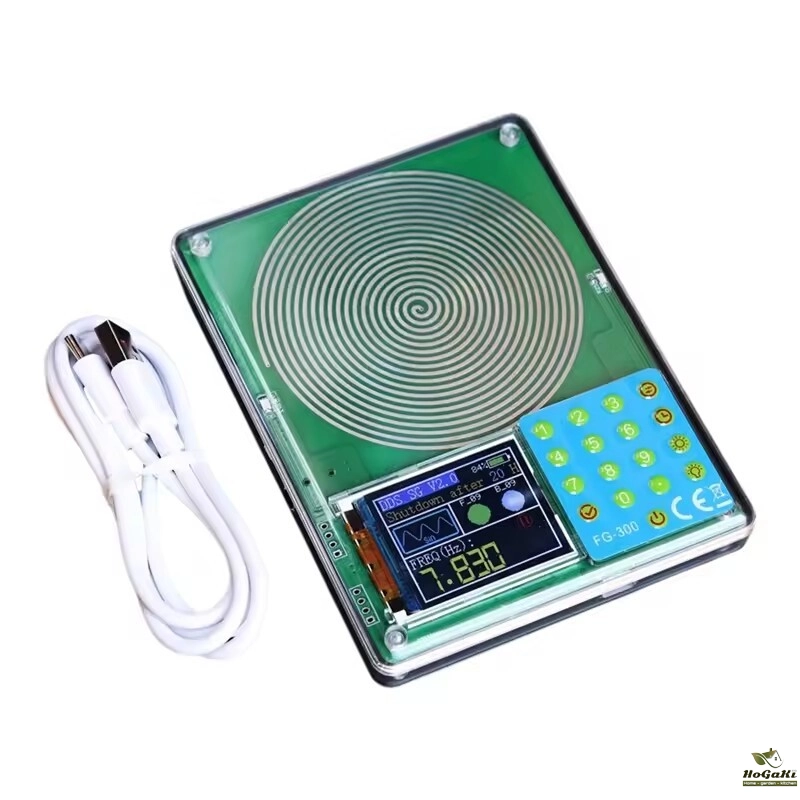

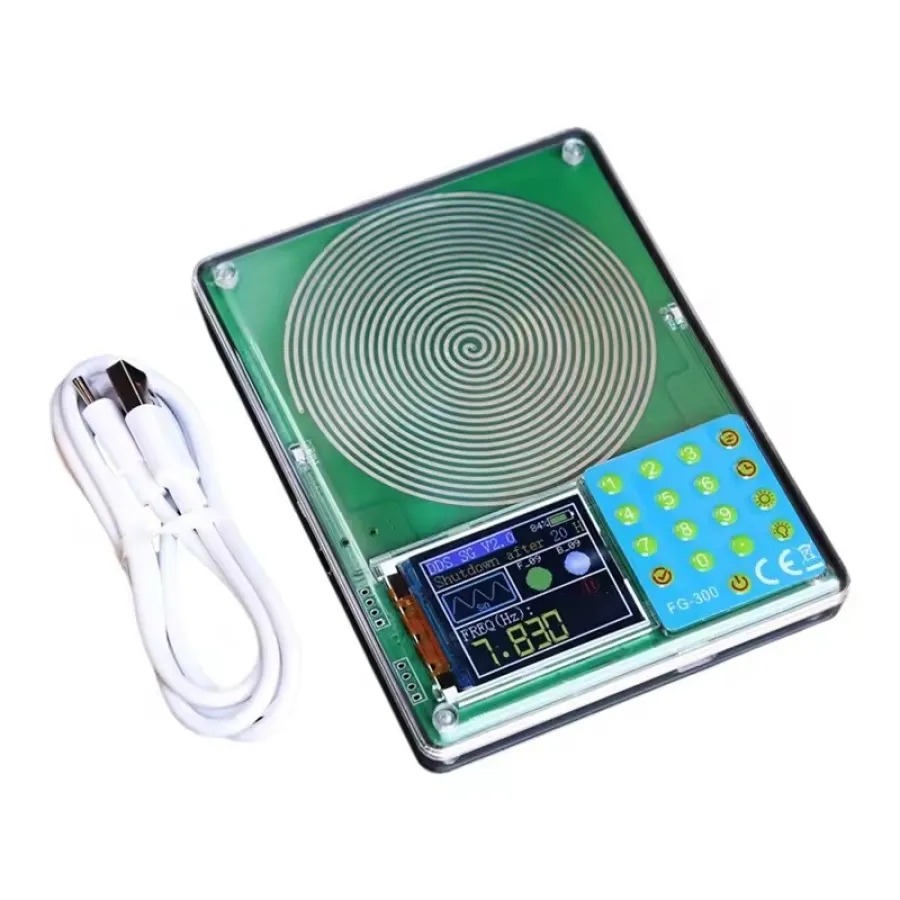

FG-300 Signal Generator
Features: Using low temperature drift crystal oscillator, high precision DDS frequency synthesis technology, high frequency stability, resolution up to 0.001HZ, at low frequency accuracy up to 0.001HZ.
Can be up to 13 kinds of waveform output, to meet different needs.
Color 1.8TFT LCD display, digital keyboard direct input frequency, intuitive and convenient operation.
With timing shutdown, signal light brightness adjustment, screen backlight brightness adjustment.
FG-300 is the multifunctional, high-precision, portable signal generator, which can generate sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram, half wave, , Gaussian, Sinc, Exponential rise, exponential fall, and 7.83HZ wave and other waveforms. The onboard spiral antenna can be used as a wave generator, can be widely used in electronic research and development, production testing, education and teaching, maintenance, audio testing and other fields.
All setting parameters can be automatically saved, and there is no need to set them in startup
Specifications:
frequency range: sine wave 0.001Hz-200kHz (where the output amplitude is flat to 100 kHz, the output
amplitude decrease and the distortion increase with the further increase of the frequency), and other
waveforms be 0.001Hz-20kHz (but the upper limit of adjustable frequency is not limited. If the requirements for
distortion and shaking are not high, the use frequency can be further increased).
output amplitude: 2. 5V
output impedance: 330 ohms
display: 1.8 inch TFT display
supply voltage: USB TYPE C
Packaging Details
- Unit Type:
- Package Weight: 0.177
- Package Size: 11x4x16
- Brand Name: Jarhead
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Battery Included: No
- Certification: CE
- Display Size: 3.0 - 4.9 Inches
- Model Number: FG-200
- Choice: yes
