FNIRSI New DSO510 DSO152 DSO153 Mini Handheld Digital 2 IN 1 Oscilloscope Portable 48MS/s 10MHz Bandwidth Electronic Repair Tool
4.8 (430 votes) | 2000 orders
Price:
US $95.59 - 126.39
Discount Price:
US $
54.07 -
73.78
-43%
- Color
-
-
Our company proudly introduces three high-quality and cost-effective handheld oscilloscopes—DSO510, DSO153, and DSO152—designed to meet the needs of both the maintenance and educational development industries. These portable, easy-to-use devices feature robust functionality, making them ideal for signal measurement and troubleshooting in various scenarios.
DSO510: High-Performance Flagship Model
The DSO510 is a powerful oscilloscope, offering advanced performance suitable for complex signal testing, research, and development. This model is an excellent choice for professionals handling intricate repairs or education environments requiring precise measurements.
Real-time Sampling Rate: 48MS/s
Bandwidth: 10MHz
Signal Type Support: Periodic analog signals and non-periodic digital signals
Trigger Modes: Single, Normal, Auto
Voltage Measurement Range: ±400V
Signal Generator: 50KHz
Key Features:

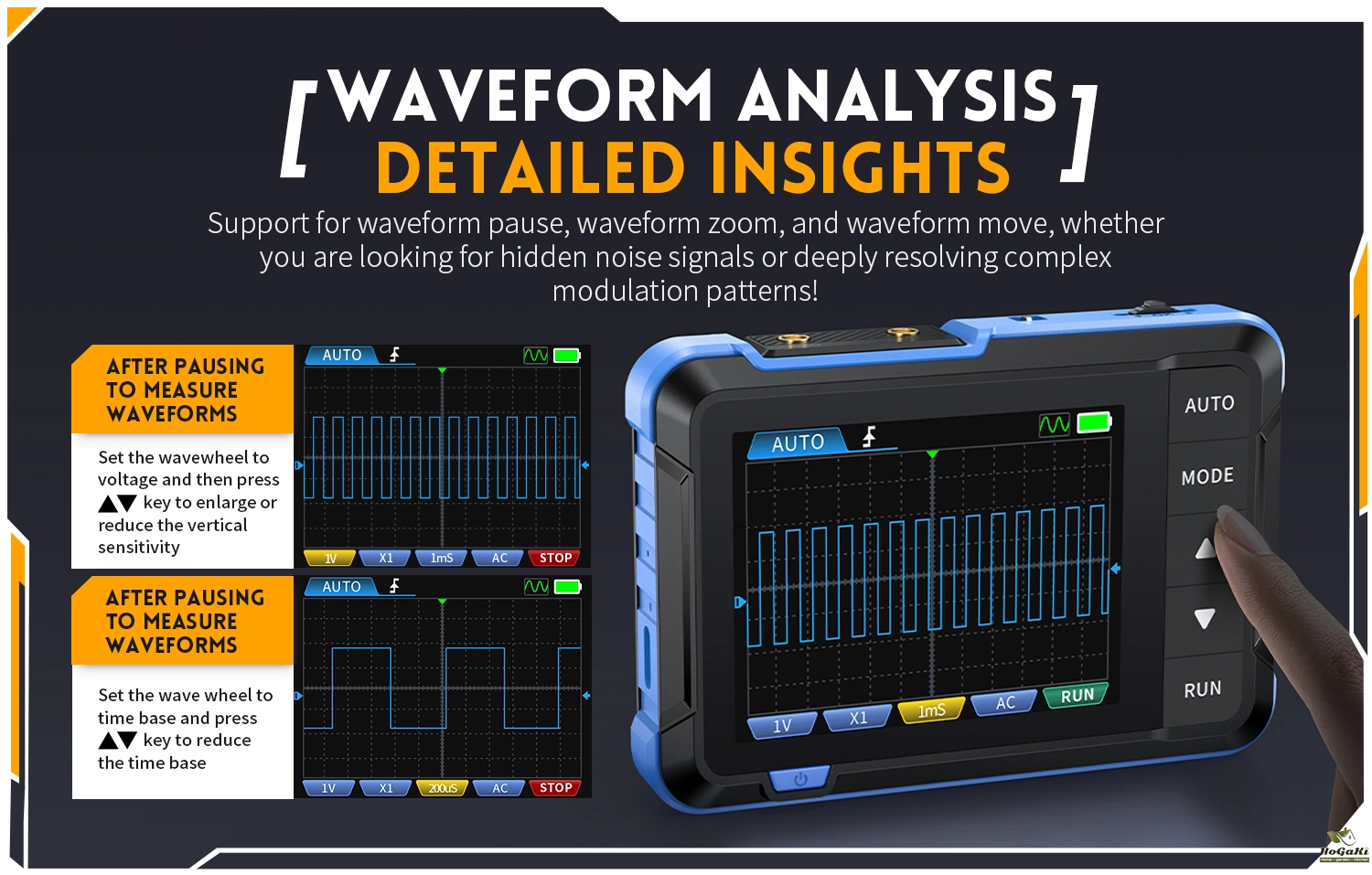

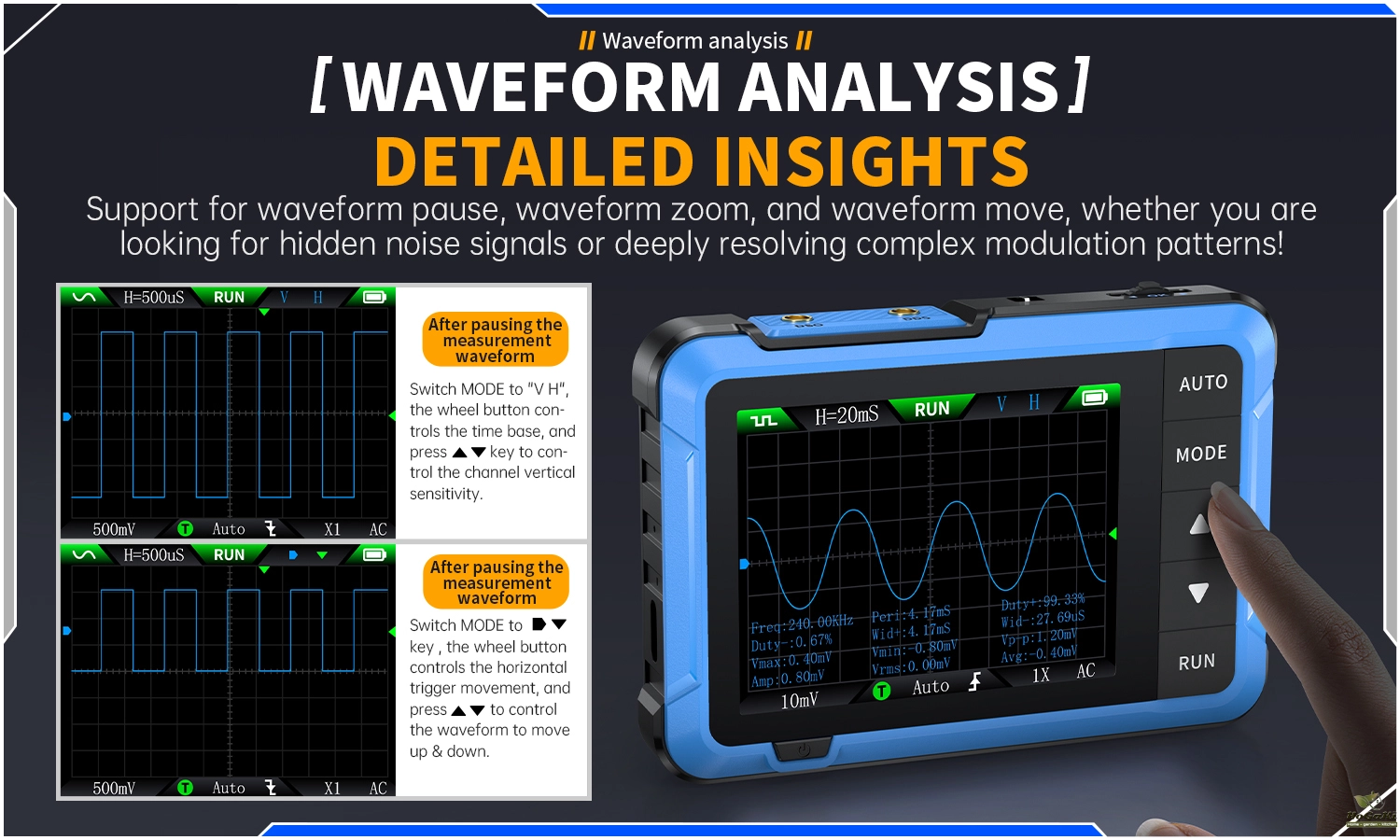

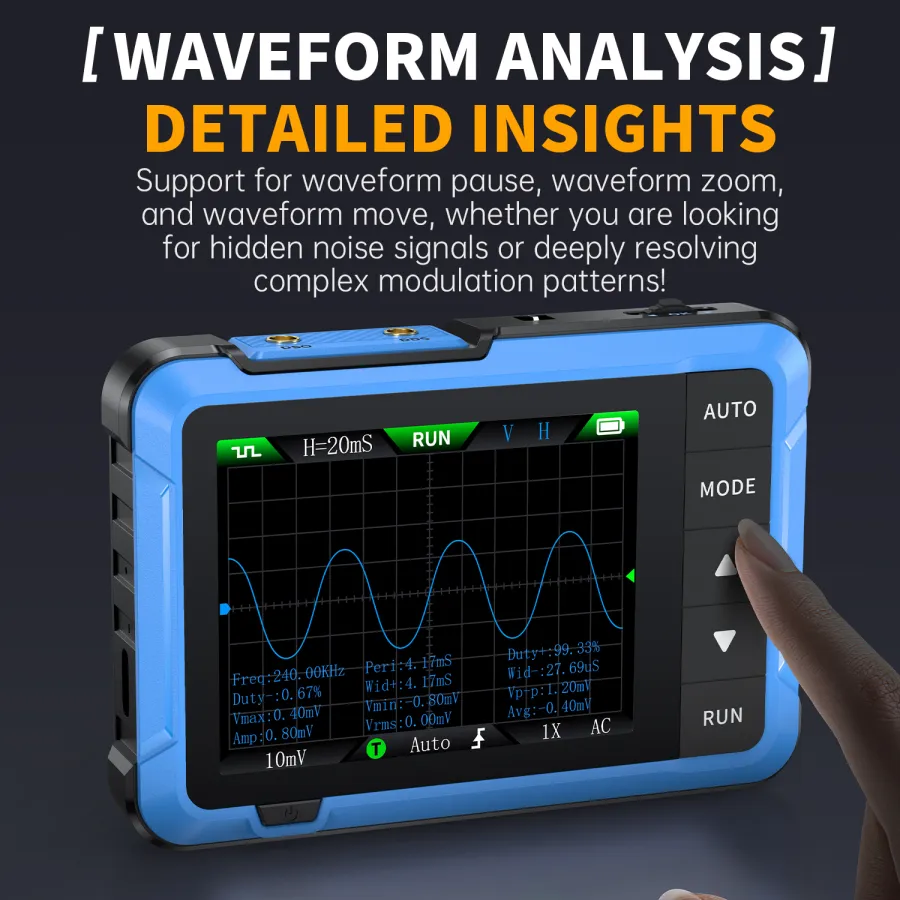

One-Click AUTO Mode: Displays waveforms instantly without complex adjustments.
HD LCD Screen: 2.8-inch display with 320×240 resolution.

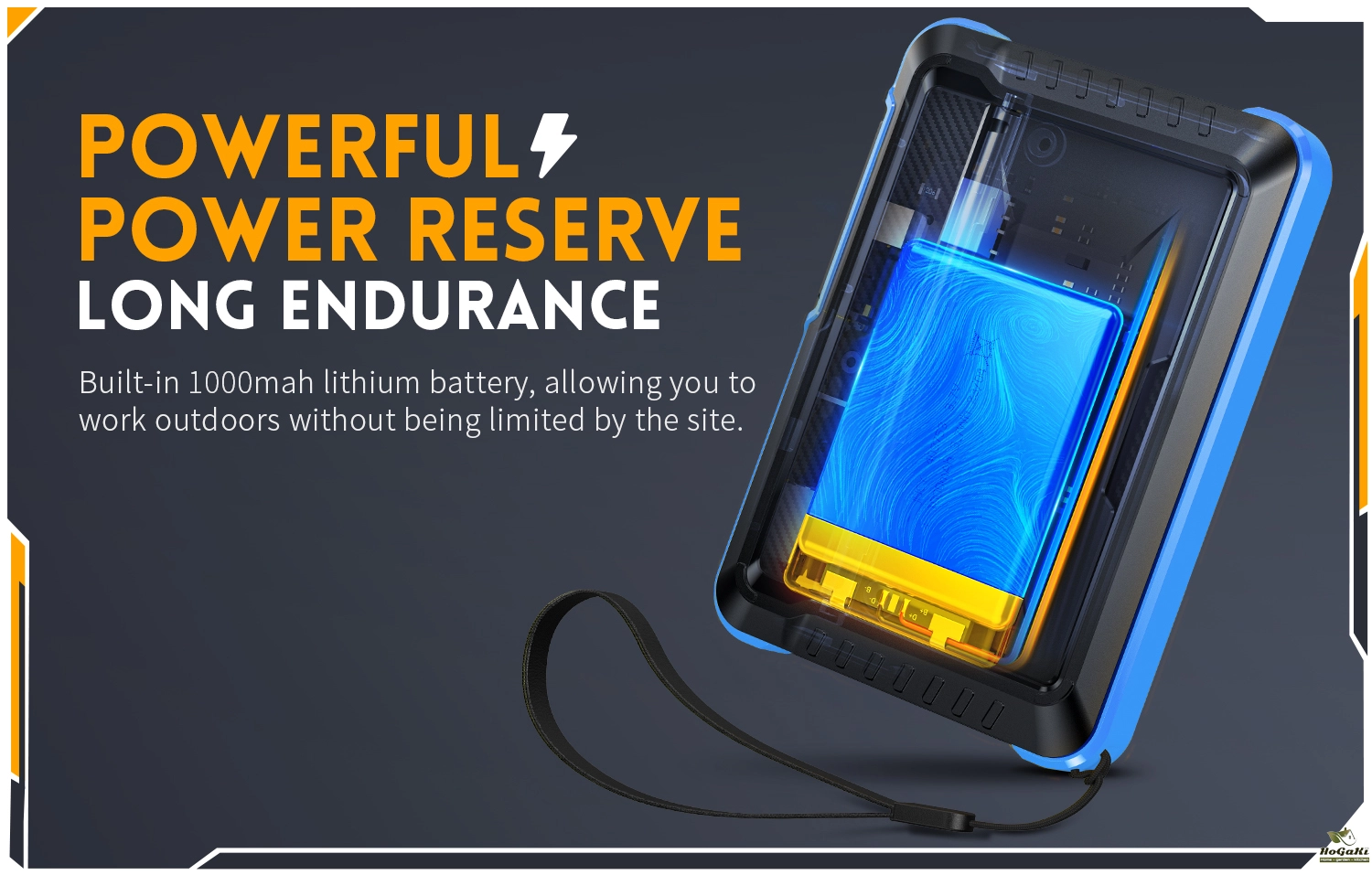

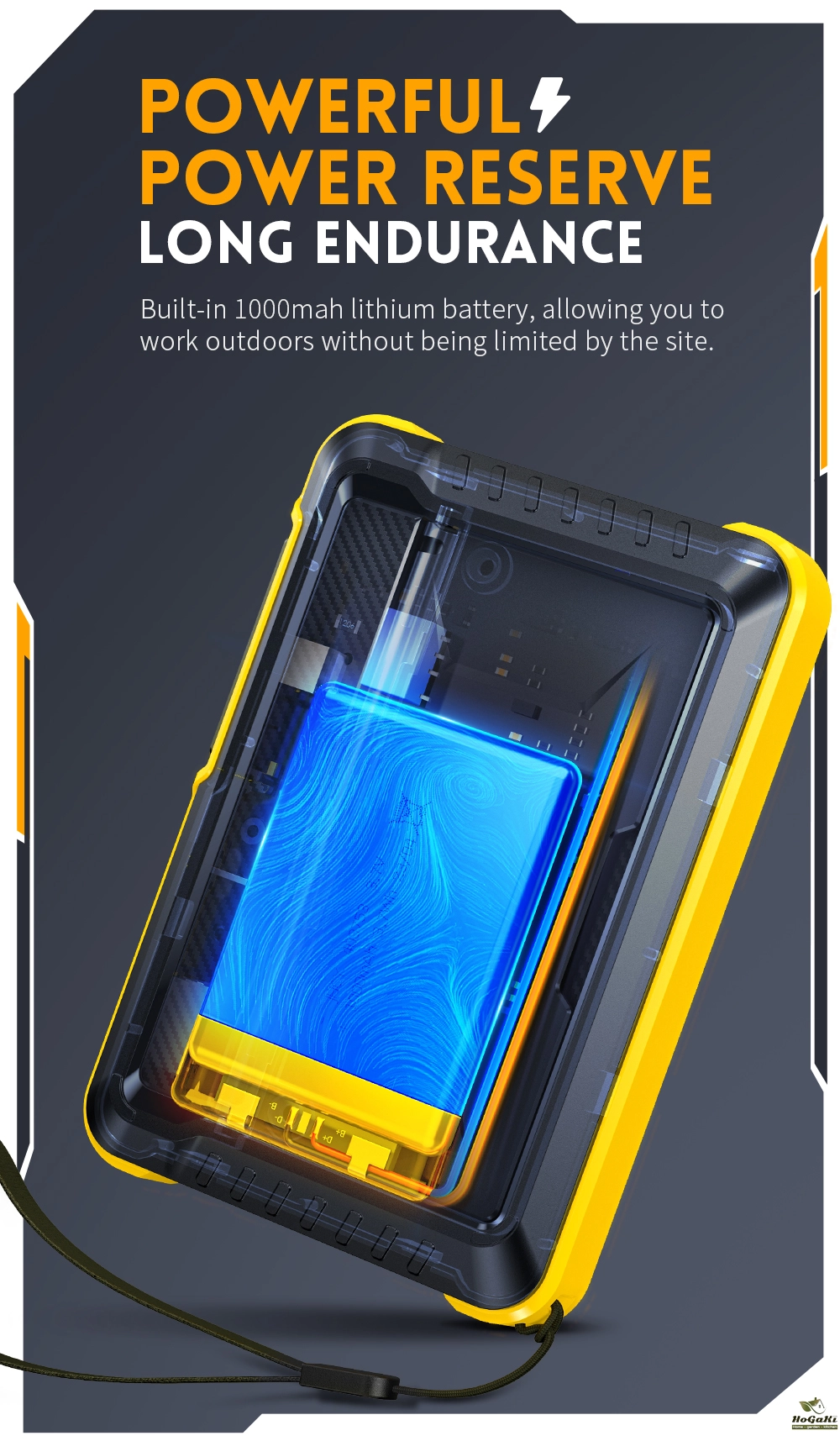

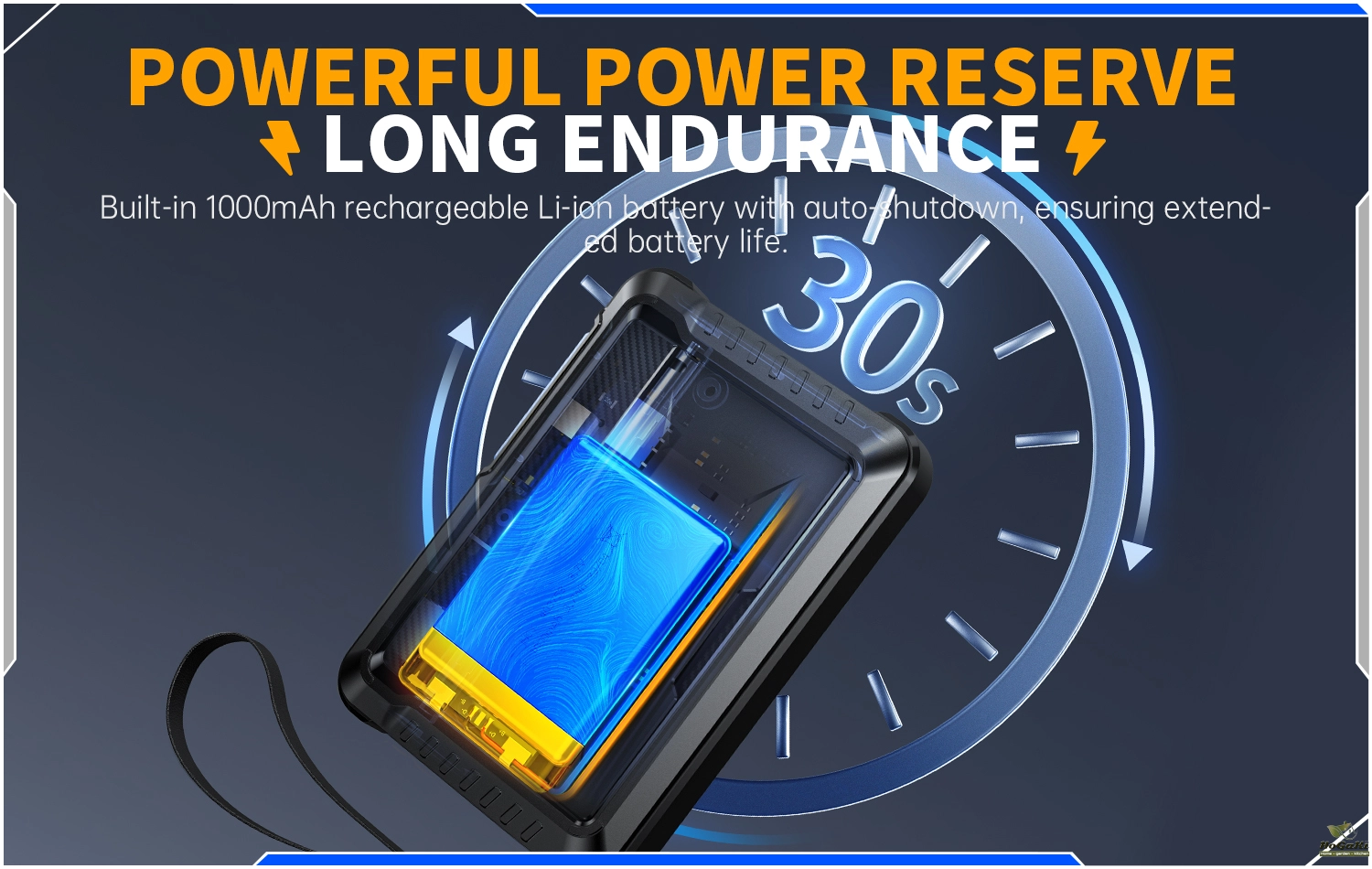

Battery Life: Built-in 1000mAh lithium battery supports up to 4 hours of continuous use.
Recommended Use: Ideal for advanced repairs, development, and education projects.
DSO153: Balanced and Versatile Option
The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing.
Real-time Sampling Rate: 5MS/s
Bandwidth: 1MHz
Signal Type Support: Periodic analog signals and non-periodic digital signals
Trigger Modes: Single, Normal, Auto
Voltage Measurement Range: ±400V
Signal Generator: 10KHz
Key Features:

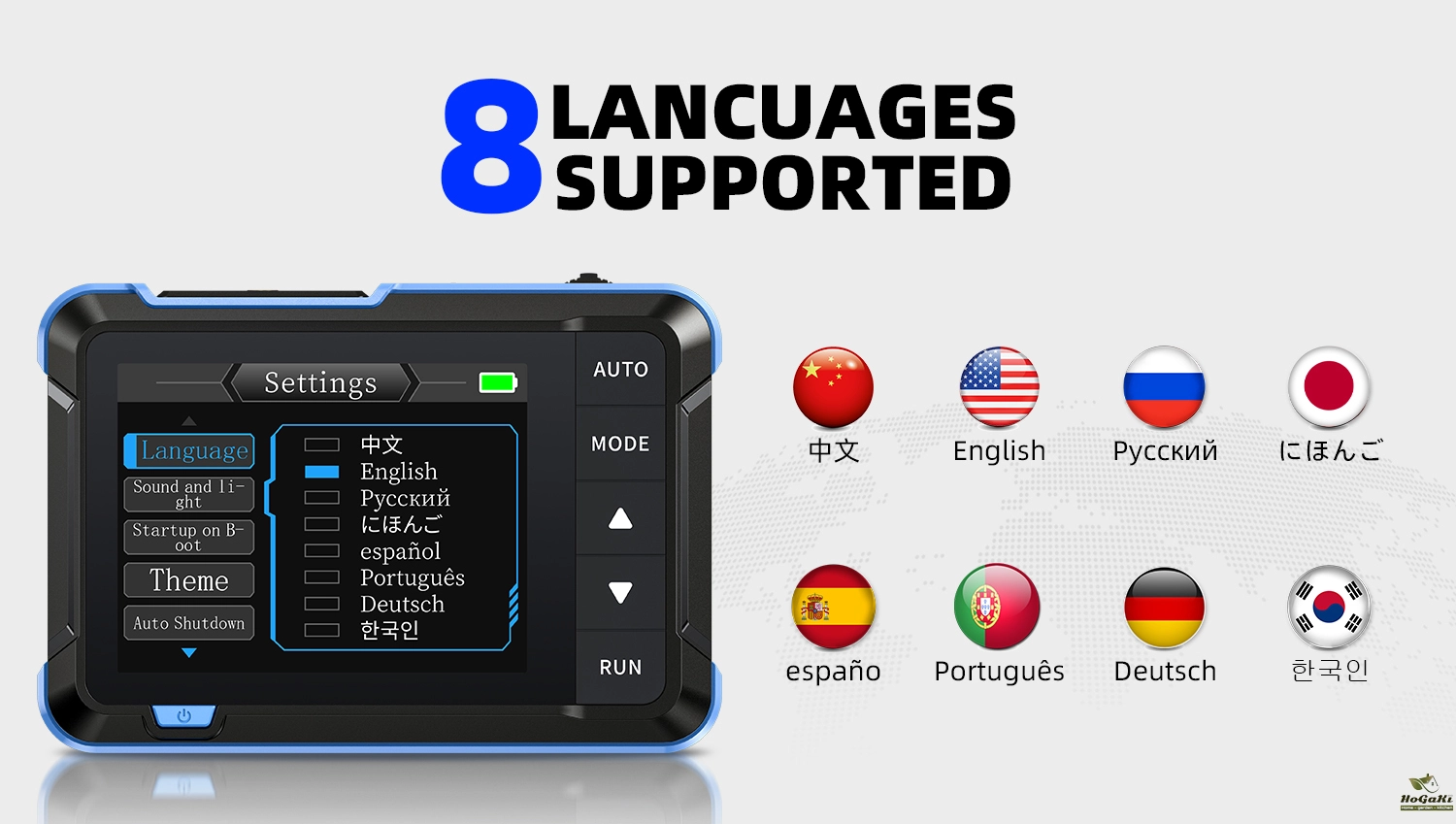

8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean
One-Click AUTO Mode: Effortlessly display waveforms with minimal input.
HD LCD Screen: 2.8-inch display with 320×240 resolution.
Battery Life: Built-in 1000mAh lithium battery provides up to 4 hours of operation.
Recommended Use: Suitable for routine equipment maintenance and educational signal demonstrations.

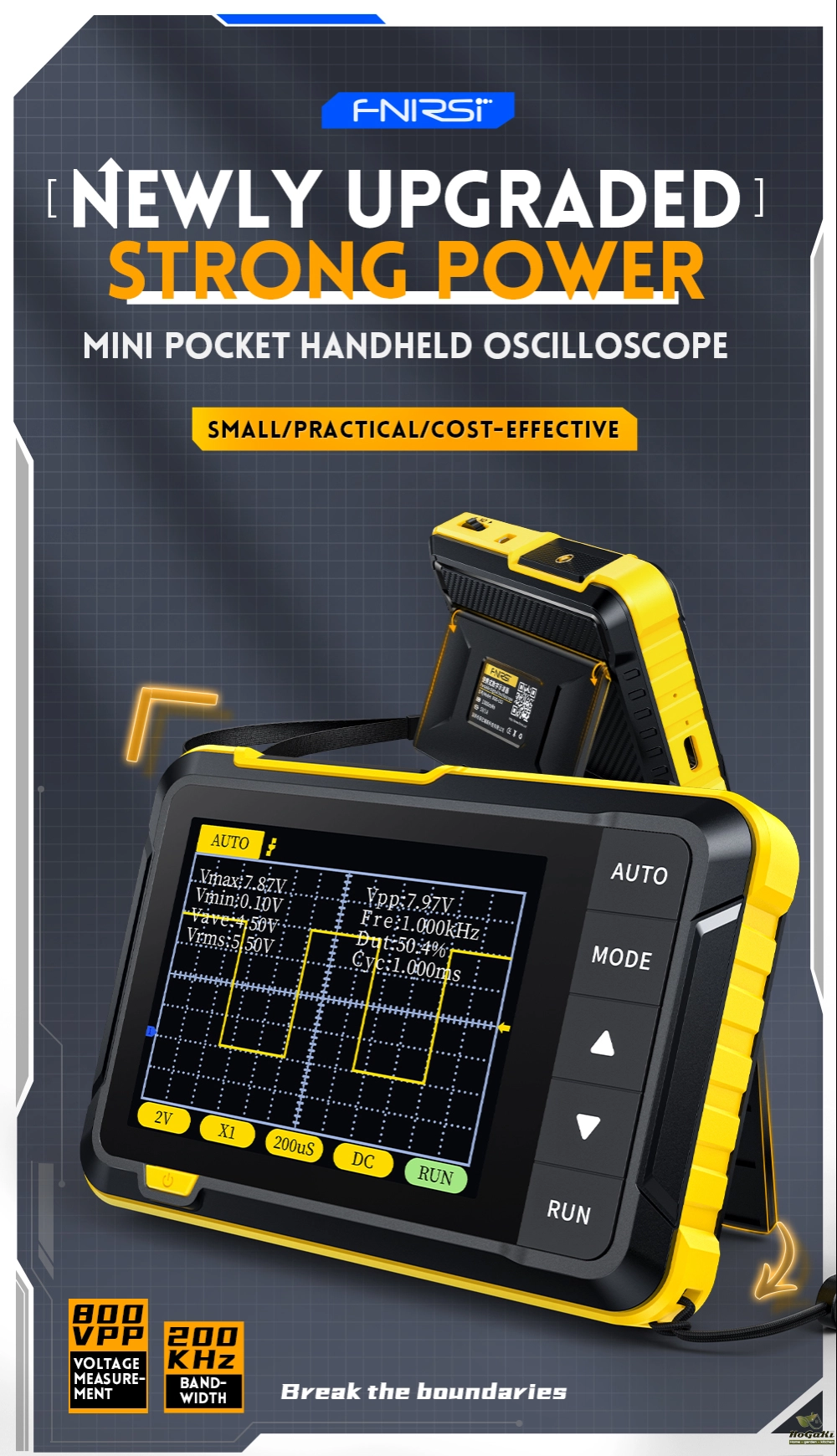

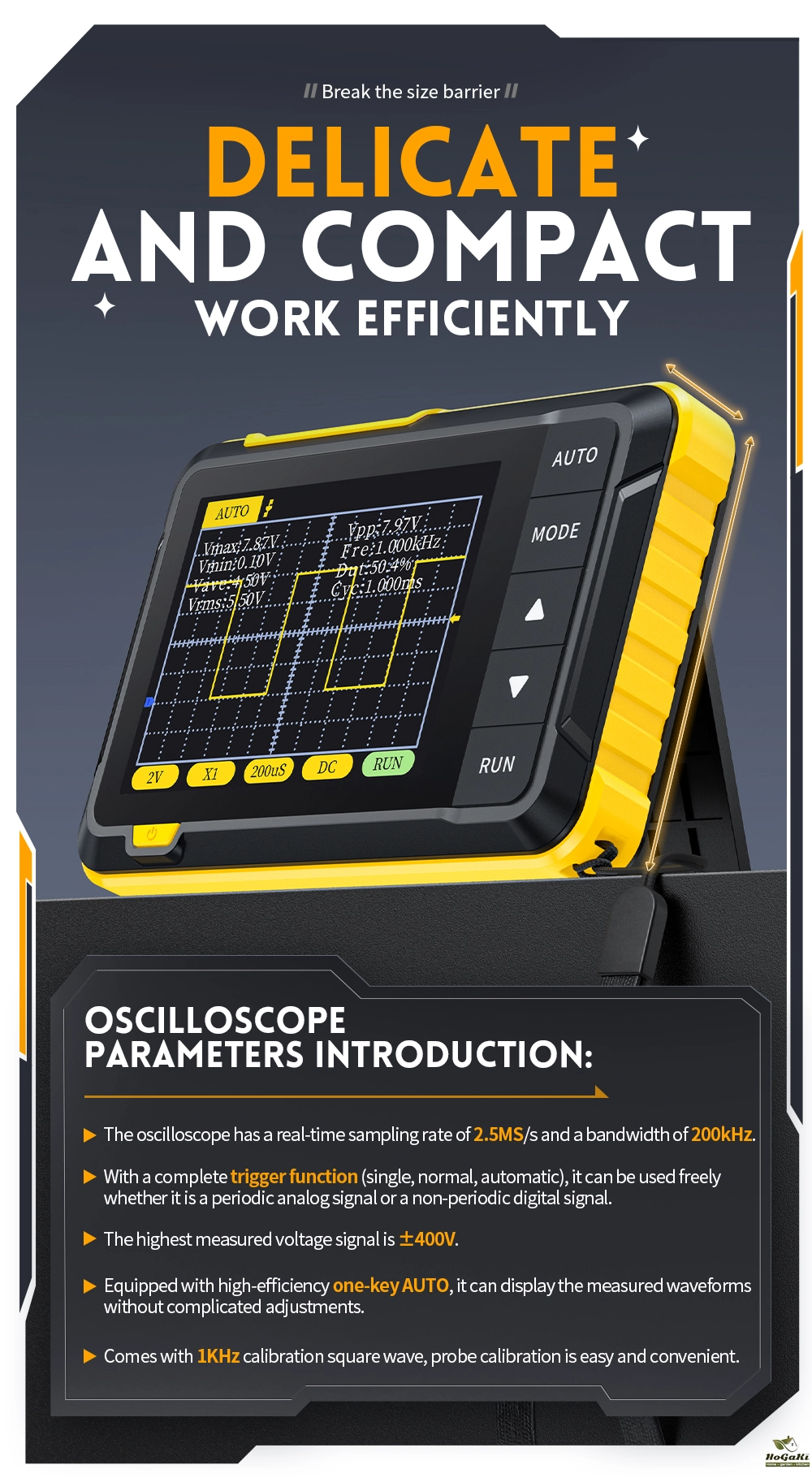

DSO152: Lightweight Entry-Level Model
The DSO152 is a compact, entry-level oscilloscope, designed for basic signal analysis and maintenance tasks. It provides essential oscilloscope functions in a lightweight and easy-to-carry design.
Real-time Sampling Rate: 2.5MS/s
Bandwidth: 200KHz
Signal Type Support: Periodic analog signals and non-periodic digital signals
Trigger Modes: Single, Normal, Auto
Voltage Measurement Range: ±400V
Key Features:
One-Click AUTO Mode: Quickly generate waveforms with ease.
HD LCD Screen: 2.8-inch display with 320×240 resolution.
Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
Recommended Use: Perfect for basic maintenance and educational labs requiring fundamental signal analysis.

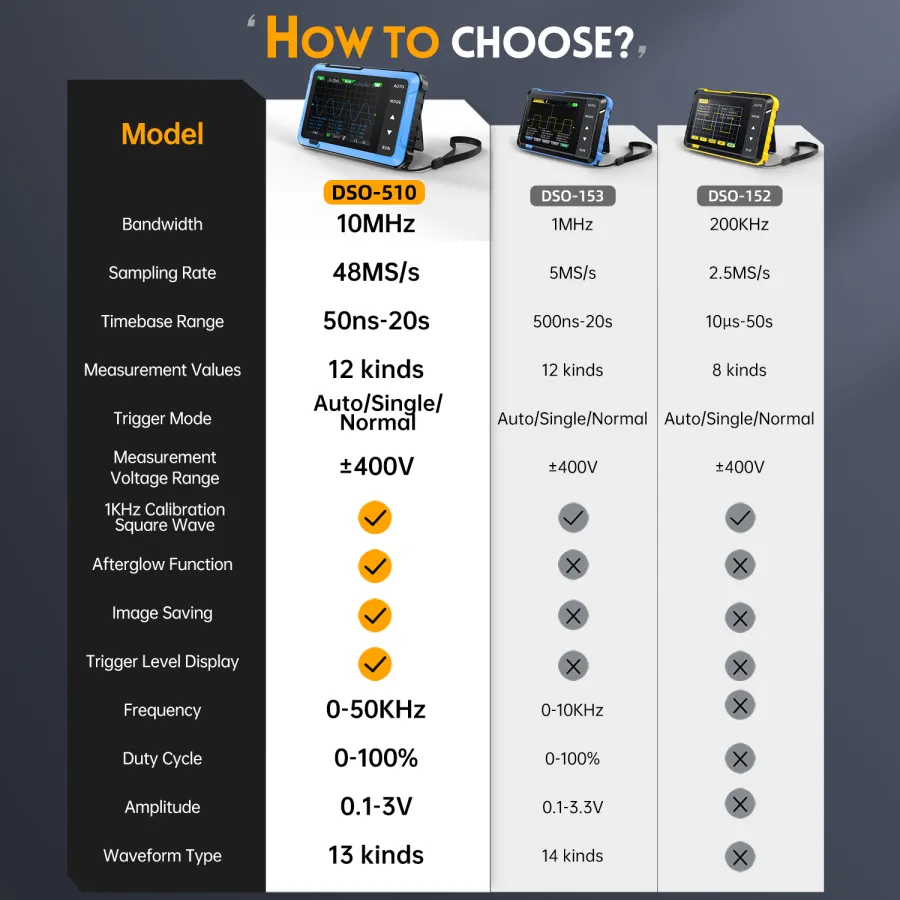

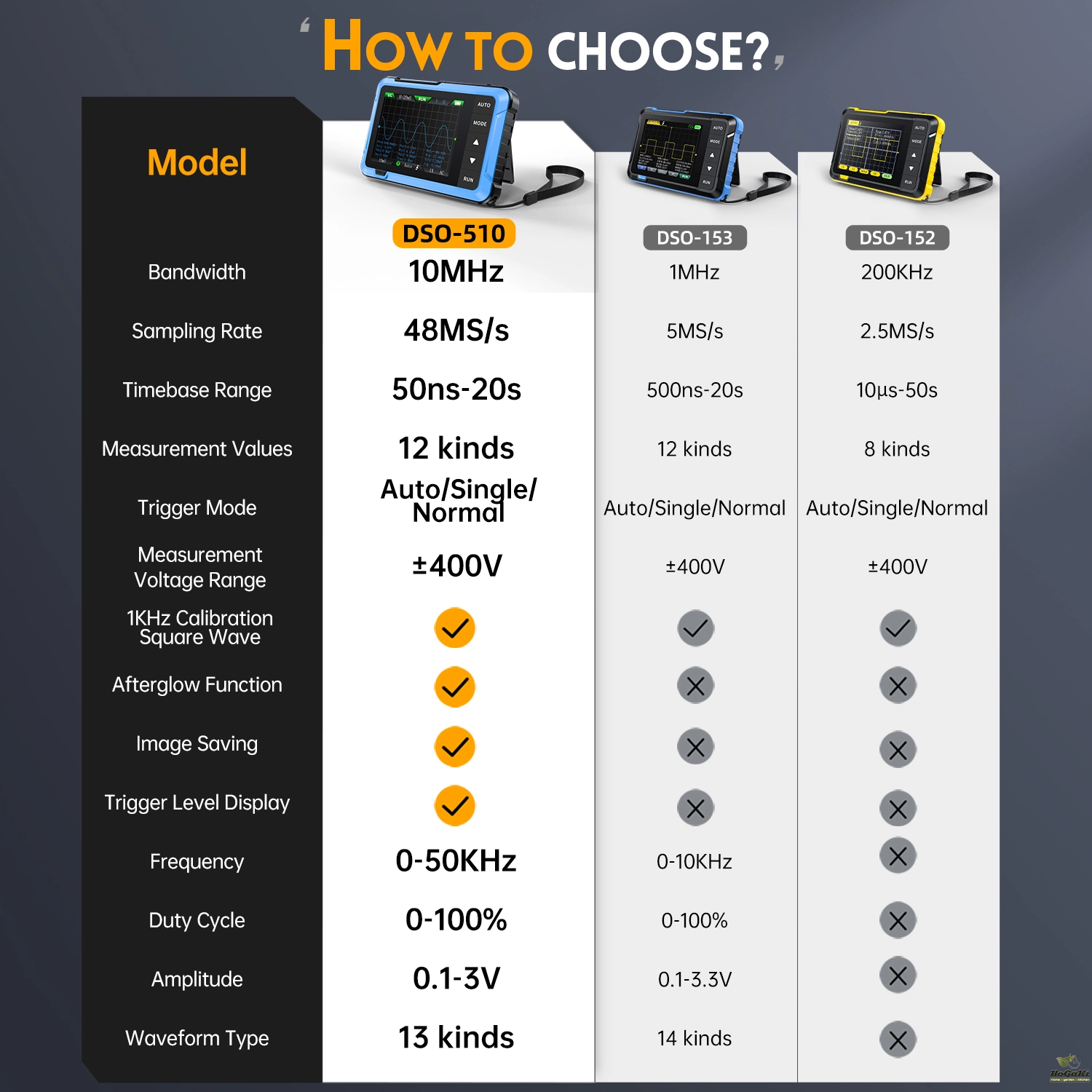

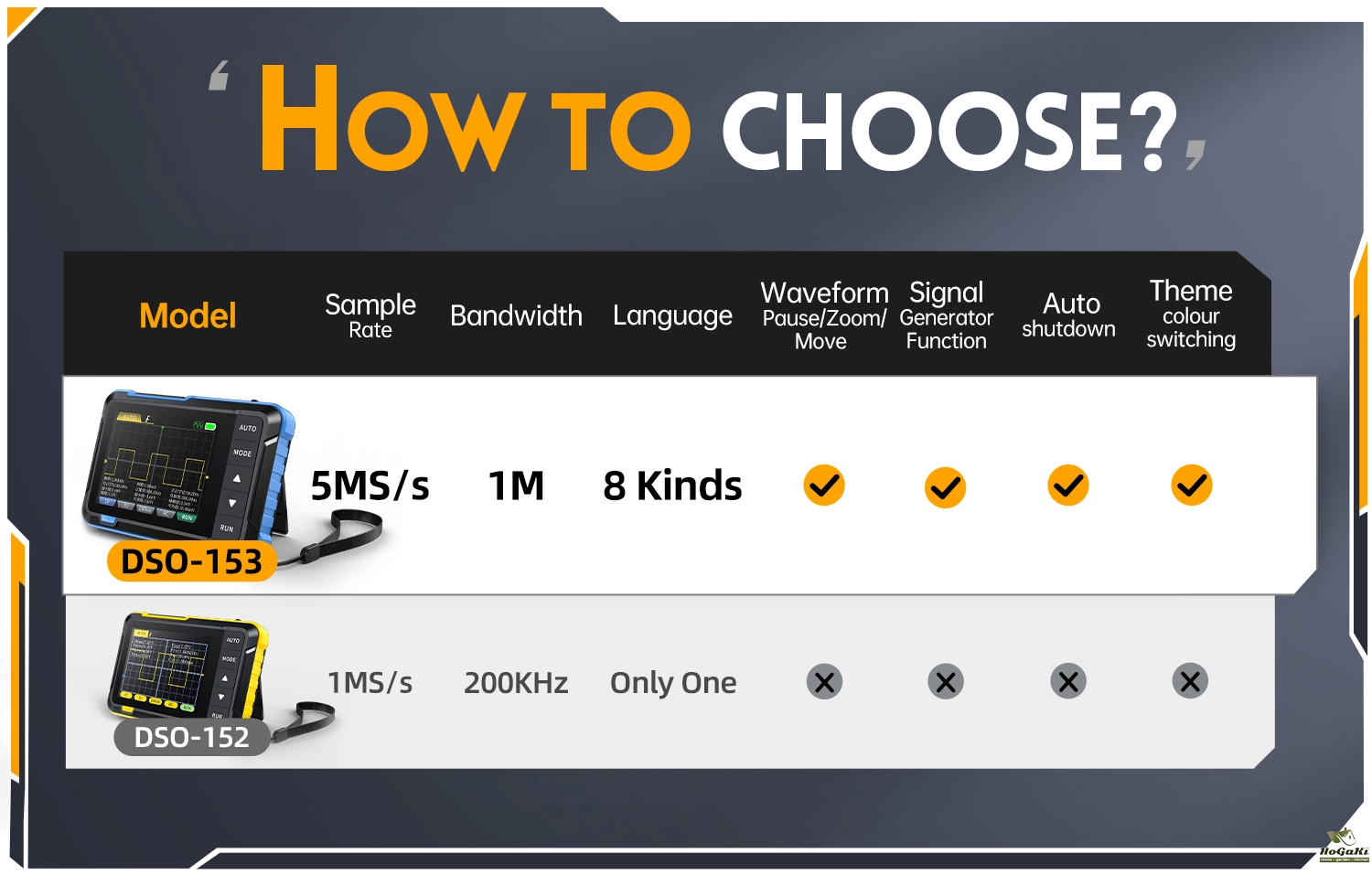

Summary
These three models—DSO510, DSO153, and DSO152—are designed to address different levels of testing requirements.
DSO510: Best for advanced applications with the highest sampling rate and bandwidth.
DSO153: A well-balanced option for everyday maintenance and education.
DSO152: Ideal for entry-level needs with essential functions in a lightweight design.
All models feature one-click AUTO functionality, portable design, vivid 2.8-inch LCD screens, and 4-hour battery life, making them reliable tools for both professionals and students.

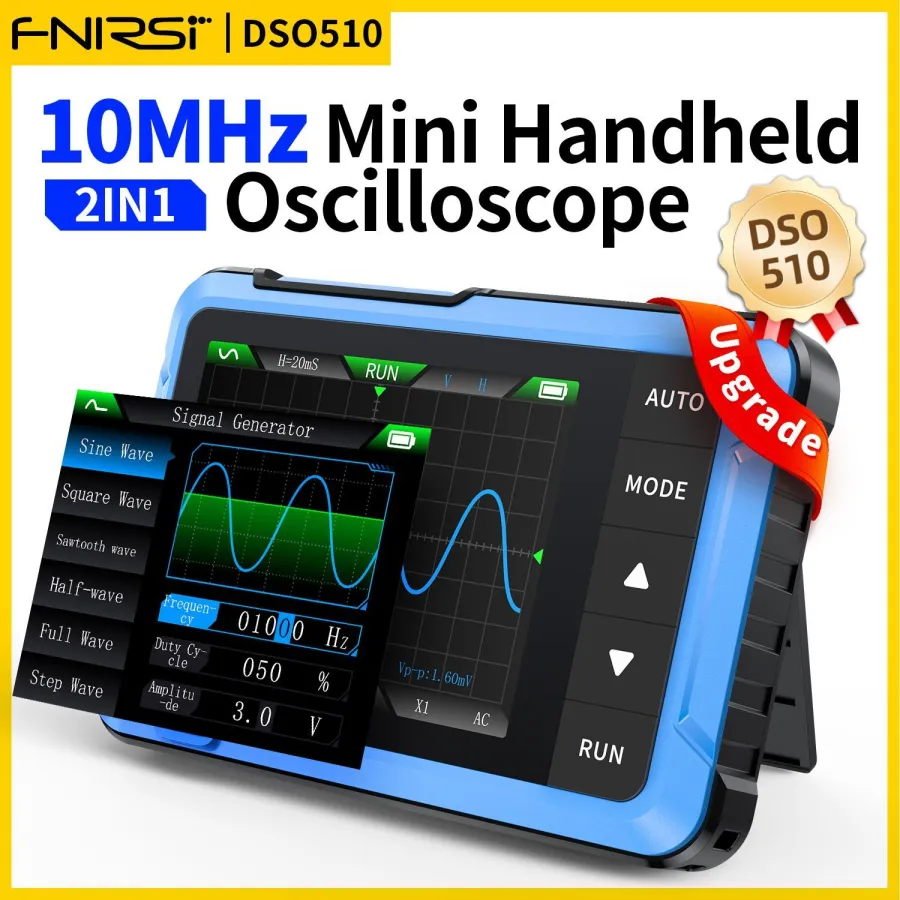

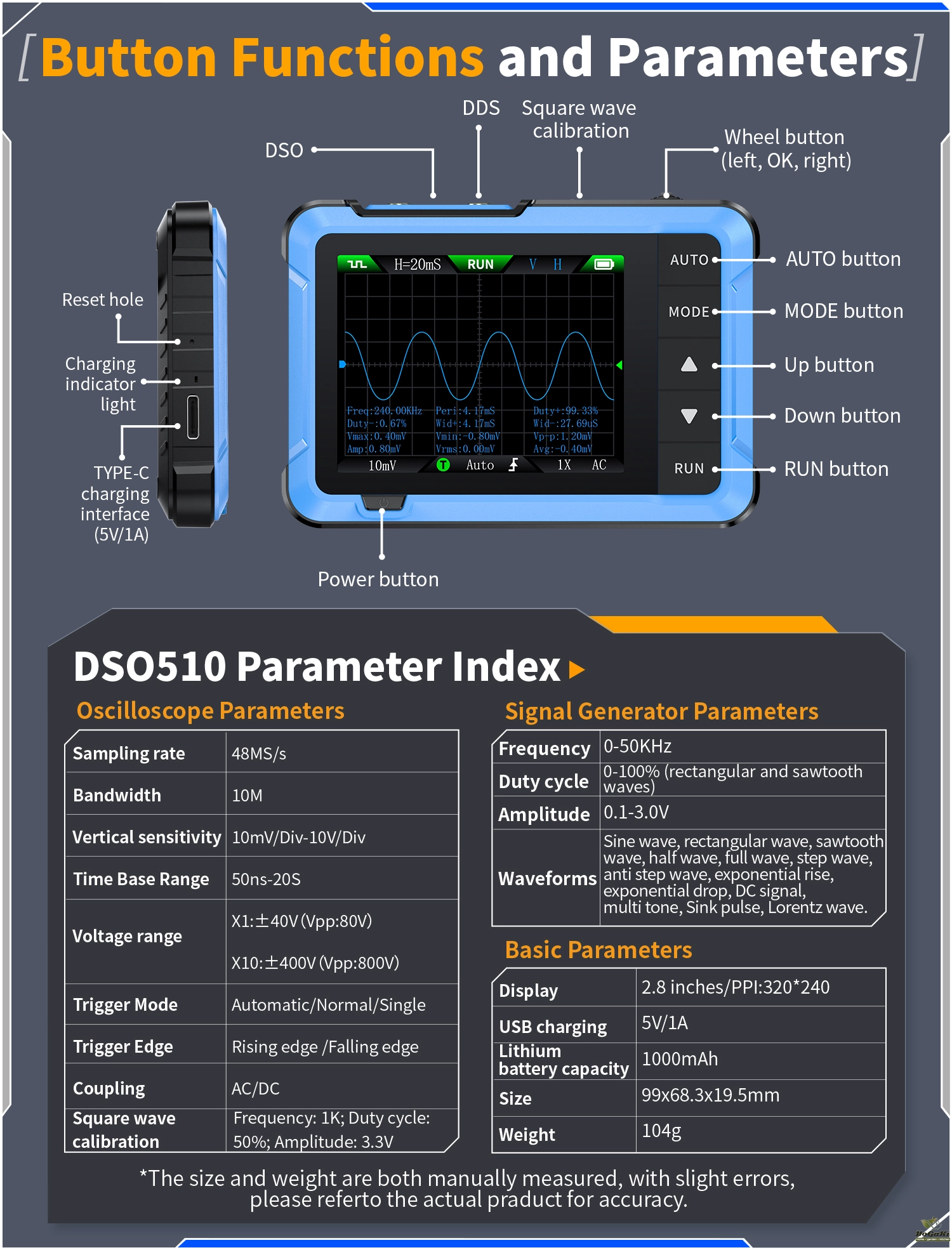

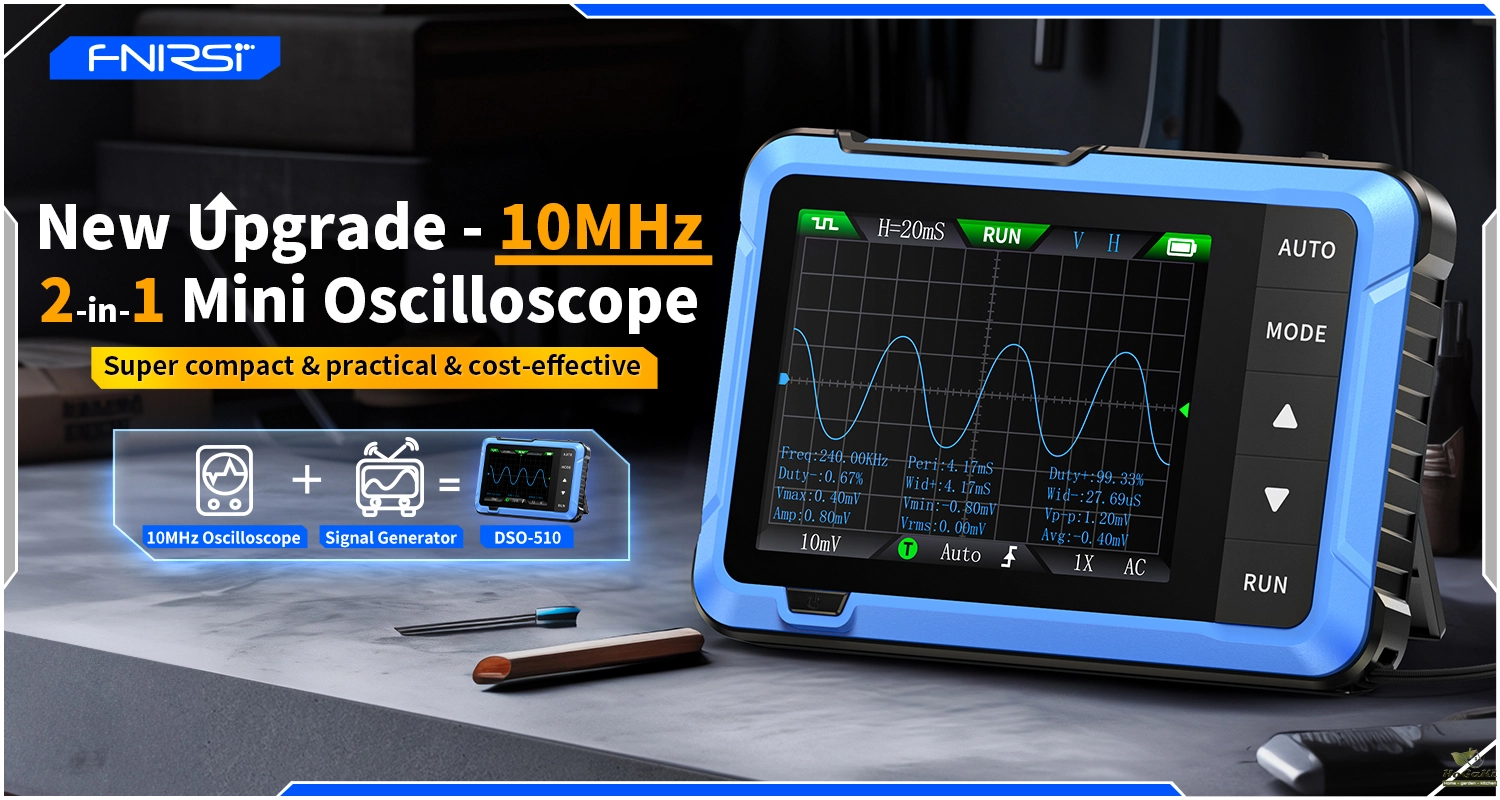

DSO510 2 IN 1 —— 10MHz Bandwidth
* Mini Oscilloscope *
Channel：1
Sampling rate：48MSa/s
Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）
Time base range：50ns/Div-20s/Div（Progress according to the 1-2-5 way）
Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)
Trigger method：Auto / Normal / Single
Coupling method：AC/DC

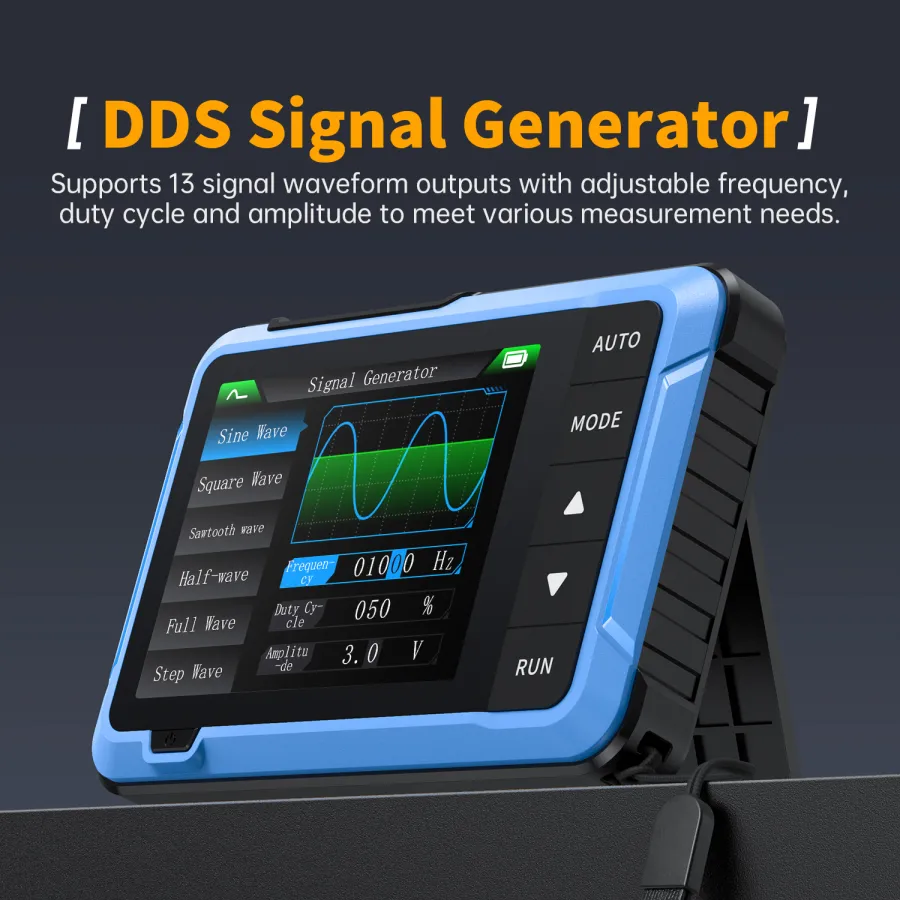

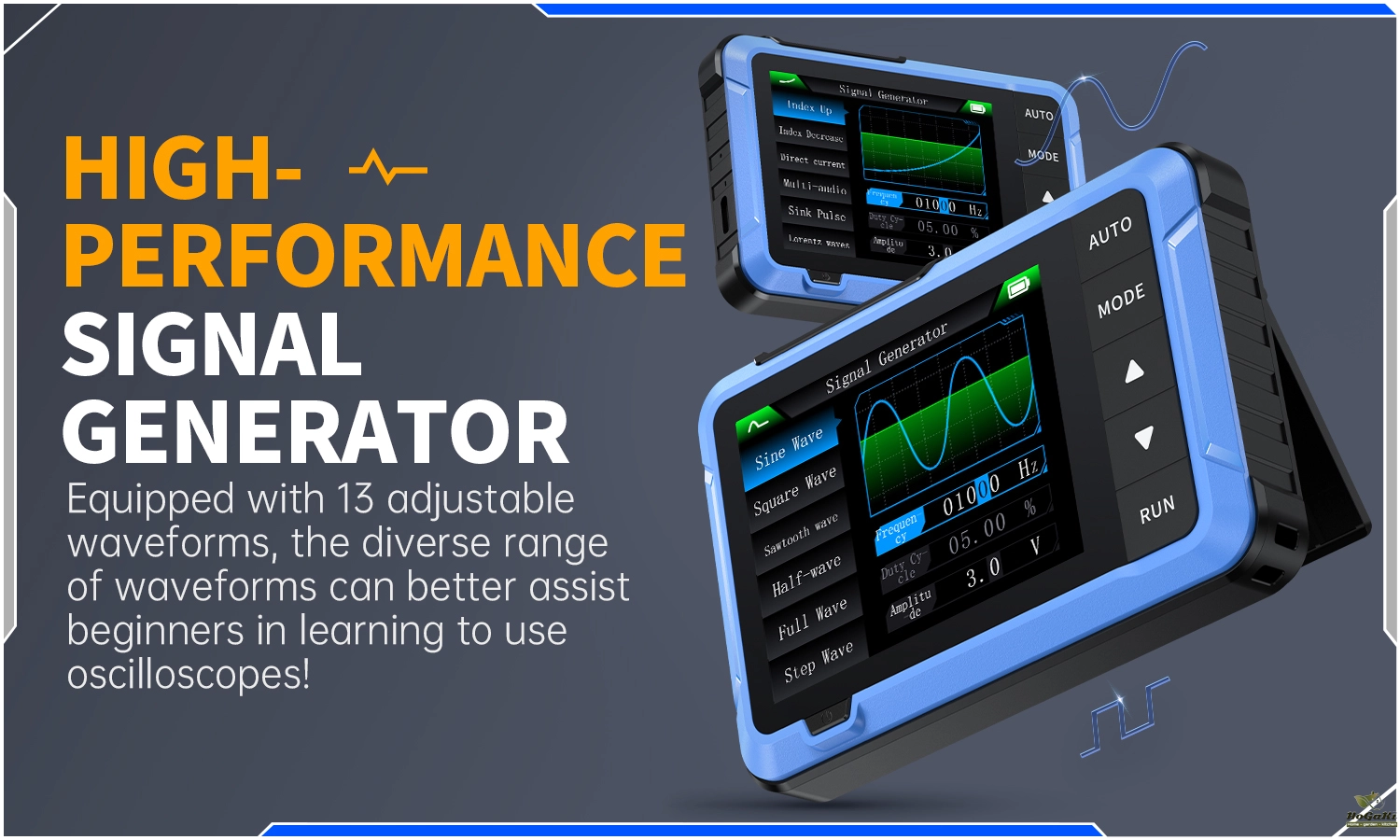

* Signal generator *
Frequency：0-50KHz
Duty cycle：0-100% (rectangular and sawtooth waves)
Amplitude：0.1-3.0V
Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.
* Other Parameters *
Display：2.8 inches/PPI:320*240
USB charging：5V/1A
Lithium battery capacity：1000mAh
Size：99x68.3x19.5mm
Weight：104g
DSO153 2 IN 1—— 1MHz Bandwidth
* Mini Oscilloscope *
Channel：1
Sampling rate：5MSa/s
Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）
Time base range：500ns/Div-20s/Div（Progress according to the 1-2-5 way）
Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)
Trigger method：Auto / Normal / Single
Coupling method：AC/DC
* Signal generator *
Frequency：0-10KHz
Duty cycle：0-100% (rectangular and sawtooth waves)
Amplitude：0.1-3.3V
Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.
* Other Parameters *
Display：2.8 inches/PPI:320*240
USB charging：5V/1A
Lithium battery capacity：1000mAh
Size：99x68.3x19.5mm
Weight：100g

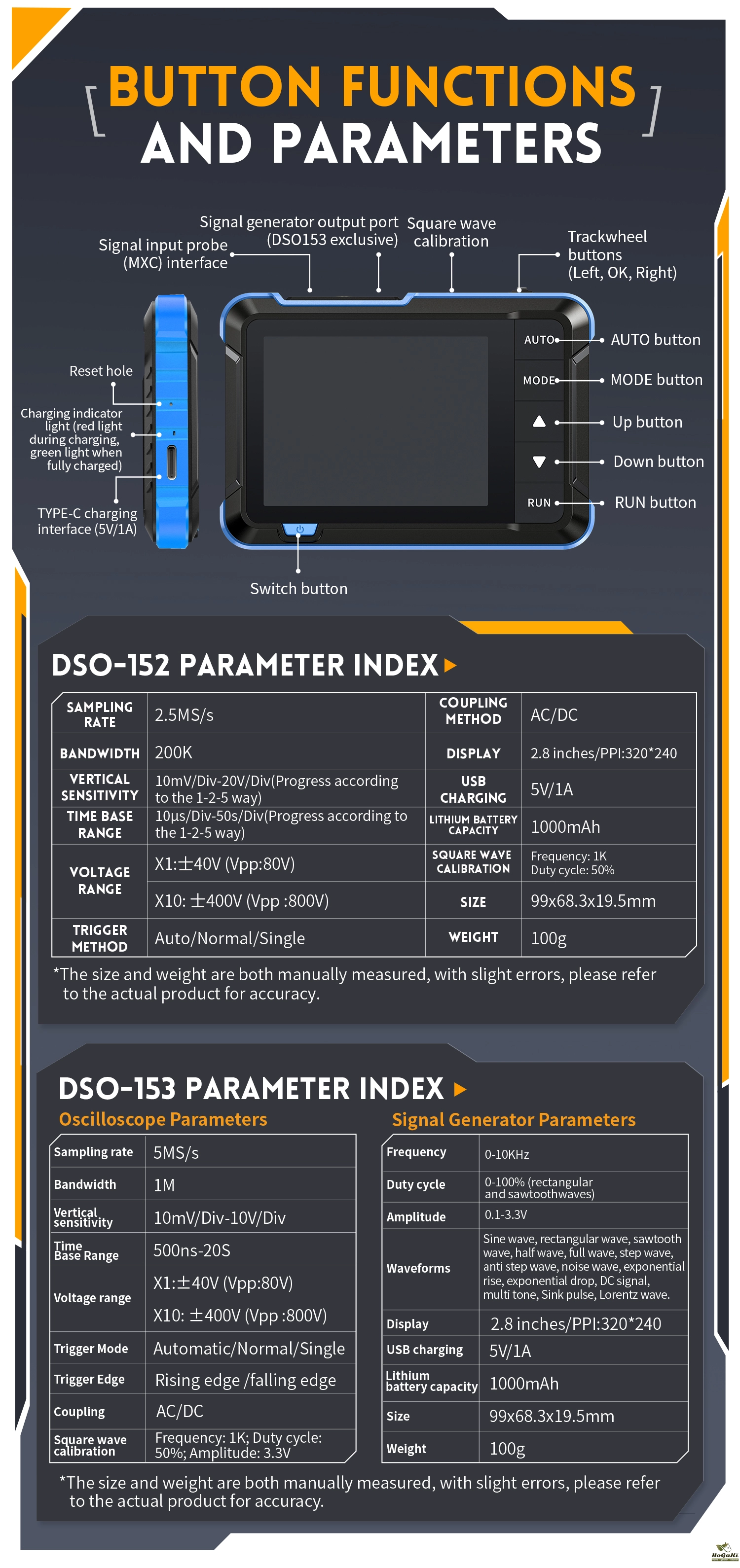

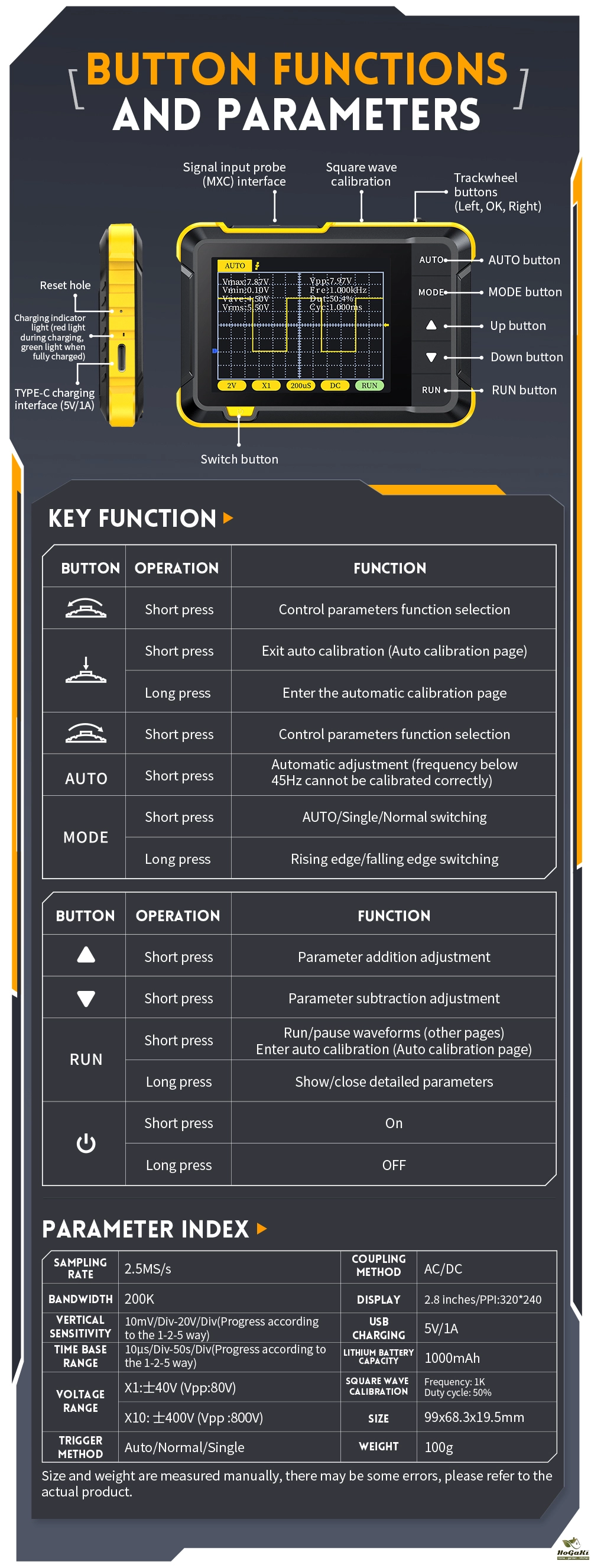

DSO152 —— 200K Bandwidth
Channel：1
Sampling rate：2.5MS/s
Vertical sensitivity：10mV/Div-20V/Div(Progress according to the 1-2-5 way)
Time base range：10μs/Div-50s/Div(Progress according to the 1-2-5 way)
Voltage range：X1:40V (Vpp:80V) X10: 400V (Vpp :800V)
Trigger method：Auto/Normal/Single
Coupling method：AC/DC
Display：2.8 inches/PPI:320*240
USB charging：5V/1A
Lithium battery capacity：1000mAh
Square wave calibration：Frequency: 1K Duty cycle: 50%
Size：99x68.3x19.5mm
Weight：100g

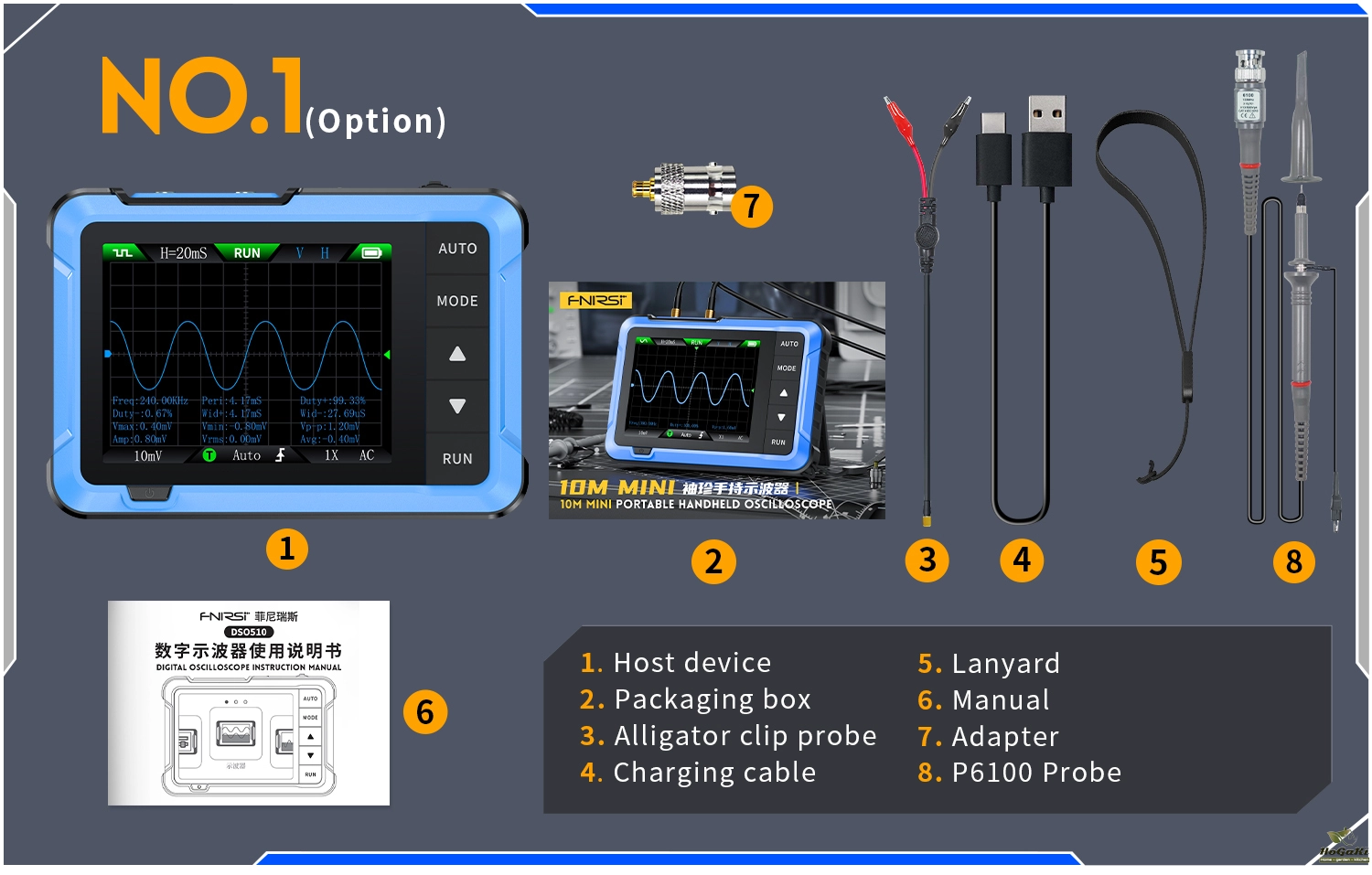

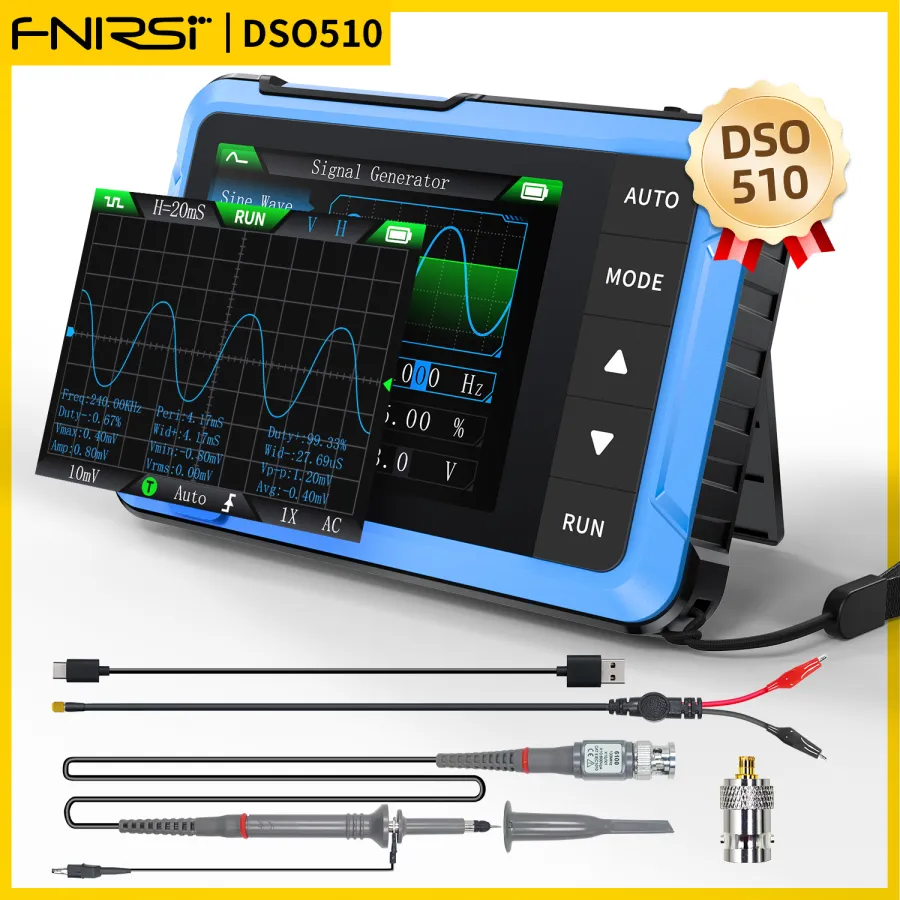

DSO510
NO.1 (Option)
DSO510 Host device *1
P6100 High Voltage Probe *1
Adapter *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1

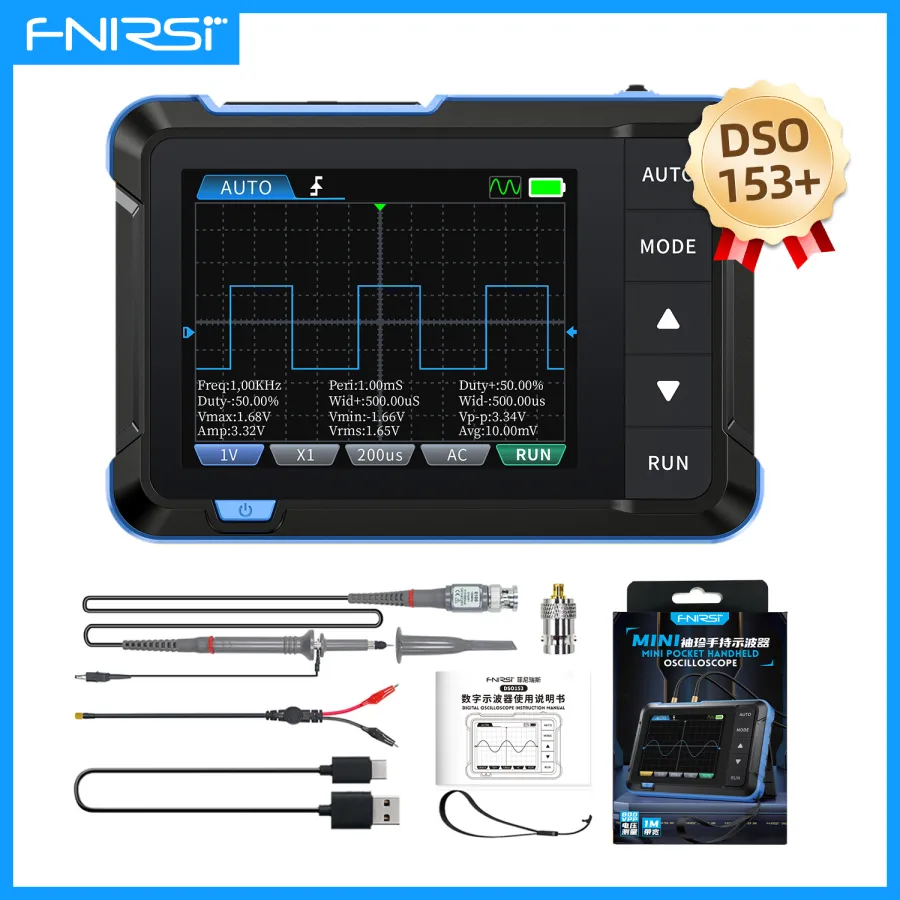

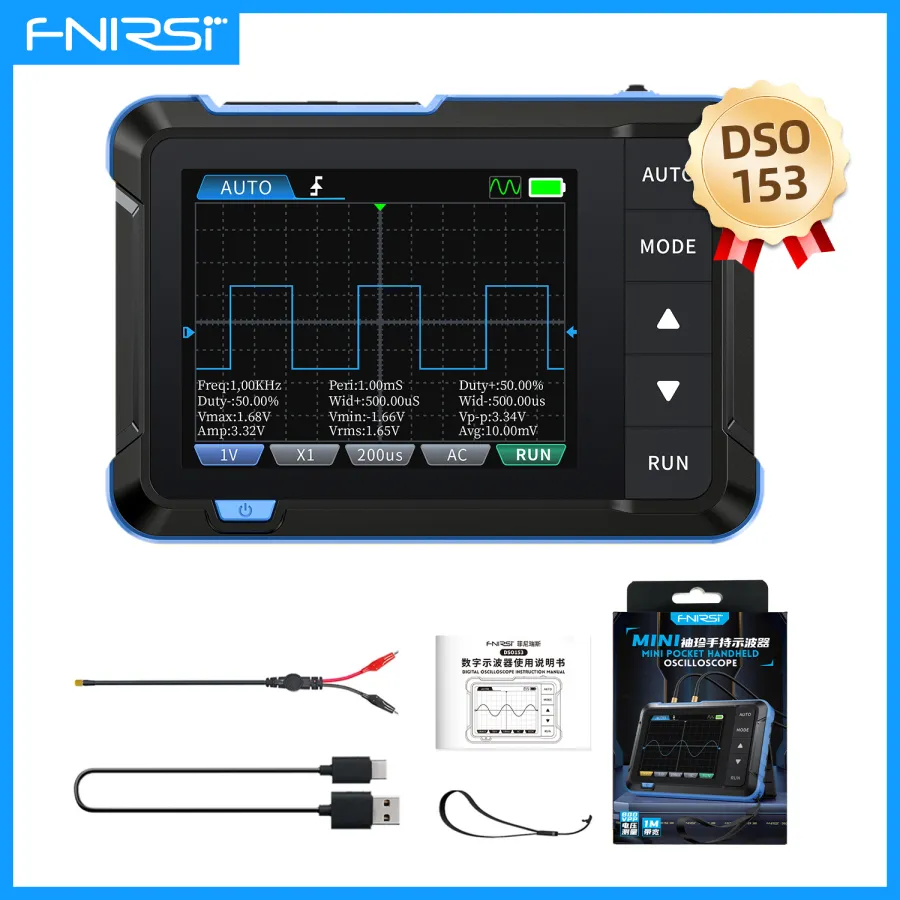

DSO153
NO.1 (Standard)
DSO153 Host device *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1

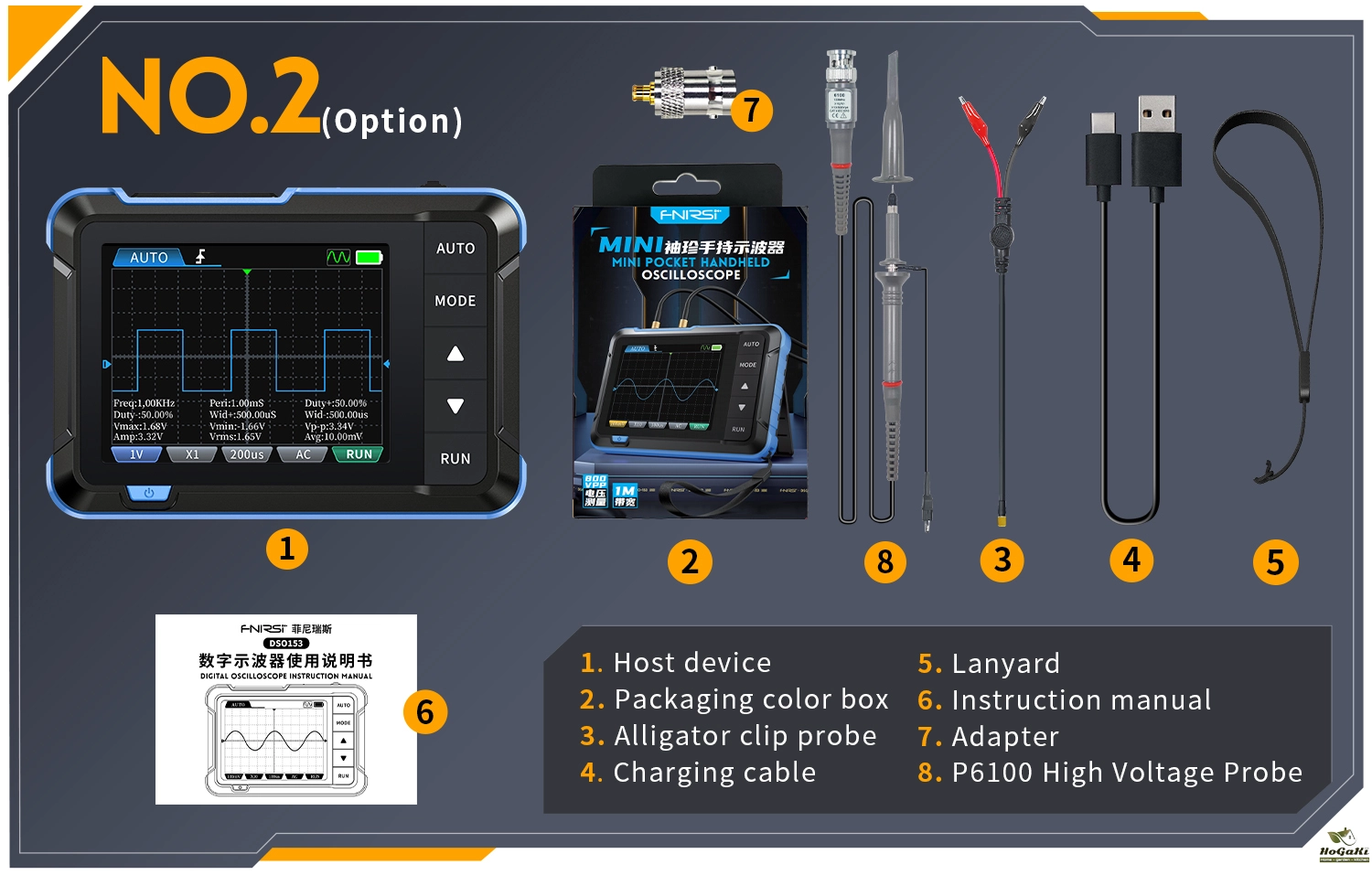

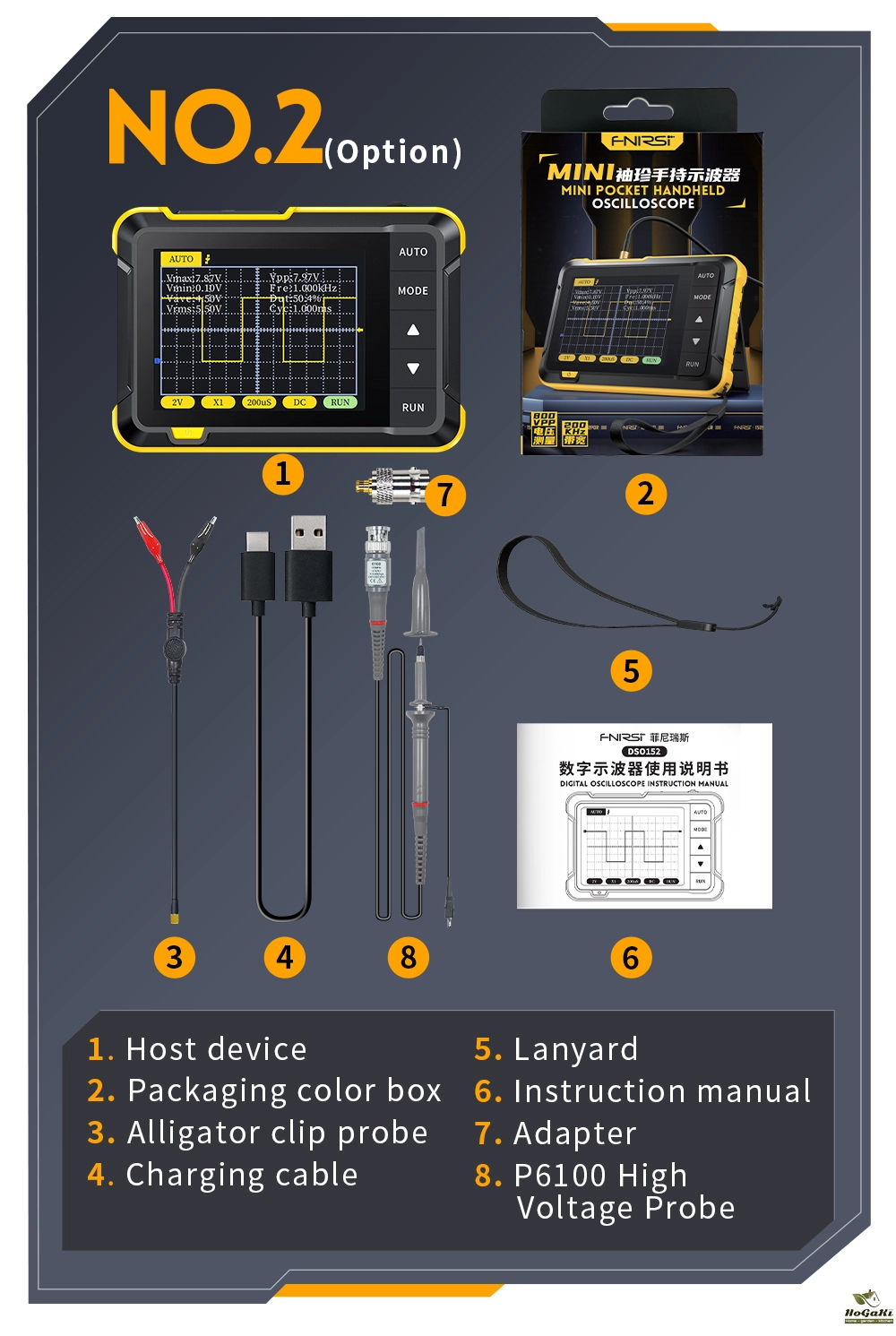

NO.2 (Option)
DSO 153 Host device *1
P6100 High Voltage Probe *1
Adapter *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1

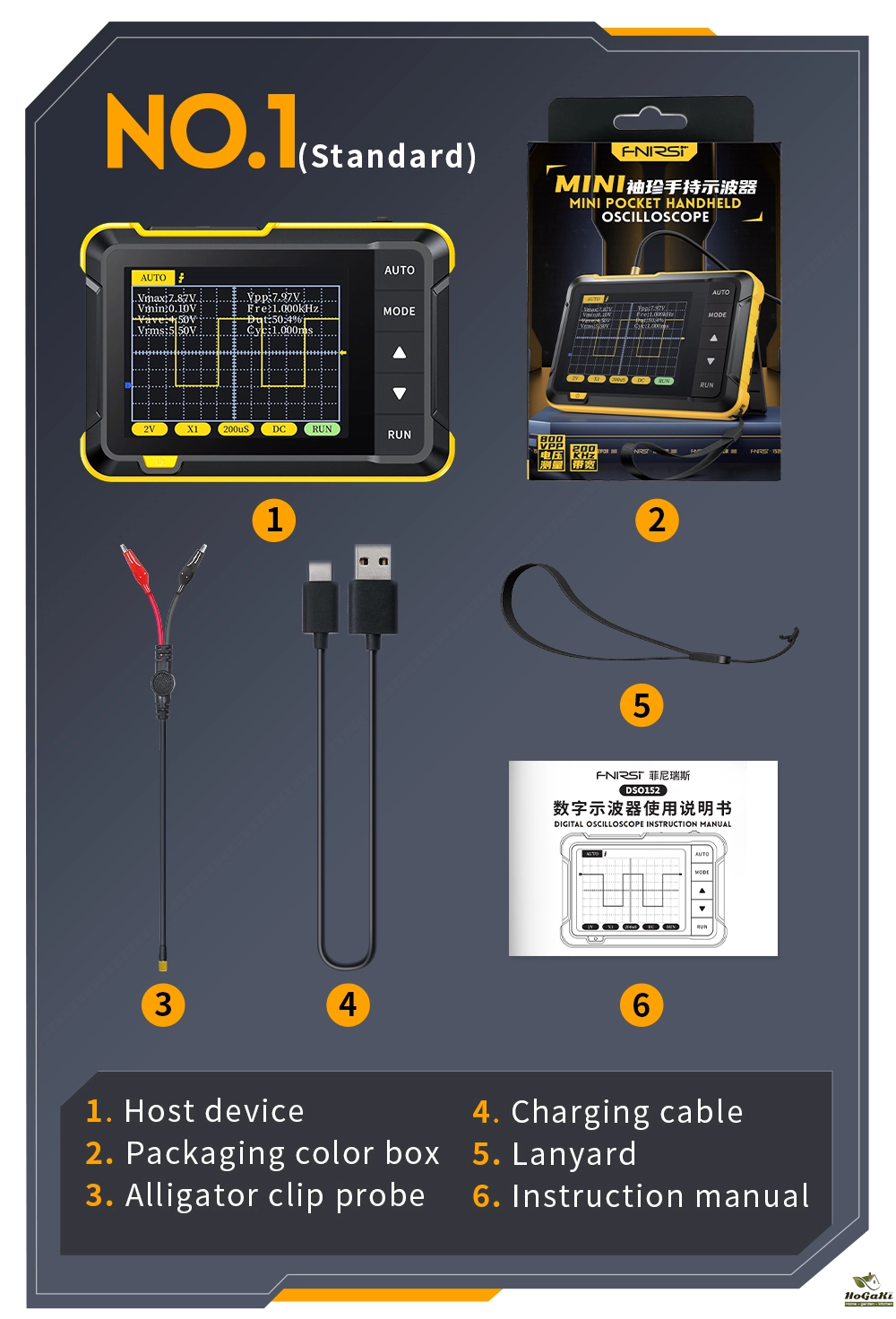

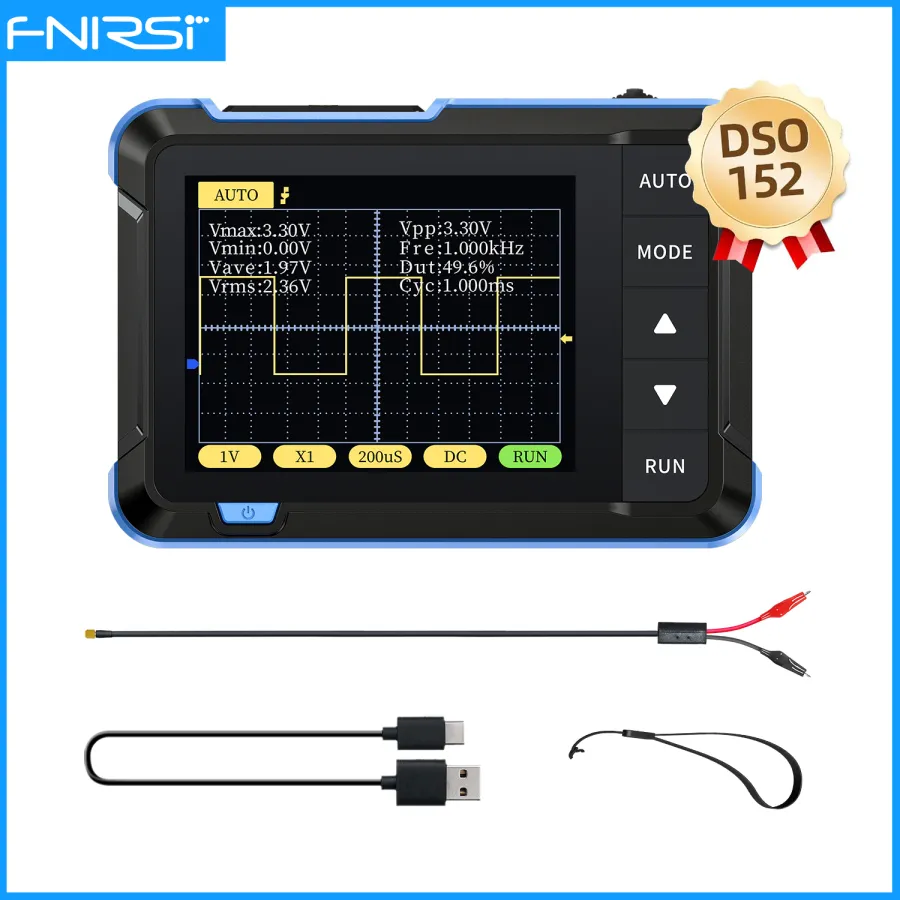

DSO152
NO.1 (Standard)
DSO152 Host device *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1

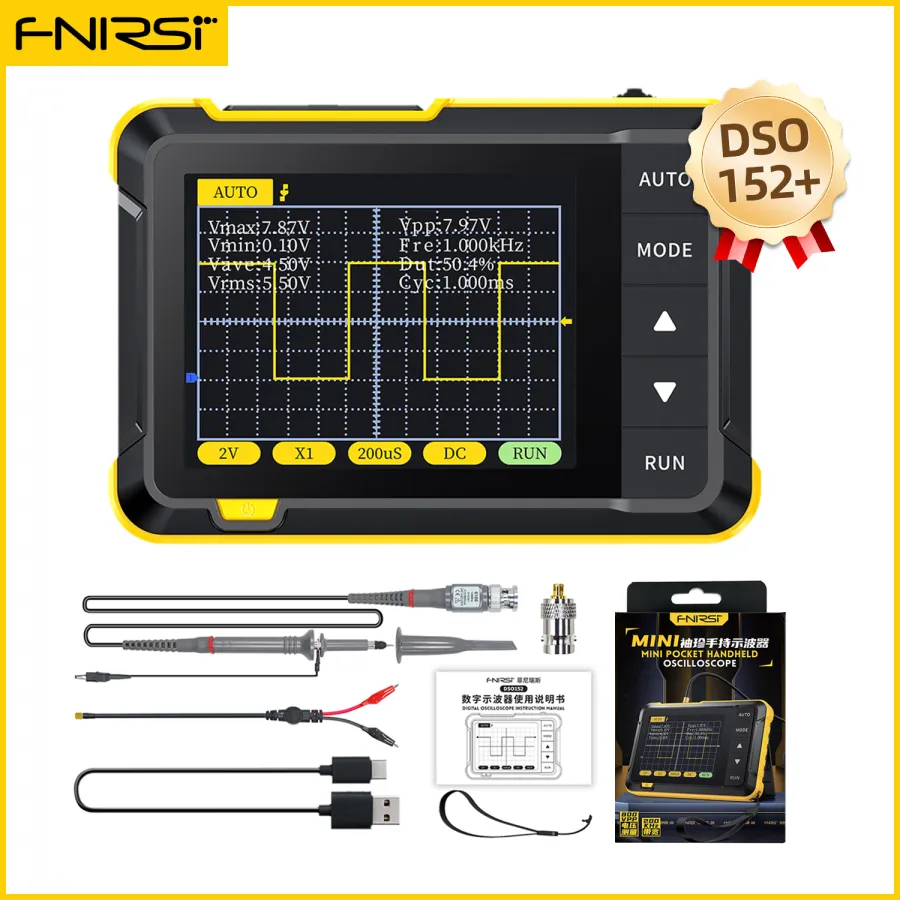

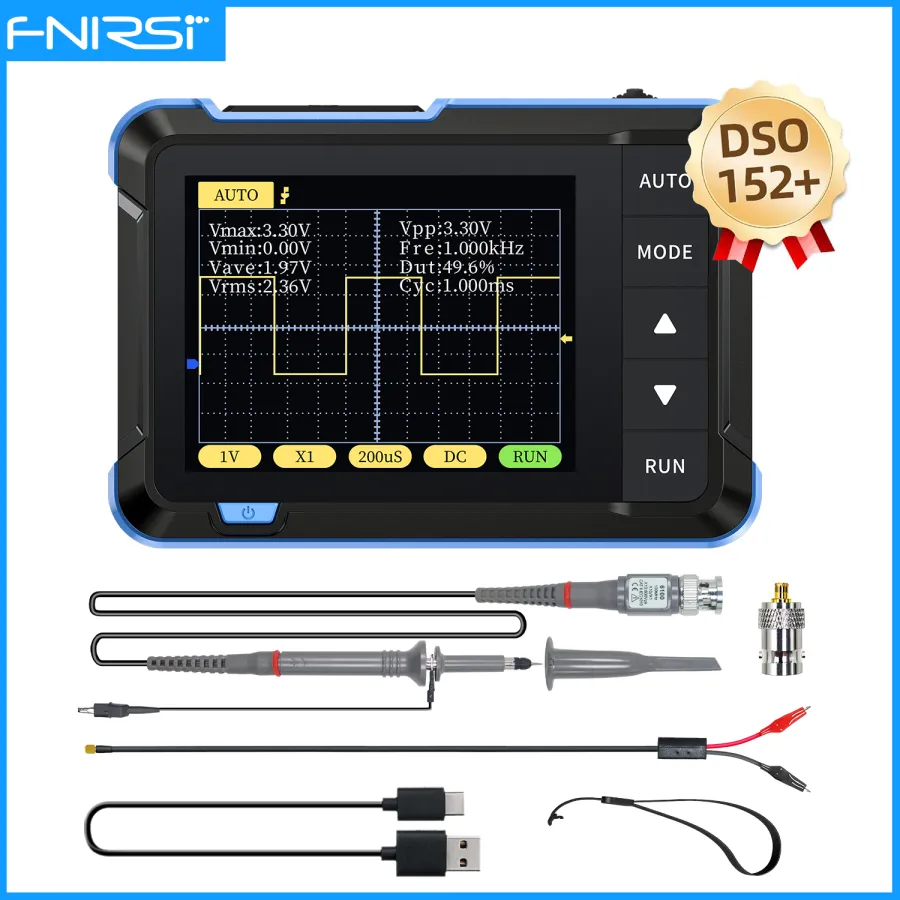

NO.2 (Option)
DSO 152 Host device *1
P6100 High Voltage Probe *1
Adapter *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1
Packaging Details
- Unit Type:
- Package Weight: 0.350
- Package Size: 11x9x17
- Brand Name: FNIRSI
- FNIRSI Model: DSO510
- Battery Included: Yes
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Digital Channels: 1
- Model Number: DSO510/DSO153/DSO152
- Display Resolution: 320*240 Pixels
- Certification: CE
- Real Time Sampling Rate: 48MSa/s
- Display Size: None
- Band Width: 10MHz
- Vertical sensitivity: 10mV/Div-20V/Div(Progress according to the 1-2-5 way)
- Time base range: 10μs/Div-50s/Div(Progress according to the 1-2-5 way)
- Voltage range: 1X 400VPP 10X 800VPP
- Trigger method: Auto/Normal/Single
- Coupling method: AC/DC
- Display: 2.8 inches/PPI:320*240
- USB charging: 5V/1A
- Lithium battery capacity: 1000mAh
- Square wave calibration: Frequency: 1K
- Size: 99mmx68.3mmx19.5mm
- Weight: 104g
- Duty cycle: 50%
