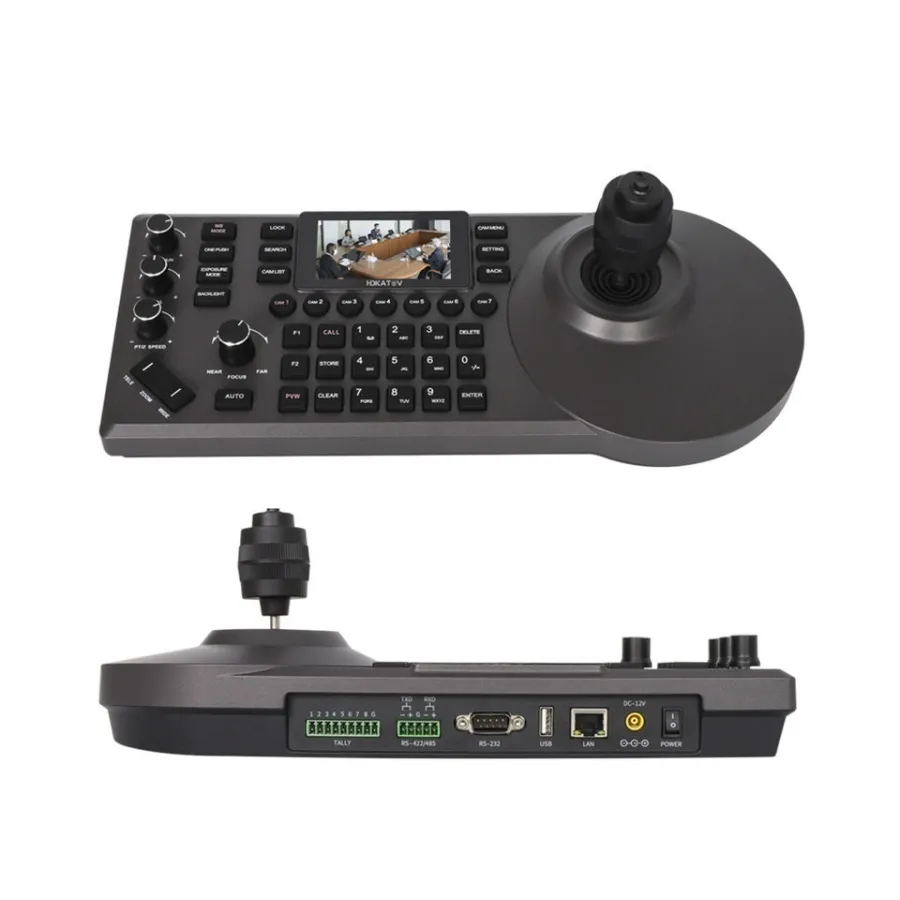

PTZ Controller PoE NDI PTZ Camera Controller 3
ID: 160152

PTZ Controller PoE NDI PTZ Camera Controller 3" LCD Screen Preview 4D Joystick PTZ Controller for Church Live Service Education

0.0 ( votes) | 6 orders
Price: US $2600.64 - 3164.96
Discount Price:
US $ 1456.36 - 1772.38
-44%
Color
Quantity

Buy Now
Add to Cart

NDI Video Conference Camera Control Keyboard 3-inch Color Screen Network Visca Pelco-d/p Protocol Rocker Console 8 Channel POE

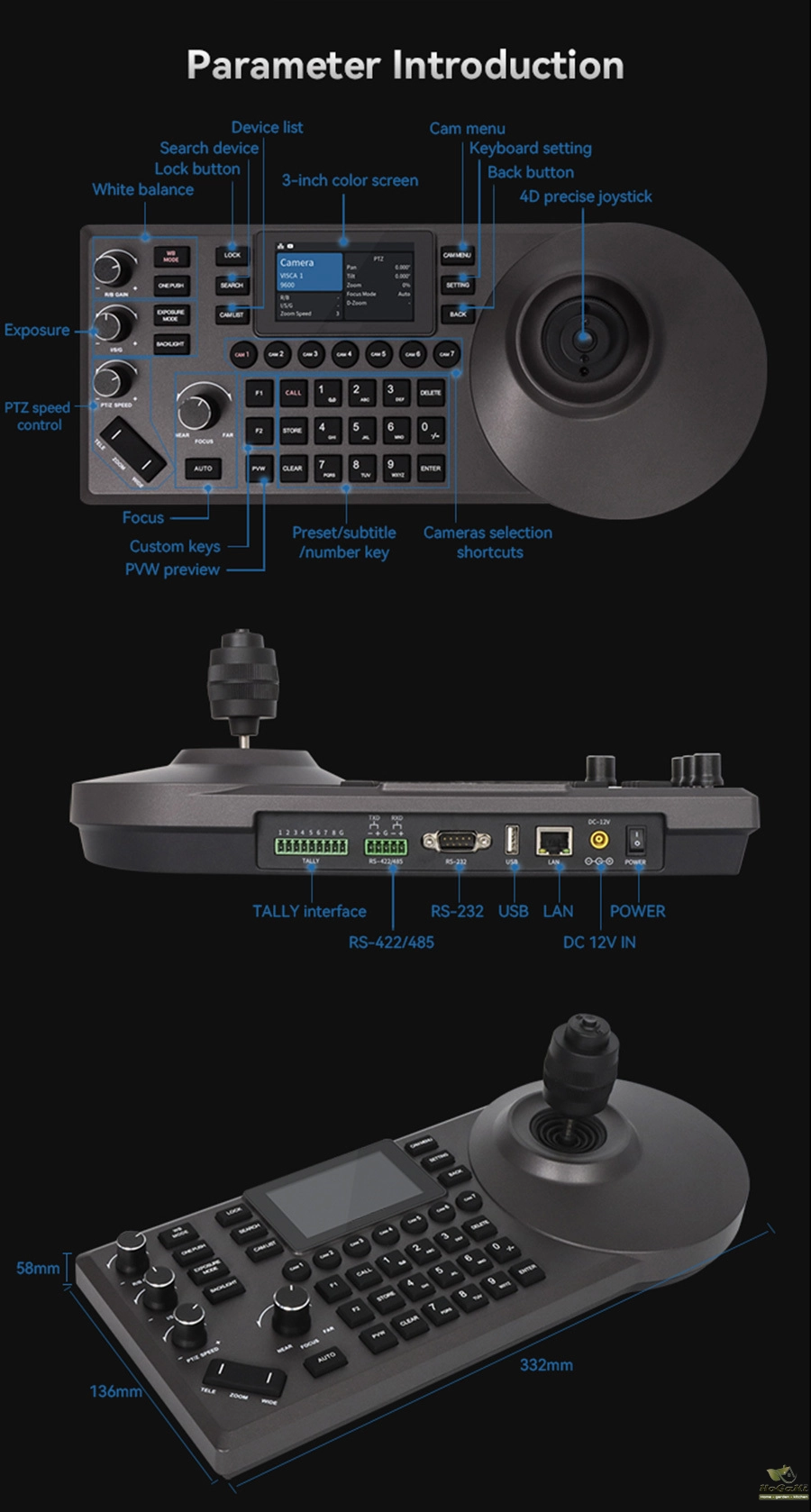

Features:

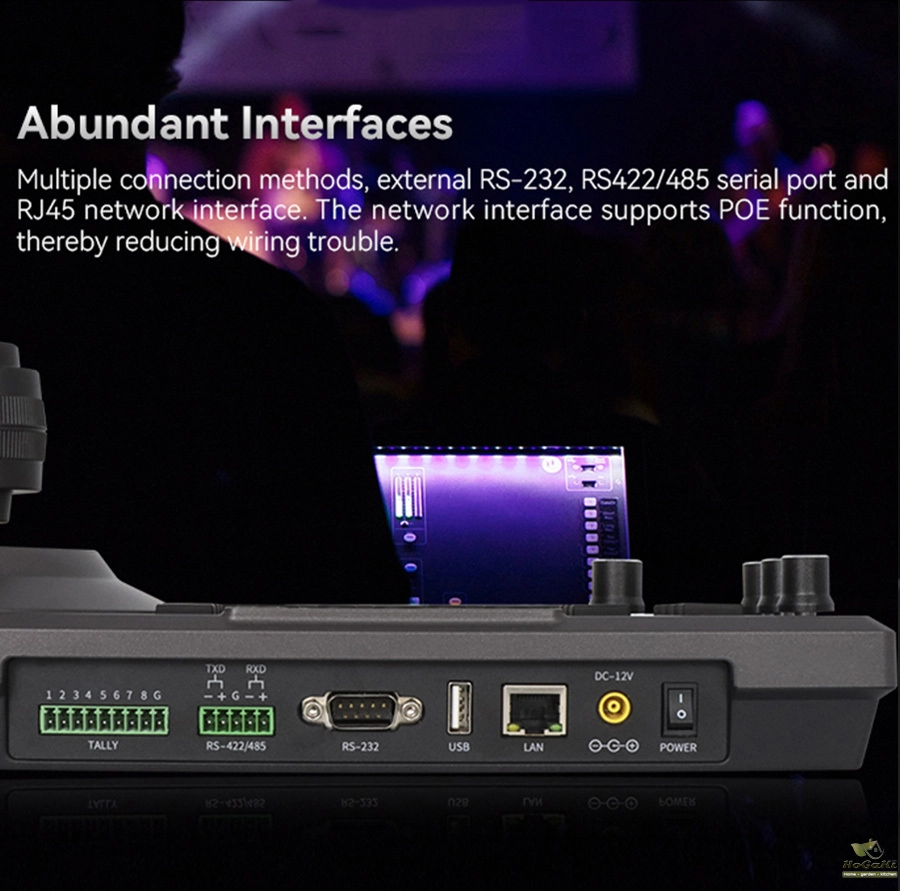

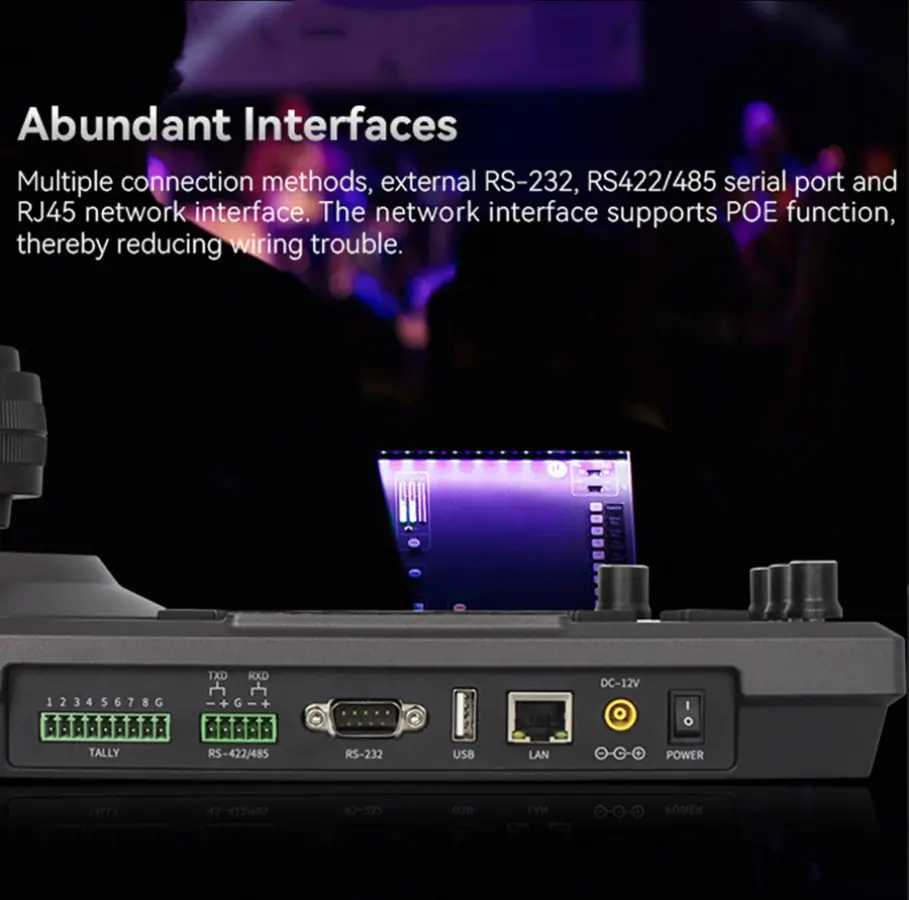

External RS-232,RS422/485 serial port and RJ45 network interface. The network interface supports POE function, which reduces the trouble of wiring.

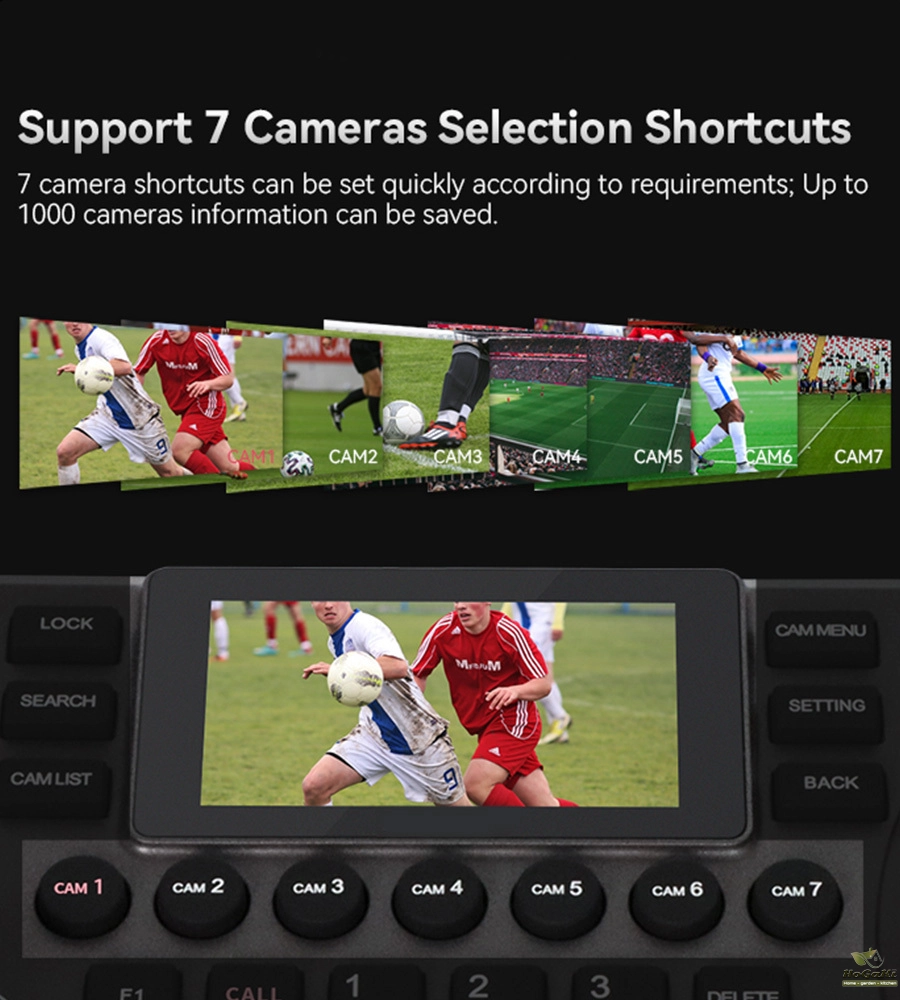

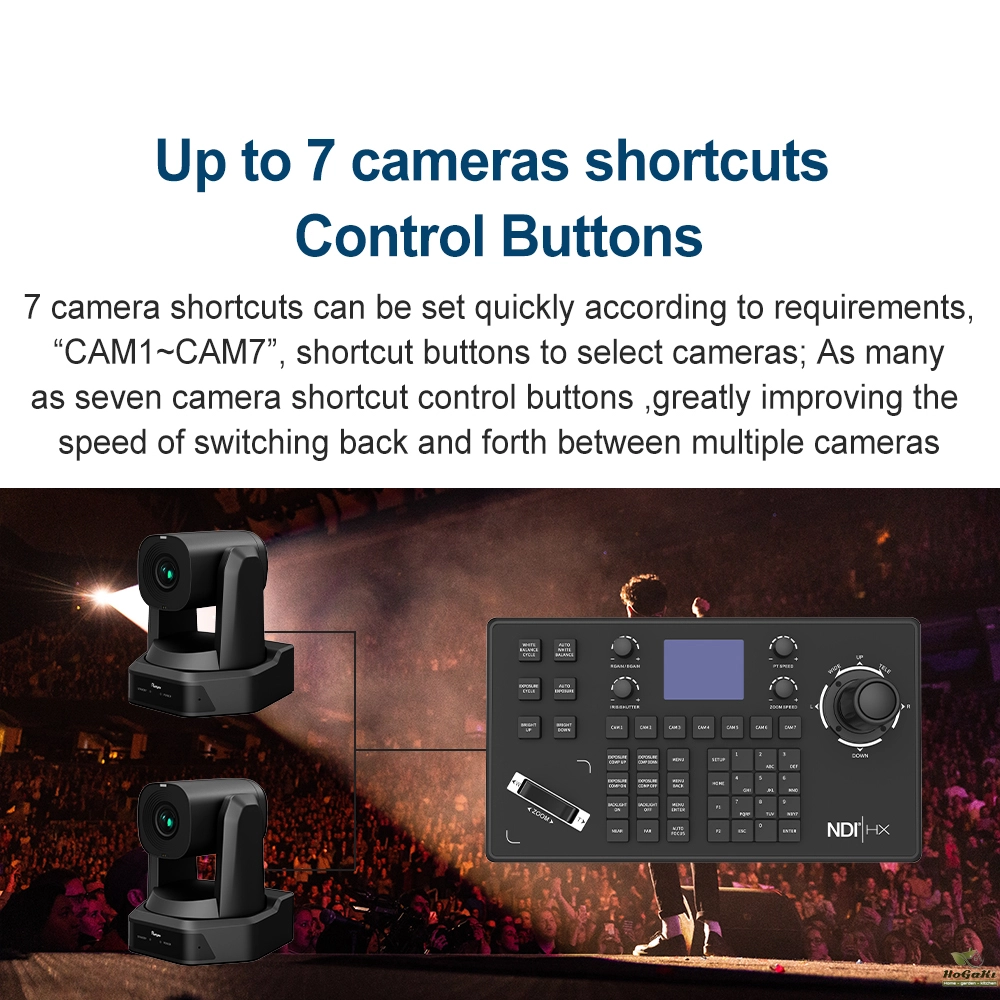

Seven camera shortcuts can be quickly set according to the requirements, and the information of 1000 cameras can be saved.

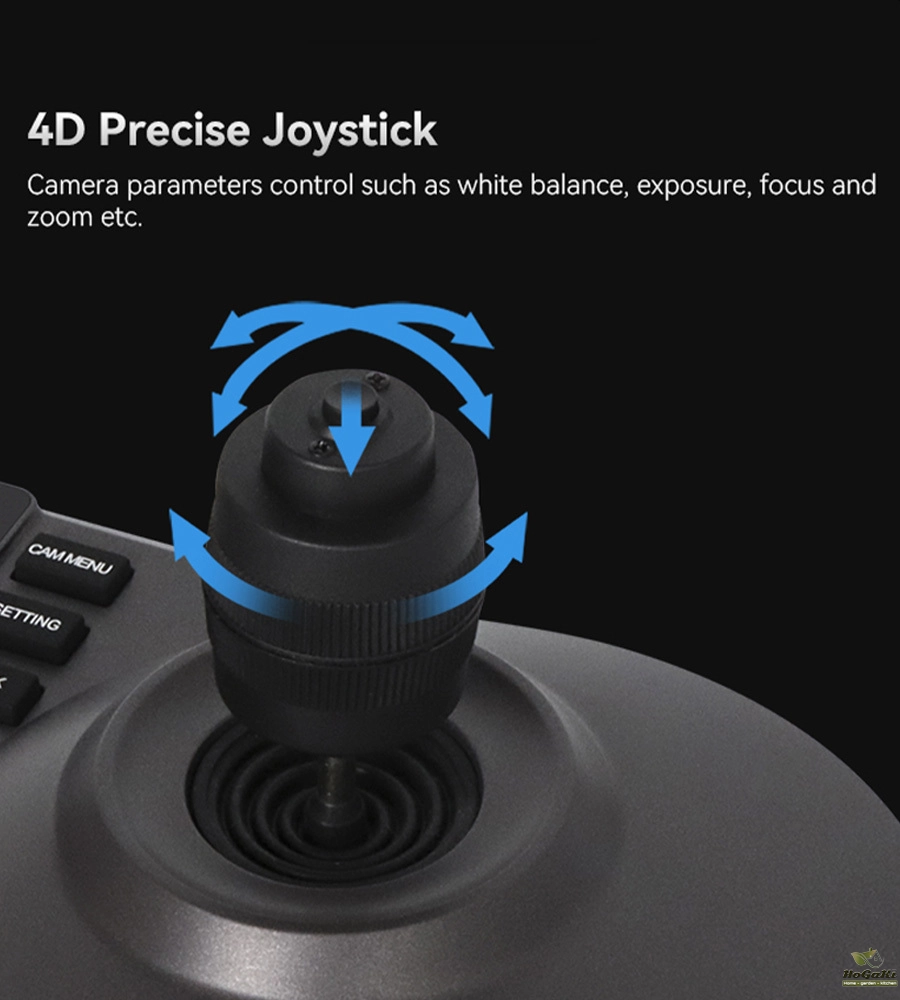

Four-dimensional precision rocker+three-dimensional scale knob+ergonomic Zoom key.

Support F1 and F2 custom keys, and you can set the operation function according to the user's requirements.

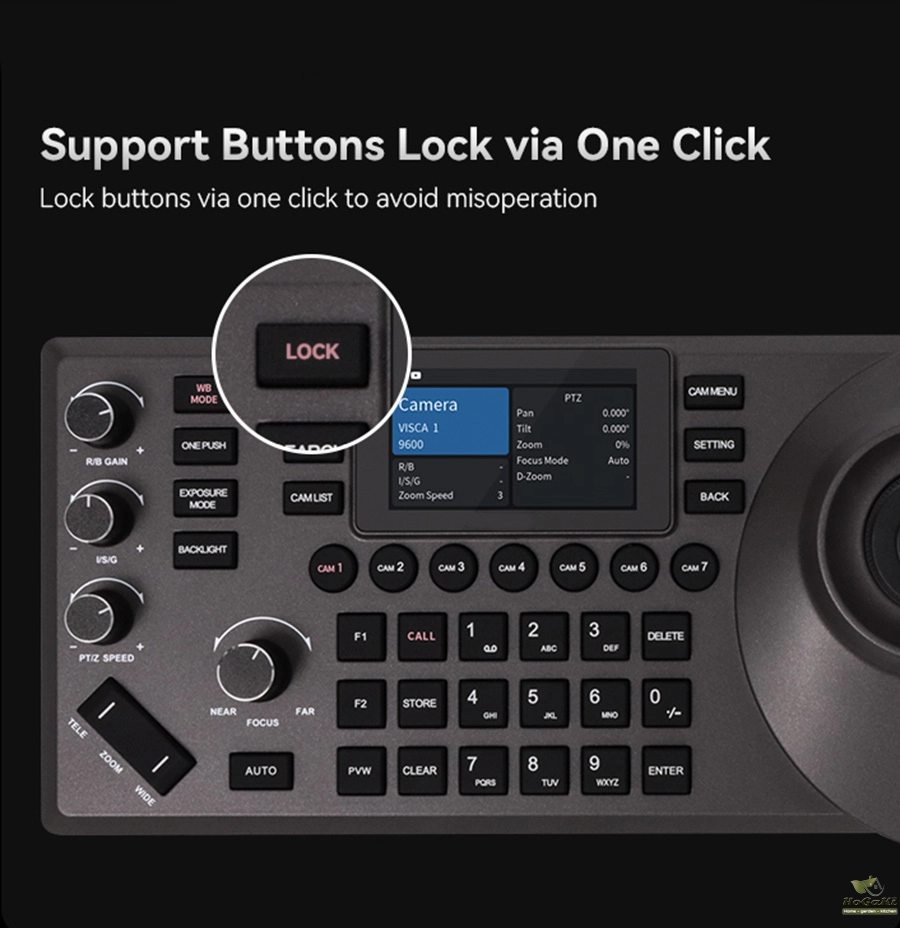

Keyboard operation password switch lock function

Switch function of key prompt tone

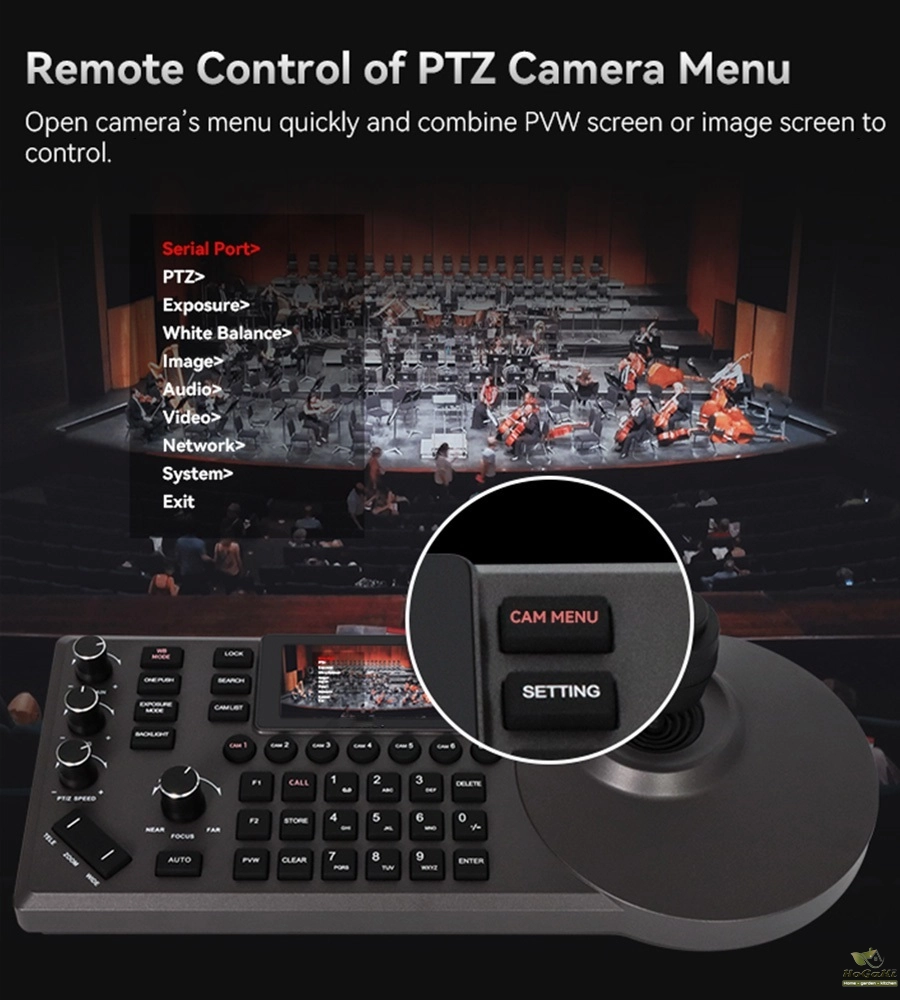

Remote operation of 7 PTZ camera menu

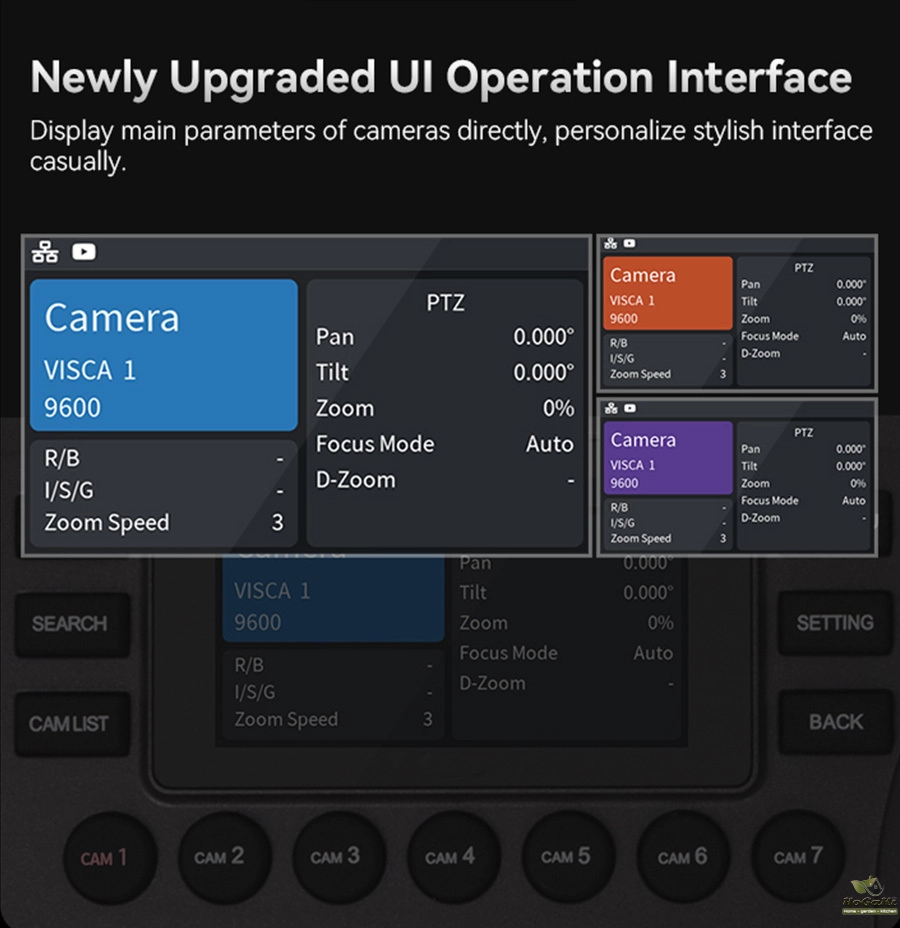

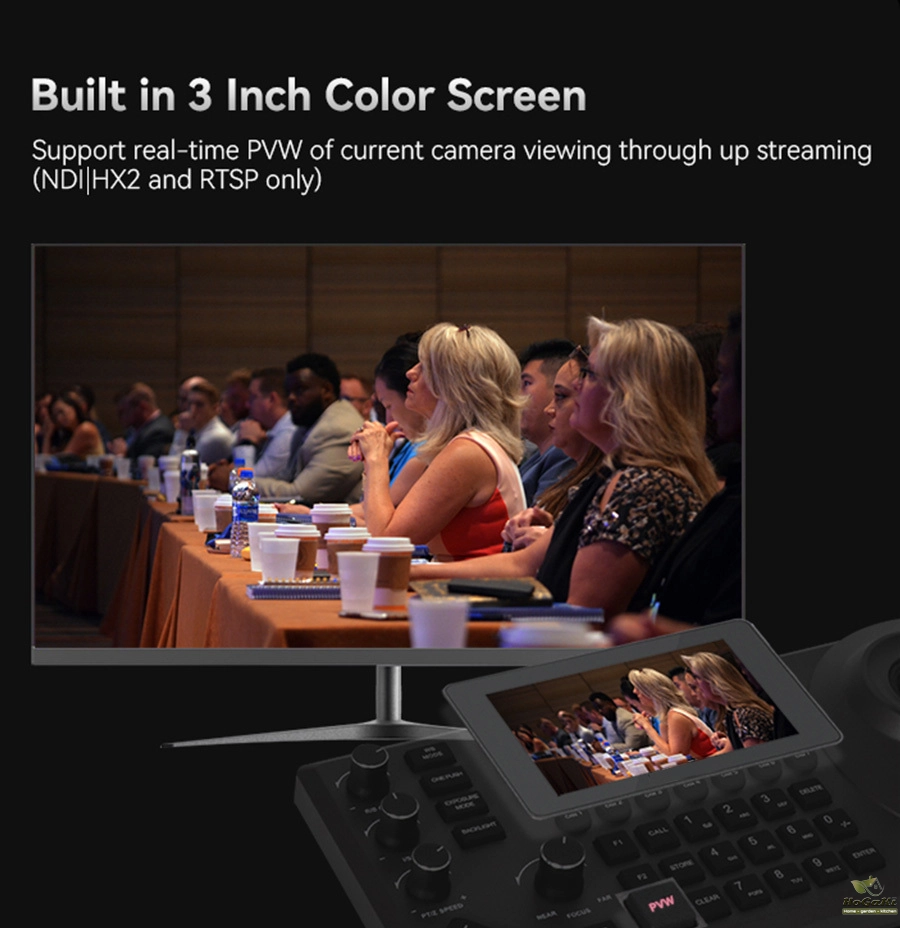

Built-in 3-inch color screen

Red and white double-color backlit silicone keys

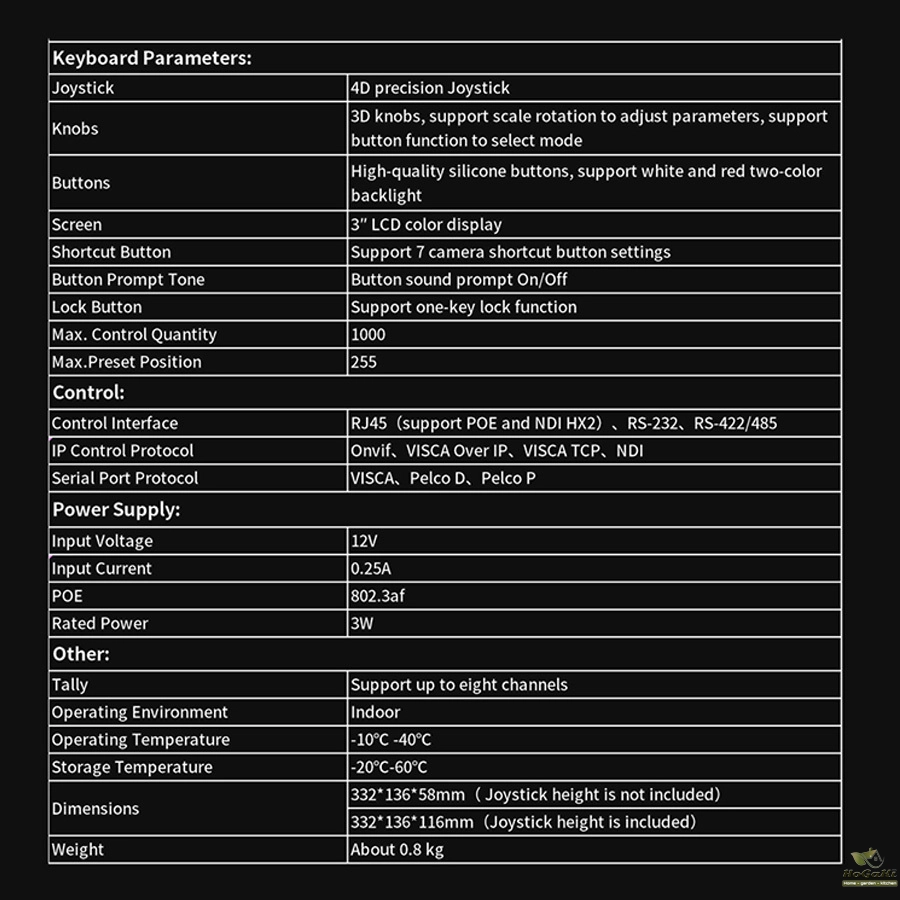

Specifications


Keyboard parameters:

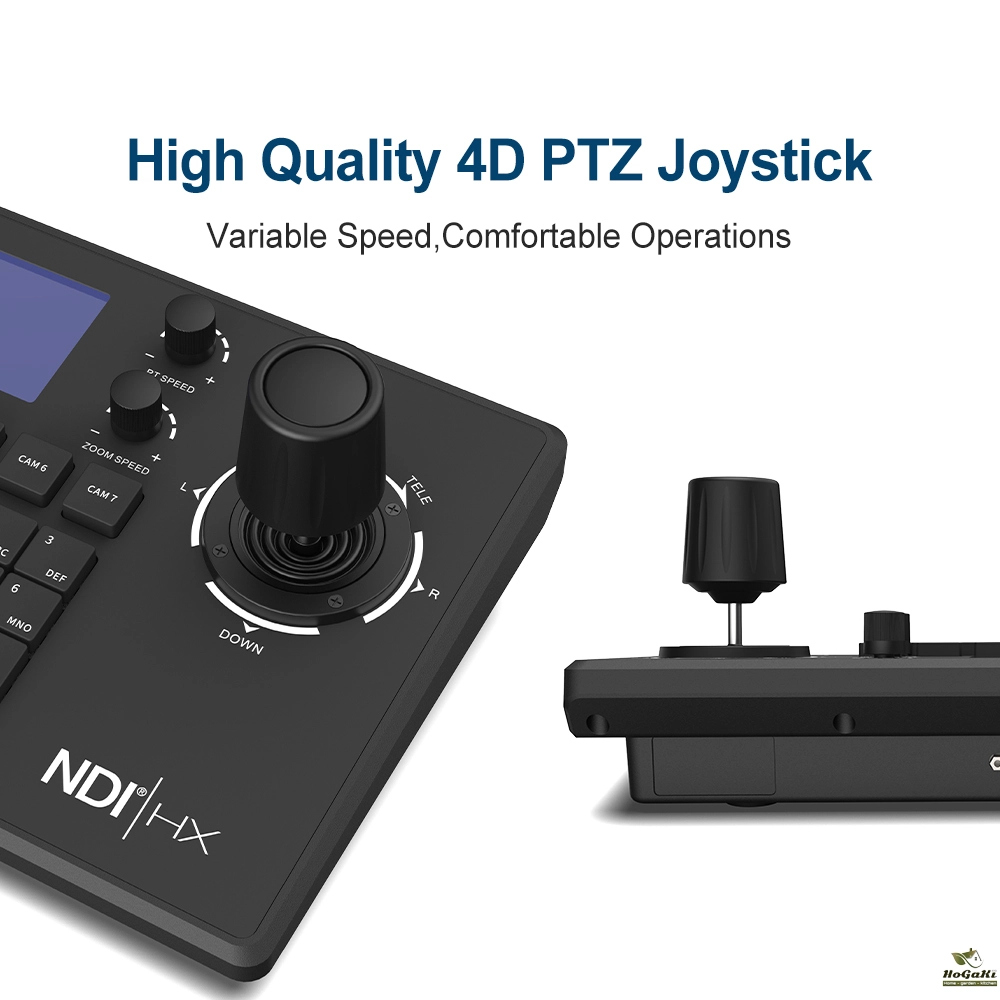

Rocker: Four-dimensional precision rocker

Knob: three-dimensional knob, which supports scale rotation adjustment parameters and key function selection mode.

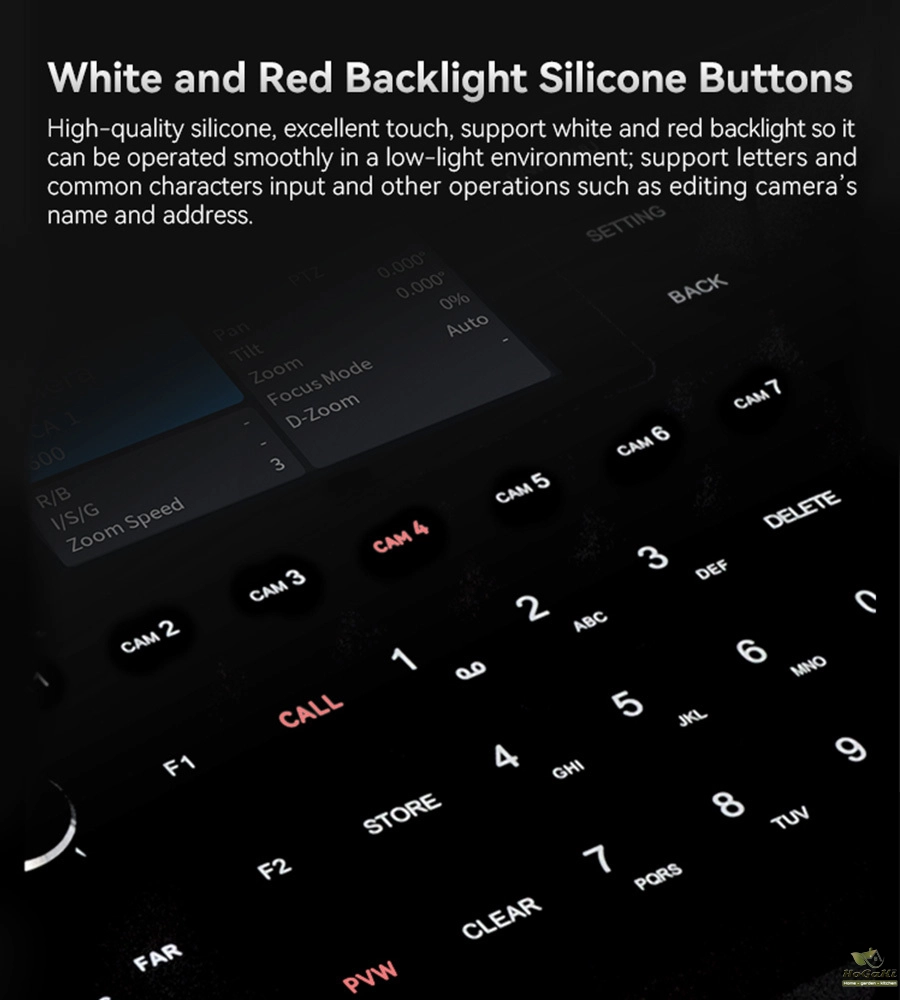

Keys: High-quality silicone keys, supporting white and red dual-color backlight.

Screen: 3-inch LCD color display

Shortcut keys: seven camera shortcuts are supported.

Prompt sound: key sound prompts on/off.

Keyboard lock: one-key lock function is supported.

Maximum number of cameras that can be saved: 1000.

Maximum preset number of digits that can be saved: 255.

Control:

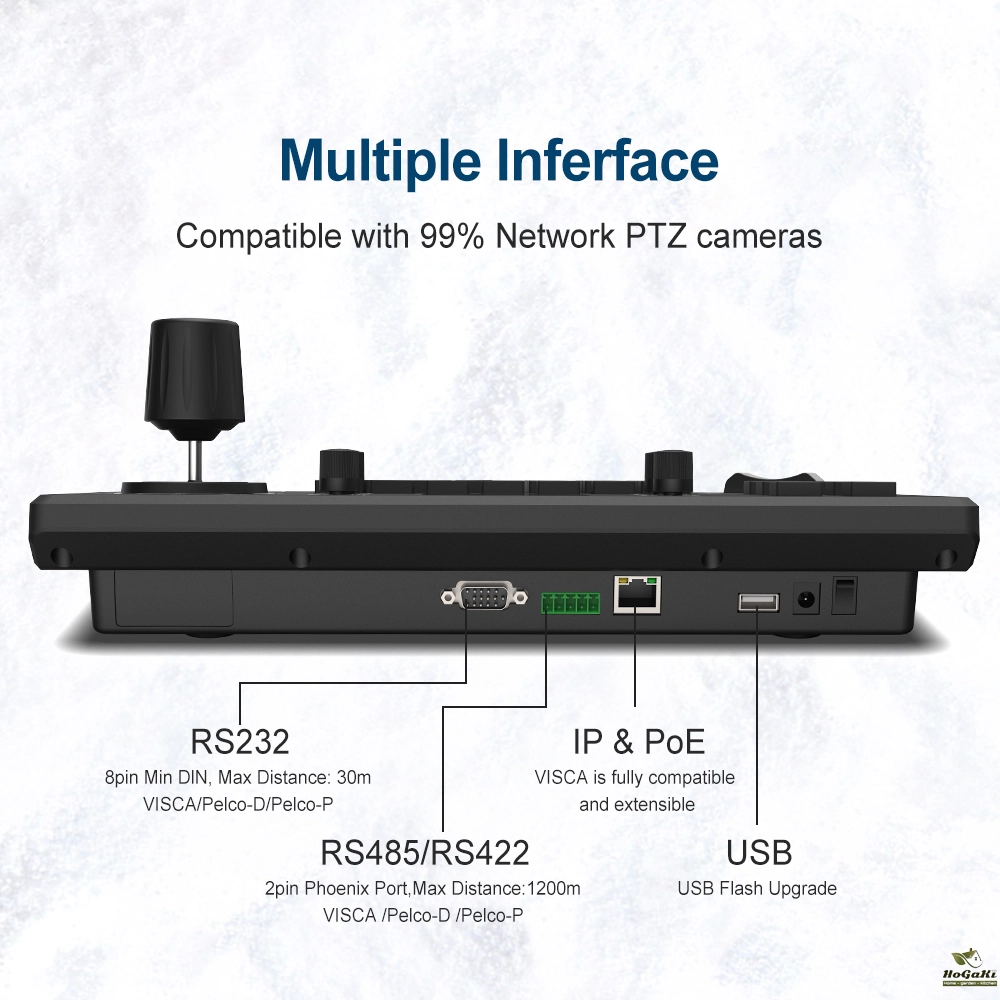

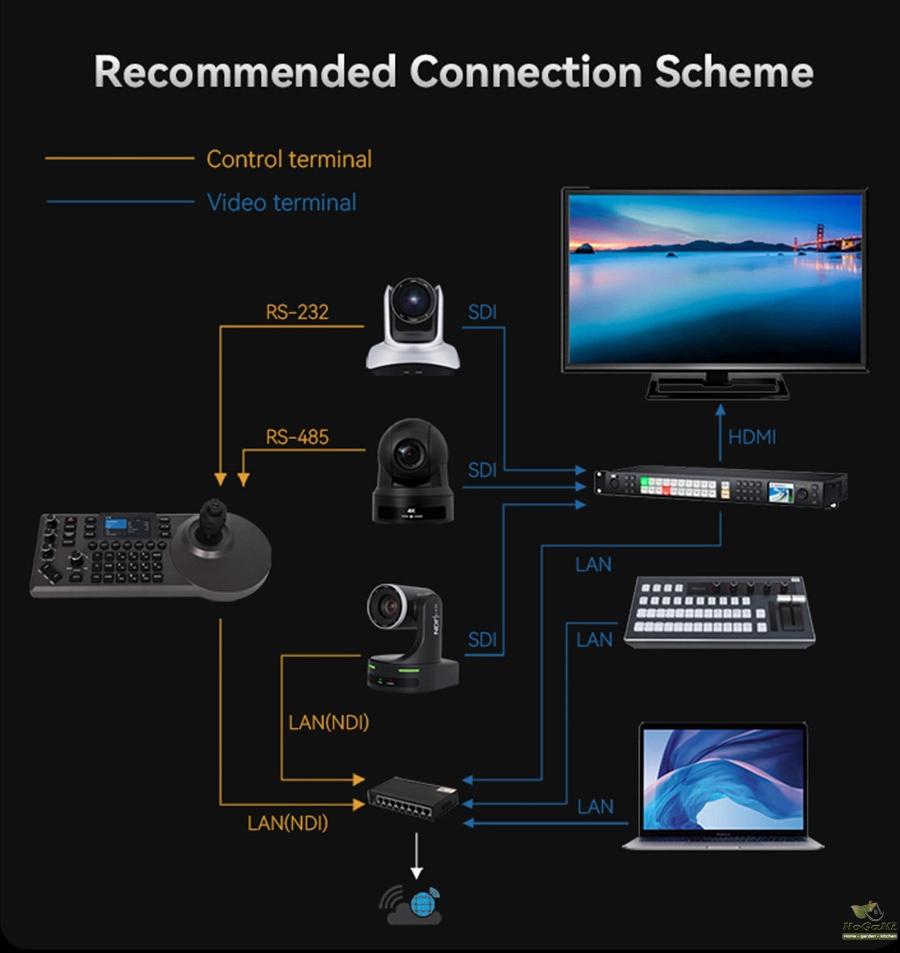

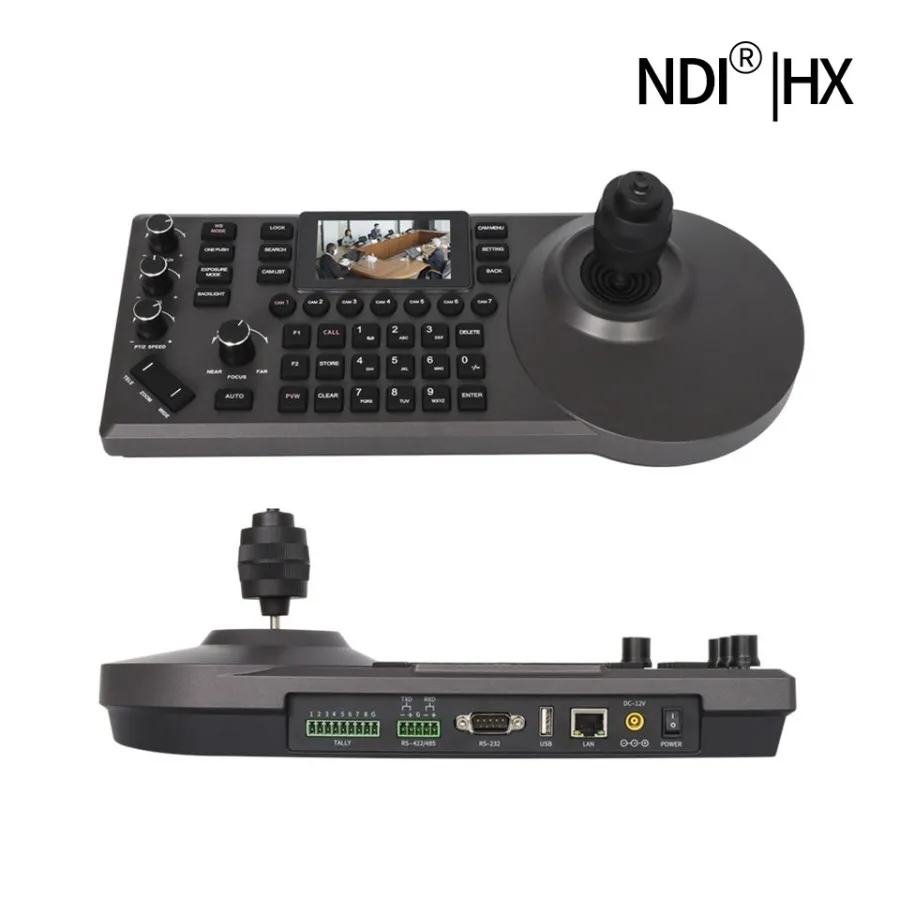

Control interface: RJ45 (POE and NDI HX2 supported), RS-232, RS-422/485IP

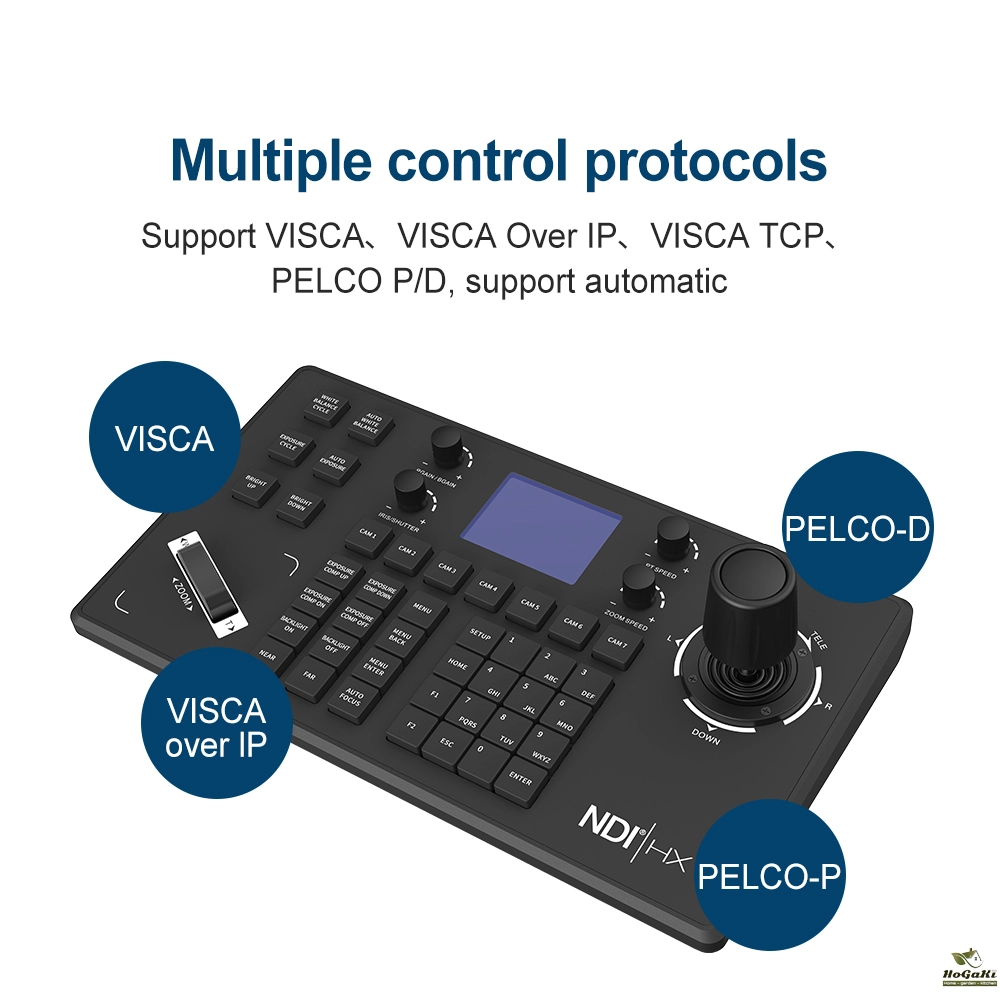

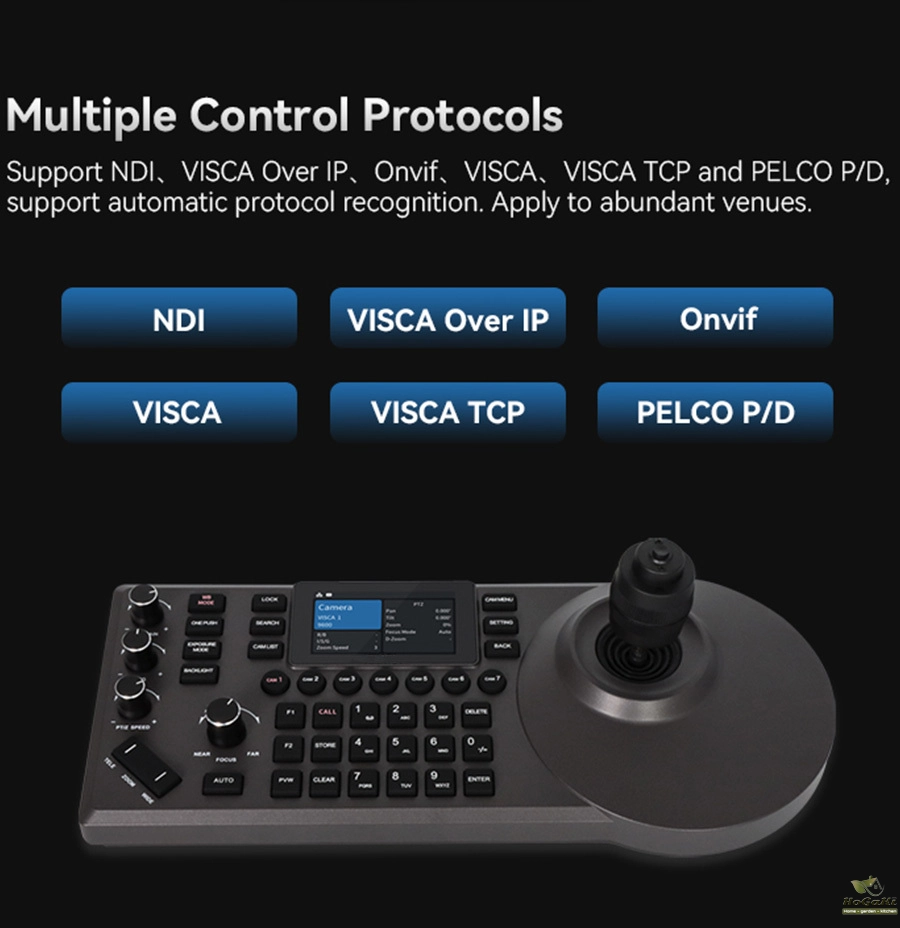

Control protocol: Onvif, VISCA Over IP, VISCA TCP, NDI

Serial port control protocol: VISCA, Pelco D, Pelco P


Power Supply:

Input voltage: 12V

Input current: 0.25A

POE:802.3af

Rated power: 3W


Other:

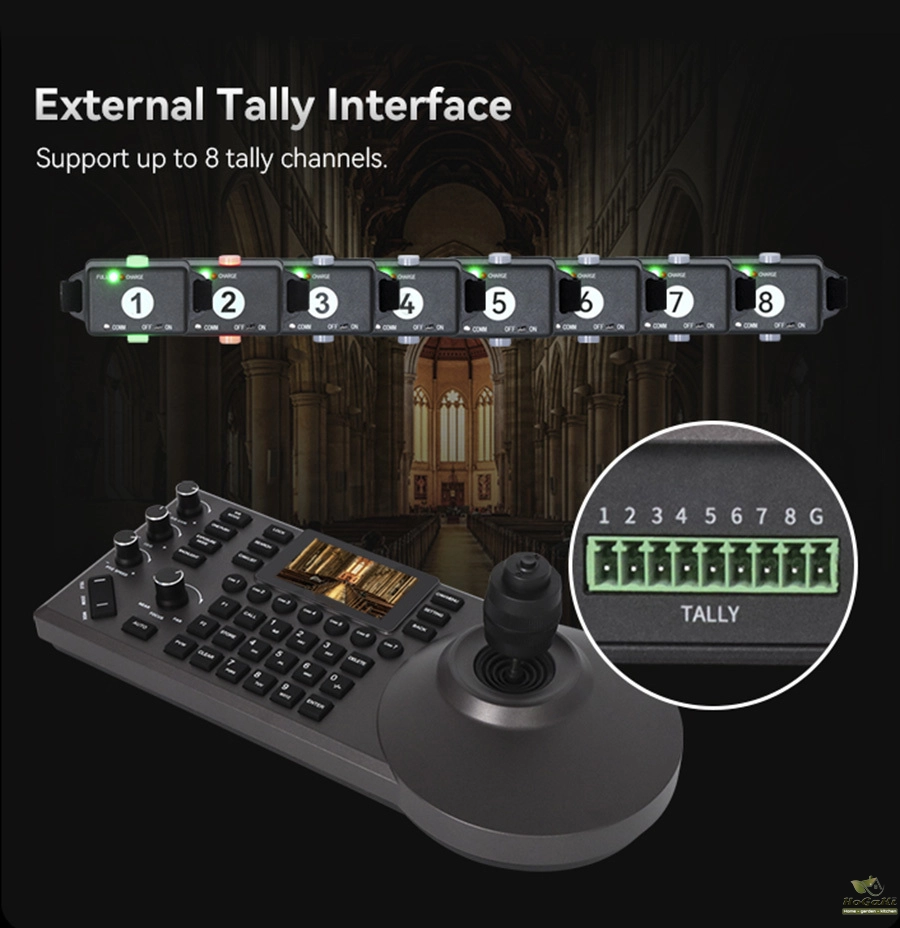

Tally: Up to eight channels are supported

Use environment: indoor

Operating temperature: -10 -40 degrees

Storage temperature: -20 -60 degrees

Dimensions: 332*136*58mm (excluding rocker height),

                     332*136*116mm (including rocker height)

Mass: about 0.8kg


Conference Control Keyboard Support NDI PoE VISCA Pelco-D/P RS422/RS485 RS232 RJ45 For Church Live/Events/Streaming

  • 【 】Designed for large scenarios such as large video conferencing, church worship events, live streaming, live broadcast shows, online learning, group training, college lecture, etc. Also special for government and telecommunications departments, public security, procuratorates, courts, banks, securities, insurance, education, taxation. Contact us if you have any question, we will be happy to reply you within 12 hours.

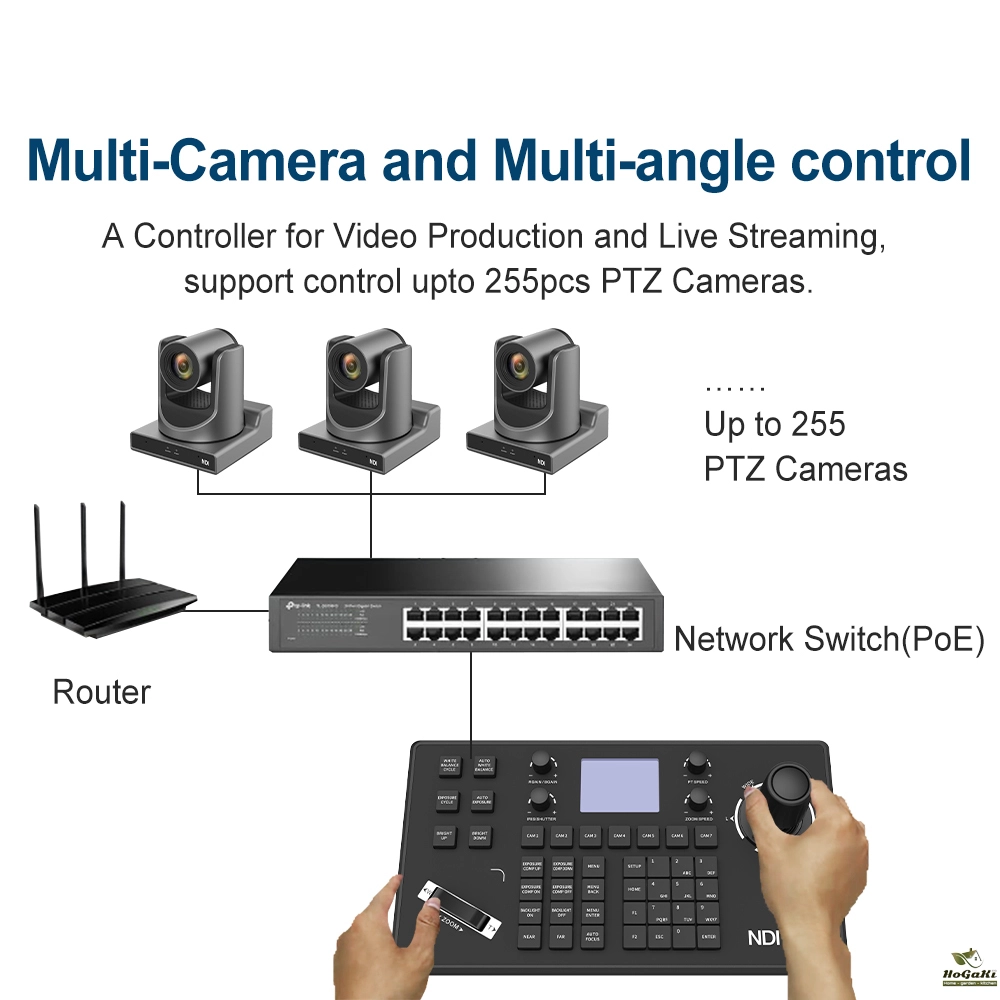

  • 【 】Tenveo KB200PRO PTZ Joystick Controller supports IE browser to add configuration front-end device parameters, and supports 7 cameras quick select, controling up to 255 PTZ cameras, easy and fast operation of the conference video camera, greatly improving the speed of multiple cameras to switch back and forth control. These features make it easy to achieve the exact shot you want, without any hassle.


  • 【 】The upgraded KB200PRO PTZ Camera Joystick Controller offers multiple Connections, including RS422/RS485, RS232, and RJ45(Ethernet). And PoE supported, just one cable to connect to your LAN.The easy-to-use conference control keyboard makes setup a breeze, allowing you to quickly and easily configure your camera settings. This feature is especially useful for those who are new to live streaming or video conferencing.

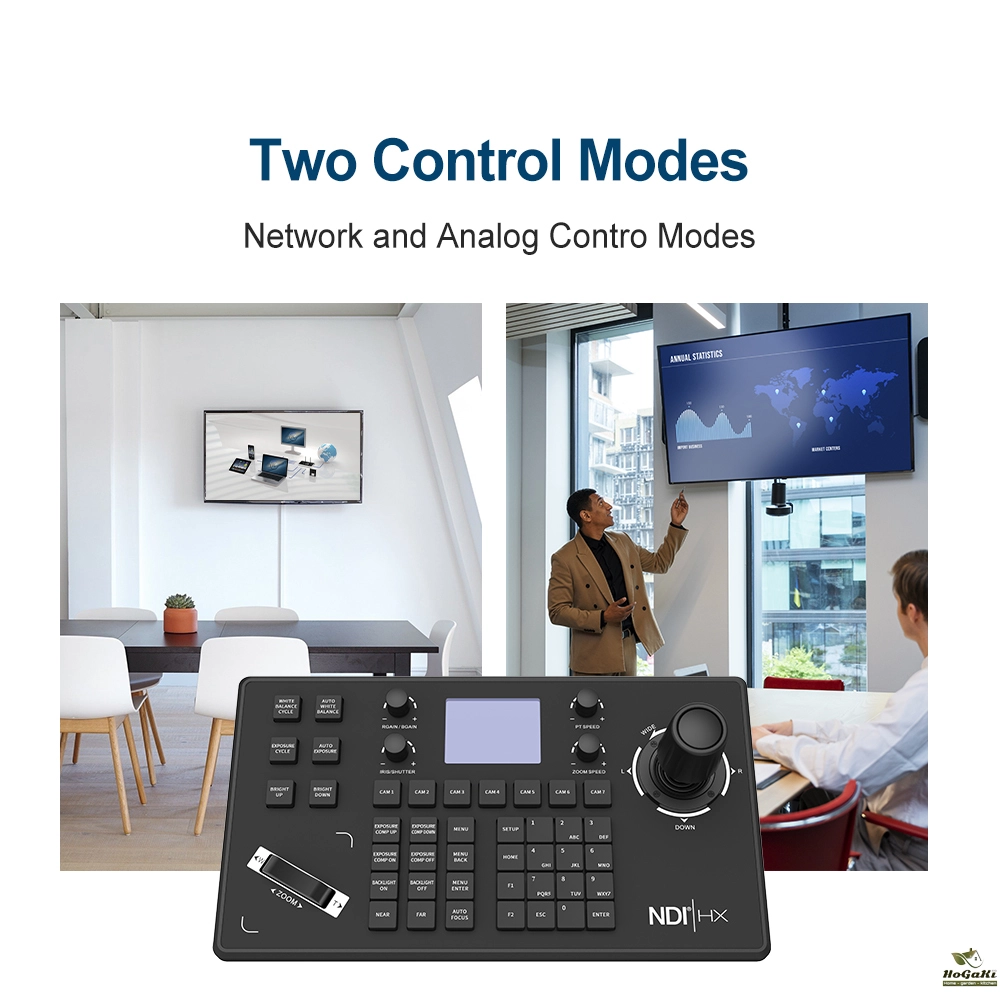

  • 【 】The PTZ Controller support network and analog two control modes. With support for a wide array of protocols including Visca UDP, Visca TCP, Sony Visca, Pelco-D/P, NDI(Partially compatible), this joystick controller seamlessly integrates with a variety of cameras and equipment, making it suitable for Large Conferences, church events, live streaming, OBS, vMix, Skype, Zoom, Teams, Fackbook, Youtube and much more.

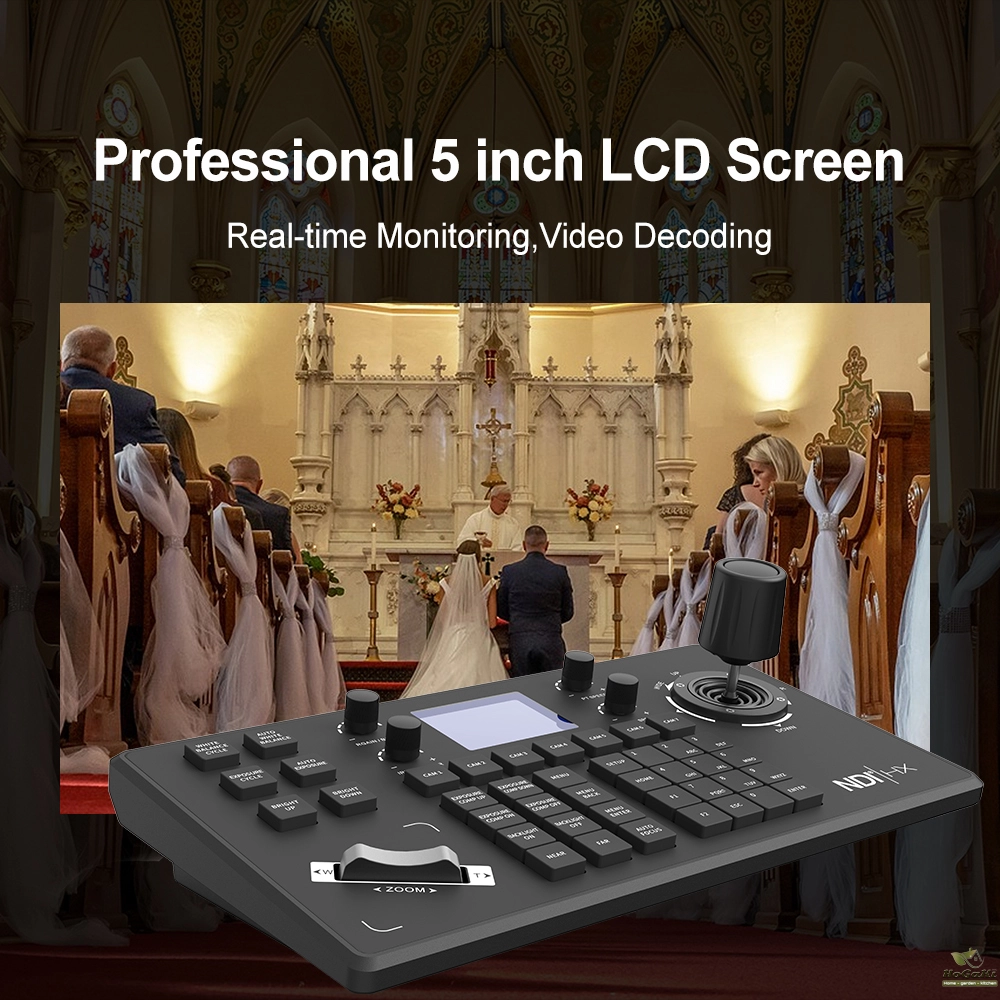

  • 【 】The Tenveo PTZ Camera Joystick Controller features an intuitive 4D joystick and 5'' LCD screen preview, supporting real-time preview of current viewing, allowing you to effortlessly control and adjust your camera angles with utmost precision, resulting in smooth and professional live streaming experiences. You can easily pan, tilt, zoom, focus, Iris, backlight, presets, PTZ Speed, and quick PTZ Camera select according to your needs.
