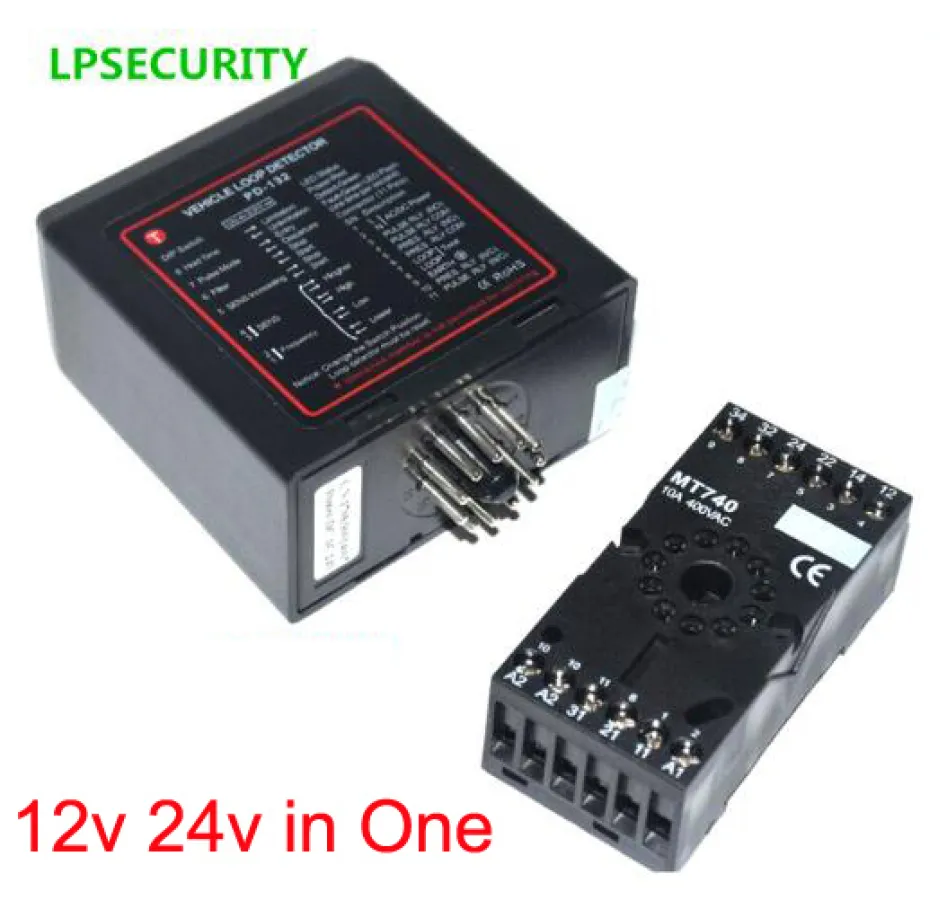

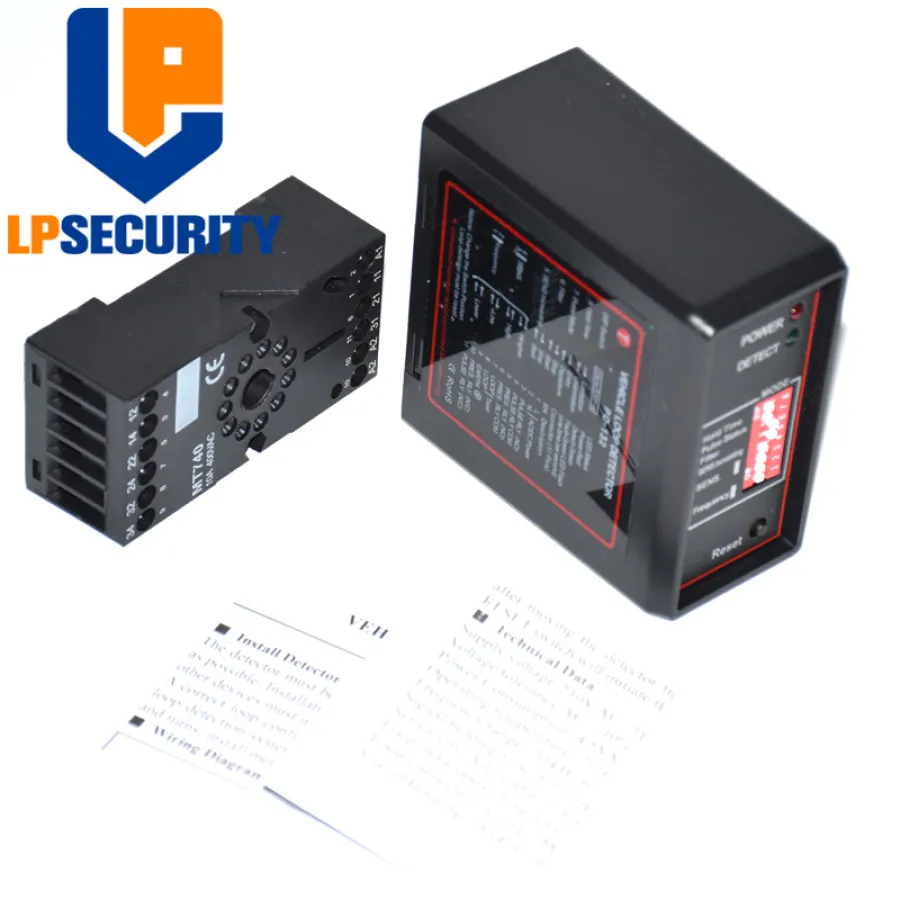

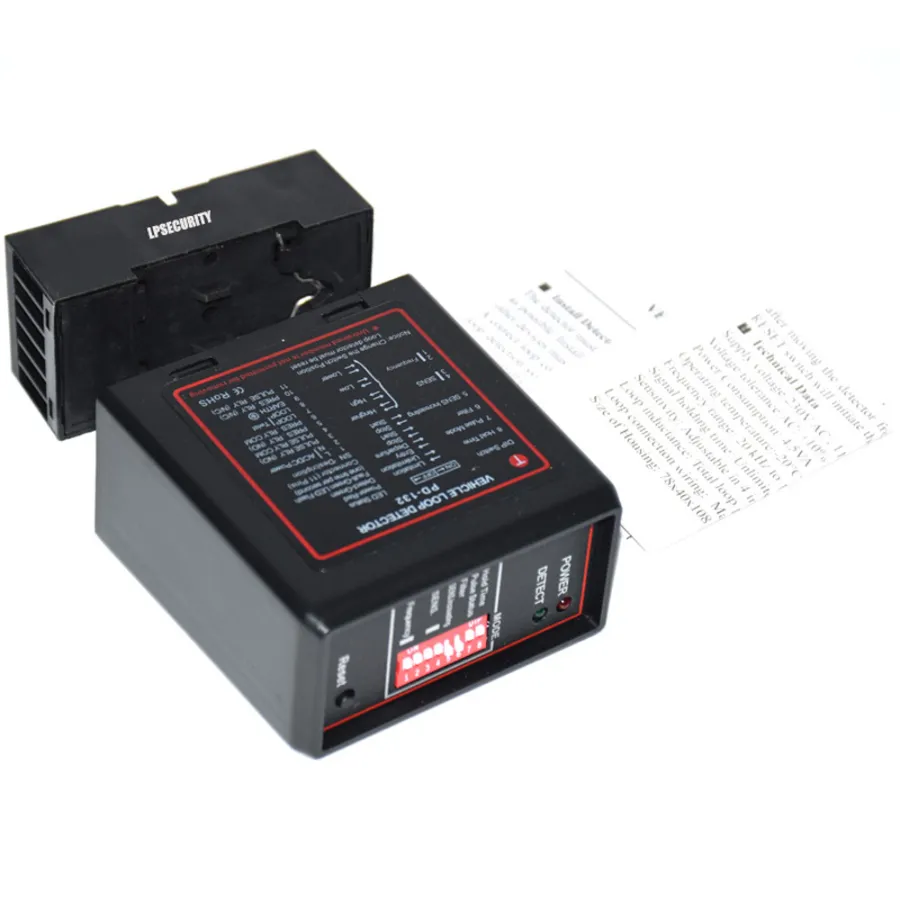

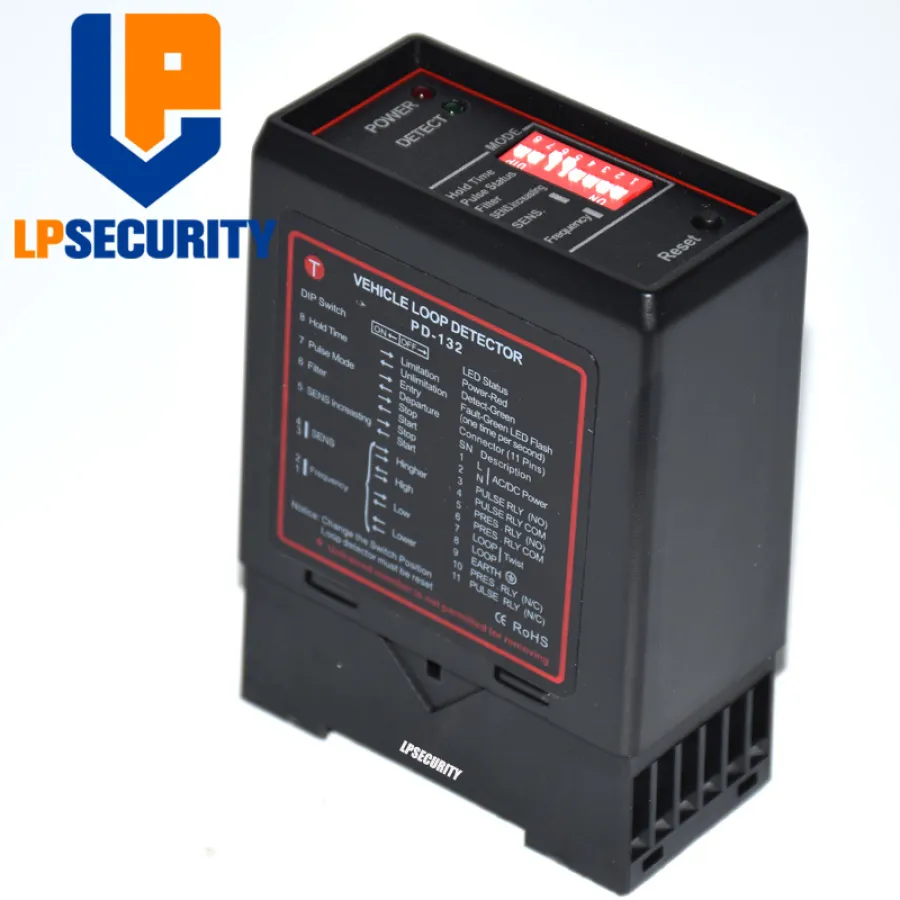

PD-132 Automatic Gate Opener Barrier Gate Traffic Inductive Single Channel Loop Vehicle Detector Compatible with northtech
ID: 15391

PD-132 Automatic Gate Opener Barrier Gate Traffic Inductive Single Channel Loop Vehicle Detector Compatible with northtech

5.0 (13 votes) | 281 orders
Price: US $34.52 - 41.17 / piece
Discount Price:
US $ 33.78 - 40.03 / piece
-2%
Color
Quantity

Buy Now
Add to Cart

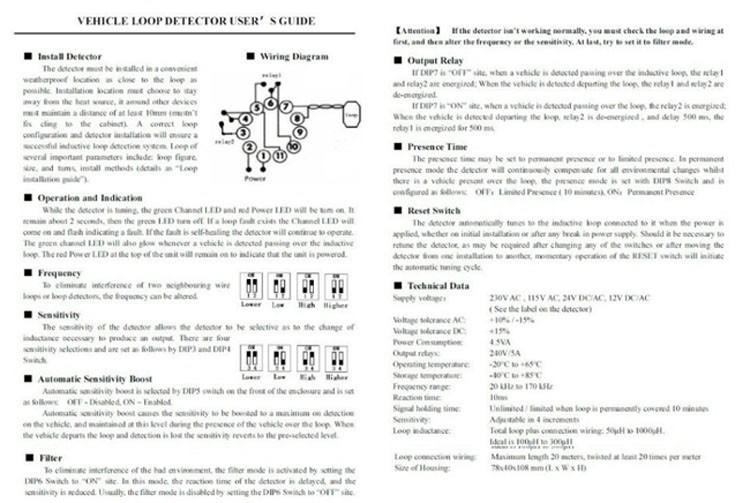

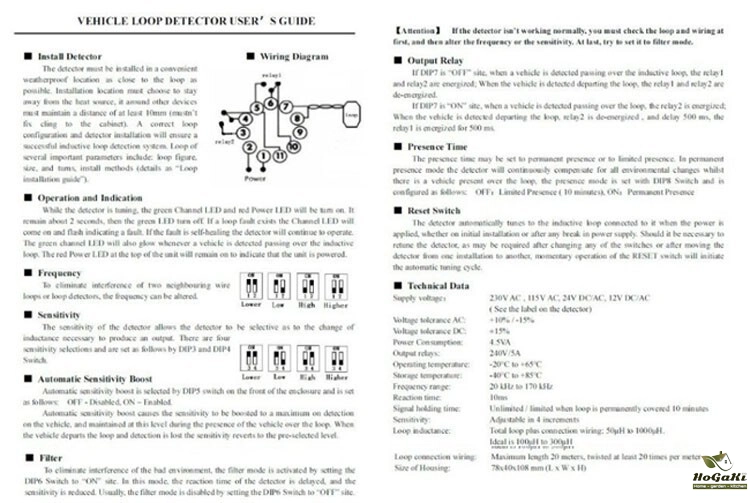

Vehicle Loop Detector:

The detector must be installed in a convenient weatherproof location as close to the loop as possible. Installation location must choose to stay away from the heat source; it around other devices must maintain a distance of at least 10mm (must not installation close with boxes wall). A correct loop configuration and detector installation will ensure a successful inductive loop detection system. Loop of several important parameters include: loop figure, size, turns, install methods.

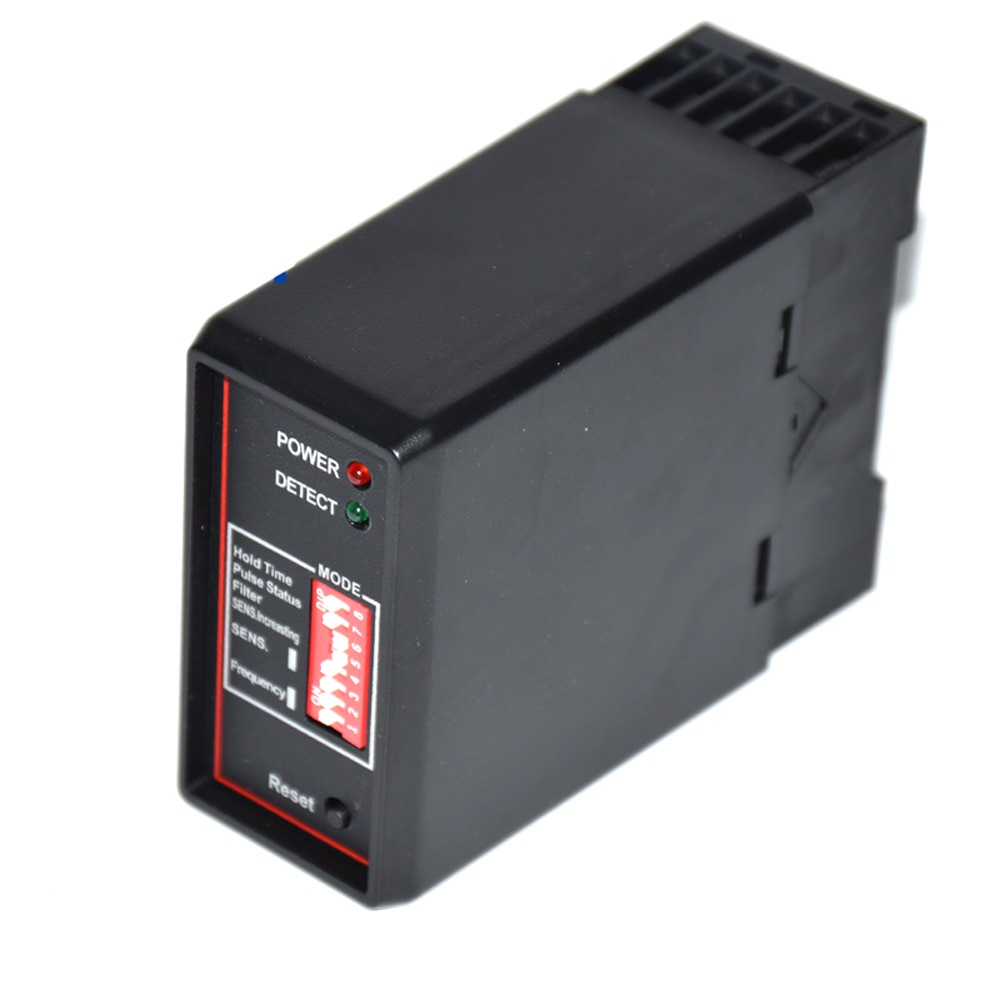

Operation and Indication

While the detector is tuning, the green Channel LED and red Power LED will be turn on. It remain about 2 seconds, then the green LED turn off. If a loop fault exists the Channel LED will come on and flash indicating a fault. If the fault is self-healing the detector will continue to operate. The green channel LED will also glow whenever a vehicle is detected passing over the inductive loop. The red Power LED at the top of the unit will remain on to indicate that the unit is powered.

PARAMETERS:

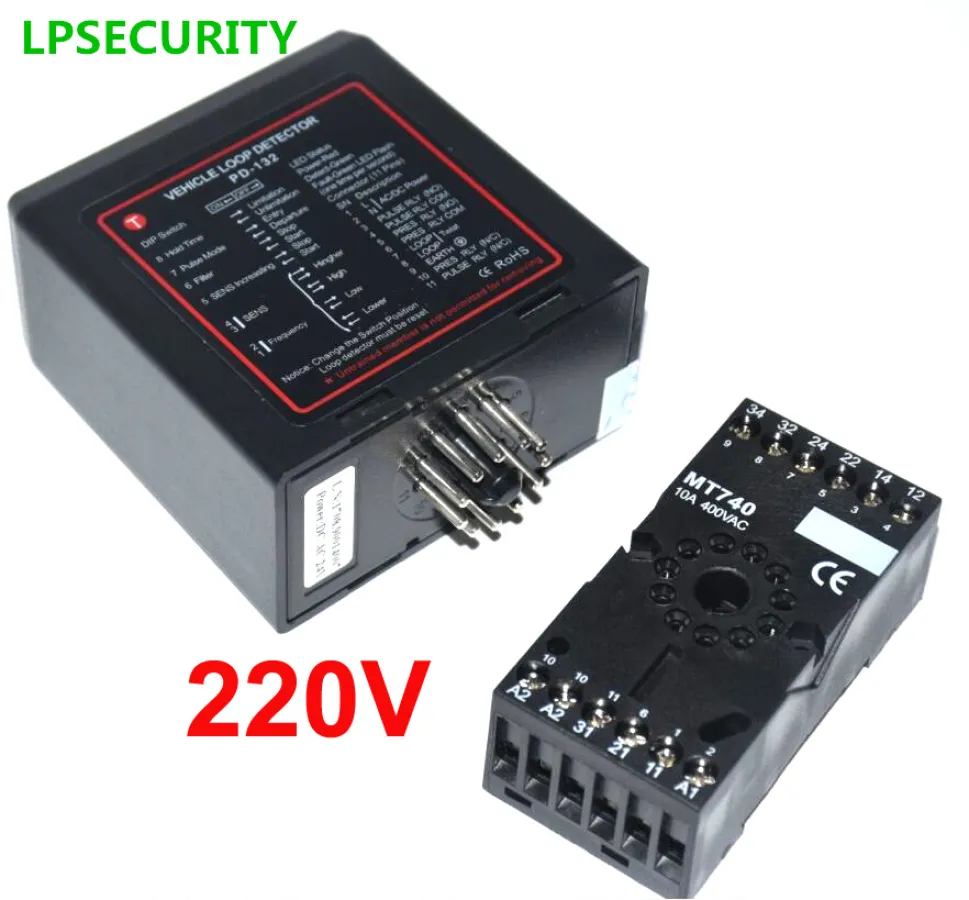

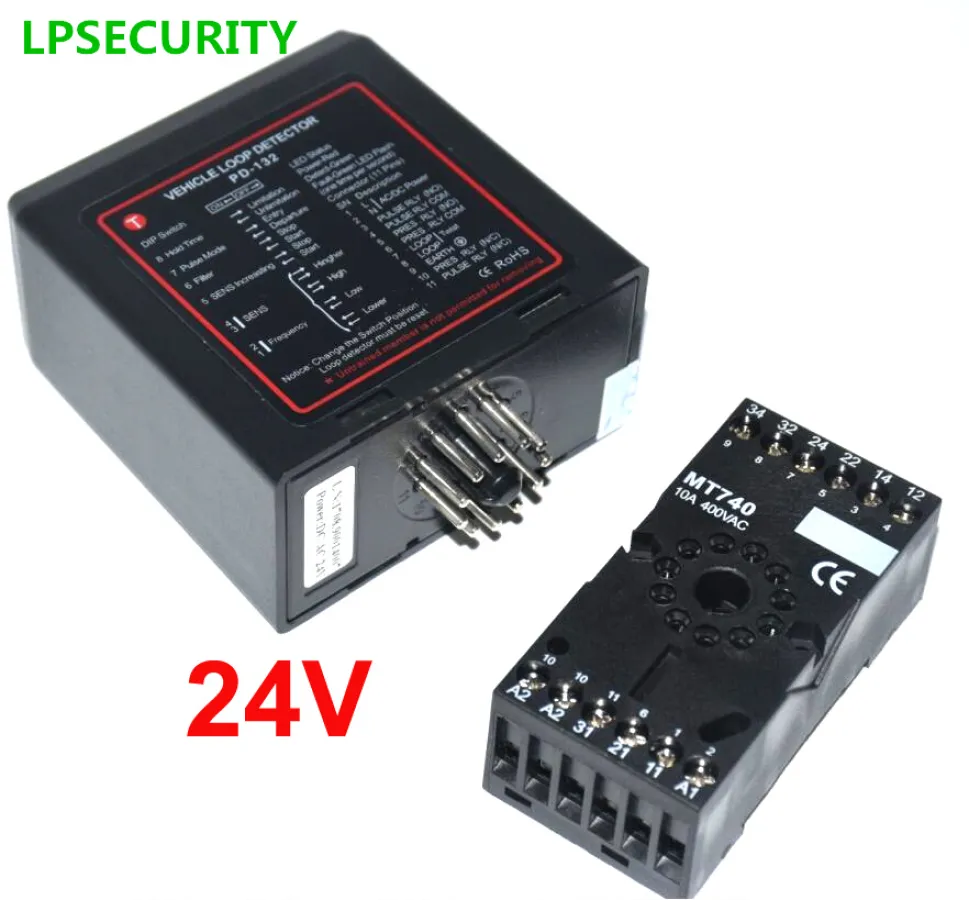

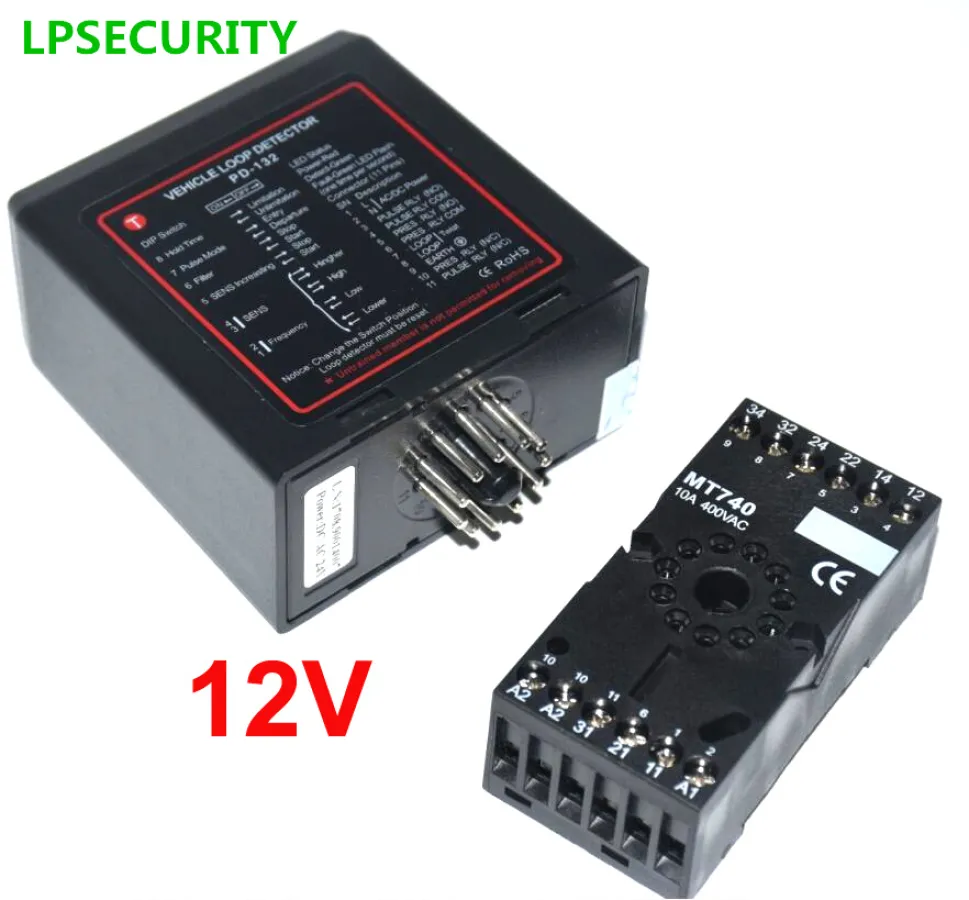

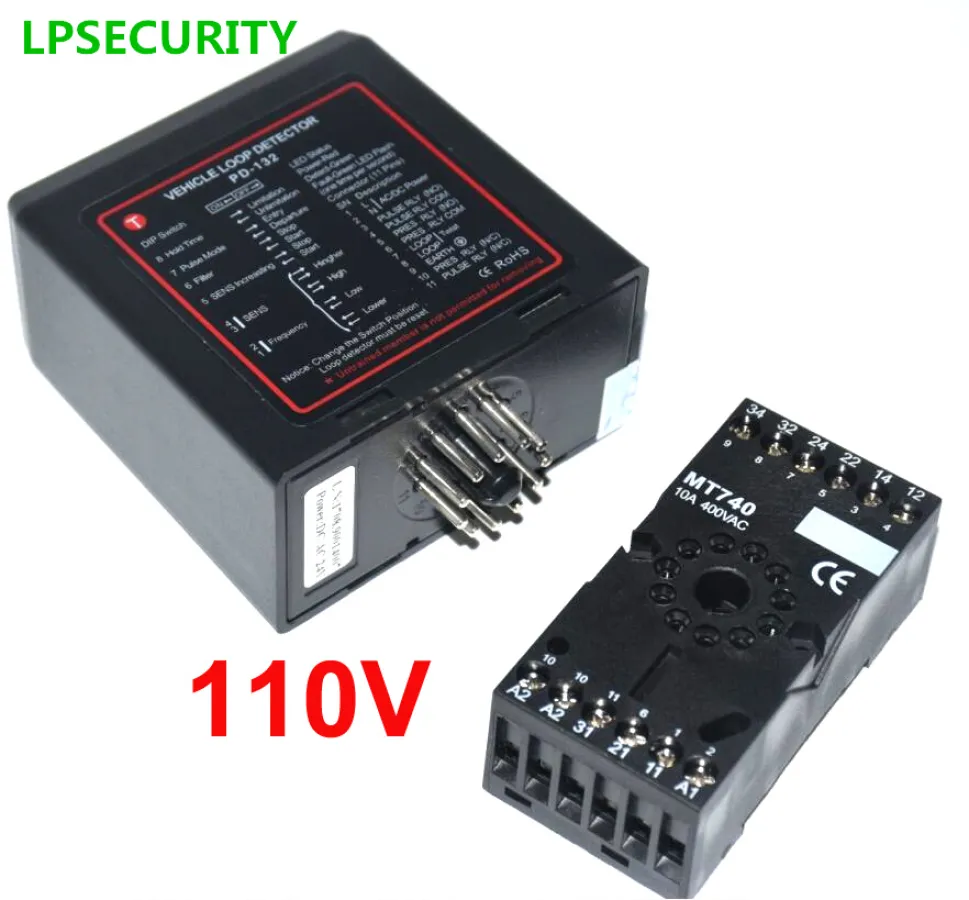

Supply voltage: 230VAC , 115V AC, 24V DC/AC, 12V DC/AC ( Seethe label on the detector)

Voltage tolerance AC: +10% / -15%

Voltage tolerance DC: ±15%

Power Consumption: 4.5VA

Output relays: 240V/5A

Operating temperature: -20°C to +65°C

Storage temperature: -40°C to +85°C

Frequency range: 20 kHz to 170 kHz

Reaction time: 10ms

Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes

Sensitivity: Adjustable in 4 increments

Loop inductance: Total loop plus connection wiring: 50μH to 1000μH.

Ideal is 100μH to 300μH

Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter

Size of Housing: 78x40x108 mm (L x W x H)



Packaging Details

  • Unit Type: piece
  • Package Weight: 0.320
  • Package Size: 14x7x14

  • Brand Name: LPSECURITY
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Model Number: PD132
  • Certification: CE
  • Smart home platform: other
  • Model: PD132
  • Name: loop detector
