Outdoor Standalone Zinc Alloy Metal Keypad Waterproof IP67 3000User RFID Card Reader Wiegand Controler for Access Control System
4.8 (15 votes) | 71 orders
Price:
US $64.62 - 88.81
Discount Price:
US $
44.33 -
57.73
-31%
- Color
-
-

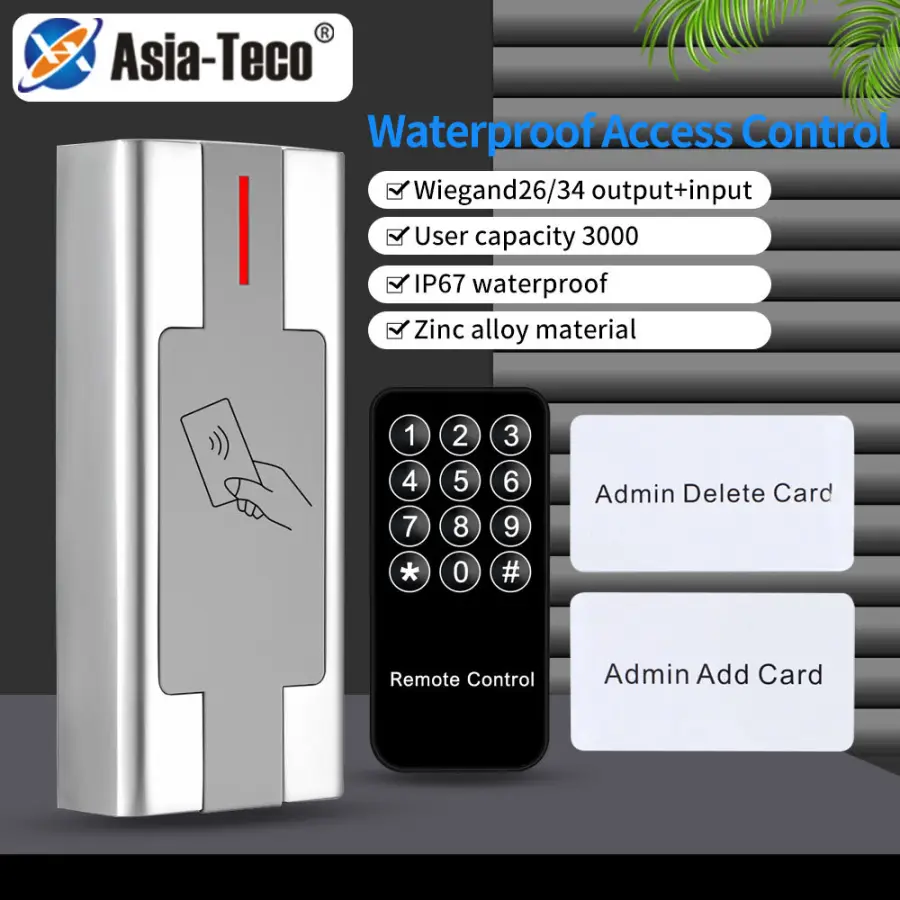

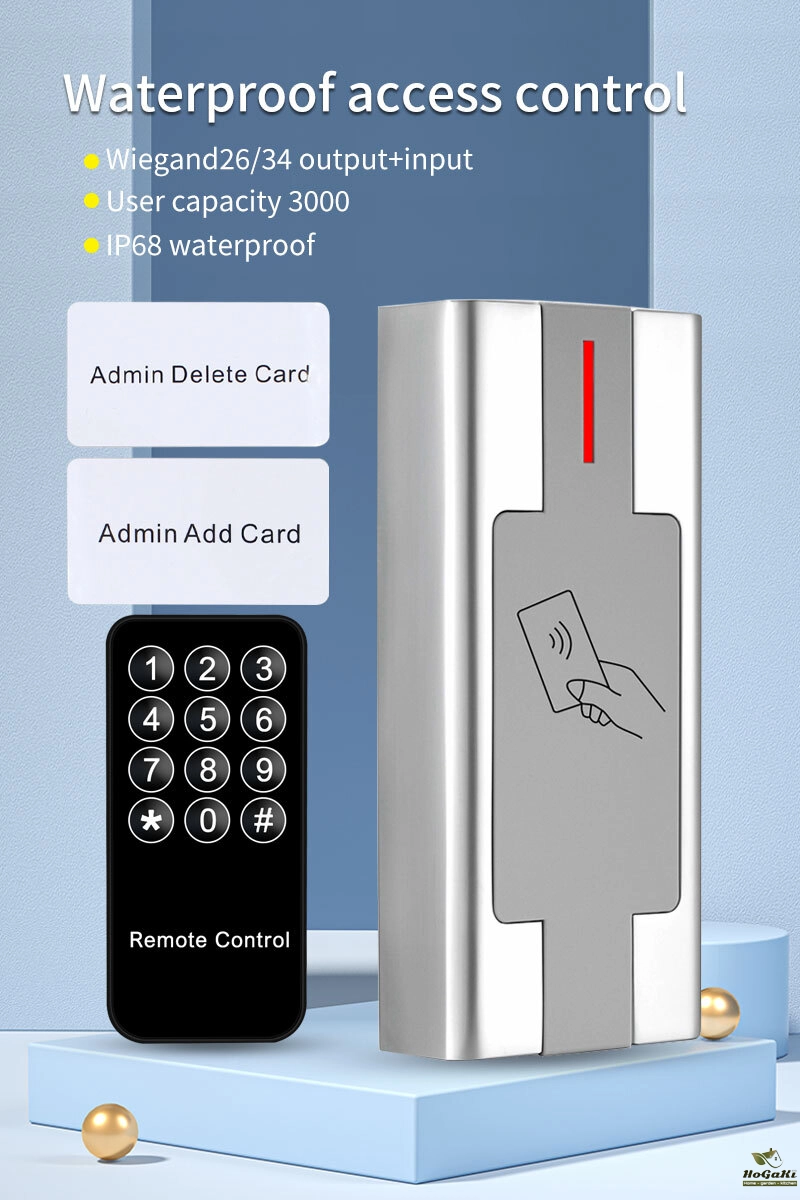

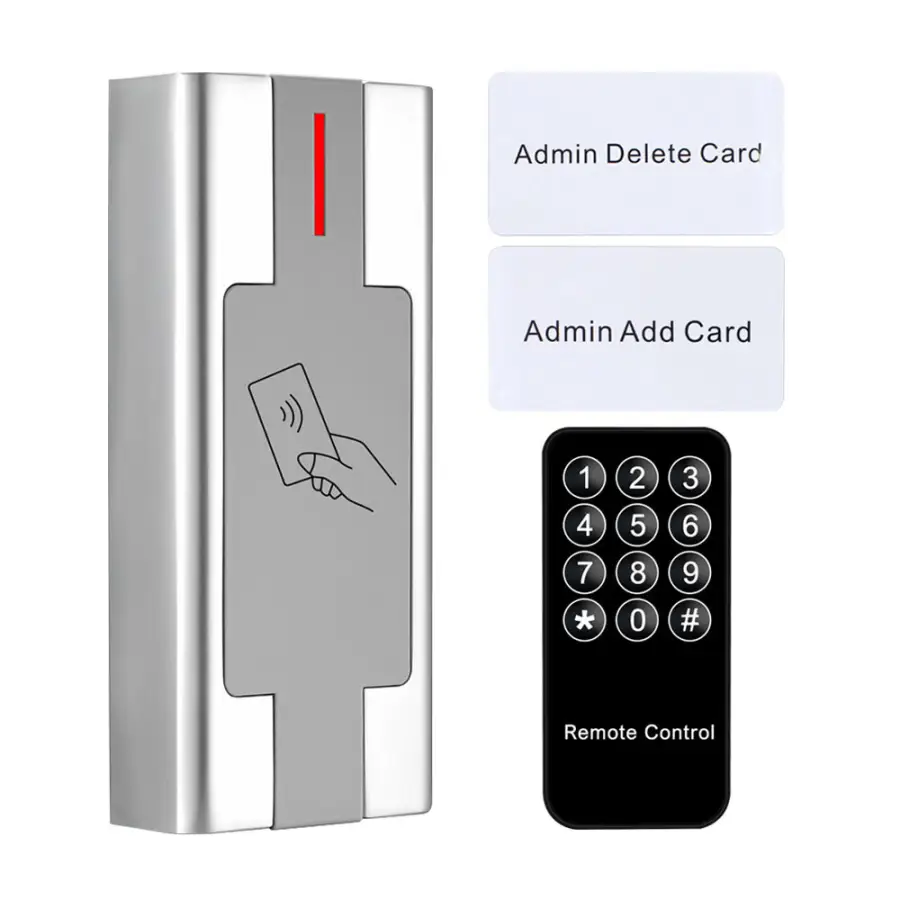

Outdoor Standalone Zinc Alloy Metal Keypad Waterproof IP67 3000User RFID Card Reader Wiegand Controler for Access Control System
This device is a waterproof access control/card reader which is
suitable for outdoor use. Support 3000 user cards. and guest user

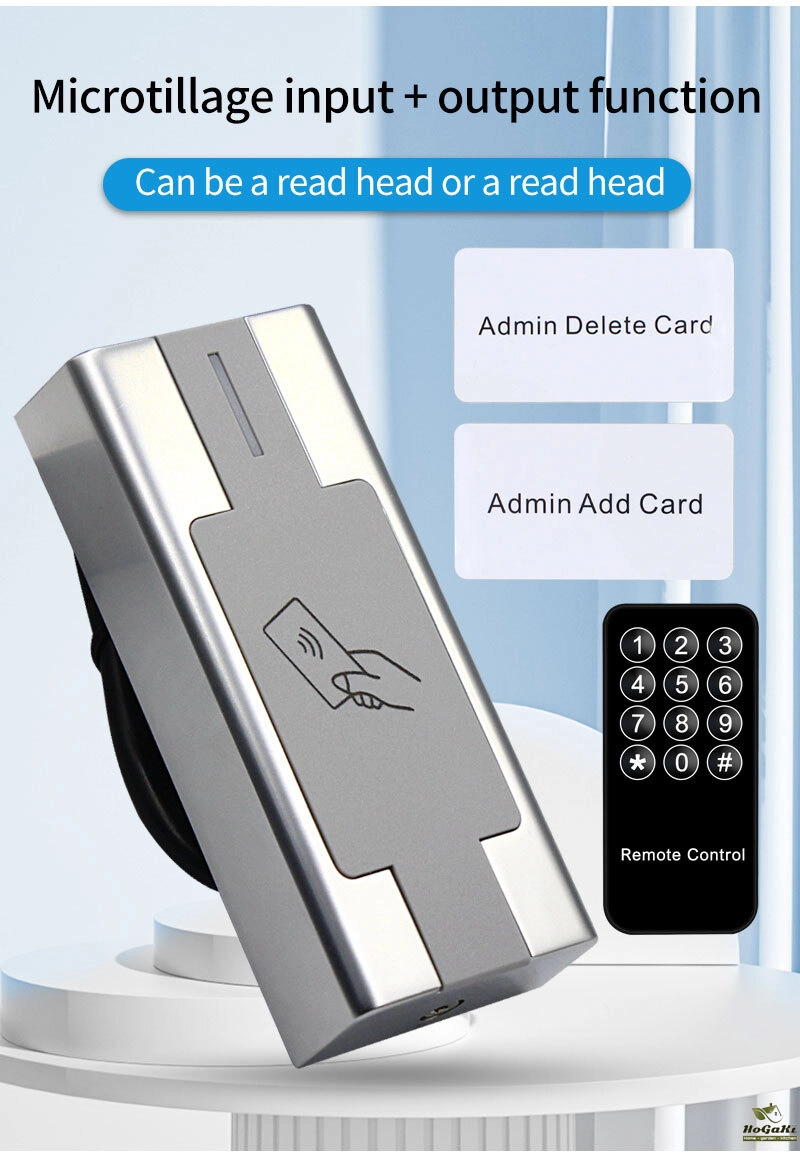

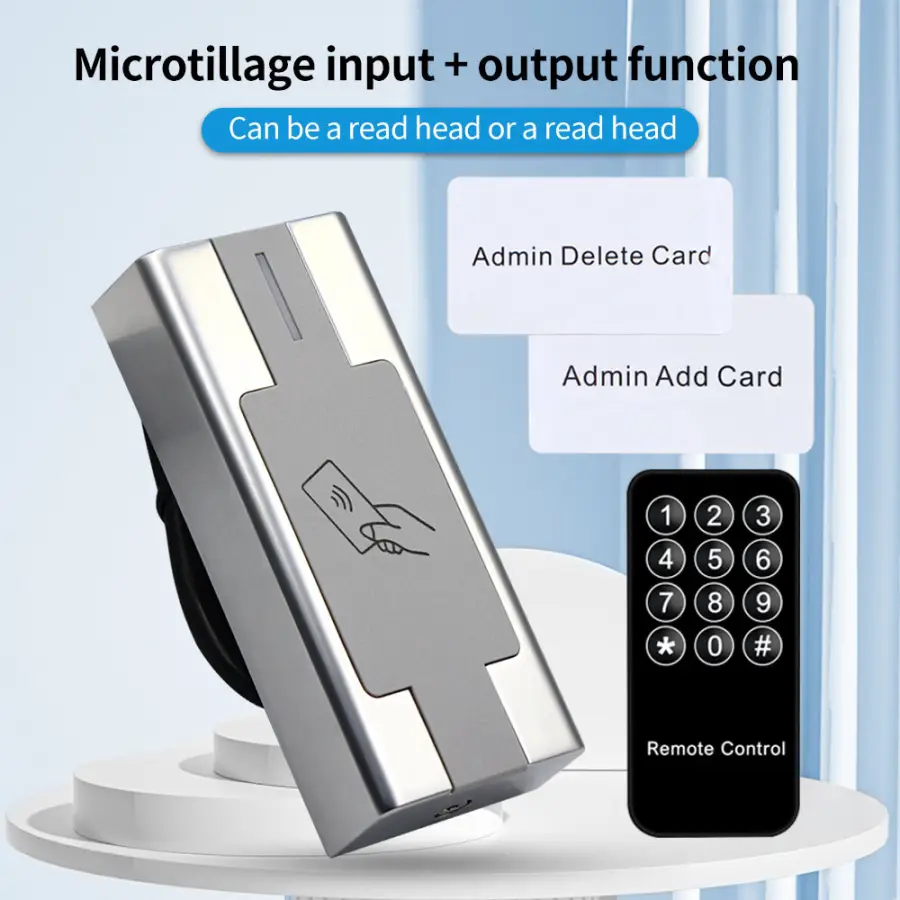

settings. Support wiegand input and output, multi-user card
authentication, can be set to card reader mode. Support upload and
download the data of card user.
Advantages and Features

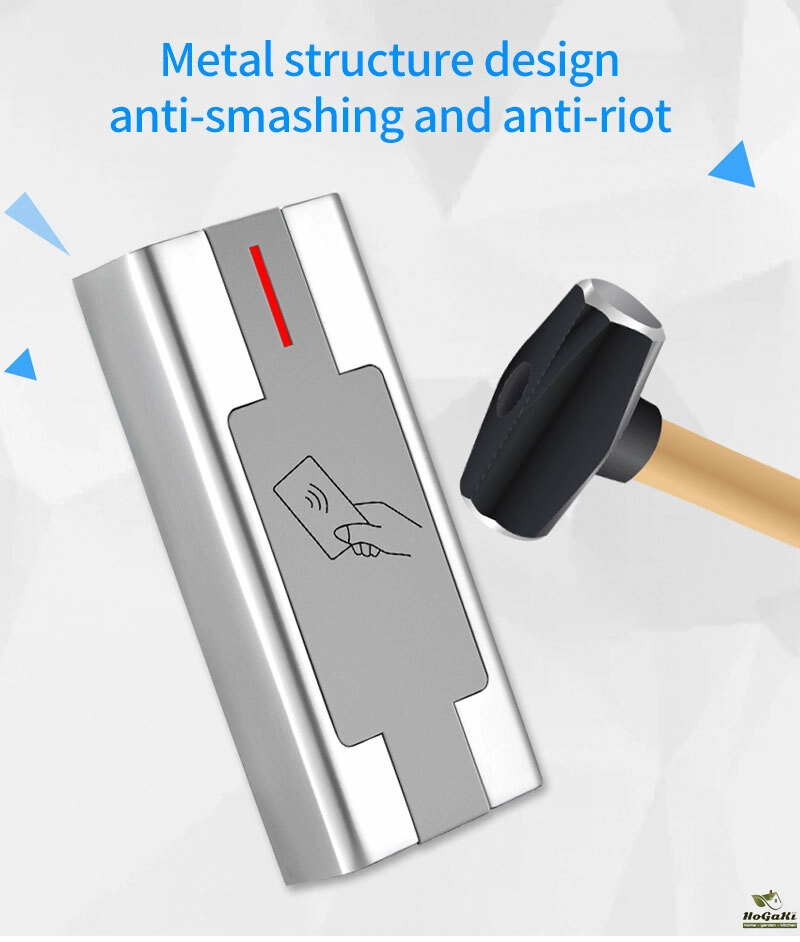

1.10V-24V Zinc Alloy material, Anti-vandal, and Anti-explosion
2.Waterproof, Conforms to IP68
3.Support EM or Mifare or EM & Mifare card（Optional）
4.Large User Capacity, 3000 Users
5.10 Visitor users
6.Support upload and download the data of card users.
7.Mifare Wiegand 26-44 bits, 56 bits, 58 bits Input/output EM Wiegand 26 bit.
8.Pulse Mode and Toggle Mode
Packaging Details
- Unit Type:
- Package Weight: 0.300
- Package Size: 10x10x15
- Brand Name: Asia-Teco
- Origin: Mainland China

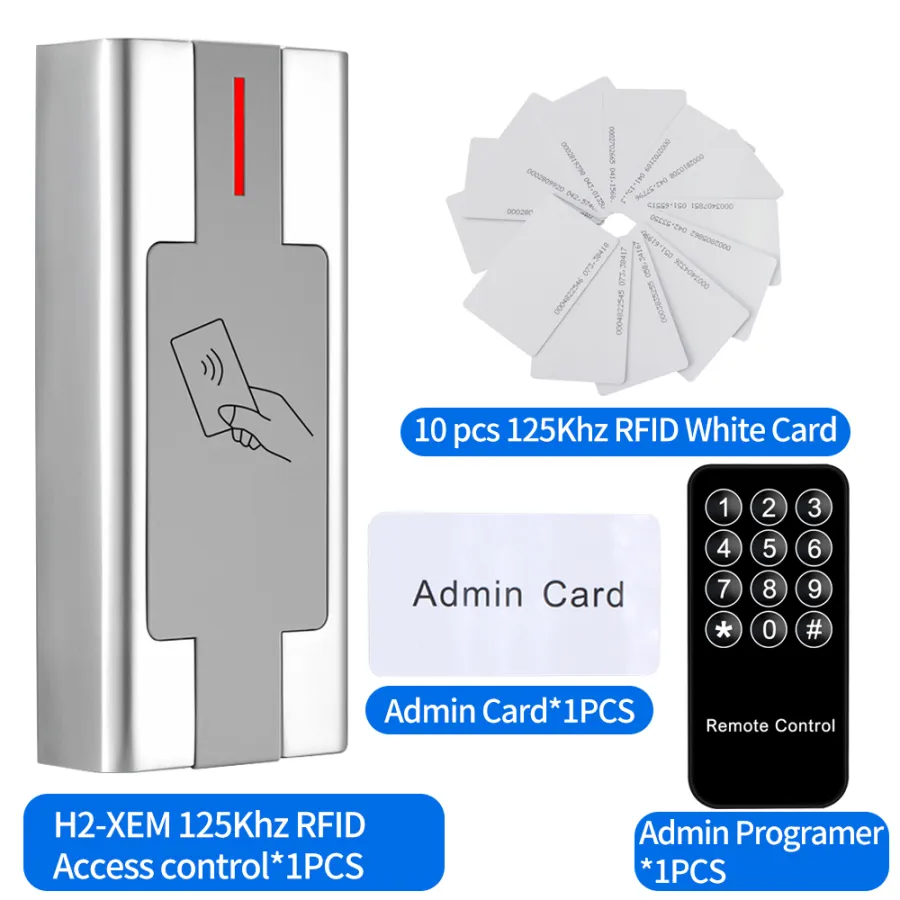

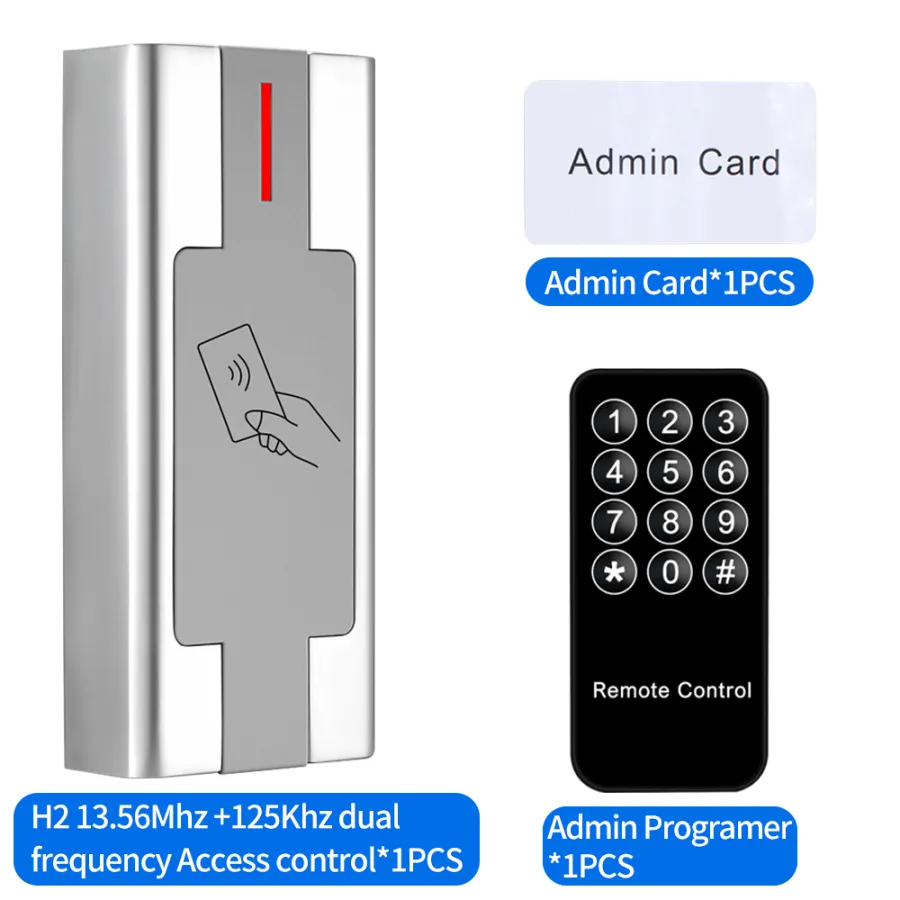

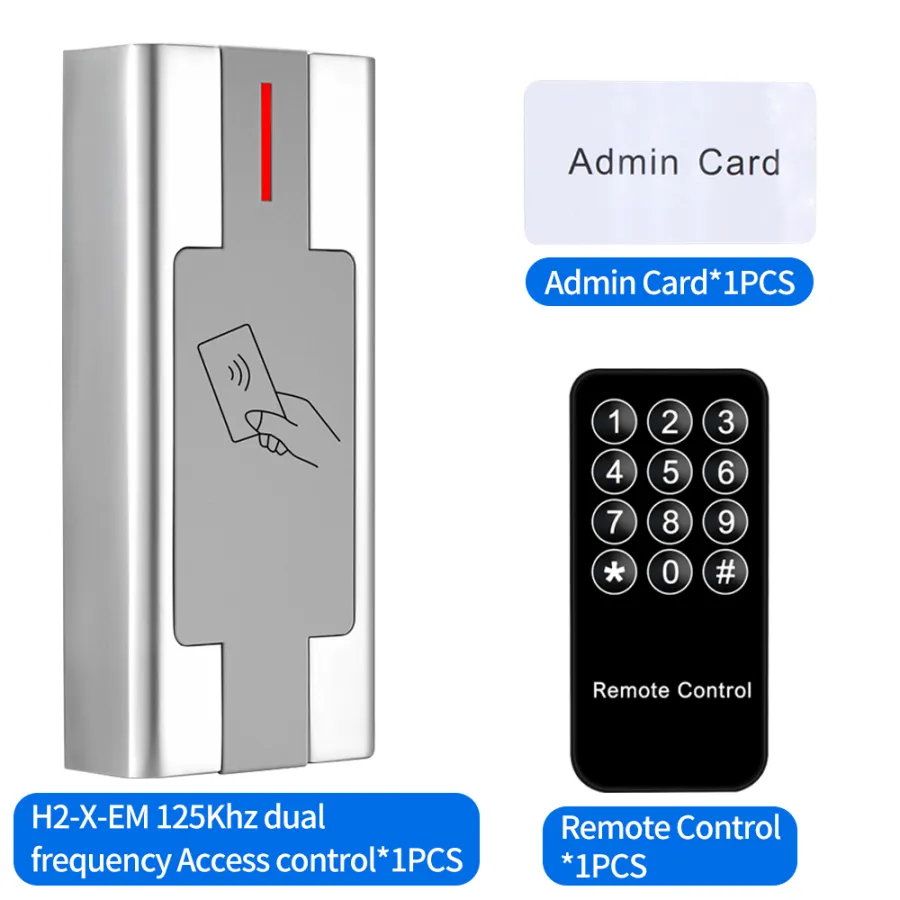

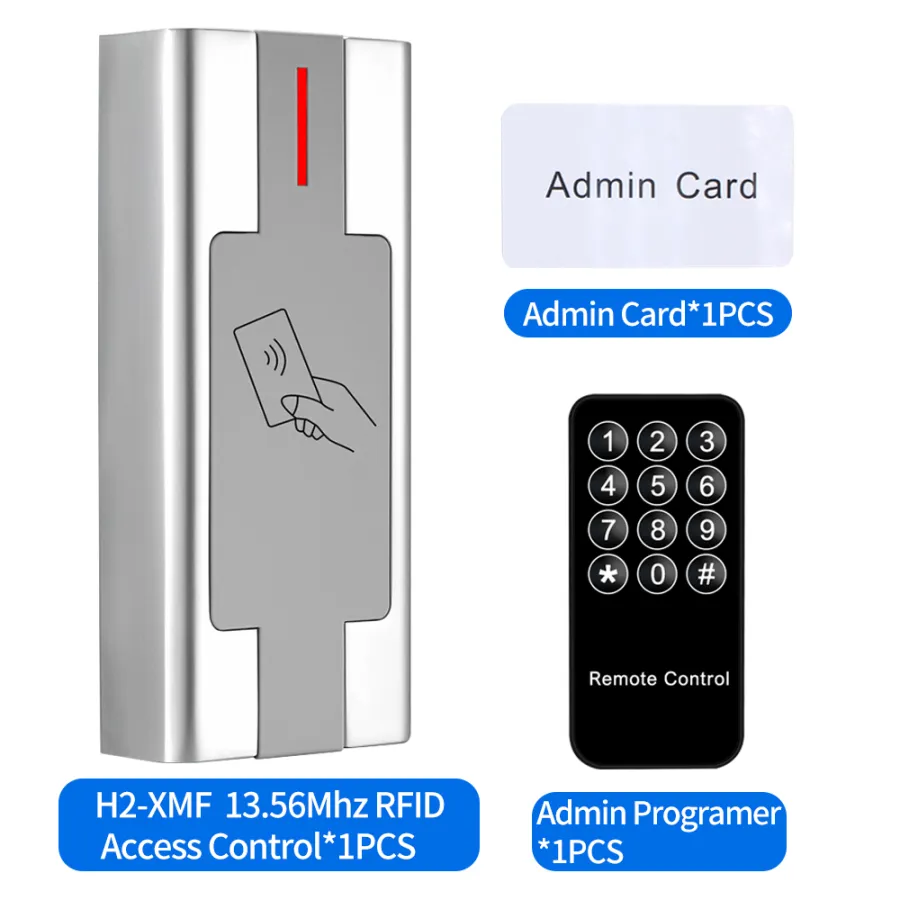

- Model Number: H2-X-EM / H2-X-MF / H2-X-EM+MF
- Direction: None
- Security Mode: Fail Safe

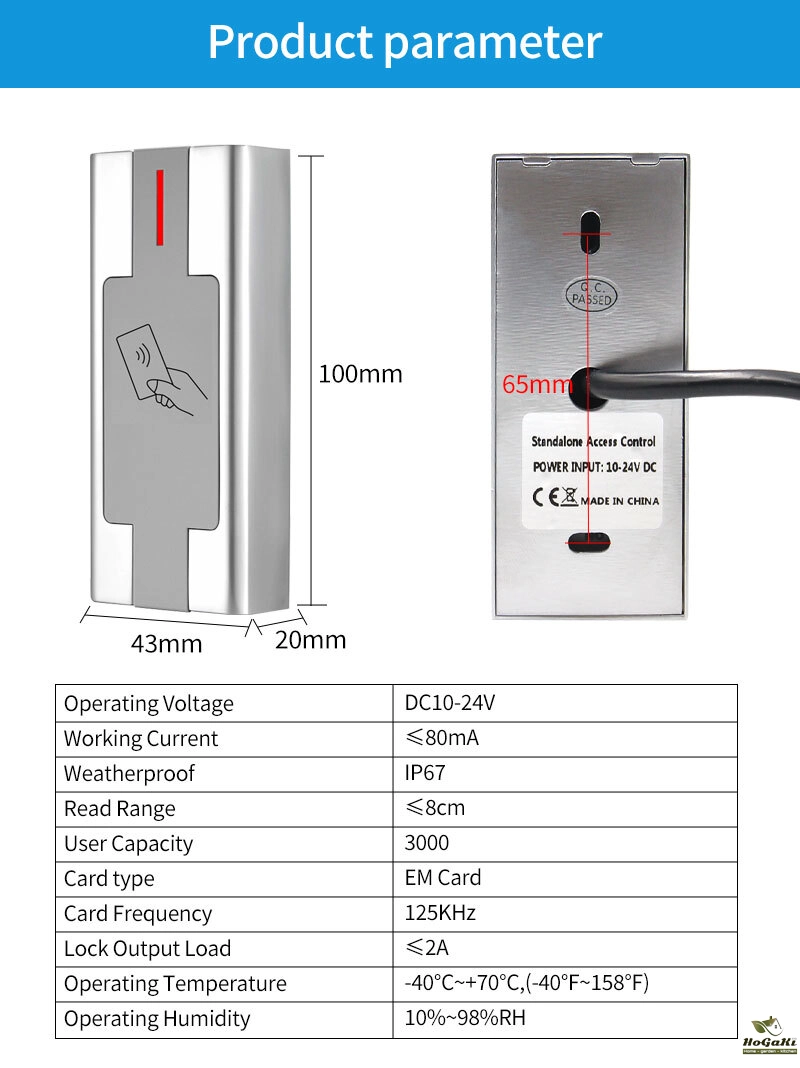

- Operating Voltage: DC10-24V
- Idle Current: ≤45mA
- Active Current: ≤150mA

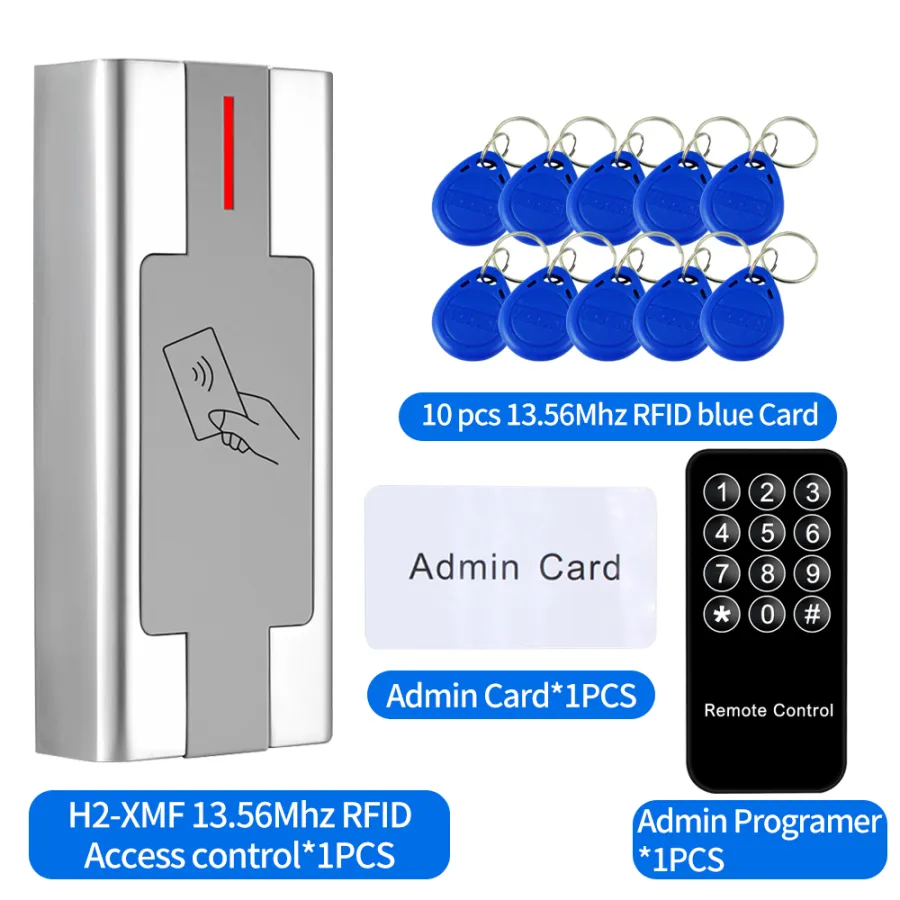

- Card Type: EM or Mifare or EM & Mifare card
- Card Frequency: 125KHz or 13.56MHz

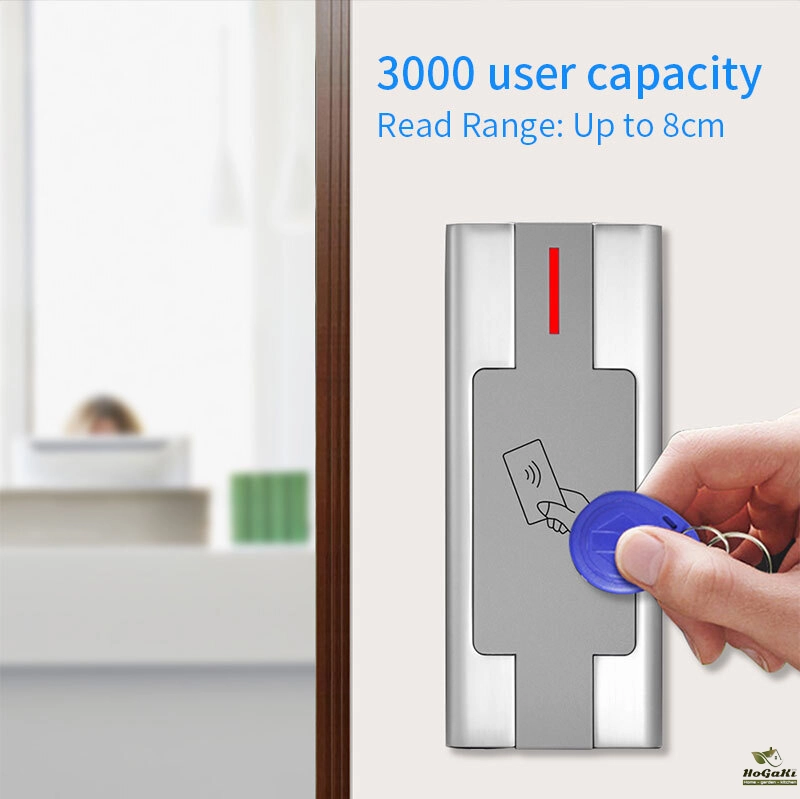

- Card User: 3000
- Read Range: 30~80mm
- Operating Temperature: -40℃~60℃
- Material: Zinc Alloy
- Working Current: ≤80mA

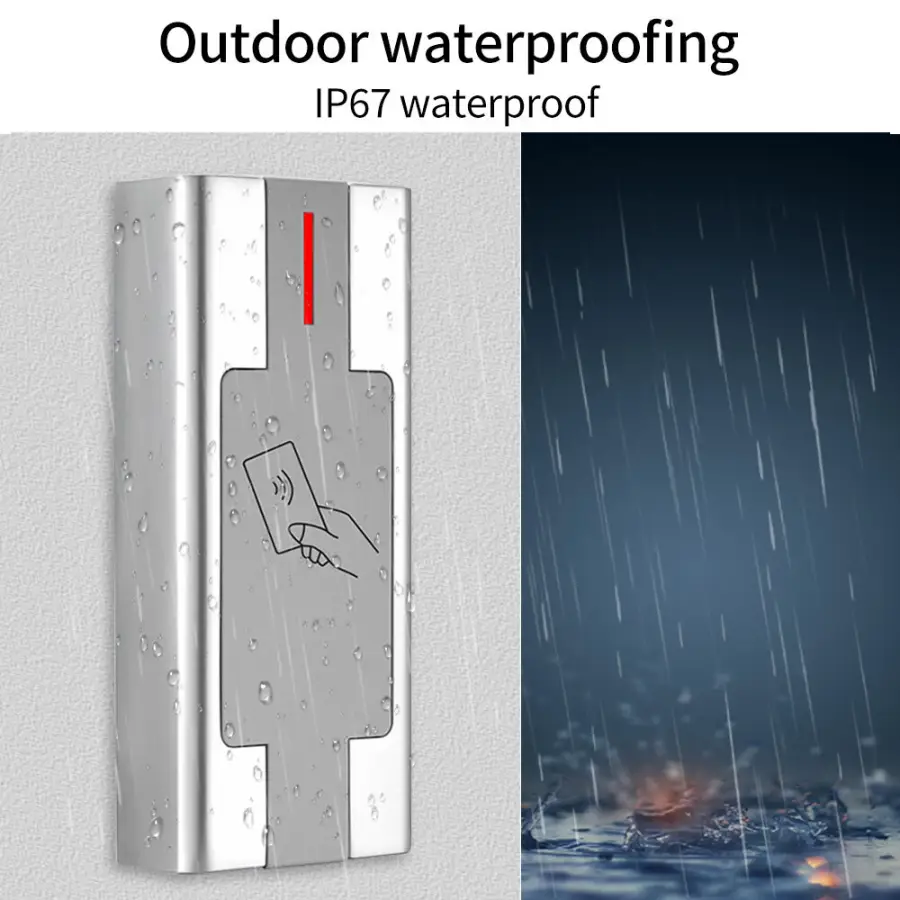

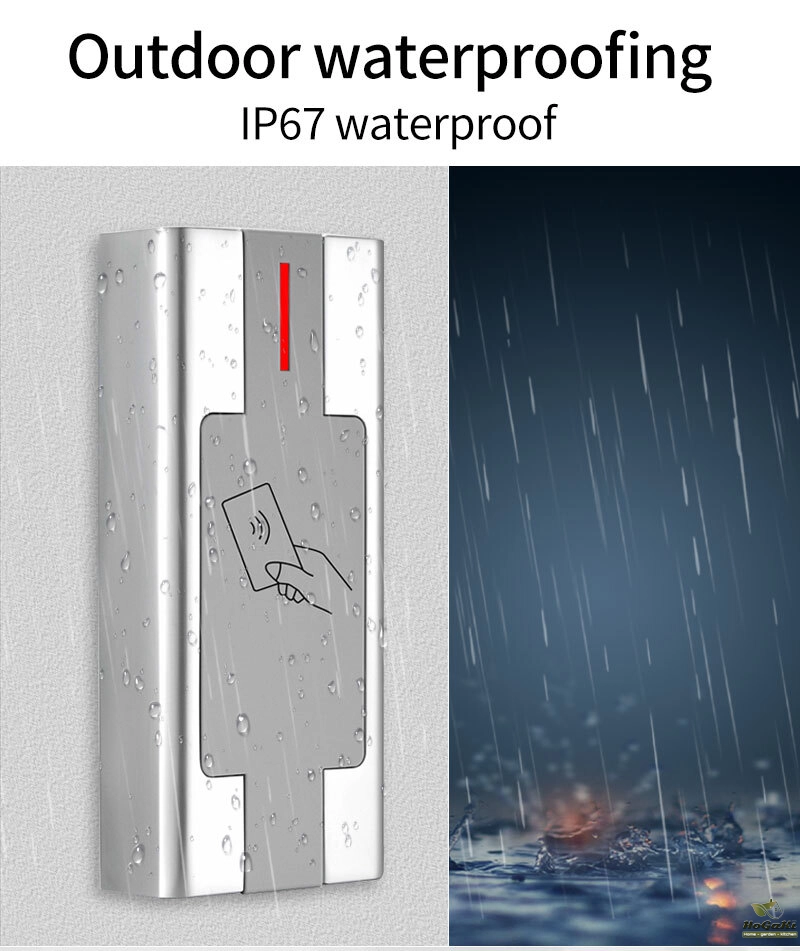

- Weatherproof: IP67
