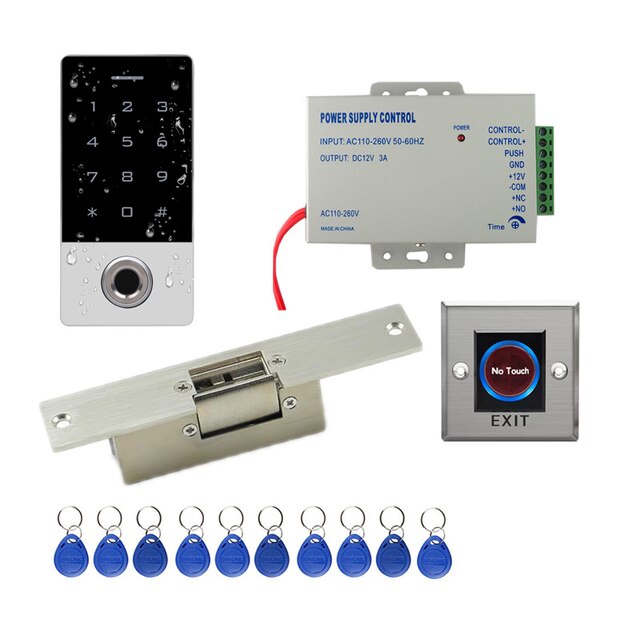

Outdoor Install Weather Proof Fingerprint Password Access Control DC24V Power Supply No Touch Infrared Sensor Exit Button
5.0 (2 votes) | 6 orders
Price:
US $119.12 - 176.56
/ piece
Discount Price:
US $
113.16 -
167.74
/ piece
-5%
- Color
-
-

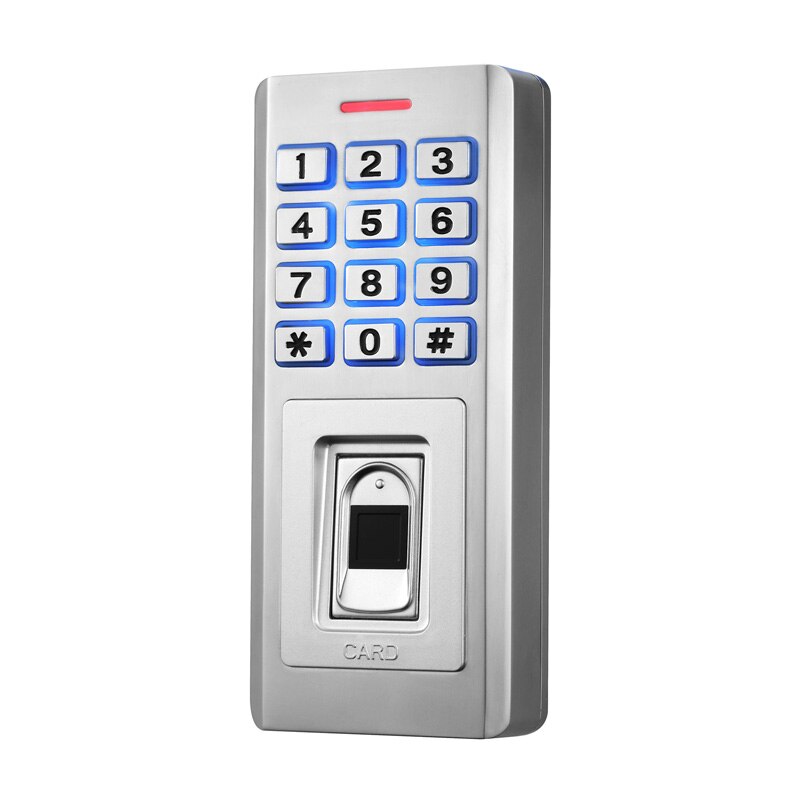

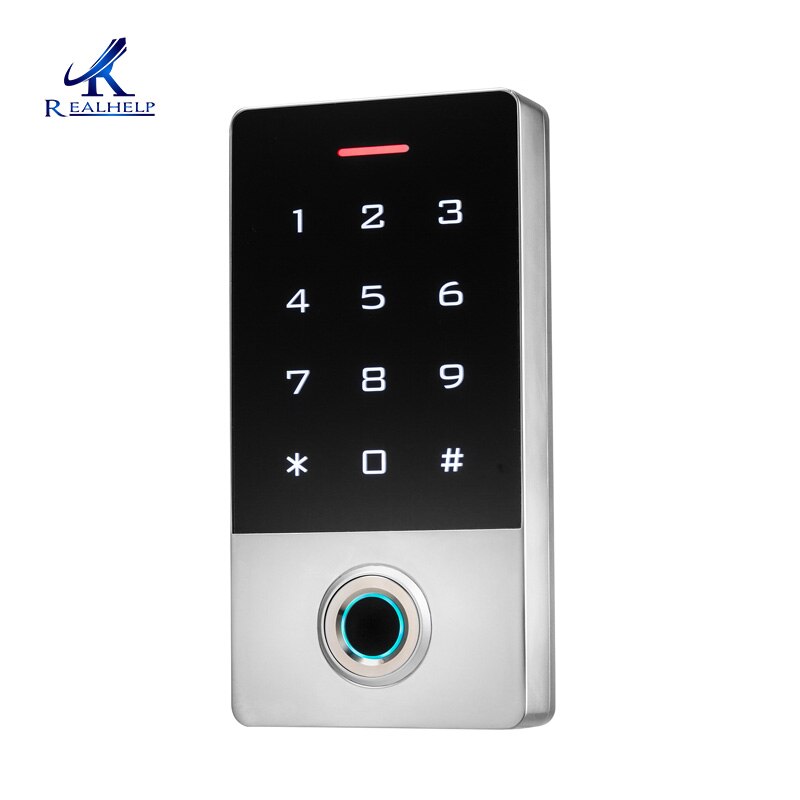

I.Advantage
Biometric fingerprint readers for access control applications
Excellent matching speed.
Metallic casing and IP65 rated which enables it to be resistant from water, dust and other outside damages.
Can be installed standalone or with any third party panels that support 26-bit wiegand.
II.Features
Fingerprint Capacity:300 templates
Card/Code capacity: 10,000
Interfaces for Access Control :3rd party electric lock, door sensor, exit button, alarm
Wiegand Signal: Input & Output
Waterproof: IP68
Working Voltage: DC12V-24V
Operating Current ≤100mA
Lock Output ≤1A
Reading Range: 2-5cm
Operating Temperature:-40-+60degree
Short-circuit Protect time ≤100us
Idle Current≤35mA
III.Install
Remove the back cover from the keypad using the supplied specia l screw driver
Drill 2 holes on the wall for the self-tapping screws and I hol e for the cable
Put the supplied rubber bungs to into the two holes
Fix the back cover firmly on the wall with 2 self tapping screw s
Thread the cable through the cable hole
Attach the keypad to the back cover. (See the figure below)

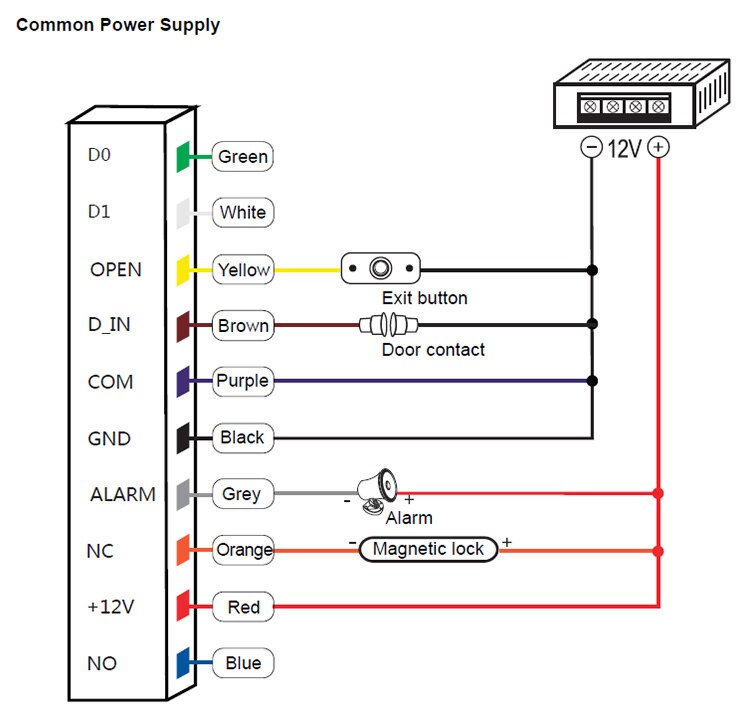

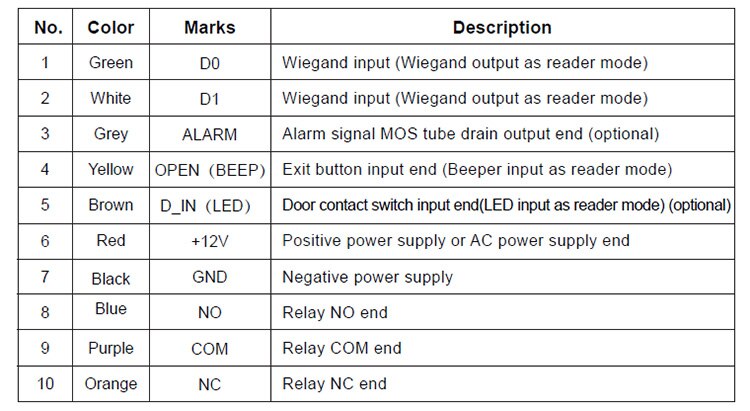

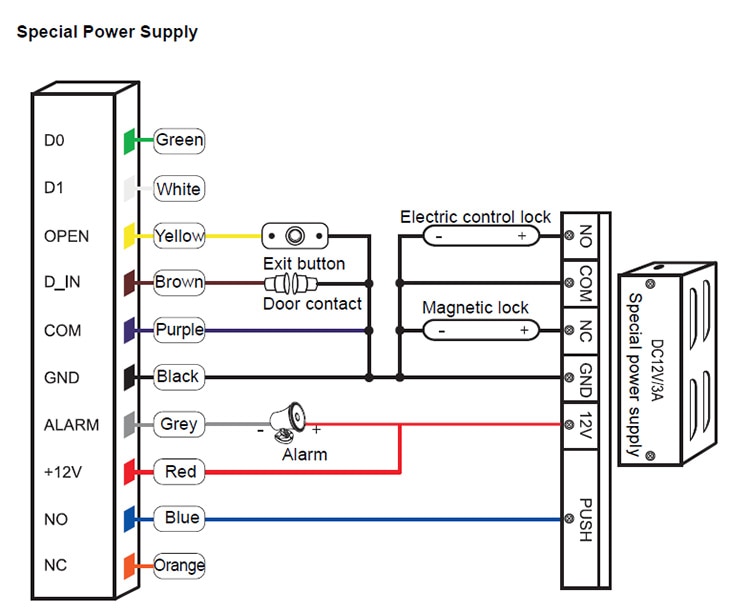

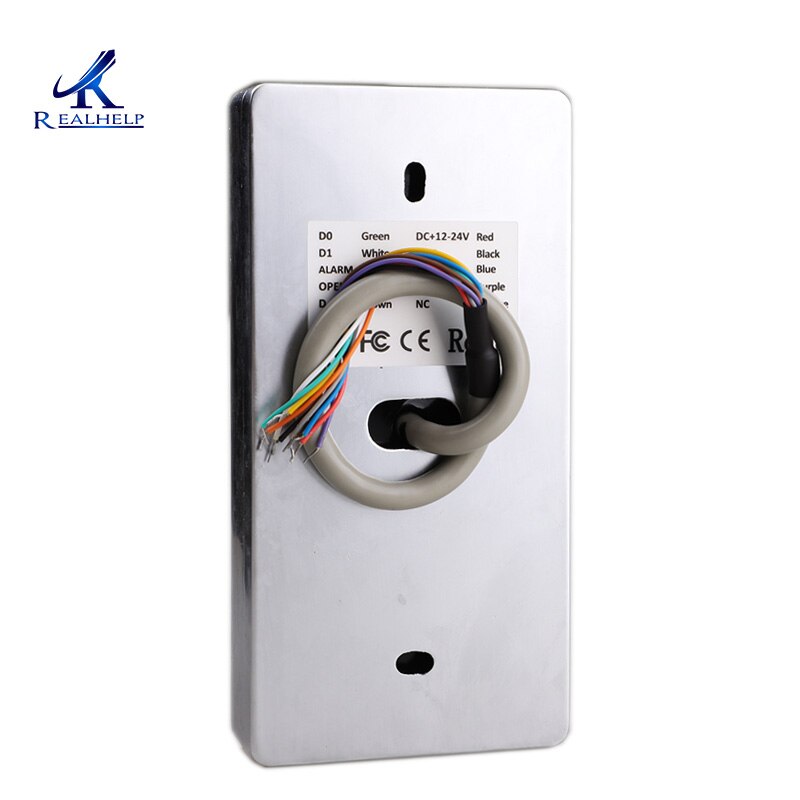

IV.Wiring

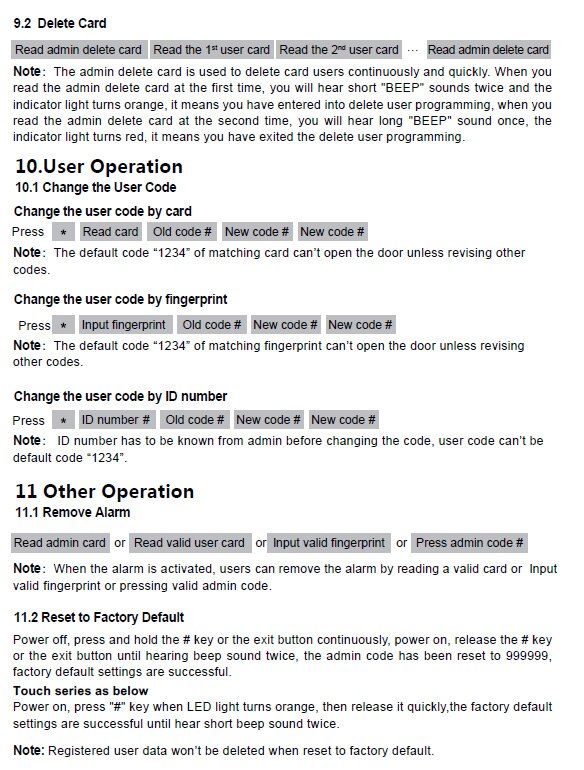

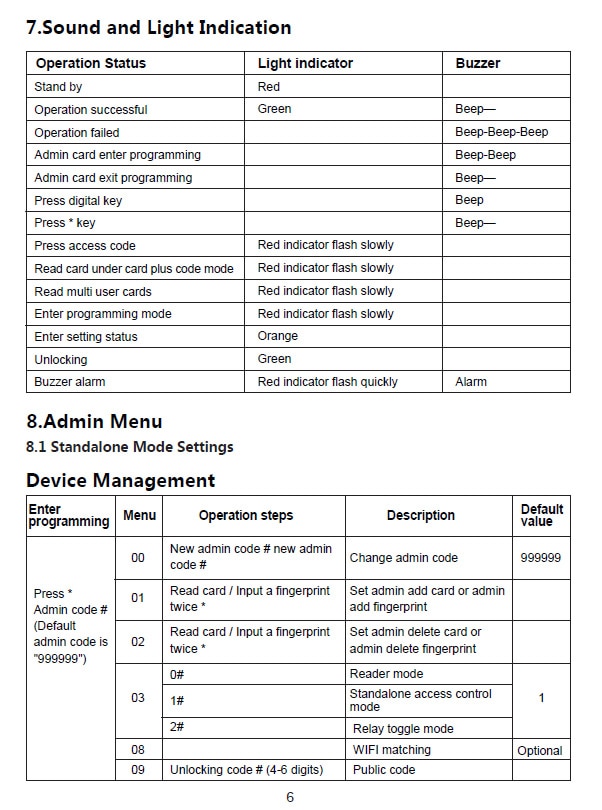

VI.Product user Manual

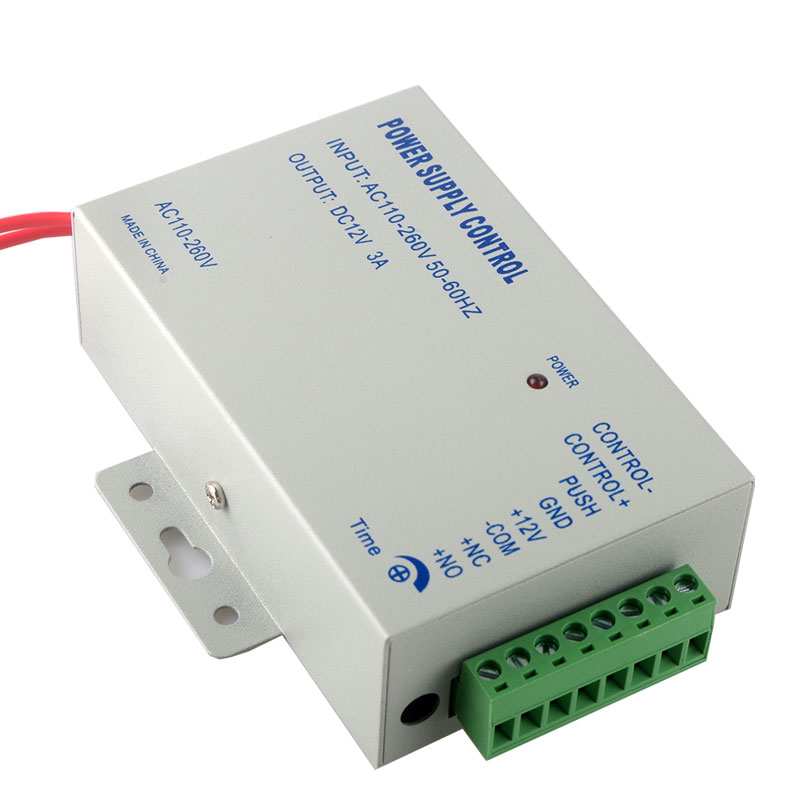

----------------------------------------------------Access Power Supply-----------------------------------------------------------------------------------------------------
With NC/NO outputsit canbe used for all kinds of electric lockers.
It has time prolongation control circuitunlock duration adjusting but!on with time range 0-10s.It is deployed with unlock but!on that can unlock directly.
It has auto protectionfuse and power switch.
Adjustable output voltage at range 11-14V.
It gives stable voltage output,which provides stable work condition for electronic.
AC Input Voltage:110V-240V AC
Output Voltage:DC12V
Output Electric Current :3A
Operating Temperature :-20"C-+60'C
------------------------------------------------------------NO typeElectric strike lock lock-----------------------------------------------------------------
I.Applicable Scope
The electric strike is applicable for metal doors of office buildings and residential communities. it is compatible with the latch bolt mechanical lock or handle lock
II.Product advantage
Conceal mounted installation with elegant appearance. The electromagnet selects the sign quality magnetic materials and special processing technique, ensure it has no residual magnetism and no mechanical damage after long time use.
III.Open mode
90 degrees ,holding force up to 800lb(400kg), Fail secure:Locked when Power Off
IV.Electric property
Current(mA) |
240 |
Operation |
Fail Secure(Locked when Power off) |
Signal Output |
NO |
Voltage(DC) |
12V |
Weight |
0.36kg |
Size |
150X28X35mm |

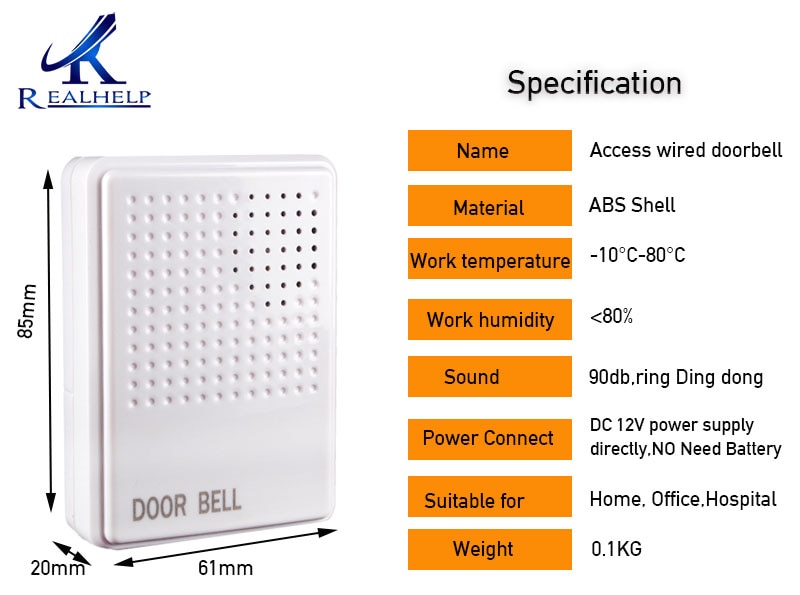

-----------------------------------------------------------------------------12V Doorbell--------------------------------------------------------------------------------------------------------

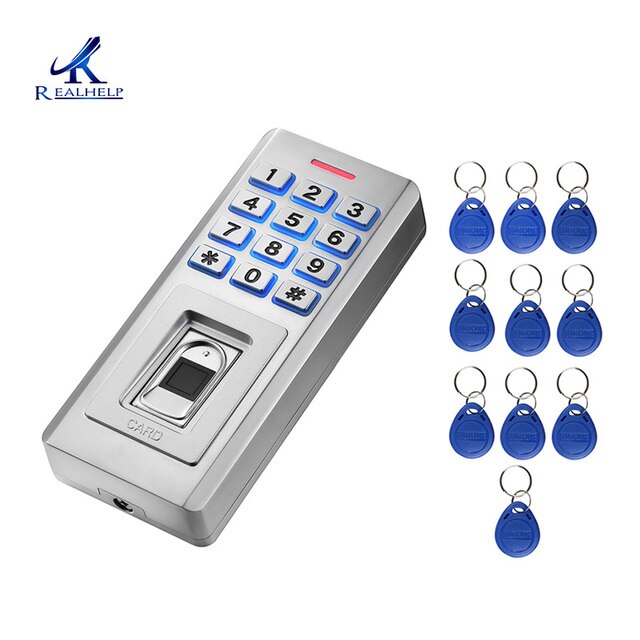

- Model Number: KF5
- Brand Name: Realhelp
- Certification: CE
- Origin: Mainland China
- Fingerprint Capacity: 300 templates
- Card/Code capacity: 10,000
- Wiegand Signal: Input & Output
- Waterproof: IP68
- Working Voltage: DC12V-24V
- Operating Current: ≤100mA
- Reading Range: 2-5cm
- Operating Temperature: -40-+60degree
