1U Rack 8 Channel H.265/H.264 HDMI Video Encoder HTTP RTSP RTMP UDP ONVIF to IPTV or NVR
0.0 ( votes) | 2 orders
Price:
US $
1694.72
/ piece
- Ships From
1U Rack 8 Channel H.265/H.264 HDMI Video Encoder HTTP RTSP RTMP UDP ONVIF to IPTV or NVR

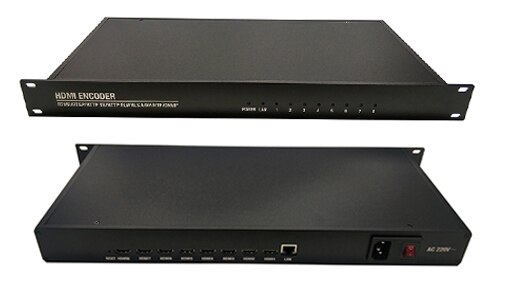

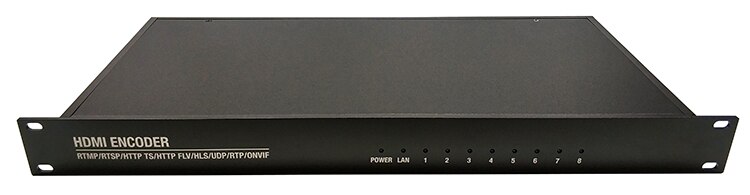

CEL-HEC581U 1U Rack 8 Channel H.265/H.264 HDMI Video Encoder encoder is our newest professional HD audio & video encoding device with powerful functionality.
It support H.265/H.264 encoding,max up to 1080P60 streaming.It is equipped with 8xHDMI channels input supporting H.265 and MPEG-4 AVC/H.264 High Profile code format & main Profile code format.
its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as IPTV digital head-end. satellite and terrestrial digital TV etc.it can support VLC decode. ( using IPTV firmware)
also, can transfer 8 HDMI signals as 8 channels ONVIF signals to NVR, similar to 8 sets of IPCamera. （using ONVIF firmware）
Features
1. It support H.265/H.264 encoding,max up to 1080P60 streaming.It is equipped with 8xHDMI channels input supporting H.265 and MPEG-4 AVC/H.264 High Profile code format & main Profile code format.
2. Embedded Linux System, stable and effective.

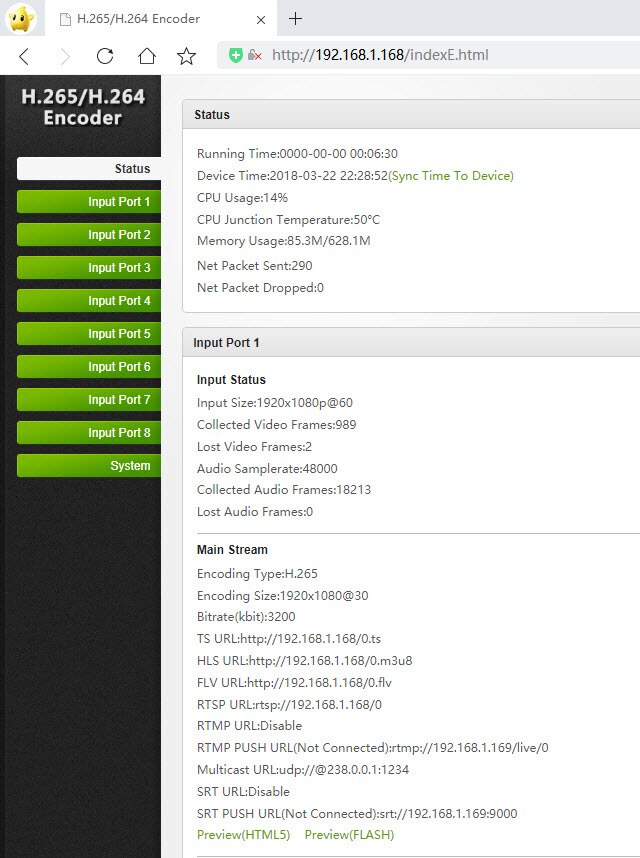

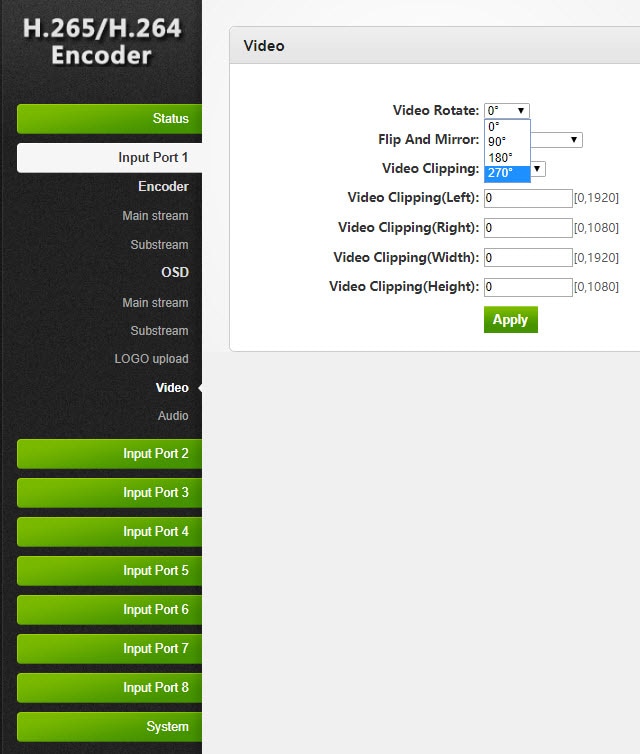

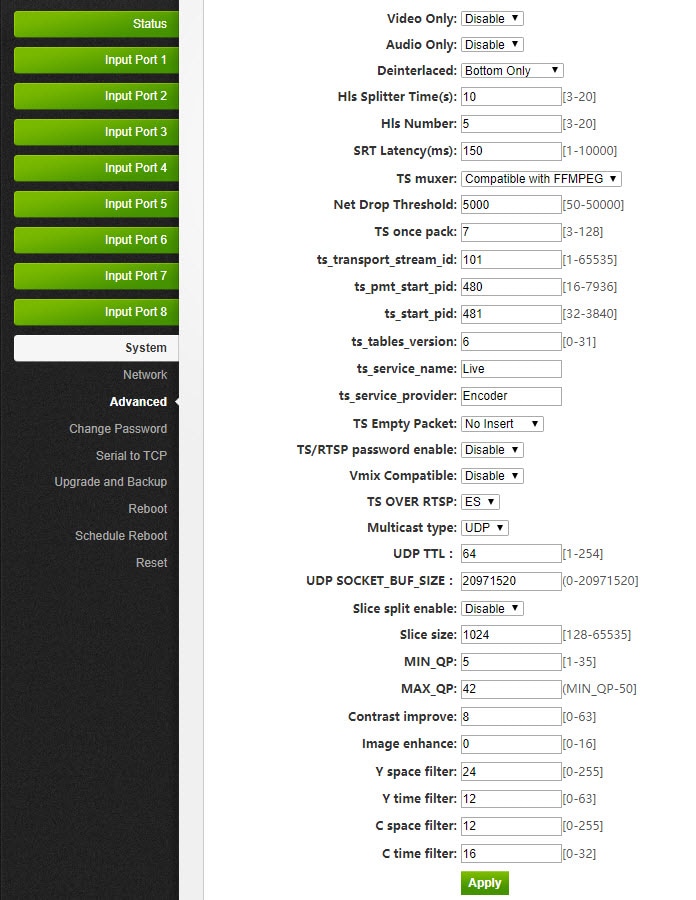

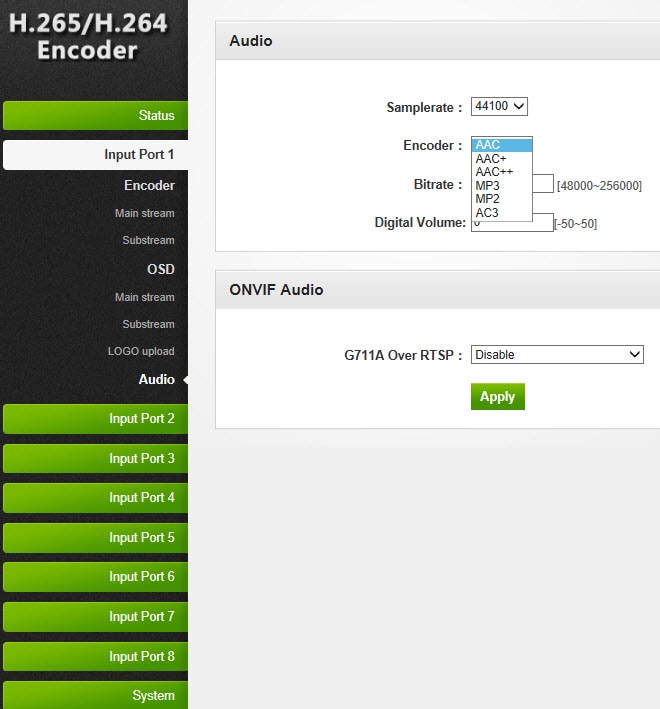

3. Friendly Web Control UI, default IP is 192.168.1.168. the user name and password both are admin
4. Support RTMP/RTMPS, RTSP, UDP, HTTP, HLS, FLV, SRT and ONVIF Protocols.

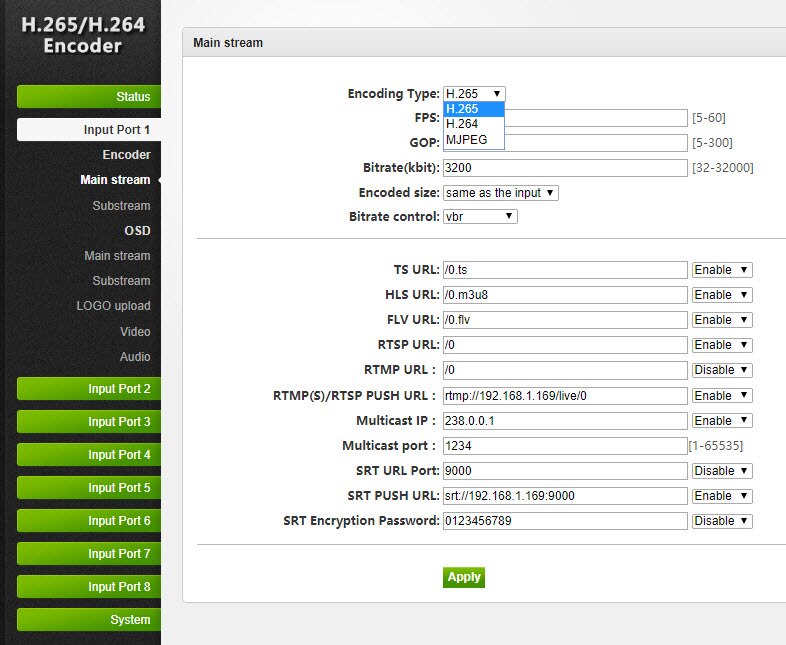

5. for every channel, there are a main-stream and a sub-stream to output at the same time.
6. Main Stream Support output resolution - 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144.

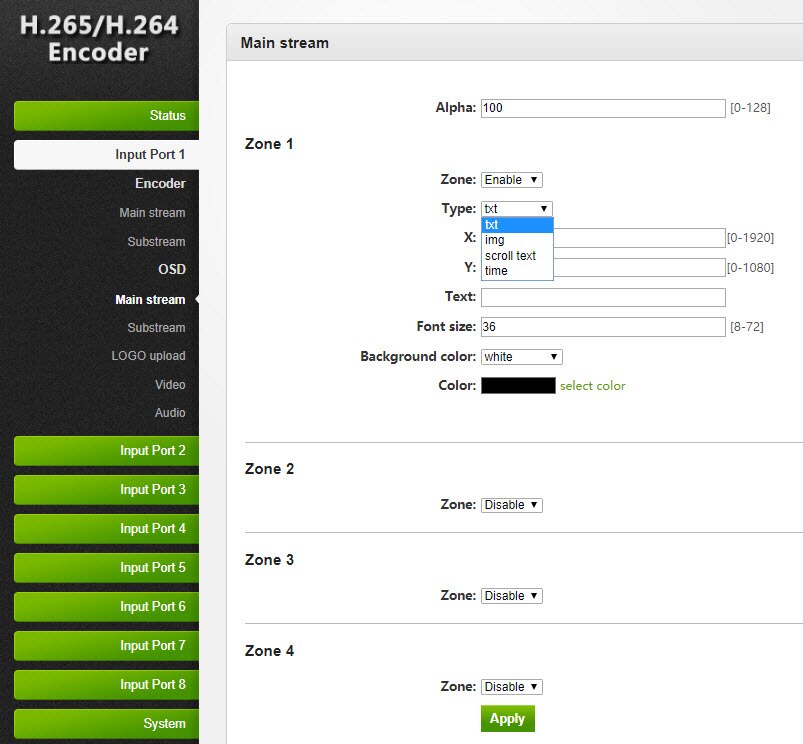

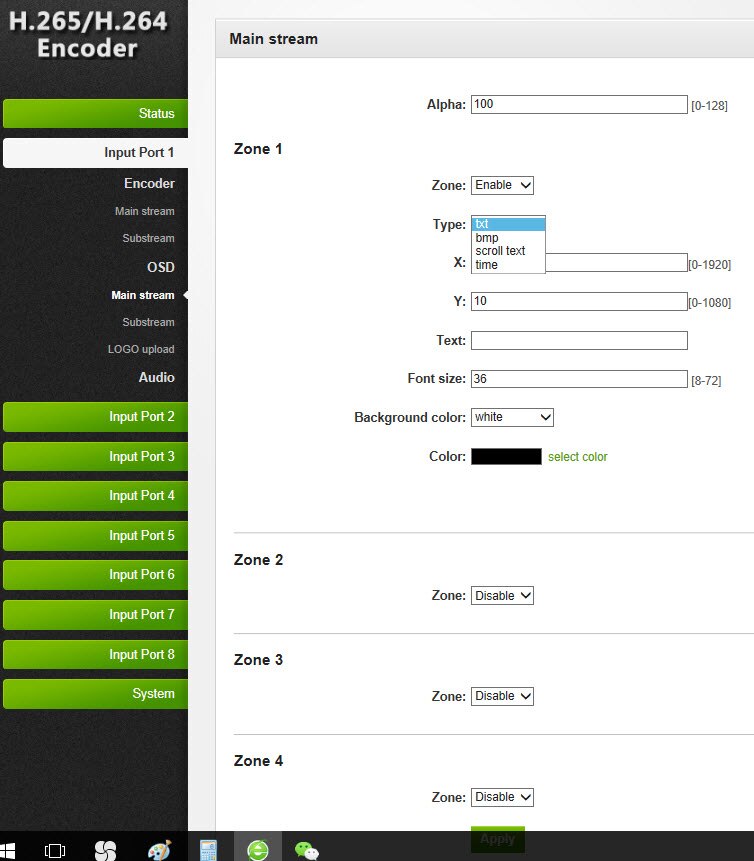

7. Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
8. Output Stream bitrate adjustable.
9. Support firmware upgrade.
10. IP address can be set by yourself.
11. Support remote control via IP.
Application
1. HDMI to IPTV
2. Online Live Broadcasting to youtube,facebook, etc.
3. NVR (Network Video Recorder) for Hikvision, DAHUA, etc.
4. Teaching / Campus Broadcasting
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System
9. UDP to Digital TV modulator
Usages
You can play the video directly using some software tools like vlc or potplayer etc, for example,
1) http://192.168.1.168/0.ts
2) http://192.168.1.168/0.m3u8
3) http://192.168.1.168/0.flv
4) rtsp://192.168.1.168/0
5) rtmp://192.168.1.168/0
6) udp://@238.0.0.1:1234
7) srt://192.168.1.168:9000
notes: the IP address can be configured to anyone.
also,set the RTMP/RTMPS/RTSP/SRT push address from the third live webcasting platform, such as Facebook, YouTube, Ustream, Twitter, Sopplus, etc.
rtmp://p1bj.weizan.cn/v/xxxxx_149690778246506326?t=260e1
srt://srt.p1bj.weizan.cn:8100?streamid=xxxxx_149690778246506326?t=260e1

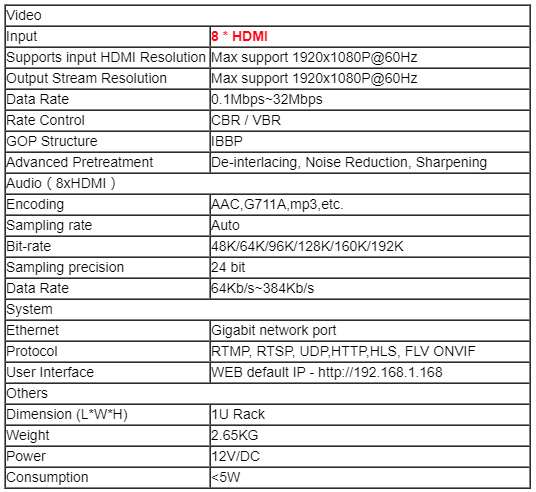

Specifications
Package
- a 1U Rack 8 channel h.265/h.264 HDMI encoder
- a 220V AC line
- Model Number: CEL-HEC581U
- Brand Name: VBCTECHNOLOGY
- Origin: Mainland China
- Certification: NONE
